Panasonic FV-0511VKS3S, FV-0511VKS3, FV-0511VK3, FV-1115VK3 Install Instructions

INSTALLATION INSTRUCTIONS

English

Representative models:

FV-0511VKS3S

Ventilating Fan

Model No.

Contents

IMPORTANT SAFETY INFORMATION..........................................2-3

PLEASE READ PRIOR TO INSTALLING THIS FAN..........................4

DESCRIPTION..................................................................................4

UNPACKING.....................................................................................4

SUPPLIED ACCESSORIES AND DIMENSIONS............................5-6

WIRING DIAGRAM...........................................................................7

FEATURES........................................................................................7

INDICATIONS (Plug ‘N Play™ FUNCTION DEVICES).................8-10

INSTALLATION (Plug ‘N Play™ FUNCTION DEVICES).................10

INSTALLATION (CEILING MOUNTING)....................................11-14

FV-0511VKS3S
FV-0511VKS3
FV-0511VK3
FV-1115VK3

INSTALLATION (WALL MOUNTING)........................................14-16

INSTALLATION (RETROFIT).......................................................16-17

MAINTENANCE (CLEANING).....................................................17-18

PRACTICAL GUIDE TO INSTALLATION........................................18

SPECIFICATIONS.......................................................................19-20

PRODUCT SERVICE.......................................................................20

FV-0511VK3FV-0511VKS3

FV-1115VK3

READ AND SAVE THESE INSTRUCTIONS

Thank you for purchasing this Panasonic product.
Please carefully read the section “IMPORTANT SAFETY INFORMATION”.
Failure to comply with instructions could result in personal injury or property damage. Please
explain to users how to operate and maintain the product after installation and present this
manual to users. Please retain this manual for future reference.

IMPORTANT SAFETY INFORMATION

For your safety

To reduce the risk of injury, loss of life, electric shock, fire, malfunction, and damage to equipment or property,
always observe the following safety precautions.

Explanation of symbol word panels

The following symbol word panels are used to classify and describe the level of hazard, injury, and property
damage caused when the denotation is disregarded and improper use is performed.

WARNING

CAUTION

NOTICE

The following symbols are used to classify and describe the type of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must be followed in order to
operate the unit safely.

This symbol is used to alert users to a specific operating procedure that must not be performed.

This symbol is used to alert users not to disassemble the equipment.

This symbol is used to alert users to make sure of grounding when using the equipment with the
grounding terminal.

Denotes a potential hazard that could result in serious injury or death.

Denotes a hazard that could result in minor injury.

Denotes a hazard that could result in property damage.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING:

Use this unit only in the manner intended by the manufacturer. If you have any questions, contact the
manufacturer.

Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting
means to prevent power from being switched on accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable
codes and standards, including fire-rated construction.

Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel
burning equipment to prevent backdraft. Follow the heating equipment manufacturer’s guideline and
safety standards such as those published by the National Fire Protection Association (NFPA), and the
American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code
authorities.

When cutting or drilling into wall or ceiling, do not damage electrical wiring or other hidden utilities.

Ducted exhaust fans must always be vented to the outdoors.

If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application and
be connected to a GFCI (Ground Fault Circuit Interrupter) protected branch circuit.

Do not use replacement parts that have not been recommended by the manufacturer (e.g. parts made at
home using 3D printer).

This product must be properly grounded.

Do not use this unit with any solid-state speed control device. Solid state controls may cause harmonic
distortion which can cause a humming noise in the motor.

IMPORTANT SAFETY INFORMATION

Do not disassemble the unit for reconstruction. It may cause fire or electric shock.

Install the fan at least 1.5 m (5 feet) above the floor.

CAUTION

Follow all local electrical and safety codes, as well as the National Electrical Code (NEC) and the
Occupation Safety and Health Act (OSHA), using UL approved wire nuts.

Make sure that the electric service supply voltage is AC 120V, 60Hz.

The special-purpose or dedicated parts, such as mounting fixtures, must be used if such parts are
provided.

Please wear gloves to protect hands during installation.

Do not install this ventilating fan where interior room temperature may exceed 104°F (40°C).

For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.

Do not kink the supply wiring.

NOTICE

Provide make up air for proper ventilation.

Do not connect multiple units in parallel. If two or more units are connected to one switch in parallel, the
unit may not function.

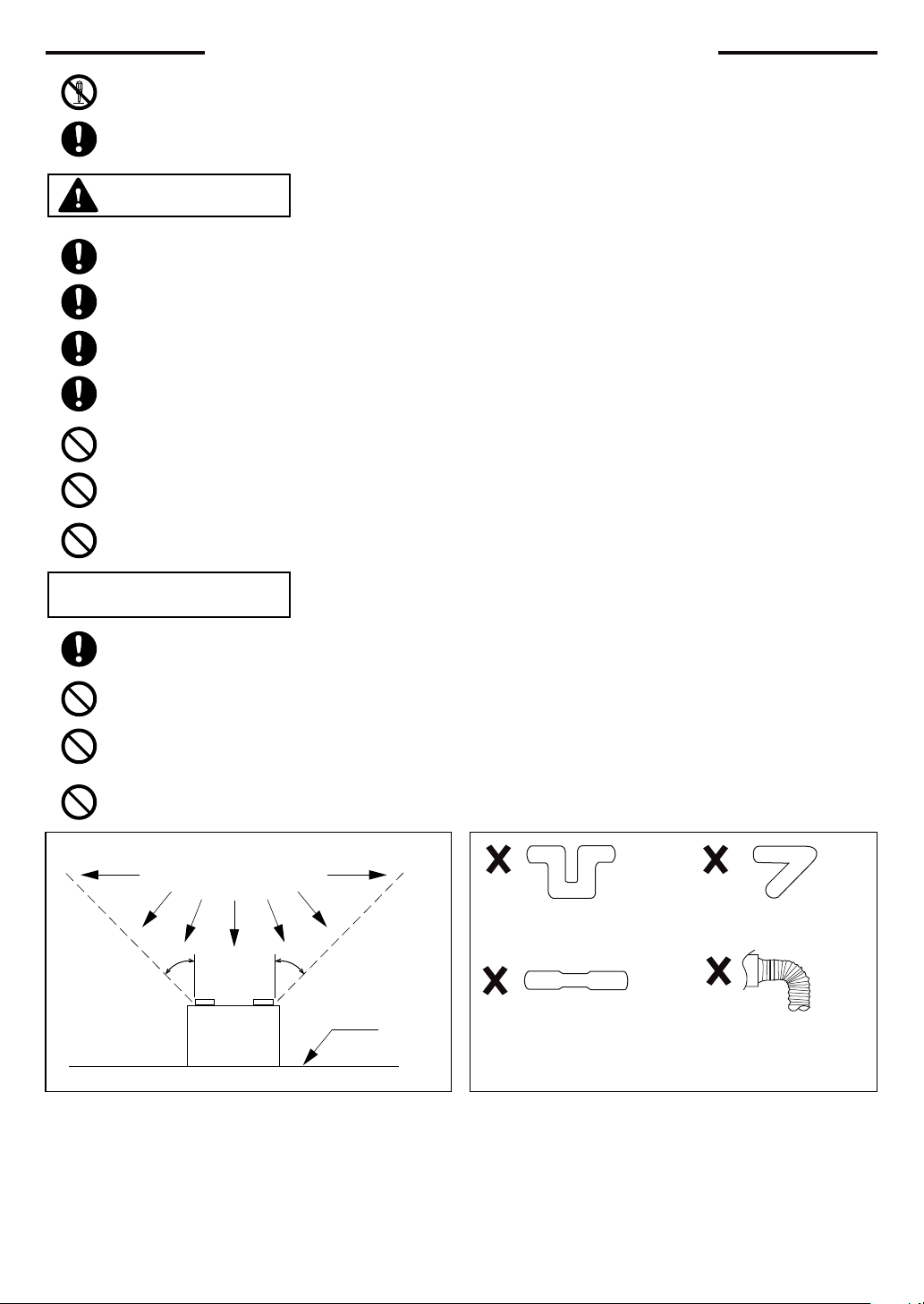

Do not install fan above or inside 45-degree angle projected outwards from the cooking equipment element
closest to fan (Fig. A).

Do not install the unit where ducts are configured as shown (Fig. B).

(Cooking area)

Do not install above or

inside this area

-Successive bending -Excessive bending

45°

Cooking

equipment

Fig. A

45°

Floor

-Squeezed duct

-Bend close to duct adaptor

Fig. B

3

PLEASE READ PRIOR TO INSTALLING THIS FAN

Continuous ventilation: These fans are designed to run continuously ensuring a healthy environment at low CFM
levels 24 hours a day. By utilizing the optional Multi-Speed module, the fans are built to run continuously at a
pre-set lower level (FV-0511VKS3S, FV-0511VKS3 and FV-0511VK3: 0, 30, 40, 50, 60, 70, 80, 90, 100
CFM; FV-1115VK3: 0, 50, 60, 70, 80, 90, 100, 110, 120 CFM). The setting is dependent on the size of the
house and the individual wishes of the homeowner. It is crucial that the installer pre-sets the lower setting
during the installation. Please refer to the chart below and Multi-speed module on page 8.

Custom vent Multi-Speed module (Lower Setting). ASHRAE 62.2-2022

(sq.feet)

< 500

501-1000

1001-1500
1501-2000
2001-2500
2501-3000
3001-3500
3501-4000
4001-4500
4501-5000

Spot ventilation: These fans are also built to take care of the homeowner’s spot ventilation needs when the room
is occupied. The basic fan models allow a choice of three speeds. When fans are equipped with the optional
Multi-Speed module, these models increase to a maximum level of 150 CFM for the FV-1115VK3 and 110 CFM
for FV-0511VKS3S, FV-0511VKS3 and FV-0511VK3 either when the switch is turned on, or activated by the
optional Condensation Sensor module (FV-CSVK1) or the optional Motion Sensor module (FV-MSVK1).

Two Bedrooms

38
53
68
83

98
113
128
143
158
173

Three Bedrooms

45
60
75

90
105
120
135
150
165
180

Four Bedrooms

53
68
83

98
113
128
143
158
173
188

Five Bedrooms

60
75

90
105
120
135
150
165
180
195

A High/Low Delay Timer, located inside the fan unit, is utilized to return the fan back to the pre-set continuous
ventilation mode. The installer needs to consult with the homeowner for the desired setting on the timer (0 - 60
minutes) and make the adjustments during the installation.

DESCRIPTION

These products are listed by UL under UL file No. E78414.
This product use a sirocco fan driven by a DC motor powered by an integral transformer. The motor is designed
to have long operating life, high dynamic response, higher speed ranges and energy savings.The grille covering
the fan body is a spring-attached, quick removal type. A damper for preventing air counter flow is provided.
The blower uses a high-capacity sirocco fan developed to reduce the noise level.

UNPACKING

Unpack and carefully remove the unit from packing.
Refer to the Supplied Accessories list to verify that all parts are present.

4

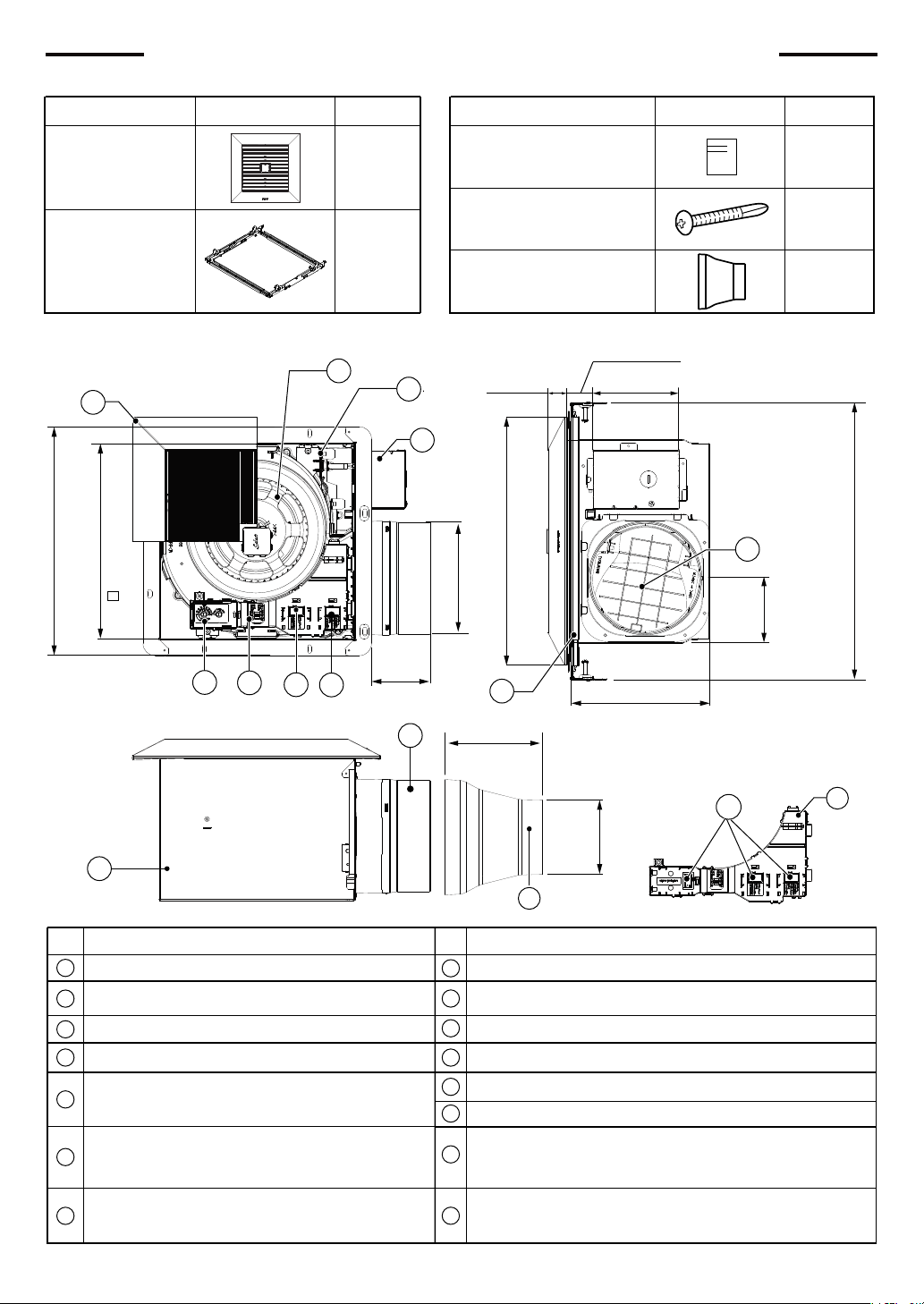

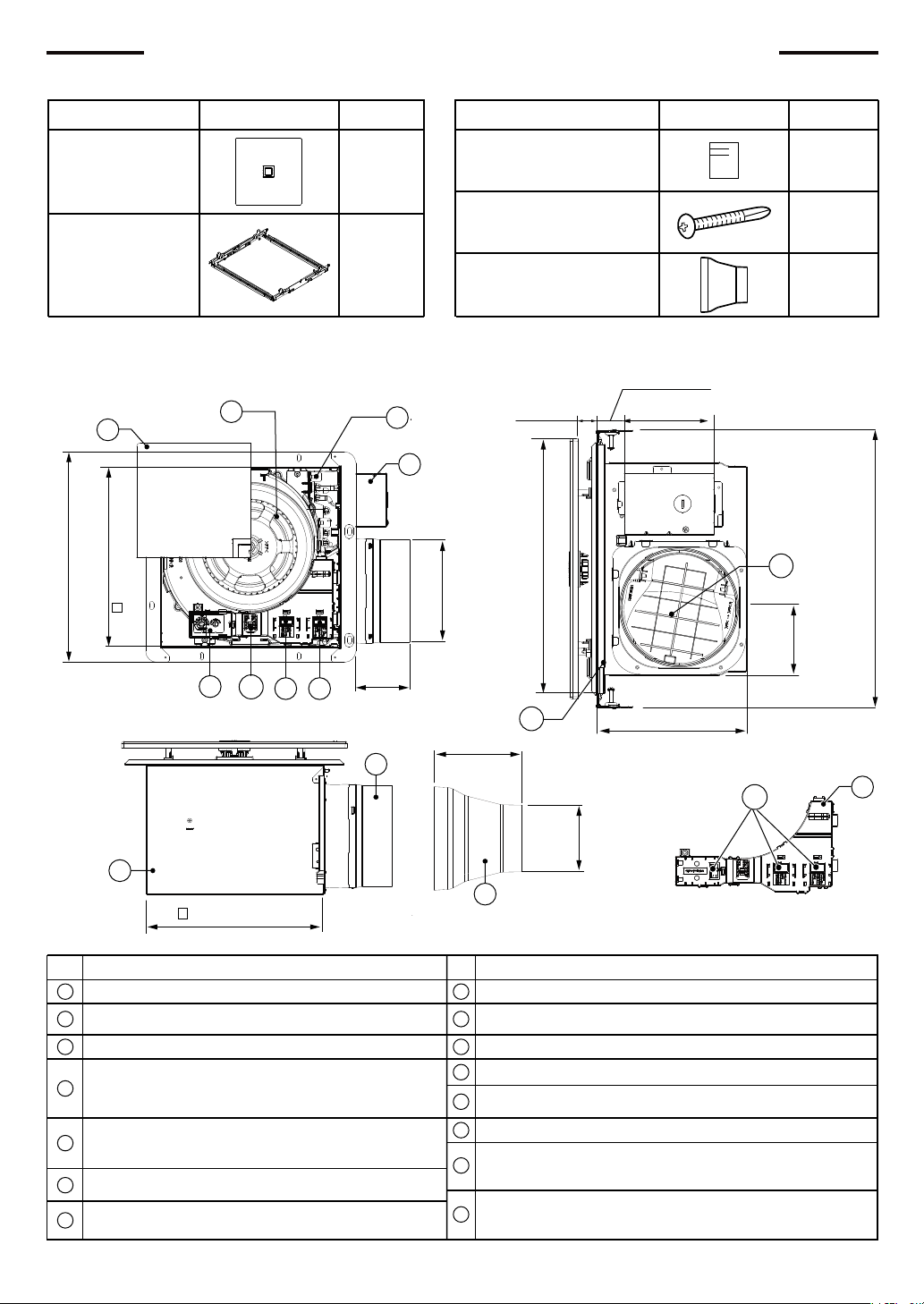

SUPPLIED ACCESSORIES AND DIMENSIONS

For Models.- FV-0511VKS3, FV-0511VK3, FV-1115VK3

Part name

Grille

Flex-Z Fast
bracket (with 4
tapping screws

-ST4.2X20)

®

2

12 (304)

10 1/4 (260)

Appearance Quantity

1

5

9

14

15

1

1

3 7/8
(100)

13

3

Part name

Warranty sheet &

Installation instructions

Self-drilling screw

4 inch duct reducer

(optional part), not included

for FV-1115VK3

1 1/2 (37)

1 1/4 (30)

4 1/2 (114)

13 (330)

Ø 5 7/8 (148)

12

7 1/2 (190)

Appearance Quantity

1

4

1

Unit: inches (mm)

11

(86)

3 3/8

13 1/4 ~ 15 1/2 (336~394)

16 1/2 ~ 18 3/4 (419~480)

21 1/4 ~ 23 1/2 (540~597)

10

Part name

1

Blade

Grille

2

3

Junction box

4

Adapter

Multi-Speed module (FV-0511VKS3 and

5

FV-0511VKS3S only, not included in other
models)

Connector cover

6

4 Inch duct reducer (optional part),

7

not included for FV-1115VK3

4

5 1/8
(130)

8

(100)

Ø 3 7/8

6

7

Part nameNo No

8

Main PCB box

9

Pick-A-Flow switch

10

Fan body

11

Damper

12

Flex-Z Fast bracket

13

Power PCB

Motion sensor location (FV-MSVK1, not included),

14

Condensation sensor location (FV-CSVK1, not included)
or Wi-Fi module location (WP100PBA, not included)

Motion sensor location (FV-MSVK1, not included),

15

Condensation sensor location (FV-CSVK1, not included)

®

®

5

SUPPLIED ACCESSORIES AND DIMENSIONS

For model.- FV-0511VKS3S

Part name

Grille

Flex-Z Fast

®

bracket (with 4
tapping screws

-ST4.2X20)

2

12 (304)

10 1/4 (260)

Appearance Quantity

1

3 7/8

9

5

14 15

(100)

Part name

Appearance

Warranty sheet &

1

Installation instructions

Self-drilling screw

1

4 inch duct reducer

(optional part)

Quantity

1

4

1

Unit: inches (mm)

1 1/2 (37)

13

1 1/4 (30)

4 1/2 (114)

3

11

13(330)

Ø 5 7/8 (148)

(86)

3 3/8

13 1/4 ~ 15 1/2 (336~394)

16 1/2 ~ 18 3/4 (419~480)

21 1/4 ~ 23 1/2 (540~597)

10

10 1/4 (261)

Part name

1

Blade

2

Grille

3

Junction box

4

Adapter

Multi-Speed module

5

6

Connector cover

7

4 Inch duct reducer (optional part)

12

4

5 1/8
(130)

(100)

Ø 3 7/8

7 1/2 (190)

6

8

7

Part nameNo No

8

Main PCB box

9

Pick-A-Flow switch

10

Fan body

11

Damper

12

Flex-Z Fast bracket

13

Power PCB

Motion sensor location (FV-MSVK1, not included)

14

Condensation sensor location (FV-CSVK1, not included)
or Wi-Fi module location (WP100PBA, not included)

Motion sensor location (FV-MSVK1, not included)

15

Condensation sensor location (FV-CSVK1, not included)

®

®

6

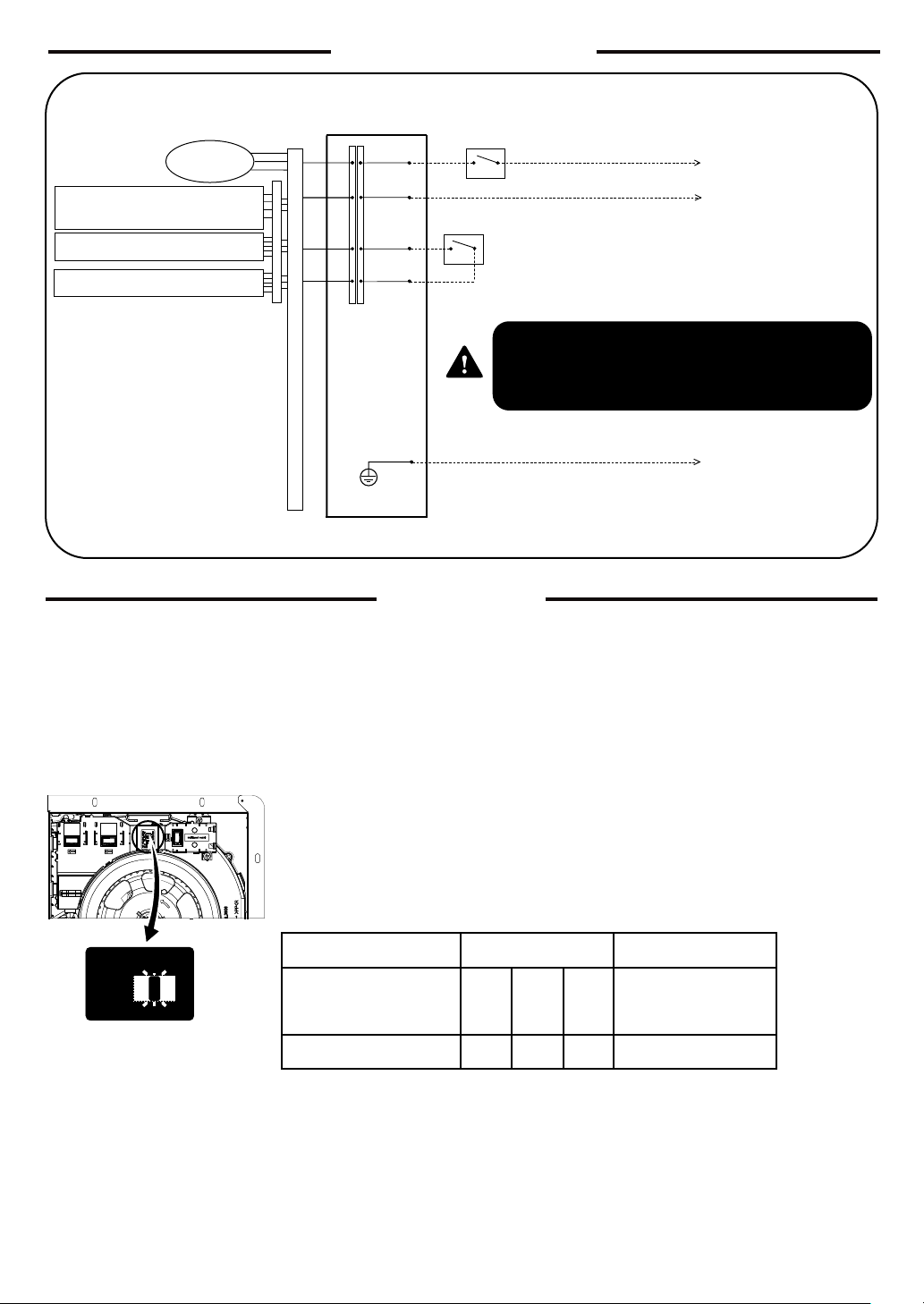

WIRING DIAGRAM

Fan body

DC Motor

Multi-Speed module (FV-0511VKS3,
FV-0511VKS3S only, not included in
other models)

Plug ‘N Play™ module slot

Plug ‘N Play™ module slot

Junction box

Black

White

Red

Red

Power

switch

Signal

switch

Live (Fan)

Neutral

Use signal switch for manual control of
high / low CFM mode: ON to use Pick-A-Flow

AC120V

60Hz

(Power supply)

®

setting (high speed / CFM); OFF to use
Multi-speed module setting (low speed / CFM)

Do not connect the red signal wires to a live
power supply (AC 120 V 60 Hz ) because it will
damage the product. Please use an optional
switch to connect the red signal wires.

Green

Earth ground

FEATURES

Optimum ventilation performance:

Duct length, elbows and other factors increase static pressure which can hinder the performance of most
ventilation fans. This fan utilizes Smart Flow microchip technology that monitors the static pressure in the
system and speeds up or slows down the RPM of the fan depending upon the amount of resistance within the
ducts. This feature allows the fan to perform as rated and avoid potential installation issues.

Outstanding Energy Savings:

The WhisperGreen Select line of fans are built using DC motor technology. The DC motor is 30% - 70% more
energy efficient than the minimum ENERGY STAR requirements.

®

Pick-A-Flow Feature
All the WhisperGreen Select base models of fans come with Pick-A-Flow
speed options. The Pick-A-Flow switch on the face of all WhisperGreen Select

®

®

®

fans allows the option to choose 50 – 80 – 110 CFM for the FV-0511VKS3S,
FV-0511VKS3, FV-0511VK3 or 110 – 130 – 150 CFM for the FV-1115VK3.
These fans can run continuously or intermittently, depending upon the needs of
the owner.

®

®

50

110 150130

( )

11080

®

AIR VOLUME CFM

0511

MODEL

1115

MODEL

Pick-A-Flow switch

FV-0511VKS3S
FV-0511VKS3
FV-0511VK3

FV-1115VK3

Air volume (CFM)Model No. Factory setting

50 80 110 80 CFM

110 130

150 130 CFM

7

INDICATIONS (Plug 'N Play™ FUNCTION DEVICES)

0511 MODEL

1115 MODEL

0511 MODEL

1115 MODEL

FV-VS15VK1

Note.- There is ONLY ONE
Plug 'N Play™ slot to insert the
Multi-Speed module.

Plug 'N Play™ Modular Component Accessories
Sold Separately, Not Included With Base Model Fan

FV-VS15VK1 Multi-Speed module allows the fan to run continuously at lower
speeds to maintain ventilation standards to meet Indoor Air Quality and then
boost up to high speed to meet intermittent needs for ‘Spot’ or ‘Point Source’
exhaust needs. The FV-VS15VK1 Modular Component will operate for both
the FV-0511VK3 and the FV-1115VK3 matching the appropriate Multi-Speed
setting shown below. Multi-speed module FV-VS15VK1 is included for models
FV-0511VKS3S and FV-0511VKS3. It is not necessary to purchase this component.
Note the options on the face of the FV-VS15VK1 Multi-Speed module to choose
appropriate levels of airflow (CFM) and time delay before returning back to low
speed (TIME). Choosing the Pick-A-Flow setting automatically adjusts the
Multi-Speed setting accordingly. As an example, if the Pick-A-Flow Multi-speed
setting is 80 CFM, the Multi-Speed settings adjust automatically to be 0, 30, 40,
50, 60 or 70 CFM at the lower speeds. The fan will ‘boost’ to the 80 CFM speed
as the high speed setting. Selecting a particular TIME option will cause the fan to
run for the selected amount of time before returning to the lower speed setting
chosen on the CFM dial.

Model no

FV-0511VKS3S,
FV-0511VKS3
FV-0511VK3
(plug-in FV-VS15VK1)

FV-1115VK3
(plug-in FV-VS15VK1)

Pick-A-Flow (CFM)

®

50

80

110
110

130
150

®

Multi- Speed Air volume (CFM)

40

30

0

0

0
0

0
0

30

30
50

50
50

40

40
60

60
60

40

50

50
70

70
70

40

60

60
80

80
80

40

70

70
90

90
90

®

40

70

80

100
100
100

40

70

90

100
110
110

40

70

100

100
110
120

Delay Time (min)

Factory setting: 20 minutes.
Delay Time position “0“: Manual wall switch control is 0 minutes; without manual wall switch control is

0.5 minutes.

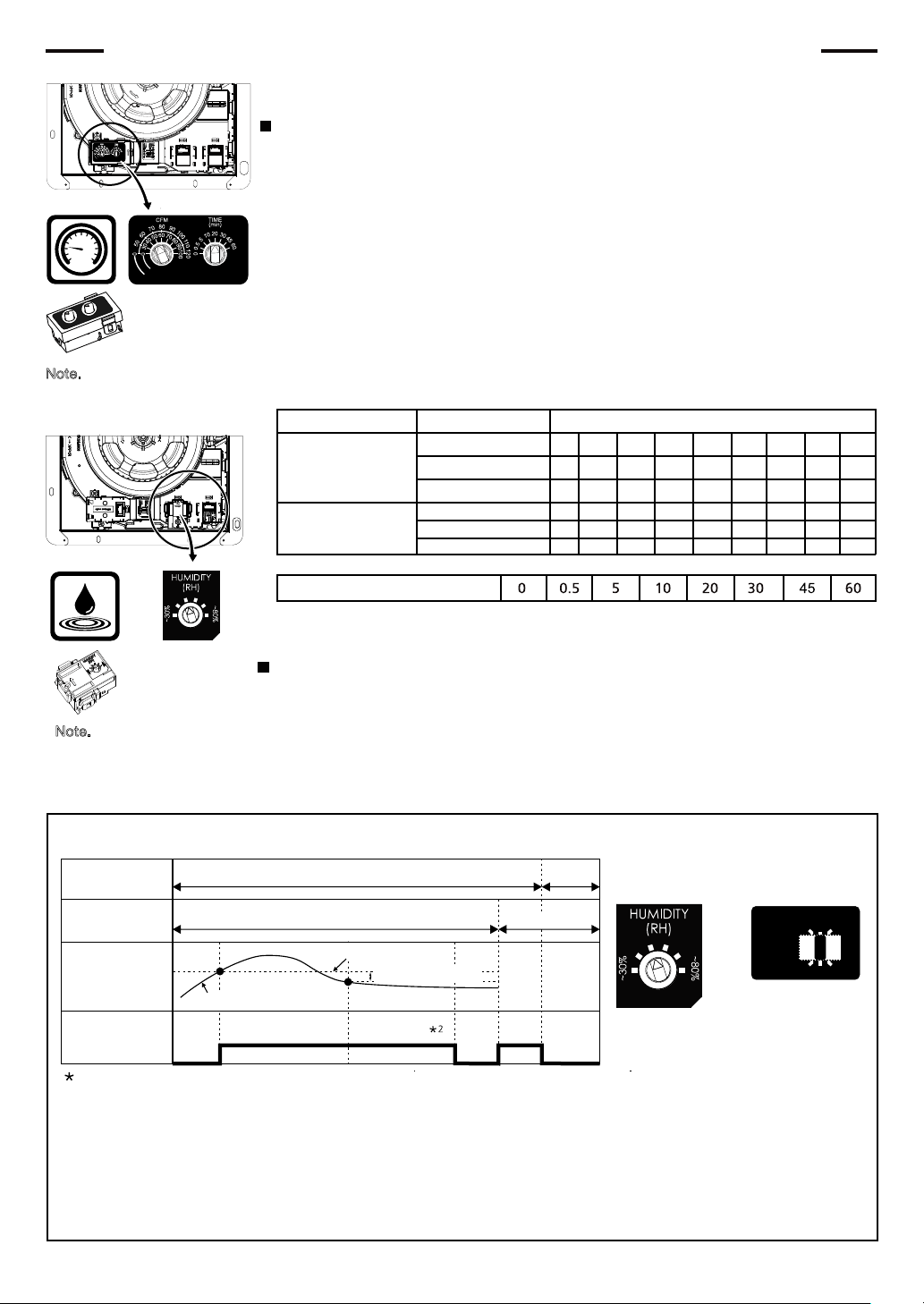

FV-CSVK1 Condensation Sensor module turns the base fan on or boosts to

FV-CSVK1

higher speed when humidity is detected when used in combination with the
FV-VS15VK1. The Condensation Sensor works based on calculations from

Note.- There are TWO
Plug 'N Play™ slots to insert
the condensation module.See
page 10 for details.

This product can set air volume by Pick-A-Flow switch, set humidity by the induction humidity setting switch, and operate
as below.

Power

switch

Signal

switch

Condensation

sensor

Environment humidity

Product

2 The product will continue to run for about 20 minutes until it detects the environment humidity is about 5% RH lower than
the humidity setting, then it will stop running.

Note:

1. When the humidity sensor is used in combination with the multi-speed, the delay time can be selected as needed.

2. The product will start running when the environment humidity rises rapidly (even if the humidity set point is not reached yet)
and will stop after 20 minutes.

3. Induction humidity setting switch is stepless change between 30 %RH ~ 80 %RH.

4. The humidity detected by sensor may differ from the value on your hygrometer.

5. The product may turn ON and OFF due to the unstable environment humidity, but it can be improved by adjusting the
Humidity setting selector.

Stop

the Psychrometric Chart, or combination of Relative Humidity (RH) and
Temperature. This allows the fan to anticipate the formation of condensation
and automatically turn ON when needed to expel humid air. The Condensation
Sensor is pre-set to run for 20 minutes; it will then check the RH and
Temperature to detect if the fan needs to run for another 20 minutes cycle.

®

ON

Humidity setting

About 5 % RH

OFF

ONOFF

AIR VOLUME CFM

0511

50

MODEL

1115

110 150130

MODEL

Pick-A-Flow
switch

Run

Delay
operation

Stop

Run

Induction humidity
setting switch

Stop

( )

11080

®

8

INDICATIONS (Plug 'N Play™ FUNCTION DEVICES)

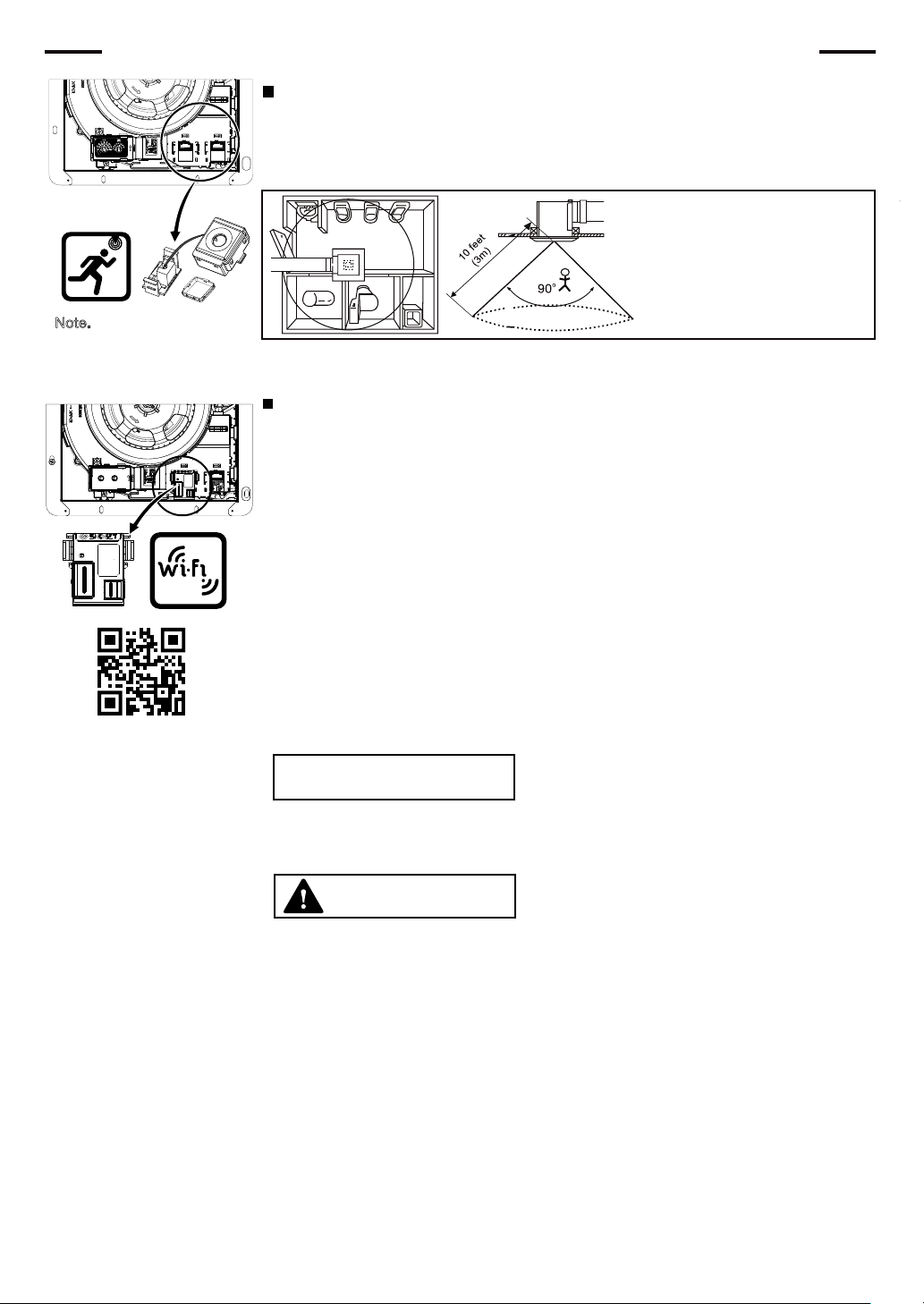

FV-MSVK1 Motion Sensor module turns the base fan on or boosts to higher
speed when motion is detected when used in combination with the FV-VS15VK1.
The Motion Sensor is pre-set to run for 20 minutes; it will then re-check for

0511 MODEL

1115 MODEL

Note.- There are TWO
Plug 'N Play™ slots to insert
the motion sensor module. See
page 10 for detail.

movement; if detected, the fan will run for another 20 minutes cycle. The Motion
Sensor detects within the range shown below.

The distance that motion can be
detected is limited to 10 feet (3 m).
The field of view of the sensor is 90º
Room temperature is 77 ºF (25 ºC).

WP100PBA Swidget Wi-Fi control module

®

.

SCAN QR CODE FOR Wi-Fi

MODULE’S INSTRUCTION

OR VISIT WEB SITE

http://WP100PBA-QR.swidget.com

www.swidget.com

Wi-Fi Plug 'N Play™ features

• Wireless Plug 'N Play™ control module for Panasonic WhisperGreen Select .

®

• Connect and control Panasonic ventilation products with the Swidget iOS or
Android app through 2.4 GHz Wi-Fi.

• Connect, group and balance Panasonic ventilation products with a dedicated
Swidget commissioning iOS or Android application through Bluetooth 5.0 mesh.

Swidget app features

• Control the boost mode of all compatible Panasonic ventilation products with
an always-ON or 20-40-60 minute timer.

• Control the light module and view the motion and condensation module status
of compatible Panasonic WhisperGreen Select models.

®

• View the supply air and exhaust air CFM, temperature and humidity of compat­ible Panasonic ventilation products.

• Receive notifications for faults, filter replacement and filter cleaning for
compatible Panasonic ventilation products.

• Monitor the energy consumption of compatible Panasonic ventilation products.

NOTICE

This module must only be installed and used with an approved/certified Swidget
wiring device. Usage with any other devices is not permitted and will result in the
warranty becoming void.

WARNING

• While not required, it is recommended to avoid any risk of shock or death, turn
off power at the circuit breaker or fuse and test that the power is off before
installing or removing any module.

• Not for use to control medical or life support equipment.

• For INDOOR use only: 0°C - 40°C (32°F - 104°F).

• Module can only be installed in one orientation. Rear alignment pins prevent
incorrect installation. Do not forcibly install an module.

• Requires a wireless router and Internet connection for device setup.

• Double check any external Wi-Fi settings for accuracy before using them.

• Actual wireless performance in a home depends on the numbers of walls /
obstacles between the module and wireless router.

9

INDICATIONS (Plug 'N Play™ FUNCTION DEVICES)

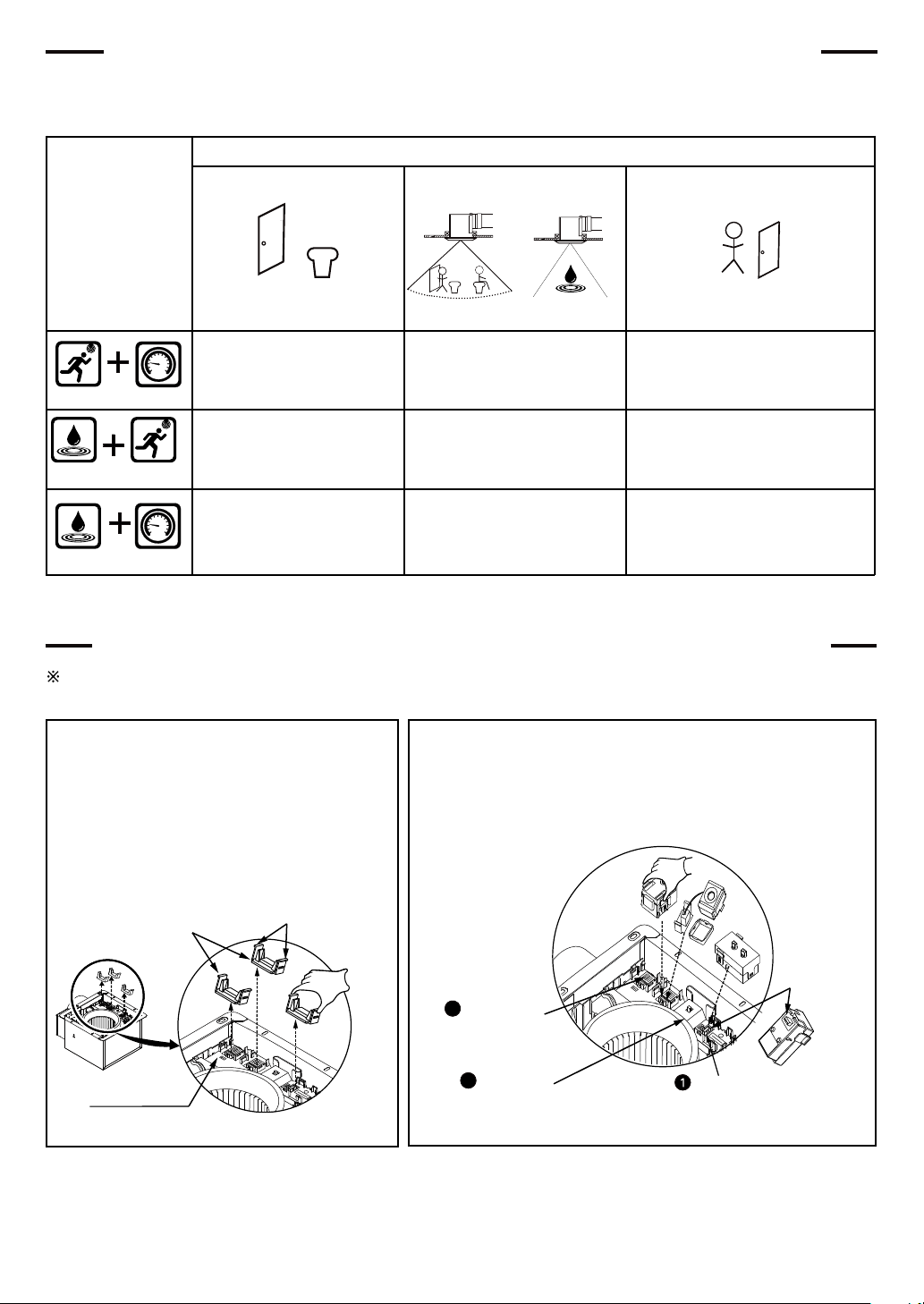

The Plug ’N Play™ modules can be used in combination, in order to adapt the fan operation to the user's needs.
Please refer to the table below for details.

Fan operation with Plug 'N Play™ modules’ combinations

Ste p 1) Not dete cted

Plug 'N Play™

modules combination

Ste p 2) Sens or tri gge r de tect ion

Motion

Condensation

OR

Ste p 3) Not dete cted

Outside

(2)

(2)

FV-MSVK1 + FV-VS15VK1

FV-CSVK1 + FV-MSVK1

FV-CSVK1 + FV-VS15VK1

Empty

When motion is not detected, the
fan runs on low speed.

When humidity is about 5% R. H.
below the set point AND motion
is not detected, the fan stays OFF.

When humidity is below the set
point, the fan runs on low speed.

(2)

Inside

Boosts the fan to high speed when
motion is detected.

Turns the fan ON for 20 minutes when
motion is detected OR humidity is
about 5% R. H. above the set point.

Boosts the fan to high speed when
humidity is about 5% R. H. above the

(2)

set point.

The fan will automatically return to
low speed after the set delay time.

The fan will run on high speed until humidity
decreases to about 5% R. H. below the set
point AND 20 minutes afterwards, the fan
will automatically turn OFF.

The fan will run on high speed until humidity
decreases to about 5% R. H. below the set
point AND, after the set delay time has
passed, it will automatically return to
low speed.

(2) When the low speed is set to 0 CFM on the multi-speed module, the fan stops running.

INSTALLATION (Plug 'N Play™ FUNCTION DEVICES)

You can purchase the specified Plug ’N Play™ device which are explained on page 8 through 11 and
installed as described on page 10 (Fig. 2).

1. Remove the corresponding connector
cover (Fig. 1).

Squeeze tabs on the clasp to remove.
Squeeze, insert and release the tabs on
clasp to replace.

2. Plug in corresponding module to main PCB box and fix to the
slot. Make sure the connector connects well (it will click when
installed in place) (Fig. 2).

Connector cover

Main PCB box

Clasp

Connector

FV-MSVK1 or

3

FV-CSVK1

232

FV-MSVK1 or
FV-CSVK1 or
WP100PBA

FV-VS15VK1

(Fig. 1) (Fig. 2)

10

WARNING

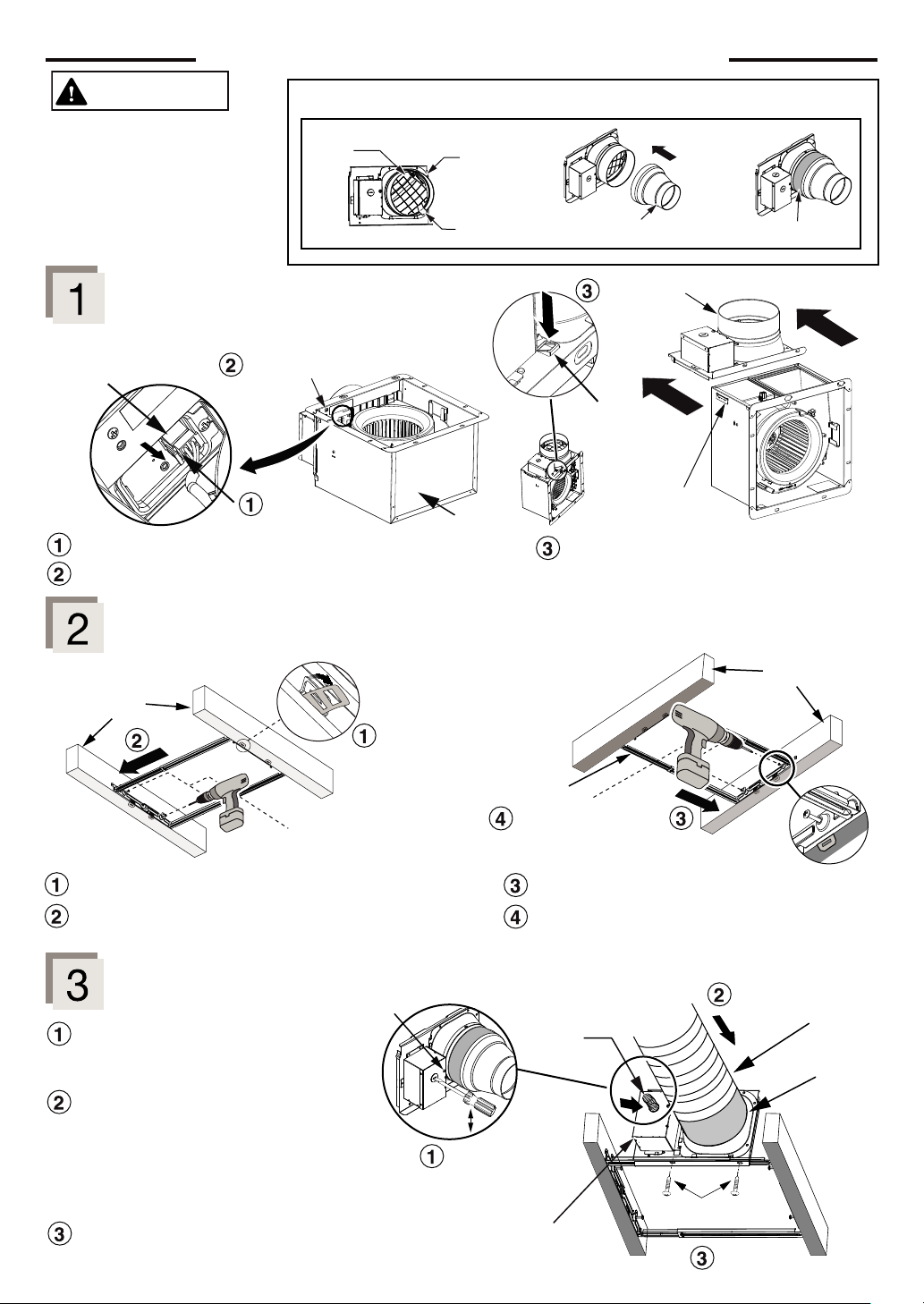

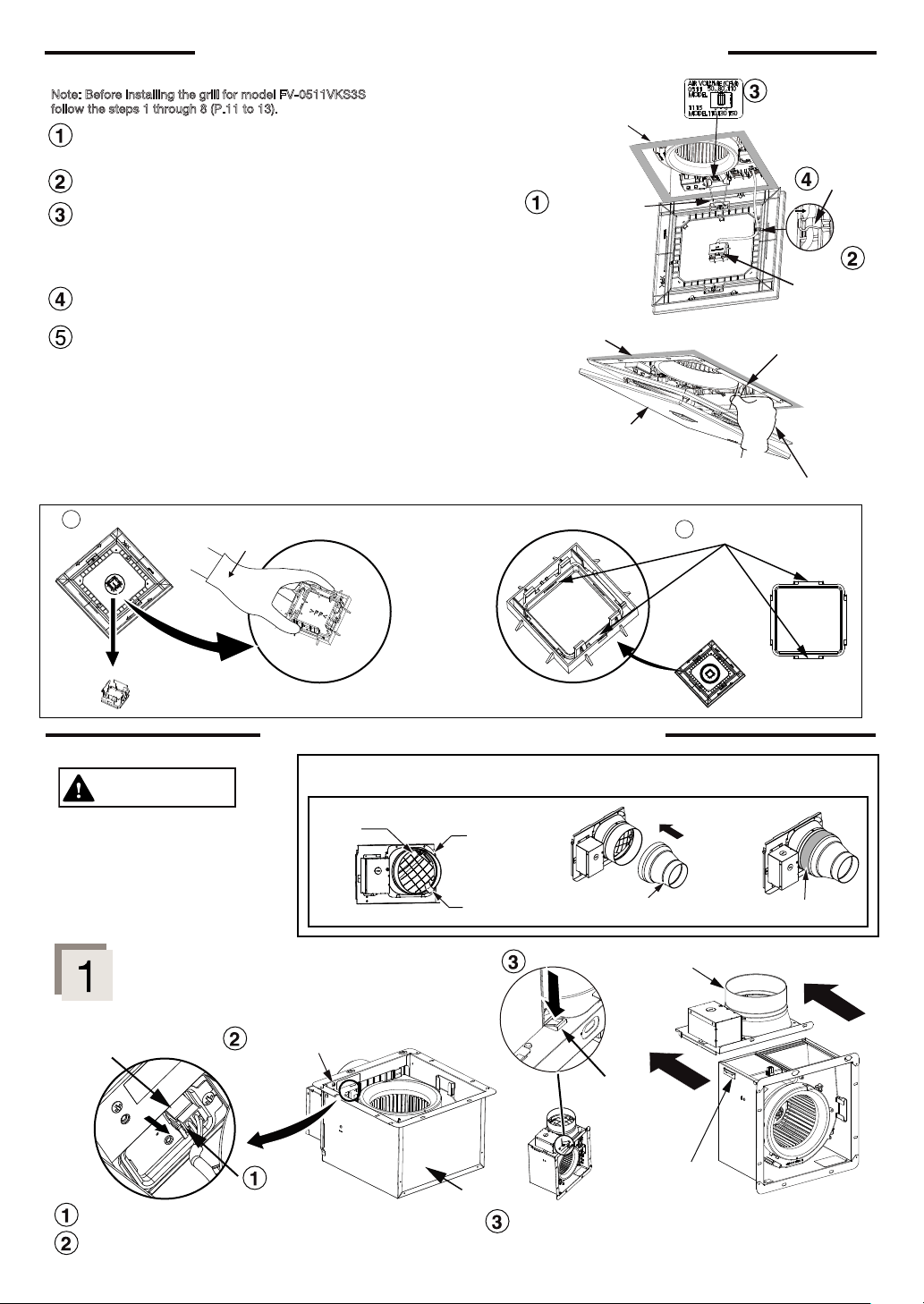

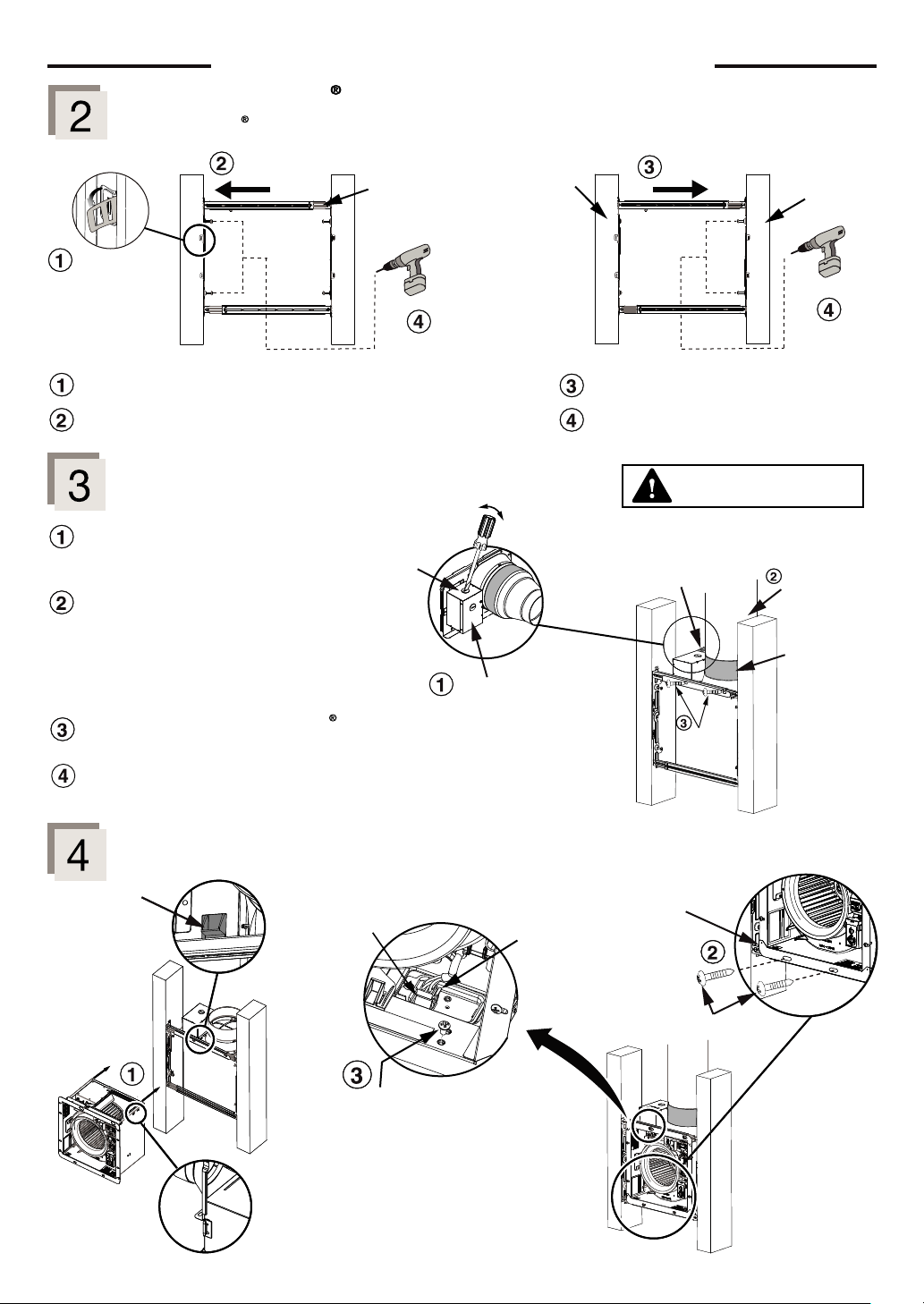

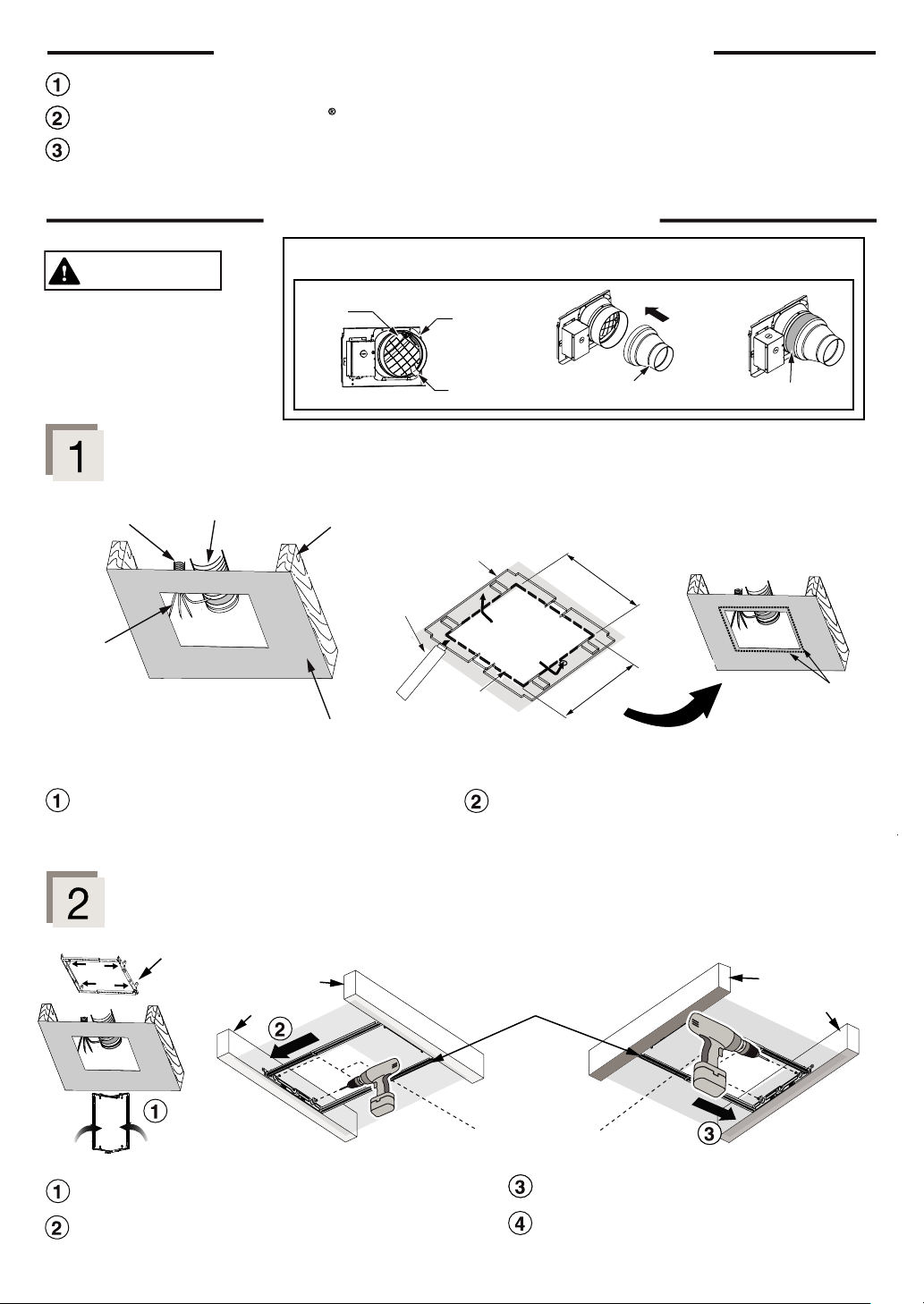

INSTALLATION (CEILING MOUNTING)

1. Disconnect power supply
before installing the unit.

2. Please wear gloves to protect
hands during the installation.

ATTENTION
Remove the tape and accessory from the adapter, before installation.

Damper

Adapter

Tape

4” reducer (Not applicable
for FV-1115VK3)

Duct tape

Remove adapter plate

Receptacle

Disconnect the plug from the receptacle.

Remove the M4X8 machine screw.

Install Flex-Z Fast bracket

The Flex-Z Fast bracket position can be adjusted from 16" to 24" between joists.

Joist

Align

Machine screw (M4X8)

Plug

®

®

2 Tapping screws

(ST4.2 X 20)

Fan body

Flex-Z Fast bracket

PRESS

Press the hook and slide the adapter out of
the fan body.

®

2 Tapping screws

(ST4.2 X 20)

Adapter

Hook

Guide Parts

Joist

EXTEND

Bend down 4 tabs and align bracket to the joist.

Align and install bracket to joist by using
the 2 pre-installed tapping screws.

Install circular exhaust duct

Screw

Remove junction box cover
and secure conduit or stress
relief to junction box knock-out hole.

Install the circular exhaust duct
and secure it with clamps or ties
and seal it with mastic or approved
foil tape. A 4 or 6 inch circular
duct is needed to connect to
the relevant part of the adapter.

Install the adapter to Flex-Z Fast bracket

®

by using 2 self-drilling screws.

Extend bracket to the other joist.

Install bracket to joist by using 2 pre-installed
tapping screws.

Circular

exhaust duct

Conduit

Mastic or
approved
foil tape

Knock-out hole

2 Self-drilling screws

Junction
Box cover

11

INSTALLATION (CEILING MOUNTING)

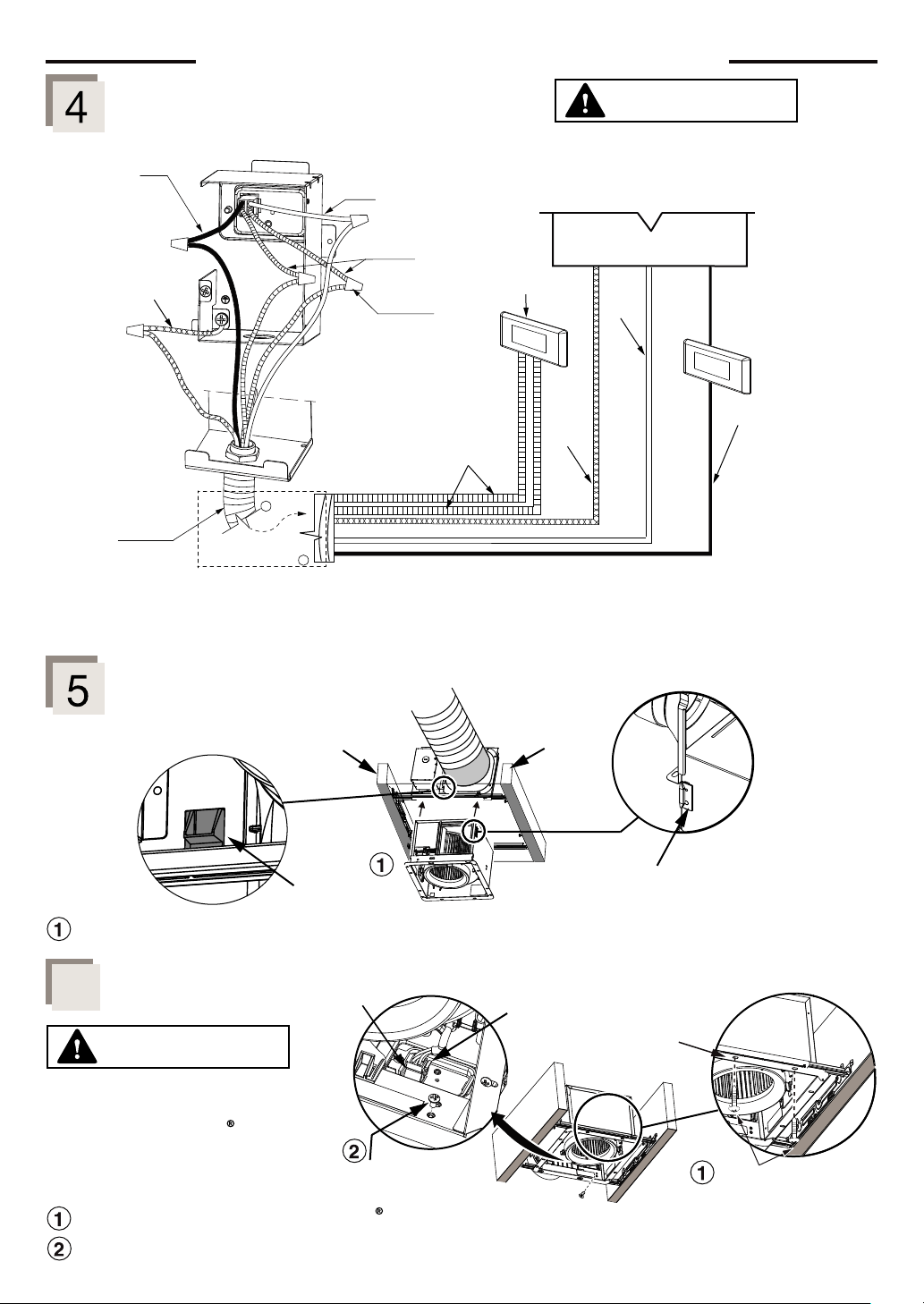

Wiring diagram

Live Fan

Earth ground

A

Conduit

1. Mount junction box cover carefully so that
lead wire are not pinched.

Neutral

Red wires

Signal switch

wire nuts

Red

A

Earth ground

Green

CAUTION

AC 120 V 60 Hz
(Power supply)

Neutral

White

Live

Switch box

Black

Refer to WIRING DIAGRAM (Page 7). Follow all the local electrical safety codes as well as the National
Electrical Code (NEC), using UL approved wire connectors to connect fan wires.

Insert fan body

Joist

Hook

Insert body and slide it into the adapter assembly until you hear a click from the hook.

Secure fan body

6

Receptacle

Joist

Guide Parts

Plug

Flange

CAUTION

1. Secure machine screw
(M4X8) to the suitable hole and
not touch the Flex-Z Fast bracket.
Please fix the screw carefully
to avoid damaging the screw thread.

Machine screw (M4X8)

2 Self-drilling screws

When the flange overlaps the Flex-Z Fast bracket, secure fan body using two self-drilling screws.

Plug connector into receptacle and secure fan body to adapter by using machine screw (M4X8).

12

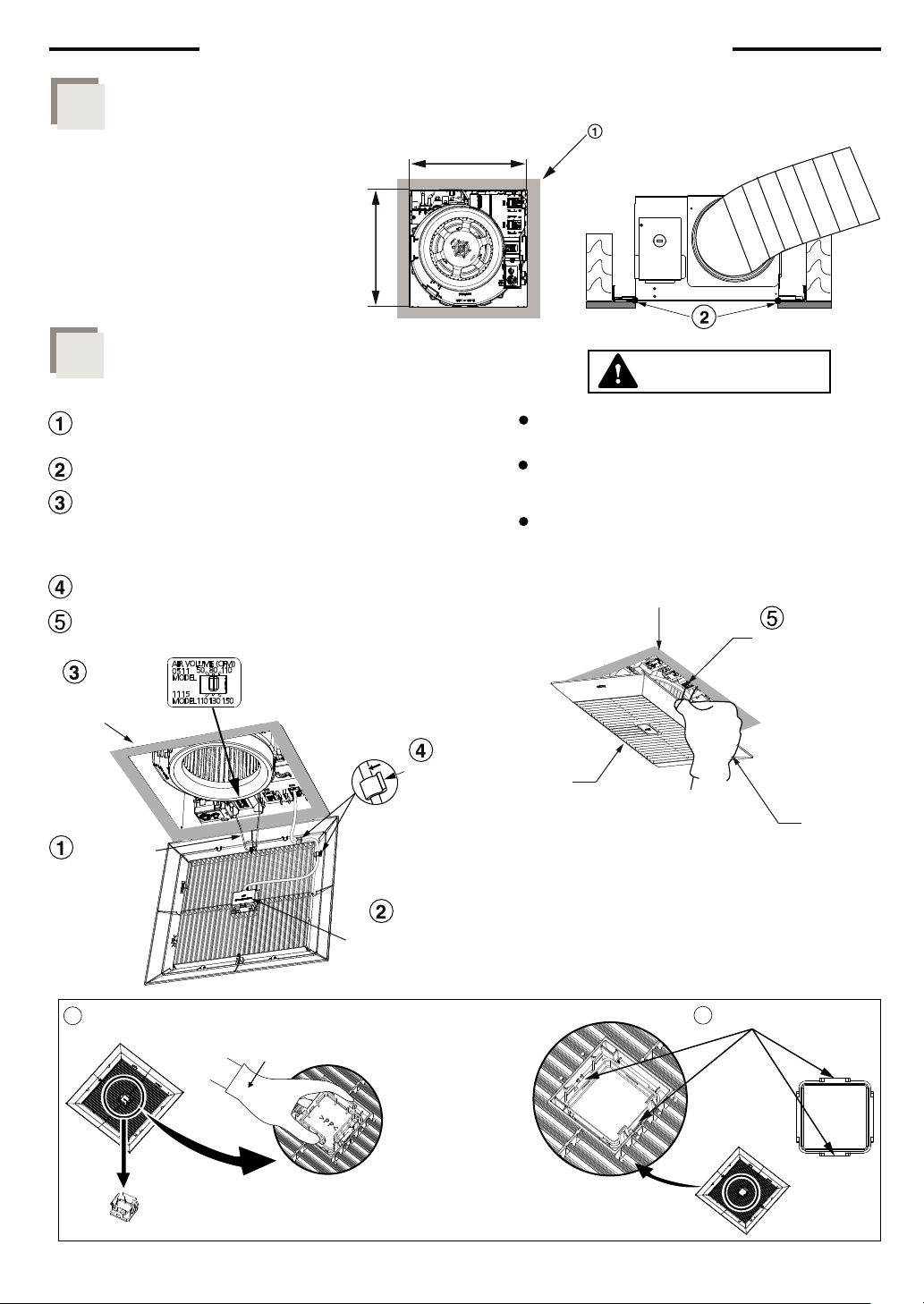

INSTALLATION (CEILING MOUNTING)

Sealing

7

Finish ceiling work. Ceiling hole
should be aligned with the inside
edge of flange.

Once fan body is mounted and
secure, fill gap between flange
and ceiling with caulk or other
sealant to prevent air leakage.

Install grille

8

A) INSTALL GRILLE FOR MODELS FV-0511VKS3, FV-0511VK3, FV-1115VK3

Insert the mounting spring into the slot as shown to
mount grille to fan body.

Fix the motion sensor into grille.

®

Adjust Pick-A-Flow
(only models FV-0511VKS3S, FV-0511VKS3)
as desired. Refer to indication on “FEATURES” section,
page 7and 8.

Fix motion sensor cables in the indicated hooks.

Insert the other mounting spring into the slot as
shown and mount grille to fan body.

Pick-A-Flow

®

switch and multi-speed selector

10 1/2 (266)

10 1/2 (266)

Ceiling

Unit: inches (mm)

CAUTION

The claw of connector must latch the rib
completely.

Mount grille carefully so that lead wire is not
pinched.

ATTENTION: When the switch is at the “ON”
position, wait 8-10 seconds for the fan to start.
This is a normal working condition.

Ceiling

Mounting spring

Ceiling

Clasps

Mounting spring

Motion sensor

(FV-MSVK1

only, not included)

Keep on pressing t he clasps when removing the ornamental cover.

A

Gloves

Ornamental cover

Grille

Gloves

IMPORTANT:

Replace the sensor cover before the installation
(only for plug-in Motion sensor module FV-MSVK1).
NOT INCLUDED (Fig. 10).

Position shorter

B

tabs on these sides

Sensor cover

Fig.9

13

WARNING

INSTALLATION (CEILING MOUNTING)

b) INSTALL GRILLE FOR MODEL FV-0511VKS3S

Note: Before installing the grill for model FV-0511VKS3S
follow the steps 1 through 8 (P.11 to 13).

Insert the mounting spring into the slot as shown to
mount grille to fan body.

Pick-A-Flow

Ceiling

®

Fix the motion sensor into grille.

®

Adjust Pick-A-Flow

switch and multi-speed selector
(only models FV-0511VKS3S, FV-0511VKS3)
as desired. Refer to indication on “FEATURES” section,
page 7 and 8.

Fix motion sensor cables in the indicated hooks.

Insert the other mounting spring into the slot as
shown and mount grille to fan body.

IMPORTANT:

Replace the sensor cover before the installation
(only for plug-in Motion sensor module FV-MSVK1).
NOT INCLUDED (Fig. 10).

Keep on pressing t he clasps when removing the ornamental cover.

A

Gloves

Ornamental cover

Mounting spring

Ceiling

Grille

Position shorter

B

tabs on these sides

Clasp

Motion sensor

(FV-MSVK1

only, not included)

Mounting spring

Gloves

Sensor cover

Fig.10

INSTALLATION (WALL MOUNTING)

1. Disconnect power supply
before installing the unit.

2. Please wear gloves to protect
hands during the installation.

Remove adapter plate

Receptacle

Disconnect the plug from the receptacle.

Remove the M4X8 machine screw.

Machine screw (M4X8)

Plug

ATTENTION
Remove the tape and accessory from the adapter, before installation.

Damper

Adapter

Tape

Fan body

4” reducer (Not applicable
for FV-1115VK3)

PRESS

Adapter

Hook

Press the hook and slide the adapter out of the
fan body.

Duct tape

Guide Parts

14

INSTALLATION (WALL MOUNTING)

Install Flex-Z Fast bracket

The Flex-Z Fast bracket position can be adjusted from 16" to 24" between studs.

Align

Flex-Z Fast® bracket

Bend down 4 tabs

Bend down 4 tabs and align bracket to the stud.

Align and install bracket to stud by using
2-preinstalled tapping screws.

Install circular exhaust duct

Remove junction box cover
and secure conduit or stress
relief to junction box knock-out hole.

Install the circular exhaust duct
and secure it with clamps or ties
and seal it with mastic or approved
foil tape. A 4 or 6 inch circular
duct is needed to connect to
the relevant part of the adapter.

Install the adapter to Flex-Z Fast bracket
by using 2 self-drilling screws.

Complete the wiring; please refer to
step 4 on page 12.

Knock-out

hole

2 Tapping screws
(ST4.2X20)

Junction Box
cover

Extend

Stud

Extend bracket to the other stud.

Install bracket to stud by using
2-preinstalled tapping screws.

CAUTION

1. The adapter of product must
be installed upward.

Conduit

2 Self-drilling
screws

Stud

2 Tapping screws
(ST4.2X20)

Circular exhaust
duct

Mastic or
approved
foil tape

Insert and secure fan body

Hook

Hook

Receptacle

Machine screw (M4X8)

Guide Parts

Guide Parts

Flange

Plug connector

2 Self-drilling screw

15

WARNING

INSTALLATION (WALL MOUNTING)

Insert the body and slide it into the adapter assembly until you hear a click from the hook.

Secure the fan body to Flex-Z Fast bracket by using 2 self-drilling screws.

Secure fan body and plug connector to adapter by using machine screw (M4X8). To finish wall work and install
grille, please refer to steps 7 and 8 (p. 13).

INSTALLATION (RETROFIT)

ATTENTION
Remove the tape and accessory from the adapter, before installation.

1. Disconnect power supply
before installing the unit.

2. Please wear gloves to protect
hands during the installation.

Remove the existing fan and cut opening

Existing conduit

Existing
Wires

Remove the existing fan, leaving the
existing ductwork and wiring in place.

Existing duct

Damper

Joist or stud

Existing
ceiling or wall

Marker

Adapter

Tape

Drywall

Template

4” reducer (Not applicable
for FV-1115VK3)

Duct tape

Unit: inches (mm)

10 7/8” (275)

10 7/8” (275)

Using housing masking template to mark the ceiling
or wall opening, cut the ceiling or wall along the
marked line.

Marked

line

Install Flex-Z Fast bracket

The Flex-Z Fast bracket position can be adjusted from 16" to 24" between joists or studs.

Flex-Z Fast bracket

Insert Flex-Z Fast bracket.

®

®

Joist or stud

Align

®

Align and install bracket to joist or stud by
using the 2 pre-installed tapping screws.

®

Joist or stud

Flex-Z Fast bracket

2 Tapping screws

®

EXTEND

(ST4.2 X 20)

Extend bracket to the other joist or stud.

Install bracket to joist or stud by using
2 pre-installed tapping screws.

16

Existing
conduit

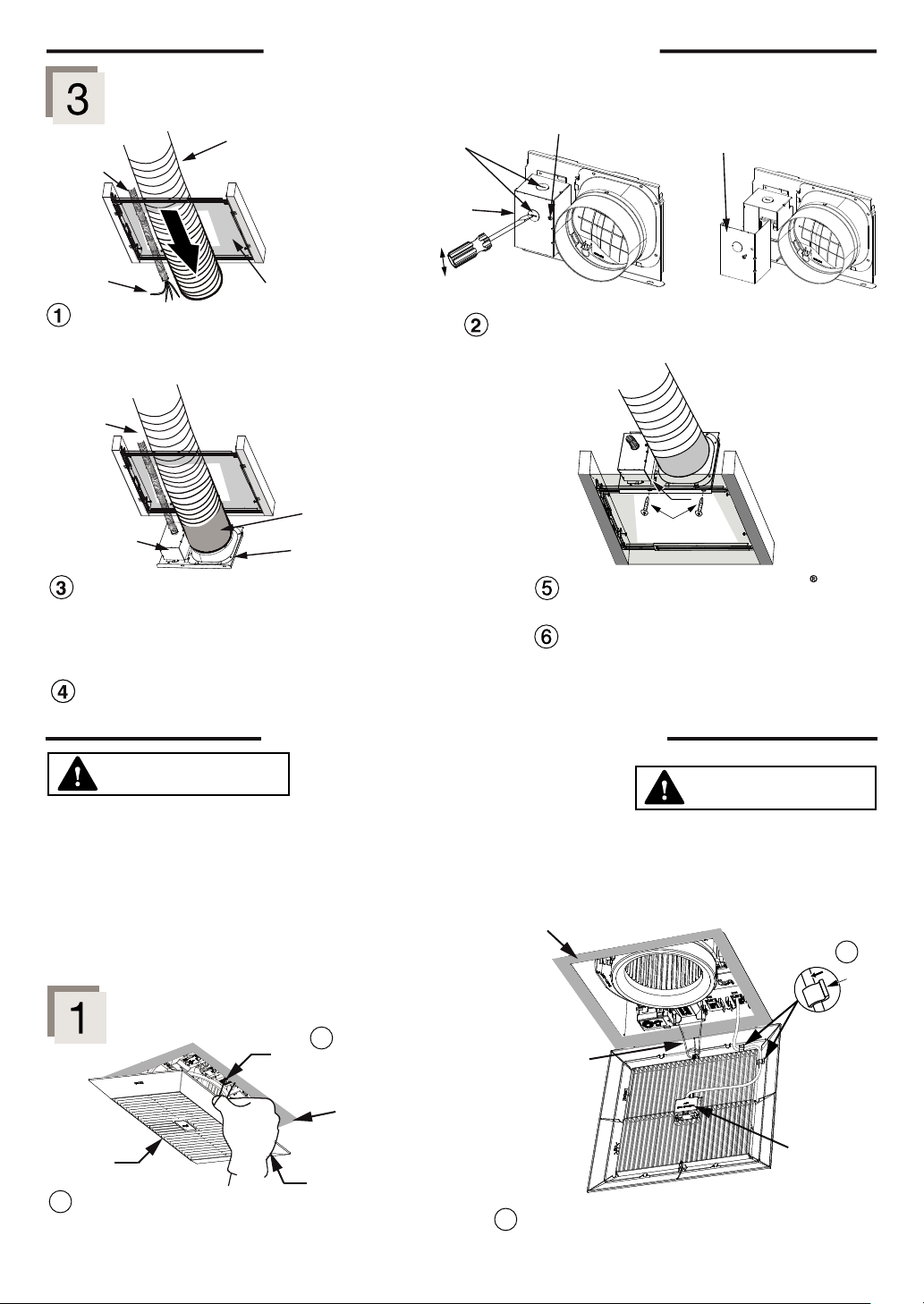

INSTALLATION (RETROFIT)

Install circular exhaust duct and conduit

Existing duct

Knock-out hole

Screw

Junction box cover

Pull down

Existing
wires

Before connecting the circular duct to
the adapter and conduit to junction box,
pull down the circular duct and conduit from
the ceiling or wall.

Existing
conduit

Junction box

Install the circular exhaust duct and secure it
with clamps or ties and seal it with mastic or
approved foil tape. A 4 or 6 inch circular duct
is needed to connect to the relevant part of the
adapter.
Secure conduit and connect wires. Refer to
wiring diagram on page 13.

Existing ceiling

Mastic or approved
foil tape

Adapter plate

MAINTENANCE (CLEANING)

Junction box

Before removing knock-out hole and junction box
cover Following step 1 “Remove adapter plate”
on ( P. 11)

2 Self-drilling screws

Install the adapter to Flex-Z Fast bracket
by using 2 self-drilling screws.

Finish installation process following steps
5 through 8 (P. 13 to P. 14).

CAUTION

1.- Routine maintenance must be done every year.
Please wear gloves during the cleaning work.

2.- Never use gasoline, benzene, thinner or any other
such chemicals for cleaning the ventilating fan.

3.- Do not immerse motor in water when cleaning.
Do not soak resin parts in water over 140 °F (60 °C).

4.- Do not use cleaning sprays, solvent, or water on
or near the sensors.

Remove grille

1

Mounting spring

Ceiling

Grille

Remove grille by pulling down one

1

mounting spring.

Gloves

WARNING

1.-Disconnect power supply
before working on unit.

Ceiling

Mounting spring

only, not included)

Remove the lead wire of sensor unit from the clasp

2

(2 point), remove the sensor unit from the grille.

2

Clasp

Motion sensor

(FV-MSVK1

17

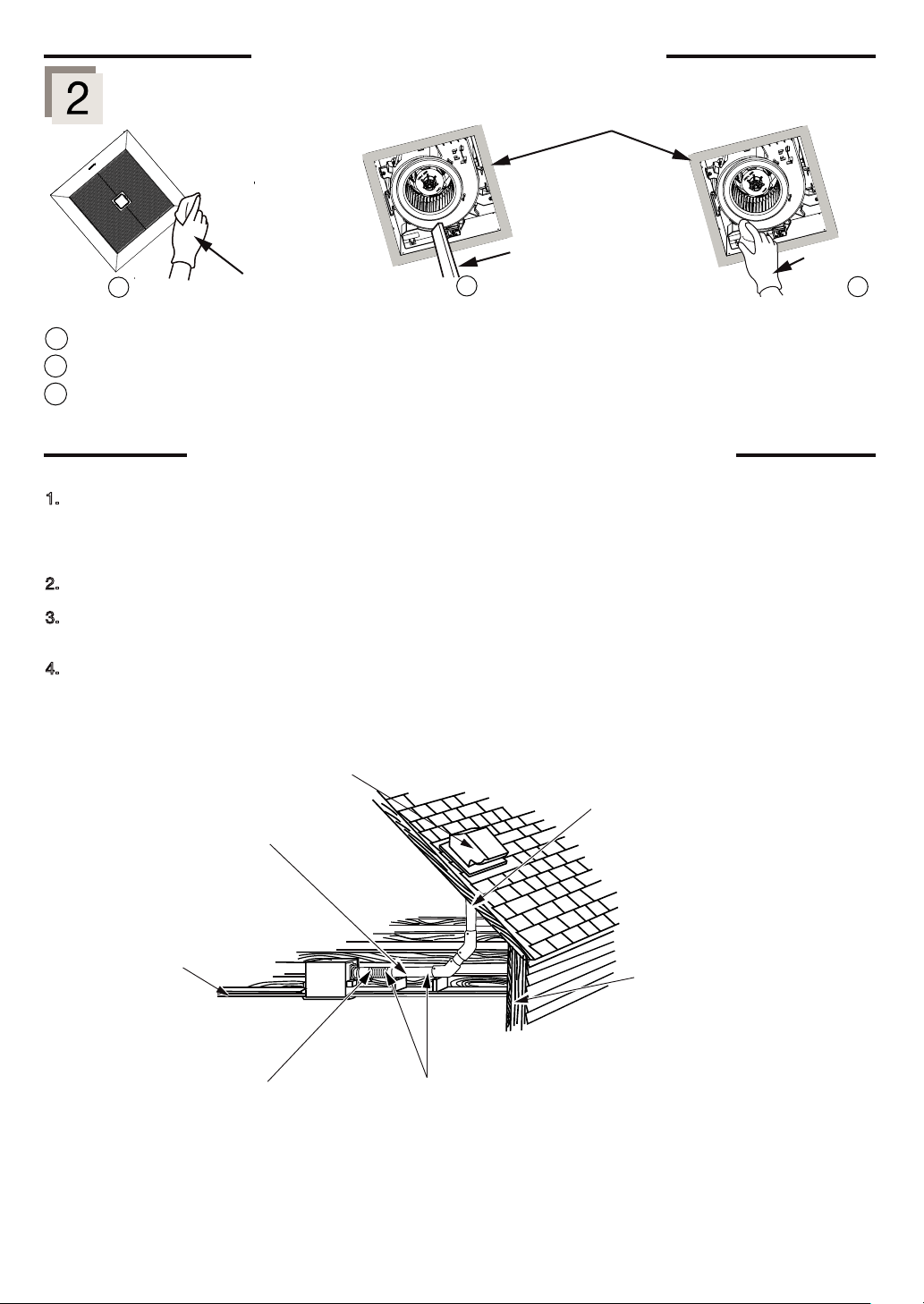

MAINTENANCE (CLEANING)

Maintenance of unit

Drywall

Vacuum

1

NOTE : The grille should be dry after cleaning.

Clean grille. (Don’t put into hot water. Use non-abrasive kitchen detergent, wipe dry with clean cloth.)

1

Remove dust and dirt from fan body using a vacuum cleaner.

2

Using a cloth dampened with kitchen detergent, remove any dirt from fan body. Wipe dry with a clean cloth.

3

Reinstall grille after finishing.

Gloves

cleaner

2

Gloves

3

PRACTICAL GUIDE TO INSTALLATION

1. The ducting has a strong effect on the air flow, noise and energy use of the fan. Use the shortest, straightest
duct routing possible for best performance, and avoid installing the fan with smaller ducts than recommended.
Insulation around the ducts can reduce energy loss and inhibit mold growth. Fans installed with
existing ducts may not achieve their rated airflow.

2.

A circular 6-inch duct is recommended for best performance and proper fan installation.

Ensure duct joints and exterior penetrations are sealed with caulk or other similar material to create an

3.
airtight path and to minimize building heat loss and gain and reduce the potential for condensation.

Place / wrap insulation around duct and / or fan in order to minimize possible condensation buildup within

4.
the duct, as well as minimize building heat loss and gain.

-4 inch or 6 inch roof jack, wall cap,
or soffit vent with backdraft damper

-

Mechanically connect duct to termination and seal

with mastic or approved foil faced tape* /

-2-3 ft straight run before elbow

-In attic installation,
caulk box to drywall*

-Short piece of flexible duct
helps alignment and absorbs sound*

-Insulation

-Foil tape tightly covers all metal

duct joints*

-*Seal with mastic or approved

foil faced tape

18

Specifications for base model fans

Air

Model No.

FV-0511VK3
FV-0511VKS3

FV-0511VKS3S

direction

Voltage

Exhaust 120 60

Exhaust

(V)

Frequency

(Hz)

SPECIFICATIONS

Duct

diameter

(inches)

60120

4

Air volume
at 0.1” WG

(CFM)

110 829<0.3 10.7

80 <0.3 726 6.2
50 <0.3 645 4.0

Noise

(sones)

<0.3 782110
<0.3 68480
<0.3 63050 3.8

Speed

(rpm)

Power (W)

Fan

9.7

5.6

Weight

.

lb

9.7 (4.4)

9.9 (4.5)

Model No.

FV-0511VK3
FV-0511VKS3

FV-1115VK3 60120Exhaust

Air

direction

Voltage

(V)

Frequency

(Hz)

60120Exhaust

60120ExhaustFV-0511VKS3S

Duct

diameter

(inches)

6

Air volume
at 0.1” WG

(CFM)

80
50

110

80

50 <0.3 577 3.4
150

130

Performance based on HVI procedures 915, 916 and 920

Specifications for Multi-Speed fans

Model No.

FV-0511VK3
FV-0511VKS3

Air

direction

Voltage

Exhaust 60

Frequency

(V)

120

120FV-0511VKS3S Exhaust 60

(Hz)

Duct

diameter

(inches)

4

4

Air volume

at 0.1” WG

(CFM)

100

90

80

70
60
50
40

30

0

0

Noise

(sones)

<0.3 595110 6.7
<0.3
<0.3 575
<0.3 641

<0.3 601

<0.3

<0.3
<0.3 595110 6.7

Noise

(sones)

<0.3
<0.3

<0.3

<0.3
<0.3
<0.3
<0.3

<0.3

Speed

(rpm)

569

680

638

Speed

(rpm)

747
714

684

672
654
630
619

606

783100 <0.3
75190 <0.3
72680 <0.3
70870 <0.3
67760 <0.3

64550 <0.3
61740 <0.3

61230 <0.3

Power (W)

Power (W)

1.0

1.0

Fan

4.4

3.4

7.4

4.7

11.6

8.8

Fan

7.8

6.6

5.6

5.1

4.4

3.8

3.4

2.9

8.3

7.1

6.2

5.4

4.7

4.0

3.3

3.0

Weight

.

lb

9.7 (4.4)

9.9 (4.5)

9.5 (4.3)

Weight

.

lb

9.7 (4.4)

9.9 (4.5)

19

SPECIFICATIONS

Model No.

FV-0511VK3
FV-0511VKS3

Air

direction

Exhaust

Exhaust

Exhaust

Voltage

(V)

120

120FV-0511VKS3S

120FV-1115VK3

Frequency

(Hz)

60

60

60

Duct

diameter

(inches)

6

Air volume

at 0.1” WG

(CFM)

90
80
70
60

50

40
30

0 1.0

100

90
80
70

60
50
40
30

0 1.0

120
110
100

90
80

70
60
50

0

Noise

(sones)

<0.3
<0.3
<0.3
<0.3
<0.3

<0.3
<0.3

<0.3

<0.3

<0.3
<0.3
<0.3

<0.3
<0.3
<0.3
<0.3

<0.3
<0.3
<0.3
<0.3
<0.3

<0.3
<0.3
<0.3

Speed

(rpm)

580100
572
569
565
570

575
563

587

629

620
601
592

590
577
577
585

626
595
580
572
569

565
570
575

Power (W)

Fan

5.5

4.9

4.4

4.0

3.6

3.4

3.0

2.8

6.2

5.4

4.7

4.3

3.9

3.4

3.1

2.9

7.5

6.7

5.5

4.9

4.4

4.0

3.6

3.4

1.0

Weight

.

lb

9.7 (4.4)

9.9 (4.5)

9.5 (4.3)

Reference performance based on HVI procedures 915, 916 and 920. [ ( ) Stand by wattage)

PRODUCT SERVICE

Warning Concerning Removal of Covers. The unit should be serviced by qualified technicians only.
Your product is designed and manufactured to ensure a minimum of maintenance. Should your unit
require service or parts, call Panasonic Call Center at 1-866-292-7299 (USA) or 1-800-669-5165 (Canada).

Panasonic Corporation of North America

Two Riverfront Plaza, Newark, NJ 07102
www.panasonic.com

Panasonic Canada lnc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3
www.panasonic.ca

Panasonic Corporation 2024

P0324-0 15VK30420

20
