Panasonic FV-10VEC1 service manual

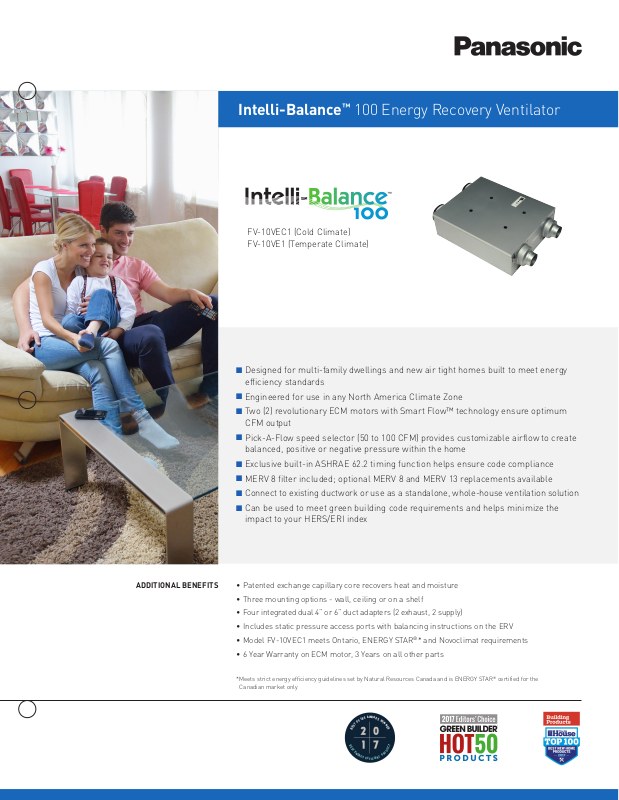

Intelli-Balance™ 100 Energy Recovery Ventilator

FV-10VEC1 (Cold Climate)
FV-10VE1 (Temperate Climate)

n

Designed for multi-family dwellings and new air tight homes built to meet energy

efficiency standards

n

Engineered for use in any North America Climate Zone

n

Two (2) revolutionary ECM motors with Smart Flow™ technology ensure optimum

CFM output

n

Pick-A-Flow speed selector (50 to 100 CFM) provides customizable airflow to create

balanced, positive or negative pressure within the home

n

Exclusive built-in ASHRAE 62.2 timing function helps ensure code compliance

n

MERV 8 filter included; optional MERV 8 and MERV 13 replacements available

n

Connect to existing ductwork or use as a standalone, whole-house ventilation solution

n

Can be used to meet green building code requirements and helps minimize the

impact to your HERS/ERI index

ADDITIONAL BENEFITS

• Patented exchange capillary core recovers heat and moisture

• Three mounting options - wall, ceiling or on a shelf

• Four integrated dual 4” or 6” duct adapters (2 exhaust, 2 supply)

• Includes static pressure access ports with balancing instructions on the ERV

• Model FV-10VEC1 meets Ontario, ENERGY STAR®* and Novoclimat requirements

• 6 Year Warranty on ECM motor, 3 Years on all other parts

*Meets strict energy efficiency guidelines set by Natural Resources Canada and is ENERGY STAR® certified for the
Canadian market only

W

A

R

A

D

S

S

B

I

W

F

I

N

O

N

T

S

E

B

B

E

S

T

E

N

E

R

T

C

U

D

O

R

E

P

R

G

T

Y

N

E

E

I

F

C

F

I

The power of performance, with exclusive smart sensing technology

COST EFFECTIVE, CODE COMPLIANT ERV FOR ANY CLIMATE ZONE

Intelli-Balance™ 100 is a customizable, high performance, high efficiency
Energy Recovery Ventilator (ERV) that’s designed to help you meet ASHRAE

62.2 requirements. This unique and cost effective ERV was engineered for total
versatility and installation flexibility, in any climate zone. Built-in controls minimize

FV-10VEC1* (Cold Climate)
FV-10VE1 (Temperate Climate)

*Meets strict energy efficiency guidelines set by
Natural Resources Canada and is ENERGY STAR®
certified for the Canadian market only.

the time it takes to determine desired airflow, as well as verify and maintain
performance. Intelli-Balance
ventilation system requirements, improve IAQ and reduce ventilation costs.

™

100 allows you to simply design and specify your

Tight Home Air Pressure

WITHOUT ERV WITH ERV

Built-In Controls

BALANCED VENTILATION

Tightly built homes and buildings utilizing exhaust only fans can create negative
pressure. Intelli-Balance
air, helping to balance air pressure within the home.

Panasonic Intelli-Balance
adaptors – two to exhaust stale air and two to supply fresh. Its low, continuous run
helps remove unwanted, stale air and replace it with fresh air.

Intelli-Balance

™

100 can be ceiling or wall mounted, does not require
connection to the Central HVAC or the addition of a condensation line. This
allows it to be installed in many places throughout the home to meet IAQ,
health and comfort needs.

™

100 solves this by supplying air to replace exhausted

™

100 ERV uses four integrated dual 4” or 6” round duct

ECM MOTOR TECHNOLOGY

Intelli-Balance™ 100 uses two (2) ECM brushless motors with built-in SmartFlow™
technology for precision ventilation. When the ERV senses static pressure, its
speed is automatically increased to ensure optimal CFM output; regardless of a
complicated duct run. This feature provides peace of mind, as the installer doesn’t
have to worry about compromising the ERV’s performance. Both ECM motors are
rated for continuous run and are totally enclosed to ensure long-life and continuous
quiet operation. Each motor also comes equipped with a thermal cutoff fuse.

PICK-A-FLOW™ SPEED TECHNOLOGY

ASHRAE 62.2

Timer

Pick-A-Flow,

Supply

Pick-A-Flow,

Exhaust

Intelli-Balance™ 100 includes a built-in Pick-A-Flow™ speed selector that provides
the unique ability to select your required supply (50-60-70-80-90-100 CFM) and
exhaust airflow (50-60-70-80-90-100 CFM), with the simple turn of a dial. This truly
customizable airflow capability allows you to create balanced, positive or negative
pressure within the home.

ASHRAE 62.2 TIMING FUNCTION

The adjustable Minutes Per Hour (Min/Hr) timer allows the user to set the number
of minutes per hour the ERV should run. This ensures consistent and controlled
ventilation throughout the day for compliance with ASHRAE 62.2. Factory default
setting is 60 Min/Hr.

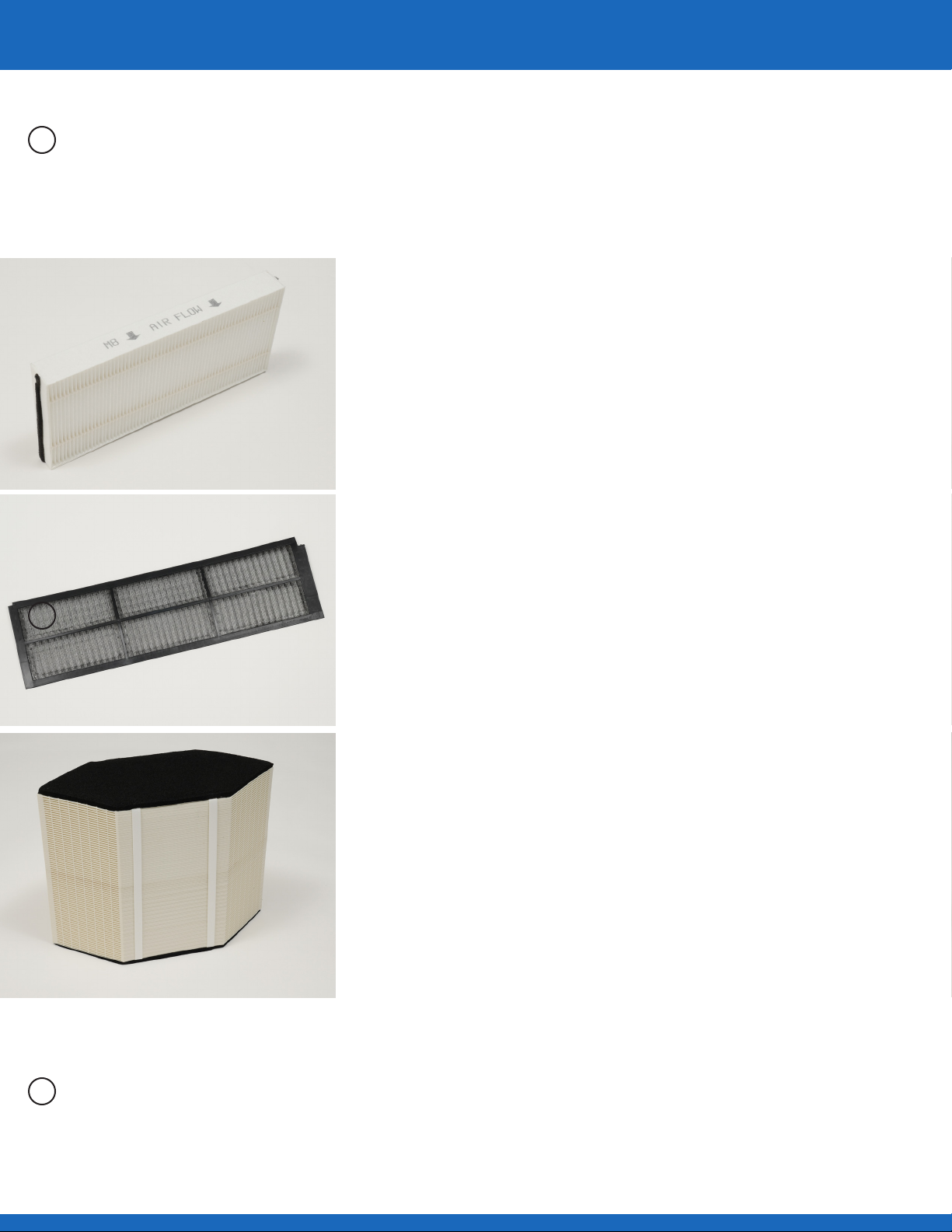

FILTERS & MAINTENANCE

Intelli-Balance™ 100 has two filters that clean the exhaust and supply air before
passing through the ERV core, extending the life of the core. A hinged access panel
allows for quick and easy product maintenance and filter checks. Convenient light
indicator and unobtrusive alarm signal on the access panel will help inform the
homeowner when it’s time to check and clean the filters. Both filters should be
vacuumed with a soft brush attachment every 2-3 months or as needed, and the
supply air filter should be inspected every 90 days and replaced every 6 months to
maintain the ERV’s peak performance.

EXCHANGE CAPILLARY CORE

Supply Air Filter (MERV 8

included, MERV 13 Optional)

Return Air Filter

Indoor and outdoor air pass through Panasonic’s patented capillary core designed
to transfer heat and moisture. This process tempers supply air while transferring
moisture. The core’s high latent energy (moisture) transfer makes Intelli-Balance 100
ideal for use in most climate zones, as it helps expel moisture during incidences of
high relative humidity (RH) and helps return moisture back inside during the winter
for a healthier, more comfortable living environment.

WHOLE HOUSE ERV

Intelli-Balance™ 100 is a ceiling or wall mount Energy Recovery Ventilator (ERV) that’s
ideal for meeting whole house ventilation requirements under ASHRAE 62.2. Intelli-

™

Balance

100 is also an ideal choice when partnered with mini-splits or VRF Heat
Pumps for fresh, balanced air with energy recovery which makes it a very affordable,
cost-effective IAQ solution.

Ideal for: Single Family Homes (≤ 3,000 sq. ft., up to 7 bedrooms) / Condominiums /
Apartments / Housing Authority Properties / Hotels / Studio apartments.

ASHRAE 62.2 2010 AND 2013 STANDARD

The American Society of Heating, Refrigerating and Air Conditioning Engineers
(ASHRAE) set a standard for whole house ventilation, requiring that continuous
mechanical ventilation be 7.5 CFM per bedroom (master bedroom X 2) plus 1 CFM per
100 square feet, with sone not to exceed 1.0. ASHRAE 62.2-2013 requires a ventilation
rate of 7.5 CFM per person plus 3 CFM per 100 square feet. Please check with your
local code to determine which ventilation standard you should follow. Panasonic Intelli­Balance

™

100 ERV is an affordable, efficient way to meet the ASHRAE 62.2 standard.

Exchange Capillary Core

OPERATION

FV-10VEC1 is recommended for areas where temperatures can drop as low as

-22°F (-30°C). When the outdoor temperature is < -22°F (-30°C), the defrost cycle
is initiated and the product will stop operating for 47 minutes, then operate in heat
exchange mode for 4 minutes in order to sample the outdoor temperature. It then
operates in circulation mode for 9 minutes in order to defrost (exhaust and supply air
are 50 CFM). Defrost cycle overrides the ASHRAE 62.2 timing function.

FV-10VE1 is recommended for areas where temperatures can drop as low as 14°F
(-10°C). When the outdoor temperature is < 14°F (-10°C), the defrost cycle is initiated
and the product will stop operating for 56 mins, then operate in heat exchange mode
for 4 minutes in order to sample the outdoor temperature (exhaust and supply air are
50 CFM). Defrost cycle overrides the ASHRAE 62.2 timing function.

Optional Accessories (Sold Separately):

Static Pressure (inch w.g.)

Airflow (CFM)

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

1

0

0 20 40 60 80 100 120

Net Supply Air

Net Exhaust Air

Static Pressure (inch w.g.)

Airflow (CFM)

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

1

0

0 20 40 60 80 100 120

Net Supply Air

Net Exhaust Air

FV-FL0810VE1: MERV 8 Replacement Filter

FV-FV1310VE1: MERV 13 Optional Replacement Filter

FV-WC04VE1: Optional Exterior Wall Cap

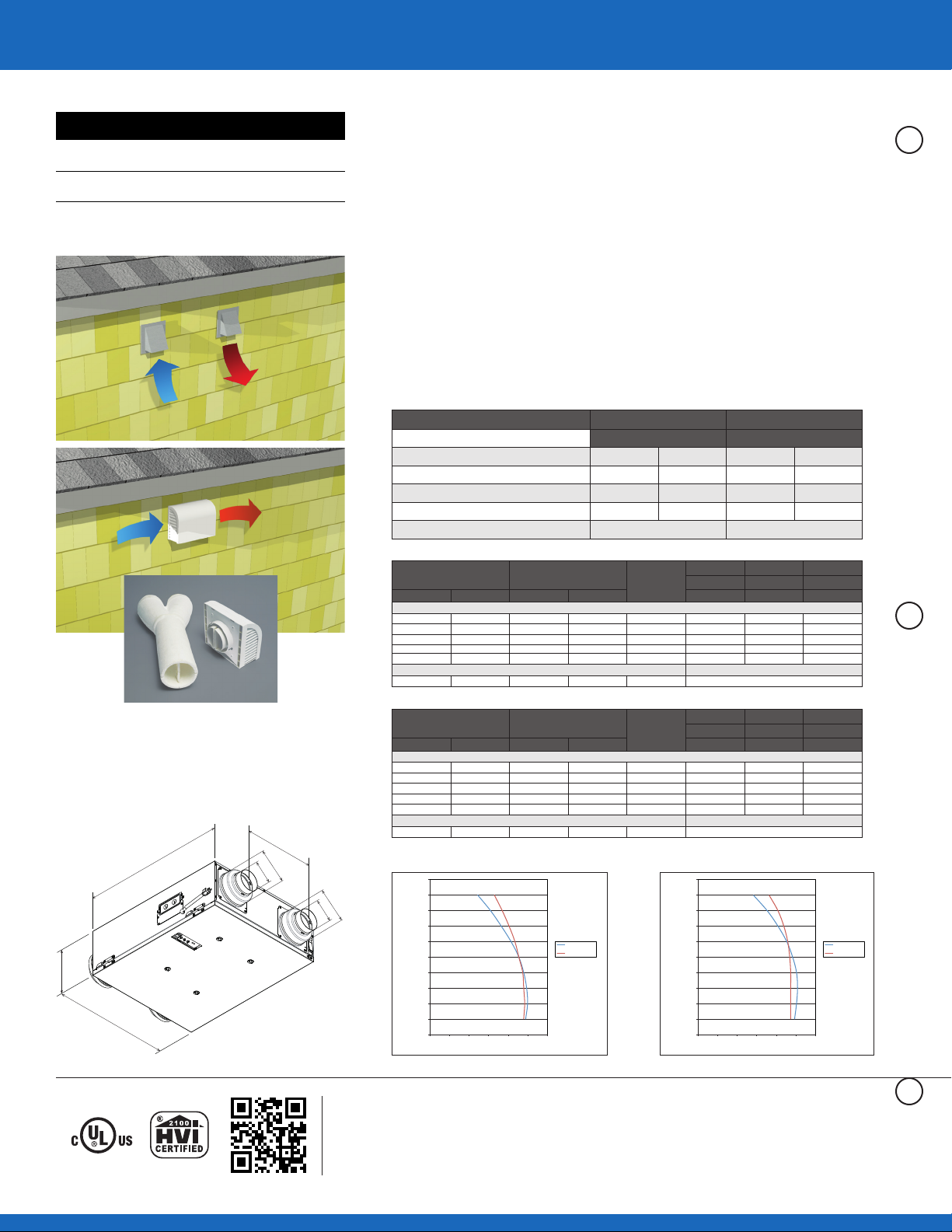

INSTALLATION

Mounting: Intelli-Balance™ 100 can easily be mounted in the ceiling or on a wall

using the included cleat hanger bar. It measures 23" wide and fits between joists
16" on center. Adjustable brackets and screws are provided to secure the unit
to the joist on 4 corners. Intelli-Balance
suspended. It is recommended that you use 4 chains, 20-24" in length with a
weight capacity of +66 pounds.

™

100 can also be chain mounted and

TYPICAL WALL CAP INSTALLATION

Supply hood
should include
a bird screen
with backdraft
damper removed

Exhaust
hood should
include a
backdraft
damper

ALTERNATIVE PANASONIC SOLUTION

EXHAUST

SUPPLY

FV-WC04VE1*

*FV-WC04VE1 is ideal for use in smaller, multi-family applications.
It is not recommended for use at CFM settings higher than 50 CFM.

FV-10VEC1/FV-10VE1

28- 1/2

'’

4' ’ Di a

6' ’ Di a

13' ’

Wiring: Power consumption is 64 Watts on FV-10VEC1 and 62 Watts on FV-10VE1,
with a power rating of 120/60 V/Hz.

Duct: Insulated 4"or 6" duct is recommended.

Static Pressure Access Ports: The unit’s access panel incorporates static

pressure ports for measuring the differential pressure of fresh air and exhaust air
so the dampers can be adjusted for balancing airflows.

Intelli-Balance 100

Characteristics COLD CLIMATE TEMPERATE CLIMATE

Static pressure in inches w.g. 0.1 0.4 0.1 0.4

Net Exhaust Air Volume (CFM) 96 95 95 95

Net Supply Air Volume (CFM) 98 96 99.0 101

Power Consumption (Watts) 64.0 84.0 62.0 80.0

Power Rating (V/Hz) 120/60 120/60

FV-10VEC1

Supply Temperature Net Air Flow

°C °F L/S CFM Efficiency Effectiveness Transfer

0 32 25 53 24 81 88 0.8
0 32 31 67 34 77 86 0.76
0 32 40 86 54 75 83 0.72

-25 -13 27 57 66 65 85 0.7

-25 -13 32 68 84 64 80 0.7

35 95 23 48 16 65

Cooling

FV-10VE1

Supply Temperature Net Air Flow

°C °F L/S CFM Efficiency Effectiveness Transfer

0 32 25 54 20 79 90 0.76
0 32 32 67 28 79 88 0.76
0 32 41 87 46 75 85 0.72

-25 -13 - - - - - -

-25 -13 - - - - - -

35 95 25 52 22 73

Cooling

FV-10VEC1 50-80-100 CFM 4 x 4" or 6" Ducts FV-10VE1 50-80-100 CFM 4 x 4" or 6" Ducts

FV-10VEC1 FV-10VE1

Power

Consumed

(Watts)

Sensible Apparent Net
Recovery Sensible Moisture

Heating

Total Recovery Efficiency

Power

Consumed

(Watts)

Sensible Apparent Net
Recovery Sensible Moisture

Heating

Total Recovery Efficiency

8-7/8'’

6' ’ Di a

4' ’ Di a

23' ’

Panasonic Eco Solutions of North America
Eco Products Division

Two Riverfront Plaza
Newark, NJ 07102

For Order Information

PHONE: [phone]
FAX: [phone]

[e-mail]

us.panasonic.com/ventfans

VF16547SSDesign and specifications subject to change without notice.
