Panasonic FV-10VEC2, FV-10VEC2H, FV-10VE2, FV-10VE2H Install Instructions

Download

Page 1

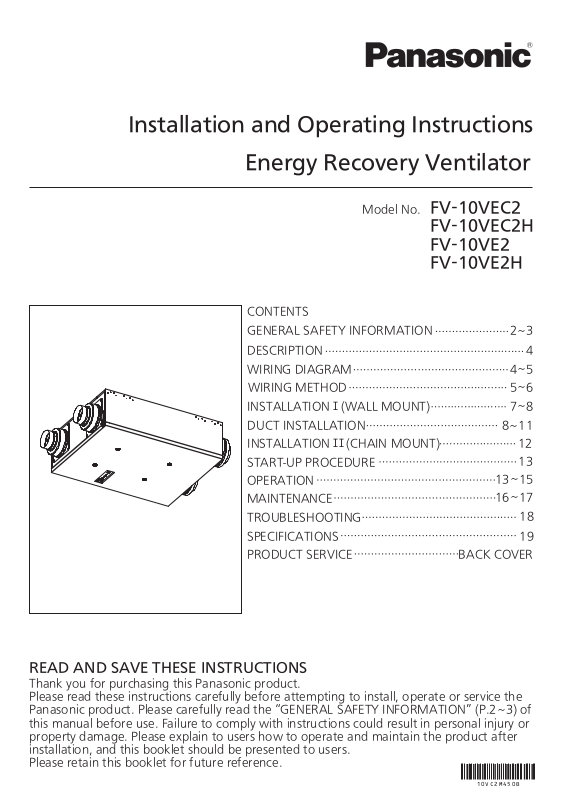

Installation and Operating Instructions

Energy Recovery Ventilator

Model No.

FV-10VEC2 FV-10VEC2H FV-10VE2 FV-10VE2H

CONTENTS

GENERAL SAFETY INFORMATION

DESCRIPTION

WIRING DIAGRAM

WIRING METHOD

INSTALLATIONⅠ(WALL MOUNT)

DUCT INSTALLATION INSTALLATIONⅠⅠ (CHAIN MOUNT)

START-UP PROCEDURE

OPERATION MAINTENANCE

TROUBLESHOOTING

SPECIFICATIONS

PRODUCT SERVICE

2~3

4~5

5~6

7~8

8~11

13 13~15 16~17

BACK COVER

READ AND SAVE THESE INSTRUCTIONS

Thank you for purchasing this Panasonic product. Please read these instructions carefully before attempting to install, operate or service the Panasonic product. Please carefully read the “GENERAL SAFETY INFORMATION” (P.2~3) of this manual before use. Failure to comply with instructions could result in personal injury or property damage. Please explain to users how to operate and maintain the product after installation, and this booklet should be presented to users. Please retain this booklet for future reference.

10VC2M450B

Page 2

GENERAL SAFETY INFORMATION

For Your Safety

To reduce the risk of injury, loss of life, electric shock, fire, malfunction, and damage to equipment or property, always observe the following safety precautions.

Explanation of symbol word panels

The following symbol word panels are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

Denotes a potential hazard that could result in death or

WARNING

serious injury.

CAUTION

NOTICE

The following symbols are used to classify and describe the type of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must not be performed.

This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.

This symbol is used to alert users not to disassemble the equipment.

This symbol is used to alert users to make sure of grounding when using the equipment with the grounding terminal.

Denotes a hazard that could result in minor injury.

Denotes a hazard that could result in property damage.

WARNING

When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring and other hidden utilities. Solid state controls may cause harmonic distortion which can cause motor humming noise. To reduce the risk of fire or electric shock, do not use this unit with any solidstate control device. Canada only: Not to be installed in a ceiling thermally insulated to a value greater than R40.

Never install the unit in a high humidity space, such as a bathroom, kitchen or laundry room.

Do not install with a method which is not approved in the instructions.

Do not disassemble the unit. It may cause fire or electric shock.

Use this unit only in the manner intended by the manufacturer. If you have any questions, contact the manufacturer.

Installation work and electrical wiring must be performed by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.

Ducted fans must always be vented to the outdoors.

Page 3

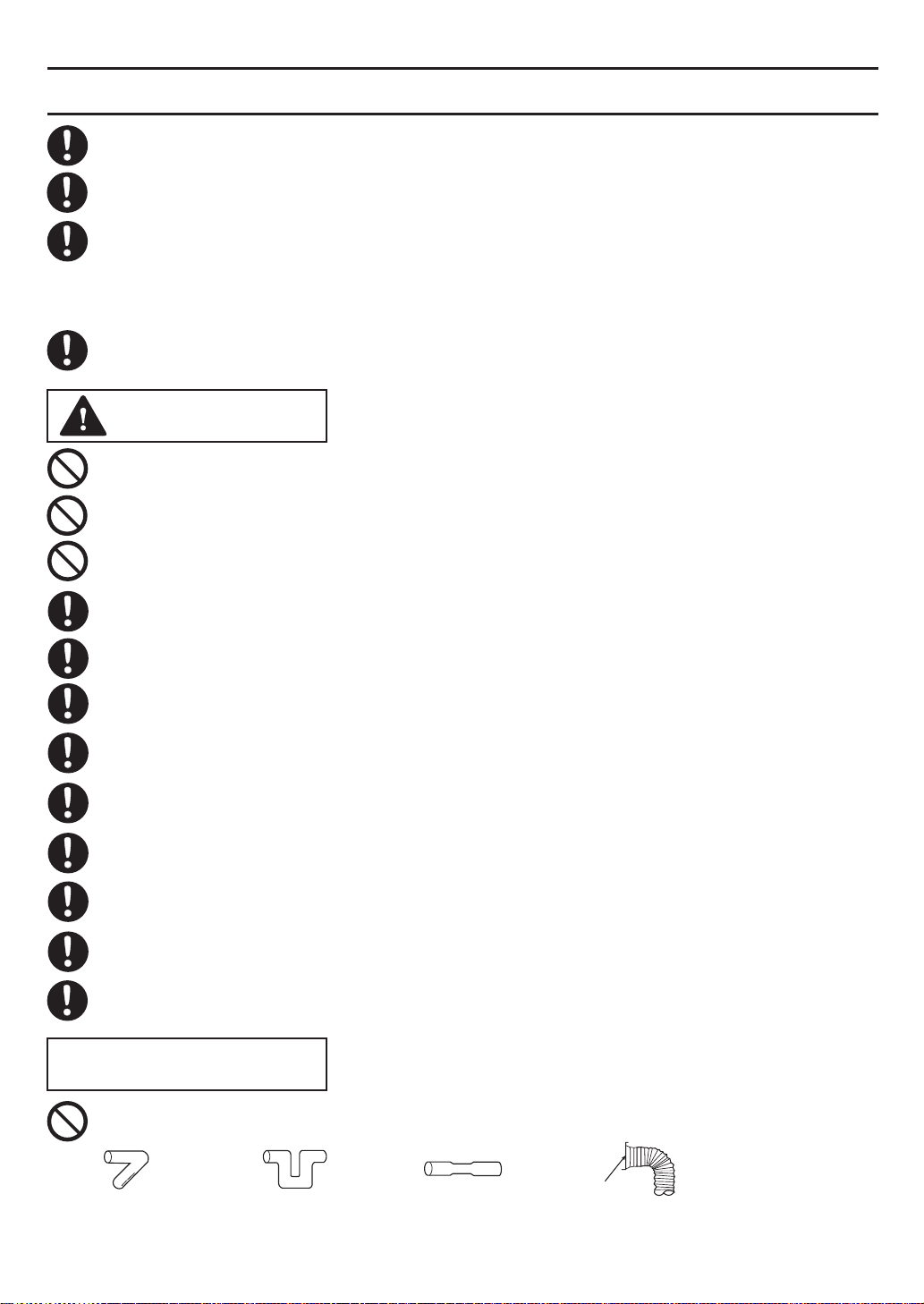

GENERAL SAFETY INFORMATION

Ceiling joist and wall stud must be subjected to static load more than five times the weight of the product.

The special-purpose or dedicated parts, such as mounting fixtures, must be used if such parts are provided.

Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.

Install the unit in the area where air temperature is above 50 °F (10 °C) to avoid condensation in unit.

CAUTION

For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.

Do not kink the power cord.

Do not install the unit in the area where the air stream temperature may exceed 104 °F (40 °C).

The unit must be installed in a mechanical room, basement, or other conditioned space.

The OA duct and EA duct must be connected directly to the outside.

Make certain that the electric service supply voltage is AC 120 V, 60 Hz.

Follow all local electrical and safety codes, as well as the National Electrical Code (NEC) and the Occupational Safety and Health Act (OSHA).

Always disconnect the power source before working on or near the fan, motor, fixture or wiring cover.

Protect the power cord from sharp edges, oil, grease, hot surfaces, chemicals or other objects.

These fans are intended for residential use only.

When the product is to no longer be used, it must not be left in place but removed, to prevent it from possibly falling.

Disconnect power by switching off wall switch first, then main switch and unplug before working on unit when replacing the jumper cable with wall switch.

NOTICE

Do not install the unit where ducts are configured as shown below.

Adapter

Excessive bending Successive bending Squeezed duct Bend close to duct adapter

Page 4

DESCRIPTION

Energy Recovery Introduction: Compared to HRV (Heat Recovery Ventilator), ERV can also transfer humidity and recover energy from that humidity. ERV can exchange energy between “stale” EA and “fresh” OA, by transferring heat and moisture into the incoming cold air, and pre-cooling and reducing the humidity of the incoming hot air. This helps maintain a fresh environment even when the heating or cooling system is not operating.

Indoor

Stale air

Heat& Moisture

Fresh air

Outdoor

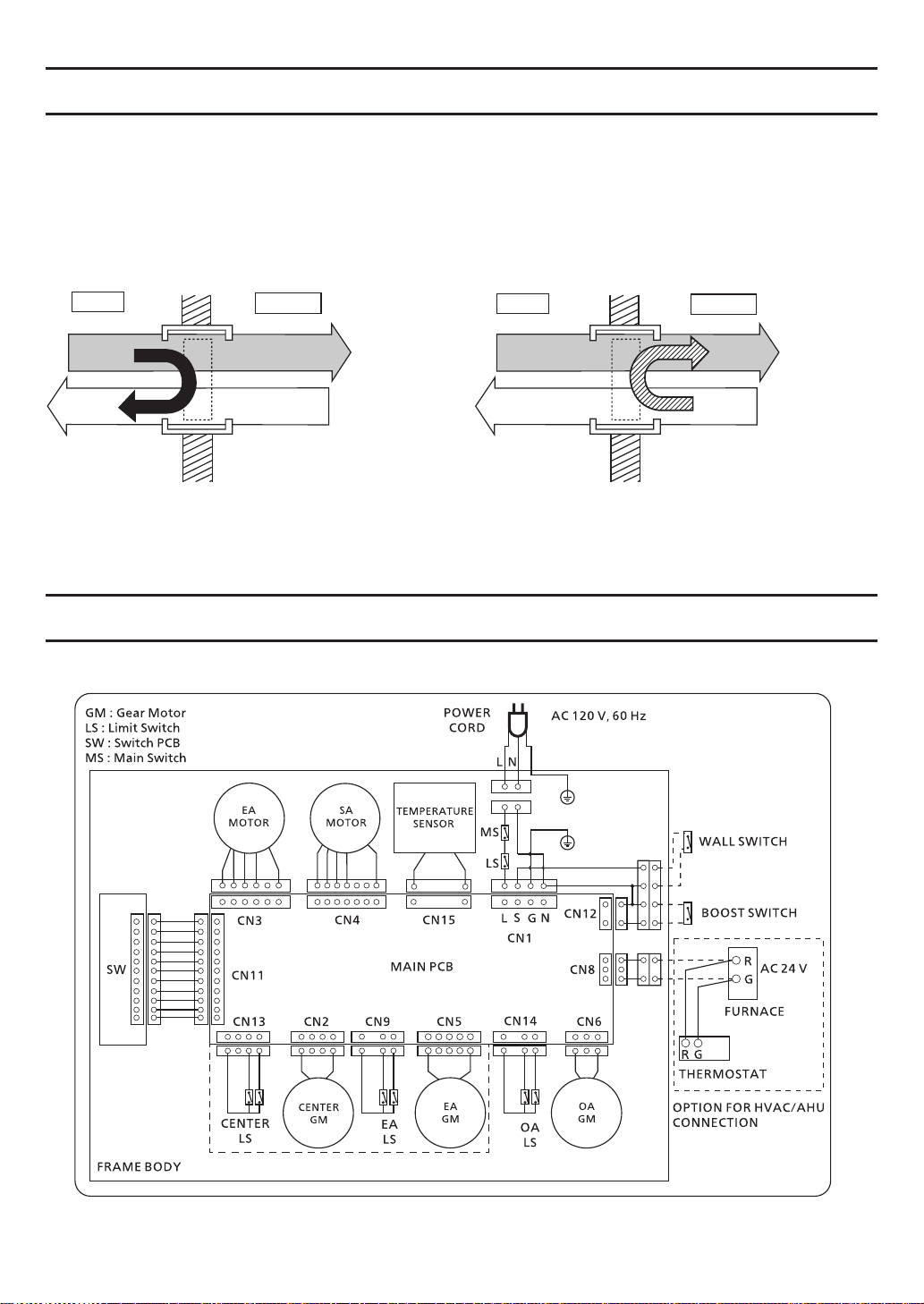

WIRING DIAGRAM

FV-10VEC2/FV-10VE2

Exhaust air (EA)

Outside air (OA)

Indoor

Stale air

Fresh air

Outdoor

Heat& Moisture

Exhaust air (EA)

Outside air (OA)

OnlyFV-10VEC2

Page 5

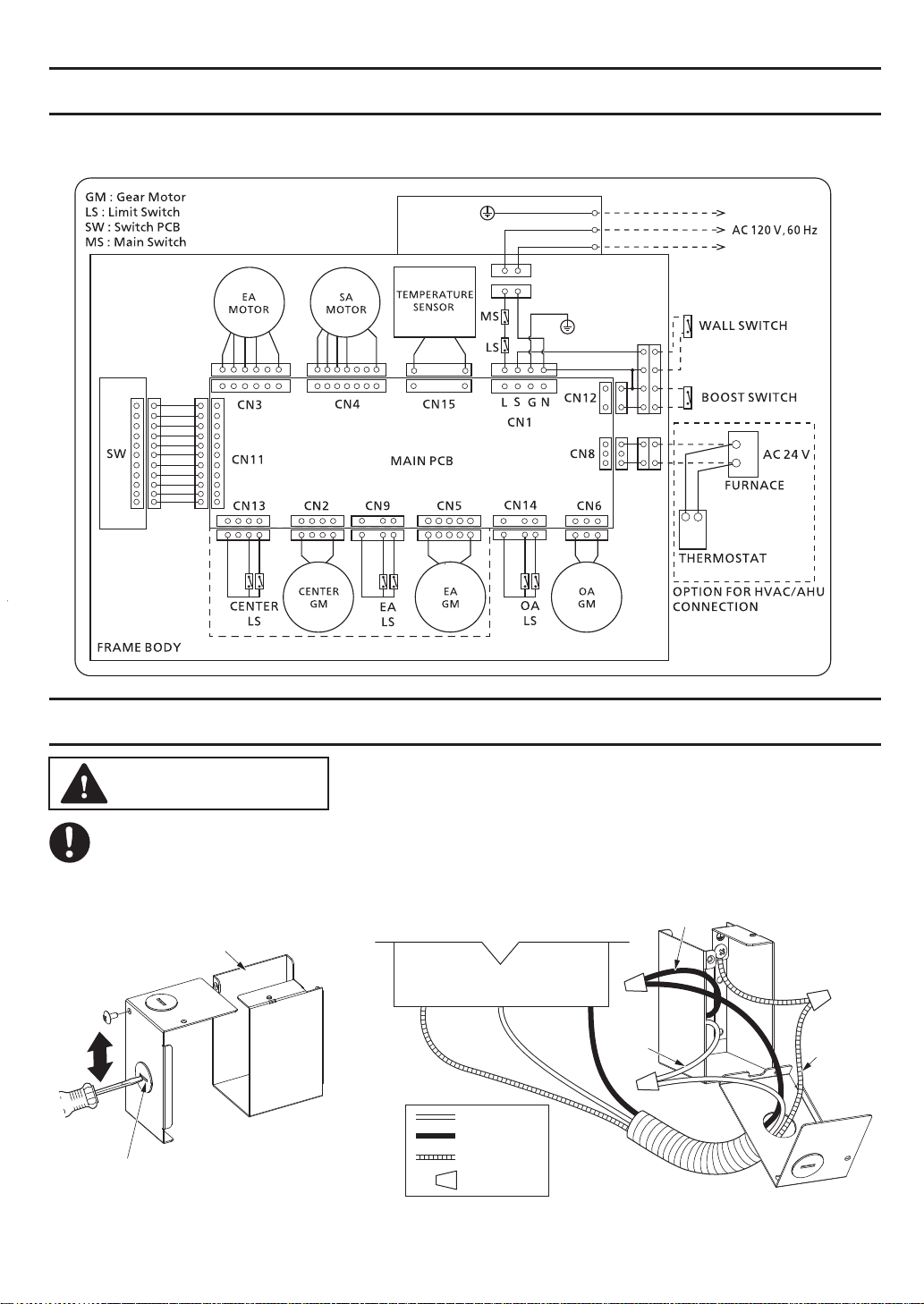

WIRING DIAGRAM

FV-10VEC2H/FV-10VE2H

OnlyFV-10VEC2H

JUNCTION BOX

GREEN BLACK WHITE

GROUND LIVE NEUTRAL

R G

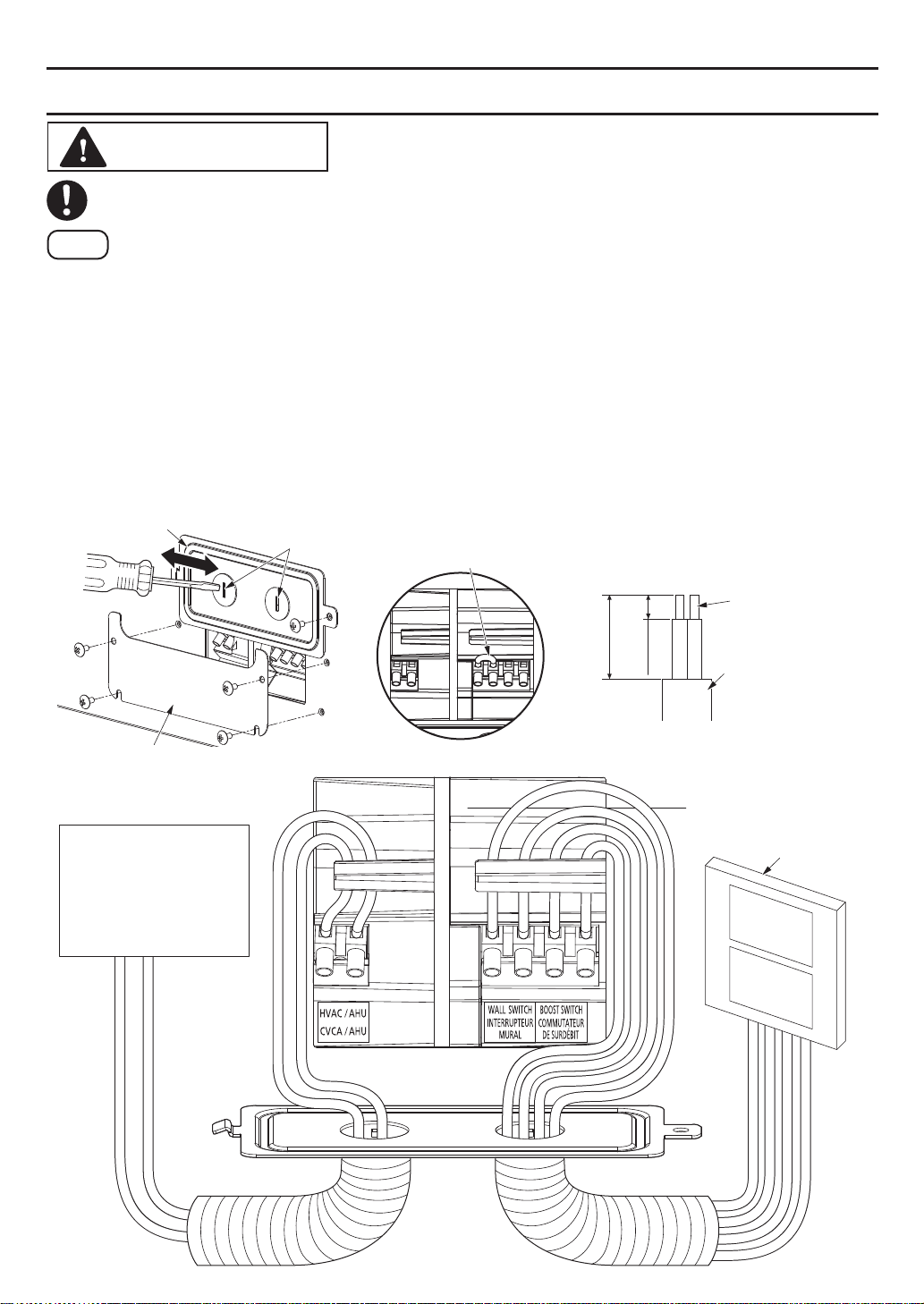

WIRING

METHOD

WARNING

Installation work and electrical wiring must be performed by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.

For FV-10VEC2H, FV-10VE2H

Live

Junction box

Open knock out hole

AC 120 60Hz (Power supply)

Earth ground

Neutral

WHITE BLACK GREEN

Wire Nuts

Live

Neutral

Earth ground

Page 6

WIRING

METHOD

CAUTION

The capacity of wall switch, boost switch should be more than 120 V~3 A to control the power of the product.

Note

(1)The terminal of wall switch has been connected by jumper cable as factory default. If connecting with wall switch, please remove the jumper cable. (2)The HVAC/AHU signal cord is optional, please connect it when you want to control the HVAC/AHU. If connecting with HVAC/AHU, the HVAC/AHU will turn on while ERV turns on. (3)If you are not connecting to the HVAC/AHU, please open knock-out holes for wall switch and boost switch connection only. (4)Insert wires into the corresponding terminals deeply through the ribs. Make sure the screw of terminal securely fastens the copper wire and the copper wire is not exposed.

(5)Reinstall the wiring cover and maintenance plate.

Wiring cover

Maintenance plate

HVAC/AHU signal

Open knock out holes

Jumper cable

Unit: inches (mm)

100) ~

3 1/2

(90

1/4 (7)

Copper wire

Wall switch cord/ HVAC/AHU signal cord/Boost switch cord

Wall Switches

Page 7

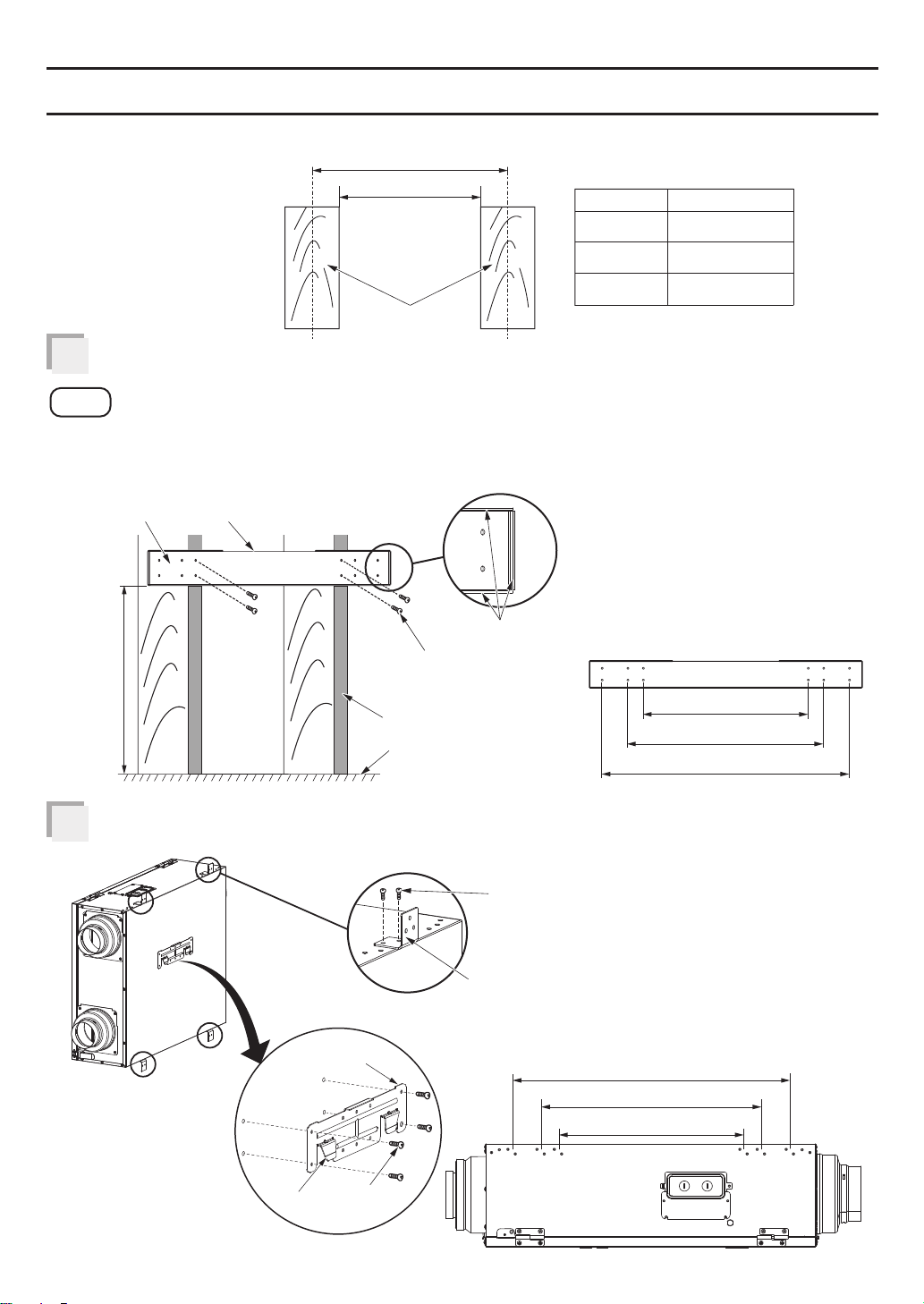

INSTALLATIONⅠ(WALL MOUNT)

This method can be used in stud as below.

Unit: inches (mm)

16 (406.4)

19 (482.6) 17 1/2 (444.5)

A B

14 1/2 (368.3)

Mount wall bracket.

24 (609.6)

Stud

22 1/2 (571.5)

Note

(1)Attach with flanged edge facing outward and edge without flange facing upward when mounting wall bracket. (2)Choose the mounting hole on wall bracket according to the distance between studs.

Wall bracket

>31 1/2 (800)

Edge without flange

4-long screws (ST4.2X30)

Stud

Floor

Flange

Unit: inches (mm)

16 (406.4)

19 (482.6)

24 (609.6)

Mount hangerⅠ and L plates.

Claw

Install L plates

Install HangerⅠ

HangerⅠ

4-screws (M4X8)

2-screws (M4X8)

L plate

24 (609.6) 19 (482.6)

16 (406.4)

Page 8

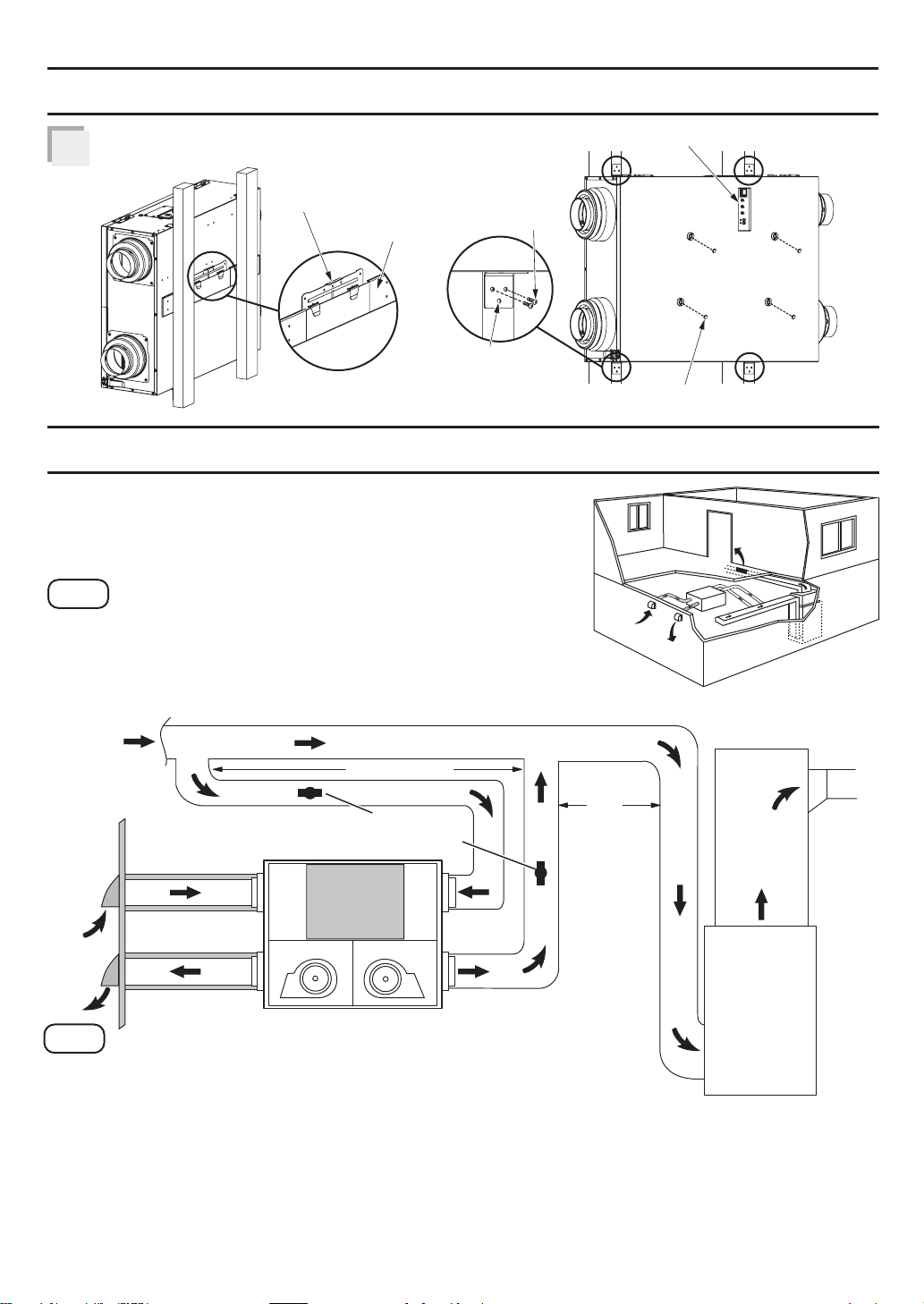

INSTALLATIONⅠ(WALL MOUNT)

Control panel comes to this side

Hang ERV on to wall bracket.3

HangerⅠ

Wall bracket

2-long screws (ST4.2x30)

Please use 3rd hole in case it is not easy to put screws due to Junction box.

DUCT INSTALLATION

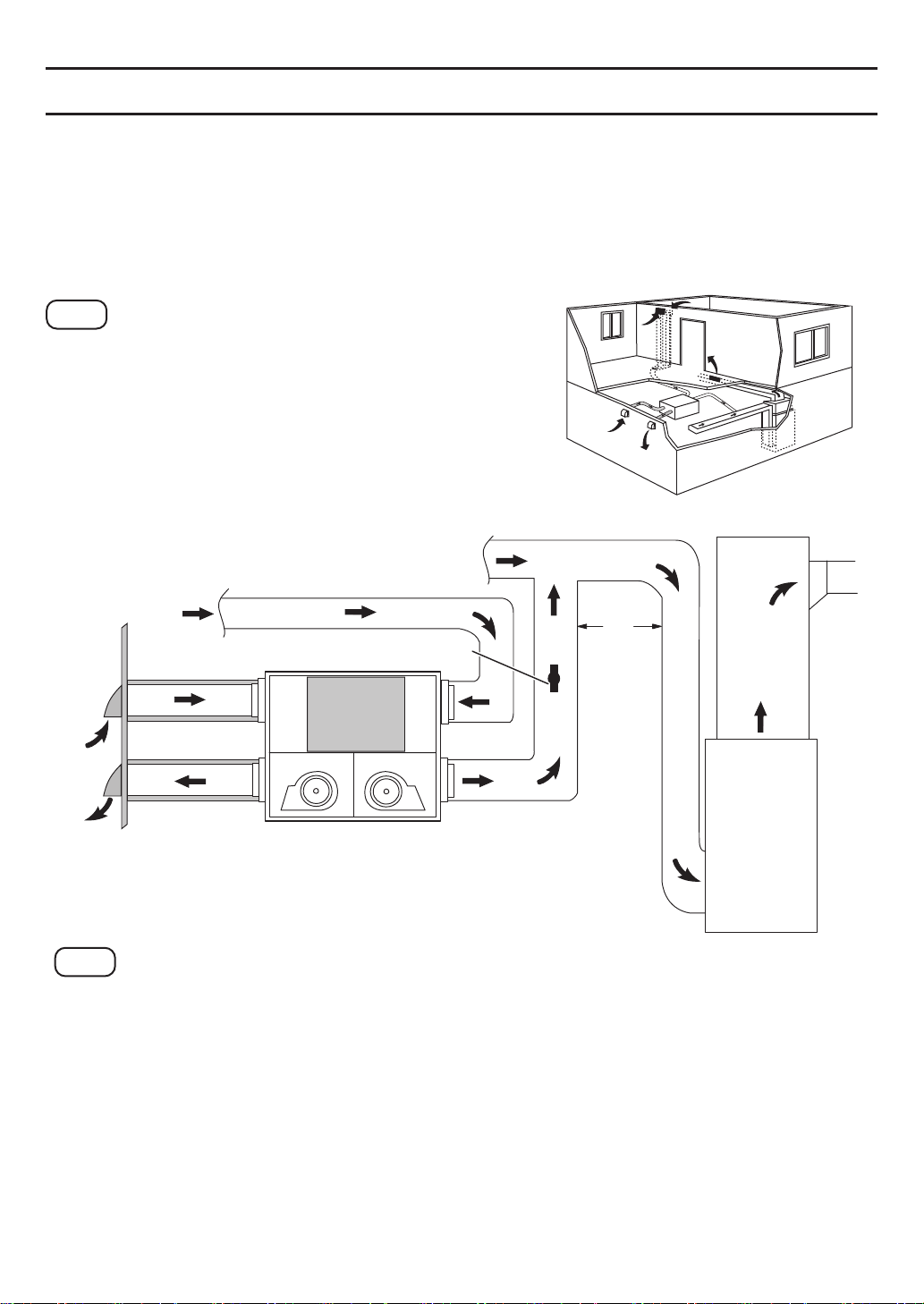

MethodⅠ- Simplified ducted installation (Return method)

This method draws return air from the return air duct of the air furnace and supplies an equal amount of outside air farther downstream into the return duct.

Note

(1)The ERV unit must be balanced.

It is mandatory that HVAC/AHU signal cord be connected.

(2) (3)Check local codes and authority having jurisdiction for acceptance.

4-plug covers

Return air

Outdoors

40" (1 m) Min.

Dampers for balancing

airflows

Return air

36”

(914 mm)

Min.

Air

furnace

Note

(1)Must Have 2-3 ft straight run on all duct attachments points before elbow is more than 2 ft (610 mm). (2)Unit is normally balanced on high speed with the furnace blower on. (3)A minimum separation of 40 inches (1 m) is recommended between the two direct connections. (4)The exhaust air connection shall be upstream of the supply air connection to prevent exhausting any fresh air. (5)The distance between two outdoor hoods please see P.11. (6)The airflow must be confirmed on site using the balancing procedures found in P.13.

Page 9

DUCT INSTALLATION

Method

ⅠⅠ

- Partially dedicated ducted installation

This method draws return air from specific points in the house and supplies an equal amount of outside air into the return air duct of the air furnace. Return air ducts of ERV should be installed in areas of the home where the poorest indoor air quality exists (bathroom and kitchen). The air furnace blower should be running when the ERV is operating to evenly distribute the outside air throughout the house.

Note

(1)The ERV unit must be balanced. (2)It is mandatory that HVAC/AHU signal cord be connected. (3)Check local codes and authority having jurisdiction for acceptance.

Return air from various parts of home. (i.e. bathrooms, kitchens, utility areas)

Outdoors

Return air

Dampers for

balancing airflows

Return air

36”

(914 mm)

Min.

Air

furnace

Note

(1)Must Have 2-3 ft straight run on all duct attachments points before elbow is more than 2 ft (610 mm). (2)Unit is normally balanced on high speed with the furnace blower on. (3)The distance between two outdoor hoods please see P.11. (4)The airflow must be confirmed on site using the balancing procedures found in P.13.

Page 10

DUCT INSTALLATION

Method

ⅠⅠⅠ

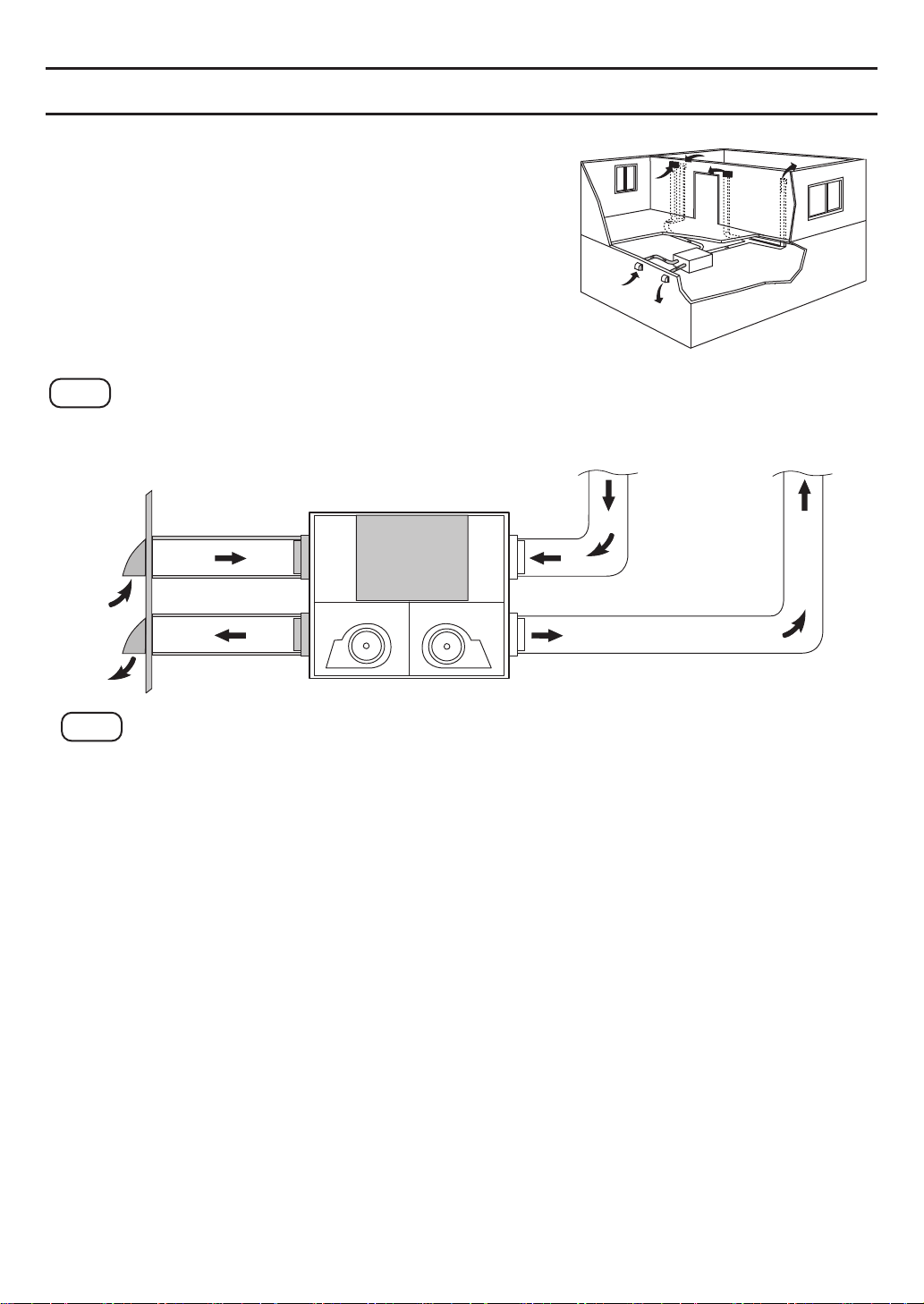

- Fully dedicated ducted installation

This method draws return air from specific points in the house and supplies outside air to specific locations of the house. This system is not connected to an air furnace. Return air ducts should be installed in areas of the home where the poorest indoor air quality exists (bathroom and kitchen). Supply air ducts should be installed to all bedrooms and living areas.

Note

(1)The ERV unit must be balanced. (2)Check local codes and authority having jurisdiction for acceptance.

Outdoors

Return air from various parts of home (e.g. bathrooms, kitchens, utility areas)

Supply air to main living areas (e.g. bedrooms, living room)

Note

(1)Must Have 2-3 ft straight run on all duct attachments points before elbow is more than 2 ft (610 mm). (2)The distance between two outdoor hoods please see P.11. (3)The airflow must be confirmed on site using the balancing procedures found in P.13.

Page 11

DUCT INSTALLATION

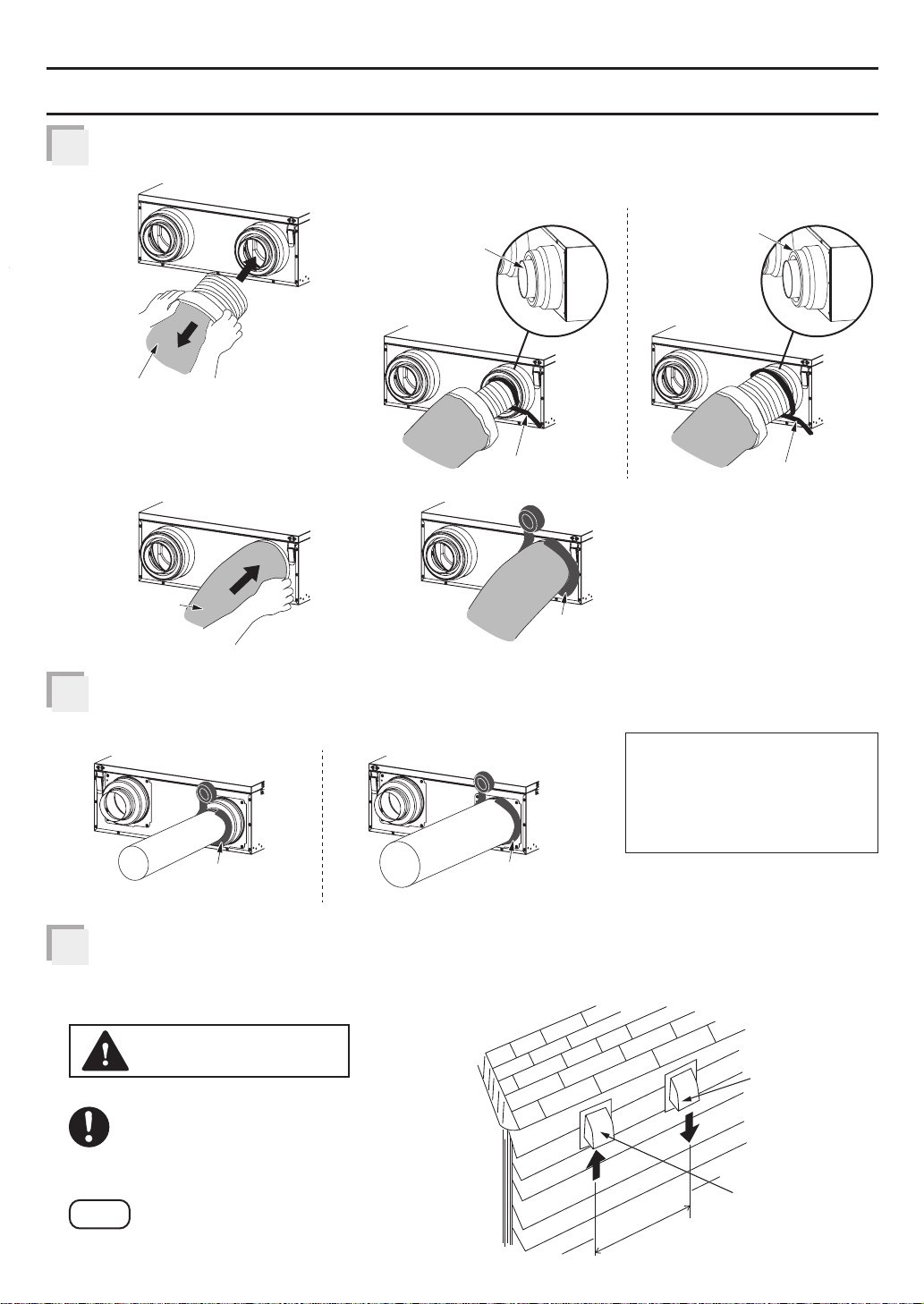

Install insulated ducts to the OA and EA adapter.

(1)

Pull back the insulation

(3)

Pull over the insulation

Attach duct (rigid galvanized duct, etc.) to the SA and RA adapter.

(2)

Attach to 4” adapter

4” adapter

Tie wrap

(4)

Mastic or approved foil tape

Attach to 6” adapter

6” adapter

Tie wrap

Attach to 4” adapter Attach to 6” adapteror

Mastic or approved foil tape

Install outdoor hood and connect with insulated ducts.

If separate hoods are used, locate them at least 10 ft (3 m) apart. Seal hoods with caulk or other similar material.

Mastic or approved foil tape

CAUTION

The intake side duct must be connected to the outside and at least 6 ft (1.8 m) away from the exhaust of appliances such as furnace, dryer, fuel burning appliances, etc.

Note

Please refer to the local codes for detail.

To avoid transmission of vibrations, it is recommended to use a 6-inch section of flexible duct to connect rigid ducts.

Exhaust hood with backdraft flap (s)

Intake hood with bird screen (No backdraft

10’ (3 m)

flap (s))

Page 12

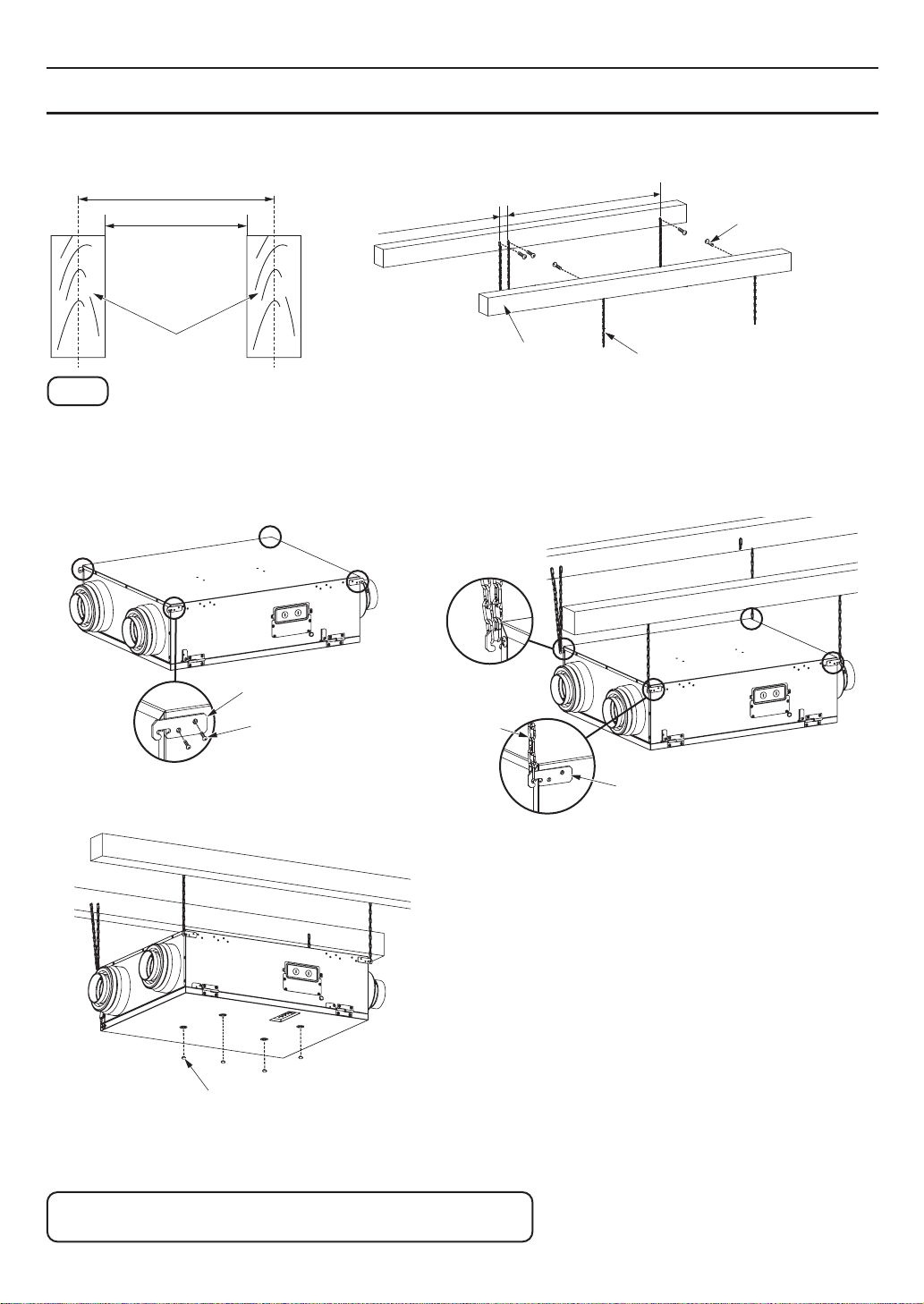

INSTALLATIONⅠⅠ (CHAIN MOUNT)

This method should be used in 24” joist as below.

Unit: inches (mm)

24 (609.6)

22 1/2 (571.5)

1 1/4 (31.8)

28 1/2 (723.6)

5-long screws (ST4.2X30)

Joist

5-chains

Note

(1)The chains are not supplied. Please purchase chains which must be subjected to the weight of 66 lbs. (30 kg) or above. (2)Make sure ERV is horizontal after installation.

HangerⅠⅠ

2-screws (M4X8)

Install HangerⅠⅠ

Chain

HangerⅠⅠ

Install chains to HangerⅠⅠ

4-plug covers

Duct installation please refer to P.8~P.11

Page 13

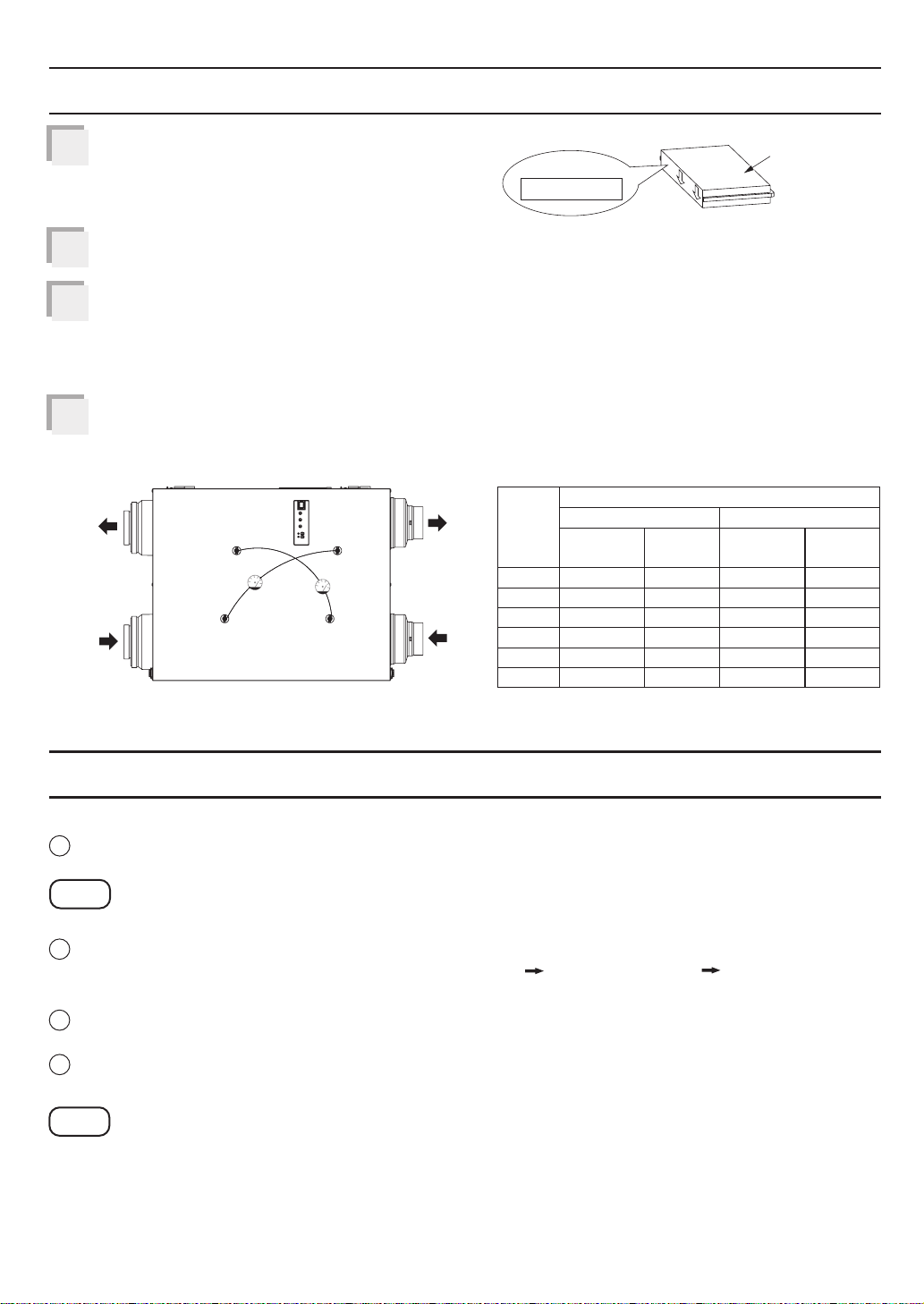

START-UP PROCEDURE

Fill in beginning time on the OA filter before

starting up the unit.

Connect the power then turn on the main switch on ERV.

If the ERV does not run, please check the wiring.

Check static pressure.

Using a manometer, measure the differential pressure of fresh air and exhaust air respectively, then adjust the dampers for balancing airflows to make the test value reach the differential pressure of setting volume as shown below.

Install the plug covers back when the check is complete.

Exhaust air (EA)

Outside air (OA)

Low Low

Fresh

High

Stale

High

Supply air (SA)

Return air (RA)

BEGINNING TIME:

The relation between volume

and differential pressure (reference)

Volume (CFM)

The numbers in this table are the values after installation.

FV-10VEC2 FV-10VEC2H

50 60 70 80 90

100

Differential pressure (Pa)

Fresh

FV-10VE2 FV-10VE2H

35 35 45 45 50 50 65 65 80 80 90 90

FV-10VEC2 FV-10VEC2H

OA filter

Stale

FV-10VE2 FV-10VE2H

55 70 75 90

95 115 120 145 155 195 175 225

OPERATION

Main switch: Power on or off for ERV. Push the main switch completely to the on/off position when turning on/off.

Note

The unit will consume some electricity unless you turn off the main switch.

ASHRAE time knob: The operation state will be changed with this knob. It is in units of 1 hour, for example: set to “10”, 10 minutes (ON) 50 minutes (OFF) 10 minutes (ON)... cycle operation. The factory default is 60 Min/H.

SA knob: Set the supply air volume with this knob. The factory default is 100 CFM.

EA knob: Set the exhaust air volume with this knob. The factory default is 100 CFM.

Note

The SA air volume is limited less than “EA air volume + 20 CFM” when the outdoor temperature is -22 °F (-30 °C)~14 °F (-10 °C). For example, when the EA air volume setting is 50 CFM and the SA air volume setting is 100 CFM, actually the EA air volume will be 50 CFM and the SA air volume will be 70 CFM.

Page 14

OPERATION

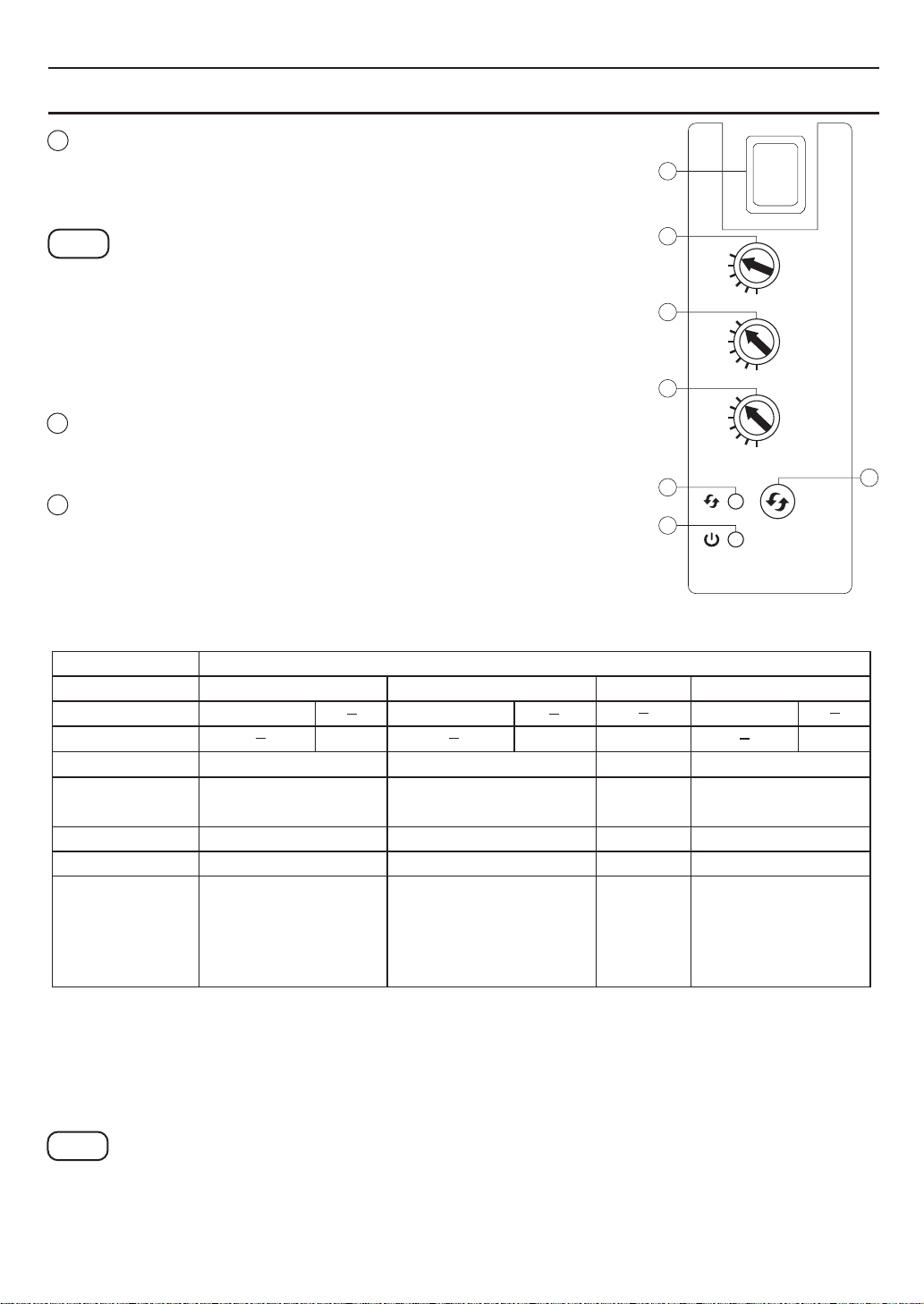

Filter indicator:

The indicator will be on when the product accumulated run time reaches to 90 days. The buzzing will sound every hour and 10 seconds in a hour.

Note

If you want to turn off the the indication of buzzer, please press filter reset button about 3 seconds until there is the sound of a long beep. Press filter reset button about 3 seconds again until there is sound of two quick beeps, the buzzer indication will be turned on again.

Running indicator: When the indicator is on, indicates the product is running.

Filter reset button: Press the button after filter maintenance

for resetting accumulatedrunning time.

min/h min/h

Supply Air

(CFM)

Air fourni

(pi /min)

Exhaust Air

(CFM)

d'évacuation

(pi /min)

Bouton de

réinitialisation

du filtre

Air

Filter

Reset

Button

100

The ERV will run as below:

Setting MAIN SWITCH JUMPER CABLE

WALL SWITCH BOOST SWITCH

ASHRAE TIME SWITCH (min/h)

SA SWITCH (CFM) EA SWITCH (CFM)

ERV ACTION

CONNECTED

CONNECTED CONNECTED

10~60

30, 50~100 30, 50~100 30, 50~100 30, 50~100

ERV enforces the following instructions

ASHRAE: 60 min/h SA:100 CFM EA:100 CFM

ERV restores setting instructions of customer

ASHRAE: 10~60 min/h SA:30, 50~100 CFM EA:30, 50~100 CFM

State

ON ON OFF

OFF ON/OFF

OFF

ON/OFF

10~60 10~60 10~60

30, 50~100 30, 50~100

Standby

30, 50~100 30, 50~100

Product is power off.

ON/OFF

For example: when main switch and wall switch are ON, suppose the customer to set as ASHRAE:50 min/h, SA:90 CFM, EA:90 CFM,

when boost switch is ON, ERV enforces the instructions ASHRAE:60 min/h, SA:100 CFM, EA:100 CFM; when boost switch is OFF, ERV restores setting instructions of customer ASHRAE:50 min/h, SA:90 CFM, EA:90 CFM;

Note

It’s better that the product is operated for 24 hours in order to prevent from being frozen.

Page 15

OPERATION

FV-10VEC2 and FV-10VEC2H are recommended for areas where temperature is -22 °F (-30 °C)~104 °F (40 °C).

FV-10VEC2,FV-10VEC2H

Circulation mode (for defrost)Heat exchange mode

EA damper open

Exhaust air (EA)

Center damper closed

Outside air (OA)

OA damper open

Supply air (SA)

Center damper open

Return air (RA)

FV-10VE2 and FV-10VE2H are recommended for areas where temperature is 14 °F (-10 °C)~104 °F (40 °C).

FV-10VE2,FV-10VE2H

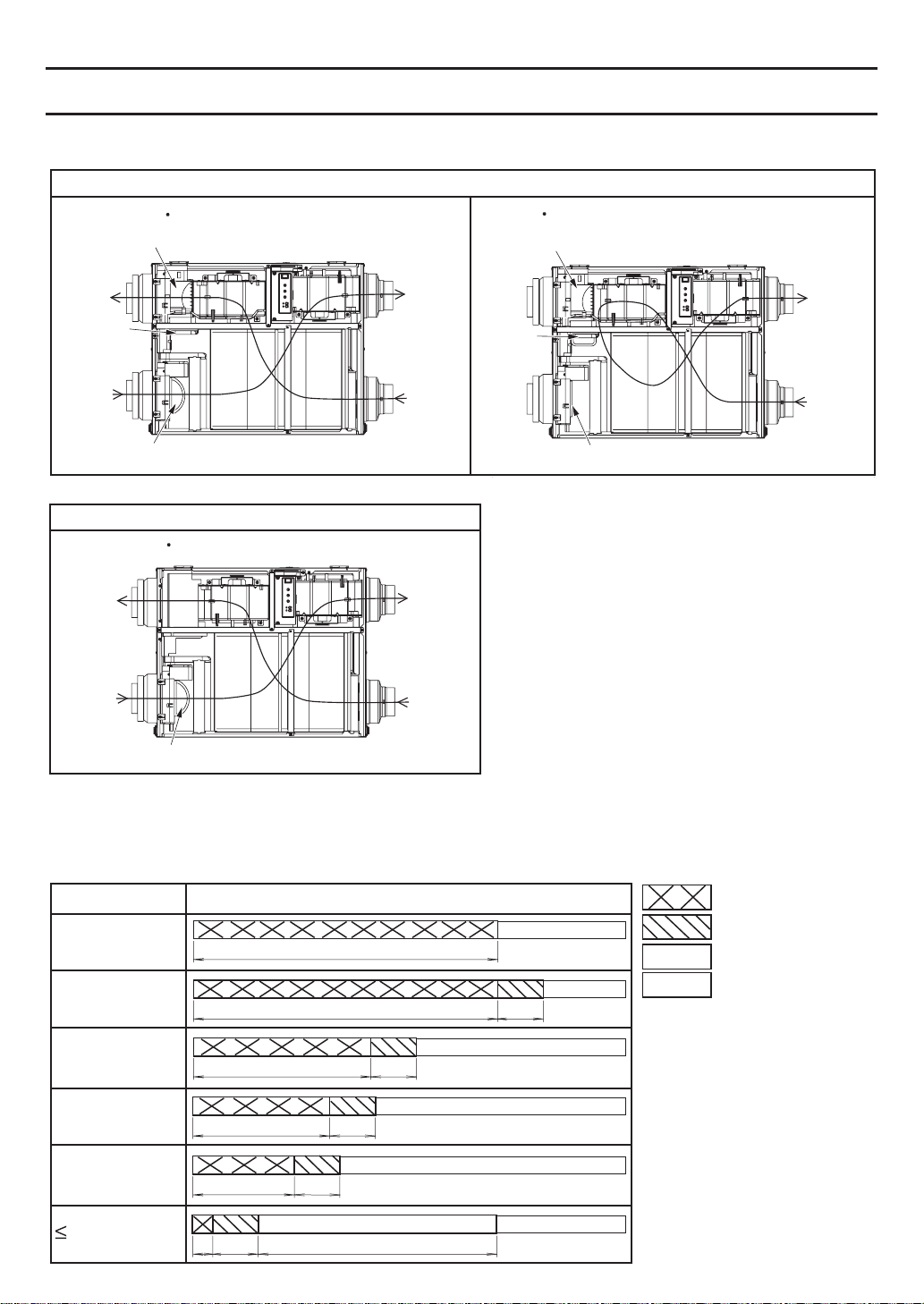

Heat exchange mode

EA damper closed

Supply air (SA)

Return air (RA)

OA damper closed

Exhaust air (EA)

Outside air (OA)

OA damper open

Supply air (SA)

Return air (RA)

Example of FV-10VEC2 and FV-10VEC2H

When the ASHRAE timer is set to 60 min/h or the boost switch is on. (The operation time of air exchange mode depends on the ASHRAE timer setting, and it is automatically set to 60 min/h when the boost switch is on.)

Outdoor temp. Operation mode and time (min)

>14 °F (-10 °C)

14 °F (-10 °C) 5 °F (-15 °C)

5 °F (-15 °C)

-4 °F (-20 °C)

-17 °F (-27 °C)

60 9

···

Heat exchange mode Circulation mode

Stop operating Repetition

-17 °F (-27 °C)

-22 °F (-30 °C)

···

474 9

Page 16

MAINTENANCE

CAUTION

Electric shock may result. Disconnect power by switching off main switch first, then

unplug before working on unit when it is in default mode.

Electric shock may result. Disconnect power by switching off wall switch first, then main switch and unplug before working on unit when replacing the jumper cable with wall switch.

Routine maintenance must be performed every 2 or 3 months, clogged filters may cause condensation on the unit due to air flow reduction.

Please wear gloves to avoid pinching fingers during maintenance.

Please pay attention to dust, condensation water or parts that may drop down when the frame cover is opened.

Never use petrol, benzene, thinner or any other such chemicals to clean the ERV.

Do not allow water to enter ERV.

Do not immerse resin parts in water over 60 °C.

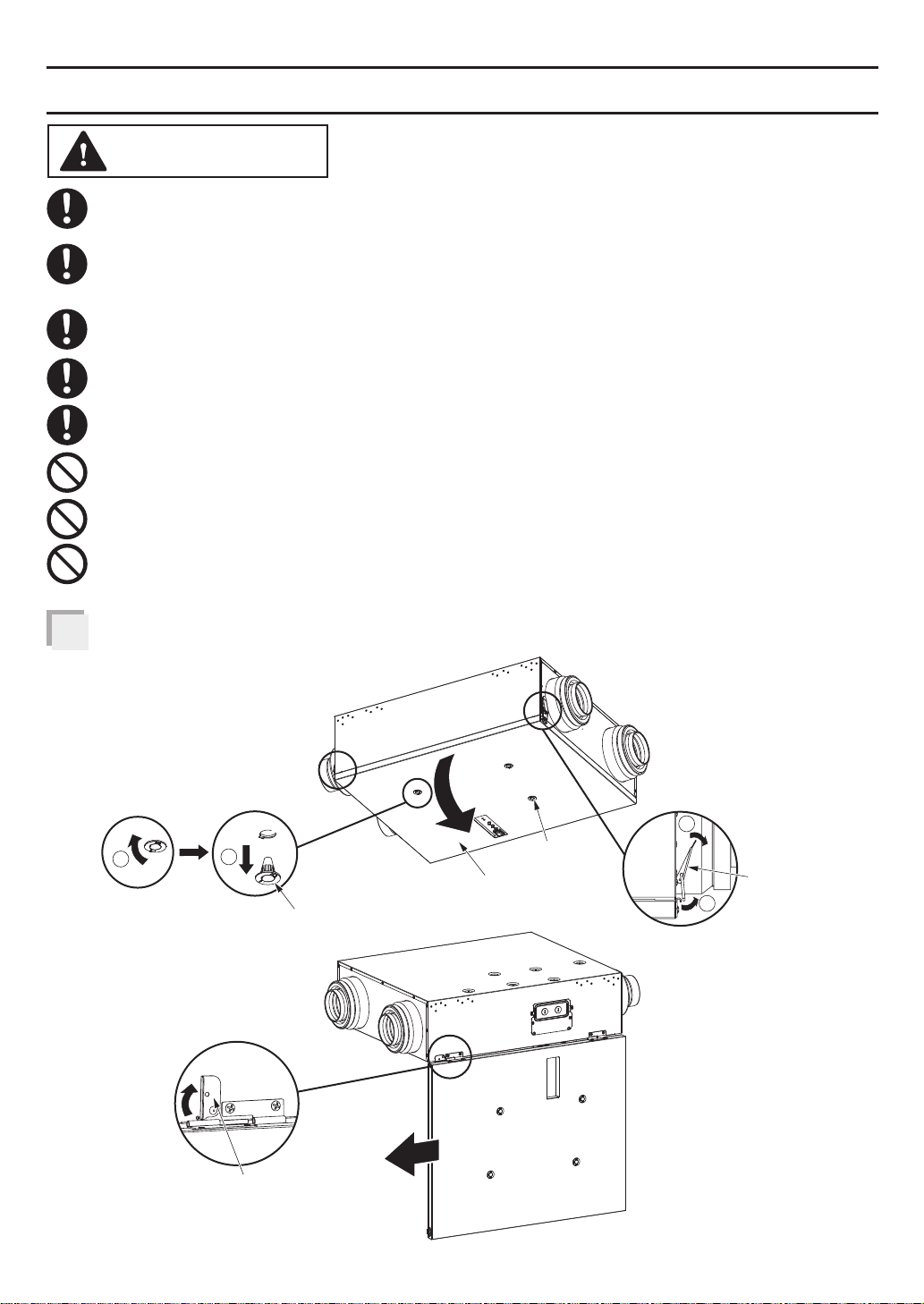

Open the frame cover by unlocking the latches.

After running in low temperature, remove 4-plugs to discharge condensed water.

You can detach the frame cover by releasing the lock plate.

Plug

4-plugs

Frame cover

Latch

Lock plate

Page 17

MAINTENANCE

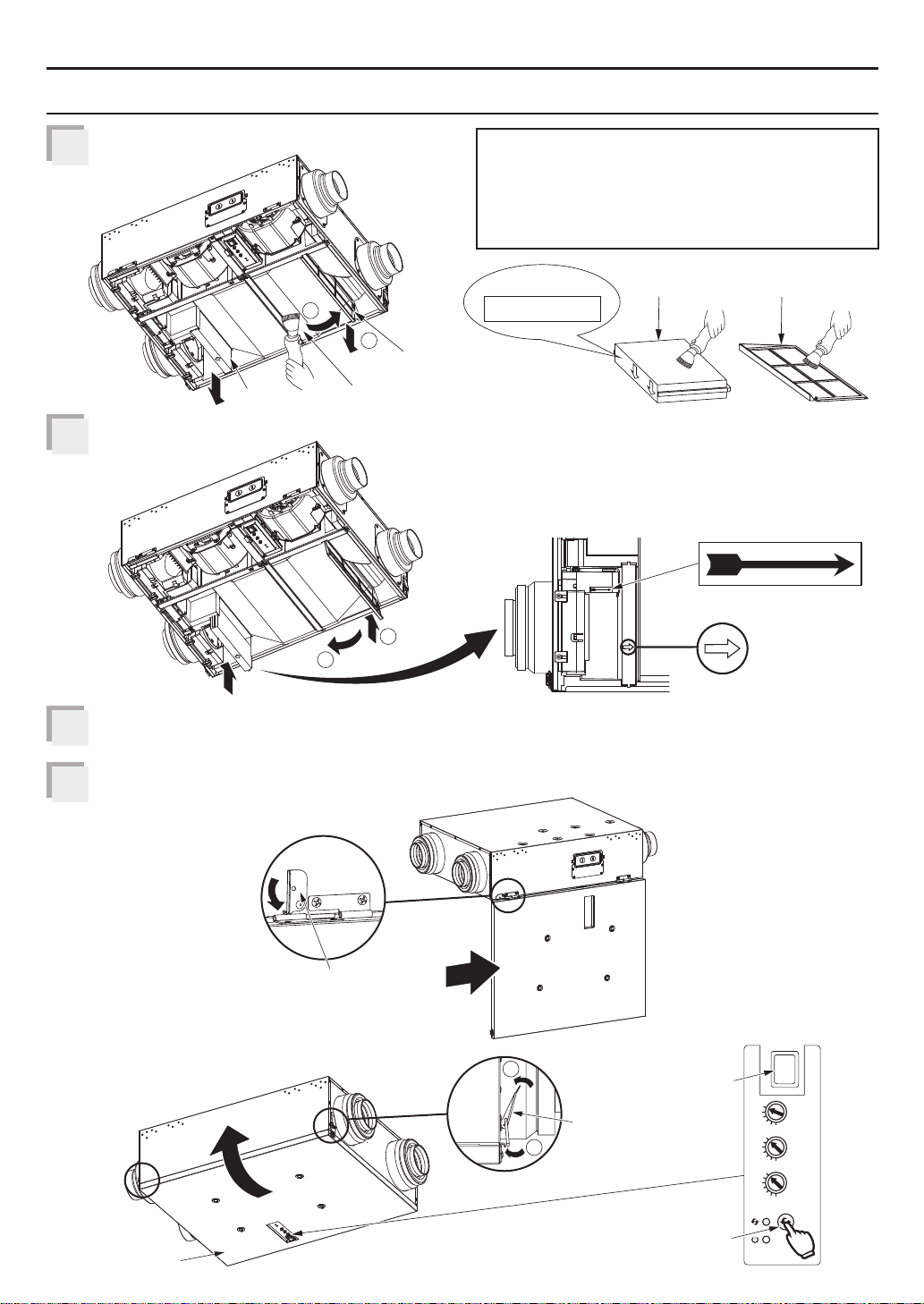

Clean the OA filter, RA filter and energy

recovery core.

Energy recovery core

Reinstall the filters.

OA filter

RA filter

It is suggested to replace the OA filter every 6 months. Please fill in beginning time on new OA filter before replacing. Please replace OA filter by Panasonic Model FV-FL0810VE1 or FV-FL1310VE1.

BEGINNING TIME:

OA filter

Make sure the direction of the arrow on the OA filter is correct.

AIR FLOW

RA filter

AIR FLOW

Reinstall and close frame cover by locking the latches, then reset the lock plate.

Connect power, press filter reset button with sound of beep, then filter indicator and

buzzer sound will be off.

Lock plate

60 50

100 90 80

d'évacuation

réinitialisation

Frame cover

Main switch

Latch

Filter reset button

min/h min/h

Supply Air

(CFM)

Air fourni

(pi /min)

Exhaust Air

(CFM)

Air

(pi /min)

Filter

Reset

Button

Bouton de

du filtre

Page 18

TROUBLESHOOTING

If a problem is encountered, please investigate it by going through the following items. If the problem still persists, please disconnect the power and contact the dealer for repair.

Display

Problem

Running indicator

(Green)

Off Off

Filter

indicator

(Red)

Action

Check the power is connected. Check the frame cover is closed. Check the main switch in product body is on. Check if the spring on the inside of frame cover

is damaged or deformed.

1.The ERV doesn’t work.

2.The HVAC/AHU doesn’t work when ERV works.

3.Buzzer sound (10 sec in a hour) and ERV works.

4.Buzzer sound (30 sec in a hour) and ERV doesn’t work.

On Off

Blink* (0.5 s)

Blink* (2 s)

Off

Blink* (0.5 s)

Off

Blink* (2 s)

Blink* (4 s)

ERV running interval according to the ASHRAE time setting.

When outdoor temperature is low (FV-10VEC2 and FV-10VEC2H: ≤-22 °F (-30 °C), FV-10VE2 and FV-10VE2H: ≤14 °F (-10 °C)), ERV stops operating automatically.

Damper may be frozen shut, please wait for maximum 24 hours for defrosting.

Please disconnect the power and contact the dealer to check the HVAC/AHU wiring connect.

The RA filter and OA filter need to be maintained. If you do not want the buzzer notification, please long press the filter reset button for 3 sec to cancel it.

SA motor error, please disconnect the power and contact the dealer for repair.

EA motor error, please disconnect the power and contact the dealer for repair.

OA damper error, please disconnect the power and contact the dealer for repair.

EA damper error, please disconnect the power and contact the dealer for repair.

Center damper error, please disconnect the power and contact the dealer for repair.

5.ERV doesn’t work base on the setting air volume.

The time under “Blink” means the frequency of blink.

Blink* (0.5 s)

Off

Temperature sensor error, please disconnect the power and contact the dealer for repair.

PCB board error, please disconnect the power and contact the dealer for repair.

When product runs in circulation mode for defrosting, the air volume will be more than setting and sound will be slightly louder than normal operation. (FV-10VEC2 and FV-10VEC2H)

When outdoor temperature is less than 14 °F (-10 °C), the product will restrict air volume automatically to protect energy recovery core.

Page 19

SPECIFICATIONS

Net air flow

(CFM)

Exhaust

100

Supply

Model No.

FV-10VEC2 FV-10VEC2H

FV-10VE2 FV-10VE2H

Air direction

Exhaust & Supply

Voltage (V)

120

Frequency (Hz)

Duct

4“/6”

Static pressure

0.1”WG

0.4”WG

0.1”WG

0.4”WG

Model No. Mode

Heating

FV-10VEC2 FV-10VEC2H

Cooling

Supply

temperature

°F °C L/s CFM

95 35

-25

-25 30 64-13

Net air flow

252753 31 6632 0 40

Power consumption (W)

57-13

4923

29 39 68 77

100

663195 35 42

Model No. Mode

Heating

FV-10VE2 FV-10VE2H

Cooling

Supply

temperature

°F °C L/s CFM

95 35

Net air flow

25 5332 31 6632 0 40

Power consumption (W)

4923

29 39 68

663195 35 42

The testing of the ventilation performance and the energy performance is in accordance with CSA-C439 standard.

Sensible

recovery

efficiency

80% 77% 73% 65% 56%

Sensible

recovery

efficiency

80% 77% 73%

Power consumption (W)

Fan unit

100 81

90100

100 81

90100

Adjusted sensible

recovery efficiency

83% 81% 77% 67% 60%

Total recovery efficiency

60% 55%

Adjusted sensible

recovery efficiency

83% 81% 77%

Total recovery efficiency

60% 55%

Weight Ib.(󴧃)

50 (22.4)

48 (21.6)

Net

moisture

transfer

0.78

0.74

0.718532 0

0.71

0.58

Net

moisture

transfer

0.78

0.74

0.718532 0

For FV-10VEC2 and FV-10VEC2H

To ensure quiet operation of the ENERGY STAR certified H/ERV, each product model must be installed using sound attenuation techniques appropriate for the installation. The way your heat/energy-recovery ventilator is installed can make a significant difference to the electrical energy you use. To minimize the electricity use of the heat/energy-recovery ventilator, a stand-alone fully ducted installation is recommended. If you choose a simplified installation that operates your furnace air handler for room-to-room ventilation, an electrically efficient furnace that has an electronically commutated (EC) variable speed blower motor will minimize your electrical energy consumption and operating cost. Installation of a user-accessible control with your product model will improve comfort and may significantly reduce the product model’s energy use. This product earned the ENERGY STAR® by meeting strict energy efficiency guidelines set by NaturalResources Canada and the US EPA. This product meets ENERGY STAR requirements only when used in Canada.

Page 20

PRODUCT SERVICE

Warning Concerning Removal of Covers. The unit should be serviced by qualified technicians only. Your product is designed and manufactured to ensure a minimum of maintenance. Should your unit require service or parts, call Panasonic Call Center at 1-866-292-7299 (USA) or 1-800-669-5165 (Canada).

Two Riverfront Plaza, Newark, NJ 07102 www.panasonic.com

5770 Ambler Drive, Mississauga, Ontario L4W 2T3 www.panasonic.com

Panasonic Corporation 2023-2024

Printed in Mexico

Issue date:01/2024

P0523-2014 10VC2M450B-EN
