Panasonic electronic modular switching system User Manual

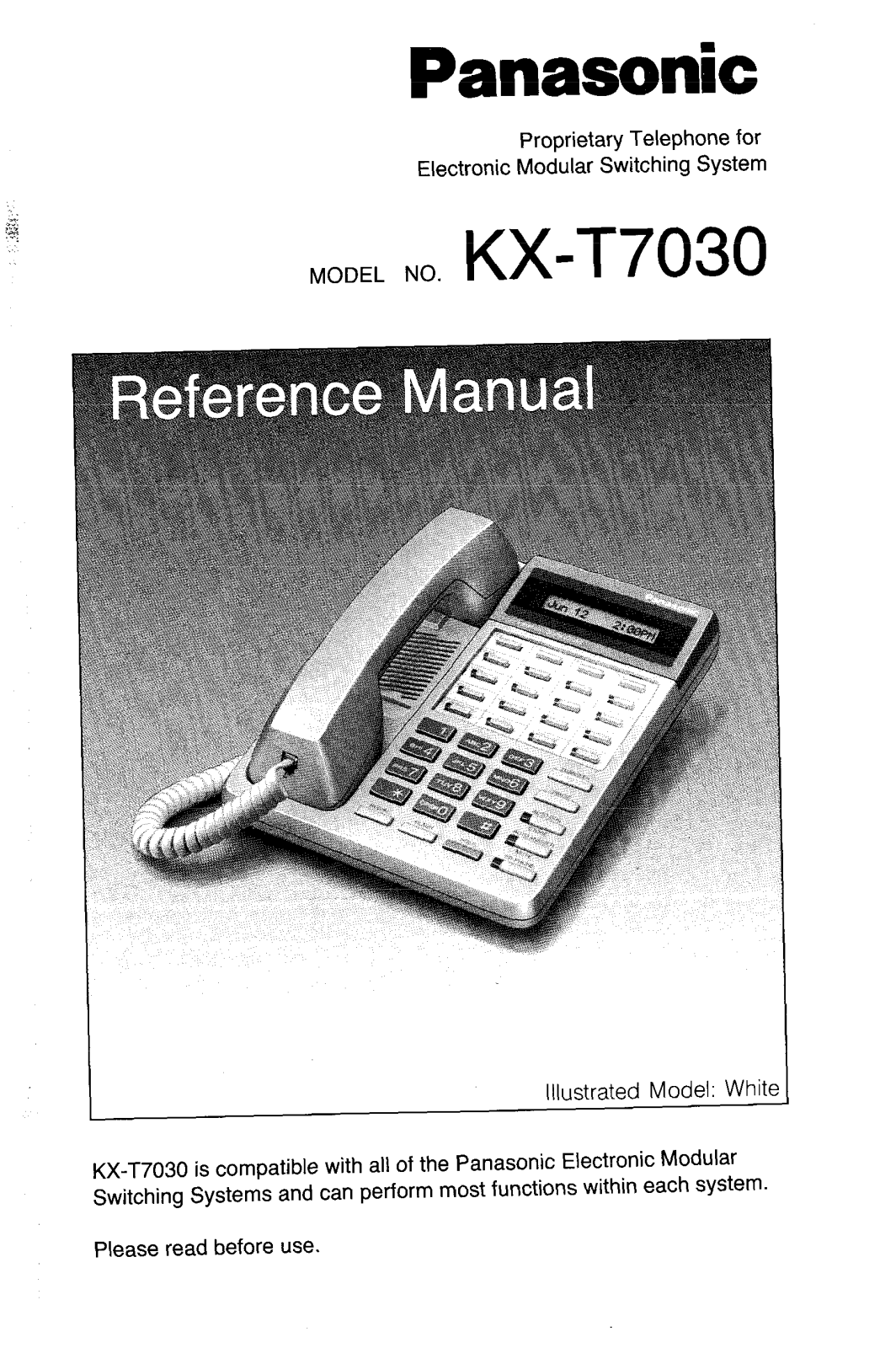

Panasonic

Proprietary Telephone for

Electronic Modular Switching System

MODEL NO.

KX-17030

Illustrated Model: White 1

KX-T7030 is compatible with all of the Panasonic Electronic Modular

Switching Systems and can perform most functions within each system.
Please read before use.

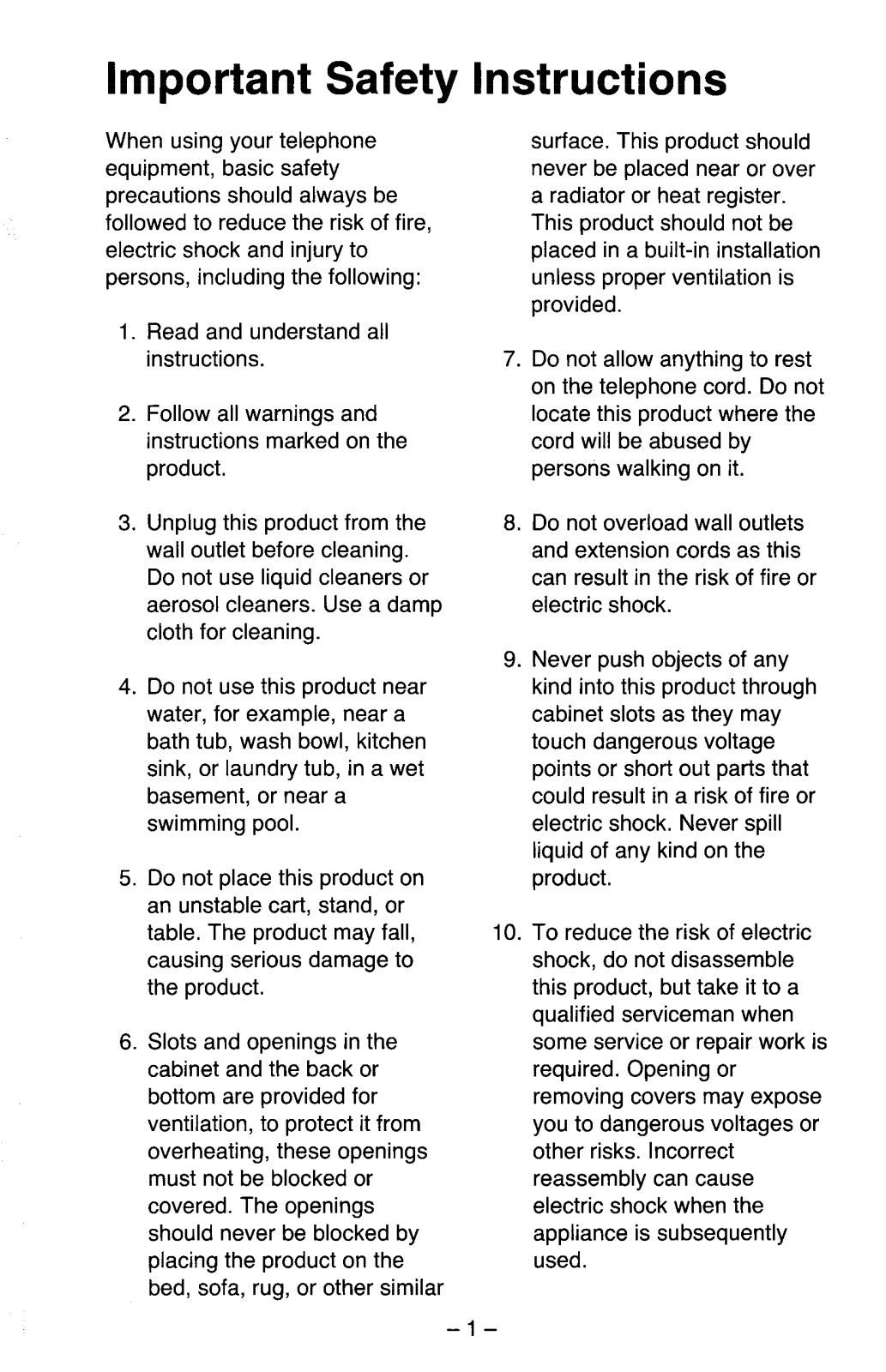

Important Safety Instructions

When using your telephone
equipment, basic safety
precautions should always be

followed to reduce the risk of fire,

electric shock and injury to
persons, including the following:

1. Read and understand all
instructions.

2. Follow all warnings and
instructions marked on the
product.

3. Unplug this product from the
wall outlet before cleaning.

Do not use liquid cleaners or
aerosol cleaners. Use a damp
cloth for cleaning.

4. Do not use this product near
water, for example, near a

bath tub, wash bowl, kitchen

sink, or laundry tub, in a wet

basement, or near a
swimming pool.

5. Do not place this product on
an unstable cart, stand, or

table. The product may fall,

causing serious damage to

the product.

6. Slots and openings in the
cabinet and the back or
bottom are provided for
ventilation, to protect it from
overheating, these openings
must not be blocked or
covered. The openings
should never be blocked by
placing the product on the
bed, sofa, rug, or other similar

surface. This product should
never be placed near or over
a radiator or heat register.
This product should not be
placed in a built-in installation
unless proper ventilation is
provided.

7. Do not allow anything to rest
on the telephone cord. Do not
locate this product where the
cord will be abused by

persons walking on it.

8. Do not overload wall outlets
and extension cords as this

can result in the risk of fire or
electric shock.

9. Never push objects of any
kind into this product through

cabinet slots as they may
touch dangerous voltage

points or short out parts that

could result in a risk of fire or
electric shock. Never spill

liquid of any kind on the
product.

10. To reduce the risk of electric
shock, do not disassemble

this product, but take it to a

qualified serviceman when
some service or repair work is
required. Opening or
removing covers may expose
you to dangerous voltages or
other risks. Incorrect
reassembly can cause
electric shock when the
appliance is subsequently

used.

-1

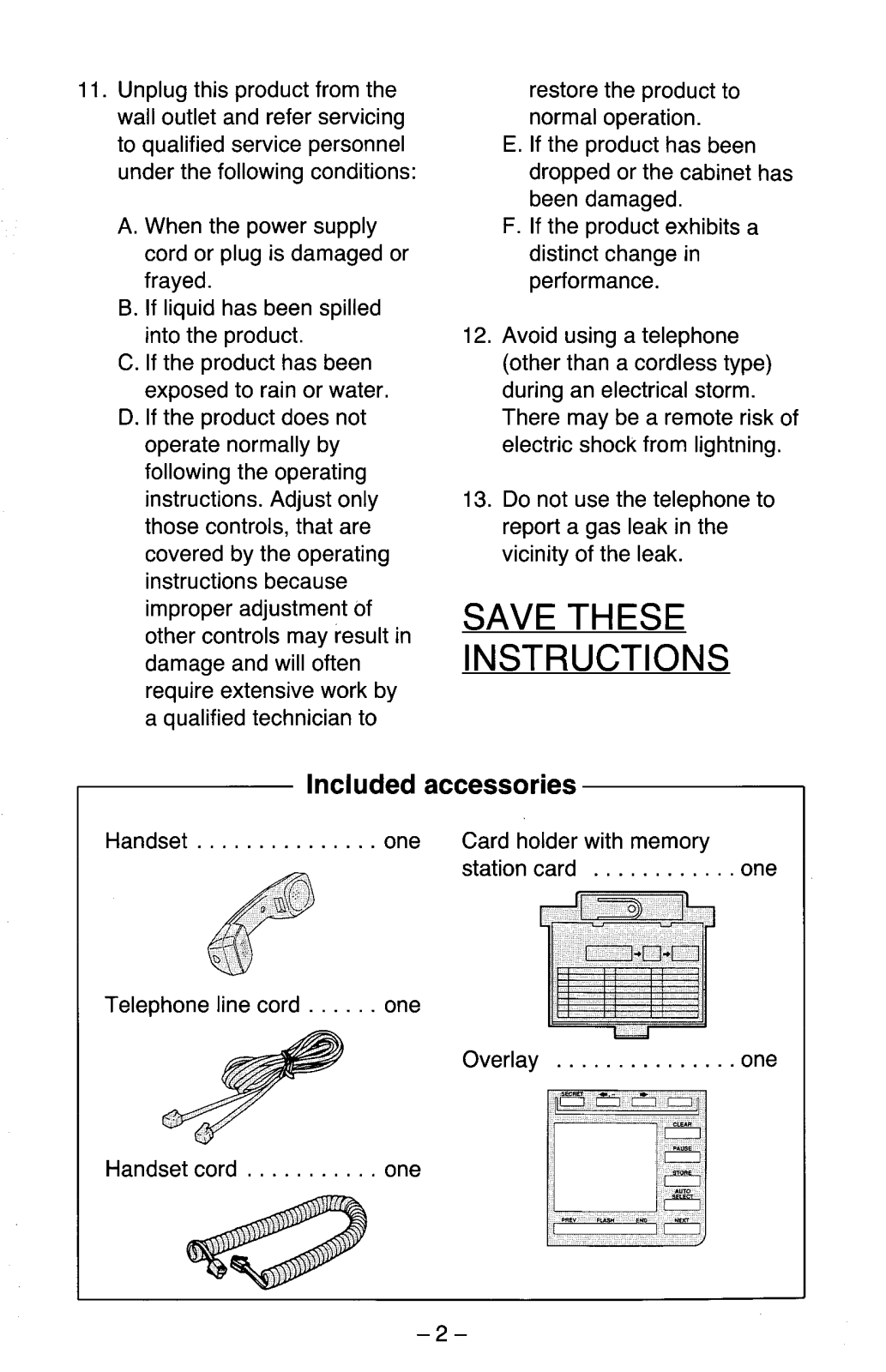

11. Unplug this product from the
wall outlet and refer servicing
to qualified service personnel
under the following conditions:

A. When the power supply

cord or plug is damaged or
frayed.

B. If liquid has been spilled

into the product.

C. If the product has been

exposed to rain or water.

D. If the product does not

operate normally by
following the operating
instructions. Adjust only
those controls, that are
covered by the operating

instructions because

improper adjustment of
other controls may result in
damage and will often

require extensive work by
a qualified technician to

restore the product to
normal operation.

E. If the product has been

dropped or the cabinet has
been damaged.

F. If the product exhibits a

distinct change in
performance.

12. Avoid using a telephone
(other than a cordless type)
during an electrical storm.

There may be a remote risk of

electric shock from lightning.

13. Do not use the telephone to
report a gas leak in the

vicinity of the leak.

SAVE THESE

INSTRUCTIONS

Included accessories

Handset............... one

Telephone line cord . . . . one

Handset cord . . . . . . . . . . . one

1

Card holder with memory

station card . . . . . . . . . . one

Overlay . . . . . . . . . . . . . . . one

-2-

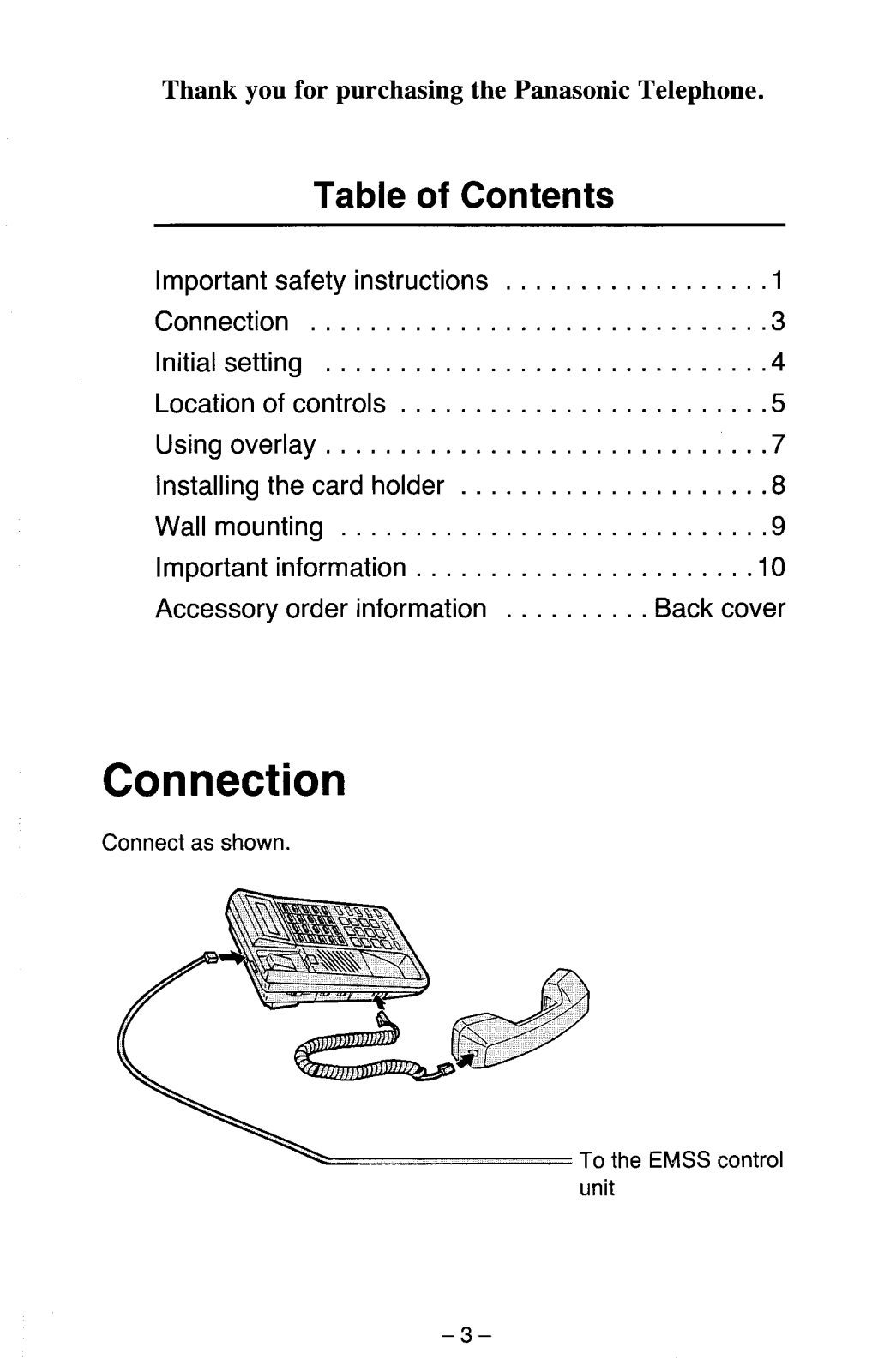

Thank you for purchasing the Panasonic Telephone.

Table of Contents

Important safety instructions

Connection ...............................

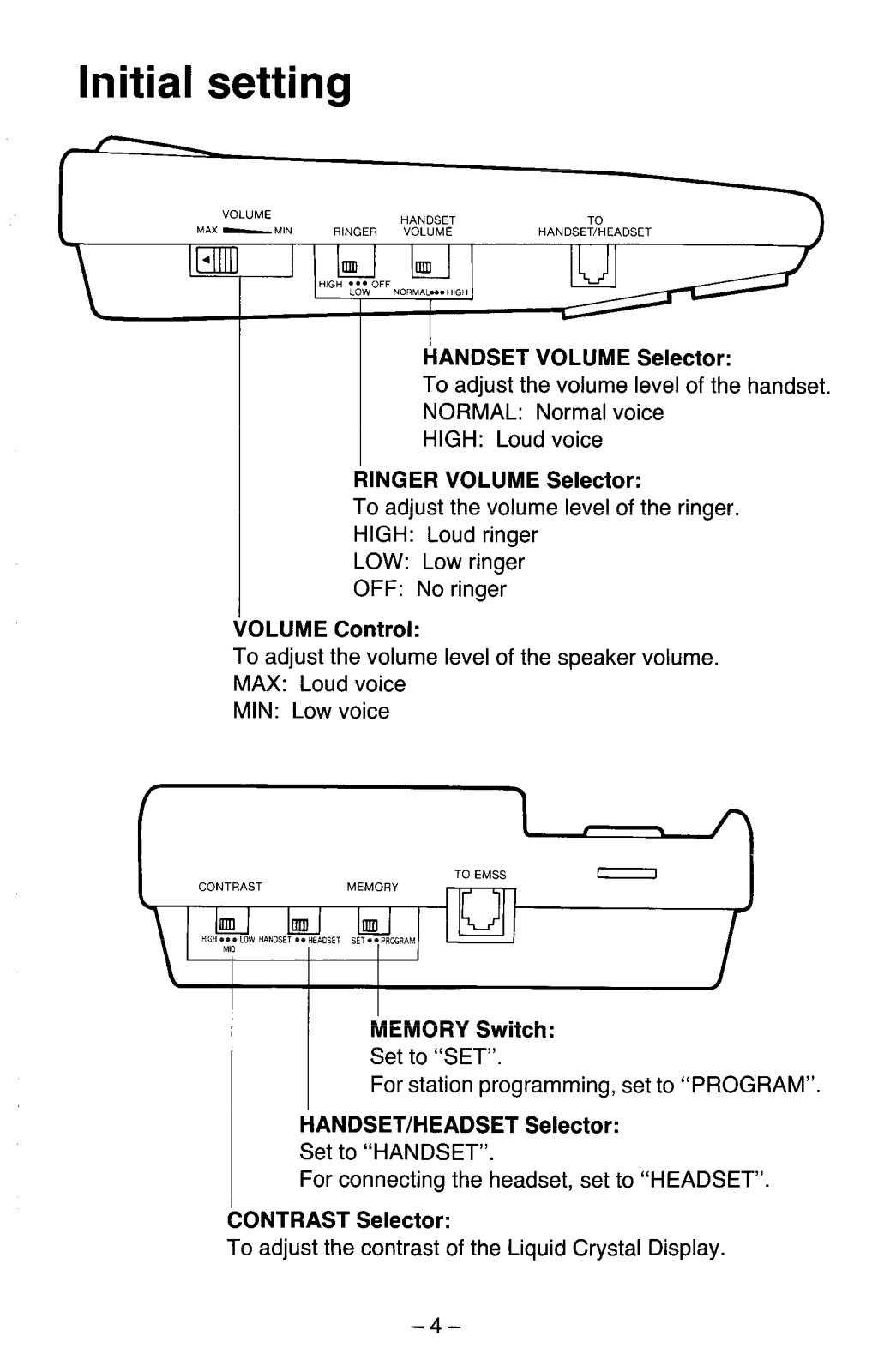

Initial setting .............................

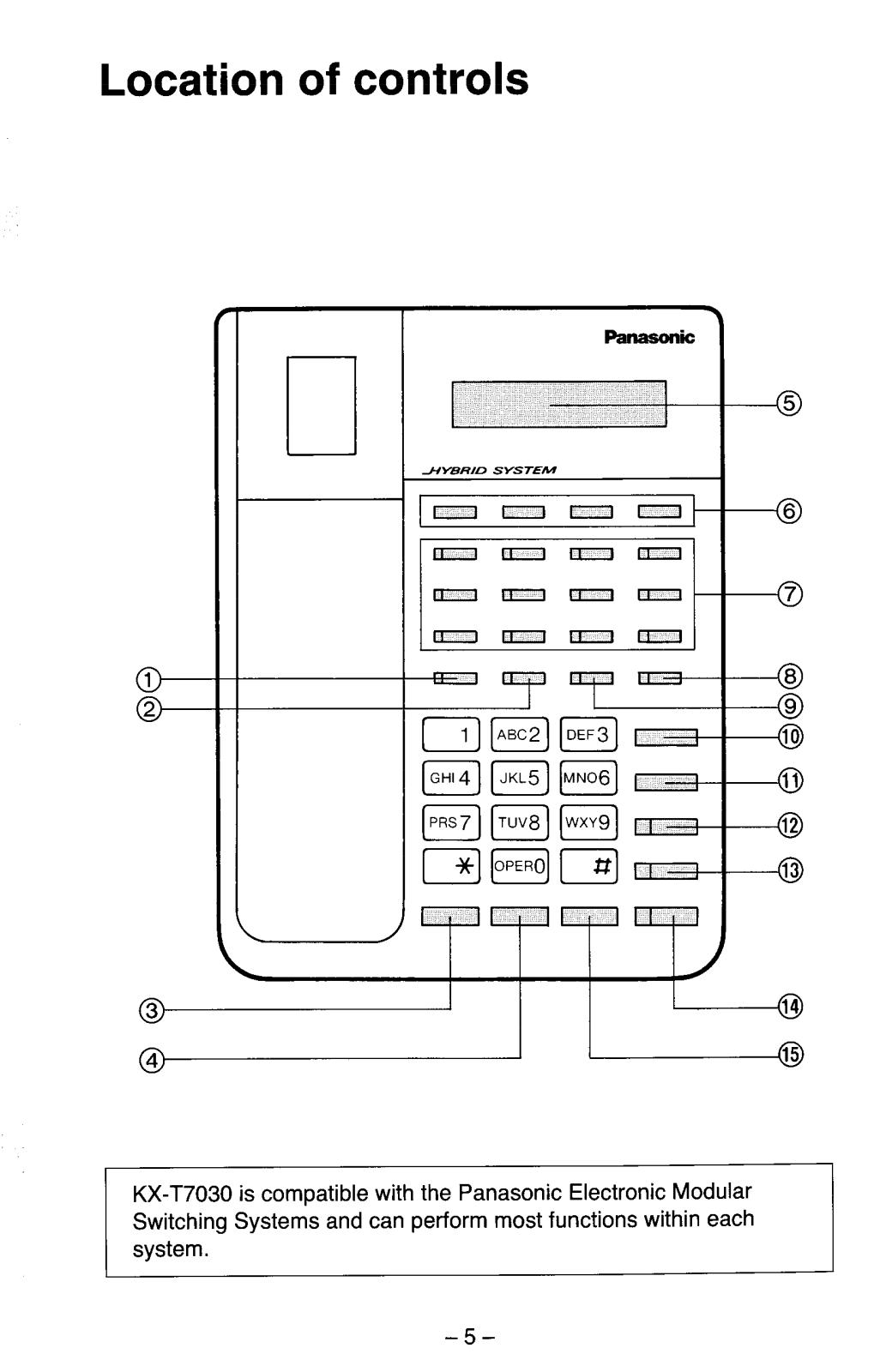

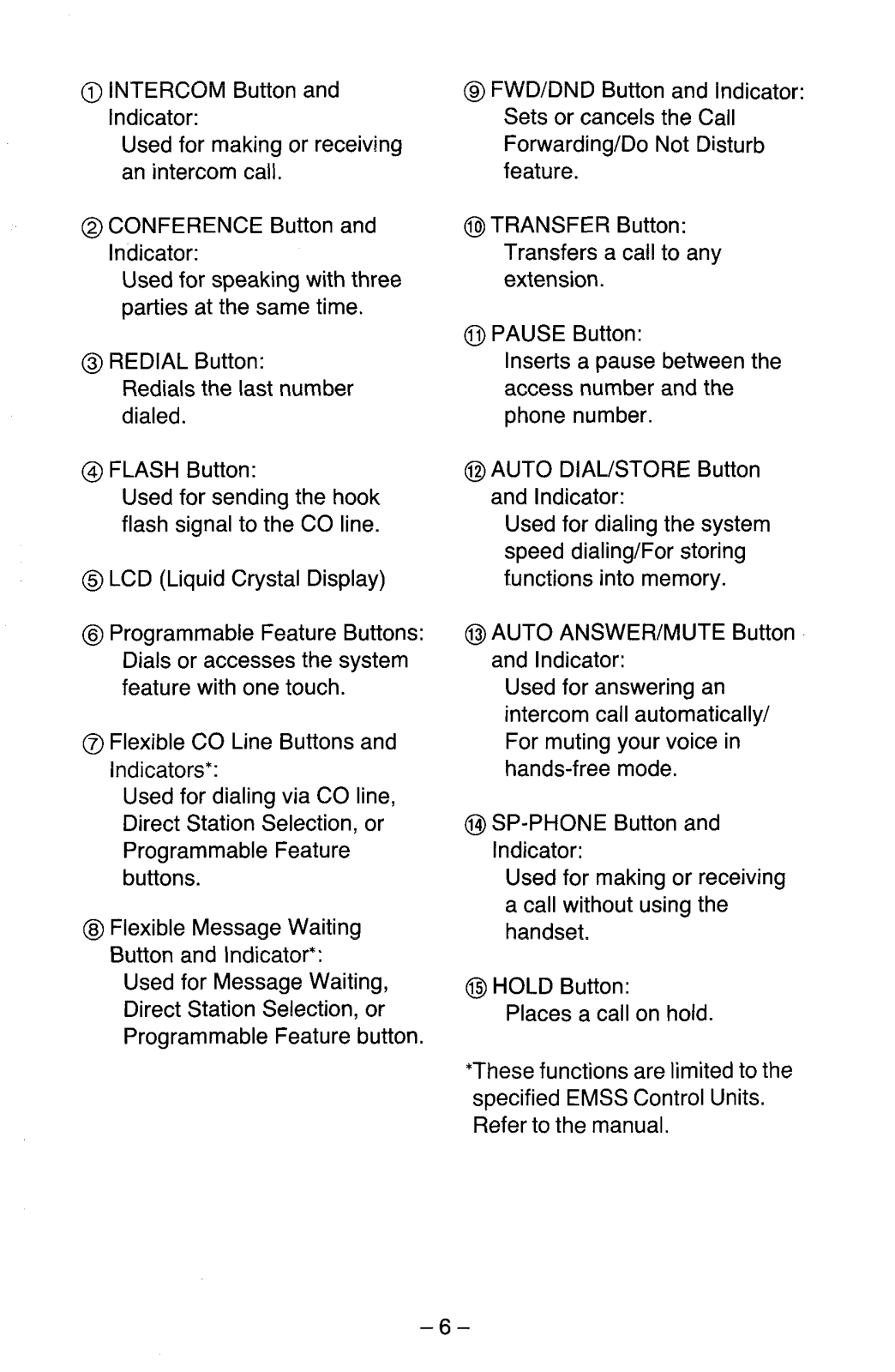

Location of controls

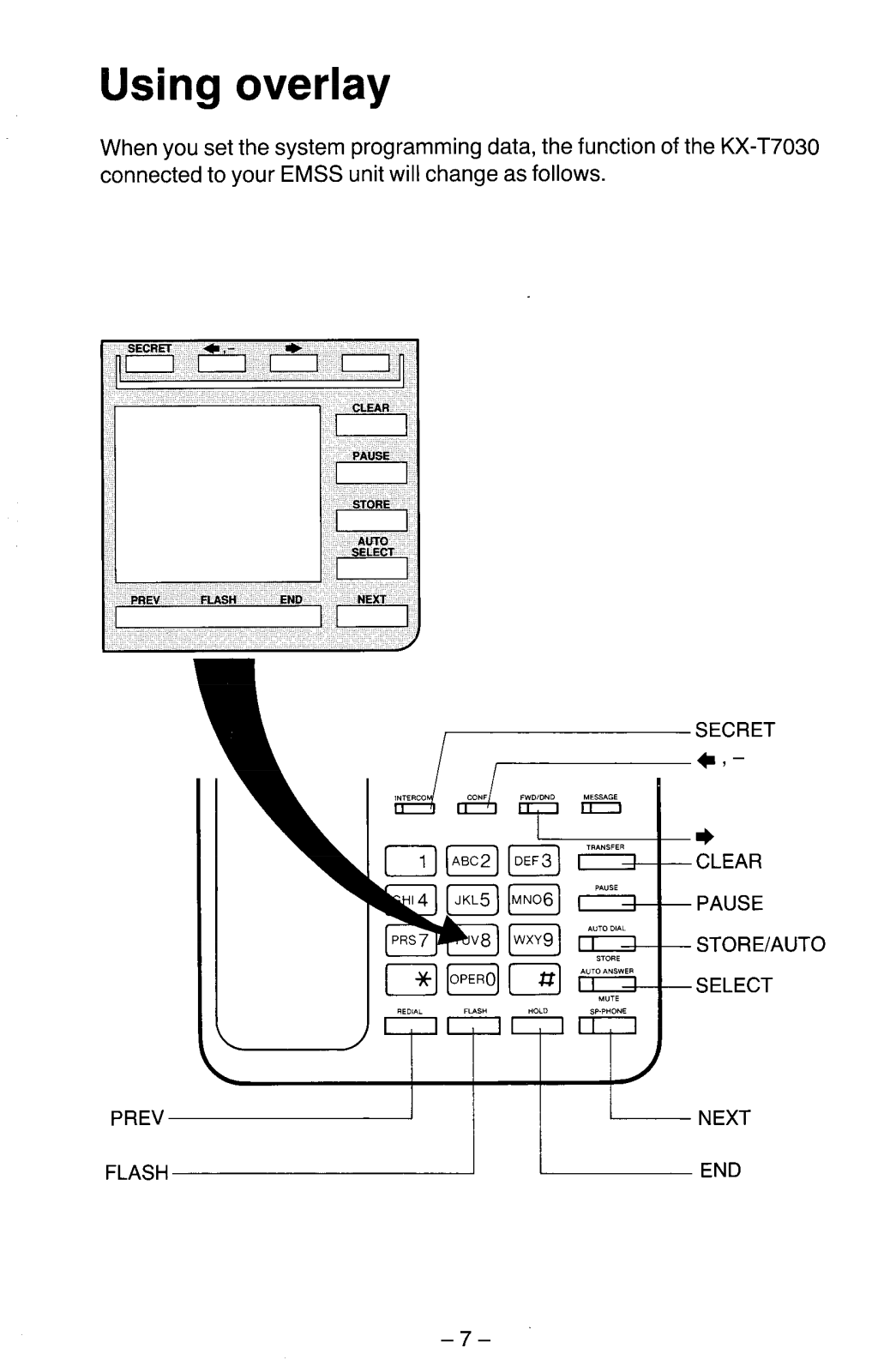

Using overlay .............................

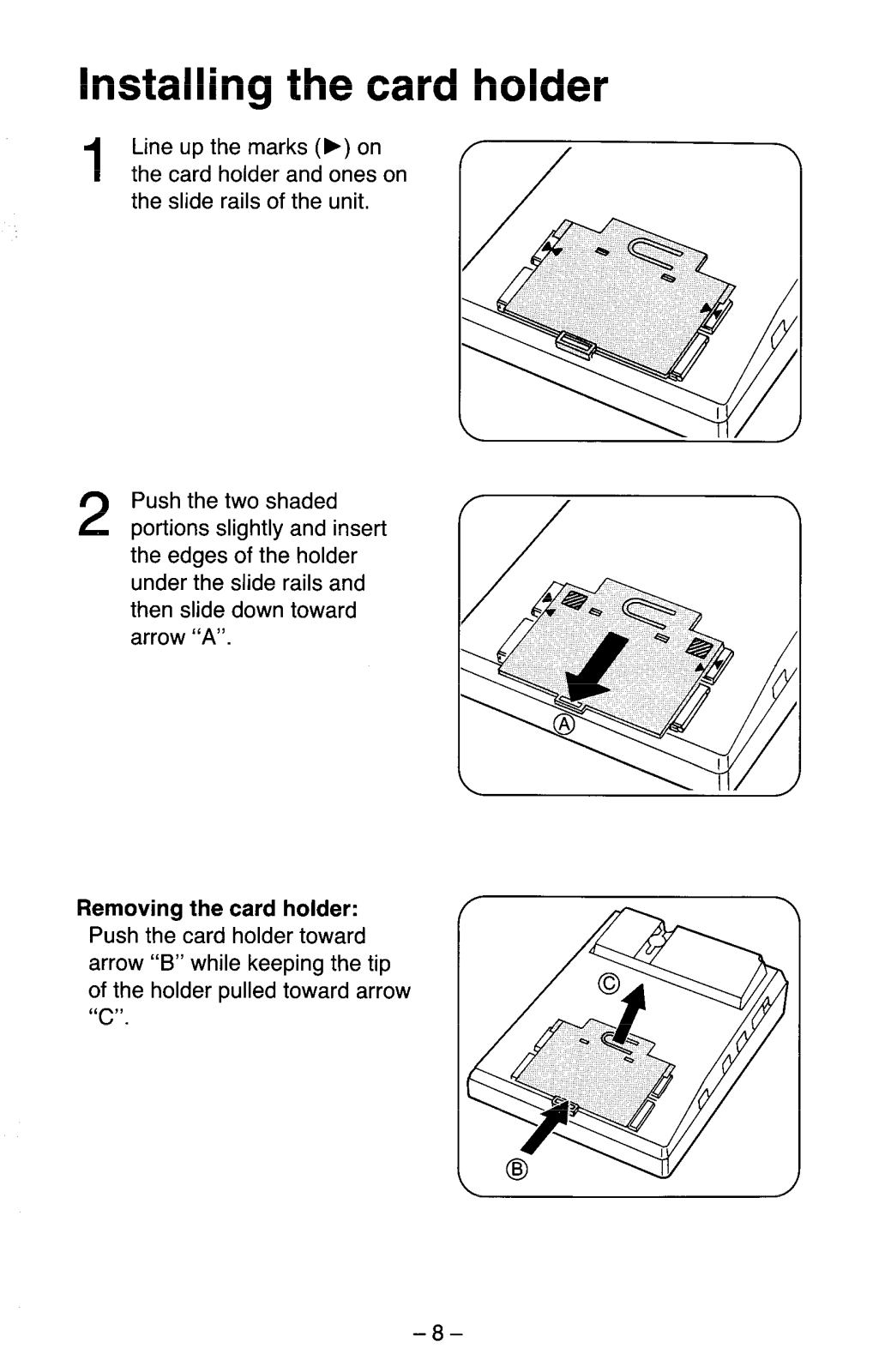

Installing the card holder

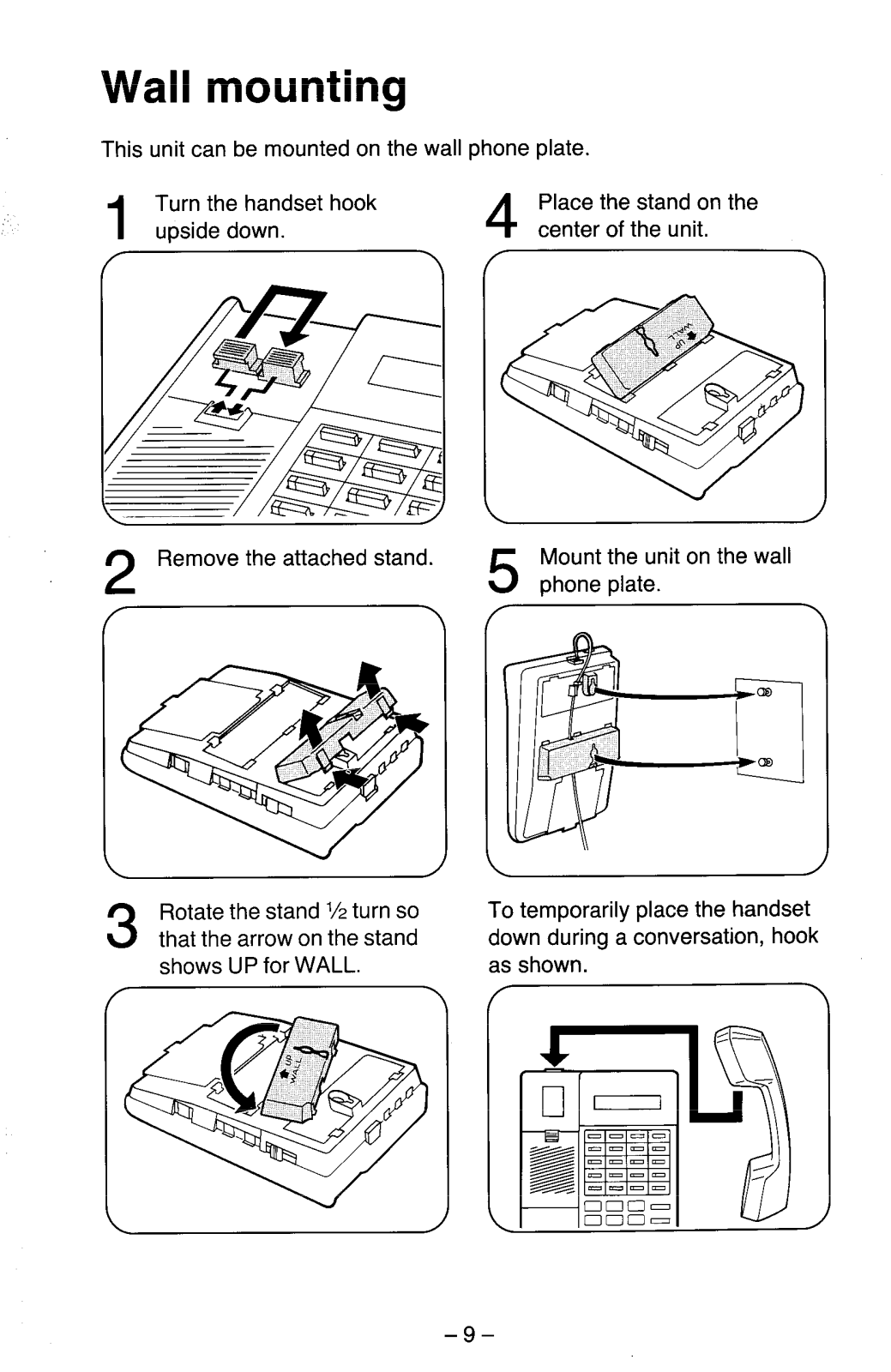

Wall mounting ............................

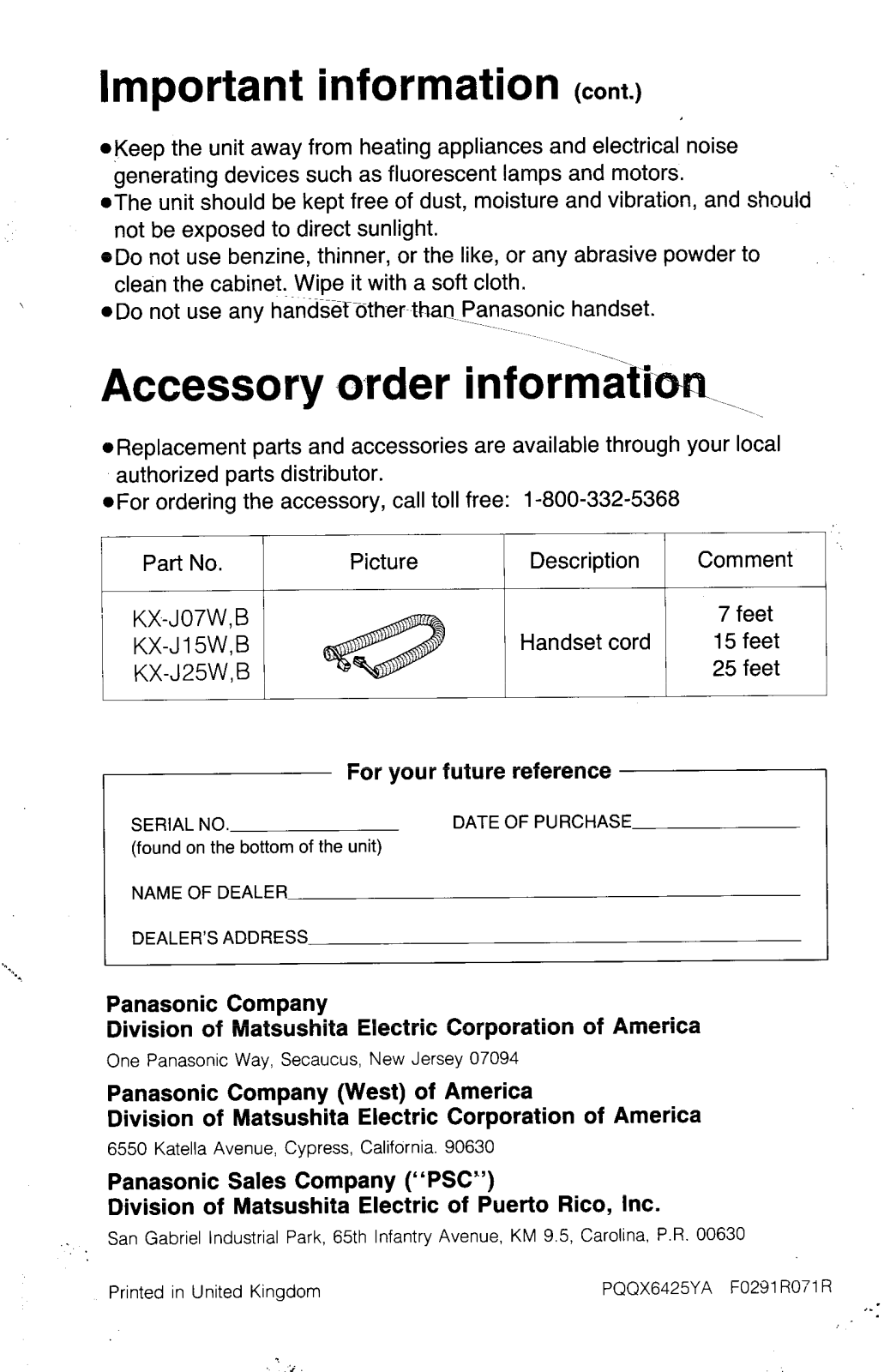

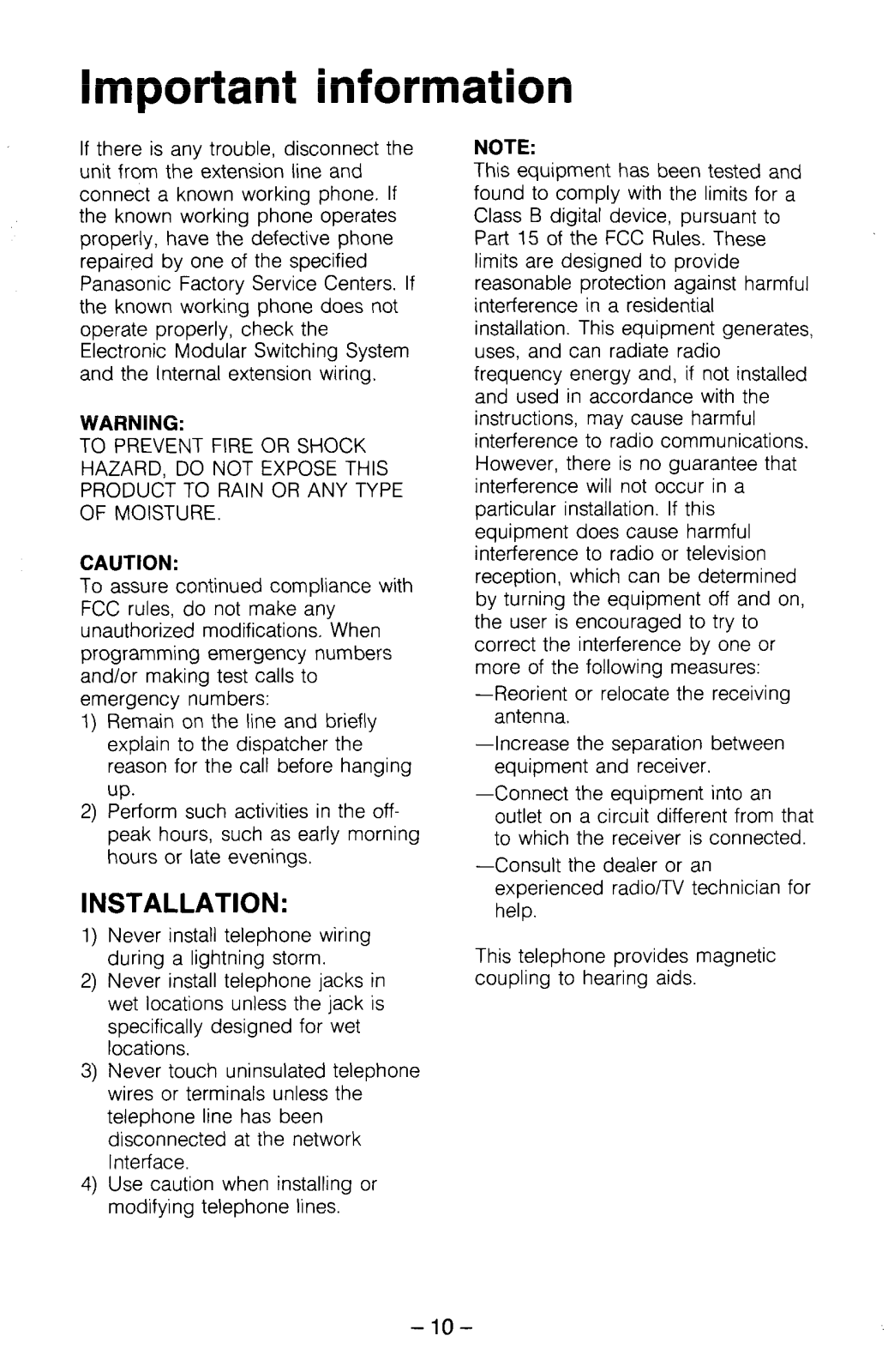

Important information

Accessory order information

........................ .5

....................... 10

Connection

Connect as shown.

................. .I

.

.4

.7

.................... .8

.9

.......... Back cover

-3-

To the EMSS control

unit
