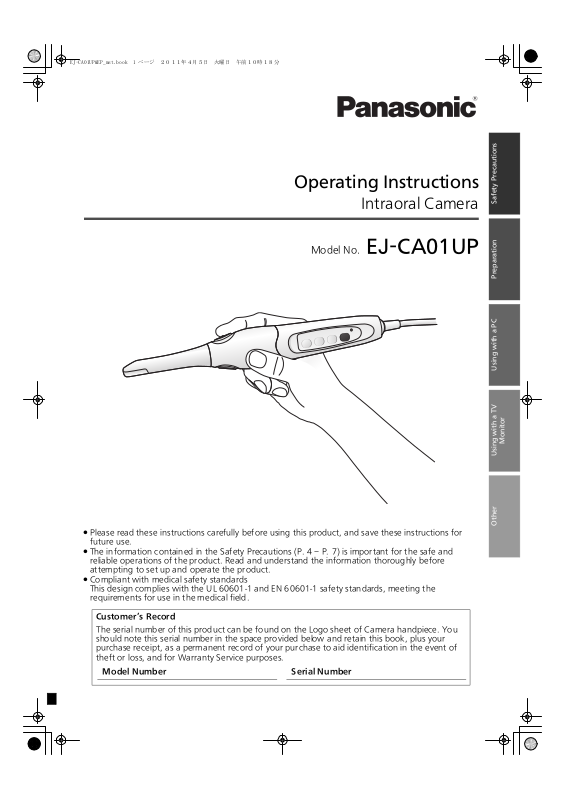

Operating Instructions
Intraoral Camera
Model No. EJ-CA01UP
Safety PrecautionsUsing with a PC PreparationUsing with a TV
≥ Please read these instructions carefully before using this product, and save these instructions for
future use.
≥ The information contained in the Safety Precautions (P. 4 – P. 7) is important for the safe and
reliable operations of the product. Read and understand the information thoroughly before
attempting to set up and operate the product.
≥ Compliant with medical safety standards
This design complies with the UL 60601-1 and EN 60601-1 safety standards, meeting the
requirements for use in the medical field.
Customer’s Record
The serial number of this product can be found on the Logo sheet of Camera handpiece. You
should note this serial number in the space provided below and retain this book, plus your
purchase receipt, as a permanent record of your purchase to aid identification in the event of
theft or loss, and for Warranty Service purposes.
Monitor
Other
Model Number Serial Number
Introduction
This Intraoral Camera captures and displays inside of the patient’s mouth.
This product achieves accurate color reproducibility inside the mouth, and it helps you to capture clear
images the first time around with its auto focus and stabilization correction features. The product is
intended to be used to assist in providing explanations to your patients. Captured pictures are not
intended to be used for an image diagnosis.
Connect this product to a PC or a TV monitor.
Connecting to a PC
Use the Dental@i Viewer software on the CD-ROM (supplied) to browse and record still pictures or
moving pictures. Still pictures can also be printed by connecting a printer to the PC.
Connecting to a TV monitor
Use the operation button of the Camera handpiece to capture or to playback images. There is a 4
split-screen that allows multiple still pictures to be displayed simultaneously during playback.
Note . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
This product is a medical device, and the user must be completely
To the customer:
familiar with its operation. Read thoroughly each of the items in the
Operating Instructions.
To the dealer:
After attaching the product, be sure to adequately explain each of the items
in these Operating Instructions to the customer to ensure safety.
This product is intended to only dental treatment
US Federal law restricts this device to sale by or on the order of a ____”, the blank to be filled with
the word “physician”, “dentist”, “veterinarian”, or with the descriptive designation of any other
practitioner licensed by the law of the State in which he practices to use or order the use of the
device.
Table of Contents
Read “Safety Precautions” (P.4 – P.7) thoroughly before use.
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Safety Precautions
Preparation
Using with a PC
Safety Precautions
(These must be observed) . . . . . . . . . . . . . . . 4
Information for your safety . . . . . . . . . . . . . . 8
Before using . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Optional Accessories . . . . . . . . . . . . . . . . . . . . 12
Part names and functions. . . . . . . . . . . . . . . . 13
Product display symbols . . . . . . . . . . . . . . . . . 16
Fitting / Removing the
Disposable cover . . . . . . . . . . . . . . . . . . . . . . . 17
Installing the software . . . . . . . . . . . . . . . . . . 19
Connecting to a PC . . . . . . . . . . . . . . . . . . . . . 22
Starting the software . . . . . . . . . . . . . . . . . . . 23
Capturing images on a PC . . . . . . . . . . . . . . . 24
Playing back images on a PC . . . . . . . . . . . . . 24
Using with a PC Safety PrecautionsPreparationUsing with a TV
Using with a TV Monitor
Other
When using the product with a PC
For details on how to use the product when it is connected to a PC, refer to the
software Operating Instructions (PDF file).
Connecting to a TV monitor. . . . . . . . . . . . . . 25
Capturing images on a TV monitor
(Still pictures only) . . . . . . . . . . . . . . . . . . . . . 26
Playing back images on a TV monitor . . . . . . 27
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 29
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . 30
EMC Relevant Information . . . . . . . . . . . . . . . 32
Monitor
Other
Safety Precautions
The following symbols describe the need to observe certain content in order to prevent human injury
or damage to property.
? These describe and classify the degree of injury or damage that occurs with incorrect use.
(These must be observed)
WARNING
CAUTION
? The following symbols describe content to be observed. (The following symbols are
examples.)
This indicates “content that must NOT be performed”.
This indicates “content that MUST be performed”.
Equipment connected to this product must conform to IEC standards ( i.e. IEC 60601-1 for Medical
electrical equipment, IEC 60950-1 for Information technology equipment, IEC 60065 for Audio, video
and similar electronic apparatus).
In addition, the combination and installation shall conform to IEC 60601-1.
Any person who connects this product is responsible for ensuring that the system conforms to
IEC 60601-1-1.
To conform to IEC 60601-1, equipment connected to this product should be connected to the power
supply via an isolation transformer and have at least basic insulation.
When connecting to other devices, there is a risk that the leakage current may increase.
If there is anything that you do not understand, please contact the dealer where this product was
purchased.
This indicates “content that involves a risk of serious injury or death”.
This indicates “content that involves a risk of injury or damage to
property”.
WARNING
Use the Intraoral Camera after fitting the specified
Disposable cover.
Using the Intraoral Camera without fitting the specified Disposable cover could cause
infection, device breakage and accidental ingestion of broken parts.
Use a new Disposable cover for each patient.
Reusing the Disposable cover could cause infection.
Before and after using the product, wipe it with gauze or a
similar material containing ethanol for disinfection.
Using the product in an unsanitary condition could cause infection.
Do not use a torn Disposable cover.
If you use a torn Disposable cover, it may cause infection or the Camera handpiece
malfunction.
Do not use a damaged Camera handpiece.
This could cause accidental ingestion of damaged parts or electric shock.
WARNING
In the following situations, stop using it and disconnect the
power plug;
— smoke rise from the product,
— the product is abnormally hot,
— the product smells burnt,
— abnormal noise is heard from the product,
— if water or foreign bodies get inside the product,
— the external case of the product is damaged.
Continuing to use the product could cause fire or electric shock.
≥ Use an electrical outlet for the power plug that allows the plug to be easily reached
by hand.
If there is lightning or thunder, do not touch the product or
the devices to which it is connected (PC, TV monitor, power
plug).
This could cause electric shock.
Only the included AC adaptor (LSEQ0879) and AC cord
(K2CA2YY00116) should be used.
Using an AC adaptor other than the one supplied with this product could cause
electric shock, smoke and fire.
Safety Precautions
Do not use in excess of the rating for the electrical outlet or
wiring device.
Exceeding the rating by using too many plugs in the same outlet or wiring device
could cause a fire due to heat.
Do not damage the AC cord, AC adaptor, Camera cable, USB
cable, or Video cable.
(Do not scratch, modify, put near hot devices, forcibly turn,
twist, tug, place heavy items upon, or knot).
Using these when damaged could cause fire, electric shock or short-circuiting.
≥ For repairs of the cord or cable, please contact your dealer.
Do not directly touch the product for a long period of time
with the power turned on.
The temperature of the LED light exceeds 41 °C (after several minutes of use). In
order to prevent burns caused by heat, be careful not to let the LED light part
continuously touch the inside of the patient's mouth.
Direct, prolonged contact with the hot parts of the product could cause
low-temperature burns*.
* Persons that have poor blood flow (vascular disorders, blood circulation
impairment, diabetes, high blood pressure) or persons that have weak skin
sensation, etc. tend to get low-temperature burns.
Safety Precautions
When the LED light of the product is illuminated, do not
look directly into the LED light from close-up, and do not
shine it in a person's eyes.
This product uses IEC 60825-1 class I LED. Intense light could hurt the eyes.
Do not use this product near persons that use pacemakers
and other similar devices.
The radio waves from this product could affect the operation of pacemakers, etc.
Do not use the Camera handpiece when it is wet.
This could cause electric shock or product malfunction.
(These must be observed)–
WARNING
Continued
Do not pour water on or wet the product.
Water getting inside the product could cause fire, electric shock, or product
malfunction.
If water gets inside the product, contact your dealer.
Do not connect or disconnect the power plug with wet
hands.
This could cause electric shock.
Do not disassemble or modify the product.
The inside of the product contains high-voltage parts that could cause electric shock.
≥ Order repairs and inspections of the inside of the product from your dealer.
Securely insert the power plug into the outlet.
An incompletely inserted plug could cause electric shock or fire due to heat.
≥ Do not use damaged plugs or loose electrical outlets.
Periodically remove dust and other particles from the power
plug.
If dust or other particles collect on the plug, humidity, etc. could impair insulation and
cause a fire.
≥ Disconnect the power plug and wipe with a dry cloth.
CAUTION
When performing maintenance or when the product is not
to be used for a long period of time, disconnect the power
plug to ensure safety.
Leaving or storing while plugged in could cause insulation degradation,
short-circuiting, etc., which could cause a fire.
Do not place the product in an unstable location (On an
uneven table or an incline, etc.).
If the product falls, this could cause injury or product malfunction.
When disposing of this Intraoral Camera, you must obey the
laws applicable in your area and country and comply with
the regulations of your hospital.
Safety Precautions
Information for your safety
General
≥ The switching power supply is intended use for medical electrical equipment purpose, not direct to
contact to patient.
≥ Please read these safety instructions carefully.
≥ Please keep this Operating Instructions for later reference.
To prevent the damage
≥ Do not drop or knock this product or put a lot of pressure on it. This may damage this product.
≥ Do not expose this product to excessive heat or direct sunlight as to avoid the risk of fire.
≥ Handle this product with care. Rough handling will damage its internal components.
Use this product in the appropriate position
≥ For pluggable equipment, the socket outlet shall be installed near this product and shall be easily
accessible.
≥ To avoid risk of electrical damage, keep this product away from fluids and chemicals.
≥ Do not use this product near inadequately shielded medical devices.
≥ Do not use this product near electromagnetic equipment, radio transmitters or high voltage lines.
For cleaning or storage
≥ Please disconnect this product from AC outlet before cleaning. Do not use liquid or sprayed
detergent for cleaning. Use moisture sheet or cloth for cleaning.
≥ Please keep this product from humidity.
Contact to the dealer
≥ Do not remove any parts of this product. Contact an authorized dealer in your area.
≥ If one of the following situations arises, get this product checked by service personnel:
- The AC cord or plug is damaged.
- Liquid has penetrated into this product.
- This product has been exposed to moisture.
- This product has not worked well or you can not get it work according to Operating Instructions.
- This product has dropped and damaged.
- If this product has obvious sign of breakage.
- For U.S.A. -
FCC STATEMENT:
Note:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
≥ Reorient or relocate the receiving antenna.
≥ Increase the separation between the equipment and receiver.
≥ Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
≥ Consult the dealer or an experienced radio / TV technician for help.
FCC Caution:
To assure continued compliance, follow the attached installation instructions and use only shielded
interface cable with ferrite core when connecting to computer or peripheral devices. Any changes or
modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate this equipment.
Declaration of Conformity
Trade Name: Panasonic
Model No.: EJ-CA01UP
Responsible party: Panasonic Corporation of North America
One Panasonic Way, Secaucus, NJ 07094
Support Contact: Panasonic Factory Service Center
Panasonic Service and Technology Company
410B Airport Road
Elgin, IL 60123-9333
Attention: Intraoral Camera
In the USA
FOR SERVICE CALL TOLL FREE
1-800-528-6747
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Before using
Handling this product
≥ Do not exert strong shocks or vibrations on the product by dropping it, hitting it, etc. Also, do not
apply strong pressure to the product. This could cause the product to malfunction, impossible
recording, or damage to occur to device parts such as the lens.
≥ When operating or transporting this product, hold the main part of the Camera handpiece. If the
product is held dangling by grabbing the Camera cable, the Camera handpiece could hit the floor or
other medical devices, causing it to become damaged or to malfunction.
≥ Do not touch the lens or terminal with hands. Also, be careful to prevent liquid and foreign materials
from getting into the product from the lens or button gaps.
≥ The supplied cords and cables must be used.
≥ Do not use devices that emit electromagnetic radiation near this product. The electromagnetic
radiation emitted by communication devices such as mobile phones, PHS, transceivers, etc. can
affect this device and lead to glitches that cause the product to malfunction.
In a clinical setting, instruct that these communication devices be turned off.
≥ Do not use lights that emit electromagnetic radiation near this product. The electromagnetic
radiation emitted from an inverter operation light (film viewer, fluorescent light, etc.) could affect
the image.
Indemnity about recorded content
≥ Panasonic does not accept any responsibility for damages directly or indirectly due to any type of
problems that result in loss of recorded content, and does not guarantee any content if recording
does not work properly.
Accessories
Check the accessories.
The listed part numbers are current as of May 2011.
AC adaptor ···1
LSEQ0879
Cable box holder ···1
LSKM2893
USB cable ···1
K1HY04YY0045
Cable box ···1
LSEQ0884
AC cord ···1
K2CA2YY00116
*1.5 m (4.92 ft)/Unshielded
Video cable ···1
K2KYYYY00065
Preparation
*5 m (16.4 ft)/Shielded with
ferrite core
Camera stand ···1
LSKM2894
Disposable cover (20 sheets)
···1
LSFB0027
Warranty ···1
LSQA0243
*5 m (16.4 ft)/Shielded
CD-ROM ···1
LSFT0801
*The software and its Operating
Instructions
Operating Instructions ···1
LSQT1591
Loading...
