Operating Instructions

Digital Camera

Model No. DMC-FX50

GC SG

Before use, please read these

instructions completely.

VQT0Y35

Before Use

Dear Customer,

We would like to take this opportunity to thank you for purchasing this Panasonic Digital Camera. Please read these Operating Instructions carefully and keep them handy for future reference.

Information for Your Safety

WARNING TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD AND ANNOYING INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES AND DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. DO NOT REMOVE THE COVER (OR BACK); THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Carefully observe copyright laws. Recording of pre-recorded tapes or discs or other published or broadcast material for purposes other than your own private use may infringe copyright laws. Even for the purpose of private use, recording of certain material may be restricted.

• Please note that the actual controls and components, menu items, etc. of your Digital Camera may look somewhat different from those shown in the illustrations in these Operating Instructions.

• SDHC Logo is a trademark.

• Leica is a registered trademark of Leica Microsystems IR GmbH.

• Elmarit is a registered trademark of Leica Camera AG.

• Other names, company names, and product names printed in these instructions are trademarks or registered trademarks of the companies concerned.

THE SOCKET OUTLET SHALL BE INSTALLED NEAR THE EQUIPMENT AND SHALL BE EASILY ACCESSIBLE.

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

∫ How to replace the Fuse

The location of the fuse differ according to the type of AC cable (figures A and B). Confirm the AC cable fitted and follow the instructions below. Illustrations may differ from actual AC cable. 1 Open the fuse cover with a

screwdriver.

Figure A Figure B

Fuse cover

2 Replace the fuse and close or attach

the fuse cover.

Figure A Figure B

Fuse (5 ampere)

VQT0Y35

-If you see this symbol-

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

∫ Care of the camera

• Do not strongly shake or bump the camera. The camera may stop operating

normally, pictures may not be recorded or the lens may be damaged.

• Sand or dust may cause the camera to malfunction. Make sure that sand or dust does not get into the lens or the terminals when using the camera on a beach etc.

• Make sure that water does not get into the camera when using it on a rainy day or on a beach.

• If water or seawater splashes on the camera, use a dry cloth to wipe the camera body carefully.

Before Use

∫ About the LCD monitor

• Do not press the LCD monitor with excessive force. Uneven colours may appear on the LCD monitor and it may malfunction.

• Condensation may form on the LCD monitor in places with large temperature differences. Wipe the condensation with a soft, dry cloth.

• If the camera is cold when you turn it on, the picture on the LCD monitor will be slightly darker than usual at first. However, the picture will return to normal brightness when the internal temperature of the camera increases.

Extremely high precision technology is employed to produce the LCD monitor screen. However there may be some dark or bright spots (red, blue or green) on the screen. This is not a malfunction. The LCD monitor screen has more than

99.99% effective pixels with a mere

0.01% of the pixels inactive or always lit. The spots will not be recorded on pictures on a card.

∫ About the Lens

• Do not press the lens with excessive force.

• Do not leave the camera with the lens facing the sun as it may cause the camera to malfunction. Also, be careful when you leave the camera outside or near a window.

VQT0Y35

Before Use

∫ About Condensation (When the lens

is fogged up)

• Condensation occurs when the ambient temperature or humidity changes as described below. Be careful of condensation since it causes lens stains, fungus and camera malfunction. – When the camera is taken from the cold

outdoors to the warm indoors.

– When the camera is taken from outside

to inside an air-conditioned car.

– When cool wind from an air conditioner

etc. blows directly on the camera.

– In humid places.

• To prevent condensation, put the camera in a plastic bag until the temperature of the camera is close to the ambient temperature. If condensation occurs, turn the camera off and leave it for about 2 hours. The fog will disappear naturally when the temperature of the camera becomes close to the ambient temperature.

∫ When not using the camera for a long

period of time

• Store the battery in a cool and dry place with a relatively stable temperature. [Recommended temperature: 15 oC to 25 oC, Recommended humidity: 40% to 60%]

• Always remove the battery and the card from the camera.

• If the battery is left inserted in the camera, it will discharge even if the camera is turned off. If the battery continues to be left in the camera, it will discharge excessively and may become unusable even if charged.

• When storing the battery for a long period of time, we recommend charging it once a year. Remove the battery from the camera and store it again after it has completely discharged.

• We recommend storing the camera with a desiccant (silica gel) when you keep it in a closet or a cabinet.

VQT0Y35

∫ About cards that can be used in this

unit

You can use an SD Memory Card, an SDHC Memory Card and a MultiMediaCard.

• When the term card is used in these

operating instructions this refers to the following types of Memory Cards. – SD Memory Card (8 MB to 2 GB) – SDHC Memory Card (4 GB) – MultiMediaCard

More specific information about memory cards that can be used with this unit.

• You can only use an SDHC Memory Card if using cards with 4 GB or more capacity.

• A 4 GB Memory Card without an SDHC logo is not based on the SD Standard and will not work in this product.

About the Mode Dial

Adjust part A to the desired mode. Rotate the mode dial slowly and surely to adjust to each mode.

: Normal picture mode (P22)

Use this mode for normal recording.

: Macro mode (P47)

This mode allows you to take a close-up picture of a subject.

: Motion picture mode (P61)

This mode allows you to record motion pictures.

: Scene mode (P48)

This mode allows you to take pictures depending on the recording scenes.

Before Use

∫ About indications in these operating

instructions

The modes indicated here allow you to use the functions or settings shown on the page. Set the mode dial to any of the modes indicated to use the functions or settings.

Convenient or helpful information for use of the camera is described.

∫ About illustrations in these operating

instructions

The appearance of the product, the illustrations and menu screens etc. will differ slightly from those in actual use.

∫ About illustrations of the joystick

In these operating instructions, operations using the joystick are described with illustrations.

e.g.:When you move the 4 button

: Simple mode (P25)

This mode is recommended for beginners.

: Playback mode (P31)

This mode allows you to play back recorded pictures.

: Print mode (P95)

This mode allows you to print pictures of recorded pictures.

e.g.:When you Press the [MENU/SET]

button

/SET

VQT0Y35

Contents

Before Use

Information for Your Safety....................... 2

About the Mode Dial .................................5

Preparation

Standard Accessories............................... 8

Names of the Components ....................... 9

Quick Guide............................................10

Charging the Battery with the Charger ...11 About the Battery (charging/

number of recordable pictures) ...........12

Inserting/Removing the Battery ..............13

Inserting/Removing the Card .................. 14

About the Card........................................15

Setting Date/Time (Clock Set) ................ 16

• Changing the clock setting ............... 16

About the Setup Menu ............................17

Basic

Taking Pictures....................................... 22

Taking Pictures in Simple Mode.............25

Taking Pictures with the Zoom ...............27

• Using the Optical Zoom .................... 27

Using the Extra Optical Zoom (EZ)

•

• Using the Digital Zoom

Further extending the zoom ............. 29

Checking the Recorded Picture

(Review)..............................................30

Playing Back Pictures.............................31

Deleting Pictures..................................... 32

Advanced

About the LCD Monitor ...........................34

•

Changing the information displayed

• Brightening the LCD Monitor

(Power LCD/High angle mode) ........ 37

Taking Pictures using the Built-in Flash

Taking Pictures with the Self-timer ......... 42

.... 28

.... 34

.... 38

Compensating the Exposure .................. 43

Taking Pictures using Auto Bracket ........ 44

Optical Image Stabilizer..........................45

Taking Pictures using Burst Mode .......... 46

Taking Close-up Pictures........................47

Scene Mode............................................48

– [PORTRAIT] .................................. 49

– [SOFT SKIN] ................................. 49

– [SCENERY]...................................49

– [SPORTS]...................................... 49

– [NIGHT PORTRAIT]...................... 50

– [NIGHT SCENERY]....................... 50

– [SELF PORTRAIT] ........................ 51

– [FOOD] ......................................... 51

– [PARTY] ........................................ 51

– [CANDLE LIGHT] ..........................52

– [FIREWORKS]...............................52

– [STARRY SKY]..............................53

– [BEACH]........................................53

– [AERIAL PHOTO]..........................54

– [SNOW] ......................................... 54

– [HIGH SENS.]................................ 54

– [BABY1]/[BABY2] ..........................55

Recording which Day of the Vacation

You Take the Picture........................... 56

Displaying the Time at

the Travel Destination (World Time)

• Location candidates for

World Time settings..........................60

Motion Picture Mode ............................... 61

Displaying Multiple Screens

(Multi Playback)................................... 63

Displaying Pictures by Recording Date

(Calendar Playback)............................ 64

Using the Playback Zoom....................... 65

Playing Back Motion Pictures/

Pictures with Audio..............................66

Creating still pictures from

a motion picture................................... 68

.....58

VQT0Y35

Menu Settings

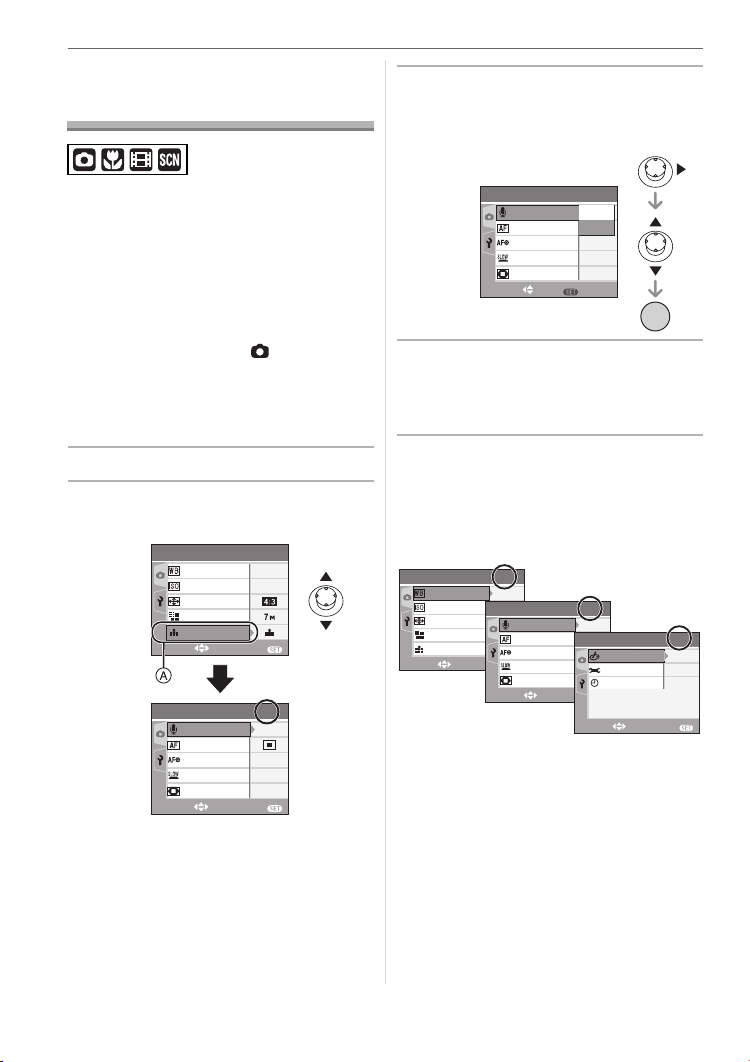

Using the [REC] Mode Menu ..................70

• [W.BALANCE] Adjusting the hue for a more natural

picture...............................................71

• [SENSITIVITY]

Setting the light sensitivity ................ 73

• [ASPECT RATIO] Setting the aspect ratio of pictures

• [PICT.SIZE]/[QUALITY] Setting a picture size and quality that match your use of the pictures

• [AUDIO REC.] Recording still pictures with audio

• [AF MODE]

Setting the focus method.................. 77

• [AF ASSIST LAMP] Focusing in low light conditions

becomes easier................................78

• [SLOW SHUTTER] Recording bright pictures

in dark places ................................... 78

• [COL.EFFECT] Setting colour effects for

the recorded pictures........................ 79

• [PICT.ADJ.] Adjusting the picture quality for

the recorded pictures........................ 79

• [CLOCK SET] Set the display order for

the date and time.............................. 79

Using the [PLAY] mode menu ................ 80

• [DUAL DISPLAY] Displaying the recorded pictures on

a dual display ...................................80

• [SLIDE SHOW] Playing back pictures in order for

a fixed duration.................................81

• [FAVORITE]

Setting your favourite pictures.......... 82

• [ROTATE DISP.]/[ROTATE]

To display the picture rotated...........83

....74

... 75

..... 76

• [DPOF PRINT] Setting the picture to print and

the number of prints.......................... 85

• [PROTECT] Preventing accidental erasure of

pictures.............................................87

• [AUDIO DUB.] Adding audio after taking pictures

• [RESIZE]

Making the picture smaller................88

• [TRIMMING] Enlarging a picture and trimming it

• [ASPECT CONV.] Changing the aspect ratio of

a 16:9 picture....................................90

• [FORMAT]

Initializing the card ............................ 91

..... 88

..... 89

Connecting to other equipment

Connecting to a PC.................................92

Printing the Pictures................................95

Playing Back Pictures on a TV Screen

....99

Others

Screen Display......................................100

Cautions for Use ...................................103

Message Display ..................................105

Troubleshooting ....................................106

Number of Recordable Pictures and

Available Recording Time .................112

Specifications........................................115

VQT0Y35

Preparation

Standard Accessories

Check that all the accessories are included before using the camera.

CGA-S005E

A: K2CT3CA00004 B: K2CQ2CA00006

K1HA08CD0007 K1HA08CD0008

DE-A12B

1 Battery Pack

(Indicated as battery in the text)

2 Battery Charger

(Indicated as charger in the text)

3 AC Cable

A: Hong Kong Special Administrative

Region of China and Saudi Arabia

B: Areas Other than Hong Kong

Special Administrative Region of China and Saudi Arabia

4 USB Connection Cable 5 AV C able 6 CD-ROM 7 Strap 8 Battery Carrying Case

• SD Memory Card, SDHC Memory Card

and MultiMediaCard are indicated as card in the text.

• Consult the dealer or your nearest servicentre if you lose the supplied accessories. (You can purchase the accessories separately.)

VQT0Y35

VFC4090

VYQ3509

Names of the Components

123

1 Flash (P38) 2 Lens (P3) 3 Self-timer indicator (P42)

AF assist lamp (P78)

4 LCD monitor (P34, 100) 5Joystick

/[MENU/SET] button (P17)

/SET

2/ Self-timer button (P42) 4/ [REV] button (P30) 1/ Flash setting button (P38) 3/ Exposure compensation (P43)/

Auto bracket (P44)/White balance fine adjustment (P72)/Backlight compensation in simple mode (P26) button

6 [DISPLAY/LCD MODE] button

(P34, 37) 7 Status indicator (P12) 8 Single or burst mode (P46)/

Delete button (P32)

Preparation

91210

13 14 15

9 Camera ON/OFF switch (P10, 16) 10 Zoom lever (P27) 11 Optical image stabilizer button (P45) 12 Speaker (P66) 13 Microphone (P61, 76, 88) 14 Shutter button (P22, 61) 15 Mode dial (P5)

16 17

DIGITAL

AV OUT

DC IN

16 Strap eyelet 17 Lens barrel 18 [DIGITAL/AV OUT] socket (P92, 95, 99) 19 [DC IN] socket (P92, 95)

• Always use a genuine Panasonic AC adaptor (DMW-AC5; optional).

• This camera cannot charge the battery even though the AC adaptor (DMW-AC5; optional) is connected to it.

18 19

20 21

OPEN

LOCK

20 Tripod receptacle

• When you use a tripod, make sure the tripod is stable when the camera is attached to it.

21 Card/Battery door (P13, 14) 22 Release lever (P13, 14)

VQT0Y35

Preparation

Quick Guide

This is an overview of how to record and playback pictures with the camera. For each step, be sure to refer to the pages indicated in brackets.

1 Charge the battery. (P11)

• The battery is not charged when the camera is shipped. Charge the battery before use.

2 Insert the battery and the card.

(P13, 14)

3 Turn the camera on to take

pictures.

• Set the clock. (P16)

OFF ON

1 Set the mode dial to [ ]. 2 Press the shutter button to take

pictures. (P22)

4 Play back the pictures.

1 Set the mode dial to [ ]. 2 Select the picture you want to view.

(P31)

VQT0Y35

Charging the Battery with the Charger

The battery is not charged when the camera is shipped. Charge the battery before use.

1 Attach the battery with attention

to the direction of the battery.

2 Connect the AC cable.

• The AC cable does not fit entirely into the AC input terminal. A gap will remain as shown below.

Preparation

3 Detach the battery after charging

is completed.

• After charging is completed, be sure to disconnect the AC cable from the electrical outlet.

• The battery becomes warm after using it and during and after charging. The camera also becomes warm during use. This is not a malfunction.

• The battery will be exhausted if left for a long period of time after being charged. Recharge the battery when it is exhausted.

• The battery can be charged even if it is not fully discharged.

• Use the dedicated charger and battery.

• Charge the battery with the charger indoors.

• Do not disassemble or modify the charger.

• Charging starts when the [CHARGE]

indicator A lights green.

• Charging is complete when the

[CHARGE] indicator A turns off (after about 130 minutes).

VQT0Y35

Preparation

About the Battery

(charging/number of recordable pictures)

∫ Battery indication

The remaining battery power appears on the screen. [It does not appear when you use the camera with the AC adaptor (DMW-AC5; optional) connected.]

• The battery indication turns red and blinks. (The status indicator blinks when the LCD monitor turns off.) Recharge the battery or replace it with fully charged battery.

∫ The battery life The number of recordable pictures (By CIPA standard in normal picture mode)

Number of recordable pictures

Recording conditions by CIPA standard

• Temperature: 23 °C/ Humidity: 50% when LCD monitor is on.

• Using a Panasonic SD Memory Card (16 MB).

(optional)

• Using the supplied battery.

• Starting recording 30 seconds after the camera is turned on. (When the optical image stabilizer function is set to [MODE1].)

• Recording once every 30 seconds with full flash every second recording.

• Rotating the zoom lever from Tele to Wide or vice versa in every recording.

• Turn the camera off every 10 recordings.

• CIPA is an abbreviation of [Camera & Imaging Products Association].

¢The number of recordable pictures

decreases when the power LCD function or high angle mode (P37) are used.

Approx. 300 pictures (Approx. 150 min)

The number of recordable pictures varies depending on the recording interval time. If the recording interval time becomes longer, the number of recordable pictures decreases. [e.g. When recording once every 2 minutes, the number of recordable pictures decreases to about 75.]

Playback time

Playback time Approx. 310 min

The number of recordable pictures and playback time will vary depending on the operating conditions and storing condition of the battery.

∫ Charging

Charging time Approx. 130 min

Charging time and number of recordable pictures with the optional battery pack (CGA-S005E) are the same as above.

• The [CHARGE] indicator lights when charging starts.

∫ When the [CHARGE] indicator flashes

• The battery is over discharged (discharged excessively). In a while,

[CHARGE] indicator will light up and normal charging will start.

• When the battery temperature is excessively high or low, [CHARGE] indicator flashes and the charging time will be longer than normal.

• The terminals of the charger or the battery are dirty. In this case, wipe them with a dry cloth.

• When the operating time of the camera becomes extremely short even after properly charging the battery, the life of the battery may have expired. Buy a new battery.

∫ Charging conditions

• Charge the battery in a temperature between

C to 35oC. (The battery temperature

10 should also be the same.)

• The performance of the battery may temporarily deteriorate and the operating time may become shorter in low temperature conditions (e.g. skiing/snowboarding).

VQT0Y35

Inserting/Removing the Battery

• Check that the camera is turned off and that the lens is retracted.

1 Slide the release lever in the

direction of the arrow and open the card/battery door.

OPEN

LOCK

• Always use genuine Panasonic batteries (CGA-S005E).

2 Insert:

Insert the charged battery fully being careful about the direction you insert it.

Remove: Slide the lock A to remove the battery.

Preparation

3 1 Close the card/battery door.

2 Slide the release lever in the

direction of the arrow.

OPEN

LOCK

• Remove the battery after use. Store the removed battery in the battery carrying case (supplied).

• When a fully charged battery has been inserted for more than 24 hours, the clock setting is stored (in the camera) for at least 3 months even if the battery is removed. (If you insert a battery that is not sufficiently charged, the length of time that the clock setting is stored may become less.) However, the clock setting is cancelled after this length of time. In this case, set the clock again. (P16)

• Do not remove the card or the battery while the card is being accessed. The data may be damaged. (P15)

• Do not remove the battery until the LCD monitor and the status indicator (green) turn off as the settings on the camera may not be stored properly.

• The supplied battery is designed only for the camera. Do not use it with any other equipment.

VQT0Y35

Preparation

Inserting/Removing the Card

• Check that the camera is turned off and that the lens is retracted.

• Prepare an SD Memory Card (optional), SDHC Memory Card (optional) MultiMediaCard (optional).

1 Slide the release lever in the

direction of the arrow and open the card/battery door.

OPEN

LOCK

2 Insert:

Insert the card fully until it clicks and it is locked.

Remove: Push the card until it clicks, then pull the card out upright.

or a

3 1 Close the card/battery door.

2 Slide the release lever in the

direction of the arrow.

OPEN

LOCK

• If the card/battery door cannot be completely closed, remove the card and insert it again.

• The card and the data may be damaged if it is inserted or removed while the camera is on.

• We recommend using Panasonic’s SD Memory Card/SDHC Memory Card.

• Check the direction of the card.

• Do not touch the connection terminals on the back side of the card.

• The card may be damaged if it is not fully inserted.

VQT0Y35

About the Card

∫ Access to the card

The card access indication A lights red when pictures are being recorded onto the card.

When the card access indication lights, pictures are being read or deleted or the card is being formatted. Do not:

• Turn the camera off.

• Remove the battery or the card.

• Shake or impact the camera.

• Disconnect the AC adaptor (DMW-AC5; optional).

The card and the data may be damaged or the camera may not operate normally.

∫ About handling a card

Transfer important pictures/motion pictures from your card to your PC periodically (P92). The data on the card may be damaged or lost due to electromagnetic waves, static electricity, the camera breaking down or a defective card.

• Do not format the card on your PC or other equipment. Format it on the camera only to ensure proper operation. (P91)

• The reading/writing speed of an SD Memory Card and an SDHC Memory Card is fast. Both types of card are equipped with a Write-Protect switch B that can inhibit writing and formatting a card. (When the switch is slid to the [LOCK] side, it is not possible to write or delete data on the card and format it. When the switch is unlocked, these functions become available.)

Preparation

Please confirm the latest information on the following website.

http://panasonic.

co.jp/pavc/global/cs

(This Site is English only.)

• Refer to P112 for information about the number of recordable pictures and the available recording time for each card.

• This camera is compatible with SD Memory Cards based on SD Memory Card Specifications and formatted in FAT12 system and FAT16 system. It is also compatible with SDHC Memory Cards based on SD Memory Card Specifications and formatted in FAT32 system.

• The SDHC Memory Card is a memory card standard decided by the SD Association in 2006 for high capacity memory cards more than 2 GB.

• This camera is compatible with both an SD Memory Card and an SDHC Memory Card. You can use an SDHC Memory Card in equipment that is compatible with SDHC Memory Cards however you cannot use an SDHC Memory Card in equipment that is only compatible with SD Memory Cards. (If you use an SDHC Memory Card in other equipment, always read the operating instructions for the other equipment.)

• This unit does not support recording motion pictures on MultiMediaCards. We recommend using High Speed SD Memory Cards/SDHC Memory Cards when recording motion pictures. (P61)

• The SD Memory Card, SDHC Memory Card and MultiMediaCard are small, lightweight, removable external cards.

• The reading/writing speed of a MultiMediaCard is slower than an SD Memory Card or SDHC Memory Card. When a MultiMediaCard is used, the performance of certain features may be slightly slower than advertised.

• Keep the Memory Card out of reach of children to prevent swallowing.

VQT0Y35

Preparation

Setting Date/Time (Clock Set)

∫ Initial setting

The clock is not set so the following screen appears when you turn the camera on.

OFF ON

PLEASE SET THE CLOCK

A: [MENU/SET] button

1 Press [MENU/SET]. 2 Move 3/4/2/1 to select the

date and time.

CLOCK SET

00 00

SELECT SET

A: Time at the home area B: Time at the travel destination (P58)

• 2/1: Select the desired item

• 3/4: Set the display order for the date

and time.

• Press [ ] to cancel the clock setting without storing the date and time.

• Refer to [WORLD TIME] (P58) for information about setting the local time at the travel destination area.

CLOCK SET

: :

11 2006

JAN

D/M/Y

CANCEL

EXIT

3 Press [MENU/SET] several times

to close the menu.

• Turn the camera off after finishing setting the clock. Then turn it on and check that the clock setting is correct.

∫ Changing the clock setting 1 Press [MENU/SET]. 2 Move 3/4 to select [CLOCK SET].

(P70)

3 Move 1 and then perform steps

to set the clock.

REC

SELECT

COL.EFFECT

PICT.ADJ.

CLOCK SET

STANDARD

EXIT

• You can also set the clock in the [SETUP] menu. (P17)

• When a fully charged battery has been inserted for more than 24 hours, the clock setting is stored (in the camera) for at least 3 months even if the battery is removed.

• You can set the year from 2000 to 2099. The 24-hour system is used.

• If the date is not set in the camera it will not be printed when you use a photo printing service, even if the store provides a date printing option for your photographs. (P86)

OFF

2 and 3

VQT0Y35

About the Setup Menu

• Set items as required. (Refer to P18 to 21 for each menu item.)

• Menu items differ depending on the mode selected with the mode dial (P5). The following example shows how to set [AUTO REVIEW] when normal picture mode [ ] is selected.

• Select [RESET] to return the settings to the initial settings at the time of purchase. (P20)

1 Press [MENU/SET] and then move

EXIT

AUTO

OFF

/SET

REC

W.BALANCE

SENSITIVITY

ASPECT RATIO

PICT. SIZE

QUALITY

SELECT

2 Move 4 to select the [SETUP]

menu icon [ ] and then move 1.

SETUP

CLOCK SET

WORLD TIME

MONITOR

GUIDE LINE TRAVEL DATE

SELECT

Move 3/4 to select the menu item.

SETUP

CLOCK SET

WORLD TIME

MONITOR

GUIDE LINE TRAVEL DATE

SELECT

Preparation

4 Move 1, move 3/4 to select the

setting and then press [MENU/ SET].

SET

OFF

1SEC.

2MIN.

3SEC.

OFF

ZOOM

/SET

SETUP

AUTO REVIEW

ECO

SELECT

POWER SAVE

ECONOMY

BEEP

SHUTTER

5 Press [MENU/SET] to close the

menu.

• You can also press the shutter button halfway to close the menu.

∫ About the menu screen items

• There are 4 menu screens (1/4, 2/4, 3/4 and 4/4).

• You can switch menu screens from any menu item by rotating the zoom lever.

SETUP

EXIT

SELECT

AUTO REVIEW

POWER SAVE

OFF

ECO

ECONOMY

BEEP

SHUTTER

EXIT

SELECT

1SEC.

2MIN.

SETUP

OFF

VOLUME

NO.RESET

RESET

VIDEO OUT

TV ASPECT

SETUP

EXIT

SELECT

LEVEL

SCENE MENU

NTSC

LANGUAGE

EXIT

AUTO

ENG

SETUP

SELECT

CLOCK SET

WORLD TIME

MONITOR

GUIDE LINE TRAVEL DATE

EXIT

1SEC.

5MIN.

OFF

SETUP

AUTO REVIEW

ECO

SELECT

POWER SAVE

ECONOMY

BEEP

SHUTTER

•Move 4 at A to switch to the next

menu screen.

VQT0Y35

Preparation

[CLOCK SET]

Press [ ] to display the [SETUP] menu

/SET

and select the item to set. (P17) Change date and time. (P16)

[WORLD TIME]

Press [ ] to display the [SETUP] menu

/SET

and select the item to set. (P17) []:The time at your home area is

set.

[]:The local time at the travel

destination area is set.

• Refer to P58 for information about setting [WORLD TIME].

• The [WORLD TIME] setting also affects simple mode [ ].

[MONITOR]

Press [ ] to display the [SETUP] menu

/SET

and select the item to set. (P17) Adjust the brightness of the LCD monitor in 7 steps.

• The [MONITOR] setting also affects simple mode [ ].

[GUIDE LINE]

Press [ ] to display the [SETUP] menu

/SET

and select the item to set. (P17) Set the pattern of the guide lines displayed when taking pictures. (P35) You can also set whether or not to have the recording information and histogram displayed when the guide lines are displayed.

[REC. INFO.]: [ON]/[OFF] [HISTGRAM]: [ON]/[OFF] [PATTERN]: [ ]/[ ]

[TRAVEL DATE]

Press [ ] to display the [SETUP] menu

/SET

and select the item to set. (P17) [SET]: When taking a picture, the date on

which it was taken is recorded.

[OFF]:When taking a picture, the date on

which it was taken is not recorded.

• Refer to P56 for information about setting [TRAVEL DATE].

• The [TRAVEL DATE] setting also affects simple mode [ ].

[AUTO REVIEW]

Press [ ] to display the [SETUP] menu

/SET

and select the item to set. (P17) [1SEC.]: The recorded picture

automatically appears on the screen for about 1 second.

[3SEC.]: The recorded picture

automatically appears on the screen for about 3 seconds.

[ZOOM]: The recorded picture

automatically appears on the screen for about 1 second. It is then enlarged 4 times and appears for about 1 second. This mode is useful for confirming focus. Pictures recorded using auto bracket or burst mode and pictures with audio are not enlarged even if [ZOOM] is selected.

[OFF]: The recorded picture does not

automatically appear.

• The auto review function is not activated in motion picture mode [ ].

• When pictures are recorded in auto bracket (P44) or burst mode (P46), the auto review function is activated regardless of the setting on the auto review function. (The picture is not enlarged.)

• The auto review function is activated while pictures with audio (P76) are being recorded regardless of its setting. (The picture is not enlarged.)

• The auto review setting is disabled when using auto bracket or burst mode, in motion picture mode [ ] or when [AUDIO REC.] or [SELF PORTRAIT] in scene mode is set to [ON].

VQT0Y35

[POWER SAVE]

Press [ ] to display the [SETUP] menu

/SET

and select the item to set. (P17)

[1MIN.]/[2MIN.]/[5MIN.]/[10MIN.]:

Power save mode is activated (the camera is automatically turned off to save the battery life) if the camera has not been used for the time selected on the setting.

[OFF]:Power save mode is not activated.

• Press the shutter button halfway or turn the camera off and on to cancel power save mode.

• Power save mode is fixed to [5MIN.] in simple mode [ ].

• Power save mode is fixed to [2MIN.] in economy mode.

• When using the AC adaptor (DMW-AC5; optional), connecting to a PC or a printer, recording or playing back motion pictures and during a slide show, power save mode is not activated. (However, the setting for power save mode is fixed to [10MIN.] while pausing a slide show or playing back a manual slide show.)

Preparation

[ECONOMY]

Press [ ] to display the [SETUP] menu

/SET

and select the item to set. (P17) Battery life is saved by reducing the brightness of the LCD monitor and turning it off automatically when the camera is not being used in recording mode. [LEVEL 1]: The LCD monitor turns off if the

camera is not operated for about 15 seconds in recording mode.

[LEVEL 2]: The LCD monitor turns off if the

camera is not operated for about 15 seconds in recording mode or for about 5 seconds after taking a picture.

[OFF]: Economy mode cannot be

activated.

• In economy mode, the LCD monitor is turned off while the flash is being charged.

• The status indicator lights while the LCD monitor is turned off. Press any button to turn on the LCD monitor again.

• Power save mode is fixed to [2MIN.] in economy mode. [However, power save mode is not activated when using the AC adaptor (DMW-AC5; optional).]

• Economy mode will not work in simple mode [ ], when using the AC adaptor (DMW-AC5; optional), recording motion pictures, the menu screen is displayed or the self-timer is set.

• The brightness of the LCD monitor is not reduced in Power LCD mode and high angle mode.

VQT0Y35

Preparation

[BEEP]

Press [ ] to display the [SETUP] menu

/SET

and select the item to set. (P17)

[BEEP LEVEL] []:No operation sound []:Soft operation sound []:Loud operation sound

[BEEP TONE]: / /

1 2 3

• The [BEEP] setting also affects simple

mode [ ].

[SHUTTER]

Press [ ] to display the [SETUP] menu

/SET

and select the item to set. (P17) Set to select the volume of shutter sound.

[SHUTTER VOL.] []:No shutter sound []:Soft shutter sound []:Loud shutter sound

[SHUTTER TONE]: / /

1 2 3

• The [SHUTTER] setting also affects

simple mode [ ].

[VOLUME]

Press [ ] to display the [SETUP] menu

/SET

and select the item to set. (P17) The volume of speakers can be adjusted in 7 steps from level 6 to 0.

• When you connect the camera to a TV, the

volume of the TV speakers does not change.

[NO.RESET]

Press [ ] to display the [SETUP] menu

/SET

and select the item to set. (P17) Set this when you want the file number of the next recording to start from 0001. (The folder number is updated and the file number starts from 0001.)

• A folder number between 100 and 999 can be assigned. When the folder number reaches 999, the number cannot be reset. We recommend formatting the card after saving the data on a PC or elsewhere.

• To reset the folder number to 100, format (P91) the card first and then use this function to reset the file number. A reset screen for the folder number will then appear. Select [YES] to reset the folder number.

• Refer to P93 for detailed information about the file number and the folder number.

• The [NO.RESET] setting also affects simple mode [ ].

[RESET]

Press [ ] to display the [SETUP] menu

/SET

and select the item to set. (P17) The [REC] or [SETUP] menu settings are reset to the initial settings.

• The birthday setting for [BABY1]/[BABY2] (P55) in scene mode, the number of days that have passed since the departure date for [TRAVEL DATE] (P56) and the [WORLD TIME] setting (P58) are also reset when the [SETUP] menu settings are reset. Also, [FAVORITE] (P82) is fixed to [OFF] and [ROTATE DISP.] (P83) is fixed to [ON].

• The folder number and the clock setting are not changed.

VQT0Y35

[VIDEO OUT]

(Playback mode only) (P99)

Press [ ] to display the [SETUP] menu

/SET

and select the item to set. (P17) [NTSC]: Video output is set to NTSC

system.

[PAL]: Video output is set to PAL

system.

[TV ASPECT]

(Playback mode only)

Press [ ] to display the [SETUP] menu

/SET

and select the item to set. (P17)

[ ]:

Select this if connecting the camera to a 16:9 screen TV.

[]:

Select this if connecting the camera to a 4:3 screen TV.

• This is suitable for displaying pictures recorded with a [ ] aspect on the full screen of a 16:9 TV. Pictures recorded with a [ ] or [ ] aspect are displayed with black bands on the left and right of the screen.

• When [ ] is selected, pictures recorded with a [ ] or [ ] aspect are displayed with black bands on the top and bottom of the screen.

• When you select [ ] and use the AV cable (supplied) for output (P99), pictures are displayed vertically on the LCD monitor.

Preparation

[SCENE MENU]

Press [ ] to display the [SETUP] menu

/SET

and select the item to set. (P17) [AUTO]: [SCENE MODE] menu appears

automatically when setting the mode dial to scene mode. Select the desired scene mode. (P48)

[OFF]: [SCENE MODE] menu does not

appear when setting the mode dial to scene mode and the camera is operated in scene mode currently selected. If you change the scene mode, press [MENU/SET] to display the [SCENE MODE] menu and then select the desired scene mode.

[LANGUAGE]

Press [ ] to display the [SETUP] menu

/SET

and select the item to set. (P17) Set the language on the menu screen from the following languages. Set to the desired language with 3/4 and store it with [MENU/SET].

[ENGLISH]: English [DEUTSCH]: German [FRANÇAIS]: French [ESPAÑOL]: Spanish [ITALIANO]: Italian []:Russian []: Chinese (Traditional) [ไทย ]: Thai

• If you set a different language by mistake, select [ ] from the menu icons to set the desired language.

• The [LANGUAGE] setting also affects simple mode [ ].

VQT0Y35

Basic

Taking Pictures

The camera automatically sets the shutter speed and the aperture value according to the brightness of the subject.

1 1 Turn the camera on.

2 Select normal picture mode

[].

OFF ON

2 Aim the AF area 1 to the point

you want to focus on and then press the shutter button halfway.

1/25F2.8

• A: Press the shutter button halfway to

focus.

• The focus indication 2 lights and then the aperture value 3 and the shutter speed 4 are displayed.

• When the ISO sensitivity is set to [ ], the shutter speed will not be displayed. (P73)

• If [ ] or [ ] is used in AF mode, the AF area does not appear until the subject is brought into focus. (P77)

• The AF area displayed is bigger than usual when using the digital zoom or when taking pictures in dark places. (P77)

Focus

When the subject is not focused

Blinks (green) On (green)

When the subject is focused

indication

AF area Turns white to

red or no AF

Turns white to green

area

Sound Beeps 4 times Beeps 2 times

3 Take a picture.

1/25F2.8

• B: Press the shutter button fully to take

the picture.

• We recommend checking that the clock is set properly before taking pictures. (P16)

• When you press the shutter button, the screen may become bright or dark for a moment. This function allows easy adjustment of focus and the recorded picture will not be affected.

• When a time is set for power save (P19), the camera automatically turns off if you do not operate it within the set time. To operate the camera again, press the shutter button halfway or turn the camera off and on.

• To avoid noise, we recommend decreasing the ISO sensitivity (P73) or setting [PICT.ADJ.] to [NATURAL]. (P79) (ISO sensitivity is set to [AUTO] when the camera is shipped. Therefore, when taking pictures indoors etc. the ISO sensitivity increases.)

VQT0Y35

∫ Tips for taking good pictures

• Hold the camera gently with both hands, keep your arms still at your side and stand with your feet slightly apart.

• Make sure the camera does not shake when you press the shutter button.

• Do not cover the flash or the AF assist lamp with your fingers or other objects.

• Do not touch the front of the lens.

• If the LCD monitor screen is difficult to see because of light from the sun etc. shining on it, we recommend using your hand or another object to block the light when using the camera.

1: When holding the camera sideways 2: When holding the camera vertically

A:Flash B: AF assist lamp

∫ Direction detection function

Pictures recorded with the camera held vertically are played back vertically (rotated). (Only when [ROTATE DISP.] (P83) is set to [ON])

• Pictures may not be displayed vertically if they were taken with the camera aimed up or down.

• Motion pictures taken with the camera held vertically are not displayed vertically.

Basic

∫ When you want to take a subject

outside the AF area (AF/AE Lock)

When recording a picture of people with a composition like the following picture, you will not be able to focus the camera on the subject because the people are outside the AF area.

In this case,

1 Aim the AF area at the subject. 2 Press the shutter button halfway to fix

the focus and the exposure.

• The focus indication lights when the subject is focused.

3 Press and hold the shutter button

halfway while moving the camera as you

compose the picture.

4 Press the shutter button fully.

• You can repeatedly retry AF/AE lock before pressing the shutter button fully.

1/25F2.8

VQT0Y35

Basic

∫ Focusing

• The focus range is 50 cm to ¶. Use macro mode when recording close-up pictures. (P47)

• If the distance between the camera and the subject is beyond the focus range of the camera, the picture may not be properly focused even if the focus indication lights.

• In the following cases, the camera will not focus on subjects properly. – When there are both near and distant

subjects in a scene.

– When there is dirt or dust on glass

between the lens and the subject.

– When there are illuminated or glittering

objects around the subject. – When taking a picture in dark places. – When the subject is moving fast. – When the scene has low contrast. – When jitter occurs. – When recording a very bright subject. We recommend taking pictures using AF/ AE lock. In dark places, the AF assist lamp (P78) may turn on to focus on the subject.

• Even when the focus indication appears and the subject is focused, it is cancelled if you release the shutter button. Press the shutter button halfway again.

∫ Preventing jitter (camera shake)

• Be careful of jittering when pressing the shutter button.

• If jitter could occur because of slow shutter speed, the jitter alert A appears.

• When the jitter alert appears, we recommend using a tripod. If you cannot use a tripod, be careful how you hold the camera (P23). The use of the self-timer prevents jittering caused by pressing the shutter button when you are using a tripod (P42).

• Shutter speed will be slower particularly in the following cases. Keep the camera still from the moment the shutter button is pressed until the picture appears on the screen. We recommend using a tripod. – Slow sync./Red-eye reduction (P38) – [NIGHT PORTRAIT] (P50) – [NIGHT SCENERY] (P50) – [PARTY] (P51) – [CANDLE LIGHT] (P52) – [FIREWORKS] (P52) – [STARRY SKY] (P53) – When the shutter speed is slowed in

[SLOW SHUTTER] (P78)

∫ Exposure

• If you press the shutter button halfway when the exposure is not adequate, the aperture value and the shutter speed turn red. (They do not turn red when the flash is activated.)

• The brightness of the screen may differ from the brightness of the recorded pictures especially when recording in low light conditions.

• When most of the subjects on the screen are bright (e.g. a blue sky on a clear day, a snowy field etc.), the recorded pictures may become dark. In this case, compensate the exposure value on the camera. (P43)

VQT0Y35

1/10F2.8

Taking Pictures in Simple Mode

This mode allows beginners to take pictures easily. Only the basic functions appear in the menu to make operations simple.

∫ Basic menu settings

1 Press [MENU/SET].

2 Move 3/4 to select the desired

menu item and then move 1.

SIMPLE MODE

PICT.MODE

AUTO REVIEW

BEEP

CLOCK SET

SELECT SET

3 Move 3/4 to select the desired

setting and then press [MENU/ SET].

4 Press [MENU/SET] to close the

menu.

• You can also press the shutter button halfway to close the menu.

ENLARGE

4"k6"/10k15cm

E-MAIL

∫ Settings in Simple mode

[PICT.MODE]

Suitable for enlarging the

[ENLARGE]

pictures to be printed to 8qk10q size, letter size etc.

Suitable for regular size

[4qk6q/

printing.

10k15cm]

Suitable for attaching

[E-MAIL]

pictures to e-mails or adding pictures to websites.

[AUTO REVIEW]

[OFF] The recorded picture does not

automatically appear.

[ON] The recorded picture

automatically appears on the screen for about 1 second.

[BEEP]

[OFF] No operation sound [LOW] Soft operation sound [HIGH] Loud operation sound

[CLOCK SET]

Change date and time. (P16)

•

If [4qk6q/10k15cm] or [E-MAIL] is set in [PICT.MODE], the

extra

optical zoom is activated and the zoom ratio is extended to a maximum of 5.5

. (P28)

• The settings for [BEEP] and [CLOCK SET] in simple mode are also applied to other recording modes.

• The settings for [WORLD TIME] (P18), [MONITOR] (P18), [TRAVEL DATE] (P18), [BEEP] (P20), [SHUTTER] (P20), [NO.RESET] (P20) and [LANGUAGE] (P21) in the [SETUP] menu are applied to simple mode.

Basic

VQT0Y35

Basic

∫ Other Settings in Simple mode

In simple mode, other settings are fixed as follows. For more information about each setting, refer to the page indicated.

• Focus range:

30 cm to ¶ (Tele) 5cm to ¶ (Wide)

• [POWER SAVE] (P19): [5MIN.]

• [ECONOMY] (P19): [OFF]

• Self-timer (P42): 10 seconds

• Optical Image Stabilizer (P45): [MODE2]

• Burst speed (P46): []

• [W.BALANCE] (P71): [AUTO]

• [SENSITIVITY] (P73): []

• [ASPECT RATIO]/[PICT.SIZE]/[QUALITY] (P74, 75):

– [ ENLARGE]:

:(7M)/

–[ 4qk6q/10k15cm]:

: (2.5M EZ)/

–[ E-MAIL]:

: (0.3M EZ)/

• [AF MODE] (P77): []

• [AF ASSIST LAMP] (P78): [ON]

• [SLOW SHUTTER] (P78): [1/8–]

• You cannot use the following functions in simple mode. – High angle mode – White balance fine adjustment – Exposure compensation – Auto bracket – [AUDIO REC.] – [D.ZOOM] – [COL.EFFECT] –[PICT.ADJ.] – [GUIDE LINE]

• You cannot set the following items in simple mode. – [TRAVEL DATE] –[WORLD TIME]

∫ The Backlight Compensation

Backlight refers to when light comes from the back of a subject. In this case, the subject, such as a person, will become dark. If you move 3, compensating backlight ON indication [] A appears and the backlight compensation function is activated. This function compensates the backlight by brightening the whole of the picture.

BACKLIGHT

• If you move 3 while [ ] is displayed, [ ] disappears and the backlight compensation function is cancelled.

• We recommend using the flash when you use the backlight compensation function. (When using the flash, it is fixed to Forced ON [ ].)

• The flash setting is fixed to AUTO/Red-eye reduction [ ] when the backlight compensation function is set to [OFF].

VQT0Y35

Taking Pictures with the Zoom

Using the Optical Zoom

You can make people and subjects appear closer with the 3.6k optical zoom and landscapes can be recorded in wide angle. (35 mm film camera equivalent: 28 mm to 102 mm)

∫ To make subjects appear closer use

(Tele)

Rotate the zoom lever towards Tele.

• When the setting for picture size is [ ] (7M).

W T

3.6X

∫ To make subjects appear further away

use (Wide)

Rotate the zoom lever towards Wide.

• When the setting for picture size is [ ] (7M).

Basic

• The optical zoom is set to Wide (1k)

when the camera is turned on.

• Depending on the zoom magnification, the picture may have some distortion. Distortion will be more visible when using a wider area of the zoom lens as you move closer to the subject.

• Depending on the zoom magnification, the picture may have some coloured fringes around the subject. This is called chromatic aberration and may be more visible when recording distant subjects.

• If you use the zoom function after focusing on the subject, focus on the subject again.

• The indicated zoom magnification is an approximation.

• The lens barrel (P9) extends or retracts according to the zoom position. Take care not to interrupt the motion of the lens barrel while the zoom lever is rotated.

• In motion picture mode [ ], the zoom magnification is fixed to the value set at the start of recording.

W T

VQT0Y35

Basic

Using the Extra Optical Zoom (EZ)

This camera has a 3.6k optical zoom. However, if the picture size is not set to the highest setting for each aspect ratio [ /

/ ], a maximum of 5.5k optical

zoom can be achieved with no picture quality deterioration.

Picture size with the extra optical zoom not activated [example: [] (7M)]

∫ Extra optical zoom mechanism

When you set the picture size to [ ] (3M EZ) (3 million pixels), the 7M (7 million pixels) CCD area is cropped to the centre 3M (3 million pixels) area, allowing a picture with a higher zoom effect.

Picture size with the extra optical zoom activated [example: [] (3MEZ)]

∫ Picture size and maximum zoom

magnification

(±: Available, —: Not available)

Aspect

ratio

Picture size

/(7M)

(5.5M)

(5M EZ) 4.4k±

(3M EZ)

(2M EZ)

(1M EZ)

(0.3M EZ)

(2.5M EZ)

(2M EZ)

Maximum

zoom

magnification

3.6k —(6M)

5.5k±

Extra

optical

zoom

• Refer to P74 for aspect ratio settings, P75 for picture size and P25 for simple mode [].

• “EZ” is an abbreviation of “Extra optical Zoom”.

• You can further enhance the zoom magnification with the extra optical zoom without worrying about further picture distortion.

• If you set a picture size that activates the extra optical zoom, the extra optical zoom icon [ ] is displayed on the screen when you use the zoom function.

• The zoom will stop moving for an instant near [W] (1k) when the extra optical zoom is used. This is not a malfunction.

• The indicated zoom magnification is an approximation.

• In motion picture mode [ ]and [HIGH SENS.] in scene mode, the extra optical zoom does not work.

VQT0Y35

Using the Digital Zoom

Further extending the zoom

A maximum of 14.6k zoom can be achieved with the 3.6k optical zoom and the 4k digital zoom when [D.ZOOM] is set to [ON] in the [REC] mode menu. However, if a picture size that can use extra optical zoom is selected, a maximum of 21.9k zoom can be achieved with the 5.5k extra optical zoom and the 4k digital zoom.

∫ Menu operation

1 Press [MENU/SET].

• When a scene mode is selected, move

2 in the [SCENE MODE] menu (P48), move 4 to select the [REC] mode menu icon [ ] and then move 1.

2 Move 3/4 to select [D.ZOOM]

and then move 1.

3 Move 4 to select [ON] and then

press [MENU/SET].

SET

OFF

㧙

OFF

/SET

REC

AUDIO REC.

AF MODE

AF ASSIST LAMP

SLOW SHUTTER

D.ZOOM

SELECT

4 Press [MENU/SET] to close the

menu.

• You can also press the shutter button halfway to close the menu.

Basic

∫ Entering the digital zoom range

The on-screen zoom indication may momentarily stop moving when you rotate the zoom lever to the extreme Tele position. You can enter the digital zoom range by continuously rotating the zoom lever to Tele or releasing the zoom lever once and then rotating it to Tele again.

≥[OFF]:

≥[ON]:

(When using the digital zoom [4k] and the extra optical zoom (3M EZ) at the same time.)

1 Optical zoom 2 Digital zoom 3 Extra optical zoom

• When using the digital zoom, the AF area on the centre of the screen is displayed and it is bigger than usual. (P77)

• In digital zoom, the larger the picture the lower the picture quality.

• In the digital zoom range, the stabilizer function may not be effective.

• When using the digital zoom, we recommend using a tripod and the self-timer (P42) for taking pictures.

• The indicated zoom magnification is an approximation.

• The digital zoom does not work in the following cases: – In simple mode [ ]. – In [SPORTS], [BABY1]/[BABY2] and

[HIGH SENS.] in scene mode.

– When the ISO sensitivity has been set to

[].

VQT0Y35

Basic

Checking the Recorded Picture (Review)

3 Move 3/4/2/1 to move the

position.

REVIEW4X

You can check the recorded pictures while still in [REC] mode.

1 Move 4 [REV].

REVIEW1X

DELETE

EXIT

• The last recorded picture appears for about 10 seconds.

• Review is cancelled when the shutter button is pressed halfway or the 4 [REV] is moved again.

• You can check other pictures by moving 2/1.

• When the recorded pictures are too bright or too dim, compensate the exposure. (P43)

2 Rotate the zoom lever towards

[ ] [T ] to enlarge the picture.

• Rotate the zoom lever to [ ] [T] for a 4k magnification and then rotate it even more for a 8k magnification. When you rotate the zoom lever towards [ ] [W] after enlarging the picture, the magnification becomes lower.

DELETE

• When you change the magnification or the position to be displayed, the zoom position indication A appears for about 1 second so that you can check the enlarged area.

∫ Deleting the recorded picture during

Review (Quick deletion)

1 Press [ ]. 2 Move 3 to select [YES]. 3 Press [MENU/SET].

DELETE SINGLE

DELETE THIS PICTURE?

YES

SELECT

SET

MULTI/ALL

• Once deleted, pictures cannot be recovered. Double-check pictures before deleting them.

• Multiple pictures or all the pictures can be deleted. For information about how to delete pictures, refer to P32.

• When [ROTATE DISP.] is set to [ON], pictures recorded holding the camera vertically are played back vertically (rotated).

VQT0Y35

Playing Back Pictures

Move 2/1 to select the picture.

1/3

Basic

• If you move and hold 2/1, the number

of files forwarded/rewound at one time increases. The actual number of files forwarded/rewound at one time depends on the number of files recorded.

• In review playback in recording mode and in multi playback (P63), the pictures can only be forwarded or rewound one by one.

10:00 1.DEC.2006

2: Play back the previous picture 1: Play back the next picture

• The first recorded picture will be displayed after the last recorded picture.

• When [ROTATE DISP.] (P83) is set to [ON], pictures recorded by holding the camera vertically are played back vertically.

∫ Fast forwarding/Fast rewinding

Move and hold 2/1

during playback.

1/3

10:00 1.DEC.2006

2: Fast rewind 1:Fast forward

• The file number A and the picture number B only change one by one. Release 2/1 when the number of the desired picture appears to play back the picture.

• This camera is based on the DCF standard “Design rule for Camera File system” which was established by the “JEITA (Japan Electronics and Information Technology Industries Association)”.

• The file format that can be played back on the camera is JPEG. (In some cases, even JPEG pictures cannot be played back.)

• The LCD monitor may not be able to display the details of the recorded pictures. You can use the playback zoom (P65) to check the details of the pictures.

• If you play back pictures that have been recorded with other equipment, the picture quality may deteriorate. (The pictures are displayed as [THUMBNAIL IS DISPLAYED] on the screen.)

• If you change a folder name or file name on your PC, the pictures may not play back on the camera.

• If you play back a non-standard file, the folder/file number is indicated by [—] and the screen may turn black.

• Depending on the subject, an interference fringe may appear on the screen. This is called moire. This is not a malfunction.

VQT0Y35

Basic

Deleting Pictures

∫ To delete a single picture

1 Select the picture with 2/1.

100_0001

1/3

10:00 1.DEC.2006

2: Play back the previous picture 1: Play back the next picture

2 Press [ ].

3 Move 3 to select [YES] and then

press [MENU/SET].

DELETE SINGLE

DELETE THIS PICTURE?

YES

SELECT

SET

MULTI/ALL

• While the picture is being deleted, [ ] appears on the screen.

/SET

∫ To delete [MULTI DELETE]/

[ALL DELETE]

1 Press [ ] twice.

2 Move 3/4 to select

[MULTI DELETE] or [ALL DELETE] and then press [MENU/SET].

MULTI/ALL DELETE

MULTI DELETE ALL DELETE

SET

SELECT

CANCEL

• If you select [MULTI DELETE], perform

3 onwards.

steps

• If you select [ALL DELETE], perform steps

5 onwards.

• When [FAVORITE] (P82) is set to [ON], [ALL DELETE EXCEPT ] appears. If you select [ALL DELETE EXCEPT ], perform steps

5 onwards. (However, if

none of the pictures have [ ] displayed, you cannot select [ALL DELETE EXCEPT ] even if [FAVORITE] is set to [ON].)

/SET

VQT0Y35

Basic

3 Move 2/1 to select the picture

and then move 4 to set.

(Only when selecting [MULTI DELETE])

MULTI DELETE

8 9

SELECT MARK/UNMARK

DELETE

EXIT

1210

• Repeat the above procedure.

• [ ] appears on the selected pictures. If

4 is moved again, the setting is cancelled.

• The icon [ ] blinks red if the selected picture is protected and cannot be deleted. Cancel the protect setting and then delete the picture. (P87)

4 Press [ ].

5 Move 3 to select [YES] and then

press [MENU/SET] to set.

(Screen when selecting [MULTI DELETE])

MULTI DELETE

DELETE THE PICTURES YOU MARKED?

YES

SELECT

SET

• [DELETE ALL PICTURES INTHEMEMORYCARD?] is displayed when using [ALL DELETE] and [DELETE ALL EXCEPT ?] is displayed when using [ALL DELETE EXCEPT ].

• If you press [MENU/SET] while deleting pictures using [ALL DELETE] or [ALL DELETE EXCEPT ], the deleting will stop halfway.

/SET

SET

• Once deleted, pictures cannot be recovered. Double-check pictures before deleting them.

• Do not turn off the camera while deleting.

• When deleting pictures, use a battery with sufficient battery power (P12) or the AC adaptor (DMW-AC5; optional).

• It is possible to delete up to 50 pictures at one time using [MULTI DELETE].

• The greater the number of pictures the longer it takes to delete them.

• If there are pictures that are protected [ ] (P87), do not conform to the DCF standard (P31) or are in a card with the Write-Protect switch slid to the [LOCK] side (P15), they are not deleted even if [ALL DELETE] or [ALL DELETE EXCEPT ] is selected.

VQT0Y35

Advanced

About the LCD Monitor

Changing the information displayed

DISPLAY/LCD MODE

A LCD monitor (LCD)

Press [DISPLAY] to change.

• When the menu screen appears, the [DISPLAY] button is not activated. During playback zoom (P65), while playing back motion pictures (P66) and during a slide show (P81), you can only select “Normal display I” or “No display K”.

In simple mode [ ]

BACKLIGHT

B Normal display C No display

In recording mode

D Normal display E Display with histogram F Out-of-frame display G No display (Recording guide line)

¢3

H No display

¢1 Histogram ¢2 When the number of pictures remaining

is more than 1000 or the time remaining in motion picture mode is more than 1000 seconds, [ ] is displayed.

¢3 Set the pattern of the guide lines

displayed by setting [GUIDE LINE] in [SETUP] menu. (P18) You can also set whether or not to have the recording information and histogram displayed when the guide lines are displayed.

VQT0Y35

In playback mode

100_0001

1/3

1ST DAY

months

days

10:00 1.DEC.2006

F2.8 1/25

10:00 1.DEC.2006

100_0001

ISO

100

1/3

AUTO

I Normal display J Display with recording information and

histogram

K No display ¢4 Displayed if [BIRTHDAY SET.] and

[WITH AGE] were set in [BABY1]/ [BABY2] (P55) in scene mode before taking pictures.

¢5 The number of days that have passed

since the travel date are displayed if you set [TRAVEL DATE] (P56) before taking pictures.

• In [NIGHT PORTRAIT] (P50), [NIGHT SCENERY] (P50), [FIREWORKS] (P52) and [STARRY SKY] (P53) in scene mode, the guide line is grey.

Advanced

∫ Recording guide line

When you align the subject on the horizontal and vertical guide lines or the cross point of these lines, you can take pictures with well-designed composition by viewing the size, the slope and the balance of the subject.

A[]:This is used when dividing the

entire screen into 3k3 for taking pictures with a well-balanced composition.

B[]:This is used when you want to

position the subject at the exact centre of the screen.

VQT0Y35

Advanced

∫ Histogram

• A histogram is a graph that displays brightness along the horizontal axis (black to white) and the number of pixels at each brightness level on the vertical axis.

• It allows you to easily check a picture’s exposure.

• It is very useful if manual adjustments of the lens aperture and shutter speed are available, especially in those situations where automatic exposure may be difficult due to uneven lighting. Using the histogram feature allows you to get the maximum performance from your camera. A When the values are concentrated on

the left, the picture is under exposed.

B When the values are distributed evenly,

the exposure is proper and the brightness is well-balanced.

C When the values are concentrated on

the right, the picture is over exposed.

Examples of histogram

100_0001

1/3

ISO

AUTO

100

F2.8 1/200

10:00 1.DEC.2006

• When you take pictures with the flash or in dark places, the histogram is displayed in orange because the recorded picture and the histogram do not match each other.

• The histogram is an approximation in recording mode.

• The histogram of a picture may not match in recording mode and playback mode.

• The histogram displayed in this camera does not match histograms displayed by picture editing software used in PCs etc.

• The histogram does not appear during the following. – Simple mode [ ] – Motion picture mode [ ] – Multi playback – Calendar playback – Playback zoom – [DUAL DISPLAY]

A Under Exposed B Properly Exposed C Over Exposed

¢Histogram

VQT0Y35

100_0001

F2.8 1/100

10:00 1.DEC.2006

100_0001

F2.8 1/50

10:00 1.DEC.2006

1/3

ISO

AUTO

100

1/3

ISO

AUTO

100

Advanced

Brightening the LCD Monitor

(Power LCD/High angle mode)

• If the mode dial is set to [ ], the Power LCD function only can be used.

1 Press [LCD MODE] for 1 second.

DISPLAY/LCD MODE

A LCD monitor (LCD)

2 Move 3/4 to select a mode.

LCD

LCD MODE

OFF

POWER LCD

HIGH ANGLE

SELECT

SET

[]: [POWER LCD]

The LCD monitor becomes brighter and easier to see even when taking pictures outdoors.

[]: [HIGH ANGLE]

The LCD monitor is easier to see when taking pictures with the camera held high above your head. This is useful when you cannot get close to the subject because there is a person in the way. (However it becomes more difficult to see when looked at straight on.)

[OFF] The LCD monitor returns

to the normal brightness.

3 Press [MENU/SET].

• The [POWER LCD] B or [HIGH ANGLE] C icon appears.

VQT0Y35

Advanced

∫ Cancelling High angle mode or Power

LCD

• If you press and hold [LCD MODE] again for 1 second the screen shown in step

is displayed. Select [OFF] to cancel Power LCD mode or High angle mode.

• High angle mode is also cancelled if you turn the camera off or power save mode is activated.

• The brightness of the pictures displayed on the LCD monitor is adjusted when Power LCD mode or High angle mode is activated. Therefore, some subjects may look different on the LCD monitor. However, this does not affect the recorded pictures.

• The LCD monitor automatically returns to normal brightness after 30 seconds when recording in Power LCD mode. Press any button to make the LCD monitor bright again.

• You may not notice the High angle mode effect if the LCD monitor is difficult to see because of light from the sun etc. shining on it. In this case, we recommend using your hand or another object to block the light when using the camera.

• High angle mode is not activated in the following cases. – In simple mode [ ] – In playback mode – While the menu screen is displayed – While the review screen is displayed

Taking Pictures using the Built-in Flash

A: Photo flash Do not cover it with your fingers or other objects.

∫ Switching to the appropriate flash

setting

Set the flash to match the recording.

1 Move 1 [].

2 Move 3/4 to select a mode.

FLASH

AUTO

AUTO/RED-EYE FORCED FLASH ON SLOW SYNC./RED-EYE FORCED OFF

SELECT

• You can also move 1 [ ] to select.

• For information about flash settings that can be selected, refer to “Available flash settings by recording mode”. (P39)

3 Press [MENU/SET].

• You can also press the shutter button halfway to finish.

• The menu screen disappears after about 5 seconds. At this time, the selected item is automatically set.

SET

VQT0Y35

:AUTO

The flash is automatically activated when the recording conditions make it necessary.

: AUTO/Red-eye reduction

¢1

The flash is automatically activated when the recording conditions make it necessary. It is activated once before the actual recording to reduce the red-eye phenomenon (eyes of the subject appearing red in the picture) and then activated again for the actual recording.

• Use this when you take pictures of people in low lighting conditions.

: Forced ON

The flash is activated every time regardless of the recording conditions.

• Use this when your subject is back-lit or under fluorescent light.

: Forced ON/Red-eye reduction

¢1

• The flash setting is set to Forced ON/ Red-eye reduction only when you set [PARTY] (P51) or [CANDLE LIGHT] (P52) in scene mode.

: Slow sync./Red-eye reduction

¢1

If you take a picture with a dark background landscape, this feature will slow the shutter speed when the flash is activated so that the dark background landscape will become bright. Simultaneously it reduces the red-eye phenomenon.

• Use this when you take pictures of people in front of a dark background.

: Forced OFF

The flash is not activated in any recording conditions.

• Use this when you take pictures in places where the use of the flash is not permitted.

¢1 The flash is activated twice. The

subject should not move until the second flash is activated.

Advanced

∫ Available flash settings by recording

mode

The available flash settings depend on the recording mode. (±: Available, —: Not available)

2 2

• The flash setting may change if the recording mode is changed. Set the flash setting again if necessary.

¢2 It becomes Forced ON [ ], when the

backlight compensation function is activated.

VQT0Y35

Advanced

∫ The available flash range to take

pictures

The available flash range to take pictures depends on the ISO sensitivity selected.

ISO sensitivity Available flash range

[AUTO]

Wide

60 cm to 4 m

Tel e

30 cm to 2 m

[]

Wide

60 cm to 4 m

Tel e

30 cm to 2 m

[ISO100]

Wide

60 cm to 2 m

Tel e

30 cm to 1 m

[ISO200]

Wide

60 cm to 2.8 m

Tel e

30 cm to 1.4 m

[ISO400]

Wide

60 cm to 4 m

Tel e

40 cm to 2 m

[ISO800]

Wide

80 cm to 5.6 m

Tel e

60 cm to 2.8 m

[ISO1250]

Wide

1m to 5.6m

Tel e

80 cm to 2.8 m

• The available flash range is an approximation.

• Refer to P73 for the ISO sensitivity.

• Refer to P24 for the focus range.

• If ISO sensitivity is set to [AUTO] or [ ] when using the flash, it will be automatically increased to a maximum of [ISO400].

• To avoid noise, we recommend decreasing the ISO sensitivity (P73) or setting [PICT.ADJ.] to [NATURAL]. (P79)

• If you take a picture with the flash at close range when the zoom is near [W] (1k), the edges of the recorded picture may become dark. Rotate the zoom lever slightly and then take the picture.

VQT0Y35

∫ Shutter speed for each flash setting

Flash setting

Shutter speed

(Sec.) :AUTO :AUTO/

Red-eye reduction

: Forced ON

1/30 to 1/2000

: Forced ON/

Red-eye reduction

: Slow sync./

Red-eye reduction

1/8

to 1/2000

: Forced OFF

¢ The shutter speed changes depending

on the slow shutter setting. (P78)

• There may be differences in the above shutter speeds in scene mode. – [NIGHT SCENERY] (P50):

8 seconds to 1/2000th of a second

– [FIREWORKS] (P52):

1/4th of a second, 2 seconds

– [STARRY SKY] (P53):

15 seconds, 30 seconds, 60 seconds

• Do not look directly at the flash at close range when it is activated.

• If you bring the flash too close to an object, the object may be distorted or discoloured by the heat or lighting from the flash.

• Do not cover the photo flash with your fingers or other objects.

Advanced

• In economy mode, the LCD monitor turns off and the status indicator lights while the flash is charging. [This does not happen when using the AC adaptor (DMW-AC5; optional).] If the remaining battery power is low, the length of time that the LCD monitor turns off to charge may become longer.

• If you press the shutter button halfway when the flash is activated, the flash icon turns red.

• When the jitter alert appears, we recommend using a tripod.

• When you take a picture beyond the available flash range, the exposure may not be adjusted properly and the picture may become bright or dark.

• When the flash is being charged, the flash icon blinks red, and you cannot take a picture even when you press the shutter button fully.

• When taking a picture with the flash, the white balance is automatically adjusted (except for [ ]). However, the white balance may not be properly adjusted if the flash level is insufficient. (P71)

• When the shutter speed is fast, the flash effect may not be sufficient.

• If you repeat taking a picture, it may not actually be taken even if the flash is activated. Take a picture after the access indication disappears.

• The red-eye reduction effect differs between people. Also, if the subject was far away from the camera or was not looking at the first flash, the effect may not be evident.

• When you set burst mode or auto bracket, only 1 picture is recorded for every flash activated.

VQT0Y35

Advanced

Taking Pictures with the Self-timer

1 Move 2 [].

2 Move 3/4 to select a mode.

SELFTIMER

OFF

SEC.

SELECT

• You can also move 2 [ ] to select.

3 Press [MENU/SET].

• You can also press the shutter button halfway to finish.

• The menu screen disappears after about 5 seconds. At this time, the selected item is automatically set.

4 Press the shutter button halfway

to focus and then press it fully to take the picture.

SET

• When using a tripod etc., setting the self-timer to 2 seconds is a convenient way to avoid the jitter caused by pressing the shutter button.

• When you press the shutter button once fully, the subject is automatically focused just before recording. In dark places, the self-timer indicator will blink and then may turn on brightly operating as an AF assist lamp (P78) to allow the camera to focus on the subject.

• In simple mode [ ], the self-timer is fixed to 10 seconds.

• In [SELF PORTRAIT] (P51) in scene mode, the self-timer is fixed to 2 seconds.

• When you set the self-timer in burst mode, the camera starts taking a picture 2 or 10 seconds after the shutter button is pressed. The number of pictures taken at one time is fixed to 3.

• We recommend using a tripod when recording with the self-timer. (When you use a tripod, make sure the tripod is stable when the camera is attached to it.)

CANCEL

• A: Press the shutter button halfway to

focus.

• B: Press the shutter button fully to take

the picture.

• The self-timer indicator

C blinks and the shutter is activated after 10 seconds (or 2 seconds).

• If you press [MENU/ SET] while the self-timer is set, the self-timer setting is cancelled.

VQT0Y35

Compensating the Exposure

Use this function when you cannot achieve appropriate exposure due to the difference in brightness between the subject and the background. Look at the following examples.

Under exposed

Compensate the exposure towards positive.

Properly exposed

Over exposed

Advanced

1 Move 3 [ ] until [EXPOSURE]

appears, compensate the exposure with 2/1.

EXPOSURE

SELECT

• You can compensate from [j2EV] to [i2 EV] in steps of [1/3 EV].

• Select [0 EV] to return to the original exposure.

EXIT

2 Press [MENU/SET] to finish.

• You can also press the shutter button halfway to finish.

• EV is an abbreviation of [Exposure Value]. It refers to the amount of light given to the CCD by the aperture value and the shutter speed.

• The exposure compensation value appears on the lower left of the screen.

• The set exposure value is memorised even if the camera is turned off.

• The compensation range of the exposure will be limited depending on the brightness of the subject.

• Exposure cannot be compensated when using [STARRY SKY] in scene mode.

Compensate the exposure towards

negative.

VQT0Y35

Advanced

Taking Pictures using Auto Bracket

In this mode, 3 pictures are automatically recorded in the selected exposure compensation range each time the shutter button is pressed. You can select the picture with the desired exposure from the 3 pictures with different exposures.

1 Move 3 [ ] several times until

[AUTO BRACKET] appears, set the compensation range of the exposure with 2/1.

AUTO BRACKET

SELECT EXIT

• You can select [OFF] (0), [d1/3 EV], [d2/3 EV] or [d1EV].

• When you do not use auto bracket, select [OFF] (0).

2 Press [MENU/SET] to finish.

• You can also press the shutter button halfway to finish.

• When setting auto bracket, the auto bracket icon [ ] appears on the lower left of the screen.

• When taking pictures using auto bracket after setting the exposure compensation range, the pictures taken are based on the selected exposure compensation range. When the exposure is compensated, the exposure compensation value appears on the lower left of the screen.

• The auto bracket setting is cancelled if you turn the camera off or power save mode is activated.

• When setting auto bracket and burst mode simultaneously, auto bracket will be performed.

• When auto bracket is set, the auto review function is activated regardless of the auto review setting. (The picture is not enlarged.) You cannot set the auto review function in the [SETUP] menu.

• When auto bracket is activated, [AUDIO REC.] cannot be used.

• The exposure may not be compensated with auto bracket depending on the brightness of the subject.

• When the flash is activated or the number of recordable pictures is 2 or less, you can take only 1 picture.

• Auto bracket cannot be set in [SPORTS], [STARRY SKY] and [BABY1]/[BABY2] in scene mode.

• The auto bracket cannot be used when the ISO sensitivity is set to [ ].

VQT0Y35

Optical Image Stabilizer

This mode detects jitter and compensates for it.

1 Press and hold the optical image

stabilizer button A until [STABILIZER] appears.

2 Move 3/4 to select the stabilizer

function mode and then press [MENU/SET].

STABILIZER

OFF MODE1 MODE2

/SET

[MODE1]

()

The stabilizer operates continuously and can assist during photo composition.

[MODE2]

()

The jitter is compensated for when the shutter button is pressed. There is a greater stabilizing effect.

[OFF]

()

When the stabilizer is not desired.

SET

DEMO.SELECT

Advanced

∫ Demonstration of the optical image

stabilizer (Demonstration Mode)

Move 1 to display the demonstration. After the demonstration ends, the screen returns to the stabilizer function mode selection menu. Move 1 again if you want to exit the demonstration before it ends. While the demonstration is displayed, the optical zoom is fixed to Wide (1k) and the zoom function cannot be activated. You also cannot take pictures.

• The stabilizer function may not be effective in the following cases. – When there is a lot of jitter. – When the zoom magnification is high. – In digital zoom range. – When taking pictures while following a

moving subject.

– When the shutter speed becomes

slower to take pictures indoors or in dark

places. Be careful of camera jitter when you press the shutter button.

• In simple mode [ ] or [SELF PORTRAIT] (P51) in scene mode, the setting is fixed to [MODE2] and in [STARRY SKY] (P53) it is fixed to [OFF]. The stabilizer function mode selection menu does not appear.

• In motion picture mode [ ], [MODE2] cannot be set.

VQT0Y35

Advanced

Taking Pictures using Burst Mode

1 Press and hold the burst mode

button.

2 Move 3/4 to select a mode.

BURST SHOOTING

OFF

HIGH SPEED LOW SPEED UNLIMITED

SELECT

• You can also press the burst mode button to select.

3 Press [MENU/SET].

• You can also press the shutter button halfway to finish.

• The menu screen disappears after about 5 seconds. At this time, the selected item is automatically set.

4 Take a picture.

• Hold down the shutter button fully to activate the burst mode.

SET

∫ Number of pictures recorded in burst

mode

Burst speed

(pictures/

second)

approx. 2

Number of recordable

Depen capacity of the card.

pictures (pictures)

max. 6 max. 8

ds on the remaining

¢1 The burst speed is constant regardless

of the transfer speed of the card.

• The number of pictures indicated is when the shutter speed is faster than 1/60 and the flash is not activated.

• If you set the ISO sensitivity (P73) to [ISO400], [ISO800] or [ISO1250] and then take pictures using burst mode, burst speed will become slower than the figures indicated above.

• Since the shutter speed becomes slower in dark places, the burst speed (pictures/ second) may also become slower.

• In simple mode [ ], the settings become as follows. [ ] appears on the screen. (P25)

– [ ENLARGE]:

/Max. 6 pictures

–[ 4qk6q/10k15cm]/[ E-MAIL]:

/Max. 8 pictures

• When the burst mode setting is set to Unlimited

– You can take pictures until the capacity

of the card is full.

– The burst speed will become slower

halfway. The burst speed of a MultiMediaCard becomes even slower than that of an SD Memory Card or SDHC Memory Card. However, the exact timing of this depends on the number of recordable pictures and the card.

VQT0Y35

• The focus is fixed when the first picture is taken.

• When the self-timer is used, the number of recordable pictures in burst mode is fixed to 3.

• Burst mode is not cancelled when the camera is switched off.

• When auto bracket and burst mode are set simultaneously, auto bracket will be performed.

• The exposure and the white balance vary depending on the burst mode setting. When burst mode is set to [ ] , they are fixed to the values set for the first picture. When the burst speed is set to [ ] or [ ], they are adjusted each time you take a picture.

• When burst mode is set, the auto review function is activated regardless of the auto review setting. (The picture is not enlarged.) You cannot set the auto review function in the [SETUP] menu.

• When burst mode is activated, [AUDIO REC.] cannot be used.

• When the flash is activated or [STARRY SKY] in scene mode is selected, you can take only 1 picture.

Taking Close-up Pictures

This mode allows you to take close-up pictures of a subject, e.g. when taking pictures of flowers. You can take pictures of a subject as close as 5 cm from the lens by rotating the zoom lever upmost to Wide (1k).

Advanced

∫ Focus range

DIGITAL

AV OUT

DC IN

30 cm

5 cm

• We recommend using a tripod and the self-timer (P42) in macro mode.

• When a subject is close to the camera, the effective focus range (depth of field) is significantly narrowed. Therefore, if the distance between the camera and the subject is changed after focusing on the subject, it may become difficult to focus on it again.

• If the distance between the camera and the subject is beyond the focus range of the camera, the picture may not be properly focused even if the focus indication lights.

• Macro mode gives priority to a subject close to the camera. Therefore, if the distance between the camera and the subject is more than 50 cm it takes longer to focus on it in macro mode than normal picture mode.

• The available flash range is about 60 cm to 4.0 m (Wide). (When the ISO sensitivity is set to [AUTO].)

• We recommend setting the flash to Forced OFF [ ] when you take pictures at close range.

• When you take pictures at close range, the resolution of the periphery of the picture may decrease slightly. This is not a malfunction.

VQT0Y35

Advanced

Scene Mode

When you select a scene mode to match the subject and recording situation, the camera sets the optimal exposure and hue to obtain the desired picture.

• Refer to P49 to 55 for each scene menu.

1 Move 3/4 to select the scene

mode.

SCENE MODE

PORTRAIT

SCN

SOFT SKIN

SCENERY

SPORTS

SELECT

SCENE MODE

NIGHT PORTRAIT

SCN

NIGHT SCENERY

SELF PORTRAIT

FOOD

SELECT

•Move 4 at A to switch to the next

menu screen.

• If [SCENE MODE] menu does not appear, press [MENU/SET] to display the [SCENE MODE] menu.

• When you move 1, explanations about each scene mode are displayed. (When you move 2, the screen returns to the [SCENE MODE] menu.)

2 Press [MENU/SET].

SET

∫ About the menu screen items

• There are 5 menu screens (1/5, 2/5, 3/5, 4/5 and 5/5).

• You can switch menu screens from any menu item by rotating the zoom lever.

SCENE MODE

PORTRAIT

SCN

SOFT SKIN

SCENERY

SPORTS

SELECT

SCENE MODE

BEACH

SCN

AERIAL PHOTO

SNOW

HIGH SENS.

SELECT

SCENE MODE

SCN

SET

SELECT

SCENE MODE

SCN

SET

SELECT

NIGHT PORTRAIT

NIGHT SCENERY

SCN

SELF PORTRAIT

FOOD

BABY1

BABY2

SCENE MODE

PAR T Y

CANDLE LIGHT

FIREWORKS

SET

STARRY SKY

SELECT

SET

• When you take a picture with a scene mode that is not adequate for the purpose, the hue of the picture may differ from the actual scene.

• When you want to change the brightness of the picture to be recorded, compensate the exposure (P43). (However, the exposure cannot be compensated in [STARRY SKY].)

•Move 2 and then move 3/4 in the [SCENE MODE] menu to select either the [REC] mode menu icon [ ] (P70) or the [SETUP] menu icon [ ] (P17) and set the desired items.

• The following cannot be set in scene mode because the camera automatically adjusts them to the optimal setting. – [W.BALANCE] – [SENSITIVITY] – [COL.EFFECT] –[PICT.ADJ.]

VQT0Y35

Advanced

[PORTRAIT]

Press [ ] to display the [SCENE MODE]

/SET

menu and select a scene mode. (P48) The person stands out from the background and has a healthier complexion.

∫ Technique for Portrait mode

To increase the effectiveness of this mode: 1 Rotate the zoom lever as far as possible

to Tele.

2 Move close to the subject to make this

mode more effective.

• This mode is only suitable when taking pictures outdoors in the daytime.

• ISO sensitivity is fixed to [ISO100].

[SOFT SKIN]

Press [ ] to display the [SCENE MODE]

/SET

menu and select a scene mode. (P48) The camera detects the face or skin area to achieve a smoother appearance of the skin than portrait mode.

• This mode is only suitable when taking pictures outdoors in the daytime.

• If a part of the background etc. is a colour close to skin colour, this part is also smoothed.

• This mode may not be effective when there is insufficient brightness.

• ISO sensitivity is fixed to [ISO100].

[SCENERY]

Press [ ] to display the [SCENE MODE]

/SET

menu and select a scene mode. (P48) The camera focuses preferentially on a distant subject. This allows you to take pictures of a wide landscape.

• The focus range is 5 m to ¶.

• The flash setting is fixed to Forced OFF [].

• The setting on the AF assist lamp is disabled.

[SPORTS]

Press [ ] to display the [SCENE MODE]

/SET

menu and select a scene mode. (P48) Set here when you want to take pictures of sports scenes or other fast-moving events.

∫ Technique for Soft skin mode

To make this mode more effective: 1 Rotate the zoom lever as far as possible

to Tele.

2 Move close to the subject to make this

mode more effective.

• This mode is suitable for taking pictures of subjects at distances of 5 m or more.

VQT0Y35

Advanced

• When taking pictures of a fast-moving subject indoors, the [ ] function automatically increases the ISO sensitivity to prevent subject blur.

• The ISO sensitivity is fixed to [ ].

[NIGHT PORTRAIT]

Press [ ] to display the [SCENE MODE]

/SET

menu and select a scene mode. (P48) This mode allows you to take pictures of a subject and a landscape with near real-life brightness by using the flash and slowing down the shutter speed.

[NIGHT SCENERY]

Press [ ] to display the [SCENE MODE]

/SET

menu and select a scene mode. (P48) This mode allows you to record the nightscape vividly by reducing the shutter speed.

∫ Technique for Night scenery mode

• Since the shutter speed becomes slower (up to about 8 sec.) use a tripod. We also recommend using the self-timer (P42) for taking pictures.

∫ Technique for Night portrait mode

• Use the flash.

• Since the shutter speed becomes slower, we recommend using a tripod and the self-timer (P42) for taking pictures.

• Keep the subject still for about 1 second after taking the picture.

• We recommend rotating the zoom lever to Wide (1k) and being about 1.5 m from the subject when taking a picture.

• The focus range is 1.2 m to 5 m. (Refer to P40 for the available flash range to take pictures.)

• The shutter may remain closed (max. about 1 sec.) after taking the picture because of signal processing. This is not a malfunction.

• Noise may become visible when you take pictures in dark places.

• When using the flash, Slow sync./Red-eye reduction [ ] is selected and the flash is activated every time.

VQT0Y35

• The focus range is 5 m to ¶.

• The shutter may remain closed (max. about 8 sec.) after taking the picture because of signal processing. This is not a malfunction.

• Noise may become visible when you take pictures in dark places.

• The flash setting is fixed to Forced OFF [].

• ISO sensitivity is fixed to [ISO100].

• The setting on the AF assist lamp is disabled.

• You cannot set the slow shutter.

[SELF PORTRAIT]

Press [ ] to display the [SCENE MODE]

/SET

menu and select a scene mode. (P48) This mode allows you to take pictures of yourself.

∫ Technique for Self portrait mode

Press the shutter button halfway to focus. The self-timer indicator lights up when you are brought into focus. Making sure you hold the camera still, press the shutter button fully to take the picture.

Advanced

The AF mode is fixed to [ ]

•

. (P77)

• The setting on the AF assist lamp is disabled.

[FOOD]

Press [ ] to display the [SCENE MODE]

/SET

menu and select a scene mode. (P48) This mode allows you to take pictures of food with a natural hue without being affected by the ambient light in restaurants etc.

• The subject is not focused when the self-timer indicator is blinking. Make sure to press the shutter button halfway again to focus.

• The recorded picture automatically appears on the LCD monitor for reviewing. Refer to P30 for information about using the review function.

• If the picture is blurry due to the slow shutter speed, we recommend using the 2 second self-timer. (P42)

• The focus range is about 30 cm to 70 cm.

• You can take a picture of yourself with audio (P76). If you do this, the self-timer indicator will light up while recording the audio. (P42)

• When you select [SELF PORTRAIT], the zoom magnification is automatically moved to Wide (1k).

• The self-timer can only be set to off or 2 seconds (P42). If it is set to 2 seconds, this setting will remain until the camera is turned off or the mode dial is rotated.

• The stabilizer function mode is fixed to [MODE2]. (P45)

• The focus range becomes the same as macro mode. [5 cm (Wide)/30 cm (Tele) to ¶]

[PARTY]

Press [ ] to display the [SCENE MODE]

/SET

menu and select a scene mode. (P48) Select this mode when you want to take pictures at a wedding reception, indoor party etc. By using the flash and slowing down the shutter speed, both people and the background can be recorded with a brightness close to real life.

VQT0Y35

Advanced

∫ Technique for Party mode

• Since the shutter speed becomes slower, we recommend using a tripod and the self-timer (P42) for taking pictures.

• We recommend rotating the zoom lever to Wide (1k) and being about 1.5 m from the subject when taking pictures.

[FIREWORKS]

Press [ ] to display the [SCENE MODE]

/SET

menu and select a scene mode. (P48) This mode allows you to take beautiful pictures of fireworks exploding in the night sky.

• The flash setting can be set to Slow sync./ Red-eye reduction [ ] or Forced ON/ Red-eye reduction [ ].

[CANDLE LIGHT]

Press [ ] to display the [SCENE MODE]

/SET

menu and select a scene mode. (P48) This mode allows you to take pictures with a candle-lit atmosphere.

∫ Technique for Candle light mode

• If you make the most of the candle light, you can take successful pictures without using the flash.

• We recommend using a tripod and the self-timer (P42) for taking pictures.

• The focus range becomes the same as macro mode. [5 cm (Wide)/30 cm (Tele) to ¶]

• The flash setting can be set to Slow sync./ Red-eye reduction [ ] or Forced ON/ Red-eye reduction [ ].

∫ Technique for Fireworks mode

• Since the shutter speed becomes slower, we recommend using a tripod.

• This mode is most effective when the subject is 10 m or more away.

• The shutter speed becomes the following. – When [OFF] is set on the optical image

stabilizer function: Fixed to 2 seconds

– When [MODE1] or [MODE2] is set on

the optical image stabilizer function: 1/4th of a second or 2 seconds (The shutter speed becomes 2 seconds only when the camera has determined that there is little jitter such as when using a tripod etc.)

• Histograms are always displayed in orange. (P36)

• The flash setting is fixed to Forced OFF [].

• You cannot set the AF mode.

• The AF area is not displayed.

• The setting on the AF assist lamp is disabled.

• You cannot set the slow shutter.

• ISO sensitivity is fixed to [ISO100].

VQT0Y35

[STARRY SKY]

Press [ ] to display the [SCENE MODE]

/SET

menu and select a scene mode. (P48) This mode allows you to take vivid pictures of a starry sky or a dark subject that you could not take in [NIGHT SCENERY] by making the shutter speed slower.

∫ Setting the shutter speed

• Select a shutter speed of [15 SEC.], [30 SEC.] or [60 SEC.].

1 Move 3/4 to select the number of

seconds and then press [MENU/SET].

STARRY SKY

15 SEC.

30 SEC.

60 SEC.

CANCEL

2 Take pictures.

SELECT SET

Advanced

∫ Technique for Starry sky mode

• The shutter opens for 15, 30 or 60 seconds. Be sure to use a tripod. We also recommend taking pictures with the self-timer. (P42)

• Histograms are always displayed in orange. (P36)

• The flash setting is fixed to Forced OFF [].

• The optical image stabilizer function is fixed to [OFF].

• ISO sensitivity is fixed to [ISO100].

• You cannot compensate the exposure or set [AUDIO REC.], auto bracket, burst mode, set the slow shutter.

[BEACH]

Press [ ] to display the [SCENE MODE]

/SET

menu and select a scene mode. (P48) This mode allows you to take pictures on a beach. It prevents under exposure of the subject under strong sunlight.

CANCEL

• Press the shutter button to display the countdown screen. Do not move the camera after this screen is displayed. When countdown finishes, [PLEASE WAIT...] is displayed for the same length of time as the set shutter speed for signal processing.

• Press [MENU/SET] to stop taking the picture while the countdown screen is displayed.

• Do not touch the camera with wet hands.

• Sand or seawater will cause the camera to malfunction. Make sure that sand or seawater does not get into the lens or the terminals.

VQT0Y35

Advanced

[AERIAL PHOTO]

Press [ ] to display the [SCENE MODE]

/SET

menu and select a scene mode. (P48) This mode allows you to take pictures through an airplane window.

∫ Technique for Aerial photo mode

• We recommend using this technique if it is difficult to focus when taking pictures of clouds etc. Aim the camera at something with high contrast, press the shutter button halfway to fix the focus and then aim the camera at the subject and press the shutter button fully to take the picture.

• Turn the camera off when taking off or landing.

• When using the camera, follow all instructions from the cabin crew.

• Be careful about the reflection from the window.

• The flash setting is fixed to Forced OFF [].

• The setting on the AF assist lamp is disabled.

[SNOW]

Press [ ] to display the [SCENE MODE]

/SET

menu and select a scene mode. (P48) This mode will adjust the white balance and the exposure to show the snow as white as possible.

[HIGH SENS.]

Press [ ] to display the [SCENE MODE]

/SET

menu and select a scene mode. (P48) This mode sets the ISO sensitivity higher than usual. A slight blurring of the subject is created when taking pictures indoors etc.

• The resolution of the recorded picture decreases slightly because of high sensitivity processing. This is not a malfunction.

• ISO sensitivity is automatically set to the following optimal value. – [ISO3200]

• The focus range becomes the same as macro mode. [5 cm (Wide)/30 cm (Tele) to ¶]

• The flash setting is fixed to Forced OFF [].

• The extra optical zoom and digital zoom cannot be used.

VQT0Y35

[BABY1]/

[BABY2]

Press [ ] to display the [SCENE MODE]

/SET

menu and select a scene mode. (P48) This mode allows you to take pictures of a baby with a healthy complexion. When the flash is used, the light from it is weaker than usual. You can set the birthdays of two babies by using [BABY1] and [BABY2].

• The baby’s age can be displayed when playing back pictures.

• The age can also be printed on each picture by using the software [LUMIX Simple Viewer] in the CD-ROM (supplied). (For information about printing, refer to the separate operating instructions for PC connection.)

∫ Age display setting

• If you want the age to be displayed, set the birthday in advance, select [WITH AGE] and press [MENU/SET].

• If you do not want the age to be displayed, select [WITHOUT AGE] and press [MENU/SET].

months

10:00 1.DEC.2006

days

BABY1

WITH AGE

WITHOUT AGE

BIRTHDAY SET.

CANCEL

SELECT SET

∫ Birthday setting 1 Move 3/4 to select [BIRTHDAY SET.]

and then press [MENU/SET].

2 When the message [PLEASE SET THE

BIRTHDAY OF THE BABY] appears, select items (Year/Month/Day) using 2/1 and set them using 3/4.

3 Press [MENU/SET] to finish the setting.

• If you select [WITH AGE] without setting the birthday in advance, a message is displayed. Press [MENU/SET] and set the birthday in steps 2 and 3.

Advanced

• The focus range becomes the same as macro mode. [5 cm (Wide)/30 cm (Tele) to ¶]

• ISO sensitivity is fixed to [ ].

• After turning on the camera in [BABY1]/ [BABY2] in scene mode or switching to [BABY1]/[BABY2] from other scene modes, the age and current date and time are displayed for about 5 seconds at the bottom of the screen.

• The age display style differs depending on the language setting in the recording mode.

• The display style when printing may differ slightly from the display style on the screen.

• The date of birth is displayed as [0 month 0 day].

• If the age is not properly displayed, check the clock and birthday settings.

• If the camera is set to [WITHOUT AGE], the age is not recorded even if the time and birthday are set. This means the age cannot be displayed even if camera is set to [WITH AGE] after taking the pictures.

• Use [RESET] in the [SETUP] menu to reset the birthday setting. (P20)

VQT0Y35

Advanced

Recording which Day of the Vacation You Take the Picture

If you set the departure date in advance, you can record which day of the vacation you take the picture.

• When you play back a picture, the date on which it was taken is displayed.

1/3

1STDAY

10:00 2.DEC.2006

A: The number of days that have passed

since the departure date

• The number of days that have passed since the departure date can be printed on each picture by using the software [LUMIX Simple Viewer] in the CD-ROM (supplied). (For information about printing, refer to the separate operating instructions for PC connection.)

∫ Setting the travel date

1 Press [MENU/SET] and then move

EXIT

AUTO

/SET

REC

W.BALANCE

SENSITIVITY

ASPECT RATIO

PICT.SIZE

QUALITY

SELECT

2 Move 4 to select the [SETUP]

menu icon [ ] and then move 1.

EXIT

OFF

SETUP

SELECT

CLOCK SET

WORLD TIME

MONITOR

GUIDE LINE TRAVEL DATE

3 Move 3/4 to select

[TRAVEL DATE] and then move

SET

OFF

SET

SETUP

SELECT

CLOCK SET

WORLD TIME

MONITOR

GUIDE LINE TRAVEL DATE

VQT0Y35

4 Move 4 to select [SET] and then

press [MENU/SET].

SET

OFF

SET

/SET

SETUP

SELECT

CLOCK SET

WORLD TIME

MONITOR

GUIDE LINE TRAVEL DATE

5 Move 3/4/2/1 to select the

date.

TRAVEL DATE

PLEASE SET THE DEPARTURE DATE

DEC

12 2006

SELECT SET EXIT

2/1: Select the desired item. 3/4: Set the year, month and date.

6 Press [MENU/SET] twice to close

the menu.

7 Take a picture.

1STDAY

10:00 2.DEC.2006

A: The number of days that have passed

since the departure date

• The current date and time and which day of the vacation it is are displayed for about 5 seconds at the bottom of the screen if the camera is turned on when the travel date is set, after setting the clock, departure date or travel date, after changing the world time setting and after switching from playback mode to another mode.

• When [TRAVEL DATE] is set, [ ]　 appears on the lower right of the screen.

Advanced

∫ Cancelling the travel date

If you leave [TRAVEL DATE] set to [SET], the number of days that have passed since the departure date will continue to be recorded. When the vacation is finished, set [TRAVEL DATE] to [OFF] on the screen shown in step

4 and then press [MENU/

SET] twice.

• The travel date is calculated using the date in the clock setting (P16) and the departure date you set. If you set [WORLD TIME] (P58) to the travel destination, the travel date is calculated using the date in the clock setting and the travel destination setting.

• The travel date setting is memorised even if the camera is turned off.

• If you set a departure date and then take a picture on a date before this departure date, [-] (minus) is displayed in orange and the day of the vacation that you took the picture is not recorded.

• If you s

et a departure date and then change the clock setting to the date and time at the travel destination, [-] (minus) is displayed in white and the day of the vacation that you took the picture is recorded when the travel destination date is, for example, one day before the departure date.

• If [TRAVEL DATE] is set to [OFF], the number of days that have passed since the departure date will not be recorded even if you set the travel date or the clock. Even if [TRAVEL DATE] is set to [SET] after taking the pictures, which day of the vacation you took them is not displayed.

• If you set a departure date when the clock is not set, the message [PLEASE SET THE CLOCK] appears. In this case, set the clock. (P16)

• The [TRAVEL DATE] setting also affects simple mode [ ].

VQT0Y35

Advanced

Displaying the Time at the Travel Destination (World Time)

If you set your home area and the travel destination area when travelling abroad etc., the local time at the travel destination area can be displayed on the screen and recorded on the pictures taken.

• Select [CLOCK SET] to set the current date and time in advance. (P16)

1 Press [MENU/SET] and then move

EXIT

AUTO

OFF

/SET

REC

W.BALANCE

SENSITIVITY

ASPECT RATIO

PICT.SIZE

QUALITY

SELECT

2 Move 4 to select the [SETUP]

menu icon [ ] and then move 1

SETUP

CLOCK SET

WORLD TIME

MONITOR

GUIDE LINE TRAVEL DATE

SELECT

3 Move 3/4 to select

[WORLD TIME] and then move 1.

SETUP

CLOCK SET

WORLD TIME

MONITOR

GUIDE LINE TRAVEL DATE

SELECT

• If you are setting the world time for the first time, the message [PLEASE SET THE HOME AREA] appears. If this message appears, press [MENU/SET] and then set home area from the screen shown in step 2 in “Setting the home area [HOME]”.

∫ Setting the home area [HOME]

(Perform steps

1, 2 and 3.)

1 Move 4 to select [HOME] and then

press [MENU/SET] to set.

WORLD TIME

DESTINATION

HOME

10:00 1.DEC.2006

SET

SELECT

CANCEL

2 Move 2/1 to select your home area

and then press [MENU/SET] to set.

10:00

Beijing Hong Kong Kuala Lumpur Singapore

GMT+8:00

SELECT SET

CANCEL

• The current time is displayed on the top left of the screen and the time difference from GMT “Greenwich Mean Time” is displayed on the bottom left of the screen.

• If daylight saving time [ ] is used at the home area, move 3. Move 3 again to return to the original time.

• The daylight saving time setting for the home area does not advance the current time. Advance the clock setting by one hour. (P16)

/SET

VQT0Y35

∫ Finishing setting the home area

• If you are setting the home area for the first time, the screen returns to the screen shown in step 1 of “Setting the home area [HOME]” after you press [MENU/ SET] to set your home area. Move 2 to return to the screen shown in step

3 and

then press [MENU/SET] to close the menu.

• If you are setting the home area for the second time etc., the screen returns to the screen shown in step

3 after you press

[MENU/SET] to set your home area. Press [MENU/SET] again to close the menu.

∫ Setting the travel destination area

(Perform steps

1, 2 and 3.)

1 Move 3 to select [DESTINATION] and

then press [MENU/SET] to set.

WORLD TIME

DESTINATION

HOME

--:-- --.--.----

CANCEL

SELECT

SET

/SET

A: Depending on the setting, the time at

the travel destination area or the home area is displayed.

• If you are setting the travel destination area for the first time, the date and time are displayed as shown in the screen above.

2 Move 2/1 to select the area the travel

destination is in and then press [MENU/ SET] to set.

10:00 11:00

Advanced

• The current time at the selected travel destination area is displayed on the top right of the screen and the time difference from the home area is displayed at the bottom left of the screen.

• If daylight saving time [ ] is used at the travel destination, move 3. (The time advances by one hour.) Move 3 again to return to the original time.

• The names of major cities in the selected area are displayed. Also, the time difference between the selected area and the home area is displayed on the bottom left of the screen. (Refer to P60 for information about the names of the major cities that are displayed.)

3 Press [MENU/SET] to close the menu.

EXIT

OFF

/SET

SETUP

SELECT

CLOCK SET

WORLD TIME

MONITOR

GUIDE LINE TRAVEL DATE

• The icon changes from [ ] to [ ] after setting the travel destination.

• Return the setting to [HOME] when the vacation is finished by performing steps

1, 2, 3 and then steps 1 and 2 of

“Setting the home area [HOME]”. (P58)

• If you cannot find the travel destination in the areas displayed on the screen, set by the time difference from the home area.

• The [WORLD TIME] setting also affects simple mode [ ].

Seoul Tokyo

+1:00

SELECT SET

CANCEL

/SET

VQT0Y35

Advanced

Location candidates for World Time settings

Offset from

GMT

-11 Midway Islands Samoa

-10 Hawaii Honolulu Tahiti

-9 Alaska Anchorage

-8 Vancouver Seattle Los Angeles

-7 Denver Phoenix

-6 Chicago Houston Mexico City

-5 Toronto New York Miami Lima

-4 Caracas Manaus La Paz

-3:30 Newfoundland

-3 Rio de Janeiro Sao Paulo Buenos Aires

-2

Fernando de Noronha

-1 Azores

0 London Casablanca

+1 Berlin Paris Rome Madrid

+2 Helsinki Athens Cairo Johannesburg

+3 Moscow Kuwait Riyadh Nairobi

+3:30 Tehran

+4 Dubai Abu Dhabi

+4:30 Kabul

+5 Islamabad Karachi Male

+5:30 Delhi Kolkata Mumbai Chennai

+5:45 Kathmandu

+6 Dacca Colombo

+6:30 Yangon

+7 Bangkok Jakarta

+8 Beijing Hong Kong Kuala Lumpur Singapore

+9 Seoul Tokyo

+9:30 Adelaide

+10 Guam Sydney

+11 Solomon Islands New Caledonia

+12 Fiji Auckland Wellington

+12:45

Chatham Islands

¢ “GMT” is an abbreviation of “Greenwich Mean Time”.

Listed location name

VQT0Y35

Motion Picture Mode

1 Press the shutter button halfway

to focus and then press it fully to start recording.

R 3

• When the subject is focused, the focus indication lights.

• The focus, zoom and aperture value are fixed to the setting when recording starts (the first frame).

• The available recording time A is displayed on the top right and the elapsed recording time B is displayed on the bottom right of the screen. For example, 1 hour 20 minutes and 30 seconds is displayed as [1h20m30s].

• The available recording time and the elapsed recording time are approximations.

• Audio recording starts simultaneously from the camera’s built-in microphone.

• When using the stabilizer function, it is fixed to [MODE1].

2 Press the shutter button fully to

stop recording.

• If the card becomes full in the middle of recording, the camera stops recording automatically.

Advanced

∫ Changing the settings for the aspect

ratio and the picture quality

1 Press [MENU/SET].

2 Move 3/4 to select

[ASPECT RATIO] and then move

SET

AUTO

REC

W.BALANCE

ASPECT RATIO

PICT.MODE AF MODE AF ASSIST LAMP

SELECT

3 Move 3/4 to select the item and

then press [MENU/SET].

4 Move 3/4 to select [PICT.MODE]

and then move 1.

SET

AUTO

REC

W.BALANCE

ASPECT RATIO

PICT.MODE AF MODE AF ASSIST LAMP

SELECT

5 Move 3/4 to select the item and

then press [MENU/SET].

If you selected [ ] on the screen shown in step

Item Picture size fps [30fpsVGA] [10fpsVGA] 10

[30fpsQVGA] [10fpsQVGA]

If you selected [ ] on the screen shown in step

Item Picture size fps [30fps16:9] [10fps16:9] 10

640k480 pixels

320k240 pixels

848k480 pixels

VQT0Y35

Advanced

• fps “frames per second”; This refers to the number of frames used in 1 second.

• You can record smoother motion pictures with “30 fps”.

• You can record longer motion pictures with “10 fps” although the picture quality is lower.

• The file size with [10fpsQVGA] is small so it is suitable for e-mails.

6 Press [MENU/SET] to close the

menu.

• You can also press the shutter button halfway to close the menu.

• The focus range is 5 cm (Wide) to ¶ , 30 cm (Tele) to ¶.

• Refer to P114 for information about the available recording time.

• The available recording time displayed on the screen may not decrease regularly.

• Motion pictures cannot be recorded without audio.

• This unit does not support recording motion pictures on MultiMediaCards.

• When you set the picture quality to [30fpsVGA] or [30fps16:9], we recommend using a high speed SD Memory Card with “10MB/s” or greater displayed on the package.

• Depending on the type of SD Memory Card or SDHC Memory Card, recording may stop in the middle.

• We recommend using Panasonic’s SD Memory Card/SDHC Memory Card.

• Depending on the type of SD Memory Card or SDHC Memory Card, the card access indication may appear for a while after recording motion pictures. This is not a malfunction.

• When motion pictures recorded with the camera are played back on other equipment, the quality of the picture and sound may deteriorate and it may not be possible to play them back. Also the recording information may not be displayed correctly.

• In motion picture mode [ ], you cannot use the direction detection function and the review function.

• You cannot set [MODE2] on the optical image stabilizer function.

• The bundled software includes QuickTime to play back motion picture files recorded with the camera on the PC.

VQT0Y35

Displaying Multiple Screens (Multi Playback)

1 Rotate the zoom lever towards

[ ] [W] to display multiple screens.

(Screen when 9 screens are displayed)

1.DEC.

2006

1/26

• Depending on the recorded picture and the setting, the following icons will appear.

– [ ] (Favourites)

– [ ] (Motion picture)

– [ ] ([BABY1]/[BABY2] in scene

– [ ] (Travel date)

∫ Examples of 25 screens

mode)

1. DEC.

2006

Advanced

1/26

CANCEL

• : 1 screen>9 screens> 25 screens>Calendar screen display (P64)

• Rotate the zoom lever towards [ ] [T]

to return to the previous screen.

• When you switch to multiple screens, a

scroll bar A appears. You can confirm the location of the displayed picture in all the recorded pictures with this scroll bar.

2 Move 3/4/2/1 to select a

picture.

5/261.DEC.

2006

CANCEL

B: Number of the selected picture and the

total number of recorded pictures

• The recording date and number of the

selected picture and the total number of recorded pictures are displayed.

CAL

CANCEL

∫ To return to normal playback

Rotate towards [ ] [T] or press [MENU/ SET].

• The picture appears framed in orange.

∫ To delete a picture during multi

playback

1 Move 3/4/2/1 to select a picture and

then press [ ].

2 Move 3 to select [YES]. 3 Press [MENU/SET].

• Even if the indications on the screen are turned off in normal playback mode (P34), the recording information etc. appears on the screen in multi playback. If you return to the 1 screen playback screen, the camera returns to the normal playback screen.

• Pictures will not be displayed in the rotated direction even if [ROTATE DISP.] is set to [ON]. (P83)

VQT0Y35

Advanced

Displaying Pictures by Recording Date

(Calendar Playback)

You can display pictures by recording date using the calendar playback function.

1 Rotate the zoom lever towards

[ ] [W] to display the calendar screen.

SUN

MON

TUE

WED

THU FRI SAT

2006

3024 25 26 27 28

1/10

3 45 78 9

10 12 13 14 15 16

17 18 19 20 21 222923

DAY SET

MONTH

• The recording date of the picture selected in the playback screen becomes the date selected when the calendar screen is first displayed.

• If there are multiple pictures with the same recording date, the first picture recorded on that day is displayed.

• The calendar is displayed monthly.

2 Move 3/4/2/1 to select the

date to be played back.

3/4: Select the month 2/1: Select the date

• If there were no pictures recorded during a month, the month is not displayed.

3 Press [MENU/SET] to display the

pictures that were recorded on the selected date.

1.DEC .

• The pictures that were recorded on the selected date are displayed on the 9 screens playback screen.

• Rotate the zoom lever towards [ ] [W] to return to the calendar screen.

4 Move 3/4/2/1 to select a

picture and then press [MENU/ SET].

• The selected picture is displayed on the 1 screen playback screen.

∫ To return to the 1 screen playback

screen

After the calendar screen is displayed, rotate the zoom lever towards [ ] [T] to display 25 screens, 9 screens and the 1 screen. (P63)

• The pictures are displayed without being rotated even if you set [ROTATE DISP.] to [ON]. (P83)

• You can display the calendar between January 2000 and December 2099.

• If the recording date of the picture selected in 25 screen multi playback is not between January 2000 and December 2099, the camera displays it in the oldest recording date in the calendar.

• Pictures edited on a PC will be displayed with dates different from the actual recording dates.

• If the date is not set in the camera (P16), the recording date is set as the 1st January,

2006.

• If you take pictures after setting the travel destination in [WORLD TIME] (P58), the pictures are displayed by the dates at the travel destination in calendar playback.

VQT0Y35

/SET

CAL

CANCEL

Using the Playback Zoom

1 Rotate the zoom lever towards

[ ] [T] to enlarge the picture.

Advanced

∫ To stop using the playback zoom

Rotate the zoom lever towards [ ] [W] or press [MENU/SET].

∫ To delete a picture during the

playback zoom 1 Press [ ]. 2 Move 3 to select [YES]. 3 Press [MENU/SET].

4X CANCEL

DELETE

•:1k>2k>4k>8k>16k

• When you rotate the zoom lever towards [ ] [W] after enlarging the picture, the magnification becomes lower. When you rotate the zoom lever towards [ ] [T], the magnification becomes higher.

• When you change the magnification, the zoom position indication A appears for about 1 second so that you can check the position of the enlarged section.

2 Move 3/4/2/1 to move the

position.

4X CANCEL

• When you move the position to be displayed, the zoom position indication appears for about 1 second.

DELETE

• Even if the indications on the screen are turned off in normal playback mode (P34),

the magnification and operation appear on the screen when the playback zoom is activated. You can switch between displaying or not displaying the indications on the screen by pressing [DISPLAY]. When you set the magnification to 1k, the indications on the screen are displayed as in normal playback mode.

• The more a picture is enlarged, the more its quality deteriorates.

• If you want to save the enlarged picture, use the trimming function. (P89)

• The playback zoom may not operate if pictures have been recorded with other equipment.

VQT0Y35

Advanced

Playing Back Motion Pictures/Pictures with Audio

∫ Motion pictures

Move 2/1 to select a picture with a motion picture icon [ ]/ []/[]/[]/[ ]/ [ ] and then move 4 to play back.

PLAY MOTION PICTURE

• The motion picture recording time A is

displayed on the screen. After playback starts, the motion picture recording time disappears and the elapsed playback time is displayed on the bottom right of the screen. For example, 1 hour 20 minutes and 30 seconds is displayed as [1h20m30s].

• The cursor displayed during

playback is the same as 3/4/ 2/1.

•Move 4 again to stop motion picture

playback and return to the normal playback screen.

100_0001

10:00 1. DEC. 2006

1/3

Fast forwarding/Fast rewinding

Move and hold 2/1 during motion picture playback.

2: Fast rewind 1: Fast forward

• The camera returns to normal motion

picture playback when 2/1 is released.

To pa u s e

Move 3 during motion picture playback.

•Move 3 again to cancel pause.

Frame-by-frame forwarding

Move 2/1 while paused. 2: Frame-by-frame reverse forward 1: Frame-by-frame forward

Move 3 again to cancel pause and return to normal motion picture playback.

∫ Pictures with audio

Move 2/1 to select a picture with the audio icon [ ] and then move 4 to play back.

PLAY AUDIO

10:00 1.DEC.2006

• Refer to [AUDIO REC.] (P76) and [AUDIO DUB.] (P88) for information about how to create still pictures with audio.

100_0001

1/3

VQT0Y35

• Sound can be heard through the speaker. Refer to [VOLUME] (P20) for information about how to adjust the volume in the [SETUP] menu.

• The file format that can be played back with this camera is QuickTime Motion JPEG.

• Please note that the bundled software includes QuickTime to play back motion picture files created with the camera on the PC. (P93)

• Some QuickTime Motion JPEG files recorded by a PC or other equipment may not play back on the camera.

• If you play back motion pictures that have been recorded with other equipment, the picture quality may deteriorate or the pictures may not play back.

• When using a high capacity card, it is possible that fast rewinding may be slower than usual.

• You cannot use the following functions with motion pictures and pictures with audio. – Playback zoom

(While playing back or pausing motion pictures and while playing audio)

– [ROTATE DISP.]/[ROTATE]/

[AUDIO DUB.] (Motion pictures only)

– [RESIZE]/[TRIMMING]/[ASPECT CONV.]

Advanced

VQT0Y35

Advanced

Creating still pictures from a motion picture

3 Rotate the zoom lever towards

[ ] [W] to display the 9 screens playback screen.

You can create still pictures from a motion picture that has been recorded. This is effective in moving scenes when you want to look carefully at the movement of a sportsperson etc.

1 Move 2/1 to select a picture

with a motion picture icon [ ]/ []/[]/[]/[ ]/ [ ] and then move 4 to play back.

PLAY MOTION PICTURE

100_0001

10:00 1.DEC.2006

1/3

2 Move 3 to pause motion picture

playback.

SAVE

•Move 3 again to return to motion

picture playback.

•Move 2/1 while paused to move

forward frame-by-frame.

• If you press the shutter button, you can save the displayed still pictures as one single picture. (Perform step

SELECT

SAVE

• After the 9 screens playback screen is displayed, rotate the zoom lever towards [ ] [W] to switch the frames/ second.

When [ ]/[ ]/[ ] is selected

30 frames/second > 15 frames/second >10 frames/second > 5 frames/second

When [ ]/[ ]/[ ] is selected

10 frames/second > 5 frames/second

• Rotate the zoom lever towards [ ] [T] to return to the previous frames/second screen.

• You can move forward frame-by-frame by moving 3/4/2/1. 3/4: Move forward/backward

3 frames at a time.

2/1: Move forward/backward

1 frame at a time.

4 Press the shutter button.

• The message [SAVE THESE NINE PICTURES AS ONE SINGLE PICTURE ?] appears. Also, the message [SAVE AS A SINGLE PICTURE ?] appears if you saved the picture in step

VQT0Y35

5 Move 3 to select [YES] and then

press [MENU/SET].

SAVE THESE NINE PICTURES AS ONE SINGLE PICTURE ?

YES

SELECT SET

• The nine pictures are saved as one single picture.

∫ Picture size

Item 1picture 9pictures [30fpsVGA] 0.3 M 2 M [10fpsVGA] 0.3 M 2 M

[30fpsQVGA] [10fpsQVGA]

0.3 M 1 M

[30fps16:9] 2M 2M [10fps16:9] 2M 2M

• [QUALITY] (P75) is fixed to [ ].

• You may not be able to save still pictures from a motion picture taken on other equipment.

/SET

Advanced

VQT0Y35

Menu Settings

Using the [REC] Mode Menu

3 Move 1, move 3/4 to select the

setting and then press [MENU/ SET].

Increase the variety of pictures you can take by setting colour effect, picture adjustment etc.

• Set the mode dial to the desired recording mode.

• Menu items differ depending on the mode selected with the mode dial (P5). This page describes how to set [AUDIO REC.] in normal picture mode [ ]. (Refer to P71 to 79 for each menu item.)

• Select [RESET] in the [SETUP] menu to return the menu settings to the initial settings at the time of purchase. (P20)

1 Press [MENU/SET].

2 Move 3/4 to select the menu

item.

EXIT

AUTO

OFF

㧙

REC

W.BALANCE

SENSITIVITY

ASPECT RATIO

PICT. SIZE

QUALITY

SELECT

REC

AUDIO REC.

AF MODE

AF ASSIST LAMP

SLOW SHUTTER

D.Z OOM

SELECT

•Move 4 at A to switch to the next

menu screen.

SET

OFF

㧙

OFF

/SET

REC

AUDIO REC.

AF MODE

AF ASSIST LAMP

SLOW SHUTTER

D.Z OOM

SELECT

4 Press [MENU/SET] to close the

menu.

• You can also press the shutter button halfway to close the menu.

∫ About the menu screen items

• There are 3 menu screens (1/3, 2/3 and 3/3).

• You can switch menu screens from any menu item by rotating the zoom lever.

EXIT

SELECT

AUTO

REC

AUDIO REC.

AF MODE

AF ASSIST LAMP

SLOW SHUTTER

D.ZOOM

EXIT

OFF

REC

㧙

OFF

SELECT

COL.EFFECT

PICT.ADJ.

CLOCK SET

STANDARD

EXIT

OFF

REC

W.BALANCE

SENSITIVITY

ASPECT RATIO

PICT.SIZE

QUALITY

SELECT

VQT0Y35

[W.BALANCE]

Adjusting the hue for a more natural picture

Press [ ] to display the [REC] mode

/SET

menu and select the item to set. (P70) This function allows you to reproduce a white colour close to real life in pictures recorded under sunlight, halogen lighting etc. in which the white colour may appear reddish or bluish. Select a setting that matches the recording conditions.

[AUTO] for auto setting (auto

white balance)

for recording outdoors

(Daylight)

(Cloudy)

(Shade)

(Halogen)

(White set)

• If you select a setting other than [AUTO], you can finely adjust the white balance.

on a bright day

for recording outdoors on a cloudy day

for recording outdoors in the shade on a brightday

for recording under halogen lighting

for using the preset white balance

for setting the white balance again

Menu Settings

∫ Auto white balance

The available white balance range is shown in the following illustration. When you take a picture beyond the available white balance range, the picture may appear reddish or bluish. Even within the confines of the range, the auto white balance may not operate properly if there are many light sources or there is no colour close to white. In these cases, set the white balance to a mode other than [AUTO].

1 Auto white balance will work within this

range. 2 Blue sky 3 Cloudy sky (Rain) 4 Shade 5 TV screen 6 Sunlight 7 White fluorescent light 8 Incandescent light bulb 9 Sunrise and sunset

10 Candlelight

10)

KlKelvin Colour Temperature

VQT0Y35

Menu Settings

∫ Setting the white balance manually

[]

Use this to set the white balance manually. 1 Select [ ] and then press

[MENU/SET].

2 Aim the camera at a sheet of white paper

etc. so that the frame in the centre is filled by the white object only and then press [MENU/SET].

WHITE SET

SETCANCEL

3 Press [MENU/SET] twice to close the

menu.

• You can also press the shutter button halfway to finish.

∫ Finely adjusting the white balance

[]

You can adjust the white balance finely when you cannot acquire the desired hue by setting the white balance.

• Set the white balance to [ ]/[ ]/[ ]/[ ]/[ ].

1 Move 3 [ ] several times until

[WB ADJUST.] appears and then move 2/1 to adjust the white balance.

WB ADJUST.

BLUERED

2 Press [MENU/SET] to finish.

• You can also press the shutter button halfway to finish.

• The white balance icon on the screen turns red or blue.

About the white balance

• When you take a picture with the flash, the white balance is automatically adjusted (except for [ ]). However, the white balance may not be properly adjusted if the flash level is insufficient.

• The white balance cannot be set in simple mode [ ] and scene mode.

About the white balance fine adjustment

• You can finely adjust the white balance independently for each white balance item.

• The white balance fine adjustment setting is reflected in the picture when using the flash.

• The white balance fine adjustment setting is memorised even if the camera is turned off.

• The white balance fine adjustment level in [ ] returns to [0] when you reset the white balance using [ ].

• You cannot finely adjust the white balance when [COL.EFFECT] (P79) is set to [COOL], [WARM], [B/W] or [SEPIA].

SELECT

EXIT

• 2 [RED]: Move when the hue is

bluish.

• 1 [BLUE]: Move when the hue is

reddish.

• Select [0] to return to the original white balance.

VQT0Y35

[SENSITIVITY]

Setting the light sensitivity

Press [ ] to display the [REC] mode

/SET

menu and select the item to set. (P70) ISO is a measure of sensitivity to light. The higher the sensitivity is set, the less light is needed to take a picture so the camera becomes more suitable for recording in dark places.

ISO sensitivity Use in bright

places (e.g. outdoors)

Use in dark places

Shutter speed Slow Fast Noise Less Increased

[AUTO] The ISO sensitivity is

[]The ISO sensitivity is

[ISO100] The sensitivity is fixed to [ISO200] [ISO400] [ISO800]

[ISO1250]

• When setting to [AUTO], the ISO sensitivity is automatically adjusted to a maximum of [ISO200] according to the brightness. (It can be adjusted to a maximum of [ISO400] when using the flash.)

100 1250

Suitable

Not

suitable

Not

suitable

Suitable

automatically adjusted according to the brightness.

adjusted according to the movement of the subject and the brightness.

various settings.

Menu Settings

∫ About [ ] (Intelligent ISO

sensitivity control)

The camera detects the movement of the subject near the centre of the screen and then sets the optimal ISO sensitivity and shutter speed according to the movement and the brightness of the subject.

• Jitter is avoided when taking pictures indoors of a moving subject by increasing the ISO sensitivity and making the shutter speed faster.

F2.8

1/125 ISO800

• Noise is avoided when taking pictures indoors of a subject with no movement by decreasing the ISO sensitivity.

F2.8

1/30 ISO200

• When setting to [ ], the ISO sensitivity is automatically adjusted to a maximum of [ISO800] ([ISO400] when using the flash).

F2.8

• When you press the shutter button halfway, [ ] A appears. When you press the shutter button fully, the shutter speed is displayed for a while.

VQT0Y35

Menu Settings

• If you select [ ], digital zoom, auto bracket and slow shutter cannot be used.

• Depending on the brightness and how fast the subject is moving, jitter may not be avoided even if [ ] is selected.

• The camera may not be able to detect the movement of the subject in the following cases. – When the moving subject is small – When the moving subject is at the edge

of the screen

– When the subject starts moving the

instant the shutter button is pressed fully

• ISO sensitivity is automatically set to the following optimal value in [HIGH SENS.] (P54) in scene mode. – [ISO3200]

• To avoid picture noise, we recommend decreasing the ISO sensitivity or setting [PICT.ADJ.] to [NATURAL]. (P79)

• ISO sensitivity cannot be set in the following cases. – Simple mode [ ] – Motion picture mode [ ] – Scene mode

[ASPECT RATIO]

Setting the aspect ratio of pictures

Press [ ] to display the [REC] mode

/SET

menu and select the item to set. (P70) By changing the aspect ratio, you can select an angle of view that matches the subject.

Select to take pictures with the same aspect ratio as a 4:3 TV or a PC monitor.

Select to take pictures with the same 3:2 aspect ratio as 35 mm film.

This is suitable for landscapes etc. where a wide view is preferable. This is also suitable for playing back pictures on a wide-screen TV, high-definition TV etc.

VQT0Y35

• In motion picture mode [ ], you can select [ ] or [ ]. (P61)

• The ends of the recorded pictures may be cut at printing. (P110)

[PICT.SIZE]/[QUALITY]

Setting a picture size and quality that match your use of the pictures

Press [ ] to display the [REC] mode

/SET

menu and select the item to set. (P70) A digital picture is made of numerous dots called pixels. Although you cannot see the

difference on the camera’s screen, the more pixels the finer the picture will be when it is printed on a large piece of paper or displayed on a PC monitor. Picture quality refers to the compression rate when saving digital pictures.

A Many pixels (Fine) B Few pixels (Rough)

¢ These pictures are examples to show the

effect.

∫ Number of pixels

You can print pictures more clearly when a large picture size [ ] (7M) is selected. When a smaller picture size [ ] (0.3M EZ) is selected, you can record more pictures and attach them to an e-mail or post them on a website because their file size is small.

Menu Settings

∫ When the aspect ratio is [ ].

(7M) 3072k2304 pixels (5M EZ) 2560k1920 pixels (3M EZ) 2048k1536 pixels (2M EZ) 1600k1200 pixels (1M EZ) 1280k960 pixels (0.3M EZ) 640k480 pixels

∫ When the aspect ratio is [ ].

(6M) 3072k2048 pixels (2.5M EZ) 2048k1360 pixels

∫ When the aspect ratio is [ ].

(5.5M) 3072k1728 pixels (2M EZ) 1920k1080 pixels

∫ Quality

You can increase the number of recordable pictures without changing the picture size if quality is set to [ ].

Fine (Low compression): This gives priority to picture quality. Picture quality will be high.

Standard (High compression): This gives priority to the number of recordable pictures. Standard quality pictures are recorded.

VQT0Y35

Menu Settings

• The number of pixels that can be selected differs depending on the aspect ratio. If you change the aspect ratio, set the picture size.

• “EZ” is an abbreviation of “Extra optical Zoom”. This is a function which further extends the optical zoom ratio. If you select a picture size with EZ displayed, the zoom ratio is extended to a maximum of 5.5k when the digital zoom is set to [OFF]. (P28)

• The extra optical zoom does not work in [HIGH SENS.] in scene mode so the picture size for [EZ] is not displayed.

• Pictures may appear mosaic depending on the subject and the recording conditions.

• Refer to P112 for information about the number of recordable pictures.

• The number of recordable pictures depends on the subject.

• The number of recordable pictures displayed on the screen may not correspond with recorded pictures.

• In simple mode [ ], the settings become as follows. – [ ENLARGE]:

: (7M)/

–[ 4qk6q/10k15cm]:

: (2.5M EZ)/

–[ E-MAIL]:

: (0.3M EZ)/

[AUDIO REC.]

Recording still pictures with audio

Press [ ] to display the [REC] mode

/SET

menu and select the item to set. (P70) You can record audio with the still picture if this is set to [ON]. This means you can record the conversation that took place when you were recording or an explanation of the picture.

• [ ] appears on the screen when you set [AUDIO REC.] to [ON].

• Focus on the subject and press the shutter button to start recording. Recording will automatically stop about 5 seconds later. There is no need to press and hold the shutter button.

• Audio is recorded from the built-in microphone on the camera.

• If you press [MENU/SET] during audio recording, the audio recording is cancelled. The audio is not recorded.

• The total number of pictures that can be stored on each card will decrease slightly when audio is recorded with each picture.

• You cannot take pictures with audio in auto bracket, burst mode or [STARRY SKY] in scene mode.

VQT0Y35

[AF MODE]

Setting the focus method

Press [ ] to display the [REC] mode

/SET

menu and select the item to set. (P70) Select the mode that matches the recording conditions and the composition.

9-area-focusing :

The camera focuses on any of 9 focus areas. This is effective when the subject is not in the centre of the screen.

3-area-focusing (High speed):

The camera quickly focuses on any of 3 focus areas points – left, right or centre. This is effective when the subject is not in the centre of the screen.

1-area-focusing (High speed):

The camera quickly focuses on the subject in the AF area on the centre of the screen.

1-area-focusing:

The camera focuses on the subject in the AF area on the centre of the screen.

Menu Settings

∫ About [ ] or [ ]

• The picture may stop moving for a moment before being brought into focus when you press the shutter button halfway. This is not a malfunction.

• The AF area displayed on the centre of the screen is bigger than usual when using the digital zoom or when taking pictures in dark places.

1/60F5.6

• The camera is focusing on all the AF areas when multiple AF areas (max. 9 areas) light at the same time.

• The focus position is not predetermined. It is set to a position automatically determined by the camera at the time of focusing. If you want to determine the focus position to take pictures, switch the AF mode to [ ], [ ] or [ ].

• Switch the AF mode to [ ] or [ ] if it is difficult to focus using [ ].

• The AF mode cannot be set in simple mode [ ], [FIREWORKS] or [SELF PORTRAIT] in scene mode.

Spot-focusing:

The camera focuses on a limited narrow area in the screen.

VQT0Y35

Menu Settings

[AF ASSIST LAMP]

Focusing in low light conditions becomes easier

Press [ ] to display the [REC] mode

/SET

menu and select the item to set. (P70) Illuminating the subject makes it easier for the camera to focus when recording in low light conditions that make focusing difficult.

• If the AF assist lamp is set to [ON], an AF area with a size wider than usual is displayed and the AF assist lamp A turns on when you press the shutter button halfway in dark places etc.

• When you do not want to use the AF assist lamp (e.g. when taking pictures of animals in dark places), set the [AF ASSIST LAMP] to [OFF]. In this case, it will become more difficult to focus on the subject.

• The setting for [AF ASSIST LAMP] is fixed to [ON] in simple mode [ ].

• The setting for the [AF ASSIST LAMP] is fixed to [OFF] in [SCENERY] (P49), [NIGHT SCENERY] (P50), [FIREWORKS] (P52) [SELF PORTRAIT] (P51) and [AERIAL PHOTO] (P54) in scene mode.

[SLOW SHUTTER]

Recording bright pictures in dark places

[ON] The AF assist lamp turns on in low

light conditions. At this time, the AF assist lamp icon [ ] appears on the screen. The effective range of the AF assist lamp is 1.5 m.

[OFF] The AF assist lamp does not turn

on.

• Be careful about the following when using the AF assist lamp. – Do not look at the AF assist lamp from

close up.

– Do not cover the AF assist lamp with

your fingers or other objects.

• When the AF assist lamp is turned on, the AF area on the centre of the screen is displayed and it is bigger than usual. (P77)

VQT0Y35

Press [ ] to display the [REC] mode

/SET

menu and select the item to set. (P70) When taking pictures in dark places with low light, you can take pictures which are brighter than normal by selecting a setting even slower than the slowest setting of the shutter speed.

• The slow shutter speeds you can select are: [1/8 –], [1/4 –], [1/2–] and [1 –].

• This is effective if you want to take bright pictures of both a night landscape and a subject using [NIGHT PORTRAIT] (P50) in scene mode.

Slow shutter setting

1/8– 1–

Brightness Darker Brighter Jitter Less More

∫ Example

1/8– 1–

Menu Settings

• This should usually be set to [1/8–] to take pictures. (When you select a slow shutter speed other than [1/8 –], [ ] appears on the lower left of the screen.)

• When the shutter speed is made slower using [SLOW SHUTTER], jitter is likely to occur. We recommend using a tripod and the self-timer (P42) for taking pictures.

• You cannot set the slow shutter in [NIGHT SCENERY], [FIREWORKS] and [STARRY SKY] in scene mode.

[COL.EFFECT]

Setting colour effects for the recorded pictures

Press [ ] to display the [REC] mode

/SET

menu and select the item to set. (P70) Select a colour effect that matches the recording conditions and your image of the recording.

[COOL] The picture becomes bluish. [WARM] The picture becomes reddish. [B/W] The picture becomes black and

white.

[SEPIA] The picture becomes sepia.

[PICT.ADJ.]

Adjusting the picture quality for the recorded pictures

Press [ ] to display the [REC] mode

/SET

menu and select the item to set. (P70) Select an effect that matches the recording situation and your image of the recording.

[NATURAL] [VIVID]

The picture becomes softer.

The picture becomes sharper.

• When you take pictures in dark places, noise may become visible. To avoid noise, we recommend setting [PICT.ADJ.] to [NATURAL].

[CLOCK SET]

Set the display order for the date and time

Press [ ] to display the [REC] mode

/SET

menu and select the item to set. (P70) Change date and time. (P16)

VQT0Y35

Menu Settings

Using the [PLAY] mode menu

You can use vario mode to rotate pictures, set protection for them etc.

• Refer to P80 to 91 for each menu item.

1 Press [MENU/SET]. 2 Move 3/4 to select the menu

item and then move 1.

•Move 4 at A to switch to the next

menu screen.

• After performing steps 1 and 2, refer to the description of the menu item in the operating instructions and then set it.

∫ About the menu screen items

•

There are 3 menu screens (1/3, 2/3 and 3/3).

• You can switch menu screens from any menu item by rotating the zoom lever.

PLAY

DUAL DISPLAY

SLIDE SHOW

FAVORITE

ROTATE DISP.

ROTATE

us functions in playback

OFF

EXIT

PLAY

OFF

EXIT

SELECT

ASPECT CONV.

FORMAT

PLAY

SELECT

PLAY

SELECT

PLAY

OFF

EXITSELECT

SELECT

DUAL DISPLAY

SLIDE SHOW

FAVORITE

ROTATE DISP.

ROTATE

DPOF PRINT

PROTECT

AUDIO DUB.

RESIZE

TRIMMING

DPOF PRINT

PROTECT

AUDIO DUB.

RESIZE

TRIMMING

EXIT

[DUAL DISPLAY]

Displaying the recorded pictures on a dual display

Press [ ] to display the [PLAY] mode

/SET

menu and select the item to set. (P80) You can display two recorded pictures on the screen to compare them.

Move 3/4 to switch the orange frame between the top and the bottom and move 2/1 to select the picture.

EXIT

1/10

2006.12.1

1 The orange frame switches to the top.

(You can select the picture at the top.)

2 The orange frame switches to the

bottom. (You can select the picture at the bottom.)

3 The previous picture is displayed. 4 The next picture is displayed.

• When you rotate the zoom lever towards [ ] [T], the magnification becomes higher. When you rotate the zoom lever towards [ ] [W], the magnification becomes lower.

• When you change the magnification, the zoom position indication appears for about 1 second so that you can check the position of the enlarged section.

VQT0Y35

∫ To cancel the dual display

Press [MENU/SET].

• The picture displayed in the orange frame appears on the 1 screen playback screen.

• When [ROTATE DISP.] is set to [ON], pictures recorded holding the camera vertically are played back vertically (rotated).

• You cannot display the same picture on the dual display at the same time.

• Press [ ] to return to the 1 screen playback screen.

• You cannot select [DUAL DISPLAY] if there are no recorded pictures or only 1 recorded picture.

Menu Settings

• If none of the pictures have [ ] displayed, you cannot select [ ] even if [FAVORITE] is set to [ON].

2 Move 3 to select [START] and

then press [MENU/SET].

(Screen when [ALL] is selected)

ALL SLIDE SHOW

START DURATION EFFECT AUDI O

CANCEL

SELECT

SET

2SEC.

OFF

/SET

[SLIDE SHOW]

Playing back pictures in order for a fixed duration

Press [ ] to display the [PLAY] mode

/SET

menu and select the item to set. (P80) This is recommended when playing back pictures on a TV screen. You can skip unwanted pictures if [FAVORITE] (P82) has been set.

1 Move 3/4 to select [ALL] or [ ]

and then press [MENU/SET].

PLAY

DUAL DISPLAY

SLIDE SHOW

FAVORITE

ROTATE DISP.

ROTATE

SET

SELECT

[ALL] Displays all pictures. [] Displays only those pictures

that have been set as favourites (P82).

• The screen shown in step 1 appears

when [FAVORITE] is set to [ON]. When [FAVORITE] is set to [OFF], perform

2 onwards.

step

ALL

OFF

/SET

• The cursor displayed during a slide show A or while a slide show is paused B or during [MANUAL] slide show C is the same as 3/4/2/1.

•Move 3 to pause the slide show. Move 3 again to cancel pause.

•Move 2/1 while paused to display the previous or next picture. (However, the selected effect is disabled)

3 Move 4 to finish.

VQT0Y35

Menu Settings

∫

Setting the audio, duration and effect

Select [DURATION], [EFFECT] or [AUDIO]

on the screen shown in step

and set.

[DURATION] Can be set to [1SEC.],

[2SEC.], [3SEC.], [5SEC.] or [MANUAL] (manual playback).

[EFFECT] A slide show effect can

be selected. [OFF]:No effect

New pictures slide

across the screen.

New pictures appear from behind the current pictures and replace them.

: New pictures

gradually fill the screen from the centre.

: An effect is

selected at random.

• If you set [DURATION] to [MANUAL] the settings in [EFFECT] are disabled.

[AUDIO] If set to [ON], the audio

of the pictures with audio is played back.

• You can only select [MANUAL] when [ ] has been selected in step

•Move 2/1 to display the previous or next picture when [MANUAL] is selected.

• If you set [AUDIO] to [ON] and then play back a picture with audio, the next picture will be displayed after the audio has finished.

• You cannot play back motion pictures and use power save in a slide show. (However, the setting for power save mode is fixed to [10MIN.] while pausing a slide show or playing back a manual slide show.)

[FAVORITE]

Setting your favourite pictures

Press [ ] to display the [PLAY] mode

/SET

menu and select the item to set. (P80) You can do the following if a mark has been added to pictures and they have been set as favourites.

• Delete all the pictures not set as favourites. ([ALL DELETE EXCEPT ]) (P32)

• Play back the pictures set as favourites only as a slide show. (P81)

1 Move 4 to select [ON] and then

press [MENU/SET].

OFF

CANCEL

/SET

PLAY

DUAL DISPLAY SLIDE SHOW

FAVORITE

ROTATE DISP.

ROTATE

SET

SELECT

• You cannot set pictures as favourites if [FAVORITE] is set to [OFF]. Also the favourites icon [ ] will not appear when [FAVORITE] is set to [OFF] even if it was previously set to [ON].

• You cannot select [CANCEL] if none of the pictures have [ ] displayed.

VQT0Y35

Menu Settings

2 Press [MENU/SET] to close the

menu.

3 Move 2/1 to select the picture

then move 3.

1/3

10:00 1.DEC.2006

• Repeat the above procedure.

•If 3 is moved while the [ ] favourites

icon A is displayed, [ ] is cleared, and the favourites setting is cancelled.

• You can set up to 999 pictures as favourites.

∫ Deleting all favourites 1 Select [CANCEL] on the screen shown in

1 and then press [MENU/SET].

step

2 Move 3 to select [YES] and then press

[MENU/SET].

3 Press [MENU/SET] to close the menu.

• When printing pictures at a photo printing store, [ALL DELETE EXCEPT ] (P32) is useful so only the pictures you want to be printed remain on the card.

• Use [LUMIX Simple Viewer] on the CD-ROM (supplied), to set, confirm or delete favourites. (For information about this, refer to the separate operating instructions for PC connection.)

• You may not be able to set pictures taken with other equipment as favourites.

[ROTATE DISP.]/[ROTATE]

To display the picture rotated

Press [ ] to display the [PLAY] mode

/SET

menu and select the item to set. (P80) This mode allows you to automatically display pictures vertically if they were recorded holding the camera vertically or rotate pictures manually in 90° steps.

∫ Rotate display

(The picture is automatically rotated and displayed.)

1 Move 4 to select [ON] and then

press [MENU/SET].

PLAY

SELECT

DUAL DISPLAY

SLIDE SHOW

FAVORITE

ROTATE DISP.

ROTATE

SET

OFF

/SET

• The pictures are displayed without being rotated when you select [OFF].

• Refer to P31 for information about how to play back pictures.

2 Press [MENU/SET] to close the

menu.

VQT0Y35

Menu Settings

∫ Rotate

(The picture is rotated manually.)

1 Move 2/1 to select the picture

and then move 4.

ROTATE

1/3

∫ Example When rotating clockwise ( )

Original picture

SELECT

SET

EXIT

• The [ROTATE] function is disabled when [ROTATE DISP.] is set to [OFF].

• Motion pictures and protected pictures cannot be rotated.

2 Move 3/4 to select the direction

to rotate the picture and then press [MENU/SET].

ROTATE

CANCEL

SELECT SET

/SET

The picture rotates clockwise in steps of 90°.

The picture rotates counter-clockwise in steps of 90°.

3 Press [MENU/SET] twice to close

the menu.

• When [ROTATE DISP.] is set to [ON], pictures recorded holding the camera vertically are played back vertically (rotated).

• If you take pictures when aiming the camera up or down, it may not be possible to display the pictures vertically. (P23)

• The picture may be slightly blurred when the camera is connected to the TV with the AV cable (supplied) and played back vertically.

• When you play back pictures on a PC, they cannot be displayed in the rotated direction unless the OS or software is compatible with Exif. Exif is a file format for still pictures which allows recording information etc. to be added. It was established by “JEITA (Japan Electronics and Information Technology Industries Association)”.

• Rotated pictures are displayed rotated when they are played back in review playback and playback zoom however are displayed without being rotated when they are played back in multi playback.

• It may not be possible to rotate pictures that have been recorded with other equipment.

VQT0Y35

[DPOF PRINT]

Setting the picture to print and the number of prints

Press [ ] to display the [PLAY] mode

/SET

menu and select the item to set. (P80) DPOF “Digital Print Order Format” is a system that allows the user to select which pictures to print, how many copies of each picture to print and whether or not to print the recording date on the pictures when using a DPOF compatible photo printer or photo printing store. For details, ask at your photo printing store.

Move 3/4 to select [SINGLE], [MULTI] or [CANCEL] and then press [MENU/SET].

SINGLE

MULTI

CANCEL

/SET

PLAY

DPOF PRINT

PROTECT

AUDIO DUB.

RESIZE

TRIMMING

SELECT

SET

• You cannot select [CANCEL] if there are no prints that have been set in the DPOF print settings.

Menu Settings

∫ Single setting

1 Move 2/1 to select the picture

to print and then move 3/4 to set the number of prints.

DPOF SET THIS 1

COUNT

SELECT

1/3

DISPLAY

DATE

EXIT

• The number of prints icon [ ] A

appears.

• The number of prints can be set from 0 to 999. The DPOF print setting is cancelled when the number of prints is set to [0].

2 Press [MENU/SET] twice to close

the menu.

∫ Multi setting

1 Move 2/1 to select the picture

to print and then move 3/4 to set the number of prints.

DPOF SET MULTI

7 9

COUNT

SELECT

• The number of prints icon [ ] B appears.

• Repeat the above procedure. (You cannot set all the pictures at one time.)

• The number of prints can be set from 0 to 999. The DPOF print setting is cancelled when the number of prints is set to [0].

11 1210

DISPLAY

DATE

EXIT

2 Press [MENU/SET] twice to close

the menu.

VQT0Y35

Menu Settings

∫ To cancel all settings

1 Move 3 to select [YES] and then

press [MENU/SET].

CANCEL ALL DPOF

CANCEL ALL DPOF PRINT SETTINGS?

YES

SELECT SET

/SET

2 Press [MENU/SET] to close the

menu.

∫ To print the date

After setting the number of prints, set/ cancel printing with the recording date by pressing [DISPLAY].

DPOF SET THIS 1

DATE

COUNT

SELECT

• The date print icon [ ] C appears.

• When you go to a photo printing store for digital printing, be sure to order the printing of the date additionally if required.

• Depending on the photo printing store or the printer, the date may not be printed even if you set to print the date. For further information, ask at your photo printing store or refer to the operating instructions for the printer.

1/14

DISPLAY

DATE

EXIT

DATE

• DPOF is an abbreviation of “Digital Print Order Format”. This feature allows you to write print information to media and then use the information on a DPOF-compliant system.

• DPOF print setting is a convenient function when printing pictures with a printer that supports PictBridge. The date printing setting on the printer may take priority over the date printing setting on the camera. Check the date printing setting on the printer also. (P95)

• It is necessary to delete all previous DPOF print information made on other equipment when setting DPOF print on the camera.

• If the file is not based on the DCF standard, the DPOF print setting cannot be set. DCF is an abbreviation of “Design rule for Camera File system”, stipulated by “JEITA (Japan Electronics and Information Technology Industries Association)”.

VQT0Y35

[PROTECT]

Preventing accidental erasure of pictures

Press [ ] to display the [PLAY] mode

/SET

menu and select the item to set. (P80) You can set protection for pictures you do not want to be deleted by mistake.

Move 3/4 to select [SINGLE], [MULTI] or [CANCEL] and then press [MENU/SET].

PLAY

SELECT

∫ Single setting

Move

2/1

and then move

PROTECT THIS

SELECT SET/CANCEL

DPOF PRINT

PROTECT

AUDIO DUB.

RESIZE

TRIMMING

SET

to select the picture

SINGLE

OFF

MULTI

CANCEL

/SET

to SET/CANCEL.

1/14

EXIT

Menu Settings

∫ Multi setting/To cancel all settings

Perform the same operation as in “[DPOF PRINT] Setting the picture to print and the number of prints”. (P85 to 86)

• If you press [MENU/SET] while cancelling protection, the cancelling will stop halfway.

• The protect setting may not be effective on other equipment.

• If you want to delete protected pictures, cancel their protection.

• Even if you protect pictures on a card, they will be deleted if the card is formatted. (P91)

• Even if you do not protect pictures on an SD Memory Card or an SDHC Memory Card, they cannot be deleted when the card’s Write-Protect switch B is set to [LOCK].

• The following functions cannot be used with protected pictures. –[ROTATE] –[AUDIODUB.]

[SET] The protect icon [ ] A

appears.

[CANCEL]

The protect icon [ ] A disappears.

2 Press [MENU/SET] twice to close

the menu.

VQT0Y35

Menu Settings

[AUDIO DUB.]

Adding audio after taking pictures

Press [ ] to display the [PLAY] mode

/SET

menu and select the item to set. (P80) You can add the audio after taking a picture.

1 Move 2/1 to select the picture

and then move 4 to start audio recording.

AUDIO

DUB.

SELECT START

100_0001

1/3

EXIT

• The message [OVERWRITE AUDIO DATA?] screen appears when audio has already been recorded. Move 3 to select [YES] and then press [MENU/ SET] to start audio recording. (The original audio is overwritten.)

• Audio dubbing cannot be used with the following pictures. – Motion pictures – Protected pictures

• Audio dubbing may not work properly on pictures recorded by other equipment.

2 Move 4 to stop recording.

AUDIO

DUB.

100_0001

1/3

[RESIZE]

Making the picture smaller

Press [ ] to display the [PLAY] mode

/SET

menu and select the item to set. (P80) This function is useful if you want to reduce the file size of a picture to attach it to an e-mail or upload it to a website.

1 Move 2/1 to select the picture

and then move 4.

RESIZE

1/3

SELECT

• The following pictures cannot be resized. – Pictures recorded in [ ] (0.3M EZ)

(When the aspect ratio setting is [].)

– Pictures recorded in [ ] (2.5M EZ)

(When the aspect ratio setting is [].)

– Pictures recorded in [ ] (2M EZ)

(When the aspect ratio setting is

[].) – Motion pictures – Pictures with audio

• It may not be possible to resize pictures recorded with other equipment.

EXITSET

STOP

• The audio recording stops

automatically if 4 is not moved after about 10 seconds.

3 Press [MENU/SET] twice to close

the menu.

VQT0Y35

Menu Settings

2 Move 2/1 to select the size and

then move 4.

RESIZE

1/3

SELECT

EXITRESIZE

• Sizes smaller than the recorded picture are displayed. – [ ]/[ ]/[ ]/[ ]/[ ]

(When the aspect ratio setting is [].)

–[ ]

(When the aspect ratio setting is [].)

–[ ]

(When the aspect ratio setting is [].)

• The message [DELETE ORIGINAL PICTURE?] appears.

3 Move 3/4 to select [YES] or

[NO] and then press [MENU/SET].

RESIZE

DELETE ORIGINAL PICTURE?

YES

SET

SELECTCANCEL

/SET

• The picture is overwritten when you select [YES]. Resized pictures cannot be restored when they are overwritten.

• A resized picture is newly created when you select [NO].

• If the original picture is protected, you cannot overwrite it. Select [NO] and newly create a resized picture.

4 Press [MENU/SET] twice to close

the menu.

[TRIMMING]

Enlarging a picture and trimming it

Press [ ] to display the [PLAY] mode

/SET

menu and select the item to set. (P80) You can enlarge and then clip the important part of the recorded picture.

1 Move 2/1 to select the picture

and then move 4.

TRIMMING

1/3

SELECT SET

EXIT

• The following pictures cannot be trimmed. – Motion pictures – Pictures with audio

• It may not be possible to trim pictures recorded with other equipment.

2 Enlarge or decrease the parts to

be trimmed with the zoom lever.

TRIMMING

ZOOM EXIT

1/3

3 Move 3/4/2/1 to move the

position of the part to be trimmed.

TRIMMING

1/3

ZOOM TRIM:SHUTTER

EXIT

VQT0Y35

Menu Settings

4 Press the shutter button.

• The message [DELETE ORIGINAL PICTURE?] appears.

5 Move 3/4 to select [YES] or

[NO] and then press [MENU/SET].

TRIMMING

DELETE ORIGINAL PICTURE?

YES

CANCEL

SELECT SET

/SET

• The picture is overwritten when you select [YES]. The trimmed pictures cannot be restored when they are overwritten.

• A trimmed picture is newly created when you select [NO].

• When the original picture is protected, you cannot overwrite it. Select [NO] and newly create a trimmed picture.

6 Press [MENU/SET] twice to close

the menu.

• Depending on the cut size, the picture size of the trimmed picture may become smaller than that of the original picture.

• The picture quality of the trimmed picture will deteriorate.

[ASPECT CONV.]

Changing the aspect ratio of a 16:9 picture

Press [ ] to display the [PLAY] mode

/SET

menu and select the item to set. (P80) You can convert pictures taken with a [ ] aspect ratio to a [ ] or a [ ] aspect ratio.

1 Move 3/4 to select [ ] or

[ ] and then press [MENU/ SET].

PLAY

SELECT

ASPECT CONV.

FORMAT

SET

/SET

• Only pictures taken with a [ ] aspect ratio can be converted.

• You may not be able to convert pictures taken on other equipment.

2 Move 2/1 to select a picture and

then move 4.

ASPECT

CONV.

SETSELECT

100_0001

1/3

EXIT

• If you select and set a picture with an aspect ratio other than [ ], the message [CANNOT BE SET ON THIS PICTURE] is displayed on the screen.

3 Move 2/1 to determine the

horizontal position and press the shutter button to set.

VQT0Y35

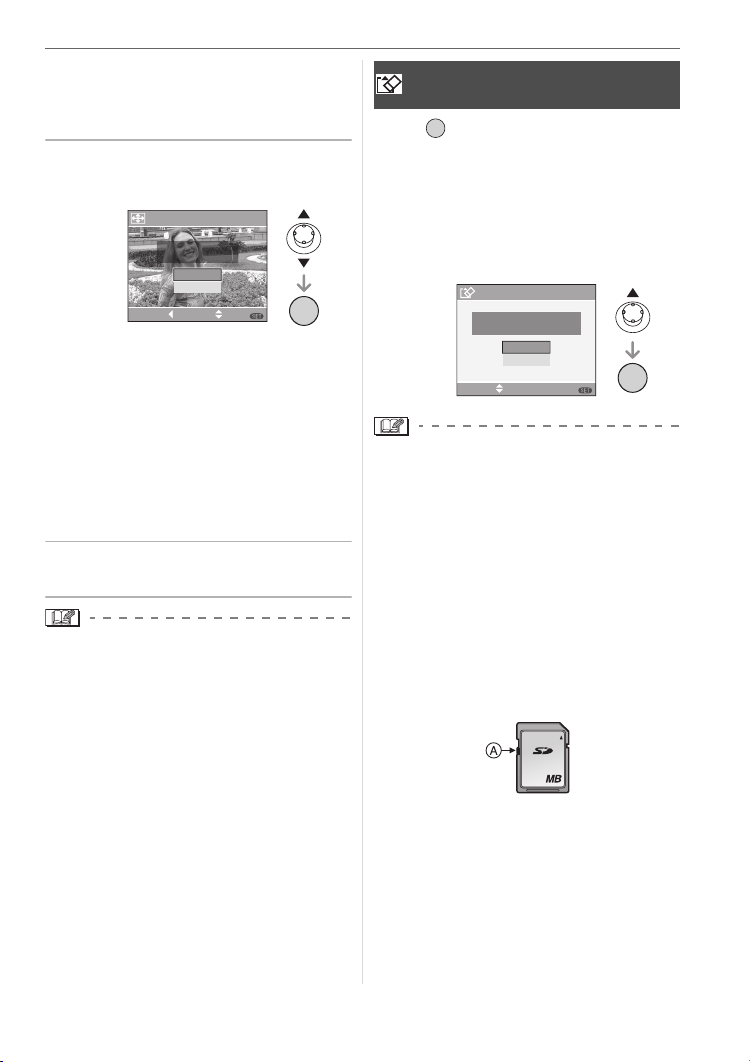

ADJUST. SET: SHUTTER

EXIT

• Use 3/4 to set the frame position for

pictures rotated vertically.

• The message [DELETE ORIGINAL PICTURE?] appears.

4 Move 3/4 to select [YES] or [NO]

and then press [MENU/SET].

ASPECT CONV.

DELETE ORIGINAL PICTURE?

YES

CANCEL

SELECT SET

/SET

• The picture is overwritten when you select [YES]. If you convert the aspect ratio of a picture and then overwrite it, you cannot restore it.

• A picture with the converted aspect ratio is newly created when you select [NO].

• When the original picture is protected, you cannot overwrite it. Select [NO] and newly create a picture with the converted aspect ratio.

5 Press [MENU/SET] twice to close

the menu.

• After converting the aspect ratio, the picture size may become larger than that of the original picture.

• The following pictures cannot be converted. – Pictures with audio – Motion pictures

• Files that do not conform to the DCF standard cannot be converted. DCF is an abbreviation of “Design rule for Camera File system”, stipulated by “JEITA (Japan Electronics and Information Technology Industries Association)”.

Menu Settings

[FORMAT]

Initializing the card

Press [ ] to display the [PLAY] mode

/SET

menu and select the item to set. (P80) Usually, it is not necessary to format the card. Format it when the message [MEMORY CARD ERROR] appears.

Move 3 to select [YES] and then press [MENU/SET].

FORMAT

DELETE ALL DATA ON THE MEMORY CARD?

YES

SELECT SET

/SET

• Formatting irretrievably deletes all the data including any protected pictures. Check the data carefully before formatting.

• If the card has been formatted on a PC or other equipment, format it on the camera again.

• Use a battery with sufficient battery power (P12) or the AC adaptor (DMW-AC5; optional) when formatting.

• Do not turn the camera off during formatting.

• You cannot format an SD Memory Card or an SDHC Memory Card when the card’s Write- Protect switch A is set to [LOCK].

• If the card cannot be formatted, consult your nearest servicentre.

VQT0Y35

Connecting to other equipment

Connecting to a PC

You can acquire recorded pictures to a PC by connecting the camera and the PC. The software [LUMIX Simple Viewer] (for Windows allows you to easily acquire pictures recorded with the camera to a PC, print them and send them by e-mail.

If you use “Windows the USB driver and then connect it to the computer.

For information about installing [LUMIX Simple Viewer] etc., refer to the separate operating instructions for PC connection.

A: USB connection cable (supplied) B: AC adaptor (DMW-AC5; optional)

• Use a battery with sufficient battery power

• Turn the camera off before inserting or

VQT0Y35

) in the CD-ROM (supplied)

98/98SE”, install

DIGITAL

AV OUT

DC IN

or the AC adaptor (DMW-AC5; optional).

removing the cable for the AC adaptor (DMW-AC5; optional).

• Set the camera to a mode other than [] mode.

1 Turn on the camera and the PC.

2 Connect the camera to a PC via

the USB connection cable A (supplied).

• Connect the USB connection cable with

the [ ] mark facing the [2] mark on the [DIGITAL] socket.

• Hold the USB connection cable at C

and insert straight in or take straight out. (If you forcibly insert the USB connection cable at a slant or upside down you can deform the connection terminals and damage the camera or the connected equipment.)

ACCESS

D: This message appears during data

transfer.

[Windows]

The drive appears in the [My Computer] folder.

• If you are connecting the camera to a PC for the first time, the required driver is installed automatically so that the camera can be recognised by “Windows Plug and Play”. The drive then appears on the [My Computer] folder.

[Macintosh]

The drive is displayed on the screen.

• The drive is displayed as [LUMIX] when you connect the camera with no card inserted.

• The drive is displayed as [NO_NAME] or [Untitled] when you connect the camera with a card inserted.

∫

About motion picture playback on a PC

Use the software “QuickTime” (for Windows 2000/XP) in the CD-ROM (supplied) to play back motion pictures recorded on this camera on a PC.

• If you use “Windows 98/98SE/Me”, download “QuickTime6.5.2 for PC” from the following site, and install it. http://www.apple.com/support/quicktime/

• This software is installed as standard on a “Macintosh OS”.

∫ Folder Composition

Folders are displayed as shown in the following illustration.

≥SD Memory Card ≥

SDHC Memory Card

≥MultiMediaCard

DCIM

100_PANA




101_PANA

999_PANA

MISC

1 Folder number 2 File number 3 JPG: pictures

MOV: motion pictures

Connecting to other equipment

The items in each folder are as follows.

[DCIM] Folders from [100_PANA] to

[999_PANA]

[100_PANA] to [999_PANA]

Pictures/motion pictures

[MISC] Files on which the DPOF

print settings are recorded

• The data for up to 999 pictures recorded by the camera can be included in 1 folder. If the number of pictures exceeds 999, another folder is created.

• To reset the file number or the folder number, select [NO.RESET] in the [SETUP] menu. (P20)

∫ Conditions under which a different

folder number is used

In the following cases, the picture is not recorded in the same folder as the previously recorded picture. It is recorded in a folder with a new number. 1 When the folder just recorded to contains

a picture file with the number 999 in it (example: P1000999.JPG).

2 When the card just recorded to contains,

for example, a folder with the number 100 [100_PANA] in it and that card is removed and replaced with a card that has a folder with the number 100 in it recorded by a camera from a different maker (100XXXXX, with XXXXX being the name of the maker) and then a picture is recorded.

3 When recording after selecting

[NO.RESET] (P20) from the [SETUP] menu. (Pictures will be recorded to a new folder with a number sequential to the folder recorded to immediately before. By using [NO.RESET] on a card that does not contain folders or pictures, such as one just formatted, the folder number can be reset to 100.)

VQT0Y35

Connecting to other equipment

∫ About the PTP conection

If the OS is “Windows XP” or “Mac OS X”, you can connect in PTP mode if you set the camera to [ ] mode and then connect to your PC.

• Pictures can only be read on the camera. They cannot be written to a card or deleted.

• When there are 1000 or more pictures on a card, the pictures may not be imported.

• Do not use any other USB connection cables except the supplied one.

• Do not disconnect the USB connection cable while [ACCESS] is displayed.

• When there are many pictures on the card, it may take some time to transfer them.

• You may not be able to play back motion pictures on the card correctly when the camera is connected to a PC. Import the motion picture files to the PC and then play them back.

• If battery power is exhausted while the camera and the PC are communicating, the recorded data may be damaged. When you connect the camera to the PC, use a battery with sufficient battery power (P12) or the AC adaptor (DMW-AC5; optional).

• If the remaining battery power becomes low while the camera and the PC are communicating, the status indicator blinks and the alarm beeps. In this case, stop the communication at once on the PC.

• When connecting the camera to a “Windows 2000” OS PC with the USB connection cable, do not replace the card while the camera and the PC are connected. The information on the card may be damaged. Disconnect the USB connection cable before replacing the card.

• Pictures edited or rotated with a PC may be displayed in black in playback mode (P31), multi playback (P63) and calendar playback (P64).

• For information about this, refer to the separate operating instructions for PC connection.

• Read the operating instructions for the PC.

• The message [PLEASE RE-CONNECT THE PRINTER.] appears if you change the mode dial to [ ] while the camera and the PC are connected. Set the camera to a mode other than [ ] mode, check that no data is being transferred and then connect to the printer again. ([ACCESS] appears on the LCD monitor of the camera while data is being transferred.)

VQT0Y35

Printing the Pictures

By connecting the camera directly to a printer supporting PictBridge via the USB connection cable (supplied), you can select the pictures to print and start printing on the camera’s screen. Set print settings such as the print quality on the printer beforehand. (Read the printer operating instructions.)

DIGITAL

AV OUT

DC IN

Connecting to other equipment

1 Turn on the camera and the

printer.

2 Set the mode dial to [ ].

3 Connect the camera to a printer

via the USB connection cable A (supplied).

• Connect the USB connection cable with

the [ ] mark facing the [2] mark on the [DIGITAL] socket.

• Hold the USB connection cable at C

and insert straight in or take straight out.

• Do not use any other USB connection cables except the supplied one.

• If the mode dial is not set to [ ] when the camera is connected to the PC, disconnect the USB connection cable, set the mode dial to [ ] and then connect the USB connection cable again.

• To print the age in [BABY1]/[BABY2] (P55) in scene mode or the departure date for [TRAVEL DATE] (P56), use the software [LUMIX Simple Viewer] in the CD-ROM (supplied) and print from the PC. For information about this, refer to the separate operating instructions for PC connection.

• To find out more about PictBridge compliant printers, contact your local dealer.

A: USB connection cable (supplied) B: AC adaptor (DMW-AC5; optional)

• It may take time to print some pictures. Use a battery with sufficient battery power (P12) or the AC adaptor (DMW-AC5; optional) when you connect to a printer.

• Turn the camera off before inserting or removing the cable for the AC adaptor (DMW-AC5; optional).

VQT0Y35

Connecting to other equipment

∫ Selecting a single picture and printing

1 Move 2/1 to select the picture

and then press [MENU/SET].

PictBridge

PLEASE SELECT THE PICTURE TO PRINT

SELECT MULTI PRINT

• The message disappears in about 2 seconds.

100_0001

1/3

/SET

2 Move 3 to select [PRINT START]

and then press [MENU/SET].

SINGLE SELECT

PRINT START PRINT WITH DATE NUM. OF PRINTS PAPER SIZE PAGE LAYOUT

SELECTCANCEL SET

OFF

/SET

• Press [MENU/SET] to cancel printing halfway.

3 Disconnect the USB connection

cable after printing.

∫ Selecting multiple pictures and

printing them

1 Move 3.

2 Move 3/4 to select an item and

then press [MENU/SET].

PictBridge

MULTI SELECT SELECT ALL DPOF PICTURE FAVORITE

SELECT CANCEL

[MULTI SELECT] Multiple pictures are

printed at one time. After selecting [MULTI SELECT], move 2/1 to select the pictures to print and then move 4. The icon [ ] appears on the pictures to be printed. (Move 4 again to cancel the setting.) Press [MENU/SET] after finishing the setting.

[SELECTALL] Prints all the stored

pictures.

[DPOF PICTURE]

Prints the pictures set in [DPOF] only. (P85)

[FAVORITE]

Prints the pictures set as favourites only. (P82)

¢This only appears when [FAVORITE]

(P82) is set to [ON]. (However if none of the pictures have [ ] displayed, you cannot select it even if [FAVORITE] is set to [ON].)

SET

１秒

OFF

/SET

VQT0Y35

3 Move 3 to select [PRINT START]

and then press [MENU/SET].

MULTI SELECT

PRINT START PRINT WITH DATE NUM. OF PRINTS PAPER SIZE PAGE LAYOUT

SELECTCANCEL SET

１秒

OFF

/SET

• [PRINT WITH DATE] and [NUM. OF PRINTS] are not displayed when [DPOF PICTURE] is set.

• Press [MENU/SET] to cancel printing.

• When you select [MULTI SELECT], [SELECT ALL] or [FAVORITE], a print confirmation screen appears. Select [YES] and print the pictures.

• The message [PRINTING ## PICTURE(S) DO YOU WANT TO PROCEED ?] appears on the print confirmation screen if the number of prints is more than 1000.

4 Disconnect the USB connection

cable after printing.

∫

Setting date printing, the prints, the paper size and the page layout

Select and set each item in step

• Items not supported by the printer are displayed in grey and cannot be selected.

• When you want to print pictures in a paper size or a layout which is not supported by the camera, set [PAPER SIZE] or [PAGE LAYOUT] to [ ] and then set the paper size or the layout on the printer. (For details, refer to the operating instructions of the printer.)

number of

Connecting to other equipment

• [PRINT WITH DATE]

Settings on the printer are prioritised.

[OFF] Date is not printed. [ON] Date is printed.

• If the printer does not support date printing, the date cannot be printed on the picture.

• [NUM. OF PRINTS]

Set the number of prints.

• You can set up to 999 prints.

• [PAPER SIZE]

(Paper sizes that can be set with this unit) The paper sizes are displayed on pages 1/2 and 2/2. Move 4 to select.

1/2

Settings on the printer are prioritised.

[L/3.5qk5q]

89 mmk127 mm

[2L/5qk7q] 127 mmk178 mm [POSTCARD] 100 mm [A4] 210 mm

2/2

[CARD SIZE]

k148 mm k297 mm

54 mmk85.6 mm

[10k15cm] 100 mmk150 mm [4q

k6q] 101.6 mmk152.4 mm k10q] 203.2 mmk254 mm

[8q [LETTER] 216 mm

k279.4 mm

¢These items cannot be displayed when

the printer does not support the paper sizes.

VQT0Y35

Connecting to other equipment

•[PAGE LAYOUT]

(Layouts for printing that can be set with this unit)

Settings on the printer are prioritised.

1 picture with no frame on 1 page

1 picture with a frame on 1 page

2 pictures on 1 page

4 pictures on 1 page

• An item cannot be selected if the printer does not support the page layout.

∫ Setting the date printing with the

DPOF print in advance

We recommend setting DPOF date printing with [DPOF PRINT] (P86) in advance when the printer supports it. If you select [DPOF PICTURE], printing starts and the recording date is printed.

∫ Layout printing

• When printing a picture several times on 1 sheet of paper

For example, if you want to print a picture 4 times on 1 sheet of paper, set [PAGE LAYOUT] to [ ] and then set [NUM. OF PRINTS] to 4.

• When printing different pictures on 1 sheet of paper (only in DPOF printing)

For example, if you want to print 4 different pictures on 1 sheet of paper, set [PAGE LAYOUT] to [ ] and then set [COUNT] in [DPOF PRINT] (P85) to 1 for each of the 4 pictures.

• Do not disconnect the USB connection cable when the cable disconnection warning icon [ ] is displayed. (Depending on the printer, the icon may not be displayed.)

• If the remaining battery power becomes low while the camera and the printer are connected, the status indicator blinks and the alarm beeps. If this happens during printing, press [MENU/SET] and stop printing at once. If not printing, disconnect the USB connection cable.

• The camera is receiving an error message from the printer when the [¥] indication lights orange during printing. After finishing printing, make sure there are no problems with the printer.

• If the total number of DPOF prints or the number of DPOF pictures printed is high, pictures may be printed several times. The remaining number of prints indicated may differ from the number set. This is not a malfunction.

• With date printing, the setting on the printer may take priority over the setting on the camera. Check the date print setting on the printer also.

• The message [USB MODE CHANGED. PLEASE REMOVE THE USB CABLE.] appears if you change the mode dial to a mode other than [ ] while the camera and the printer are connected. Set the mode dial to [ ] again and then disconnect the USB connection cable. If this happens during printing, stop printing and then disconnect the USB connection cable.

VQT0Y35

Playing Back Pictures on a TV Screen

∫ Playing back pictures using the AV

cable (supplied)

• Set the aspect of the TV on the camera. (P21)

• Turn the camera and the TV off.

DIGITAL

AV OUT

DC IN

1 Connect the AV cable A

(supplied) to the [AV OUT] socket on the camera.

• Connect the AV cable with the [ ]

mark facing the [2] mark on the [AV OUT] socket.

• Hold the AV cable at B and insert

straight in or take straight out.

2 Connect the AV cable to the video

input and the audio input sockets on the TV.

• 1 Yellow: to the video input socket

• 2 White: to the audio input socket

3 Turn the TV on and select external

input.

4 Turn the camera on.

Connecting to other equipment

• Do not use any other AV cables except the supplied one.

• Only when the mode dial is set to playback mode [ ], the picture is displayed on the TV.

• The top and bottom or left and right of the picture may be cut off slightly when it is displayed due to the characteristics of the TV.

• Depending on the screen mode setting of the TV when you connect the camera to a wide-screen TV or a high-definition TV, the picture may be stretched horizontally or vertically and the top and bottom and or left and right of the picture may be cut off when it is displayed. In this case, change the screen mode setting.

• Audio playback is monaural.

• Read the operating instructions for the TV.

• When you play back a picture vertically, it may be blurry.

• You can view pictures on TVs in other countries (regions) which use the NTSC or PAL system when you set [VIDEO OUT] in the [SETUP] menu.

∫ Playing back pictures on a TV with an

SD Memory Card slot

Still pictures recorded on an SD Memory Card can be played back on a TV with an SD Memory Card slot.

• You cannot play back an SDHC Memory Card if the TV model does not support it.

• Depending on the TV model, pictures may not be displayed on the full screen.

• Motion pictures cannot be played back. To play back motion pictures, connect the camera to the TV with the AV cable (supplied).

• You may not be able to play back MultiMediaCards.

VQT0Y35

Others

Screen Display

ISO

100

ISO 100

789

1/25F2.8

5 91 4 87

3456

28 27 26 25 24 23 22

27 26 25

A In recording

1 Recording mode (P22)

2 Flash mode (P38)

3 Burst (P46)

: Audio recording (P61, 76)

4 White balance (P71)

5 ISO sensitivity (P73)

6 Focus (P22)

7 Picture size (P75)

8 Quality (P75)

In Motion picture mode (P61)

/// (4:3)

/ (16:9)

: Jitter alert (P24)

9 Battery indication (P12)

10 Colour effect mode (P79)

11 Number of recordable pictures/

Available recording time e.g. In Motion picture mode (P61):

R1h20m30

11 12 13

15 16

19 182021

1112

3, 22

12 Card access indication (P15)

13 Recording state

14 Histogram (P36)

15 Age (P55)

• This is displayed for about 5 seconds when the camera is turned on in baby mode etc.

Number of days that have passed since the travel date (P56)

• This is displayed for about 5 seconds if the camera is turned on when the travel date is set etc.

16 Travel date (P56)

17 Elapsed recording time (P61)

18 Current date and time

• This is displayed for about 5 seconds when the camera is turned on, after setting the clock and after switching from playback mode to recording mode.

Zoom (P27)/Extra optical zoom (P28)/ Digital zoom (P29)

19 Shutter speed (P22)

: Intelligent ISO (P73)

20 Aperture value (P22)

21 Exposure compensation (P43)

22 Auto bracket (P44)

23 Slow shutter (P78)

24 High angle mode (P37)/

: Power LCD (P37)

25 Self-timer mode (P42)

26 Spot AF area (P77)

27 AF assist lamp (P78)

28 AF area (P22)

29 Optical image stabilizer (P45)

100

VQT0Y35

Panasonic DMC-FX50 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
