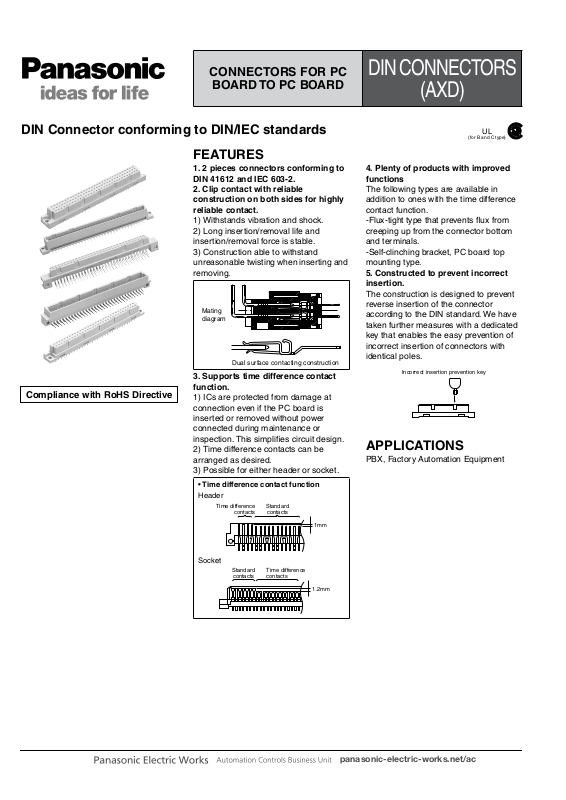

DIN CONNECTORS (AXD)

Incorrect insertion prevention key

CONNECTORS FOR PC

BOARD TO PC BOARD

DIN Connector conforming to DIN/IEC standards

FEATURES

1. 2 pieces connectors conforming to
DIN 41612 and IEC 603-2.

2. Clip contact with reliable
construction on both sides for highly
reliable contact.

1) Withstands vibration and shock.

2) Long insertion/removal life and
insertion/removal force is stable.

3) Construction able to withstand
unreasonable twisting when inserting and
removing.

Mating
diagram

Dual surface contacting construction

3. Supports time difference contact

Compliance with RoHS Directive

function.

1) ICs are protected from damage at
connection even if the PC board is
inserted or removed without power
connected during maintenance or
inspection. This simplifies circuit design.

2) Time difference contacts can be
arranged as desired.

3) Possible for either header or socket.

• Time difference contact function

Header

Time difference

contacts

Standard

contacts

1mm

DIN CONNECTORS

(AXD)

UL

(for B and C type)

4. Plenty of products with improved
functions

The following types are available in
addition to ones with the time difference
contact function.

-Flux-tight type that prevents flux from
creeping up from the connector bottom
and terminals.

-Self-clinching bracket, PC board top
mounting type.

5. Constructed to prevent incorrect
insertion.

The construction is designed to prevent
reverse insertion of the connector
according to the DIN standard. We have
taken further measures with a dedicated
key that enables the easy prevention of
incorrect insertion of connectors with
identical poles.

APPLICATIONS

PBX, Factory Automation Equipment

Connectors for industrial equipment

Socket

Standard

contacts

Time difference
contacts

1.2mm

panasonic-electric-works.net/ac

ORDERING INFORMATION

AXD 1

DIN connectors
1: Socket
2: Header

<No. of contacts (2 digits)>
20: 20 contacts 32: 32 contacts 44: 44 contacts
50: 50 contacts 64: 64 contacts 90: 90 contacts
96: 96 contacts 00: 100 contacts

<Type and contacts layout>
2: B type (2 rows terminal pitch: 2.54 mm)
3: C type (The middle row is removed terminal pitch: 5.08 mm)
4: C type (3 rows terminal pitch: 2.54 mm)
6: R type (The middle row is removed terminal pitch: 5.08 mm)
7: R type (3 rows terminal pitch: 2.54 mm)
8: Q type (2 rows terminal pitch: 2.54 mm)

<Terminal shape and product types>

PC board

No.

mountig form

0

PC board top

2 Available

mounting type

5
7 Available

PC board edge

1

mounting type

<Surface treatment (Contact portion/Terminal portion>
1: Au plating/Sn plating

Self-clinching

bracket

Not available

Available

Not available

Flux

resistant

Not available

Not available

Not available

Terminal

shape

DIP terminal

DIN CONNECTORS (AXD)

SPECIFICATIONS

1. Characteristics

Item Specifications Conditions

Rated current 2A

Rated voltage 300V AC

Electrical
characteristics

Mechanical
characteristics

Lifetime
characteristics

Environmental
characteristics

2. Material and surface treatment

Part name Material Surface

Molded portion

Socket contact Copper alloy

Header post Brass

Note) Please consult us for different plating requirements.

Breakdown voltage 1,000 V AC for 1 min. Detection current: 1mA
Insulation resistance Min. 1,000MΩ at 500V DC megger

Contact resistance Max. 20mΩ

Composite insetion force Max. 0.843N {86gf} × no. of contact

Unit removal force Min. 0.15N {15.3gf}

Post holding force Min. 19.6N {2kgf} (header side)

Insertion and removal life 1,000 times

Ambient temperature –55°C to +125°C At less than 85% R.H. (No freezing at low temperature)

Soldering temperature
resistance

Glass reinforced PBT

(UL94V-0)

Contact portion: Ni plating on base, Au plating on surface
Te r minal portion: Ni plating on base, Sn plating on surface

Contact portion: Ni plating on base, Au plating on surface
Te r minal portion: Ni plating on base, Sn plating on surface

260°C: within 10 sec.

300°C: within 5 sec.
350°C: within 3 sec.

Measured based on the HP4338B measurement method of
JIS C 5402.

Measured by steel gauge with 0.56(t)×0.8(W)mm and
smoothness 0.1s.

3. Applicable PC board

B, C type socket

—

PC board
thickness

Q, R type header

B, C type header
Q, R type socket

1.6 to 2.4mm

1.6mm

Connectors for industrial equipment

panasonic-electric-works.net/ac

DIN CONNECTORS (AXD)

Srandard
header

Standard
socket

Reverse
header

Reverse
socket

Standard

socket

Reverse

header

INTRODUCTION OF OTHER TYPES

1. FEATURES OF REVERSE TYPE DIN
CONNECTOR

New series of reverse types popular in
the U.S.A.

1) Shock resistant socket construction
Integrated construction of the flange and
housing prevent damage to the terminals
from shock.

Body

Standard type and reverse type

Types

Standard
type

Header/

socket

Header Angle

Socket Straight

Te r minal

shape

Form

The contacts of the socket mounted on the
mother board (power supply side) are covered
to prevent electrical shock and entry of foreign
matter.

Header Straight

Flange

2) Box-shaped header provides excellent
electrical performance

Contact

Reverse
type

Socket Angle

Box-shaped headers feature long
insulation distance between the
connector and mounting panel and low
capacitance.

BOX type

Mounting panel

OPEN type

Former product

The header and socket for the standard
type and reverse type fit each other,
this permits the connections shown in
the figure on the right.

2. FEATURES AND CONSTRUCTION OF DIN CONNECTOR WITH HIGHER FUNCTION

DIN connector enhancement products
which support user circuit designs and
solve problems that occur during
connector mounting.

• PC board top mounting type

• Self-clinching bracket (with temporary
fastening function)

• Flux resistant construction

• Time difference contacts

2) Self-clinching brackets

(with temporary function)

• Prevents the connector from shifting
due to vibration and shock.

• Uses the same mounting hole as the
mounting screw.

mm

Self-clinching bracket

1) PC board top mounting type

• Prevents the entry of flux during
automatic soldering.

• Large position tolerance when mounting
the connector to the PC board permits
the use of automatic mounting.

PC board

1.6

1.4

PC board

mounting hole

2.8±0.05 dia.

PC board

3) Flux resistant construction

The terminals are sealed with resin to
prevent seepage of flux through the
terminals or entry of flux from the bottom

Snap off at the notches
after soldering

of the connector.

Cross section

Connectors for industrial equipment

PC board edge

mounting type

(DIN connector)

Sealed

with

resin

HeaderSocket

1. Reduction of total cost
Since the cost of the header is low, it is more
economical to use the header for mother
boards which require multiple pins for
expansion.

2. Matches the designer's requirements for
maximum simplicity in the mother board design.

Srandard
header

Reverse
socket

Stacking connection Horizontal connection

4) Time difference contacts

• ICs are protected from damage at
connection even if the PC board is
inserted or removed without power
connected during maintenance or
inspection. This simplifies circuit design.

•A contact time difference of 1mm for
headers and 1.2mm for sockets is
obrained.

• Time difference contacts can be
arranged as desired.

Header

Standard

contacts

Time difference
contacts

1mm

1.2mm

Socket

Time difference

contacts

Standard

contacts

panasonic-electric-works.net/ac

PRODUCT TABLE

Type

No. of contacts

Te r minal shape

DIN CONNECTORS (AXD)

Socket Header

Standard types Reverse types Standard types Reverse types

B type
2 rows

100 100 100 100

90 90

64

50 50 50 50

44 44

32 32 32 32

20 20

C type
3 rows

96 96 96 96

64

(The middle row

is removed)

Q type
2 rows

64

R type
3 rows

64

(The middle row

is removed)

B type

2 rows

64

C type
3 rows

64

(The middle row

is removed)

Q type
2 rows

64

R type
3 rows

64

(The middle row

is removed)

PC board top mounting
type

Self-clinching bracket
(temporary fastening)

Flux-resistant
construction

Time difference

Higher functional

products availability

contacts

——Available Available Available Available — —

Available Available Available Available Available Available Available Available

Available Available ————Available Available

Available Available — — Available Available Available Available

PRODUCT TYPES (STANDARD)

1) B type (standard 2 rows)

Shape

Socket Header

Solder-dip

No. of contacts

20 AXD120201 AXD220211

32 AXD132201 AXD232211

44 AXD144201 AXD244211

50 AXD150201 AXD250211

64 AXD164201 AXD264211

90 AXD190201 AXD290211

100 AXD100201 AXD200211

Notes: 1. All are tray packaged. Packing quantity for outer carton is 200 pcs.

2. For the available foreign standard products, refer to “STANDARDS
CHART” on the end of the catalog.

straight terminals

Par t No. Part No.

Solder-dip

angle terminals

2) C type (standard 3 rows)

Shape

Socket Header

Solder-dip

No. of contacts

64

(The middle row is

removed)

96 AXD196401 AXD296411

Notes: 1. All are tray packaged. Packing quantity for outer carton is 200 pcs.

2. For the available foreign standard products, refer to “STANDARDS
CHART” on the end of the catalog.

straight terminals

Par t No. Part No.

AXD164301 AXD264311

Solder-dip

angle terminals

PRODUCT TYPES (REVERSE)

1) Q type (reverse 2 rows)

Shape

Socket Header

Solder-dip

No. of contacts

32 AXD132811 AXD232801

50 AXD150811 AXD250801

64 AXD164811 AXD264801

100 AXD100811 AXD200801

Notes: 1. All are tray packaged. Packing quantity for outer carton is 200 pcs.

2. Adopting box shape, Q types differ from DIN international standards
(open shape) on the mounting spacing.

angle terminals

Par t No. Part No.

Solder-dip

straight terminals

2) R type (reverse 3 rows)

Shape

Socket Header

Solder-dip

No. of contacts

64

(The middle row is

removed)

96 AXD196711 AXD296701

Note: All are tray packaged. Packing quantity for outer carton is 200 pcs.

angle terminals

Par t No. Part No.

AXD164611 AXD264601

Solder-dip

straight terminals
