Panasonic CS-HE9DKE, CS-HE12DKE, CU-HE9DKE, CU-HE12DKE Operating Instructions Manual
F565053
Operating Instructions
Air Conditioner
CS-HE9DKE CU-HE9DKE
CS-HE12DKE CU-HE12DKE
Manufactured by:
Matsushita Electric Industrial Co., Ltd.
Air Conditioner Division
2-3-1-1 Noji-higashi, Kusatsu City, Shiga, Japan.
ENGLISH
Before operating the unit, read these operating instructions thoroughly and keep them for future reference. 2 ~ 7, 44
ESPAÑOL Antes de utilizar la unidad, sírvase leer atentamente estas instrucciones de funcionamiento y conservarlas como futuro elemento
de consulta.
8 ~ 13, 44
ITALIANO Prima di utilizzare l’unità si prega di leggere attentamente le istruzioni e di conservare questo opuscolo per potervi fare riferimento
in futuro.
14 ~ 19, 44
NEDERLANDS Lees voor u het apparaat gebruikt deze gebruiksinstructies grondig na en bewaar ze voor toekomstig gebruik. 20 ~ 25, 44
PORTUGUÊS Antes de ligar a unidade, leia cuidadosamente este manual de utilização e guarde-o para futura referência. 26 ~ 31, 44
ΕΛΛΗΝΙΚΆ Προτού θέσετε τη µονάδα σε λειτουργία, διαβάστε προσεκτικά αυτές τις οδηγίες χρήσης και φυλάξτε τις για µελλοντική αναφορά. 32 ~ 37, 44
БЪЛГАРСКИ Преди да задействате климатика, прочетете внимателно инструкциите за употреба и ги запазете за бъдещи справки. 38 ~ 44
2
red
black
green/yellow
colours (GB Standard)wires
Terminals
earth
neutral
live
brown
blue
green-yellow
Installation Precautions
Do not install, remove and reinstall the unit by yourself.
• Improper installation will cause leakage, electric shock or fire. Please consult an authorized dealer or
specialist for the installation work.
•
This equipment must be earthed and installed with ELCB. It may cause electrical shock or fire in case of
malfunction.
•
This air conditioner must be earthed. Improper grounding will cause electric shock.
• Ensure that the drainage piping is connected properly. Otherwise, water will leak.
• Do not install the unit in a potentially explosive atmosphere.
Caution
Warning
This sign warns of death
or serious injury.
The appliance is not intended for use by young children or infirm
person without supervision.
Young children should be supervised to
ensure that they do not play with the appliance.
Replacement or installation of power plugs shall be performed by
authorized/qualifi
ed personnel only. The wires in this mains lead are
coloured in accordance with the following code:
T
o prevent personal injury,
injury to others and property
damage, the following
instructions must be
followed.
Incorrect operation due to
failure to follow instructions
will cause harm or damage,
the seriousness of which is
classified as below:
Thank you for purchasing Panasonic Air Conditioner
SAFETY PRECAUTIONS
This symbol denotes
an action that is
PROHIBITED.
These symbols denote
actions that are
COMPULSOR
Y.
Warning
■ Definition
This sign warns of injury
or damage to property.
Caution
The instructions to be
followed are classified by
the following symbols:
Safety Regulation
Operation Condition (°C)
Use this air conditioner under the following temperature
range.
DBT: Dry Bulb Temperature
WBT: Wet Bulb Temperature
Indoor Outdoor
DBT WBT DBT WBT
Maximum Temperature (COOL) 32 23 43 26
Maximum Temperature (HEAT) 30 – 24 18
Minimum
Temperature (COOL) 16 1
1 16 11
Minimum Temperature (HEAT) 16 – -10 -1
1
Different countries may have different colour coding for the wires.
Caution
• Insert the power plug properly.
• Use specified supply cord.
• If the supply cord is damaged or needed
to be replaced, it must be replaced by
the manufacturer or its service agent or
a similarly qualifi
ed person in order to
avoid a hazard.
•
Remove the batteries if the unit is not
going to be use for a long period of time.
•
New batteries of the same type must
be inserted following the polarity stated
to prevent malfunction of the remote
control.
•
In case of emergency or abnormal
condition (burnt smell, etc) occurs, turn
of
f the power supply and unplug.
• Do not share power outlet.
• Do not modify power cord.
• Do not use an extension cord.
• Do not operate with wet hands.
• Do not operate or stop the unit by inserting
or pulling out the power plug.
•
Do not insert finger or other objects into the
indoor or outdoor unit.
•
Do not attempt to repair the unit by
yourself.
•
Do not use rechargeable (Ni-Cd) batteries.
• Keep the remote control away from infants
and small children to prevent them from
accidentally swallowing the batteries.
•
Do not pull the cord to disconnect the plug.
• Do not wash the unit with water, benzene,
thinner or scouring powder.
• Do not use for other purposes such as
preservation of food.
•
Do not use any combustible equipment at
airflow direction.
• Do not sit or place anything on the indoor
or outdoor unit.
•
Do not expose directly to cold air for a long
period.
•
Ventilate the room regularly.
• Pay attention as to whether the
installation rack is damaged after long
period of usage.
•

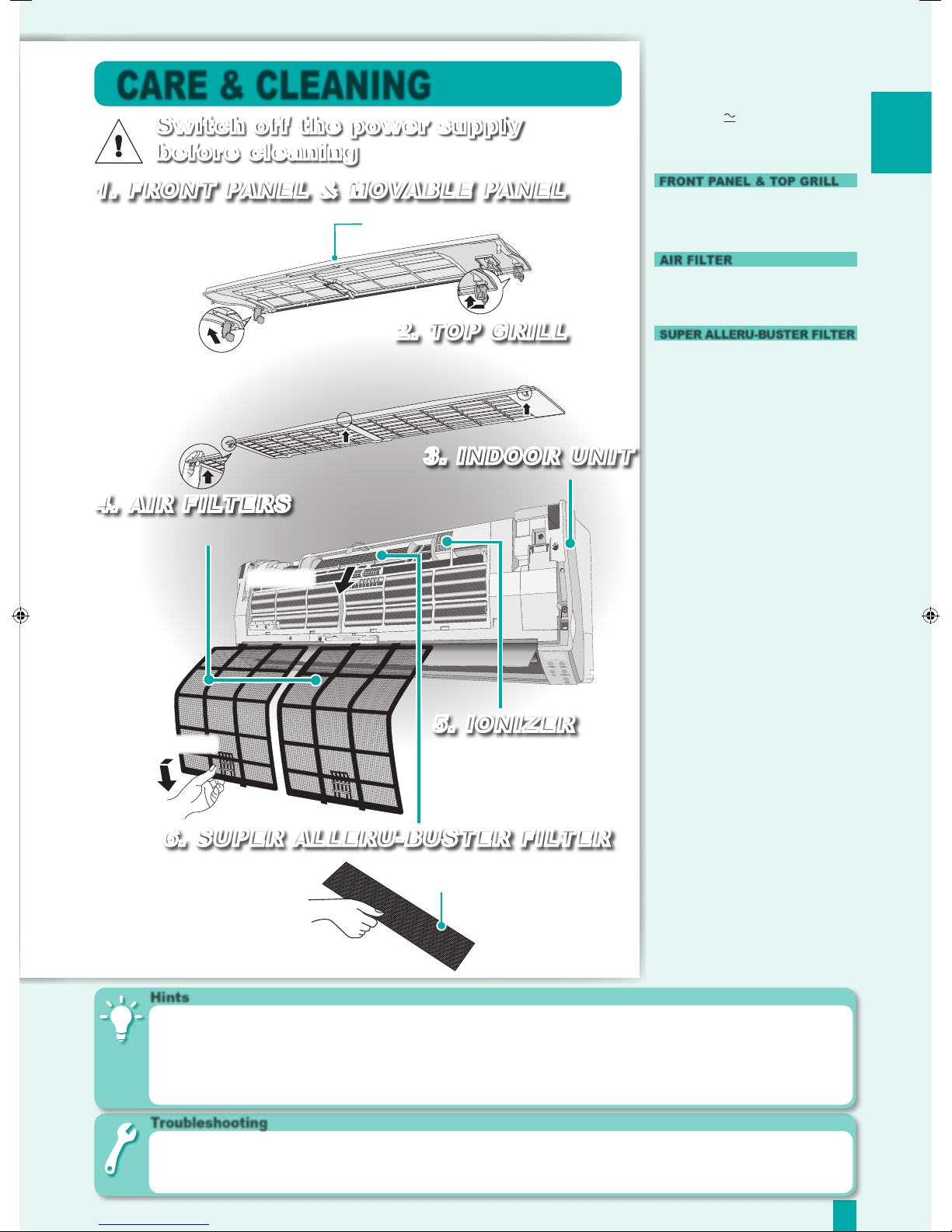

Switch off the power supply and unplug
before cleaning or servicing.
•
Turn off the power supply and unplug if
the unit is not used for a long period of
time.
Operation Precautions
Warning
ENGLISH
3
Oxygen indicator
Note: The illustrations in this manual are for explanation purposes only and may differ from the
actual unit. It is subjected to change without notice for future improvement.
PRODUCT OVERVIEW
Movable panel & Front panel
Indoor Unit
Outdoor Unit
OFF/ON
Temperature
setting
•
Make sure it is not obstructed.
• Maximum distance is 8m.
• Certain fluorescent lights may
interfere with signal transmission.
Consult your dealer
.
Remote Control Preparation
■ About
Remote Control Signal
• Timer operation will be based on
current time set.
•
The batteries can be used for
approximately 1 year.
• The batteries must be
disposed properly.
Remote Control
Auto OFF/ON Button
1. Pull out.
2.
Insert
batteries
(LR03).
3. Press CLOCK button.
4. Set
current
time.
5.
Press SET button to confirm.
Auto OFF/ON button
T
ransmitter
Oxygen Supply
(Service not
needed. Do not
open.)
Air filters
Airflow
Direction
Louver
Indicator
Receiver

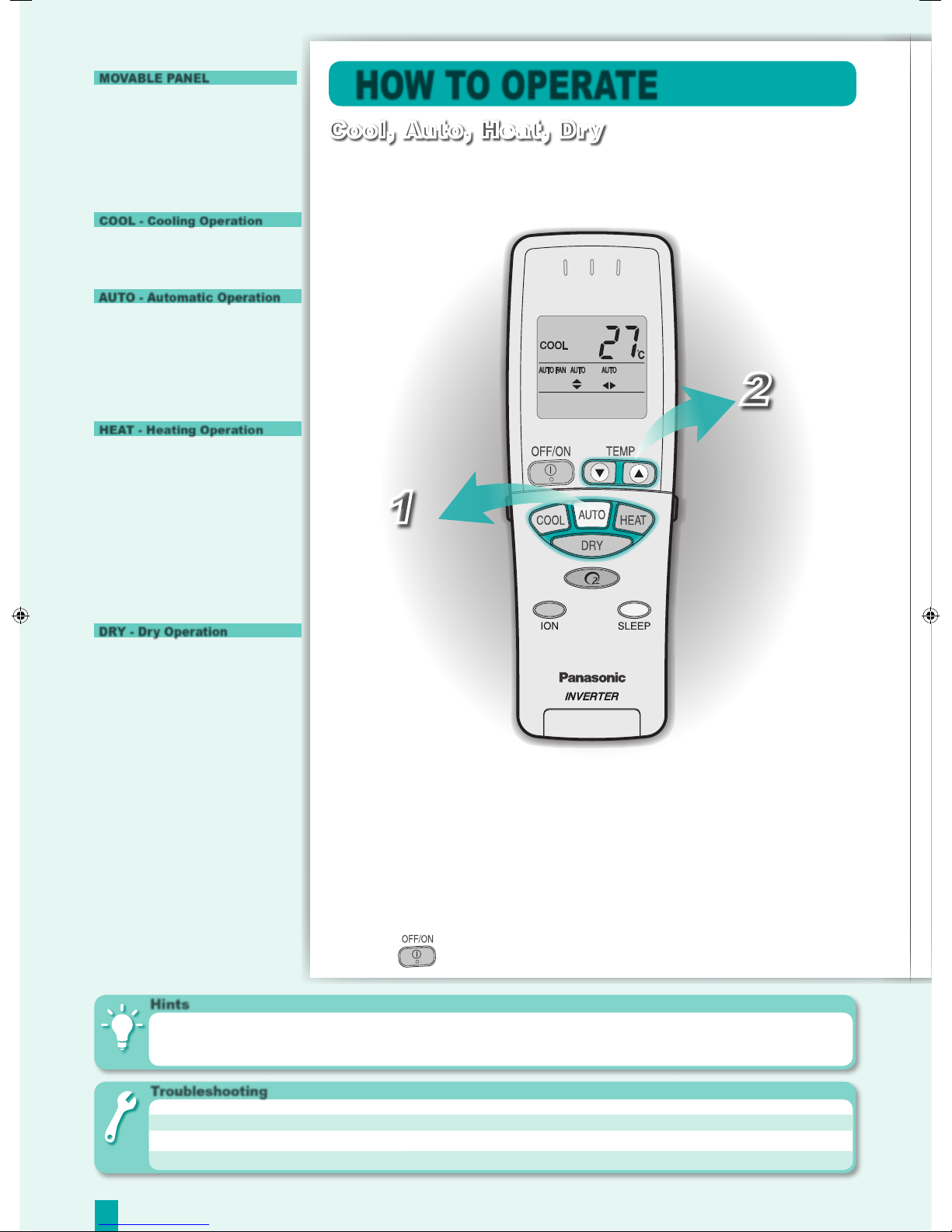

Cooling,
Auto,
Heating, Dry
mode

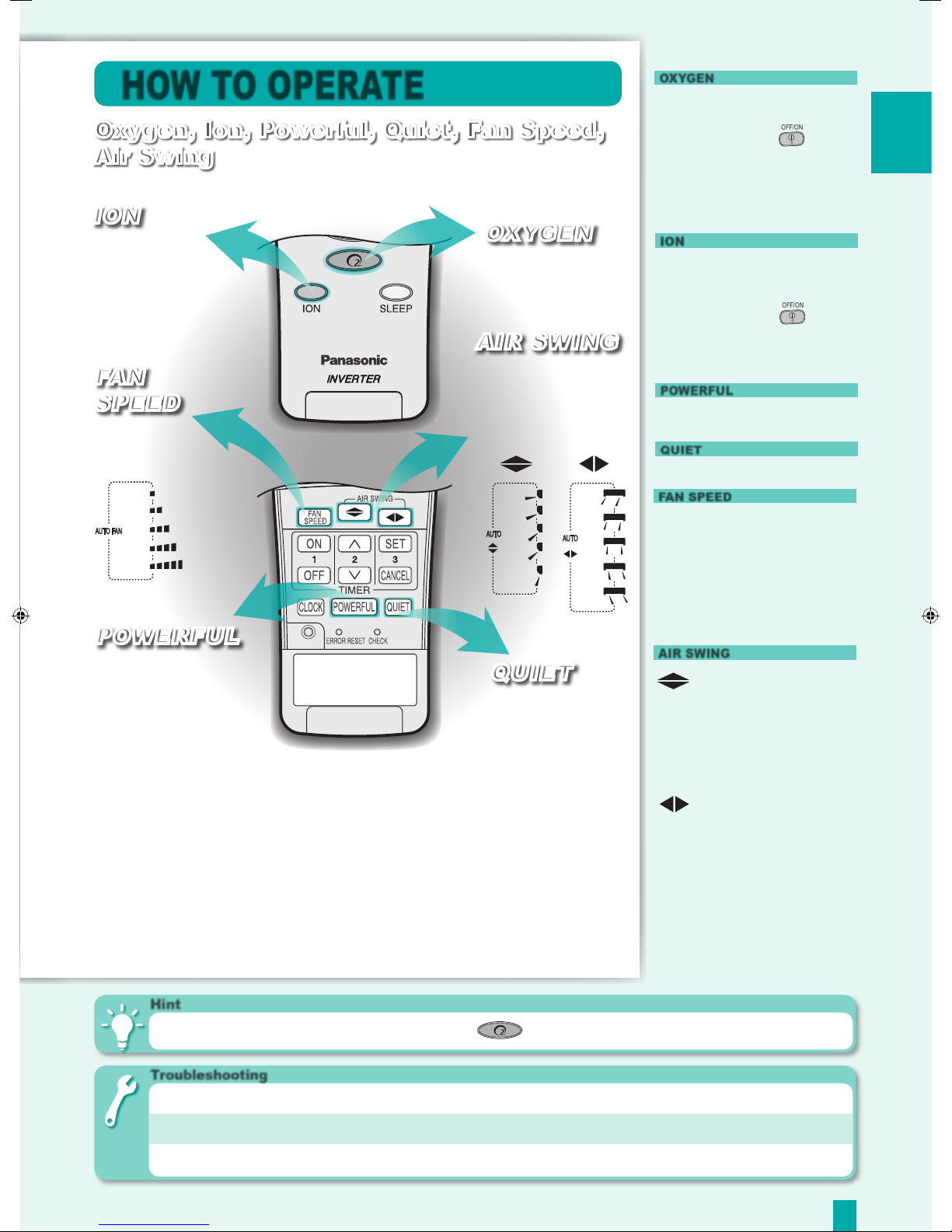

Oxygen
operation
Ion operation
Fan speed/Airfl
ow
direction selection
T
imer setting
Quiet
operation
Check
Clock
operation
Powerful operation
Error reset

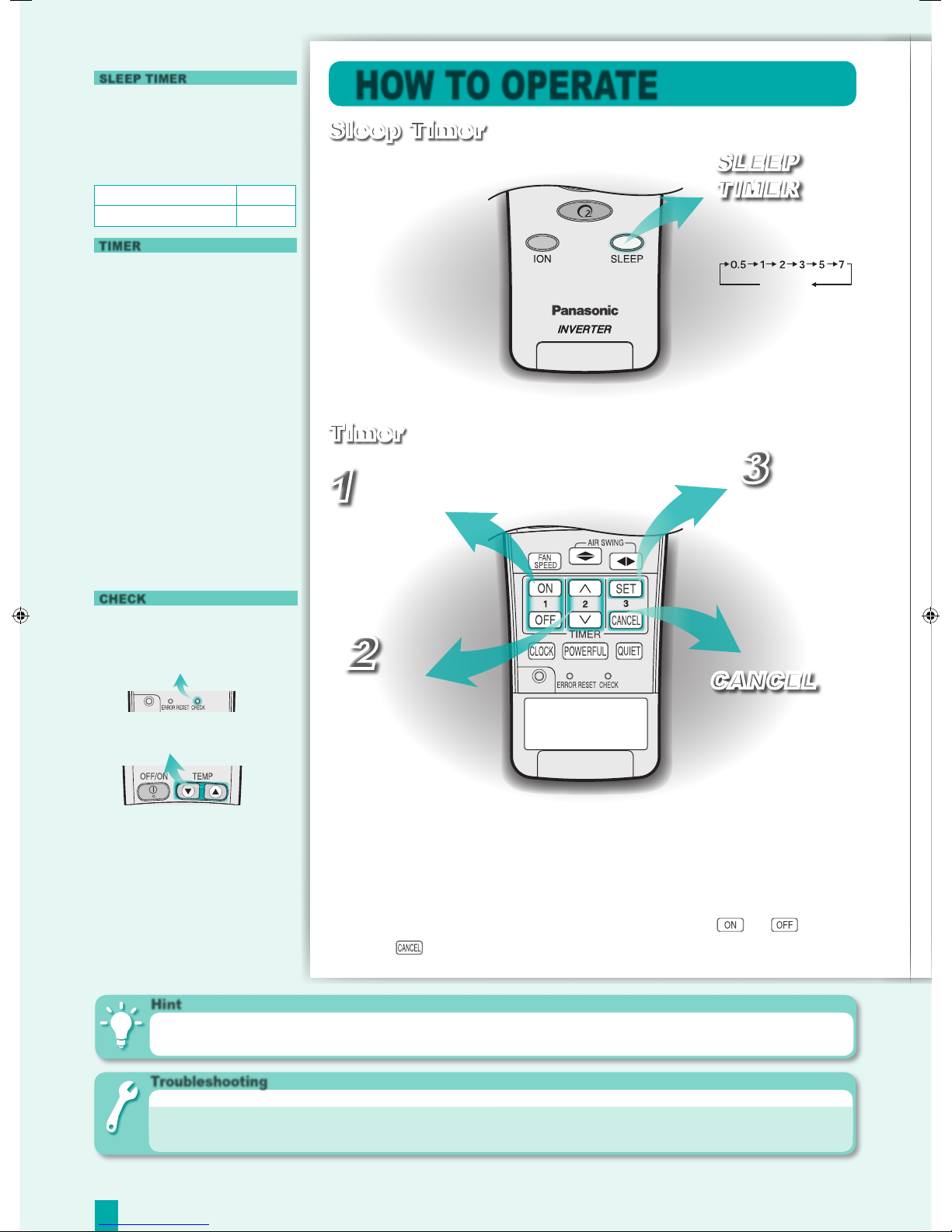

Sleep timer
LCD
display
Air inlet (rear)
Air outlet
Air inlet (side)
Troubleshooting
● Mist emerges from indoor unit.
➤ Condensation effect due to cooling process.
● Remote control/display does not work.
➤ Check whether batteries are correctly inserted or need replacement.
● The unit cannot operate.
➤ Check either circuit breaker is tripped, power plug is inserted correctly or
timer is used correctly
.
➤ Ensure “OFF” indicator does not shown on remote control.
● Outdoor unit emits water/steam.
➤ Condensation or evaporation happens at piping surface.
● If you wish to have the cool air blowing directly on you, set the airflow direction downward but not for an excessive length of time,
as it may harm your health.
● It is possible to dim the brightness of the indicators by pressing the button for 5 seconds. Repeat the process to return to
default brightness.
Hints
• To operate the unit if the remote
control is misplaced or
malfunctioning.
Action
Operation
mode
Press once.
Automatic
Operation
P
ress until “beep”
sound and release.
*Cooling
Operation
P
ress until “beep”
sound and release.
Press again until
“beep-beep” sound
and release.
*Heating
Operation
•
To OFF, press again the Auto OFF/
ON button.
*The usage of this button is not
recommended.
Do not
touch during
operation
Ionizer
Super alleru-buster
filter
