Page 1

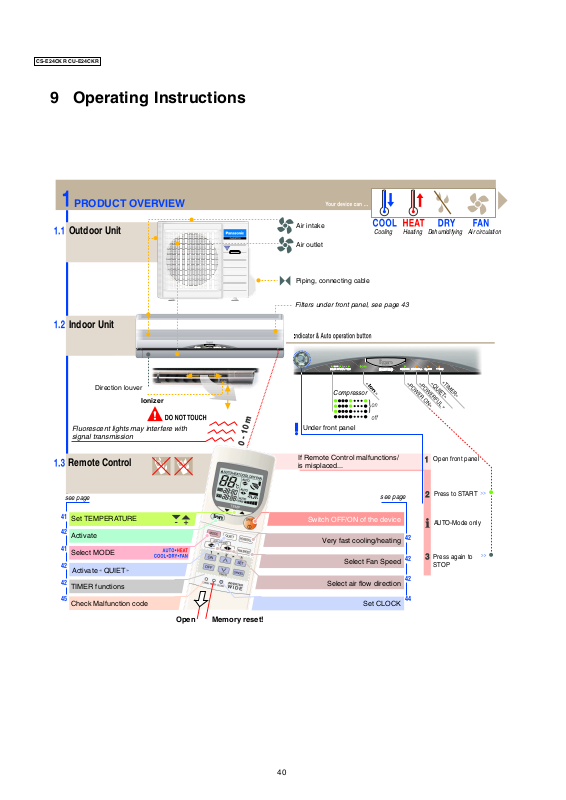

9 Operating Instructions

PRODUCT OVERVIEW

Outdoor Unit

Indoor Unit

Remote Control

Ioniz er

Direction louver

Fluorescent lights may interfere with signal transmission

see page

Set TEMPERATURE

Activate

Activate Q UIET

Select MODE

Check Malfunction code

TIMER functions

Memory reset!

Open

Select Fan Speed

Select air flow direction

Set CLOCK

V ery fast cooling/heating

Switch OFF/ON of the device

see page

If Remote Control malfunctions/ is misplaced...

Under front panel

Compressor

Open front panel

Press to START

AUTO-Mode only

Press again to STOP

Filters under front panel, see page 43

Air intake

Piping, connecting cab le

Air outlet

Cooling Heating Dehumidifying Air circulation

CS - E2 4 CK R CU- E2 4 CK R

Page 2

OPERATION

Switch off

Automatic

Switch on

Cooling

Dehumidifying

Air circulation

Heating

Choose the right temperature to be comfortably warm!

Based on the outdoor, indoor and setting temperature, the system automatically chooses.

Recommended:

Choose the right temperature to be comfortably cool!

Recommended:

Room temperatureRecommended:Very gentle cooling and

dehumidifying operation.

Fan operation, to circulate air in the room.

Select...

Set temperature

automatic during dehumidifying (DRY)

Additional comfort

Automatic Internal Function

Press button

CS-E24CKR CU-E24CKR

Page 3

Select automatic / manual

Direction / volume

Air Flow

POWERFUL

Q UIET Operation

TIMER Operation

Press button

Vertical direction

Horiz ontal direction

Fan speed (air volume)

OFF

ON & OFF

Timer

Set time

Set time Confirm

cancel

Confirm

Timer

Active every day

Start before ˙ON¨ time For your comfort

Current time OK? —> Setting : page 44

Provide quiet operation

Air flow sound

Air flow sound will reduce during operation

Activate / Deactivate

Produce negative ion for fresh air

Air-conditioner

Fast cooling/heating

Automatic Internal Function

Set temperature

Select

CS-E24CKR CU-E24CKR

Page 4

Indoor Unit

Front Panel

Purifying filters

Air filters

Catechin Triple Deodorizing Filter

every 2 weeks

every 6 months

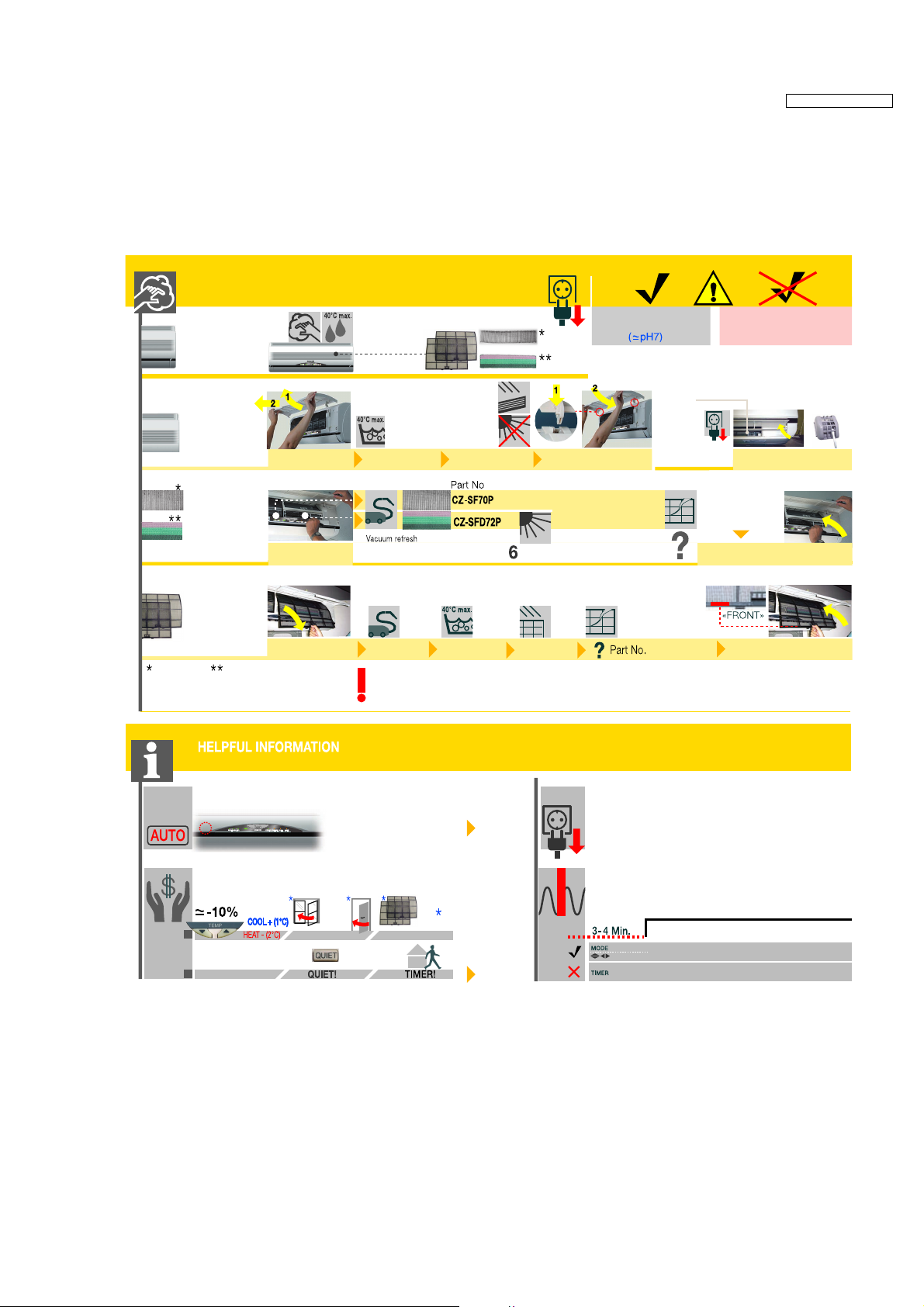

CARE & CLEANING

Wipe gently

Filter cleaning see below

Filters

Benzine / Thinner Scouring

powder

Soaps Neutral household

detergents

Ionizer

Open manually

Clean with cotton bud

ReinstallRemove

every 6 months

Wash gently.. + dry

hrs

REPLACE every 3 years!

Expose to direct sunlight

Damaged –> replace!

Reinstall

CWD 001049

Remove

Vacuum Wash Dry

DIRTY FILTERS cause: unpurified air, low cooling/heating capacity, more unpleasant smells, higher energy consumption!

Built-in surge protection, BUT UNPLUG in case of very strong lightning!

When power resume

Thunder / Lightning

Power Failure

Restored

Deleted –> set again!

Random restart automatically

see page 40

see page 44

Better performance!

If remote control malfunctions / is misplaced

Save cost

Automatic Operation

Use...

Vacuum

CS-E24CKR CU-E24CKR

Page 5

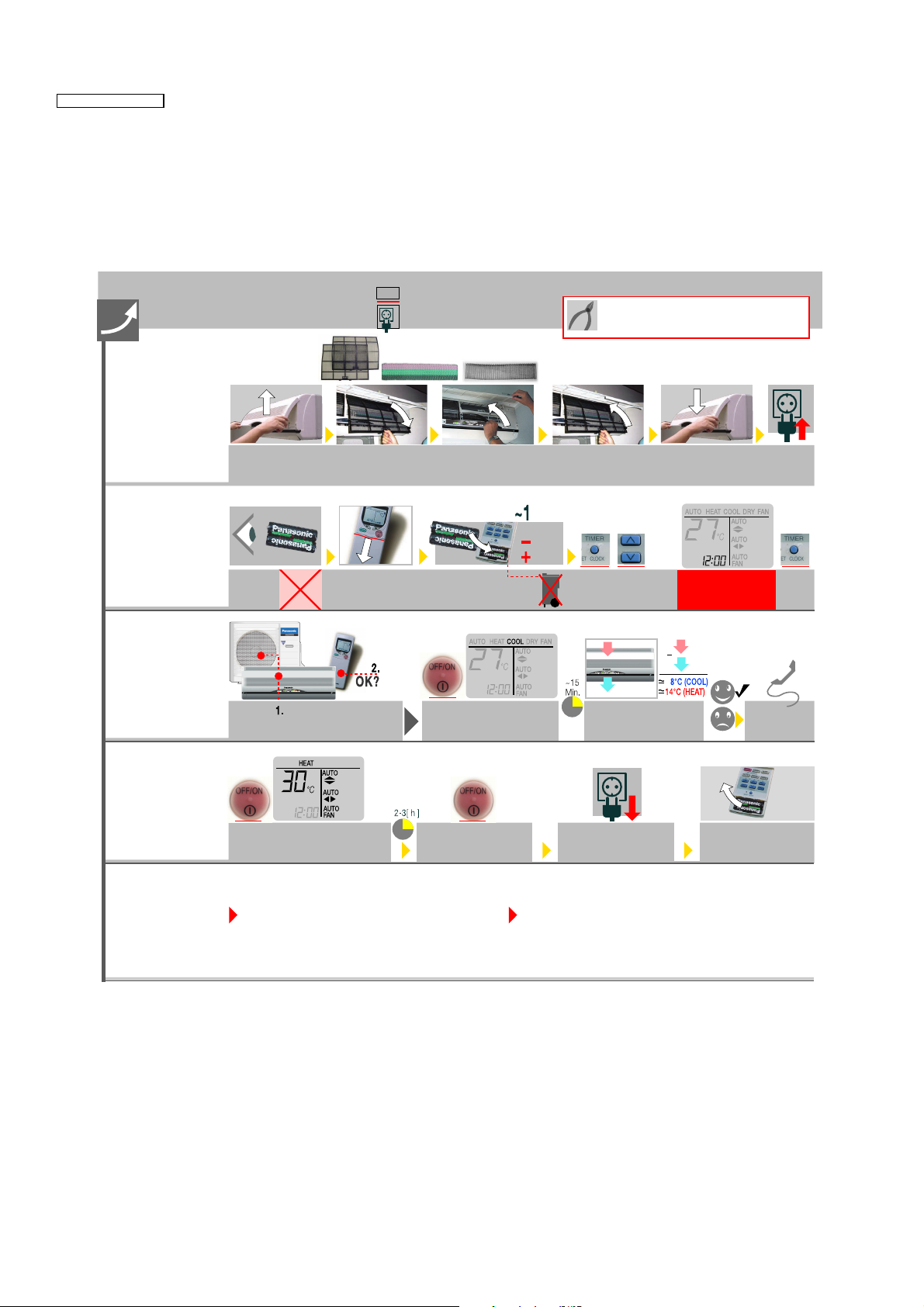

PREPARATIONS

refer page 43

Press button

Plug/breaker

Installation: see enclosed installation instruction!

Indoor Unit

Pre-season inspection

Insert batteries Set Clock

For extended non-operation

Recommended Inspections

Consult an authorized distributor for inspection!

After several seasons and due to operational conditions, performance may be reduced by dust or there may be unpleasant smells.

START dry internal parts OFF Remove batteriesUnplug

check

Fans obstructed?

START cooling/heating Check performance Call Service

Batteries

Confirm

Press

Insert batteries / close

Open / remove Set time

Set current time immediately

Rechargeable

Same type!

Use

Year

check

OPEN front panel Plug inCLOSE front PanelPlace AIR filtersPlace PURIFYING

filters

Remove AIR filters

CS-E24CKR CU-E24CKR

Page 6

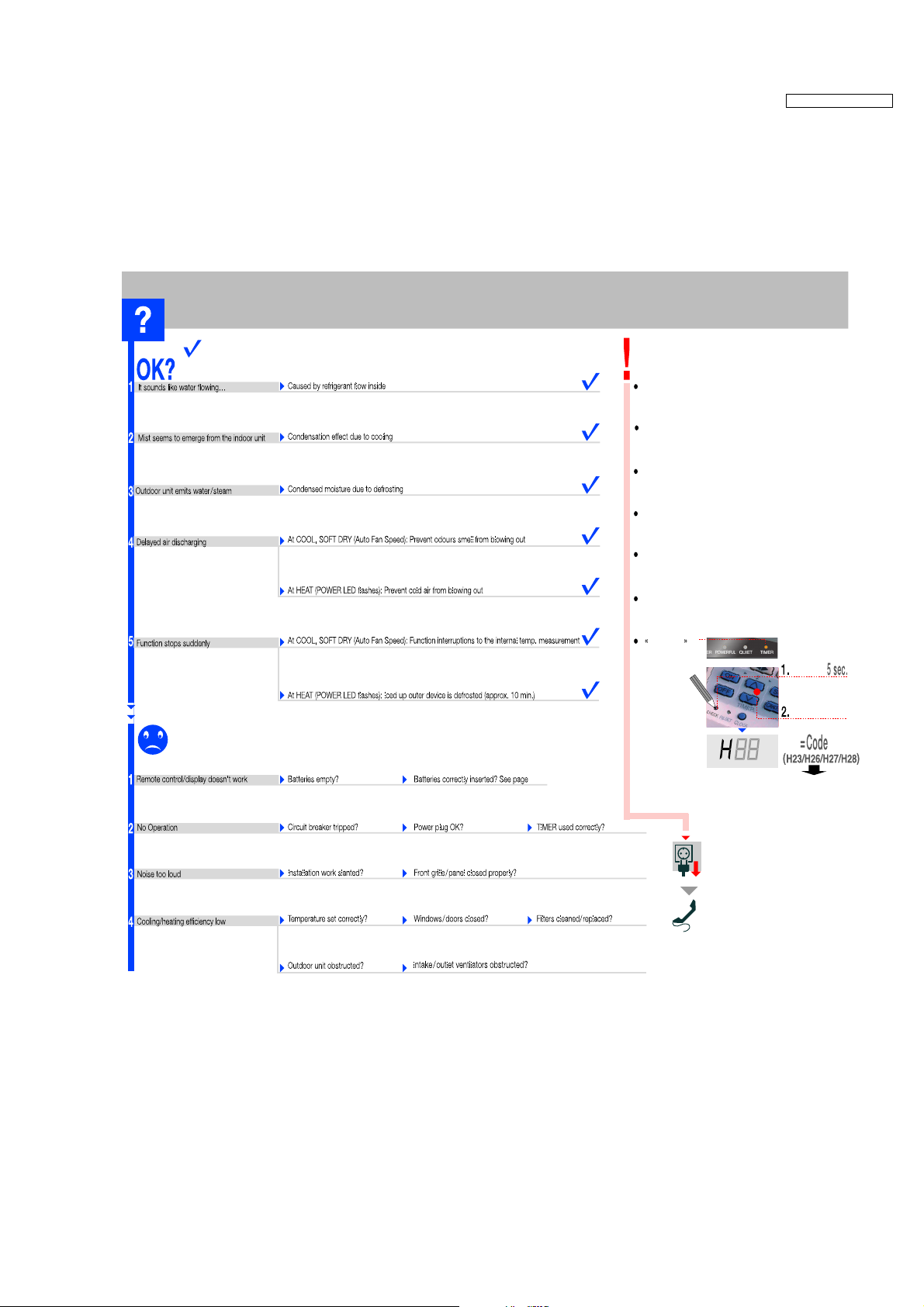

TROUBLESHOOTING

No problem

Abnormal noise during operation

Power plug / cord become unnaturally warm

press

search code

if 4x beep

* Emergency operation

(limited function)

* 1. Press MODE - 2. Select COOL/HEAT - 3. Press OFF/ON

TIMER flashes

Circuit breaker switches off frequently

Switches / buttons do not operate properly

Water leak from Indoor Unit

Water / foreign particles have entered the Remote Control

In case of...

CALL authorized distributor

TURN OFF/UNPLUG

CS-E24CKR CU-E24CKR

Page 7

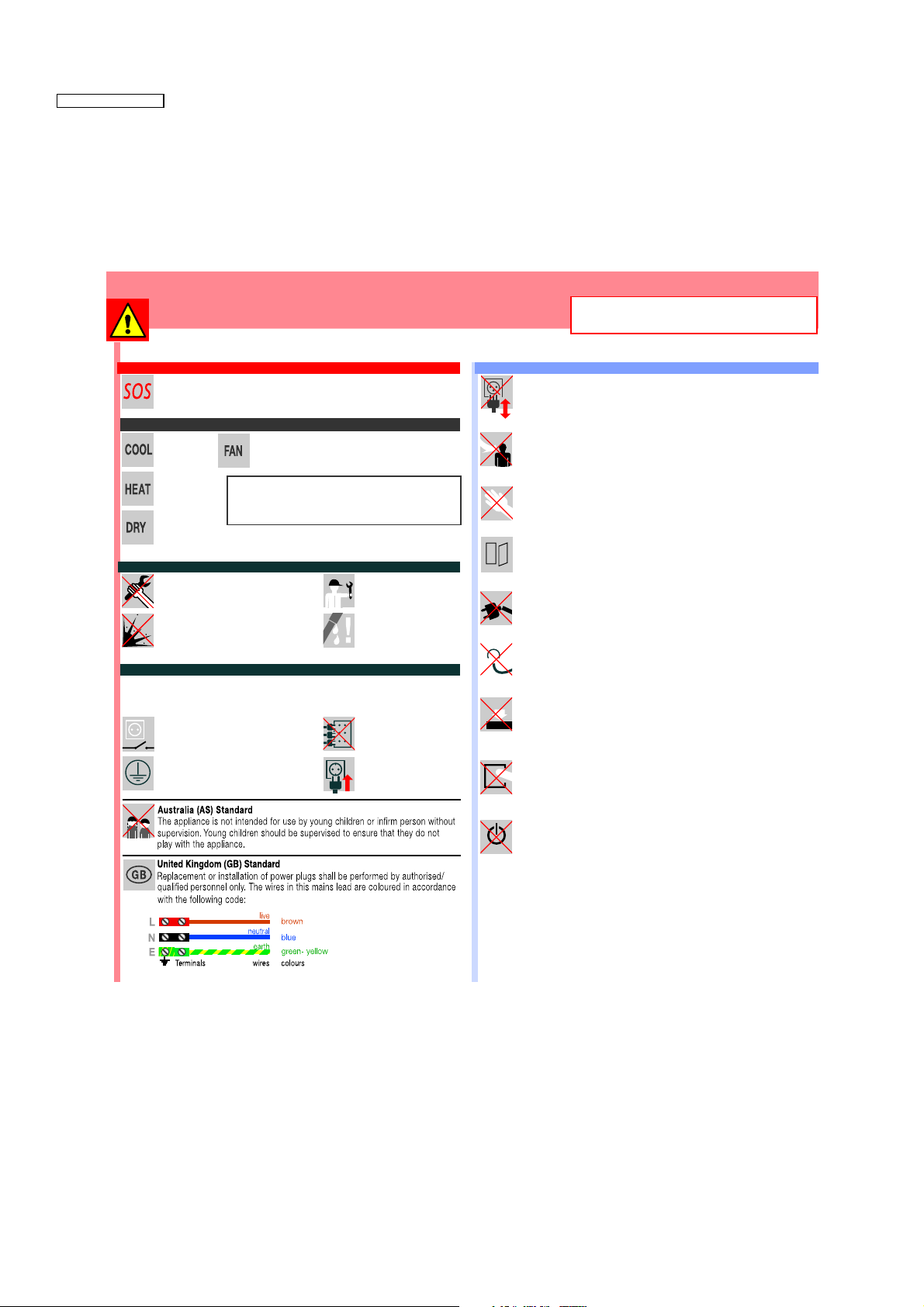

SAFETY PRECAUTIONS

Immediately isolate from the mains supply (e.g. if there is a smell of burning)

Cooling Air circulation

Dehumidifying

Heating

NEVER use this unit for purposes other than those listed in these Operating Instructions. In particular, do not use it for the preservation of food.

NEVER install, remove or reinstall yourself

NOT in potentially explosive atmosphere

Engage dealer / specialist

Connect drain hose properly

Engage dealer / specialist for mains connection including...

NEVER shared

Used connectors / breakers easy reachable!

Plug in properly

Connect protective earth!

Do NOT operate with wet hands

Do NOT stay long in the stream of cold air

NEVER use the plug to switch on/off

Ventilate the room periodically

Do NOT pull out the plug by the cable

Place nothing on the unit --> covered openings may cause overheating

Do NOT insert finger or other objects into the unit! --> especi

dangerous for children!

Unused for a long time? --> OFF / unplug

If the supply cord is damaged or needed to be replaced, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

NEVER modify / damage mains cables / connectors

EMERGENCY!

Use only for...

Installation

Mains connection

Operation

Before operating, read the safety precautions thoroughly

CS-E24CKR CU-E24CKR

Page 8

43 / 44

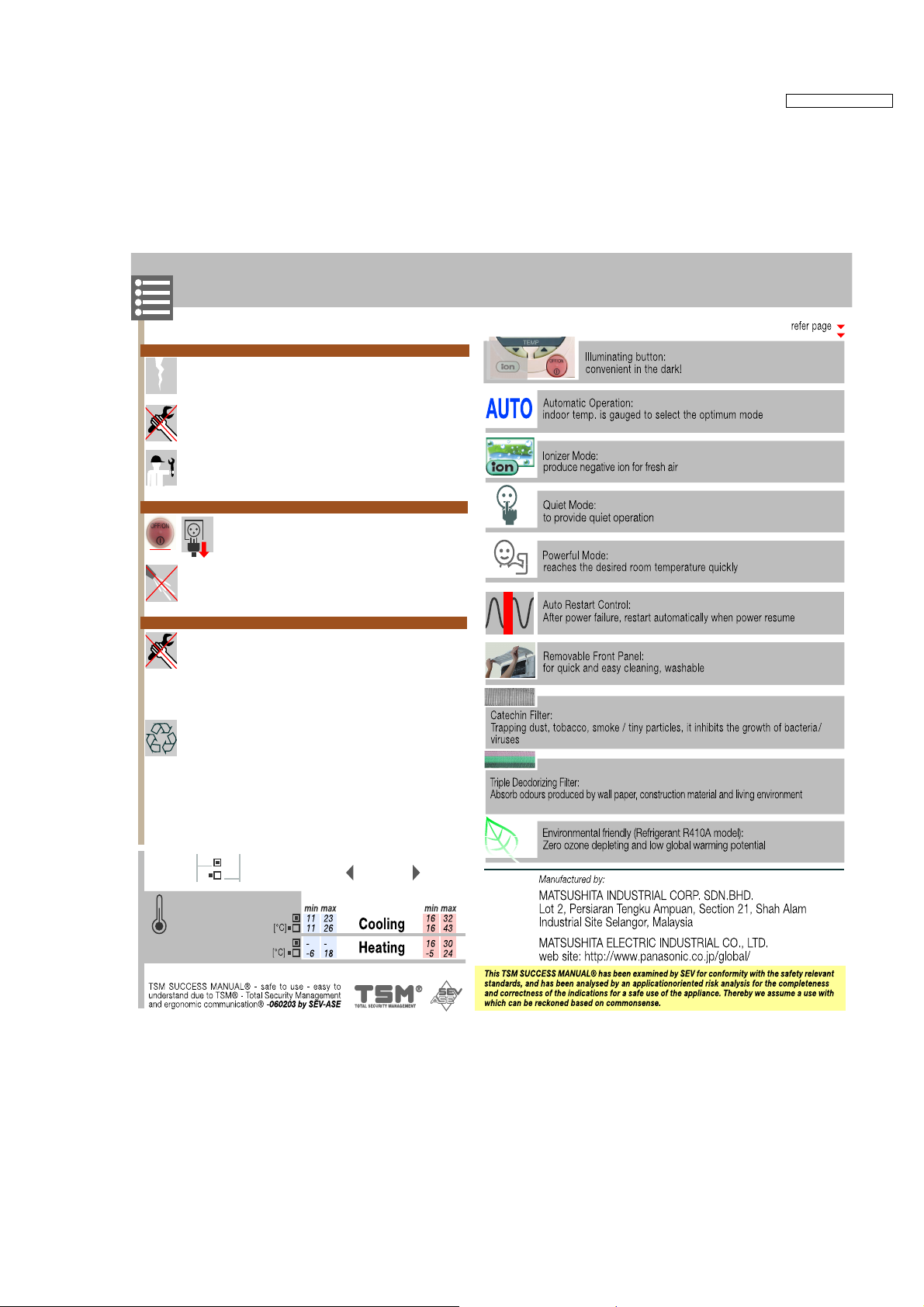

SAFETY PRECAUTIONS & FEATURES

Defect / suspicion of defect? —> Attend defects before use!

Do NOT repair yourself

Engage dealer / specialist

Defects

OFF and unplug (connector or breaker)

Do NOT wash!

Cleaning

Uninstalling and disposal of the unit ONLY by dealer / specialist

Packaging recyclable

Waste disposal

Indoor Unit

Outdoor Unit

TemperatureWet Bulb Dry Bulb

Operational Condition

CS-E24CKR CU-E24CKR

Page 9

10 Installation And Servicing Air Conditioner Using R410A

10.1. OUTLINE

10.1.1. About R410A Refrigerant

1. Converting air conditioners to R410A Since it was declared in19 74 that chlorofluorocarbons (CFC), hydro chlorofluorocarbons (HCFC) and other substances pose a destructive danger to the ozone layer in the earth´s upper stratosphere (20 to 40 km above the earth), measures have been taken around the world to prevent this destruction. The R22 refrigerant which has conventionally been used in ACs is an HCFC refrigerant and, therefore, possesses this ozonedestroying potential. International regulations (the Montreal Protocol on Ozone-Damaging Substances) and the domestic laws of various countries call for the early substitution of R22 by a refrigerant which will not harm the ozone layer.

•

In ACs, the HFC refrigerant which has become the mainstream alternative is called R410A .Compared with R22, the pressure of R410A is approximately 1.6 times as high at the same refrigerant temperature, but the energy efficiency is about the same. Consisting of hydrogen (H), fluorine (F) and carbon (C), R410A is an HFC refrigerant. Another typical HFC refrigerant is R407C. While the energy efficiency of R407C is somewhat inferior to that of R410A, it offers the advantage of having pressure characteristics which are about the same as those of R22, and is used mainly in packaged ACs.

2. The characteristics of HFC (R410A) refrigerants

a. Chemical characteristics

The chemical characteristics of R410A are similar to those of R22 in that both are chemically stable, non-flammable refrigerants with low toxicity. However, just like R22, the specific gravity of R410A gas is heavier than that of air. Because of this, it can cause an oxygen deficiency if it leaks into a closed room since it collects in the lower area of the room. It also generates toxic gas when it is directly exposed to a flame, so it must be used in a well ventilated environment where it will not collect.

Table 1 Physical comparison of R410A and R22

R410A R22 Composition (wt% ) R32/R125 (50/50) R22 (100) Boiling point (°C) -51.4 -40.8 Vaporizing pressure (25°C) 1.56 Mpa (15.9 kgf/cm2) 0.9 4 Mpa (9 .6 kgf/cm2) Saturated vapor density 64.0 kg/m

44.4 kg/m

Flammability Non-flammable Non-flammable Ozone-destroying point (ODP) 0 0.055 Global-warming point (GWP) 1730 1700

b. Compositional change (pseudo-azeotropic characteristics)

R410A is a pseudo-azeotropic mixture comprising the two components R32 and R125. Multi-component refrigerants with these chemical characteristics exhibit little compositional change even from phase changes due to vaporization (or condensation), which means that there is little change in the circulating refrigerant composition even when the refrigerant leaks from the gaseous section of the piping. Accordingly, R410A can be handle d in almost the same manner as the single-component refrigerant R22. However, when charging, because there is a slight change in composition between the gas phase and the liquid phase inside a cylinder or other container, charging should basically begin with the liquid side.

c. Pressure characteristics

As seen in Table 2, the gas pressure of R410A is approximately 1.6 times as high as that of R22 at the same refrigerant temperature, which means that special R410A tools and materials with high-pressure specifications must be used for all refrigerant piping work and servicing.

Table 2 Comparison of R410A and R22 saturated vapor density

Unit: MPa

Refrigerant Temperature (°C) R410A R22

-20 0.30 0.14 0 0.70 0.40

20 1.35 0.8 1 40 2.32 1.43 60 3.73 2.33 65 4.15 2.60
