■ Important notice
To prevent personal injury, injury to others and property damage, the following instructions must be followed.
Incorrect operation due to failure to follow instructions will cause harm or damage, the seriousness of which is classified as below:
Thank you for purchasing a Panasonic Air Conditioner
SAFETY PRECAUTIONS
Installation Precautions
Warning
Do not install, remove or reinstall the unit by yourself.
•Improper installation will cause leakage, electric shock or fire. Please consult an authorized dealer or specialist for the installation work.
Warning
This sign warns of death or serious injury.
Caution
This sign warns of injury or damage to property.
The instructions to be followed are classified by the following symbols:
This symbol denotes an action that is PROHIBITED.
These symbols denote actions that are COMPULSORY.
Caution
•This air conditioner must be grounded. Improper grounding will cause electric shock.
•Ensure that the drainage piping is connected properly. Otherwise, water will leak.
•Current leakage protection equipment must be installed. Otherwise, electric shock or fire may occur.
•Do not install the unit in a potentially explosive environment.
Operation Precautions
•Do not share power outlet.
•Do not modify power cord.
•Do not use an extension cord.
•Do not operate with wet hands.
•Do not insert fingers or other objects into the indoor or outdoor unit.
•Do not attempt to repair the unit by yourself.
•Do not use rechargeable (Ni-Cd) batteries.
•Keep the remote control away from infants and small children to prevent them from accidentally swallowing the batteries.
•Do not wash the unit with water, benzene, thinner or scouring powder.
•Do not use for other purposes such as preservation of food.
•Do not store or use any combustible equipment in the airflow direction.
•Do not sit on or place anything on the indoor or outdoor unit.
•Do not expose directly to cold air for a long period.
Warning
•Use specified supply cord.
•If the supply cord is damaged or needs replacement, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
•Remove the batteries if the unit is not going to be used for a long period of time.
•New batteries of the same type must be inserted following the polarity stated to prevent malfunction of the remote control.
•In case of emergency or if an abnormal
condition (burnt smell, etc) occurs, turn off the power supply.
Caution
•Ventilate the room regularly.
•Pay attention as to whether the installation rack is damaged after a long period of usage.
•Switch off the power supply before
cleaning or servicing.
• Turn off the power supply if the unit is not going to be used for a long period of time.
Safety Regulation
The appliance is not intended for use by young children or infirm people without supervision. Young children should be supervised to ensure that they do not play with the appliance.
Power Supply |
|
|
|
|
|
Time Delay Fuse |
|
Rated Volts |
15 Amps |
|
|
CS-C18DKU/CU-C18DKU |
|
208/230V |
25 Amps |
|
|
|
|
|
CS-C24DKU/CU-C24DKU |
|
|
Operation Condition (°F)
Use this air conditioner under the following temperature range.
DBT: Dry Bulb Temperature |
Indoor |
|
Outdoor |
||
WBT: Wet Bulb Temperature |
DBT |
|
WBT |
DBT |
WBT |
Maximum Temperature |
89.6 |
|
73.4 |
109.4 |
78.8 |
|
|
|
|
|
|
Minimum Temperature |
60.8 |
|
51.8 |
60.8 |
51.8 |
|
|
|
|
|
|

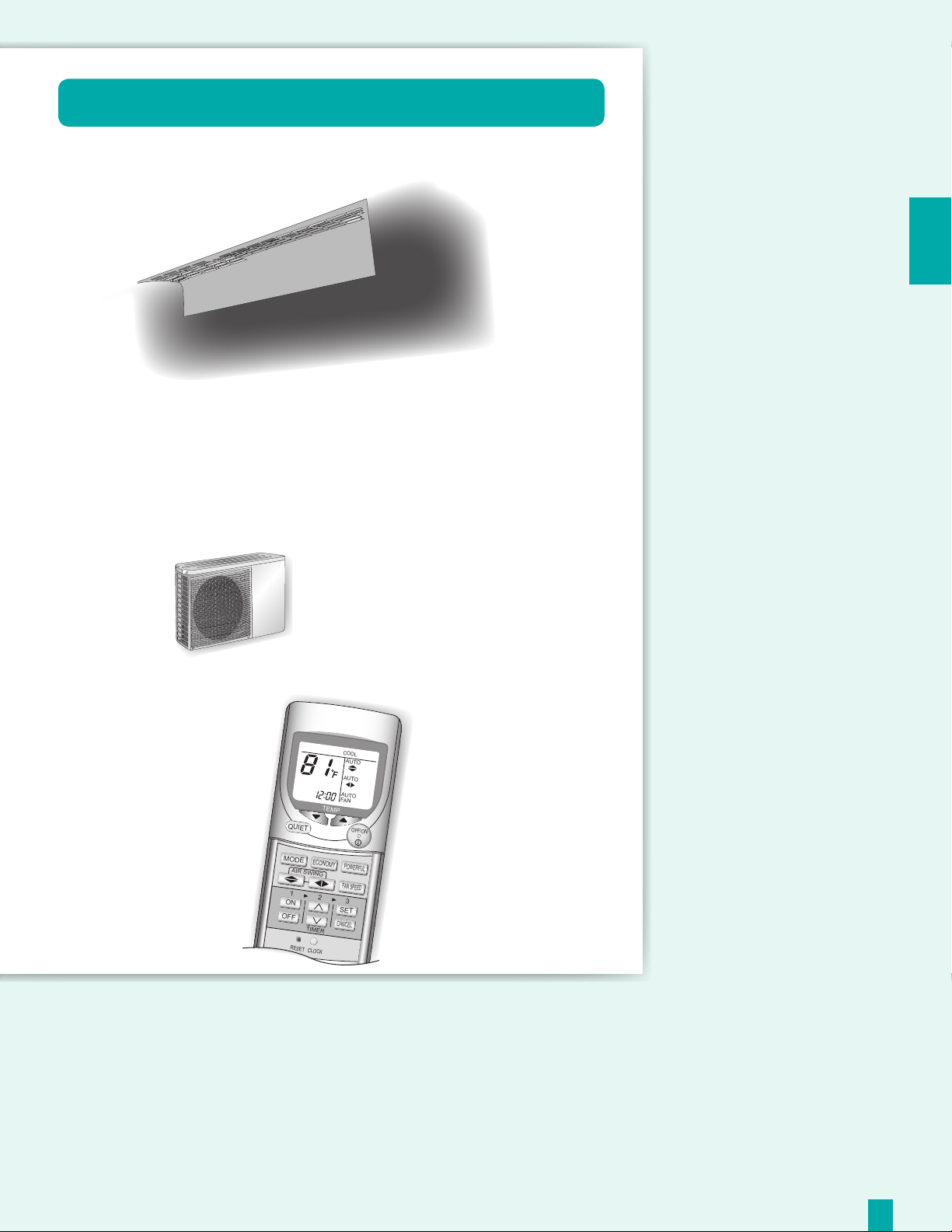

2
ENGLISH
3
COOL
AUTO
AUTO
AUTO
FAN
TEMP
QUIET
ECONOMY POWERFUL
AIR SWING
FANSPEED
1
2
3
ON SET
OFF
CANCEL
TIMER
RESET CLOCK
4

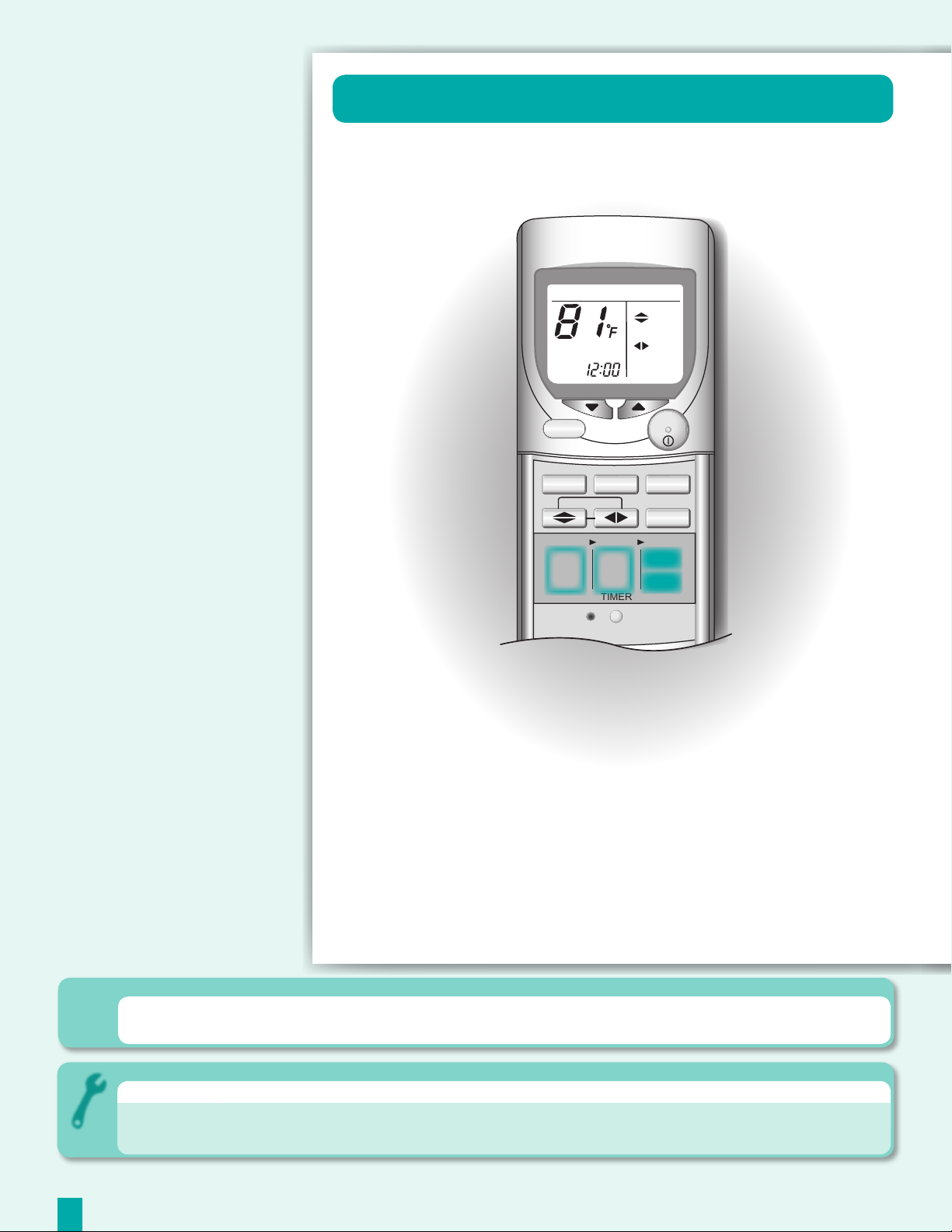

HOW TO OPERATE
Powerful, Quiet, Economy, Fan Speed,
Air Swing
|
QUIET |
|
|
|
ECONOMY |
|
|
|
|
Enables |
|
|
Enables |
|
|
|
|
|
|
|
|
economy |
|
|
quiet |
|
|
|
|
|
|
|
|
operation. |
|
|
operation. |
|
COOL |
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
AUTO |
|
|
|
|
|
AUTO |
POWERFUL |
|
|
|
|
AUTO |
||
|
|
|
FAN |
|
Enables |
|
|
|
TEMP |
|
|
|
|
QUIET |
|
OFF/ON |
powerful |
|
|
|
|
operation. |
|
|
|
|
|
|
|
|
|
MODE |
ECONOMY |
POWERFUL |
|
AIR SWING |
|
|
FANSPEED |
|
|
1 |
2 |
3 |
|
||
Adjust the |
ON |
|
SET |
|
|
vertical or |
OFF |
|
CANCEL |
|
|
|
|
|
|
||
horizontal airflow |
|
TIMER |
|
FAN SPEED |
|
|
|
|
|||
direction louver. |
RESET CLOCK |
|
Select fan speed. |
||
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
AUTO |
AUTO |
|
|
|
|
ENGLISH
●Powerful, Quiet or Economy operations cannot be activated at the same time.
●Powerful, Quiet or Economy operations can be cancelled by pressing the respective button again.
Hints
●If you wish to have the cool air blowing directly on you, set the airflow direction downward but not for an excessive length of time, as it may harm your health.
●Electricity use can be reduced by approximately 10% if you set the temperature 1°F higher than the desired temperature during cooling operation.

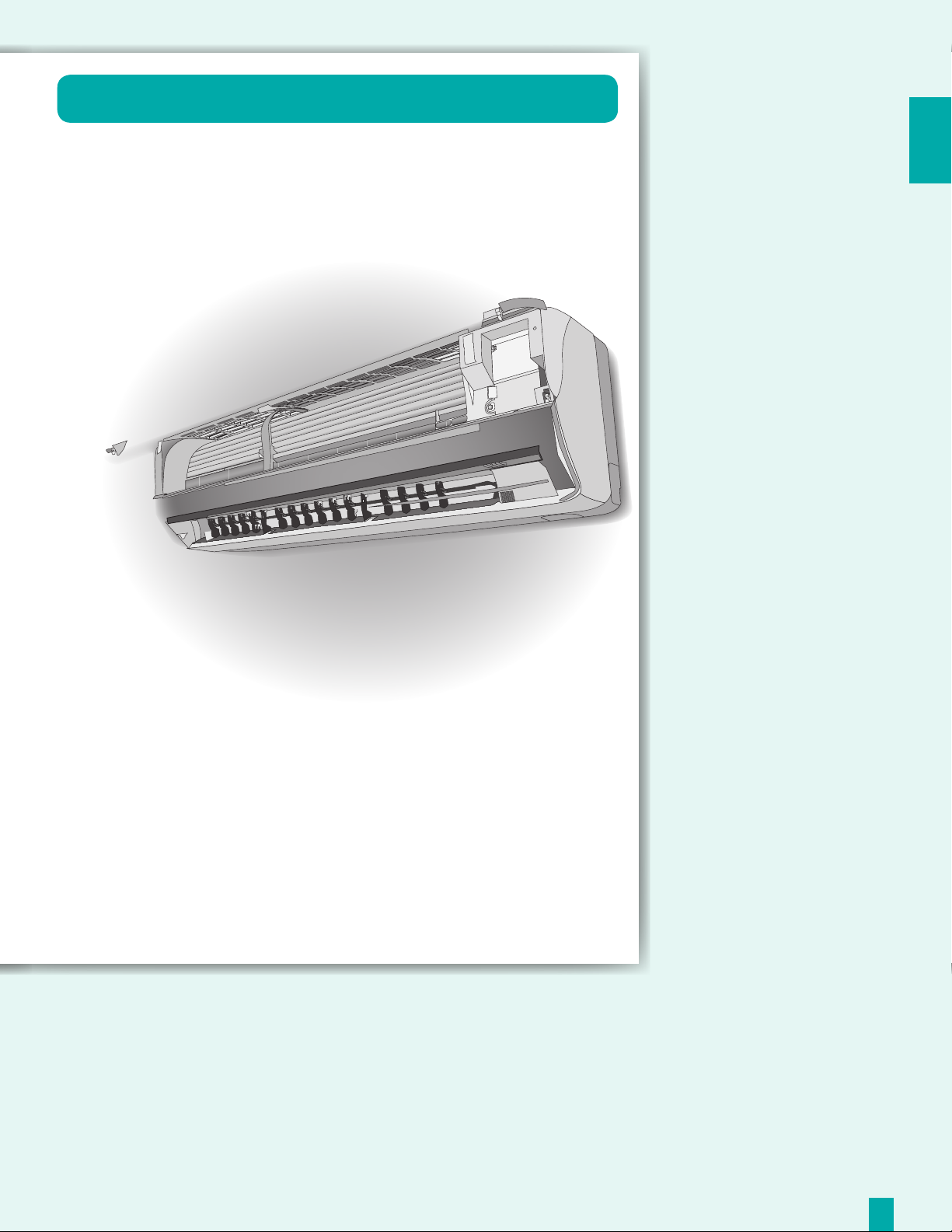

Troubleshooting
● Indoor fan stops occasionally during Automatic Fan |
This is an advanced feature that helps to remove smell from the |
Speed setting. |
surrounding area during operation. |
5
