Panasonic CT-32G6E User Manual

Color Television Operating Instructions

CT-27G6 CT-27G6U CT-29G6X CT-32G6 CT-32G6U

CT-G2939 CT-G2949L CT-G3339 CT-G3339X CT-G3349L

For assistance, please call: 1-800-211-PANA (7262) or send e-mail to: consumerproducts@panasonic.com (For USA only)

PRINTED IN USA TQB2AA0375-1 10131

ABLE OF CONTENTS

Ta ble of Cont ents

Feature Comparison Chart ................................. 3

Congratulations...................................................4

Customer Record ..... ....... ...... ....... ...... ....... ...... ... 4

Care and Cleaning.............................................4

Specifications.....................................................4

Remote Control..................................................4

Installation............................................................5

Television Location............................................ 5

Optional Cable Connections..............................5

AC Power Supply Cord...................................... 5

Cable / Antenna.................................................6

Cable Connection.............................................. 6

Antenna Connection ..........................................6

Optional Equipment Connections ......................6

Amplifier Connection (To Audio Amp) ...............7

Main Menu............................................................ 8

ACTION Button..................................................8

CH / VOL Buttons ..............................................8

Main Menu Feature Chart....................................9

Special Features............................ ...... ..............11

Languages...................... ...... ....... ...... ....... ...... . 11

Timer........... ....... ...... ....... ...... ....... ...... ....... .......11

Sleep Timer .....................................................11

Program Timer.................................................11

CH CAP (Channel Caption)............................. 12

LOCK...............................................................13

Lock Mode (Lock and Unlock)......................... 13

Troubleshooting Chart......................................14

Safety Instructions

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARN ING: To reduce the risk of electric shock do not remove cover or back.

No user-serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with arrow head within a triangle is intended to tell the user that parts inside the product are a risk of electric shock to persons.

WARNING: To prevent fire or shock hazard, do not expose this appliance to rain or moisture. Read these instructions completely before operating TV.

Contents are subject to change without notice or obligation.

The exclamation point within a triangle is intended to tell the user that important operating and servicing instructions are in the papers with the appliance.

EATURE COMPARISON CHART

Feature Comparison Chart

MODELS

CT-27G6

CT-27G6U

FEATURES

CT-32G6

CT-32G6U

FEATURES

AUDIO SPECIAL

A/V

JACKS

MENU LANGUAGE

ENG/SP AN/FR

CLOSED CAPTIONING

V-CHIP CAPABILITY

75 OHM INPUT

VIDEO NORM

STEREO

AI SOUND

NUMBER OF SPEAKERS 2 2

A/V IN

(REAR/FRONT)

S-VHS INPUT

HEADPHONE JACK

r r

(1/1)1 (1/0)

r r

IMPORTANT INFORMATION REGARDING USE OF VIDEO GAMES, COMPUTERS, DSS OR OTHER FIXED IMAGE DISPLAYS.

The extended use of fixed image program material can cause a permanent “shadow image” on the picture tube. This background image is viewable on normal programs in the form of a stationary fixed image. This type of irreversible picture tube deterioration can be limited by observing the following steps:

A. Reduce the brightness/contrast setting to a minimum viewing level. B. Do not display the fixed image for extended periods of time. C. Turn the power off when not in actual use.

Note: The marking or retained image on the picture tube resulting from fixed image use is not

an operating defect and as such is not covered by Warranty. This product is not designed to display fixed image patterns for extended periods of time.

ONGRATULATIONS

Congratulations

Your new TV features a solid state chassis that is designed to give you many years of enjoyment. It was thoroughly tested and tuned at the factory for best performance.

Customer Record

The model and serial number of this product are located on the back of the TV . You should note the model and serial number in the space provided and retain as a permanent record of your purchase. This will aid in identification in the event of theft or loss. Product registration is available for U.S. customers at:

Care and Cleaning

Screen (Turn TV Off)

Note: Do not spray any type of cleaning fluid directly on the screen.

Cabinet and Remote Control

www.prodreg.com/panasonic

Model Number

Serial Number

• Use a mild soap solution or window cleaner with a soft clean cloth. DO NOT USE ABRASIVE CLEANERS.

• Avoid excessive moisture and wipe dry.

• Use a soft cloth dampened with water or a mild detergent solution. Do not use benzene, thinner, or other petroleum based cleaners.

• Avoid excessive moisture and wipe dry.

Specifications

Power Source

Channel Capability - 181 VHF-12; UHF-56; Cable-113

S-Video Input Jacks S-Video (Y -C) Connector

Remote Control

CT-27G6/U (1.8A) CT-32G6/U (1.9A)

Video Input Jacks Audio Input Jacks 500mV RMS 47K Ohm

Specifications are subject to change without notice or obligation.

The Remote Control Quick Reference Guide is located within the package provided with this TV.

120V AC, 60Hz

, 75 Ohm, Phono Jack Type

p-p

Installation

Television Location

This unit is intended to be used with an optional stand or entertainment center. Consult your dealer for available options.

r r

CAUTION: Use this television receiver only with

the cart, stan d, tripod, bra cket, or table sp ecified by the manufacturer, or sold with the apparatus. Wh en a cart is used, use caution when moving the cart/ apparatus co mbination to avoid in jury from tip-over. In order to avoid injury to children, never place your television receiver on a piec e of furniture th at is capable of be ing tilted by a child leaning on it, pulling on it, standing on it, or climbing on it.

CT-32G6:

CAUTION:

32G22M stand. Use with other carts (or stands) is capable of resulting in instability causing possible injury.

NSTALLATION

Avoid excessive sunlight or bright lights, including reflections. Keep away from excessive heat or moisture. Inadequate ventilation

may cause internal component failure. Fluorescent lighting may reduce Remote Control transmitting range. Avoid magnetic equipment, including motors, fans, or external speakers.

This television receiver for use only with PANASONIC TY-

Optional Cable Connections

Shielded audio and video cables should be used between components. For best results:

Use 75-ohm coaxial shielded cables.

Use appropriate input and output connectors that match your component connectors.

Avoid long cables to minimize interference.

AC Power Supply Cord

CAUTION: TO PREVENT ELECTRIC SHOCK,

MATCH WIDE BLADE OF PLUG TO WIDE SLOT OF AC OUTLET AND FULLY INSERT. DO NOT USE A PLUG WITH A RECEPTACLE OR OTHER OUTLET UNLESS THE BLADE CA N BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. PROTECT POWER CORDS FROM BEING WALKED ON, ROLLED OVER, CRIMPED, BENT OR PINCHED, PARTICULARLY AT PLUGS, CONVENIENCE RECEPTACLES, AND THE POINT WHERE THEY EXIT FROM THE APPARATUS.

Polarized plug

(

)

NSTALLATION

Cable / Antenna

For proper reception, either a cable or antenna connection is required.

Cable Connection

Connect the cable supplied by your local cable company.

Note: A cable converter box may be req uired for

proper reception. Check with your local cable company for compatibility requirements.

Antenna Connection

• For proper reception of VHF/UHF channels, an external antenna is required. For best reception an outdoor antenna is recommended.

• Antenna Mode must be set to TV.

Note: Cable Mode is preset at the factory.

Antenna users must change to TV Mode in the SETUP Menu.

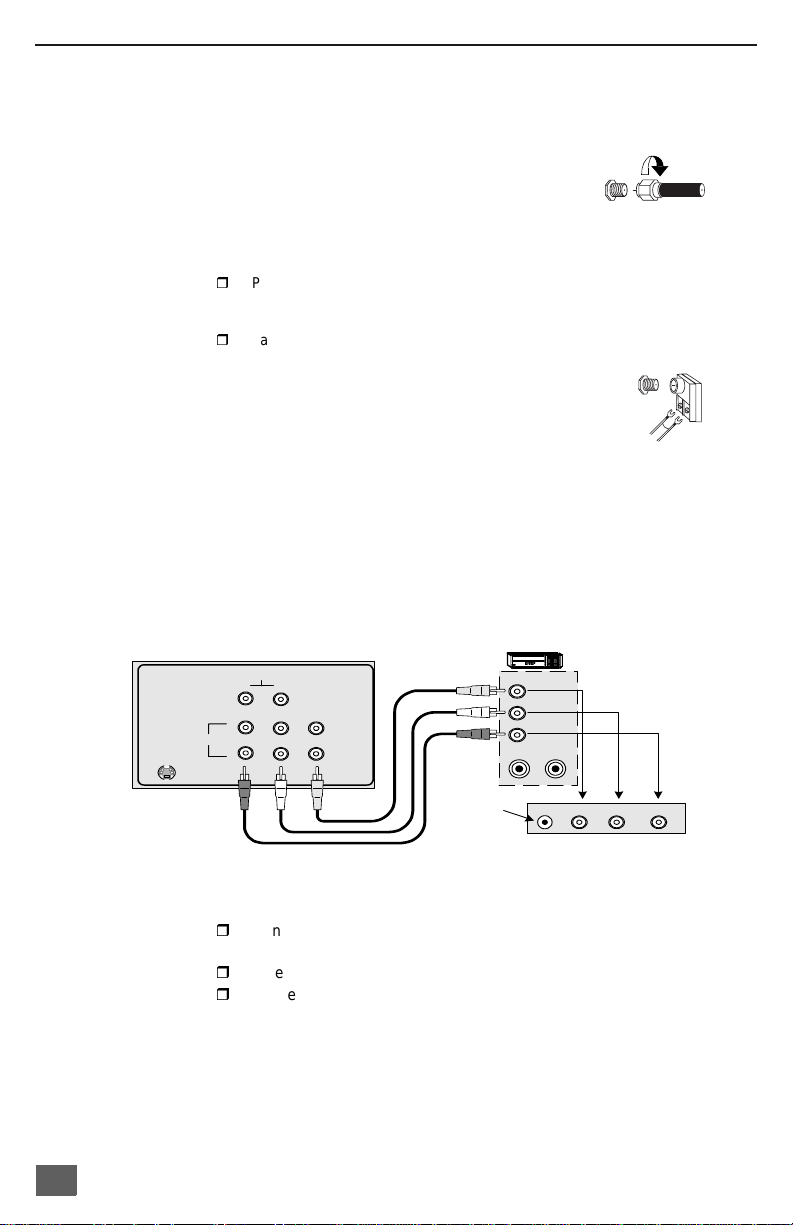

Optional Equipment Connections

Procedure

1. Connect equipment as shown to front or rear Audio/Video input jacks.

Note: Front and rear Audio/V i deo connectors cannot be

operated at the same time (some models).

2. Select the Video mode by pressing TV/VIDEO button.

3. Operate optional equipment as instructed in equipment manual.

Incoming Cable from

Cable Company

75 Ohm VHF/UHF

on back of TV

Incoming Cable from

Home Antenna

TERMINALS ON BACK OF TV

TO AUDIO

AMP

INPUT

S-VIDEO

AUDIO

CABLES NOT INCLUDED

VIDEO

Jack used for 1/8"

headohone plug

TERMINALS ON FRONT OF TELEVISION

VCR

VIDEO OUT

AUDIO OUT

ANT OUT

ANT IN

H P J VIDEO 1 L AUDIO IN R

some models

Amplifier Connection (To Audio Amp)

Connect to an extern al audio amplifier input fo r listeni ng to a stereo system.

Note: TO AUDIO AMP terminals cannot be connected directly to

external speakers.

Audio Adjustments

1. Select TV SPEAKERS ON from AUDIO menu.

2. Set amplifier volume to minimum.

3. Adjust TV volume to desired level.

4. Adjust amplifier volume to match the TV.

5. Select TV SPEAKERS OFF&VAO from AUDIO menu.

6. Volume, mute, bass, treble and balance are now controll ed from the TV.

Note: In OFF&FAO the volume is controlled by the external amplifier.

NSTALLATION

AMPLIFIER

CABLES NOT SUPPLIED

TO AUDIO

AMP

INPUT

S-VIDEO

TERMINALS ON BACK OF TV

(Some models)

AUDIO

VIDEO

AIN MENU

Main Menu

ACTION Button

Press the ACTION button to display the Main Menu and submenus. Press the ACTION button repeatedly to exit.

CH / VOL Buttons

Main Menu

Remote Navigation Buttons

VOLVOL

Procedure

Press the CH (channel) or VOL (volume) buttons to select an icon.

Press ACTION button to display features and sub-menus.

Use the CH buttons to highlight the desired features.

Use VOL buttons to select and adjust features.

ABLA DE CARACTERISTICAS

/ M

AIN MENU

AIN MENU FEATURE CHART

Main Menu Feature Chart

ENU

ESCRIPTION

SETUP

IDIOMA/

LANGUE

PROG. CHAN

(Program Channels)

AUTO PROG

CC MODE

OTHER ADJ.

AUDIO ADJ.

OTHER ADJ.

SURROUND

SPEAKERS

Select English, Spanish, or French menu.

MODE - Select Cable or TV. See Installati on section in manual.

AUTO PROGRAM - Automatically program channels having a signal into mem ory.

MANUAL PROGRAM - Manually add or delete channels from memory.

CC MODE - Select C1 or C2 for Closed Captioning, program guides and other i nformati on.

AUTO POWER ON - Select SET to power up the T V

at the same time as the Cable Box or other components or select OFF.

AUDIO

MODE - Select STEREO, SAP (Second Audio Program) or MONO. (Use MONO when stereo signal is weak.)

BASS - Increase or decrease the bass response.

TREBLE - Increase or decrease the treble response.

BALANCE - Emphasize the left/right speaker volume.

NORMAL - Reset BASS, TREBLE and BALA NCE to factory default.

AI SOUND - Automatically maintain constant volume between programs and commercials.

MODE - Enhances audio response when listening to stereo.

ON - TV speakers operate normally.

OFF & VAO (Variable Audio Output) TV speakers off - audio adjustable by TV.

OFF & FAO (Fixed Audio Output)TV speakers off - audio adjustable only by the external amplifier.

AIN MENU FEATURE CHART

Main Menu Feature Chart (Cont.)

ENU

CLOCK SET

SLEEP

PROGRAM TIMER

VIDEO ADJ.

(Adjustments)

ESCRIPTION

TIMER

When entered, TIME will display on screen after pressing POWER button, RECALL button, or changing channels.

Program TV to automatically turn off in 30, 60, or 90 m inutes. Select NO to turn timer off.

Program TV to automatically turn on and off at selected time on a selected channel, daily or only one day.


COLOR - Adjust desired color intensity.

TINT - Adjust natural flesh tones.

BRIGHTNESS - Adjust dark areas for crisp detail.

PICTURE - Adjust white areas of picture.

SHARPNESS - Adjust clarity of outline detail.

NORMAL- Reset all picture adjustments to factory default settings.

CHANNEL CAPTION

LOCK MODE

CH CAP

MANUAL CAPTION - Provide labels for up to 30 stations using up to four characters for each station.

LOCK

LOCK SET - Program to prevent video games, cable box, and VCR from being viewed.

Note: For more information about Block Programs,

see the V-CHIP Parental Lock manual provided with the TV package.
