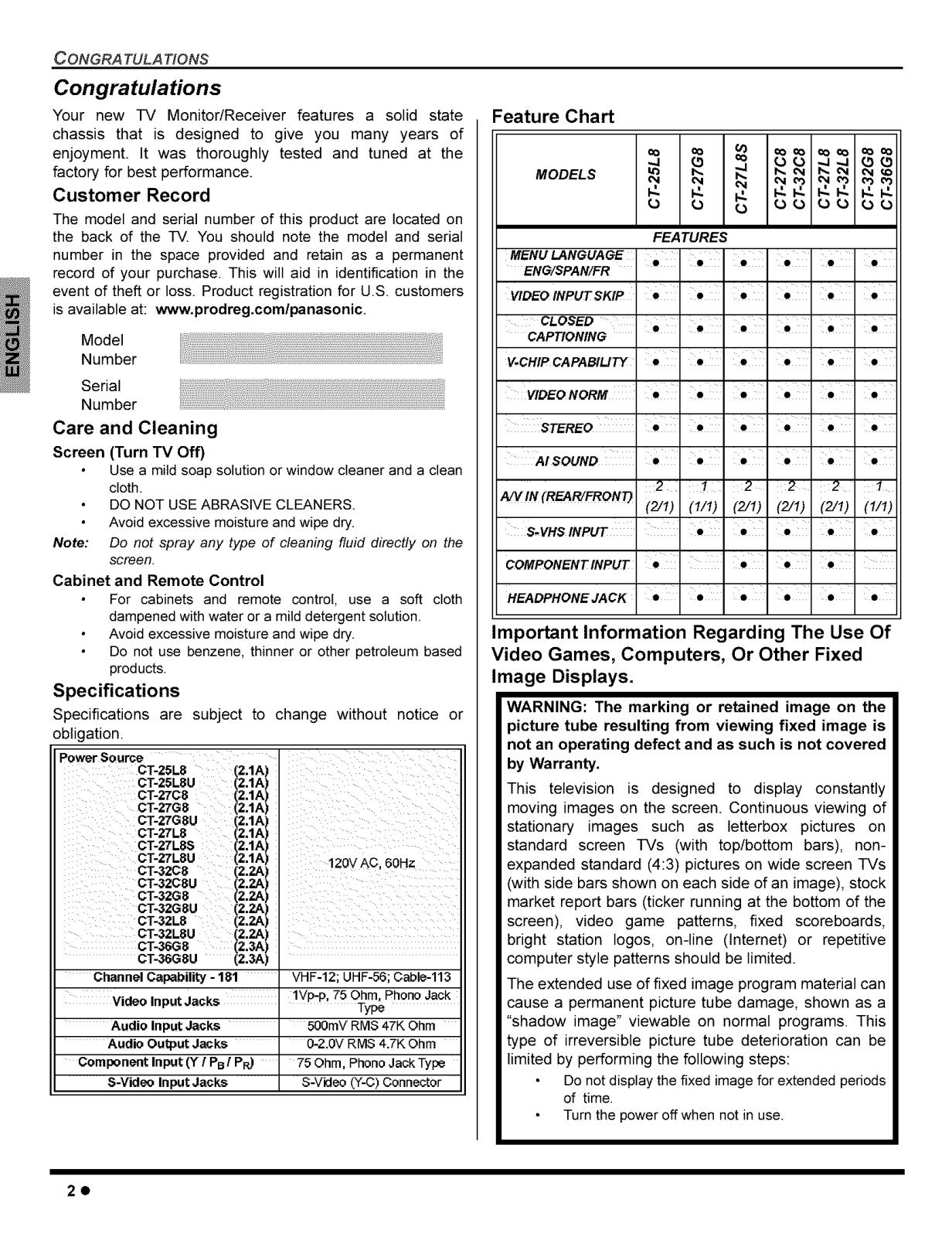

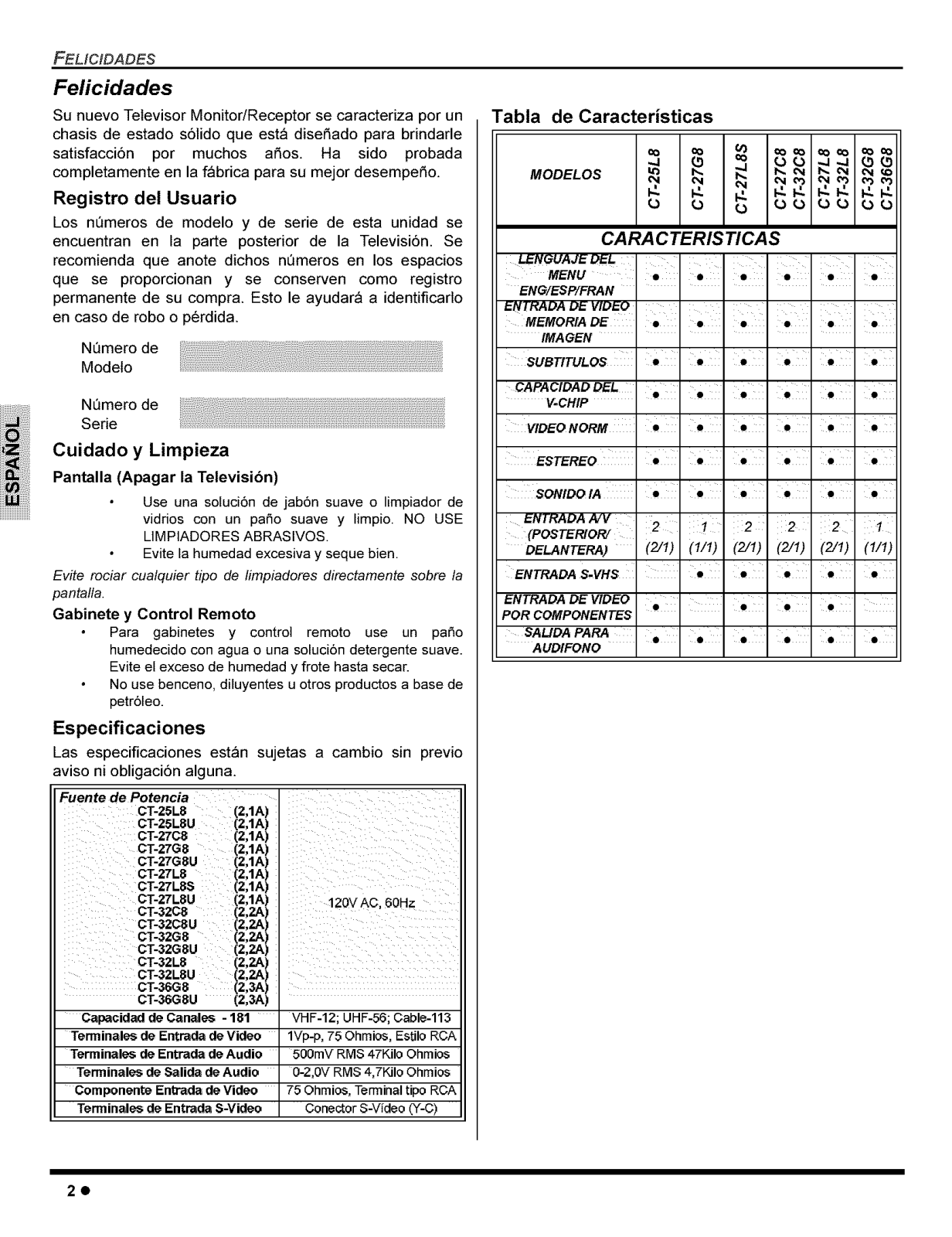

Specifications and Main Features
- Model Numbers: CT-25L8, CT-27C8, CT-32C8, CT-27G8, CT-32G8, CT-36G8, CT-27L8, CT-27L8S, CT-32L8
- Power Source:
- CT-25L8: 2.14A 120V AC, 60Hz
- CT-27C8: 2.14A 120V AC, 60Hz
- CT-27G8: 2.14A 120V AC, 60Hz
- CT-27L8: 2.1A 120V AC, 60Hz
- CT-32C8: 2.24A 120V AC, 60Hz
- CT-32G8: 2.2A 120V AC, 60Hz
- CT-32L8: 2.24A 120V AC, 60Hz
- CT-36G8: 2.34A 120V AC, 60Hz
- Channel Capability: VHF - 12; UHF - 56; Cable - 113
- Video Input Jacks: 1Vp-p, 75 Ohm RCA Jack
- Audio Input Jacks: 500mV RMS, 47K Ohm
- Audio Output Jacks: 0-2.0V RMS, 4.7K Ohm
- Component Input: 75 Ohm, Phono Jack Type
- S-Video Input Jacks: S-Video (Y-C) Connector

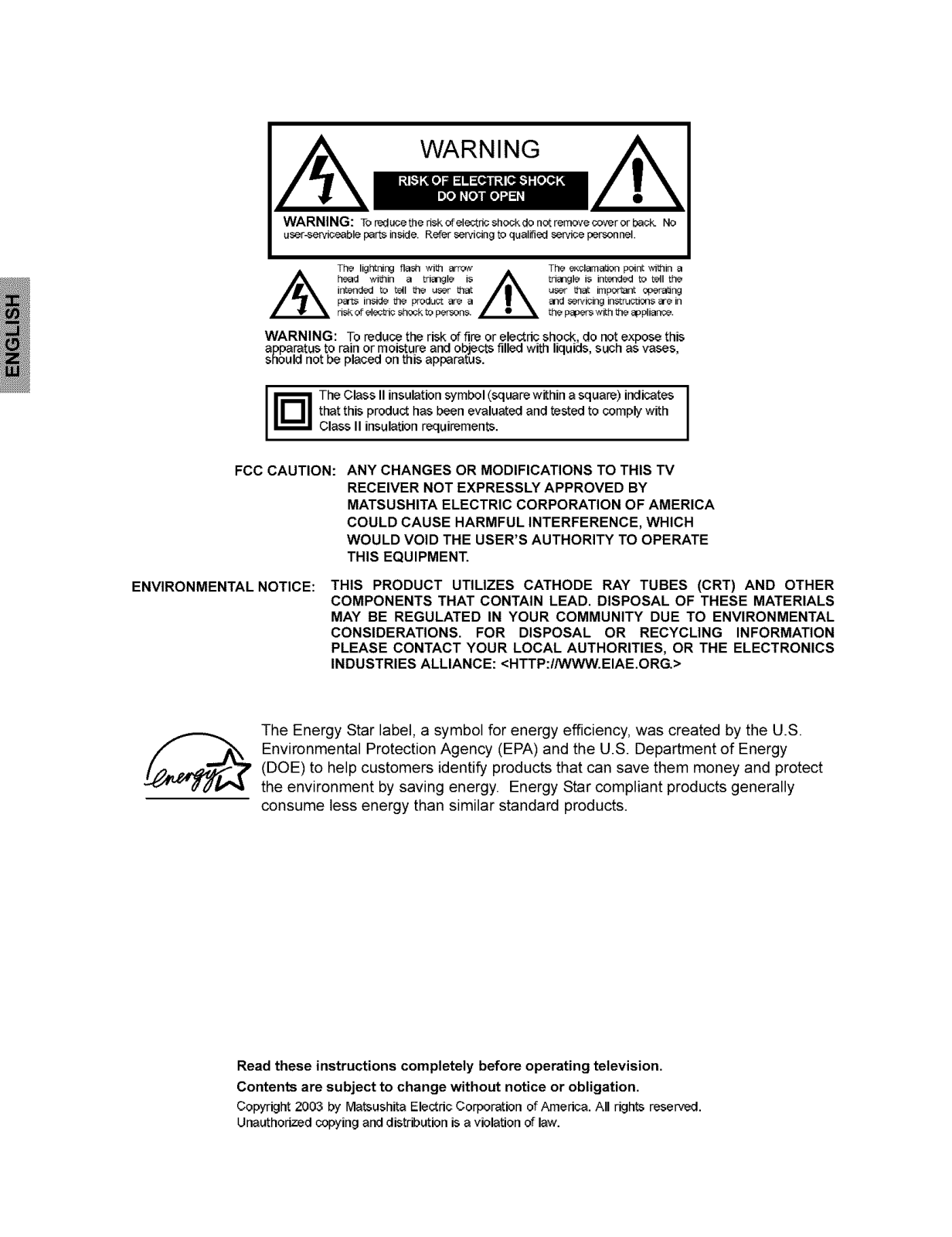

- Energy Star Compliant
Frequently Asked Questions
- What is the power consumption of the TV? The power consumption varies by model, for example, CT-25L8 uses 2.14A at 120V AC, 60Hz.
- How many channels does the TV support? The TV supports a total of 181 channels, VHF - 12 , UHF - 56, and Cable - up to 113.

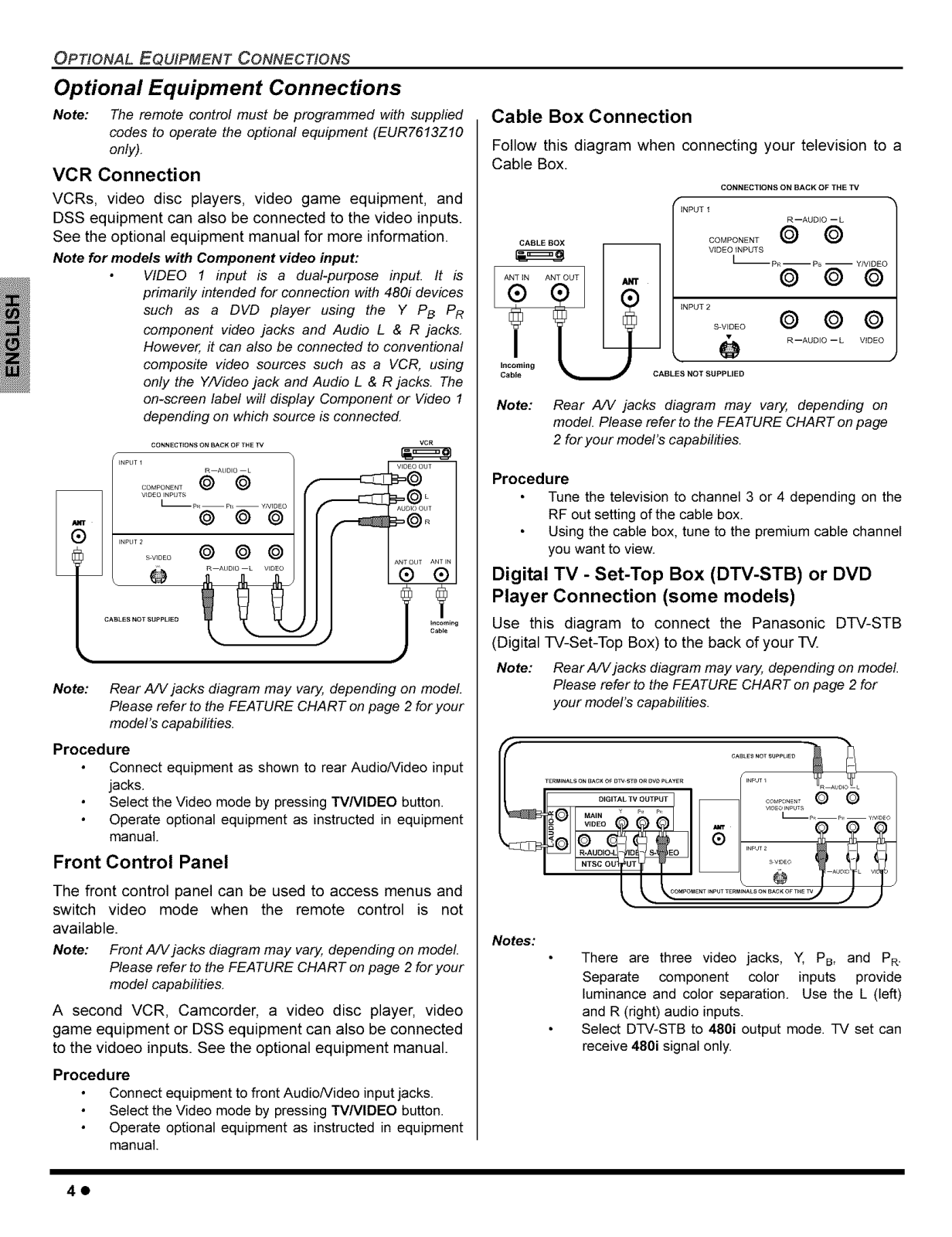

- What sorts of cables can I connect?
- The TV includes RCA video input sockets, audio input sockets, component and S-Video sockets.
- Does the TV conform to the Energy Star standards?
- Yes. The TV is compliant with the Energy Star standard, meaning it is able to save energy.
- Is it possible to connect a DVD player to the TV?
- Yes, a DVD player can be connected through the respective video input jacks on the TV.
