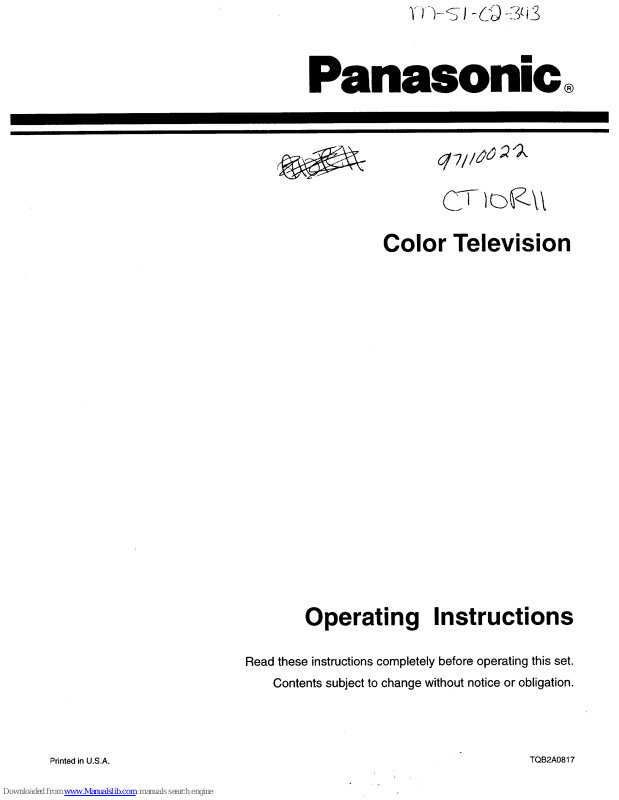

Panasonic CT10R11 Operating Instructions Manual

Panasonic

Color Television

Operating Instructions

Read these instructions completely before operating this set.

Contents subject to change without notice or obligation.

Printed in U.S.A. TQB2A0817

Safety Instructions

CAUTION

CAUTION: To reduce the risk of electric shock do not remove cover or back. No
user-serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with ar-

_ row-head within a triangle _

is intended to tell the user
that parts inside the product

are a risk of electric shock to
persons.

The exclamation point within
a triangle is intended to tell
the user that important oper-

ating and servicing instruc-

tions are in the papers with
the appliance.

Note To CATV System Installer: This reminder is provided to call the CATV system installer's attention to Article

820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be

connected to the grounding system of the building, as close to the point of cable entry as practical.

Safety Instructions For Television Receivers

1. Read and apply the operating instructions provided with your television receiver.

2. Read all of the instructions given here and retain them for later use.

3. Unplug this television receiver from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp
cloth for cleaning.

4. Do not use attachments not recommended by the television receiver manufacturer as they may cause hazards.

5. Do not use this television receiver near water. For example: Avoid placing it near a bathtub, washbowl, kitchen sink, or

laundry tub, in a wet basement, or near a swimming pool, etc.

6. Do not place this television receiver on an unstable cart, stand, or table. The television receiver may fall, causing serious

injury to a child or adult, and serious damage to the appliance. Use only with a cart or stand recommended by the
manufacturer, or sold with the television receiver. Wall or shelf mounting should follow the manufacturer's instructions,

and should use a mounting kit approved by the manufacturer.

6A. An appliance and cart combination should be moved with care. Quick stops, excessive force, and

uneven surfaces may cause the appliance and cart combination to overturn.

7. Slots and openings in the cabinet and the back or bottom are provided for ventilation, and to insure

reliable operation of the television receiver and to protect it from overheating. These openings must not be blocked or
covered. The openings should never be blocked by placing the television receiver on a bed, sofa, rug, or other similar

surface. This television receiver should never be placed near or over a radiator or heat register. This television receiver
should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.

8. Operate only from the type of power source indicated on the marking label. If you are not sure of the type of power

supplied to your home consult your television dealer or local power company. For television receivers designed to
operate from battery power, refer to the operating instructions.

9. This television receiver is equipped with a polarized alternating-current line plug (a plug having one blade wider than the

other). This plug will fit into the power outlet only one way.This is a safety feature. If you are unable to insert the plug
fully into the outlet, try reversing the plug. If

the plug should still fail to fit, contact your
electrician to replace your obsolete outlet. Do
not defeat the safety purpose of the polarized

plug.

10. Do not allow anything to rest on the power
cord. Do not locate this television receiver

where the cord will be abused by persons
walking on it.

11. Follow all warnings and instructions marked
on the television receiver.

12. Do not overload wall outlets and extension
cords as this can result in fire or electric

shock.

13. Never push objects of any kind into this
television receiver through cabinet slots as

they may touch dangerous voltage points or
short out parts that could result in a fire or

electric shock. Never spill liquid of any kind on
the television receiver.

EXAMPLE OF ANTENNA GROUNDING AS _
PER (NEC) NATIONAL ELECTRICAL CODE _ _ ANTENNALEAD-INWIRE

// _ J. pI ANTENNA

J / I "-_ J.. DISCHARGE UNrr

I ELECTRIC / _ I
] SERVICE _ _'_ _GROUNDING CONDUCTORS

_......_ENT _'_ _ _EC SECTION 810-21)

_ GROUND CLAMPS

_ POWER SERVICE GROUNDING

_._ ELECTRODE SYSTEM

(NEC ART 250, PART H)

-2-

14.Ifanoutsideantennaisconnectedtothetelevisionequipment,besuretheantennasystemisgroundedsoastoprovide
someprotectionagainstvoltagesurgesandbuiltupstaticcharges.IntheU.S.Section810oftheNationalElectricalCode

andinCanadaPart1oftheCanadianElectricalCodeprovidesinformationwithrespecttopropergroundingofthemast
andsupportingstructure,groundingofthelead-inwiretoanantennadischargeunit,sizeof groundingconductors,

locationofantenna-dischargeunit,connectiontogroundingelectrodes,andrequirementsforthegroundingelectrode.
SeeFigure.

15.Foraddedprotectionforthistelevisionreceiverduringalightningstorm,orwhenitisleftunattendedandunusedforlong
periodsoftime,unplugitfromthewalloutletanddisconnecttheantenna.Thiswillpreventdamagetothereceiverdueto
lightningandpower-linesurges.

16.Anoutsideantennasystemshouldnotbelocatedinthevicinityofoverheadpowerlinesorotherelectriclightorpower
circuits,orwhereitcanfallintosuchpowerlinesorcircuits.Wheninstallinganoutsideantennasystemextremecare

shouldbetakentokeepfromtouchingsuchpowerlinesorcircuitsascontactwiththemmightbefatal.

17.Unplugthistelevisionreceiverfromthewalloutlet,andreferservicingtoqualifiedservicepersonnelunderthefollowing
conditions:

a. Whenthepowercordorplugisdamagedorfrayed.

b. Ifliquidhasbeenspilledintothetelevisionreceiver.

c. Ifthetelevisionreceiverhasbeenexposedtorainorwater.
d. Ifthetelevisionreceiverdoesnotoperatenormallybyfollowingtheoperatinginstructions.Adjustonlythosecontrols

thatarecoveredbytheoperatinginstructionsasimproperadjustmentofothercontrolsmayresultindamageandwill
oftenrequireextensiveworkbyaqualifiedtechniciantorestorethetelevisionreceivertonormaloperation.

e. Ifthetelevisionreceiverhasbeendroppedorthecabinethasbeendamaged.
f. Whenthetelevisionreceiverexhibitsadistinctchangeinperformance- thisindicatesa needforservice.

18.Donotattempttoservicethistelevisionreceiveryourselfasopeningorremovingcoversmayexposeyoutodangerous
voltageorotherhazards.Referallservicingtoqualifiedservicepersonnel.

19.Whenreplacementpartsarerequired,besuretheservicetechnicianhasusedreplacementpartsspecifiedbythe

manufacturerthathavethesamecharacteristicsastheoriginalpart.Unauthorizedsubstitutionsmayresultinfire,electric

shock,orotherhazards.

20.Uponcompletionofanyserviceorrepairstothistelevisionreceiver,asktheservicetechniciantoperformroutinesafety
checkstodeterminethatthetelevisionisinsafeoperatingcondition.

21.WARNING:Topreventfireorshockhazard,donotexposethis appliance to rain or moisture.

22. CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION CORD,

RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE
EXPOSURE.

NOTE: This equipment is designed to operate in the U.S.A., Canada and other countries where the broadcasting system and

AC house current is exactly the same as in the U.S.A. and Canada.

Important Information Regarding Use of Video Games, Computers, Teletext or Other Fixed Image Displays.

The extended use of fixed image program material can cause a permanent "shadow image" on the picture tube. This
background image is viewable on normal programs inthe form of a stationary fixed image. This type of irreversible picture tube

deterioration can be limited by observing the following steps:
A. Reduce the brightness/contrast setting to a minimum viewing level.

B. Do not display the fixed image for extended periods of time.
C. Turn the power off when not in actual use.

NOTE: The marking or retained image on the picture tube resulting from fixed image use is not an operating defect and as

such is not covered by Warranty. This product is not designed to display fixed image patterns for extended periods of
time.

Power Source:
Channel Capability:

Specifications

120V 60Hz, AC
155 channels (See chart)
VHF 2-13, UHF 14-69

Cable 99 channels

Specifications are subject to change without notice or obligation.

Channel Capability Chart

BAND USNCAN

VHF
UHF

CABLE (Mid-Band)
CABLE (Super Band)
CABLE (Hyper Band)
CABLE (Ultra Band)

12

56

15

14
28
30

TOTAL CHANNELS 155

Introduction

Congratulations on Your New Purchase

Your new video component features an all solid state chassis which is designed to give you many years of enjoyment. It
was thoroughly tested and adjusted at the factory for best performance.

In order for you to take full advantage of your new video component, please read and follow the installation and operating
instructions supplied with this product.

Customer's Record
The model and serial number of this product may be found on its back cover. You should note the model and serial number
in the space provided and retain this book as a permanent record of your purchase to aid in identification in the event of

theft or loss.
Model Number:

Serial Number:

Table of Contents

Safety Instructions ............................. 2

Specifications ................................. 3

Introduction ................................... 4

Installation .................................... 4

Antenna Connection ........................... 5

Battery Installation ............................. 5

Location of Controls ........................... 6

Quick Reference Control Operation .............. 6

Control Operation .............................. 7

Power Button .................................. 7

Vol (Volume) Buttons ........................... 7

Level (+) & (-) Buttons ......................... 7

Ch (Channel) Buttons .......................... 7

Set Up Button ................................. 7

Auto Channel Programming ................... 8

Add/Erase Channels ......................... 8

Tuning System Antenna/Cable ................ 8

Set Clock ................................... 8

Video Button .................................. 9

Color ....................................... 9

Tint ........................................ 9

Brightness .................................. 9

Picture ..................................... 9

Sharpness .................................. 9

Norm (Normalize) Button ....................... 9

R-Tune (Rapid Tune) Button .................... 9

On Timer Button .............................. 10

Sleep Button ................................. 11

Recall Button ................................. 11

Channel Keyboard "0 through 9" Buttons ......... 11

Mute Button .................................. 11

Skip Button .................................. 11

Menu Button ................................. 12

Earphone Jack ............................... 12

Care & Cleaning ............................... 13

Troubleshooting Chart ........................ 14

Installation

Location

Locate for comfortable viewing. Avoid placing where sunlight or other bright light (including reflections) will fall on the
screen.

Adequate ventilation is essential to prevent internal component failure. Keep away from areas of excessive heat or

moisture. Do not position magnetic equipment (motors, fans, other speakers, etc.) nearby.

AC Power Supply Cord

Insert (Polarized) plug into 120 volts 60Hz standard AC outlet. Do notdefeat the safety

purpose of the polarized plug.
CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS (POLARIZED) PLUG

WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADE

CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

Polarized Plug

-4-

Antenna Connection

How to Install VHF/UHF Rod Antenna

A VHF/UHF rod antenna is supplied.

Push the stem of the VHF/UHF antenna into the antenna hole on the cabinet back as shown.
Extend the antenna and adjust its length, direction and angle for the clearest picture.

Outdoor VHF/UHF Antenna - Reception isbest with a properly installed outdoor antenna, particularly in weak signal

areas. Contact your Dealer or Service Technician for recommendations of antennas best suited for your area when
required. Connect antenna as shown in one of the drawings.

Cable TV Connection

You are capable of receiving channels from general types of cable TV systems. Certain cable systems offset some
channels to reduce interference or have Premium (scrambled) channels, so a cable converter box is required. Toensure
proper installation and reception, check with your local cable company for its compatibility requirements.

Antenna Connections Using Combined
VHF & UHF 75 Ohm Lead Cable

VHF/UHF Rod Antenna
(An optional 75 Ohm outdoor

VHF/UHF antenna may be used).

CATV (Cable) Antenna Connection

To CATV

ANT Antenna

Cable

BACK OF SET

Place stem of antenna

here when using an
optional swivel mount.

Antenna Connection Using Individual VHF &
UHF Flat 300 Ohm Twin Lead Cables

ANT

Splitter/Combiner

(Not Supplied)

Twin Lead Cable

Other Video Accessories

VCRs, Video Disc Players, Computers, TV games, and Teletext equipment can also be connected to the antenna
connection.

Remote Control Battery Installation & Replacement

Battery Installation

Batteries: Use two "AA" dry cell batteries as supplied.

2. Slide Forward

1. Press Cover

Turn the transmitter upside

down. To open cover, press
down and slide forward.

Two AA" size 1

attedes

2. Install the batteries as shown
in the battery compartment.

(Polarity (+) and (-) of the
batteries must be correct).

1. Slide Backwards

3. Replace the cover until the
lock snaps.

Precaution on Battery Use

Incorrect installationcan cause battery leakage and corrosionthat will damage the Remote Control Transmitter.
Observe the Following Precautions

1. Batteries must be replaced as a pair.

2. Do not combine a used battery with a new one.

3. Do not mix battery types (Example: "Zinc Carbon" with "Alkaline").

4. Do not attempt to charge, short-circuit, disassemble, heat, or burn used batteries.

-5-
