ORDER NO.CHM1003011CE

Portable Blu-ray Disc Player

Model No. DMP-B100EB

DMP-B100EE DMP-B100EG

Vol. 1

Colour

(S).......................Silver Type

©Panasonic Corporation 2010. Unauthorized copying and distribution is a violation of law.

Page 2

TABLE OF CONTENTS

1 Safety Precautions -----------------------------------------------3

1.1. General guidelines-----------------------------------------3

2Warning--------------------------------------------------------------4

2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatic Sensitive (ES) Devices---------------4

2.2. How to Replace the Lithium Battery-------------------5

2.3. Caution for AC Cord(For EB) ---------------------------6

3 Service Navigation------------------------------------------------7

3.1. Introduction --------------------------------------------------7

3.2. General Description About Lead Free Solder (PbF) ----------------------------------------------------------7

3.3. Important Notice 1:(Other than U.S.A.)---------------7

3.4. Caution for DivX --------------------------------------------8

3.5. Static Electricity Protection Measures ----------------9

3.6. Ground for electrostatic breakdown prevention----------------------------------------------------9

3.7. Handling of Traverse unit (optical pick-up) ----------9

4 Specifications ---------------------------------------------------- 10

4.1. Others (Licenses) ---------------------------------------- 12

5 Location of Controls and Components ------------------ 13 6 Service Mode ----------------------------------------------------- 15 7 Troubleshooting Guide---------------------------------------- 21

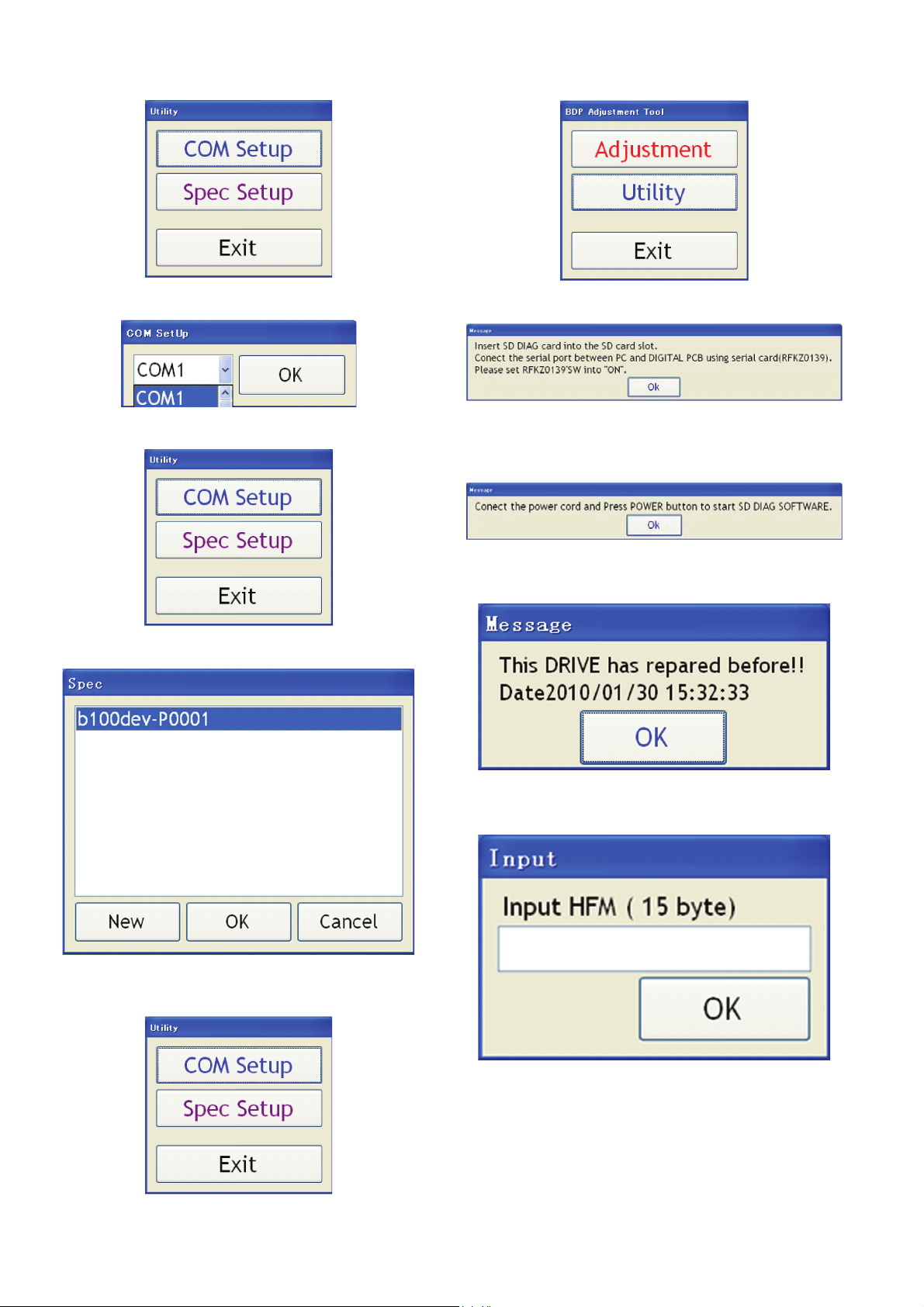

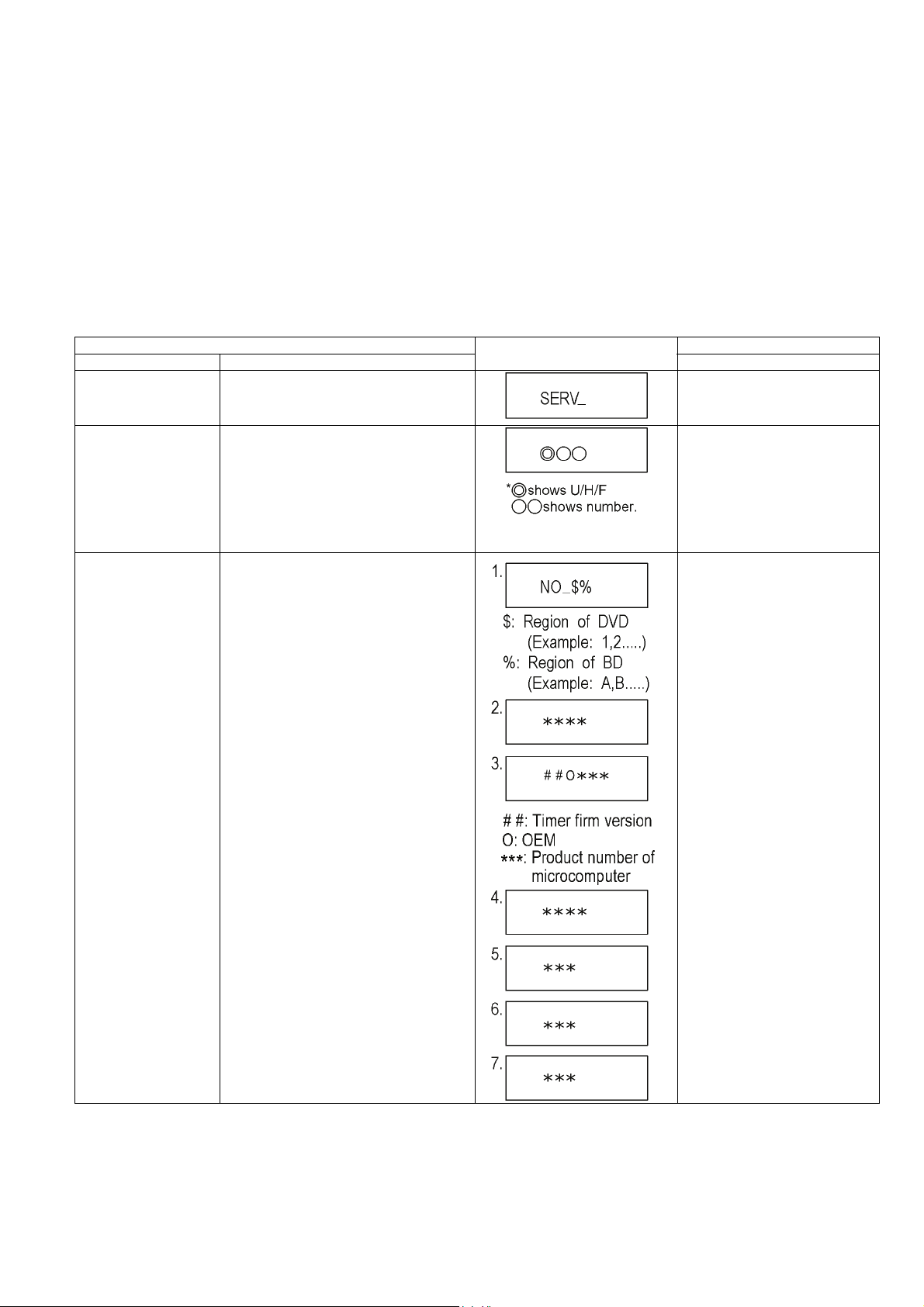

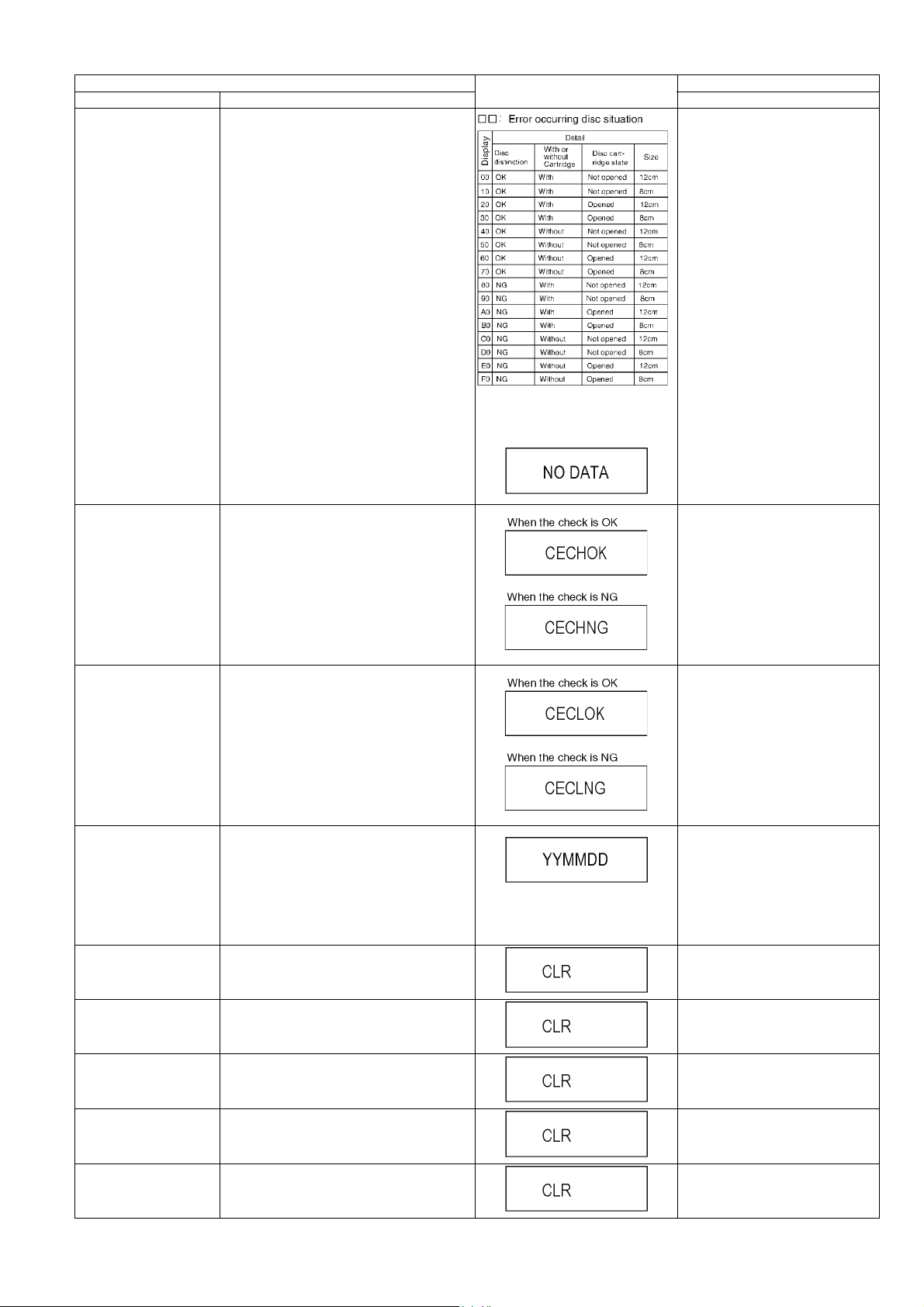

7.1. Self-Diagnosis Functions------------------------------ 21

8 Service Fixture & Tools --------------------------------------- 23 9 Disassembly and Assembly Instructions--------------- 24

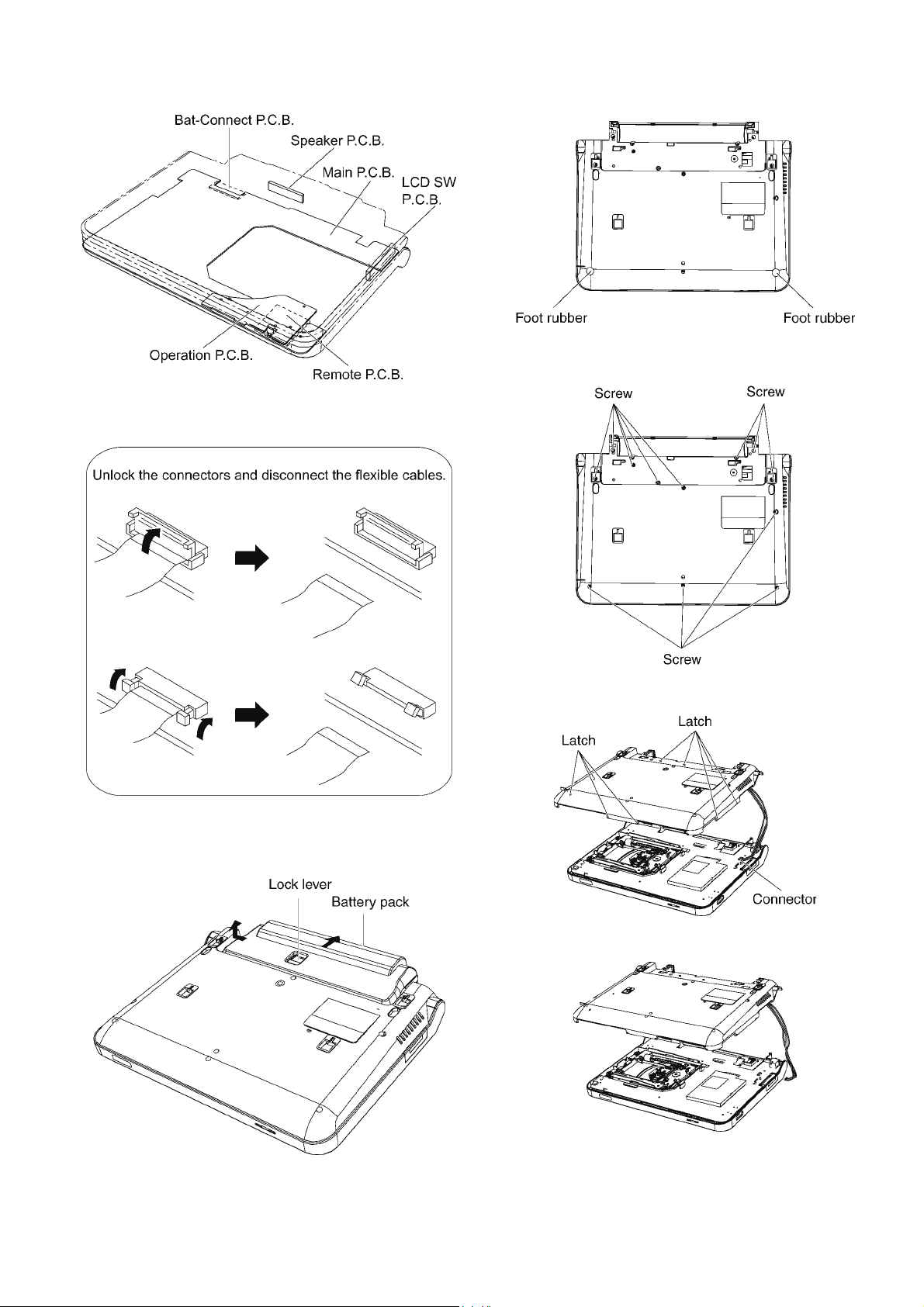

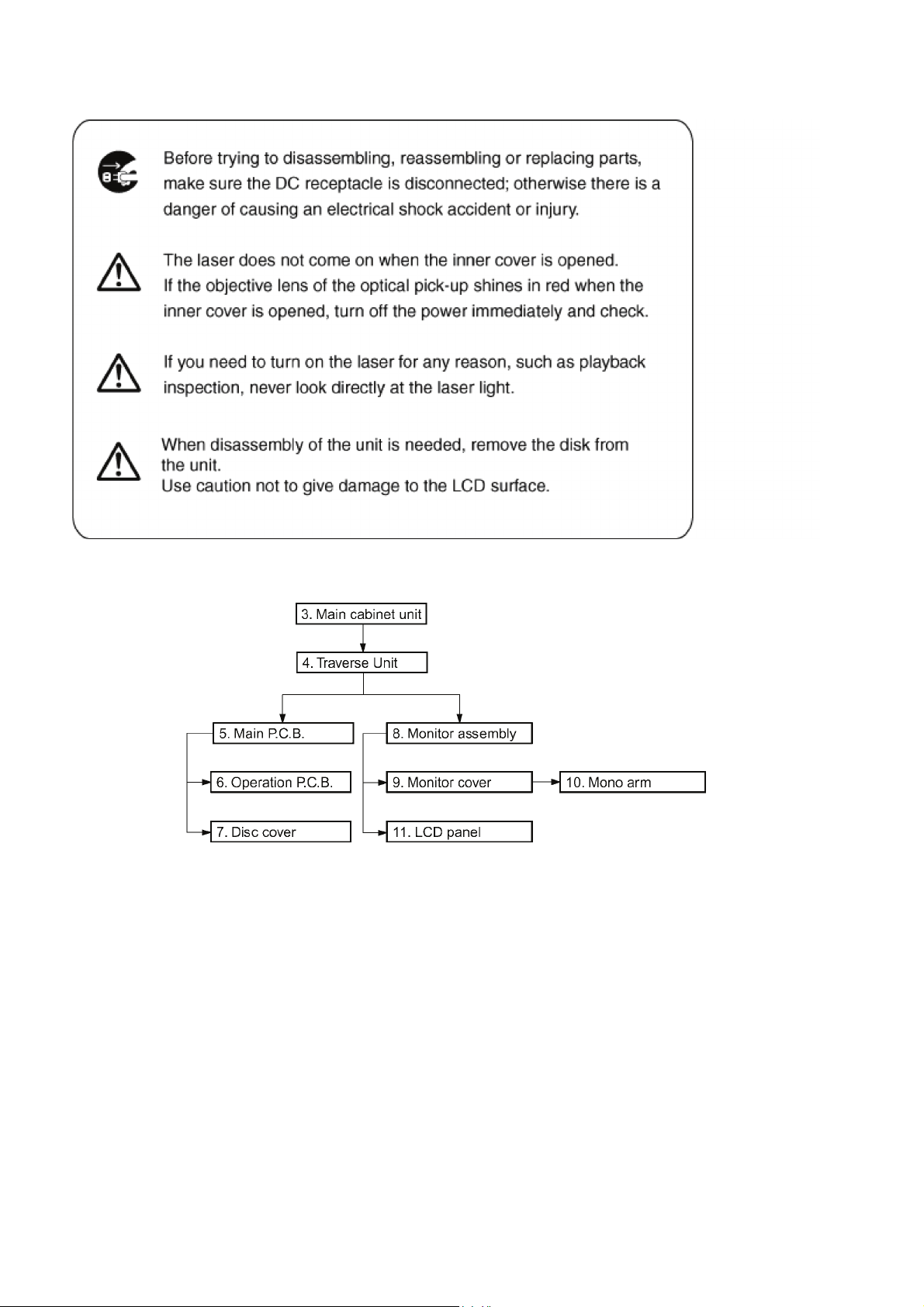

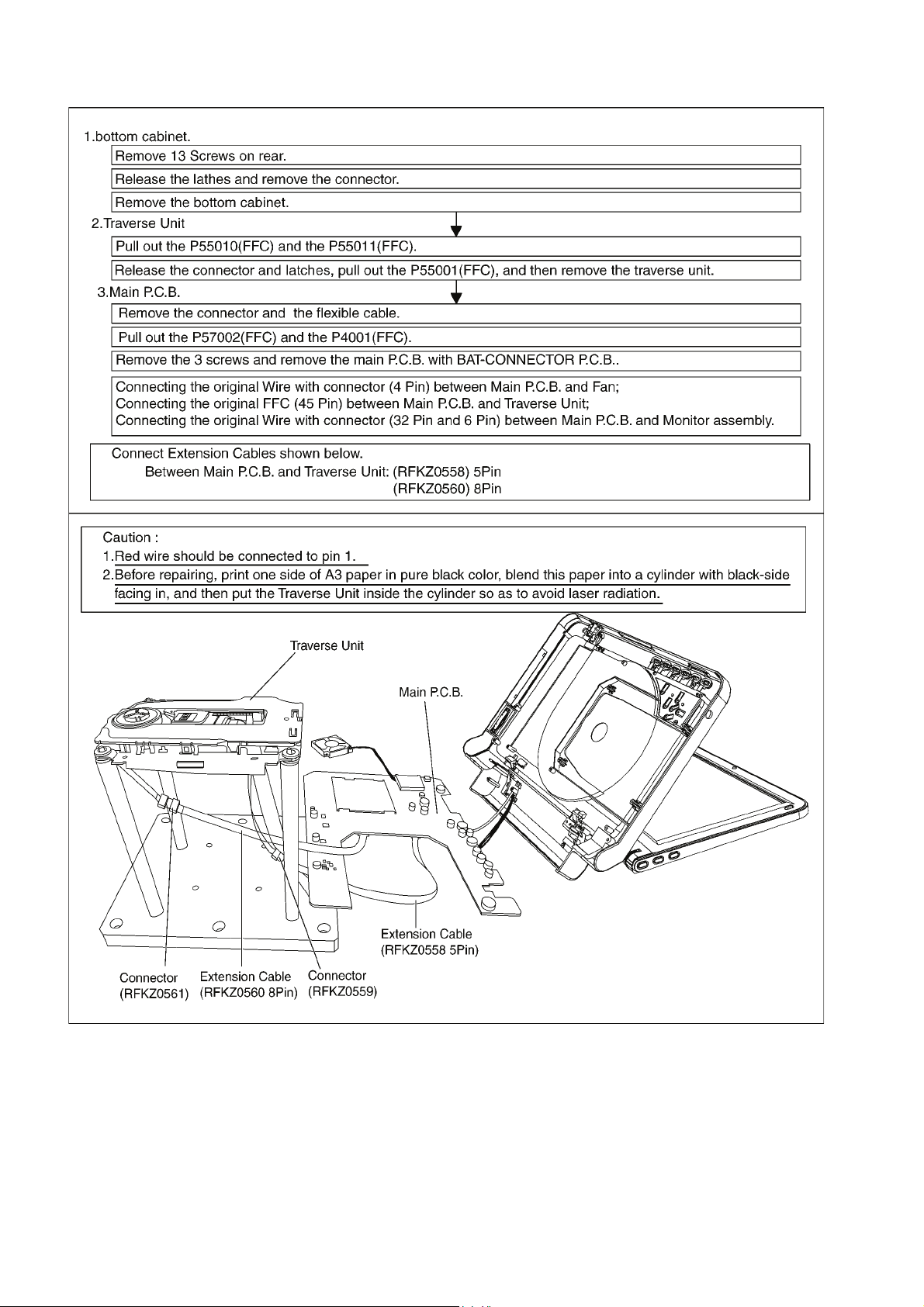

9.1. Disassembly Flow Chart--------------------------------24

9.2. P.C.B. location -------------------------------------------- 25

9.3. Main cabinet unit ----------------------------------------- 25

9.4. Traverse Unit ---------------------------------------------- 26

9.5. Main P.C.B. ------------------------------------------------26

9.6. Operation P.C.B. ----------------------------------------- 26

PAGE PAGE

9.7. Disc cover ------------------------------------------------- 27

9.8. Monitor assembly---------------------------------------- 27

9.9. Monitor cover --------------------------------------------- 28

9.10. Mono arm -------------------------------------------------- 28

9.11. LCD panel ------------------------------------------------- 29

9.12. Cleaning of the Optical Pick-up ---------------------- 30

10 Measurements and Adjustments -------------------------- 31

10.1. Service Positions ---------------------------------------- 31

10.2. Caution for Replacing Parts--------------------------- 34

10.3. Adjustment Instruction when Exchange the Traverse or Main P.C.B. (Servo Adjustment) ----- 35

11 Block Diagram--------------------------------------------------- 39

11.1. Overall Block Diagram---------------------------------- 39

12 Schematic Diagram -------------------------------------------- 40

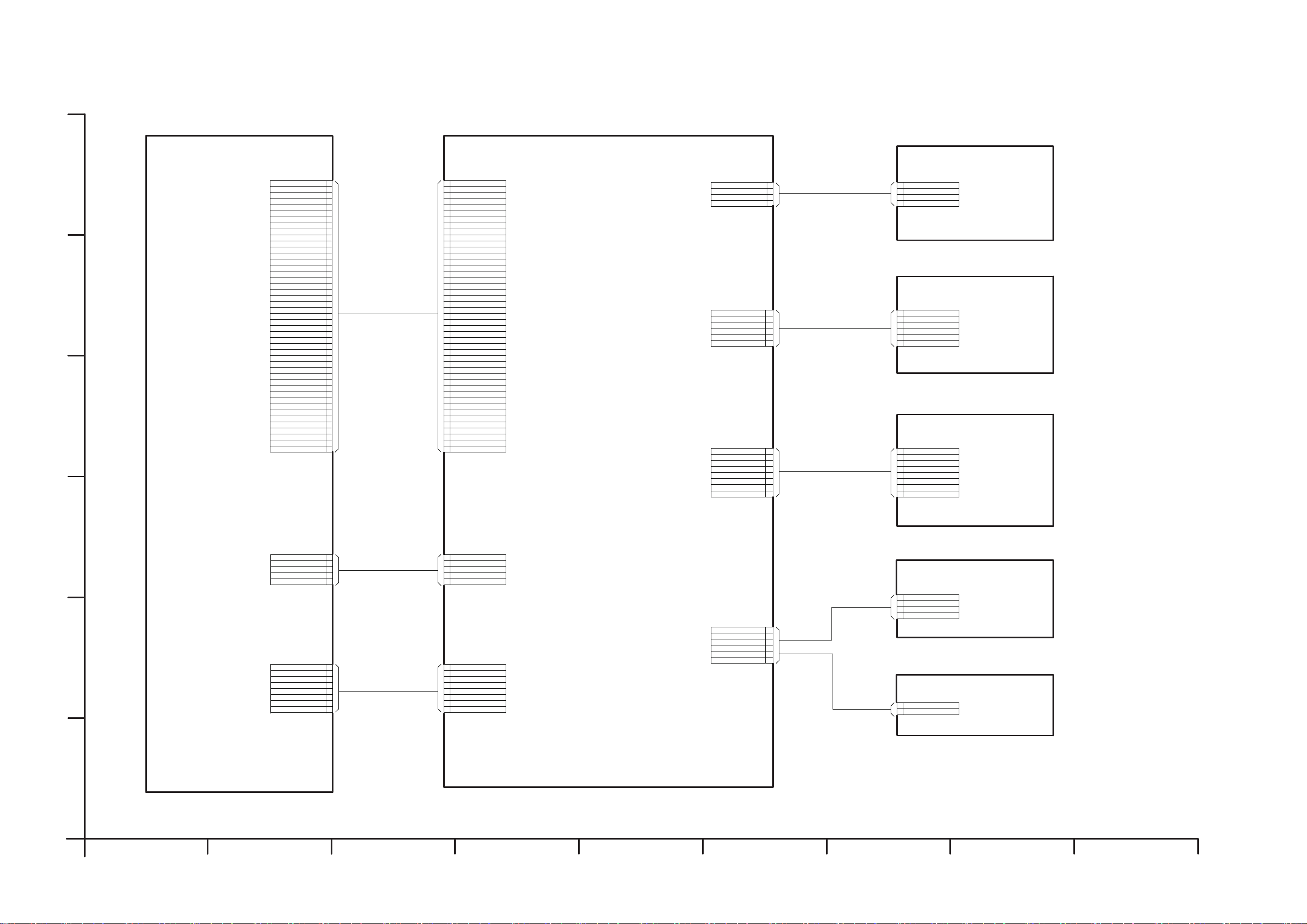

12.1. Interconnection Schematic Diagram---------------- 40

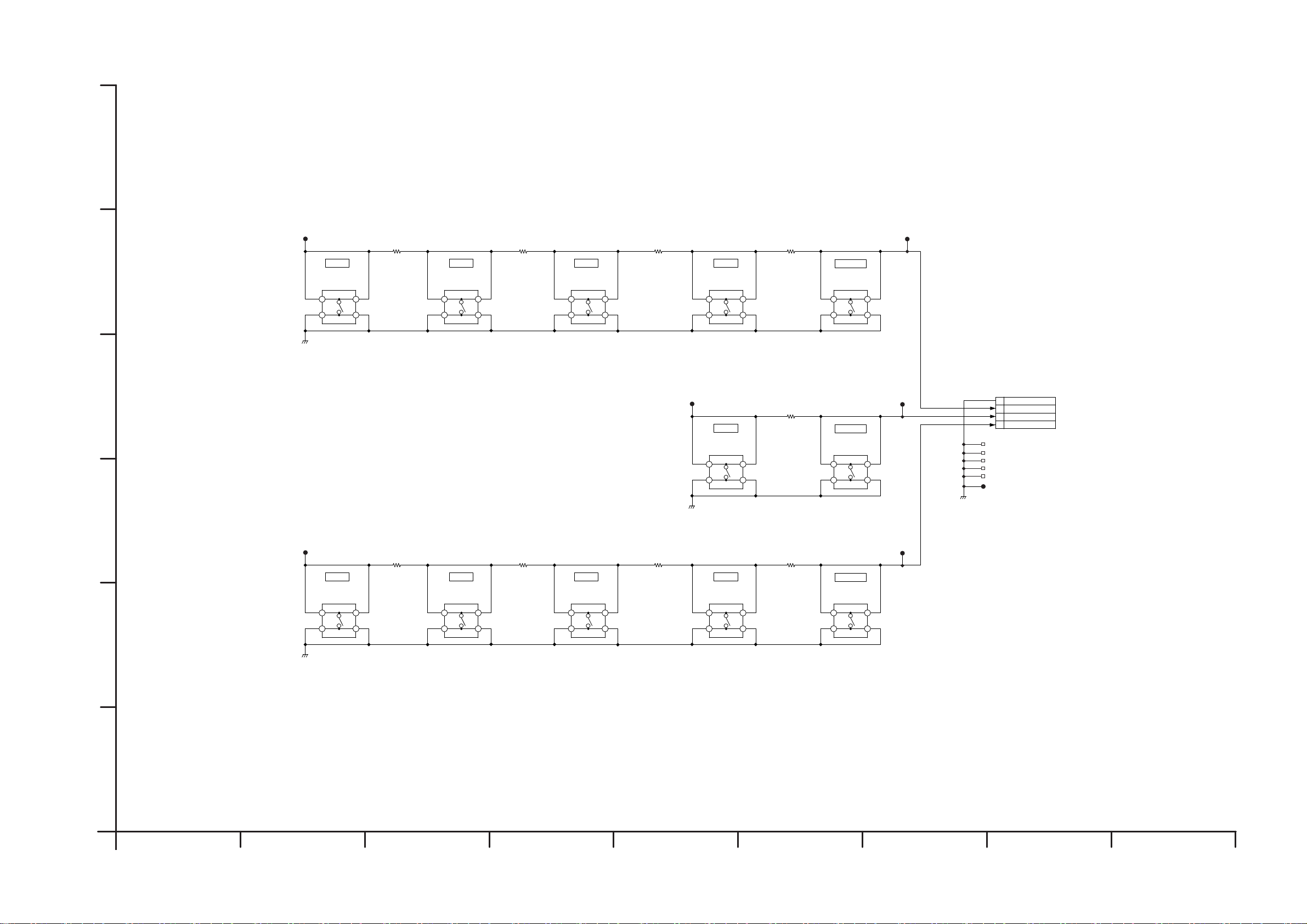

12.2. OPERATION Schematic Diagram------------------- 41

12.3. HP_REMOCON SCHEMATIC DIAGRAM--------- 42

12.4. LCD_SW SCHEMATIC DIAGRAM------------------ 42

12.5. BAT-CONNECTOR SHEMATIC DIAGRAM------- 42

12.6. SPEAKER SCHEMATIC DIAGRAM---------------- 42

13 Printed Circuit Board------------------------------------------ 43

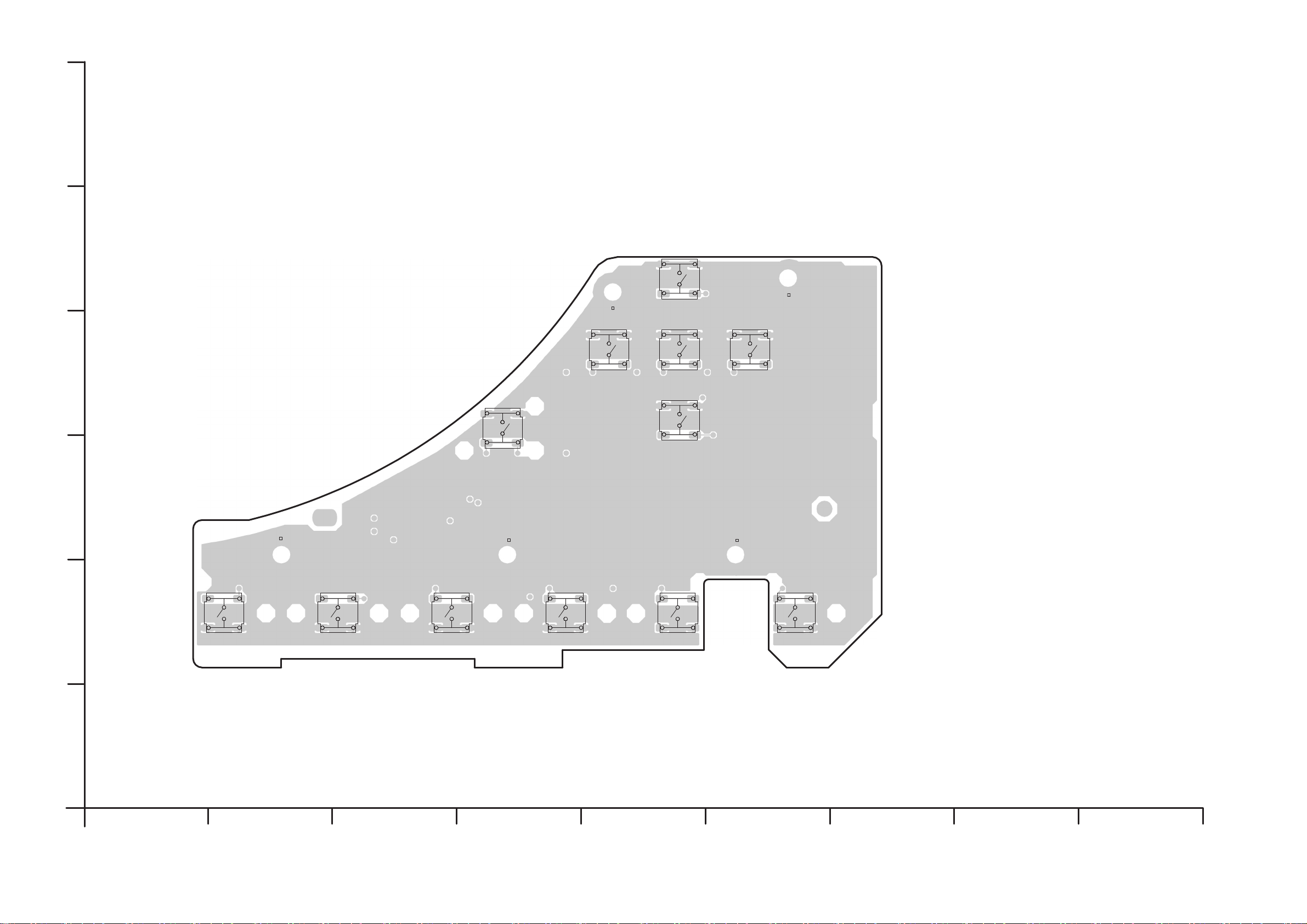

13.1. OPERATION P.C.B.------------------------------------- 43

13.2. HP_REMOCON P.C.B. -------------------------------- 45

13.3. BAT-CONNECTOR P.C.B. ---------------------------- 46

13.4. LCD_SW P.C.B. and SPEAKER P.C.B. ----------- 47

14 Appendix for Schematic Diagram------------------------- 48

14.1. Voltage and Waveform Chart ------------------------- 48

15 Exploded View and Replacement Parts List----------- 51

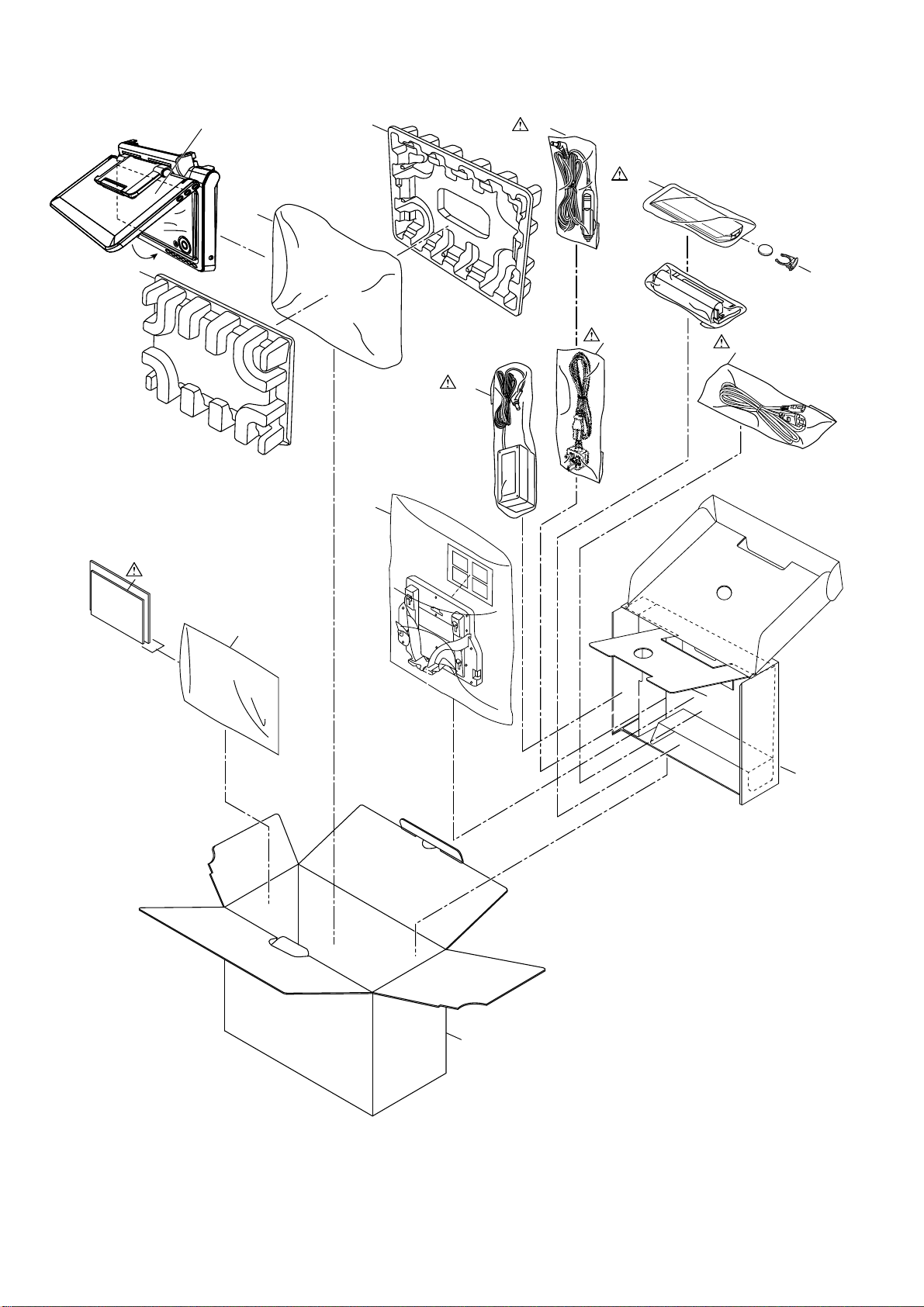

15.1. Exploded Views ------------------------------------------ 51

15.2. Electrical Replacement Parts List ------------------- 55

Page 3

1 Safety Precautions

1.1. General guidelines

1. IMPORTANT SAFETY NOTICE There are special components used in this equipment which are important for safety. These parts are marked by

in the Schematic Diagrams, Circuit Board Layout, Exploded Views and Replacement Parts List. It is essential that these critical parts should be replaced with manufacturer’s specified parts to prevent X-RADIATION, shock, fire, or other hazards. Do not modify the original design without permission of manufacturer.

2. An Isolation Transformer should always be used during the servicing of AC Adaptor whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks. It will also protect AC Adaptor from being damaged by accidental shorting that may occur during servicing.

3. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit.

4. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

5. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.

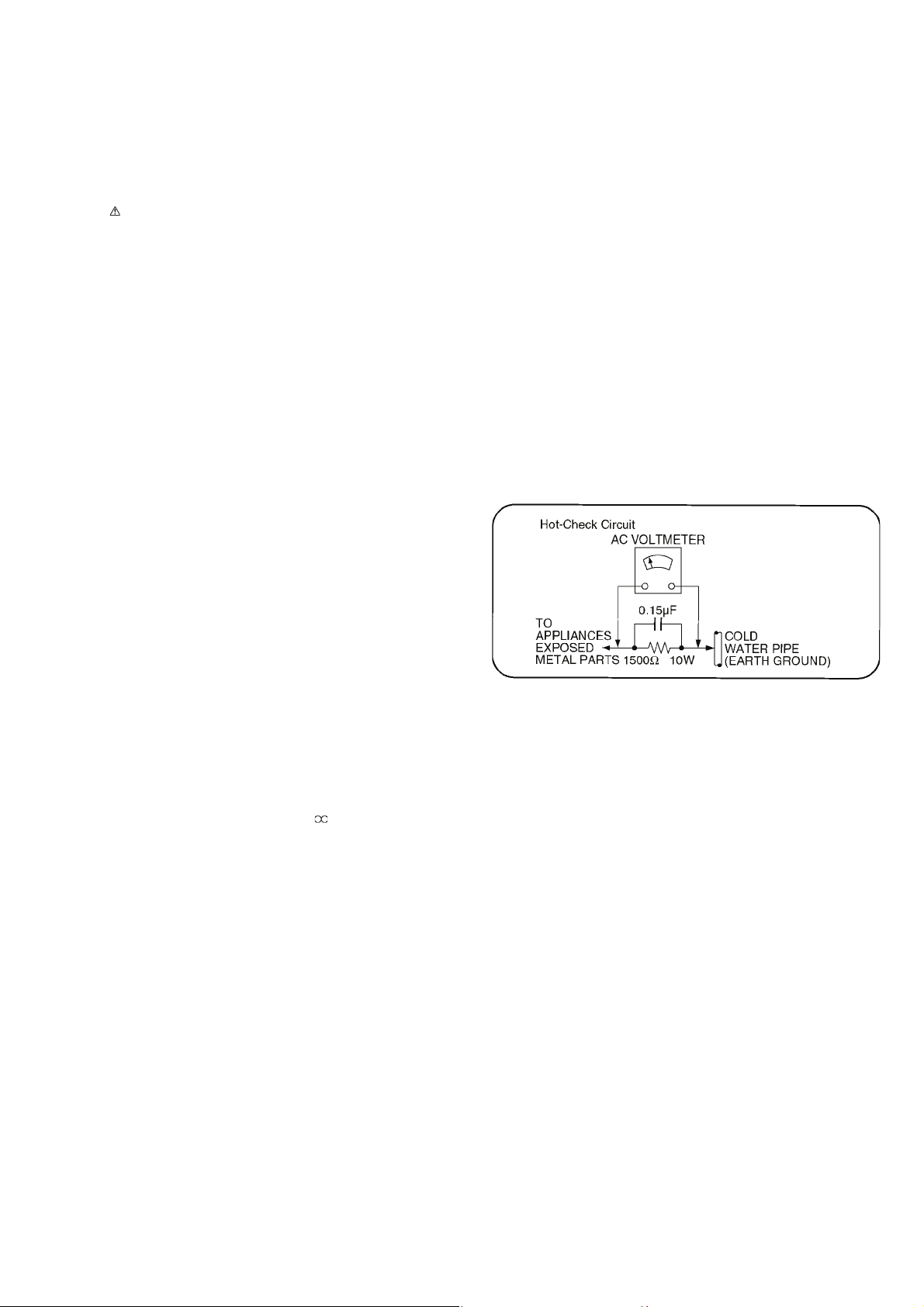

1.1.2. Leakage current hot check (See Figure 1.)

1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.

2. Connect a 1.5kΩ, 10 watts resistor, in parallel with a

0.15μF capacitors, between each exposed metallic part on the set and a good earth ground such as a water pipe, as shown in Figure 1.

3. Use an AC voltmeter, with 1000 ohms/volt or more sensitivity, to measure the potential across the resistor.

4. Check each exposed metallic part, and measure the voltage at each point.

5. Reverse the AC plug in the AC outlet and repeat each of the above measurements.

6. The potential at any point should not exceed 0.75 volts RMS. A leakage current tester (Simpson Model 229 or equivalent) may be used to make the hot checks, leakage current must not exceed 1/2 milliampere. In case a measurement is outside of the limits specified, there is a possibility of a shock hazard, and the equipment should be repaired and rechecked before it is returned to the customer.

1.1.1. Leakage current cold check

1. Unplug the AC cord and connect a jumper between the two prongs on the plug.

2. Measure the resistance value, with an ohmmeter, between the jumpered AC plug and each exposed metallic cabinet part on the equipment such as screwheads, connectors, control shafts, etc. When the exposed metallic part has a return path to the chassis, the reading should be between 1MΩ and 5.2MΩ. When the exposed metal does not have a return path to the chassis, the reading must be .

Page 4

2Warning

2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatic Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatic Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by electrostatic discharge (ESD).

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static (ESD protected)" can generate electrical charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed.

Caution

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES device).

Page 5

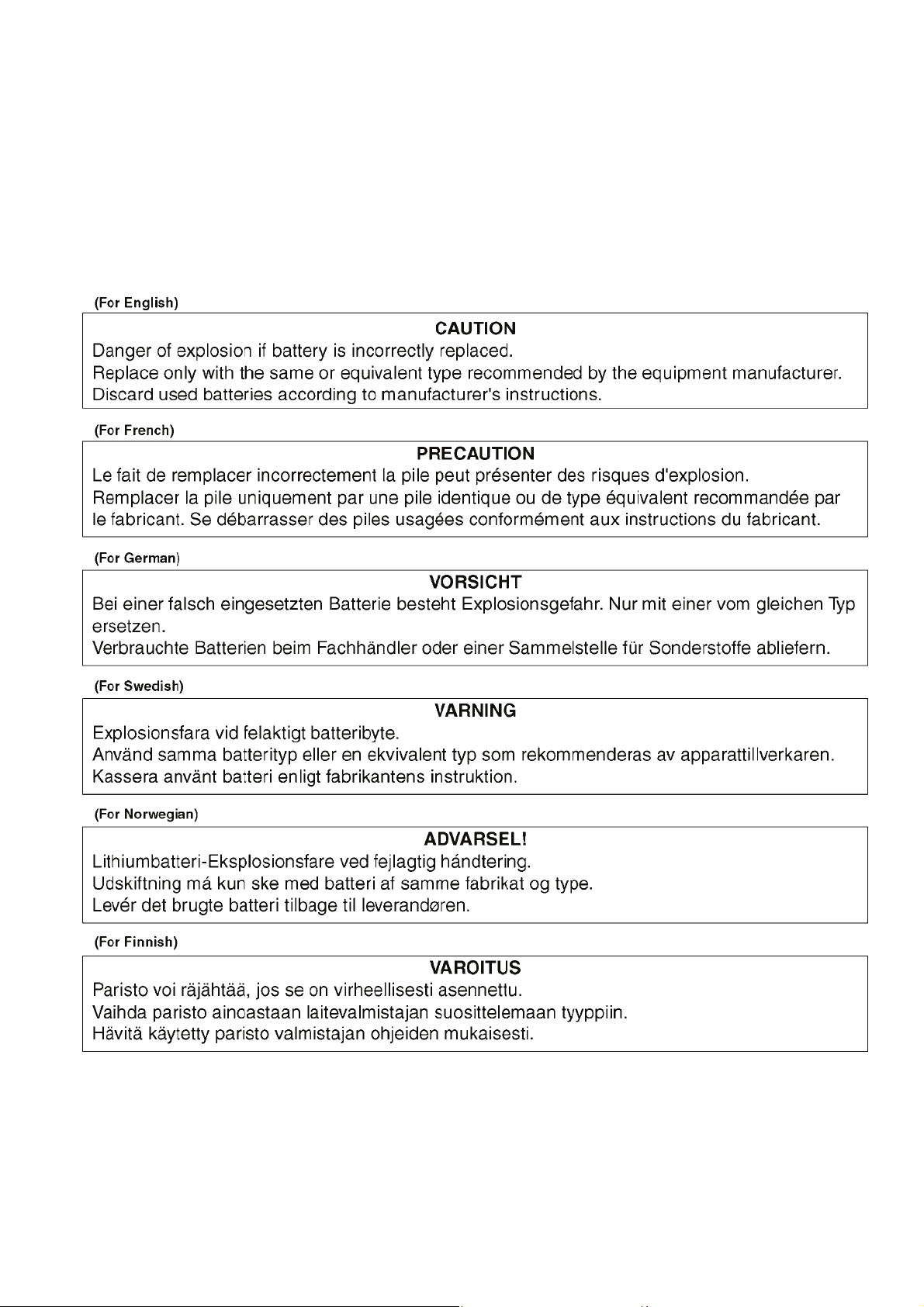

2.2. How to Replace the Lithium Battery

This model is using a lithium battery for remote control ass’y.

NOTE:

This Lithium battery is a critical component. (Type No.: CR2025 Manufactured by Energy Company, Panasonic Corporation.) It must never be subjected to excessive heat or discharge. It must therefore only be fitted in requirement designed specifically for its use. Replacement batteries must be of same type and manufacture. They must be fitted in the same manner and location as the original battery, with the correct polarity contacts observed. Do not attempt to re-charge the old battery or re-use it for any other purpose. It should be disposed of in waste products destined for burial rather than incineration.

Page 6

2.3. Caution for AC Cord (For EB)

2.3.1. Information for Your Safety

IMPORTANT

Your attention is drawn to the fact that recording of prerecorded tapes or discs or other published or broadcast material may infringe copyright laws.

WARNING

To reduce the risk of fire or shock hazard, do not expose this equipment to rain or moisture.

CAUTION

To reduce the risk of fire or shock hazard and annoying interference, use the recommended accessories only.

FOR YOUR SAFETY

DO NOT REMOVE THE OUTER COVER

To prevent electric shock, do not remove the cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

2.3.2. Caution for AC Mains Lead

For your safety, please read the following text carefully.

This appliance is supplied with a moulded three-pin mains plug for your safety and convenience. A 5-ampere fuse is fitted in this plug. Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5 amperes and it is approved by ASTA or BSI to BS1362 Check for the ASTA mark or the BSI mark on the body of the fuse.

2.3.2.1. Important

The wires in this mains lead are coloured in accordance with the following code:

Blue Neutral Brown Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter L or coloured RED.

Under no circumstances should either of these wires be connected to the earth terminal of the three pin plug, marked with the letter E or the Earth Symbol.

2.3.2.2. Before Use

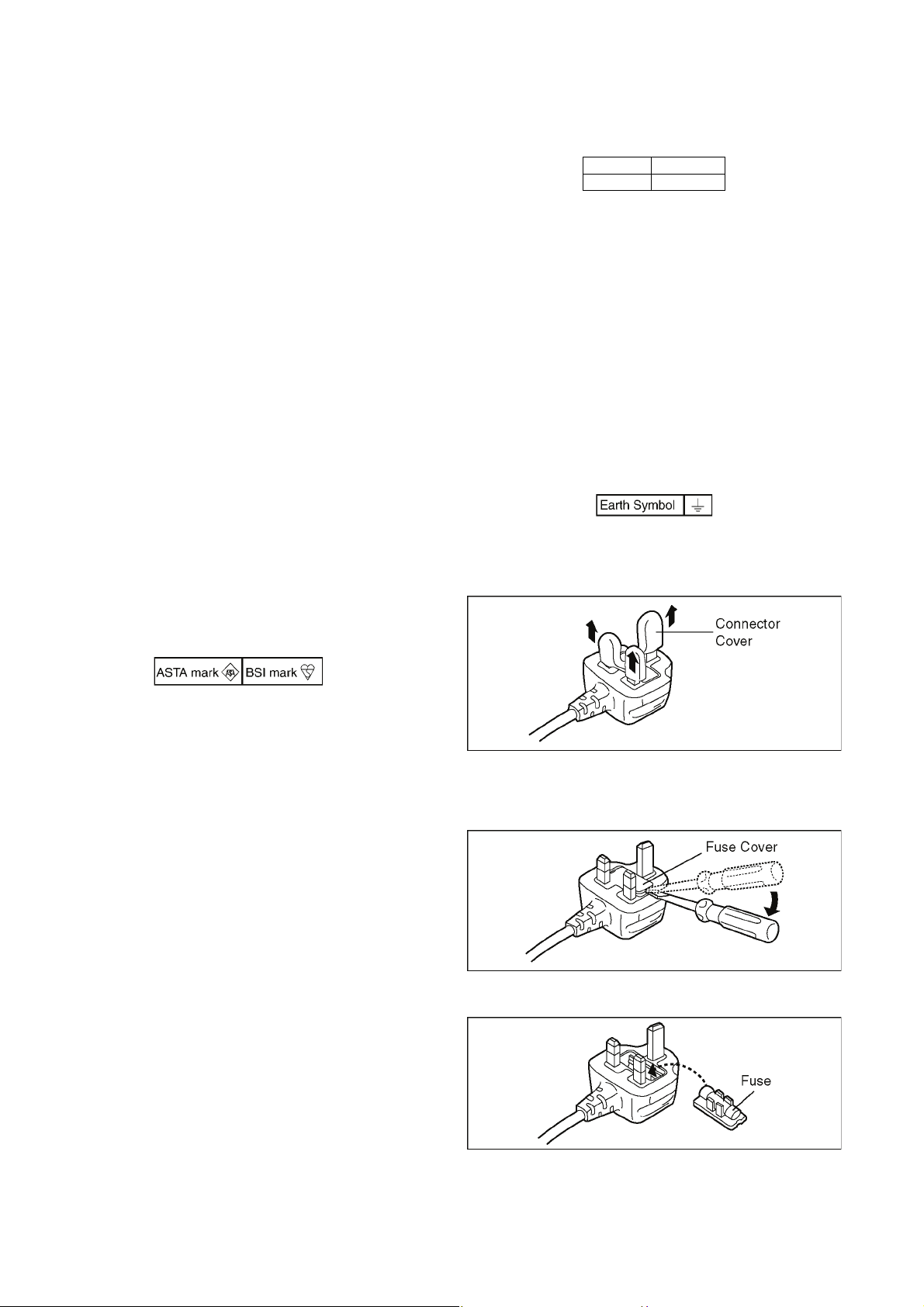

Remove the Connector Cover as follows.

If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover, the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local Panasonic Dealer.

If the fitted moulded plug is unsuitable for the socket outlet in your home then the fuse should be removed and the plug cut off and disposed of safety. There is a danger of severe electrical shock if the cut off plug is inserted into any 13-ampere socket.

If a new plug is to be fitted please observe the wiring code as shown below. If in any doubt, please consult a qualified electrician.

2.3.2.3. How to Replace the Fuse

1. Remove the Fuse Cover with a screwdriver.

2. Replace the fuse and attach the Fuse cover.

Page 7

3 Service Navigation

3.1. Introduction

This service manual contains technical information, which allow service personnel's to understand and service this model. Please place orders using the parts list and not the drawing reference numbers.

If the circuit is changed or modified, the information will be followed by service manual to be controlled with original service manual.

3.2. General Description About Lead Free Solder (PbF)

The lead free solder has been used in the mounting process of all electrical components on the printed circuit boards used for this equipment in considering the globally environmental conservation.

The normal solder is the alloy of tin (Sn) and lead (Pb). On the other hand, the lead free solder is the alloy mainly consists of tin (Sn), silver (Ag) and Copper (Cu), and the melting point of the lead free solder is higher approx.30 degrees C (86°F) more than that of the normal solder.

Definition of PCB Lead Free Solder being used

The letter of “PbF” is printed either foil side or components side on the PCB using the lead free solder.

(See right figure)

Service caution for repair work using Lead Free Solder (PbF)

• The lead free solder has to be used when repairing the equipment for which the lead free solder is used. (Definition: The letter of “PbF” is printed on the PCB using the lead free solder.)

• To put lead free solder, it should be well molten and mixed with the original lead free solder.

• Remove the remaining lead free solder on the PCB cleanly for soldering of the new IC.

• Since the melting point of the lead free solder is higher than that of the normal lead solder, it takes the longer time to melt the lead free solder.

• Use the soldering iron (more than 70W) equipped with the temperature control after setting the temperature at 350±30 degrees C (662±86°F).

Recommended Lead Free Solder (Service Parts Route.)

• The following 3 types of lead free solder are available through the service parts route. RFKZ03D01KS-----------(0.3mm 100g Reel) RFKZ06D01KS-----------(0.6mm 100g Reel) RFKZ10D01KS-----------(1.0mm 100g Reel)

Note

* Ingredient: tin (Sn), 96.5%, silver (Ag) 3.0%, Copper (Cu) 0.5%, Cobalt (Co) / Germanium (Ge) 0.1 to 0.3%

3.3. Important Notice 1:

1. The service manual does not contain the following information, because of the impossibility of servicing at component level without concerned equipment/facilites.

a. Schematic diagram, Block Diagram and PCB layout of MAIN PCB. b. Parts list for individual parts for MAIN PCB.

2. The following category is/are recycle module part. please send it/them to Central Repair Center.

• TRV/MAIN PCB MODULE (B100EB:RFKNB100EBT, B100EE:RFKNB100EET, B100EG:RFKNB100EGT,)

3. When "JIG & ADJ" of pairing adjustment is available: The Traverse and main P.C.B for PBD model is offered respectively for the market maintenaince. For the information about pairing adjustment of the Traverse and main P.C.B., please refer to "10.3 Adjustment Instruction when Exchange the Traverse or Main P.C.B. (Servo Adjustment)" .

Page 8

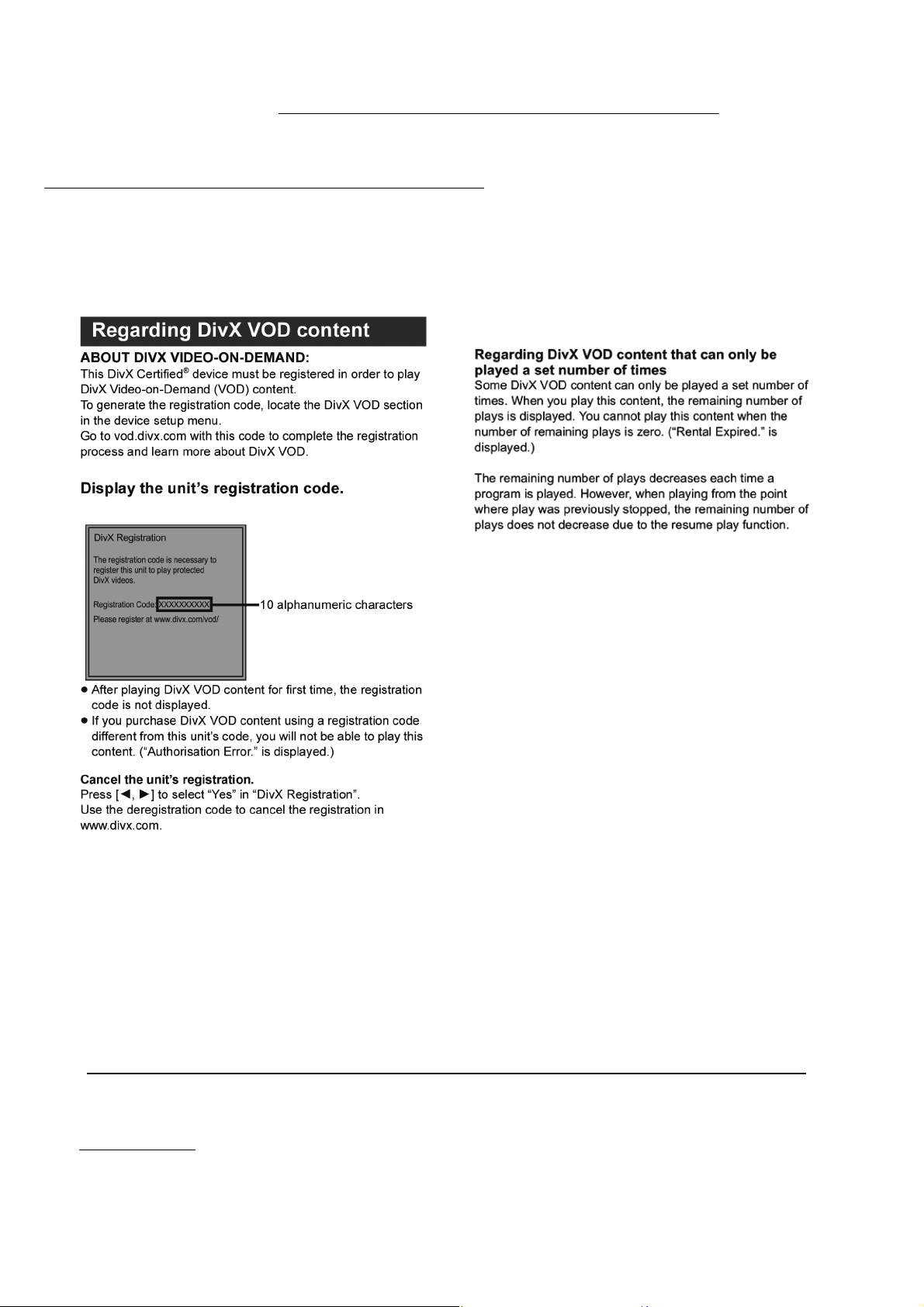

3.4. Caution for DivX

Please will always pass the customer “Warning for Customers Who Use the DivX Video-on-Demand content.” with the product and get it when you unavoidably exchange FLASH-ROM or P.C.B. including FLASH-ROM (When the product is exchanged, it is the same.). You must use print attached to service part (FLASH-ROM or P.C.B. including FLASH-ROM) or must use copy of print below as “Warning for Customers Who Use the DivX Video-on-Demand content.” Information needed without fail for the customer for whom it is used continuing DivX Video-on-Demand Service to “Manual for the customer” is recorded.

Appendix: *Parts that memorize user’s information are only FLASH-ROM. *The registration of Registration Code is possible for half a year up to 6 recorders up to 10 recorders a year.

Registration Code is memorized in FLASH-ROM (Main P.C.B.). If exchange above P.C.B. or FLASH-ROM, new registration Code differ from previous Registration Code will be generated. In this case if your customer uses DivX Video-on-Demand service, he/she will no longer be able to play any content that he/she purchased under that same registration code. Therefore your customer will need to obtain and register the new registration code.

*Copy this page and cut on the dotted line and give the lower half to your customer.

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Warning for Customers Who Use the DivX Video-on-Demand content.

1. The registration code has been changed for the repair of the product or the product exchange.

2. Obtain and register a new registration code, otherwise you will no longer be able to play DivX Video-on-Demand content.

3. Follow the procedure on the DivX Video-on-Demand web site to register at http://

vod.divx.com

* If you do not use the DivX Video-on-Demand content, please ignore this warning.

Page 9

3.5. Static Electricity Protection Measures

• The laser diode in the traverse unit (optical pick-up) may break down due to potential difference caused by static electricity of clothes or human body. So, be careful of electrostatic breakdown during repair of the traverse unit (optical pick-up).

3.6. Ground for electrostatic breakdown prevention

• As for parts that use optical pick-up (laser diode), the optical pick-up is destroyed by the static electricity of the working environment. Repair in the working environment that is grounded.

3.6.1. Work table grounding

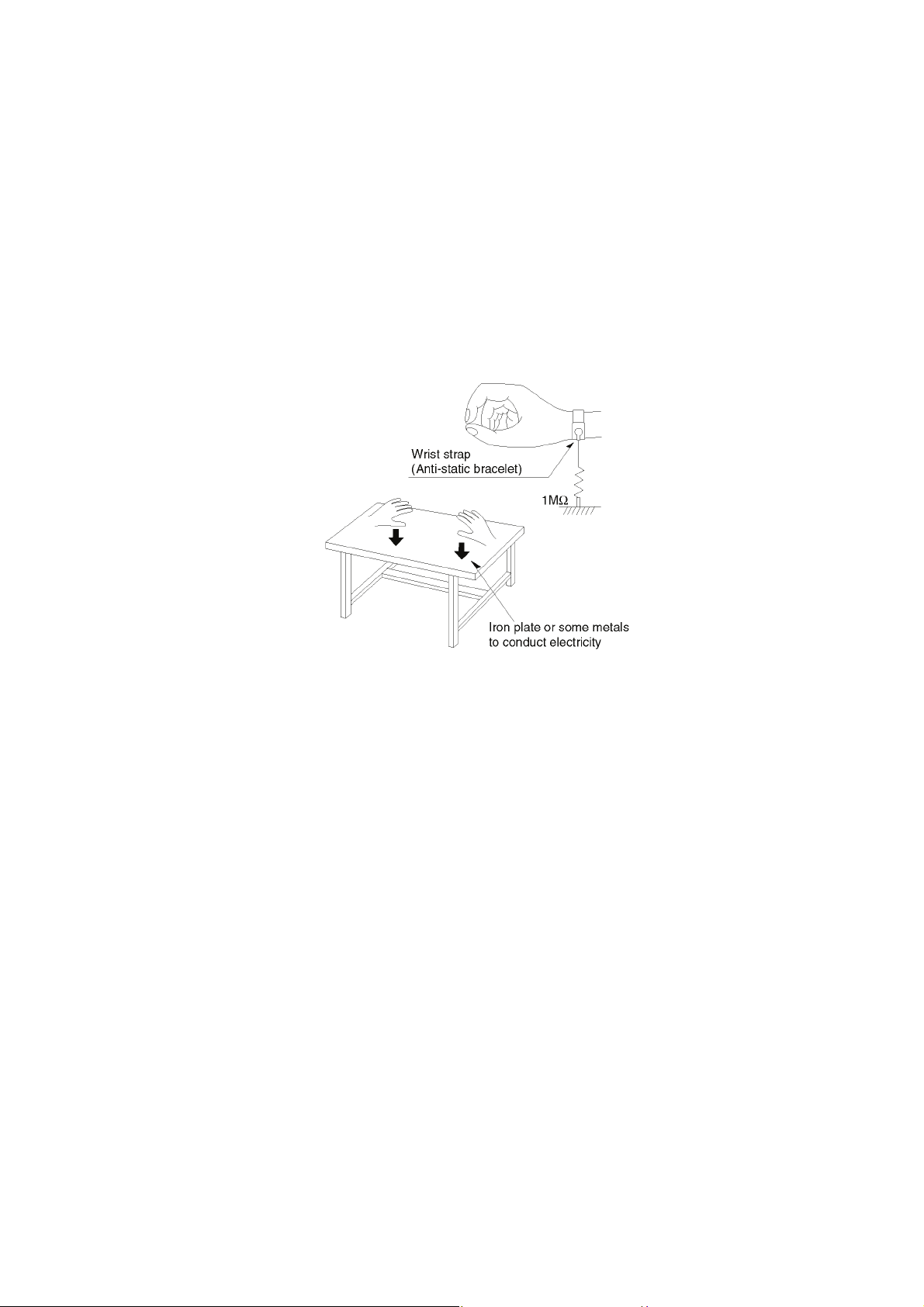

• Put a conductive material (sheet) or steel sheet on the area where the traverse unit (optical pick-up) is placed, and ground the sheet.

3.6.2. Human body grounding

• Use the anti-static wrist strap to discharge the static electricity from your body.

3.7. Handling of Traverse unit (optical pick-up)

1. Do not subject the traverse unit (optical pick-up) to hard shock as it is high precision mechanism.

2. Install the traverse unit, and then remove the short pin to discharge. Connect the connector in a short time.

3. Take care not to apply excessive stress to the flexible cable.

4. Do not turn the variable resistor (laser power adjustment).

It has already been adjusted.

Page 10

4 Specifications

Power supply: DC12V(DC IN terminal)

DC7.2V (Exclusive battery terminal)

Power consumption:

Play Mode: Approx. 19W (Unit only

approx.16W) Recharge Mode: (Quick Start [OFF]): Recharge Mode: (Quick Start [ON]): Standby Mode: (Quick Start [OFF]): Standby Mode: (Quick Start [ON]): (using included AC adaptor)

AC Adaptor:

Power source: 110V-240V, 50/60Hz Power consumption: 36W DC output: 12V, 2000mA

Car DC Adaptor:

DC output: 12V, 2A

Battery pack DY-DB30(lithium ion):

Voltage: 7.2V Capacity: 5800mAh(typ)

Dimensions (excluding protrusions and battery): (WxDxH): Mass:

Including battery: approximately 1392g [49.10oz] Without battery: approximately 1157g [40.81oz]

Operating temperature range: +5°C to +35°C(+41 to +95°F) Operating humidity range: 10% - 80%RH (no condensation) LCD screen:

HDMI AUDIO/VIDEO output:

number of terminals: 1 system

Speaker:

output: 0.5W + 0.5W (8Ω)

Head phone output:

output:

number of terminals: 1 system

Battery duration(at 20°C) Using headphones Option Battery pack: DY-DB300

when brightness is set to "-5" while playing DISC: when brightness is set to "0" while playing DISC: when brightness is set to "+5" while playing DISC:

Battery recharge time: (at 20°C) Pickup:

Wave Length: 405nm/660nm/780nm (BD/DVD/

Laser Power: CLASS 1M/CLASS 1M/

Approx. 18W

Approx. 22W

Approx. 0.5W

Approx. 5W

Vehicle with 12V battery only

5400mAh(min)

39Wh

238mm x 188.3mm x 52.7mm

/8" x 713/32" x 21/16")

8.9" -Si, TFT wide-screen LCD

(1024 x 600 x RGB)

stereo mini-jack( 3.5mm)

3.5 hours/6 hours (DY-DB300)

3.25 hours/5.5 hours (DY-DB300)

3 hours/5 hours (DY-DB300)

5 hours/8 hours (DY-DB300)

CD)

CLASS 1M (BD/DVD/CD)

Region Code: DVD: #2(B100EB/EG)

DVD: #5(B100EE) BD: Region B(B100EB/EG) BD: Region C(B100EE)

Media:

Playable disc:

BD-Video: BD-ROM Version2 BD-RE: Version3 (SL:Single Layer/

BD-R: Version2 (SL:Single Layer/

DVD-RAM: DVD Video Recording format (*6),

DVD-R: DVD-Video format (*1), DVD

DVD-R DL: DVD-Video format (*1), DVD

DVD-RW: DVD-Video format (*1), DVD

+R: Video(*1), AVCHD format(*1) +R DL: Video(*1), AVCHD format(*1) +RW: Video(*1), AVCHD format(*1) DVD-VIDEO DVD-Video format CD-Audio CD-DA CD-R/CD-RW CD-DA, JPEG(*2), MP3(*2),

*1: Finalizing is necessary. *2: ISO9660 level1 or 2(except for extended formats), Joliet.

This unit is compatible with multi-session.

This unit is not compatible with packet writing. *3: UDF1.02 without ISO9660, UDF1.5 with ISO9660. *4: UDF2.5. *5: DivX Certified to play DivX video up to HD 1080p, including

premium content. GMC(Global Motion Compensation) is not supported. Maximum number of folders recognizable:300 folders. (including the root folder).

Maximum number of files recognizable:200 files. For B100EB/EE: *6: CPRM is not supported.

SD card:

SD Memory Card(*1) formatted FAT12, FAT16, FAT32(*2), ex FAT(*3 ):

*1: includes SDHC, SDXC card.

includes miniSD

includes microSD/microSDHC/micro SDXC Card.

(need a microSD Adaptor.) *2: Not support long file name. *3: SDXC only.

Contents:

JPEG:

SD card, CD-R/RW, DVD-RAM, BD-RE, DVD-R:

Pixcels: 34x34~8192x8192 Sub Sampling: 4:2:2, 4:2:0

SD card: JPEG conforming DCF(Design

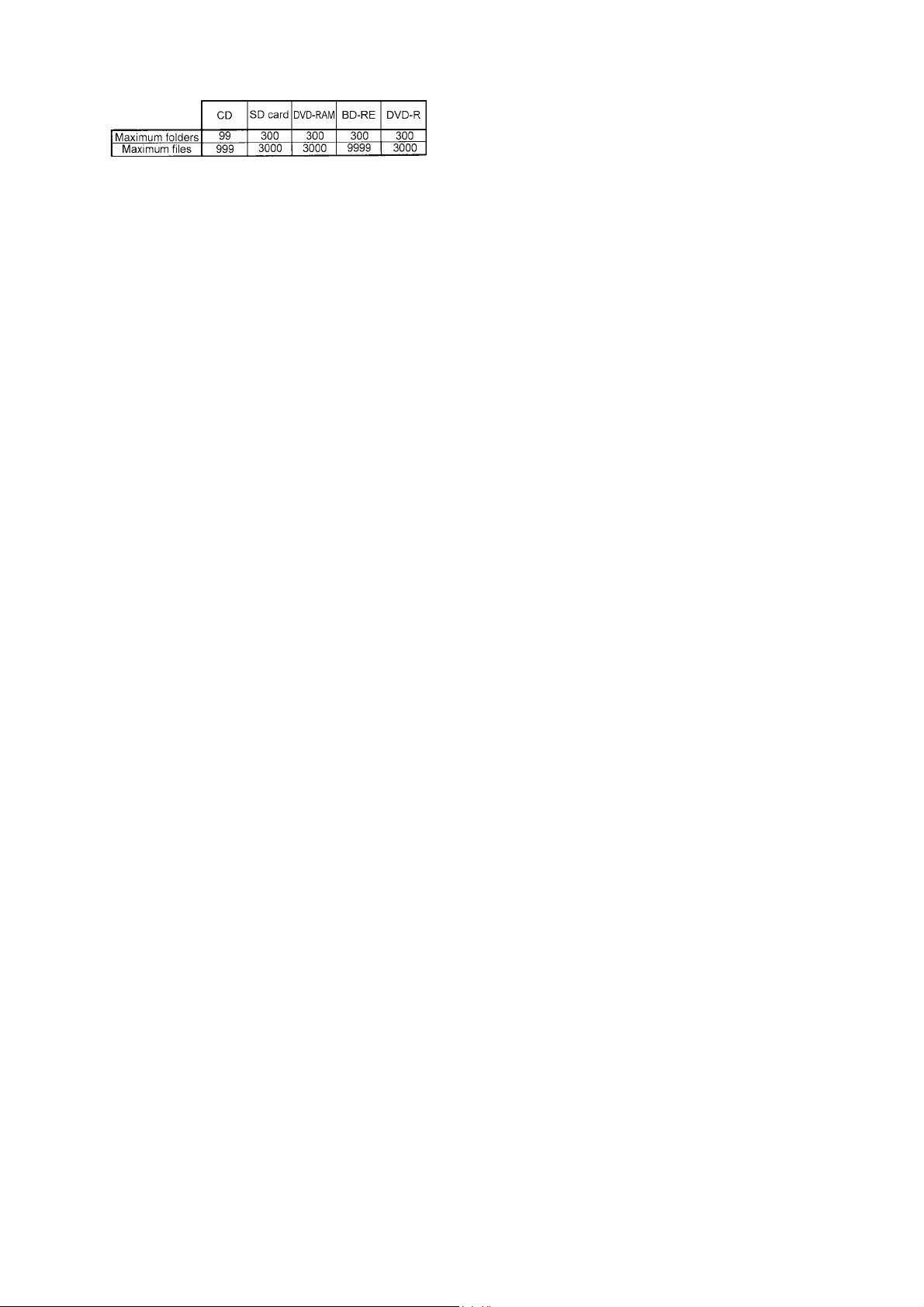

Maximum numbers of folders and files:

Card(need a miniSD Adaptor.)

DL:Dual Layer), JPEG

DL:Dual Layer), DivX(*4, *5)

AVCHD format, JPEG

Video Recording format (*1, *6) AVCHD format(*1), JPEG(*2), MP3(*2), DivX(*2, *3, *5)

Video Recording format (*1, *6) AVCHD format(*1)

DivX(*2, *5)

JPEG, AVCHD format, MPEG-2

Motion JPEG not supproted

rule for Camera File system)

Page 11

MP3:

CD-R, CD-RW, DVD-R:

Compression rate: 32kbps~320kbps Sampling rate: 44.1kHz, 48kHz

AVCHD (H.264):

SD card, DVD: AVCHD format V1.0

HDMI: 480p(525p)/576p(625p)/

1080i(1125i)/720p(750p)/

1080p(1125p) HDMI (x.v.Color High Bit rate Audio) (This unit supports “HDAVI Control 5” function.)

Solder: This model uses lead free

solder(PbF).

Note: Specifications are subject to

change without notice.

Page 12

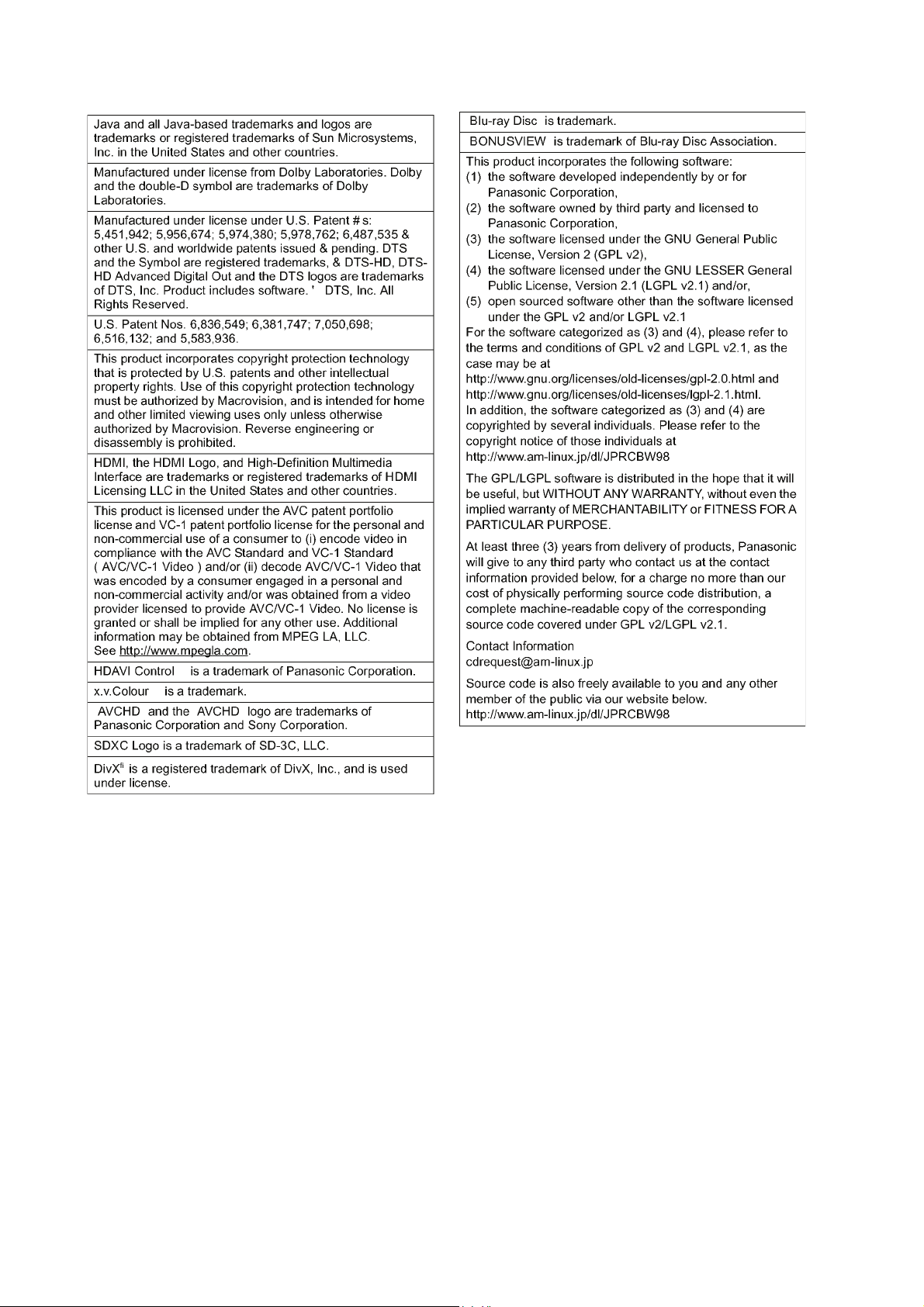

4.1. Others (Licenses)

Page 13

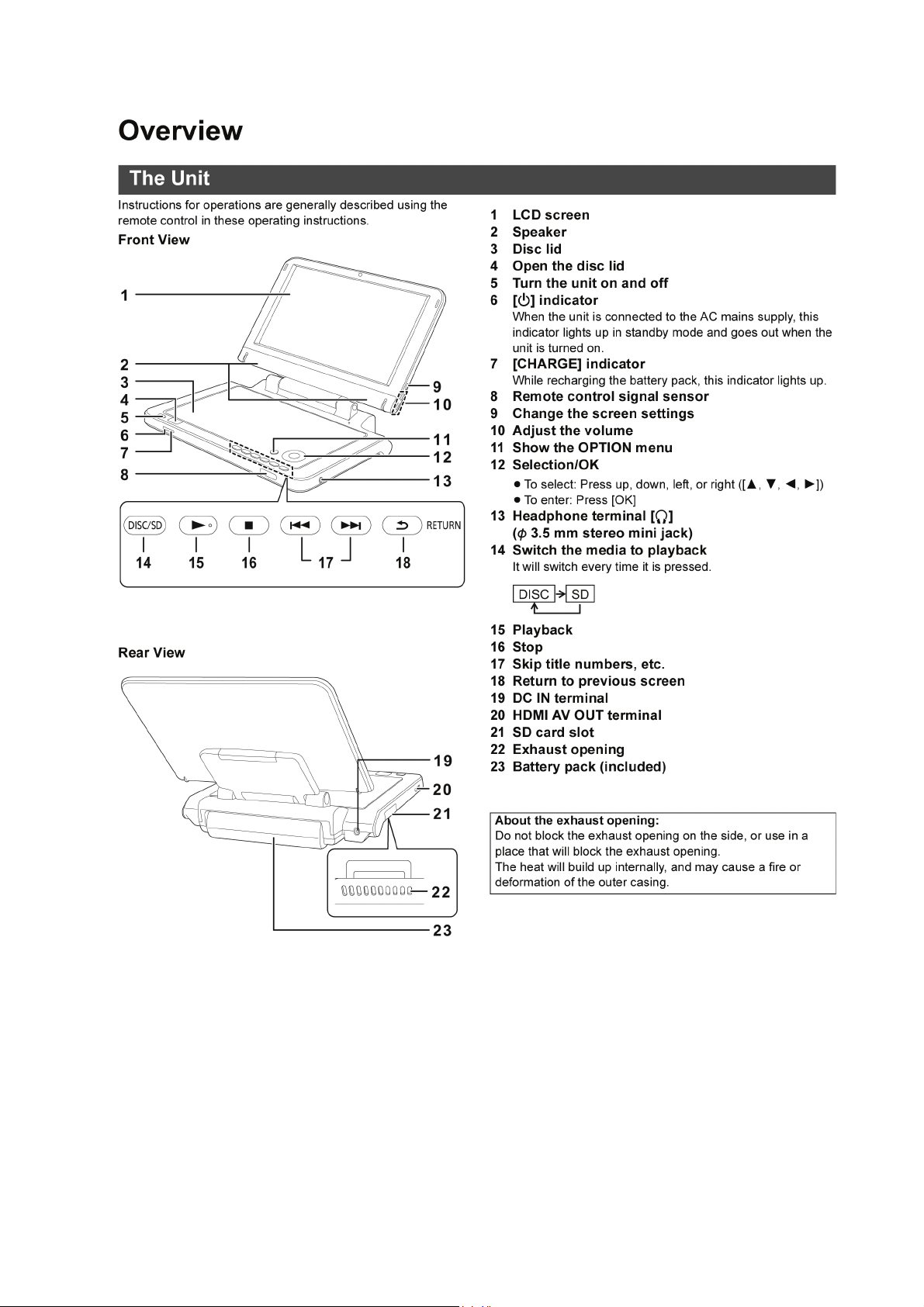

5 Location of Controls and Components

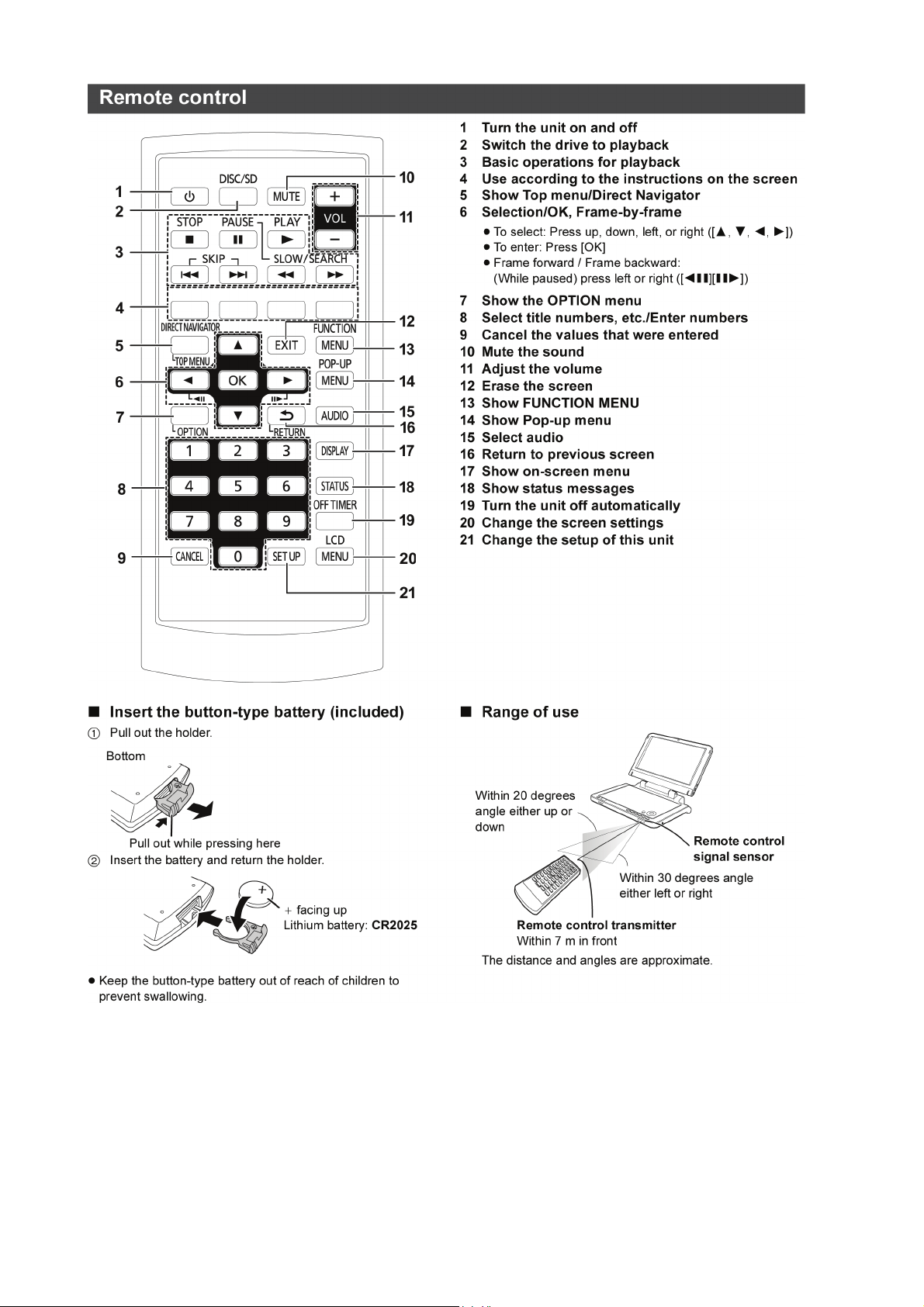

Page 14

Page 15

6 Service Mode

Information necessary for service can be displayed. Service mode setting:

1. Turn the power off.

2. Press the [OPTION] + [PLAY] and [VOL DOWN] button simultaneously for five seconds.

3. It is displayed on LCD as [SERV]. : It is shown to have entered the service mode. ([PLEASE WAIT] is displayed previously according to the A/V mode.)

4. The command is transmitted by attached remote control. Method of making clear service mode : Press the power button (power off). The display of information to each command is as follows.

NOTE:

Do not use it excluding the designated command.

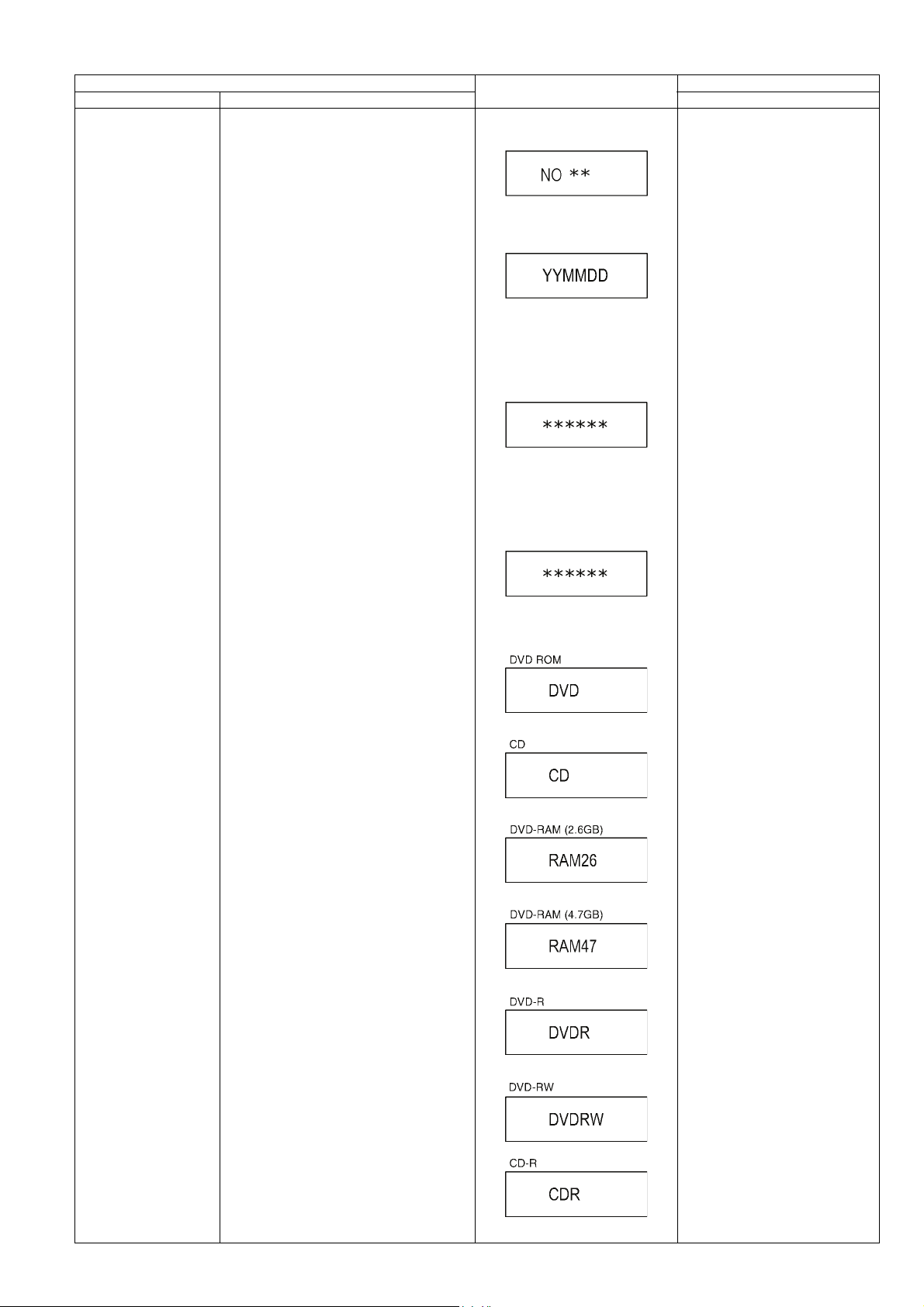

Item LCD display Key operation

Mode name Description (Remote controller key)

Release Items Item of Service Mode executing is cancelled. Press[0][0] or [Return] in service

mode.

Error Code Display Last Error Code of U/F held by memory is dis-

played on FL. *Details are described in "Self-Diagnosis Functions".

7.1. Self-Diagnosis Functions.

ROM Version Display The display contents are switched over every

5 seconds.

1. Region code

2. Main firm version

3. Timer firm version

4. Drive firm version

5. ROM correction version

6. BOO2 version

7. BOO3 version

Press [0] [1] in service mode.

If any error history does not exist, [F00] is displayed.

Press [0] [2] in service mode.

Page 16

Item LCD display Key operation

Mode name Description (Remote controller key)

Drive Check Simple quality of BD drive

Laser Used Time Indication

Check laser used time (hours) of drive.

*If the date of the present or the trouble occurred time is incorrect, it may be not able to judge correctly.

Press [0] [3] in service mode.

Press [3] [8] in service mode.

Press [4] [1] in service mode.

(****) is the used time display in

hour.

Laser used time of BD/ DVD/ CD in Playback/Recording mode is counted.

Page 17

Item LCD display Key operation

Mode name Description (Remote controller key)

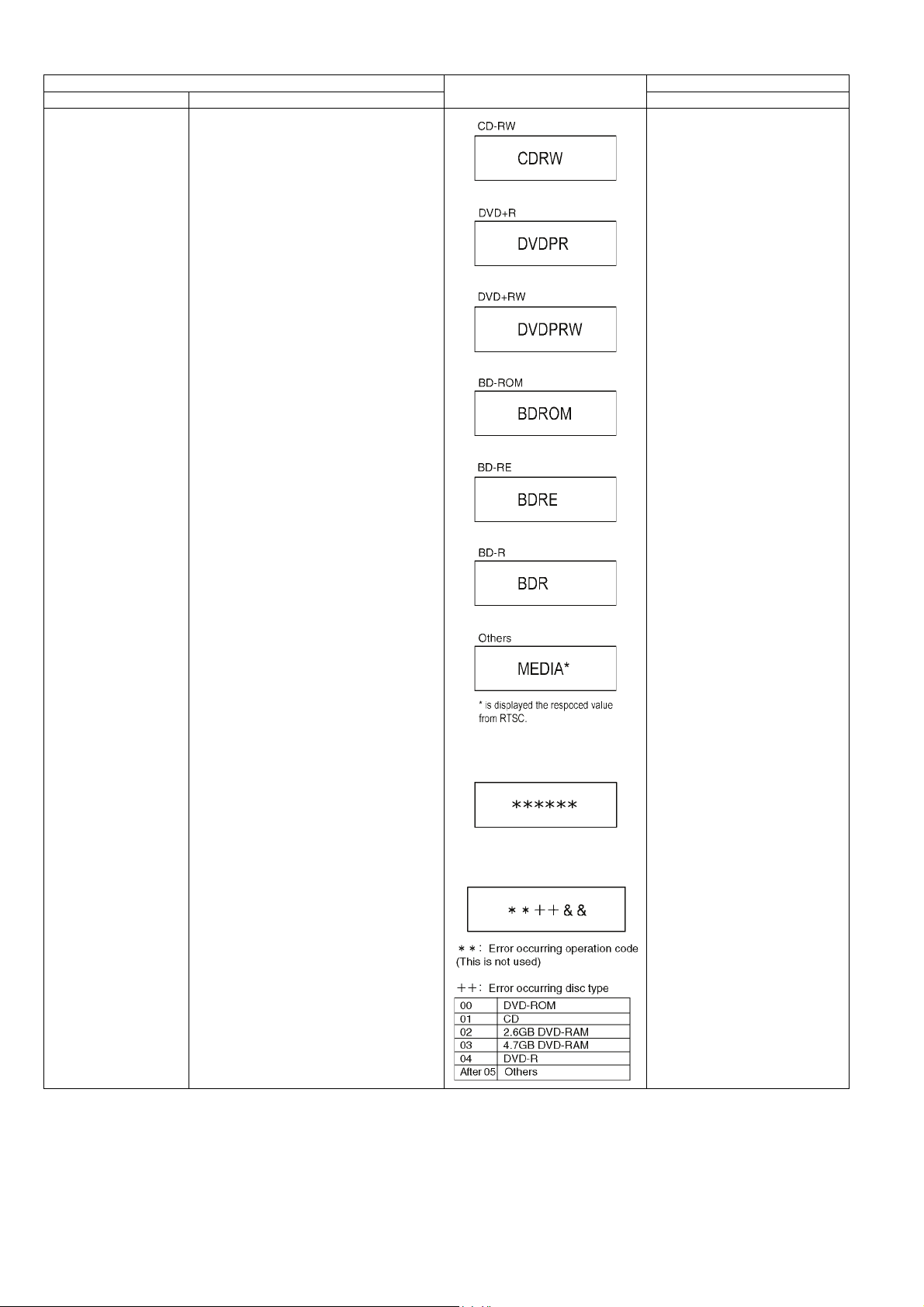

BD drive last error BD drive error code display. 1. Error Number is displayed for 5

seconds.

2. Time when the error has occurred is display for 5 seconds.

YY: Year MM: Month DD: Day

3. Last drive error (1/2) is displayed for 5 seconds.

00 : Bad disc 03 : Bad disc 04 : Bad disc or drive malfunction

4. Last drive error (2/2) is displayed for 5 seconds.

Press [4] [2] in service mode.

5. Error occurring disc type is displayed for 5 seconds.

Page 18

Item LCD display Key operation

Mode name Description (Remote controller key)

6. Disc maker ID is displayed for 5 seconds.

7. Factor of drive error (hexadecimal) occurring is left displayed.

In case that the maker cannot be identified, display is blackout.

Page 19

Item LCD display Key operation

Mode name Description (Remote controller key)

8. When the last error doesn't exist .

CEC (H) output check Check of the CEC terminal high output of

HDMI.

CEC (L) output check Check of the CEC terminal low output of

Manufacturing Date Read out the manufacturing date of the unit.

Delete the Laser Used Time

HDMI.

Laser used time information stored in the memory of the unit is deleted.

Press [5] [5] in service mode.

Press [5] [6] in service mode.

Press[6][1]in service mode.

YY: Year MM: Month DD: Day

Press [9] [5] in service mode.

Delete the Last Drive Error

Delete the Error History Error History information stored on the unit is

Initialization of Error code Last Error Code information stored by timer is

Initialization of the Service Mode

Laser Drive Error information stored on the BD Drive is deleted.

deleted.

deleted. (Write in F00)

Last Drive Error, Error History and Error code information stored on the unit are initialized to factory setting.

Press [9] [6] in service mode.

Press [9] [7] in service mode.

Press [9] [8] in service mode.

Press [9] [9] in service mode.

Page 20

Item LCD display Key operation

Mode name Description (Remote controller key)

Release Service Mode Release Service Mode and turns the Power

Off.

Display in STOP (SS) mode. Press [POWER] button on the front

panel or Remote controller in service mode.

Page 21

7 Troubleshooting Guide

7.1. Self-Diagnosis Functions

Self-Diagnosis Function provides information for errors to service personnel by “Self-Diagnosis Display” when any error has occurred.

U**, H** and F** are stored in memory and held.

You can check latest error code by transmitting [0] [1] of Remote Controller in Service Mode. In case of clear the self-diagnosis display, remove the battery pack and the AC adaptor from the main unit after the power of the main unit is turned off.

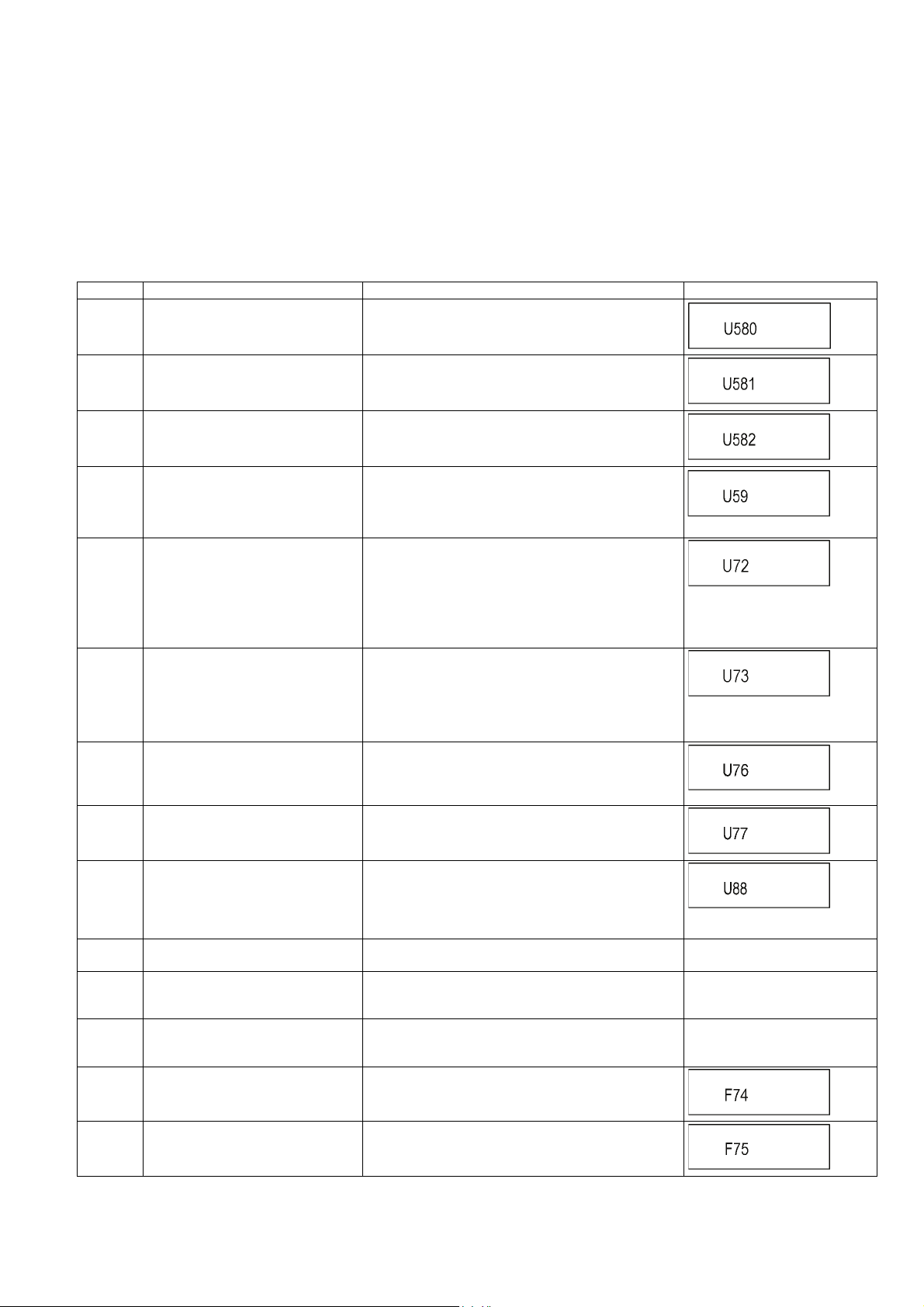

Error Code Diagnosis contents Description LCD Display U580 Battery supply current abnormality A problem has occurred with the battery pack. Consult

U581 Abnormal charge time on battery power The battery pack has been recharging but has failed to

your dealer.

recharge for some reason. Recharge again.

U582 Battery-powered temperature anomaly You are recharging in a location that is too hot or too cold.

U59 Abnormal inner temperature detected Display appears when drive temperature exceeds 70°C.

U72 HDMI connection error

(communication error)

U73 HDMI connection error

(authentication error)

U76 Connection error This error is displayed when equipment such as TVs or

U77 Illegal disc error This error is displayed when it becomes impossible to

U88 Restoration is operation.

(When the disc is in the disc tray)

H19 No working Fun Motor Preserves the Error record in case the Fun Motor doesn't

F00 No error information Initial setting for error code in memory

F58 Drive hardware error When drive unit error is detected, the event is saved in

F74 HDMI Device Key Communication

error

Recharge at normal temperature [+5 to +35 °C (+41 to +95 °F)].

The power is turned off forcibly. For 30 minutes after this, all key entries are disabled. The event is saved in memory as well.

This error is displayed when there are any communication problems with the unit and the equipments (TV, amplifier etc.) connected to the unit by HDMI. (or when there is a problem with the HDMI cable). The display disappears only when the connection is released. Neither the button operation nor the passage of the fixed time disappear the display. When authentication error occurs while the equipments (TV, amplifier etc.) are connected by HDMI. (or when there is a problem with the HDMI cable). The display disappears only when the connection is released. Neither the button operation nor the passage of the fixed time disappear the display.

amplifiers connected to the unit with the HDMI cable do not correspond to the copyright protection. (The BD/DVD video where the copyright is protected cannot be played.)

reproduce because of copyright illegal information.

This error is displayed when there is a disc in the disc tray or abnormality is confirmed during playback. It is shown that the restoration to return the main unit operation normally is operating. It becomes possible to use as soon as not the breakdown but the U88 display disappears.

work at the time of Power-On.

(Error code Initialization is possible with error code initialization and main unit initialization.)

memory.

This error is displayed when the information error is occurred at HDMI device key loading.

"U59" is displayed for 30 minutes.

Display for 30 seconds.

No display

Not automatic display. Press [0][1] in service mode. (Remote controller key) Not automatic display. Press [0][1] in service mode. (Remote controller key)

F75 HDMI Device Key Loading error This error is displayed when the key of loaded is illegal at

HDMI device key loading.

Page 22

Error Code Diagnosis contents Description LCD Display F99 Hang-up Displayed when communication error has occurred

between Main microprocessor and Timer microprocessor.

"F99" is displayed utill the [Power]

key is pressed. UNSUPPORT

No Read Disc read error This error is displayed when the following are detected.

Hard Error Drive error This error is displayed when the drive detected a hard

Self Check Restoration operation This error is displayed when the restoration is operating

Unformat Unformatted disc error This error is displayed when the unformatted DVD-RAM/

Unsupported disc error This error is displayed when the following are detected.

1. When the unsupported format disc is reproduced.

2. When the unsupported format data is saved in the supported format disc.

3. When it becomes impossible to read because the quality of the disc is bad.

1.When the disc is dirty or damaged.

2. When falling in reading the reack information.

3. When the drive error occurs.

error.

because it is power failures or turns off power during a operation. If there is no problem, the display disappears automatically. If a display does not disappear, there is the possibility that defective Main P.C.B. / Drive unit.

DVD-RW or the DVD-RW recorded by another make of recorder is inserted.

"This disc is incompatible."

Display for 5 seconds.

"Cannot read, please check the

disc."

Display for 5 seconds.

"DVD drive error."

Display for 5 seconds.

This disc is not formatted properly.

Format the disc in DISC

MANAGEMENT?

Page 23

8 Service Fixture & Tools

Part No. Uses Pcs Interchangeability with Old Fixture Tools

----- New CD-R disc 1

----- SD DIAG CARD <128MB - 2GB> (SDHC memory card cannot be used)

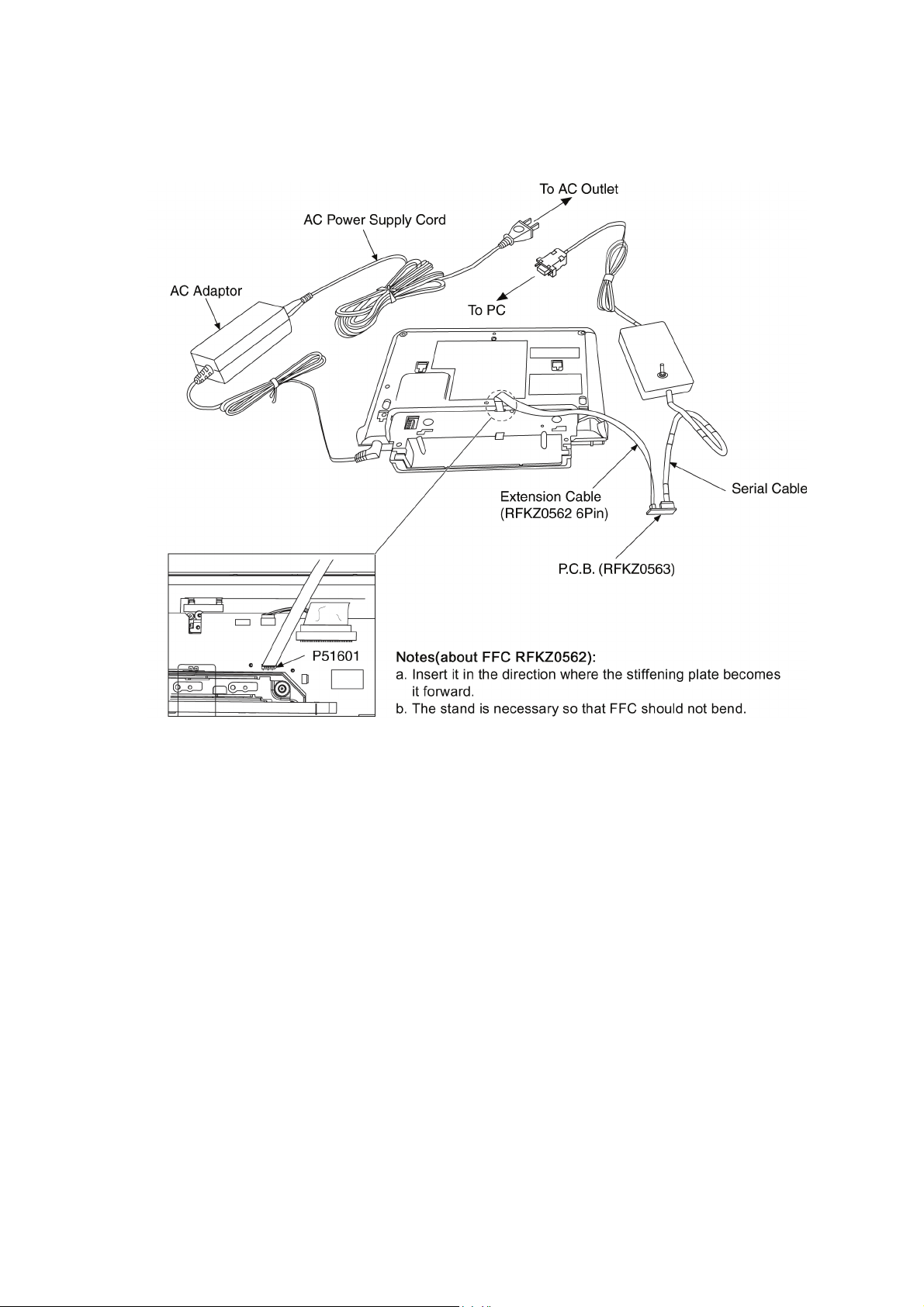

RFKZ0558(5Pin)+ RFKZ0559 Extension cable + connector

(Traverse Unit-Main P.C.B.)

RFKZ0560(8Pin) + RFKZ0561 Extension cable + connector

(Traverse Unit-Main P.C.B.)

RFKZ0562(6Pin)+ RFKZ0563 Extension cable + P.C.B.

(PC-Main P.C.B. (P51601)

RFKZ0139 Serial Cable (PC-Main P.C.B. (P51601)/6pin) 1 New

RFKZ03D01KS Lead Free Solder (0.3mm/100g Reel) Sharing with EH55/EH75V/XP10/XW30 Series RFKZ06D01KS Lead Free Solder (0.6mm/100g Reel) Sharing with EH55/EH75V/XP10/XW30 Series RFKZ10D01KS Lead Free Solder (1.0mm/100g Reel) Sharing with EH55/EH75V/XP10/XW30 Series RFKZ0316 Lead Free Solder with Low Melting Point

for Unsolder (50g)

RFKZ0328 Flux Sharing with EH55/EH75V/XP10/XW30 Series

1New

Sharing with EH55/EH75V/XP10/XW30 Series

Page 24

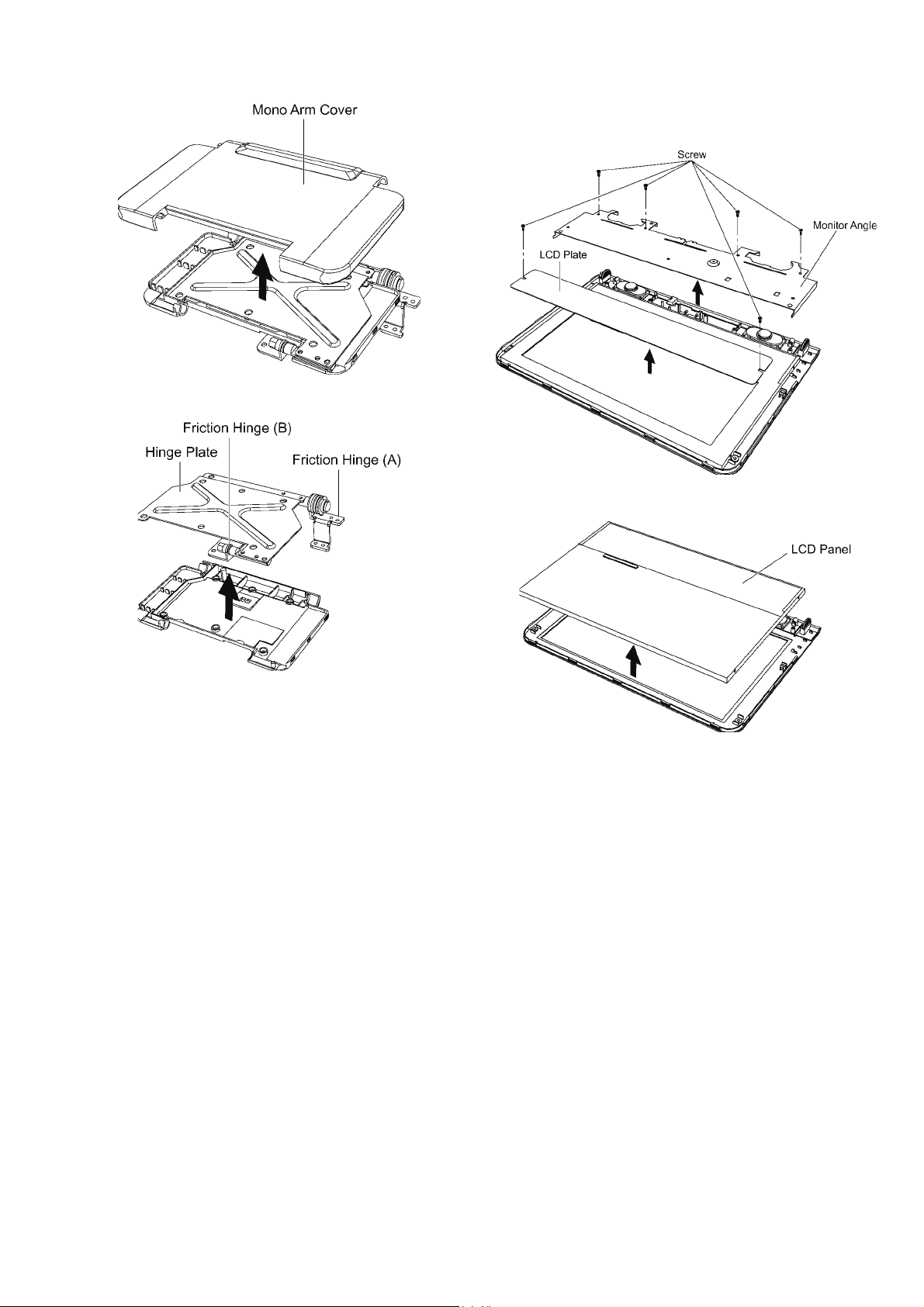

9 Disassembly and Assembly Instructions

9.1. Disassembly Flow Chart

Page 25

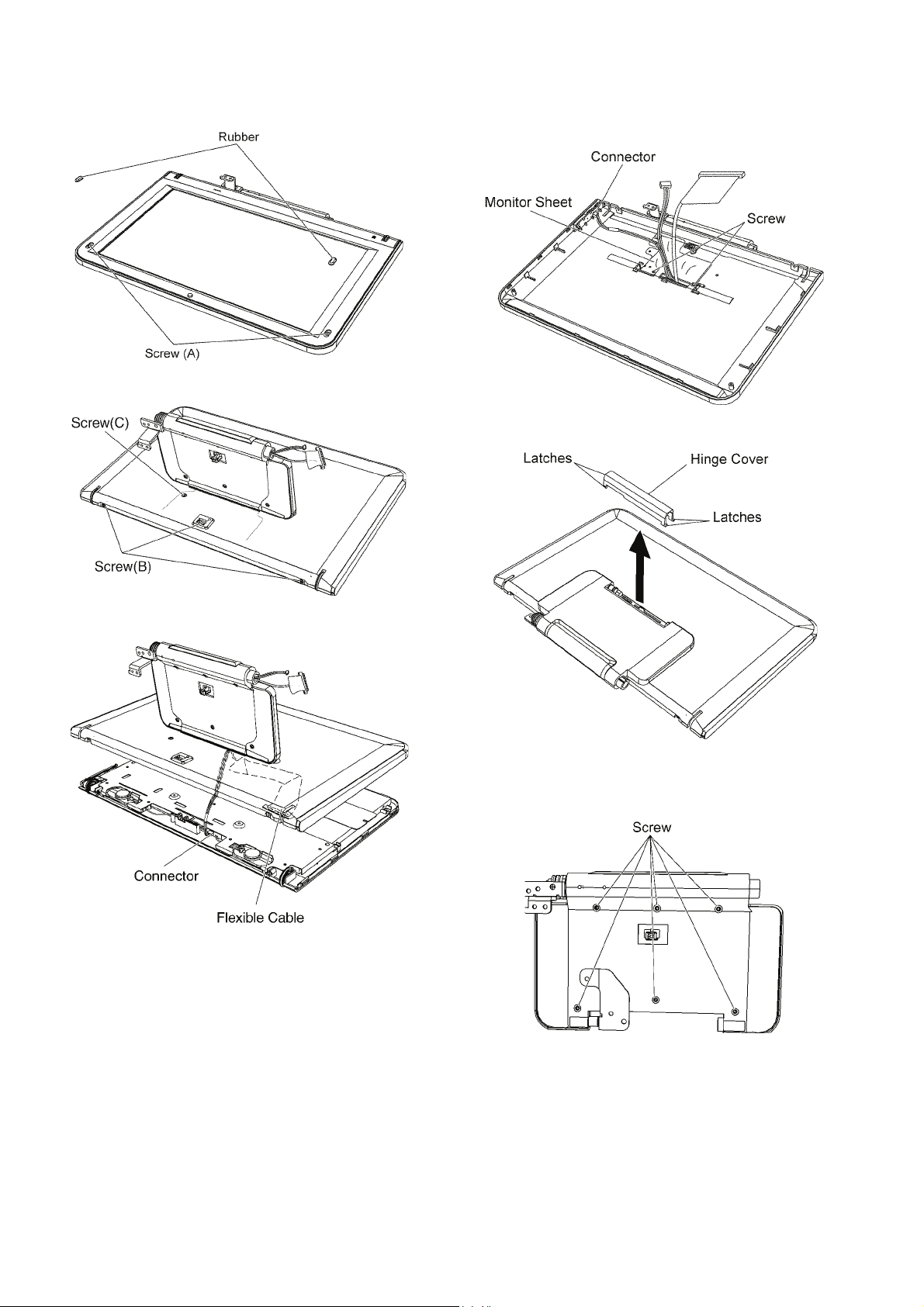

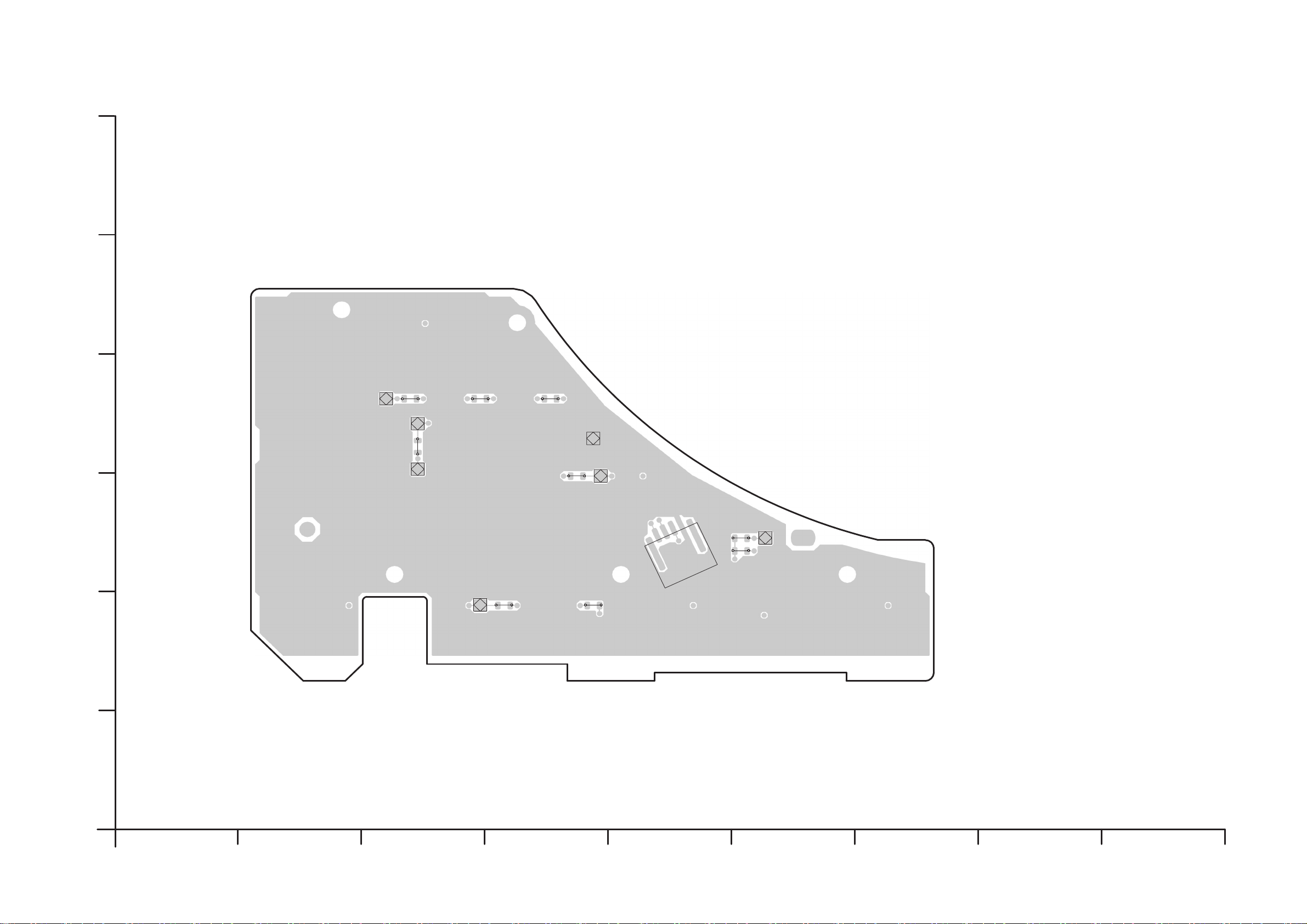

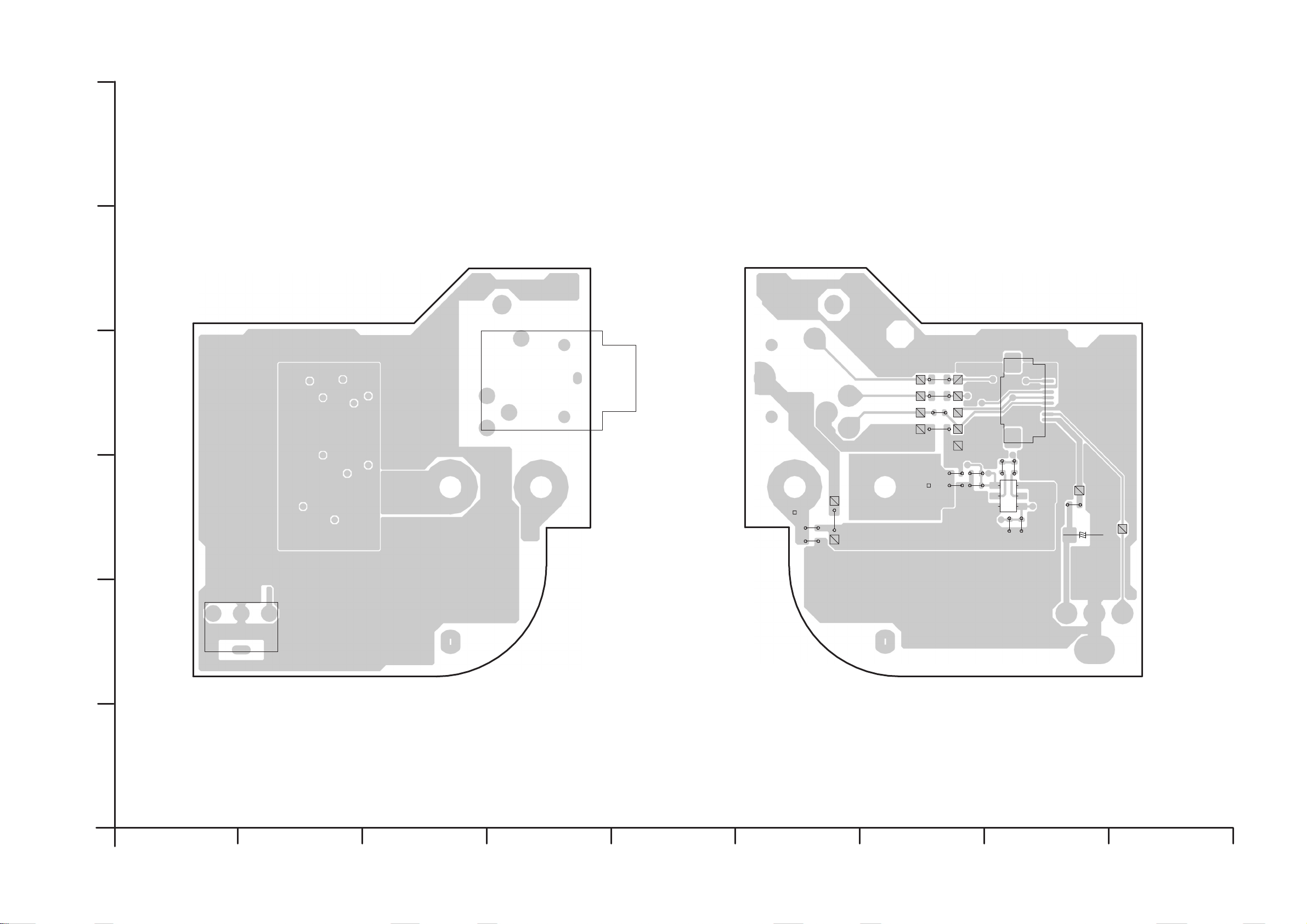

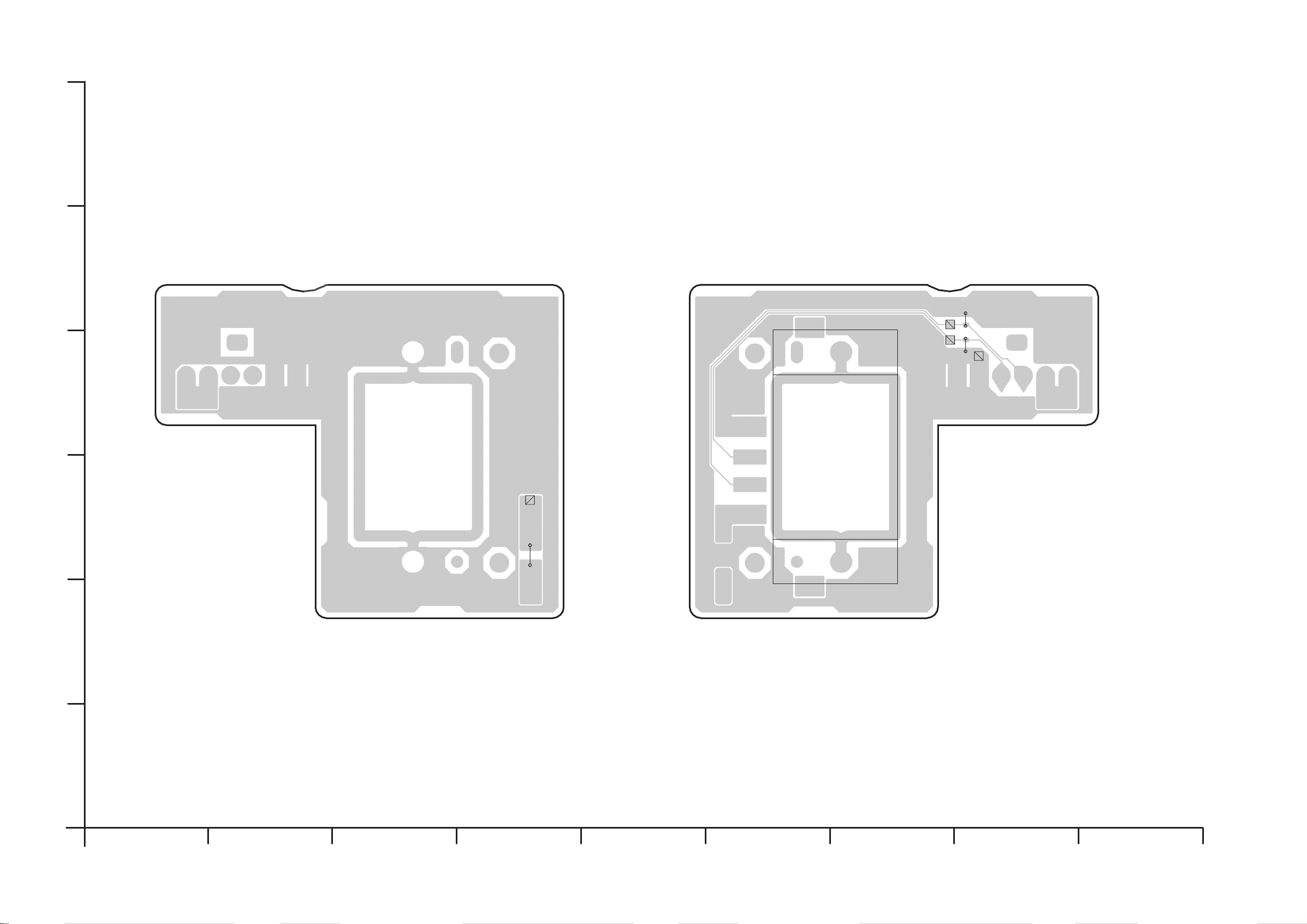

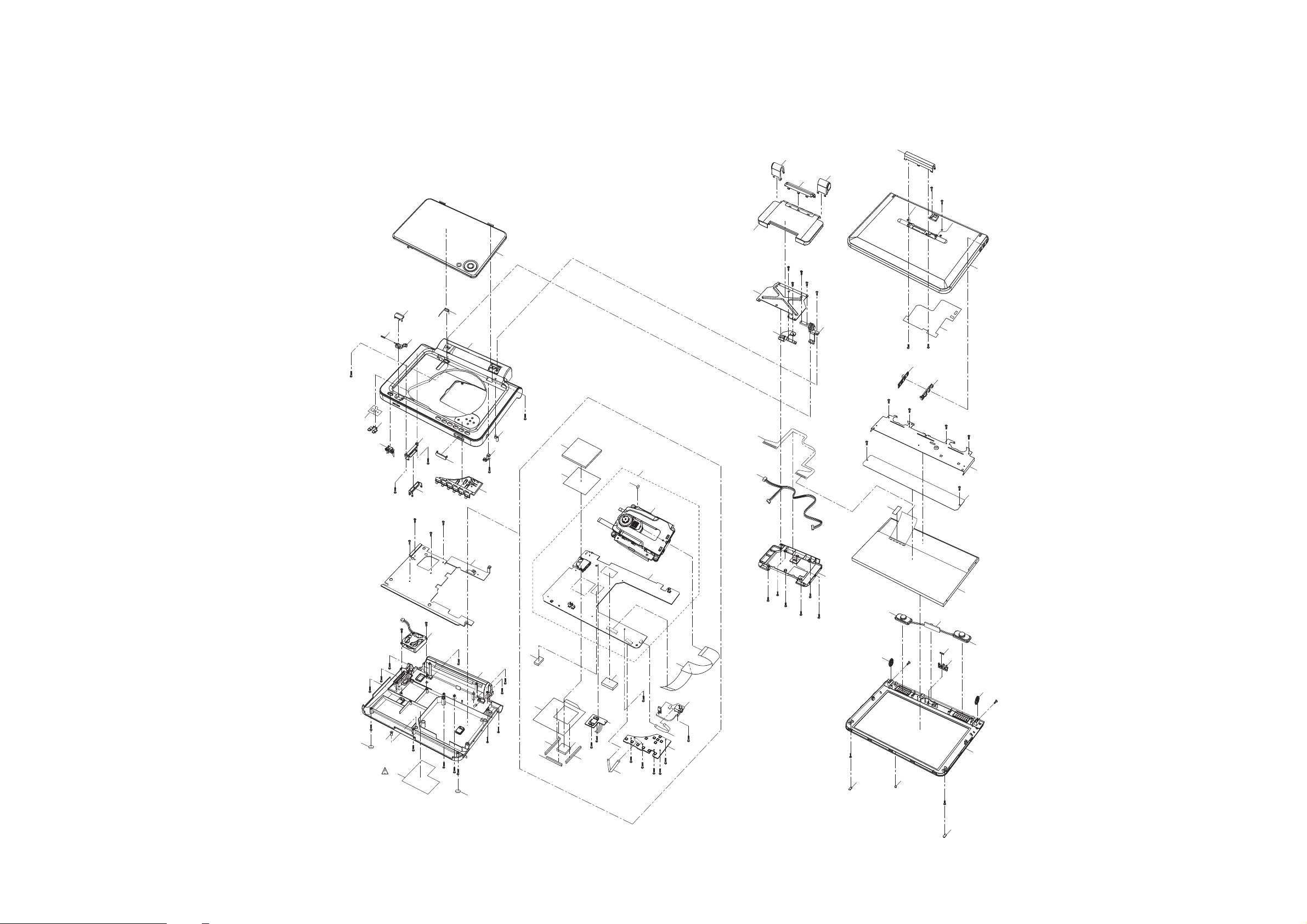

9.2. P.C.B. location

9.3. Main cabinet unit

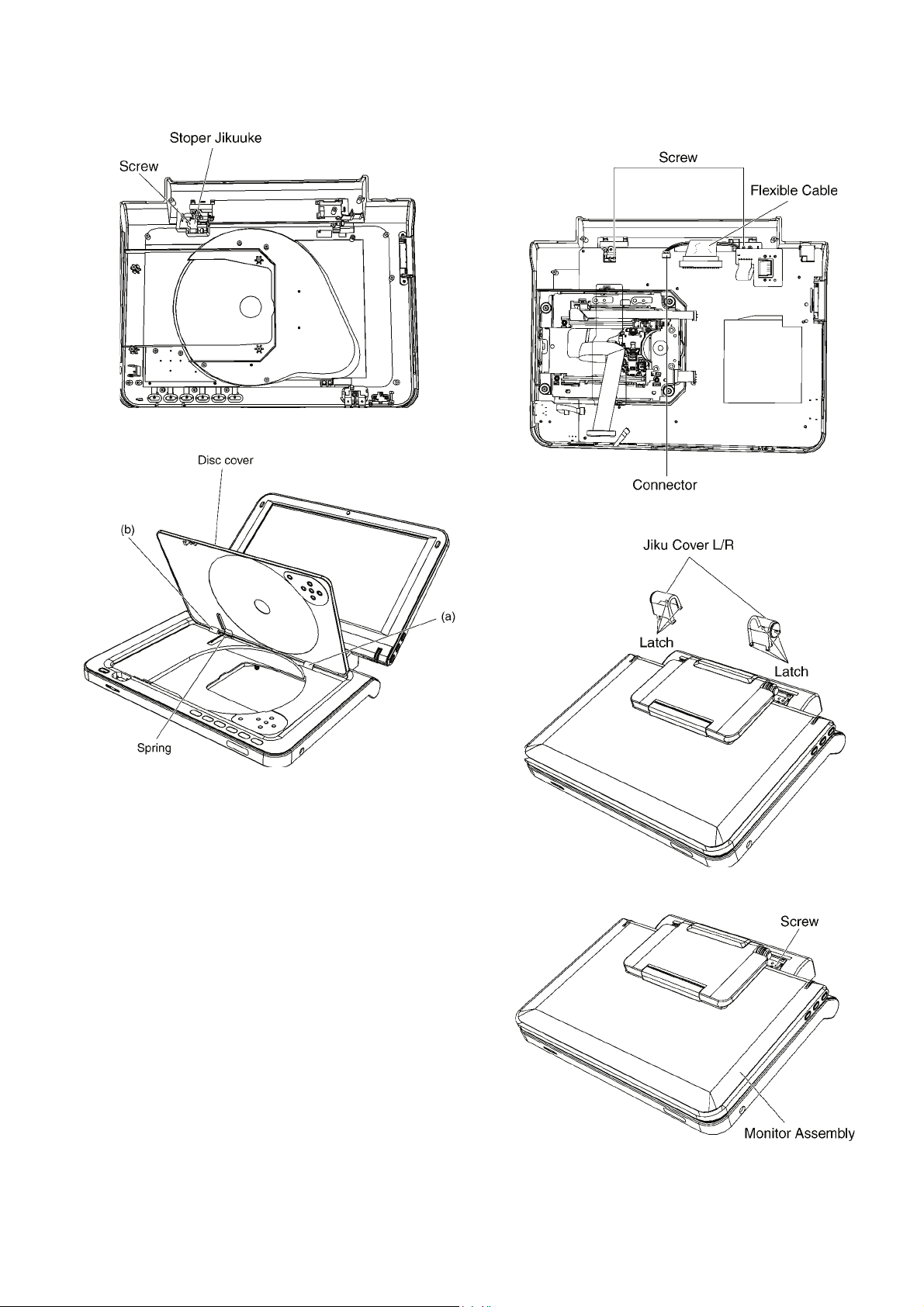

1. Remove the 2 foot rubbers.

2. Remove the 13 screws .

Release the lock lever and remove the battery pack in the direction of the arrow.

3. Release the latches and remove the connector .

4. Remove the bottom cabinet.

Page 26

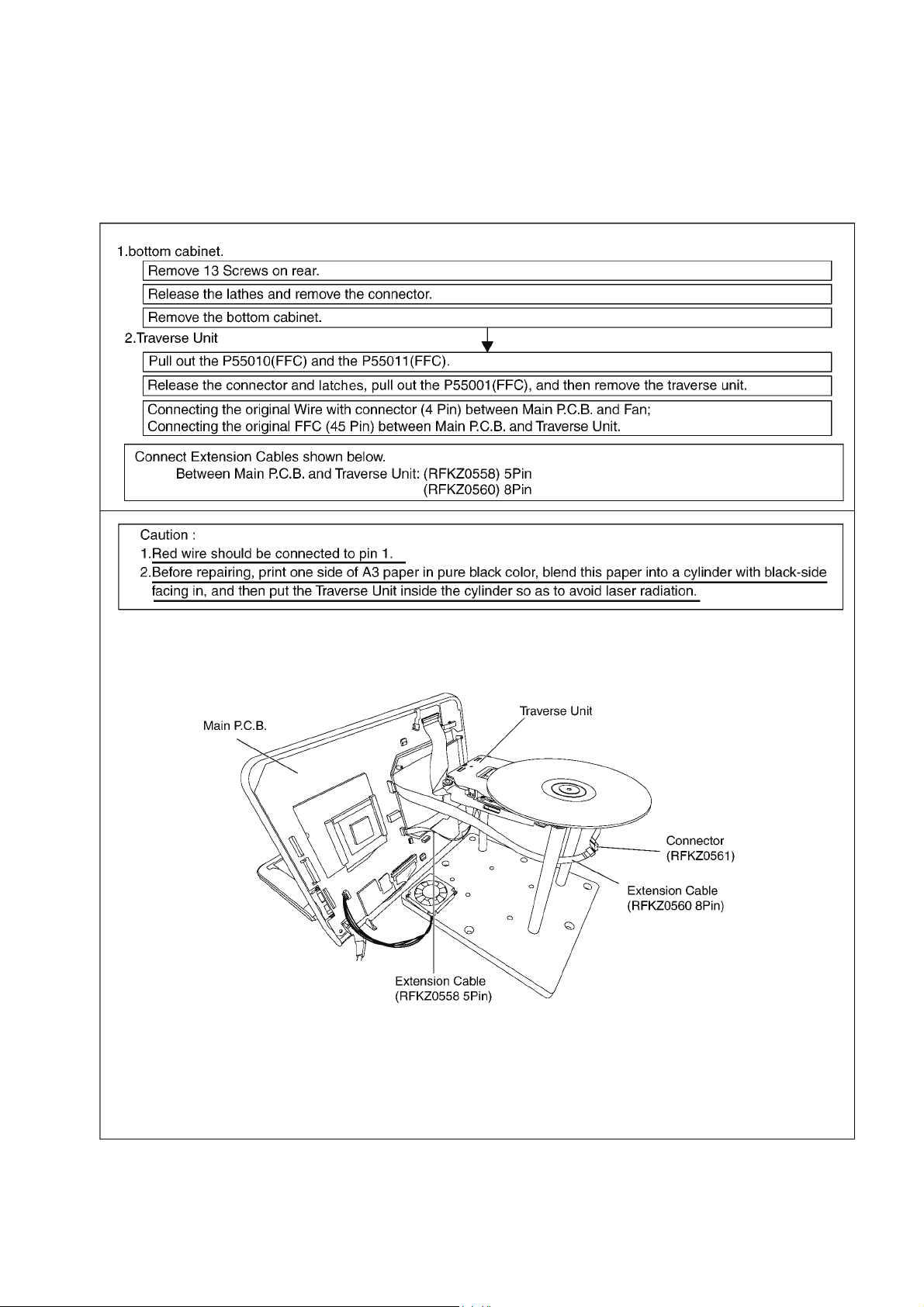

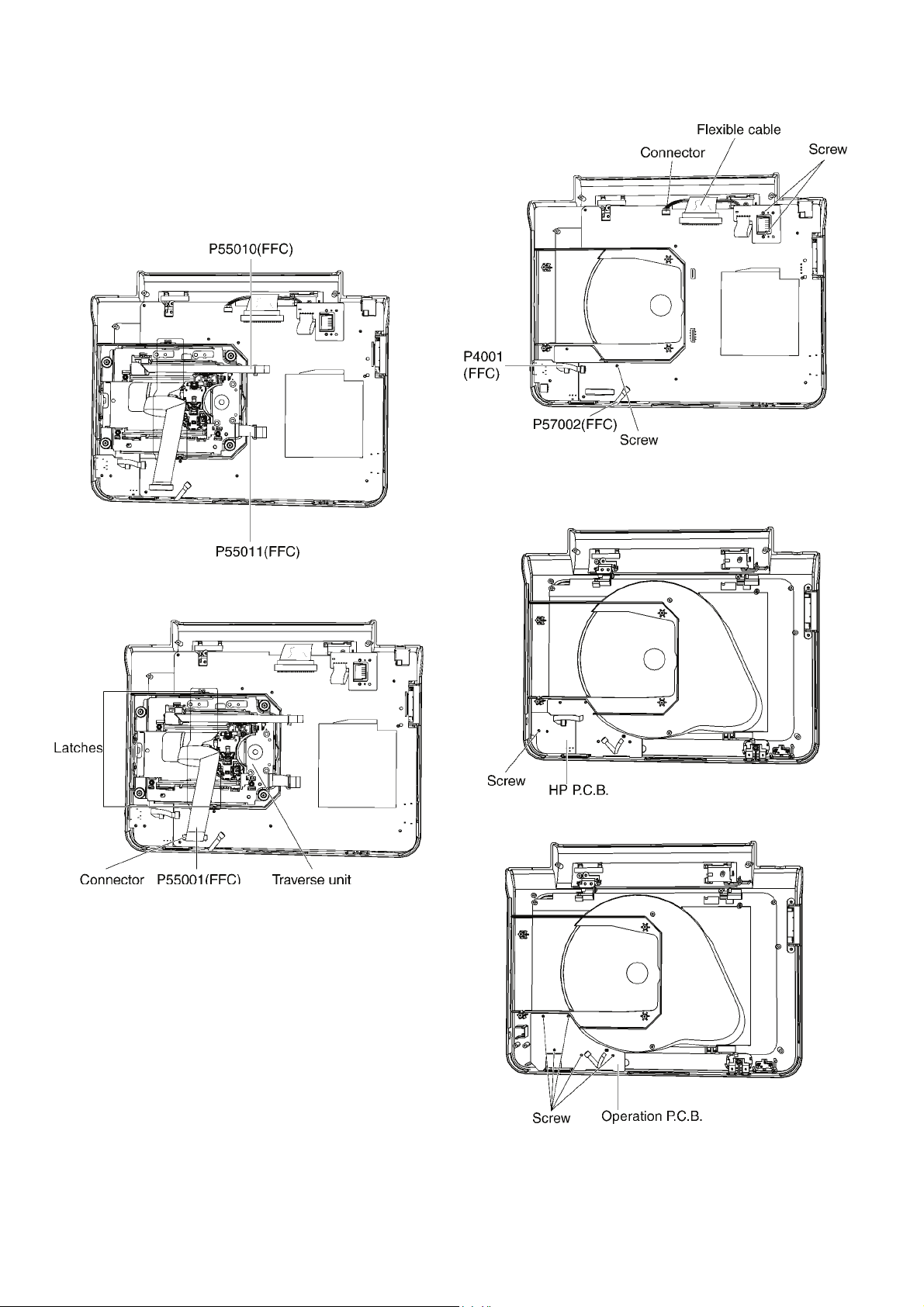

9.4. Traverse Unit

NOTE:

The countermeasure against static electricity is necessary when servicing the surrounding of traverse unit.

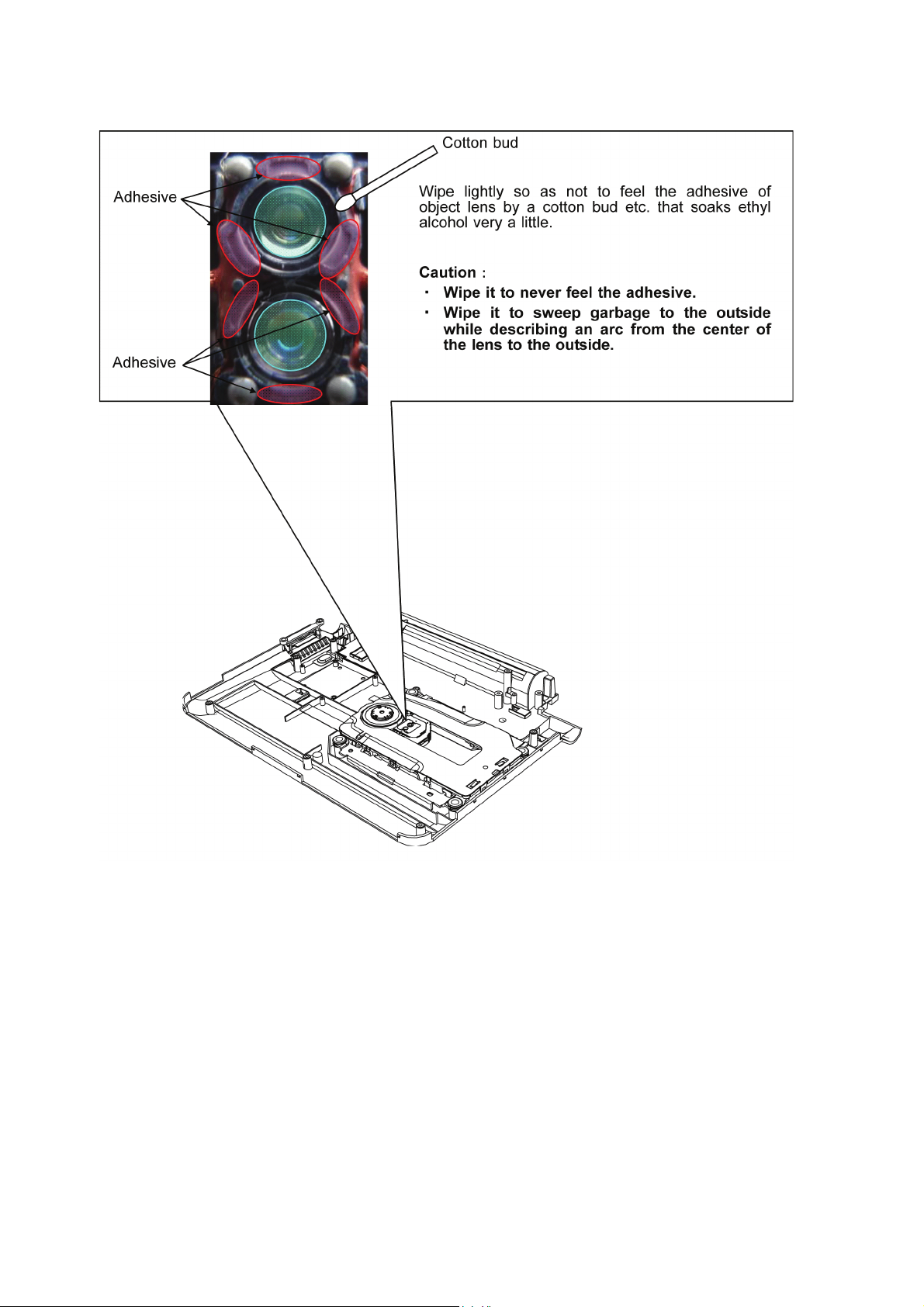

Moreover, the traverse unit is the precision optical part. Take care not to touch surrounding of the lens and not to shock to the traverse unit.

1. Pull out the P55010(FFC) and the P55011(FFC).

3. Remove the 3 screws and remove the main P.C.B. with BAT-CONNECTOR P.C.B..

9.6. Operation P.C.B.

1. Remove the screw and remove the HP P.C.B..

2. Release the connector and latches, pull out the P55001(FFC), and then remove the traverse unit.

9.5. Main P.C.B.

1. Remove the connector and the flexible cable.

2. Pull out the P57002(FFC) and the P4001(FFC).

2. Remove the 5 screws and remove the Operation P.C.B..

Page 27

9.7. Disc cover

1. Remove the screw and the STOPER JIKUUKE.

2. Remove the disc cover in order of (a) and (b).

9.8. Monitor assembly

1. Remove the connector and the flexible cable.

2. Remove the 2 screws.

3. Release the latches and remove the JIKU COVER L/R.

Caution:

Please don't lose the spring.

4. Remove the screw and remove the monitor assembly.

Page 28

9.9. Monitor cover

1. Remove the 2 rubbers and the 2 screws (A).

2. Remove the 3 screws (B) and screw (C).

9.10. Mono arm

1. Remove the connector and 2 screws, then remove the monitor sheet.

2. Release the latches and remove the Hinge cover.

3. Remove the connector and the flexible cable.

4. Remove the monitor cover.

Please do not nip the wire.

3. Release the friction hinge from boss and remove the mono arm assembly.

4. Remove the 6 screws.

Page 29

5. Release the latches and remove the mono arm cover.

6. Remove the plate and friction hinge (A)/(B).

9.11. LCD panel

1. Remove the 6 screws.

2. Remove the monitor angle and LCD plate .

3. Remove the LCD panel.

Page 30

9.12. Cleaning of the Optical Pick-up

Disassemble to the item 4 (9.3. MAIN CABINET UNIT), and clean the optical pick-up.

Page 31

10 Measurements and Adjustments

10.1. Service Positions

Note:

For description of the disassembling procedure, see the section 9.

10.1.1. Checking and Repairing of Main P.C.B. (1)

Page 32

10.1.2. Checking and Repairing of Main P.C.B. (2)

Page 33

10.1.3. Servo Adjustment when exchange the Traverse or Main P.C.B.

Refer to “9. Disassembly and Assembly Instructions” for details of disassembly and assembly.

10.3. Adjustment Instruction when Exchange the Traverse or Main P.C.B. (Servo Adjustment)

1. Connect the serial cable (RFKZ0139) to the main P.C.B. (P51601).

2. Fix the traverse unit from the bottom with thirteen screws.

Page 34

10.2. Caution for Replacing Parts

10.2.1. Items that should be done after replacing parts

Note 1:

Download latest Firmware and burn it on CD-R or CD-RW, and update Firmware.

10.2.2. Standard Inspection Specifications after Making Repairs

After making repairs, we recommend performing the following inspection, to check normal operation.

No. Procedure Item to Check 1 Turn on the power, and confirm items pointed out. Items pointed out should reappear. 2 Insert RAM disc. The Panasonic RAM disc should be recognized. 4 Perform playback for one minute using the RAM disc. No abnormality should be seen in the picture, sound or operation.

5 Perform playback for one minute using the BD-Video disc. No abnormality should be seen in the picture, sound or operation. 6 If a problem is caused by a BD-Video disc, VCD, DVD-R,

DVD-Video, Audio-CD, or MP3, playback the test disc.

7 After checking and making repairs, upgrade the firmware to the

latest version.

8 Transfer [9][9] in the service mode setting, and initialize the service

settings (return various settings and error information to their default values. The laser time is not included in this initialization).

Use the following checklist to establish the judgement criteria for the picture and sound.

*Panasonic DVD-RAM disc should be used when recording and playback.

No abnormality should be seen in the picture, sound or operation.

Make sure that [UPD OK] appears in the FL displays. *[UNSUPPORT] display means the unit is already updated to newest same version. Then version up is not necessary. Make sure that [CLR] appears in the FL display. After checking it, turn the power off.

Item Contents Check Item Contents Check


Block noise Crosscut noise Noise (static, background noise, etc.) Dot noise The sound level is too low. Picture disruption The sound level is too high. Not bright enough The sound level changes. Too bright Flickering colour Colour fading

Sound

Distorted sound

Page 35

10.3. Adjustment Instruction when Exchange the Traverse or Main P.C.B. (Servo Adjustment)

(Preparation)

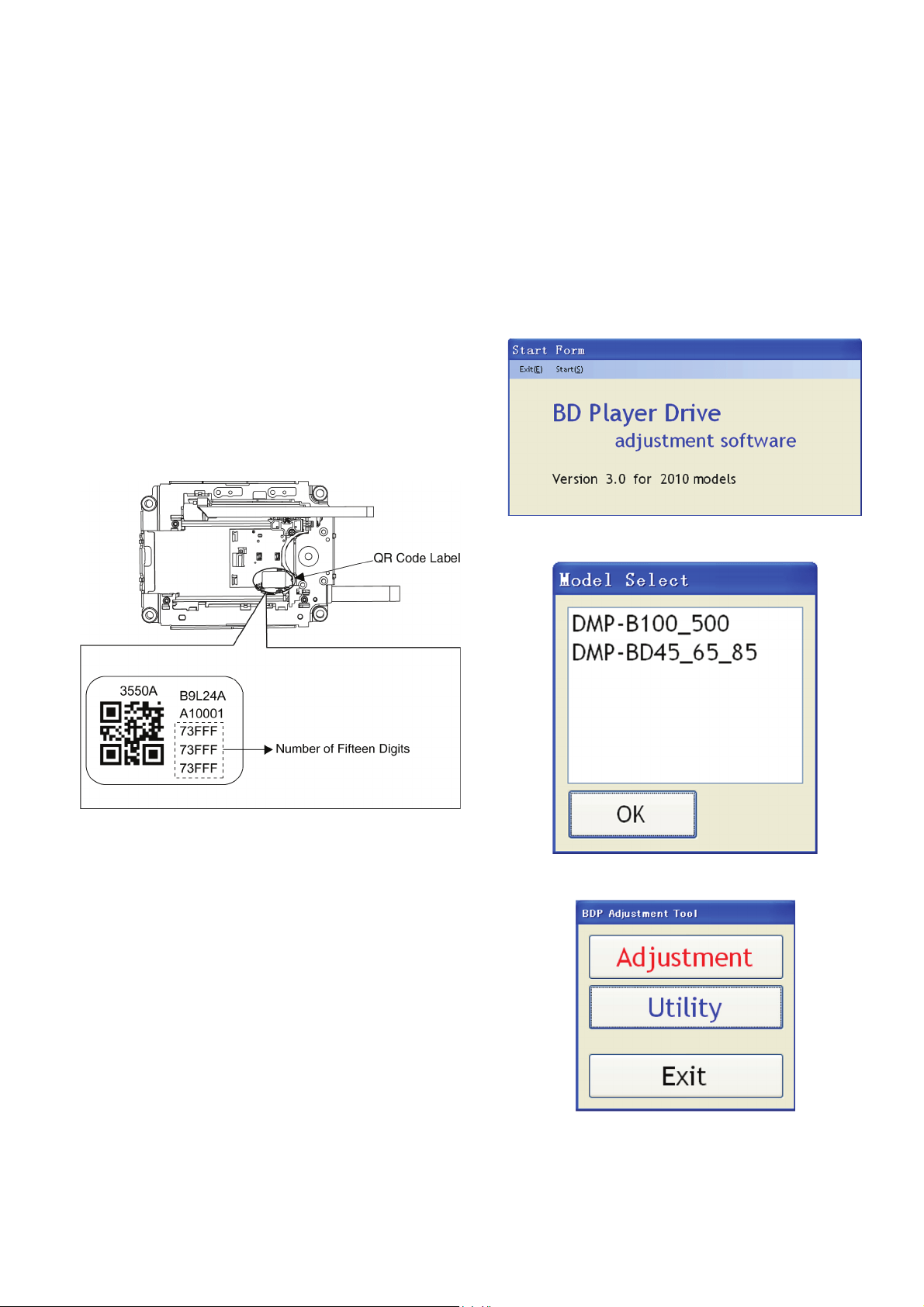

1. Install adjustment software "BD Drive Adjustment" of the pertinent model placed in the "TSN Website", therefore, access to "TSN Website" at "Support Information from NWBG/VDBG-AVC".

2. Prepare the SD Memory card, and then write the following data. (Write it after the SD Memory card formats with FAT/ FAT16 without fail.)

[ Condition of SD Memory Card ]

128MB - 2GB (SDHC Memory Card cannot be used) a. 6a9b.bin b. drv.bin c. BD-P Update history.txt

3. Take notes of the number of fifteen digits of QR code label (label of the lower) pasted to bottom of the OPTICAL PICK-UP.

[Upgrade procedure of firmware by disk making]

• Step 1. Choose the model that you are using and download the firmware.

• Step 2. Please defrost the downloaded file.

• Step 3. Prepare a CD-R disc, and write the above-mentioned file on the CD-R disc, and then make the disc for the upgrade.

• Step 4. Set the disc the made upgrade, and do the upgrade of the firmware.

(Adjustment Procedure)

1. Start “BDP Adjustment”.

4. Prepare three test discs: RFKZ0515: BD-ROM test disc (VFF0396), RFKZ0514: DVD-RAM test disc (X5RAM-BPS), RFKZ0516: CD-ROM test disc (CD-ROM-B01).

5. Prepare a new CD-R disc, and then make the disc for the upgrade of the latest firmware.

2. Begin the adjustment of “Start”.

3. Select “DMP-B100”, and select “OK”.

Page 36

4. Select “Utility”.

9. Select “Exit”.

5. Select “COM Setup”.

6. Select “COM1”, and select “OK”.

7. Select “Spec Setup”.

10. Select “Adjustment”.

11. Insert the SD DIAG Card.

12. Turn on the switch of serial cable (RFKZ0139), and select “OK”.

13. Connect the AC power supply code with the power supply outlet, and select “OK”.

8. Select the new soft ware, and select “OK”. (Make it to the latest software selecting “NEW”.)

14. The last repair date is displayed. Confirm and select “OK”.

Page 37

15. Input the number of fifteen digits of QR code label (label of the lower) pasted to OPU assay of the traverse unit, and select "OK".

16. Take out the SD DIAG Card.

17. Detach the AC power supply code from the power supply outlet, and select “OK”.

18. Turn off the switch of serial cable (RFKZ0139).

19. Connect the AC power supply code with the power supply outlet, and select “OK”.

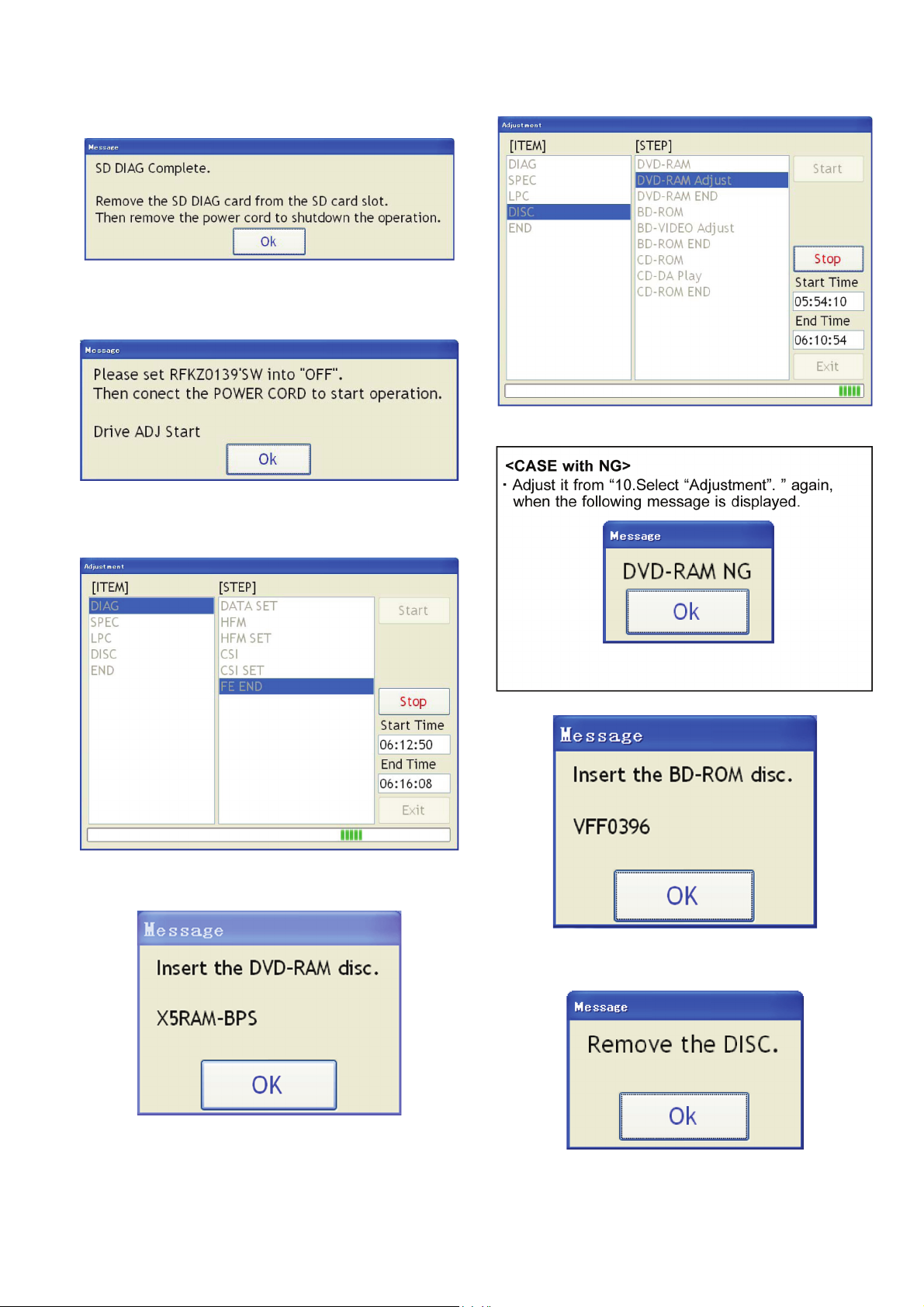

21. Set the DVD-RAM test disc (X5RAM-BPS), and select “OK”.

22. Adjust “DISC” by the automatic operation.

20. Adjust “DIAG” “SPEC” “LPC” by the automatic operation. (It takes a few minutes.)

23. Take out the DVD-RAM test disc (X5RAM-BPS).

24. Set the BD-ROM test disc (VFF0396), and select “OK”.

Page 38

25. Take out the BD-ROM test disc (VFF0396), and select “OK”.

26. Detach the AC power supply code from the power supply outlet, and select “OK”.

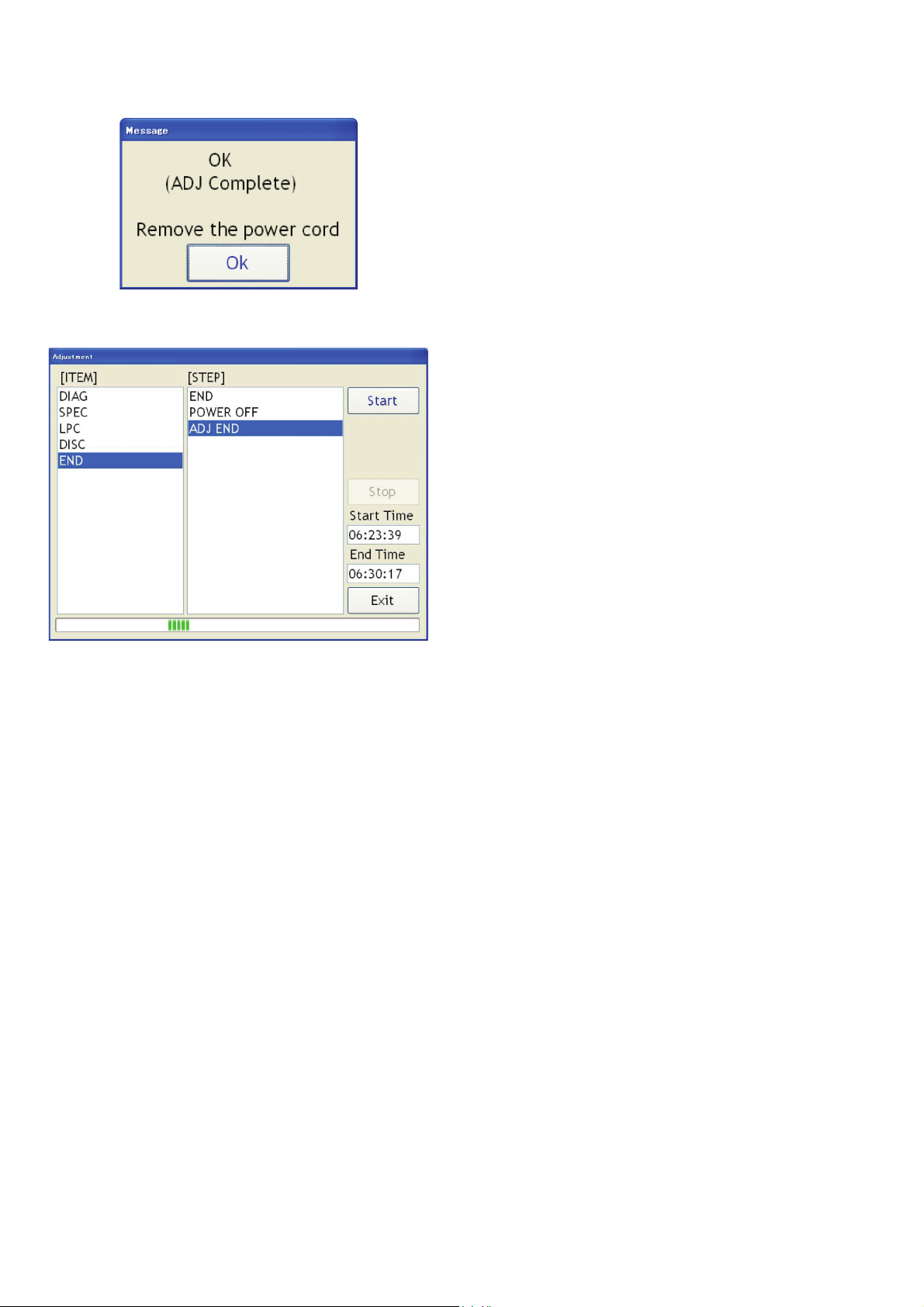

27. Finish the servo adjustment. Select “Exit” and finish.

28. Detach the serial cable (RFKZ0139), and assemble the main body, and then confirm the sound with CD-ROM test disc (RFKZ0516).

29. Improve the version to the latest firmware, after traverse unit or main P.C.B. is exchanged.

Page 39

11 Block Diagram

TRAVERSE MECHANISM UNIT

OPTIACL PICK-UP UNIT

X51003

X51801

IC55005

IC57001

MPU

OPERATION

FAN

LED

IC51001

SERVO CONTROLLER/

AV DECODER/

SYSTEM CONTROLLER

OPTICAL DISC CONTROLLER/

IC4001

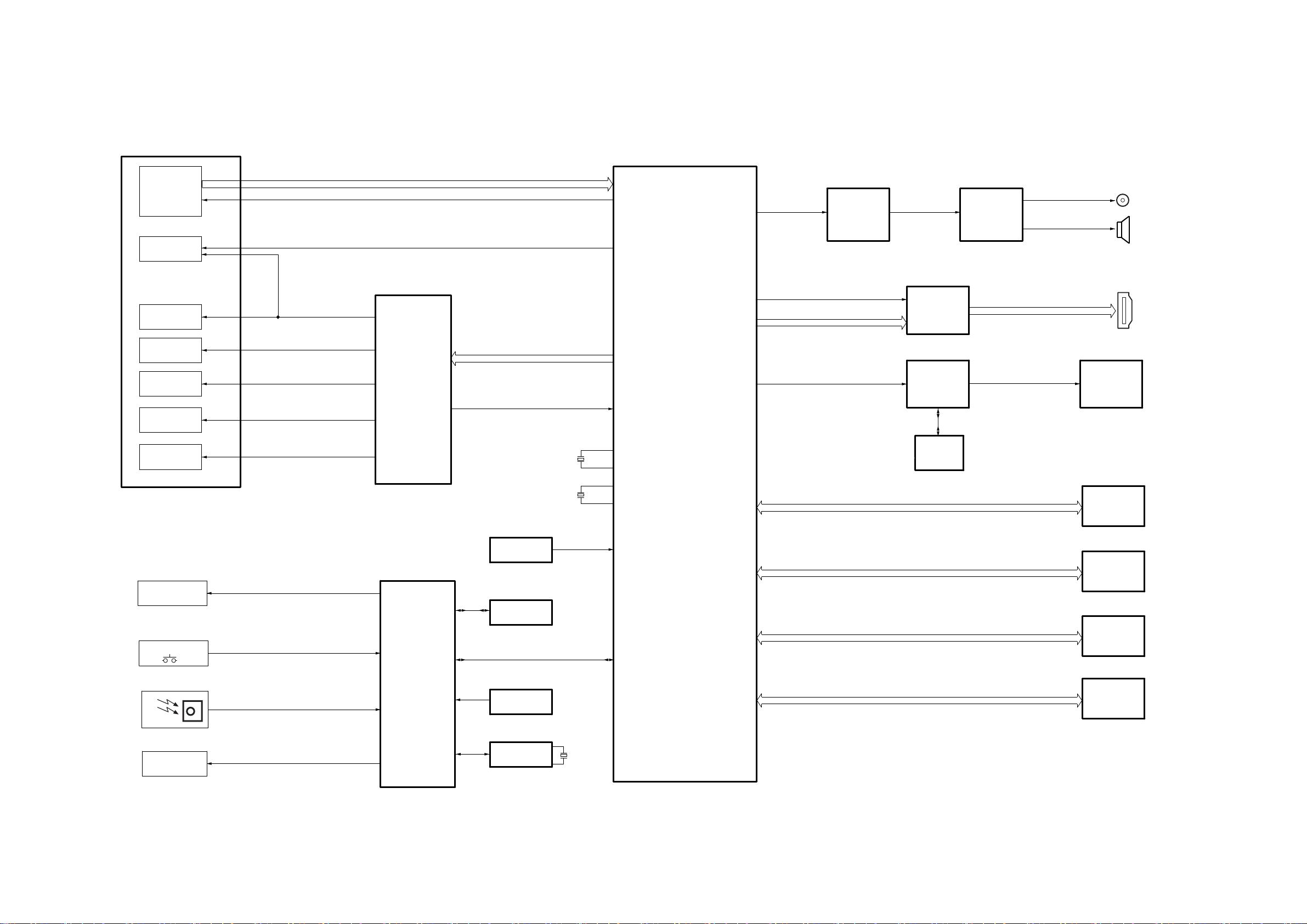

OVERALL BLOCK DIAGRAM

KEY

DMP-B100EB/EE/EG

LASER DIODE

MOTOR DRIVE

FOCUS COIL

BEAM EXPANDER

TRACKING COIL

TRAVERSE MOTOR

SPINDLE MOTOR

RESET

IC57002

RTC

IC57006

EEPROM

IC57005

RESET

IC55008

D/A CONVERTER

IC56036

HDMI TX

IC8803

LCD TV DISPLAY CONTROLLER

LCD PANEL

SD CARD

IC51301

NAND FLASH ROM/1GB

IC52201,IC52202

SDRAM/512MB

IC52001,IC52002

SDRAM/1GB

IC8804

FLASH ROM 512Kbit

REMOTE SENSOR

IC4008

STERO AUDIO

POWER AMP

HEADPHONES

SPEAKER

HDMI TERMINAL (A/VOUT)

X57081

11.1. Overall Block Diagram

Page 40

12 Schematic Diagram

MAIN P.C.B.

BD DRIVE

MAIN_SW P.C.B.

HP_REMOCON P.C.B.

SPEAKER P.C.B.

P55010

P55011

P55006

11 12 13 14 15 16 17 18

3 4

1 2 3 4 5 6 7 8

3 4

P6101

P57002

3 4

DMP-B100EB/EE/EG INTERCONNECTION SCHEMATIC DIAGRAM

98765432

5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

AB-

A+

B+

AB-

A+

B+

P4101

1 2 3

P6201

P6001

SPR-

SPR+

SPL-

SPL+

SPR-

SPR+

SPL-

SPL+

4 3 2

LCD_SW P.C.B.

KEY2

GND

2 1

PDIC GND

PDIC VREF

PDIC FJ/B3

PDIC GND

PDIC RFP

PDIC GND

PDIC RFN

PDIC GND

PDIC B/A1

PDIC A/A3

PDIC SW1

PDIC SW2

PDIC D/A4

PDIC C/A2

PDIC GND

PDIC VCC

LDD GND

LDD SEN

LDD SCLK

LDD SDIO

PDIC GK/B1 PDIC E1/B6 PDIC HL/B5

LDD LDON

LDD GND

LDD VCC

LDMKR

LDD GND

LDD MON

LDD GND

LDD BVCC

LDD GND

TMP

LDD GND

CL-ACT SA+

CL-ACT SA-

CL-ACT SB-

CL-ACT SB+

CL-ACT FOC1-

CL-ACT FOC1+

CL-ACT TRK+

CL-ACT TRK-

CL-ACT FOC2-

CL-ACT FOC2+

PDIC GND

PDIC VREF

PDIC FJ/B3

PDIC GND

PDIC RFP

PDIC GND

PDIC RFN

PDIC GND

PDIC B/A1

PDIC A/A3

PDIC SW1

PDIC SW2

PDIC D/A4

PDIC C/A2

PDIC GND

PDIC VCC

LDD GND

LDD SEN

LDD SCLK

LDD SDIO

PDIC GK/B1 PDIC E1/B6 PDIC HL/B5

LDD LDON

LDD GND

LDD VCC

LDMKR

LDD GND

LDD MON

LDD GND

LDD BVCC

LDD GND

TMP

LDD GND

CL-ACT SA+

CL-ACT SA-

CL-ACT SB-

CL-ACT SB+

CL-ACT FOC1-

CL-ACT FOC1+

CL-ACT TRK+

CL-ACT TRK-

CL-ACT FOC2-

CL-ACT FOC2+

NC(GND) NC(GND)

VH-

U-

U+

VH+

GND

VH-

U-

U+

VH+

GND

KEY1

KEY21

GND

KEY3

KEY1

KEY21

GND

KEY3

HPOUTL

AGND

HPOUTR

MUTE

HPJIN-L

DGND

REMOCON

PW_3.3VR

P4001

1 2 3

HPOUTL

AGND

HPOUTR

MUTE

HPJIN-L

DGND

REMOCON

PW_3.3VR

BAT-CONNECTOR P.C.B.

1 2 3

PJ1401

1 2 3

BAT+ BAT+

BAT-T

D GND GND

BAT+ BAT+ BAT-T

D GND GND

P4002

6 5 4

GND KEY2

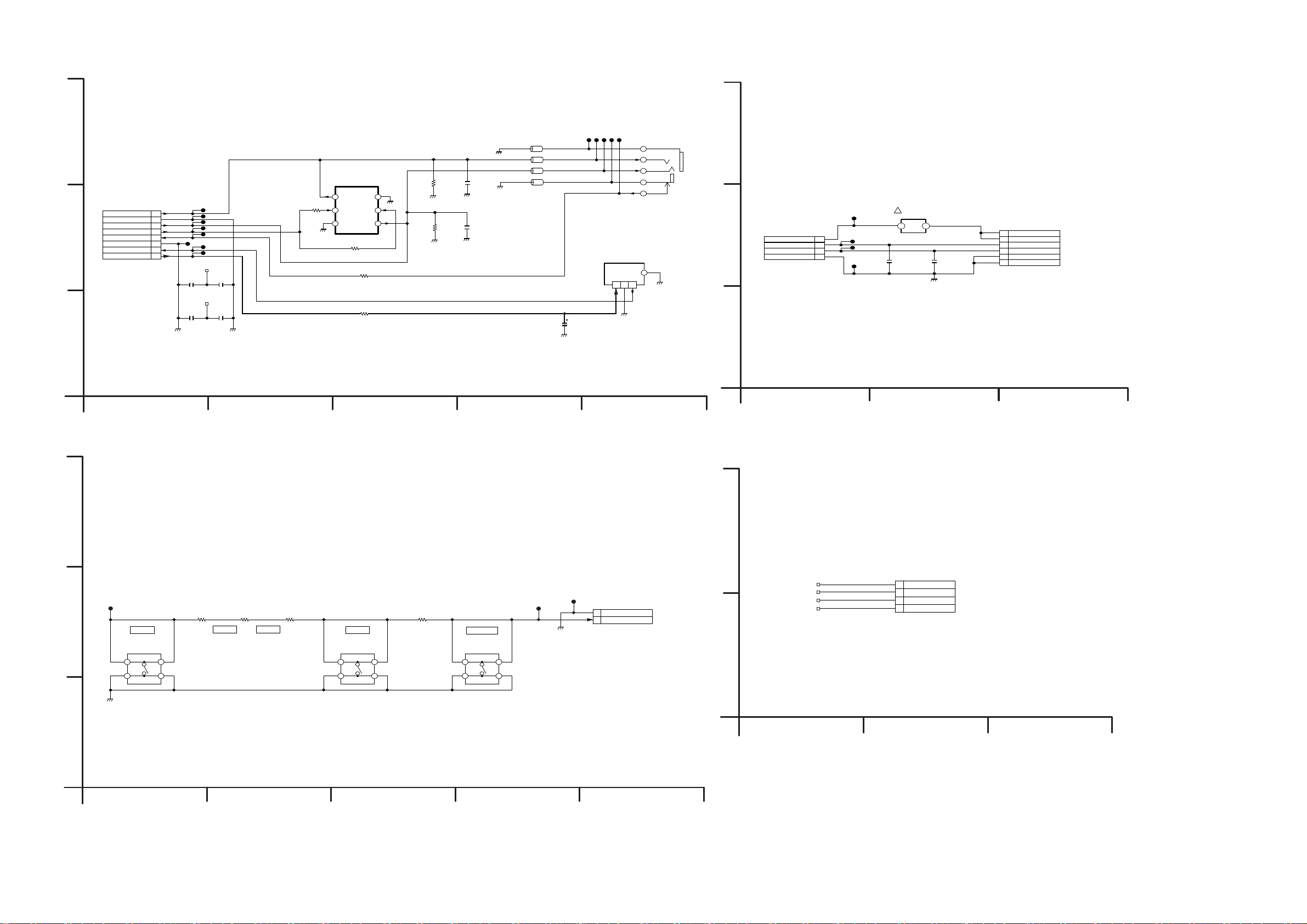

12.1. Interconnection Schematic Diagram

Page 41

12.2. OPERATION Schematic Diagram

KEY1 KEY21

GND

P6101

K1MY04BA0041

KEY3

R6102

2.2K

R6103

3.3K

R6104

4.7K

S6101

K0F111A00472

R6101

1.5K

STOP

TO P57002

MAIN P.C.B.

AV SELECT

R_SKIPF_SKIP

PLAY

TL6102

98765432

S_MAIN_SW SCHEMATIC DIAGRAM

DMP-B100EB/EE/EG

2 4

S6103

K0F111A00472

2 4

S6105

K0F111A00472

2 4

S6104

K0F111A00472

2 4

S6102

K0F111A00472

2 4

R6107

2.2K

R6108

3.3K

R6109

4.7K

S6108

K0F111A00472

R6106

1.5K

RETURN

SUB MENU

ENTERRIGHT

LEFT

TL6106

TL6105

2 4

S6110

K0F111A00472

2 4

S6112

K0F111A00472

2 4

S6111

K0F111A00472

2 4

S6109

K0F111A00472

2 4

S6106

K0F111A00472

R6105

3.3K

DOWN

TL6104

TL6103

2 4

S6107

K0F111A00472

2 4

TL6101

RL6101

RL6102 RL6103 RL6104 RL6105

TL6107

Page 42

12.3. HP_REMOCON SCHEMATIC DIAGRAM

5432

HP_REMOCON SCHEMATIC DIAGRAM

DMP-B100EB/EE/EG

5 6 7 8

HPOUTL

AGND

HPOUTR

MUTE

HPJIN-L

DGND

REMOCOM

PW_3.3VR

P4101 K1MN08BA0204

TO P4001 MAIN P.C.B.

CL4131

CL4132

CL4129

CL4128

CL4127

QR4123

B1GFGCAA0001

R4133

4.7K

C4131

0.01

R4134

4.7K

C4132

0.01

LB4190

J0JBC0000028

LB4194 J0JBC0000028

LB4193 J0JBC0000028

LB4192

J0JBC0000028

JK4103

HP OUT

K2HC103B0213

R4135

560

R4136

560

R4137

R4101

312

IR1401

6.3V 47

C4101

PNA4811M00YD

C4104

100P

C4103

100P

RL4101

C4106

100P

C4105

100P

RL4102

CL4110 CL4111 CL4112 CL4113 CL4114

CL4116 CL4117

CL4115

SCHEMATIC DIAGRAM

DMP-B100EB/EE/EG

BAT+

BAT-T

GND

JK1801 K4ZZ04000033

5 6

BAT+ BAT+

BAT-T

D GND GND

IP1801

D1JBR012A007

C1802 1000P

C1801 1000P

CL1801

CL1802

CL1804

CL1803

S_BAT_CONNECTOR

6PIN FLAT CABLE

DMP-B100EB/EE/EG S_SPEAKER SCHEMATIC DIAGRAM

SPLSPR+

SPL+

P6201

K1KA04AA0051

SPR-

TO P4002

MAIN P.C.B.

RL6201 RL6202 RL6203 RL6204

12.5. BAT-CONNECTOR SHEMATIC DIAGRAM

12.4. LCD_SW SCHEMATIC DIAGRAM

12.6. SPEAKER SCHEMATIC DIAGRAM

TO P4002

2 1

MAIN P.C.B.

P6001

K1KA02AA0051

GND

KEY2

5432

TL6003

TL6002

LCD

S6003

K0F111A00472

2 4

R6004

4.7K

DOWN

R6003

3.3K

R6002

2.2K

VOL+

S6005

K0F111A00472

2 4

R6001

1.5K

VOL-

S6004

K0F111A00472

2 4

TL6001

DMP-B100EB/EE/EG S_LCD_SW SCHEMATIC DIAGRAM

Page 43

13 Printed Circuit Board

98765432

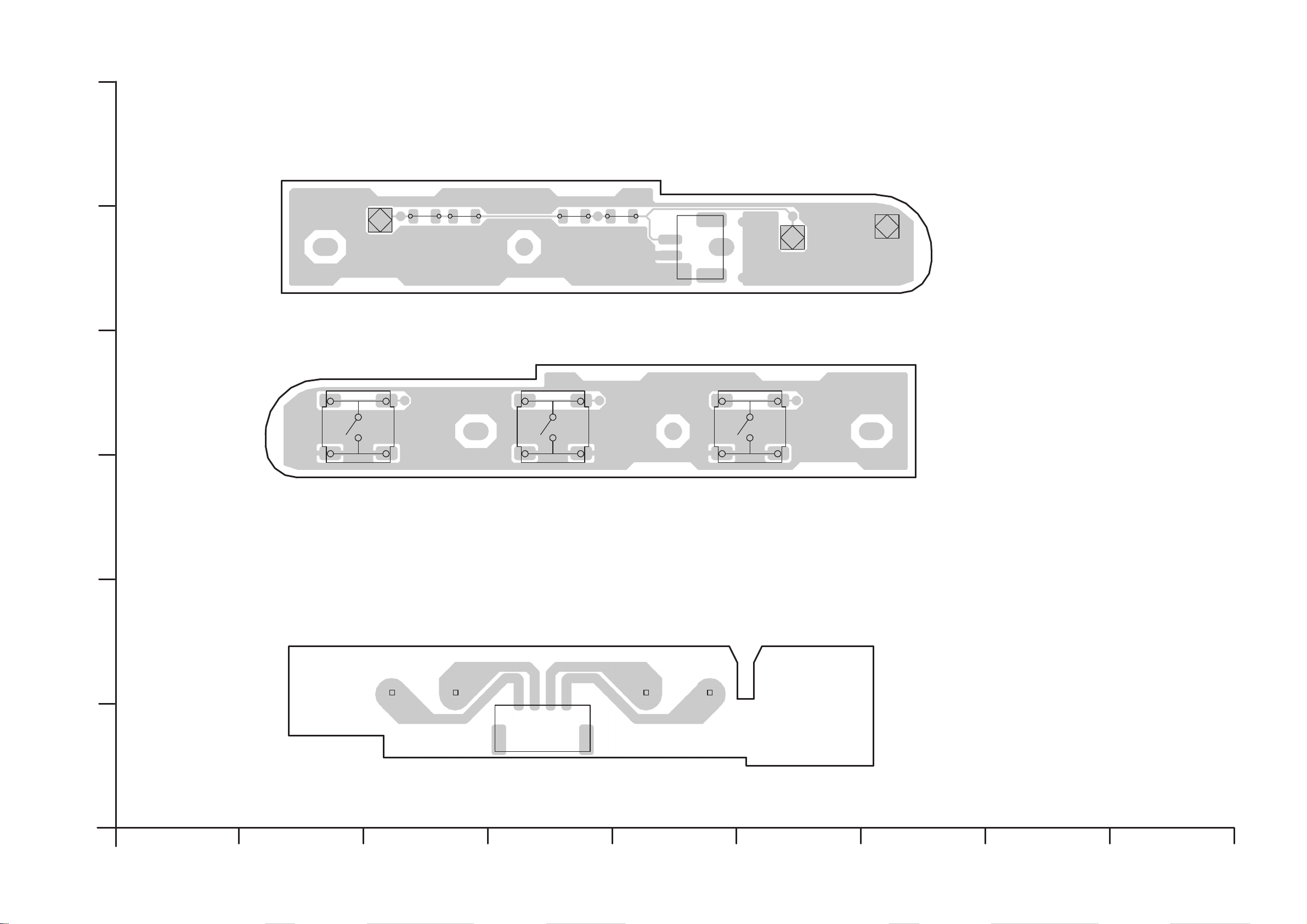

OPERATION P.C.B.(VEP76212A)

DMP-B100EB/EE/EG

(FOIL SIDE)

OPERATION P.C.B.

TL6106

R6109 R6108 R6107

R6106

TL6103

TL6104

R6105

TL6107

TL6105

TL6102

R6104

R6103

P6101

R6101

R6102

TL6101

13.1. OPERATION P.C.B.

Page 44

S6101

S6103

S6102

S6104

S6105

S6109

S6107

S6108

S6106

S6110

S6111

S6112

RL6105

RL6104

RL6103

RL6102

RL6101

98765432

OPERATION P.C.B.(VEP76212A)

DMP-B100EB/EE/EG

(COMPONENT SIDE)

OPERATION P.C.B.

Page 45

98765432

HP REMOTE CONTROL P.C.B. (VEP74123A)

DMP-B100EB/EE/EG

IR4101

JK4103

RL4102

C4105

C4106

CL4111

CL4127

LB4190

CL4128

CL4110

CL4112

CL4113

CL4114

CL4115

CL4129

CL4131

CL4132

LB4194

LB4193

R4137

LB4192

P4101

RL4101

C4104 R4134

C4132

C4104

QR4123

R4136

R4133

C4131

R4135

CL4117

CL4116

R4101

C4101

(COMPONENT SIDE)(FOIL SIDE)

HP REMOTE CONTROL P.C.B.

13.2. HP_REMOCON P.C.B.

Page 46

13.3. BAT-CONNECTOR P.C.B.

98765432

BAT-CONNECT P.C.B.(VEP71176A)

DMP-B100EB/EE/EG

(COMPONENT SIDE)(FOIL SIDE)

BAT-CONNECTOR P.C.B.

IP1801

CL1801

JK1801

CL1802

CL1803

CL1804

C1801 C1802

Page 47

13.4. LCD_SW P.C.B. and SPEAKER P.C.B.

98765432

LCD SW P.C.B.(VEP76213A) SPEAKER P.C.B.(VEP74121A)

DMP-B100EB/EE/EG

(FOIL SIDE)

(COMPONENT SIDE)

LCD SW P.C.B.

SPEAKER P.C.B.

TL6002

R6004 R6003

R6002 R6001

P6001

TL6001

TL6003

S6004

S6005

S6003

RL6201 RL6202

P6201

RL6203 RL6204

Page 48

14 Appendix for Schematic Diagram

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

IC51301

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 0 0 0 0 0 0 3.3 3.3 3.3 0 0 3.3 0 0 0 0 0 3.2 0 0 0 0 0 0 0 0 3.3 3.3 3.3 0 0 3.3 0 0 0 0 0 3.2 0 0

21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

0 0 0 0 0 0 0 0 3.3 3.2 3.2 3.2 0 0 0 0 3.3 0 0 0 0 0 0 0 0 0 0 0 3.3 3.2 3.2 3.2 0 0 0 0 3.3 0 0 0

41 42 43 44 45 46 47 48

3.2 3.2 3.2 3.2 0 0 0 0

IC1001

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

6.7 0 3.2 0 0 0 0 0.8 0 3.2 7.6 4.5 3.3 0 0 0 4.9 0 0 11.7

21 22 23 24

0004.9

IC1002

1234567891011121314

2.5 1.8 0 3.2 6.7 11 11.8 11.8 11.8 0 1.6 1.0 2.0 2.5

IC1102

12345678

0.6 0.6 3.2 0 9.0 0 0.8 1.2

0.6 0.6 3.2 0 9.0 0 0.8 1.2 IC1201

1234567891011121314151617181920

1.0 2.5 1.8 0.7 0 1.2 1.9 1.3 1.4 0 0.7 1.3 2.5 0 2.5 2.7 6.3 1.9 1.3 4.3

21 22 23 24 25 26 27 28 29 30

5.0 0 11 4.0 1.9 2.6 6.8 3.2 0 5.0

IC1401

1234

5.8 7.2 0 0

IC1451

1234

3.3 0 0 0

IC1452

12345 11 0 3.3 7.7 11 11 0 3.3 7.7 11

IC1453 12345 0 0 0 3.2 4.8 0 0 0 3.2 4.8

IC1461 123 0 3.9 11 0 3.9 11

IC1601

1234567891011121314151617181920

00003.6000000000000011.8 11.7

21 22 23 24

11.8 11.8 0 0

11.8 11.8 0 0 IC4001

12345678910111213141516

0.3 3.2 3.2 2.0 1.6 0.7 1.6 1.6 0 0 4.6 0 2.3 0 2.3 4.6

0.3 3.2 3.2 2.0 1.6 0.7 1.6 1.6 0 0 4.6 0 2.3 0 2.3 4.6 IC4002

12345

4.8 0 4.8 0 4.6

IC4008

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

03.3000003.30001.601.6000003.3

21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36

03.303.202.33.30.100000000

03.303.202.33.30.100000000 IC51003

1234

3.3 1.2 0 0

IC55005

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 0 11.5 11 0 0 2.5 0 0 3.3 0 0 0 0 0 0 4.8 0 0 0 0 0 11.5 11 0 0 2.5 0 0

IC55300 12345678 0 0000000 0 0000000

3.30000 004.80000

21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

004.800000000000000000

41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56

0 0 0 11.9 0 0 0 0 0 0 0 0 0 11.9 11.9 0 0 0 0 11.9 0 0 0 0 0 0 0 0 0 11.9 11.9 0

IC55008 1234 0 4.8 2.6 3.2 0000

IC55901

IC56001 12345678 0 0000000

0000

12345

3.2 0 1.4 5 9 0

0000

14.1. Voltage and Waveform Chart

NOTE:

Circuit voltage and waveform described herein shall be regarded as reference information when probing defect point, because it may differ from an actual measuring value due to difference of Measuring instrument and its measuring condition and product itself.

14.1.1. Main P.C.B.

Page 49

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

IC57006

IC56036

IC57001

12345678

3.2 3.2

IC8803

12345678

0.2 0.9 3.3 0 0.4 0.8 3.2 3.2

0 0 0 0 3.2 3.2 0 3.2 0 0 0 0 3.2 3.2 0 3.2

IC8804

IC57005

1234567891011121314151617181920

0000001.102.83.30003.30003.300

21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

00003.30000000001.61.63.301.61.2

41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

1.603.3000001.22.11.23.21.11.11.61.51.31.21.40

61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

0 0 3.2 0 3.3 3.3 0 0 0 0 0.3 2.1 1.3 1.3 2 0.3 0.4 1.9 0 0 0 0 3.2 0 3.3 3.3 0 0 0 0 0.3 2.1 1.3 1.3 2 0.3 0.4 1.9 0 0

81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

0003.301.3000000003.31.50000

101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120

1.2 0 0 0 0 0 0 1.2 0 3.3 3.3 3.3 0 0 3.3 3.3 1.3 0 5 5

121 122 123 124 125 126 127 128

1.6 0 0 0 0 0 3.3 0

1234567891011121314151617181920

3.2 3.2 3.2 3.2 4.7 3.2 3.2 1.5 1.6 0 0 3.2 0 3.2 3.2 3.2 3.2 3.2 0 3.2

21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

0 0 3.2 3.2 1.9 3.2 0 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 0 3.2 0.3 3.2 0 0 3.2 3.2 1.9 3.2 0 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 0 3.2 0.3 3.2

41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

3.2 3.2 3.2 0.9 0 3.2 3.2 3.2 0 3.2 3.2 0 0 1.3 3.2 3.2 0 0 1.3 3.2

3.2 3.2 3.2 0.9 0 3.2 3.2 3.2 0 3.2 3.2 0 0 1.3 3.2 3.2 0 0 1.3 3.2 IC57001

61 62 63 64

0 3.2 0 0 0 3.2 0 0

12345678910111213141516

3.2 0.4 0.6 00003.33.31.1 10.5 3.2 3.2 0 1

12345 0 0 0 3.3 3.3 0 0 0 3.3 3.3

1234567891011121314151617181920 0 0.4 0.9 0.8 1.6 2.5 0.4 0 0.4 0 0.7 0.4 0.3 0.3 0.3 0.3 0.3 0.2 0.2 2.5 0 0.4 0.9 0.8 1.6 2.5 0.4 0 0.4 0 0.7 0.4 0.3 0.3 0.3 0.3 0.3 0.2 0.2 2.5

21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

0 0.2 0.3 0.3 0.2 0.4 0.8 0.3 0.8 0.2 2.4 2.4 0.8 0 4.7 0 4.7 0.2 1.2 4.7 0 0.2 0.3 0.3 0.2 0.4 0.8 0.3 0.8 0.2 2.4 2.4 0.8 0 4.7 0 4.7 0.2 1.2 4.7

41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

1.24.84.83.33.200002.400.60.313.23.23.2000

61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

0.2 0.2 0 0 2.8 3.2 3.2 4.7 0 0 3.2 0.6 2.6 2.6 2.6 2.6 1.2 2.6 0 0

81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

3.2 2.7 0.5 1.2 1.2 1.2 1.2 1.2 0.3 0 1.2 1.2 1.2 1.2 1.2 0.5 1.5 1.0 0.1 3.2

101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120

0 3.2 0 0 1.3 1.2 1.6 1.3 2.0 0.6 0 0 2.5 0 0 0 1.3 1.3 4.7 4.7 0 3.2 0 0 1.3 1.2 1.6 1.3 2.0 0.6 0 0 2.5 0 0 0 1.3 1.3 4.7 4.7

121 122 123 124 125 126 127 128

0 2.3 2.3 4.6 1.4 0 2.5 0 0 2.3 2.3 4.6 1.4 0 2.5 0

IC57007

IC56036

IC8803

12345 0 0 0 3.2 3.2 000

IC57002

Page 50

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

Ref No.

MODE

PLAY

STOP

123456

9.2 9.2 11 11.8 9.2 9.2

12345678

3.3 4.5 0 3.4 3.3 3.3 11.8 11.8

123456 0 0 4.8 4.8 0 0 0 0 4.8 4.8 0 0

12345678

1.3 1.9 0 4.3 1.3 1.3 11.8 11.8

123456

0.9 0.9 11.7 9.0 0.8 0.8

123456

11.9 11.9 0.1 11.8 11.8 11.9

11.9 11.9 0.1 11.8 11.8 11.9 Q1452

123

3.4 7.7 11

123456 0000000 0000 0

Q55902 123 0 0 0 000

Q8802

123

2.5 2.3 4.8

2.5 2.3 4.8 QR1001

123

3.2

3.2 QR1402

123 0 3.1 0 0 3.1 0 0 0 5.8

QR1453

123

0.2 3.2 0

QR4003

123

2.8 2.9 0

QR51004

123

3.2 0 0

3.2 0 0 QR8803

123 0 0 3.2 0 0 3.2 4.7 4.7 1.5 4.7 4.7 4.7

Q1001

Q1102

Q1402

Q1405

Q1602

00 00

12345678

4.9 6.7 0 2.8 5.0 5.0 11.8 0

Q1004

Q1202

Q1453

123

3.3 3.3 0

3.3 3.3 03.4 7.7 11

Q56001

123

3.2 0 0

3.2 0 0 4.8 3.5 3.5 4.8 0 0 0 0 0.5

QR1102

123

4.8 0 0

4.8 0 0 QR1403

123 0 0 5.8

QR1461 123 0 11.2

11.2

QR4004 123 000 000

QR55006 123 0 4.6 4.6 0 4.6 4.6 4.8 0 0

123456

4.7 4.7 1.5 4.7 4.7 4.7

4.9 6.7 0 2.8 5.0 5.0 11.8 0

12345678

1.9 2.6 0 4.0 1.9 1.9 11.8 11.8

123456

11.8 11.8 3.8 11.8 11.8 11.8

123456

11.8 11.8 0 11.7 11.7 11.7

123

3.9 3.9 0

123456 0000000 0000 0

QR8808

Q56002

123

4.8 3.5 3.5

123 0 0 3.3 0 0 3.3

123456

5.1 0.2 0 3.1 0 11.8

123 000 000

123 0 0 4.6 0 0 4.6 0 3.3 3.3

QR55901

123

4.8 0 0

Q1002

Q1201

Q1101

Q1401

11.7

0.9 0.9

11.7

0.9 0.9

11.7 0 11

123456 0 0 11.4 11.8 0 0 0 0 11.4 11.8 0 0

Q56003

123

4.8 0 0

QR1202

123

2.5 0 0

QR1602 123 000 000

QR51001 123 0 3.3 3.3

QR8801

123

3.2 3.2 0

123456

9.0 9.0 0 0 9.0 9.0

0.9 0.9 11.6

0.9 0.9 11.6 Q1403

Q1406

Q1461

Q1603

QR1201

QR1451

QR1601

QR4005

123456

0.8 0.8 0 0 0.9 0.9

0.8 0.8 0 0 0.9 0.9 Q1451

123

Q1601

123456 0 0 4.0 4.0 0 0 0 0 4.0 4.0 0 0

Q1404

Q55901

Q56004 123 0 0 0.5

QR1401 123 0 3.1 0

QR1452 123 0 11.2 0 0 11.2 0

0 3.1 0

QR1603 123 000 000

QR51002 123 0 3.3 3.3 0 3.3 3.3

QR8802 123 0 0 3.2 0 0 3.2

Page 51

15 Exploded View and Replacement Parts List

15.1. Exploded Views

15.1.1. Casing Parts & Mechanism Section

2-2

2-4

2-3

31 31

2-1

Page 52

15.1.2. Packing & Accessories Section

PC1

A1-1

A10

PC8

PC4

PC2

PC7

A2 (B100EB)

PC3

A2 (B100EE/EG)

PC9

Page 53

15.1.3. Mechanical Replacement Parts List

Notes:

*Important safety notice:

Components identified by mark have special character-

istics important for safety.

Furthermore, special parts which have purposes of

fire-retardant (resistors), high-quality sound (capacitors),

low-noise (resistors), etc. are used.

When replacing any of components, be sure to use only

manufacture’s specified parts shown in the parts list.

*Warning: This product uses a laser diode. Refer to caution

statements.

*Capacity values are in microfarads (μF) unless specified

otherwise, P=Pico-farads (pF), F=Farads (F).

*Resistance values are in ohms, unless specified otherwise,

1K=1,000 (OHM), 1M=1,000k (OHM).

*The marking (RTL) indicates the retention time is limited

for this item. After the discontinuation of this assembly in

production, it will no longer be available.

*"(IA) - (IC)" marks in Remarks indicate languages of

instruction manuals.

[ (IA): Russian, Ukrainian; (IB): English; (IC): Genman,

French, Spanish, Italian, Swedish, Dutch, Danish]

*All parts are supplied by CHPAVC.

E.S.D. standards for Electrostatically Sensitive Devices, refer to “PREVENTION OF ELECTROSTATIC DISCHARGE (ESD) TO ELECTROSTATICALLY SENSITIVE (ES) DEVICES” section.

Notes:

*Parts indicated with "JIG & ADJ." in the Remarks column are necessary to adjust the BDP/Digital P.C.B.. This adjustment software can be downloaded from "Support Information from NWBG/VDBG-PAVC" web-site in "TSN system", together with instructions of "BD Drive Adjustment" including preparations and connections etc.

Safety Ref.

No.

1 VEP76212A OPERATION P.C.B. 1 (RTL)

2 RFKB76203DT MAIN P.C.B. 1 B100EG

2 RFKB76203KT MAIN P.C.B. 1 B100EB/

2-1 RMQ1715 CONDUCTION CUSHION 3

2-2 RSC0861 SHIELD PLATE A 1

2-3 RSC0863 SHIELD PLATE B 1

2-4 RMZ0993 INSULATION SHEET 1

3 RMQ1735 CONDUCTION CUSHION 1

4 VEP74123A HP REMOTE CONTROL

Part No. Part Name &

Description

CASING

P.C.B.

Pcs Remarks

E.S.D.

(RTL) E.S.D. JIG & ADJ

EE (RTL) E.S.D. JIG & ADJ

1 (RTL)

E.S.D.

6 RMF0440 SPACER 1

7 L5EDD2Q00012 LCD PANEL 1

8 VEP74121A SPEAKER P.C.B. 1 (RTL)

9 L0AA01B00017 SPEAKER A(L) 1

10 L0AA01B00009 SPEAKER B(R) 1

11 RFKGB100W MONITOR CABINET 1

12 RMG0808-K PROTECT CUSHION(B) 2

13 RGQ0553-S MONITOR COVER ASS'Y 1

14 RGQ0556-S MONO ARM 1

15 RGQ0557-S MONO ARM COVER 1

16 RGQ0554-S1 SHAFT HOLDER (L) 1

17 RGQ0555-S1 SHAFT HOLDER (R) 1

18 RGQ0587-K PROTECT CUSHION 1

19 REZ1974 MONIITOR CABLE 1

20 RKC0027-2 FRICTION HINGE (A) 1

21 RKC0028 FRICTION HINGE (B) 1

22 RMA2233 HINGE PLATE 1

23 RMA2234 MONITOR ANGLE 1

24 RMB0835 LOCK LEVER SPRING 1

25 RML0721-1 MONO ARM LOCK LEVER 1

26 RMR1959-W ROLLER 2

27 XQN17+B4FN SCREW 1

28 XQN17+BG4FNJ SCREW 27

29 XQN17+BG6FN SCREW 5

30 XQN2+B3FN SCREW 4

31 XTN17+6GFJK SCREW 19

32 RMZ1089 MONITOR SHEET 1

33 RGQ0558-S HINGE COVER 1

35 RGL0731-W LIGHTING PIECE 1

36 REZ1976-1 FFC 1

37 RGU2669-S1 POWER BUTTON 1

39 RGU2662-S OPERATION BUTTON 1

42 RGU2663-S1 OPEN BUTTON 1

43 REZ1977-1 FFC 1

44 RFKKB100EG DISC COVER ASS'Y 1

45 RKM0622A-S1 MAIN CABINET 1

46 RMB0912 OPEN SPRING 1

47 RMB0834 OPEN BUTTON SPRING 1

48 RMR1960-W RELEASE LOCK LEVER 1

49 RGQ0563-W STOPPER PIECE 1

50 RGU2664-W LCD OFF BUTTON 1

51 RKS0465-H1 BOTTOM CABINET 1

52 RMY0400 HEAT SINK PLATE 1

53 RGN2987B-H1 NAME LABEL 1 B100EB/

53 RGN2987D-H1 NAME LABEL 1 B100EE

54 RKW0914-W REMOTE SENSOR WIN-

DOW

55 THNX042 NUT 1

56 REZ1981 FFC 1

60 RGQ0560-H SD HOLDER 1

61 RKF0870-S SD COVER 1

67 REZ1975 MONITOR KEY CABLE 1

68 RKA0223-K FOOT RUBBER 2

69 RMA2235 LCD PLATE 1

70 RGQ0559-W1 MONITOR CUSSION 1

71 RGU2661-S MONITOR BUTTON 1

72 UDQF4FH52E FAN 1

73 XTB2+4GFJ SCREW 2

74 VEP76213A LCD SW P.C.B. 1 (RTL)

75 VEP71176A BAT-CONNECT P.C.B. 1 (RTL)

76 RMV0365 LED SHEET 1

78 RSC0924 HEAT RADIATION

PLATE A

79 RSC0925 HEAT RADIATION

PLATE B

80 RSC0928 HEAT RADIATION

PLATE C

81 RFKNB100EBT TRV U + Main P.C.B. 1 B100EB

81 RFKNB100EET TRV U + Main P.C.B. 1 B100EE

81 RFKNB100EGT TRV U + Main P.C.B. 1 B100EG

82 VXA8770 TRV UNIT 1 JIG &

E.S.D.

ADJ

Page 54

ACCESSORY

A1 N2QAJC000019 REMOTE CONTROL

A1-1 ETR006632001 BATTERY HOLDER 1

A2 K2CT3CA00004 AC CORD 1 B100EB

A2 K2CQ2CA00006 AC CORD 1 B100EE/

A4 VQT2H74 OPERATING INSTRUC-

A4 VQT2H73 OPERATING INSTRUC-

A4 VQT2H72 OPERATING INSTRUC-

A5 RFEA219W-AA AC ADAPTOR 1

A7 RXQ1820 BRACKET UNIT 1

A8 RFEC207P-AB CAR DC CABLE 1

A10 RPFC0031-B POLYETHYLENE

PC1 RPK2845 PACKING CASE 1 B100EB

PC1 RPK2846 PACKING CASE 1 B100EE

PC1 RPK2844 PACKING CASE 1 B100EG

PC2 RPFC0116B POLYETHYLENE FILM 1

PC3 RPQF0346 ACCESSORY BOX 1

PC4 RPFC0115B POLYETHYLENE BAG

PC7 RPN2152A CUSHION (A) 1

PC8 RPN2152B CUSHION (B) 1

PC9 RPQ2652 PAD 1

ASS’Y

TIONS

BAG(UNIT)

(UNIT)

1 (IA)

B100EE

1 (IB)

B100EB/ EG

1 (IC)

B100EG

Page 55

15.2. Electrical Replacement Parts List

Notes:

*Important safety notice: Components identified by mark have special characteristics important for safety. Furthermore, special parts which have purposes of fire-retardant (resistors), high-quality sound (capacitors), low-noise (resistors), etc. are used. When replacing any of components, be sure to use only manufacture’s specified parts shown in the parts list. *Warning: This product uses a laser diode. Refer to caution statements. *Capacity values are in microfarads (μF) unless specified otherwise, P=Pico-farads (pF), F=Farads (F). *Resistance values are in ohms, unless specified otherwise, 1K=1,000 (OHM), 1M=1,000k (OHM). *The marking (RTL) indicates the retention time is limited for this item. After the discontinuation of this assembly in production, it will no longer be available. *All parts are supplied by CHPAVC.

E.S.D. standards for Electrostatically Sensitive Devices, refer to “PREVENTION OF ELECTROSTATIC DISCHARGE (ESD) TO ELECTROSTATICALLY SENSITIVE (ES) DEVICES” section.

Safety Ref.

No.

C4101 F3F0J476A032 6.3V 47U 1

C4103 F1G1H1010001 50V 100P 1

C4104 F1G1H1010001 50V 100P 1

C4105 F1G1H1010001 50V 100P 1

C4106 F1G1H1010001 50V 100P 1

C4131 F1G1C1030008 16V 0.01U 1

C4132 F1G1C1030008 16V 0.01U 1

IR4101 PNA4811M00YD REMOTE SENSOR 1

JK4103 K2HC103B0213 JACK 1

LB4190 J0JBC0000028 COIL 1

LB4192 J0JBC0000028 COIL 1

LB4193 J0JBC0000028 COIL 1

LB4194 J0JBC0000028 COIL 1

Part No. Part Name &

VEP74123A HP REMOTE CONTROL

Description

P.C.B.

Pcs Remarks

(RTL) E.S.D.

Safety Ref.

No.

R6106 ERJ3GEYJ152V 1/10W 1.5K 1

R6107 ERJ3GEYJ222V 1/10W 2.2K 1

R6108 ERJ3GEYJ332V 1/10W 3.3K 1

R6109 ERJ3GEYJ472V 1/10W 4.7K 1

S6101 K0F111A00472 SWITCH 1

S6102 K0F111A00472 SWITCH 1

S6103 K0F111A00472 SWITCH 1

S6104 K0F111A00472 SWITCH 1

S6105 K0F111A00472 SWITCH 1

S6106 K0F111A00472 SWITCH 1

S6107 K0F111A00472 SWITCH 1

S6108 K0F111A00472 SWITCH 1

S6109 K0F111A00472 SWITCH 1

S6110 K0F111A00472 SWITCH 1

S6111 K0F111A00472 SWITCH 1

S6112 K0F111A00472 SWITCH 1

R6001 ERJ3GEYJ152V 1/10W 1.5K 1

R6002 ERJ3GEYJ222V 1/10W 2.2K 1

R6003 ERJ3GEYJ332V 1/10W 3.3K 1

R6004 ERJ3GEYJ472V 1/10W 4.7K 1

S6003 K0F111A00472 SWITCH 1

S6004 K0F111A00472 SWITCH 1

S6005 K0F111A00472 SWITCH 1

P6001 K1KA02AA0051 CONNECTOR(2P) 1

P6201 K1KA04AA0051 CONNECTOR(4P) 1

C1801 F1G1E1020001 25V 1000P 1

C1802 F1G1E1020001 25V 1000P 1

IP1801 D1JBR012A007 IC PROTECTOR 1

JK1801 K4ZZ04000033 BATTERY TERMINAL 1

Part No. Part Name &

VEP76213A LCD SW P.C.B. (RTL)

VEP74121A SPEAKER P.C.B. (RTL)

VEP71176A BAT-CONNECT P.C.B. (RTL)

Description

Pcs Remarks

E.S.D.

P4101 K1MN08BA0204 CONNECTOR(8P) 1

QR4123 B1GFGCAA0001 TRANSISTOR 1 E.S.D.

R4101 ERJ2GEJ470X 1/16W 47 1

R4133 ERJ2GEJ472X 1/16W 4.7K 1

R4134 ERJ2GEJ472X 1/16W 4.7K 1

R4135 ERJ2GEJ561X 1/16W 560 1

R4136 ERJ2GEJ561X 1/16W 560 1

R4137 ERJ2GEJ102X 1/16W 1K 1

VEP76212A OPERATION P.C.B. (RTL)

P6101 K1MY04BA0041 CONNECTOR(4P) 1

R6101 ERJ3GEYJ152V 1/10W 1.5K 1

R6102 ERJ3GEYJ222V 1/10W 2.2K 1

R6103 ERJ3GEYJ332V 1/10W 3.3K 1

R6104 ERJ3GEYJ472V 1/10W 4.7K 1

R6105 ERJ3GEYJ332V 1/10W 3.3K 1

E.S.D.
