Page 1

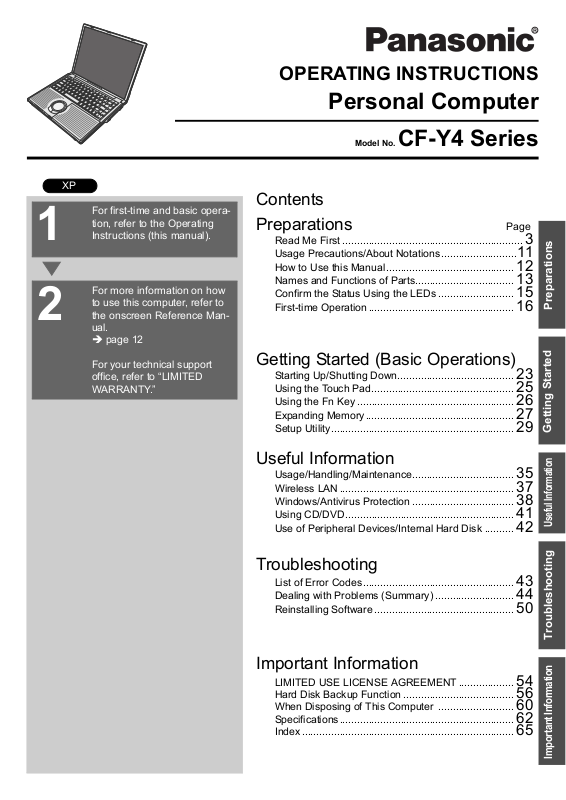

OPERATING INSTRUCTIONS

Personal Computer

Model No. CF-Y4 Series

1 2

For first-time and basic operation, refer to the Operating Instructions (this manual).

For more information on how to use this computer, refer to the onscreen Reference Manual. Î page 12

For your technical support office, refer to “LIMITED WARRANTY.”

Contents Preparations

Read Me First ..............................................................

Usage Precautions/About Notations..........................11

How to Use this Manual............................................ 12

Names and Functions of Parts.................................. 13

Confirm the Status Using the LEDs .......................... 15

First-time Operation .................................................. 16

Page

Getting Started (Basic Operations)

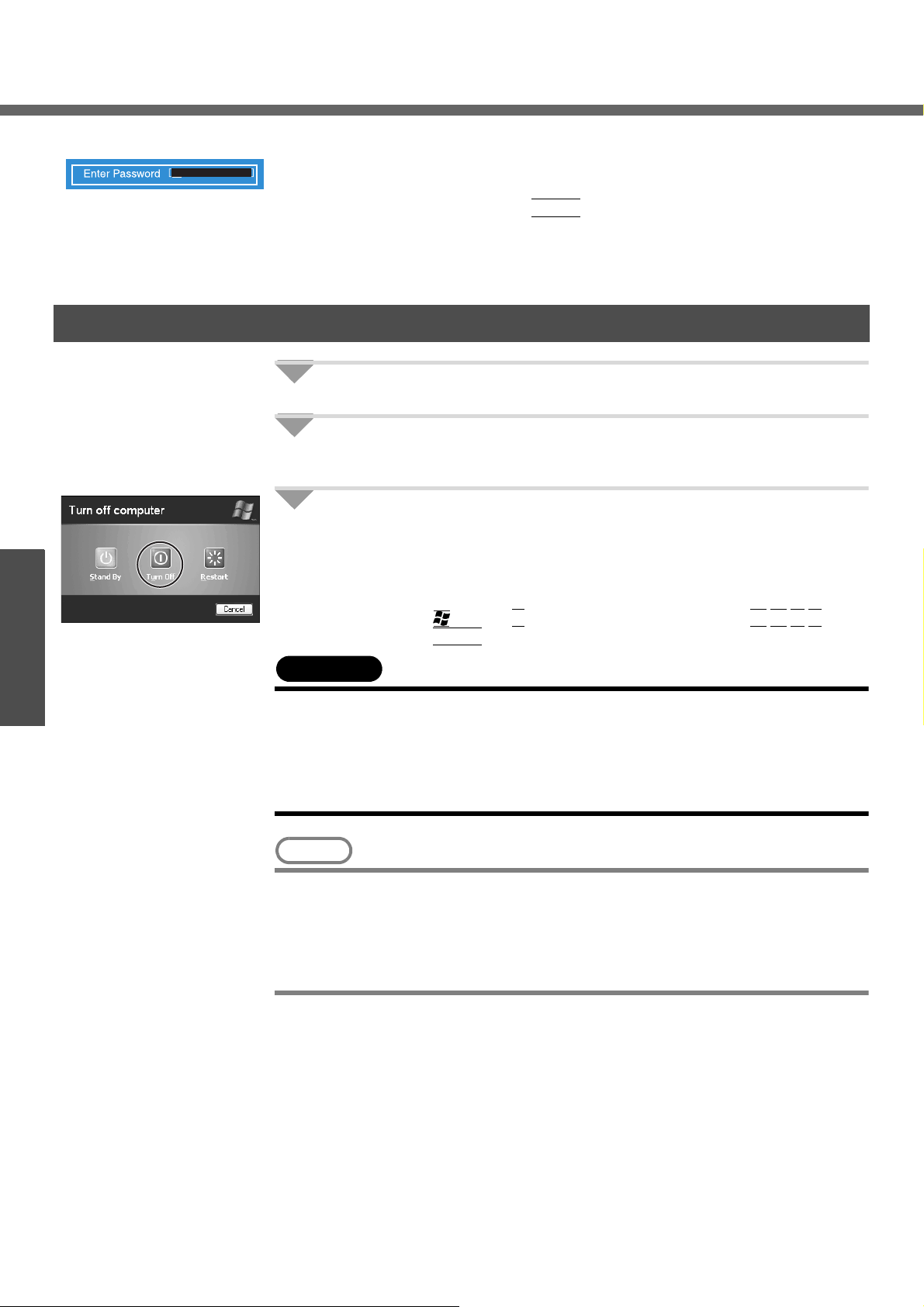

Starting Up/Shutting Down........................................ 23

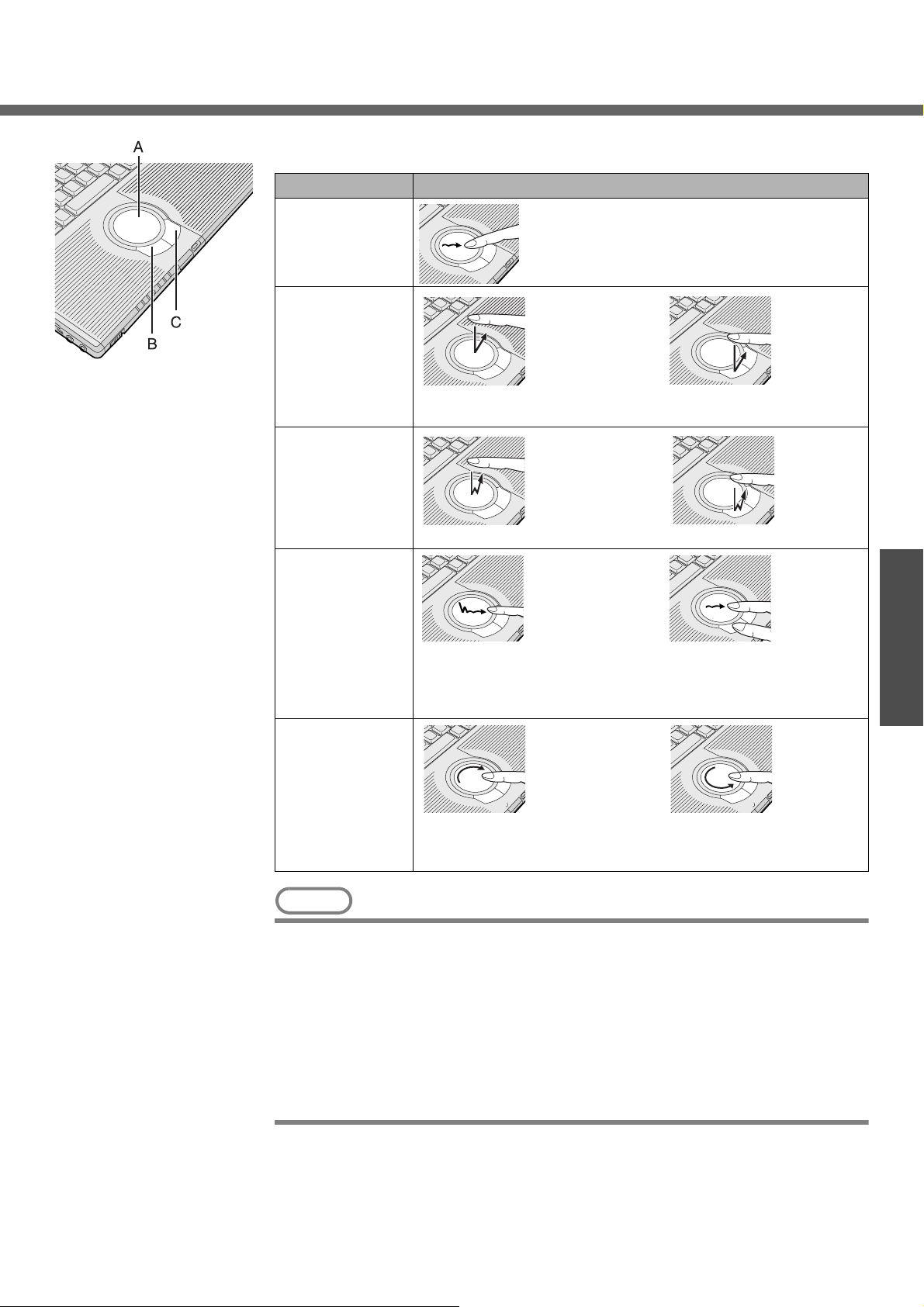

Using the Touch Pad................................................. 25

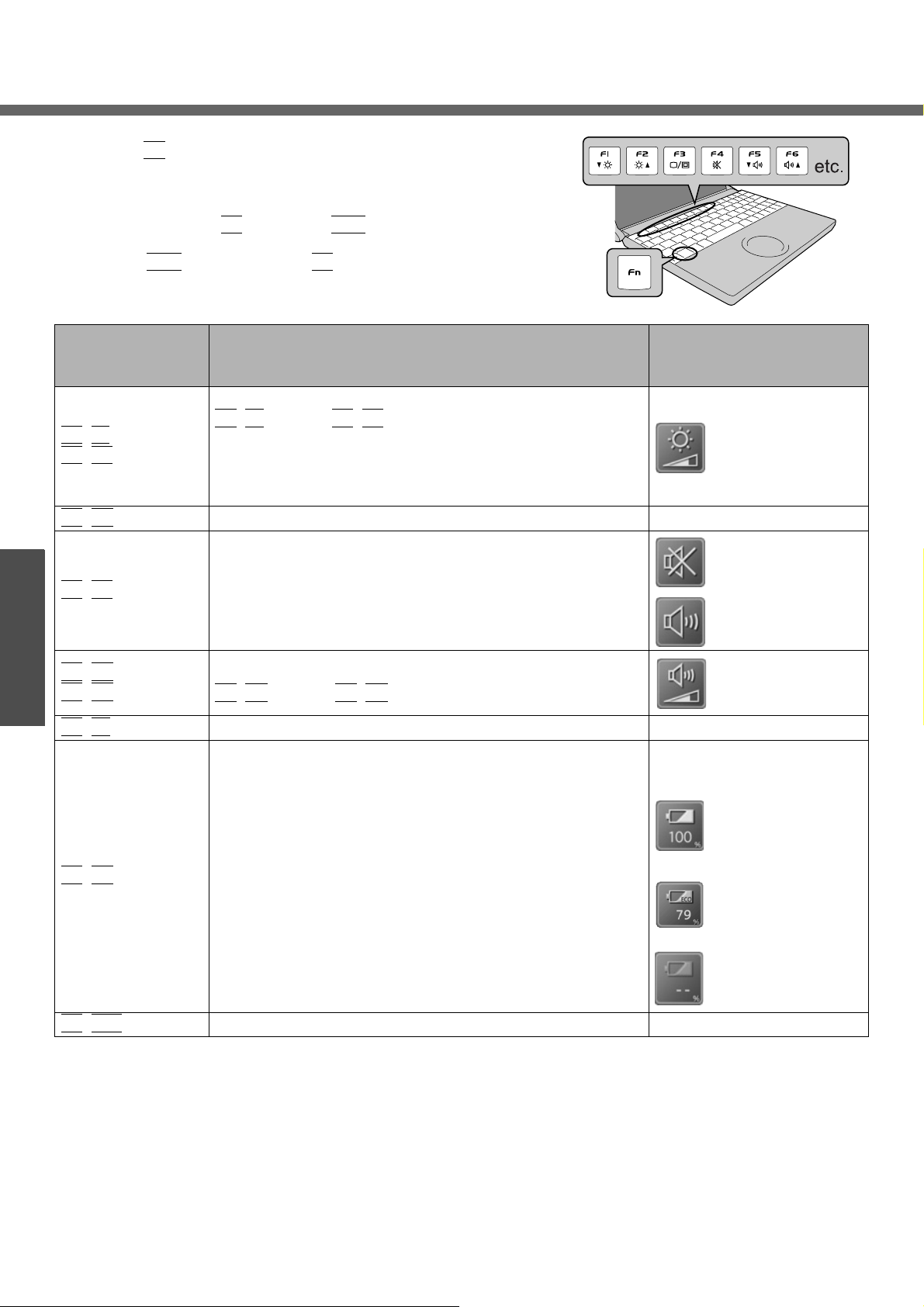

Using the Fn Key ...................................................... 26

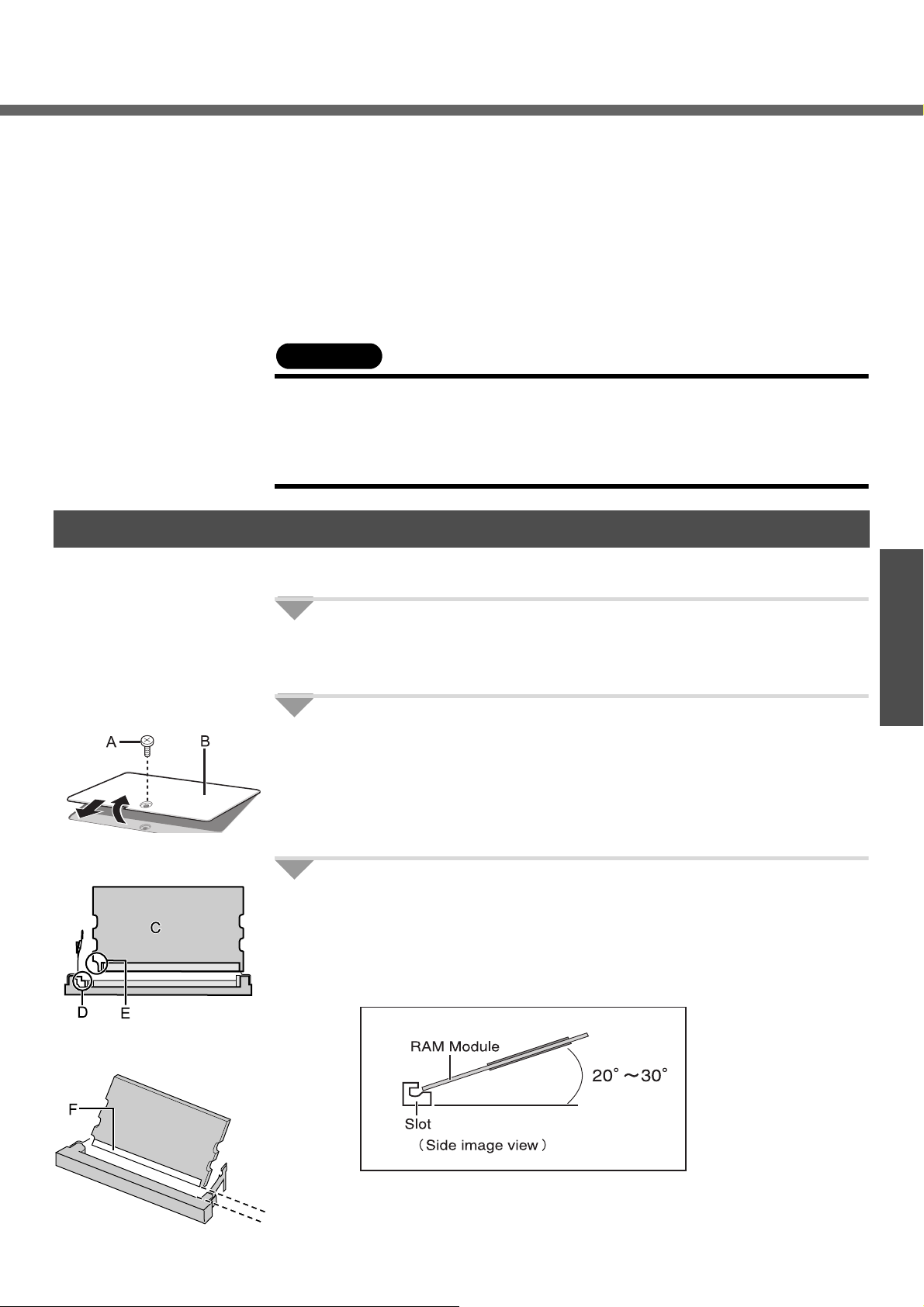

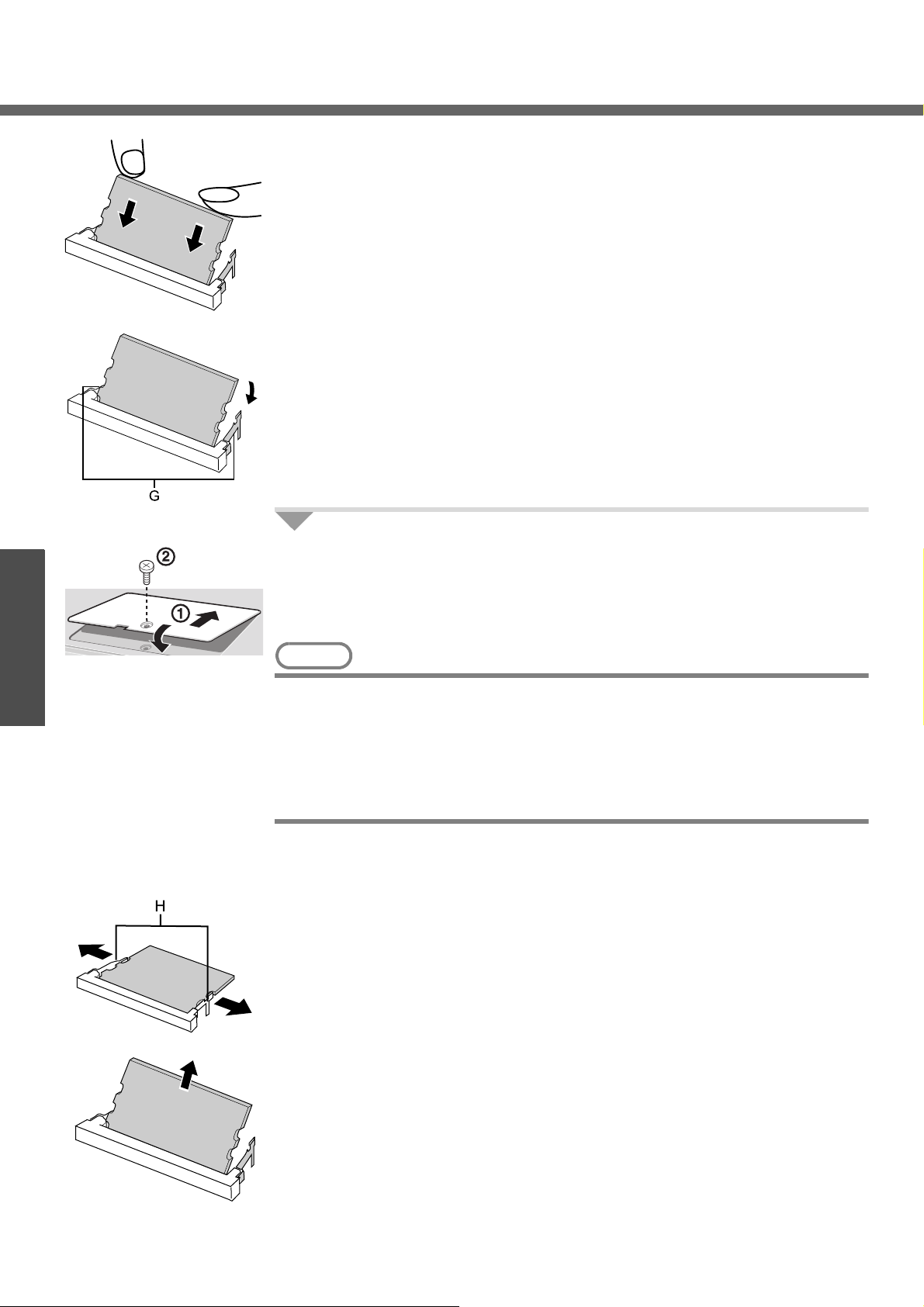

Expanding Memory................................................... 27

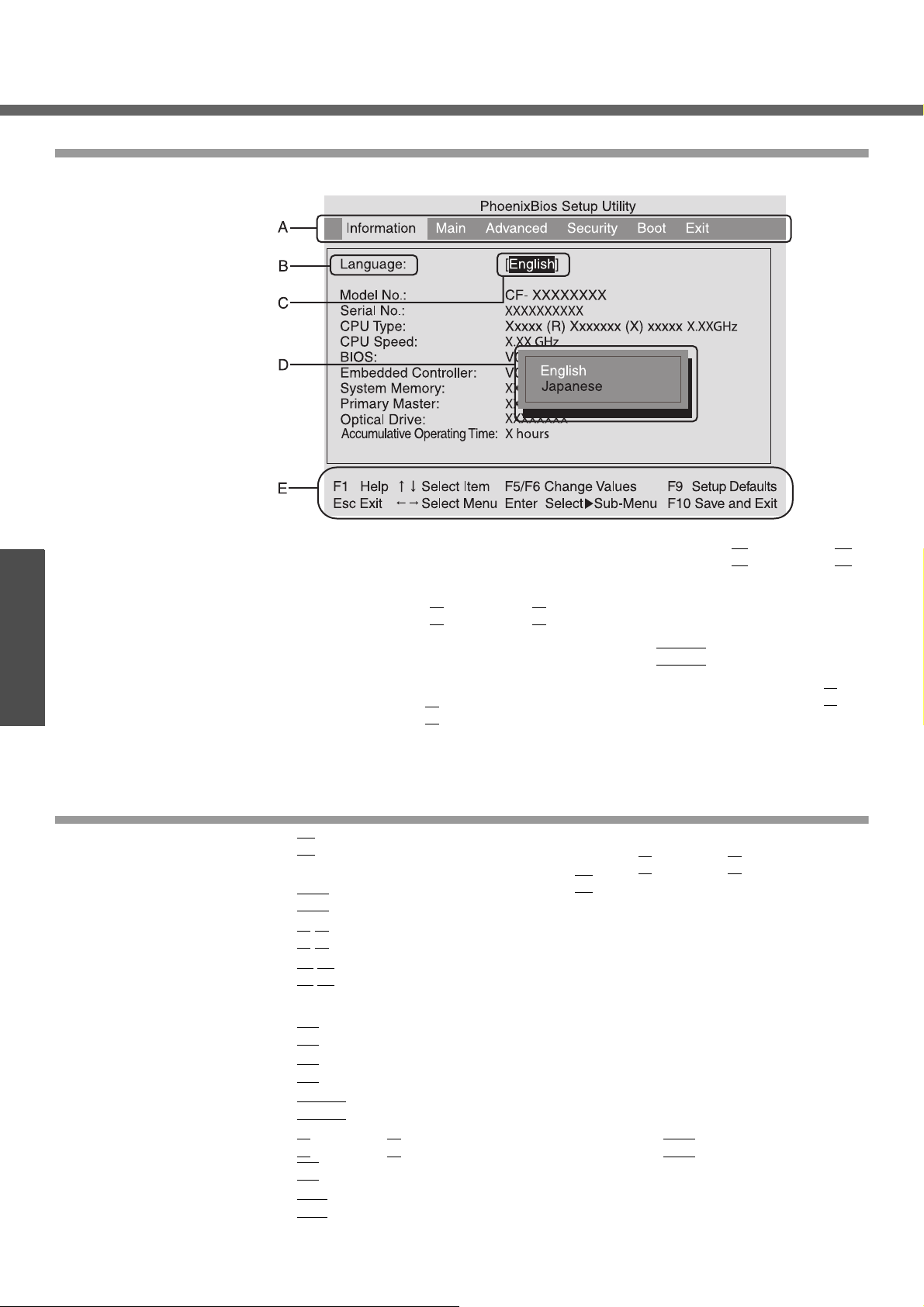

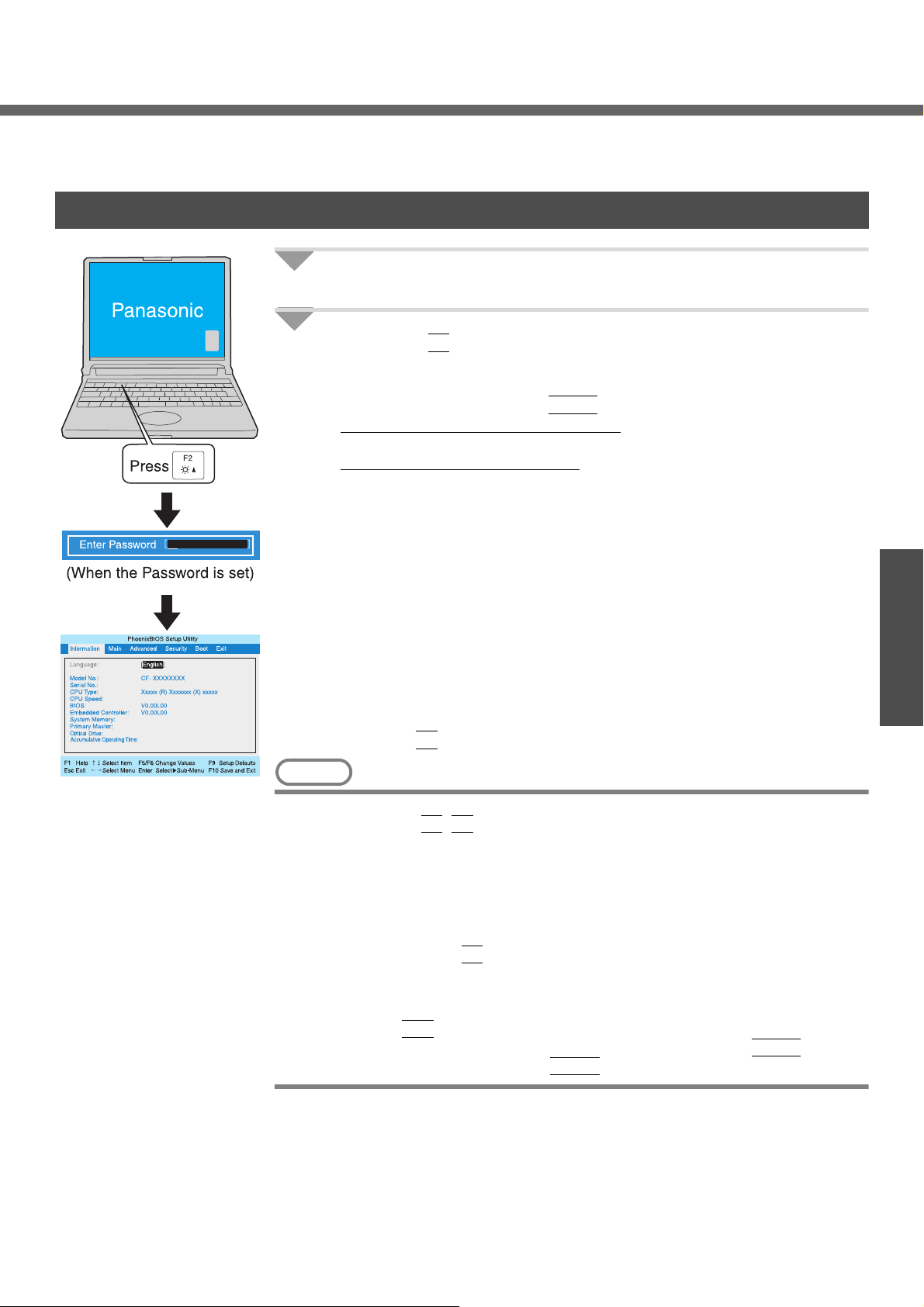

Setup Utility............................................................... 29

Useful Information

Usage/Handling/Maintenance................................... 35

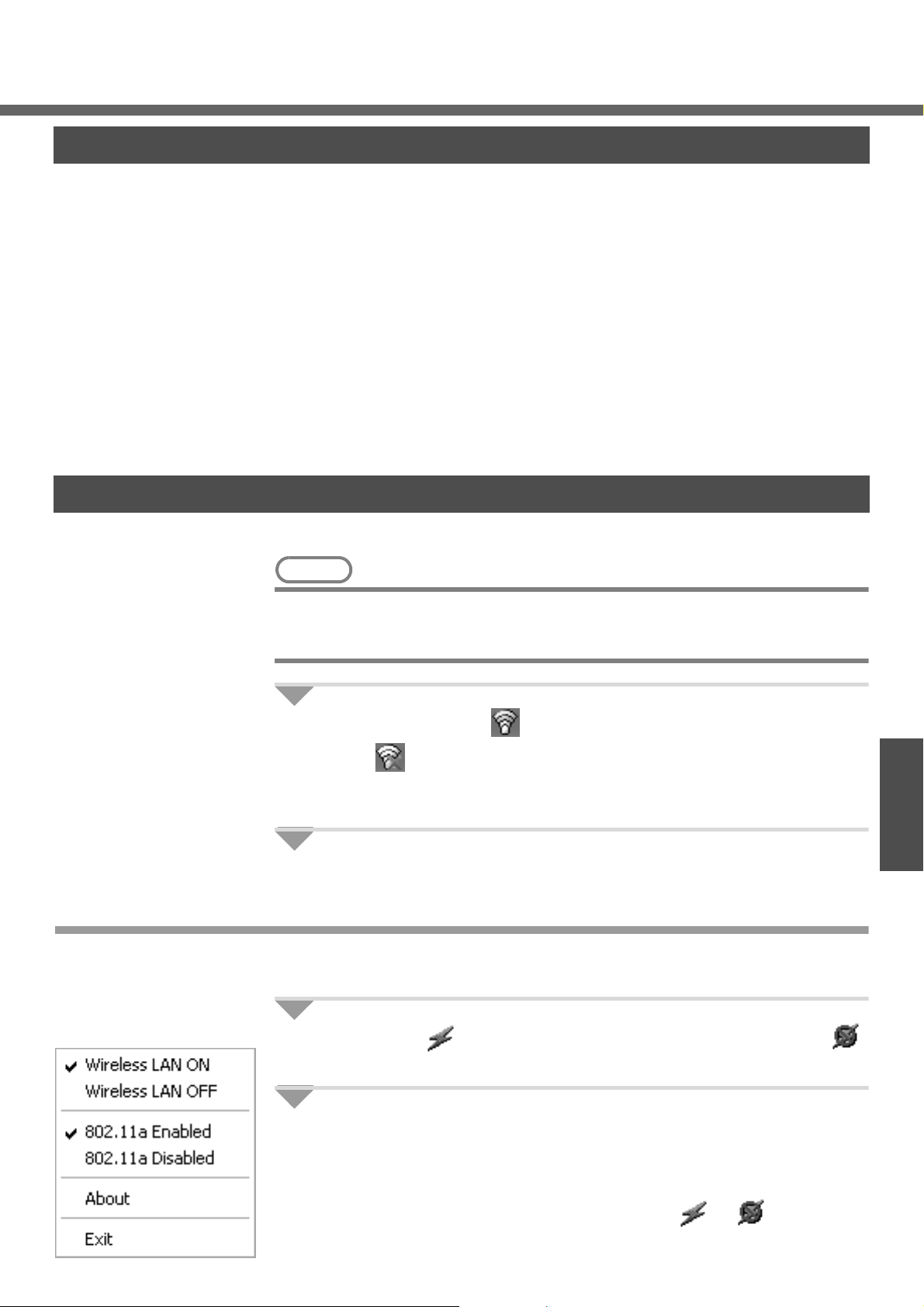

Wireless LAN ............................................................ 37

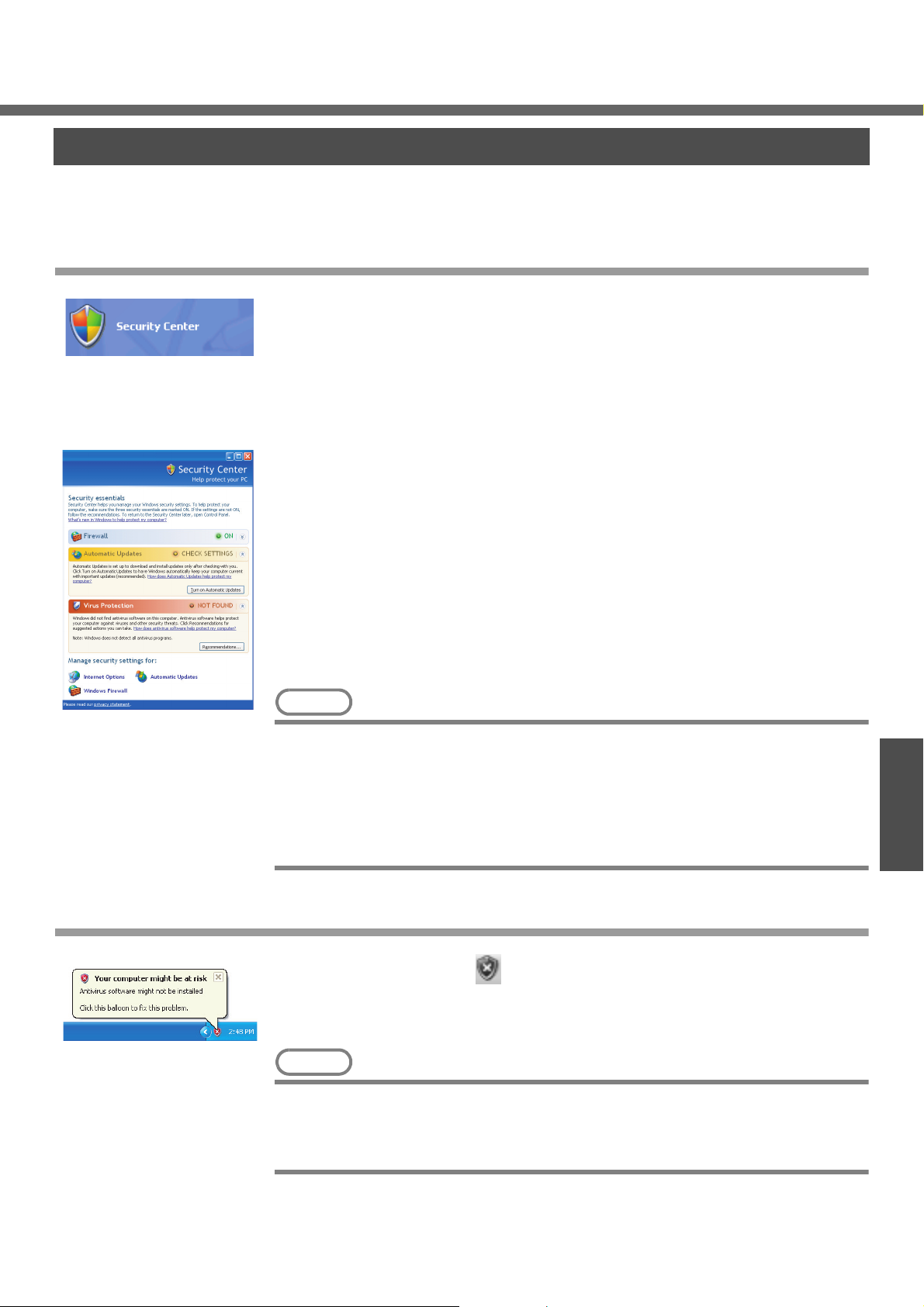

Windows/Antivirus Protection ................................... 38

Using CD/DVD.......................................................... 41

Use of Peripheral Devices/Internal Hard Disk .......... 42

Preparations

Getting Started

Useful Information

Troubleshooting

List of Error Codes.................................................... 43

Dealing with Problems (Summary) ........................... 44

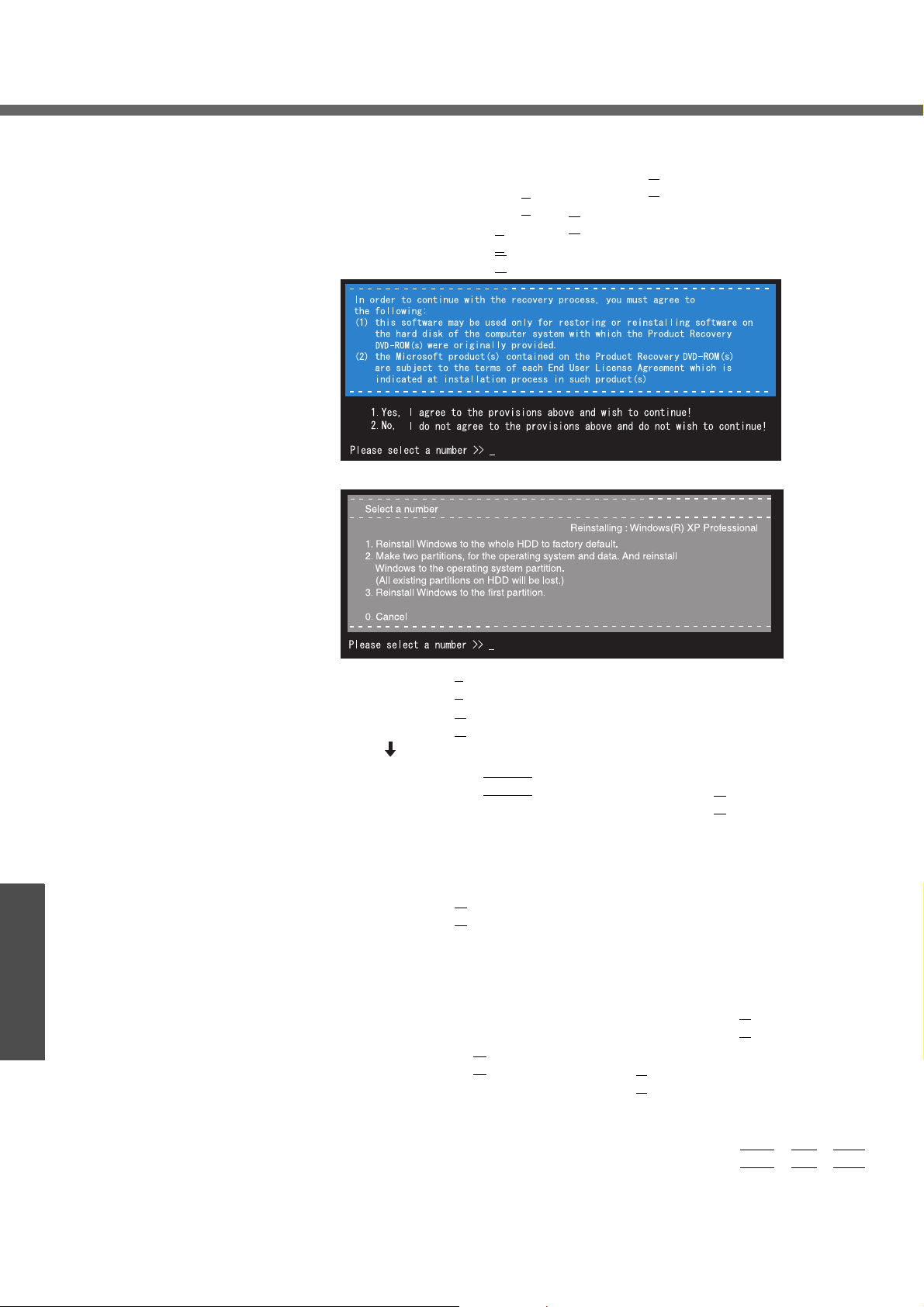

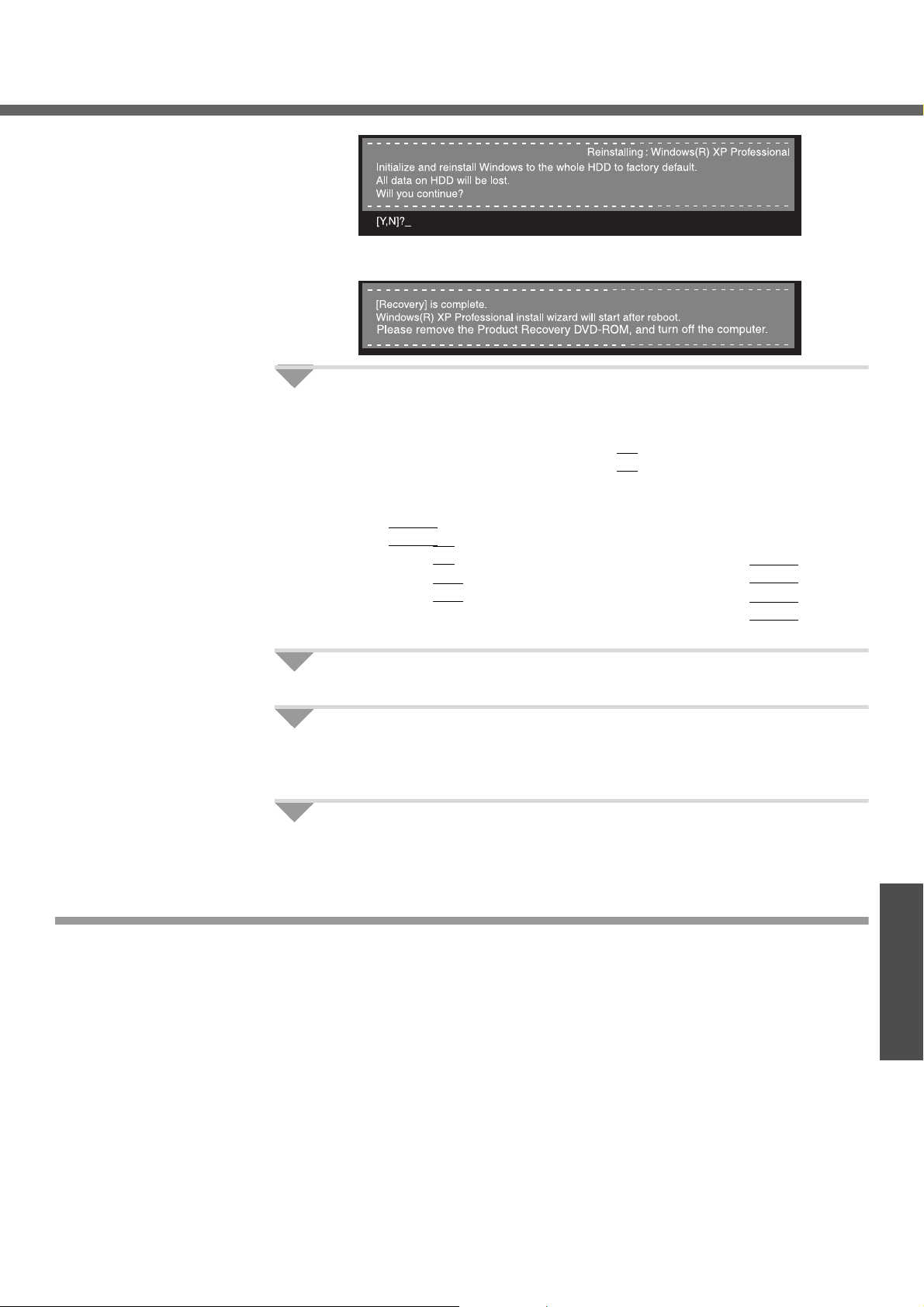

Reinstalling Software ................................................ 50

Important Information

LIMITED USE LICENSE AGREEMENT ................... 54

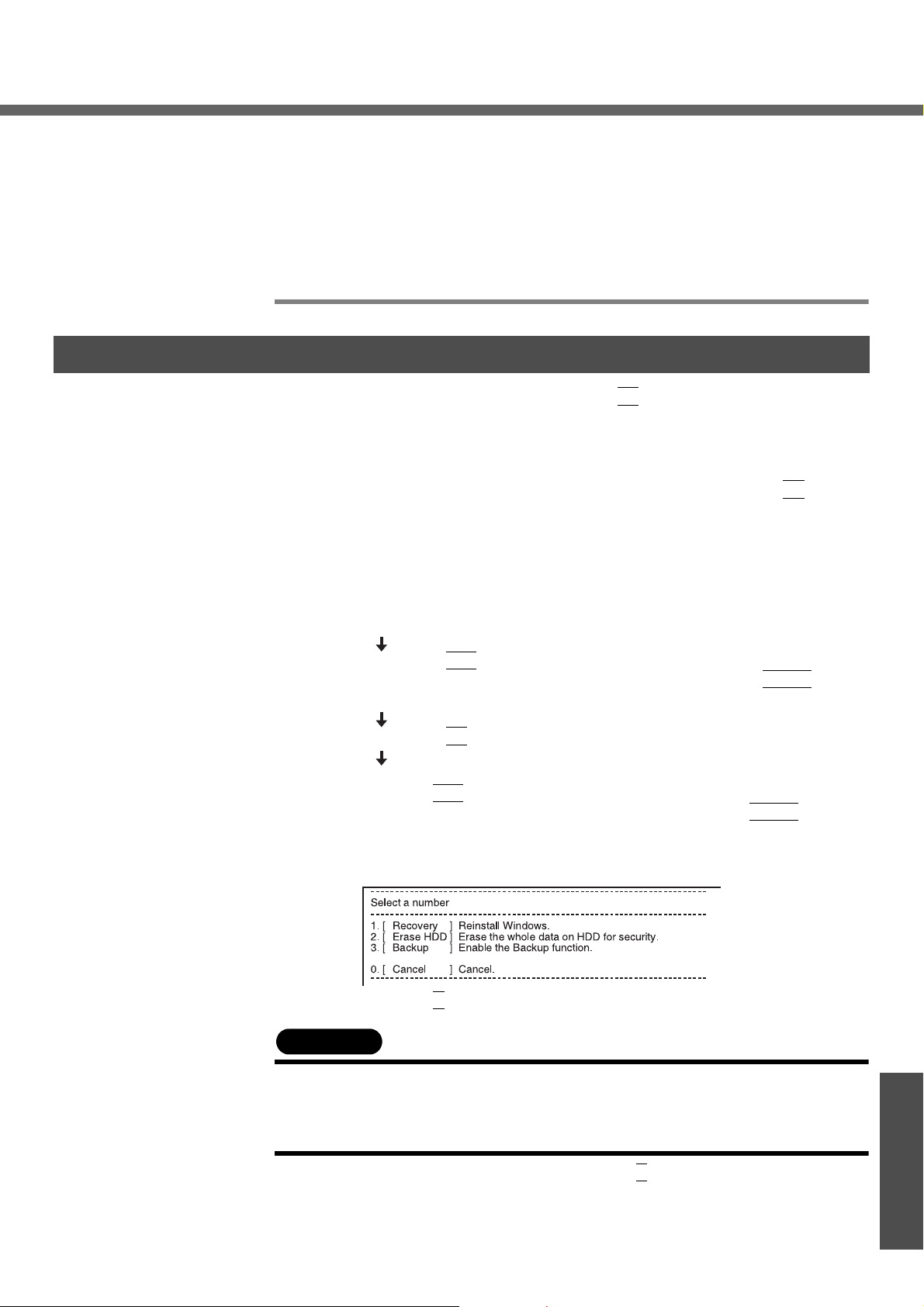

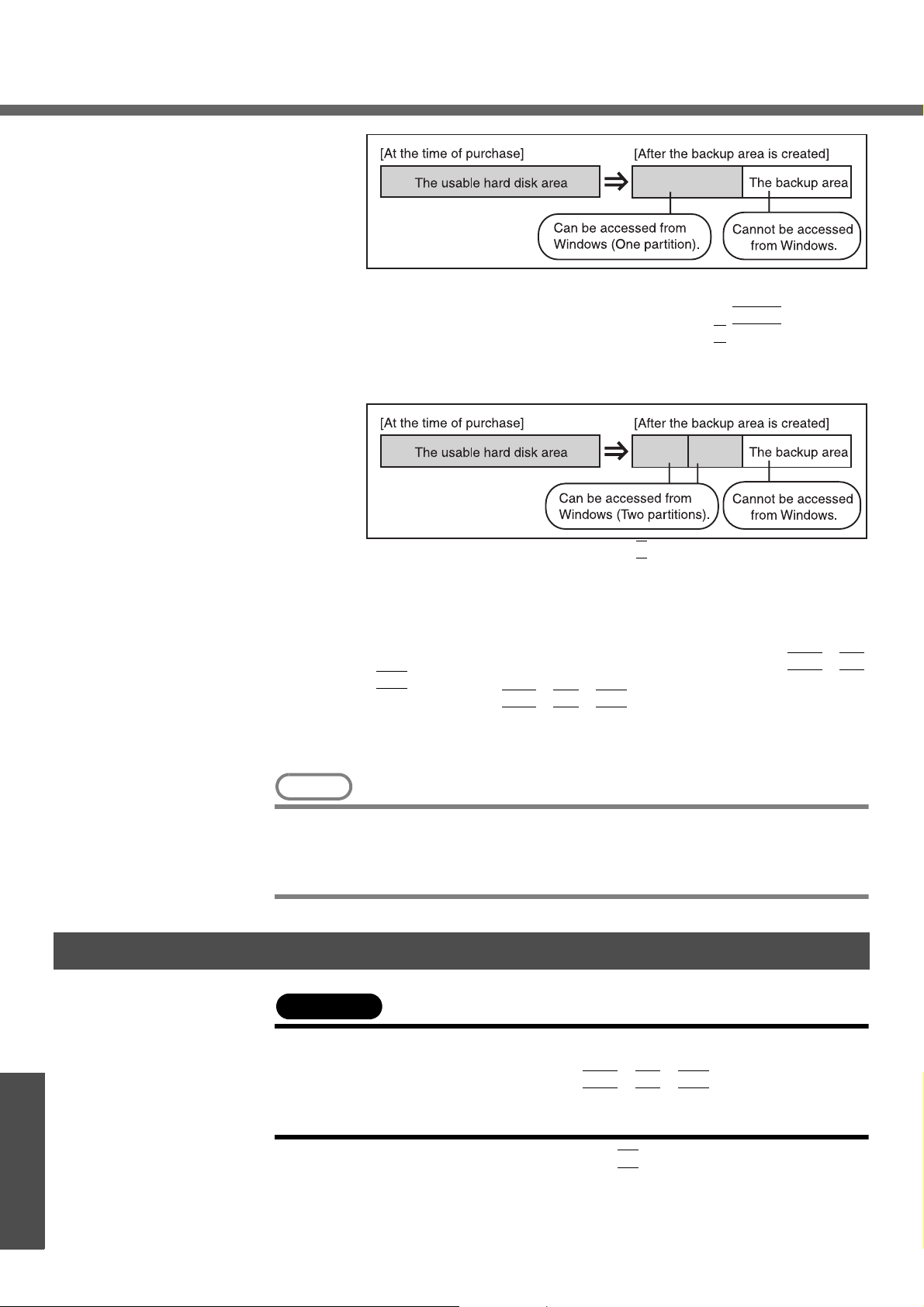

Hard Disk Backup Function ...................................... 56

When Disposing of This Computer .......................... 60

Specifications............................................................ 62

Index ......................................................................... 65

Troubleshooting

Important Information

Page 2

Customer’s Record

Model No.*

Serial No.

or Code No.

Date of Purchase

For the Model No., insert the 12 digit number (for example, CF-Y4HWPZZBM) located on the bottom of the computer.

Dealer’s Name

Dealer’s Address

Introduction

Thank you for purchasing the Panasonic computer. Read this manual thoroughly for proper operation of your new computer.

This manual is copyrighted by Matsushita Electric Industrial Co., Ltd. with all rights reserved. No part of this manual may be reproduced in any form without the prior written permission of Matsushita Electric Industrial Co., Ltd. No patent liability is assumed with respect to the use of the information contained herein.

Disclaimer

Computer specifications and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd. assumes no liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manuals.

Trademarks

Microsoft, Windows and the Windows logo are registered trademarks of Microsoft Corporation of the United States and/or other countries. Intel, Pentium and PROSet are either registered trademarks or trademarks of Intel Corporation.

SD Logo is a trademark. Adobe, the Adobe logo and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

WinDVD PhoenixBIOS is a common law trademark of Phoenix Technologies Ltd.

Panasonic is a registered trademark of Matsushita Electric Industrial Co., Ltd. Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective owner companies.

™ is a trademark of InterVideo, Inc.

Page 3

Read Me First

For U.S.A.

Federal Communications Commission Radio Frequency Interference Statement

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and

receiver.

z Connect the equipment into an outlet on a circuit differ-

ent from that to which the receiver is connected.

z Consult the Panasonic Service Center or an experi-

enced radio/TV technician for help.

Warning

To assure continued compliance, use only shielded interface cables when connecting to a computer or peripheral. Also, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

FCC RF Exposure Warning: z This computer is provided with a PC Card slot that

could be used with wireless transmitter(s), which will be specifically recommended, when they become available. Other third-party wireless transmitter(s) have not been RF exposure evaluated for use with this computer and may not comply with FCC RF exposure requirements.

z This equipment complies with FCC radiation exposure

limits set forth for an uncontrolled environment.

z This equipment must be installed and operated in

accordance with provided instructions and minimum

1.5 cm spacing must be provided between antenna and all person’s body (excluding extremities of hands, wrist and feet) during wireless modes of operation.

z This transmitter must not be co-located or operated in

conjunction with any other antenna or transmitter.

This product is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. FCC requires this product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems. High power radars are allocated as primary users of the

5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These

radar stations can cause interference with and /or damage this product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received,

including interference that may cause undesired operation.

Responsible Party: Panasonic Corporation of North America

One Panasonic Way Secaucus, NJ 07094 Tel No:1-800-LAPTOP5 (1-800-527-8675)

FCC Regulation Notice for modem This equipment contains a FCC approved modem.

Preparations

1. This equipment complies with CFR47 Part 68 rules. On the computer is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If required, this information must be provided to the telephone company.

2. An FCC compliant telephone cord and modular plug is provided with this equipment. This equipment is designed to be connected to the telephone network or premises wiring using a compatible modular jack which is Part 68 compliant. See Installation Instructions for details.

3. The REN is used to determine the quantity of devices which may be connected to the telephone line. Excessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all area, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company.

4. If your telephone equipment cause harm to the telephone network, the telephone company will notify you in advice that temporary discontinuance of service may be required. But if advice notice isn’t practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.

5. The telephone company may take changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service.

Page 4

Read Me First

6. If trouble is experienced with this equipment, for repair or warranty information, please contact Panasonic Corporation of North America at DIAL TOLL FREE 1800-LAPTOP5 (1-800-527-8675). If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.

7. There are no user serviceable parts contained in this equipment.

8. This equipment may not be used on coin service provided by the telephone company. Connection to party lines is subject to state tariffs.

9. The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device to send any message via a telephone fax machine unless such message clearly contains in a margin at the top or bottom of each transmitted page or on the first page of the transmission, the date and time it is sent and an identification of the

Preparations Getting Started

business or other entry, or other individual sending the message and the telephone number of the sending machine or such business, other entity, or individual. In order to program this information into your fax software, you should refer to the manual of the Fax software being used.

10.According to the FCC’s electrical safety advisory, we recommend that you may install an AC surge arrestor in the AC outlet to which this equipment is connected. Telephone companies report that electrical surges, typically lightning transients, are very destructive to customer terminal equipment connected to AC power sources and that this is a major nationwide problem.

“Caution: To reduce the risk of fire, use only No.26 AWG or larger telecommunication line cord.” “ATTENTION: Pour réduire le risque d’incendie, utiliser uniquement des conducteurs de télécommunications 26 AWG ou de section supérieure.”

Notice for the products using LCD

This product uses one or more fluorescent lamps containing a small amount of mercury. It also contains lead in some components. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information please contact your local authorities, or the Electronics Industries Alliance: <http://www.eiae.org/>

For Canada

Industry Canada (IC) Notice for modem

This equipment contains an Industry Canada approved modem unit. The Industry Canada label is affixed on the modem unit.

EQUIPMENT ATTACHMENT LIMITATIONS

“NOTICE: The Industry Canada label identifies certified equipment. This certification means that the equipment meets telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s). The Department does not guarantee the equipment will operate to the user’s satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations. Repairs to certified equipment should be coordinated by a representative designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment. Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas. Caution: Users should not attempt to make such connections themselves, but should

contact the appropriate electric inspection authority, or electrician, as appropriate.” “NOTICE: The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5.”

REN: See bottom of the computer

RESTRICTIONS CONCERNANT LE RACCORDEMENT DE MATÉRIEL

"AVIS: L'étiquette d'Industrie Canada identifie le matériel homologué. Cette étiquette certifie que le matériel est conforme aux normes de protection, d'exploitation et de sécurité des réseaux de télécommunications, comme le prescrivent les documents concernant les exigences techniques relatives au matériel terminal. Le Ministère n'assure toutefois pas que le matériel fonctionnera à la satisfaction de l'utilisateur. Avant d'installer ce matériel, l'utilisateur doit s'assurer qu'il est permis de le raccorder aux installations de l'entreprise locale de télécommunication. Le matériel doit également être installé en suivant une méthode acceptée de raccordement. L'abonné ne doit pas oublier qu'il est possible que la conformité aux conditions énoncées ci-dessus n'empêche pas la dégradation du service dans certaines situations. Les réparations de matériel homologué doivent être coordonnées par un représentant désigné par le fournisseur.

Page 5

L'entreprise de télécommunications peut demander à l'utilisateur de débrancher un appareil à la suite de réparations ou de modifications effectuées par l'utilisateur ou à cause de mauvais fonctionnement. Pour sa propre protection, l'utilisateur doit s'assurer que tous les fils de mise à la terre de la source d'énergie électrique, des lignes téléphoniques et des canalisations d'eau métalliques, s'il y en a, sont raccordés ensemble. Cette précaution est particulièrement importante dans les régions rurales. Avertissement: L'utilisateur ne doit pas tenter de faire ces raccordements lui-même; il doit avoir recours à un service d'inspection des installations électriques, ou à un électricien, selon le cas." "AVIS: L'indice d'équivalence de la sonnerie (IES) assigné à chaque dispositif terminal indique le nombre maximal de terminaux qui peuvent être raccordés à une interface. La terminaison d'une interface téléphonique peut consister en une combinaison de quelques dispositifs, à la seule condition que la somme d'indices d'équivalence de la sonnerie de touts les dispositifs n'excède pas 5."

IES: Voir sous le fond de l'ordinateur

Industry Canada

This product complies with RSS210 Industry Canada. Operation is subject to the following two conditions; (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This product (local network devices) for the band 51505250 MHz is only indoor usage to reduce potential for harmful interference to co-channel Mobile Satellite systems. High power radars are allocated as primary users (meaning they have priority) of 5250-5350 MHz and 5650-5850 MHz and these radars could cause interference and/or

damage to LELAN devices.

Preparations

Important Safety Instructions / Importantes Mesures De Sécurité

When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

1. Do not use this product near water, for example, near a bath tub, washbowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.

2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the leak.

4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions.

SAVE THESE INSTRUCTIONS

Certaines mesures de sécurité doivent être prises pendant l’utilisation de matérial téléphonique afin de réduire les risques d’incendie, de choc électrique et de blessures. En voici quelquesunes:

1. Ne pas utiliser l’appareil près de l’eau, p.ex., près d’une baignoire, d’un lavabo, d’un évier de cuisine, d’un bac à laver, dans un sous-sol humide ou près d’une piscine.

2. Éviter d’utiliser le téléphone (sauf s’il s’agit d’un appareil sans fil) pendant un orage électrique. Ceci peut présenter un risque de choc électrique causé par la foudre.

3. Ne pas utiliser l’appareil téléphonique pour signaler une fuite de gaz s’il est situé près de la fuite.

4. Utiliser seulement le cordon d’alimentation et le type de piles indiqués dans ce manual. Ne pas jeter les piles dans le feu: elles peuvent exploser. Se conformer aux règlements pertinents quant à l’élimination des piles.

CONSERVER CES INSTRUCTIONS

Page 6

Read Me First

Information to the User

This product and your Health

This product, like other radio devices, emits radio frequency electromagnetic energy. The level of energy emitted by this product however is far much less than the electromagnetic energy emitted by wireless devices like for example mobile phones. Because this product operates within the guidelines found in radio frequency safety standards and recommendations, we believe this product is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature. In some situations or environments, the use of this product may be restricted by the proprietor of the building or responsible representatives of the organization. These situations may for example include:

z Using this product on board of airplanes, or z In any other environment where the risk of interference to other devices or services is perceived or identified as

harmful. If you are uncertain of the policy that applies on the use of wireless devices in a specific organization or environment (e.g. airports), you are encouraged to ask for authorization to use this product prior to turning on the product.

Regulatory Information

We are not responsible for any radio or television interference caused by unauthorized modification of this product. The

Preparations Getting Started

correction of interference caused by such unauthorized modification will be the responsibility of the user. We and its authorized resellers or distributors are not liable for damage or violation of government regulations that may arise from failing to comply with these guidelines.

Lithium Battery

Lithium Battery!

This computer contains a lithium battery to enable the date, time, and other data to be stored. The battery should only be exchanged by authorized service personnel. Warning! A risk of explosion from incorrect installation or misapplication may possibly occur.

Pile au lithium!

Le micro-ordinateur renferme une pile au lithium qui permet de sauvegarder certaines données, notamment la date et l’heure. La pile ne doit être remplacée que par un technicien qualifié. Danger! Risque d’explosion en cas de non respect de cette mise en garde!

DVD-ROM & CD-R/RW Drive Caution

CAUTION!

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

AVERTISSEMENT!

CET APPAREIL UTILISE UN LASER. L’UTILISATION DE COMMANDES OU DE RÉGLAGES OU L’EXÉCUTION DE PROCÉDURES AUTRES QUE CELLES SPÉCIFIÉES ICI PEUVENT PROVOQUER UNE EXPOSITION À DES RADIATIONS DANGEREUSES. NE PAS OUVRIR LES COUVERCLES NI ESSAYER DE RÉPARER SOI-MÊME. CONFIER TOUT TRAVAIL D’ENTRETIEN À UN PERSONNEL QUALIFIÉ.

Page 7

For Europe

Declaration of Conformity (DoC)

“Hereby, we declare, that this Personal Computer is in compliance with the essential requirements and other relevant provisions of the Directive 1999/5/EC.” Hint: If you want to get a copy of the original DoC of our products which relates to the R&TTE, please contact to our web address: http://www.doc.panasonic.de

Contact: Panasonic Services Europe A Division of Panasonic Marketing Europe GmbH Panasonic Testing Centre

Network connection. The terminal equipment is intended for connection to the following public network; In all the countries of European Economical Area;

- Public Switched Telephony Networks

Technical Features. The terminal equipment includes the following features;

- DTMF dialing

- Maximum bitrate receiving mode: 56 kbit/s

- Maximum bitrate sending mode: 33.6 kbit/s

Preparations

This product is designed to interwork with the Public Switched Telecommunication Networks in UK, Ireland, Netherlands, Sweden, Denmark, Finland, Switzerland, Luxembourg, Belgium, France, Germany, Spain, Portugal, Iceland, Greece, Italy, Norway and Austria.

-------------------------------------------------------------------------------------------------------------------------------------------

Compliance Notice - CE Mark

This equipment is in conformance with the requirements of the European Council Directive listed below:

73/23/EEC Low Voltage Directive with amendment 93/68/EEC 89/336/EEC EMC Directive with amendments 92/31/EEC and 93/68/EEC 1999/5/EC R&TTE

-------------------------------------------------------------------------------------------------------------------------------------------

Page 8

Read Me First

Precautions

Usage

Preparations Getting Started

Avoid Extreme Heat and Cold

Do not store or use the computer in locations exposed to heat, direct sunlight, or extreme cold. Avoid moving the computer between locations with large temperature difference. Operation: 5 °C to 35 °C {41 °F to 95 °F} Storage: -20 °C to 60 °C {- 4 °F to 140 °F}

Avoid Direct Sunlight on the LCD Panel

The LCD panel should not be exposed to direct sunlight or ultraviolet light.

Avoid Humidity, Liquids and Dust

Do not store or use the computer in locations exposed to high humidity, liquids (including rain) or dust.

Prevent Shock

Avoid subjecting the computer to severe vibrations or impact. Do not place the computer inside a car trunk.

Avoid Radio Frequency Interference

Do not place the computer near a television or radio receiver.

Avoiding Low-temperature Burns

Avoid more than casual contact with any heat producing area of the notebook computer, AC adaptor, and any option or accessory you use with it. Even low heat, if warmer than body temperature, can cause a burn, if the skin is exposed to the heat source for a long period of time.

Do not touch the computer and cable when it starts thundering

Keep SD memory cards (sold separately) away from infants and small children

Accidental swallowing will result in bodily injury. In the event of accidental swallowing, see a doctor immediately.

Handling

Avoid Magnetic Fields

Keep the computer away from magnets. Data stored on the hard disk may be lost.

Avoid Stacking

Do not place heavy objects on top of the computer.

Do Not Disassemble the Computer

Do not disassemble the computer using methods other than those shown in this manual. This computer contains high-voltage parts, contact with which may result in electrical shock. Modification or incorrect disassembly may result in fire.

Avoid Excessive Force on the Display

Do not apply excessive downward force on the display.

If a malfunction occurs, immediately unplug the AC cord and the battery pack

• Computer is damaged

• Foreign object inside computer

• Smoke emitted

• Unusual smell emitted

• Unusually hot Continuing to use the computer while any of the above conditions are present may

result in fire or electrical shock. z If a malfunction occurs, immediately

turn the power off and unplug the AC cord and the battery pack.

Do not do anything that may damage the AC cord, the DC plug, or the AC adaptor

Do not damage or modify the cord, place it near hot tools, bend, twist, or pull it forcefully, place heavy objects on it, or bundle it tightly. Continuing to use a damaged cord may result in fire, short circuit, or electrical shock.

Do not connect a telephone line, or a network cable other than the one specified, into the LAN port

If the LAN port is connected to a network such as the ones listed below, a fire or electric shock may result.

• Networks other than 100BASE-TX or 10BASE-T

• Phone lines (Telephone lines, internal phone lines (on-premise switches), digital public phones, etc.)

About low-temperature burns Allowing one area of the skin to be in direct contact with an object that is even slightly warmer than body temperature for long periods of time may result in a "low-temperature burn."

Page 9

Clean the DC plug of dust and other debris regularly

If dust or other debris accumulates on the plug, humidity, etc. may cause a defect in the insulation, which may result in a fire. z Pull the plug, and wipe it with a dry

cloth. Pull the plug if the computer is not being used for a long period of time.

Do not pull or insert the DC plug if your hands are wet

May result in electrical shock.

Insert the AC plug completely

If the plug is not inserted completely, fire due to overheating or electrical shock may result. z Do not use a damaged plug or loose

electrical socket.

Do not place metal objects or containers of liquid on top of the computer

z If water or other liquid spills, or if paper

clips, coins, or other metal objects get inside the computer, fire or electrical shock may result.

Do not place the computer on unstable surfaces

If balance is lost, the computer may fall over or drop, resulting in an injury.

Do not move the computer while the DC plug is connected

The AC cord may be damaged, resulting in fire or electrical shock. z If the AC cord is damaged, remove the

DC plug immediately.

Hold the plug when unplugging the AC cord

Pulling on the cord may damage the cord, resulting in a fire or electrical shock.

Do not turn the volume up to loud when using headphones

Listening at high volumes that overstimulate the ear for long periods of time may result in loss of hearing.

Take a break of 10-15 minutes every hour

Using the computer for long periods of time may have detrimental health effects on the eyes or hands.

Do not look into the DVD-ROM & CD-R/ RW drive

Looking directly at the internal laser light source may result in damage to eyesight.

Do not use disks that are cracked or deformed

Because the disks rotate at high speeds, damaged disks may break apart causing injury. z Disks that are not round and disks that

have been repaired using adhesives are similarly dangerous, and so should not be used.

Do not cover the computer with a thick cloth, such as a blanket

Preparations

Precautions (Wireless LAN)

Turn o ff

Radio waves may obstruct the safe operations of the aircraft. Follow the instructions of the airline with regard to use on airplanes.

Do not use near automatic doors, fire alarms, and other automatic control devices

Radio waves from this computer may affect automatic control devices, resulting in damage due to malfunctions.

Turn off tions with electrical medical devices (do not bring into operating rooms,

intensive care units, CCUs

Radio waves from this computer may affect electrical medical devices, resulting in damage due to malfunctions.

inside of airplanes

in hospitals and other loca-

, etc.)

Turn off

in crowded areas, as persons wearing heart pacemakers may be nearby

Pacemaker operations may be affected by radio waves.

If it is necessary to use the computer in these types of environments, turn the wireless LAN function off. (Î page 37) Note, however, that use of computers even while the wireless LAN is off may be prohibited during takeoff and landings, and at other times.

CCU: Coronary Care Unit

Page 10

Read Me First

Precautions (Battery Pack)

z Care should be exercised with regard to the following

in order to avoid the possibility of overheating, fire or damage.

Avoid Heat

Do not throw the battery pack into a fire or expose it to excessive heat.

Keep Articles Away

Do not place the battery pack together with articles such as necklaces or hairpins when carrying or storing.

Do Not Disassemble

Do not insert sharp objects into the battery

Preparations Getting Started

pack, expose it to bumps or shocks, deform, disassemble, or modify it.

Do Not Short

Do not short the positive (+) and negative (-) contacts.

Avoid Extreme Heat, Cold and Direct Sunlight

Do not charge, use or leave the battery pack for extended periods where it will be exposed to direct sunlight, in a hot place (in a car on a sunny day, for example), or in a cold place.

Do not charge the battery using the methods other than indicated in this manual

Do not use this computer with a battery pack other than the one specified (the one included with the computer or the specified battery pack sold separately)

Do Not Use With Any Other Computer

The battery pack is rechargeable and was intended for the specified computer. Do not use it with a computer other than the one for which it was designed.

Do Not Put into a Microwave

Do not put the battery pack into a microwave oven or a pressurized chamber.

Stop Using

Should the battery emit an abnormal odor, become hot to the touch, become discolored, change shape, or become in any way different from normal, remove it from the computer and stop using it.

z Do not touch the terminals on the battery pack. The

battery pack may no longer function properly if the contacts are dirty or damaged.

z Do not expose the battery pack to water, or allow it to

become wet.

z If the battery pack will not be used for a long period of

time (a month or more), charge or discharge (use) the battery pack until the remaining battery level becomes 30% to 40% and store it in a cool, dry place.

z This computer prevents overcharging of the battery by

recharging only when the remaining power is less than approx. 95% (when Economy Mode (ECO) is enabled: 75%) of capacity.

z The battery pack is not charged when the computer is

first purchased. Be sure to charge it before using it for the first time. When the AC adaptor is connected to the computer, charging begins automatically.

z Should the battery leak and the fluid get into your

eyes, do not rub your eyes. Immediately flush your eyes with clear water and see a doctor for medical treatment as soon as possible.

NOTE

z The battery pack may become warm during

recharging or normal use. This is completely normal.

z Recharging will not commence if internal tempera-

ture of the battery pack is outside of the allowable temperature range (0 °C to 55 °C {32 °F to 131 °F}). (Î "Battery Power" in onscreen Reference Manual) Once the allowable range requirement is satisfied, charging begins automatically. Note that the recharging time varies based on the usage conditions. (Recharging takes longer than usual when the temperature is 10 °C {50 °F} or below.)

z If the temperature is low, the operating time is

shortened. Only use the computer within the allowable temperature range.

z The battery pack is a consumable item. If the

amount of time the computer can be run by using a particular battery pack becomes dramatically shorter and repeated recharging does not restore its performance, the battery pack should be replaced with a new one.

z When transporting a spare battery inside a pack-

age, briefcase, etc., it is recommended that it be placed in a plastic bag so that its contacts are protected.

z Always power off the computer when it is not in

use. Leaving the computer on when the AC adaptor is not connected will exhaust the remaining battery capacity.

Page 11

Usage Precautions / About Notations

Usage Precautions

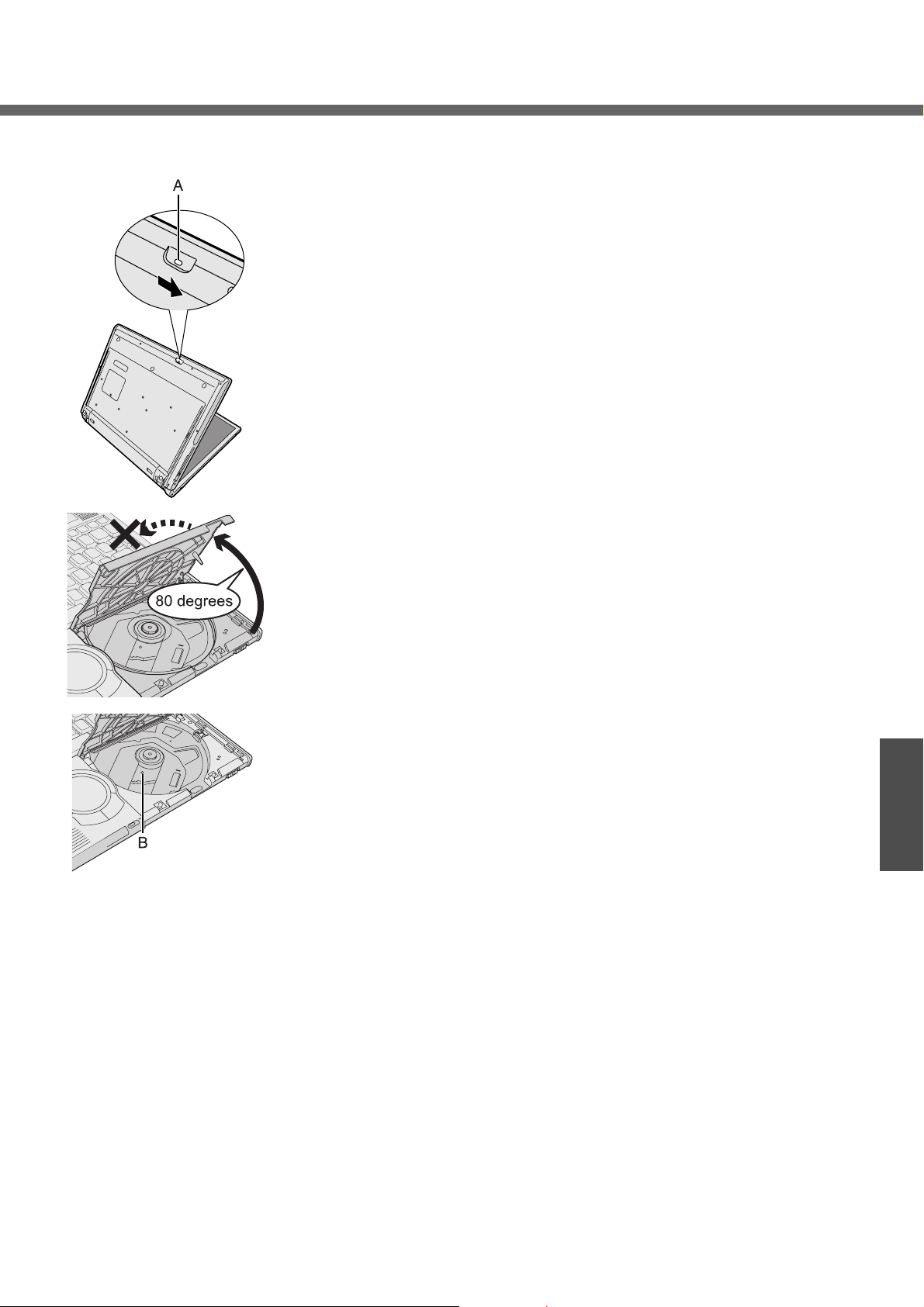

When closing the disk cover

z Press down near the drive power/open switch (position of the arrow) to ensure that

the cover is locked.

If the computer feels warm while in use

z The computer may become warm as a result of the operation of the CPU and other

internal components. This is not a malfunction.

z Use the following settings to reduce the heat release of these internal components.

• Click [start] - [Control Panel] - [Performance and Maintenance] - [Power Options], and set [Power schemes] to [Portable/Laptop] or [Max Battery].

• If you are using a screen saver that incorporates 3D graphics, switch to a different screen saver (e.g., [Windows XP] or [Blank]). To change the screen saver, rightclick on the desktop, click [Properties] - [Screen Saver], and click the name of the desired screen saver.

When using at high-temperature locations

z During repeated use at a high-temperature location, processing may slow tempo-

rarily when the computer enters cooling mode to lower its internal temperature.

About Notations

Notations Meanings NOTE NOTE provides a useful fact or helpful information. CAUTION

Enter Fn+F5

[start] - [Run] This illustration tells you to click [start], then to click [Run]. Î This symbol indicates related pages.

CAUTION indicates a condition that may result in minor or a moderate degree of injury. This illustration means pressing the This illustration refers to pressing and holding the Fn key, then pressing the F5 key.

When using with the and

Ctrl

reversed.

z Some of the illustrations in this manual may differ slightly in shape from the actual

items on your computer. This should make the explanation easier to understand.

z If a user has logged on to Windows without the Administrator Authority, some func-

tions may not be executable, and some screens may not be displayed as shown in this manual. If this happens, log-on to Windows with the Administrator Authority to enable these functions.

and

Ctrl

Enter

functions interchanged (Î page 31), read with Fn

key.

Preparations

Getting Started

z In this manual, “Microsoft

Advanced Security Technologies” is indicated as “Windows” or “Windows XP.”

z In this manual, the following software packages are described as follows:

• "WinDVD™ 5 (OEM Version)" as "WinDVD"

• "B's Recorder GOLD8 BASIC" as "B's Recorder"

• "B's CLiP 6" as "B's CLiP"

z Optional Products or Accessories

Confirm the latest information on optional products or accessories from other sources.

Windows® XP Professional Service Pack 2 with

Page 12

How to Use this Manual

Manual Types and Contents

Using the hard copy

Using the onscreen manual

Operating Instructions (This manual)

Reference Manual (PDF format)

Important Tips (PDF format)

Windows Help Windows Help explains operations and functions about Windows.

This manual explains startup methods and basic operations required when using the computer for the first time.

The Reference Manual explains functions for you to make greater use of the computer, such as how to add peripheral devices, how the Setup Utility works, and other useful information.

Important Tips provides information on how to maximize use of the battery pack, which is necessary for computing away from your home or office.

How to Use the Onscreen Manual

Contents of the

Reference Manual

PreparationsGetting Started

The manual is saved in the computer's hard disk. To view the manual, start up the computer after completing the settings for "First-time Operation" (Î page 16).

z When the manuals in PDF format (see above) are accessed for the first time, the

License Agreement of the Adobe Reader may be displayed. If it is displayed, after reading the agreement, click [Accept].

z Refer to Acrobat Reader Help to use the Acrobat Reader.

How to access the Reference Manual

1 Click [start] then click [Reference Manual].

How to access the Important Tips

1 Double-click the icon on the desktop.

Important Tips can also be accessed from [start] - [All Programs] - [Panasonic] - [On-Line Manuals] - [Important Tips].

How to access Windows Help

1 Log on to Windows with the administrator authority and

click [start] - [Help and Support].

NOTE

z If a user has logged on to Windows without the administrator’s authority, it is not

possible to refer to some parts in [Help and Support].

Page 13

Names and Functions of Parts

Names Functions/Reference

A Speaker

B Function Keys

C Keyboard — D Touch Pad Î page 25

E Latch

F LEDs Î page 15

Power Switch/

Power Indicator

z To adjust the volume: z Speaker on/off:

Press a key in combination with the key.Î page 26

When the display is closed and the latch is locked, the computer goes into standby or hibernation mode. (Î “Standby/Hibernation Functions” in onscreen Reference Manual) z When the computer is in standby or hibernation mode, open the display to restart

operations.

Slide the switch for about one second to turn the power on. (Power switch Î page 17 / Power indicator Î page 15)

Fn+F4

Fn+F5

(down) / Fn+F6 (up)

key to execute the function allocated to that

Preparations

To adjust the LCD brightness:

H Display (Internal LCD)

I Security Lock

J PC Card Slot Î “PC Cards” in onscreen Reference Manual

DVD-ROM & CD-R/RW

Drive

L Drive Power/Open Switch

z You can select a different brightness level setting for when the AC adaptor is con-

nected and for when it is not connected.

A Kensington cable can be connected. For more information, read the manual that comes with cable.

Î page 41, “DVD-ROM & CD-R/RW Drive” in onscreen Reference Manual

z Slide the switch to the right to open the disk cover. This works only when the power

is on.

z Each time you slide the switch to the left, the drive power will turn on or off.

This works only when Windows has started up.

Fn+F1

(down) / Fn+F2 (up)

Getting Started

Page 14

Names and Functions of Parts

Names Functions/Reference

DC-IN Jack

Connect the AC adaptor. Î page 17

External Display Port

USB Ports

LAN Port

Modem Port

SD Memory Card Slot

Microphone Jack

Preparations

Headphone Jack

Wireless LAN Antenna

(built-in)

Connect the external display cable. Î “External Display” in onscreen Reference Manual

Connect the USB cable. Î “USB Devices (External Mouse etc.)” in onscreen Reference Manual

Connect LAN cable. Î “LAN” in onscreen Reference Manual

Connect modem telephone cable. Î “Modem” in onscreen Reference Manual

The SD memory card slot on this computer only accepts SD memory cards. It is not compatible with MultiMedia cards. Î “SD Memory Card” in onscreen Reference Manual

Use only a monaural condenser microphone (miniature jack). Using an input source other than a monaural condenser microphone may not allow audio to be input or may damage the equipment.

Use this jack to connect headphones or amplifier-equipped speakers. Audio output from the internal speaker is disabled when headphones or external speakers are connected.

This computer has a built-in antenna for wireless LAN communications. Î “Wireless LAN” in onscreen Reference Manual

Getting Started

A lithium ion battery that is recyclable powers the product you have purchased. Please call 1800-8-BATTERY for information on how to recycle this battery.

L’appareil que vous vous êtes procuré est alimenté par une batterie au lithium-ion. Pour des renseignements sur le recyclage de la batterie, veuillez composer le 1800-8-BATTERY.

J Latch This latch is locked automatically when inserting the battery pack properly. K Latch This latch is locked manually when inserting/removing the battery pack. Î page 16 L Battery Pack Î page 16, “Battery Power” in onscreen Reference Manual M RAM Module Slot Î page 27 N Emergency Hole Î page 41, “DVD-ROM & CD-R/RW Drive” in onscreen Reference Manual

Page 15

Confirm the Status Using the LEDs

Indicators

Power indicator (The brightness of the power indicator changes in keeping with the brightness level of the internal LCD.)

z Light off: Power off / Hibernation mode z Light on: Power on z Blinking: Standby mode

ECO Economy Mode (ECO) indicator

z Not lit: Economy Mode (ECO) disabled z Green: Economy Mode (ECO) enabled z Blinking green: Economy Mode (ECO)

Battery indicator

z Not lit: Battery pack is not connected or

z Orange light on/flashing

z Green z Red: The battery level is very low (the

z Blinking red

z Blinking orange

Caps Lock indicator z This indicator lights green when the

Indicator Name/Status

enabled (Discharging until the remaining battery power is 80 % or less)

no charging.

*1*2

progress. (If [Battery Charging Indicator] in the [Main] menu of the Setup Utility is set to [Flashing], the indicator will alternately become lighter and darker (Flashing)).

: Fully charged.

charge is approx. 9% or less).

: Battery pack or charging

circuit may not be working properly.

*1*2

: The battery cannot be recharged temporarily when the internal temperature of the battery pack is outside the acceptable temperature range for recharging or when software applications and peripheral devices (USB devices, etc.) are consuming too much power.

When the AC adaptor is connected The orange display light has three modes:

on, flashing and blinking. Note the difference between flashing and blinking.

Caps Lock

quent non-shifted input is capitalized.

key is pressed: Subse-

: Charging in

Indicators

Indicator Name/Status

NumLk indicator (Ten-key mode) z This indicator lights green when the

NumLk

Part of the keyboard (see figure below) will function as a ten-key numeric input. When the green light is on, part of the keyboard can be used to input numbers or calculation functions. The [Enter] key functions differently depending on the application. To disable, press the (the indicator will turn off).

z When the NumLk indicator is on: the fol-

lowing functions will operate:

ScrLk indicator (Scroll lock) z This indicator lights green when the

ScrLk

functions differently depending on the application.

Hard disk drive indicator z Lighted: This indicator lights when the

hard disk drive is accessed.

DVD-ROM & CD-R/RW drive indicator

z Not lit: Drive power is off. z Green: Drive power is on, but the DVD-

ROM & CD-R/RW drive is not accessed.

z Blinking green: Drive power is on, and

the DVD-ROM & CDR/RW drive is being accessed.

How to switch the drive power on/off: Î“DVD-ROM & CD-R/RW Drive” in onscreen Reference Manual

SD memory card indicator z Lighted: This indicator lights when the

SD memory card is accessed.

key is pressed.

NumLk

key are pressed: Scroll lock

key once more

Preparations

Getting Started

Page 16

First-time Operation

Explains operating procedures from the time of purchase to the start of first Windows operations.

1 Confirm the inclusion of all parts.

Make sure the parts shown in the figure have been supplied. If any of these items are missing or is not working properly, contact your technical support office.

Preparations

2 Read the LIMITED USE LICENSE AGREEMENT (Î page 54).

Be sure to read the LIMITED USE LICENSE AGREEMENT before breaking the seal on the computer’s packaging.

3 Turn the computer over and insert the battery pack.

A Slide the left-side latch (A) to the unlock position . B Make sure the battery pack is facing the correct direction, slide it in the

direction of the arrow.

C Slide the left-side latch to the lock position , and then check to ensure

that the battery pack is held firmly. (Right-side latch is locked automatically.)

CAUTION

z Use only the specified battery pack with your computer. When another battery

pack (CF-VZSU27U) is attached, the battery pack is not charged or discharged, and the battery indicator blinks red.

z Confirm that the latch is properly locked. If it is not, the battery pack may come

off while you are carrying the computer.

z Do not touch the terminals on the battery pack and the computer. The battery

pack may no longer function properly if the contacts are dirty or damaged. Also, the computer may not operate properly.

z Before using the battery pack, carefully read “Precautions (Battery Pack)”

(Î page 10).

Page 17

4 Open the display.

A Press and hold the latch (B) located at the front. B Lift open the display.

z Do not open the display wider than necessary (170° or more), and do

not apply excessive pressure to the LCD. Do not open or close the computer holding the edge of the LCD segment. Hold the C (below) segment to open or close the computer.

5 Connect your computer to a power outlet.

z Be sure the AC adaptor is connected until completing the first-time use

operation.

z The battery pack will be charged automatically.

Charging Time: Approx. 5 hours (Power off), Approx. 6.5 hours (Power on) (Varies depending on the usage conditions.)

z When using the computer for the first time, do not connect any peripheral

device except the battery pack and AC adaptor to the computer.

CAUTION

Handling the AC adaptor

z Do not subject the AC adaptor to any strong impact.

Using the AC adaptor after a strong impact such as being dropped may result in electrocution, short circuit, or fire.

z Use only the specified AC adaptor with your computer. Using an AC adaptor

other than the one supplied might damage the battery and/or the computer.

z Problems such as sudden voltage drops may arise during periods of thunder

and lightning. Since this could adversely affect your computer, an uninterruptible power source (UPS) is highly recommended unless running from the battery pack alone.

Preparations

6 Turn your computer on.

z Slide the power switch and hold it for approximately one second until

the power indicator turns on before releasing it.

CAUTION

z Do not slide the power switch and hold it for more than four seconds; this will

cause the power to be turned off forcibly.

z Do not slide the power switch repeatedly. z Do not press any keys or touch the touch pad until [Windows XP Professional

Setup] is displayed.

z Do not change the Setup Utility until completing step 7. If you do so, Windows

setup may not operate properly.

Page 18

First-time Operation

Preparations Getting Started

7 Setup Windows.

Moving the cursor or clicking buttons can be performed with the touch pad (A) and left button (B). z During operations, it may take some time before the next screen is dis-

played. Wait, and do not press any keys, or touch the touch pad, etc.

A At [Welcome to the Windows XP Setup Wizard], click [Next]. B After reading the agreement, click [I accept this agreement], then click

[Next]. z If [I don’t accept this agreement] is selected, the Windows setup will be

aborted.

C Select settings for your region if necessary, then click [Next]. D Enter your name and then click [Next]. (You do not need to enter your

organization.)

Enter your computer name and administrator password and then click [Next]. z "Computer name" is for recognizing this computer when multiple com-

puters are connected via the network.

z Remember this password! This password may be needed to manage

the computer.

z Even if you go on to the next step without setting the password, you

can set the password in the [Control Panel] after Windows setup is completed. (Î “Security Measures” in onscreen Reference Manual)

F Enter the correct date, time and the time zone, then click [Next].

z Click or to set. z If set properly, click [Next].

z It may take some time before the computer restarts. Wait, and do not

press any keys, or touch the touch pad, etc.

z After being set automatically, the computer will restart automatically,

and Windows will start.

G Enter your password set in step E and click .

z When inputting the password, confirm that character input is not set to

“Caps Lock” or “NumLk.”(Î page 15)

NOTE

z When Windows setup is completed

• The following message will be displayed at the bottom right of the screen: "Your computer might be at risk." Continue to the next step. The message is generated by the [Security Center] function in [Control Panel], and does not indicate an error or malfunction. For more information about [Security Center]: Î page 39

Page 19

8 Create "User Accounts" to recognize this computer's user.

z If you make mail settings or execute other operations (password reset disk

(Î page 20) etc.) before creating the user account, you will be unable to use mail history or settings. Create the user account at this time.

A Click [start]

account].

Immediately after Windows setup, the screen may show a display as though [start] has been clicked (i.e., [All Programs] and other menus may be shown above [start]).

B Enter a new name for the new account, then click [Next].

(For example: Matsushita) z The following character strings cannot be used as an account name

because they are already being used by the computer system. CON, PRN, AUX, CLOCK$, NUL, COM1 - COM9, LPT1 - LPT9

C Click [Create Account].

z When you create the first new account, you can only select [Computer

administrator]. Once a “Computer Administrator” account has been created, you can create additional limited user accounts.

D Set the password.

z When sharing this computer with multiple users, we recommend set-

ting a password for your own account.

z When setting password, click the account for which you will set the

password, click [Create a password], and input the password following the onscreen instructions, and click [Create Password].

• Remember the password you have set.

E Click [start] - [Turn Off Computer] - [Restart] to restart the computer.

- [Control Panel] - [User Accounts] - [Create a new

It is useful to input a hint in

[password hint] in case you forget your password. In addition, we recommend that you create a password reset disk beforehand (Î page

20). If the password is forgotten, Windows cannot be operated.

Preparations

F At the Welcome screen, click the created user (user icon) to log-on.

z If the password has been set, enter the password and click . You

cannot operate the computer until the proper password is entered. Confirm that character input is not set to "Caps Lock" or "NumLk." (Î page 15)

z Note also that only the added user account will be displayed in the

Welcome screen. The account for the administrator created during Windows setup will not be displayed.

This concludes the first-time use operation guidelines.

Page 20

First-time Operation

NOTE

z About the Icon Enlarger:

• If the characters or icons on the screen are too small and difficult to see, after completing step 8, click [start] - [All Programs] - [Panasonic] - [Icon Enlarger]. This will allow you to magnify the display of characters and icons on the screen. (Î“Icon Enlarger” in onscreen Reference Manual)

• The [Icon Enlarger] can be set separately for each account.

z You can also use [Loupe Utility], which enlarges a part of the screen. (Î“Loupe

Utility” in onscreen Reference Manual)

z To improve the security of the computer, be sure to refer to "Windows Security

Center" (Î page 39) and "Windows Update" (Î page 40).

z If you use the wireless LAN, be sure to refer to "Wireless LAN" (Î page 37).

Changing the Internal DVD-ROM & CD-R/RW Drive Letter

In some cases, the drive letters for the DVD-ROM & CD-R/RW drive or connected

Preparations Getting Started

devices (SD memory cards, external drives, etc.) may change when the DVD-ROM & CD-R/RW drive power is turned on or off. To prevent these letters from changing, we recommend that you allocate the drive letter for the DVD-ROM & CD-R/RW drive from the latter half of the alphabet (e.g., "L drive"). Note, however, that even if you change the drive letter, this drive letter may still change if you connect an SD memory card or USB devices after you have turned the DVDROM & CD-R/RW drive power off. z The drive letter is a single character from A to Z allocated to storage devices

(drives) or network drives by Windows. The drive letter for A Drive, B Drive and C Drive cannot be changed. You also cannot use a drive letter that is currently being used by another device, or a drive letter that has already been allocated to a network drive.

z At the time of purchase, the DVD-ROM & CD-R/RW drive is D Drive. z We recommend that you change the drive letter before installing application soft-

ware.

A Log on to Windows with the administrator authority. B Confirm whether the DVD-ROM & CD-R/RW drive power is on.

If the drive power is off, turn it on.

C Click [start] - [All Programs] - [Panasonic] - [Optical Disc Drive Letter-Set-

ting Utility].

NOTE

z If you have the Optical Disc Drive Letter-Setting Utility currently running while

logged on in one account, a different user cannot start it up after logging on in a different account by using the Fast User Switching function.

Password Reset Function

When you have forgotten a Windows log-on password

Windows XP has a function to reset a current password and to set a new password. To use this function, you need to create a password reset disk beforehand following the steps below.

D Click in [New drive letter], click the drive letter, and click [OK].

A Connect the USB floppy disk drive (optional: CF-VFDU03) to your com-

puter. Or insert the SD memory card into the computer's SD memory card slot.

B Click [start] - [Control Panel] - [User Accounts].

Page 21

Screen Display

etc.

C Click the account you have logged on, and click [Prevent a forgotten pass-

word] from [Related Tasks] menu. Create a password reset disk following the onscreen instructions, and store the password reset disk in a safe place. z Only the log-on password for each account can be reset. The pass-

word set in the Setup Utility cannot be reset.

The screen displayed first when powering on the computer and logging on to Windows, is called the “desktop.” (These screens and icons are only examples.)

Icons on the desktop

When you double-click icons, the software application will run and the window will open.

[start] menu

When you click [start], the menu will be displayed. Select the software application, etc. that you want to use from the menu, and click it.

Notification area (see the bottom right on the screen)

z If the icon on the notification area being explained in this manual is hidden and not

displayed, click the icon to display all icons.

z The notification area icons used in this manual are only examples. The actual dis-

play of the order and types of icons may differ depending on your computer environment (various function settings, devices connected, etc.).

Icons Names and roles Reference

Intel

Graphics Media Accelerator Driver for Mobile icon

(Use for screen settings)

Intel

PROSet/Wireless Software icon (Turn wireless LAN on/off and use to set wireless LAN connections)

Wireless LAN icon (Use to turn on/off the wireless LAN function and to switch IEEE802.11a between enable/disable.)

Pointing device icon (Use to make various touch pad settings)

Scroll icon (Use to make settings and confirm status for the Touch Pad utility)

Volume icon (Set volume)

Wireless LAN network connection icon (Use to set wireless LAN connections)

LAN network connection icon (Use to set LAN connections)

－

Î page 37

－

Î"Using the Touch Pad" in onscreen

Reference Manual

ÎWindows help

Î"Wireless LAN" in onscreen

Reference Manual

Î"LAN" in onscreen Reference

Manual

Preparations

Page 22

First-time Operation

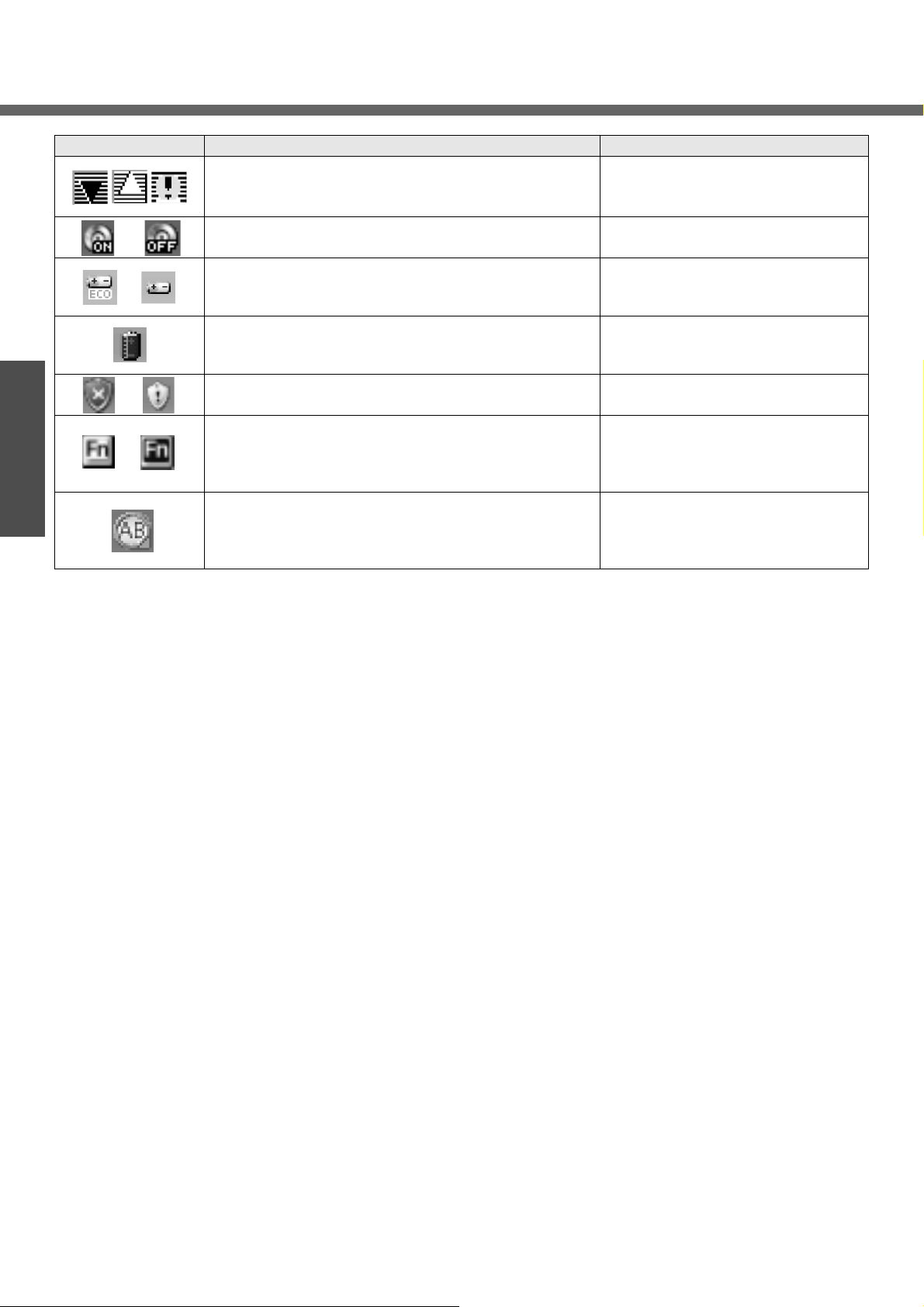

Icons Names and roles Reference

B's CLiP icon (Use to make various B's CLiP settings)

Preparations Getting Started

Drive power icon (Turn the DVD-ROM & CD-R/RW drive power on/off)

Economy Mode (ECO) icon (Use to confirm the status of the Economy Mode (ECO) and to switch the mode between enable/disable.)

Battery meter icon It is displayed when disconnecting the AC adaptor. (Use to make various battery settings)

Windows security icon (Use to make or confirm security settings)

Fn key icon It is only displayed when adding the checkmark for [Show status on screen] on the [Hotkey Settings] screen. (Use to confirm whether the Fn key is locked)

Loupe icon If the characters, images, or other items are too small and difficult to see on the screen, enlarge the part of the screen you want to see as if using a loupe.

Î"Writing to CDs (B’s Recorder/B’s

CLiP)" in onscreen Reference Manual

Î"DVD-ROM & CD-R/RW Drive" in

onscreen Reference Manual

Î"Battery Power" in onscreen

Reference Manual

Î"Battery Power" in onscreen

Reference Manual

Î page 39

Î"Using the Fn Key" in onscreen

Reference Manual

Î"Loupe Utility" in onscreen

Reference Manual

Page 23

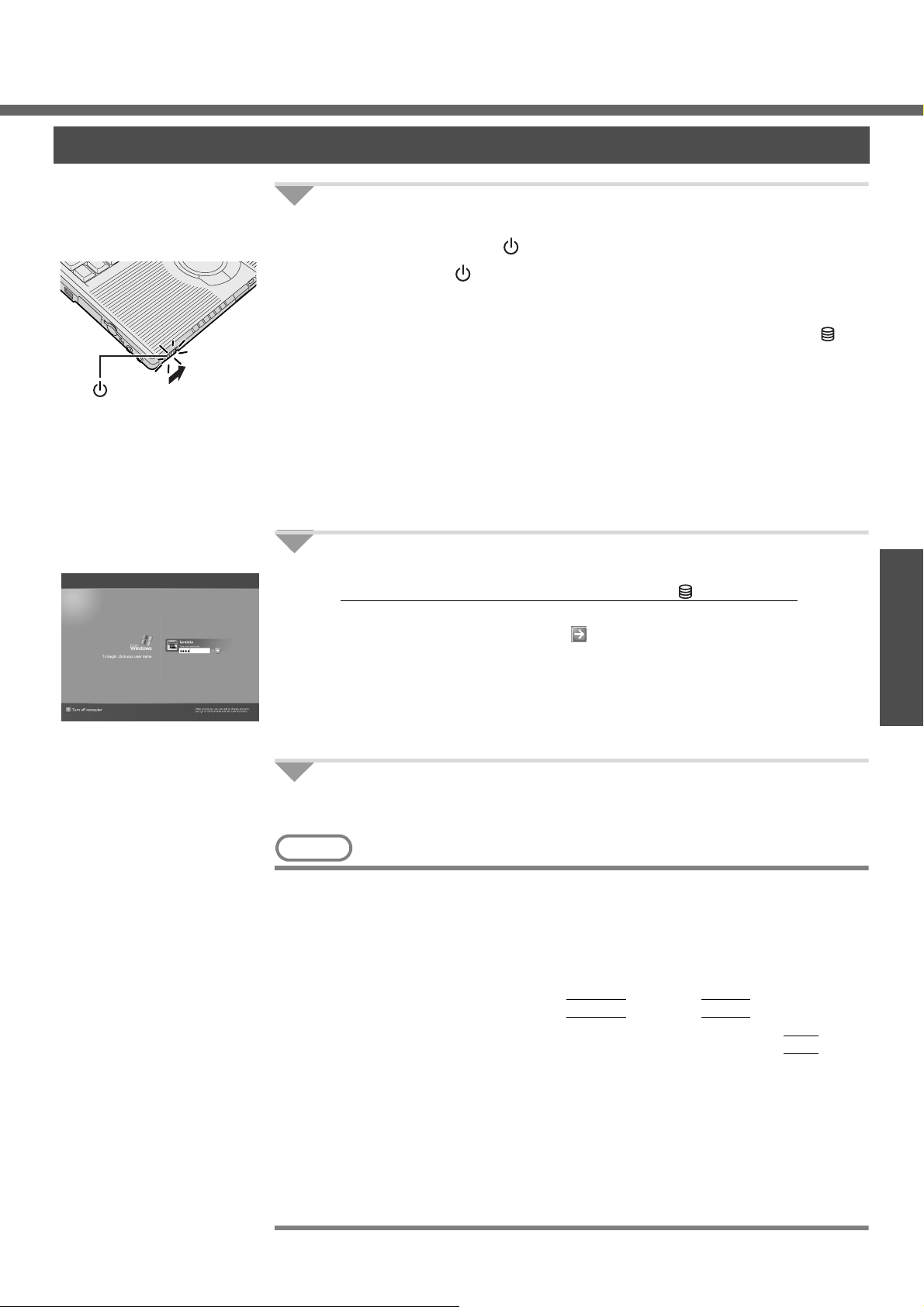

Starting Up/Shutting Down

Starting Up

1 Turn your computer on.

Slide the power switch and hold it for approximately one second until the power indicator turns on before releasing it.

z Do not slide the power switch and hold it for more than four seconds; this

will cause the power to be turned off forcibly.

z While booting, avoid the following until the hard disk drive indicator has

turned off.

• Connecting or disconnecting the AC adaptor.

• Touching the power switch.

• Performing any keyboard, touch pad, or external mouse operations.

• Closing the display.

• Sliding the drive power/open switch.

z Do not slide the power switch repeatedly. z Once the computer is powered off, you must wait at least ten seconds

before powering it on again.

2 Log-on to Windows.

After confirming that the hard disk drive indicator has turned off, click the user (user's icon).

z Input the password, then click . Until the correct password is entered,

the computer will not operate. Confirm that character input is not set to “Caps Lock” or “NumLK.” (Î page 15)

z This operation may differ according to [Use the Welcome screen] setting

(Î page 38).

z When only one user has been created and no password has been set, the

screen for selecting the user will not be displayed (automatic log-on).

3 Select your application.

Run various software applications, etc. and operate them.

NOTE

z The power saving function is factory set, so if no key is pressed or if no device

has been accessed for a certain interval of time:

• The power to the LCD and hard disk may be turned off. The LCD will resume operation when the touch pad or an external mouse (when one is connected) is used or a key is pressed. The power to the LCD may be turned off even when an application software is being installed. In this case, because it is conceivable that a selection dialog box will be shown, do not press the to resume from this condition as doing so may trigger a selection, but instead, press a key unrelated to the direct triggering of a selection, like the In addition, when the computer is left alone, it automatically enters the standby or hibernation mode. The computer will resume by sliding the power switch. (Î “Standby/Hibernation Functions” in onscreen Reference Manual)

• If there is no disk set in the DVD-ROM & CD-R/RW drive, the drive power will be turned off. (Î “DVD-ROM & CD-R/RW Drive” in onscreen Reference Manual)

z When the CPU temperature rises, the computer may not power on to prevent

the CPU from overheating. Should this happen, allow the computer to cool down then switch the power on again. If the computer still does not power on, contact your technical support office.

Space

key or the

Enter

key to attempt

Ctrl

key.

Getting Started

Page 24

Starting Up/Shutting Down

If the screen on the left is displayed immediately after

you turn on the power...

A password has been set to ensure the computer's security. Enter your password

z When the correct password is input, the computer will start. z When three incorrect password attempts or nothing is input for one minute, the com-

puter will power off.

Supervisor Password or User Password set in the Setup Utility (not the Windows password).

and press the

Enter

Shutting Down (power off your computer)

1 Save necessary data and close each application.

2 Display the shutdown screen.

Click [start] - [Turn Off Computer].

3 Click [Turn Off].

Your computer will power off automatically. z Restarting your computer (without shutting down): click [Restart].

key.

Getting Started

To shut down using the keyboard:

A Press the key, the U key, and select [Turn Off] with the Î Í Ï Ð key. B Press the

Enter

key.

CAUTION

z Do not do the following during the shutdown/restart procedure.

• Connecting or disconnecting the AC adaptor.

• Touching the power switch.

• Performing any keyboard, touch pad or external mouse operations.

• Closing the display.

• Sliding the drive power/open switch.

NOTE

z When the DC plug is not connected to the computer, disconnect the AC cord

from your AC wall outlet. About 1.5 W of power is consumed simply by having the AC adaptor plugged into an electrical outlet.

z Note that the computer consumes electricity even when the computer power is

off. If the battery pack is fully charged, the battery will fully discharge in Approx. 3 weeks.

When you leave the computer or interrupt your work...

If you use the “Standby” or “Hibernation” function, then when you turn on the power next time, the application software and files you were using before will be displayed, and you can restart the same operations. (Î “Standby/Hibernation Functions” in onscreen Reference Manual)

Page 25

Using the Touch Pad

Use the touch pad to move the cursor on the screen and perform computer operations.

A. Work Surface (touch pad) B. Left Button C. Right Button

Function Operation

Moving the Cursor

Tapping/Clicking

tapping or clicking

A right-click: Can only be performed by clicking the right button.

Double-Tapping/ Double-Clicking

Move the tip of your finger lightly over the work surface.

double-tapping or double-clicking

Dragging

Two quick taps, but on the second tap leave your finger down (applying pressure) and move it on the work surface. or While holding down the button, move your finger on the work surface

Vertical Scroll / Horizontal Scroll

Trace a circle around the touch pad. A setting is required before using the horizontal scrolling function. (Î “Using the Touch Pad” in onscreen Reference Manual)

NOTE

z You can change the speed of the double-click or the operations of mouse but-

tons using [Mouse Properties] screen.

• To display [Mouse Properties]: Click [start] - [Control Panel] - [Printers and Other Hardware] - [Mouse].

z When using the touch pad, keep the following in mind.

• By design the touch pad is to be used with a finger tip only. Do not place any object or press down forcefully with sharp-pointed objects, i.e. finger nails, pencils, or pens on the work surface.

• Try to avoid having any harmful substances, such as oil, come in contact with the touch pad. The cursor may not work properly in such cases.

Getting Started

When the cursor doesn’t move the way you want it to

z Sensitivity when touching the touch pad can be adjusted.

(Î “Using the Touch Pad” in onscreen Reference Manual)

z When an external mouse is connected and the cursor does not operate properly:

In the [Main] menu of the Setup Utility, set [Touch Pad] to [Disable]. When you want to use the touch pad again, return the setting to [Enable]. (Î page 31)

Page 26

Using the Fn Key

If you press a key for a character or symbol contained in a key while pressing the tained in that key will be executed z Details of various functions Î “Using the Fn Key” in onscreen Refer-

ence Manual

z When using with the

changed. (Î page 31) Press the (It is not possible to replace the markings on the keys, or the keys themselves)

Fn+F1 Fn+F2

Fn+F3

key, the function for the character or the symbol con-

key and the

Ctrl

key instead of the Fn key for the desired Fn function.

Key Functions

LCD brightness control

Fn+F1

You can select a different brightness level setting for when the AC adaptor is connected and for when it is not connected. (At the time of purchase, the LCD brightness is set to be darker when the AC adaptor is not connected.)

Display change (When the external display is connected) —

(down) / Fn+F2 (up)

Ctrl

key functions inter-

Pop-up Window

(Displayed after logging on to

Windows)

OFF (MUTE)

Fn+F4

Fn+F5 Fn+F6

Getting Started

Fn+F7

Fn+F9

Fn+F10

Speaker on/off switch

Volume control

Fn+F5

Forcing the standby function —

Remaining capacity of the battery pack

Forcing the hibernation function —

(down) / Fn+F6 (up)

When the battery pack is inserted in the computer (example: when Economy Mode (ECO) is disabled)

(example: when Economy Mode (ECO) is enabled)

When the battery pack is not inserted in the computer

Page 27

Expanding Memory

Depending on the computer, you can expand the RAM module (sold separately). The increase in memory will improve the processing speed of Windows and other application software. (Effects may differ depending on your usage conditions.) z Use recommended RAM module products. Do not use non-recommended RAM

modules. Non-recommended RAM modules may not operate properly, and may cause damage to your computer. Some non-recommended RAM modules may overheat, causing the cover to warp. Refer to "Specifications" (Î page 62) for recommended RAM module specifications. Refer to various sources for recommended RAM module.

z Matsushita Electric Industrial Co., Ltd. will bear no responsibility whatsoever for fail-

ures or damage caused by the use of non-recommended RAM modules, or by incorrect installation or removal of such RAM modules. Before installing a RAM module, confirm the product type and the correct installation method.

CAUTION

z RAM modules are extremely sensitive to static electricity. There are cases

where static electricity generated by the human body has adversely affected such RAM modules. When inserting or removing a RAM module, do not touch the terminals or internal components, insert objects other than the module, or allow foreign particles to enter. Doing so has been known to cause damage, fire or electric shock.

Inserting / Removing the RAM Module

Inserting

1 Power off your computer. (Î page 24)

z Do not shut down using the standby or hibernation function. z Disconnect the AC adaptor.

2 A Turn the computer over and remove the battery pack.

B Remove the screw (A), then hold up the cover (B). C Pull the cover out.

(Î page 14, (M) in “Names and Functions of Parts”)

z Use the proper size screw driver to insure that the screw does not get

stripped.

3 Insert the RAM module.

A Check direction of a RAM module (C).

Hold the RAM module in the direction that the notch (E) of the RAM module suits to the protrusion (D) of the slot.

B Place the RAM module lightly in parallel with a slot.

(The gold terminals (F) are visible)

Getting Started

Page 28

Expanding Memory

C Insert the module parallel to the slot and press firmly until the gold termi-

nals are no longer visible. z If the RAM module is difficult to insert, do not force it. Check once more

to ensure that the module is positioned correctly.

z The slot may be damaged if the following procedure is performed with-

out inserting the module firmly.

D Press the RAM module down until the right and left hooks (G) lock into

place. z When pressing down the module, the right and left hooks will open

slightly and will return after locking.

z If the RAM module is difficult to press down, do not force it. Check

once more to ensure that the module is positioned correctly.

Getting Started

4 Put the cover and battery pack back in place.

A Insert the cover at an angle, then fit it into place. B Fasten the screw. C Put the battery pack back in place.

NOTE

z If the RAM module has not been inserted properly, or if a RAM module other

than one matching the specifications has been inserted, a beep will sound and the message “Extended RAM Module Failed” will be displayed when turning the power on. In this case, turn the power off, confirm that the RAM module meets the specifications, and reinsert it.

z Whether the RAM module is properly recognized or not can be confirmed in

[Information] menu of the Setup Utility (Î page 31).

Removing

After making the settings in step 1 to 2 of “Inserting,” remove the RAM module as follows.

A Gently open the left and right hooks (H).

The RAM module will be raised at an angle.

B Gently remove the RAM module from the slot.

C Put the cover back in place.

Refer to step 4 of “

Inserting.”

Page 29

Setup Utility

The Setup Utility sets the computer's boot-up operating environment, i.e. passwords, startup drive, etc. The following six menu items are available: [Information], [Main], [Advanced], [Security], [Boot], [Exit]

Running the Setup Utility

1 Turn on or restart the computer.

XXXXXXXXXX

X.XX GHz

XXX MB XX GB XXXXXXXX X hours

X.XXGHz

2 Press the

soon after the computer begins the startup procedure.

When the password is set, the screen shown at left will be displayed. Enter your password, and press the When inputting the Supervisor Password

z You can register all items of the Setup Utility.

When inputting the User Password

z On the [Advanced] and the [Boot] menu:

• You can view the settings, but cannot change it.

z On the [Security] menu:

• The following will not be displayed: [Clear registered SD card], [Set Supervisor Password] and [Hard Disk Lock].

• The following will be displayed, but cannot be set: [Execute-Disable Bit Capability], [Password on boot], [SD Startup], [SD Setting Method], [Setup Utility Prompt], [Boot First Menu], and [User Password Protection].

• The User Password can be changed only when [User Password Protection] has been set to [No Protection]. The User Password cannot be deleted.

z On the [Exit] menu:

• [Get Default Values] option will not be displayed.

z The

NOTE

key while [Panasonic] boot screen is displayed

key does not work.

Enter

key.

Getting Started

z Cannot display the Setup Utility screen in simultaneous display.

By pressing the

Fn+F3

key, display destinations can be changed either exter-

nal display or the internal LCD.

z When [Password on boot] in the Setup Utility is set to [Disable]:

• When the computer is started up, entering a password is not necessary.

• When the Setup Utility is started up: The password becomes necessary. This alternative can prevent the contents of the Setup Utility from being changed.

z If you fail to press the

key at the right moment, the Setup Utility will not start up. In this case, let the computer fully boot up, and then perform a shutdown or restart from Windows.

z To close the Setup Utility:

A Press the B Select the exiting method from the [Exit] menu and press the C Select [Yes] and then press the

Esc

key.

Enter

key.

Page 30

Setup Utility

How to use the screen

Getting Started

Key Operations

A. You can select menu items by moving the cursor with the Í key and the Î

key.

B. If there are several selectable items, you can choose the desired item by

pressing the Ï change.

C. You can display the submenu by pressing the

shown in reverse display.

D. When the submenu is displayed, you can select items by pressing the Ï

key and the Ð

E. The keys that can be used for settings are displayed in the Setup Utility

screen.

To display the corresponding "help" file (Press the Ï key or the Ð key to scroll the help screen one line at a time. Press the

Esc

To display the [Exit] menu

zÏ

To move among the items (Use these keys when selecting the item.)

zÍ

To move among the menus (Use these keys when the [Information], [Main], [Advanced], [Security], [Boot], or [Exit] menu is selected.)

Select previous item (Use this key when changing setting values.)

Select next item (Use this key when changing setting values.)

Enter

To display submenu of each item (Use this key after selecting the item by using the

key or the Ð key. Close the submenu by using the

To set default settings (except the password, System Time and System Date.)

F10

To save the settings and exit

key and the Ð key. The color of the selected item will

key.

Enter

key to return to the original screen.)

key on the item

Esc

key.)

Page 31

Information Menu

(An underline indicates the factory default settings)

Language

• Select the language for displaying the Setup Utility.

Model No. Serial No. CPU Type CPU Speed BIOS Embedded Controller System Memory Primary Master

Optical Drive

• When [CD/DVD Drive Power] has been set to [Off] in [Main] menu, [Power Off] is displayed.

Accumulative Operating Time

Main Menu

(An underline indicates the factory default settings)

System Time

• Time is shown in 24-hr. style.

•The

Tab

key can be used to move hour/minute/second. Numerical values can be

adjusted using the

System Date

• Date is shown in order of Month/Day/Year.

•The

Tab

key can be used to move Month/Day/Year. Numerical values can be adjusted

using the

Touch Pad

• Select whether to use the touch pad ([Enable]) or not ([Disable]).

Fn/Ctrl Key

• Select whether to switch the internal keyboard.

• Do not attempt to replace the markings on the keys, or the keys themselves.

Display

• The display destination in cases where Windows is not running is set here.

• If an external display is not connected, all information will appear on the internal LCD even if [External Monitor] is selected. After Windows starts up, the screen is displayed on the display destination set in the following menu. [start] - [Control Panel] - [Other Control Panel Options] - [Intel(R) GMA Driver for Mobile] [Devices]

Display Expansion

• Select whether to have the display expanded when not using the native screen resolution.

key and the F6 key.

key with the

Ctrl

key functions, and vice versa on the

English Japanese

To display and confirm information. These items cannot be selected or changed.

[xx:xx:xx]

[xx/xx/xxxx]

Disable Enable

Normal Replace

External Monitor Internal LCD

Disable Enable

Getting Started

Page 32

Setup Utility

(An u

CD/DVD Drive Power

• You can set the drive power to [On] or [Off] when the computer is started up.

• When set to [Off]:

• From the next time you start the computer, you will be unable to start up from DVD-ROM & CD-R/RW drive. The disk cover cannot be opened until Windows has started. To start up from the DVD-ROM & CD-R/RW drive (give preference to [USB CDD] (internal DVD-ROM & CD-R/RW drive) in the [Boot] menu), set this to [On].

• If operations are resumed from hibernation mode while a disk is set, it may take about 20 seconds for operations to resume.

Battery Charging Indicator

• Set the battery indicator to turn on or flash while the battery pack is recharging.

Advanced Menu

NOTE

nderline indicates the factory default settings)

Off On

On Continuous Flashing

z The [Advanced] menu cannot be changed when the Setup Utility is started up with the User Password.

(An underline indicates the factory default settings)

Modem

• Select whether to use the internal modem function ([Enable]) or not ([Disable]). (This does not work for the external modem.)

LAN

• Select whether to use the internal LAN function ([Enable]) or not ([Disable]).

Getting Started

(This does not work for the external LAN card.)

Wireless LAN

• Select whether to use the internal wireless LAN function ([Enable]) or not ([Disable]). (This does not work for the external wireless LAN card.)

Legacy USB Support

• Select whether to use the function that makes the computer recognize internal DVD-ROM & CD-R/RW drive, USB keyboard and USB floppy disk ([Enable]) or not ([Disable]) before starting Windows.

Disable Enable

Security Menu

NOTE

z When the Setup Utility is started up with the User Password, only a limited number of items can be displayed

and set. (Î page 29)

z [SD Startup], [SD Setting Method] and [Clear registered SD card] will be displayed only when an SD memory

card has been registered.

z When starting up the computer, if the message [Hard disk access is prohibited “Hard Disk Lock”] appears, start

up the Setup Utility, and reset the details to match the settings when [Hard Disk Lock] was set.

Execute-Disable Bit Capability

• When [Execute-Disable Bit Capability] is set to [Enable], it means that this computer supports hardware-based Data Execution Prevention (DEP). It should usually be set to [Enable]. DEP is a set of hardware and software technologies that perform additional checks on memory to help prevent malicious code from running on a system.

(An underline indicates the factory default settings)

Disable Enable

Page 33

(An underline indicates the factory default settings)

Password on boot

• Select whether you will need to input ([Enable]) or not ([Disable]) the Supervisor Password or the User Password on booting.

SD Startup

• Select whether to use an SD memory card instead of entering the password on booting ([Enable]) or not ([Disable]).

• When registered SD memory card, this is set to [Enable].

• Cannot be set when [Password on boot] is set to [Disable].

SD Setting Method

• Select whether to set an SD memory card to [Leave Set] or [Set and Eject] when an SD memory card is used instead of entering the password.

• This can be set only if [SD Startup] has been set to [Enable].

• Cannot be set when [Password on boot] is set to [Disable].

Clear registered SD card

• Clear the registration from all registered SD memory cards not to be used instead of entering the password on booting.

Set Supervisor Password

• Set a Supervisor Password if you wish to prevent any unauthorized changes to the Setup Utility settings, also if you require a password on boot, set [Password on boot] to [Enable] after you set Supervisor Password.

Setup Utility Prompt

• Select whether to display ([Enable]) or not to display ([Disable]) the message “Press F2 for Setup/F12 for LAN” shown on the bottom of the [Panasonic] boot screen that is displayed after starting this computer.

Boot First Menu

• Select whether to display “Boot Menu” ([Enable]) or not ([Disable]). (Î page 34).

Hard Disk Lock

• Select whether to enable ([Enable]) or disable ([Disable]) the [Hard Disk Lock].

• This function will not work without the Supervisor Password being set.

User Password Protection

• Select whether to permit changing the User Password ([Protected]) or not ([No Protection]).

Set User Password

• Set User Password when multiple users use this computer, etc. For example, when the system administrator sets Supervisor Password and User Password and lets other users know only the User Password, other users cannot change some of the settings in Setup Utility.

• This function will not work without the Supervisor Password being set.

Disable Enable

Leave Set Set and Eject

To the sub-menu

Disable Enable

No Protection Protected

To the sub-menu

Getting Started

Boot Menu

In the [Boot] menu, the names of the connected devices (including internal devices) will be displayed. "USB CDD: MATSHITA UJDA7XX XXXX" is the internal DVD-ROM & CD-R/RW drive. To move a device up by one, select the device in [Boot priority order] using the Ï To move a device down by one, select the device in [Boot priority order] using the Ï

z Panasonic USB floppy disk drive (CF-VFDU03 (optional)) can be used for startup (recommended). z To return the startup order to the default settings, press the

(The order of default settings is: USB FDD->IDE HDD->USB CDD->PCI LAN)

key.

or Ð key, and press the F6 key.

or Ð key, and press the F5 key.

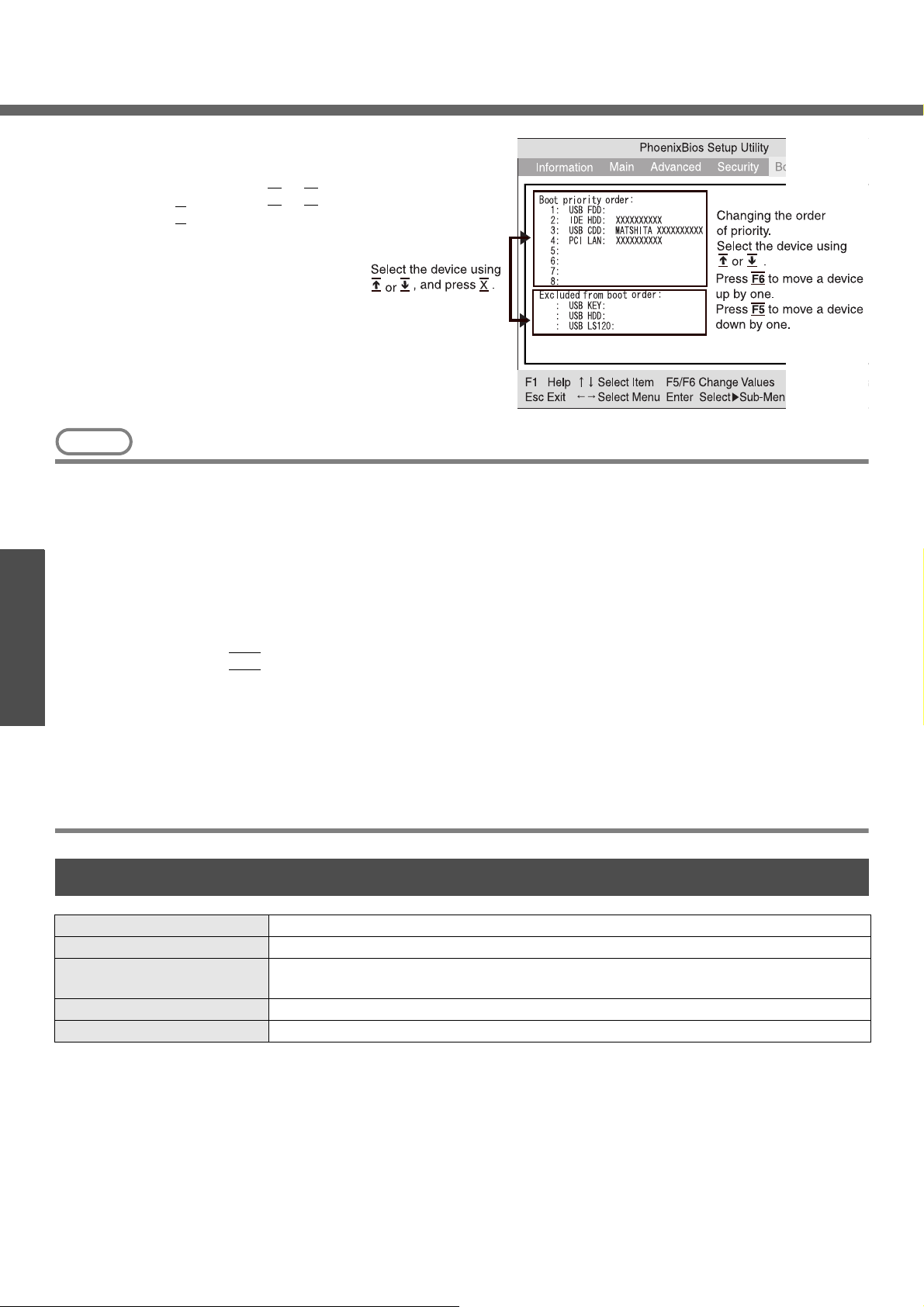

Page 34

Setup Utility

z To move a device from [Excluded from

boot order] to [Boot priority order] (or vice versa): Select the device using the Ï and press the moved will appear at the end of the list when moving a device from [Excluded from boot order] to [Boot priority order]. Set the boot order as required.

key. The device you have

NOTE

z When starting up from the internal DVD-ROM & CD-R/RW drive, confirm the following settings.

• [CD/DVD Drive Power] is [On] in the [Main] menu.

• [Legacy USB Support] is [Enable] in the [Advanced] menu. The computer cannot be booted from the DVD-ROM & CD-R/RW drive if the above settings are [Off] or [Disable].

z When starting up from a device connected by a USB port

• Check to make sure that [Legacy USB Support] is [Enable] in the [Advanced] menu.

z The [Boot] menu cannot be changed when the Setup Utility is started up with the User Password. z If more than one of the same device is connected, only one device name will be displayed. z Boot Menu

The device for starting up the operating system can also be selected during computer start-up. After the computer is turned on and the appear. When the [Boot Menu] setting is changed, the selection screen display will also change. [Boot Menu] is

Getting Started

displayed only when [Boot First Menu] in the [Security] menu is set to [Enable].

z The computer cannot be booted from devices listed in [Excluded from boot order]. For this reason, the order of pri-

ority cannot be changed in this list.

z Bootable CD created using the B’s Recorder in the CF-W2 and CF-Y2 series cannot be used on this computer. If

you want to share bootable CD with those series, create a new bootable CD.

z This computer does not support startup operations from CD/DVD drives other than the internal DVD-ROM & CD-

R/RW drive.

Esc

or Ð key,

key is pressed at [Panasonic] boot screen, [Boot Menu] (the device selection screen) will

Exit Menu

Save Values & Exit Exit the Setup Utility and save your changes to CMOS. Exit Without Saving Changes Exit the Setup Utility without saving your changes to CMOS. Get Default Values Set the Setup Utility to the default settings.

• This item is not displayed when starting up the Setup Utility with the User Password. Load Previous Values Load previous values from CMOS for all Setup items. Save Current Values Save your changes to CMOS.

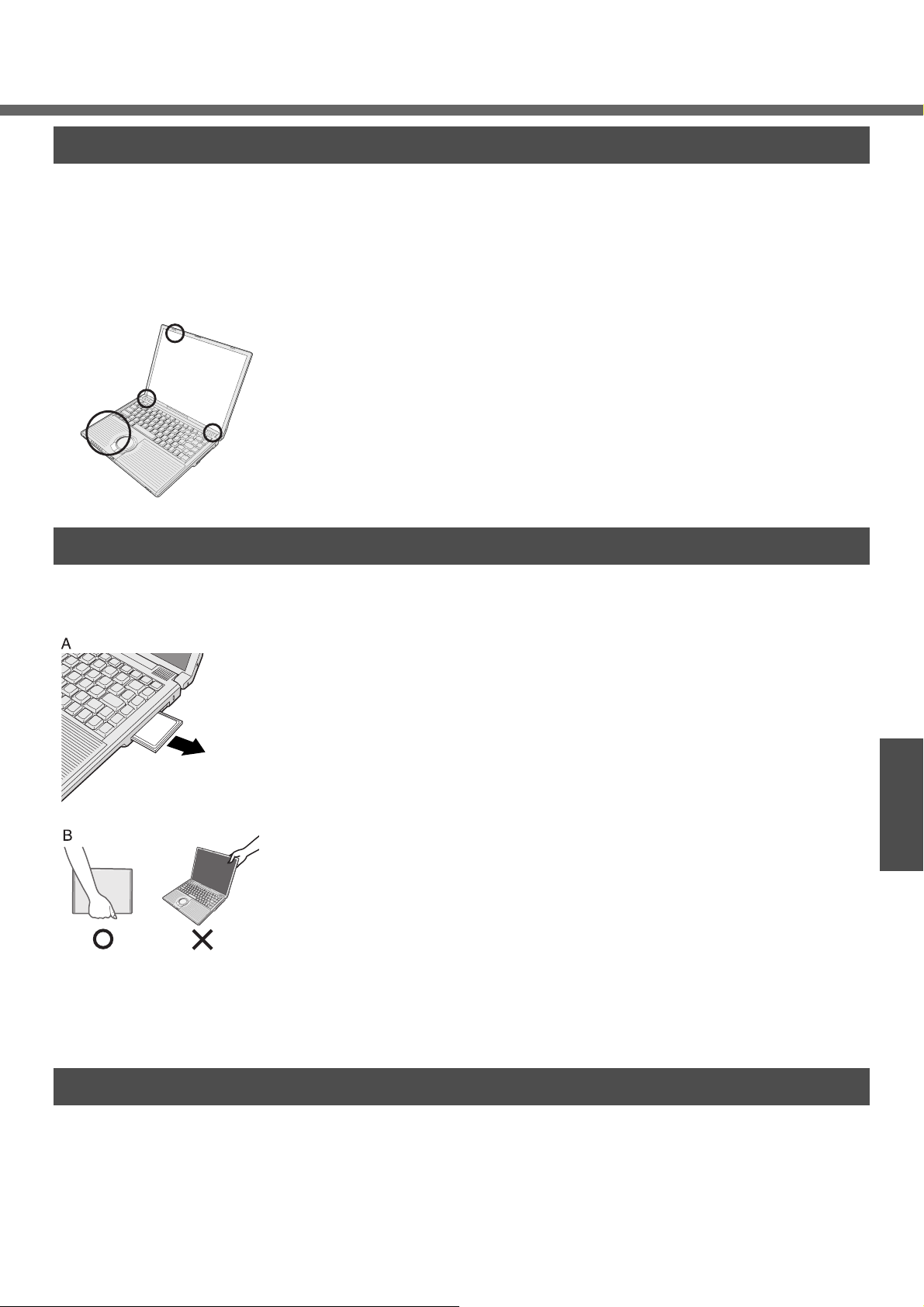

Page 35

Usage/Handling/Maintenance

Usage Environment

z Place the computer on a flat stable surface.

Do not place the computer upright or allow it to tip over. When the computer receives extremely strong shock after falling, the hard disk may become inoperable.

z Operation: Temperature: 5°C to 35°C {41°F to 95°F}

Humidity: 30% to 80% RH (No condensation)

z Storage: Temperature: -20°C to 60°C {-4°F to 140°F}

Humidity: 30% to 90% RH (No condensation)

• Even within the temperature and humidity ranges noted above, using the computer for long periods of time in an environment with exceptionally low or high temperatures or high humidity may result in deterioration of the product, which can lead to a reduction in product life.

z Keep the computer clear of electromagnetic cards and objects that emit electromagnetic

waves.

• Do not place the computer near magnets, electromagnetic bracelets, or other magnetic fields.

• This computer uses a magnet in the position marked with a circle in the diagram on the left. Do not place a magnetic card or other magnetic field in contact with the computer.

Handling

We recommend the following:

z Preparing a spare battery pack (sold separately). z Making backup copies on SD memory cards, etc.

When Carrying the computer, be sure to keep to the fol-

lowing:

z Turn off the computer. z Remove all external devices, cables, PC Cards protruding from the computer (see

figure A), and SD memory cards before transporting the computer.

z Close the display, and ensure that the latch (Î page 13) is positioned correctly in

the slot. Do not carry the computer by gripping the display or the cabinet around the display (see figure B).

z Do not drop or hit the computer against solid objects. z When taking an airplane

• Always carry your computer and disks, etc with you. Never check it in with luggage.

• Before using the computer inside an airplane, we recommend asking the airlines regarding their policy on this issue.

z When transporting a spare battery pack (sold separately) inside a package, brief-

case, etc., it is recommended that it be placed in a plastic bag in order to protect its contacts.

z If the computer is being carried in a soft bag when the battery pack has been

removed, be careful to avoid undue pressure on the body of the computer in a crowded place, etc., as this may result in damage to the LCD.

Operation

Useful Information

Maintenance

z Care of the display / touch pad:

Wipe lightly with a gauze or other dry, soft cloth.

z When the touch pad or other area other than the screen becomes dirty: wet a soft

cloth with water or a diluted kitchen cleanser (neutral), wring the cloth out thoroughly, and wipe the dirty area gently. Using a detergent other than a neutral kitchen cleanser (e.g., a weak alkali cleanser) may adversely affect painted surfaces.

Page 36

Usage/Handling/Maintenance

CAUTION

z Do not use benzene, thinner, or rubbing alcohol. Doing so may adversely affect

the surface, e.g., discoloration. In addition, do not use commercially-available household cleaners and cosmetics, as they may contain components harmful to the surface.

z Do not directly add or spray water or detergent onto the computer. If liquid

enters the inside of the computer, it may cause it to work improperly or be damaged.

Operation

Useful Information

Page 37

Wireless LAN

Precautions

Do not use wireless LAN on airplanes, in hospitals, or

in other locations where wireless LAN signals may affect the operation of devices in the vicinity

z Abide by instructions regarding use in airplanes and hospitals. z If you intend to use the computer in the environments described above, turn off the

wireless LAN power. (below)

Prevent theft of data or unauthorized access to the hard

disk via a wireless LAN

z When using the wireless LAN function, there is a danger that data may be stolen

from the hard disk, or that shared files may be accessed. If you plan to use wireless LAN functions, we recommend that you do so only after making the appropriate security settings, such as for encryption.

Turning on/off the Wireless LAN Function

Turn on/off the wireless LAN function using Intel

NOTE

z Before using a wireless LAN, turn the wireless LAN on. z After turning the wireless LAN on or off, it may take some time before the [Intel

PROSet/Wireless] screen display is renewed.

1 Double-click the icon (when the wireless LAN is on) or

the icon (when the wireless LAN is off) on the notification area or click [start] - [All Programs] - [Intel PROSet Wireless] - [Intel PROSet Wireless].

2 Click T and click [Wireless On] or [Wireless Off].

Enable/Disable Wireless LAN Standard IEEE802.11a

In some countries, communication using IEEE802.11a (5 GHz wireless LAN) standard is restricted by law. Comply with the laws in the country concerned. (Î page 3)

PROSet/Wireless Software.

Operation

Useful Information

1 Click the icon (when the wireless LAN is on) or the

icon (when the wireless LAN is off) on the notification area.

2 To disable IEEE802.11a:

z Click [802.11a Disabled].

To enable IEEE802.11a:

z Click [802.11a Enabled].

Even when IEEE802.11a is enabled or disabled, or will not change.

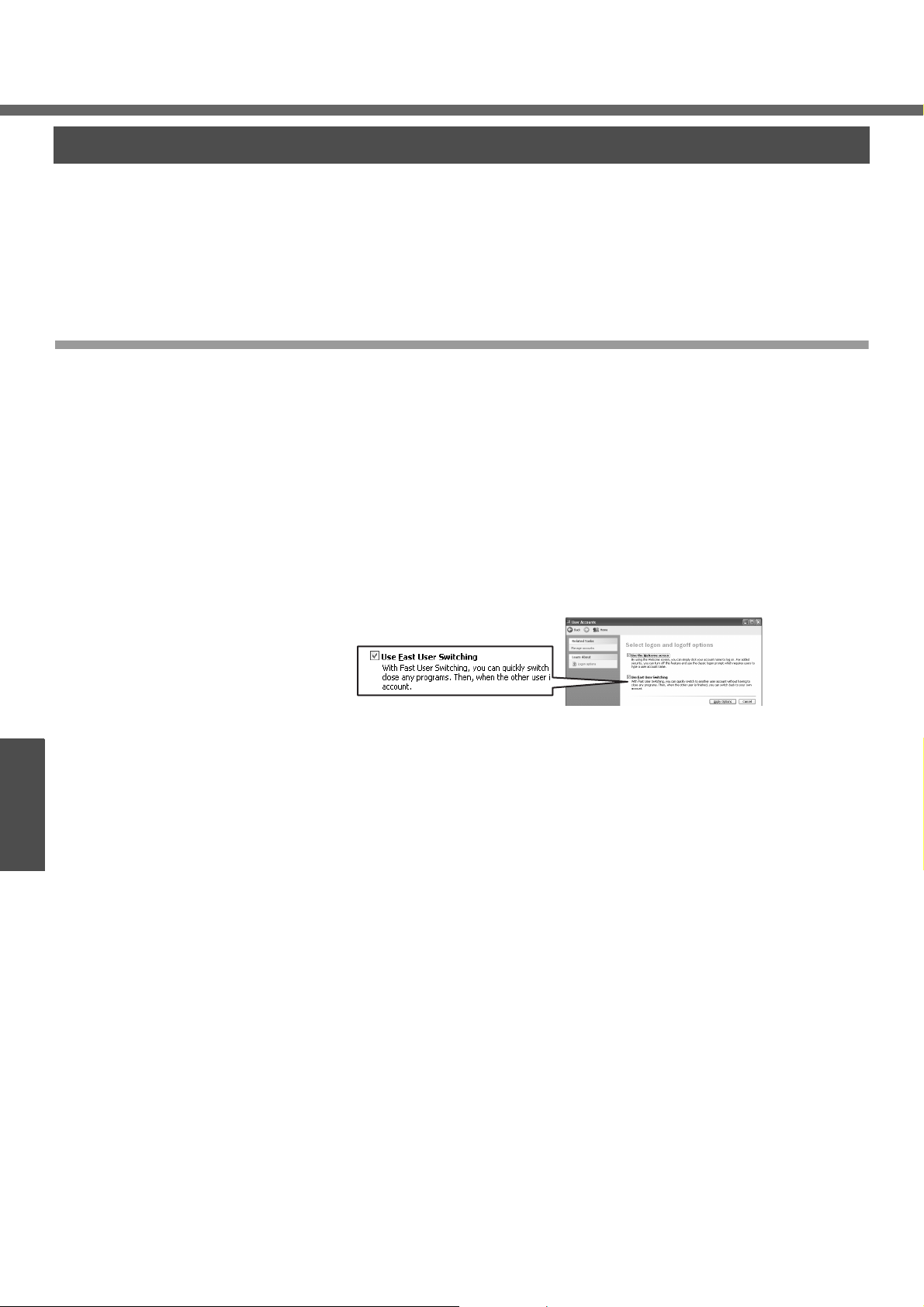

Page 38

Windows/Antivirus Protection

Windows

Depending on the settings in Windows, installed applications, drivers, menus and other displays may be inoperable. In some cases, certain functions, such as the password reset disk (Î page 20), may not operate. In this case, refer to the items below, and the applied items from the problem-solving section of this manual and onscreen Reference Manual, Windows Help (Î page 12), and the software application and driver’s operating instructions, etc.

Change the Way Users Log on or off

If the checkmark is added for [Use the Welcome screen] or [Use Fast User Switching] in [start] - [Control Panel] - [User Accounts] - [Change the way users log on or off], the operation differs as follows.

Use the Welcome screen

The operations when starting up or shutting down Windows differ depending on whether this item has a checkmark or not.

• At the time of purchase, it is set with the checkmark added.

• When [Use when logging on to Windows] is set in [SD Card Setup] (Î “SD Memory Card Security Function” in the onscreen Reference Manual), the Welcome screen cannot be used.

Operation

Useful Information

Use Fast User Switching

When adding the checkmark for this setting, you can change to another user without logging on again when multiple users use the computer. This manual explains the procedure for cases where the checkmark is added.

In the following case, Fast User Switching cannot be used.

z When the checkmark is not added for [Use the Welcome screen] z When joining the network domain z When the [Use when logging on to Windows] is set in [SD Card Setup] (Î “SD

Memory Card Security Function” in the onscreen Reference Manual)

Depending on the software application, the computer may not work properly if this function is used. When switching to a different user with the Fast User Switching function, it may not be possible to set the display settings. In this case, log-off all users, and retry the operation.

Page 39

Security Center/Antivirus Protection

Use the Windows Security Center function to protect Windows from damage by computer viruses, etc.

Windows Security Center

z What is Windows Security Center?

The Windows Security Center allows centralized management of Windows security information, and monitors antivirus measures and other Windows security settings to ensure optimum safety. Use the Windows Security Center function to protect your computer from damage by viruses, etc. Click [start] - [Control Panel] - [Security Center] to display the current settings for the following security functions.

• Windows Firewall A security system for protecting the computer from unauthorized access via the Internet or other external networks. The firewall regulates the data exchanged between the computer and the network, so that only approved data can pass through. At the time of purchase, the Windows Firewall is set to be enabled.

• Automatic Updates If your computer is connected to the Internet, this function regularly checks whether security updates and other important updates for Windows have been made available, and automatically installs these updates in their latest conditions.

• Virus Protection This function regularly checks whether antivirus software has been installed in the computer, and whether the version of that software is the latest version available.

NOTE

Operation

z Some network-related software and some online network games do not operate

normally if the Windows Firewall is enabled. Ask the software manufacturer about the Windows Firewall in the case of using such software.

z For further details on the Windows Firewall, see the help displayed by the fol-

lowing methods:

A Click [start] - [Help and Support] and input [Windows Firewall] into [Search]. B Click [Windows Firewall overview].

If the message "Your computer might be at risk" is displayed

Read the message, click the (red) on the notification area, and make the appropriate settings.

This message, which the Windows Security Center displays to confirm the securityrelated settings regularly, will be displayed until the settings are made more properly.

NOTE

z This message does not indicate an error. You can use the computer while the

message is displayed. However, in order to operate the computer more safely, we recommend making the appropriate measures to reduce damage from virus and other attacks, thus avoiding the appearance of this message.

Useful Information

Page 40

Windows/Antivirus Protection

The Pop-up Blocker

In Windows XP, security functions have been strengthened with regard to Web contents. One of these is the "Pop-up Blocker," which may prevent some Web pages from being displayed.

Computer Viruses

Users are advised to purchase the latest versions of virus protection software and use them regularly.

We recommend you run the software:

z When booting your computer. z After receiving data.

We recommend that you check data received on disks or from external sources, such as data downloaded from the Internet, e-mail, etc. (For compressed files, uncompress them before running a check).

For Data Execution Prevention (DEP), you can make one of the settings in the following menu. [start] - [Control Panel] - [Performance and Maintenance] - [System] - [Advanced] [Settings] (in [Performance]) - [Data Execution Prevention]. When Data Execution Prevention (DEP) is enabled, application software that is not compatible with this function may not operate properly. If a problem occurs, check with the software manufacturer to determine whether the application software is compatible with DEP. For more information, refer to Windows help.

Operation

Windows Update

Useful Information

You can use the latest patches and service packs for Windows with the following menus.

Do not apply “Driver Updates” even if a message to update a driver appears. If a driver update is required, contact your technical support office.

[start] - [All Programs] - [Windows Update].

Page 41

Using CD/DVD

Before using the drive

z Do not expose the DVD-ROM & CD-R/RW drive to excessive smoke that may leave

a residue, e.g. oil smoke, or tobacco smoke. Doing so could shorten the life of the drive lens.

About opening or closing the disk cover/cleaning the

drive lens

z When the computer is on, be sure to use the drive power/open switch on the front

right of the computer or perform the ejecting operation through Windows. When using B’s CLiP, operations may differ depending on conditions. Refer to “Writing to CDs (B’s Recorder/B’s CLiP)” in onscreen Reference Manual.

z To remove a disk when the disk cover cannot be opened or when the computer is

powered off, insert a pointed object (e.g., the bent-out tip of a paper clip, or the tip of a ballpoint pen) into the emergency hole (A), and move in the direction of the arrow.

z Be careful not to do any of the following when the disk cover is open:

• Do not close the display. Be sure to close the display only after confirming the disk cover is closed. If the disk cover is open, the LCD may become damaged.

• Never insert foreign objects such as paper clips into the DVD-ROM & CD-R/RW drive. This could cause it to malfunction.

z The disk cover can be opened up to an angle of 80 degrees. Do not force the cover

open any further. If a hand or other object touches the disk cover and accidentally opens it wider than 80 degrees, pull it forward slowly until the stopper holds the cover in its proper position.

z Do not leave the disk cover in the open position or touch the lens.

Over time, dust may build up on the lens, or on a disk. This may result in a read or write malfunction.

z Insert the disk securely. If the disk cover is closed without inserting the disk securely,

it may become damaged.

z Do not access the drive until after the disk cover is closed and the DVD-ROM & CD-

R/RW drive indicator is off.

z We recommend cleaning the drive lens (B) with an air puffer used for camera lenses

(Do not use any spray lens cleaning products.)

Operation

Internal DVD-ROM & CD-R/RW drive connection inter-

face

z The internal DVD-ROM & CD-R/RW drive uses a USB connection. When removing

PC Cards, SD memory cards, or other USB devices, the internal DVD-ROM & CDR/RW drive is displayed as one of the [USB Mass Storage Device]. The internal DVD-ROM & CD-R/RW drive cannot be removed, so do not select [Stop].

While the DVD-ROM & CD-R/RW drive is being

accessed

z Do not open the DVD-ROM & CD-R/RW drive or move the computer while the DVD-

ROM & CD-R/RW drive is being accessed. Doing so could cause the disk to shift position, which may damage the disk, or cause the DVD-ROM & CD-R/RW drive to malfunction. After running an application involving access to a disk, do not open the DVD-ROM & CD-R/RW drive until after the application has been closed.

z Do not apply excessive force on the disk cover. z Do not operate the drive power/open switch. z Do not shock the computer by removing or inserting cables and cards, etc. This may

result in a read or write malfunction.

About recognition of media

z It may take about 30 - 40 seconds for an image recorded to a rewritable media to be

played back.

Useful Information

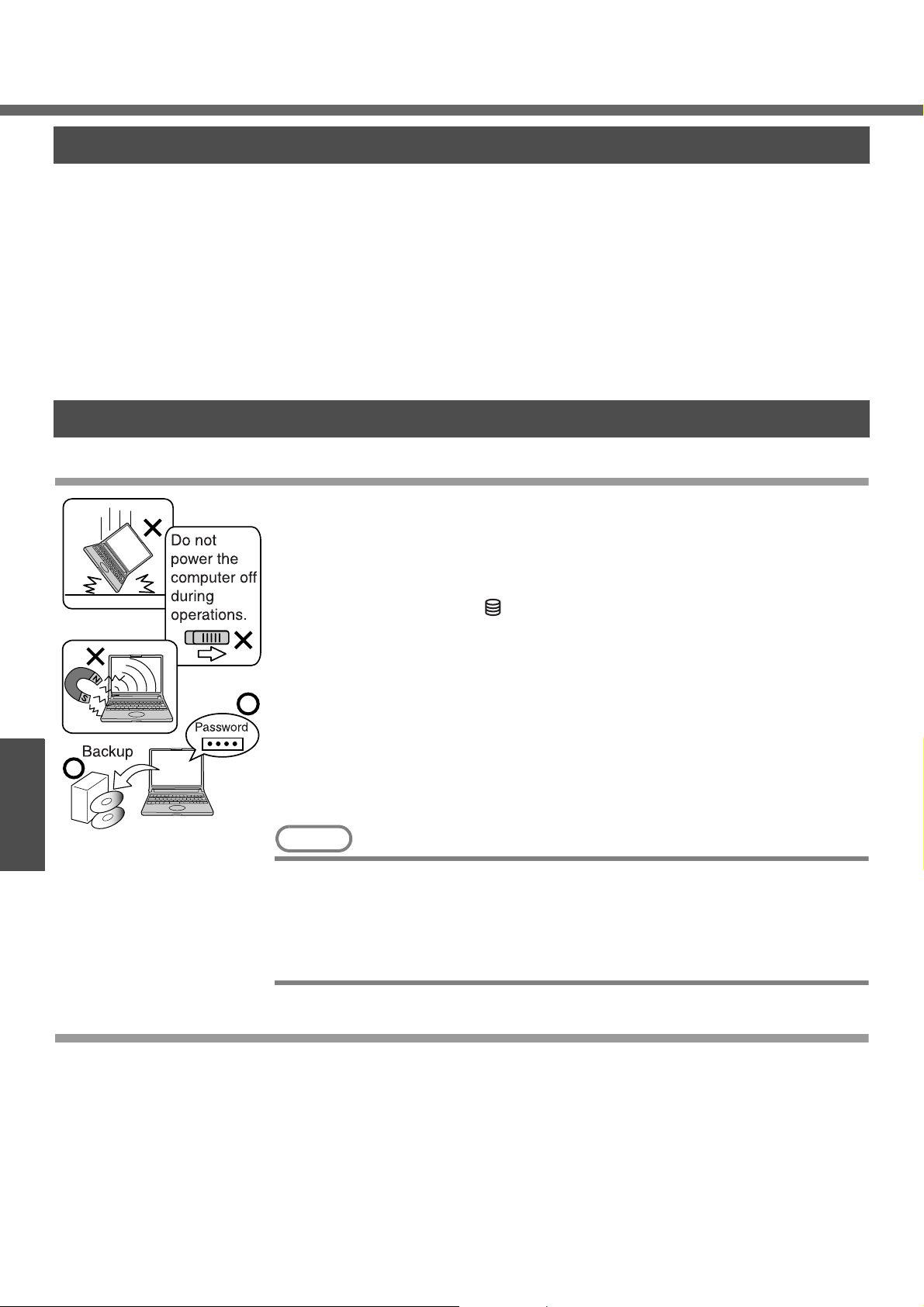

Page 42

Use of Peripheral Devices/Internal Hard Disk

When Using Peripheral Devices

Pay strict attention to the following points to avoid damage to the computer, peripheral devices, cables, etc. Also, in addition to following this manual and the onscreen Reference Manual, carefully read the instruction manuals for the peripheral devices being used.

z Use only peripheral devices that conform to the computer’s specifications. z Connect the devices properly, paying close attention to the condition and position of

the connectors.

z If a connection cannot be made easily, do not apply undue force; check once more

to confirm the condition and position of the connector (alignment of pins, etc.).

z If the connector has holding screws, fasten the screws firmly. z Do not carry the computer with cables attached, and do not pull on the cables force-

fully.

Internal Hard Disk

To Protect Data

Keep the following.

z Do not expose your computer to shock.

Use care when handling your computer, shock may damage your hard disk or make your software applications, and data unusable.

z Do not power off your computer while software applications are running or

hard disk drive indicator is on.

Properly shut Windows down from the [start] menu to avoid problems. (Î page 24)

z Do not place the computer close to objects that emit electromagnetic waves

(magnets, electromagnetic bracelets, etc.).

Operation

The data saved on the hard disk may be erased.

z Important data in the hard disk should be backed up regularly (e.g., in case of

failures, unexpected data updates, erasure, etc.).

Regular backups are recommended as a means of minimizing damages in the event of trouble.

z Use the security function for all important data.

(Î “Security Measures” and “SD Memory Card Security Function” in onscreen Reference Manual)

NOTE

Useful Information

z You may hear a mechanical “click” shortly after the hard disk indicator has

turned off when there has been no input from a key or device operation, when the computer enters the standby or hibernation mode, or when Windows is shut down. This is the sound of the head shifting positions, to reduce power consumption or to protect the hard disk from shocks. This sound does not indicate a malfunction.

When Changing Hard Disk Partitions

z During reinstallation, you can divide the hard disk space into two partitions by exe-

cuting: [Make two partitions, for the operating system and data, and reinstall Windows to the operating system partition]. Confirm the minimum partition size required for the OS by checking the screen during the reinstallation. If you want to create three or more partitions, after creating an OS partition and a data partition during the reinstallation, start up Windows, erase the second partition once using [Disk Management], and then create the partitions in the open space.

z When using the hard disk backup function, divide the hard disk into partitions when

backup area is created (Î page 56). If you divide the hard disk into partitions before creating the backup area, the backup area cannot be created.

Page 43

List of Error Codes

When turning on the computer, if one of the following error codes or messages is displayed, follow the instructions shown below. If the problem persists, or if the error code or message displayed is not shown here, contact your technical support office.

Error Code/Message Action

0211: Keyboard error z If an external keyboard or mouse is connected, disconnect these devices. 0251: System CMOS checksum

bad - Default configuration used

0271: Check date and time settings

0280: Previous boot incomplete Default configuration used

Press <F2> to Setup z Write down the error details and press the

Operating System not found The OS is not properly installed on the floppy disk or the hard disk that you are

An error has occurred in the memory that stores the Setup Utility settings. This error occurs when the memory content is changed through some inadvertent operation by a program or other function. z Run the Setup Utility and load the default values, then change the settings to

the appropriate values as needed.(Î page 29)

z If the problem persists, the internal clock battery may need to be replaced.

Contact your technical support office.

The date and time setting are incorrect. z Set the date and time correctly in the [Main] menu of the Setup Utility.

(Î page 31)

z If the problem persists, the internal clock battery may need to be replaced.

Contact your technical support office.

Startup has failed repeatedly, so the Setup Utility settings have been returned to their default values, and the computer has been booted. z Run the Setup Utility and load the default values, then change the settings to

the appropriate values as needed.(Î page 29)

key to run the Setup Utility. Con-

firm the settings, and change the settings to the appropriate values as needed.(Î page 29)

trying to boot from. z If the computer cannot be booted from the floppy disk, check the floppy disk

drive to ensure that the disk is in fact bootable, and use another bootable disk if not.

z If the computer cannot be booted from the hard disk, confirm whether the hard

disk is properly recognized in the [Information] menu of the Setup Utility. (Î page 31)

• If the hard disk is recognized (“xx GB” is displayed), perform the reinstallation procedure.

• If the hard disk is not recognized (“none” is displayed), contact your technical support office.

z If a device is connected to the USB port, disconnect the device, or run the

Setup Utility and set [Legacy USB Support] in the [Advanced] menu to [Disable]. (Î page 32)

Troubleshooting

Page 44

Dealing with Problems (Summary)

When a problem occurs, refer to this page. The “Reference Manual” also contains detailed information. If a problem appears to be related to a software application, read the software related manual. If you still cannot troubleshoot the problem, contact Panasonic technical support office. You can use the PC Information Viewer to check the computer’s usage status. (Î “Dealing with Problems” in onscreen Reference Manual)

Problems with Starting Up, Shutting Down, and Standby and Hibernation Mode

The computer does not power on/ The battery indicator is not lit

The computer does not start up z If there is a peripheral connected, remove the peripheral.

There is a beep sound, and either "Extended RAM Module Failed" or "Standard RAM Failed" appears

Cannot log on to Windows with the SD memory card

Troubleshooting

[Executing Battery Recalibration] screen is displayed

z Check that the AC adaptor or a fully-charged battery pack is correctly con-

nected.

z Reconnect the AC adaptor or battery pack. z Check that the battery pack latch (the manually operated latch for locking or

unlocking) is in the locked position ( ), and is firmly locked in position.

z If an additional RAM module has been inserted, remove the RAM module

and turn on the computer again. If the computer turns on when the RAM module is removed, there may be a problem with the RAM module.

• Power off your computer, check that the RAM module is the recommended module, and insert it correctly.

• Confirm the specifications for the RAM module.

For details regarding the RAM module, refer to "Expanding Memory" (Î page 27) or "Specifications" (Î page 62).

• If there are USB devices connected, set [Legacy USB Support] to [Disable] in the [Advanced] menu of the Setup Utility.

• If the computer starts when the peripheral is removed, there may be a problem with the peripheral. Consult the peripheral manufacturer.

z Using the following procedure, start up in Safe Mode, and check the error

details.

A Turn on the computer, and when the [Panasonic] boot screen

disappears (after entering the password down the

B Release the key when the Windows Advanced Options Menu

appears, and with the Ï then press the Follow the onscreen instructions.

Supervisor Password or User Password set with the Setup Utility

z When the power indicator is lit, after sliding the power switch for at least

four seconds to turn off, turn on again.

z Restore the Setup Utility's settings to their default values. z If an additional RAM module has been inserted, remove the RAM module

and turn on the computer again. Refer to item 4 in "The computer does not power on/The battery indicator is not lit" above.

z If "Extended RAM Module Failed" appears, the RAM module is not correctly

inserted. Turn off the computer, check that the RAM module is a recommended module, then insert it correctly.

z If "Standard RAM Failed" appears, contact your technical support office. z Since the Windows user name and password are not set correctly on the

SD memory card, log on from the SD memory card is not possible. Enter the Windows user name and password without using the SD memory card. After logging on to Windows, set the same user name and the password on the SD memory card and Windows, using the following operation:

• Change the setting of the SD memory card side by [SD Card Setup]

For how to make the change, refer to "SD Memory Card Security Function" in onscreen Reference Manual.

z When Windows is shut down during the Battery Recalibration procedure, if

you select [Cancel] in the [End Program] screen, Windows shutdown is aborted. In this case, Battery Recalibration will begin the next time the computer is started. To start up Windows, turn off the computer by sliding the power switch, and then turn it back on again.

key.

Enter

key or the Ð key, select [Safe Mode],

key.

if one is set) hold

Page 45

Problems with Starting Up, Shutting Down, and Standby and Hibernation Mode

Cannot boot from internal DVDROM & CD-R/RW drive

"Remove disks or other media. Press any key to restart" is displayed

Windows startup is slow

The computer does not enter standby or hibernation mode

z Check to make sure that the bootable CD is set properly. z Run the Setup Utility, and confirm the following settings.

• [Legacy USB Support] is set to [Enable] in the [Advanced] menu.

• [CD/DVD Drive Power] is set to [On] in the [Main] menu.

• [USB CDD] is the first device shown in [Boot priority order] in the [Boot] menu.

z Bootable CD created using B’s Recorder in the CF-W2 and CF-Y2 series

cannot be used on this computer. If you want to share bootable CD with those series, create a new bootable CD.

z When an external CD/DVD drive is connected, you cannot boot from the

internal DVD-ROM & CD-R/RW drive.

z Check whether a floppy disk not allowing system booting is inserted in the

floppy disk drive. If it is inserted, remove, then press any key.

z If a USB device is connected, remove the USB device, or set [Legacy USB

Support] to [Disable] in the [Advanced] menu of the Setup Utility.

z If after all the checks, the same message still appears, there may be a prob-

lem with the hard disk. Perform the reinstallation procedure and return the hard disk to its condition at the time of purchase. (Î page 50)

z Restore the Setup Utility's settings to their default values.

z If you install resident software after purchasing this computer, disable the

resident software.

z This problem may be eliminated by adding more memory.

The processing speed depends on the application software used, so this operation may not cause the processing speed to increase.

z If a peripheral is connected, first remove the peripheral, then enter the

standby or hibernation mode. If this still fails to enter standby or hibernation mode, restart the computer.

z It may take a minute or two to enter standby or hibernation mode. Wait for a

moment.

z The computer may not enter standby mode properly and seems to be fro-

zen in the mode that the computer is communicating via the modem. When you cannot execute operations, slide the power switch for four seconds or more to forcibly turn your computer off.

z When the internal LCD is closed, the computer may not enter system

standby or system hibernation mode.

In order to activate standby or hibernation, set [Touch Pad] to [Disable] in the [Main] menu of the Setup Utility.

Functions that cause the computer to automatically enter standby or hibernation mode after a certain time interval has passed.

z At the time of purchase, the computer is set so that the computer cannot

enter standby or hibernation mode if a disk formatted with B’s CLiP is inserted into the DVD-ROM & CD-R/RW drive (while the icon is dis-

played on the notification area).

The computer does not resume from standby or hibernation mode

Right-click the icon and click [Eject] to remove the disk.

z One of the following operations may have been carried out.

• In standby mode, the AC adaptor or battery pack was disconnected, or a peripheral was connected or disconnected.

• The power switch was slid for four seconds or more to forcibly turn off the computer.

Slide the power switch to turn on the computer. Data not saved is lost.

z If the [CD/DVD Drive Power] is set to [Off] in the [Main] menu of the Setup

Utility, it may take about few seconds to resume from hibernation mode while a disk is set in the DVD-ROM & CD-R/RW drive. Wait for a moment.

Troubleshooting

Page 46

Dealing with Problems (Summary)

Problems with Starting Up, Shutting Down, and Standby and Hibernation Mode

The computer does not power off (Windows does not shut down)

z If a peripheral is connected, disconnect it, and then shut down.

If it is possible to shut down when the peripheral is disconnected, then there may be a problem with the peripheral. Consult the peripheral manufacturer.

z Also check the items in "No response". (Î page 48) z If it is no longer possible to shut down Windows after installing application

software, click [start] - [Control Panel] - [Add or Remove Programs], and remove the installed application. If it is possible to shut down when the application is removed, then consult the application software manufacturer.

z Check a disk error using the following procedure:

A Click [start] - [My Computer], right-click [Local Disk (C:)] and

click [Properties].

B Click [Tools] - [Check Now]. C In [Check disk options], add the checkmark for [Automatically fix

file system errors] and [Scan for and attempt recovery of bad sectors], and click [Start]. The time taken to check the disk depends on the settings in

[Check disk options]. If the disk check does not solve the problem, perform the reinstallation procedure and return the hard disk to its condition at the time of purchase. (Î page 50)

Problems with Passwords and Messages

Even after entering the password, [Type your password] is displayed again

[Enter Password] is displayed z Input your Supervisor Password or User Password. If you have forgotten it,

When resuming from the standby or hibernation mode, [Enter Password] does not appear

When the administrator password is forgotten

Troubleshooting

Windows does not start up and numbers or messages appear

z The computer may be in “ten-key” mode.

If lights up, press the input (Î page 15).

z The computer may be in Caps Lock mode.

If lights up, press the and then input (Î page 15).

contact your technical support office.

z Even when a password has been set in the [Security] menu of the Setup

Utility, and [Password on boot] is set to [Enable], [Enter Password] does not appear when the computer resumes from the standby or hibernation mode. Set the Windows password with the following procedure, and make input of the Windows password required.

A Click the account to change in [start] - [Control Panel] - [User

Accounts] and set the password. B Add the checkmark for [Prompt for password when computer

resumes from standby] in [Control Panel] - [Performance and

Maintenance] - [Power Options] - [Advanced].

z Check whether you have created a password reset disk.

• If you have: A message is displayed when you fail to correctly enter the password. Follow the message's instructions and set the password again.

• If you have not: Perform the reinstallation procedure and return the hard disk to its condition at the time of purchase, then set up Windows and reset the password.

z This is a system startup error. Refer to "List of Error Codes" (Î page 43) z If “Remove disks or other media. Press any key to restart” is displayed:

Î page 45

NumLk

Caps Lock

key to disable the ten-key mode, and then

key to disable the Caps Lock mode,

Page 47

Problems with Display

Screen is too dark or becomes darker

An afterimage appears (e.g., the key green, red, and blue dots remain on the display) or there are dots not displaying the correct colors

Nothing is displayed on the screen z Check if the power-saving mode is active.

The screen becomes disordered z The screen display may become distorted if the resolution or number of col-

Switching between internal and external displays does not work

A blue background appears on the screen with the MPEG image or DVD Video

The LCD brightness changes a few times when the AC adaptor is disconnected

Image colors are not reproduced as expected when displaying photographs or other images

z Press the Fn+F2 key. This makes the screen lighter. z If the screen becomes darker after disconnecting the AC adaptor:

The computer has different set brightness levels for when the AC adaptor is connected and for when it is not connected. If you press the increase the brightness when the AC adaptor is not connected, this brightness is maintained, and determines the brightness next time the AC adaptor is disconnected. (Making the screen lighter shortens the battery operating time.)

z If an image is displayed for a prolonged period of time, an afterimage may

appear. This is not a malfunction. The afterimage will disappear when a different screen is displayed.

z High-precision and advanced technologies are used in the production of

color liquid crystal displays (color LCDs). Therefore, if 0.002% or less of the picture’s elements either fail to light or remain constantly lit (that means that more than 99.998% of the elements are functioning properly), this is not considered a defect.

• If the power indicator is lit: The display is turned off. Press a key with no independent effect, such as the

Ctrl

key or the

Do not use a key that may make a selection (

, numeric keys, and so on).

• If the power indicator is blinking or is not lit: The standby mode or hibernation mode is entered. Slide the power switch.

z The display destination may be set to the external display.

Try changing the display destination by pressing the If you want to switch the display destination repeatedly by pressing the

Fn+F3

pletely each time before pressing the

z The screen may become darker. Press the

lighter.

ors is changed, or if an external display is connected or disconnected while the computer is operating. Restart the computer.

z The display destination cannot be switched while a video such as an MPEG

file and a DVD Video are playing. Stop playing the video before switching the display destination.

z Did you open the DVD-ROM & CD-R/RW drive or remove the disk while it

was operating? Insert the removed disk, and close the disk cover.

z If [Intel(R) Display Power Saving Technology] is active, the LCD brightness

changes automatically. (Î "Computing on the Road" in onscreen Reference Manual).

z We recommend removing the checkmark from [Intel(R) Display Power Sav-

ing Technology]. (Î "Computing on the Road" in onscreen Reference Manual).

key, make sure that the display destination has switched com-

Shift

key.

Fn+F3

Enter, Space, Esc, Y

Fn+F3

key again.

Fn+F2

key to make the screen

Fn+F2

key.

key to

Troubleshooting

Page 48

Dealing with Problems (Summary)

Problems with Display

Nothing appears on the external display, or the display is not correct

To use both the external display and the internal LCD

z Check that the external display cables are correctly connected. z Check that the external display is turned on. z Check that the external display settings are correct. z When an external display not compatible with the power-saving mode is

used with the computer, the display may not function correctly when the computer enters the power-saving mode. In this case, turn on the external display again. However, in the case of some external displays, the screen display may be distorted or the mouse cursor may not be properly displayed depending on the settings. In this case, try setting the number of colors, screen area (resolution), and refresh rate to smaller values.

z Connect the external display, then press the Fn + F3 key to switch the dis-

play. If this does not switch the display, use the following procedure.

A Click [start] - [Control Panel], from the [See Also] area click

[Other Control Panel Options], then click [Intel(R) GMA Driver for Mobile] - [Devices].

B Click the display destination, and click [OK].

• When the screen is displayed to a simultaneous display: [Intel(R) Dual Display Clone]

• When Extended Desktop mode is set: [Extended Desktop]

z When [Command Prompt] is set to "Full Screen" by pressing the

Enter Alt

z Simultaneous display cannot be used until Windows startup is complete

(during Setup Utility, etc.).

key, the screen is displayed on one of the displays only. Press the

Enter

key to return to the window display.

Alt

Problems with Operation during Use

Some applications may not work properly

No response z Is there an input screen (e.g., password input screen at startup) hidden

Troubleshooting

z When switching to a different user with the Fast User Switching function,

the following problems may occur:

• Some applications may not work properly.

• Key combination with the

• It may not be possible to set the settings of the display.

• The wireless LAN cannot be used.

• The B’s CLiP icon will no longer be shown on the notification area and CD-RW disk cannot be written.

In this case, log off all users without using Fast User Switching function, and try the operation once more. If the problem persists, restart the computer.

z Some software applications installed after the time of purchase are not

compatible with Windows XP Service Pack 2. Refer to software maker’s homepage or other sources.

behind another window? Use the being displayed.

z Press the

ware application which is not responding.

z After sliding the power switch for at least four seconds to turn off the com-

puter, turn on again. If Windows runs correctly, but the application software does not start, click [start] - [Control Panel] - [Add or Remove Programs] and remove the failing application software, then reinstall the application software.

Ctrl+Shift+Esc

key may not work.

Alt+Tab

key to open Task Manager and close the soft-

key to check for other windows

Page 49

Problems with Battery

The battery indicator is lights red z The battery level is very low (the charge is approx. 9% or less).

z Connect the AC adaptor. You can use the computer when the indicator light

is orange. If you do not have an AC adaptor, save your data and power off your computer. After replacing the battery pack with a fully charged one, turn your computer on again.

The battery indicator is blinking z If blinking red:

Quickly save your data and power off your computer. Remove the battery pack and disconnect the AC adaptor, then connect them again. If the problem persists, contact your technical support office. The battery pack or charging circuit may be defective.

z If blinking orange:

• Battery cannot be recharged temporarily because the internal temperature of the battery pack is outside the acceptable temperature range for recharging. Your computer can be used normally in this state. Once the range requirement is satisfied, charging begins automatically.

• Software applications and peripheral devices (USB devices, etc.) are consuming too much power. Exit the software applications currently running. Once the range requirement is satisfied, charging begins automatically.

The battery indicator is flashing z The battery is recharging.

If [Battery Charging Indicator] in [Main] menu of the Setup Utility is set to [Flashing], the indicator will alternately become lighter and darker.

Problems with Onscreen Reference Manual

The Reference Manual is not displayed

z Is Adobe Reader installed?

If you have uninstalled Adobe Reader, install using the following procedures.

A Log on to Windows with the administrator authority. B Click [start] - [Run], input [c:\util\reader\AdbeRdr70_enu_full.exe],

then click [OK]. Install Adobe Reader by following the instructions on the screen.

C Update Adobe Reader to its latest version.

If your computer is connected to the Internet, start up Adobe Reader and click [Help] - [Check for updates now...].

Reinstalling B’s Recorder/B’s CLiP

When reinstalling, you will be asked for a serial number

Can’t write to the disk, even though a disk formatted with B's CLiP has been set

z Input the following serial number.

B’s Recorder: B’s CLiP:

z Did you open the disk cover forcefully in standby mode to set the disk?

If you did, slide the drive power/open switch to the left to turn the DVD-ROM & CD-R/RW drive power off, and then turn the power on again.

Problems with Expanding Memory

You do not know the available RAM module

To check if the additional RAM module has been installed successfully

Î page 62

z If the installation is successful, the main memory and total RAM module

size appears in the [Information] menu of the Setup Utility.

z If the RAM module is not confirmed:

• Turn the computer off and reinsert the RAM module.

• Confirm the recommended specifications. Regarding the RAM module, refer to “Expanding Memory" or "Specifications."

Troubleshooting

Page 50

Reinstalling Software

When reinstallation procedure is performed, the contents of the hard disk will be erased. Be sure to back up data on your hard disk to another media or to an external hard disk before running the reinstallation procedure. The reinstallation procedure will return the computer to its original condition. z If you have created partitions for data, the data may be erased or become corrupt as a result of the reinstallation

procedure.

z Even if reinstallation is executed, the number of times that the DVD video region code can be set will not be

returned to the state set at the time of purchase.

What is “Reinstallation”?

Reinstallation refers to formatting the hard disk, and reinstalling Windows.

When is “Reinstallation” necessary?

z When Windows does not start up, or when Windows operation is unstable and can-

not be recovered.

z When using the hard disk with two partitions.

Before Reinstallation

Preparing

z You will need the Product Recovery DVD-ROM (included).

Troubleshooting

Confirm the following

z Remove all peripherals and SD memory cards.

Especially, when a USB floppy disk drive or a USB CD/DVD drive is connected, the reinstallation does not operate properly. Remove them.

Reinstallation Procedure

Change the settings in the Setup Utility.

Use the Product Recovery DVD-ROM to execute reinstallation. (About 20 minutes)

Return the Setup Utility settings to their default values.

Setup Windows.

Change the settings in the Setup Utility. (Only when necessary)

If you can connect to the Internet, perform Windows Update. (Î “To Update this Computer to its Latest Version” in onscreen Reference Manual)

Page 51

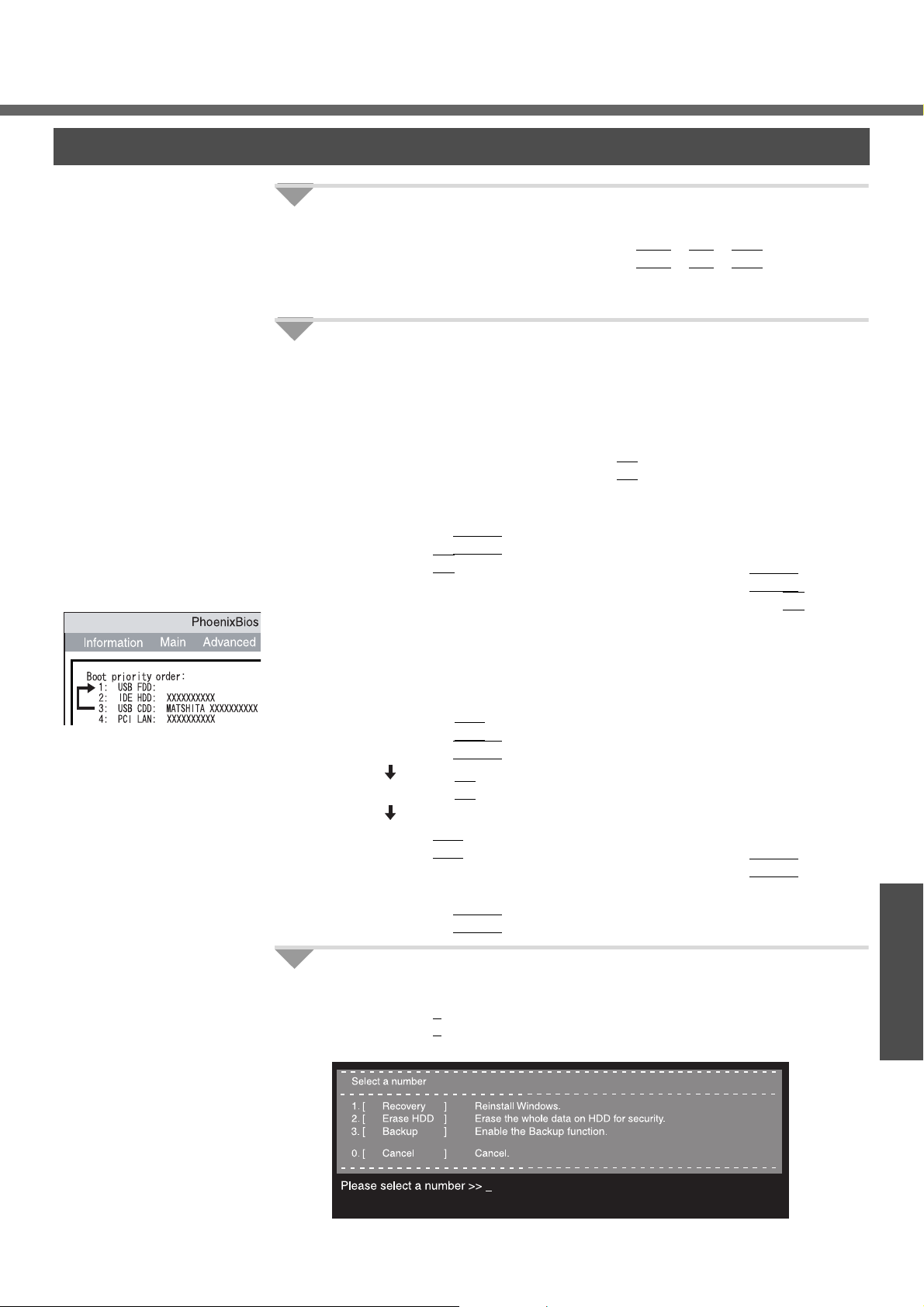

Reinstalling

1 Connect the AC adaptor.

Do not interrupt the reinstallation procedure before completion, for example by turning off the computer or pressing the may prevent Windows from starting up, or may cause data to be lost so that the reinstallation procedure cannot be executed.

Ctrl

Alt

Del

key, as this

2 Change the settings in the Setup Utility.

Make the following settings.

z Return settings to the status at the time of purchase. z Change settings to enable startup from DVD-ROM & CD-R/RW drive.

If you change the settings from that at the time of purchase, we recommend that you make a note of the settings that are changed.

A Turn on the computer, and press the

screen is displayed. The Setup Utility will start up. z If the password has been set, enter the Supervisor Password, and

press the

B Press the

At the confirmation message, select [Yes] and press the

C Select the [Boot] menu, then select [USB CDD] and press the

[USB CDD] is at the top of [Boot priority order].

D Place the Product Recovery DVD-ROM into the DVD-ROM & CD-R/RW

drive. z When the disk cover does not open:

[CD/DVD Drive Power] has been set to [Off] in the [Main] menu. Perform the following procedure. Press the press the

Enter

key.

F10

Enter

key.

key. At the confirmation message, select [Yes] and

key. (The computer will restart)

key while [Panasonic] boot

Enter

key.

key until

Press the

Place the Product Recovery DVD-ROM, and execute step E.

E Press the

At the confirmation message, select [Yes] and press the The Setup Utility will close, and the computer will restart. z If the password has been set, enter the Supervisor Password, and

press the

key while [Panasonic] boot screen is displayed.

F10

key.

Enter

key.

Enter

key.

3 Use the Product Recovery DVD-ROM to execute reinstalla-

tion.

A Press the 1 key to execute [1. [Recovery]].

(All of the screens below are only examples.)

Troubleshooting

Page 52

Reinstalling Software

<When the hard disk backup function has been enabled> When the message [The Backup function has been enabled. If [Recovery] or [Erase HDD] is executed, the Backup function will be disabled, and your Backup data will be lost.] appears, press the B If you agree, press the

If you do not agree, press the

z If you press the z If you press the

C Make a selection from the menu.

key.

key the menu will be displayed.

key the reinstallation will be canceled.

key.

Troubleshooting

z To return the computer to its status at the time of purchase

Press the

z To divide the hard disk into two partitions (for OS and data)

Press the

Enter the basic partition size (GB) for the operating system installation and press the

• You can cancel this operation by pressing the

• The data partition size is the remainder after subtracting the basic partition size. (Data partition: 1 GB or more) Maximum settable size differs depending on the model.

z To reinstall Windows in the first partition without changing the partition

configuration Press the

• The first partition size must be 6 GB or more of the hard disk size. Reinstallation cannot be performed with a small partition size.

<When the hard disk backup function has been enabled> If you select [1] or [2], the message [The Backup function has been enabled. If [Recovery] is executed, the Backup function will be disabled, and your Backup data will be lost.] appears. In this case, press the If the message [Computer must be rebooted in order to execute [Recovery]] appears, press the D At the confirmation message, press the

z The operation of reinstallation for the hard disk starts automatically.

(The operations take about 20 minutes.)

z Do not interrupt the reinstallation procedure before completion, for

example by turning off the computer or pressing the key, as this may prevent Windows from starting up, or may cause data to be lost so that the reinstallation procedure cannot be executed.

key.

Enter

key.

Ctrl

key.

Alt

Del

Page 53

E The message "[Recovery] is complete" will be displayed. Remove the Prod-

uct Recovery DVD-ROM, and press any key to shut down the computer.

4 Return the Setup Utility settings to their default values.

Return the Setup Utility to its settings at the time of purchase to ensure proper setup of Windows.

A Turn on the computer, and press the

screen is displayed. The Setup Utility will start up. If the password has been set, enter the Supervisor Password, and press the

Enter

B Press the

At the confirmation message, select [Yes] and press the

C Press the

At the confirmation message, select [Yes] and press the The Setup Utility will close, and the computer will restart.

key.

F10

key.

key while [Panasonic] boot

Enter

key.

5 Setup Windows. (Î page 18)

7 If you can connect to the Internet, perform Windows Update.

Changing the drive letter

You can change the drive letter for the DVD-ROM & CD-R/RW drive or hard disk drive by the following steps.

z The C drive cannot be changed. z The drive letter for A Drive, B Drive and C Drive cannot be changed. You also can-

not use a drive letter that is currently being used by another device, or a drive letter that has already been allocated to a network drive.

Changing the hard disk drive letter

Changing the internal DVD-ROM & CD-R/RW drive letter

(Î page 20)

Run the Setup Utility and change the settings where necessary

(The Setup Utility settings will return to their default values. Even the security settings with the exception of the password(s), date and time will return to their default values.)

(Î “To Update this Computer to its Latest Version” in onscreen Reference Manual)

A Click [start] - [Control Panel] - [Performance and Maintenance] - [Admin-

istrative Tools], and double-click [Computer Management].

B Click [Disk Management] in [Storage]. C

Right-click a partition of the hard disk, and click [Change Drive Letter and Paths]

D Click [Change]. E Click [Assign the following drive letter], select a drive letter, then click [OK]. F Click [Yes] when the confirmation message is displayed.

Troubleshooting

Page 54

LIMITED USE LICENSE AGREEMENT

THE SOFTWARE PROGRAM(S) (“PROGRAMS”) FURNISHED WITH THIS PANASONIC® PRODUCT (“PRODUCT”) ARE LICENSED ONLY TO THE END-USER (“YOU”), AND MAY BE USED BY YOU ONLY IN ACCORDANCE WITH THE LICENSE TERMS DESCRIBED BELOW. YOUR USE OF THE PROGRAMS SHALL BE CONCLUSIVELY DEEMED TO CONSTITUTE YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE.

Matsushita Electric Industrial Co., Ltd. (“MEI”) has developed or otherwise obtained the Programs and hereby licenses their use to you. You assume sole responsibility for the selection of the Product (including the associated Programs) to achieve your intended results, and for the installation, use and results obtained therefrom.

LICENSE

A. MEI hereby grants you a personal, non-transferable and non-exclusive right and license to use the Pro-

grams in accordance with the terms and conditions stated in this Agreement. You acknowledge that you are receiving only a LIMITED LICENSE TO USE the Programs and related documentation and that you shall obtain no title, ownership nor any other rights in or to the Programs and related documentation nor in or to the algorithms, concepts, designs and ideas represented by or incorporated in the Programs and related

documentation, all of which title, ownership and rights shall remain with MEI or its suppliers. B. You may use the Programs only on the single Product which was accompanied by the Programs. C. You and your employees and agents are required to protect the confidentiality of the Programs. You may not

distribute or otherwise make the Programs or related documentation available to any third party, by time-

sharing or otherwise, without the prior written consent of MEI. D. You may not copy or reproduce, or permit to be copied or reproduced, the Programs or related documenta-

tion for any purpose, except that you may make one (1) copy of the Programs for backup purposes only in

support of your use of the Programs on the single Product which was accompanied by the Programs. You

shall not modify, or attempt to modify, the Programs. E. You may transfer the Programs and license them to another party only in connection with your transfer of

the single Product which was accompanied by the Programs to such other party. At the time of such a trans-

fer, you must also transfer all copies, whether in printed or machine readable form, of every Program, and

the related documentation, to the same party or destroy any such copies not so transferred. F. You may not remove any copyright, trademark or other notice or product identification from the Programs

and you must reproduce and include any such notice or product identification on any copy of any Program.

YOU MAY NOT REVERSE ASSEMBLE, REVERSE COMPILE, OR MECHANICALLY OR ELECTRONICALLY TRACE THE PROGRAMS, OR ANY COPY THEREOF, IN WHOLE OR IN PART.

YOU MAY NOT USE, COPY, MODIFY, ALTER, OR TRANSFER THE PROGRAMS OR ANY COPY THEREOF, IN WHOLE OR IN PART, EXCEPT AS EXPRESSLY PROVIDED IN THE LICENSE.

IF YOU TRANSFER POSSESSION OF ANY COPY OF ANY PROGRAM TO ANOTHER PARTY, EXCEPT AS PERMITTED IN PARAGRAPH E ABOVE, YOUR LICENSE IS AUTOMATICALLY TERMINATED.

TERM

This license is effective only for so long as you own or lease the Product, unless earlier terminated. You may terminate this license at any time by destroying, at your expense, the Programs and related documentation together with all copies thereof in any form. This license will also terminate effective immediately upon occurrence of the conditions therefor set forth elsewhere in this Agreement, or if you fail to comply with any term or condition contained herein. Upon any such termination, you agree to destroy, at your expense, the Programs and related documentation together with all copies thereof in any form.

YOU ACKNOWLEDGE THAT YOU HAVE READ THIS AGREEMENT, UNDERSTAND IT AND AGREE TO BE BOUND BY ITS TERMS AND CONDITIONS. YOU FURTHER AGREE THAT IT IS THE COMPLETE AND EXCLUSIVE STATEMENT OF THE AGREEMENT BETWEEN US, WHICH SUPERSEDES ANY PROPOSAL OR PRIOR AGREEMENT, ORAL OR WRITTEN, AND ANY OTHER COMMUNICATIONS BETWEEN US, RELATING TO THE SUBJECT MATTER OF THIS AGREEMENT.

About Intel

The enclosed software products and documentation were developed at private expense, and are provided with “RESTRICTED RIGHTS.” Use, duplication or disclosure by the government is subject to restrictions as set forth in FAR 52.227-14 and DFARS 252.227-7013 et. seq. or its successor. The use of this product by the government con-

Important Information

stitutes acknowledgment of Intel's proprietary rights in the product.

software products

Page 55

Contrat de licence d'usage limité

Le(s) logiciel(s) (les “Logiciels”) fournis avec ce produit Panasonic® (le “Produit”) sont exclusivement concédés en licence à l'utilisateur ultime (“vous”), et ils ne peuvent être utilisés que conformément aux clauses contractuelles cidessous. En utilisant les logiciels, vous vous engagez de manière définitive à respecter les termes, clauses et conditions des présentes.

Matsushita Electric Industrial Co., Ltd. (“MEI”) a mis au point ou obtenu les Logiciels et vous en concède l'utilisation par les présentes. Vous assumez l'entière responsabilité du choix de ce Produit (y compris des Logiciels associés) pour obtenir les résultats escomptés, ainsi que de l'installation, de l'utilisation et des résultats obtenus.

License

A. MEI vous octroie par les présentes le droit et la licence personnels, non cessibles et non exclusifs d'utiliser

les Logiciels conformément aux termes, clauses et conditions de ce Contrat. Vous reconnaissez ne recevoir

qu'un droit limité d'utiliser les Logiciels et la documentation les accompagnant et vous vous engagez à

n'obtenir aucun droit de titre, propriété ni aucun autre droit vis-à-vis des Logiciels et de la documentation les

accompagnant ni visà-vis des algorithmes, concepts, dessins, configurations et idées représentés par ou

incorporés dans les Logiciels et la documentation les accompagnant, dont les titres, propriété et droits rest-

eront tous à MEI ou à leurs propriétaires.

B. Vous ne pouvez utiliser les Logiciels que sur le Produit unique qui est accompagné par les Logiciels.

C. Vous et vos employés ou agents êtes requis de protéger la confidentialité des Logiciels. Vous ne pouvez ni

distribuer ni mettre les Logiciels et la documentation les accompagnant à la disposition d'un tiers, par part-

age de temps ou de quelque autre manière que ce soit, sans l'autorisation écrite préalable de MEI.

D. Vous ne pouvez ni copier ni reproduire ni permettre la copie ni la reproduction des Logiciels ni de la docu-

mentation les accompagnant pour quelque fin que ce soit, à l'exception d'une (1) copie des Logiciels à des

fins de sauvegarde uniquement pour soutenir votre utilisation des Logiciels sur le Produit unique qui est

accompagné par les Logiciels. Vous ne pouvez ni modifier ni tenter de modifier les Logiciels.

E. Vous ne pouvez céder les Logiciels et en octroyer la licence à une autre partie qu'en rapport avec votre ces-

sion du Produit unique qui est accompagné par les Logiciels à cette autre partie. Au moment de cette ces-

sion, vous devez céder également toutes les copies, que ce soit sous forme imprimée ou lisible par la

machine, de tous les Logiciels ainsi que de la documentation les accompagnant, à la même partie ou détru-

ire les copies non cédées.

F. Vous ne pouvez retirer aucune marque de droits d'auteur, marque ou autre ni aucune identification de pro-

duit des Logiciels et vous devez reproduire et inclure toutes ces notices ou identifications de produit sur

toutes les copies des Logiciels.

Vous ne pouvez assembler en sens inverse, compiler en sens inverse ni retracer les Logiciels ni aucune de leurs copies, de façon électronique ou mécanique, en tout ou en partie.

Vous ne pouvez utiliser, copier, modifier, altérer ni céder les Logiciels ni aucune de leurs copies, en tout ou en partie, à l'exception de ce qui est expressément stipulé dans ce contrat.

Si vous cédez la possession de toute copie ou de tout Logiciel à une autre partie, à l'exception de ce qui est autorisé au paragraphe E ci-dessus, votre licence est automatiquement résiliée.

Termes, clauses et conditions

Cette licence n'est effective que pour la durée de possession ou de crédit-bail du Produit, à moins d'une résiliation antérieure. Vous pouvez résilier cette licence à tout moment en détruisant, à vos frais, les Logiciels et la documentation les accompagnant avec toutes leurs copies, sous quelque forme que ce soit. Cette licence sera également résiliée, avec application immédiate, si les conditions de résiliation définies ailleurs dans ce contrat se sont réalisées ou si vous ne respectez pas les termes, clauses et conditions qui y sont contenues. Au moment de la résiliation, vous acceptez de détruire, à vos frais, les Logiciels et la documentation les accompagnant avec toutes leurs copies, sous quelque forme que ce soit.

Vous reconnaissez avoir lu ce contrat, en avoir compris toute la substance et avoir accepté de respecter ses termes, clauses et conditions. Vous reconnaissez en outre qu'ils sont la description complète et exclusive du contrat conclu entre nous, contrat qui remplace et annule toute proposition ou contrat précédent, écrit ou oral, et toute autre communication entre nous, relativement à l'objet du présent contrat.

Important Information

Page 56

Hard Disk Backup Function

The hard disk backup function creates a backup area (storage area) on the hard disk. This area is to back up (store) hard disk contents or restore backed up contents to their original locations. By backing up the data on your hard disk to a backup area, you can protect your data from loss or damage resulting from operational errors or other factors. Also, you can back up or restore hard disk contents using this computer alone, without having to use other media or peripheral devices. At the time of purchase, the hard disk backup function is disabled. If you follow the procedure below to create a backup area, the hard disk backup function will be enabled, and you will be able to back up your data. Note, that once the backup function has been enabled, you will have to perform the reinstallation procedure to disable it again.

The hard disk backup function cannot back up or restore data properly if there is a problem with the hard disk when the data is backed up or restored. Note that if an error occurs while data is being restored, whether as a result of an unexpected malfunction, incorrect operation, or other reason, the data in the hard disk (data before restoration) may be lost. Matsushita Electric Industrial Co., Ltd. will bear no responsibility for any damages suffered by the user (including loss of data) as a result of the use of this function.

Before Using a Hard Disk Backup Function

Preparing

z You will need the Product Recovery DVD-ROM (included). z Disconnect or remove all peripheral devices, SD memory cards. Take care to dis-

connect the USB floppy disk drive, as the backup area may not be created properly while these devices are connected.

z Be sure the AC adaptor is connected to the computer. z If the hard disk malfunctions, it will be impossible to read the data stored on it. We

recommend that you also back up important data to a location other than the hard disk (an external hard disk or other media).

z Execute a disk error check using the following procedure.

A Display [Local Disk (C:) Properties].

Right-click [Local Disk (C:)] in [start] - [My Computer], and click [Properties].

B Click [Check Now] from [Tools]. C In [Check Disk Local Disk], click [Start] without adding a checkmark beside

any of the items. If a message is displayed indicating that there is an error in the disk, display [Check Disk Local Disk], and add a checkmark for [Automatically fix file system errors] and [Scan for and attempt recovery of bad sectors], click [Start], and check for disk errors again.

Important Information

Precautions

z To divide the partition, make the selection when the backup area is created (Î page

57 step G).

z A backup area cannot be created if the hard disk is already divided into several par-

titions. Return the computer to its condition at the time of purchase (one partition only), and create the backup area.

z If the partition configuration is changed (partitions created, size changed, etc.) after

the backup area has been created, it will no longer be possible to execute the backup function. To change the configuration, it is necessary to return the computer to its condition at the time of purchase, and then create the backup area again.

z The hard disk backup function will only work for the internal hard disk. This function

does not work with an external hard disk.

z Backup and restore functions will not operate if the hard disk has been damaged. z Do not use the NTFS file system compression function, as this may result in insuffi-

cient capacity of the backup area.

z The hard disk backup function does not accommodate dynamic disks. Do not con-

vert the hard disk to a dynamic disk.

NOTE

z Regarding backup area

Page 57

• Requires availability of at least half of the entire hard disk. Without sufficient space available, the backup area cannot be created.

• When the backup area is created, the usable hard disk capacity will be reduced to less than half.

• The backup area cannot be accessed from Windows. For this reason, backed up data cannot be copied to CD-R or other removable disk media.

• When the hard disk backup function is executed, data in the backup area will be overwritten. If newly created or edited data is backed up later, data stored previously in the backup area will be lost.

Create a Backup Area

A Turn the computer on, and press the F2 key while [Panasonic] boot

screen is displayed. The Setup Utility will start up. If a password has been set, enter the Supervisor Password. You cannot register [Boot] menu with a User Password.

B Select the [Boot] menu, then select [USB CDD] and press the

[USB CDD] is at the top of [Boot priority order].

C Place the Product Recovery DVD-ROM into the DVD-ROM & CD-R/RW

drive

• When the disk cover does not open: [CD/DVD Drive Power] has been set to [Off] in the [Main] menu. Perform the following procedure. Set [CD/DVD Drive Power] to [On].

key until

Press the At the confirmation message, select [Yes] and press the The computer will restart.

Press the

Place the Product Recovery DVD-ROM, and execute step D.

D Press the

At the confirmation message, select [Yes] and press the The computer will restart. If [Enter Password] is displayed during the following procedures, input the Supervisor Password or the User Password. This screen should appear.

E Press the

F10

key.

key while [Panasonic] boot screen is displayed.

F10

key.

key to execute [3. [Backup]].

Enter

key.

CAUTION

z When dividing the hard disk into partitions

Do not execute [1. [Recovery]] to divide the hard disk into partitions. The hard disk backup function cannot be enabled after the hard disk has been partitioned. Use step G to divide the hard disk.

key.

F At the confirmation message, press the Y key. G Select how to divide the hard disk from the menu.

<To create a backup area and enable the backup function without dividing the hard disk> Select [1].

Important Information

Page 58

Hard Disk Backup Function

<To create a backup area and divide hard disk into two partitions, for OS and data> Select [2], enter the partition size (GB), and press the

• You can cancel this operation by pressing the

• The data partition size will be the maximum settable size less the

Enter

key.

number entered above. The maximum settable size will differ depending on models.

key.

H At the confirmation message, press the

The backup area is then created.

I When the message [You must reboot in order to enable the Backup func-

tion.] appears, remove the Product Recovery DVD-ROM, and press any key to restart the computer. The computer is restarted, then the backup process will begin.

J When the message [[Backup] is complete] appears, press the

Del

key to restart the computer.

z Do not press the

K After logging on to Windows, a message will appear advising that a new

device has been installed and that the computer must be restarted to enable the settings. Select [Yes] to restart the computer.

NOTE

z The [Boot] menu in the Setup Utility is set to start up from the DVD-ROM & CD-

R/RW drive. Change this setting if necessary.

z The next time the backup or restore functions are executed, follow the proce-

dure for [Backing Up and Restoring Data].

Backing Up and Restoring Data

Ctrl

Alt

key.

Ctrl

Del

key until the message is displayed.

Alt

Important Information

CAUTION

z Before executing the backup function, execute a disk error check (Î page 56). z Do not interrupt the backup or restore functions before completion, for example

by turning off the power or pressing the vent Windows from starting up, or may cause data to be lost so that the backup and restore functions cannot be executed.

A Turn the computer on, and press the F2 key while [Panasonic] boot

screen is displayed. The Setup Utility will start up. If a password has been set, enter the Supervisor Password or the User Password.

Ctrl

Alt

Del

key, as this may pre-

Page 59

B Select [Exit] menu, then select [Hard Disk Backup / Restore] and press

the

Enter

At the confirmation message, select [Yes], and press the

C Select the operation to be executed from the menu.

(1) Press the

(2) At the confirmation message, press the

<To restore backed up contents to the hard disk> (1) Press the

(2) At the confirmation message, press the

key.

Enter

key to execute [1. [Backup]]. (When dividing the hard disk into two partitions, select the backup method at next screen.)

key.

The backup process will begin.

key to execute [2. [Restore]]. (When data is backed up in two partitions, select the restore method at next screen.)

key.

The restore process will begin.

key.

NOTE

z The time required to complete the backup or restore process differs depending

on the data volume.

D When the message [[Backup] is complete] or [[Restore] is complete] is

displayed, press the

• If the backup or restore process was interrupted before completion, for example if the power was turned off, execute the process again.

• When a new device is installed and a message appears advising that the computer must be restarted to enable the settings, select [Yes] to restart the computer.

Ctrl

Alt

Del

key to restart the computer.

CAUTION

z When the hard disk backup function has been enabled, the backed up data will

not be erased even if a commercial data erasing utility or similar software is used to erase all data from user-accessible area. You can use the hard disk data erase utility included in this computer (Î page 60) to erase all data on the hard disk, including backed up data. Use this hard disk data erase utility before disposing of or transferring ownership of this computer.

z Occasionally, the message [#1805 cannot write image file] will be displayed,

and the backup function will be interrupted. If this error occurs, execute the backup function again. After this, if the backup function is completed properly, then there is no problem in the hard disk.

z To disable the hard disk backup function

Perform the reinstallation procedure. All data in the backup area and the hard disk will be erased. Conduct steps 1-3 C for [Reinstalling Software] (Î page 51). Select [1] or [2] to execute the reinstallation at the screen for executing the reinstallation.

• When [1] is selected, the hard disk backup function can be disabled.

• When [2] is selected, the hard disk backup function can be disabled, but in this case, because the hard disk has been divided into partitions, the hard disk backup function cannot be re-enabled (Î page 42).

• When [3] is selected, the hard disk backup function cannot be disabled.

Important Information

Page 60

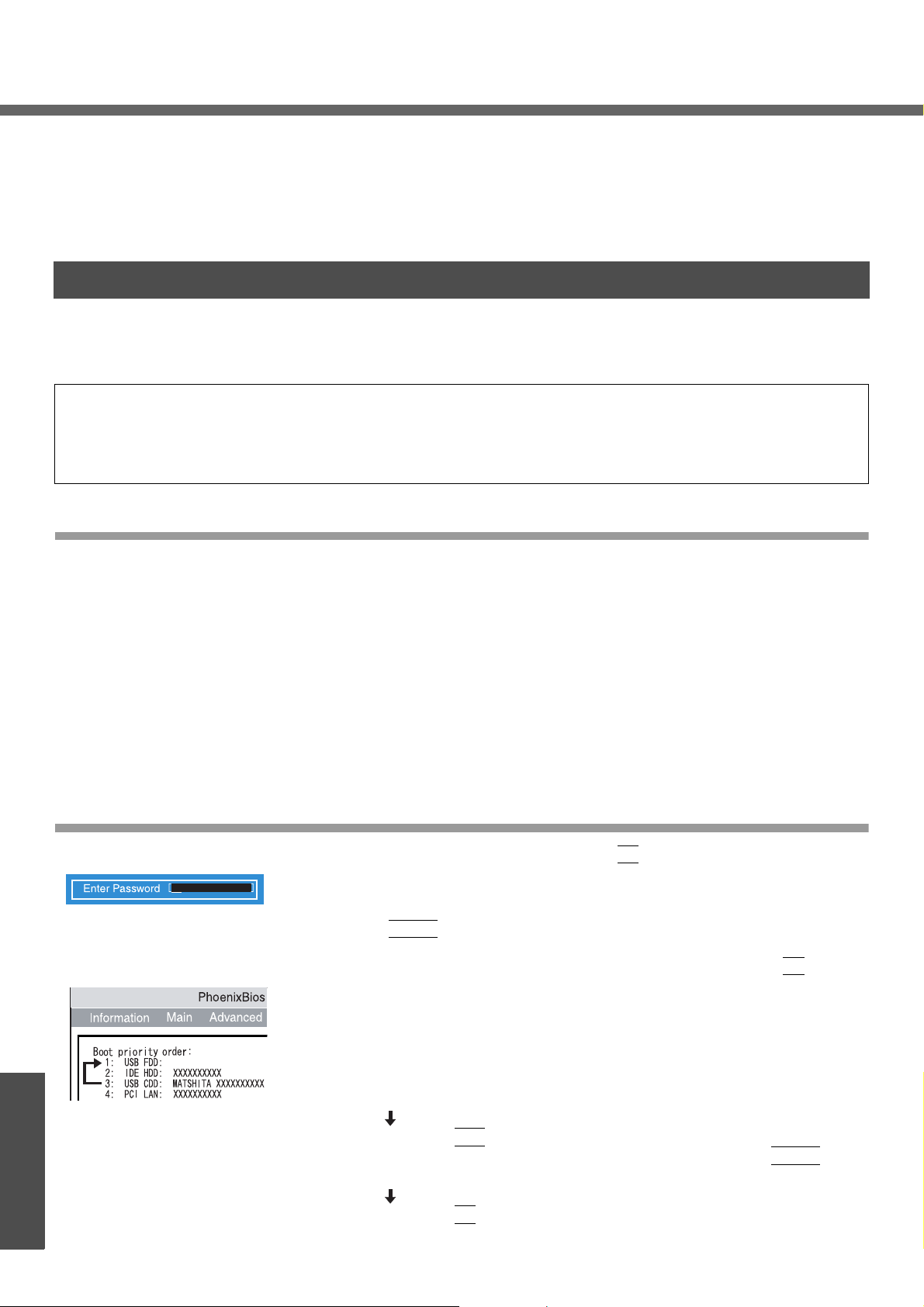

When Disposing of This Computer

When disposing of or transferring ownership of this computer, erase all data on the hard disk in order to prevent the theft of hard disk data. Even if you delete data or initialize the hard disk through normal Windows commands, data can still be read using special software. In order to erase all data, either have the data erased by a specialist (at a charge) or use the hard disk data erase utility (included). (Note that this hard disk data erase utility does not guarantee that data will be completely erased.) Also, note that if you transfer ownership of this computer without deleting commercial software that you have installed to the hard disk, you may be in violation of the licensing agreement for that software.

Hard Disk Data Erase Utility

This computer is equipped with a utility for erasing hard disk data. When disposing of or transferring ownership of this computer, erase all data on the hard disk in order to prevent the theft of hard disk data following the steps below.

The hard disk data erase utility erases data using an overwriting method, but there is a possibility that due to malfunctions or other operational errors, data may not be completely erased. There are also specialized devices that may be able to read data that has been erased using this method. If you need to erase highly confidential data, we recommend that you contact a company that specializes in this process. Matsushita Electric Industrial Co., Ltd. will bear no responsibility for losses or damages suffered as a result of the use of this utility.

Before Erasing Data

Preparing

z You will need the Product Recovery DVD-ROM (included)

Confirm the followings

z Be sure the AC adaptor is connected until the procedure is completed. z This utility can only be used for internal hard disk. It cannot be used to erase data

from external hard disks.

z This utility cannot erase data from damaged disk. z This utility cannot erase data for specific partitions. z After executing this utility, the computer cannot be booted from the hard disk. z The backup area and the data in the backup area will be erased.

Completely Erasing Data

A Turn the computer on, and press the F2 key while [Panasonic] boot

screen is displayed. The Setup Utility will start up. If the password has been set, enter the Supervisor Password, and press the

Enter

word.

B Select the [Boot] menu, then select [USB CDD] and press the

[USB CDD] is at the top of [Boot priority order].

C Place the Product Recovery DVD-ROM into the DVD-ROM & CD-R/RW

drive. z When the disk cover does not open:

[CD/DVD Drive Power] has been set to [Off] in the [Main] menu. Perform the following procedure. Set [CD/DVD Drive Power] to [On].

key. The [Boot] menu cannot be changed with User Pass-

key until

Important Information

Press the At the confirmation message, select [Yes] and press the The computer will restart.

Press the The Setup Utility will start up.

F10

key.

key while [Panasonic] boot screen is displayed.

Enter

key.

Page 61

Set the Product Recovery DVD-ROM, and execute step D.

D Press the

At the confirmation message, select [Yes] and press the The Setup Utility will close, and the computer will restart. If [Enter Password] is displayed during the following procedure, enter the Supervisor Password or User Password. <When the hard disk backup function has been enabled> When the message [The Backup function has been enabled...] appears, press the

E When the message "Select a number" is displayed, press the

perform [2. [Erase HDD]]. (You can cancel this operation by pressing the The confirmation message will be displayed. <When the hard disk backup function has been enabled> When the message [The Backup function has been enabled...] appears, press the When the message [Computer must be rebooted in order to execute [Erase HDD]] appears, press the

F Press the

Hard Disk Data Erase Utility will start.

G When [<<<Start menu>>>] is displayed, press the H The approximate time required for erasing data will be displayed.

Press the

I At the confirmation message, press the

The operation of erasing the hard disk starts. z If necessary, the “hard disk data erase” operation can be cancelled

after it has begun by pressing the If the operation is cancelled before being completed, a part of data will not be erased.

J The message "Hard disk data has been deleted" will be displayed.

Remove the Product Recovery DVD-ROM, and press any key to shut down the computer. z If a problem occurred during the operation, an error message will be

displayed.

F10

key.

Space

key.

Enter

Ctrl+C

key.)

key.

Enter

key.

key and

Important Information

Page 62

Specifications

z Main Specifications

Model No. CF-Y4HWPZZBM

CPU/

Secondary Cache Memory Chip Set

Main Memory

Video Memory

Hard Disk Drive

Intel® Pentium® M Processor Low Voltage 778 (1.60 GHz, 2 MB FSB)

Intel® 915 GMS Express chip set

512 MB

, DDR2 SDRAM (1024 MB

UMA (128 MB

60 GB

Max.)

DVD-ROM & CD-R/RW Drive USB 2.0 connection interface, Buffer underrun error prevention function: Supported

: 2X speed (4.7 GB*3)/1X speed (2.6 GB*3) zDVD-R*7: 4X speed (Max.)

: 24X speed (Max.) zCD-RW*8: 20X speed (Max.)

: 4X speed, 8X speed, 8-16X speed, 8-24X speed zCD-RW write: 4X

: 8X speed (Max.) zCD-ROM*8: 24X speed

Continuous Data Transfer Speed

*4*5

Playback

Recording

zDVD-RAM zDVD-RW: 4X speed (Max.) zDVD-ROM (Max.) zCD-R

zCD-R write

speed zHigh-Speed CD-RW write: 4X speed, 8X speed,10X speed zUltra-Speed CDRW write: 8X speed, 10X speed

zDVD-ROM (Single Layer, Dual Layer) zDVD-Video zDVD-R

Compatible Disk and Compatible Formats

Playback

zDVD-RW (Ver.1.1/1.2 1.4 GB, 4.7 GB, 9.4 GB)

GB)

2.6 GB, 5.2 GB, 4.7 GB, 9.4 GB)

zCD-Audio zCD-ROM (XA compatible) zCD-R

zPhoto CD (multiple session compatible) zVideoCD zCD-EXTRA zCD-RW zCD-

zDVD-RAM

TEXT

Recording zCD-R zCD-RW

Display Method

Internal LCD Display

14.1 SXGA+ type (TFT) (1400

65,536/16,777,216 colors (1400

× 1050 dots)

L2 cache, 400 MHz

(1.4 GB, 3.95 GB, 4.7

(1.4 GB, 2.8 GB,

External Display

Simultaneous Display on LCD + Exter-

nal Display

Wireless LAN

LAN

65,536/16,777,216 colors (800 × 600 dots/1024 × 768 dots/1280 × 768 dots/1280 × 1024 dots/1400 × 1050 dots/1600 × 1200 dots/2048 × 1536 dots)

65,536/16,777,216 colors (800 × 600 dots/1024 × 768 dots/1280 × 768 dots/1280 ×

1024 dots/1400 × 1050 dots)

Built-in Intel

PRO/Wireless 2915 ABG (Î page 64)

IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX

Modem Data: 56 kbps (V.92) FAX: 14.4 kbps Sound WAVE and MIDI playback, Stereo Speaker (built in)

Card Slots

RAM Module Slot

Interface

PC Card Slot × 1: (One Type I or Type II, Allowable current 3.3 V: 400 mA, 5 V: 400 mA)

SD Memory Card Slot

× 1

DDR2 SDRAM, 172-pin, 1.8 V, Micro DIMM, PC2-3200 Compliant

USB Ports

× 2（USB2.0 × 2）

/ Modem Port（RJ-11）/ LAN Port（RJ-45） External Display Port: Mini Dsub 15-pin female / Microphone Jack: Miniature jack, 3.5 DIA / Headphone Jack: Miniature jack, 3.5 DIA

Keyboard/Pointing Device 87 keys/Touch Pad Power AC adaptor or Battery pack

AC Adaptor

Input: 100 V - 240 V AC, 50 Hz/60 Hz Output: 16 V DC, 2.5 A

Battery Pack Li-ion 7.4 V, 7.65 Ah

Operating Time

Charging Time

Approx. 4 hours - 6.5 hours

Approx. 5 hours (Power off)/Approx. 6.5 hours (Power on)

(Approx. 5 hours

) (Disable Economy Mode (ECO))

Important Information

Page 63

z Main Specifications

Model No. CF-Y4HWPZZBM

Power Consumption

Physical Dimensions (W × H × D)

Weight

Environment

Operation

Storage

Temperature Humidity 30% to 80% RH (No condensation) Temperature Humidity 30% to 90% RH (No condensation)

Approx. 35 W 309 mm × 33 mm (at the front)/46 mm (at the rear) × 243 mm (excluding protrusion)

{12.2 " × 1.3 " / 1.9 " × 9.6 "}

Approx. 1530 g {3.4 lb.}

°C to 35°C {41°F to 95°F}

-20°C to 60°C {-4°F to 140°F}

/ Approx. 40 W (maximum when recharging in the ON state)

Microsoft® Windows® XP Professional with Service Pack 2 with Advanced Security Technologies (NTFS File system)

Microsoft® Internet Explorer 6 Service Pack 2 / DirectX 9.0 c /

Microsoft Microsoft

Windows® Media Player 10 / Microsoft® Windows® Movie Maker 2.1 /

.NET Framework 1.1 / Adobe Reader / Intel® PROSet/Wireless Software /

SD Utility / Icon Enlarger / Loupe Utility / Touch Pad Utility / DMI Viewer / PC Information

Pre-installed Software

Viewer / WinDVD™5 (OEM Version) / B’s Recorder GOLD8 BASIC / B’s CLiP 6 Hotkey Settings / Optical Disc Drive Letter-Setting Utility / Optical Disc Drive PowerSaving Utility / Wireless LAN Switch Utility / Economy Mode (ECO) Setting Utility / Battery Recalibration Utility

Setup Utility / Hard Disk Data Erase Utility

1 MB = 1,048,576 bytes

A segment of the main memory is allotted automatically depending on the computer’s operating status. The size of the Video

/ Hard Disk Backup Utility

Memory cannot be set by the user.

1 GB = 1,000,000,000 bytes. Operating system or some application software will report as fewer GB.

Data transfer speeds indicate values measured by Matsushita Electric Industrial Co., Ltd. The data transfer rate of DVD per 1X speed is 1,350 KB/s. The data transfer rate of CD per 1X speed is 150 KB/s.

Performance of CD-R, CD-RW, DVD-RAM, DVD-R, and DVD-RW cannot be guaranteed depending on writing status and recording format. Also, some data cannot be played back depending on the disk, settings, and environment being used.

In the case of DVD-RAM, only non-cartridge disks or removable cartridge disks (Type2, Type4) can be used.

DVD-R is compatible with 4.7 GB (for General) playback. DVD-R (for Authoring) playback is compatible with disks recorded using Disk-at-Once recording.

If an unbalanced disk (e.g., a disk with which the balance has been displaced from the center) is inserted, the speed may become slower if there are large vibrations while the disk is rotating.

Depending on the disk, the writing speed may become slower.

*10

A 16,777,216 color display is achieved by using the dithering function.

*11

Display may be impossible using some connected external displays.

*12

Some devices cannot be used depending on the port type.

*13

Operation has been confirmed for Panasonic SD memory cards with up to 2 GB capacity. The transfer rate using the SD memory card slot on this computer is 8 MB per second (this is a theoretical value, and differs from actual speeds). The transfer rate is 8 MB per second even if you use an SD memory card that supports high-speed transfer rates. Does not guarantee connection/ operation of all SD devices. Does not support MultiMedia card. Do not insert MultiMedia card.

*14

Only a RAM module designed for DDR2 (PC2-3200) can be added (Panasonic : CF-BAV0256U / CF-BAV0512U). JEDEC standard 214 pin Micro DIMM cannot be used. PC2100 / PC2700 172 pin Micro DIMM cannot be used.

*15

Does not guarantee operation of all USB-compatible peripherals.

*16

<Only for North America> The AC adaptor is compatible with power sources up to 240 V AC adaptor. This computer is supplied with a 125 V AC compatible AC cord.

*17

Varies depending on the usage conditions, CPU speed, etc. When Economy Mode (ECO) is enabled, the operating time becomes approximately 20% shorter than when it is disabled.

*18

Measured using BatteryMark™ Version 4.0.1 (LCD brightness : Maximum - Minimum).

*19

Measured using MobileMark™ 2002 (LCD brightness : 60 cd/m2).

*20

Varies depending on the usage conditions, CPU speed, etc. It may take a long time to charge a fully discharged battery.

*21

Approx. 1.5 W when the battery pack is fully charged (or not being charged) and the computer is off.

*22

Rated power consumption.

Important Information

Page 64

Specifications

*23

Average value. May differ depending on models.

*24

Operations of this computer are not guaranteed except for the pre-installed OS.

*25

Preinstalled B’s CLiP does not support CD-R.

*26

The Product Recovery DVD-ROM is required.

z Wireless LAN

IEEE802.11a: 54/48/36/24/18/12/9/6 Mbps (automatically switched)

Data Transfer Rates

Standard Supported IEEE802.11a/IEEE802.11b/IEEE802.11g Transmission Method OFDM system, DS-SS system

Wireless Channels Used

RF Frequency Band

*27

These are speeds specified in IEEE802.11a+b+g standards. Actual speeds may differ.

IEEE802.11b: 11/5.5/2/1 Mbps (automatically switched) IEEE802.11g: 54/48/36/24/18/12/9/6 Mbps (automatically switched)

IEEE802.11a: Channels 36/40/44/48/52/56/60/64/149/153/157/161/165 IEEE802.11b/ IEEE802.11g: Channels 1 to 11

IEEE802.11a: 5.18 - 5.32 GHz, 5.745 - 5.825 GHz IEEE802.11b/ IEEE802.11g: 2412 - 2462 MHz

Important Information

Page 65

Index

Also, refer to onscreen Reference Manual. Some explanations that are not described in this manual may be described in onscreen Reference Manual. (Î page 12)

Antivirus Measures ........... 39

Battery Indicator................ 15

Dealing with Problems

.................................... 49

Caps Lock ........................ 15

Clicking ............................ 25

Display

Dealing with Problems

.................................... 47

Display Change ...........26

LCD Brightness Control

.................................... 26

Double-Clicking ................ 25

Double-Tapping ............... 25

Dragging .......................... 25

DVD-ROM & CD-R/RW Drive

.......................................... 41

Indicator....................... 15

Usage Precautions ......11

Emergency Hole .............. 41

Important Tips .................. 12

Maintenance .................... 35

Notification Area .............. 21

NumLk ............................. 15

Password (Dealing with Prob-

lems) ................................ 46

Peripheral Devices .......... 42

Pop-up Window ............... 26

Power Indicator ................ 15

RAM Module (Dealing with

Problems) ........................ 49

Reference Manual ........... 12

Dealing with Problems

.................................... 49

Reinstalling B’s Recorder/B’s CLiP (Dealing with Problems)

.......................................... 49

Right-Click ....................... 25

ScrLk Indicator .................15

Scroll ................................25

SD Memory Card Indicator

......................................... 15

Setup Utility ...................... 29

Speaker On/Off Switch

..........................................26

Starting Up (Dealing with

Problems) .........................44

Tapping ............................25

Volume Control .................26

Windows Update ..............40

Hard Disk Drive Indicator

.......................................... 15

Important Information

Page 66

Memo

Page 67

Page 68

ENERGY STAR

As an

determined that this product meets the

Partner, Matsushita Electric Industrial Co., Ltd. has

ENERGY STAR

guidelines for energy

efficiency.

Outline of the International ENERGY STAR® Office Equipment Program

The international ENERGY STAR® Office Equipment Program is an international program that promotes energy saving through the use of computers and other office equipment. The program backs the development and dissemination of products with functions that effectively reduce energy consumption. It is an open system in which business proprietors can participate voluntarily. The targeted products are office equipment such as computers, displays, printers, facsimiles, and copiers. Their standards and logos are uniform among participating nations.

Matsushita Electric Industrial Co., Ltd.

Web Site : http://www.panasonic.co.jp/global

FJ1105-0

DFQX5578ZA
