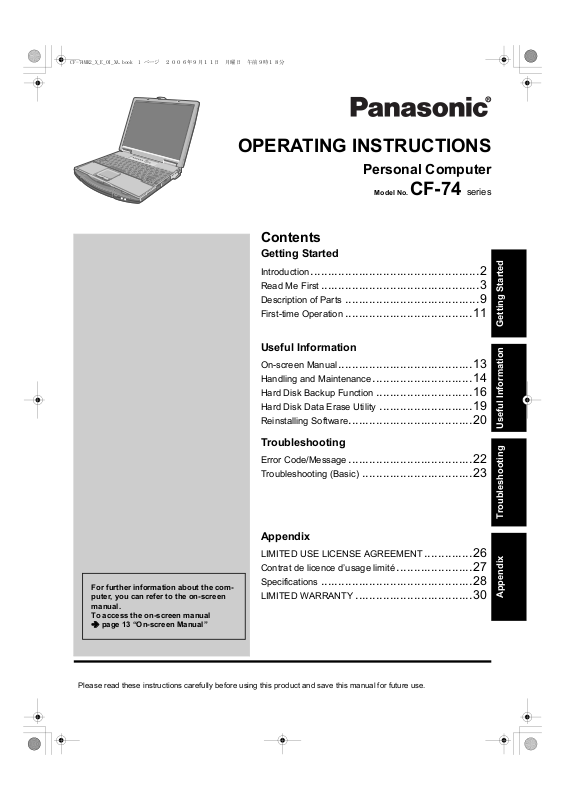

Panasonic CF-74 User Manual [en, fr]

OPERATING INSTRUCTIONS

Personal Computer

Model No. CF-74 series

Contents

Getting Started

Introduction.................................................2

Read Me First ..............................................3

Description of Parts .......................................9

First-time Operation .....................................11

Useful Information

On-screen Manual.......................................13

Getting StartedUseful InformationTroubleshootingAppendix

For further information about the com­puter, you can refer to the on-screen
manual.
To access the on-screen manual
Î page 13 “On-screen Manual”

Handling and Maintenance.............................14

Hard Disk Backup Function ............................16

Hard Disk Data Erase Utility ...........................19

Reinstalling Software....................................20

Troubleshooting

Error Code/Message ....................................22

Troubleshooting (Basic) ................................23

Appendix

LIMITED USE LICENSE AGREEMENT..............26

Contrat de licence d’usage limité ......................27

Specifications ............................................28

LIMITED WARRANTY ..................................30

Please read these instructions carefully before using this product and save this manual for future use.

Introduction

Thank you for purchasing this Panasonic computer. For optimum performance and safety, please read these instruc­tions carefully.

 Terms and illustrations in these instructions

CAUTION
NOTE

Enter
Fn

+ F5 : Press and hold [Fn] key, and then press [F5] key.

[start] - [Run] : Click [start], and then click [Run]. You may need to double-click in some cases.

Î : Page in these Operating Instructions or in the Reference Manual.

z Some illustrations are simplified to help your understanding and may look different from the actual unit.
z If you do not log on as an administrator, you cannot use some functions or cannot display some screens.
z Refer for the latest information about optional products to the catalogs, etc.
z In these instructions, the names and terms are referred as follows.

• “Microsoft
“Windows XP”

• “WinDVD™ 5 (OEM Version)” as “WinDVD”

Getting StartedUseful InformationTroubleshootingAppendix

• “B’s Recorder GOLD8 BASIC” as “B’s Recorder”

• “B’s CLiP 6” as “B’s CLiP”

• DVD-ROM & CD-R/RW drive, and DVD MULTI drive as “CD/DVD drive”

• Circular media including DVD-ROM and CD-ROM as “discs”

z The display modes are referred as follows. ( ) indicates the terms in [Intel

ler Properties] screen. To display the screen, select [start] - [Control Panel] - [Other Control Panel Options] - [Intel(R)
Extreme Graphics 2 M].

• Internal LCD (Notebook): The computer’s display

• External display (Monitor): External display

• Simultaneous display (Intel

• Extended desktop: The extended working area across the internal LCD and the external display.

: Conditions that may result in minor or moderate injury.

: Useful and helpful information.

: Press [Enter] key.

: Reference to the on-screen manuals.

®

Windows® XP Professional Service Pack 2 with Advanced Security Technologies” as “Windows” or

®

Dual Display Clone): The same screen is displayed on the internal LCD and the

external display.

®

82852/82855 GM/GME Graphics Control-

 Copyright

This manual is copyrighted by Matsushita Electric Industrial Co., Ltd. with all rights reserved. No part of this manual may
be reproduced in any form without the prior written permission of Matsushita Electric Industrial Co., Ltd.
No patent liability is assumed with respect to the use of the information contained herein.
© 2006 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.

 Disclaimer

Computer specifications and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd.
assumes no liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the com­puter and the manuals.

 Trademarks

®

Microsoft
United States and/or other countries.
Intel, Core, Centrino and PROSet are either registered trademarks or trademarks of Intel Corporation.

SD Logo is a trademark.

Adobe, the Adobe logo and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorpo­rated in the United States and/or other countries.

Bluetooth™ is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to Matsushita Electric Industrial Co., Ltd.
WinDVD™ is a trademark of InterVideo, Inc.

Panasonic
Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective
own companies.

, Windows®, the Windows logo and IntelliMouse are registered trademarks of Microsoft Corporation of the

®

is a registered trademark of Matsushita Electric Industrial Co., Ltd.

2

Read Me First

Models for U.S.A.

Federal Communications Commission Radio Fre­quency Interference Statement

Note: This equipment has been tested and found to com­ply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interfer­ence in a residential installation. This equipment gener­ates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television recep­tion, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and

receiver.

z Connect the equipment into an outlet on a circuit differ-

ent from that to which the receiver is connected.

z Consult the Panasonic Service Center or an experi-

enced radio/TV technician for help.

Warning

To assure continued compliance, use only shielded inter­face cables when connecting to a computer or peripheral.
Also, any changes or modifications not expressly
approved by the party responsible for compliance could
void the user’s authority to operate this equipment.

FCC RF Exposure Warning:
z This equipment is provided with PC Card slot that could

be used with wireless transmitters, which will be specifi­cally recommended when they become available.
Other third-party wireless transmitters have not been
RF exposure evaluated for use with this computer and

may not comply with FCC RF exposure requirements.
<Only for models with wireless LAN/Bluetooth>
z This equipment complies with FCC radiation exposure

limits set forth for an uncontrolled environment.
z This equipment has been approved for mobile opera-

tion, and unless otherwise advised in separate supple-

mental instructions for individual wireless transmitter(s),

requires minimum 20 cm spacing be provided between

antenna(s) and all person’s body (excluding extremities

of hands, wrist and feet) during wireless modes of oper-

ation.
z This equipment may use multiple installed transmitters,

which may be capable of simultaneous transmission.

<Only for models with wireless LAN>
This product is restricted to indoor use due to its operation
in the 5.15 to 5.25 GHz frequency range.
FCC requires this product to be used indoors for the fre­quency range 5.15 to 5.25 GHz to reduce the potential for
harmful interference to co-channel Mobile Satellite systems.
High power radars are allocated as primary users of the

5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These
radar stations can cause interference with and/or damage
this product.

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1)This device may not cause harmful interference, and

This device must accept any interference received, includ-

(2)

ing interference that may cause undesired operation.

Responsible Party: Panasonic Corporation of North America

One Panasonic Way
Secaucus, NJ 07094
Tel No:1-800-LAPTOP5 (1-800-527-8675)

FCC Regulation Notice for modem
This equipment contains a FCC approved modem.

1. This equipment complies with CFR47 Part 68 rules.
On the computer is a label that contains, among other
information, the FCC registration number and ringer
equivalence number (REN) for this equipment. If
required, this information must be provided to the tele­phone company.

2. An FCC compliant telephone cord and modular plug is
provided with this equipment. This equipment is
designed to be connected to the telephone network or
premises wiring using a compatible modular jack
which is Part 68 compliant. See Installation Instruc­tions for details.

3. The REN is used to determine the quantity of devices
which may be connected to the telephone line. Exces­sive RENs on the telephone line may result in the
devices not ringing in response to an incoming call. In
most, but not all area, the sum of RENs should not
exceed five (5.0). To be certain of the number of
devices that may be connected to a line, as deter­mined by the total RENs, contact the local telephone
company.

4. If your telephone equipment cause harm to the tele­phone network, the telephone company will notify you
in advice that temporary discontinuance of service
may be required. But if advice notice isn’t practical, the
telephone company will notify the customer as soon as
possible. Also, you will be advised of your right to file a
complaint with the FCC if you believe it is necessary.

5. The telephone company may take changes in its facili­ties, equipment, operations or procedures that could
affect the operation of the equipment. If this happens
the telephone company will provide advance notice in
order for you to make necessary modifications to
maintain uninterrupted service.

6. If trouble is experienced with this equipment, for repair
or warranty information, please contact Panasonic
Corporation of North America at DIAL TOLL FREE 1­800-LAPTOP5 (1-800-527-8675). If the equipment is
causing harm to the telephone network, the telephone
company may request that you disconnect the equip­ment until the problem is resolved.

7. There are no user serviceable parts contained in this
equipment.

8. This equipment may not be used on coin service pro­vided by the telephone company. Connection to party
lines is subject to state tariffs.

Getting StartedUseful InformationTroubleshootingAppendix

3

Read Me First

9. The Telephone Consumer Protection Act of 1991
makes it unlawful for any person to use a computer or
other electronic device to send any message via a
telephone fax machine unless such message clearly
contains in a margin at the top or bottom of each trans­mitted page or on the first page of the transmission,
the date and time it is sent and an identification of the
business or other entry, or other individual sending the
message and the telephone number of the sending
machine or such business, other entity, or individual. In
order to program this information into your fax soft­ware, you should refer to the manual of the Fax soft­ware being used.

10.According to the FCC’s electrical safety advisory, we
recommend that you may install an AC surge arrestor
in the AC outlet to which this equipment is connected.
Telephone companies report that electrical surges,
typically lightning transients, are very destructive to
customer terminal equipment connected to AC power
sources and that this is a major nationwide problem.

Models for Canada

Getting StartedUseful InformationTroubleshootingAppendix

Industry Canada (IC) Notice for modem

This equipment contains an Industry Canada approved
modem unit.
The Industry Canada label is affixed on the modem unit.

EQUIPMENT ATTACHEMENT LIMITATIONS

“NOTICE: The Industry Canada label identifies certified
equipment. This certification means that the equipment
meets telecommunications network protective, opera­tional and safety requirements as prescribed in the appro­priate Terminal Equipment Technical Requirements
document(s). The Department does not guarantee the
equipment will operate to the user’s satisfaction.
Before installing this equipment, users should ensure that
it is permissible to be connected to the facilities of the
local telecommunications company. The equipment must
also be installed using an acceptable method of connec­tion. The customer should be aware that compliance with
the above conditions may not prevent degradation of ser­vice in some situations.
Repairs to certified equipment should be coordinated by a
representative designated by the supplier. Any repairs or
alterations made by the user to this equipment, or equip­ment malfunctions, may give the telecommunications
company cause to request the user to disconnect the
equipment.
Users should ensure for their own protection that the elec­trical ground connections of the power utility, telephone
lines and internal metallic water pipe system, if present,
are connected together. This precaution may be particu­larly important in rural areas. Caution: Users should not
attempt to make such connections themselves, but should
contact the appropriate electric inspection authority, or
electrician, as appropriate.”
“NOTICE: The Ringer Equivalence Number (REN)
assigned to each terminal device provides an indication of
the maximum number of terminals allowed to be connected
to a telephone interface. The termination on an interface
may consist of any combination of devices subject only to
the requirement that the sum of the Ringer Equivalence
Numbers of all the devices does not exceed 5.”

REN: See bottom of the computer

“Caution : To reduce the risk of fire, use only No.26 AWG or
larger telecommunication line cord.”
“ATTENTION : Pour réduire le risque d’incendie, utiliser
uniquement des conducteurs de télécommunications 26
AWG ou de section supérieure.”

Notice for the products using LCD

This product uses one or more fluorescent lamps contain­ing a small amount of mercury. It also contains lead in
some components. Disposal of these materials may be
regulated in your community due to environmental consid­erations.
For disposal or recycling information please contact your
local authorities, or the Electronics Industries Alliance:
<http://www.eiae.org/>

For U.S.A.-California Only

This product contains a CR Coin Cell Lithium Battery
which contains Perchlorate Material - special handling
may apply. See http://www.dtsc.ca.gov/hazardouswaste/
perchlorate/

RESTRICTIONS CONCERNANT LE RACCORDEMENT
DE MATÉRIEL

“AVIS: L’étiquette d’Industrie Canada identifie le matériel
homologué. Cette étiquette certifie que le matériel est
conforme aux normes de protection, d’exploitation et de
sécurité des réseaux de télécommunications, comme le
prescrivent les documents concernant les exigences tech­niques relatives au matériel terminal. Le Ministère
n’assure toutefois pas que le matériel fonctionnera à la
satisfaction de l’utilisateur.
Avant d’installer ce matériel, l’utilisateur doit s’assurer qu’il est
permis de le raccorder aux installations de l’entreprise locale
de télécommunication. Le matériel doit également être installé
en suivant une méthode acceptée de raccordement.
L’abonné ne doit pas oublier qu’il est possible que la con­formité aux conditions énoncées ci-dessus n’empêche
pas la dégradation du service dans certaines situations.
Les réparations de matériel homologué doivent être coor­données par un représentant désigné par le fournisseur.
L’entreprise de télécommunications peut demander à
l’utilisateur de débrancher un appareil à la suite de répa­rations ou de modifications effectuées par l’utilisateur ou à
cause de mauvais fonctionnement.
Pour sa propre protection, l’utilisateur doit s’assurer que
tous les fils de mise à la terre de la source d’énergie élec­trique, des lignes téléphoniques et des canalisations
d’eau métalliques, s’il y en a, sont raccordés ensemble.
Cette précaution est particulièrement importante dans les
régions rurales. Avertissement: L’utilisateur ne doit pas
tenter de faire ces raccordements lui-même; il doit avoir
recours à un service d’inspection des installations élec­triques, ou à un électricien, selon le cas.”
“AVIS: L’indice d’équivalence de la sonnerie (IES) assigné
à chaque dispositif terminal indique le nombre maximal de
terminaux qui peuvent être raccordés à une interface. La
terminaison d’une interface téléphonique peut consister
en une combinaison de quelques dispositifs, à la seule
condition que la somme d’indices d’équivalence de la
sonnerie de touts les dispositifs n’excède pas 5.”

IES: Voir sous le fond de l’ordinateur

4

<Only for models with wireless LAN/Bluetooth>

Industry Canada

This product complies with RSS210 Industry Canada.
Operation is subject to the following two conditions;
(1) this device may not cause interference, and
(2) this device must accept any interference, including

interference that may cause undesired operation of
the device.

<Only for models with wireless LAN>
This product (local network devices) for the band 5150­5250 MHz is only indoor usage to reduce potential for
harmful interference to co-channel Mobile Satellite sys­tems.
High power radars are allocated as primary users (mean­ing they have priority) of 5250-5350 MHz and 5650-5850
MHz and these radars could cause interference and/or
damage to LELAN devices.

Technical Features.
The terminal equipment includes the following features;

- DTMF dialing

- Maximum bitrate receiving mode: 56 kbit/s

- Maximum bitrate sending mode: 33.6 kbit/s
This product is designed to interwork with the Public

Switched Telecommunication Networks in UK, Ireland,
Netherlands, Sweden, Denmark, Finland, Switzerland,
Luxembourg, Belgium, France, Germany, Spain, Portugal,
Iceland, Greece, Italy, Norway and Austria.

Compliance Notice - CE Mark

This equipment is in conformance with the requirements
of the European Council Directive listed below:
73/23/EEC Low Voltage Directive with amendment 93/68/
EEC
89/336/EEC EMC Directive with amendments 92/31/EEC
and 93/68/EEC
1999/5/EC R&TTE

<Only for models with wireless LAN>

RF Exposure Warning

This equipment has been approved for mobile operation,
and unless otherwise advised in separate supplemental
instructions for individual wireless transmitter(s), requires
minimum 20cm spacing be proved between antenna(s)
and all person’s body (excluding extremities of hands,
wrist and feet) during wireless modes of operation.

<Pour modèles LAN sans fil uniquement>

Mise en garde concernant l’exposition à l’énergie
radiofréquence

Cet équipement a été homologué pour un fonctionnement
sans fil et, sauf avis contraire inclus dans la notice d’utili­sation d’un autre émetteur sans fil, une distance minimale
de 20 cm doit être assurée entre l’antenne et le corps de
toute personne (à l’exclusion des mains, poignets et
pieds) pendant le fonctionnement sans fil.

Models for Europe

<Only for model with a “CE” mark on the bottom of
the computer>

Declaration of Conformity (DoC)

“Hereby, we declare that this Personal
Computer is in compliance with the
essential requirements and other rele­vant provisions of the Directive 1999/5/
EC.”

Hint:
If you want to get a copy of the original DoC of our prod-

ucts which relates to the R&TTE, please contact our web
address: http://www.doc.panasonic.de

Contact:
Panasonic Services Europe
A Division of Panasonic Marketing Europe GmbH
Panasonic Testing Centre

Network connection.
The terminal equipment is intended for connection to the
following public network;
In all the countries of European Economical Area;

- Public Switched Telephony Networks

Important Safety Instructions /
Importantes Mesures De Sécurité

When using your telephone equipment, basic safety pre­cautions should always be followed to reduce the risk of
fire, electric shock and injury to persons, including the fol­lowing:

1. Do not use this product near water, for example, near
a bath tub, wash bowl, kitchen sink or laundry tub, in a
wet basement or near a swimming pool.

2. Avoid using a telephone (other than a cordless type)
during an electrical storm. There may be a remote risk
of electric shock from lightning.

3. Do not use the telephone to report a gas leak in the
vicinity of the leak.

4. Use only the power cord and batteries indicated in this
manual. Do not dispose of batteries in a fire. They may
explode. Check with local codes for possible special
disposal instructions.

SAVE THESE INSTRUCTIONS

Certaines mesures de sécurité doivent être prises pen­dant l’utilisation de matérial téléphonique afin de réduire
les risques d’incendie, de choc électrique et de blessures.
En voici quelquesunes:

1. Ne pas utiliser l’appareil près de l’eau, p.ex., près d’une
baignoire, d’un lavabo, d’un évier de cuisine, d’un bac à
laver, dans un sous-sol humide ou près d’une piscine.

2. Éviter d’utiliser le téléphone (sauf s’il s’agit d’un appareil
sans fil) pendant un orage électrique. Ceci peut présenter
un risque de choc électrique causé par la foudre.

3. Ne pas utiliser l’appareil téléphonique pour signaler
une fuite de gaz s’il est situé près de la fuite.

4. Utiliser seulement le cordon d’alimentation et le type de
piles indiqués dans ce manual. Ne pas jeter les piles
dans le feu: elles peuvent exploser. Se conformer aux
règlements pertinents quant à l’élimination des piles.

CONSERVER CES INSTRUCTIONS

Getting StartedUseful InformationTroubleshootingAppendix

5

Read Me First

Information to the User

<Only for model with wireless LAN and/or Bluetooth>

This product and your Health

This product, like other radio devices, emits radio fre­quency electromagnetic energy. The level of energy emit­ted by this product however is far much less than the
electromagnetic energy emitted by wireless devices like
for example mobile phones.
Because this product operates within the guidelines found in
radio frequency safety standards and recommendations, we
believe this product is safe for use by consumers. These
standards and recommendations reflect the consensus of
the scientific community and result from deliberations of
panels and committees of scientists who continually review
and interpret the extensive research literature.
In some situations or environments, the use of this prod­uct may be restricted by the proprietor of the building or
responsible representatives of the organization. These sit­uations may for example include:

Getting StartedUseful InformationTroubleshootingAppendix

Lithium Battery / Pile au lithium

Lithium Battery!

This computer contains a lithium battery to enable the
date, time, and other data to be stored. The battery should
only be exchanged by authorized service personnel.
Warning!
A risk of explosion from incorrect installation or misappli­cation may possibly occur.

z Using this product on board of airplanes, or
z In any other environment where the risk of interference

to other devices or services is perceived or identified
as harmful.

If you are uncertain of the policy that applies on the use of
wireless devices in a specific organization or environment
(e.g. airports), you are encouraged to ask for authoriza­tion to use this product prior to turning on the product.

Regulatory Information

We are not responsible for any radio or television interfer­ence caused by unauthorized modification of this product.
The correction of interference caused by such unautho­rized modification will be the responsibility of the user. We
and its authorized resellers or distributors are not liable for
damage or violation of government regulations that may
arise from failing to comply with these guidelines.

Pile au lithium!

Le micro-ordinateur renferme une pile au lithium qui per­met de sauvegarder certaines données, notamment la
date et l’heure. La pile ne doit être remplacée que par un
technicien qualifié.
Danger ! Risque d’explosion en cas de non respect de
cette mise en garde!

CD/DVD Drive Caution

CAUTION!

THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.

AVERTISSEMENT!

CET APPAREIL UTILISE UN LASER.
L’UTILISATION DE COMMANDES OU DE RÉGLAGES OU
L’EXÉCUTION DE PROCÉDURES AUTRES QUE CELLES
SPÉCIFIÉES ICI PEUVENT PROVOQUER UNE EXPOSITION À
DES RADIATIONS DANGEREUSES.
NE PAS OUVRIR LES COUVERCLES NI ESSAYER DE
RÉPARER SOIMÊME.
CONFIER TOUT TRAVAIL D’ENTRETIEN À UN PERSONNEL
QUALIFIÉ.

Laser safety information is appropriate only when drive
with laser is installed.

Les mesures de sécurité relatives au laser ne s’appliquent
que lors de l’installation d’une unité avec laser.

Bottom

Information on Disposal for Users of Waste Electrical & Electronic Equipment
(private households)

This symbol on the products and/or accompanying
documents means that used electrical and elec­tronic products should not be mixed with general
household waste.
Please dispose of this item only in designated
national waste electronic collection schemes, and
not in the ordinary dust bin.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please
contact your dealer or supplier for further information.

Information on Disposal in other Countries outside
the European Union

This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local
authorities or dealer and ask for the correct method of disposal.

6

Precautions

THIS PRODUCT IS NOT INTENDED FOR USE AS, OR
AS PART OF, NUCLEAR EQUIPMENT/SYSTEMS, AIR
TRAFFIC CONTROL EQUIPMENT/SYSTEMS, OR AIR-

CRAFT COCKPIT EQUIPMENT/SYSTEMS
SONIC WILL NOT BE RESPONSIBLE FOR ANY
LIABILITY RESULTING FROM THE USE OF THIS
PRODUCT ARISING OUT OF THE FOREGOING USES.

*1

AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include Class2
Electrical Flight Bag (EFB) Systems and Class1 EFB Systems
when used during critical phases of flight (e.g., during take-off and
landing) and/or mounted on to the aircraft. Class1 EFB Systems
and 2 EFB Systems are defined by FAA: AC (Advisory Circular)
120-76A or JAA: JAA TGL (Temporary Guidance Leaflets) No.36.

Panasonic cannot guarantee any specifications, tech­nologies, reliability, safety (e.g. Flammability/Smoke/
Toxicity/Radio Frequency Emission, etc) requirements
related to aviation standards that exceed the specifica­tions of our COTS (Commercial-Off-The-Shelf) products.

This computer is not intended for use in medical equip­ment including life-support systems, air traffic control sys­tems, or other equipment, devices or systems that are
involved with ensuring human life or safety. Panasonic
cannot be held responsible in any way for any damages
or loss resulting from the use of this computer in these
types of equipment, devices or systems, etc.
This computer has been designed so as to minimize
shock to the LCD and hard disk drive, the leakage of liq­uid (e.g., water) on to the keyboard, etc., but no warranty
is provided against such trouble. Therefore, as a precision
instrument, be extremely careful in the handling.

If a Malfunction Occurs, Immediately Unplug the AC Cord
and the Battery Pack

• Computer is damaged

• Foreign object inside computer

• Smoke emitted

• Unusual smell emitted

• Unusually hot
Continuing to use the computer while any of the above
conditions are present may result in fire or electric shock.

• If a malfunction occurs, immediately turn the power off and
unplug the AC cord, and then remove the battery pack.

Do Not Touch the Computer and Cable When It Starts Thundering

Electric shock may result.

Do Not Connect the AC Adaptor to a Power Source Other
Than a Standard Household AC Outlet

Otherwise, a fire due to overheating may result. Connect­ing to a DC/AC converter (inverter) may damage the AC
adaptor. On an airplane, only connect the AC adaptor/
charger to an AC outlet specifically approved for such use.

Do Not Do Anything That May Damage the AC Cord, the DC
Plug, or the AC Adaptor

Do not damage or modify the cord, place it near hot tools,
bend, twist, or pull it forcefully, place heavy objects on it,
or bundle it tightly.
Continuing to use a damaged cord may result in fire, short
circuit, or electric shock.

Do Not Pull or Insert the DC Plug If Your Hands Are Wet

Electric shock may result.

Clean the DC Plug of Dust and Other Debris Regularly

If dust or other debris accumulates on the plug, humidity, etc.
may cause a defect in the insulation, which may result in a fire.

• Pull the plug, and wipe it with a dry cloth.
Pull the plug if the computer is not being used for a long
period of time.

Insert the AC Plug Completely

If the plug is not inserted completely, fire due to overheat­ing or electric shock may result.

• Do not use a damaged plug or loose AC outlet.

*

1

. PANA-

Do Not Place Containers of Liquid or Metal Objects on Top
of the Computer

If water or other liquid spills, or if paper clips, coins, or for­eign matter get inside the computer, fire or electric shock
may result.

• If foreign matter has found its way inside, immediately
turn the power off and unplug the AC cord, and then
remove the battery pack. Then contact your technical
support office.

Do Not Disassemble the Computer

There are high-voltage areas inside which may give you
an electric shock if you should touch them. Do not touch
the pins and circuit boards inside, and do not allow foreign
matter to enter inside.
Also, remodeling or disassembly may cause a fire.

Keep SD Memory Cards Away from Infants and Small Chil­dren

Accidental swallowing will result in bodily injury.
In the event of accidental swallowing, see a doctor immediately.

Do Not Place the Computer on Unstable Surfaces

If balance is lost, the computer may fall over or drop,
resulting in an injury.

Avoid Stacking

If balance is lost, the computer may fall over or drop,
resulting in an injury.

Do Not Keep the Computer Wherever There is a Lot of
Water, Moisture, Steam, Dust, Oily Vapors, etc.

Otherwise, possibly resulting in fire or electric shock.

Do Not Leave the Computer in High Temperature Environ­ment Such as in a Sun-Heated Car, for a Long Period of Time

Leaving the computer where it will be exposed to extremely
high temperatures such as in a sun-heated car or in direct
sunlight may deform the cabinet and/or cause trouble in the
internal parts. Continued use in such a resulting condition
may lead to short-circuiting or insulation defects, etc. which
may in turn lead to a fire or electric shocks.

Do Not Block the Ventilation Hole

Otherwise, heat will build up inside, possibly resulting in a fire.

Hold the Plug When Unplugging the AC Cord

Pulling on the cord may damage the cord, resulting in a
fire or electric shock.

Do Not Move the Computer While the DC Plug Is Connected

The AC cord may be damaged, resulting in fire or electric shock.

• If the AC cord is damaged, unplug the DC plug immediately.

Use Only the Specified AC Adaptor With Your Computer

Using an AC adaptor other than the one supplied
(attached to your computer or supplied by Panasonic)
may result in a fire.

Do Not Subject the AC Adaptor to Any Strong Impact

Using the AC adaptor after a strong impact such as being
dropped may result in electric shock, short circuit, or fire.

Take a Break of 10-15 Minutes Every Hour

Using the computer for long periods of time may have det­rimental health effects on the eyes or hands.

Do Not Look into the CD/DVD Drive

Looking directly at the internal laser light source may
result in damage to eyesight.

Do Not Use Disks That Are Cracked or Deformed

Because the disks rotate at high speeds, damaged disks
may break apart causing injury.

• Disks that are not round and disks that have been
repaired using adhesives are similarly dangerous, and
so should not be used.

Do Not Turn the Volume Up to Loud When Using Head­phones

Listening at high volumes that overstimulate the ear for
long periods of time may result in loss of hearing.

Getting StartedUseful InformationTroubleshootingAppendix

7

Read Me First

Use the Modem with a Regular Telephone Line

Connection to an internal phone line (on-premise switches) of a
company or business office, etc. or to a digital public phone or
use in a country or area not supported by the computer may
result in a fire or electric shocks.

Do Not Connect a Telephone Line, or a Network Cable Other
Than the One Specified, into the LAN Port

If the LAN port is connected to a network such as the ones listed
below, a fire or electric shock may result.

• Networks other than 100BASE-TX or 10BASE-T

• Phone lines (Telephone lines, internal phone lines (on-premise
switches), digital public phones, etc.)

Precautions (Battery Pack)

Do Not Use with Any Other Computer

The battery pack is rechargeable and was intended for
the specified computer or charger. If it is used with a com­puter other than the one for which it was designed, elec­trolyte leakage, generation of heat, ignition or rupture may
result.

Do Not Charge the Battery Using the Methods Other

Getting StartedUseful InformationTroubleshootingAppendix

Than Indicated in This Manual

If the battery pack is not charged using one of the meth­ods indicated in this manual, electrolyte leakage, genera­tion of heat, ignition or rupture may result.

Do Not Throw the Battery Pack into a Fire or Expose It
to Excessive Heat

Generation of heat, ignition or rupture may result.

Avoid Extreme Heat (Near the Fire, in Direct Sunlight,
for Example)

Electrolyte leakage, generation of heat, ignition or rupture
may result.

Do Not Insert Sharp Objects into the Battery Pack,
Expose It to Bumps or Shocks, Disassemble, or Mod­ify It

Electrolyte leakage, generation of heat, ignition or rupture
may result.

Do Not Short the Positive (+) and Negative (-) Con­tacts

Generation of heat, ignition or rupture may result. Do not
place the battery pack together with articles such as neck­laces or hairpins when carrying or storing.

Do Not Use This Computer with a Battery Pack Other
Than the One Specified

Use only the specified battery pack (CF-VZSU43AU) with
your CF-74. Use of battery packs other than those manu­factured and supplied by Panasonic may present a safety
hazard (generation of heat, ignition or rupture).

z Do not touch the terminals on the battery pack. The

battery pack may no longer function properly if the
contacts are dirty or damaged.

z Do not expose the battery pack to water, or allow it to

become wet.

z If the battery pack will not be used for a long period of

time (a month or more), charge or discharge (use) the
battery pack until the remaining battery level becomes
30% to 40% and store it in a cool, dry place.

Do Not Use with Exposing the Skin to the Computer for a
Long Period of Time

Using the computer with exposing the skin to the heat source of
the computer or AC adaptor for a long period of time can cause
a low-temperature burn.

z Do not place the computer near a television or radio

receiver.

z Keep the computer away from magnets. Data stored

on the hard disk may be lost.

z This computer prevents overcharging of the battery by

recharging only when the remaining power is less than
approx. 95% of capacity.

z The battery pack is not charged when the computer is

first purchased. Be sure to charge it before using it for
the first time. When the AC adaptor is connected to the
computer, charging begins automatically.

z Should the battery leak and the fluid get into your

eyes, do not rub your eyes. Immediately flush your
eyes with clear water and see a doctor for medical
treatment as soon as possible.

NOTE

z The battery pack may become warm during recharging

or normal use. This is completely normal.

z Recharging will not commence if internal temperature

of the battery pack is outside of the allowable tempera­ture range (0 °C to 50 °C {32°F to 122°F}) (Î Ref-

erence Manual “Battery Power”). Once the allowable
range requirement is satisfied, charging begins auto­matically. Note that the recharging time varies based
on the usage conditions. (Recharging takes longer
than usual when the temperature is 10 °C {50°F} or
below.)

z If the temperature is low, the operating time is short-

ened. Only use the computer within the allowable tem­perature range.

z This computer has a high temperature mode function

that prevents the degradation of the battery in high
temperature environments. (Î Reference Manual
“Battery Power”) A level corresponding to a 100%
charge for high temperature mode is approximately
equivalent to an 80% charge level for normal tempera­ture mode.

z The battery pack is a consumable item. If the amount

of time the computer can be run by using a particular
battery pack becomes dramatically shorter and
repeated recharging does not restore its performance,
the battery pack should be replaced with a new one.

z When transporting a spare battery inside a package,

briefcase, etc., it is recommended that it be placed in a
plastic bag so that its contacts are protected.

z Always power off the computer when it is not in use.

Leaving the computer on when the AC adaptor is not
connected will exhaust the remaining battery capacity.

8

Description of Parts

A

B
C

D

E

F

G

H

J
K

L

I

A

M

N

I

O
P

Getting StartedUseful InformationTroubleshootingAppendix

Q

A :Speaker

Î Reference Manual “Key Combinations”

B :USB port

Î Reference Manual “USB Devices”

C :Stylus holder
D :Multimedia pocket

Î Reference Manual “Multimedia Pocket”

E : Hard disk drive

Î Reference Manual “Hard Disk Drive”

F : Carrying handle
G :Wireless LAN antenna

<Only for model with wireless LAN>
Î Reference Manual “Wireless LAN”

H :LCD

Î Reference Manual “Touchscreen”

I : LED indicator

: Caps lock
: Numeric key (NumLk)
: Scroll lock (ScrLk)
: Multimedia pocket device status or the second

battery status

Î Reference Manual “Multimedia Pocket”

“Battery Power”

: Hard disk drive status

: Power status

(Off: Power off/Hibernation, Green: Power on, Blink­ing green: Standby, Blinking green rapidly: Cannot
power on or resume due to low temperature.)

: Battery status

Î Reference Manual “Battery Power”

J : Power button
K :Function key

Î Reference Manual “Key Combinations”

L : Bluetooth antenna

<Only for model with Bluetooth>
Î Reference Manual “Bluetooth”

M :Keyboard
N :Touch pad
O :Microphone jack

You can use a stereo condenser microphone. Con­necting other type of microphone may interrupt audio
input or may cause a malfunction.

P :Headphone jack

You can connect headphones or amplified speakers.
When they are connected, audio from the internal
speakers is not heard.

Q :Wireless switch

Î Reference Manual “Wireless LAN” “Bluetooth”

“Wireless Switch Utility”

CAUTION

z Do not put a metallic object or magnetic media close to the speakers.

9

Description of Parts

Right side

EX PC

Rear side

Getting Started

A :ExpressCard slot

Î Reference Manual “PC Card / ExpressCard”

B :PC Card slot

Î Reference Manual “PC Card / ExpressCard”

C :Smart Card slot

<Only for model with Smart Card slot>
Î Reference Manual “Smart Card”

D :USB port

Î Reference Manual “USB Devices”

E : SD Memory Card slot

Î Reference Manual “SD Memory Card”

F : Expansion bus connector

Î Reference Manual “Mini Port Replicator”

G :SD Memory Card indicator

(Blinking: During access or a password is requested)
Î

H :Ventilation hole
I : Stylus holder
J : DC-IN jack

Reference Manual “SD Memory Card”

Bottom

K :LAN port

Î Reference Manual “LAN”

L : Modem port

Î Reference Manual “Modem”

M :Serial port
N :External display port

Î Reference Manual “External Display”

O :Security lock

A Kensington cable can be connected.
For further information, read the manual that comes
with the cable.

P :Battery pack
Q :Battery latch
R :Multimedia pocket release button

Î Reference Manual “Multimedia Pocket”

S :Hard disk drive latch

Î Reference Manual “Hard Disk Drive”

T : RAM module slot

Î Reference Manual “RAM Module”

CAUTION

z Do not block the ventilation hole with a thick cloth etc. Select a position with good ventilation.

A lithium ion battery that is recyclable powers the product you have purchased.
Please call 1-800-8-BATTERY for information on how to recycle this battery.

L’appareil que vous vous êtes procuré est alimenté par une batterie au lithium-ion.
Pour des renseignements sur le recyclage de la batterie, veuillez composer le
1-800-8-BATTERY.

10

First-time Operation

 Preparation

A Check and identify the supplied accessories.

If you do not find the described accessories, contact Panasonic Technical Support (Î page 30).

• AC Adaptor . . . .1

• AC Cord . . . . . . 1 • Battery Pack . . .1

• Modem Telephone

Cable . . . . . . . . . 1

Model No: CF-AA1683A

• Soft Cloth . . . . . 1 • Stylus . . . . . . . . 1

(Î Reference Manual “Touchscreen”)

z You will need the serial number when you reinstall B’s Recorder/B’s CLiP using Product Recovery DVD-ROM

(Î page 25).

B Read the LIMITED USE LICENSE AGREEMENT before breaking the seal on the computer’s packaging

(Î page 26).

1

2

A

1

3

1

B

2

C

1 Insert the battery pack.

A Slide the right latch (A) to the unlocked position ( ).
B Insert the battery pack in the correct direction until it securely fits the connec-

tor.

C Slide the right latch (A) to the locked position ( ).

 To remove the battery pack

A Slide the right latch (B) to the unlocked position ( ).
B Slide and hold the left latch (C) to the unlocked position ( ), and hold the

center of the battery pack and push out in parallel with the bottom surface of
the computer.

CAUTION

z Make sure the latch is securely locked. Otherwise the battery pack may fall when

you carry the computer.

z Do not touch the terminals of the battery pack and the computer. Doing so can

make the terminals dirty or damaged, and may cause malfunction of the battery
pack and the computer.

Model No: CF-VZSU43A

• Operating Instructions (This book) . . 1

• Product Recovery DVD-ROM . . . . . . 1

®

•Windows

Book . . . . . . . . . . . . . . . . . 1

Getting StartedUseful InformationTroubleshootingAppendix

2

2 Connect your computer to a power outlet.

The battery charging starts automatically.

CAUTION

z Do not disconnect the AC adaptor and do not switch the wireless switch to on

until the first-time operation procedure is completed.

z When using the computer for the first time, do not connect any peripheral device

except the battery pack and AC adaptor.

z Handling the AC adaptor

• Do not twist or pull the AC power cord forcefully. Doing so may damage the
connections.

• Use only the specified AC adaptor with your computer. Using an AC adaptor
other than the one supplied might damage the battery and/or the computer.

• When the DC plug is not connected to the computer, disconnect the AC cord
from your AC wall outlet.

• Problems such as sudden voltage drops may arise during periods of thunder
and lightning. Since this could adversely affect your computer, an uninterrupt­ible power source (UPS) is highly recommended unless running from the bat­tery pack alone.

11

First-time Operation

3

2

1

3

Getting Started

3 Turn on the computer.

A Pull the carrying handle forward.
B Lift up the latch (A) and lift open the display.

A

C Press and hold the power button for approximately one second until the

power indicator lights.

CAUTION

z Do not press the power button repeatedly.
z The computer will forcibly be turned off if you press and hold the power button for

four seconds or longer.

z Once you turn off the computer, wait for ten seconds or more before you turn on

the computer again.

z

Do not perform the following operation until the hard disk drive indicator turns off.

• Connecting or disconnecting the AC adaptor

• Pressing the power button

• Touching the keyboard, touch pad, touchscreen (only for model with touch­screen) or external mouse

• Closing the display

z When the CPU temperature is high, the computer may not start up to prevent

overheating of the CPU. Wait until the computer cools down, and then turn the
power on again. If the computer does not power on even after cooling down,
contact Panasonic Technical Support (Î page 30).

4 Setup Windows.

A Follow the on-screen instructions.

CAUTION

z When you set date/time/time zone and click [Next], the screen may not go to the

next step for a few minutes. Do not touch the keyboard or touch pad, and wait
until the screen changes.

z If “An unexpected error has occurred…” (or a similar message) is displayed,

select [OK]. This is not a malfunction.

z Wait until the hard disk drive indicator has turned off.

5 Create a new account.

A Click [start] - [Control Panel] - [User Accounts] - [Create a new account].

CAUTION

z

Remember your password. If you forget the password, you cannot use the Windows
operation system. Creating a password reset disk beforehand is recommended.

6 Perform the touchscreen calibration.

A Click [start] - [All programs] - [Fujitsu Touch Panel (USB)] - [Touch Screen

Calibration Utility].

B Using the stylus, touch each of the 12 “+” target marks one by one until it

blinks, and then click [Calibration].

C Click [Save & Exit].

NOTE

z Regarding Windows XP

You can select the Classic view of Control Panel or the Classic Start menu. You can also change the way a user logs
on or off. This manual explains using the Windows XP default setting (not Classic view or Classic Start menu etc.).

z Windows Update

You can update to the latest patches and service packs for Windows with the following menus.
[start] - [All Programs] - [Windows Update]

Do not apply “Driver Updates” even if a message to update a driver appears. If a driver update is required,
contact Panasonic Technical Support (Î page 30).

z If the message “Your computer might be at risk” is displayed

Select (red icon) on the taskbar and make the appropriate settings. The Windows Security Center regularly
gives you notice so that you can make the optimum settings. This is not an error message and you can use the com-

puter. However, making appropriate measures is recommended to reduce the risk of virus and other attacks.

z Note that the computer consumes electricity even when the computer power is off.

If the battery pack is fully charged, the battery will fully discharge in Approx. 3 weeks.

12

On-screen Manual

You can access the Reference Manual and the Important Tips on the computer screen.
When you access the Reference Manual and the Important Tips for the first time, the License Agreement of the Adobe
Reader may be displayed. Read it carefully and select [Accept] to proceed.

 Reference Manual

The Reference Manual contains the practical information to help you fully enjoy the computer’s performance.

To access the Reference Manual:

A Click [start] - [Reference Manual].

Contents

z Key Combinations
z Touchscreen
z Standby/Hibernation Functions
z Security Measures
z Battery Power
z Multimedia Pocket
z DVD-ROM & CD-R/RW Drive
z WinDVD
z B’s Recorder/B’s CLiP
z PC Card / ExpressCard

z SD Memory Card
z SD Security
z Smart Card
z RAM Module
z Mini Port Replicator
z External Display
z USB Devices
z Modem
z LAN

z Wireless Switch Utility
z Wireless LAN
z Bluetooth
z Hard Disk Drive
z Setup Utility
z Icon Enlarger
z Loupe Utility
z DMI Viewer
z Technical Information
z Troubleshooting (Advanced)

Getting StartedUseful InformationTroubleshootingAppendix

 Important Tips

The Important Tips will provide you with the helpful information about the battery and touchscreen. Read to use the bat­tery pack in the optimum condition to obtain longer operation time.

To access the Important Tips:

A Double-click on the desktop.

z Alternatively click [start] - [All Programs] - [Panasonic] - [On-Line Manuals] - [Important Tips].

13

Handling and Maintenance

Operation Environment

z Place the computer on a flat stable surface. Do not place the computer upright or turn it over. If the computer is

exposed to an extremely strong impact, it may become inoperable.

z Temperature: Operation: 5 °C to 35 °C {41 °F to 95 °F}

Storage: -20°C to 60 °C {- 4 °F to 140 °F}

Humidity: Operation: 30% to 80% RH (No condensation)

Storage: 30% to 90% RH (No condensation)
Even within the above temperature/humidity ranges, using for a long time in an extreme environment will result in
the product deterioration and will shorten the product life.

z Do not place the computer in the following areas, otherwise the computer may be damaged.

• Near electronic equipment. Image distortion or noise may occur.

• In extremely high or low temperature.

z As the computer can become hot during operation, keep it away from items that are sensitive to heat.

Handling Cautions

This computer is designed to minimize shock to parts such as the LCD and the hard disk drive and equipped with a drip­proof keyboard, but no warranty is provided against any trouble caused by shock. Be extremely careful when handling
the computer.
z When carrying the computer:

Getting StartedUseful InformationTroubleshootingAppendix

• Turn off the computer.

• Remove all external devices, cables, cards and other protruding things.

• Remove a disc in the CD/DVD drive.

• Do not drop or hit the computer against solid objects.

• Do not leave the display open.

• Do not grip the display part.

z Do not put anything (e.g., a piece of paper) between the display and keyboard.
z When you board an airplane, take the computer with you and never put it in your checked luggage. When using the

computer on airplane, follow the airline’s instructions.

z When carrying a spare battery, put it in a plastic bag to protect its terminals.
z The touch pad is designed to be used with a finger tip. Do not place any object on its surface and do not press down

strongly with sharp-pointed or hard objects that may leave marks (e.g., nails, pencils and ball point pens).

z Avoid any harmful substances such as oil from getting into the touch pad. The cursor may not work correctly.
<Only for model with touchscreen>
z Use only the included stylus to touch the touchscreen. Do not place any object on its surface and do not press down

strongly with sharp-pointed or hard objects that may leave marks (e.g., nails, pencils and ball point pens).

z Do not use the stylus when dust or dirt (e.g., oil) is on the screen. Otherwise foreign particles on the screen/stylus

can scratch the screen surface or obstruct the stylus operation.

z Use the stylus only for touching the screen. Using it for any other purpose may damage the stylus and result in

scratches on the screen.

 When using peripheral devices

Follow these instructions and the Reference Manual to avoid any damage to the devices. Carefully read the instruction
manuals of the peripheral devices.

z Use the peripheral devices conforming to the computer’s specifications.
z Connect to the connectors in the correct direction.
z If it is hard to insert, do not try forcibly but check the connector’s shape, direction, alignment of pins, etc.
z If screws are included, fasten them securely.
z Remove the cables when you carry the computer. Do not pull the cables forcibly.

 Preventing your computer from unauthorized use via wireless LAN

<Only for model with wireless LAN>
z Before using wireless LAN, make the appropriate security settings such as data encryption.

14

Maintenance

To clean the LCD panel

Use the soft cloth included with the computer. (For further information, refer to “Suggestions About Cleaning the LCD
Surface” that comes with the soft cloth.)

To clean areas other than the LCD panel

Wipe with a soft dry cloth such as gauze. When using detergent, dip a soft cloth in water-diluted detergent and wring it
thoroughly.

CAUTION

z Do not use benzene, thinner, or rubbing alcohol since it may adversely affect the surface causing discoloration, etc.

Do not use commercially-available household cleaners and cosmetics, as they may contain components harmful to
the surface.

z Do not apply water or detergent directly to the computer, since liquid may enter inside of the computer and cause

malfunction or damage.

Getting StartedUseful InformationTroubleshootingAppendix

15

Hard Disk Backup Function

The hard disk backup function creates a backup area (storage area) on the hard disk. This area is to back up (store) the
hard disk data or to restore the backup data to their original locations.
Using this function, you can protect your data when it is lost or corrupted by operational errors or other factors. You do
not need other media or peripheral devices to back up or restore hard disk data on this computer.
At purchase, the hard disk backup function is disabled. If you create a backup area, the hard disk backup function will
be enabled and you can back up your data.

The hard disk backup function cannot back up or restore data correctly if a hard disk problem occurs during data
backup or restoring. If an error occurs due to an unexpected malfunction, incorrect operation, or other reason while
data is being restored, the hard disk data (data before restoration) may be lost.
Matsushita Electric Industrial Co., Ltd. will bear no responsibility for any damages suffered by the user (including loss
of data) as a result of the use of this function.

CAUTION

z To disable the backup function after it is enabled, you have to perform the reinstallation procedure (Î page 20).
z A backup area cannot be created if the hard disk is already divided into several partitions. Return the computer to

one partition, and create the backup area.

z If the partition configuration is changed after the backup area is created (creating partitions, changing size, etc.), the

backup function will be disabled. You need to return the computer to the original condition and create the backup
area again.

Getting StartedUseful InformationTroubleshootingAppendix

z Do not use the NTFS file system compression function. It may result in insufficient capacity of the backup area.
z The hard disk backup function does not accommodate dynamic disks. Do not convert the hard disk to a dynamic

disk.

NOTE

z The backup area requires at least half of the entire hard disk capacity. If the capacity is not sufficient, the backup

area will not be created.

z When the backup area is created, the usable hard disk capacity will be less than half of the original capacity.
z The backup area cannot be accessed from Windows. The backup data cannot be copied to CD-R or other remov-

able disk media.

z When the hard disk backup function is executed, data in the backup area will be overwritten and the data previously

stored will be lost.

Creating the Backup Area

Preparation

z Prepare the following items:

• The Product Recovery DVD-ROM (included)

• Panasonic CD/DVD drive (included)

z Remove all peripherals (except for the CD/DVD drive).
z Connect the AC adaptor and do not remove it until hard disk backup is complete.

1 Turn off the computer and insert the CD/DVD drive into the multimedia pocket

(Î Reference Manual “Multimedia Pocket”).

2 Turn on the computer, and press F2 several times while [Panasonic] boot screen is dis-

played.

The Setup Utility starts up.
z If the password is requested, enter the Supervisor Password.

3 Select the [Boot] menu and select [IDE MP], and then press F6 until [IDE MP] moves up

to the top of the boot priority order.
4 Select the [Security] menu and set [CD/DVD Operation] to [Enable].
5 Set the Product Recovery DVD-ROM into the CD/DVD drive.

16

6 Press

At the confirmation message, select [Yes] and press

The computer restarts.

z If [Enter Password] is displayed during the following procedures, input the Supervisor Password or the User

F10

Password.

.

Enter

.

7 Press 3 to execute [3. [Backup]].

At the confirmation message, press Y.

CAUTION

z When you divide the hard disk into partitions:

Do not execute [1. [Recovery]] to divide the hard disk into partitions. The hard disk backup function cannot be
enabled after the hard disk has been partitioned. Use step 8 to divide the hard disk.

8 Select the setting.

z To create a backup area and enable the backup function without dividing the hard disk

Select [1].

z To create a backup area and divide hard disk into two partitions, for OS and data

Select [2]. Enter the size of operating system partition and press

0

• To cancel: press
(The size of data partition will be determined by subtracting the operating system partition size from the
maximum size.)

.

Enter

.

9 At the confirmation message, press Y.

The backup area is then created.

Getting StartedUseful InformationTroubleshootingAppendix

10 When the message [You must reboot in order to enable the Backup function.] appears,

remove the Product Recovery DVD-ROM, and press any key to restart the computer.

The computer restarts, then the backup process will begin.

11 When the message [[Backup] is complete] appears, press

Ctrl

+

Alt

+

Del

to restart the

computer.

z Do not press
z After logging on to Windows, a message will appear indicating that a new device has been installed and that

the computer must be restarted to enable the settings.

Ctrl

+

Alt

+

Del

before the message is displayed.

12 Select [Yes] to restart the computer.

NOTE

z The [Boot] menu in the Setup Utility is now set to start up from the CD/DVD drive. Change it if necessary.
z To perform the backup/restore function next time; “Creating/Restoring the Backup Data” (Î below).
z The backup area cannot be accessed from windows.

Creating/Restoring the Backup Data

CAUTION

z Before executing the backup function, execute a disk error check.
z Do not interrupt the backup or restore functions. Do not turn off the power and do not press Ctrl

Windows cannot start up, or the data may be lost and the backup and restore functions may not be completed.

+ Alt + Del, otherwise

1 Turn on the computer, and press F2 several times while [Panasonic] boot screen is dis-

played.

The Setup Utility starts up.
z If the password is requested, enter the Supervisor Password or the User Password.

2 Select the [Exit] menu and select [Hard Disk Backup / Restore], and then press

At the confirmation message, select [Yes] and press

Enter

.

Enter

.

17

Hard Disk Backup Function

3 Select the setting.

z To back up hard disk contents to the backup area

1

A Press

• If the hard disk is divided into two partitions, select the backup method at the next screen.

B At the confirmation message, press

• The backup process starts.

z To restore backed up contents to the hard disk

A Press

• When data is backed up in two partitions, select the restore method at the next screen.

B At the confirmation message, press

• The restore process starts.

NOTE

z The required time to complete the backup or restore process depends on the data volume.

4 When the message [[Backup] is complete] or [[Restore] is complete] is displayed, press

Ctrl

z If the backup or restore process was interrupted before completion, execute the process again.
z After logging on to Windows, a message will appear indicating that a new device has been installed and that

Getting StartedUseful InformationTroubleshootingAppendix

CAUTION

z When the hard disk backup function has been enabled, you cannot erase the backup data even when you erase all

the computer must be restarted to enable the settings. Select [Yes] to restart the computer.

data from user accessible area by using a commercial data erasing utility or similar software. To erase all data on the
hard disk including backed up data, use the hard disk data erase utility included in this computer (Î page 19). Erase
the data using the hard disk data erase utility before disposing of or transferring ownership of this computer.

to execute [1. [Backup]].

2

to execute [2. [Restore]].

+

Alt

+

Del

to restart the computer.

Y

.

Y

.

 To disable the hard disk backup function

Perform the reinstallation procedure.

CAUTION

z All data in the backup area and hard disk will be erased.

A Perform steps 1-9 for “Reinstalling Software” (Î page 20).
B Select [1] or [2] to execute the reinstallation at the screen for executing the reinstallation.

• [1]: The hard disk backup function is disabled.

• [2]: The hard disk backup function is disabled. However the hard disk backup function cannot be reenabled

because the hard disk has been divided into partitions.

• [3]: The hard disk backup function is not disabled.

18

Hard Disk Data Erase Utility

When disposing the computer or transferring the ownership, erase all hard disk data in order to avoid data leakage.
Even if you erase the data or initialize the hard disk using normal Windows commands, the data can be read with some
special software. Use the hard disk data erase utility to erase the data completely.
Note that transferring of the ownership without uninstalling the commercial software will be a violation of the software’s
license agreement.

The hard disk data erase utility erases the data using overwriting method. If a malfunction or other operational error
occurs during the erasing process, the data may not be completely erased. Also there may be special devices to read
the erased data. To erase highly confidential data, ask a specialized company. Matsushita Electric Industrial Co., Ltd.
will bear no responsibility for losses or damages suffered as a result of the use of this utility.

CAUTION

z The backup area and the backup data will be erased.

NOTE

z Even if hard disk data erase is performed, the number of times of DVD’s region code setting will not be reset.

Preparation

z Prepare the following items:

• The Product Recovery DVD-ROM (included)

• Panasonic CD/DVD drive (included)

z Remove all peripherals (except for the CD/DVD drive).
z Connect the AC adaptor and do not remove it until hard disk data erase is complete.

Getting StartedUseful InformationTroubleshootingAppendix

1 Turn off the computer and insert the CD/DVD drive into the multimedia pocket

(Î Reference Manual “Multimedia Pocket”).

2 Turn on the computer, and press F2 several times while [Panasonic] boot screen is dis-

played.

The Setup Utility starts up.
z If the password is requested, enter the Supervisor Password.

3 Select the [Boot] menu, then select [IDE MP] and press F6 until [IDE MP] is at the top of

the boot priority order.
4 Select the [Security] menu and set [CD/DVD Operation] to [Enable].
5 Set the Product Recovery DVD-ROM into the CD/DVD drive.
6 Press

At the confirmation message, select [Yes] and press

The computer restarts.

z When the hard disk backup function has been enabled, the confirmation message appears to inform that the

F10

.

Enter

backup function will be disabled, and the backup area and data will be erased. Press

.

Y

to proceed.

7 Press 2 to execute [2. [Erase HDD]].

z To cancel this operation, press 0.

z When the hard disk backup function has been enabled, the confirmation message appears to inform that the

Y

backup function will be disabled, and the backup area and data will be erased. Press

R

reboot message appears, press

to proceed.

to proceed. If the

8 At the confirmation message, press Y.
9 When [<<< Start Menu >>>] is displayed, press

The approximate time required for erasing data will be displayed.

10 Press

At the confirmation message, press

The hard disk erase process starts. When the operation is completed, the [Hard disk data has been deleted.]

message will appear. If a problem has occurred during the operation, an error message will appear.

z To cancel partway, press

Space

.

Enter

Ctrl

+ C. The data erasure will be up to that point.

.

Enter

.

11 Remove the Product Recovery DVD-ROM, and then press any key to turn off the com-

puter.

19

Reinstalling Software

When you reinstall the software, the hard disk data will be erased. Back up important data to other media or an exter­nal hard disk before reinstallation.
Reinstalling software will return the computer to the default condition. The hard disk backup area and the backup data
(Î page 16) will be erased. (If you reinstall Windows in the first partition, the backup area and data will not be
erased.) Even if the data is stored in partitions on the hard disk, it may be erased or corrupted.

Preparation

z Prepare the following items:

• The Product Recovery DVD-ROM (included)

• Panasonic CD/DVD drive (included)

z Remove all peripherals (except for the CD/DVD drive).

z Connect the AC adaptor and do not remove it until reinstallation is complete.

NOTE

z Even if reinstallation is performed, the number of times of DVD’s region code setting will not be reset.

1 Turn off the computer and insert the CD/DVD drive into the multimedia pocket

(Î Reference Manual “Multimedia Pocket”).
2 Turn on the computer, and press F2 several times while [Panasonic] boot screen is dis-

Getting StartedUseful InformationTroubleshootingAppendix

played.

The Setup Utility starts up.

z If the password is requested, enter the Supervisor Password.

3 Write down all of the contents of the Setup Utility and press F9.

At the confirmation message, select [Yes] and press

Enter

.

4 Select the [Boot] menu, then select [IDE MP] and press F6 until [IDE MP] is at the top of

the boot priority order.
5 Select the [Security] menu and set [CD/DVD Operation] to [Enable].
6 Set the Product Recovery DVD-ROM into the CD/DVD drive.
7 Press

At the confirmation message, select [Yes] and press

The computer will restart.

z When the hard disk backup function has been enabled, the confirmation message appears to inform that the

F10

.

Enter

backup function will be disabled, and the backup area and data will be erased. Press

.

Y

to proceed.

8 Press 1 to execute [1. [Recovery]].

The License Agreement screen appears.

z To cancel partway, press

0

.

9 Press 1 to select [1. Yes, I agree to the provisions above and wish to continue!].
10 Select the settings.

z [2]: Enter the size of operating system partition and press

You cannot create the hard disk backup area if you select [2].
(The size of data partition will be determined by subtracting the operating system partition size from the
maximum size.)

[3]: Windows will be installed in the first partition.

(The size of the first partition must be 20 GB or more. If smaller, installation will not be possible.)

z When the hard disk backup function has been enabled, the confirmation message appears to inform that the

backup function will be disabled, and the backup area and data will be erased. Press

R

reboot message appears, press
At the confirmation message, press
Reinstallation starts automatically. (It will take approximately 20 minutes.)

z Do not interrupt reinstallation, for example by turning off the computer or pressing

wise reinstallation may become unavailable as Windows may not start up or the data may be corrupted.

to proceed.

Y

.

Enter

.

Y

to proceed. If the

Ctrl

+

Alt

+

Del

. Other-

11 Remove the Product Recovery DVD-ROM, and then press any key to turn off the com-

puter.

20

12 Turn on the computer, and press F2 several times while [Panasonic] boot screen is dis-

played.

The Setup Utility starts up.
z If the password is requested, enter the Supervisor Password.

13 Press F9.

At the confirmation message, select [Yes] and then press
The Setup Utility settings excluding the password(s) will return to the default values.

Enter

.

14 Select the [Exit] menu and then select [Save Current Values], then press

At the confirmation message, select [Yes] and press

Enter

.

Enter

.

15 Turn the computer off by using the power button.

z If additional instructions are included with the computer, be sure to read them. It may be necessary to perform

additional operations during the following procedure.

16 Perform the first-time operation (Î page 11).
17 Start the Setup Utility and change the settings as necessary.

 To change the drive letter of hard disk or CD/DVD drive

NOTE

z Drive letters can be changed only when two or more partitions have been created on the hard disk drive.
z The name of the C: drive cannot be changed.
z Change the drive letters before installing applications.

A Click [start] - [Control Panel] - [Performance and Maintenance] - [Administrative Tools], and double-click [Com-

puter Management].

B Click [Disk Management] from [Storage].
C Right-click the hard disk partition or the CD/DVD drive name, and click [Change Drive Letter and Paths...].
D Click [Change...].
E Click [Assign the following drive letter] and the new drive letter, and then click [OK].

At the confirmation message, click [Yes].

Getting StartedUseful InformationTroubleshootingAppendix

21

Error Code/Message

Follow the instructions below when an error message or code appears. If the problem persists or if the error code/mes­sage is not shown here, contact Panasonic Technical Support (Î page 30).

Error Code/Message Solution
0211 Keyboard error z Disconnect external keyboard or mouse.
0251 System CMOS

checksum bad ­Default configuration
used

0271 Check date and
time settings

0280 Previous boot
incomplete - Default
configuration used

Press <F2> to Setup z Write down the error details and press

Getting StartedUseful InformationTroubleshootingAppendix

Operating System not
found

Extended RAM
Module Failed

An error has occurred in the memory of Setup Utility settings. This occurs when the memory
content is changed by an unexpected program operation, etc.
z Start the Setup Utility and return the settings to the default values, and then change the

settings as necessary.

z If the problem persists, the internal clock battery may need to be replaced. Contact

Panasonic Technical Support (Î page 30).

The date and time settings are not correct.

z Start the Setup Utility and set the correct date and time.
z If the problem persists, the internal clock battery may need to be replaced. Contact

Panasonic Technical Support (Î page 30).

Startup has failed repeatedly, so the Setup Utility settings have been returned to the default
values to startup the computer.
z Start the Setup Utility and return the settings to the default values, and then change the

settings as necessary.

F2

to start the Setup Utility. Change the settings if

necessary.

The operating system is not installed in the floppy disk or the hard disk that you are going to
boot from.

z If using a floppy disk, change the disk to the one you can use for boot.
z If using the hard disk, check if the hard disk is recognized in [Information] menu of the

Setup Utility. If the hard disk is recognized, perform the reinstallation (Î page 20). If not,
contact Panasonic Technical Support (Î page 30).

z If a device is connected to the ExpressCard slot or the USB port, disconnect the device,

or set [ExpressCard Slot], [USB Port] or [Legacy USB Support] to [Disable] in the
[Advanced] menu of the Setup Utility.

When the extended RAM module is not inserted correctly or the extended RAM module is
not conforming to the computer’s specifications, so a beep will sound and the “Extended
RAM Module Failed” message will be displayed when you turn the power on.
z Press the power button for four seconds or longer to turn off the computer, confirm that

the extended RAM module conforms to the specifications, and reinsert it.

 To start the Setup Utility

A Restart the computer.

F2

B Press

several times while [Panasonic] boot screen is displayed.

22

Troubleshooting (Basic)

Follow the instructions below when a problem has occurred. There is also an advanced troubleshooting guide in the
“Reference Manual”. For a software problem, refer to the software’s instruction manual. If the problem persists, contact
Panasonic Technical Support (Î page 30). You can also check the computer’s status in the PC Information Viewer

(Î Reference Manual “Troubleshooting (Advanced)”).

 Starting Up

Cannot start up.
The power indicator or bat­tery indicator is not lit.

The power is turned on but
“Warming up the system (up
to 30 minutes)” appears.

Cannot turn on the computer.
The computer does not
resume from standby.
(The power indicator blinks
quickly in green.)

You have forgotten the
password.

“Remove disks or other
media. Press any key to
restart” or a similar mes­sage appears.

Windows startup and opera­tion is slow.

The date and time are incor­rect.

[Executing Battery Recali­bration] screen appears.

[Enter Password] does not
appear when resuming from
standby/hibernation.

z Connect the AC adaptor.
z Insert a fully charged battery.
z Remove the battery pack and the AC adaptor, then connect them again.
z

If a device is connected to the ExpressCard slot or the USB port, disconnect the
device, or set [ExpressCard Slot], [USB Port] or [Legacy USB Support] to [Disable]
in the [Advanced] menu of the Setup Utility.

z The computer is warming up before start up. Wait for the computer to start up (takes up

to 30 minutes). If, “Cannot warm up the system” is displayed, the computer failed to
warm up and does not start. In this case, turn off the computer, leave it in an environ­ment of 5 °C {41 °F} or higher temperature for about an hour, and then turn on the power
again.

z Leave it in an environment of 5 °C {41 °F} or higher temperature for about an hour, then

turn on the power again.

z Supervisor Password or User Password: Contact Panasonic Technical Support (Î page

30).

z Administrator password:

• If you have a password reset disk, you can reset the administrator password. Set the
disk and enter any wrong password, then follow the on-screen instructions and set a
new password.

• If you do not have a password reset disk, reinstall (Î page 20) and set up Windows,
and then set a new password.

z A floppy disk is in the drive and it does not contain system startup information. Remove

the floppy disk and press any key.

z This message may appear with some devices connected to the

USB port

Support] to [Disable] in the [Advanced] menu of the Setup Utility.

z If the problem persists after removing the disk, it may be a hard disk failure. Contact

Panasonic Technical Support (Î page 30).

z Press F9 in the Setup Utility (Î page 22 “To start the Setup Utility”) to return the Setup

Utility settings (excluding the passwords) to the default values. Start the Setup Utility and
make the settings again. (Note that the processing speed depends on the application
software, so this procedure may not make Windows faster.)

z If you installed a resident software after purchase, turn off the residence.
z Disable Indexing Service in the following menu.

Click [start] - [Search] - [Change preferences] - [Without Indexing Service]

z Make the correct settings. Click [start] - [Control Panel] - [Date, Time, Language, and

Regional Options] - [Date and Time].

z If the problem persists, the internal clock battery may need to be replaced. Contact

Panasonic Technical Support (Î page 30).

z When the computer is connected to LAN, check the date and time of the server.
z The 2100 A.D. or later year will not be correctly recognized on this computer.

z The Battery Recalibration was canceled before Windows was shut down last time. To

start up Windows, turn off the computer by the power button, and then turn on.

z To display [Enter Password] at resuming, set the Windows password. The password you

have set in the Setup Utility is not requested at resuming.

. Remove the device, or set [ExpressCard Slot], [USB Port] or [Legacy USB

ExpressCard slot or the

A Click [start] - [Control Panel] - [User Accounts] and select the account, and set the

password.

B Click [start] - [Control Panel] - [Performance and Maintenance] - [Power Options] -

[Advanced] and add a check mark for [Prompt for password when computer resumes
from standby].

Getting StartedUseful InformationTroubleshootingAppendix

23

Troubleshooting (Basic)

 Starting Up

Cannot resume.

Other startup problems. z Press

z An error may occur when the computer automatically enters the standby or hibernation

mode while the screensaver is active. In this case, turn off the screensaver or change
the pattern of the screensaver.

F9

in the Setup Utility (Î page 22 “To start the Setup Utility”) to return the Setup
Utility settings (excluding the passwords) to the default values. Start the Setup Utility and
make the settings again.

z Remove all peripheral devices.
z Check to see if there was a disk error.

A Click [start] - [My Computer] and right-click [Local Disk(C:)], and click [Properties].
B Click [Tools] - [Check Now].
C Select the option in [Check disk options] and click [Start].

z Start the computer in Safe Mode and check the error details. When the [Panasonic] boot

screen disappears
Menu is displayed.

*1

When [Password on boot] is set to [Enable] in the [Security] menu of the Setup Utility,
[Enter Password] appears after the [Panasonic] boot screen disappears. As soon as you
enter the password and press

*1

at startup, press and hold F8 until the Windows Advanced Options

Enter

, press and hold F8.

 Shutting down

Getting StartedUseful InformationTroubleshootingAppendix

Windows does not shut
down.

z Remove the USB device and the ExpressCard.
z Wait one or two minutes. It is not a malfunction.

 Display

No display. z The external display is selected. Press

play has been switched completely before pressing

z When using an external display,

• Check the cable connection.

• Turn on the display.

• Check the settings of external display.

z The display is turned off by the power-saving function. To resume, do not press the direct

selection keys, but press any other key like

z The computer entered standby or hibernation by the power-saving function. To resume,

press the power button.

Fn

+ F3 to switch the display. Wait until the dis-

Fn

Ctrl

.

The screen is dark. z The screen is darker when the AC adapter is not connected. Press

the brightness. As you increase the brightness, battery consumption increases.
You can separately set the brightness for when the AC adaptor is connected and when
not connected.

The LCD brightness changes
a number of times when the

z Intel(R) Display Power Saving Technology is active and automatically changes the LCD

brightness. This is not a malfunction.

AC adaptor is disconnected.
Image colors are not repro-

duced as expected when
displaying photographs or
other images.

The screen is disordered.

z Remove the check mark of [Intel(R) Display Power Saving Technology].

A Select [start] - [Control Panel] - [Other Control Panel Options] - [Intel(R) GMA Driver

for Mobile].

B Select [Display Settings] - [Power Settings].

z Changing the number of display colors and resolution may affect the screen. Restart the

computer.

z Connecting/disconnecting an external display may affect the screen. Restart the com-

puter.

z When using Simultaneous display, set the same display colors for the external display as

those for the LCD.

z When using Simultaneous display, do not press Fn +F3.
z Enable or disable Simultaneous display, and soon restart the computer.

+ F3 again.

Fn

+ F2 and adjust

24

 Display

During Simultaneous dis­play, one of the screens
becomes disordered.

The external display does
not work normally.

z When using the Extended Desktop, use the same display colors for the external display

as those used by the LCD.

z If you continue to experience problems, try changing the display by clicking [start] - [Con-

trol Panel] - [Other Control Panel Options] - [Intel(R) GMA Driver for Mobile] - [Display
Devices]

z When the [Command Prompt] is set to “Full Screen” by pressing

ture is displayed on one of the screens only. When the window display is restored by
pressing

z Simultaneous display cannot be used until Windows startup is complete (during Setup

Utility, etc.).

z If the external display does not support the power saving function, it may not work nor-

mally when the computer enters the power saving mode. Turn off the external display.

Alt

+

Enter

, the picture is displayed on both screens.

 Touch Pad / Touchscreen (only for model with touchscreen)

The cursor does not work.

Cannot input using the
touch pad.

Cannot input using the
touchscreen.

Cannot point the correct posi-

z When using the external mouse, connect it correctly.
z Restart the computer using the keyboard.

U

(Press ,

z If the computer does not respond to keyboard commands, read “No response”

(Î below).

z Set [Touch Pad] to [Enable] in the [Main] menu of the Setup Utility.
z The drivers for some mice may disable the touch pad. Check your mouse’s operating

instructions.

z When mouse drivers are installed (i.e. IntelliMouse), the touchscreen does not work.

Reinstall the touchscreen driver.

z Perform the touchscreen calibration (Î page 12).

, and R to select [Restart].)

tion using the included stylus.

Alt

+

Enter

, the pic-

Getting StartedUseful InformationTroubleshootingAppendix

 Reference Manual

The Reference Manual is not
displayed.

z Install Adobe Reader.

A Log on to Windows as an administrator.
B Click [start] - [Run], input [c:\util\reader\AdbeRdr70_enu_full.exe], then click [OK].
C Follow the on-screen instructions.

 Reinstalling B’s Recorder/B’s CLiP

A serial number is
requested when reinstalling.

z Input the following serial number

B’s Recorder:
B’s CLiP:

 Others

No response. z Press

is not responding.

z An input screen (e.g., password input screen at startup) may be hidden behind another

window. Press

z Press the power button for four seconds or longer to shut down the computer, and then

press the power button to turn it on. If the application program does not work normally,
uninstall and reinstall the program. To uninstall, click [start] - [Control Panel] - [Add or
Remove Programs].

Ctrl+Shift+Esc

Alt+Tab

to open Task Manager and close the software application that

to check.

25

LIMITED USE LICENSE AGREEMENT

THE SOFTWARE PROGRAM(S) (“PROGRAMS”) FURNISHED WITH THIS PANASONIC® PRODUCT (“PRODUCT”)
ARE LICENSED ONLY TO THE END-USER (“YOU”), AND MAY BE USED BY YOU ONLY IN ACCORDANCE WITH
THE LICENSE TERMS DESCRIBED BELOW. YOUR USE OF THE PROGRAMS SHALL BE CONCLUSIVELY
DEEMED TO CONSTITUTE YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE.
Matsushita Electric Industrial Co., Ltd. (“MEI”) has developed or otherwise obtained the Programs and hereby licenses
their use to you. You assume sole responsibility for the selection of the Product (including the associated Programs) to
achieve your intended results, and for the installation, use and results obtained therefrom.

LICENSE

A. MEI hereby grants you a personal, non-transferable and non-exclusive right and license to use the Programs in

accordance with the terms and conditions stated in this Agreement. You acknowledge that you are receiving only a
LIMITED LICENSE TO USE the Programs and related documentation and that you shall obtain no title, ownership
nor any other rights in or to the Programs and related documentation nor in or to the algorithms, concepts, designs
and ideas represented by or incorporated in the Programs and related documentation, all of which title, ownership

and rights shall remain with MEI or its suppliers.
B. You may use the Programs only on the single Product which was accompanied by the Programs.
C. You and your employees and agents are required to protect the confidentiality of the Programs. You may not distrib-

ute or otherwise make the Programs or related documentation available to any third party, by time-sharing or other-

wise, without the prior written consent of MEI.
D. You may not copy or reproduce, or permit to be copied or reproduced, the Programs or related documentation for

Getting StartedUseful InformationTroubleshootingAppendix

any purpose, except that you may make one (1) copy of the Programs for backup purposes only in support of your

use of the Programs on the single Product which was accompanied by the Programs. You shall not modify, or

attempt to modify, the Programs.
E. You may transfer the Programs and license them to another party only in connection with your transfer of the single

Product which was accompanied by the Programs to such other party. At the time of such a transfer, you must also

transfer all copies, whether in printed or machine readable form, of every Program, and the related documentation,

to the same party or destroy any such copies not so transferred.
F. You may not remove any copyright, trademark or other notice or product identification from the Programs and you

must reproduce and include any such notice or product identification on any copy of any Program.

YOU MAY NOT REVERSE ASSEMBLE, REVERSE COMPILE, OR MECHANICALLY OR ELECTRONICALLY TRACE
THE PROGRAMS, OR ANY COPY THEREOF, IN WHOLE OR IN PART.

YOU MAY NOT USE, COPY, MODIFY, ALTER, OR TRANSFER THE PROGRAMS OR ANY COPY THEREOF, IN
WHOLE OR IN PART, EXCEPT AS EXPRESSLY PROVIDED IN THE LICENSE.

IF YOU TRANSFER POSSESSION OF ANY COPY OF ANY PROGRAM TO ANOTHER PARTY, EXCEPT AS PER­MITTED IN PARAGRAPH E ABOVE, YOUR LICENSE IS AUTOMATICALLY TERMINATED.

TERM

This license is effective only for so long as you own or lease the Product, unless earlier terminated. You may terminate
this license at any time by destroying, at your expense, the Programs and related documentation together with all cop­ies thereof in any form. This license will also terminate effective immediately upon occurrence of the conditions thereof
set forth elsewhere in this Agreement, or if you fail to comply with any term or condition contained herein. Upon any
such termination, you agree to destroy, at your expense, the Programs and related documentation together with all cop­ies thereof in any form.
YOU ACKNOWLEDGE THAT YOU HAVE READ THIS AGREEMENT, UNDERSTAND IT AND AGREE TO BE BOUND
BY ITS TERMS AND CONDITIONS. YOU FURTHER AGREE THAT IT IS THE COMPLETE AND EXCLUSIVE STATE­MENT OF THE AGREEMENT BETWEEN US, WHICH SUPERSEDES ANY PROPOSAL OR PRIOR AGREEMENT,
ORAL OR WRITTEN, AND ANY OTHER COMMUNICATIONS BETWEEN US, RELATING TO THE SUBJECT MAT­TER OF THIS AGREEMENT.

®

About Intel

The enclosed software products and documentation were developed at private expense, and are provided with
“RESTRICTED RIGHTS.” Use, duplication or disclosure by the government is subject to restrictions as set forth in
FAR 52.227-14 and DFARS 252.227-7013 et. seq. or its successor. The use of this product by the government
constitutes acknowledgment of Intel’s proprietary rights in the product.

software products

26

Contrat de licence d’usage limité

Le(s) logiciel(s) (les “Logiciels”) fournis avec ce produit Panasonic® (le “Produit”) sont exclusivement concédés en
licence à l’utilisateur ultime (“vous”), et ils ne peuvent être utilisés que conformément aux clauses contractuelles
cidessous. En utilisant les logiciels, vous vous engagez de manière définitive à respecter les termes, clauses et
conditions des présentes.

Matsushita Electric Industrial Co., Ltd. (“MEI”) a mis au point ou obtenu les Logiciels et vous en concède l’utilisation par
les présentes. Vous assumez l’entière responsabilité du choix de ce Produit (y compris des Logiciels associés) pour
obtenir les résultats escomptés, ainsi que de l’installation, de l’utilisation et des résultats obtenus.

Licence

A. MEI vous octroie par les présentes le droit et la licence personnels, non cessibles et non exclusifs d’utiliser les

Logiciels conformément aux termes, clauses et conditions de ce contrat. Vous reconnaissez ne recevoir qu’un droit

limité d’utiliser les Logiciels et la documentation les accompagnant et vous vous engagez à n’obtenir aucun droit de

titre, propriété ni aucun autre droit vis-à-vis des Logiciels et de la documentation les accompagnant ni vis-à-vis des

algorithmes, concepts, dessins, configurations et idées représentés par ou incorporés dans les Logiciels et la

documentation les accompagnant, dont les titres, propriété et droits resteront tous à MEI ou à leurs propriétaires.
B. Vous ne pouvez utiliser les Logiciels que sur le Produit unique qui est accompagné par les Logiciels.
C. Vous et vos employés ou agents êtes requis de protéger la confidentialité des Logiciels. Vous ne pouvez ni

distribuer ni mettre les Logiciels et la documentation les accompagnant à la disposition d’un tiers, par partage de

temps ou de quelque autre manière que ce soit, sans l’autorisation écrite préalable de MEI.
D. Vous ne pouvez ni copier ni reproduire ni permettre la copie ni la reproduction des Logiciels ni de la documentation

les accompagnant pour quelque fin que ce soit, à l’exception d’une (1) copie des Logiciels à des fins de sauvegarde

uniquement pour soutenir votre utilisation des Logiciels sur le Produit unique qui est accompagné par les Logiciels.

Vous ne pouvez ni modifier ni tenter de modifier les Logiciels.
E. Vous ne pouvez céder les Logiciels et en octroyer la licence à une autre partie qu’en rapport avec votre cession du

Produit unique qui est accompagné par les Logiciels à cette autre partie. Au moment de cette cession, vous devez

céder également toutes les copies, que ce soit sous forme imprimée ou lisible par la machine, de tous les Logiciels

ainsi que de la documentation les accompagnant, à la même partie ou détruire les copies non cédées.
F. Vous ne pouvez retirer aucune marque de droits d’auteur, marque de commerce ou autre ni aucune identification de

produit des Logiciels et vous devez reproduire et inclure toutes ces notices ou identifications de produit sur toutes

les copies des Logiciels.

Getting StartedUseful InformationTroubleshootingAppendix

Vous ne pouvez assembler en sens inverse, compiler en sens inverse ni retracer les Logiciels ni aucune de leurs
copies, de façon électronique ou mécanique, en tout ou en partie.

Vous ne pouvez utiliser, copier, modifier, altérer ni céder les Logiciels ni aucune de leurs copies, en tout ou en partie, à
l’exception de ce qui est expressément stipulé dans ce contrat.

Si vous cédez la possession de toute copie ou de tout Logiciel à une autre partie, à l’exception de ce qui est autorisé au
paragraphe E ci-dessus, votre licence est automatiquement résiliée.

Termes, clauses et conditions

Cette licence n’est effective que pour la durée de possession ou de crédit-bail du Produit, à moins d’une résiliation
antérieure. Vous pouvez résilier cette licence à tout moment en détruisant, à vos frais, les Logiciels et la documentation
les accompagnant avec toutes leurs copies, sous quelque forme que ce soit. Cette licence sera également résiliée,
avec application immédiate, si les conditions de résiliation définies ailleurs dans ce contrat se sont réalisées ou si vous
ne respectez pas les termes, clauses et conditions qui y sont contenues. Au moment de la résiliation, vous acceptez de
détruire, à vos frais, les Logiciels et la documentation les accompagnant avec toutes leurs copies, sous quelque forme
que ce soit.

Vous reconnaissez avoir lu ce contrat, en avoir compris toute la substance et avoir accepté de respecter ses termes,
clauses et conditions. Vous reconnaissez en outre qu’ils sont la description complète et exclusive du contrat conclu
entre nous, contrat qui remplace et annule toute proposition ou contrat précédent, écrit ou oral, et toute autre
communication entre nous, relativement à l’objet du présent contrat.

27

Specifications

This page provides the specifications for the basic model CF-74ECBAXBM / CF-74FCBAZBM / CF-74FCBCZBM / CF­74ECBCXBM / CF-74ECBADBM. The model number is different according to the unit configuration.

z To check the model number:

Check the bottom of the computer or the box the computer came in at the time of purchase.
z To check CPU speed, memory size and the hard disk drive (HDD) size:

Run the Setup Utility (Î Reference Manual “Setup Utility”) and select [Information] menu.

[CPU Speed]: CPU speed, [System Memory]: Memory size, [Hard Disk]: Hard disk drive size

 Main Specifications

Model No. CF-74ECBAXBM / CF-74FCBAZBM / CF-74FCBCZBM / CF-74ECBCXBM / CF-74ECBADBM
CPU

Chipset

Memory

Video Memory

Hard Disk Drive

*1

*1*2

*3

CD/DVD Drive DVD-ROM & CD-R/RW Drive

Getting StartedUseful InformationTroubleshootingAppendix

Data
Transfer

*4

Rate

Sup-

Reading

Writing

Reading DVD-ROM (4.7 GB, 8.5 GB, 9.4 GB, 17 GB), DVD-Video, DVD-R (1.4 GB, 3.95 GB, 4.7 GB),

*5

*6

ported
Discs/For-

*3

mat

Writing CD-R, CD-RW, High-Speed CD-RW, Ultra-Speed CD-RW

Display Method 13.3 type (TFT) with Touchscreen

Internal LCD

External Display

Wireless LAN

Bluetooth

*9

*10

*11

*12

LAN IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T
Modem Data: 56 kbps (V.92) FAX: 14.4 kbps
Sound

Security Chip

Card Slot PC Card Type I or Type II x 1 (3.3 V: 400 mA, 5 V: 400 mA)

ExpressCard ExpressCard/34 or ExpressCard/54 x 1

SD Memory Card

Smart Card

*14

*16

RAM Module Slot 200-pin, 1.8 V, SO-DIMM, DDR2 SDRAM, PC2-4200 Compliant
Interface USB port (4-pin, USB 2.0) x 2, Serial Port (Dsub 9-pin male), Modem port (RJ-11), LAN port

Keyboard / Pointing Device 87 keys / Touch Pad / Touchscreen (Anti-Reflection, Stylus (included) touch capable)
Power Supply AC adaptor or Battery pack

AC Adaptor

*17

®

Core™ Duo Processor T2500 (2.0 GHz, 2 MB*1 L2 cache, 667 MHz FSB)

Intel

®

945GM

Intel
512 MB (2560 MB Max.)

UMA (128 MB Max.)

80 GB

DVD-ROM: 8X (Max.), CD-ROM: 24X (Max.)

CD-R: 4X/10X/7-16X/10-24X
CD-RW: 4X
High-Speed CD-RW: 4X/10X
Ultra-Speed CD-RW: 10X/10-24X

DVD-R DL (8.5 GB), DVD-RW

*7

(1.4 GB, 2.8 GB, 4.7 GB, 9.4 GB), DVD-RAM*8 (1.4 GB, 2.8
GB, 2.6 GB, 5.2 GB, 4.7 GB, 9.4 GB), +R (4.7 GB), +R DL (8.5 GB), +RW (4.7 GB), CD-Audio,
CD-ROM, CD-R, Photo CD, Video CD, CD-RW, CD TEXT, CD-EXTRA

65,536/16,777,216 colors (800 × 600 dots/1024 × 768 dots)
65,536/16,777,216 colors (800 × 600 dots/1024 × 768 dots/1280 × 1024 dots/1600 × 1200

dots/2048 × 1536 dots)
Î page 29

Version 2.0+EDR

®

WAVE and MIDI playback, Stereo speaker, Intel

TPM (TCG V1.2 compliant)

*13

x 1, Data transfer rate = 8 MB per second

High Definition Audio subsystem support

*15

x 1

(RJ-45), External display port (Mini Dsub 15-pin female), Expansion Bus Connector (Dedicated
65-pin female), Microphone Jack (Miniature jack, 3.5 DIA, Stereo), Headphone Jack (Miniature

jack, 3.5 DIA, Impedance 32 Ω, Output Power 4 mW × 2)

Input: 100 V to 240 V AC, 50 Hz/60 Hz, Output: 15.6 V DC, 8.0 A

28

 Main Specifications

Battery Pack Li-ion 11.1 V, 7.8 Ah

Operating Time
Charging

*18

Time

*18*19

Approx. 6 hours to 9 hours

Power on Approx. 4.5 hours

Clock Battery Coin type lithium battery 3.0 V

Power Consumption

*22

Physical Dimensions (W × H × D)

Approx. 40 W

303.5 mm × 43.6 - 60.1 mm × 293.3 mm {12.0" × 1.7 - 2.4" × 11.6"}

*23

/ Approx. 100 W (Maximum when recharging in the ON state)

(including the carrying handle)
Weight

Approx. 2.7 kg {Approx. 6.0 lb.}

(including the carrying handle)
Operation Environment Temperature: 5 °C to 35 °C {41 °F to 95 °F}

Humidity: 30% to 80% RH (No condensation)

Storage Environment Temperature: -20 °C to 60 °C {-4 °F to 140 °F}

Humidity: 30% to 90% RH (No condensation)

Operating System

Microsoft

®

Windows® XP Professional Service Pack 2 with Advanced Security Technologies

(NTFS File System)

Utility Programs

DMI Viewer, Microsoft
Utility, Icon Enlarger, Loupe Utility, WinDVD™ 5 (OEM Version), B’s Recorder GOLD8 BASIC,

B’s CLiP 6, Intel
Stack for Windows

®

Matrix Storage Manager, Intel® PROSet/Wireless Software

®

bration, LAN Power-Saving Utility, Infineon TPM Professional Package

Setup Utility, Hard Disk Backup Utility

*20

(Approx. 8 hours

®

Windows® Media Player 10, Adobe Reader, PC Information Viewer, SD

by TOSHIBA

*12

, Wireless Switch Utility, Hotkey Settings, Battery Recali-

*25

, Hard Disk Data Erase Utility

*21

)

Getting StartedUseful InformationTroubleshootingAppendix

*25

*24

*11

, Bluetooth™

 Wireless LAN <Only for model with wireless LAN>

Intel PRO / Wireless 3945 ABG (802.11 a + b + g) PCI Ex. 1/4

Data Transfer Rates

*26

Standards Supported IEEE802.11a/IEEE802.11b/IEEE802.11g
Transmission method OFDM system, DSSS system
Wireless Channels Used IEEE802.11a: Channels 36/40/44/48/52/56/60/64/149/153/157/161/165

RF Frequency Band IEEE802.11a: 5.18-5.32 GHz, 5.745-5.825 GHz

*1

1MB = 1,048,576 bytes

*2

A segment of the main memory is allotted automatically
depending on the computer’s operating status. The size of
the Video Memory cannot be set by the user.

*3

1GB = 1,000,000,000 bytes. Your operating system or some
application software will report as fewer GB.

*4

The data transfer rate of DVD per 1X speed is 1,350 KB/s.
The data transfer rate of CD per 1X speed is 150 KB/s.

*5

If an unbalanced disc (e.g., the balance has been displaced
from the center) is inserted, the speed may become slower if
there are large vibrations while the disc is rotating.

*6

Depending on the disc, the writing speed may become slower.

*7

Does not support DVD-RW Ver.1.0.

*8

DVD-RAM: Only non-cartridge type or removable cartridge
type can be used.

*9

A 16,777,216 color display is achieved by using the dithering function.

*10

Maximum resolution depends on the specifications of the
external display.

*11

Only for model with wireless LAN

*12

Only for model with Bluetooth

*13

For information on TPM, click [start] - [Run] and input
“c:\util\drivers\tpm\README.pdf”, and refer to the Installation
Manual of “Trusted Platform Module (TPM)”.

*14

Operation has been tested and confirmed using Panasonic
SD Memory Cards with a capacity of up to 2 GB.
The transfer rate using the SD Memory Card slot on this com­puter is 8 MB per second. (This is a theoretical value, and dif-

IEEE802.11a: 54/48/36/24/18/12/9/6 Mbps (automatically switched)
IEEE802.11b: 11/5.5/2/1 Mbps (automatically switched)
IEEE802.11g: 54/48/36/24/18/12/9/6 Mbps (automatically switched)

IEEE802.11b/IEEE802.11g: Channels 1 to 11

IEEE802.11b/IEEE802.11g: 2.412-2.462 GHz

fers from actual speeds.)
The transfer rate is 8 MB per second even if you use an SD
Memory Card that supports high-speed transfer rates.
Operation on other SD equipment is not guaranteed.
This computer is not compatible with MultiMediaCards or
SDHC Memory Cards. Do not insert these kinds of cards.

*15

Theoretical value and not the actual speed. The transfer rate
does not become higher even if you use a card that supports
the higher transfer rate.

*16

Only for model with Smart Card slot

*17

The AC adaptor is compatible with power sources up to
240 V AC adaptor. The computer is supplied with a 125 V AC
compatible AC cord.

*18

Varies depending on the usage conditions.

*19

Measured with the LAN Power-saving function’s Auto-off set­ting set to 1 minute.

*20

Measured using BatteryMark™ Version 4.0.1 (LCD bright­ness: Maximum - Minimum)

*21

Measured using MobileMark™ 2002 (LCD brightness: 60

*22

Approx. 1.0 W when the battery pack is fully charged (or not being
charged) and the computer is OFF.
Approx. 2.0

*23

Rated power consumption

*24

You need to install to use the feature.

*25

The Product Recovery DVD-ROM is required.

*26

These are speeds specified in IEEE802.11a+b+g standards.

W

when the Wake up from LAN has been enabled.

Actual speeds may differ.

cd/m2)

29

LIMITED WARRANTY

For U.S.A.

PANASONIC PERSONAL COMPUTER AND PERIPHERALS LIMITED WARRANTY

Panasonic Computer Solutions Company (referred to as “Panasonic”) will repair this product (other than software, which is covered
by a separate warranty) with new or rebuilt parts, free of charge in the U.S.A. for three (3) years from the date of original purchase in
the event of a defect in materials or workmanship. This warranty includes the AC adaptor but excludes the batteries and all other
options and accessories which are covered for a period of one (1) year from the date of purchase.

This warranty is extended solely to the original purchaser. A purchase receipt or other proof of date of original purchase will be
required before warranty performance is rendered.

This warranty only covers failures due to defects in materials or workmanship which occur during normal use. It does not cover dam­age which occurs in shipment or failures which are caused by products not supplied by Panasonic, or failures which result from alter­ation, accident, misuse, introduction of liquid or other foreign matter into the unit, abuse, neglect, installation, maladjustment of
consumer controls, improper maintenance, modification or service by anyone other than a Factory Service Center or authorized
Panasonic Service Dealer, or damage that is attributable to acts of God.

THIS PRODUCT IS NOT INTENDED FOR USE AS, OR AS PART OF, NUCLEAR EQUIPMENT/SYSTEMS, AIR TRAFFIC CON­TROL EQUIPMENT/SYSTEMS, OR AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS

FOR ANY LIABILITY RESULTING FROM THE USE OF THIS PRODUCT ARISING OUT OF THE FOREGOING USES.

*1

AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include Class2 Electrical Flight Bag (EFB) Systems and Class1 EFB Systems when used during
critical phases of flight (e.g., during take-off and landing) and/or mounted on to the aircraft. Class1 EFB Systems and 2 EFB Systems are defined
by FAA: AC (Advisory Circular) 120-76A or JAA: JAA TGL (Temporary Guidance Leaflets) No.36.

Limits and Exclusions:

There are no other express warranties except as listed below.

Getting StartedUseful InformationTroubleshootingAppendix

PANASONIC SHALL NOT BE LIABLE FOR LOSS OF DATA OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL EXPRESS
AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE LIMITED TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE. Some states do not allow the exclu­sion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above limitations
or exclusions may not apply to you.
This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state. If a problem
with your product develops during or after the warranty period, you may contact our representatives at 1-800-LAPTOP5. If the prob­lem is not handled to your satisfaction, then write to the Consumer Affairs Division at the address indicated below.

SOFTWARE LIMITED WARRANTY

Panasonic Computer Solutions Company (referred to as “Panasonic”) warrants to you only that the disk(s) or other media on which
the Programs are furnished will be free from defects in materials and workmanship under normal use for a period of sixty (60) days
from the date of delivery thereof to you, as evidenced by your purchase receipt.

This is the only warranty Panasonic makes to you. Panasonic does not warrant that the functions contained in the Programs will meet
your requirements or that the operation of the Programs will be uninterrupted or error free.

Panasonic’s entire liability, and your exclusive remedy under this warranty shall be limited to the replacement, in the United States, of
any defective disk or other media which is returned to Panasonic’s Authorized Service Center, together with a copy of the purchase
receipt, within the aforesaid warranty period.

Anything in the foregoing to the contrary notwithstanding, Panasonic shall have no obligation for any defects in the disk(s) or other
media on which the Programs are furnished resulting from your storage thereof, or for defects that have been caused by operation of
the disk(s) or other media otherwise than on the Product or in environmental conditions other than those specified by Panasonic by
alteration, accident, misuse, abuse, neglect, mishandling, misapplication, installation, maladjustment of consumer controls, improper
maintenance, modification of damage that is attributable to acts of God. In addition, Panasonic shall have no obligation for any
defects in the disk(s) or other media if you have modified, or attempted to modify any Program.

DURATION OF IMPLIED WARRANTIES, IF ANY, IS LIMITED TO SIXTY (60) DAYS.
PANASONIC ASSUMES NO RISK OF AND SHALL NOT IN ANY CASE BE LIABLE FOR ANY DAMAGES, INCLUDING, WITHOUT

LIMITATION, ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES ARISING FROM BREACH OF WAR­RANTY OR CONTRACT, NEGLIGENCE OR ANY OTHER LEGAL THEORY, INCLUDING, WITHOUT LIMITATION LOSS OF
GOODWILL, PROFITS OR REVENUE, LOSS OF USE OF THE PROGRAMS OR PRODUCTS OR ANY ASSOCIATED EQUIP­MENT, COST OF CAPITAL, COST OF ANY SUBSTITUTE EQUIPMENT, FACILITIES, SERVICES, DOWNTIME COSTS, OR
CLAIMS OF ANY PARTY DEALING WITH YOU FOR SUCH DAMAGES.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied
warranty lasts, so the above limitations or exclusions may not apply to you.

This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
This Limited Warranty will be governed by the laws the State of New York, without regard to its conflict-of-laws rules.

* * *

To obtain service or technical assistance within the continental U.S.A. and Alaska.

DIAL TOLL FREE: 1-800-LAPTOP5

*1

. PANASONIC WILL NOT BE RESPONSIBLE

30

Correspondence requesting product information should be sent to:

Panasonic Computer Solutions Company
3 Panasonic Way, Panazip 2F-5, Secaucus, NJ 07094

For Canada

PANASONIC COMPUTER AND PERIPHERALS LIMITED WARRANTY

Coverage – Panasonic Canada Inc. (“PCI”) warrants to you, the first end user customer, this computer product (excluding software

media), when purchased from PCI or from a PCI authorized reseller, to be free from defects in materials and workmanship under nor­mal use, subject to the terms set forth below, during the period of warranty coverage specified.

Scope of Coverage Period of Coverage Type of Failure Coverage

Whole Product (except Batteries), AC adaptor and CD­ROM (if factory installed)

Batteries, CD-ROM (unless factory installed), Port Rep­licator, Extra Memory Modules and all other Peripherals,
Options and Accessories

Remedy

of the defect claimed, at 1-800-668-8386 between 9:00 A.M. and 5:00 P.M., Eastern Time Zone, Mon. – Fri. (excluding holidays) for
instructions on how to obtain service. A purchase receipt or other proof of date of original purchase is required before warranty ser­vice is performed. Defective parts covered by this Limited Warranty will be repaired or replaced with new or comparable rebuilt parts
on an exchange basis. Warranty replacement or repair is subject to the terms of this Limited Warranty for the balance of the original
period of warranty coverage.

No Coverage

of, or defects in a product or accessory through mishandling, improper installation, abnormal use, misuse, neglect, accident, intro­duction of liquid or other foreign matter into the product, alteration or servicing by anyone not authorized by PCI, or act of God.

THIS PRODUCT IS NOT INTENDED FOR USE AS, OR AS PART OF, NUCLEAR EQUIPMENT/SYSTEMS, AIR TRAFFIC CON­TROL EQUIPMENT/SYSTEMS, OR AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS*1 . PANASONIC WILL NOT BE RESPONSIBLE

FOR ANY LIABILITY RESULTING FROM THE USE OF THIS PRODUCT ARISING OUT OF THE FOREGOING USES.

*1

– In the event of a warranty claim, contact PCI’s representatives within the applicable warranty period, identifying the nature

– This Limited Warranty does not cover products purchased outside Canada. Neither does it cover damage to, failure

AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include Class2 Electrical Flight Bag (EFB) Systems and Class1 EFB Systems when used during
critical phases of flight (e.g., during take-off and landing) and/or mounted on to the aircraft. Class1 EFB Systems and 2 EFB Systems are defined
by FAA: AC (Advisory Circular) 120-76A or JAA: JAA TGL (Temporary Guidance Leaflets) No.36.

Three (3) Years from Date of Origi­nal End User Customer Purchase

One (1) Year from Date of Original
End User Customer Purchase

Defective Materials or Workman­ship

Defective Materials or Workman­ship

Getting StartedUseful InformationTroubleshootingAppendix

IF YOU SHIP THE PRODUCT FOR WARRANTY SERVICE

Carefully pack the product, preferably in the original carton. Include details of defect claimed and proof of date of original purchase.
No liability is assumed for loss or damage to the product while in transit, if you chose your own transportation carrier.

SOFTWARE MEDIA LIMITED WARRANTY

Coverage – Panasonic Canada Inc. (“PCI”) warrants to you, the first end user customer, that the disk(s) or other media on which

software program(s) is/are supplied will be free from defects in materials and workmanship under normal use in Canada for a period
of sixty (60) days from date of receipt as evidenced by your purchase receipt for your Panasonic Computer product.

THIS IS THE ONLY WARRANTY THAT PCI MAKES RESPECTING THE SOFTWARE MEDIA. PCI does not warrant the software.
Please refer to the software licensor’s written warranty (accompanying the copy of the software) for any software warranty claim.

Claim Procedure

you return it, transportation costs prepaid, to Panasonic Canada Inc., Computer Products Marketing, at the above address, within the
warranty period, together with a copy of your purchase receipt, and an explanation of the suspected defect, PCI will replace in Can­ada the defective disk(s) or other media.

Remedy

media only. It does not cover any other damages, including, but not limited to, loss of use or profit loss, or special, indirect or conse­quential damages, or other claims, whether or not of similar character.

No Coverage – This limited warranty does not apply if the disk(s) or other media has been used in other than a Panasonic product,
or in environmental conditions other than those specified by PCI or the manufacturer, or if subjected to misuse, neglect, mishandling,
modification or attempted modification of the program, or if damaged by accident or act of God. PCI is not responsible for damage to
or loss of any program, data or removable storage media.

– PCI’s entire liability, and your only remedy for any breach of this software media warranty is limited to replacement of the

– In the event of a defect in material or workmanship in the media during the sixty (60) day warranty period, and

GENERAL

NO OTHER WARRANTIES – PCI DISCLAIMS ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT
NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH
RESPECT TO THE SOFTWARE, SOFTWARE MEDIA, COMPUTER PRODUCT, OPTIONS AND ACCESSORIES.

NO LIABILITY FOR CONSEQUENTIAL DAMAGES – IN NO EVENT SHALL PCI BE LIABLE FOR ANY SPECIAL, INDIRECT OR
CONSEQUENTIAL DAMAGES ARISING FROM ANY BREACH OF THE LIMITED WARRANTIES SET OUT IN THIS DOCUMENT,
OR FROM THE USE OF THE COMPUTER PRODUCT, INCLUDING, WITHOUT LIMITATION, LOSS OF DATA, BUSINESS,
PROFIT OR GOODWILL.

IN ANY EVENT, PCI’S MAXIMUM LIABILITY FOR ANY BREACH SHALL NOT EXCEED THE AMOUNT ACTUALLY PAID BY YOU
FOR THE COMPUTER PRODUCT.

NO ACTION, REGARDLESS OF ITS BASIS, MAY BE BEGUN AGAINST PCI MORE THAN TWO (2) YEARS AFTER THE CAUSE
OF ACTION AROSE.

Statutory Warranties

– Some jurisdictions do not allow these limitations or exclusions, so they may not apply to you.

31

As an ENERGY STAR® Partner, Matsushita Electric Industrial Co., Ltd. has

determined that this product meets the

Outline of the International ENERGY STAR® Office Equipment Program

The international

saving through the use of computers and other office equipment. The program backs the development and dissem-

ination of products with functions that effectively reduce energy consumption. It is an open system in which busi-

ness proprietors can participate voluntarily. The targeted products are office equipment such as computers,

displays, printers, facsimiles, and copiers. Their standards and logos are uniform among participating nations.

ENERGY STAR

®

Office Equipment Program is an international program that promotes energy

ENERGY STAR

®

guidelines for energy efficiency.

Panasonic Computer Solutions Company

3 Panasonic Way, Panazip 2F-5,
Secaucus, NJ 07094

© 2006 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.
Printed in Japan

Panasonic Canada Inc.

5770 Ambler Drive Mississauga,
Ontario L4W 2T3

HS0106-2096

DFQX5582XA
