Panasonic CF73JCLTXKM Reference Manual

Download

Personal Computer

Reference Manual

Model No. CF-73 Series

XP 2000

We recommend that this Reference Manual be printed.

Read Me First

 Windows XP screens are used in this manual when no specific OS (operating system)

notes are required.

 Some of the illustrations in this manual may differ slightly in shape from the actual items in

order to make the explanation easier to understand.

 If the user has logged on without the administrator authority, some functions may not be

executable, and some screens may be not displayed as shown in this manual. If this happens, log on with the administrator authority to enable these functions.

 This manual covers two types of models, as distinguished by the type of LCD screen

models with touchscreen and models without touchscreen).

 Confirm the latest information on optional products in catalogs, etc.

 Circular media such as DVD-ROM and CD-ROM are described as “discs”.

 In this manual, "B's Recorder GOLD5" is indicated as "B's Recorder," and "WinDVD™4" is

indicated as " WinDVD."

 The following drives may be described as "CD drive".

DVD-ROM & CD-R/RW drive, DVD MULTI drive

Illustrations and Terminology in this Reference Manual

NOTE NOTE provides a useful fact or helpful information.

CAUTION CAUTION indicates a condition that may result in

minor or moderate injury.

Windows XP

Windows 2000

Enter Fn+F5

Information for Microsoft® Windows® XP Professional users. "Windows" or "Windows XP" in this manual.

Information for Microsoft® Windows® 2000 Professional users. "Windows" or "Windows 2000" in this manual.

This illustration means to press the [Enter] key.

This illustration means to press and hold the [Fn] key, then press the [F5] key.

Read Me First

[Start] - [Run] This illustration means to click [Start], then to click

[Run]. For some applications, you may need to doubleclick.

 or ⇒ These symbols indicated related pages.

 : Refer to the page in this Reference Manual

⇒ : Refer to the Operating Instructions

Orange

If *1 is selected, it will jump to a related explanatory note.

Key Combinations

CAUTION

 Do not press the following key combinations repeatedly in (quick) succession. Also, do

not press different key combinations quickly one after another.

 Do not press the following key combinations while using the touch pad (external

mouse), touchscreen (only for models with touchscreen) or other keys.

NOTE

 Do not press the following key combinations until you log on to Windows and the hard

disk drive indicator turns off. Note, however, that the key combinations

Fn+F2

 The key combinations below may not work while some applications are running.

Besides, the popup window may not be displayed depending on the state of the application you are using (e.g., when [Command Prompt] is set to "Full Screen").

Key Functions Popup Window

Fn+F1

Fn+F2

and Fn+F3 are operable in the Setup Utility.

LCD brightness control (down) LCD brightness control (up)

Pressing this key combination adjusts the brightness of LCD. The brightness setting is stored in memory separately under the condition the AC adaptor is connected and under the condition the AC adaptor is not connected.

Fn+F1

(Displayed after logging

on to Windows)

Key Combinations

Fn+F3

Key Functions Popup Window

(Displayed after logging

on to Windows)

Display change

By pressing this key combination, you can select either an external display, internal LCD or simultaneous. ( page 56)

CAUTION

 Do not press another key until the display

destination has been completely switched.

NOTE

Windows XP

 When switching to a different user with the

Fast User Switching function, this key operation may not work. In this case, log off all users and restart the computer.

Fn+F4

Speaker on/off switch

Pressing this key combination turns on/off audio from the internal speaker and headphone jack.

NOTE

 Speakers connected to the USB port

cannot be muted.

OFF (MUTE)

Key Combinations

Fn+F5

Fn+F6

Key Functions Popup Window

(Displayed after logging

on to Windows)

Volume control (down) Volume control (up)

Pressing this key combination adjusts the volume of the internal speaker and headphone jack.

NOTE

 This key combination cannot be used to

adjust the volume of the warning beep or speakers connected to the USB port.

Fn+F7

Fn+F9

Power off using the standby function

Pressing this key combination causes the current status of the computer to be saved to memory, and powers off the computer. ( page 19)

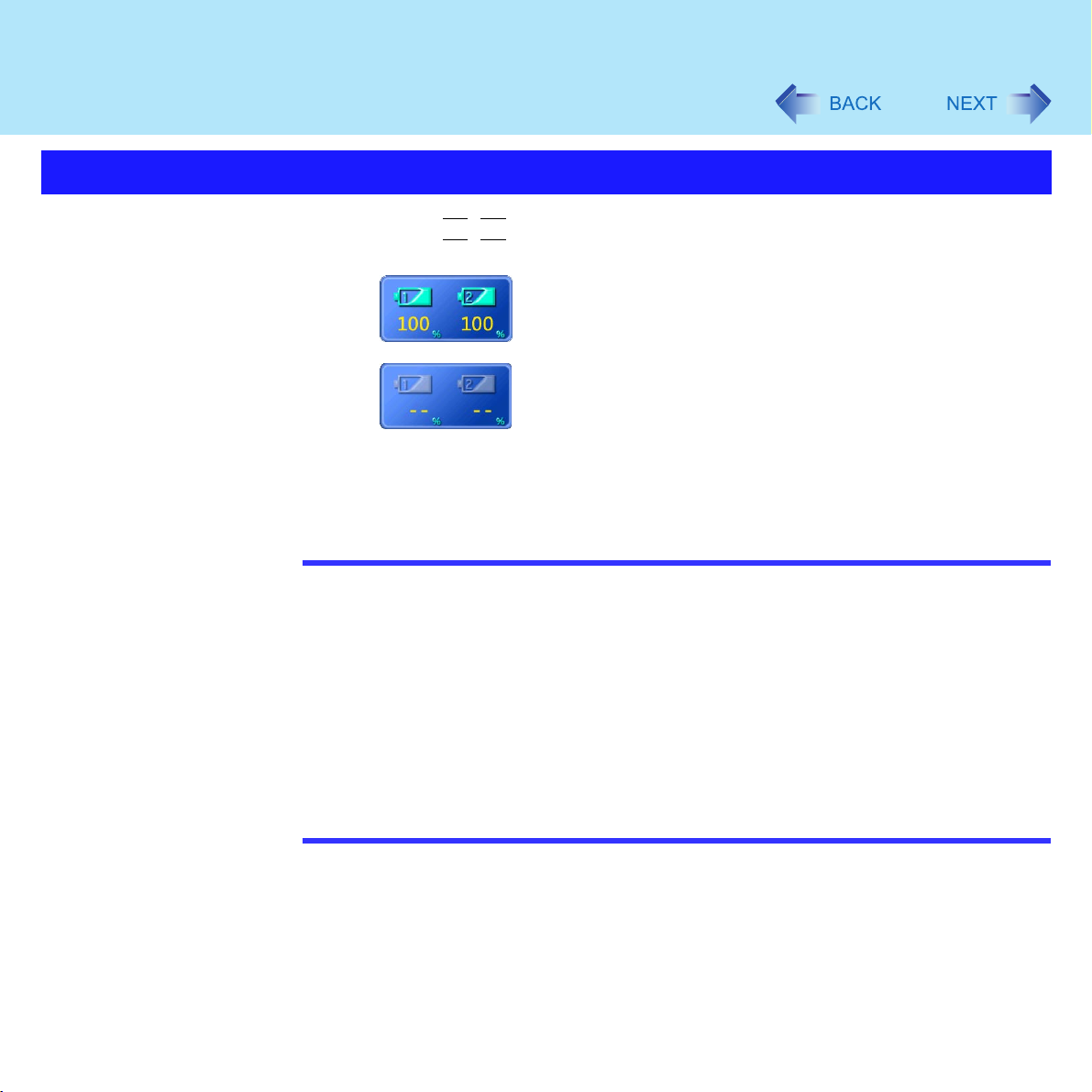

Remaining capacity of the battery pack

Pressing this key combination displays the remaining battery capacity on the screen.

When the battery pack is inserted in the computer (example)

When the battery pack is not inserted in the computer

Key Combinations

Fn+F10

Key Functions Popup Window

(Displayed after logging

on to Windows)

Power off using the hibernation function

Pressing this key combination causes the current status of the computer to be saved to the hard disk, and powers off the computer. ( page 19)

Key Combinations

Hotkey Settings

There are two Fn key functions as follows:

 Fn key lock function

 Popup windows display ON/OFF

After

is pressed once, it stays in the "pressed" position until another key is pressed.

This is convenient when it is difficult to press two buttons simultaneously.

1 Run the Hotkey Settings.

Windows XP

Select [Start] - [All Programs] - [Panasonic] - [Hotkey Settings].

Windows 2000

Select [Start] - [Programs] - [Panasonic] - [Hotkey Settings].

2 Set the parameters.

A. Use Fn key lock

Add the check mark if you want to enable the Fn key lock function. The following Fn key lock function will then be enabled.  To use

1 Press 2 Press another key for combination. (Lock released)

 To use

1 Press 2 Press another key for combination.

Fn key remains locked until

B. Notification

This setting is only available when [Use Fn key lock] is checked.

[Make sounds when Fn key is pressed]

Notifies the user with a sound when Fn is locked or released.

[Show status on screen]:

Displays the Fn key status on the taskbar.

C. Disable popup

Add the check mark if you want to turn the popup window display function OFF. The full-screen display of [Command Prompt] screen or MPEG files may change

only once:

once. (Locked)

successively:

twice. (Locked)

is locked is not locked

is pressed once more.

Key Combinations

to a window display if Fn+ window display function OFF.

Fx*2 keys are pressed. To prevent this, turn the popup

3 Select [OK].

NOTE

 The Fn key lock function also works with Fn and other keys (e.g. , ) aside from

Fx*2.

 Each user can select separate settings for whether or not to use the Hotkey settings.

If MUTE is set, you will not hear a beep.

"Fx" indicates any function key from F1 to

F10

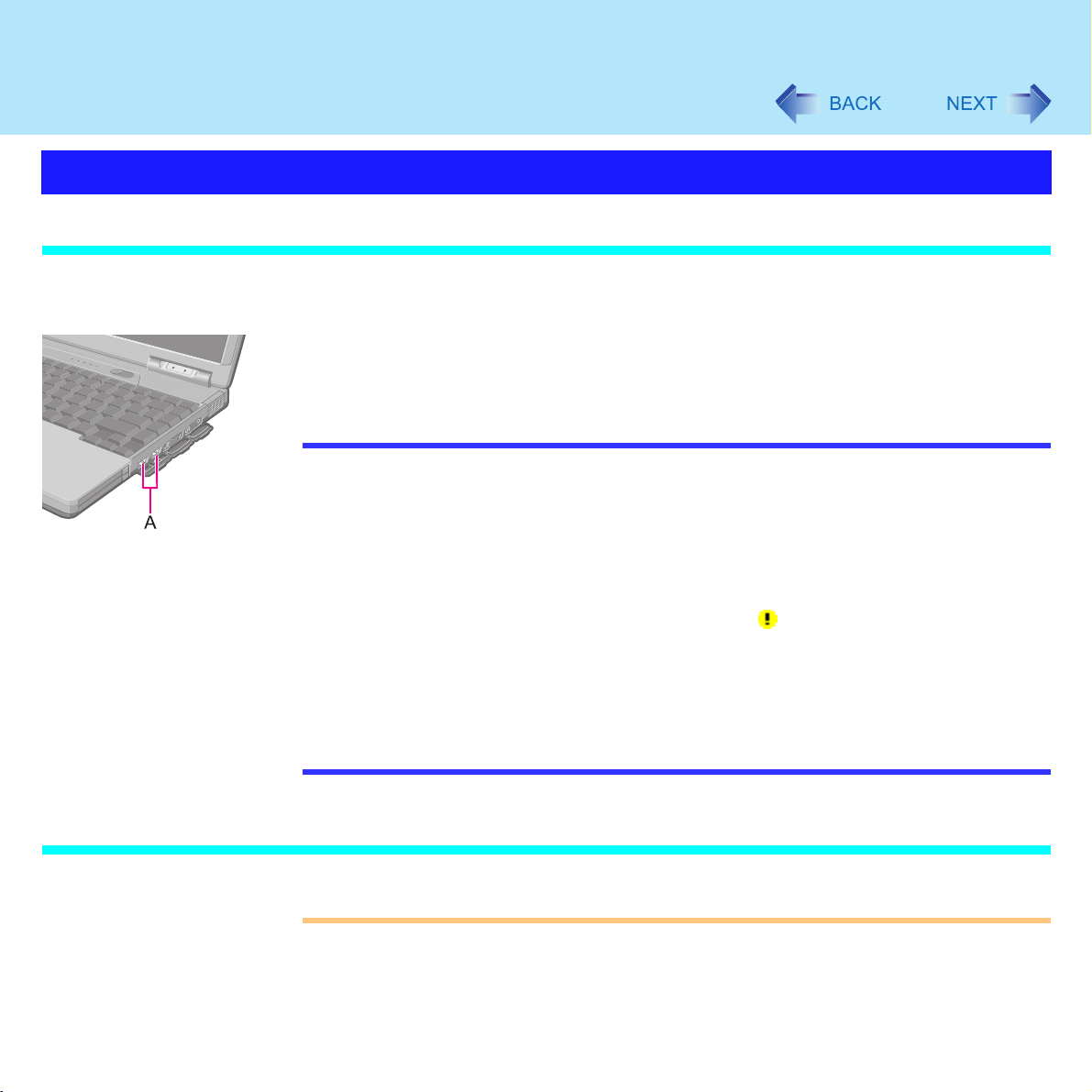

LED Indicators

Power status  Not lit

Battery pack status  Not lit

Caps Lock This indicator lights green when

Power off / Hibernation mode

 Green

Power on

 Blinking green

Standby mode

 Blinking green rapidly

Due to extremely low temperatures, power cannot be turned on, or computer cannot resume from standby mode.

Battery pack is not connected or charging not being performed.

 Orange

Charging in progress.

 Green

Fully-charged.

 Red

The battery level is very low (the charge is approx. 9% or less). Connect the AC adaptor. You can use the computer when the battery indicator light is orange. If you do not have an AC adaptor, save your data and power off your computer. After replacing the battery pack with a fully charged one, turn your computer on.

 Blinking red

Battery pack or charging may not be working properly. Quickly save your data and power off your computer. Remove the battery pack and disconnect the AC adaptor, then connect them again. If the problem persists, contact Panasonic Technical Support. Possible failure in the battery pack or charging circuit.

 Blinking orange

Battery cannot be recharged temporarily because the internal temperature of the battery pack is outside of the acceptable temperature range for recharging. Once the allowable range requirement is satisfied, charging begins automatically. Your computer can be used normally in this state.

When the AC adaptor is connected.

shifted input is capitalized.

Caps Lock

is pressed. Subsequent non-

LED Indicators

NumLk (Numeric key)

This indicator lights green when

NumLk

is pressed. This causes a portion of the keyboard to function as a numeric keypad. The [Enter] key functions differently depending on the application. (If an external keyboard or ten-keyboard is connected to the external keyboard/ mouse port, the numeric keypad of the internal keyboard will not operate.)

ScrLk (Scroll lock)

This indicator lights green when

ScrLk

differently depending on the application.

is pressed. Scroll lock functions

Hard disk drive status This indicator lights when the hard disk drive is accessed.

Multimedia pocket device

status

 This indicator lights when the multimedia pocket device (DVD-ROM & CD-

R/RW drive, DVD MULTI drive etc.) is accessed.

 This indicator shows the status of a second battery pack when a second

battery pack is installed in the multimedia pocket. The details of the status display are the same as for the main battery pack status ( page 10).

MP is the abbreviation for Multimedia Pocket.

Touch Pad

Use the touch pad to move the cursor on the display and perform normal computer operations.

CAUTION

 By design the touch pad is to be used with a finger tip only. Therefore, do not use any

implement which causes damage on the work surface.

A. Work Surface (touch pad) B. Left Button C. Right Button

Function Operation

Moving the Cursor

Move the tip of your finger lightly over the work surface.

Tapping/Clicking

Double-Tapping/DoubleClicking

tapping or clicking

double-tapping or double-clicking

Touch Pad

Function Operation

Dragging

Two quick taps, but on the second tap leaving your finger down (applying pressure) and moving it on the work surface. or While holding down the button, moving your finger on the work surface.

Scroll Scroll a document.

The movements will differ depending on the application.

Move the tip of your finger lightly over the work surface.

NOTE

 Refer to [Mouse Properties] for information on basic operations other than the above.

To display [Mouse Properties]:

Windows XP

Select [Start] - [Control Panel] - [Printers and Other Hardware] - [Mouse].

Windows 2000

Select [Start] - [Settings] - [Control Panel] - [Mouse].

Handling the touch pad

 Do not place any object on the work surface or press down forcefully with sharp-pointed

objects (e.g., nails) or hard objects that can leave marks (e.g., pencils and ball point pens).

 Try to avoid having any harmful substances such as oil, come in contact with the touch

pad. The cursor may not work properly in such cases.

Touch Pad

 When the touch pad becomes dirty:

Wipe to remove dirt by using a dry soft cloth such as gauze or a soft cloth first applied with detergent diluted with water and then thoroughly wrung. Do not use benzene or thinner, or rubbing alcohol. Doing so may adversely affect the surface, e.g., discoloration. In addition, do not use commercially-available household cleaners and cosmetics, as they may contain components harmful to the surface.

Touchscreen

Only for models with touchscreen

Your computer is equipped with a touchscreen function allowing you to perform the same operations as the touch pad or mouse by touching the surface of the display with the stylus (included). If the cursor can not be pointed correctly with the stylus, perform [Calibration]. ( page 17) The following explanation gives one example (for the default settings). The operation settings can be changed. ( page 17)

Moving the cursor

Clicking (Tapping)

Functions Operation

The cursor is moved to the location pointed by the stylus.

One tap

Double-clicking (Double-tapping) Two quick taps

Dragging

Touch and hold the object (i.e. file or icon), move the stylus on the surface (dragging the object to the desired location), then release the stylus.

Touchscreen

NOTE

 To righ t -click:

Make the setting as follows.

1 Display [Touch Panel Property] screen.

Windows XP

Select [Start] - [Control Panel] - [Other Control Panel Options] - [Touch Panel].

Windows 2000

Select [Start] - [Settings] - [Control Panel] - [Touch Panel].

2 In [Button], add the check mark for [The right-button function will be ...], and

select a key from [Combination keys].

3 Select [OK].

You can right-click by selecting an object with the key you selected in [Combination keys].

CAUTION

 When the internal LCD is used alone or with an external display simultaneously, the

touchscreen function will not work properly when the area of either display is set larger than default setting of the display resolution.

 If a change is made to the display resolution, or the cursor can not be pointed

correctly with the stylus, be sure to perform [Calibration]. ( page 17)

 Even when only an external display is in use, the cursor will move on the external

display if the surface of the internal LCD is touched when the touchscreen driver is active. Therefore, do not touch the internal LCD when only an external display is in use.

 The touchscreen function can not be used when using the full screen in [Command

Prompt].

NOTE

 Select to view [Important Tips] for using the touchscreen. You can also view

[Important Tips] using the following procedures.

Windows XP

Select [Important Tips] in [Start] - [All Programs] - [Panasonic] - [On-Line Manuals].

Touchscreen

Configuring the Touchscreen

When needed, the touchscreen can be configured using the following steps.

1 Display [Touch Panel Property] screen.

Windows 2000

Select [Important Tips] in [Start] - [Programs] - [Panasonic] - [On-Line Manuals].

Windows XP

Select [Start] - [Control Panel] - [Other Control Panel Options] - [Touch Panel].

Windows 2000

Select [Start] - [Settings] - [Control Panel] - [Touch Panel].

A. Button

Set button functions on the touchscreen.

B. Double Touch

Set double-click area and speed.

C. Sound

Set the sound generated when the touchscreen is touched.

D. Calibration

Use this procedure when the cursor can not be pointed correctly. (Necessary for changes in the alignment of the touchscreen with visual images or an adjustment of the display resolution.)

2 Make necessary changes and select [OK].

NOTE

 Changing the settings (except for Double Touch) applies to all users.  For more information, click at the upper right corner.

Touchscreen

Handling the Touchscreen

 Use the stylus included with the computer. Do not use an implement other than the stylus

that comes with the computer.

 Do not place any object on the surface or press down forcefully with sharp-pointed objects

(e.g., nails), or hard objects that can leave marks (e.g., pencils and ball point pens).

 Do not operate the computer when such things as dust are on the screen. Do not allow

contact with substances that could dirty the touchscreen, such as oil.

 When the touchscreen becomes dirty:

• Wipe to remove dirt by using a dry soft cloth included with the computer.

• Do not use benzene or thinner, or rubbing alcohol.

• For more information, refer to "Suggestions About Cleaning the LCD Surface" that comes with the soft cloth.

Handling the Stylus

 Clean the stylus tip and screen prior to operation. Foreign particles can scratch the screen

and impede the operation of the stylus.

 Use the stylus only for the computer screen. Using it for any other purpose may damage

the stylus and scratch the screen.

 Do not use pencils, implements with sharp tips or hard objects for screen operations. The

screen may be damaged as a result.

Standby/Hibernation Functions

Starting Up Your Computer Quickly

If you use the standby or hibernation function, you can shut down the computer without closing programs and documents. Upon restarting your computer from either the standby or hibernation mode, you can immediately continue working in all programs, or documents that were open at the time the computer was placed into standby or hibernation mode.

Differences between the Standby and Hibernation Functions

Function Where data is saved toTime until recovery Requires power

Standby function Memory Short Yes

Hibernation function Hard disk Rather long Power is not required

supply

(if power is cut, all data is lost)

to maintain data

NOTE

 We recommend plugging in the AC adaptor if the standby function is to be used for a

long period of time. If the AC adaptor cannot be connected, we recommend that hibernation mode be used instead of the standby mode.

 If the standby or hibernation function is used repeatedly, the computer may not work

properly. To stabilize computer operations, shut down Windows on a regular basis (about once a week) without using the standby or hibernation function.

Entering the Standby or Hibernation Mode

Use any of the following methods to enter the standby or hibernation mode. To use the hibernation mode, set [Power Options] in advance ( page 20). (Enabled in factory preset.)

 Fn key combinations ( page 6)  Using the power switch ( page 22)  From the shut down screen

Standby/Hibernation Functions

• Standby

Windows XP

In [Start] - [Turn Off Computer], select [Stand By].

Windows 2000

In [Start] - [Shut Down], select [Stand by] and select [OK].

• Hibernation

Windows XP

In [Start] - [Turn Off Computer], press and hold

Windows 2000

In [Start] - [Shut Down], select [Hibernate] and select [OK].

Setting for Using the Hibernation Mode

At the time of purchase, the computer is set so that hibernation mode can be used.

Windows XP

1 Select [Start] - [Control Panel] - [Performance and Maintenance] -

[Power Options].

Shift

, then select [Hibernate].

Precautions

2 In [Hibernate], add the check mark for [Enable hibernation] and select

[OK].

Windows 2000

1 Select [Start] - [Settings] - [Control Panel] - [Power Options]. 2 In [Hibernate], add the check mark for [Enable hibernate support] and

select [OK].

 Before entering the standby or hibernation mode

 Be sure to save all data.  When a file in an external device such as a CD drive, external hard disk, or ATA card is

opened, close the file.

Standby/Hibernation Functions

 Even when a password has been set in the Setup Utility, [Enter Password] does not

appear when the computer resumes from the standby or hibernation mode. If you want to use the security function when using the standby or hibernation mode, use the Windows password as follows:

Windows XP

1 Select the account to change in [Start] - [Control Panel] - [User Accounts]. 2 Set the password. 3 Add the check mark for [Prompt for password when computer resumes from

standby] in [Start] - [Control Panel] - [Performance and Maintenance] - [Power Options] - [Advanced].

Windows 2000

1 Set the password in [Start] - [Settings] - [Control Panel] - [Users and

Passwords].

2 Add the check mark for [Prompt for password when computer goes off standby]

in [Start] - [Settings] - [Control Panel] - [Power Options] - [Advanced].

 Do not enter either the standby or hibernation mode under the following conditions. You

may corrupt your data or file, the standby or hibernation function may not work, or the computer (or peripherals) may fail to work properly.

• When the MP indicator ( )

• When playing/recording audio files and displaying images (such as MPEG files).

• When playing a DVD-Video.

• When writing to a CD-R/RW disc.

• When using communications software or the network function.

• When using PC Cards. (If these cards fail to work properly, restart the computer.)

Except when using a second battery pack

or hard disk drive indicator ( ) is on.

 When entering the standby or hibernation mode

Standby mode: until the power indicator blinks green Hibernation mode: until the power indicator goes off  Avoid the following:

• Using external mouse or other peripheral devices

• Connecting or disconnecting the AC adaptor.

• Closing or opening the display.

Standby/Hibernation Functions

 In standby or hibernation mode

 Do not insert or remove peripherals; abnormal operation may result.  Do not insert or remove the multimedia pocket device. (Except when using a second

battery pack)

 In standby mode, power is consumed. If PC Cards are inserted, more of that power is

consumed. When all power has been consumed, all data saved at standby is lost since it is retained in memory. We therefore recommend plugging in the AC adaptor when using the standby function.

Using the Power Switch

 Setting

Windows XP

1 Select [Start] - [Control Panel] - [Performance and Maintenance] -

[Power Options] - [Advanced].

2 Select [Stand by] or [Hibernate] for [When I press the power button

on my computer] and then select [OK].

Windows 2000

1 Select [Start] - [Settings] - [Control Panel] - [Power Options] -

[Advanced].

2 Select [Standby] or [Hibernate] for [When I press the power button on

my computer] and then select [OK].

NOTE

 When [Stand by]*1 or [Hibernate] is selected as the setting for [When I close the lid of

my portable computer] in the following menu, the computer will enter either the standby or hibernation mode when the display is closed.

Windows XP

[Start] - [Control Panel] - [Performance and Maintenance] - [Power Options] [Advanced]

Standby/Hibernation Functions

Windows 2000

[Start] - [Settings] - [Control Panel] - [Power Options] - [Advanced]

Windows 2000

[Standby]

 Entering the standby or hibernation mode

1 Press the power switch (A); at the beep sound, release your finger.

The computer will enter either the standby or hibernation mode, depending on the setting.

CAUTION

 After releasing your finger from the power switch, do not touch the power switch until

the power indicator goes off or blinks.

 At the beep sound, release your finger from the power switch. If you continue to press

the power switch and hold it for more than four seconds, the computer will emit a second beep then power off. Data not previously saved will be lost.

Windows XP

Even when [When I press the power button on my computer] is set to [Shut down] with [Start] - [Control Panel] - [Performance and Maintenance] - [Power Options] [Advanced], if you press the power switch for more than four seconds and do not release it, a second beep will sound and the power will be turned off forcibly. Data not previously saved will be lost.

Windows 2000

Even when [When I press the power button on my computer] is set to [Power Off] with [Start] - [Settings] - [Control Panel] - [Power Options] - [Advanced], if you press the power switch for more than four seconds and do not release it, a second beep will sound and the power will be turned off forcibly. Data not previously saved will be lost.

Standby/Hibernation Functions

Resuming Operation

1 Press the power switch (A).

CAUTION

 Until resuming is complete (requires about 15 seconds, or 60 seconds if connected to

a network, after the display returns), avoid the following:

• Touching the keyboard (except for password input), touch pad, or power switch.

• Using external mouse or other peripheral devices

• Connecting or disconnecting the AC adaptor.

• Closing or opening the display.

• Shutting down or restarting Windows.

• Entering either the standby or hibernation mode again.

NOTE

 When [Stand by]*1 or [Hibernate] is selected as the setting for [When I close the lid of

my portable computer] in the following menu, the computer will also resume when the display is opened.

Windows XP

[Start] - [Control Panel] - [Performance and Maintenance] - [Power Options] [Advanced]

Windows 2000

[Start] - [Settings] - [Control Panel] - [Power Options] - [Advanced]

Windows 2000

[Standby]

Security Measures

To prevent unauthorized access to your computer, various security measures are provided as described below.

Situation Function to use

You do not want your computer to be used without permission

You do not want the data on the hard disk to be read, or data to be written to the hard disk, in cases including theft.

You want to prevent theft of your computer Security lock (⇒ Operating Instructions

NOTE

 Windows has a security function that differs from the above security measures. For

detailed information, refer to the Windows help.

 For security functions for the wireless LAN, refer to the following menu.

Windows XP

Select [Getting Started Guide] or [User's Guide] in [Start] - [All Programs] - [Intel].

Windows 2000

Select [Getting Started Guide] or [User's Guide] in [Start] - [Programs] - [Intel].

 Supervisor Password ( page 26)  User Password ( page 27)

 Hard Disk Lock ( page 28)

"Names and Functions of Parts")

When you do not want your computer to be used without permission

You should set your "Supervisor Password" and "User Password" (The User Password can only be set when the Supervisor Password has been set). If you set the password and set [Password on boot] to [Enable], your computer cannot be accessed without the password.

Starting Up When the Password is Set

When [Password on boot] of [Security] menu is set to [Enable], enter your password*1 and press

Enter

.( page 76)

Security Measures

 When the correct password is inputted, the computer will start.  When three incorrect password attempts or nothing is input for one minute, the computer

will power off.

Supervisor Password or User Password set in the Setup Utility (not the Windows password).

Setting the Supervisor Password (enabling, changing, disabling)

1 Run the Setup Utility. ( page 76) 2 Using either  or , select [Security].

3 Using either  or , select [Set Supervisor Password] and press

Enter

4 Only when the Supervisor Password has been set:

Enter your password at [Enter Current Password] and press

Enter

5 Enter your password at [Enter New Password] and press

 To disable the Supervisor Password

Press only

Enter

6 Re-enter your password at [Confirm New Password] and press

Enter

 To disable the Supervisor Password

7 At [Setup Notice], press

8 Press

CAUTION

 Do not forget your password. If your Supervisor Password is forgotten, you will be

unable to use your computer. Contact Panasonic Technical Support.

Press only

F10

and select [Yes], then press

Enter

Security Measures

 When running the Setup Utility, do not leave your computer even for a short time, as

the possibility exists for the password to be set/changed by another person.

NOTE

 Your password will not be displayed on the screen.  Only up to seven alphanumeric characters can be used.

• There is no distinction between upper and lower case letters.

• Use only the upper horizontal row of numeric keys to input your password.

• Do not input your password while holding down on

 Disabling the Supervisor Password also disables the User Password.

Shift

Ctrl

Setting the User Password (enabling, changing, disabling)

NOTE

 When the Supervisor Password has not been set, the User Password can not be set.

Set the Supervisor Password if you have not done so. ( page 26)

 To disable the User Password, start up the Setup Utility with the Supervisor Password.

1 Run the Setup Utility. ( page 76)

2 Using either  or , select [Security]. 3 Using either  or , select [Set User Password] and press

Enter

4 Only when the User Password has been set:

Enter your password at [Enter Current Password] and press

5 Enter your password at [Enter New Password] and press

 To disable the User Password

Press only

Enter

6 Re-enter your password at [Confirm New Password] and press

Enter

Security Measures

 To disable the User Password

Press only

Enter

7 At [Setup Notice], press 8 Press

F10

and select [Yes], then press

Enter

CAUTION

 Do not forget your password. If a password is forgotten, you will be unable to use your

computer. If this happens, log on with the Supervisor Password, or ask a person who knows the Supervisor Password.

 When running the Setup Utility, do not leave your computer even for a short time, as

the possibility exists for the password to be set/changed by another person.

NOTE

 Your password will not be displayed on the screen.  Only up to seven alphanumeric characters can be used.

• There is no distinction between upper and lower case letters.

• Use only the upper horizontal row of numeric keys to input your password.

• Do not input your password while holding down on

 When you do not want the User Password enabled or changed without permission:

Shift

Ctrl

1 Run the Setup Utility and enter the Supervisor Password. 2 Go to [Security] menu. Using  and , select [User Password Protection] and

press

Enter

3 Using either  or , select [Protected] and press

Enter

When you do not want the data on the hard disk to be read/ written

When the Hard Disk Lock is set to [Enable], it is impossible to read/write data from/to the hard disk when the hard disk is inserted in a different computer, since a password is also set for the hard disk. When the hard disk is returned to the original computer, you can read and write data as before. In this case, however, make the settings in the Setup Utility exactly the

Security Measures

same as they were before the hard disk was removed. It is possible to set the Hard Disk Lock even if [Password on boot] is set to [Disable], but we recommend that [Password on boot] be set to [Enable] for security reasons. (Note that this Hard Disk Lock does not guarantee complete protection of data.)

NOTE

 In the default setting, [Hard Disk Lock] is set to [Disable].  You cannot set [Hard Disk Lock] without setting the Supervisor Password. Set the

Supervisor Password if you have not done so. ( page 26)

 The hard disk lock function only works with the internal hard disk. This function does

not work with the second hard disk or the external hard disk.

Setting the Hard Disk Lock (enabling, disabling)

1 Run the Setup Utility. ( page 76)

2 Using either  or , select [Security].

3 Using either  or , select [Hard Disk Lock] and press

Enter

4 Select [Enable] or [Disable].

 To enable the Hard Disk Lock

Select [Enable] and press

 To disable the Hard Disk Lock

Select [Disable] and press

5 Press

F10

and select [Yes], then press

CAUTION

 To change your hard disk drive

• Contact Panasonic Technical Support.

• Before changing the hard disk, be sure to set the [Hard Disk Lock] to [Disable].

Enter

. At [Caution], press

Enter

Computing on the Road

Saving Power

One of the main features of notebook-type computers is that you have the power of computing away from your home or office. In the following, information is provided on how to maximize use of the battery pack which is necessary for such computing.

 Four Important Points

• POINT 1 Be sure to charge your battery before and after use.

• POINT 2 To get the maximum use of your battery, set the power management mode.

• POINT 3 Check to see that you have your AC adaptor with you before leaving your home or office. Purchasing a spare battery (CF-VZSU26) is highly recommended.

• POINT 4 Always watch your battery level!

Power Saving Methods

 Leave your computer off when it is not in use

(⇒Operating Instructions "Starting Up/Shutting Down")

 Adjust the brightness (darker) with

By holding down on the keys ( will be displayed), the degree of brightness will be lowered, thereby lowering the power consumption.

 Set [Audio Power Management] to [Enable] in the Setup Utility ( page 79)

Note: this setting may also disable short sounds (e.g., warning sounds).

 Before stepping away from your computer, press

computer in the standby or hibernation mode ( page 6)

 Remove peripheral devices (USB devices, PC Cards, external mouse, etc.) when

not in use

 Use the power saving function

Windows XP

In [Start] - [Control Panel] - [Performance and Maintenance] - [Power Options], set time for [Turn off monitor] in [Power Schemes], along with other detailed settings, to save power. By selecting [Max Battery] in [Power schemes], the battery's operating time can be extended even further.

Fn+F1

( page 4)

Fn+F7

or Fn+

F10

to put your

Computing on the Road

Windows 2000

In [Start] - [Settings] - [Control Panel] - [Power Options], set time for [Turn off monitor] in [Power Schemes], along with other detailed settings, to save power.

Windows 2000

 Setting the Intel® SpeedStep™ technology ( page 32)

CAUTION

 When installed in a network environment (except when the Wake Up form LAN

function is in use). Do not use the standby or hibernation mode. After resuming operation from the standby or hibernation mode, the network connection may be severed or the computer will not work properly.

NOTE

 Select to view [Important Tips] for using the battery pack. You can also view

[Important Tips] using the following procedures.

Windows XP

Select [Important Tips] in [Start] - [All Programs] - [Panasonic] - [On-Line Manuals].

Windows 2000

Select [Important Tips] in [Start] - [Programs] - [Panasonic] - [On-Line Manuals].

Computing on the Road

Setting the Intel(R) SpeedStep(TM) Technology

Windows 2000

By using the Intel® SpeedStep™ technology applet, you can set the computer's performance to optimize power consumption.

Starting Up the Intel(R) SpeedStep (TM) Technology

1 Select on the taskbar.

NOTE

 The icon differs depending on the current setting.

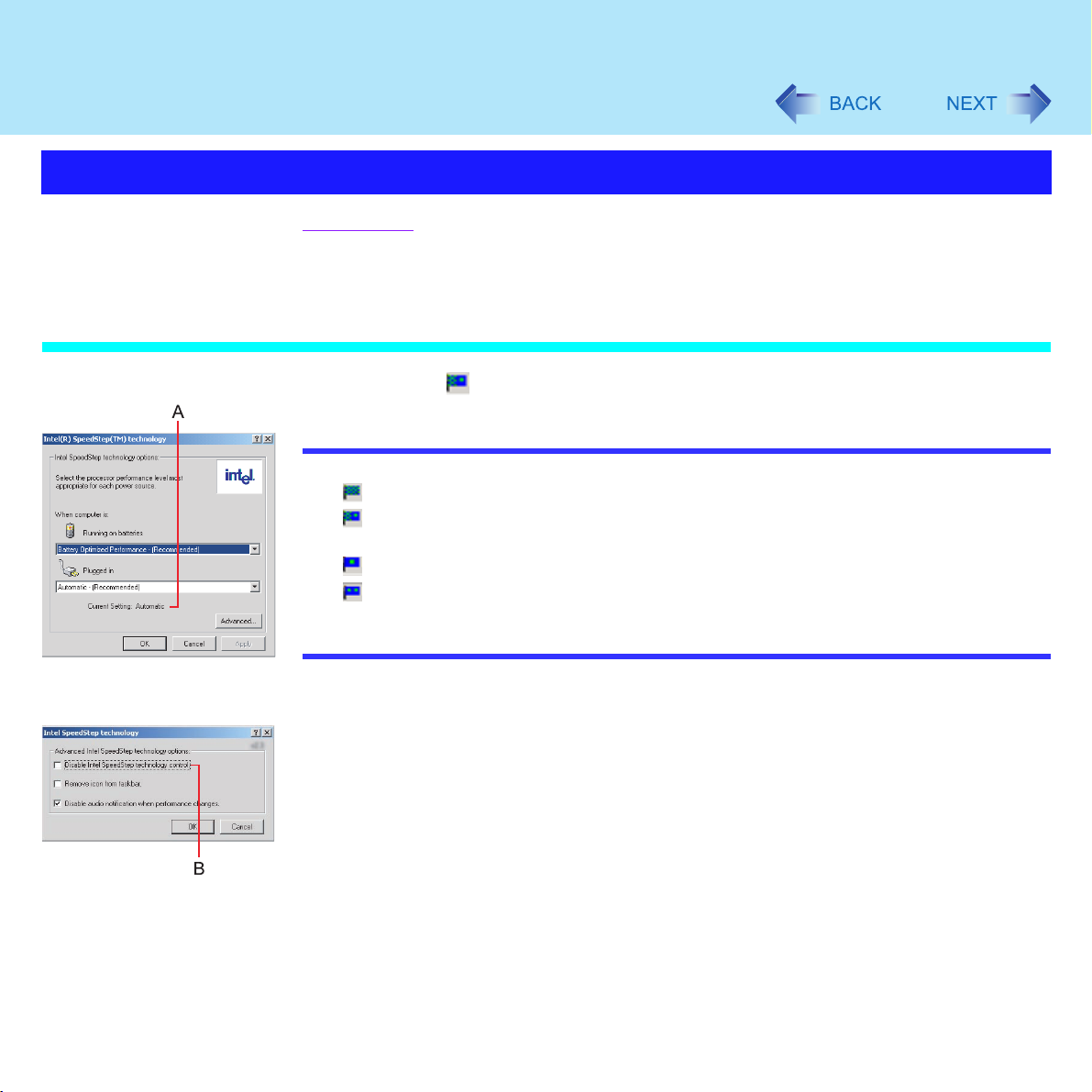

Maximum Performance (The CPU performance is maximized at all times.) Automatic (The CPU performance is automatically maximized only when

necessary.)

Battery Optimized Performance Maximum Battery (Maximum battery life)

 You can also start using [Start] - [Settings] - [Control Panel] - [Power Options] -

[Intel(R) SpeedStep(TM) technology].

A. Displays settings currently in effect. B. Do not add the check mark.

Battery Power

Use the Battery Indicator to Check the Battery Status

:Status of main battery pack

:Status of second battery pack

Battery Indicator Battery Status

Not lit Battery pack is not connected or charging not being

performed.

Orange

Green

Red The battery level is very low (the charge is approx. 9% or

Blinking red

Blinking orange

Charging in progress.

Fully-charged.

less). Connect the AC adaptor. You can use the computer when the battery indicator light is orange. If you do not have an AC adaptor, save your data and power off your computer. After replacing the battery pack with a fully charged one, turn your computer on.

When the AC adaptor is connected.

NOTE

 This computer prevents overcharging of the battery by recharging only when the

remaining power is less than approx. 95% of capacity after the battery is fully charged.

Battery Power

Check the Remaining Battery Power

1 Press

Fn+F9

to Check the Remaining Battery Power on the Screen

(After logging on to Windows)

When the battery pack is inserted in the computer (example)

When the battery pack is not inserted in the computer

Left:The remaining power of the main battery. Right:The remaining power of the second battery (optional).

NOTE

 In the following cases, there may be a difference between the remaining battery

capacity displayed on the indicator and the actual remaining battery capacity. To correct this, execute the Refresh Battery utility. ( page 37)

• The battery indicator light remains red.

• The battery remaining displays 99% and the indicator light is orange for a long

period of time.

• Low battery warning appears after a short period of time.

This may be caused by the use of standby mode for long periods of time. The battery is discharging while the computer is in standby mode when the AC adaptor is not connected.

 There may be a discrepancy between the % value that is displayed on the taskbar

icon, and [Power Meter] in [Power Options Properties]. This is not a malfunction.

Battery Power

About High Temperature Mode

This computer has a high temperature mode function that prevents the degradation of the battery in high temperature environments. We recommend setting the high temperature mode function when installing the computer in a car, etc. To use the high temperature mode function, set [Environment] in the [Main] menu of the Setup Utility to [High Temperature]. Note that a level of 100% in the [High Temperature] mode is about a level of 80% in the [Normal Temperature] mode. After switching from [Normal Temperature] to [High Temperature], or vice versa, the remaining battery will not be displayed properly until the battery pack is completely discharged or fully charged.

Battery Power

When the Remaining Battery Charge Becomes Low

The following is factory default setting.

When remaining battery capacity falls to

10%

[Low battery alarm]

 Displays a message indicating the low

battery level.

Charge your battery. Connect the AC adaptor before starting up

 Connect the AC adaptor immediately. If

you do not have the AC adaptor with you, exit any programs currently running, then exit Windows, and confirm that the power indicator is off.

 If you have a fully charged spare battery,

turn off the computer, replace the battery, and turn the computer on again. Do not replace the battery pack while the computer is in standby mode.

When remaining battery capacity falls to 5%

[Critical battery alarm]

 Displays a message indicating the low

battery level.

 The computer will enter standby or

hibernation mode.

Windows XP

Hibernation mode

Windows 2000

Standby mode

the computer next time.

 If the computer starts up or resumes

while the AC adaptor is not connected, Windows may not operate properly or alarm operations may not work properly.

Above settings can be changed.

1 Display [Alarms] screen.

Windows XP

Select [Start] - [Control Panel] - [Performance and Maintenance] - [Power Options] - [Alarms].

Windows 2000

Select [Start] - [Settings] - [Control Panel] - [Power Options] - [Alarms].

Battery Power

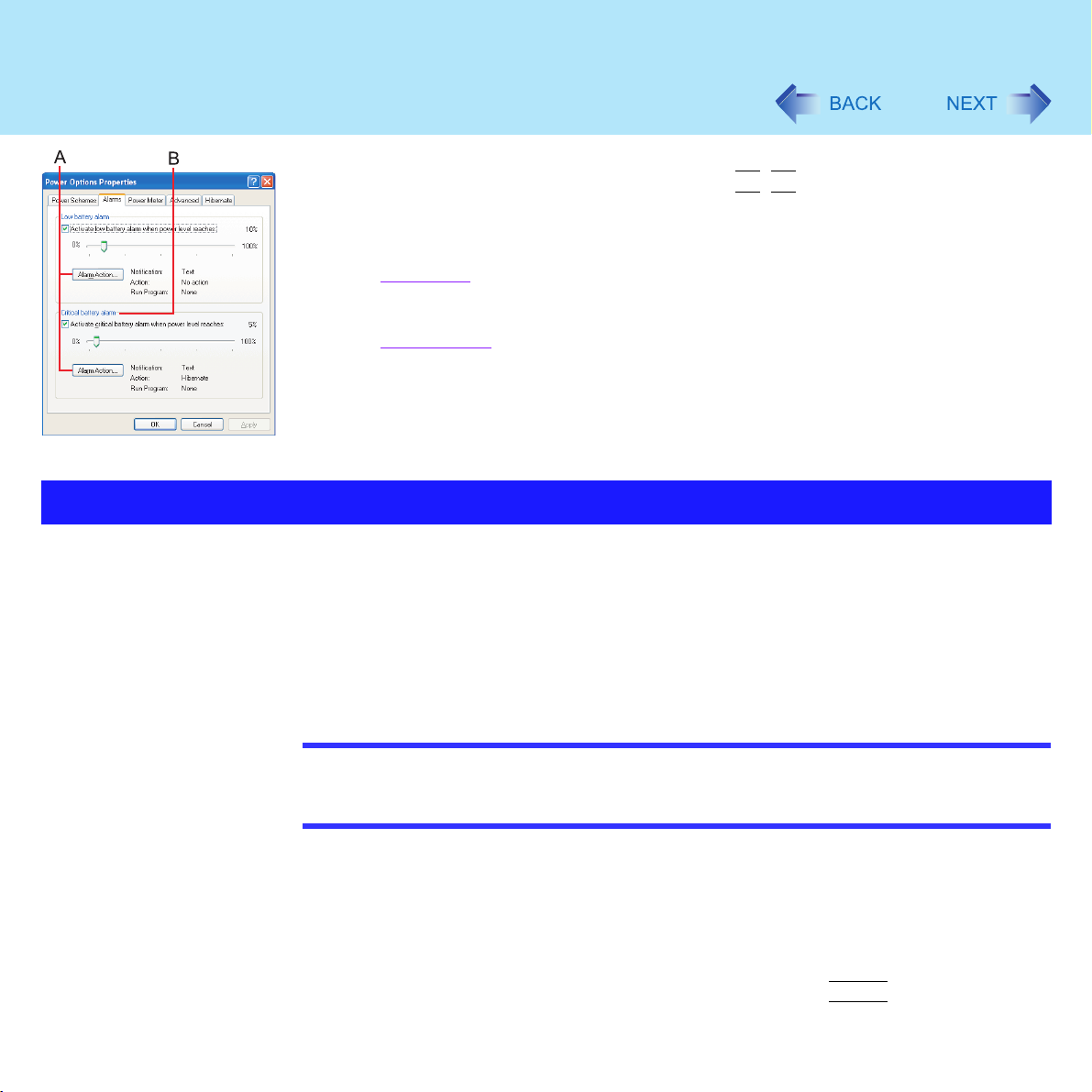

2 Set alarm operations and remaining battery level for operating alarm functions.

When disabling the speaker by pressing disabled.

A. When making a setting for [When the alarm goes off, the computer will] in

[Alarms] - [Alarm Action]:

Windows XP

Add a check mark for [Force stand by or shutdown even if a program stops responding.].

Windows 2000

Add a check mark for [Force standby or shutdown even if a program stops responding.].

B. Set the value for [Critical battery alarm] to 5% or more.

This is necessary for the standby or hibernation function to be completed (assuring data is saved) when the battery level is low.

Accurately Displaying Battery Capacity

The battery pack has a function for measuring, storing and learning about battery capacity. Using this function properly to accurately display remaining battery capacity requires that the battery pack be fully charged (charged to 100%), then fully discharged, and then fully charged again. This procedure should be performed once after you purchase the computer. As you use the battery pack over a long period of time, the remaining capacity display may become inaccurate due to aging of the battery pack and other factors. The procedure described below should be performed again.

Fn+F4

, the sound alarm is also

NOTE

 If the computer is turned off while refreshing the battery (electrical power outage,

accidental removal of the AC adaptor or battery pack, etc.), the battery will not be refreshed correctly.

1 Attach the battery pack, then connect the AC adaptor.

Remove all peripherals (except for the battery pack and AC adaptor).

2 Use the "Refresh Battery" utility to fully discharge the battery pack.

1 Run the Setup Utility. ( page 76) 2 Select [Refresh Battery] from [Exit] menu and press

Enter

Battery Power

3 At the confirmation message, select [Yes] and press

Once the battery indicator turns green, the battery pack will be completely

discharged. It takes approximately 3 hours off through the complete discharge of the battery from the fully charged state.

3 Allow the battery pack to charge until the battery indicator turns

green.

Charging time: Approximately 3 hours.

When the second battery pack has been inserted in addition to the main battery: approximately 6 hours.

Replacing the Battery Pack

The battery pack is a consumable item and therefore will require replacement (CF-VZSU26). When the charge provided by your battery pack is supplied for only a short period of time, even after fully charging according to the instructions, it may be time to replace your battery pack.

CAUTION

 Do not touch the terminals on the battery pack and the computer. The battery pack

may no longer function properly if the contacts are dirty or damaged. Also, the computer may not operate properly.

 The battery pack is not charged when it is first purchased. Be sure to charge it before

using it for the first time. When the AC adaptor is connected to the computer, charging begins automatically.

 Use only the specified battery pack (CF-VZSU26) with your computer.  In the standby mode, do not remove/change the battery pack. Removing the pack in

the standby mode will erase your data and may damage the computer.

Enter

until the power automatically goes

1 Power off your computer.

(⇒Operating Instructions "Starting Up/Shutting Down") Do not shut down using the standby function.

Battery Power

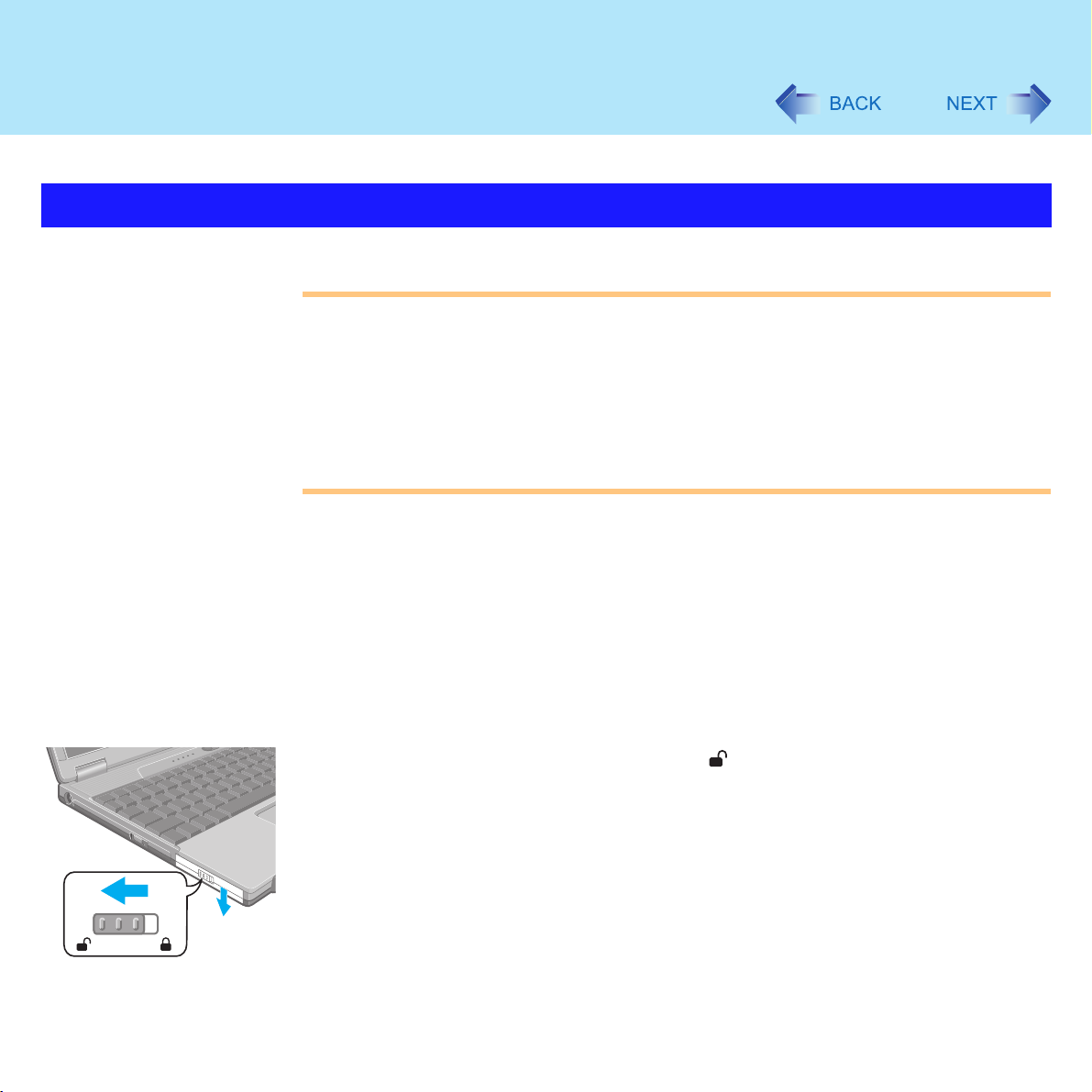

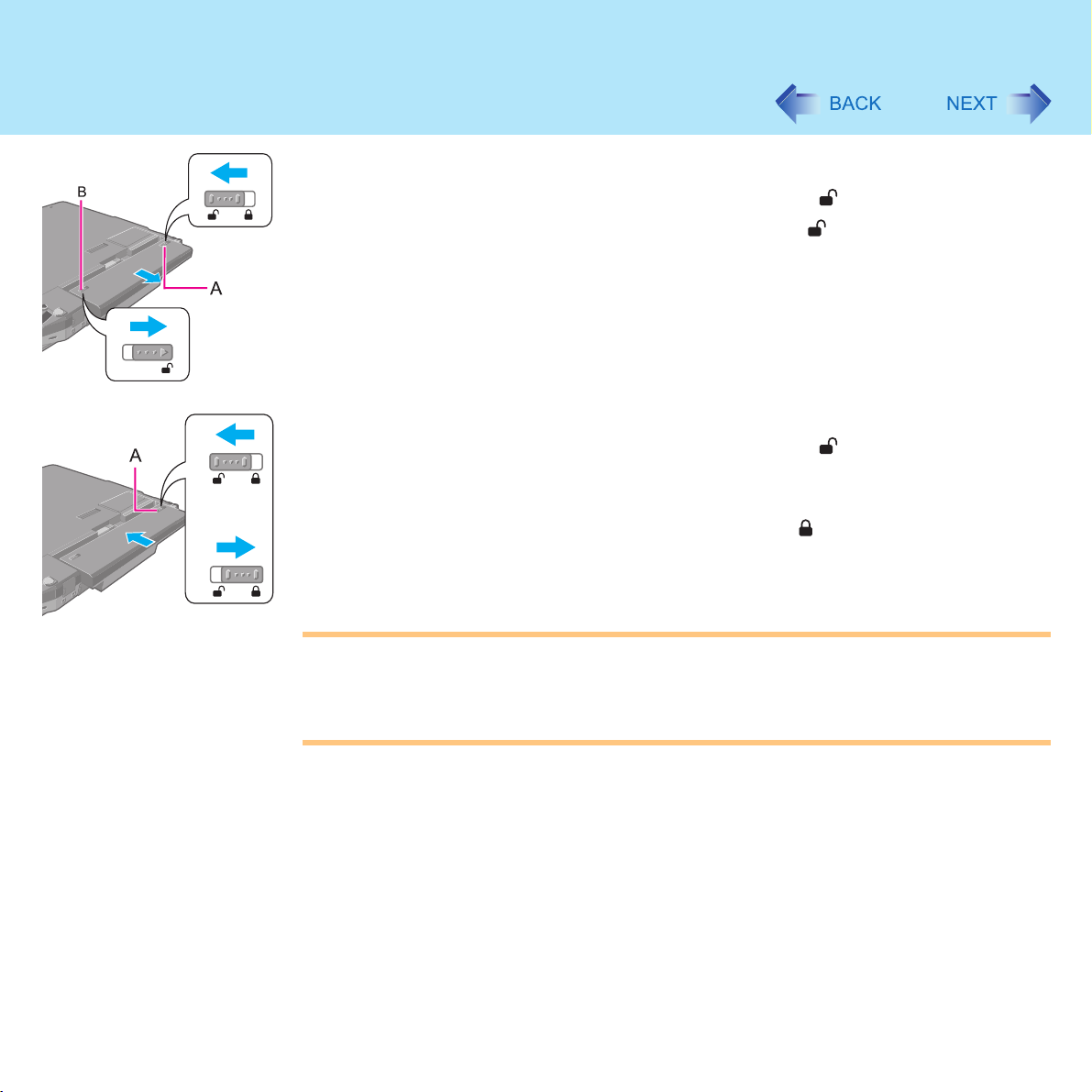

2 Turn your computer over and remove the battery pack.

1 Slide the right-side latch (A) to the unlock position ( ). 2 Slide the left-side latch (B) to the unlock position ( ), and hold the latch in that

position while pushing the center of the battery pack outwards, parallel with the body of the computer.

3 Insert the battery pack.

1 Slide the right-side latch (A) to the unlock position ( ). 2 Make sure the battery pack is facing the correct direction, slide it in the direction

of the arrow.

3 Slide the right-side latch (A) to the lock position ( ), and then check to ensure

that the battery pack is held firmly. (Left-side latch is locked automatically.)

CAUTION

 Confirm that the latch is properly locked. If it is not, the battery pack may fall out while

you are carrying around the computer.

 Do not remove the battery pack by force when the latch is not unlocked. Doing so

could damage the battery pack.

Multimedia Pocket

You may use any of the following devices.

z DVD-ROM & CD-R/RW drive z DVD MULTI drive (Optional) z Second battery pack (Optional)

NOTE

z Confirm the latest information on optional products in catalogs, etc. z Be sure to read the operating instructions of the devices. z Before connecting a peripheral such as a USB device or a PC Card, change the

multimedia pocket device in accordance with the media in which the driver of the peripheral exists. If the multimedia pocket device is changed after the installation screen for peripherals is displayed, the multimedia pocket device cannot be recognized even if it is properly installed.

Preparation for Inserting/Removing

Follow the procedure below only in the case of removal (except for the second battery pack). z When the multimedia pocket device has been removed after the computer is turned off,

these steps are not necessary.

z Insertion is carried out with the power on.

1 Disable the multimedia pocket device function.

Windows XP

1 Double-click on the taskbar. 2 Select the multimedia pocket device and then select [Stop].

Follow the on-screen instructions. Confirm that and indicators are not lit.

Windows 2000

1 Double-click on the taskbar. 2 Select the multimedia pocket device and then select [Stop].

Follow the on-screen instructions. Confirm that and indicators are not lit.

Multimedia Pocket

Inserting/Removing

CAUTION

z Do not insert/remove the multimedia pocket device in the standby or hibernation

z Do not select [Standby] or [Hibernate] as the setting for [When I close the lid of my

Removing the device

mode, or when (multimedia pocket device indicator) or (hard disk drive indicator) is on.

portable computer] in the following menu.

Windows XP

[Start] - [Control Panel] - [Performance and Maintenance] - [Power Options] [Advanced].

Windows 2000

[Start] - [Settings] - [Control Panel] - [Power Options] - [Advanced].

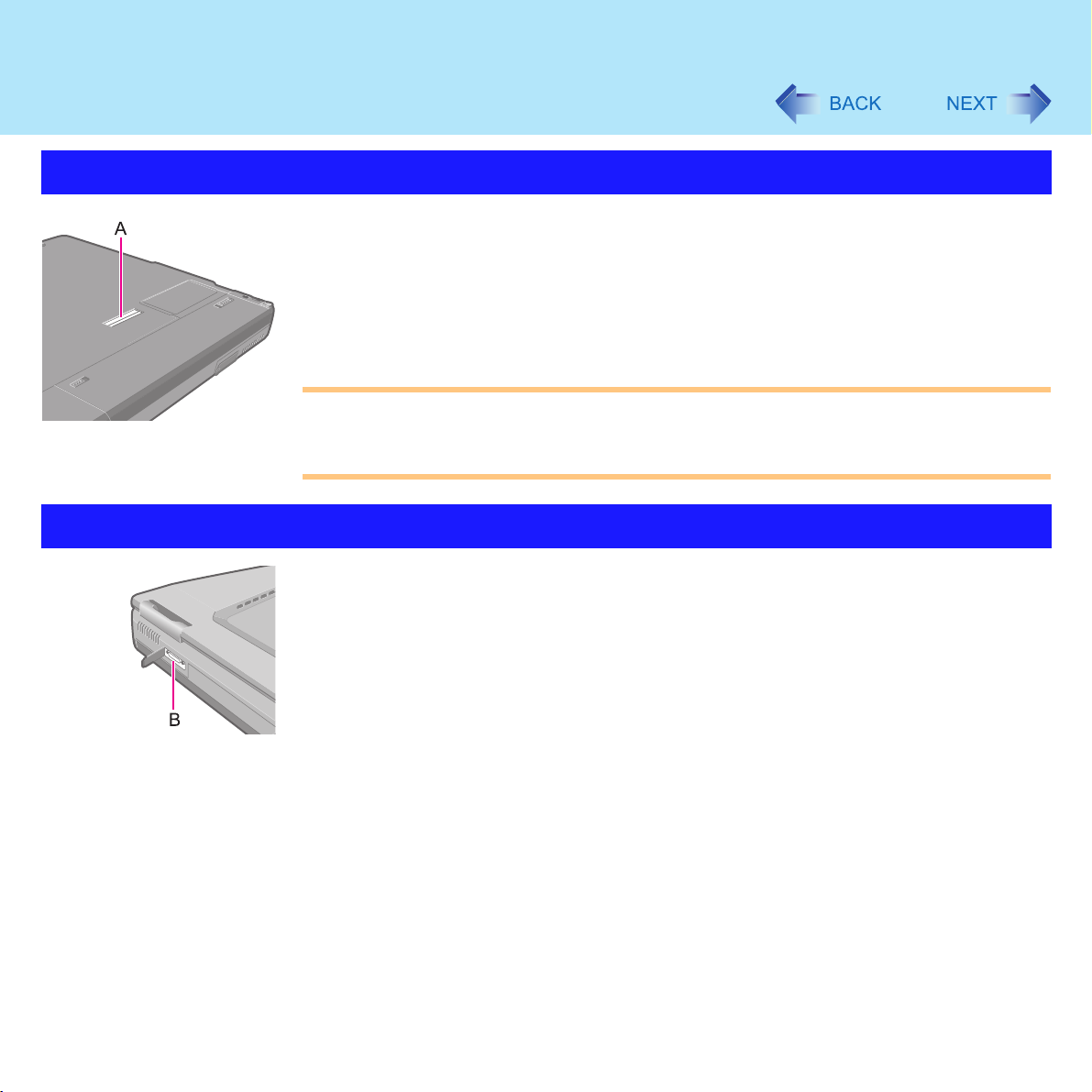

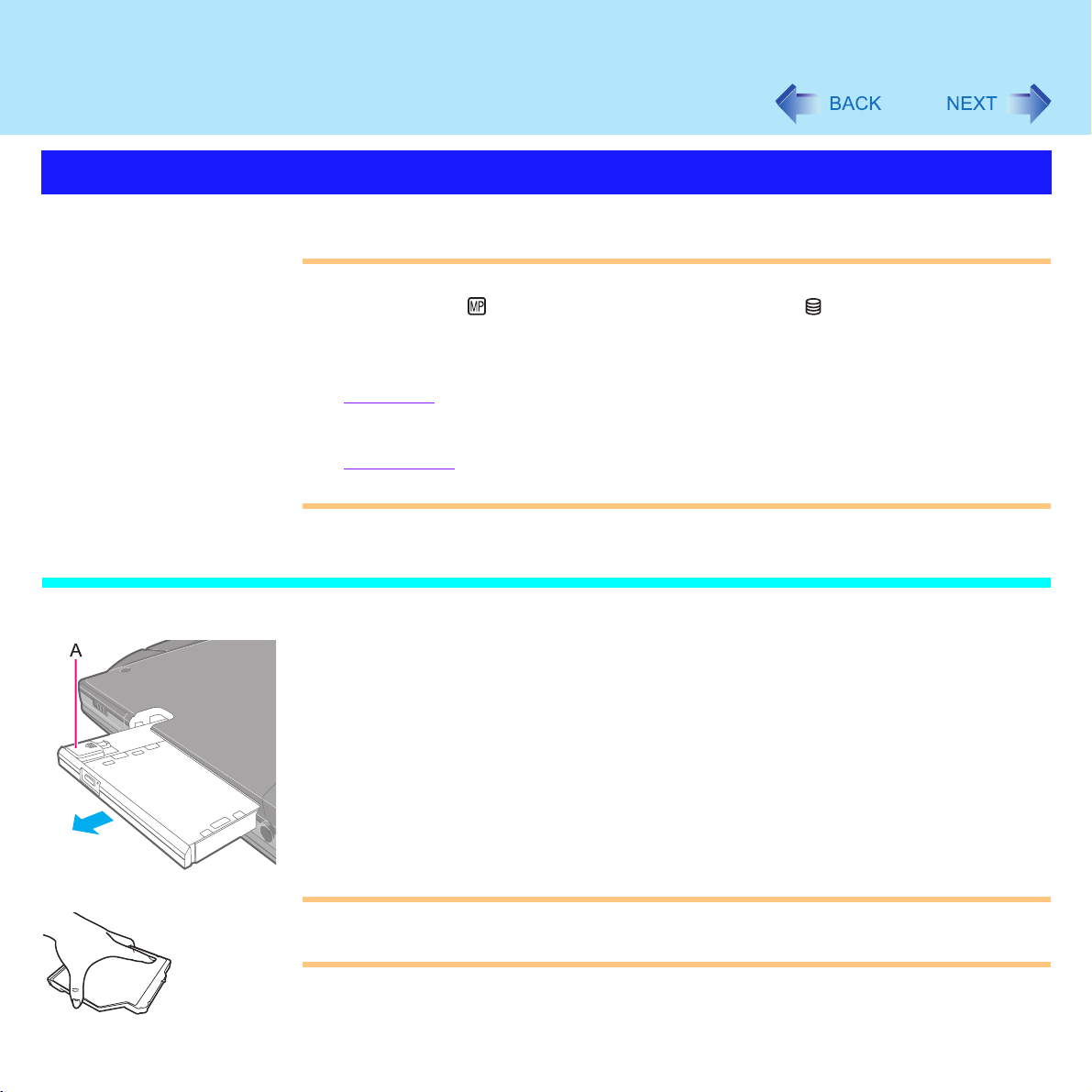

1 Turn your computer over. 2 Press and hold the MP release button (A), then slide the device.

CAUTION

z Handle the device as shown (holding both sides). Otherwise, the device may be

damaged. Also, do not apply excessive downward force on the device.

Multimedia Pocket

Inserting the device

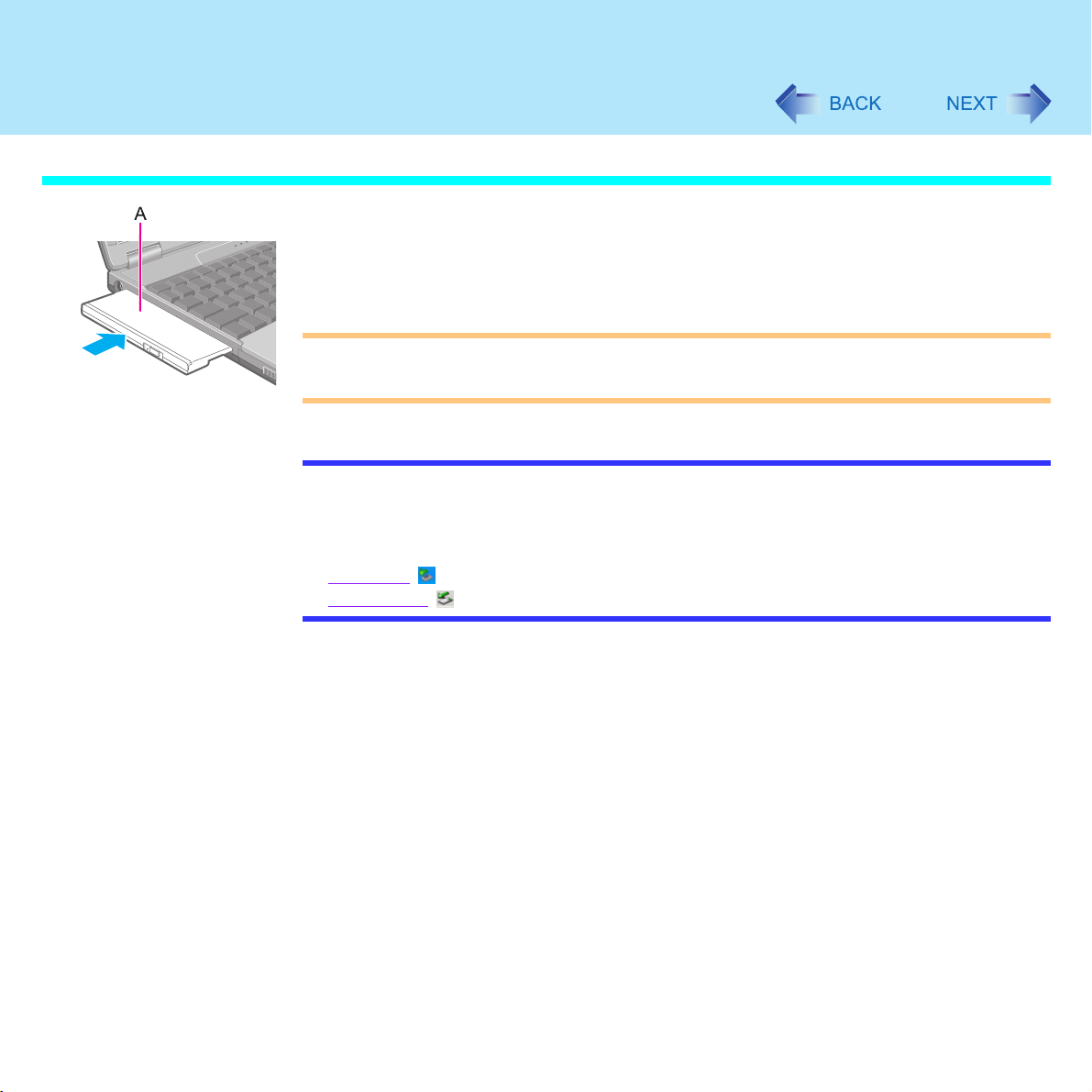

1 Gently insert the device with the label side (A) on top into the

multimedia pocket by pushing on both corners until it is firmly in place.

CAUTION

z Do not insert the device upside-down. The bottom of the drive may become

disfigured.

NOTE

z You can confirm whether the device is properly recognized or not by selecting the

on the taskbar or [Information] in the Setup Utility. If the device is not

icon recognized (or if a CD/DVD cannot be read or a CD-R/CD-RW cannot be read or written to), power off the computer and reinsert the device.

Windows XP : Windows 2000

CD Drive

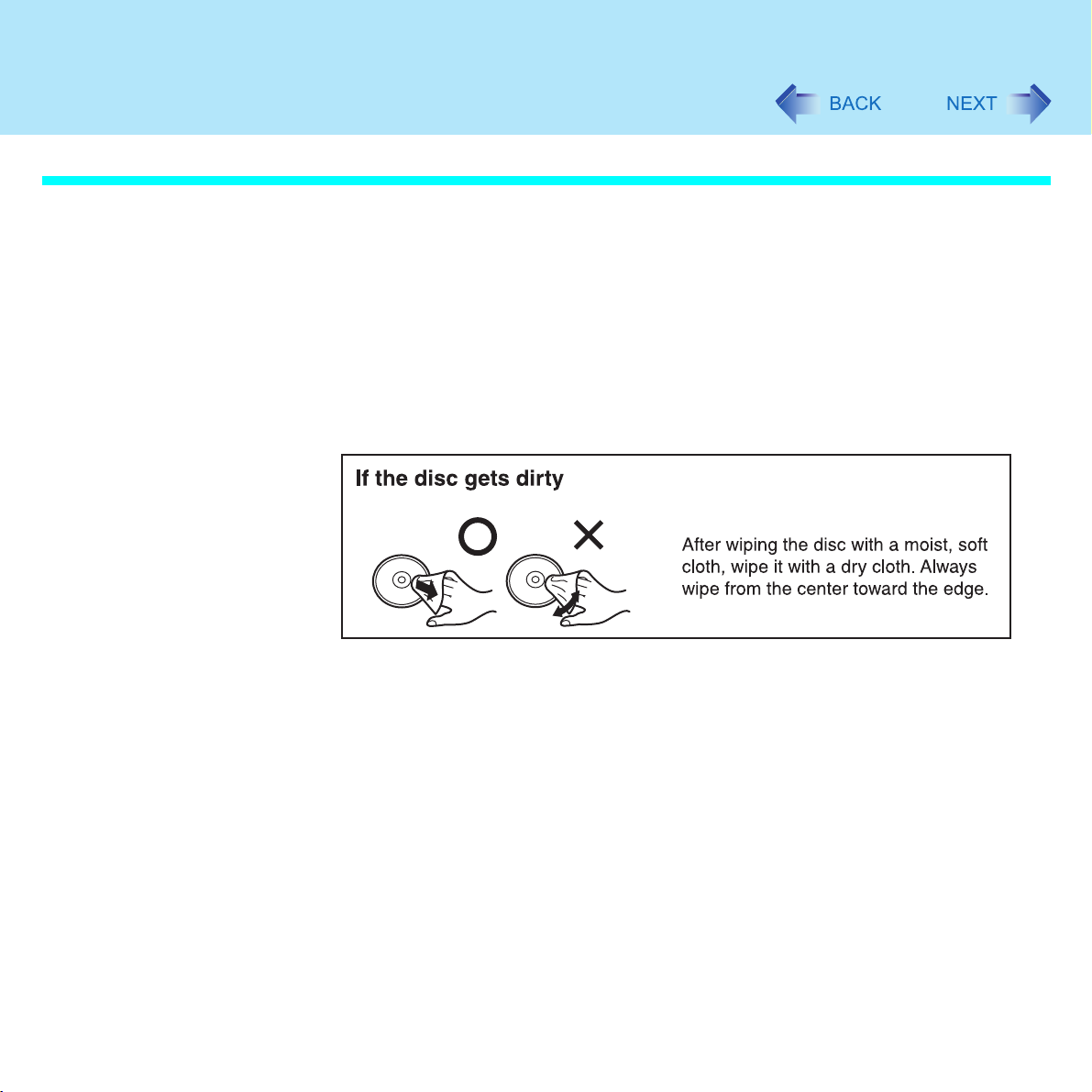

Usage Precautions

 Before using the drive

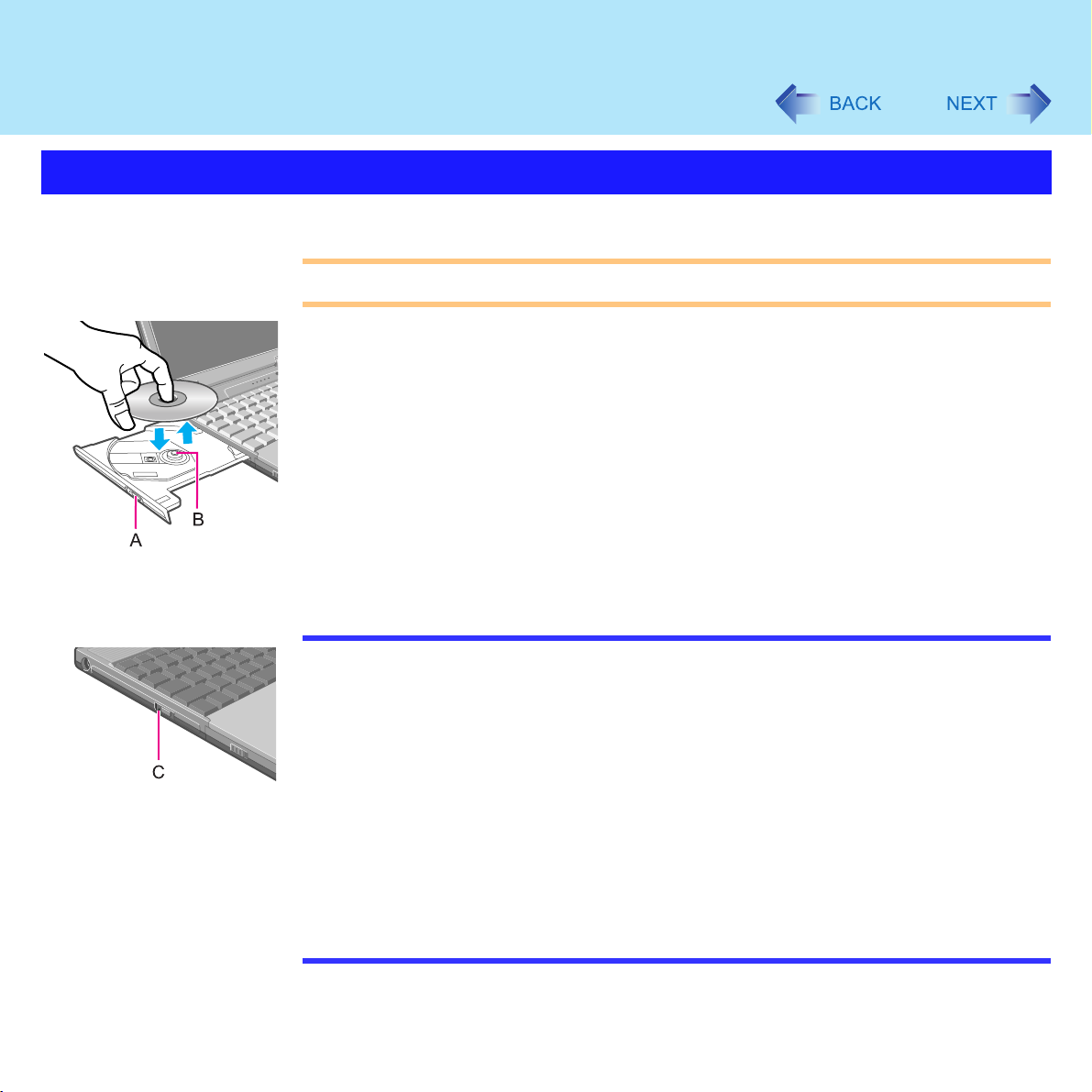

 When using the CD drive for the first time, press the eject button to open the disc tray

 Do not expose the CD drive to excessive smoke that may leave a residue, e.g., oil smoke,

 When opening/closing the tray

 When the computer is on, be sure to use the eject button ( page 48) or perform the

 Do not leave the tray in the open position or touch the lens.

 Do not apply excessive force to the tray in the open position.  Never insert foreign objects such as paper clips into the CD drive.  Do not place items other than discs on the tray.  Do not access the drive until after the tray is closed and the Multimedia pocket device

after the computer has been powered on, and remove the protective sheet from the lens area.

or tobacco smoke. Doing so could shorten the life of the drive lens.

ejecting operation through Windows.

• When a disc that has been formatted by B's CLiP is in the drive, it cannot be taken out by pressing the eject button. Perform the ejecting operation in B's CLiP.

• When B's Recorder finishes writing, the tray opens automatically. (You can change the settings of B's Recorder to avoid opening it automatically.)

Under some conditions, dust may build up on the lens, or on a disc. This may result in a read or write malfunction.

status indicator is off.

 While the CD drive is being accessed

 Do not open the CD drive or move the computer while the CD drive is being accessed.

Doing so could cause the disc to shift position and this may damage the disc, or cause the CD drive to malfunction. In addition, after running an application involving access to a disc, do not open the CD drive until after the application has been closed.

CD Drive

 Cleaning

 We recommend cleaning the drive with an air puffer used for camera lenses.

(Do not use any spray-type of lens cleaning products.)

About Discs

 Do not use any discs that have become deformed, warped, or are not completely round.

Depending on the condition (record quality, a crack, dirt, modification, copy protection, etc.) of a disc, it may not be possible to be read it correctly.

Windows 2000

 Reading DVD-RAM discs on the CD drive

• Only data written on a disc formatted using UDF 1.5 can be treated as a file by Windows Explorer.

• Any disc in the UDF 2.0 format recorded by a DVD recorder can be played using the "WinDVD" program. (⇒Operating Instructions "WinDVD")

Software Preparation (first time only)

The following setting has been made at the time of purchase.

Windows XP

Confirm that [Transfer Mode] is set to [DMA if available] in [Start] - [Control Panel] [Performance and Maintenance] - [System] - [Hardware] - [Device Manager] - [IDE ATA/ATAPI controllers] - [Secondary IDE Channel] - [Advanced Settings] - [Device 0].

Windows 2000

Confirm that [Transfer Mode] is set to [DMA if available] in [Start] - [Settings] - [Control Panel]

- [System] - [Hardware] - [Device Manager] - [IDE ATA/ATAPI controllers] - [Secondary IDE Channel] - [Advanced Settings] - [Device 0].

CD Drive

When Using DVD-ROM Discs

 To play DVD-Video or MPEG2 files, DVD playback software is required. (WinDVD is

installed at the time of purchase. ⇒Operating Instructions “WinDVD”)

 About Regions Setting

The DVD-Video has a region code that is fixed according to the region where it is sold. In order to play a DVD-Video, the region code of the player software and of the drive must match that of the DVD-Video. Example:

For U.S.A. and Canada: 1 For Europe: "2"

This drive's region code is not set at the time of shipment from the factory. Therefore, operations will differ depending on the first DVD-Video played.

 In the case of a DVD-Video with a specific region code:

The drive will automatically be set with the same region code as the DVD-Video.

 In the case of any other DVD-Video:

[Confirm Region] appears. Select region code and select [OK]. Play now begins. ([Confirm Region] may not be displayed for some DVD-Videos. To confirm the current region code and the number of settings remaining, right-click on the WinDVD screen and select [Setup]-[Region].)

CAUTION

 The region code can be set a total of five times, including the initial setting. Proceed

very carefully, because after the fifth change has been made, the region code set last is fixed and no further changes can be made.

 The user must take responsibility for any trouble that results from illegally changing or

altering the region code.

NOTE

 [Confirm Region] will also be displayed if a DVD-Video with one region code is

inserted into a drive for which another region code has already been set.

CD Drive

When Using CD-R or CD-RW Discs

 When using CD-R or CD-RW discs, read the description on the disc package.

 When writing to CD-R/RW discs

 To write CD-R/RW discs, CD-R/RW writer software is required. (B's Recorder GOLD5 and

B's CLiP are installed at the time of purchase. ⇒Operating Instructions “B's Recorder/B's CLiP”)

 Be sure to use discs conforming to the proper write speeds.

CD-R write speed

CD-RW write speed 600 KB/s (4X speed)

High Speed CD-RW write speed 600 KB/s (4X speed)

Depending on the disc, the writing speed may become slower.

 If the write operation is to involve a long period of time, be sure to connect the AC adaptor.

If the battery power runs low and the power of the computer is cut, the write operation may end in failure.

 Depending on the disc, the quality of the write operation may not be so good. We

recommend using any of the following discs.

Recommended Discs:

•CD-R HITACHI MAXELL, Ltd. MITSUBISHI CHEMICAL Co., Ltd. MITSUI CHEMICALS, Inc. RICOH Co., Ltd. TAIYOYUDEN Co., Ltd.

• CD-RW/High Speed CD-RW MITSUBISHI CHEMICAL Co., Ltd. RICOH Co., Ltd.

600 KB/s (4X speed) 1200 KB/s (8X speed) 2400 KB/s (16X speed Max.) 3600 KB/s (24X speed Max.)

1200 KB/s (8X speed) 1500 KB/s (10X speed)

CD Drive

To avoid damaging discs:

• Do not touch the data surface (the side opposite the side with the title printed on it) as it can cause the disc to become dirty or scratched.

• Do not allow discs to become dirty or scratched.

• Do not place or store discs in locations exposed to heat, direct sunlight, humidity or dust.

• Do not write on the surface of the disc with a ballpoint pen or other writing instrument nor paste any paper to it.

• Do not drop, bend, or place heavy objects on top of discs.

• If the disc is brought from a cold into a warm environment, moisture may form on the disc. Wipe this moisture off with a soft, dry, lint-free cloth before using the disc.

• Cleaning the disc using a disc cleaner is recommended once every 2 or 3 months.

CD Drive

Setting a Disc

CAUTION

 When inserting or removing a disc, be careful not to touch the lens of the drive.

1 Press the eject button (A) while the computer's power is on.

Slowly pull out the tray.

2 Inserting or removing a disc

 Inserting

Place the disc with the label facing upward in the drive and push down the center of the disc until it clicks in place.

 Removing

Hold down on the center spindle (B) and gently lift up on the edge of the disc.

3 Close the tray.

Do not press the eject button.

NOTE

 To remove a disc when the computer is powered off, insert a pointed object (e.g., the

bent-out tip of a paper clip, or the tip of a ballpoint pen) into the emergency hole (C). Pushing it completely to the end will free the tray so that it can be pulled out. (The position of the emergency hole differs depending on the drive.)

 If the vibration of the CD drive is excessive, check to see if the disc is inserted

correctly, and check that the disc is in good condition. If the disc is good and inserted correctly, set [CD Drive Speed] to [Low] in the Setup Utility.

 For AutoPlay CDs:

• If an AutoPlay CD does not start after the computer resumes from the standby or

hibernation modes, remove the disc from the drive, then reinsert the disc again after a 15 second wait.

• An AutoPlay CD may start during file access, depending on the status of the disc.

 When playing back movies from a disc, note that smooth playback may not be

possible in some cases.

CD Drive

Power-saving Mode

If the CD drive has not been accessed within 30 seconds, the drive motor will automatically shut down to reduce the power consumption. When the CD drive is accessed once again, the power of the drive motor is turned on. However, approximately 30 seconds are required until data is actually read from the disc.

PC Cards

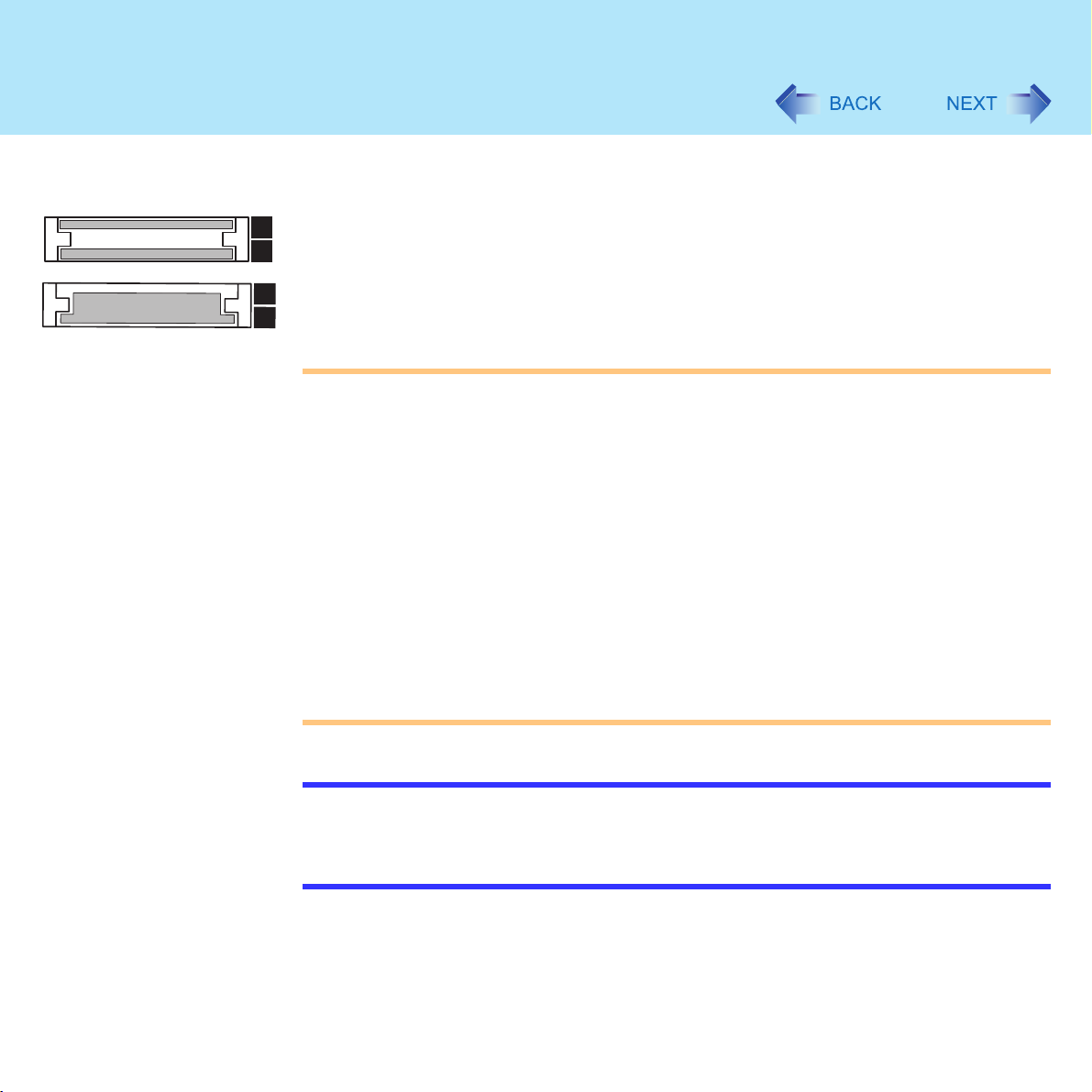

Your computer has two PC Card slots. These slots conform to the PC Card Standard; therefore, communications or SCSI devices, etc., may be utilized.  Type I (3.3 mm) or II (5.0 mm):

Two cards can be used simultaneously.

 Type III (10.5 mm):

One card can be used only in the slot 1.

CAUTION

 Check the PC Cards' specifications. Be sure the total operating current does not

exceed the specified limit. Damage may result otherwise. Allowable Current: 3.3 V: 400 mA, 5 V: 400 mA

 There are times when both a Type I card and a Type II card will not work at the same

time.

 ZV card, SRAM card, FLASH ROM card (except for an ATA interface) and card

requiring 12V are not supported.

 With the repeated insertion/removal of a PC Card, the computer may no longer

recognize the PC Card (depending on the type of card). In such cases, restart the computer.

 When inserting one more CardBus type card with one already inserted, after entering

either the standby or hibernation mode, the computer may not function properly.

 If the computer freezes after resuming from the standby or hibernation mode, try

removing and then reinserting the PC Card. If this does not correct the problem, restart the computer.

NOTE

 Before connecting a PC Card, change the multimedia pocket device in accordance

with the media in which the driver of PC Card exists. Once a screen to install a driver is displayed, the multimedia pocket device cannot be recognized even if it is properly installed.

PC Cards

Inserting/Removing the PC Card

Inserting a PC Card

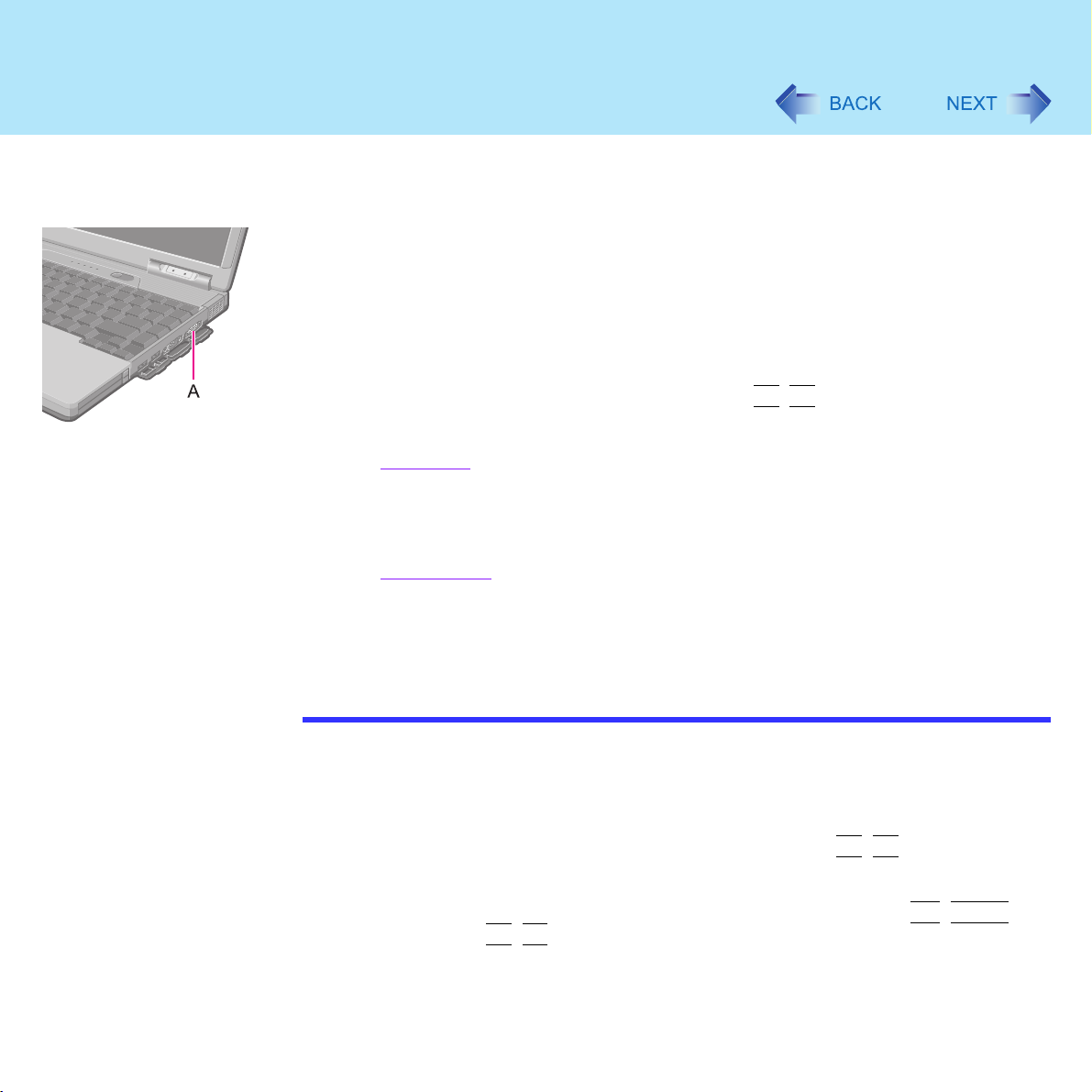

1 Simply slide the PC Card right-side-up (A) until it snaps into place.

Refer to the operating instructions of each card on how to insert the card.

CAUTION

 When using a PC Card to connect a peripheral device (SCSI, IEEE 1394, etc.):

1 Connect the peripheral device to the card. 2 Turn the device on. 3 Slide the card in until it snaps into place.

 When inserting a card, do not force the card in if difficulty is encountered. Depending

on the shape of the card, a segment may remain protruding from the slot after insertion. Do not try to force the card all the way in. You may damage the slot, making it impossible to remove the card.

Removing a PC Card

CAUTION

 Do not remove a PC Card while your computer is in the standby or hibernation mode.  When two PC Cards are inserted, perform the following procedure (from Step

Step

3 for each of the two cards.

 Note that the operation of removing the PC Card may not be complete, depending on

the status of the PC Card or device connected to the PC Card, such as when a SCSI card is used to connect an external hard disk to the computer. In such cases, turn off the power from [Start] menu, then remove the card.

1 to

PC Cards

1 Disable the card function.

Windows XP

1 Select on the taskbar, select the PC Card, then select [Stop]. 2 Follow the on-screen instructions.

(When the PC Card has been removed after the computer is turned off, this step is not necessary.)

Windows 2000

1 Select on the taskbar, select the PC Card, then select [Stop]. 2 Follow the on-screen instructions.

(When the PC Card has been removed after the computer is turned off, this step is not necessary.)

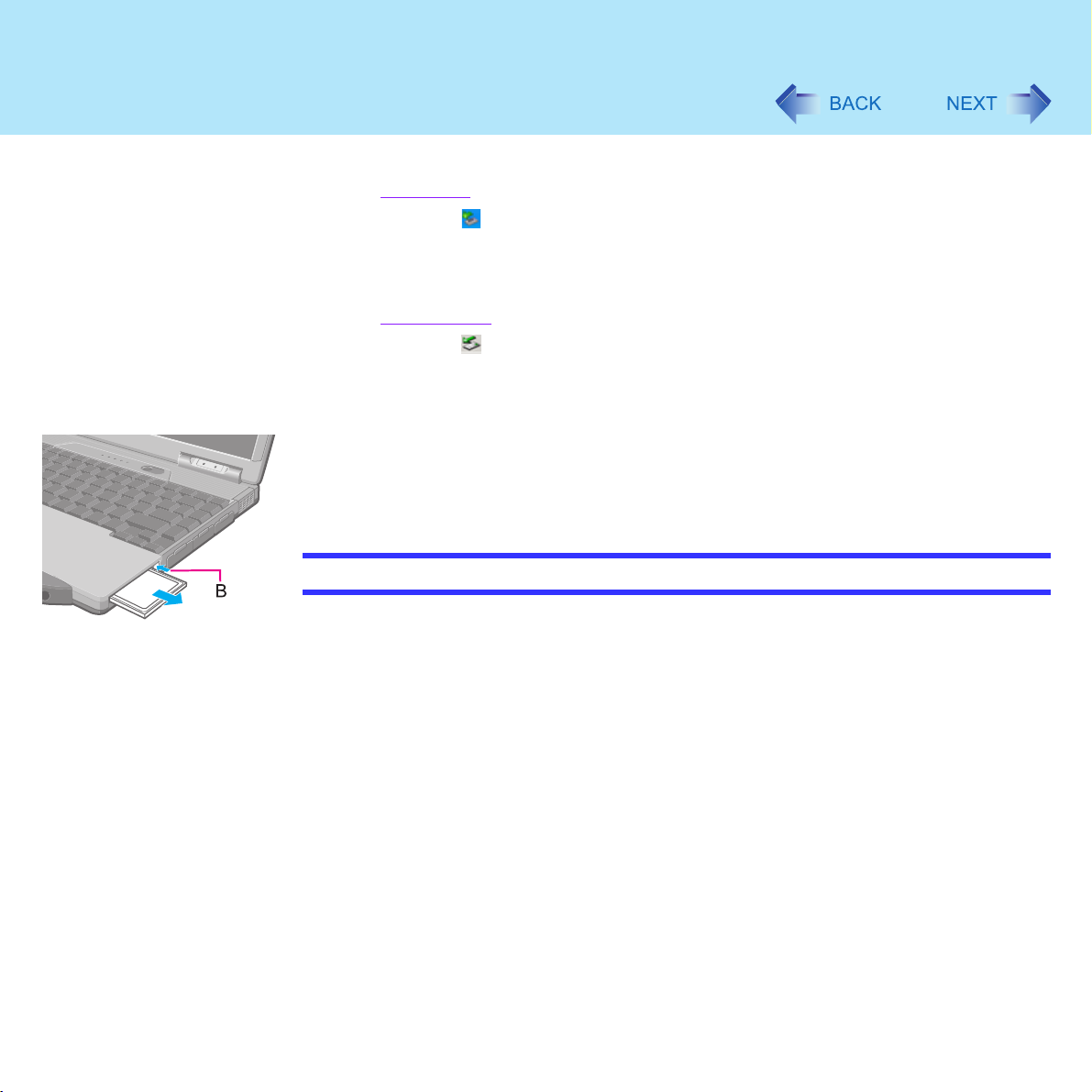

2 Press the button (B), and then press the button again.

3 Slide the PC Card out.

NOTE

 If the button is sticking out, press it back to its original position.

RAM Module

Use a RAM module meeting the RAM module specifications below. If a module is used that does not meet the specifications, there are cases in which data may become unusable or the computer may not operate properly.  RAM module specifications: 200 pins, SO-DIMM, 3.3 V, DDR SDRAM, PC2100

CAUTION

 RAM modules are extremely sensitive to static electricity. There are cases where

static electricity generated by the human body has adversely affected such modules. When inserting or removing a RAM module, do not touch the terminals or internal components, insert objects other than the module, or allow foreign particles to enter. Doing so has been known to cause damage, fire or electric shock.

Inserting/Removing the RAM Module

CAUTION

 If the RAM module is difficult to insert or difficult to press down, do not force it. Check

once more to ensure that the module is positioned correctly.

 Use the proper size screw driver to insure that the screw does not get stripped.

1 Power off your computer.

(⇒Operating Instructions "Starting Up/Shutting Down") Do not shut down using the standby or hibernation function. Disconnect the AC adaptor.

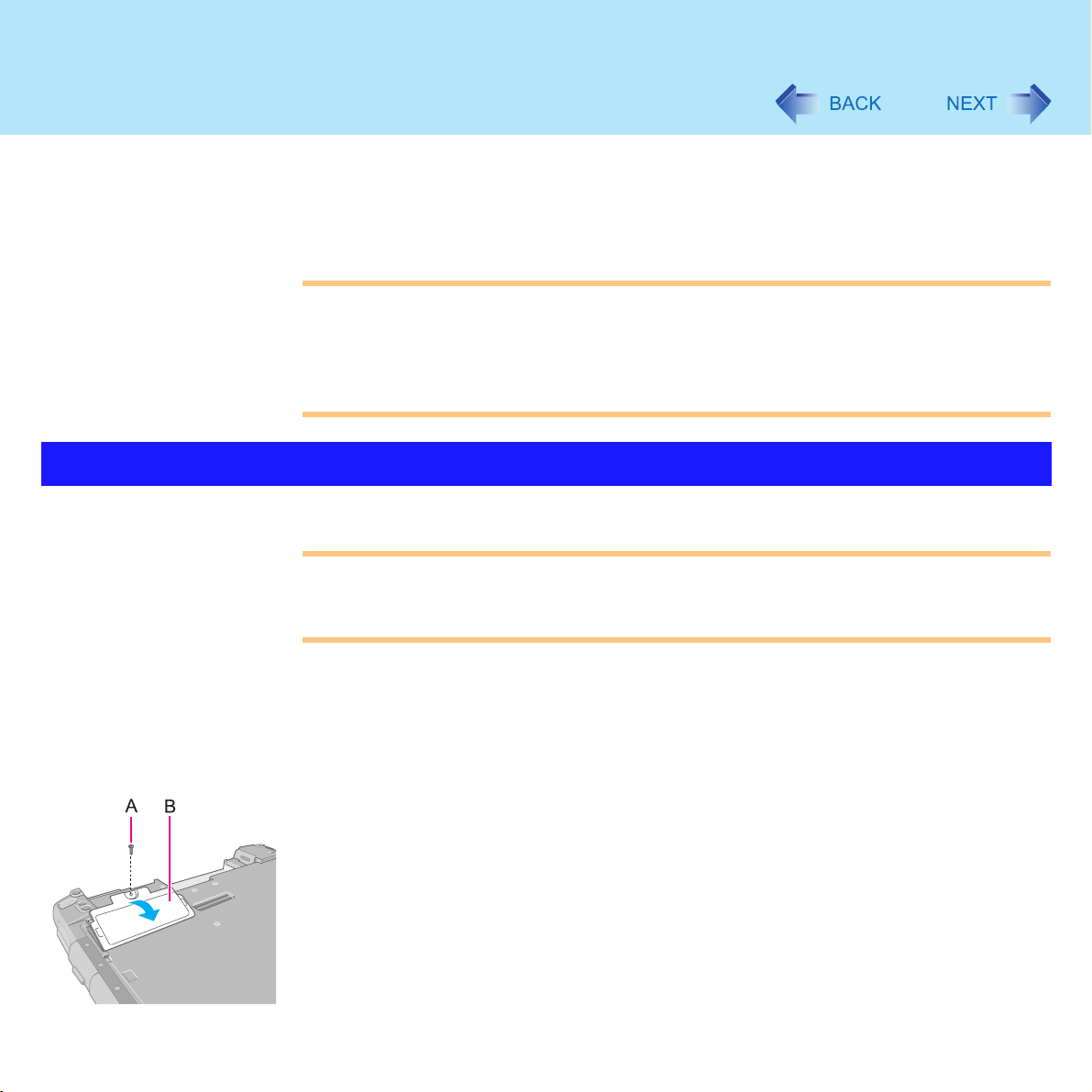

2 Turn the computer over and remove the battery pack and the screw

(A), then remove the cover (B).

RAM Module

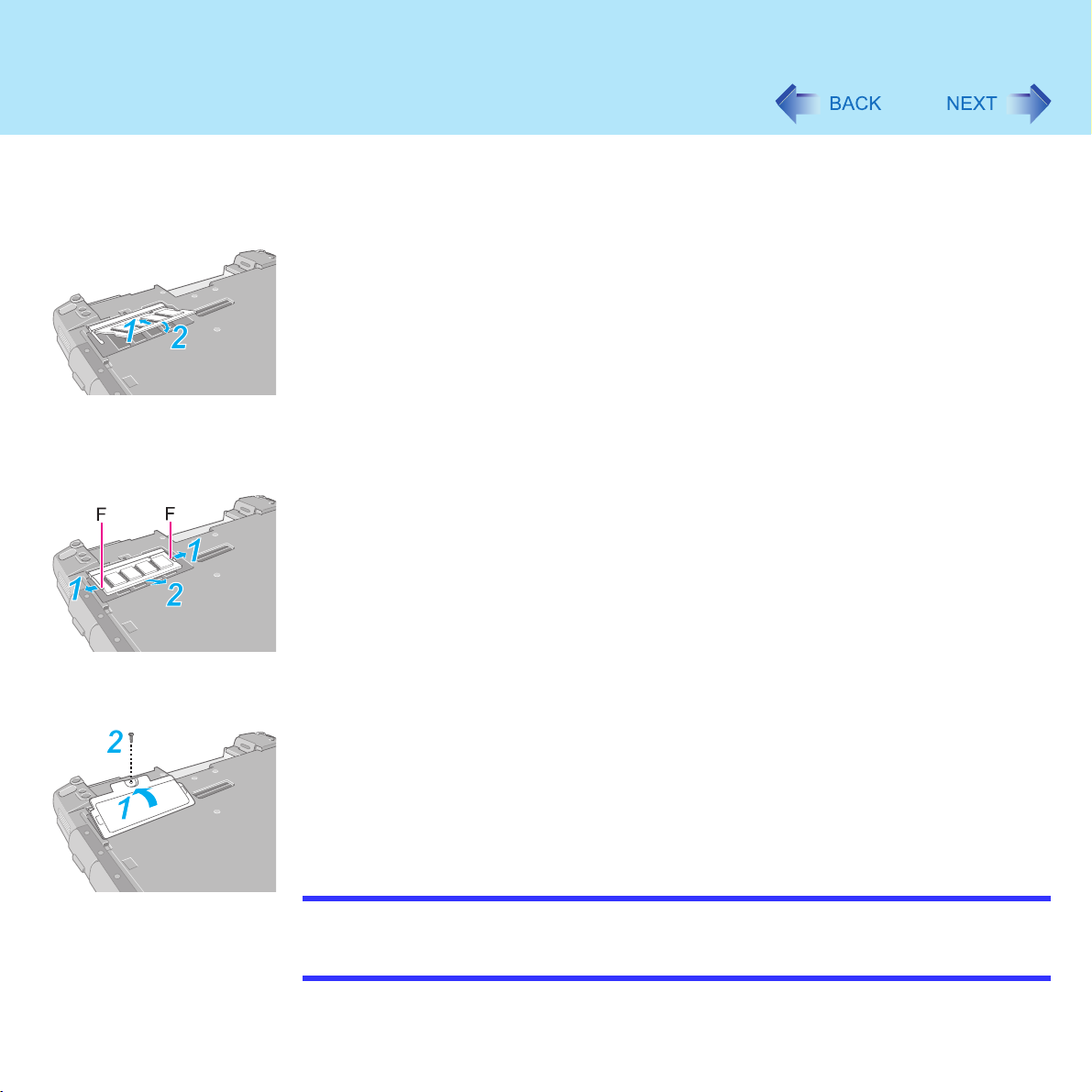

3 Insert/Remove RAM module.

 Inserting the RAM module

1 Slide in the module at an angle. 2 Press the module down until the right and left hooks lock into place.

 Removing the RAM module

1 Gently open the left and right hooks (F).

The RAM module will be raised aslant.

2 Gently remove the RAM module from the slot.

4 Put the cover back in place.

1 Insert the cover diagonally, then fit it in place. 2 Fasten the screws.

5 Insert the battery pack.( page 39)

NOTE

 Whether the RAM module is properly recognized or not can be confirmed in

[Information] menu of the Setup Utility ( page 78). If the RAM module is not recognized, power off the computer and insert it again.

Port Replicator / I/O Box

Port Replicator

A port replicator is available as an option (CF-VEB731). This device eliminates the hassles of having you connect/disconnect the various cables when carrying your computer around and allows a variety of peripherals to be connected including a headphone or microphone, etc. The port replicator connects to the expansion bus connector(A) on the back of your computer. For more detailed information, refer to the Operating Instructions of the port replicator.

CAUTION

 When connecting the external display to the display port on the port replicator, the

characters on the external display may be blurred if 1280 x 1024 (or a higher resolution) is set. In this case, select a resolution that is lower than 1280 x 1024.

I/O Box

An I/O box is available as an option (CF-VEBU03) for connecting a parallel printer, keyboard, external mouse, etc. The I/O box connects to the I/O box connector (B) on the back of your computer. For more detailed information, refer to the Operating Instructions of the I/O box.

External Display

1 Power off your computer.

(⇒Operating Instructions "Starting Up/Shutting Down") Do not shut down using the standby or hibernation function.

2 Connect the external display.

Connect the external display to the external display port (A) on your computer.

3 Turn on the external display, then turn on your computer.

After Windows starts up, the screen is displayed on both the internal LCD and the external display. It is possible to change the setting to display only on the external display or on both the internal LCD and the external display with

4 Set your external display.

Windows XP

Select [Start] - [Control Panel] - [Appearance and Themes] - [Display] - [Settings] Advanced] - [Monitor] and make the monitor settings. When a monitor that does not conform to the Plug & Play standards is connected, select [Properties] - [Driver] [Update Driver] in [Monitor] to update the driver.

Windows 2000

Select [Start] - [Settings] - [Control Panel] - [Display] - [Settings] - [Advanced] [Monitor] and make the monitor settings. When a monitor that does not conform to the Plug & Play standards is connected, select [Properties] - [Driver] - [Update Driver] in [Monitor] to update the driver.

Fn+F3

NOTE

 The display destination after resuming from hibernation mode or after restarting may

differ from the display destination before entering hibernation mode or before restarting. When changing the display destination after Windows has started, do not press any keys or press the power switch until the display destination has changed completely.

 When the display destination of the screen is switched using

[Command Prompt] screen is set to ”Full Screen”, the display destination returns to the destination before switching if an “Exit” is input and the [Command Prompt] screen is closed. This can also happen if the “Full Screen” is canceled via an command. Press

 When the external display is used alone, set the number of colors, resolution, or

refresh rate to suit the external display. These settings are separate from when the internal LCD is used alone or with an external display simultaneously.

Fn+F3

again.

Fn+F3

after the

Alt+Enter

External Display

Extended Desktop

Windows XP

With Extended Desktop, you can use both the internal LCD and the external display as an extended display domain. You can also drag a window from the internal LCD to the external display. To use Extended Desktop;

 Also, carefully read the operating instructions of the external display.  If a picture is not displayed properly, lower the level of [Hardware acceleration] in the

following menu.

Windows XP

[Start] - [Control Panel] - [Appearance and Themes] - [Display] - [Settings] [Advanced] - [Troubleshoot]

Windows 2000

[Start] - [Settings] - [Control Panel] - [Display] - [Settings] - [Advanced] [Troubleshooting]

1 Select [Settings] in [Control Panel] - [Appearance and Themes] -

[Display].

2 Select display [2] and add a check mark for [Extend my Windows

desktop onto this monitor], then select [Apply].

If a checkmark is already displayed, remove the checkmark once, and then turn the checkmark back on.

3 Make the settings for each display (screen area, colors, etc.).

4 Select [OK].

NOTE

 There are some applications that cannot be used in the Extended Desktop.  When the button to maximize a window is pressed, one of the displays will show the

maximized display.

 A window that has been maximized cannot be moved to the other display.  You cannot switch the display destination by pressing

Fn+F3

External Display

Precautions

 The pop-up window displayed by Fn key combination is shown only on the primary

device.

 The cursor will move on the primary device if the surface of the internal LCD is

touched. Set the primary device to the internal LCD when using the touchscreen.

 When the application running is not shown on the display, refer

to the following items.

 Under the condition the application is in the external display, or after the application is

closed in the external display, there are cases the application will not be shown in the display when executed the next time if the position of the extended display is changed or the Extended Desktop is closed.

When there is no display after the position of the extended display is changed:

The application running is being displayed at the position of the extended display before the change. Return the position of the extended display to the condition before the change. Move the application to the internal LCD, and then correct the position of the extended display.

When there is no display when the Extended Desktop is disabled:

The application running is being displayed in the external display. Set the Extended Desktop again, move the application from the external display to the internal LCD and then disable the Extended Desktop.

 To prevent images from being burned onto the external display

 Manually shut off the power to the external display when not in use.

 When the display domain for the Extended Desktop is changed,

there are cases the wallpaper and icons become displaced.

 Wallpaper: Change the setting for the wallpaper.  Icons: Run the command to automatically realign the icons. (Auto Arrange)

External Display

 When an animated pointer is used for the mouse pointer (e.g.,

when changing the theme in [Appearance and Themes] of [Control Panel])

 An error may occur when resuming from the standby or hibernation mode. In such cases,

change the mouse pointer to the standard pointer with the following procedure.

1 Select [Start] - [Control Panel] - [Printers and Other Hardware] - [Mouse]. 2 Select [Pointers]. 3 Select [None] in [Scheme], then select [OK].

 When the display will not be shown properly

 When the Extended Desktop is used, set [Never] for [Plugged in] and [Running on

batteries] for [Turn off monitor] in [Control Panel] - [Performance and Maintenance] [Power Options] - [Power Schemes]. If this setting is not made, there are cases the display will not be shown properly.

 When an external display not compatible with VESA DPMS is used, there are cases the

display of the external display will be adversely affected when the internal LCD is closed. In such cases, turn the power of the external display OFF.

Printer

The following methods can be used to connect a printer.

 USB printer: Can be connected to a USB port on this computer.  Parallel printer:

• Optional I/O Box (CF-VEBU03) or Port Replicator (CF-VEB731) is required.( page

55)

For more information about these connections, refer to the I/O Box or Port Replicator Operating Instructions.

• Confirm whether or not the [Parallel Port] setting in the Setup Utility is optimal.( page

80)

NOTE

 Before connecting a printer, change the multimedia pocket device in accordance with

the media in which the driver of the printer exists. Once a screen to install a driver is displayed, the multimedia pocket device cannot be recognized even if it is properly installed.

 You may need to install a driver for your printer. Follow the on-screen instructions and

refer to the operating instructions of the printer on how to install the driver.

1 Power off your computer.

(⇒Operating Instructions "Starting Up/Shutting Down")

Do not shut down using the standby or hibernation function.

2 Connect the printer to your computer. 3 Turn on the printer, then turn on your computer.

4 Setting your printer.

Windows XP

Select [Start] - [Printers and Faxes]. Find your printer's icon, double-click on it, then select [Printer] - [Set as Default Printer]. If no icon is available, select [Add a printer] and follow the on-screen instructions.

Windows 2000

Select [Start] - [Settings] - [Printers]. Find your printer's icon, click on it, then select [File] - [Set as Default Printer]. If no icon is available, select [Add Printer] and follow the on-screen instructions.

USB Devices

Connecting/Removing USB devices

Connecting USB devices

1 Connect the USB device to the USB port (A) on your computer,

referring to the operating instructions of the USB device.

You may need to install drivers compatible with the operating system you are using for your USB devices. Follow the on-screen instructions and refer to the operating instructions for USB devices on how to install the driver.

NOTE

 USB devices may be connected or removed without turning off the computer's power.  When a USB device is connected, there are cases the standby or hibernation function

will not operate in a normal manner due to the USB device. In addition, a USB device may have to be removed temporarily and the computer restarted in cases where the computer is unable to start up properly.

 Some devices will not operate when connected to a USB HUB; these devices must be

connected directly to the USB port on your computer.

 When a USB device is removed and then inserted, may appear in the Device

Manager and the device may not be correctly recognized. If this happens, try removing and connect the device once more.

 When USB devices are connected, power consumption increases. Remove USB

devices when not in use, especially when operating on battery power.

 After connecting the USB device to one port and installing the driver, it may be

necessary to reinstall the driver when the device is connected to the other port.

Removing USB devices

CAUTION

 Do not remove a USB device while your computer is in the standby or hibernation

mode.

USB Devices

 Save important data and close each application.

1 Disable the device functions.

Windows XP

1 Select on the taskbar and select the USB device, then select [Stop]. 2 Follow the on-screen instructions.

(When is not displayed or when the USB device has been removed after the computer is turned off, this step is not necessary.)

Windows 2000

1 Select on the taskbar and select the USB device, then select [Stop]. 2 Follow the on-screen instructions.

(When is not displayed or when the USB device has been removed after the computer is turned off, this step is not necessary.)

2 Remove the USB device.

USB Floppy Disk Drive

Note the following when using a optional USB floppy disk drive (CF-VFDU03).

 Do not power off your computer or press the floppy disk drive eject button while the floppy

 Use care when handling floppy disks.

 Confirm the contents of a floppy disk before formatting it.

disk drive being accessed. Doing so may damage the data on the floppy disk and render the floppy disk useless.

To protect the data on your floppy disks or to prevent a floppy disk from becoming stuck in your computer, avoid the following:

• Sliding the shutter on the floppy disk manually.

• Exposing the disk to a magnetic field.

• Storing the disk in locations prone to high temperatures, low pitched noise, dampness, or dust.

• Applying more than one label on the disk.

Confirm that no important data is on the floppy disk, because all data on the floppy disk will be erased.

USB Devices

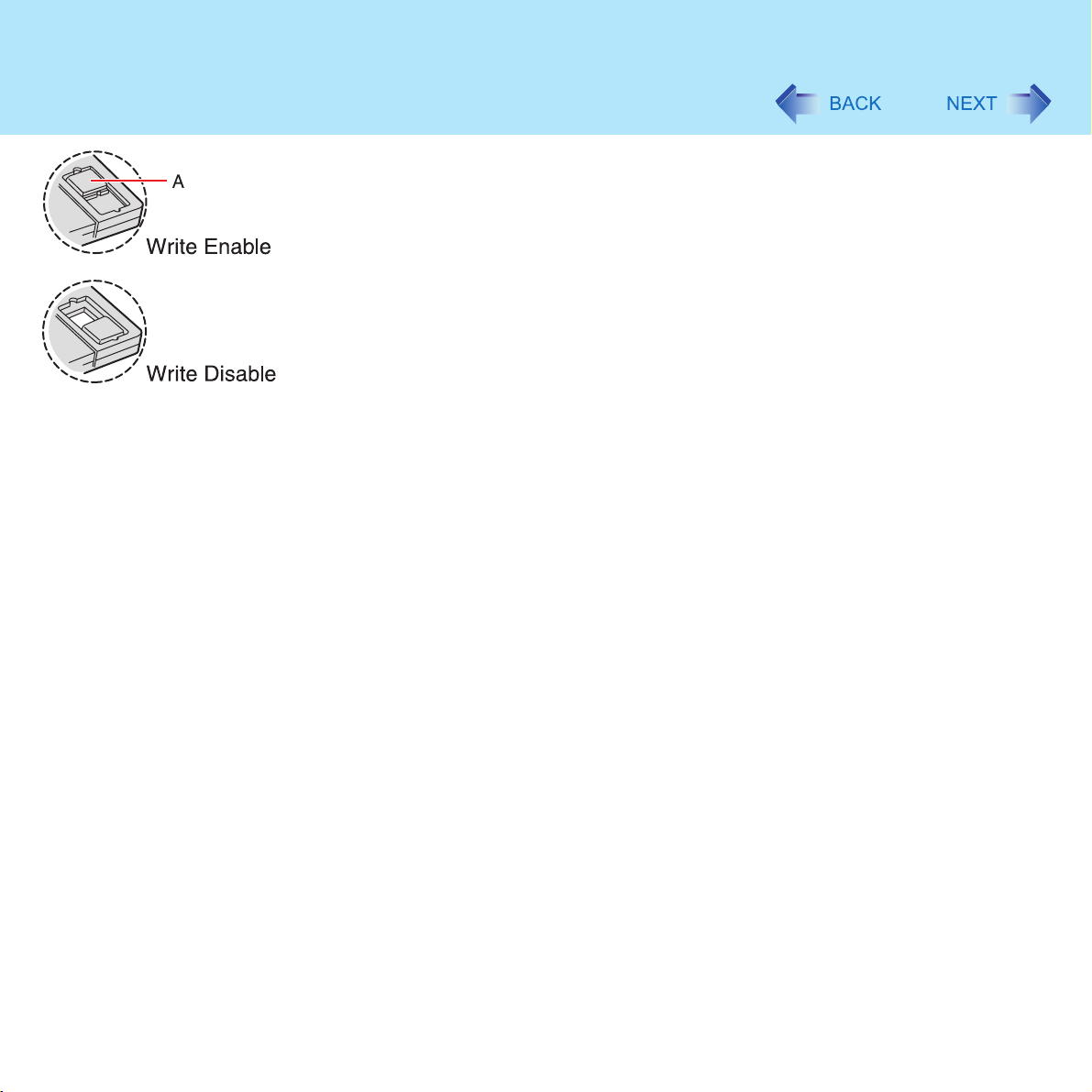

 Use the write-protect tab (A).

This is a must for preserving important data. This prevents your data from being erased or overwritten.

 The USB floppy disk drive cannot be used at the same time as other floppy disk drives.  Do not directly open application files (e.g., Microsoft Word, Microsoft Excel) which are

stored on the floppy disk. First copy the files to the hard disk, then open the copied files from the hard disk.

Modem

Connecting the Internal Modem with a Telephone Jack

CAUTION

 Do not use the PBX internal phone lines installed in company offices. Doing so may

lead to a fire or electric shock.

 It is not possible to connect the modem to any of the following lines.

• Internal home phones

• Intercoms

 Be sure to connect the modem telephone cable into the modem port, not into the LAN

port.

 The modem may be damaged by sudden high voltage surges, as may occur in the

event of a lightning strike. We recommend use of a surge protector.

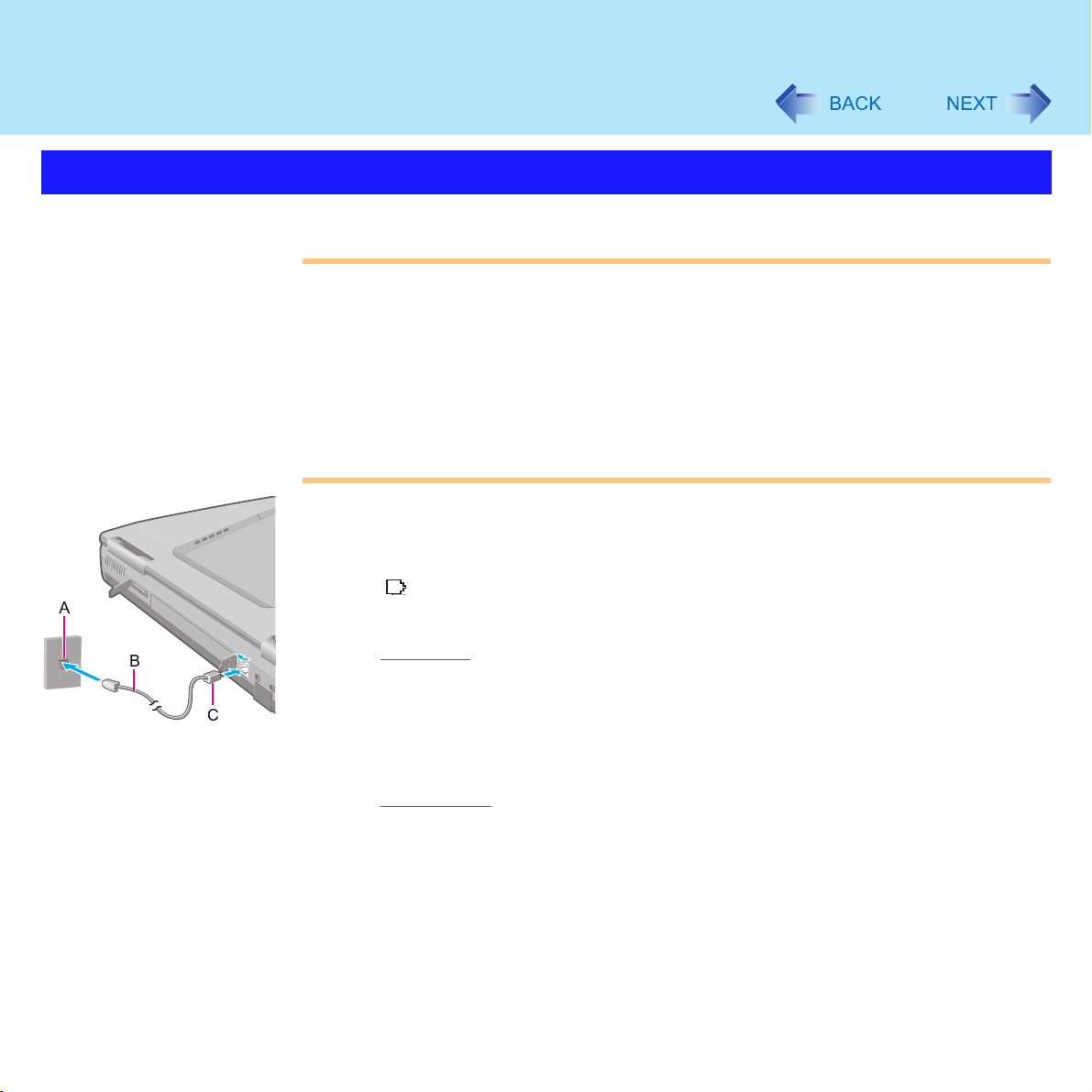

1 Connect the computer and the telephone jack (A) using a modem

telephone cable (included)(B).

Open the modem cover, position the cable so that the tab (C) matches the port ( ), and insert the cable until you hear a "click".

2 Change the settings as necessary.

Windows XP

1 Select [Edit] in [Start] - [Control Panel] - [Printers and Other Hardware] -

[Phone and Modem Options] - [Dialing Rules], then select the location from which you will be dialing in [Country/region].

2 Input the necessary information (items such as the area code, dialing rules etc.),

select [OK], then select [OK].

Windows 2000

1 Select [Edit] in [Start] - [Settings] - [Control Panel] - [Phone and Modem

Options] - [Dialing Rules], then select the location from which you will be dialing in [Country/region].

2 Input the necessary information (items such as the area code, dialing rules etc.),

select [OK], then select [OK].

Modem

NOTE

 Do not enter either the standby or hibernation mode during communications.

Ring Resume Function

With this function, if the telephone that is connected to the modem rings in the standby mode, the power of the computer automatically switches ON. This function is convenient when using automatic information receiving applications such as a FAX application. When using this function, it is necessary to run a software application able to maintain the condition to receive telephone calls and to return the computer to the original condition after a call. For further details, refer to the operating instructions provided with software applications.

Enabling the Ring Resume Function

Windows XP

1 Select [Device Manager] in [Start] - [Control Panel] - [Performance and

Maintenance] - [System] - [Hardware] and then select the internal modem from [Modems].

2 Select [Power Management], add the check mark for [Allow this device to bring

the computer out of standby], then select [OK].

Windows 2000

1 Select [Device Manager] in [Start] - [Settings] - [Control Panel] - [System] -

[Hardware] and then select the internal modem from [Modems].

2 Select [Power Management], add the check mark for [Allow this device to bring

the computer out of standby], then select [OK].

CAUTION

 When using this function, it is recommended that the AC adaptor be connected to the

computer.

 Concerning the setting for [System standby]

Modem

• Roughly consider the communication time and then set [System standby]. There

may be cases where the computer enters the standby mode after the time set for [System standby] elapses even during communications, and cuts off the communications.

• If [Never] is set, the computer will not enter the standby mode during

communications, but once the computer resumes, the power of the computer will remain on while the user is absent.

 When the Ring Resume function is being used, some time elapses before a

connection is established (equal to the time for the computer to resume). To allow the computer to resume, set the "Call" to a larger value than a typical telephone call. If it is not possible for the sending side to set a long "Call", set the "Number of rings until answer" (with the software application that is able to maintain the condition to receive telephone calls) to a small value.

To display the setting for [System standby],

Windows XP

Select [Start] - [Control Panel] - [Performance and Maintenance] - [Power Options] - [Power Schemes].

Windows 2000

Select [Start] - [Settings] - [Control Panel] - [Power Options] - [Power Schemes].

NOTE

 This function does not work when the computer is off or is in hibernation mode.  After operations are resumed from standby mode, the screen remains dark.  The computer cannot resume if a telephone is connected to the line of a modem (e.g.,

a PC Card modem) other than the internal modem.

LAN

Connecting LAN

When using the computer as a network computer, some additional settings may have to be made depending on the usage conditions. We recommend asking your system administrator or the person in charge of the network.

CAUTION

 Do not connect the modem telephone cable into the LAN port.

1 Power off your computer.

(⇒Operating Instructions "Starting Up/Shutting Down") Do not shut down using the standby or hibernation function.

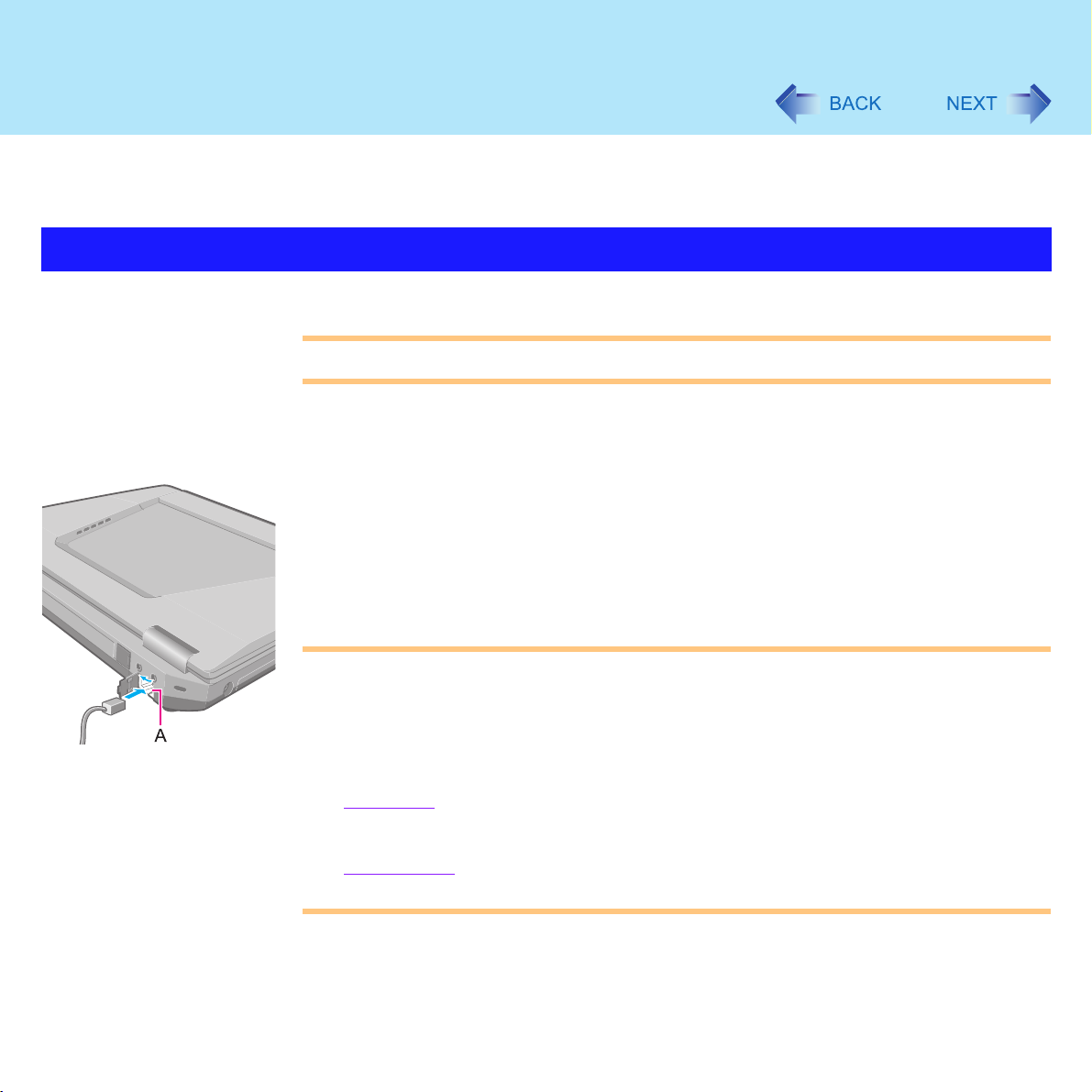

2 Connect the cable.

Connect the LAN port (A) and the network system (server, HUB, etc.) using a LAN cable.

3 Turn on the computer.

CAUTION

 Do not use the standby or hibernation functions during communications (except when

the Wake Up from LAN function is in use), as this may cause an error in data transmission or reception. The timeout function may engage even during data transmissions, causing the computer to automatically go into standby or hibernation mode. When not using the Wake up from LAN function, we recommend disabling the timeout function using the following menu.

Windows XP

[Start] - [Control Panel] - [Performance and Maintenance] - [Power Options] - [Power Schemes]

Windows 2000

[Start] - [Settings] - [Control Panel] - [Power Options] - [Power Schemes]

LAN

Wake up from LAN

NOTE

 If you are unable to connect to the network (when the indicator of your HUB unit does

not light):

1 Display [Device Manager] screen.

Windows XP

Select [Device Manager] in [Start] - [Control Panel] - [Performance and Maintenance] - [System] - [Hardware].

Windows 2000

Select [Device Manager] in [Start] - [Settings] - [Control Panel] - [System] [Hardware].

2 Select the network adaptor you are using from [Network adapters]. 3 Select [Advanced]. 4 Confirm the settings of each item.

This is a function of the internal LAN to automatically power the computer on from a network server when the computer is in the standby or hibernation mode. To use this function, it is necessary to have a network environment that accommodates Wake up from LAN.

Enabling the Wake up from LAN Function

Windows XP

1 Select [Device Manager] in [Start] - [Control Panel] - [Performance and

Maintenance] - [System] - [Hardware].

2 Select the internal network adaptor from [Network adapters]. 3 Select [Power Management], add the check mark for [Allow the computer to turn

off this device to save power] and [Allow this device to bring the computer out of standby], then select [OK].

Windows 2000

1 Select [Device Manager] in [Start] - [Settings] - [Control Panel] - [System] -

[Hardware].

2 Select the internal network adaptor from [Network adapters].

LAN

3 Select [Power Management], add the check mark for [Allow this device to bring

the computer out of standby.] and [Allow the computer to turn off this device to save power.], then select [OK].

CAUTION

 Be sure to connect the AC adaptor, and enable the supply of power.

NOTE

 Even when a password is set in the Setup Utility and [Password on boot] is set to

[Enable], it is not necessary to input the password set in the Setup Utility when the computer resumes from standby or hibernation mode.

 The Wake up from LAN function will not operate under the following conditions:

• When the computer has been shut down.

• When the power switch is pressed over for four seconds or longer to turn off the

power (e.g., when the computer hangs).

• When the AC adaptor and battery pack are removed from the computer or

reattached to the computer.

 After operations are resumed from standby mode, the screen remains dark. The

former screen display will be restored when the keyboard, touch pad or touchscreen (only for models with touchscreen) is touched.

 The computer may start up if accessed by another computer on the network.

Windows XP

The following procedure can be used to prevent startup due to unintentional access by a computer.

1 Select [Start] - [Control Panel] - [Performance and Maintenance] - [System] -

[Hardware] - [Device Manager] - [Network adapters], then select the internal network adaptor, and then select [Power Management].

2 Add the check mark for [Only allow management stations to bring the computer

out of standby], then select [OK].

Wireless LAN

If you use a wireless LAN, you can use a network without cable connections.

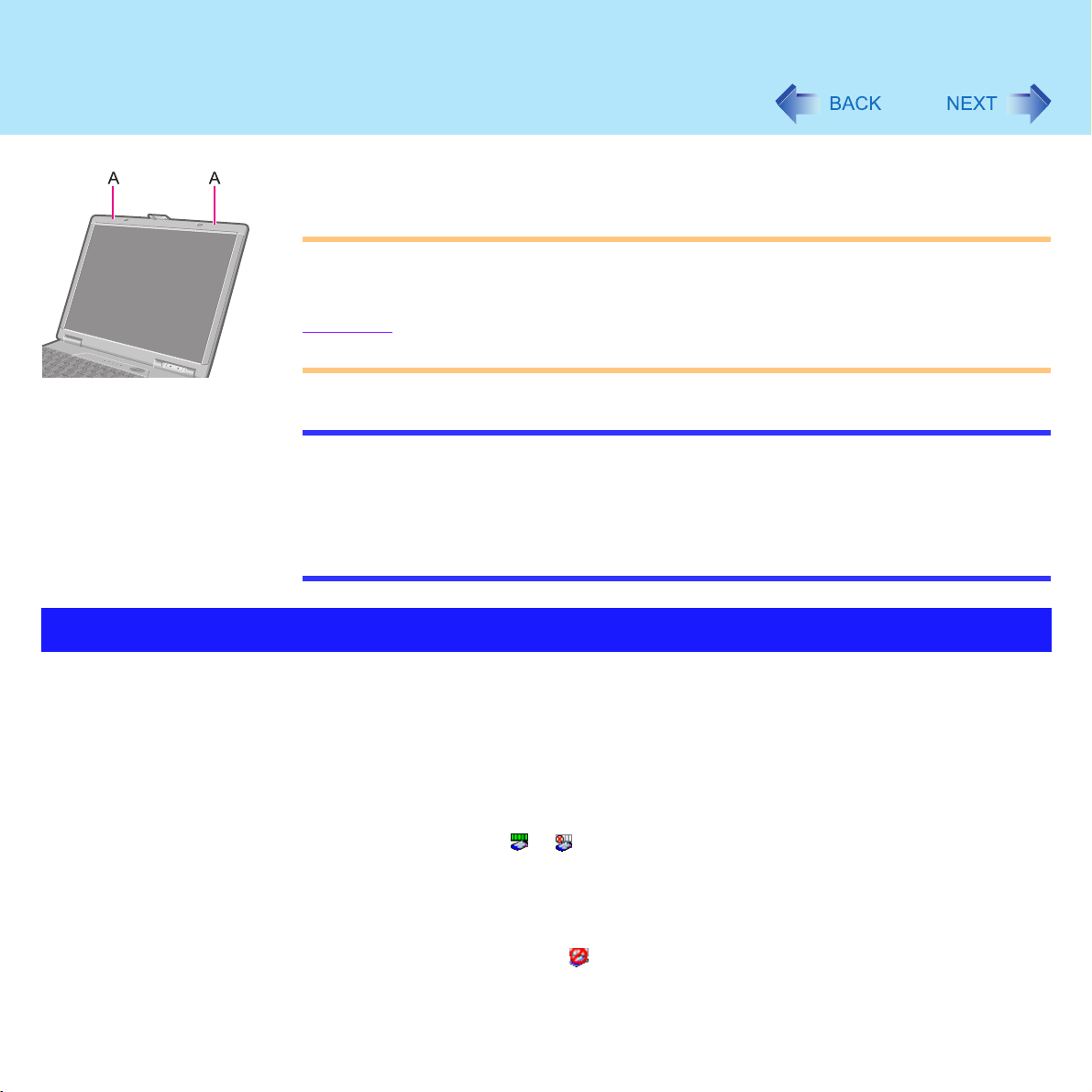

CAUTION

 Communication is performed through the wireless LAN antenna (A). Do not block the

antenna area with your hand or otherwise interfere with the passage of the radio signals.

Windows XP

 Do not use the Fast User Switching function.

NOTE

 The communication speeds and distances differ depending on the devices that

support the wireless LAN, the installation environment and other ambient conditions.

 One characteristic of radio waves is that their transmission rate tends to drop as the

communication distance increases. It is recommended that the devices supporting the wireless LAN be used in close vicinity to each other.

 The rate may drop while a microwave oven is being used.

Precautions

 Do not use wireless LAN on airplanes, in hospitals, or in other

locations where wireless LAN signals may affect the operation of devices in the vicinity.

 If you intend to use the computer in the environments described above, turn the wireless

LAN off using the following method:

1 Double-click or on the taskbar. 2 Select your wireless LAN adaptor and select [General]. 3 Select [Off] for [Switch radio]. 4 Select [OK].

The icon will turn to .

Wireless LAN

The Settings

 To prevent theft of data or unauthorized access to the hard disk

via a wireless LAN ( page 25).

 If you plan to use wireless LAN functions, we recommend that you do so only after

making the appropriate security settings, such as for data encryption.

 We recommend turning the wireless LAN off when it is not used

or out of range ( page 70).

 If you leave the wireless LAN on, the battery's operating time is shortened.

To use the wireless LAN, set the profile using the following procedure. The settings will vary for different network environments depending on the network system being used. For more details, ask your system administrator or the person in charge of the network.

CAUTION

 Set profiles for each user using the following procedure.

NOTE

Windows 2000

 After setting the profile, delete the profile displayed at the time of purchase (profile

name: Default).

1 Double-click on the taskbar. 2 Select your wireless LAN adapter and select [General]. 3 Select [On] for [Switch radio].

4 Select [Networks] and select [Add].

Wireless LAN

5 Enter the profile name and network name (SSID), and then make

other necessary changes, then select [Next]. Use only one-byte alphanumeric characters when entering the profile name.

6 Make necessary changes and select [Finish]. 7 Select [OK].

NOTE

 About WLAN Security Client

WLAN Security Client is an implementation of the client side of the IEEE 802.1X-Port Based Network Access Control protocol.

• Since the WLAN Security Client has already started when is displayed on the

taskbar, do not double-start it. If is not displayed, start up the WLAN Security Client in the following menu.

Windows XP

Select [Start] - [All Programs] - [Intel] - [WLAN Security Client Manager].

Windows 2000

Select [Start] - [Programs] - [Intel] - [WLAN Security Client Manager].

• For more information about how to use the WLAN Security Client, refer to [Help] in

the menu bar or;

Windows XP

Select [Getting Started Guide] or [User's Guide] in [Start] - [All Programs] - [Intel].

Windows 2000

Select [Getting Started Guide] or [User's Guide] in [Start] - [Programs] - [Intel].

Check the Communication Status

Select or on the taskbar to check the communication status.

For more information about how to use the Intel PROSet, refer to [Help] in the menu bar.

Wireless LAN

If the function fails to operate correctly

Read the operating instructions for the access point carefully and check the settings.

 The access point fails to be displayed in [Available Networks]

 Select the profile you are using, and select [Advanced] in [Networks]. [Connect to ad hoc

networks only] may have been selected in [Connection preference]. In this case, select [Connect to infrastructure and ad hoc networks].

 This computer uses channels 1 through 11

In the case of wireless communications, the frequency band being used can be divided into segments, so that different communications can be conducted on each band segment. A "Channel" refers to the individual frequency bandwidth divisions.

 The access point cannot be accessed

 The network key setting may not conform to the access point.

Check the network key setting of the access point and, if necessary, set it again correctly.

 Depending on the access point and settings, access may not be accepted unless the

computer's MAC address is registered beforehand. In this case, check the computer's MAC address using the following procedure and register it according to the operating instructions of the access point.

1 Display [Command Prompt].

Windows XP

Select [Start] - [All Programs] - [Accessories] - [Command Prompt].

Windows 2000

Select [Start] - [Programs] - [Accessories] - [Command Prompt].

2 Input [ipconfig /all], and press 3 Make a note of the 12-digit string of alphanumerics displayed on "Physical

Address" line on Wireless LAN side. Then input [exit], and press

. Check the channel being used.

Enter

 The IP address of the access point is wrong

 Following the operating instructions of the access point, set the IP address of the access

point again correctly.

Hard Disk Drive

To change your hard disk drive, contact Panasonic Technical Support.

Inserting/Removing the Hard Disk Drive

CAUTION

 Be sure to back up all important data before changing the hard disk drive.  You can erase the data before changing the hard disk drive. ("Hard Disk Data Erase

Utility")

 If [Hard Disk Lock] is set to [Enable] in the Setup Utility, change this to [Disable] before

changing the hard disk drive.

 Be careful when changing the hard disk drive. The hard disk drive is extremely

sensitive to shock. In addition, static electricity could later affect some internal components.

1 Power off your computer. (⇒Operating Instructions "Starting Up/

Shutting Down")

Do not shut down using the standby or hibernation function. Disconnect the AC adaptor.

2 Remove the battery pack. ( page 38)

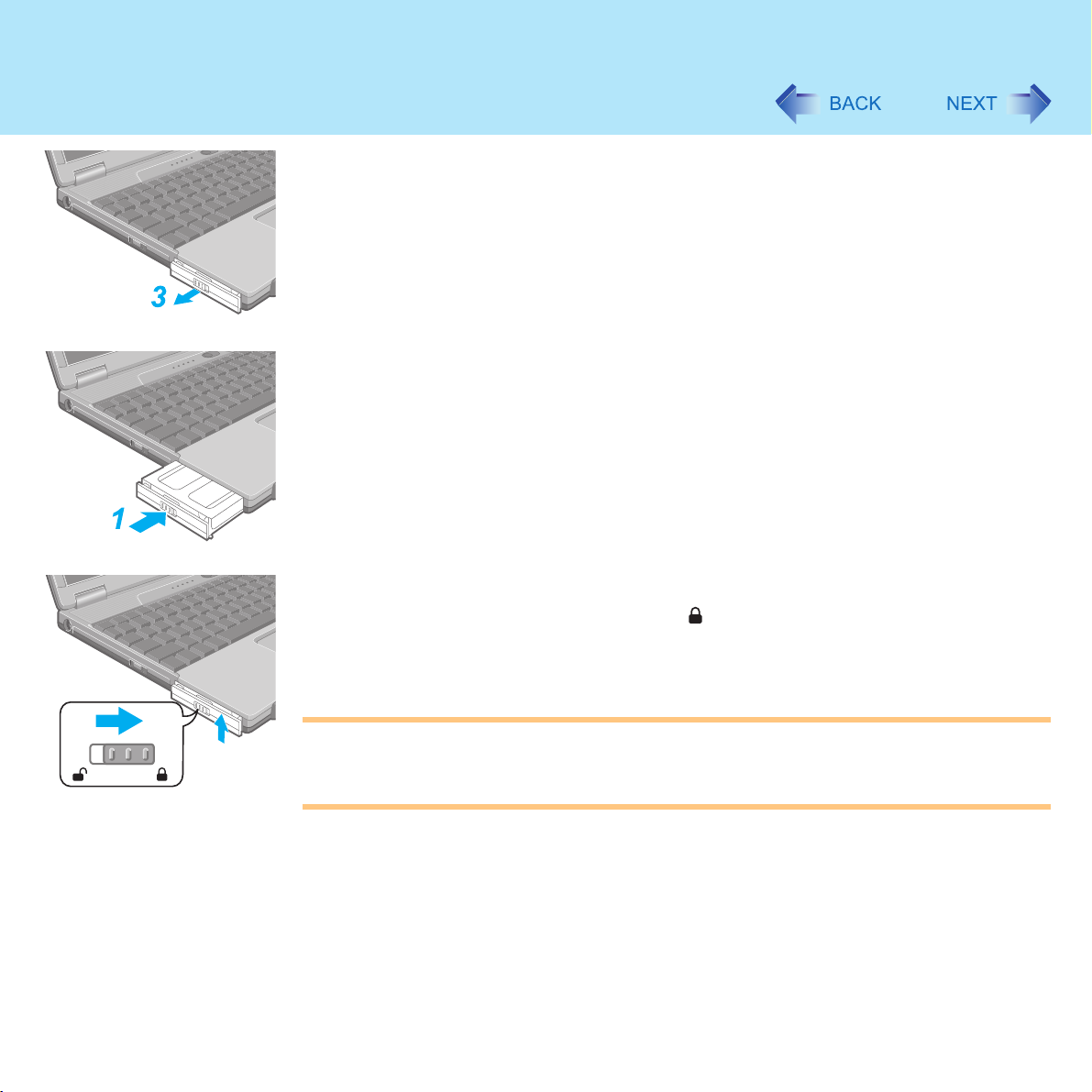

3 Insert/remove the hard disk drive.

 Removing the hard disk drive

1 Slide the latch to the unlock position ( ). 2 Slide the cover in the direction of the arrow in the figure.

Hard Disk Drive

3 Remove the hard disk drive.

 Inserting the hard disk drive

1 Insert the hard disk drive as shown in the figure until it clicks into place.

2 Slide the cover in the direction of the arrow in the figure. 3 Slide the latch to the lock position ( ).

4 Insert the battery pack. ( page 38)

CAUTION

 Be sure to insert the hard disk drive as illustrated.  Confirm that the latch lock is correctly in place. If you carry your computer without the

latch lock in place, the hard disk drive may fall out.

Setup Utility

Running the Setup Utility

1 Turn on or restart the computer.

2 Press

while [Panasonic] boot screen is displayed soon after the

computer begins the startup procedure.

If [Enter Password] is displayed, enter your password.

 When the Setup Utility is started with Supervisor Password

 You can register all items of the Setup Utility.

 When the Setup Utility is started with User Password

 You can not register [Advanced] menu.  [Set Supervisor Password] and [Hard Disk Lock] will not be displayed on [Security] menu.

The User Password can be changed only when [User Password Protection] has been set to [No Protection]. The User Password cannot be deleted.

 [Get Default Values] will not be displayed on [Exit] menu. 

does not work.

NOTE

 When [Password on boot] in the Setup Utility is set to [Disable], the password is not

necessary when the computer is started up, but the password becomes necessary when the Setup Utility is started up. This alternative makes it possible to prevent the contents of the Setup Utility from being changed. This alternative makes it possible to prevent the contents of the Setup Utility from being changed.

 If you fail to press

case, power off the computer and try again.

 To close the Setup Utility, press

press

Enter

at the right moment, the Setup Utility will not start up. In this

Esc

, select the exiting method in [Exit] menu, then

Setup Utility

Key Operations



To display the corresponding "help" file.



Esc

To display [Exit] menu.





To move among the items.





To move among the menus.



F5 F6

To move among the values.



Enter

To display sub-menu of each item selected by  or .



To set default settings (except the password). (When starting up the Setup Utility with the User Password, this key is not available.)



F10

To save the settings and exit.

NOTE

 When setting date and time,

Tab

can be used to move the cursor.

Setup Utility

Information Menu

Language: [English]

Model No.: CF-xxxxxxxxx

Serial No.: xxxxxxxxxx

CPU Type: xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

CPU Speed: xxx GHz

BIOS: Vx.xxLxx

Embedded Controller: Vx.xxLxx

System Memory: xxx MB

Video RAM: xxx MB

Primary Master: xx GB

Secondary Master: CD Drive

 Parameters

( : Default)

Language English

Japanese

Select the language for displaying the Setup Utility.

Setup Utility

Main Menu

System Date:

System Time:

Touch Pad: [Enable]

Display: [Simultaneous]

Display Expansion: [Enable]

CD Drive Speed: [High]

Environment: [Normal Temperature]

Audio Power Management: [Disable]

Date is shown in order of Month/Day/Year.

Time is shown in 24-hr. style.

[xx/xx/xxxx]

[xx:xx:xx]

 Parameters

( : Default)

Touch Pad Disable

Enable

Display

Display Expansion Disable

CD Drive Speed

Environment Normal Temperature

Audio Power Management

External Monitor Internal LCD Simultaneous

Enable

High Low

High Temperature

Disable Enable

Setup Utility

Advanced Menu

The display destination in cases where Windows is not running is set here. When an external display is connected, the computer displays on both the internal LCD and the external display after Windows starts up regardless of the [Display] setting.

The description for [CD Drive Speed] applies to read only.

When [Enable] is set, some sounds may be broken up.

Serial Port A: [Auto]

Serial Port B: [Auto]

Parallel Por t: [Auto]

Mode: [ECP]

Touchscreen:

Modem: [Enable]

LAN: [Enable]

Boot up from LAN: [Enable]

Wireless LAN: [Enable]

Legacy USB Support: [Enable]

[Enable]

Only for models with touchscreen.

NOTE

 [Advanced] menu cannot be changed when the Setup Utility is started up with the

User Password.

Setup Utility

 Parameters

( : Default)

Serial Port A Disable

Enable Auto

I/O IRQ

Serial Port B Disable

I/O IRQ

Parallel Port Disable

Mode

I/O

IRQ

Touchscreen Disable

Modem Disable

3F8/IRQ4 2F8/IRQ3 3E8/IRQ7 2E8/IRQ5

Enable Auto

3F8/IRQ4 2F8/IRQ3 3E8/IRQ7 2E8/IRQ5

Enable Auto

Uni-directional Bi-directional ECP EPP

378 278 3BC

None IRQ5 IRQ7

Enable

Setup Utility

LAN Disable

Enable

Boot up from LAN

Wireless LAN

Legacy USB Support Disable

This item is displayed only when the setting of each port is [Enable].

This item is displayed only when [Parallel Port] is set to [Enable] or [Auto].

[Disable] is automatically set when [LAN] is set to [Disable]. This function can only be used with the internal LAN. This does not work for a wireless LAN or LAN card.

This function can only be used with the internal wireless LAN.

Disable Enable

Enable

Setup Utility

Security Menu

Password on boot: [Enable]

XSet Supervisor Password: [Enter]

Boot First Menu: [Enable]

Hard Disk Lock: [Disable]

User Password Protection: [No Protection]

XSet User Password: [Enter]

NOTE

 When the Setup Utility is started up with the User Password;

• [Set Supervisor Password] and [Hard Disk Lock] will not be displayed.

• The User Password can be changed only when [User Password Protection] has

been set to [No Protection]. The User Password cannot be deleted.

 Parameters

( : Default)

Password on boot Disable

Enable

Set Supervisor Password To the sub-menu

Boot First Menu Disable

Enable

Hard Disk Lock

User Password Protection No Protection

Set User Password

Setting impossible when the Supervisor Password is not set.

Disable Enable

Protected

To the sub-menu

Setup Utility

Boot Menu

Floppy Drive

Hard Disk Drive

CD Drive

LAN

This is displayed even if a floppy disk drive or CD drive is not connected. The following drive can be used for startup (recommended). Panasonic USB floppy disk drive: CF-VFDU03 (optional)

This displayed even if [LAN] is set to [Disable] on [Advanced] menu.

The default order is as follows: [Floppy Drive] -> [Hard Disk Drive] -> [CD Drive] -> [LAN]. To move a device up by one in the order, select the device with  To move a device down by one in the order, select the device with 

and , and then press F6.

and , and then press

NOTE

 [Boot] menu cannot be changed when the Setup Utility is started up with the User

Password.

 Boot Menu

The device for starting up the operating system can also be selected during computer start-up. After the computer is turned on, and screen, [Boot Menu] (the device selection display) will appear. When the setting of [Boot] menu is changed, the selection screen display will also change. [Boot Menu] is displayed only when [Boot First Menu] in [Security] menu is set to [Enable].

Esc

is pressed at [Panasonic] boot

Setup Utility

Exit Menu

Save Values & Exit

Exit Without Saving Changes

Get Default Values

Load Previous Values

Save Current Values

Refresh Battery

This item is not displayed when starting up the Setup Utility with the User Password.

 Parameters

Save Values & Exit Exit the Setup Utility and save your changes

to CMOS.

Exit Without Saving Changes Exit the Setup Utility without saving your

changes to CMOS.

Get Default Values Set the default settings.

Load Previous Values Load previous values from CMOS for all

Setup items.

Save Current Values Save your changes to CMOS. Refresh Battery Refreshing the Battery ( page 37).

Technical Information

Network Connections and Communications Software

If the power saving function (standby or hibernation mode) activates while communications software is being used, the network connection may be interrupted, or performance may be adversely affected. If this happens, restart the computer. Be sure to close the communications software before using the power saving function. When using the computer in a network environment, we recommend that you set [System standby] and [System hibernates] to [Never], using the following procedure:

Windows XP

Select [Start] - [Control Panel] - [Performance and Maintenance] - [Power Options] - [Power Schemes]

Windows 2000

Select [Start] - [Settings] - [Control Panel] - [Power Options] - [Power Schemes]

When Using the Files on the Retail Version of the Windows CDROM

The Windows files included in the Retail Version of the Windows CD-ROM for each OS are contained in the following folders:

Windows XP

c:\windows\docs, c:\windows\dotnetfx, c:\windows\i386, c:\windows\support, c:\windows\valueadd

Windows 2000

c:\winnt\cdimage

DMI Viewer

This computer conforms to the specifications of the Desktop Management Interface (DMI). The DMI Viewer can be used when you want to know information on the internal systems this computer supports, starting with the CPU and memory.

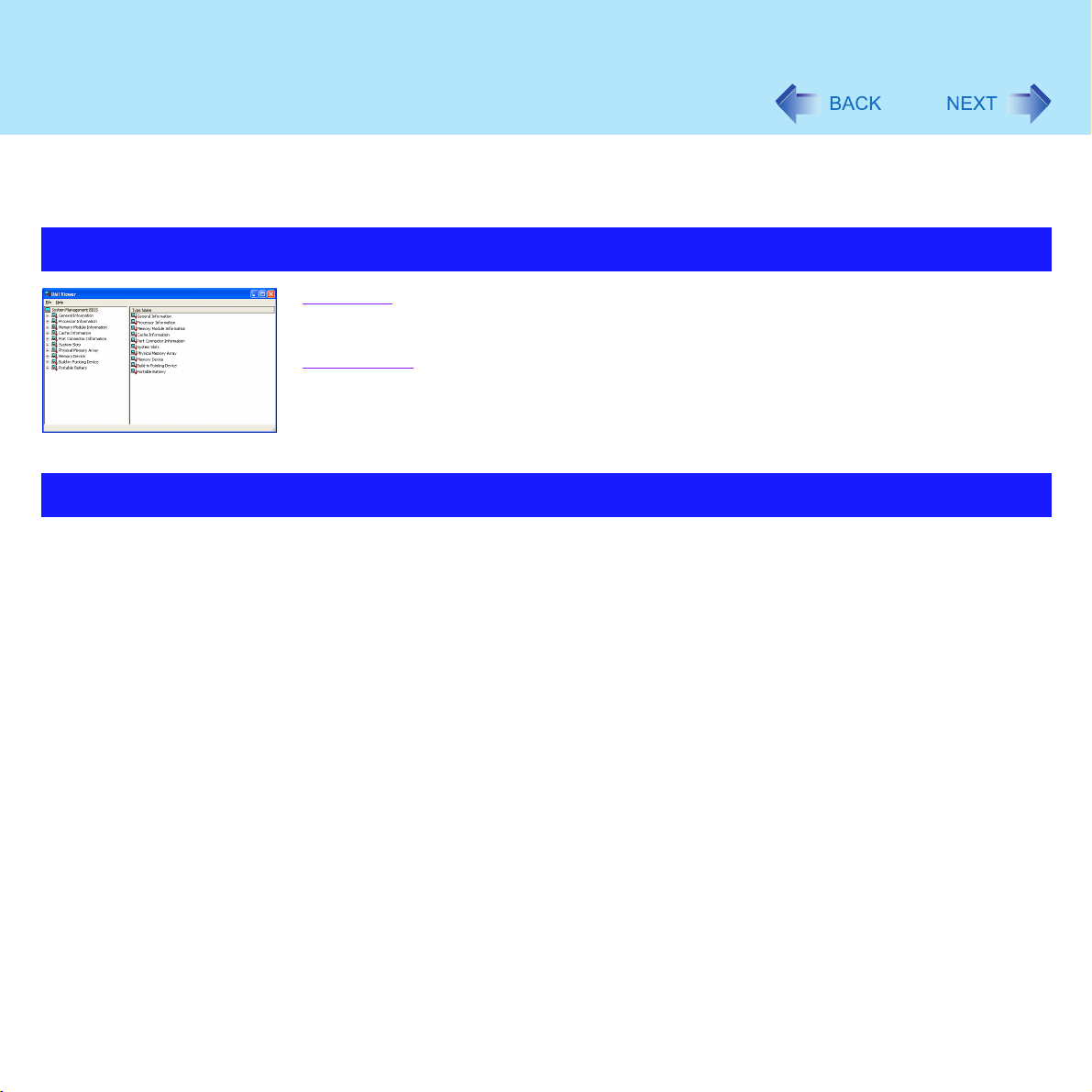

Running DMI Viewer

Windows XP

1 Select [DMI Viewer] from [Start] - [All Programs] - [Panasonic].

Windows 2000

1 Select [DMI Viewer] from [Start] - [Programs] - [Panasonic].

The screen shown left is displayed. When you select an item, detailed information on that item will be displayed.

Saving information to a file

Displayed information can be saved to a text file (.txt). Run the DMI Viewer and display the information you wish to save.

1 Select save method.

 To save the item that is displayed

Select [Save Selected Data] from [File] menu.

 To save all items

Select [Save All Data] from [File] menu.

2 Select the folder, input the file name , then select [Save].

List of Error Codes

When turning on the computer, if one of the following error codes or messages is displayed, follow the instructions shown below. If the problem persists, or if the error code or message displayed is not shown here, contact Panasonic Technical Support.

Error Code/Message Action

Invalid system disk. Replace the disk, and then press any key

0200: Failure Fixed Disk  Disconnect the hard disk drive and reconnect it

0211: Keyboard error  If an external keyboard is connected, disconnect this

0251: System CMOS checksum bad - Default configuration used

0271: Check date and time settings

0280: Previous boot incomplete Default configuration used

 If a floppy disk is set inside the floppy disk drive when

it is connected to the USB port, remove the disk and press any key.

 Disconnect any device connected to the USB port

other than the floppy disk drive.

again. Make sure the drive is secured correctly.

device.

An error has occurred in the memory that stores the Setup Utility settings. This error occurs when the memory content is changed through some inadvertent operation by a program or other function.  Run the Setup Utility and load the default values,

then change the settings to the appropriate values as needed. ( page 76)

 If the problem persists, the internal clock battery may

need to be replaced. Contact Panasonic Technical Support.

The data and time setting are incorrect.  Run the Setup Utility and set the date and time

correctly. ( page 79)

 If the problem persists, the internal clock battery may

need to be replaced. Contact Panasonic Technical Support.

Startup has failed repeatedly, so the Setup Utility settings have been returned to their default values, and the computer has been restarted.  Run the Setup Utility and load the default values,

then change the settings to the appropriate values as needed. ( page 76)

List of Error Codes

0613: Serial Port*1 configuration changed

0614: Serial Port

- device disabled

Press <F1> to resume, <F2> to Setup

Operating System not found The OS is not properly installed on the floppy disk or the

Error Code/Message Action

I/O address and IRQ settings are in conflict.  Run the Setup Utility and change the settings in

1 config. error

The port name, such as A or B, is displayed, indicating the conflicting ports.

[Advanced] menu so there are no port conflicts.

 Write down the error details and press to run the

Setup Utility. Confirm the settings, and change the settings to the appropriate values as needed. ( page 76)

hard disk that you are trying to boot from.  If the computer cannot be booted from the floppy

disk drive connected to the USB port, make sure there are no non-bootable floppy disks in the floppy disk drive, then run the Setup Utility and set [Legacy USB Support] in [Security] menu to [Enable].

 If the computer cannot be booted from the hard disk,

confirm whether the hard disk is properly recognized in [Information] menu of the Setup Utility. ( page

78)

If the hard disk is recognized, perform the reinstallation procedure. If not, contact Panasonic Technical Support.

Dealing with Problems (Advanced)

When a problem occurs, refer to this page. If a problem appears to be related to a software application, read the software related manual. If you still cannot troubleshoot the problem, contact Panasonic Technical Support. You can use the PC Information Viewer to check the computer's usage status ( page 103).

 Starting Up

The power indicator or battery indicator is not lit

The computer does not operate when a USB device is connected

[Enter Password] is displayed  Input your Supervisor Password or User Password. If you have forgotten it,

POST Startup Error(s) is displayed  page 88

Windows startup, or an operation is extremely slow

The date and time are incorrect  You can set the date and time using the following menu:

 Check the cable connection for the AC adaptor.  Check to see if a fully charged battery is properly inserted.  Remove the battery pack and disconnect the AC adaptor, then connect them

again.

 The computer may not operate when certain USB devices are connected.

Disconnect the USB device.

contact Panasonic Technical Support.

 Press F9 in the Setup Utility ( page 76).

This will restore the Setup Utility's settings to their default values (except the password settings). Then, the Setup Utility must be run once again for you to input the appropriate operating environment settings. (The processing speed depends on the application software used, so this operation may not cause the processing speed to increase.)

Windows XP

[Start] - [Control Panel] - [Date, Time, Language, and Regional Options] - [Date and Time]

Windows 2000

[Start] - [Settings] - [Control Panel] - [Date/Time]

 If you continue to experience problems, the internal battery maintaining the

clock may need to be replaced. Contact Panasonic Technical Support.

 When the computer is connected to a LAN, confirm the date and time of the

server.

 This computer will not correctly recognize the date and time starting from the

year 2100 A.D.

Dealing with Problems (Advanced)

 Starting Up

When resuming from the standby or hibernation mode, [Enter Password] does not appear even if a password has been set in the Setup Utility

When the administrator password is forgotten

 Even when a password has been set in the Setup Utility, [Enter Password] does

not appear when the computer resumes from the standby or hibernation mode. If you want to use the security function when using the standby or hibernation mode, use the Windows password as follows:

Windows XP

Select the account to change in [Start] - [Control Panel] - [User Accounts] and set the password, then add the check mark for [Prompt for password when computer resumes from standby] in [Control Panel] - [Performance and Maintenance] - [Power Options] - [Advanced].

Windows 2000

Set the password in [Start] - [Settings] - [Control Panel] - [Users and Passwords], then add the check mark for [Prompt for password when computer goes off standby] in [Control Panel] - [Power Options] - [Advanced].

 Set the password again in the following procedure.

Windows XP

If you have created a password reset disk (⇒ Operating Instructions "First-time Operation"), a message is displayed when you fail to correctly enter the password. Follow the message's instructions and set the password again by using the password reset disk. If you have not created a password reset disk, after reinstalling, setup Windows and then set the password again.

Windows 2000

After reinstalling, setup Windows and then set the password again.

Dealing with Problems (Advanced)

 Starting Up

When the previous item is not the cause

 Press F9 in the Setup Utility. This will restore the Setup Utility's settings to their

default values (except the password settings).

 Try removing all peripheral devices.  Check a disk error using the following procedure.

1 Display [Local Disk (C:) Properties]

Windows XP

Select [Local Disk(C:)] with the right button in [Start] - [My Computer], and select [Properties]. Windows 2000 Select [Local Disk(C:)] with the right button in [My Computer], and select [Properties].

2 Select [Tools] - [Check Now]. 3 Select [Start] after selecting required items in [Check disk options].

 At startup, hold down

release your finger when the Windows Advanced Options Menu is displayed. Start the computer in Safe Mode, and confirm the details of the error.

when [Panasonic] boot screen disappears, and

 Display

No display after powering on  When there is no display to an external display,

• Check your cable connection to the external display.

• Confirm your display is powered on.

• Check the settings for your external display.

 The display destination may be set to the external display.

Try changing the display destination by pressing If you want to switch the display destination repeatedly by pressing make sure that the display destination has switched completely each time

The power has not been turned off, but after a certain period of time, there is no display

before pressing

 Press  Has the computer been set to the power-saving mode? To resume operation of

 To save power, your computer may have automatically entered the standby

Fn+F2

your computer from the condition the power of the display is off (for energy conservation purposes), press any key unrelated to the direct triggering of a selection, like

mode (power indicator blinks green) or hibernation mode (power indicator turns off). In such cases, press the power switch.

Fn+F3

and adjust the brightness.

Ctrl

again.

Fn+F3

Dealing with Problems (Advanced)

 Display

When the battery pack is used, the screen is darker than when the AC adaptor is connected

An afterimage appears (e.g., green, red, and blue dots remain on the display) or there are dots not displaying the correct colors

The screen becomes disordered  Changing the number of colors and resolution of the display may affect the

The external display no longer displays properly

Windows XP

An error occurs or the computer freezes while using Extended Desktop.

When the screensaver is set, an error will occur during a resume operation

 Press Fn+F2 and adjust the brightness. Note, however, that when the

brightness is increased, the battery running time will become shorter. Brightness can be set to separate levels for when the AC adaptor is connected and when it is disconnected.

 If an image is displayed for a prolonged period of time, an afterimage may

appear. This is not a malfunction. The afterimage will disappear when a different screen is displayed.

 High-precision and advanced technologies are necessary in the production of

color liquid crystal displays (color LCDs). Therefore, if 0.002% or less of the picture elements either fail to light or remain constantly lit (that is, more than

99.998% of elements are functioning properly), no defect is considered to exist.

screen. Restart the computer.

 Windows XP

When using Extended Desktop, use the same display colors for the external display as those used by the LCD.

 When an external display not compatible with the power saving mode is used

with the computer, the display may not function correctly when the computer enters the power saving mode. In such cases, turn off the power to the external display.

 If you use a 3D screen saver while in Extended Desktop mode at a high

resolution, an error may occur or the computer may freeze. Under these conditions, do not use a 3D screen saver.

 When the computer automatically enters the standby or hibernation mode while

the screensaver is running, an error may occur during a resume operation. In such cases, turn off the screensaver or try changing the pattern of the screensaver.

 Setup Utility

[Enter Password] is displayed  Enter the Supervisor Password or User Password. If you have forgotten it,

contact Panasonic Technical Support.

[Advanced] and [Boot] menu can not be registered

 Restart the Setup Utility with the Supervisor Password.

Dealing with Problems (Advanced)

 Setup Utility

Some items in [Security] menu can not be registered

does not work  Restart the Setup Utility with the Supervisor Password.

 Restart the Setup Utility with the Supervisor Password.

 Shutting Down

Windows cannot be shut down or restarted

 If a USB device is connected, try removing it.

 Standby/Hibernation Function

Unable to enter standby or hibernation mode

Unable to automatically enter standby or hibernation mode

The computer does not resume  Did you press the power switch and hold it for four seconds or more? If you

 If a USB device is connected to the computer (note: only for some USB

devices), remove the USB device temporarily. If the problem persists, restart the computer.

 If a peripheral is connected to the computer, disconnect the device.

press the power switch and hold it for four seconds or more, the power will be turned off forcibly. In this case, all unsaved data will be lost.

 Battery Indicator

The red indicator lights.  The battery level is very low (the charge is less than approx. 9% capacity).

Connect the AC adaptor. You can use the computer when the battery indicator light is orange. If you do not have an AC adaptor, save your data and power off your computer. After replacing the battery pack with a fully charged one, turn your computer on.

The red indicator blinks  Quickly save your data and power off your computer. Remove the battery pack

and disconnect the AC adaptor, then connect them again. If the problem persists, contact Panasonic Technical Support. Possible failure in the battery pack or charging circuit.

The orange indicator blinks  Battery cannot be recharged temporarily because the internal temperature of

the battery pack is outside of the acceptable temperature range for recharging. Once the allowable range requirement is satisfied, charging begins automatically. Your computer can be used normally in this state.

Dealing with Problems (Advanced)

 Keyboard

Only numbers can be inputted

Only capital letters are being input

How to input European characters (ß, à, ç), symbols or Euro Currency Symbol is unclear

Windows 2000

After resuming, input keys do not work properly

 Check whether the indicator is on. If it is on, the computer is in ten-key

keyboard mode. To disable the ten-key mode, press

 Check whether the indicator is on. If it is on, the computer is in Caps Lock

mode. To disable the Caps Lock mode, press

 Display the character map and point to the desired font name, such as

European fonts, and select it with the following the procedure.

Windows XP

Select [Start] - [All Programs] - [Accessories] - [System Tools] - [Character Map].

Windows 2000

Select [Start] - [Programs] - [Accessories] - [System Tools] - [Character Map].

 When the computer enters standby or hibernation mode while

Shift

are held down, these keys may remain in "pressed" mode when the computer resumes operation. Pressing these keys once will return the keys to normal.

NumLk

Caps Lock

Alt, Ctrl

 Network

Unable to connect to a network  Confirm that either [Modem], [LAN] or [Wireless LAN] is set to [Enable] in the

Setup Utility.

 When using the computer as a network computer, some additional settings may

have to be made depending on the usage conditions. We recommend asking your system administrator or the person in charge of the network.

 If the standby or hibernation mode is entered, the computer may have to be

restarted.

 If the link lamp on the HUB unit is not on and the network cannot be accessed,

set the speed to match the HUB unit. ( page 68)

Dealing with Problems (Advanced)

 Network

Unable to use wireless LAN  Confirm that [Wireless LAN] is set to [Enable] in the Setup Utility.

 Confirm that is displayed on the taskbar.

If is not displayed on the taskbar, confirm that [On] is selected for [Switch radio] in [Intel(R) PROSet] - [General]. ( page 71)

 Confirm the setting of the IP address for the access point, following the

operating instructions for that access point.

 Confirm whether the Intel(R) PROSet is installed using the following menu.

Windows XP

[Start] - [Control Panel] - [Add or Remove Programs].

Windows 2000

[Start] - [Settings] - [Control Panel] - [Add/Remove Programs]. If it has not been installed, input [c:\util\drivers\wlan\proset\proset.exe] in [Start]

- [Run] to install.

 Connecting Peripherals

An error occurs while installing the driver

Your peripheral does not work  Make sure a driver is installed.

 When you install the driver for a PC Card or peripheral device, be sure to use a

driver that is compatible with the operating system. If you use an incompatible driver, malfunction may occur. For information on drivers, contact the manufacturer of the peripheral device you purchased.

 Contact the manufacturer of the product.  When operation resumes from the standby or hibernation mode, devices such

as a mouse, modem or PC Cards may not function properly. In such cases, you will need to restart your computer or reinitialize the individual devices.

 When is displayed in the Device Manager, try removing and inserting the

device once more. If the problem persists, restart the computer.

 Windows XP

Depending on the device connected, the computer may not recognize when the device is connected or disconnected, or the device may not operate properly. Use the following procedure. Select the applied device in [Start] - [Control Panel] - [Performance and Maintenance] - [System] - [Hardware] - [Device Manager], then remove the check mark for [Allow the computer to turn off this device to save power] in [Power Management]. (This item may be unavailable for some types of devices.)

Dealing with Problems (Advanced)

 Connecting Peripherals

The cursor does not move from mouse operations

A PC Card does not work  Make sure the card is properly inserted.

USB floppy disk drives do not work as a boot drive

You do not know the available RAM module

Cannot tell whether the RAM module has been correctly installed

The RAM module has not been recognized

 Check your mouse connection.  A driver which is compatible with the connected mouse must be installed.  If the device does not operate when the driver is installed: In the Setup Utility,

set [Touch Pad] and [Touchscreen](only for models with touchscreen) to [Disable].

 Confirm that the card conforms to the PC Card Standard.  Note that after a driver (PC Card driver on other) is installed, the computer must

be restarted.

 Check that the proper port settings have been made.  Read the operating instructions for the PC Card. Or, you may need to call the

manufacturer of the PC Card.

 Try removing/reinserting the PC Card by following the proper procedure.

( page 51)

 Confirm that a driver for your operating system has been installed.  Only the Panasonic CF-VFDU03 USB floppy disk drive (optional) can be used.

 Do not connect the floppy disk drive to the USB connector of the port replicator

for this computer.

 Make sure [Legacy USB Support] is enable in the Setup Utility.  After powering off the computer, connect the USB floppy disk drive and restart

the computer.

 page 53

 You can check whether the RAM module is recognized using [Information]

menu in the Setup Utility. If the RAM module is not recognized, turn the computer off and reinsert the RAM module.

 Make sure the RAM module has been properly inserted.  Use the RAM module that supports the recommended specifications ( page

53).

Dealing with Problems (Advanced)

 Connecting Peripherals

The address map for IRQ, I/O port address, etc. is unclear

The device connected to the serial port does not work

It is not easy to hear of the microphone sound

 The current address map can be displayed with the following procedure.

Windows XP

[Start] - [Control Panel] - [Performance and Maintenance] - [System] [Hardware] - [Device Manager] - [View] - [Resources by type].

Windows 2000

[Start] - [Settings] - [Control Panel] - [System] - [Hardware] - [Device Manager] [View] - [Resources by type].

 Check the connection.  Confirm that the device driver for the serial port works. Refer to the operating

instructions of the device. Confirm that two mouse devices are not connected, one through the external keyboard/mouse port of the port replicator and the other through the serial port.

 Confirm that [Serial Port A] (or [Serial Port B]) has not been set to [Disable].  Depending on the device, the operable I/O and IRQ may be limited. Try

different I/O and IRQ settings in the Setup Utility.

 Try setting [Touch Pad] and [Touchscreen](only for models with touchscreen) to

[Disable] in the Setup Utility.

 Use the following procedure.

1 Windows XP

Select the on the taskbar.

Windows 2000

Select the on the taskbar.

2 Select [Options] - [Properties].

3 Check [Playback] and then add the check mark for [Microphone], then

select [OK].

4 Select [Options] - [Advanced Controls].

5 Select [Advanced] in [Microphone].

6 Add the check mark for [2 Microphone Boost] and then select [Close].

7 Select in the top-right corner of the window.

Dealing with Problems (Advanced)

 Connecting Peripherals

Windows XP

The following phenomena occur  The LAN transmission speed slows

down dramatically

 Wireless LAN connection drops out  Poor performance when forwarding

data via a PC card (e.g., unstable video images when writing videos to a DV camera using an IEEE1394 PC card)

Unable to print  Check the computer-printer connection.

 These phenomena are consequences of performance losses that result from

CPU power-saving functions. Execute the following operations after logging on with administrator authority.

1 Input [c:\util\cpupower\setup.exe] in [start] - [Run], and select [OK].

Follow the on-screen instructions.

2 Select [Performance] in [start] - [All Programs] - [Panasonic] - [CPU

Idle Setting] and select [OK], then select [Yes]. The computer will be restarted automatically.

• These operations will be helpful in alleviating the performance losses

resulting from CPU power saving functions, but will not be effective against the performance losses resulting from other causes. (e.g., noise generated during periods of exceptionally high load on the CPU, such as during video playback).

• When these operations are performed, the battery running time will be

reduced to some extent. We thus recommend that when not using LAN or peripheral devices, select [Battery (Windows XP Standard)] in [CPU Idle Setting], and return [Power Schemes] in [Power Options] to [Portable/Laptop].

 Make sure the printer is on.  Make sure the printer is in the online state.  Make sure paper is in the printer tray and there is no paper jam.  Has the Setup Utility been used to set [Parallel Port] to [Enable] or [Auto].  Depending on the printer, EPP or ECP may not work at times.

 Disk Operations

Cannot read/write to a floppy disk  Are you using the Panasonic CF-VFDU03 USB floppy disk drive (optional)?

 Has the floppy disk been correctly inserted?  Has the floppy disk been correctly formatted?  Your floppy disk content may be corrupted.

Unable to write to a disk  Is the floppy disk write-protected?

Dealing with Problems (Advanced)

 Disk Operations

How to format a floppy disk is unclear  Format the floppy disk using the following procedure.

Windows XP

Select [My Computer] in [Start] and select [3 1/2 Floppy (A:)], then select [File] from the menu and select [Format].

Windows 2000

Double-click [My Computer] and select [3 1/2 Floppy (A:)], then select [File] from the menu and select [Format].

Unable to read/write to the hard disk  Your drive or file may not have been properly set.

 Check to see if the hard disk is full. If it is full, delete unnecessary files.  Your hard disk content may be corrupted. Contact Panasonic Technical

Support.

Trouble has occurred with the disc  You may need to clean the lens or disc.

• Cleaning the lens  page 44

• Cleaning the disc  page 47

The Multimedia pocket device status indicator does not light

Cannot play disc or read data from it  Is the disc bent, scratched, or dirty?

A blue background appears on the screen with the MPEG image

If the CD drive vibrates excessively or is noisy

Cannot eject disc  Is the computer powered on?

The disc tray does not close  Did you touch the eject button when you close the tray?

 Is the disc set correctly?

 Did you open the CD drive or remove the MPEG disc while it was operating?

Re-insert the MPEG disc and close the CD drive. Press

 Is the disc bent or labeled?  Check to see if the disc is inserted correctly, and check that the disc is in good

condition. If the disc is good and inserted correctly, set [CD Drive Speed] to [Low] in the Setup Utility.

To remove a disc when the computer is powered off, insert a pointed object (e.g., the bent-out tip of a paper clip, or the tip of a pencil or ballpoint pen) into the emergency hole. Pushing it completely to the end will free the tray so that it can be pulled out. (The position of the emergency hole differs depending on the drive.)

 When a disc formatted by B's CLiP is in the drive, it cannot be taken out by

pressing the eject button. Perform the ejecting operation in B's CLiP. If you cannot eject the disc even after attempting the operation with B's CLiP, shut down Windows and after the power is off, use the emergency hole.

Enter

100

Panasonic CF73JCLTXKM Reference Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Read Me First

Key Combinations

LED Indicators

Touch Pad

Touchscreen

Standby/Hibernation Functions

Security Measures

Computing on the Road

Battery Power

Multimedia Pocket

CD Drive

PC Cards

RAM Module

Port Replicator / I/O Box

External Display

Printer

USB Devices

Modem

Wireless LAN

Hard Disk Drive

Setup Utility

Technical Information

DMI Viewer

List of Error Codes

Dealing with Problems (Advanced)

 Starting Up

 Display

 Setup Utility

 Shutting Down

 Standby/Hibernation Function

 Battery Indicator

 Keyboard

 Network

 Connecting Peripherals

 Disk Operations
