Panasonic CF55 User Manual
Specifications and Main Features
- Company: CF-55MSM8AM
- CPU Type/Model: 200 MHz Pentium® Processor with MMX™ technology
- Cache Memory: 32 KB of Primary Cache and 256 cache.
- EDO Memory: Expandable memory up to 32 MB, Maximum up to 96 MB.
- Video Memory: Has 2 MB of Video Memory.
- LCD Type: Has 14.5 inch TFT.
- Display Resolution: 256/65536
- Tilt Angle: Can extend from 3 degree to 25 degree.
- Hard Disk Drive: 4.3 GB of Hard Disk Drive (out of which system uses 110 MB of hard disk).
- Floppy Disk Drive: Can have long term storage ranging from 720 KB to 1.44 MB depending on requirements.
- CD-ROM Drive: 10x CD-ROM speed, with access time of 250 ms.
- PC Card Slots: 2 Type I/II or 1 type III and compatible with Card Bus ZV port.
- Allowable current for two slots: Allowable current consumption for 2 slots 3.3V, 400mA, 5V,
RTC Battery, 120mA. 12V, 400mA.
- RAM Module Slot: 31.7 mm (1.25”) or 3.3V 144 pin SO-DIMM standard single interface.
- Parallel Port: Dsub 25 pin female type ports.
- External Display Port: Mini Dsub 15 pin female ports.
- Serial Port: Dsub 9 pin male ports.
- Audio Inputs: Allows Microphone Jack, Headphone jack, and Audio-in jack.
- Speaker: Built in stereo speaker.
- Sound: Compatible with Sound Blaster PRO with the ability to generate FM and 16 bit PCM sound at 44.1 kHz.
- Software Operating System: A Microsoft® Windows® 1995 Operating system compatible with FAT32 File System.
- Input AC Adapter: 100 -240 VAC, 50/60Hz; Output 15.0V DC, 4.0A.
- Consumption of Power: Approx. 55 W Off said to have 1.2 W singnle
- Physical Dimensions: 364 mm x 392 mm x 209 mm (14.3 inch by 15.4 inch by 8.2 inch).
- Weight Approx 6.6kg which equals to 14.6 lbs
Frequently Asked Questions
Q: How much can I Increase the RAM capacity in If I Buy CF55 series?
A: Maximum of 96 MB of RAM is able to slot into CF55 series.
Q: Tell what type of the Processor CF55 series has?
A: This specific device incorporates a 200MHz fixed Pentium® Processor incorporated with MMX™ technology.
Q: So CF55 has 4.3GB HDD but is it adaptable for some upgrades?
A: Yes it does have specific configurations and particular parts that supports upgrading.
Q: So combining everything Does CF55 have External display capabilities?
A: Yes external display ports are incorporated in the building of CF55 which allow connections to external display devices.
Q: Furthermore what types of Operating systems are usually installed?
A: It comes pre-installed with Microsoft® Windows® 95 along with FAT32 file systems.
Q: What is the procedure for detecting hardware issues?
A: The CF-55 hardware diagnosing program can be used to operate trouble aiming check-up for malfunctioning hardware.
Q: Should I expect data loss as a result of using the reset button?
A: Yes. Data loss may occur using the reset button if there is an application running. Thus, during operations it is appropriate not to reset.
Q: What are the applications of power management in CF-55?
A: The user defined timeout settings help determine when to enter suspend or/and hibernation modes in the CF-55.

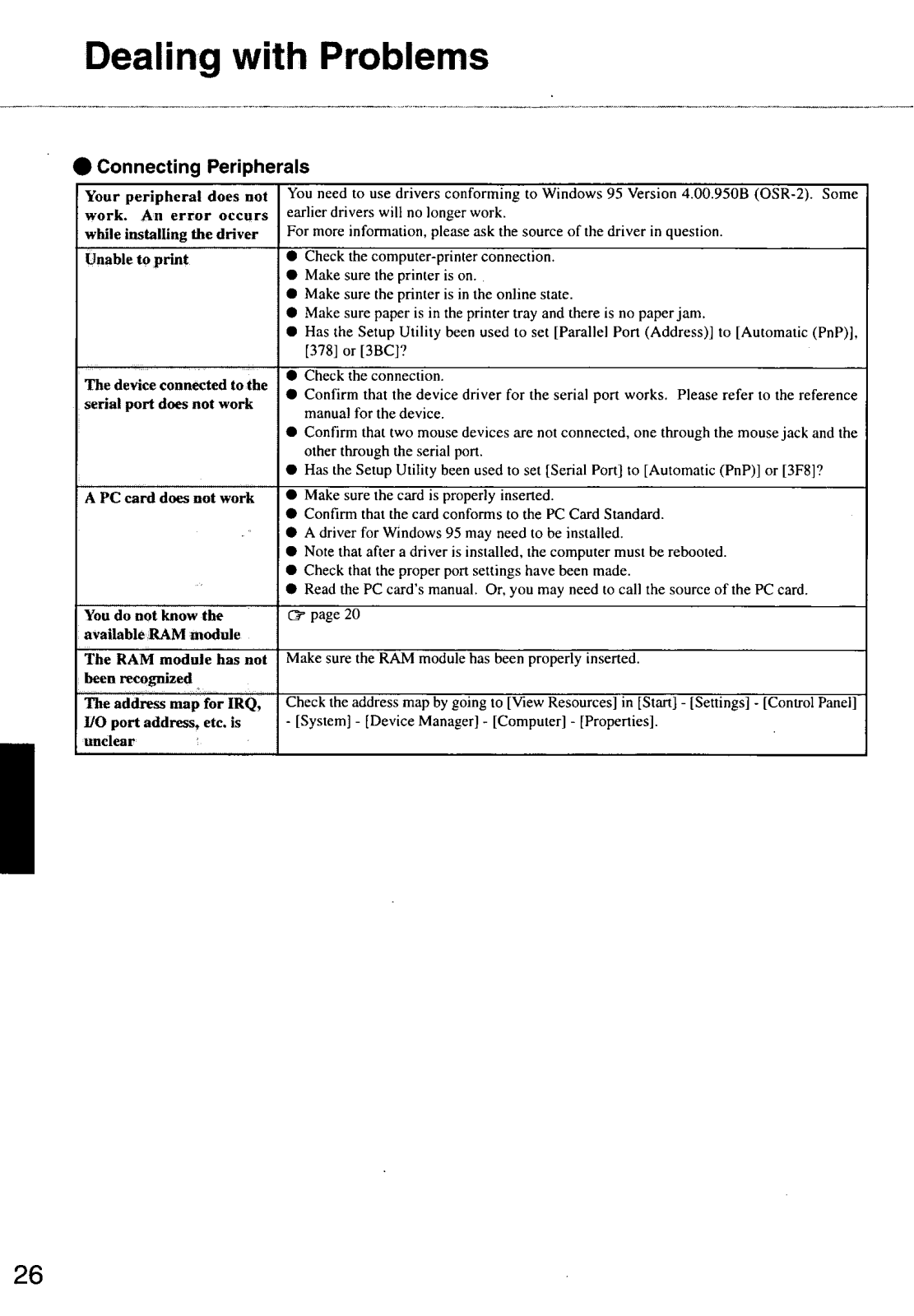

User Manual
