Panasonic CF-53AAGAR1M, CF-53AAGAX1M, CF-53AAGAY1M, CF-53AAGBX1M, CF-53AAGDX1M Specifications

...

Download

Page 1

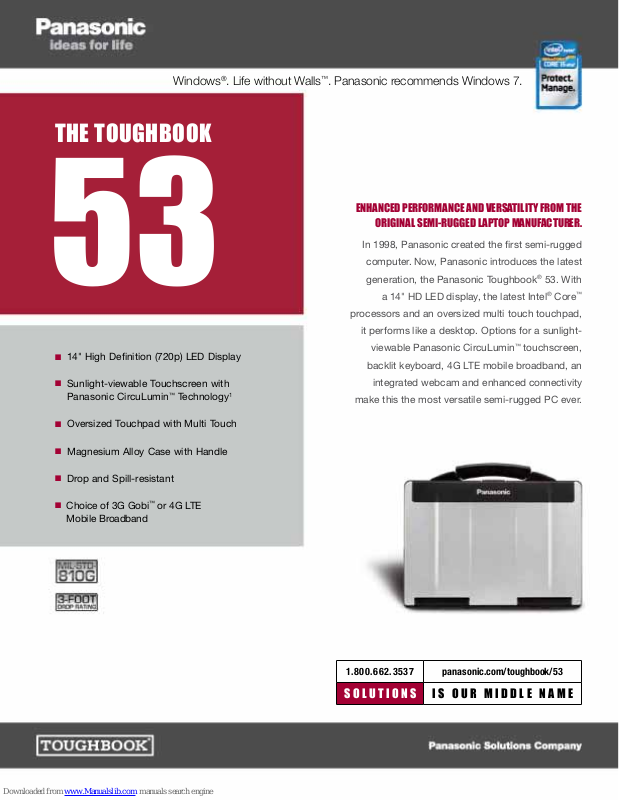

Windows®. Life without Walls™. Panasonic recommends Windows 7.

THE TOUGHBOOK

■

14" High Definition (720p) LED Display

■

Sunlight-viewable Touchscreen with

Panasonic CircuLumin™ Technology

ENHANcED pERfORMANcE AND vERSATILITy fROM THE

ORIGINAL SEMI-RUGGED LApTOp MANUfAcTURER.

In 1998, Panasonic created the rst semi-rugged

computer. Now, Panasonic introduces the latest

generation, the Panasonic Toughbook® 53. With

a 14" HD LED display, the latest Intel® Core™

processors and an oversized multi touch touchpad,

it performs like a desktop. Options for a sunlight-

viewable Panasonic CircuLumin™ touchscreen,

backlit keyboard, 4G LTE mobile broadband, an

integrated webcam and enhanced connectivity

make this the most versatile semi-rugged PC ever.

■

Oversized Touchpad with Multi Touch

■

Magnesium Alloy Case with Handle

■

Drop and Spill-resistant

■

Choice of 3G Gobi™ or 4G LTE

Mobile Broadband

1.800.662.3537 panasonic.com/toughbook/53

SOLUTIONS IS OUR MIDDLE NAME

Page 2

Windows®. Life without Walls™. Panasonic recommends Windows 7.

DURABILITy

SOfTwARE

cpU

– 2.5GHz with Turbo Boost up to 3.2GHz – Intel Smart Cache 3MB

– 2.1GHz – Intel Smart Cache 3MB

STORAGE & MEMORy

– 320GB 7200rpm (i5 models), 320GB 5400rpm (i3 model)4 – Optional 128GB and 256GB reinforced flex-connect SSD

DISpLAy

– Panasonic CircuLumin™ technology (2-800 nit, AR and AG screen treatments, circular polarizer)

– max. 1428MB shared VRAM with 32-bit5

AUDIO

KEyBOARD & INpUT

MULTIMEDIA BAy EXpANSION SLOTS

INTERfAcE

wIRELESS

– Authentication: LEAP, WPA, 802.1x, EAP-TLS, EAP-FAST, PEAP – Encryption: CKIP, TKIP, 128-bit and 64-bit WEP, Hardware AES

pOwER SUppLy

– i5 model s—10 hours (long life battery) – i3 model—7 hours (lightweight battery)

1.800.662.3537

Financing options now available from Panasonic Finance Solutions; please call number above for more details.

Panasonic is constantly enhancing product specifications and accessories. Specifications subject to change without notice. Trademarks are property of their respective owners. ©2011 Panasonic Corporation of North America. All rights reserved.

panasonic.com/toughbook/53

■

MIL-STD-810G certified (3' drop, shock, vibration, dust, altitude,

high/low temperature, temperature shock, humidity)

■

Spill-resistant keyboard

■

Optional hard drive heater

■

Magnesium alloy case with handle

■

Shock-mounted flex-connect hard drive with quick-release

■

Pre-installed replaceable screen film

■

Genuine Windows® 7 Professional 32-bit2 or

Genuine Windows® 7 Professional 64-bit

■

Panasonic Utilities, Recovery Partition

■

Intel® Core™ i5-2520M vPro™ Processor

■

Intel® Core™ i3-2310M Processor

■

i5 models: 4GB SDRAM (DDR3-1333MHz), expandable to 8GB

■

i3 model: 2GB SDRAM (DDR3-1333MHz), expandable to 8GB

■

Shock-mounted flex-connect hard drive with quick-release

■

14.0" High Definition (720p) LED 1366 x 768

■

Optional touchscreen (i5 model only)

■

Anti-reflective and anti-glare screen treatments (AG only on i3 model)

■

Video controller: Intel® QM67 (i5 models), Intel® HM65 (i3 model)

■

External video support up to 1920 x 1200 at 16.7 million colors

■

Concealed mode

■

Intel® high-definition audio compliant

■

Integrated stereo speakers

■

Keyboard volume and mute controls

■

Touchscreen with integrated stylus holder1

■

87-key with dedicated Windows® key

■

Oversized electrostatic touchpad with multi touch support

■

DVD Super MULTI Drive

■

PC card type II x 1

■

SD card (SDXC)

■

ExpressCard/54 x 1

■

Docking connector Dedicated 100-pin

■

HDMI Type A

■

VGA D-sub 15-pin

■

Headphones/speaker Mini-jack stereo

■

Microphone/line in Mini-jack stereo

■

Serial D-sub 9-pin

■

USB 3.0 (x1), USB 2.0 (x3) 4-pin

■

Optional IEEE 1394a (FireWire) 4-pin

■

10/100/1000 Ethernet RJ-45

■

Optional 10/100 2nd LAN Ethernet RJ-45

■

Optional 56K Modem RJ-11

■

Optional integrated LTE 4G mobile broadband (Fall 2011)

■

Optional integrated Gobi™2000 3G mobile broadband

■

Intel® Centrino® Advanced-N 6205 802.11a/b/g/n (i5 models)

■

Atheros AR9285 802.11b/g/n (i3 model)

■

Optional Bluetooth® v2.1 + EDR (Class 1)

■

Security

■

Optional dual high-gain antenna pass-through

■

Slide on/off switch

■

Battery operation6

■

Long life Li-Ion battery pack (10.8V, typical 6750mAh, minimum 6300mAh)

■

Lightweight Li-Ion battery pack (10.8V, typical 4500mAh, minimum 4200mAh)

■

Battery charging time: 2 hours

■

AC Adapter: AC 100V-240V 50/60Hz, auto sensing/switching worldwide power supply

3,4

pOwER MANAGEMENT

■

Suspend/Resume Function, Hibernation, Standby, ACPI BIOS

SEcURITy fEATURES

■

Password Security: Supervisor, User, Hard Disk Lock

■

Kensington cable lock slot

■

Trusted platform module (TPM) security chip v.1.2 (i5 models)

■

Computrace® theft protection agent in BIOS7

■

Intel® Anti-Theft Technology (i5 models)

■

Optional fingerprint reader

■

Optional SmartCard reader

wARRANTy

■

3-year limited warranty, parts and labor

DIMENSIONS & wEIGHT

■

11.1"(L) x 13.4"(W) x 1.8-2.2"(H)

■

5.6 lbs. (i3 model), 5.8 lbs. (i5 model), 6.5 lbs. (touch model)

INTEGRATED OpTIONS

■

LTE 4G mobile broadband (Fall 2011)

■

Gobi™2000 3G mobile broadband (EV-DO Rev. A, HSPA)

■

1.3MP webcam and digital mic

■

Backlit emissive keyboard

■

2nd LAN (10/100) or FireWire or Modem or Dual antenna pass-through

■

SmartCard reader

■

Fingerprint reader

■

Hard drive heater

■

128GB and 256GB solid state drives (SSD)

AccESSORIES

■

AC Adapter (3-prong) CF-AA5713AM

■

Long Life Battery Pack CF-VZSU71U

■

Lightweight Battery Pack CF-VZSU72U

■

Battery Charger CF-VCBTB2W

■

LIND 3-Bay Battery Charger PACH329-1857-P

■

LIND Car Adapter 120W CF-LNDDC120

■

LIND Car Adapter 120W

Mounting Bracket CF-LNDBRK120

■

LIND Shutdown Timer CF-LNDLPT

■

InfoCase ComUniversal

Carrying Case (large capacity) TBCCOMUNV-P

■

InfoCase ComUniversal Roller TBCRLR-P

■

InfoCase Backpack TBCBPK-P

■

InfoCase Always-on 53 Case TBC53AOCS-P

■

Memory Cards

– 2GB DDR3 CF-WMBA1002G – 4GB DDR3 CF-WMBA1004G

■

Desktop Dock CF-VEB531U

■

Havis Vehicle Dock

– no pass-through DS-PAN-411 – dual pass-through DS-PAN-411-2

■

Touchscreen Replacement Stylus CF-VNP009U

■

Tether CF-VNT002U

■

14.0" LCD Protector Film CF-VPF17U

Please consult your reseller or Panasonic representative before purchasing.

Touchscreen model only.

A full set of Windows XP drivers are available at panasonic.com/toughbook/support.

Total usable memory will be less depending upon actual system configuration.

1GB = 1,000,000,000 bytes.

The size of the VRAM cannot be set by the user and varies by operating system as

well as size of RAM. Windows 7 64-bit max. VRAM is 1696MB with 4GB of memory.

Battery performance features such as charge time and life span can vary according to the conditions under which the computer and battery are used. Battery operation and recharge times will vary based on many factors, including screen brightness, applications, features, power management, battery conditioning and other customer preferences. Battery testing results from MobileMark 2007.

Requires software and activation to enable theft protection.

Accessories and Integrated Options may vary depending on your notebook configuration.

SS53_07/11
