Panasonic CF-52AJCBGBM, CF-52AJCBHBM, CF-52AJCDDBM, CF-52AJCDFBM, CF-52AJCHDBM Specifications

...

Download

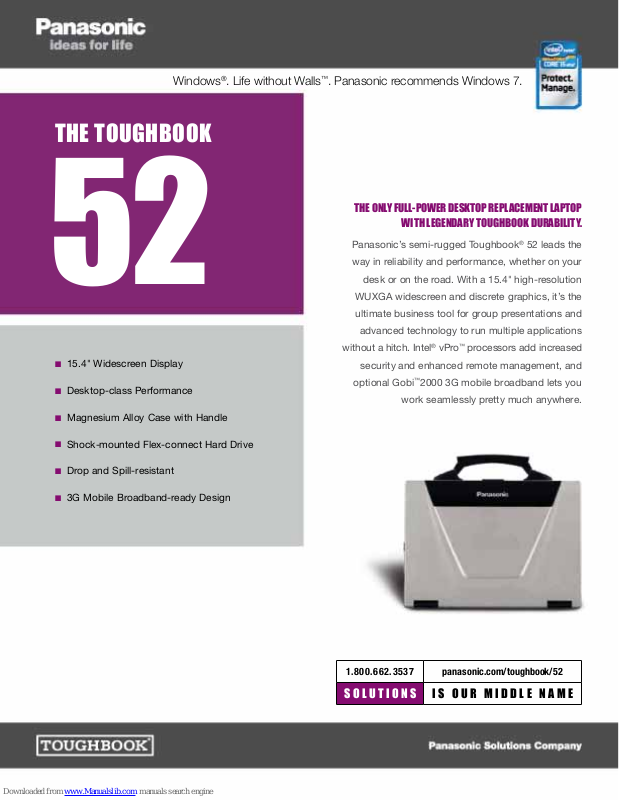

Page 1

Windows®. Life without Walls™. Panasonic recommends Windows 7.

THE TOUGHBOOK

■

15.4" Widescreen Display

■

Desktop-class Performance

THE ONLy fULL-pOwER DESKTOp REpLAcEMENT LApTOp

wITH LEGENDARy TOUGHBOOK DURABILITy.

Panasonic’s semi-rugged Toughbook® 52 leads the

way in reliability and performance, whether on your

desk or on the road. With a 15.4" high-resolution

WUXGA widescreen and discrete graphics, it’s the

ultimate business tool for group presentations and

advanced technology to run multiple applications

without a hitch. Intel® vPro™ processors add increased

security and enhanced remote management, and

optional Gobi™2000 3G mobile broadband lets you

work seamlessly pretty much anywhere.

■

Magnesium Alloy Case with Handle

■

Shock-mounted Flex-connect Hard Drive

■

Drop and Spill-resistant

■

3G Mobile Broadband-ready Design

1.800.662.3537 panasonic.com/toughbook/52

SOLUTIONS IS OUR MIDDLE NAME

Page 2

Windows®. Life without Walls™. Panasonic recommends Windows 7.

SOfTwARE

cpU

■

Genuine Windows

■

Panasonic Utilities, Recovery Partition

■

Intel

Core™ i5-2540M vPro™ Processor

7 Professional (32-bit)1 or

7 Professional (64-bit)

– 2.6GHz with Turbo Boost up to 3.3GHz – Intel Smart Cache 3MB

STORAGE & MEMORy

■

4GB SDRAM (DDR3-1333MHz), expandable to 16GB

■

Shock-mounted flex-connect hard drive with quick-release

– 320GB 5400rpm (optional 500GB 5400rpm)

DISpLAy

– ATI Radeon – Intel

AUDIO

KEyBOARD & INpUT

MULTIMEDIA BAy EXpANSION SLOTS

INTERfAcE

wIRELESS

■

15.4" widescreen WUXGA LED 1920 x 1200

■

Anti-reflective and anti-glare screen treatments

■

Video controllers

QM67 (max. 1915MB shared VRAM with 32-bit)4

■

External video support up to 1920 x 1200 at 16.7 million colors

■

Intel

high-definition audio compliant

■

Integrated stereo speakers

■

Keyboard volume and mute controls

■

87-key with dedicated Windows

■

Electrostatic touchpad with scrolling support

■

DVD Super MULTI Drive

■

PC card type II x 1

■

SD card (SDXC)

■

ExpressCard/54 x 1

■

Docking connector Dedicated 100-pin

■

VGA D-sub 15-pin

■

Headphones/speaker Mini-jack stereo

■

Microphone/line in Mini-jack stereo

■

Serial D-sub 9-pin

■

USB 2.0 (x4) 4-pin

■

IEEE 1394a (FireWire) 4-pin

■

10/100/1000 Ethernet RJ-45

■

56K Modem RJ-11

■

Optional integrated Gobi

■

Intel

Centrino® Advanced-N 6205 802.11a/b/g/n

Bluetooth Security

v2.1 + EDR (Class 1)

■

™

HD6750M (512MB dedicated VRAM)4

key

™

2000 3G mobile broadband

2,3

– Authentication: LEAP, WPA, 802.1x, EAP-TLS, EAP-FAST, PEAP – Encryption: CKIP, TKIP, 128-bit and 64-bit WEP, Hardware AES

■

pOwER SUppLy

Slide on/off switch

■

Battery operation: 4 hours

■

Long life Li-Ion battery pack (10.8V, typical 6750mAh, minimum 6300mAh)

■

Battery charging time: 2 hours

■

AC Adapter: AC 100V—240V 50/60Hz, auto sensing/switching

worldwide power supply

pOwER MANAGEMENT SEcURITy fEATURES

wARRANTy DIMENSIONS & wEIGHT

INTEGRATED OpTIONS

1.800.662.3537

Financing options now available from Panasonic Finance Solutions; please call number above for more details.

Panasonic is constantly enhancing product specifications and accessories. Specifications subject to change without notice. Trademarks are property of their respective owners. ©2011 Panasonic Corporation of North America. All rights reserved.

panasonic.com/toughbook/52

■

Suspend/Resume Function, Hibernation, Standby, ACPI BIOS

■

Password Security: Supervisor, User, Hard Disk Lock

■

Kensington cable lock slot

■

Trusted platform module (TPM) security chip v.1.2

■

Computrace

■

Intel

■

Optional fingerprint reader

■

Optional SmartCard reader

■

3-year limited warranty, parts and labor

■

11.3"(L) x 14.0"(W) x 2.0"(H)

■

7.5 lbs.

■

Gobi

■

SmartCard reader

■

Fingerprint reader

theft protection agent in BIOS6

Anti-Theft Technology

™

2000 3G mobile broadband (EV-DO Rev. A, HSPA)

AccESSORIES

■

AC Adapter (3-prong) CF-AA5713AM

■

Lithium Ion Battery Pack CF-VZSU71U

■

Battery Charger CF-VCBTB2W

■

LIND 3-Bay Battery Charger PACH329-1857-P

■

LIND Car Adapter 120W CF-LNDDC120

■

LIND Car Adapter 120W

Mounting Bracket CF-LNDBRK120

■

LIND Shutdown Timer CF-LNDLPT

■

InfoCase ComUniversal

Carrying Case (large capacity) TBCCOMUNV-P

■

InfoCase ComUniversal Roller TBCRLR-P

■

InfoCase Backpack TBCBPK-P

■

InfoCase Always-on 52 Case TBC52AOCS-P

■

Desktop Dock CF-VEB522M

■

Memory Cards

– 4GB DDR3 CF-WMBA1004G – 8GB DDR3 TBD

■

DisplayPort to HDMI Adapter TTDPHDMI

Please consult your reseller or Panasonic representative before purchasing.

A full set of Windows XP drivers are available at panasonic.com/toughbook/support.

Total usable memory will be less depending upon actual system configuration.

1GB = 1,000,000,000 bytes.

The size of the VRAM cannot be set by the user and varies by operating system as well as size of RAM. Windows 7 64-bit max. VRAM is 2283MB with 4GB of memory.

Battery performance features such as charge time and life span can vary according to the conditions under which the computer and battery are used. Battery operation and recharge times will vary based on many factors including screen brightness, applications, features, power management, battery conditioning and other customer preferences. Battery testing results from MobileMark 2007.

Requires software and activation to enable theft protection.

Accessories and Integrated Options may vary depending on your notebook configuration.

SS52mk4_07/11
