Panasonic CF50EAKUCKM Operating Instruction [en, fr]

Personal Computer

OPERATING INSTRUCTIONS

Model No. CF-50 Series

Contents

Getting Started

Read Me First.................................................. 3

First-time Operation ...................................... 11

®

2000

XP

Reference Manual

• Read Me First

• Key Combinations

• LED Indicators

Operation

Starting Up/Shutting Down ............................ 16

Touch Pad ..................................................... 19

Reference Manual .........................................20

Reference Manual

• Touch Pad

• Standby/Hibernation

Functions

• Security Measures

• Computing on the

Road

• Battery Power

• CD Drive

• PC Cards

• RAM Module

• Port Replicator

• Printer

• External Display

• USB Devices

• IEEE 1394 Devices

• Modem

• LAN

• <Only for CF-50E******/

CF-50G******>
Wireless LAN

• Hard Disk Drive

• Setup Utility

Troubleshooting

List of Error Codes .........................................21

Dealing with Problems (Summary) ................. 23

Reinstalling Software ..................................... 27

Reference Manual

• Technical Information

• DMI Viewer

[Additional Manual]

Reference Manual

This manual can be accessed on your computer.
Refer to page 20 on how to access the Reference Manual.

Please read these instructions carefully before using this product and save this manual for future use.

Appendix

LIMITED USE LICENSE AGREEMENT......... 30

Hard Disk Data Erase Utility ........................... 32

B’s Recorder/B’s CLiP .................................... 33

WinDVD™ ...................................................... 35

Names and Functions of Parts ....................... 37

Specifications ................................................. 39

LIMITED WARRANTY.................................... 42

• List of Error Codes

• Dealing with Problems

(Advanced)

Appendix Getting StartedOperationTroubleshooting

Customer’s Record

Model No.*

Serial No.

or

Code No.

Date of Purchase

* For the Model No., insert the 12 digit number (for example, CF-50GB2TUKM) located on the

bottom of the computer.

Dealer’s Name

Dealer's Address

Introduction

Thank you for purchasing the Panasonic computer. Read the operating instructions thoroughly for proper operation of your new
computer.

Illustrations and Terminology in this Manual

NOTE: NOTE provides a useful fact or helpful information.
CAUTION: CAUTION indicates a condition that may result in minor or moderate injury.
WARNING: WARNING indicates a hazard that may result in moderate or serious injury.

Windows 2000 : Information for Microsoft® Windows® 2000 Professional users.

Windows XP : Information for Microsoft® Windows® XP Professional users.

Enter : This illustration means to press the [Enter] key.
Fn + F5 : This illustration means to press and hold the [Fn] key, then press the [F5] key.

[Start]* - [Run]: This illustration means to click [Start]*, then to click [Run].

For some applications, you may need to double-click.

* Windows XP : [start]

: Where to go for referred information.

: This illustration means to refer to the Reference Manual, which is available on your computer.

Refer to page 20 on how to access this manual.

Some of the illustrations in this manual may differ slightly in shape from the actual items in order to make the explanation
easier to understand.
Circular media such as CD-ROM and DVD-ROM are described as “discs”.
The following drives are described as “CD drive”.
DVD-ROM drive, DVD-ROM & CD-R/RW drive, DVD MULTI drive.
If the user has logged on without the administrator authority, some functions may not be executable, and some screens may
not be displayed as shown in this manual. If this happens, log on with the administrator authority to enable these functions.

Copyright

This manual is copyrighted by Matsushita Electric Industrial Co., Ltd. with all rights reserved. No part of this manual may be
reproduced in any form without the prior written permission of Matsushita Electric Industrial Co., Ltd.
No patent liability is assumed with respect to the use of the information contained herein.
©2003 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.

Disclaimer

Computer specifications and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd. assumes no
liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manuals.

Trademarks

Microsoft®, Windows® and the Windows logo are registered trademarks of Microsoft Corporation of the United States and/or other
countries.
PS/2® is a registered trademark of International Business Machines Corporation.
Intel, Pentium, SpeedStep and PROSet are either registered trademarks or trademarks of Intel Corporation.
Adobe® and Acrobat® are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or
other countries.

WinDVD™ is a trademark of InterVideo, Inc.

Panasonic® is a registered trademark of Matsushita Electric Industrial Co., Ltd.

2

Read Me First

For U.S.A.

Federal Communications Commission Radio
Frequency Interference Statement

Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the Panasonic Service Center or an experienced ra­dio/TV technician for help.

Warning

To assure continued compliance, use only shielded interface
cables when connecting to a computer or peripheral. Also, any
changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate this equipment.

FCC RF Exposure Warning: This computer is provided with
PC Card slots that could be used with wireless transmitter(s),
which will be specifically recommended, when they become
available. Other third-party wireless transmitter(s) have not been
RF exposure evaluated for use with this computer and may not
comply with FCC RF exposure requirements.

This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including

interference that may cause undesired operation.

Responsible Party: Matsushita Electric Corporation of America

One Panasonic Way
Secaucus, NJ 07094
Tel No:1-800-LAPTOP-5 (1-800-527-8675)

FCC RF Exposure Warning:
<CF-50A******/CF-50B******>

Supplementary Instructions “CF-50 Series with Wireless LAN”
<CF-50E******/CF-50G******>
This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment.
This equipment must be installed and operated in accordance with
provided instructions and minimum 2.5 cm spacing must be pro­vided between antenna and all person’s body (excluding extremi­ties of hands, wrist and feet) during wireless modes of operation.
This transmitter must not be co-located or operated in conjunc­tion with any other antenna or transmitter. This computer is
provided with a PC Card slot that could be used with wireless
transmitter(s), which will be specifically recommended, when
they become available. Other third-party wireless transmitter(s)
have not been RF exposure evaluated for use with this com­puter and may not comply with FCC RF exposure requirements.

FCC Regulation Notice for modem
This equipment contains a FCC approved modem.

<CF-50A******/CF-50B******>
Manufacturer of modem: AMBIT Microsystems Corporation
Model No. T60M099.03 or J07M040.07
<CF-50E******/CF-50G******>
Manufacturer of modem: PC TEL Inc.
Model No. PCT2304WT

Tested To Comply
With FCC Standards

FOR HOME OR OFFICE USE

1. This equipment complies with CFR47 Part 68 rules. On the
computer is a label that contains, among other information,
the FCC registration number and ringer equivalence number
(REN) for this equipment. If required, this information must
be provided to the telephone company.

2. An FCC compliant telephone cord and modular plug is pro­vided with this equipment. This equipment is designed to be
connected to the telephone network or premises wiring using
a compatible modular jack which is Part 68 compliant. See
Installation Instructions for details.

3. The REN is used to determine the quantity of devices which
may be connected to the telephone line. Excessive RENs on the
telephone line may result in the devices not ringing in response
to an incoming call. In most, but not all area, the sum of RENs
should not exceed five (5.0). To be certain of the number of
devices that may be connected to a line, as determined by the
total RENs, contact the local telephone company.

4. If your telephone equipment cause harm to the telephone net­work, the telephone company will notify you in advice that
temporary discontinuance of service may be required. But if
advice notice isn’t practical, the telephone company will no­tify the customer as soon as possible. Also, you will be ad­vised of your right to file a complaint with the FCC if you
believe it is necessary.

5. The telephone company may take changes in it’s facilities,
equipment, operations or procedures that could affect the op­eration of the equipment. If this happens the telephone com­pany will provide advance notice in order for you to make
necessary modifications to maintain uninterrupted service.

6. If trouble is experienced with this equipment, for repair or
warranty information, please contact Matsushita Electric
Corporation of America at DIAL TOLL FREE 1-800­LAPTOP5 (1-800-527-8675). If the equipment is causing harm
to the telephone network, the telephone company may request
that you disconnect the equipment until the problem is resolved.

7. There are no user serviceable parts contained in this equipment.

8. This equipment may not be used on coin service provided by
the telephone company. Connection to party lines is subject to
state tariffs.

9. The Telephone Consumer Protection Act of 1991 makes it
unlawful for any person to use a computer or other electronic
device to send any message via a telephone fax machine un­less such message clearly contains in a margin at the top or
bottom of each transmitted page or on the first page of the
transmission, the date and time it is sent and an identification
of the business or other entry, or other individual sending the
message and the telephone number of the sending machine or
such business, other entity, or individual. In order to program
this information into your fax software, you should refer to
the manual of the Fax software being used.

Getting Started

3

Read Me First

10.According to the FCC’s electrical safety advisory, we recom­mend that you may install an AC surge arrestor in the AC outlet
to which this equipment is connected. Telephone companies
report that electrical surges, typically lightning transients, are
very destructive to customer terminal equipment connected to
AC power sources and that this is a major nationwide problem.

“Caution: To reduce the risk of fire, use only No.26 AWG or larger telecom­munication line cord.”
“ATTENTION: Pour réduire le risque d’incendie, utiliser uniquement des
conducteurs de télécommunications 26 AWG ou de section supérieure.”

For Canada

Industry Canada (IC) Notice for modem

This equipment contains an Industry Canada approved modem unit.
The Industry Canada label is affixed on the modem unit.

EQUIPMENT ATTACHMENT LIMITATIONS

Getting Started

“NOTICE: The Industry Canada label identifies certified
equipment. This certification means that the equipment meets
telecommunications network protective, operational and
safety requirements as prescribed in the appropriate Terminal
Equipment Technical Requirements document(s). The
Department does not guarantee the equipment will operate
to the user’s satisfaction.
Before installing this equipment, users should ensure that it
is permissible to be connected to the facilities of the local
telecommunications company. The equipment must also be
installed using an acceptable method of connection. The
customer should be aware that compliance with the above
conditions may not prevent degradation of service in some
situations.
Repairs to certified equipment should be coordinated by a
representative designated by the supplier. Any repairs or
alterations made by the user to this equipment, or equipment
malfunctions, may give the telecommunications company
cause to request the user to disconnect the equipment.
Users should ensure for their own protection that the electrical
ground connections of the power utility, telephone lines and
internal metallic water pipe system, if present, are connected
together. This precaution may be particularly important in
rural areas. Caution: Users should not attempt to make such
connections themselves, but should contact the appropriate
electric inspection authority, or electrician, as appropriate.”
“NOTICE: The Ringer Equivalence Number (REN) assigned
to each terminal device provides an indication of the
maximum number of terminals allowed to be connected to a
telephone interface. The termination on an interface may
consist of any combination of devices subject only to the
requirement that the sum of the Ringer Equivalence Numbers
of all the devices does not exceed 5.”

REN: See bottom of the computer

Notice for the products using LCD

This product uses one or more fluorescent lamps containing a
small amount of mercury. It also contains lead in some compo­nents. Disposal of these materials may be regulated in your com­munity due to environmental considerations. For disposal or
recycling information please contact your local authorities, or
the Electronics Industries Alliance: <http://www.eiae.org/>

RESTRICTIONS CONCERNANT LE RACCORDEMENT
DE MATÉRIEL

“AVIS: L’étiquette d’Industrie Canada identifie le matériel
homologué. Cette étiquette certifie que le matériel est
conforme aux normes de protection, d’exploitation et de
sécurité des réseaux de télécommunications, comme le
prescrivent les documents concernant les exigences
techniques relatives au matériel terminal. Le Ministère
n’assure toutefois pas que le matériel fonctionnera à la
satisfaction de l’utilisateur.
Avant d’installer ce matériel, l’utilisateur doit s’assurer qu’il
est permis de le raccorder aux installations de l’entreprise
locale de télécommunication. Le matériel doit également être
installé en suivant une méthode acceptée de raccordement.
L’abonné ne doit pas oublier qu’il est possible que la
conformité aux conditions énoncées ci-dessus n’empêche pas
la dégradation du service dans certaines situations.
Les réparations de matériel homologué doivent être
coordonnées par un représentant désigné par le fournisseur.
L’entreprise de télécommunications peut demander à
l’utilisateur de débrancher un appareil à la suite de réparations
ou de modifications effectuées par l’utilisateur ou à cause de
mauvais fonctionnement.
Pour sa propre protection, l’utilisateur doit s’assurer que tous
les fils de mise à la terre de la source d’énergie électrique,
des lignes téléphoniques et des canalisations d’eau
métalliques, s’il y en a, sont raccordés ensemble. Cette
précaution est particulièrement importante dans les régions
rurales. Avertissement: L’utilisateur ne doit pas tenter de faire
ces raccordements lui-même; il doit avoir recours à un service
d’inspection des installations électriques, ou à un électricien,
selon le cas.”
“AVIS: L’indice d’équivalence de la sonnerie (IES) assigné
à chaque dispositif terminal indique le nombre maximal de
terminaux qui peuvent être raccordés à une interface. La
terminaison d’une interface téléphonique peut consister en
une combinaison de quelques dispositifs, à la seule condition
que la somme d’indices d’équivalence de la sonnerie de touts
les dispositifs n’excède pas 5.”

IES: Voir sous le fond de l’ordinateur

4

Industry Canada

This product complies with RSS210 Industry Canada.
Operation is subject to the following two conditions;
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.

Important Safety Instructions / Importantes Mesures De Sécurité

When using your telephone equipment, basic safety pre­cautions should always be followed to reduce the risk of
fire, electric shock and injury to persons, including the fol­lowing:

1.Do not use this product near water, for example, near a
bath tub, wash bowl, kitchen sink or laundry tub, in a wet
basement or near a swimming pool.

2.Avoid using a telephone (other than a cordless type) dur­ing an electrical storm. There may be a remote risk of
electric shock from lightning.

3.Do not use the telephone to report a gas leak in the vicin­ity of the leak.

4.Use only the power cord and batteries indicated in this
manual. Do not dispose of batteries in a fire. They may
explode. Check with local codes for possible special dis­posal instructions.

SAVE THESE INSTRUCTIONS

Information to the User

This product and your Health

This product, like other radio devices, emits radio frequency
electromagnetic energy. The level of energy emitted by this prod­uct however is far much less than the electromagnetic energy
emitted by wireless devices like for example mobile phones.
Because this product operates within the guidelines found in
radio frequency safety standards and recommendations, we be­lieve this product is safe for use by consumers. These standards
and recommendations reflect the consensus of the scientific com­munity and result from deliberations of panels and committees
of scientists who continually review and interpret the extensive
research literature.
In some situations or environments, the use of this product may
be restricted by the proprietor of the building or responsible
representatives of the organization. These situations may for
example include:

Using this product on board of airplanes, or
In any other environment where the risk of interference to other
devices or services is perceived or identified as harmful.

Certaines mesures de sécurité doivent être prises pendant
l’utilisation de matérial téléphonique afin de réduire les
risques d’incendie, de choc électrique et de blessures. En
voici quelquesunes:

1.Ne pas utiliser l’appareil près de l’eau, p.ex., près d’une
baignoire, d’un lavabo, d’un évier de cuisine, d’un bac à
laver, dans un sous-sol humide ou près d’une piscine.

2.Éviter d’utiliser le téléphone (sauf s’il s’agit d’un appareil
sans fil) pendant un orage électrique. Ceci peut présenter
un risque de choc électrique causé par la foudre.

3.Ne pas utiliser l’appareil téléphonique pour signaler une
fuite de gaz s’il est situé près de la fuite.

4.Utiliser seulement le cordon d’alimentation et le type de
piles indiqués dans ce manual. Ne pas jeter les piles dans
le feu: elles peuvent exploser. Se conformer aux règlements
pertinents quant à l’élimination des piles.

CONSERVER CES INSTRUCTIONS

If you are uncertain of the policy that applies on the use of wire­less devices in a specific organization or environment (e.g. air­ports), you are encouraged to ask for authorization to use this
product prior to turning on the product.

Regulatory Information

We are not responsible for any radio or television interference
caused by unauthorized modification of this product. The cor­rection of interference caused by such unauthorized modifica­tion will be the responsibility of the user. We and its authorized
resellers or distributors are not liable for damage or violation of
government regulations that may arise from failing to comply
with these guidelines.

Getting Started

Lithium Battery

Lithium Battery!

This computer contains a lithium battery to enable the date,
time, and other data to be stored. The battery should only be
exchanged by authorized service personnel.
Warning! A risk of explosion from incorrect installation or mis­application may possibly occur.

Pile au lithium!

Le micro-ordinateur renferme une pile au lithium qui permet
de sauvegarder certaines données comme la date et l’heure
notamment. Elle ne devra être remplacée que par un technicien
qualifié.
Avertissement! Risque d’explosion en cas de non respect de
cette mise en garde!

5

Read Me First

CD Drive Caution

CAUTION!

THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL

AVERTISSEMENT!

CET APPAREIL UTILISE UN LASER.
L

’UTILISATION DE COMMANDES OU DE RÉGLAGES OU

L

’EXÉCUTION DE PROCÉDURES AUTRES QUE CELLES

SPÉCIFIÉES ICI PEUVENT PROVOQUER UNE EXPOSITION À
DES RADIATIONS DANGEREUSES.
NE PAS OUVRIR LES COUVERCLES NI ESSAYER DE RÉPARER SOI-MÊME.
CONFIER TOUT TRAVAIL D'ENTRETIEN À UN PERSONNEL QUALIFIÉ.

Precautions

Getting Started

Usage

Avoid Extreme Heat and Cold

Do not store or use the computer in locations
exposed to heat, direct sunlight, or extreme cold.
Avoid moving the computer between locations
with large temperature difference.
Operation: 5 oC to 35 oC {41 oF to 95 oF}
Storage: -20 oC to 60 oC {-4 oF to 140 oF}

Avoid Direct Sunlight on the LCD Panel

The LCD panel should not be exposed to direct
sunlight or ultraviolet light.

Avoid Humidity, Liquids and Dust

Do not store or use the computer in locations exposed
to high humidity, liquids (including rain) or dust.

Bottom

CLASS 1 LASER PRODUCT

LASER KLASSE1

Prevent Shock

Avoid subjecting the computer to severe vibrations or
impact. Do not place the computer inside a car trunk.

Avoid Radio Frequency Interference

Do not place the computer near a television or
radio receiver.

Avoiding low-temperature burns

Avoid more than casual contact with any heat pro­ducing area of the notebook computer, AC adap­tor, and any option or accessory you use with it.
Even low heat, if warmer than body temperature,
can cause a burn, if the skin is exposed to the
heat source for a long enough period of time.

Handling

Avoid Magnetic Fields

Keep the computer away from magnets.
Data stored on the hard disk may be lost.

Avoid Stacking

Do not place heavy objects on top of the
computer.

Keep Small Objects Away

Do not insert paper clips or other small objects
into the computer.

<Only for the model with a wireless LAN>

Wireless LAN

To prevent theft of data or unauthorized access to the hard disk via a wireless LAN

If you plan to use wireless LAN functions, we recommend that you do so only after making the
appropriate security settings, such as for data encryption.

Do Not Disassemble the Computer

Do not attempt to disassemble your computer.

Avoid Excessive Force on the Display

Do not apply excessive downward force on the display
when it is completely opened, especially when plugs
and/or cables are connected to the rear of the computer.

6

Windows Update

You can use the latest patches and service packs for Windows with the following menus.

Do not apply “Driver Update” even if a message to update a driver appears. If a driver
update is required, contact Panasonic Technical Support ( page 42).

Windows 2000

[Start] - [Programs] - [Windows Update]

WindowsXP

[start] - [All Programs] - [Windows Update]

Precautions (Battery Pack)

Care should be exercised with regard to the following in or­der to avoid the possibility of overheating, fire or damage.

Avoid Heat

Do not throw the battery pack into a fire or ex­pose it to excessive heat.

Keep Articles Away

Do not place the battery pack together with articles
such as necklaces or hairpins when carrying or stor­ing.

Do Not Disassemble

Do not insert sharp objects into the battery pack,
expose it to bumps or shocks, deform, disassemble,
or modify it.

Do Not Short

Do not short the positive (+) and negative (-) con­tacts.

Avoid Extreme Heat, Cold and Direct Sunlight

Do not charge, use or leave the battery pack for ex­tended periods where it will be exposed to direct
sunlight, in a hot place (in a car on a sunny day, for
example), or in a cold place.

Do Not Use With Any Other Computer

The battery pack is rechargeable and was intended for
the specified computer. Do not use it with a computer
other than the one for which it was designed.

Do Not Put into a Microwave

Do not put the battery pack into a microwave oven
or a pressurized chamber.

Stop Using

Should the battery emit an abnormal odor, become
hot to the touch, become discolored, change shape,
or become in any way different from normal, re­move it from the computer and stop using it.

Do not touch the terminals on the battery pack. The bat­tery pack may no longer function properly if the contacts
are dirty or damaged.
Do not expose the battery pack to water, or allow it to
become wet.

If the battery pack will not be used for a long period of time
(a month or more), charge or discharge (use) the battery pack
until the remaining battery level becomes 30% to 40% and
store it in a cool, dry place.
This computer prevents overcharging of the battery by re­charging only when the remaining power is less than approx.
95% of capacity.
The battery pack is not charged when the computer is first
purchased. Be sure to charge it before using it for the first

time. When the AC adaptor is connected to the computer,
charging begins automatically.
Should the battery leak and the fluid get into your eyes, do not
rub your eyes. Immediately flush your eyes with clear water
and see a doctor for medical treatment as soon as possible.

NOTE

The battery pack may become warm during recharging or
normal use. This is completely normal.
Recharging will not commence outside of the allowable
temperature range (0 °C to 50 °C {32°F to 122 °F})

requirement is satisfied, charging begins automatically.
Note that the recharging time varies based on the usage
conditions. (Recharging takes longer than usual when the
temperature is 10 °C {50 °F} or less.)
If the temperature is low, the operating time is shortened.
Only use the computer within the allowable temperature
range.
The battery pack is a consumable item. If the amount of
time the computer can be run off a particular battery pack
becomes dramatically shorter and repeated recharging does
not restore its performance, the battery pack should be
replaced with a new one.
When transporting a spare battery inside a package, brief­case, etc., it is recommended that it be placed in a plastic
bag so that its contacts are protected.
Always power off the computer when it is not in use. Leav­ing the computer on when the AC adaptor is not connected
will exhaust the remaining battery capacity.

“Battery Power”. Once the allowable range

Getting Started

7

Read Me First

When Using Peripheral Devices

Pay strict attention to the following points to avoid damage to the computer, peripheral devices, cables, etc.
Also, in addition to following this manual and the Reference Manual, carefully read the instruction manuals
for the peripheral devices being used.

Use only peripheral devices that conform to the computer’s specifications.
Connect the devices properly, paying close attention to the condition and position of the connectors.
If a connection cannot be made easily, do not apply undue force; check once more to confirm the condi­tion and position of the connector (alignment of pins, etc.) .
If the connector has holding screws, fasten the screws firmly.
Do not carry the computer with cables attached, and do not pull on the cables forcefully.

Saving Data on the Hard Disk

Do not expose your computer to shock.

Use care when handling your computer, shock may damage your hard disk or make your software appli­cations and data unusable.

Getting Started

Do not power down your computer while software applications are running or hard disk drive
indicator ( ) is on.

Properly shut Windows* down to avoid problems.

Save all valuable data to disks.

Backing up data to disks will limit damage should trouble occur to your computer or should you inad­vertently change or erase data.
Use the security function for all important data. ( “Security Measures”)

* Windows 2000 : This computer uses Microsoft

Windows XP : This computer uses Microsoft® Windows® XP Professional.

Hard Disk Lock

®

Windows® 2000 Professional.

When the Hard Disk Lock is set to [Enable], it is impossible to read/write data from/to the hard disk when the
hard disk is installed in a different computer, since a password is also set for the hard disk. When the hard disk
is returned to the original computer, you can read/write data as before. In this case, however, make the settings
in the Setup Utility exactly the same as they were before the hard disk was removed. (Note that this Hard Disk

Lock does not guarantee the complete protection of data.) ( “Security Measures”)

Saving Data on Floppy Disks

Do not power down your computer or press the floppy disk drive eject button while the floppy disk
drive indicator ( ) is on.

Doing so may damage the data on the floppy disk and render the floppy disk useless.

Use care when handling floppy disks.

To protect the data on your floppy disks or to prevent a floppy disk from becoming stuck in your com­puter, avoid the following:

• Sliding the shutter on the floppy disk manually.

• Exposing the floppy disk to a magnetic field.

• Storing the floppy disk in locations prone to high temperatures, low pitched noise, dampness, or dust.

• Applying more than one label on the floppy disk.

Confirm the contents of a floppy disk before formatting it.

Confirm that no important data is on the floppy disk, because all data on the floppy disk will be erased.

Use the write-protect tab.

This is a must for preserving important data.
This prevents your data from being erased or over­written.

Write Enable

Write-protect Tab

Write Disable

8

Computer Viruses

Users are advised to purchase the latest versions of virus protection software and use them regularly.

We recommend you run the software:

• When booting your computer.

• After receiving data.
We recommend that you check data received on disks or from external sources, such as data downloaded
from the Internet, e-mail, etc. (For compressed files, uncompress them before running a check).

When Disposing of or Transferring Ownership of This Device

When disposing of or transferring ownership of this device, erase all data on the hard disk in order to prevent
the theft of hard disk data. Even if you delete data or initialize the hard disk through normal Windows com­mands, data can still be read using special software. In order to erase all data, either have the data erased by a
specialist (at a charge) or use the hard disk data erase utility (included) ( page 32). (Note that this hard disk
data erase utility does not guarantee that data will be completely erased.)
Also, note that if you transfer ownership of this device without deleting commercial software that you have
installed to the hard disk, you may be in violation of the licensing agreement for that software.

Getting Started

9

Read Me First

Usage Environment

Getting Started

Environment

Place the computer on a flat stable surface. Do not place the computer upright or allow
it to tip over. When the computer receives extremely strong shock after falling, the hard
disk or floppy disk drive, etc., may become inoperable.
In use : Temperature : 5 °C to 35 °C {41 °F to 95 °F}

Humidity : 30% to 80% RH (No condensation)

Not in use : Temperature : -20 °C to 60 °C {-4 °F to 140 °F}

Humidity : 30% to 90% RH (No condensation)

Places not to use your computer

Such areas may result in damage to the computer.

Areas with electronic equipment

These areas may interfere with your display or cause your computer to produce strange
sounds.

Areas with extremely high/low temperatures

Do not leave things near the computer that are sensitive to heat. During operation, the
computer may become warm.

Handling

Maintenance

Touch Pad

page 19

This computer has been designed so as to minimize shock to the LCD and hard disk drive,
etc., but no warranty is provided against such trouble. Therefore, as a precision instrument,
be extremely careful in the handling.
Do not drop or hit your computer against solid objects.
Do not carry your computer when it is on.
Remove all external devices, cables, and PC Cards sticking out of the computer (see the
figure on the left) before transporting the computer.
We recommend preparing a fully charged battery.
When transporting a spare battery inside a package, briefcase, etc., it is recommended that it
be placed in a plastic bag so that its contacts are protected.
Do not carry the computer while the display is open, or carry it by gripping the display.
Do not put anything (e.g., a piece of paper) between the display and keyboard.
Always carry your computer with you. Never check it in with luggage. For use of the com­puter inside an aircraft, we recommend asking the airlines regarding their policy on this issue.
It is a good idea to make backup copies on disks and carry them with you.
Do not leave a disk in the drive while transporting your computer.

Display

Avoid using water when cleaning the panel. Ingredients included in water may leave scratches
and reduce readability of the screen.
<When cleaning dust/dirt>

Avoid rubbing off dust/dirt with cloth since it may leave scratch on the screen.
Sweep dust/dirt with fine brush, then wipe it with a dry soft cloth used for cleaning glasses.

<When cleaning oily surface>

Apply camera lens cleaner on a soft gauze and clean it with gentle force. Then, wipe with a
dry soft cloth used for cleaning glasses.

10

Areas excluding the display

Wipe these areas with a soft cloth, after applying water or detergent diluted with water to the
soft cloth and firmly wringing out excess water.

CAUTION

Do not use benzene, thinner, or rubbing alcohol. Doing so may adversely affect the surface, e.g., discoloration.
In addition, do not use commercially-available household cleaners and cosmetics, as they may contain compo­nents harmful to the surface.
Do not directly add or spray water or detergent. If liquid enters the inside of the computer, it may cause it to
work improperly or be damaged.

First-time Operation

Read the steps below to help you learn what parts are included, and to gain an understanding of
some basic computer-related operations.

1

Confirm the inclusion of all parts

Make sure the parts shown in the figure have been supplied. If any of these items are
missing or is not working properly, contact Panasonic Technical Support ( page 42).

AC adaptor ..........1

Model No : CF-AA1653A

Modem Telephone

Cable ................... 1

Operating Instructions (This book)

Windows® Book .................................................................................... 1

WinDVD™ CD-ROM ( page 35). ........................................................... 1

<Model with a DVD-ROM & CD-R/RW Drive / Model with a DVD MULTI Drive>

B’s Recorder/B’s CLiP CD-ROM ( page 33) ................................ 1

2

Read the LIMITED USE LICENSE AGREEMENT ( page 30)

Before removing the seal covering the power switch, read the LIMITED USE LI­CENSE AGREEMENT.

AC Cord ...............1 Battery Pack........ 1

Model No :CF-VZSU18A

Product Recovery CD-ROM

Windows 2000 ....................................... 2

Windows XP ....................................... 3

................................................................

Getting Started

1

Latch

Battery Pack

Cover

Tab

3

Insert the battery pack

NOTE

<Only for CF-50A******/CF-50B******>
Use only the specified battery pack (CF-VZSU18A, yellow tab) with your com­puter. CF-VZSU18 (blue tab) cannot be used with this computer.

1 Turn your computer over.
2 Slide the latch, and then without releasing it, slide and remove the cover.

3 Put the battery pack into the computer and firmly attach the pack to the connector.

11

First-time Operation

4 Match the mark on the cover to the body of the computer and slide the cover back

Mark

4

Connect your computer to a power outlet

The battery pack will be charged automatically.

DC-IN Jack

DC IN 15.6V

Getting Started

Charging Time: Approx. 3.5 hours
(Varies depending on the usage conditions.)

CAUTION

Be sure the AC adaptor is connected until completing the first-time use operation.
When using the computer for the first time, do not connect any peripheral device
except the battery pack and AC adaptor to the computer.

Handling the AC adaptor

Do not twist or pull the AC power cord forcefully. Doing so may damage the
connections.
Use only the specified AC adaptor with your computer. Using an AC adaptor other
than the one supplied might damage the battery and/or the computer.
When the DC plug is not connected to the computer, disconnect the AC cord from
your AC wall outlet.
Problems such as sudden voltage drops may arise during periods of thunder and
lightning. Since this could adversely affect your computer, an uninterruptible power
source (UPS) is highly recommended unless running from the battery pack alone.

into place. Be sure the tab does not get caught when closing the cover.

CAUTION

If the cover is not attached properly, the battery may fall out while the com­puter is being carried.

Power
Switch

Power Indicator

5

Open the display

1 Slide the latch located at the front.
2 Lift open the display.

6

Turn your computer on

Press the power switch and hold it for approximately one second until the power indicator
turns on before releasing it.

CAUTION

Do not press the power switch repeatedly.
Once the computer is powered off, you must wait at least ten seconds before pow­ering it on again.

12

7

Setup Windows

Moving the cursor ( ) or clicking buttons can be performed with the touch pad ( page 19).

Windows 2000

CAUTION

Do not change the Setup Utility settings before executing Windows setup.
Do not press any key or move the touch pad until [Windows 2000 Professional

Setup] is displayed.

1 At [Welcome to the Windows 2000 Setup Wizard], select [Next].
2 After reading the agreement, select [I accept this agreement] or [I don’t accept this

agreement], then select [Next].

NOTE

If [I don’t accept this agreement] is selected, the Windows setup will be aborted.

3 Select settings for your region, then select [Next].
4 Enter your name and organization and then select [Next].
5 Enter your computer name and administrator password and then select [Next].

CAUTION

Remember this password! If the password is forgotten, Windows 2000 cannot be
operated.

6 Enter the correct date, time and the time zone, then select [Next].
7 At [Networking Settings], select [Typical settings], then select [Next].
8 At [Workgroup or Computer Domain], select [No, this computer is not on a network,

or is on a network without a domain], then select [Next].
The computer will restart.

9 At [Welcome to the Network Identification Wizard], select [Next].

10

At [Users of This Computer], select [Users must enter a user name and password to
use this computer], then select [Next].

11

Select [Finish].

12

Enter your administrator password and select [OK].

NOTE

After setting up Windows, you can use “Icon Enlarger” to change the size of the
icons, etc. as you like. To use this, select on the desktop or [Icon Enlarger] in
[Start] - [Programs] - [Panasonic].

Getting Started

Windows XP

CAUTION

Do not change the Setup Utility settings before executing Windows setup.
Do not press any key or move the touch pad until [Windows XP Professional

Setup] is displayed.

1 At [Welcome to the Windows XP Setup Wizard], select [Next].
2 After reading the agreement, select [I accept this agreement] or [I don’t accept this

agreement], then select [Next].

NOTE

If [I don’t accept this agreement] is selected, the Windows setup will be aborted.

(To next page)

13

First-time Operation

3 Select settings for your region, then select [Next].
4 Enter your name and organization and then select [Next].
5 Enter your computer name and administrator password and then select [Next].

CAUTION

Remember this password! If the password is forgotten, Windows XP cannot be
operated.

6 Enter the correct date, time and the time zone, then select [Next].

NOTE

It may take two to three minutes until the next screen is displayed. Wait, and do
not press any keys, or touch the touch pad, etc.

7 At [Networking Settings], select [Typical settings], then select [Next].
8 At [Workgroup or Computer Domain], select [No, this computer is not on a network,

or is on a network without a domain], then select [Next].
The computer will restart.

Getting Started

NOTE

If “Yes, make this computer a member of the following domain” is selected, the
following message may be displayed: [An invalid domain was specified. Would
you like to proceed for now and try joining a domain later?]. In this case, select
[Yes]. After selecting [Yes], the computer will restart automatically, but some­times the [Starting Windows] message will remain on the screen, and windows
will not start up. If this happens, hold Alt down while pressing Ta b until
[Network ID Wizard] is displayed on top, and follow the instructions on the
screen.

9 Enter your administrator password and select .

10 Select [start] - [Control Panel] - [User Accounts] - [Create a new account] and follow

the instructions on the display to create a user account, then restart the computer.

CAUTION

Remember this password! If the password is forgotten, Windows XP cannot be
operated. You can create a password reset disk beforehand ( page 15).

NOTE

After setting up Windows, you can use “Icon Enlarger” to change the size of the

icons, etc. as you like. To use this, select on the desktop or [Icon Enlarger] in
[start] - [All Programs] - [Panasonic].

When creating a new user account:

If you make mail settings, create password reset disks ( page 15), or conduct
other related operations before creating the user account, you will be unable to
use any previous mail history or settings.
When you create the first new account, you can only select [Computer administrator].
Once a “Computer Administrator” account has been created, you can create ad­ditional limited user accounts.
Note also that only the added user account will be displayed in the Welcome screen.
The account for the administrator created during Windows setup will not be dis­played.

<Only for CF-50E******/CF-50G******>

If [Windows XP is currently configured to manage the Intel(R) PRO/Wireless
LAN adaptor.] is displayed, select [Yes].
If you use the wireless LAN, be sure to refer to the Reference Manual’s “Wire­less LAN”.

14

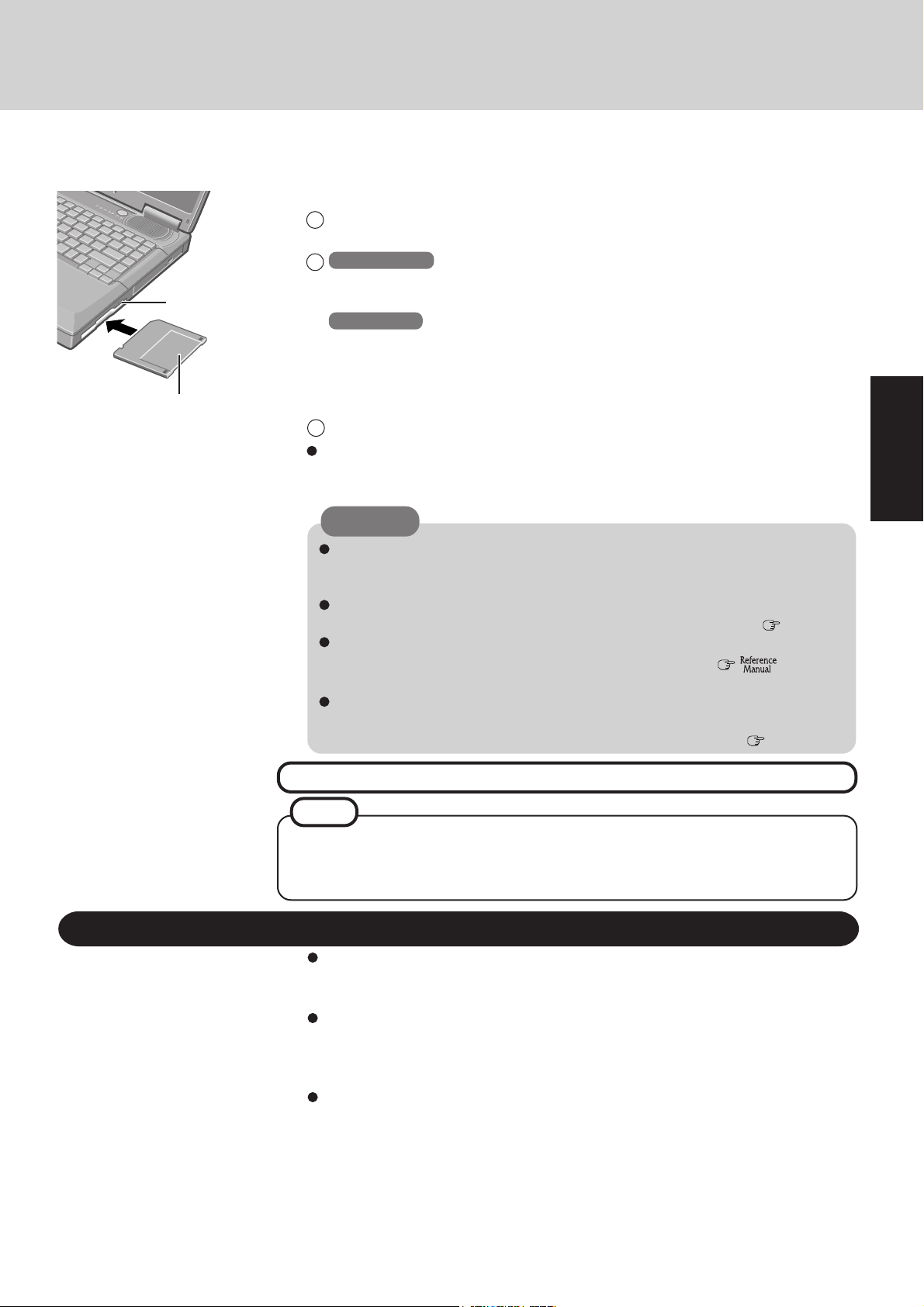

Eject Button

Label on the top surface, and
insert the shutter-side headfirst.

<Only for CF-50A******/CF-50B******>

8

Create Backup Disks for reinstallation

1 Prepare 2HD floppy disks and make sure they are not in the write-protected state, and

then set it.

2 Windows 2000

Select [Start] - [Programs] - [Panasonic] - [Create Backup Disk] and follow the on­screen instructions.

Windows XP

Select [start] - [All Programs] - [Panasonic] - [Create Backup Disk] and follow the on­screen instructions.

When [You do not need to make “BACKUP DISK”] is displayed, there is no need to
create a Backup Disk.

3 Place a label identifying the contents on each disk.

Name of created backup disk

FIRSTAID FD (When the display for creating the UPDATE FD is shown, create the
disk by following the on-screen instructions.)

CAUTION

Store the floppy disks in a safe place. They will enable you to return your com­puter to close to the condition at the time of purchase should any problems occur.
When creating backup disks, do not run any other application program.
When creating backup disks and the message [Insufficient files to copy] is dis­played, select [OK] and then contact Panasonic Technical Support ( page 42).
While the floppy disk drive indicator is on, do not remove the floppy disk, power

off your computer or use the standby or hibernation function ( “Standby/
Hibernation Functions”).

Be sure to create the backup disk.
If a backup disk is not created, it will be impossible to return the computer to its
original state. In this case, contact Panasonic Technical Support ( page 42).

Getting Started

This concludes the first-time use operation guidelines.

NOTE

<Information for the DVD-ROM & CD-R/RW drive>

Before using the DVD-ROM & CD-R/RW drive for the first time, remove the protective
sheet from the lens area. The protective sheet inside the drive delays the opening of the
drive by about ten seconds. This delay is not a problem.

Information for Windows XP

Depending on the Windows settings, installed applications, and drivers, menus and
other displays may differ, or some functions (such as use of the password reset disk)
may be inoperable. Check with your system administrator for details.

You can select Classic view for the Control Panel or select the Classic Start menu. You
can also change the way a user logs on or off.
The procedure in this manual uses the method or view of the Windows XP default
setting (not Classic view or Classic Start menu etc.).

Resetting the password

Windows XP has a function to reset a forgotten password.
To use this function, you need to create a password reset disk beforehand following the
steps below.

1

Select [start] - [Control Panel] - [User Accounts].

2

Select [Prevent a forgotten password] from [Related Tasks] menu of the account you
used to logon and create a password reset disk following the on-screen instructions.
Store the password reset disk in a safe place.

· Only the logon password for each account can be reset.
The password set in the Setup Utility cannot be reset.

15

Starting Up/Shutting Down

Starting Up

1

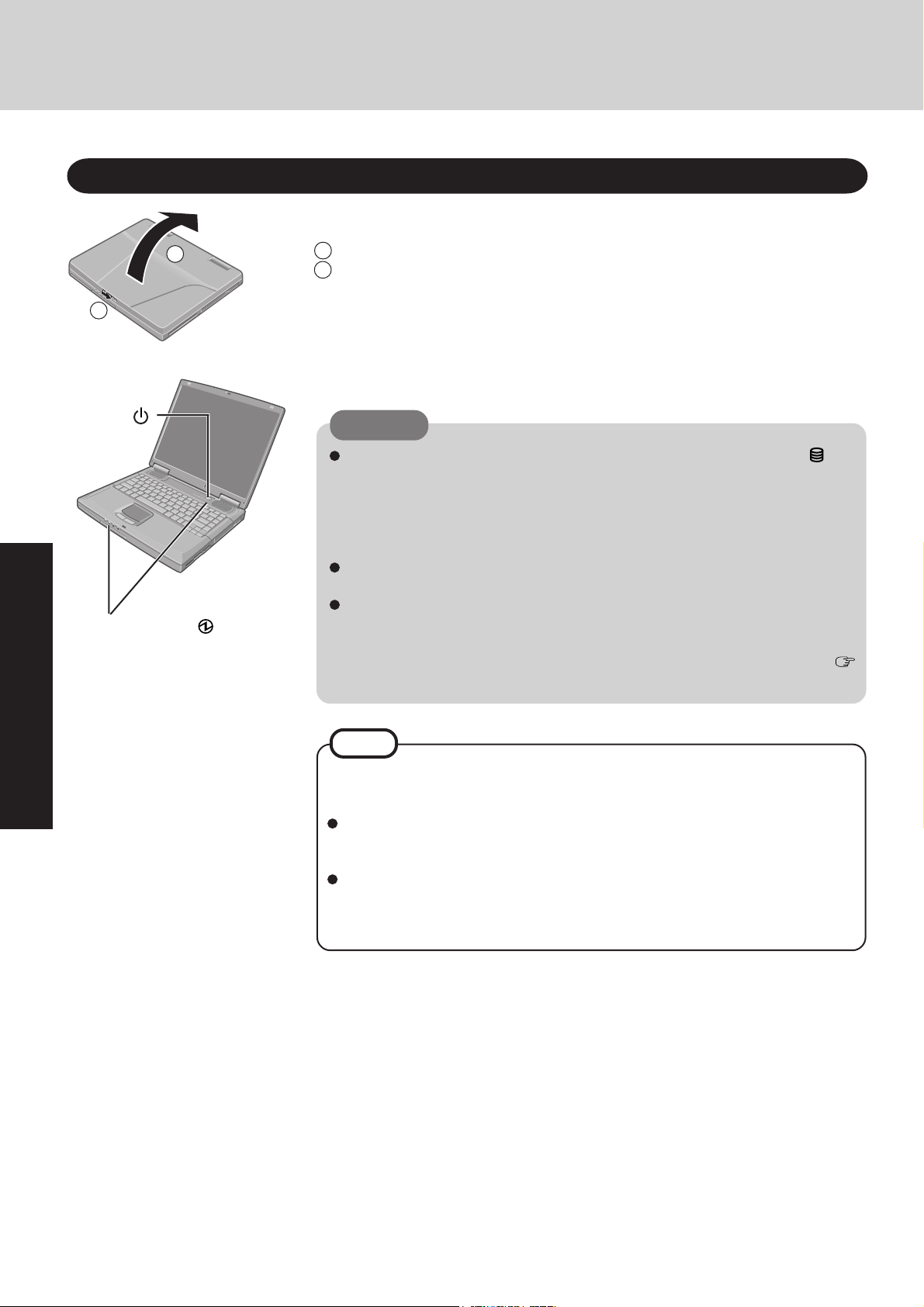

Open the display

2

1

Power
Switch

Power Indicator

1 Slide the latch as shown.
2 Lift open the display.

2

Turn your computer on

Press the power switch and hold it for approximately one second until the power indicator
turns on before releasing it.

CAUTION

While booting, avoid the following until the hard disk drive indicator ( ) has
turned off.

• Connecting or disconnecting the AC adaptor.

• Touching the power switch.

• Performing any keyboard or touch pad (or external mouse) operations.

• Closing the display.
Once the computer is powered off, you must wait at least ten seconds before pow­ering it on again.
When the CPU temperature rises, the computer may not power on to prevent the
CPU from overheating. Should this happen, allow the computer to cool down then
switch the power on again.
If the computer still does not power on, contact Panasonic Technical Support (
page 42).

Operation

NOTE

You may encounter the following situations when the computer is turned on at very
low temperatures. These functions are designed to prevent hard disk drive malfunc­tions that may occur at low temperatures.

The message “Warming up the system” is displayed, and start-up takes longer than
usual (a few minutes or more).
In this case, wait for the computer to start up.
The power indicator will blink quickly (in green); in this case, the power does not
turn on, or the computer does not resume from standby or hibernation mode.
To restart the computer, leave it in an environment with a temperature of 5°C (41°F)
or more for about an hour, and try turning the power on once more.

16

If [Enter Password] is displayed

Enter your password* and press Enter .( “Security Measures”)

Enter Password [ ]

The correct password

Three incorrect attempts

or

No password for about a minute

* Supervisor Password or User Password set in the Setup Utility (not

the Windows password).

Will Start

Will Not Start

(Power off)

When an application or file that was previously displayed ap­pears on your screen

The standby or hibernation mode has been set ( “Standby/Hibernation Func­tions”).

3

Log on to Windows

Windows 2000

Wait for 10 seconds after confirming that the hard disk drive access has been completed,
input the user name and password, then select [OK]. Until the correct user name and
password are entered, the computer will not operate.

Windows XP

Wait for 10 seconds after confirming that the hard disk access has been completed, select
the user and input the password, then select . Until the correct password is entered, the
computer will not operate.

4

Select your application

You are able to start working on your computer.

NOTE

The power saving function is factory set, so if there is no input from a key, the touch pad
or an external mouse (when one is connected) for a certain interval of time, the power to
the LCD and hard disk may be turned off. The LCD will resume operation when the
touch pad or an external mouse (when one is connected) is used or a key is pressed.
The power to the LCD may be turned off even when an application software is being
installed. In this case, because it is conceivable that a selection dialog box will be
shown, do not press Space or Enter to attempt to resume from this condition as
doing so may trigger a selection, but instead, press a key unrelated to the direct trigger­ing of a selection, like Ctrl .
In addition, when the computer is left alone, it automatically enters the standby or hiber-

nation mode ( “Standby/Hibernation Functions”). The computer will resume
by pressing the power switch.

Windows XP

When switching to a different user with the Fast User Switching function, it may not be
possible to set the settings of the display. In this case, log off all users, and try the
operation once more. If the problem persists, restart the computer.

Operation

17

Starting Up/Shutting Down

Shutting Down (power off your computer)

This procedure is for shutting down the computer without using the standby or hibernation
function.

(

1
2

3

“Standby/Hibernation Functions”

Save important data and close each application

Windows 2000

Select [Start] - [Shut Down]

Windows XP

Select [start] - [Turn Off Computer]

Windows 2000

Select [Shut down], then select [OK]

Windows XP

Select [Turn Off]

)

Operation

Your computer will power off automatically.

Restarting your computer (without shutting down)

Windows 2000

Select [Restart], then select [OK].

Windows XP

Select [Restart].

CAUTION

Do not do the following during the shutdown/restart procedure.

• Connecting or disconnecting the AC adaptor.

• Touching the power switch.

• Performing any keyboard, touch pad (or external mouse) operations.

• Closing the display.

NOTE

To shut down using the keyboard,

Windows 2000

Press , U , and select [Shut Down] with , then press Enter .

Windows XP

Press , U , and select [Turn Off] with , then press Enter .

To quickly resume computer operation after shutting down,

The standby or hibernation function is available ( “Standby/Hibernation
Functions”).

18

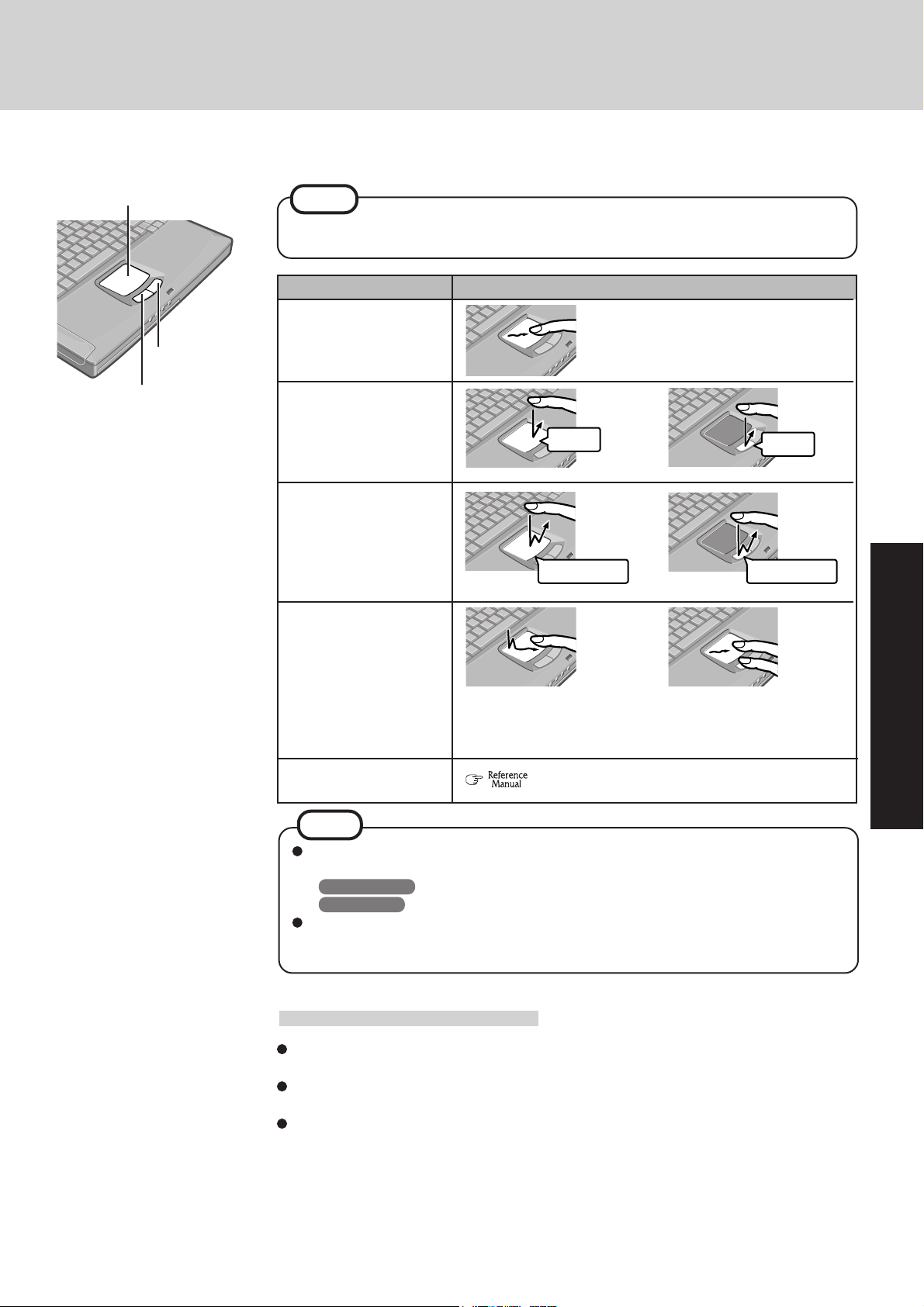

Touch Pad

Use the touch pad to move the cursor on the display and perform normal computer operations.

Work Surface

Right Button

Left Button

NOTE

By design the touch pad is to be used with a finger tip only. Therefore, do not use any
implement which causes damage on the work surface.

Function

Moving the Cursor

Tapping/Clicking

tapping

Double-Tapping/
Double-Clicking

double-tapping

Dragging

Operation

Move the tip of your finger
lightly over the surface.

or

clicking

or

double-clicking

or

Scroll

Two quick taps, but on the sec­ond tap leaving your finger
down (applying pressure) and
moving it on the work surface.

“Touch Pad”

While holding down the but­ton, moving your finger on
the work surface.

NOTE

Besides the above operations, operations such as Zoom and Pan are possible by allocating
these functions to the buttons and/or pad. For more details, refer to [Mouse Properties]*.

* Windows 2000 :

Windows XP

The operations of Scroll, Pan or Zoom will differ depending on the application. There are
cases the touch pad will not support these operations even with an application that sup­ports the functions.

Select [Start] - [Settings] - [Control Panel] - [Mouse].

: Select [start] - [Control Panel] - [Printers and Other Hardware] - [Mouse].

Handling the Touch Pad

Do not place any object on the work surface or press down forcefully with sharp-pointed
objects (e.g., nails) or hard objects that can leave marks (e.g., pencils and ball point pens).
Try to avoid having any harmful substances, such as oil, come in contact with the touch pad.
The cursor may not work properly in such cases.

When the touch pad becomes dirty:

Wipe to remove dirt by using a dry soft cloth such as gauze or a soft cloth first applied with
detergent diluted with water and then thoroughly wrung.
Do not use benzene, thinner, or rubbing alcohol. Doing so may adversely affect the sur­face, e.g., discoloration. In addition, do not use commercially-available household clean­ers and cosmetics, as they may contain components harmful to the surface.

Operation

19

Reference Manual

The Reference Manual and the Important Tips can be accessed on your computer. When a printer is connected, the Reference
Manual can also be printed.

The Reference Manual explains functions for you to make greater use of the computer, such as how to add peripheral devices,
how the Setup Utility works, and other useful information. (Refer to the cover of this manual for a list of the main contents
included.)
Important Tips provides information on how to maximize use of the battery pack, which is necessary for computing away from
your home or office.

Opening the Reference Manual or Important Tips

Reference Manual

Windows 2000

Select [Reference Manual] in [Start] - [Programs] - [Panasonic] - [On-Line Manuals]

Windows XP

Select [Reference Manual] in [start]

Important Tips
Select

Important Tips can also be accessed from the following menu.

Windows 2000

Select [Important Tips] in [Start] - [Programs] - [Panasonic] - [On-Line Manuals].

Windows XP

Select [Important Tips] in [start] - [All Programs] - [Panasonic] - [On-Line Manuals].

on the desktop

When the Reference Manual or Important Tips is started up for the first time, the License Agreement of the Acrobat Reader may be
displayed. If it is displayed, after reading the agreement, select [Accept] to access the Reference Manual or Important Tips.

NOTE

Operation

Illustrations may be difficult to view depending on the magnification. If the illustration is too small, magnify the display.
When the taskbar is hidden at the bottom portion of Acrobat Reader, set the maximum display window size.
If a printer is connected, we recommend printing pages. The illustrations and display samples may not print with a high
quality.

Windows XP

When switching to a different user with the Fast User Switching function, PDF files may not be printed properly. In this case,
log off all users, and try the operation once more. If the problem persists, restart the computer.

20

List of Error Codes

The following is a list of the messages that BIOS can display. Most of them occur during POST. Some of them display informa­tion about a hardware device, e.g., the amount of memory installed. Others may indicate a problem with a device, such as the way
it has been configured. Following the list are explanations of the messages and remedies for reported problems.
If your system displays any of the below error messages other that the ones marked with an asterisk (*), write down the message
and contact Panasonic Technical Support ( page 42). If your system fails after you make changes in the Setup menus, reset the
computer, enter Setup and install Setup defaults or correct the error.

0200 Failure Fixed Disk

Fixed disk in not working or not configured properly. Check to see if fixed disk is attached properly. Run Setup. Find out

if the fixed-disk type is correctly identified.

0210 Stuck key

Stuck key on keyboard.

0211 Keyboard error

Keyboard not working.

0212 Keyboard Controller Failed

Keyboard controller failed test. May require replacing keyboard controller.

0213 Keyboard locked - Unlock key switch

Unlock the system to proceed.

0230 System RAM Failed at offset : nnnn

System RAM failed at offset nnnn of the 64k block at which the error was detected.

0231 Shadow RAM Failed at offset : nnnn

Shadow RAM failed at offset nnnn of the 64k block at which the error was detected.

0232 Extended RAM Failed at offset : nnnn

Extended memory not working or not configured properly at offset nnnn.

0250 System battery is dead - Replace and run SETUP

The CMOS clock battery indicator shows the battery is dead. Replace the battery and run Setup to reconfigure the system.

*0251 System CMOS checksum bad - Default configuration used

System CMOS has been corrupted or modified incorrectly, perhaps by an application program that changes data
stored in CMOS. The BIOS installed Default SETUP Values. If you do not want these values, enter Setup and enter your
own values. If the error persists, check the system battery or contact Panasonic Technical Support ( page 42).

0260 System timer error

The timer test failed. Requires repair of system board.

0270 Real time clock error

Real-time clock fails BIOS test. May require board repair.

*0280 Previous boot incomplete - Default configuration used

Previous POST did not complete successfully. POST loads default values and offers to run Setup. If the failure was caused
by incorrect values and they are not corrected, the next boot will likely fail. On systems with control of wait states, improper
Setup settings can also terminate POST and cause this error on the next boot. Run Setup and verify that the wait-state
configuration is correct. This error is cleared the next time the system is booted.

0281 Memory Size found by POST differed from EISA CMOS

Memory size found by POST differed from EISA CMOS.

02B0 Diskette drive A error
02B1 Diskette drive B error

Drive A: or B: is present but fails the BIOS POST diskette tests. Check to see that the drive is defined with the proper
diskette type in Setup and that the diskette drive is attached correctly.

02B2 Incorrect Drive A type - run SETUP

Type of floppy drive A: not correctly identified in Setup.

02B3 Incorrect Drive B type - run SETUP

Type of floppy drive B: not correctly identified in Setup.

02D0 System cache error - Cache disabled

Contact Panasonic Technical Support ( page 42).

02F0: CPU ID:

CPU socket number for Multi-Processor error.

02F4: EISA CMOS not writable

ServerBIOS2 test error: Cannot write to EISA CMOS.

Troubleshooting

21

List of Error Codes

02F5: DMA Test Failed

ServerBIOS2 test error: Cannot write to extended DMA (Direct Memory Access) registers.

02F6: Software NMI Failed

ServerBIOS2 test error: Cannot generate software NMI (Non-Maskable Interrupt).

02F7: Fail - Safe Timer NMI Failed

ServerBIOS2 test error: Fail-Safe Timer takes too long.

device address Conflict

Address conflict for specified device.

Allocation Error for: device

Run ISA or EISA Configuration Utility to resolve resource conflict for the specified device.

Failing Bits : nnnn

The hex number nnnn is a map of the bits at the RAM address which failed the memory test. Each 1 (one) in the map

indicates a failed bit. See error 230,231 or 232 for offset address of the failure in System, Extended or Shadow memory.

Invalid System Configuration Data

Problem with NVRAM (CMOS) data.

I/O device IRQ conflict

I/O device IRQ conflict error.

Operating System not found

Operating system cannot be located on either drive A: or drive C:. Enter Setup and see if fixed disk and drive A: are properly

identified.

Parity Check 1 nnnn

Parity error found in the system bus. BIOS attempts to locate the address and display it on the screen. If it cannot locate the
address, it displays ????. Parity is a method for checking errors in binary data. A parity error indicates that some data has
been corrupted.

Parity Check 2 nnnn

Parity error found in the I/O bus. BIOS attempts to locate the address and display it on the screen. If it cannot locate the
address, it displays ????.

Press <F1> to resume, <F2> to Setup

Displayed after any recoverable error message. Press <F1> to start the boot process or <F2> to enter a Setup and change the
settings. Write down and follow the information shown on the screen.

Troubleshooting

22

Dealing with Problems (Summary)

When a problem occurs, refer to this page. The “Reference Manual” also contains detailed information. If a problem appears to be
related to a software application, read the software related manual. If you still cannot troubleshoot the problem, contact Panasonic
Technical Support ( page 42).
<Only for CF-50E******/CF-50G******>
You can use the PC Information Viewer to check the computer's usage status. ( “Dealing with Problems (Advanced)”)

Starting Up

The power indicator or bat­tery indicator is not lit

[Enter Password] is displayed

POST Startup Error(s) is
displayed

Windows startup, or an op­eration is extremely slow

The date and time are incor­rect

When resuming from the
standby or hibernation
mode, [Enter Password]
does not appear even if a
password has been set in the
Setup Utility

When “Invalid system disk.
Replace the disk, and then
press any key.” (or a simi­lar message) is displayed

When the administrator
password is forgotten

Check the cable connection for the AC adaptor.
Check to see if a fully charged battery is properly installed.
Remove the battery pack and disconnect the AC adaptor, then connect them again.

Input your Supervisor Password or User Password. If you have forgotten it, contact
Panasonic Technical Support ( page 42).

page 21

Press F9 in the Setup Utility ( “Setup Utility”). This will restore the Setup
Utility’s settings to their default values (except the password settings). Then, the Setup
Utility must be run once again for you to input the appropriate operating environment set­tings. (The processing speed depends on the application software used, so this operation
may not cause the processing speed to increase.)

You can set the date and time using the following procedure.

Windows 2000 : [Start] - [Settings] - [Control Panel] - [Date/Time]
Windows XP : [start] - [Control Panel] - [Date, Time, Language, and Regional Op-

tions] - [Date and Time]

When the computer is connected to a LAN, confirm the date and time of the server.

If you continue to experience problems, the internal battery maintaining the clock may
need to be replaced. Contact Panasonic Technical Support ( page 42).

This computer will not correctly recognize the date and time starting from the year 2100 A.D.

Even when a password has been set in the Setup Utility, [Enter Password] does not appear
when the computer resumes from the standby or hibernation mode.
If you want to use the security function when using the standby or hibernation mode, use the
Windows password as follows:

Windows 2000

Set the password in [Control Panel] - [Users and Passwords], then add the check mark for
[Prompt for password when computer goes off standby] in [Control Panel] - [Power Op­tions] - [Advanced].

Windows XP

Select the account to change in [Control Panel] - [User Accounts] and set the password, then
add the check mark for [Prompt for password when computer resumes from standby] in
[Control Panel] - [Performance and Maintenance] - [Power Options] - [Advanced].

This means a floppy disk that does not contain system startup information has been left in
the floppy disk drive. Remove the floppy disk, and press any key.
If the message still appears even after trying the above measure, this may be an indication
that some type of hard disk failure has occurred. Contact Panasonic Technical Support
( page 42).

Windows 2000

After reinstalling, setup Windows and then set the password again.

Windows XP

If you have created a password reset disk ( page 15), a message is displayed when you
fail to correctly enter the password. Follow the message’s instructions and set the password
again by using the password reset disk.
If you have not created a password reset disk, after reinstalling, setup Windows and then set
the password again.

Troubleshooting

23

Dealing with Problems (Summary)

Starting Up (continued)

When the previous item is
not the cause

Display

Press F9 in the Setup Utility ( “Setup Utility”). This will restore the Setup
Utility’s settings to their default values (except the password settings).
Try removing all peripheral devices.
Check a disk error using the following procedure.

1

Display [Local Disk (C:) Properties].

Windows 2000

Select [Local Disk(C:)] with the right button in [My Computer], and select [Properties].

Windows XP

Select [Local Disk(C:)] with the right button in [start] - [My Computer], and select [Properties].

2

Select [Tools] - [Check Now].

3

Select [Start] after selecting required items in [Check disk options].

At startup, hold down F8 when [Panasonic] boot screen disappears, and release your
finger when the Windows Advanced Option Menu is displayed. Start the computer in
Safe Mode, and confirm the details of the error.

No display after powering on

The power has not been
turned off, but after a cer­tain period of time, there is
no display

When the battery pack is
used, the screen is darker
than when the AC adaptor
is connected

The cursor cannot be con­trolled properly

Troubleshooting

An afterimage appears (e.g.,
green, red, and blue dots
remain on the display) or
there are dots not display­ing the correct colors

The screen becomes disor­dered

24

When there is no display to an external display,

• Check your cable connection to the external display.

• Confirm your display is powered on.

• Check the settings for your external display.
Try changing the display by pressing Fn + F3 .
If you want to switch the display destination repeatedly by pressing Fn + F3 ,
make sure that the display destination has switched completely each time before
pressing Fn + F3 again.
When displaying only through an external display, if the computer is shut down by
using the standby or hibernation function, there will be no display on the LCD unless
the external display is connected when operations are resumed. In this case, connect the
external display or press Fn + F3 .

Has the computer been set to the power-saving mode?
To resume operation of your computer from the condition the power of the display is off
(for energy conservation purposes), press any key unrelated to the direct triggering of a
selection, like Ctrl .
To save power, your computer may have automatically entered the standby or hiberna­tion mode. ( “Computing on the Road”) Press the power switch.

Press Fn + F2 and adjust the brightness. Note, however, that when the brightness is
increased, the battery running time will become shorter.
Brightness can be set to separate levels for when the AC adaptor is connected and when it is
disconnected.

If you are using an external mouse, ensure that the external mouse has been connected correctly.
Restart the computer by using the keyboard (Press , U , and select [Restart] with

, then press Enter ).

If the computer does not respond to keyboard commands, read “No response” (
page 26).

If an image is displayed for a prolonged period of time, an afterimage may appear. This
is not a malfunction. The afterimage will disappear when a different screen is displayed.
High-precision and advanced technologies are necessary in the production of color liq­uid crystal displays (color LCDs). Therefore, if 0.002% or less of the picture elements
either fail to light or remain constantly lit (that is, more than 99.998% of elements are
functioning properly), no defect is considered to exist.

Changing the number of colors of the display may affect the screen. Restart the computer.
Stop playing the MPEG file before switching the display destination.

Windows XP

When using Dualview, use the same display colors for the external display as those used
by the LCD.
When using Dualview, do not press Fn + F3 .
Restart your computer immediately after enabling or disabling Dualview.

The external display no
longer displays properly

When you want to display
the fonts or icons at a larger
size

Windows XP

An error occurs or the computer
freezes while using Dualview

When an external display not compatible with the power saving mode is used with the
computer, the external display may no longer display properly when the computer enters
the condition the power of the display is OFF (for energy conservation purposes). In such
cases, turn off the power to the external display.

Change the settings as follows (for more details, refer to the Windows Help).

Windows 2000

1

Select [Start] - [Settings] - [Control Panel] - [Display] - [Appearance].

2

Select the scheme labeled “large” or “extra large” in [Scheme] to change the font size,
and select [Icon] in [Item] to change the icon size.

3

Select [OK].

You can change the size of the icons, etc. using “Icon Enlarger” ( page 13).

Windows XP

1

Select [start] - [Control Panel] - [Appearance and Themes] - [Display] - [Appearance].

2

Select the font size in [Font size], and select [Effects] and then add the check mark for
[Use large icons] to increase the icon size.

3

Select [OK], then select [OK].

You can change the size of the icons, etc. using “Icon Enlarger” ( page 14).

If you use a 3D screen saver while in Dualview mode at a high resolution, an error may
occur or the computer may freeze. Under these conditions, do not use a 3D screen saver.

Fast User Switching function

Some applications do not
work properly

When switching to a different user with the Fast User Switching function, the following
problems may occur. In this case, log off all users, and try the operation once more. If the
problem persists, restart the computer.

• Some applications may not work properly (for example, PDF files may not be printed
properly).

• It may not be possible to set the settings of the display.

• A serial mouse may not work.

• Fn + F3 may not work.

• The wireless LAN cannot be used.

• The B’s CLiP icon will no longer be shown on the taskbar and a CD-RW disc cannot be
written on.

Battery Indicator

The red indicator lights

The red indicator blinks

The orange indicator blinks

The battery level is very low (the charge is less than approx. 9% capacity).
Connect the AC adaptor. You can use the computer when the indicator light is orange. If you
do not have an AC adaptor, save your data and power off your computer. After replacing the
battery pack with a fully charged one, turn your computer on.

Quickly save your data and power off your computer. Remove the battery pack and discon­nect the AC adaptor, then connect them again.
If the problem persists, contact Panasonic Technical Support. The battery pack or recharg­ing function may be defective.

Battery cannot be recharged temporarily because the internal temperature of the battery
pack is outside of the acceptable temperature range for recharging. Once the allowable
range requirement is satisfied, charging begins automatically. Your computer can be used
normally.

Windows XP

Troubleshooting

25

Dealing with Problems (Summary)

Reference Manual

The Reference Manual is
not displayed

Shutting down

Windows cannot be shut
down or restarted

Disk Operations

If the CD drive vibrates ex­cessively or is noisy

Is Acrobat Reader installed?
If Acrobat Reader is not installed, run the following*1 in [Start]*2 - [Run] to reinstall the
program. When installing the program, do not change the installation destination folder. If
the destination folder is changed, the Reference Manual cannot be opened from [Start]*
menu.

*1<CF-50A******/CF-50B******>: [c:\util\reader\ar505enu.exe]

<CF-50E******/CF-50G******>: [c:\util\reader\m\acroreader51_enu_full.exe]

2

Windows XP : [start]

*

If a USB device is connected, try removing it.

Is the disc bent or labeled?
Check to see if the disc is inserted correctly, and check that the disc is in good condition.
If the disc is good and inserted correctly, set [CD Drive Speed] to [Low] in the Setup

Utility. ( “Setup Utility”)

2

Others

No response

Troubleshooting

Press Ctrl + Shift + Esc to open Task Manager and close the software application
which is not responding.
After shutting down by pressing the power switch for more than four seconds, press the
power switch to power on and open the application again.
If the program no longer works normally, delete the program using the following proce­dure. Then reinstall the program.

Windows 2000 : [Start] - [Settings] - [Control Panel] - [Add/Remove Programs]
Windows XP : [start] - [Control Panel] - [Add or Remove Programs]

26

Reinstalling Software

When reinstall procedure is performed, the contents of the hard disk will be erased. Be sure to back up any critical data that is
on your hard disk before running the reinstall procedure.
The reinstall procedure will return the computer to its original condition.

• If you have created partitions for data, the data may be erased or become corrupt as a result of the reinstall procedure.

Before Reinstallation

Preparing

The Product Recovery CD-ROM

<Only for CF-50A******/CF-50B******>

The Backup Disk (e.g., FIRSTAID FD) you made earlier ( page 15)

NOTE

<Only for CF-50A******/CF-50B******>
If you have not created the FIRSTAID FD, you can create by using the following procedure.

Windows 2000 : [Create Backup Disk] in [Start] - [Programs] - [Panasonic].
Windows XP : [Create Backup Disk] in [start] - [All Programs] - [Panasonic].

If you can not create this disk, contact Panasonic Technical Support ( page 42).

Important

Before the reinstallation procedure, remove all peripherals.
Be sure the AC adaptor is connected until the reinstallation procedure is completed.
Even if reinstallation is executed to return this unit to its condition at the time of purchase, the region code will not be

returned to its original condition. ( “CD Drive”)

Reinstalling

CAUTION

For users intending to change the partitioning of the
hard disk:

Do not use the FDISK program that comes as a stan­dard with Windows 95, Windows 98, and Windows
98 Second Edition, as this has been shown to result
in an error in the partitioning settings.
The following FDISK programs will enable the cor­rect settings:

- FDISK program that comes as a standard with
Windows Me

- Windows 98 and Windows 98 Second Edition
FDISK programs for hard disks that is larger than
64 GB in size*
* A patch for correcting the bug in the standard

FDISK program has been made available as a
free download. For details, refer to the

Microsoft Web Site.
When selecting [2] in step 8, the partition can also
be divided in two. ( page 28)

1

Turn the computer on, and press F2 while [Panasonic]
boot screen is displayed.
The Setup Utility will start up.
If the password has been set, enter the Supervisor Pass­word.

2

Write down all of the contents of the Setup Utility and
then press F9 .
At the confirmation message, select [Yes] and press
Enter .

3

Select [Boot] menu, then select [CD Drive] and press F6
until [CD Drive] is at the top of [Boot] menu.

4

Place the disc number one of the recovery CDs into the
CD drive.

5

Press F10 .
At the confirmation message, select [Yes] and press
Enter .
The computer will restart, and this screen should appear.
<CF-50A******/CF-50B******>

---------------------------------------------------------------------

Select a number

---------------------------------------------------------------------

1. Start restoring the operating system.

2. Erase the whole data on HDD for security.

3. End

---------------------------------------------------------------------

<CF-50E******/CF-50G******>

---------------------------------------------------------------------

Select a number

---------------------------------------------------------------------

1. [ Recovery ] Reinstall Windows.

2. [ Erase HDD ] Erase the whole data on HDD for security.

0. [ Cancel ] Cancel.

---------------------------------------------------------------------

Troubleshooting

27

Reinstalling Software

6

Select the following.
<CF-50A******/CF-50B******>
[1. Start restoring the operating system.]
<CF-50E******/CF-50G******>
[1.[Recovery]]

The License Agreement screen should appear.

7

Select [1. Yes, I agree to the provisions above and wish to
continue!].
This screen should appear.
<CF-50A******/CF-50B******>

Windows 2000

---------------------------------------------------------------------

Select a number

---------------------------------------------------------------------

1. Restore Windows(R) 2000 Professional to the whole HDD.

2. Make two partitions, for the operating system and data. And restore
Windows(R) 2000 Professional to the operating system partition.
(All existing partitions on HDD will be lost.)

3. Restore Windows(R) 2000 Professional to the first partition.

4. End

---------------------------------------------------------------------

Windows XP

---------------------------------------------------------------------

Select a number

---------------------------------------------------------------------

1. Restore Windows(R) XP Professional to the whole HDD.

2. Make two partitions, for the operating system and data. And restore
Windows(R) XP Professional to the operating system partition.
(All existing partitions on HDD will be lost.)

3. Restore Windows(R) XP Professional to the first partition.

4. End

---------------------------------------------------------------------

<CF-50E******/CF-50G******>

Windows 2000

---------------------------------------------------------------------

Select a number

---------------------------------------------------------------------

1. Reinstall Windows to the whole HDD to factory default.

2. Make two partitions, for the operating system and data. And reinstall

3. Reinstall Windows to the first partition.

0. Cancel

---------------------------------------------------------------------

Windows XP

---------------------------------------------------------------------

Select a number

---------------------------------------------------------------------

1. Reinstall Windows to the whole HDD to factory default.

Troubleshooting

2. Make two partitions, for the operating system and data. And reinstall

3. Reinstall Windows to the first partition.

0. Cancel

---------------------------------------------------------------------

8

Make a selection from the menu.

28

Windows to the operating system partition.
(All existing partitions on HDD will be lost.)

Windows to the operating system partition.
(All existing partitions on HDD will be lost.)

When selecting [2], enter the basic partition size for
the operating system installation and press Enter .
(The data partition size is the remainder after subtract­ing the basic partition size.)
To select [3], the initial partition size must be 6 GB or
more of the hard disk size. Reinstallation cannot be
performed with a small partition size.

Reinstalling : Windows(R) 2000 Professional

Reinstalling : Windows(R) XP Professional

9

At the confirmation message, press Y .
The operation of reinstallation for the hard disk starts au­tomatically. (The operations take about 15 minutes.)

CAUTION

Do not cancel the reinstallation procedure before
it is completed.
When a message appears instructing you to insert
the next CD, insert the recovery CD showing the
next number in the sequence, and then select [OK].
If the message “The media does not contain the cor­rect file” appears, select [OK]. A message will ap­pear instructing you to insert the next CD.
Confirm that the proper recovery CD has been in­serted by opening the tray of the CD drive and then
close the tray, then select [OK].

10

After the reinstallation procedure completes, the follow­ing message will appear on the display.
<CF-50A******/CF-50B******>

Windows 2000

Windows(R) 2000 Professional install wizard will start after reboot.
Remove the Product Recovery CD-ROM, then restart the computer by pressing
Ctrl + Alt + Del (Delete).

Windows XP

Windows(R) XP Professional install wizard will start after reboot.
Remove the Product Recovery CD-ROM, then restart the computer by pressing
Ctrl + Alt + Del (Delete).

<CF-50E******/CF-50G******>

Windows 2000

----------------------------------------------------------------------

[Recovery] is complete.
Windows(R) 2000 Professional install wizard will start after reboot.
Please Remove the Product Recovery CD-ROM, and press
Ctrl + Alt + Del(Delete) to reboot.

----------------------------------------------------------------------

WindowsXP

----------------------------------------------------------------------

[Recovery] is complete.
Windows(R) XP Professional install wizard will start after reboot.
Please Remove the Product Recovery CD-ROM, and press
Ctrl + Alt + Del(Delete) to reboot.

----------------------------------------------------------------------

11

Remove the Product Recovery CD-ROM, then restart the
computer by pressing Ctrl + Alt + Del .

12

Turn the computer on, and press F2 while [Panasonic]
boot screen is displayed.
The Setup Utility will start up.
If the password has been set, enter the Supervisor Pass­word.

13

Press F9 .
At the confirmation message, select [Yes] and press
Enter . (The Setup Utility settings will return to their
default values. Even the security settings with the excep­tion of the password(s) will return to their default values.)

14

Press F10 .
At the confirmation message, select [Yes] and press
Enter .

15

Perform the setup procedure for Windows by following
the instructions on the screen. ( page 13)

16

Run the Setup Utility and change the settings where nec­essary.

<Changing the drive letter>

You can change the drive letter for the CD drive or hard disk
drive by the following steps.

Drive letters can only be changed when two or more parti­tions have been created on the hard disk drive. The name
of the C: drive cannot be changed.
We recommend that you make these changes before in­stalling applications.

Windows 2000

1

Select [Start] - [Settings] - [Control Panel] - [Administra­tive Tools] - [Computer Management].

2

Select [Disk Management] from [Storage].

3

Right click on the partition of the hard disk or the name of
the CD drive and select [Change Drive Letter and Path].

4

Select [Edit].

5

Select [Assign a drive letter] and the new drive letter, and
then select [OK].

6

At the confirmation message, select [Yes].

Windows XP

1

Select [start] - [Control Panel] - [Performance and Main­tenance] - [Administrative Tools] - [Computer Manage­ment].

2

Select [Disk Management] from [Storage].

3

Right click on the partition of the hard disk or the name of
the CD drive and select [Change Drive Letter and Paths].

4

Select [Change].

5

Select [Assign the following drive letter] and the new drive
letter, and then select [OK].

6

At the confirmation message, select [Yes].

Troubleshooting

29

LIMITED USE LICENSE AGREEMENT

THE SOFTWARE PROGRAM(S) (“PROGRAMS”) FURNISHED WITH THIS PANASONIC® PRODUCT (“PRODUCT”)
ARE LICENSED ONLY TO THE END-USER (“YOU”), AND MAY BE USED BY YOU ONLY IN ACCORDANCE WITH
THE LICENSE TERMS DESCRIBED BELOW. YOUR USE OF THE PROGRAMS SHALL BE CONCLUSIVELY DEEMED
TO CONSTITUTE YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE.
Matsushita Electric Industrial Co., Ltd. (“MEI”) has developed or otherwise obtained the Programs and hereby licenses
their use to you. You assume sole responsibility for the selection of the Product (including the associated Programs) to
achieve your intended results, and for the installation, use and results obtained therefrom.

LICENSE

A. MEI hereby grants you a personal, non-transferable and non-exclusive right and license to use the Programs in

accordance with the terms and conditions stated in this Agreement. You acknowledge that you are receiving only
a LIMITED LICENSE TO USE the Programs and related documentation and that you shall obtain no title,
ownership nor any other rights in or to the Programs and related documentation nor in or to the algorithms,
concepts, designs and ideas represented by or incorporated in the Programs and related documentation, all of
which title, ownership and rights shall remain with MEI or its suppliers.

B. You may use the Programs only on the single Product which was accompanied by the Programs.

C. You and your employees and agents are required to protect the confidentiality of the Programs. You may not

distribute or otherwise make the Programs or related documentation available to any third party, by time-sharing
or otherwise, without the prior written consent of MEI.

D. You may not copy or reproduce, or permit to be copied or reproduced, the Programs or related documentation for

any purpose, except that you may make one (1) copy of the Programs for backup purposes only in support of
your use of the Programs on the single Product which was accompanied by the Programs. You shall not modify,
or attempt to modify, the Programs.

E. You may transfer the Programs and license them to another party only in connection with your transfer of the

single Product which was accompanied by the Programs to such other party. At the time of such a transfer, you
must also transfer all copies, whether in printed or machine readable form, of every Program, and the related
documentation, to the same party or destroy any such copies not so transferred.

F. You may not remove any copyright, trademark or other notice or product identification from the Programs and

you must reproduce and include any such notice or product identification on any copy of any Program.

YOU MAY NOT REVERSE ASSEMBLE, REVERSE COMPILE, OR MECHANICALLY OR ELECTRONICALLY TRACE
THE PROGRAMS, OR ANY COPY THEREOF, IN WHOLE OR IN PART.

YOU MAY NOT USE, COPY, MODIFY, ALTER, OR TRANSFER THE PROGRAMS OR ANY COPY THEREOF, IN
WHOLE OR IN PART, EXCEPT AS EXPRESSLY PROVIDED IN THE LICENSE.

IF YOU TRANSFER POSSESSION OF ANY COPY OF ANY PROGRAM TO ANOTHER PARTY, EXCEPT AS PERMIT­TED IN PARAGRAPH E ABOVE, YOUR LICENSE IS AUTOMATICALLY TERMINATED.

TERM

This license is effective only for so long as you own or lease the Product, unless earlier terminated. You may terminate
this license at any time by destroying, at your expense, the Programs and related documentation together with all
copies thereof in any form. This license will also terminate effective immediately upon occurrence of the conditions
therefore set forth elsewhere in this Agreement, or if you fail to comply with any term or condition contained herein.
Upon any such termination, you agree to destroy, at your expense, the Programs and related documentation together
with all copies thereof in any form.

YOU ACKNOWLEDGE THAT YOU HAVE READ THIS AGREEMENT, UNDERSTAND IT AND AGREE TO BE BOUND
BY ITS TERMS AND CONDITIONS. YOU FURTHER AGREE THAT IT IS THE COMPLETE AND EXCLUSIVE STATE­MENT OF THE AGREEMENT BETWEEN US, WHICH SUPERSEDES ANY PROPOSAL OR PRIOR AGREEMENT,
ORAL OR WRITTEN, AND ANY OTHER COMMUNICATIONS BETWEEN US, RELATING TO THE SUBJECT MAT­TER OF THIS AGREEMENT.

Appendix

About Intel® software products

The enclosed software products and documentation were developed at private expense, and are provided with “RESTRICTED
RIGHTS.” Use, duplication or disclosure by the government is subject to restrictions as set forth in FAR 52.227-14 and
DFARS 252.227-7013 et. seq. or its successor. The use of this product by the government constitutes acknowledgment of

30

Intel's proprietary rights in the product.

Contrat de licence d’usage limité

Le(s) logiciel(s) (les “Logiciels”) fournis avec ce produit Panasonic® (le “Produit”) sont exclusivement concédés en
licence à l’utilisateur ultime (“vous”), et ils ne peuvent être utilisés que conformément aux clauses contractuelles ci­dessous. En utilisant les logiciels, vous vous engagez de manière définitive à respecter les termes, clauses et condi­tions des présentes.

Matsushita Electric Industrial Co., Ltd. (“MEI”) a mis au point ou obtenu les Logiciels et vous en concède l’utilisation par
les présentes. Vous assumez l’entière responsabilité du choix de ce Produit (y compris des Logiciels associés) pour
obtenir les résultats escomptés, ainsi que de l’installation, de l’utilisation et des résultats obtenus.

Licence

A. MEI vous octroie par les présentes le droit et la licence personnels, non cessibles et non exclusifs d’utiliser les

Logiciels conformément aux termes, clauses et conditions de ce Contrat. Vous reconnaissez ne recevoir qu’un
droit limité d’utiliser les Logiciels et la documentation les accompagnant et vous vous engagez à n’obtenir aucun
droit de titre, propriété ni aucun autre droit vis-à-vis des Logiciels et de la documentation les accompagnant ni
vis-à-vis des algorithmes, concepts, dessins, configurations et idées représentés par ou incorporés dans les
Logiciels et la documentation les accompagnant, dont les titres, propriété et droits resteront tous à MEI ou à
leurs propriétaires.

B. Vous ne pouvez utiliser les Logiciels que sur le Produit unique qui est accompagné par les Logiciels.

C. Vous et vos employés ou agents êtes requis de protéger la confidentialité des Logiciels. Vous ne pouvez ni

distribuer ni mettre les Logiciels et la documentation les accompagnant à la disposition d’un tiers, par partage
de temps ou de quelque autre manière que ce soit, sans l’autorisation écrite préalable de MEI.

D. Vous ne pouvez ni copier ni reproduire ni permettre la copie ni la reproduction des Logiciels ni de la documen-

tation les accompagnant pour quelque fin que ce soit, à l’exception d’une (1) copie des Logiciels à des fins de
sauvegarde uniquement pour soutenir votre utilisation des Logiciels sur le Produit unique qui est accompagné
par les Logiciels. Vous ne pouvez ni modifier ni tenter de modifier les Logiciels.

E. Vous ne pouvez céder les Logiciels et en octroyer la licence à une autre partie qu’en rapport avec votre cession

du Produit unique qui est accompagné par les Logiciels à cette autre partie. Au moment de cette cession, vous
devez céder également toutes les copies, que ce soit sous forme imprimée ou lisible par la machine, de tous les
Logiciels ainsi que de la documentation les accompagnant, à la même partie ou détruire les copies non cédées.

F. Vous ne pouvez retirer aucune marque de droits d’auteur, marque ou autre ni aucune identification de produit

des Logiciels et vous devez reproduire et inclure toutes ces notices ou identifications de produit sur toutes les
copies des Logiciels.

Vous ne pouvez assembler en sens inverse, compiler en sens inverse ni retracer les Logiciels ni aucune de leurs
copies, de façon électronique ou mécanique, en tout ou en partie.

Vous ne pouvez utiliser, copier, modifier, altérer ni céder les Logiciels ni aucune de leurs copies, en tout ou en partie,
à l’exception de ce qui est expressément stipulé dans ce contrat.

Si vous cédez la possession de toute copie ou de tout Logiciel à une autre partie, à l’exception de ce qui est autorisé
au paragraphe E ci-dessus, votre licence est automatiquement résiliée.

Termes, clauses et conditions

Cette licence n’est effective que pour la durée de possession ou de crédit-bail du Produit, à moins d’une résiliation
antérieure. Vous pouvez résilier cette licence à tout moment en détruisant, à vos frais, les Logiciels et la documentation
les accompagnant avec toutes leurs copies, sous quelque forme que ce soit. Cette licence sera également résiliée,
avec application immédiate, si les conditions de résiliation définies ailleurs dans ce contrat se sont réalisées ou si vous
ne respectez pas les termes, clauses et conditions qui y sont contenues. Au moment de la résiliation, vous acceptez de
détruire, à vos frais, les Logiciels et la documentation les accompagnant avec toutes leurs copies, sous quelque forme
que ce soit.

Vous reconnaissez avoir lu ce contrat, en avoir compris toute la substance et avoir accepté de respecter ses termes,
clauses et conditions. Vous reconnaissez en outre qu’ils sont la description complète et exclusive du contrat conclu
entre nous, contrat qui remplace et annule toute proposition ou contrat précédent, écrit ou oral, et toute autre commu­nication entre nous, relativement à l’objet du présent contrat.

Appendix

31

Hard Disk Data Erase Utility

This computer is equipped with a utility for completely erasing hard disk data.
When disposing of or transferring ownership of this device, erase all data on the hard disk in order to prevent the theft of hard disk
data following the steps below.

The hard disk data erase utility erases data using an “overwriting” method, but there is a possibility that due to malfunctions or
other operational errors, data may not be completely erased. There are also specialized devices that may be able to read data
that has been erased using this method. If you need to erase highly confidential data, we recommend that you contact a
company that specializes in this process. Matsushita Electric Industrial Co., Ltd. will bear no responsibility for losses or
damages suffered as a result of the use of this utility.

Preparing

You will need the Product Recovery CD-ROM.

NOTE

Be sure the AC adaptor is connected until the procedure is completed.
This utility can only be used for internal hard disk. It cannot be used to erase data from external hard disks.
This utility cannot erase data from damaged disk.
This utility cannot erase data for specific partitions.
After executing this utility, the computer cannot be booted from the hard disk.

Procedure

1

Turn the computer on, and press F2 while [Panasonic] boot screen is displayed. The Setup Utility will start up.
If the password has been set, enter the Supervisor Password.

2

Select [Boot] menu, then select [CD Drive] and press F6 until [CD Drive] is at the top of [Boot] menu.

3

Place the disc number one of the recovery CDs into the CD drive.

4

Press F10 .
At the confirmation message, select [Yes] and press Enter .
The computer will restart, and this screen should appear.
<CF-50A******/CF-50B******> <CF-50E******/CF-50G******>

---------------------------------------------------------------------

Select a number

---------------------------------------------------------------------

1. Start restoring the operating system.

2. Erase the whole data on HDD for security.

3. End

---------------------------------------------------------------------

5

Select the following.
<CF-50A******/CF-50B******> [2. Erase the whole data on HDD for security.]
<CF-50E******/CF-50G******> [2. [Erase HDD]]

6

At the confirmation message, press Y .

7

At the start menu, press Enter .

---------------------------------------------------------------------

Select a number

---------------------------------------------------------------------

1. [ Recovery ] Reinstall Windows.

2. [ Erase HDD ] Erase the whole data on HDD for security.

0. [ Cancel ] Cancel.

---------------------------------------------------------------------

8

The time required for erasing data will be displayed.
Press Space .

9

At the confirmation message, press Enter .
The operation of erasing the hard disk starts.

10

After the operation is complete:
Under normal conditions, the message [Hard disk data has been deleted.] will be displayed.

Appendix

If a problem occurred during the operation, an error message will be displayed.

11

Remove the Product Recovery CD-ROM, then turn off the computer by using the power switch.

32

B’s Recorder/B’s CLiP

<Model with a DVD-ROM & CD-R/RW drive / Model with a DVD MULTI drive >

“B’s Recorder GOLD5” (hereafter, B’s Recorder) and “B’s CLiP” are CD and DVD recording software applications developed by
B.H.A Corporation.
Here, explanations are given on general information about B’s Recorder and B’s CLiP, the installation procedure, and how to
access the online manual. Refer to the online manual concerning the detailed use of the software application ( page 34).

Applicable Media

CD-R* (one-time recordable CD media)
CD-RW (rewritable CD media)

* Applicable only for B's Recorder. It cannot be used for B's CLiP.

Before Installing the Software

Windows 2000

Uninstall Adaptec CD-Burning Plug-in.

1

Select [Start] - [Settings] - [Control Panel] - [Add/Remove Programs].

2

Select [Windows Media Player 7] - [Change/Remove].

3

Select [Remove Windows Media components] and select [Next].

4

Select [Adaptec CD-Burning Plug-in] from the components list, and select [Next].

5

If the [Windows Media setup is now ready to uninstall] message appears, select [Next].

6

Select [Finish] and restart the computer.

Windows XP

Select [(X:)]* in [start] - [My Computer] with the right button, select [Properties] - [Recording], then delete the check mark for [Enable
CD recording on this drive].
(Delete the check mark for [Enable CD recording on this drive] every time a new user is added.)

* “X” is the drive letter. You can change the letter to suit your preference.

Installing the Software

CAUTION

Close all other software application before running the Setup program for B’s Recorder and B’s CLiP for added safety.
Log on with the administrator authority.
Take care not to lose the serial number.

1 Set “B’s Recorder GOLD/B’s CLiP” disc in the drive.

[B.H.A setup launcher] screen will appear (allow some time for disc recognition). When the setup program will not run auto­matically, input [X:\Setuputil.exe]*1 in [Start]*2 - [Run] and select [OK].

Windows 2000

At the message, select [OK].

2 Select [B’s Recorder GOLD5] and follow the on-screen instructions.

During the course of the installation process, you will be asked to input a serial number. Input the serial number marked on the
sticker and the disc.

3 Upon completion of the installation, select [Yes, I want to restart my computer now], then select [Finish]. The computer will

restart.

4 Input [X:\Setuputil.exe]*1 in [Start]*2 - [Run] and select [OK].

[B.H.A setup launcher] screen will appear.

Windows 2000

At the message, select [OK].

5 Select [B’s CLiP] and follow the on-screen instructions.

During the course of the installation process, you will be asked to input a serial number. Input the serial number marked on the
sticker and the disc.

6 Upon completion of the installation, select [Yes, I want to restart my computer now], then select [Finish]. The computer will

restart.

*1 “X” is the drive letter. You can change the letter to suit your preference.

2

Windows XP : [start]

*

Appendix

33

B’s Recorder/B’s CLiP

CAUTION

You cannot eject the disc by using the eject button on the drive while is displayed on the taskbar. To eject the disc in this
case, move the cursor to the indicator and right-click it to select [Eject].
Do not eject discs in any other way except the one described above.
When formatting a disc with B’s CLiP, right-click or to select [Format]. Do not select [My computer].
After formatting the disc, eject it then re-insert before using it.
When settings are changed using the following method, only a user with administrator authority can make the settings:
Select the CD drive icon or the B’s CLiP icon on the Taskbar with the right button, and select [Properties] - [B’s CLiP Page
Settings].

Windows 2000

If CD/DVD media with B’s CLiP format is removed while the content of that media is displayed in Explorer, the contents of
the media may remain displayed in Explorer even after the media is removed. This will not affect the computer’s operation.
When another CD/DVD media is inserted, the Explorer display will be updated.

Windows XP

Do not use the Fast User Switching function.
If this function is used, will no longer be shown on the user taskbar after the switching is complete. (If this happens, log
off of Windows, and return to the original user.)

How to access the Online Manual

B’s Recorder

Windows 2000 : Select [Start] - [Programs] - [B.H.A] - [B’s Recorder GOLD5] - [User’s Manual].
Windows XP : Select [start] - [All Programs] - [B.H.A] - [B’s Recorder GOLD5] - [User’s Manual].

B’s CLiP

Windows 2000 : Select [Start] - [Programs] - [B.H.A] - [B’s CLiP] - [User’s Manual].
Windows XP : Select [start] - [All Programs] - [B.H.A] - [B’s CLiP] - [User’s Manual].

Information

If B’s Recorder and B’s CLiP do not operate properly, we recommend carefully reading the online help file first for problems
with the operating environment or operations.
If you still cannot troubleshoot the problem, contact B.H.A ( described below).

About Copies

When writing to discs, make sure that you are not infringing any copyrights.
It is illegal to copy audio CDs for non-personal use.
When backing up software, make sure that you are not infringing any software copyrights for that product.

SUPPORT INFOMATION

Inquires about B’s Recorder and B’s CLiP should be made to B.H.A.
URL: http://www.bhacorp.com/support/

http://www.bha.co.jp/support/ (Japanese)

area

U.S./Canada/Australia

Europe

Asia

Appendix

34

language

English, French (Canada)

English, German, French

Chinese

e-mail

[email protected]

[email protected]

[email protected]

™

WinDVD

WinDVD™ (hereafter, WinDVD) is a software application for DVD playback.
Here, you will find explanations and general information on the installation procedure and how to access the online manual.

Installing WinDVD

CAUTION

Close all other software application before running the Setup program for WinDVD for added safety.
Log on with the administrator authority.

1 Set the WinDVD CD-ROM in the drive.

The WinDVD setup program will run automatically (allow some time for disc recognition). When the setup program will
not run automatically, input [x:\setup] in [Start]* - [Run] and select [OK]. (“x”is the drive letter. You can change the letter to
suit your preference.)

* Windows XP :[start]

2

Select [Next] at the Welcome Message.

3 After reading the “License Agreement”*, select [Yes] if you agree to the terms.

* Refer to the “LIMITED USE LICENSE AGREEMENT” on the Operating Instructions of the computer.

4

Follow the on-screen instructions and install WinDVD.

<Confirmation of the DVD-ROM drive settings>

To run WinDVD, it is necessary to make the following settings.

1 Windows 2000 Select [Start] - [Settings] - [Control Panel] - [System] - [Hardware] - [Device Manager].

Windows XP Select [start] - [Control Panel] - [Performance and Maintenance] - [System] - [Hardware] - [Device Man-

ager].

2 Double-click [Primary IDE Channel] for [IDE ATA/ATAPI controllers].
3 Select [Advanced Settings], and confirm that [Transfer Mode] is set to [DMA if available] for [Device 0] and [Device 1].
4 Double-click [Secondary IDE Channel] for [IDE ATA/ATAPI controllers] and perform as the step .

Running WinDVD

Windows 2000

Select [Start] - [Programs] - [InterVideo WinDVD] - [InterVideo WinDVD] or select on the desktop.

Windows XP

Select [start] - [All Programs] - [InterVideo WinDVD] - [InterVideo WinDVD] or select on the desktop.

<How to access the online manual>

Select “?” of the WinDVD control panel.

NOTE

Do not enter the standby or hibernation mode while WinDVD is running.
Do not start WinDVD while the hard disk drive’s indicator is blinking immediately after the computer was started up.
If you maximize the video display window, you can return to the original window size by double-clicking over the
images.
During video playback (while the access lamp is on), do not eject the disc.
Do not use other applications or the Command Prompt, and do not change the settings of the screen properties.
In some cases, when the number of colors for the display is increased, a message appears and the DVD cannot be played.
If this happens, reduce the number of display colors.
Immediately after resuming from a pause, frame dropping may occur depending on the operating environment or DVD
video (images or sounds are disrupted).
In the Dualview or simultaneous (internal/external) display mode, there are times when images or video are not dis­played correctly.
During a prolonged period of rapid advance, the pause mode may be established at some point. If this happens, exit
WinDVD, and restart.

Appendix

35

WinDVD

™

About Regions Setting

<Only for CF-50A******/CF-50B******>
The regions setting can be changed for up to 5 times. After the fifth change is made, it will no longer be possible either to change

the setting or to return to the original setting.

<Only for CF-50E******/CF-50G******>
The DVD-Video has a region code that is fixed according to the region where it is sold. In order to play a DVD-Video, the

region code of the player software and of the drive must match that of the DVD-Video.
<Example>
For U.S.A. and Canada: “1”
For Europe: “2”

The region code is not set prior to the shipment of this drive. Therefore, operations will differ depending on the first DVD­Video played.

In the case of a DVD-Video with a specific region code:
The drive will automatically be set with the same region code as the DVD-Video.
In the case of any other DVD-Video:
[Confirm Region] appears. Select region code and select [OK]. Play now begins.
([Confirm Region] may not be displayed for some DVD-Videos. To confirm the current region code and the number of
settings remaining, right-click on the WinDVD screen and select [Setup] - [Region].)

CAUTION

The region code can be set a total of five times, including the initial setting. Proceed very carefully, because after the
fourth change has been made, the region code set last is fixed and no further changes can be made.
The user must take responsibility for any trouble that results from illegally changing or altering the region code.

NOTE

[Confirm Region] will also be displayed if a DVD-Video with one region code is inserted into a drive for which another
region code has already been set.

Information

Inquires about WinDVD should be made to InterVideo, Inc.
InterVideo, Inc.
URL: http://www.intervideo.com/
E-mail: [email protected]

Appendix

36

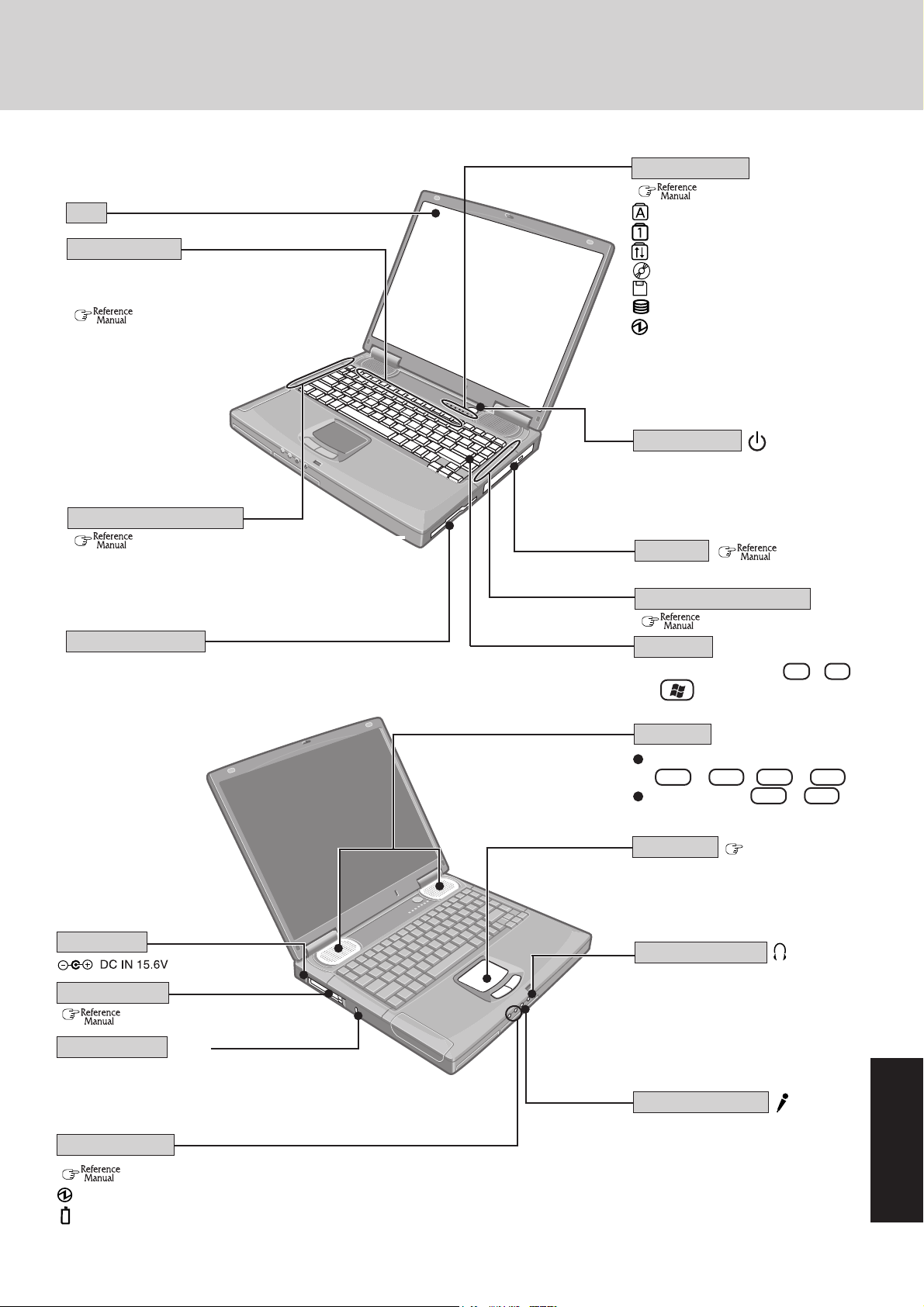

Names and Functions of Parts

The illustrations shown may differ from the actual physical
appearances.

LCD

Function Keys

For information on the key combi­nations available.

( “Key Combinations”).
There are dots near function keys

to enable you to locate the key’s
position by touch.

<Only for the model with a wireless LAN>

Wireless LAN Antenna

( “Wireless LAN”)

Floppy Disk Drive

LED Indicators

( “LED Indicators”)

Caps Lock
Numeric key (NumLk)
Scroll lock (ScrLk)
CD drive status*
Floppy disk drive status
Hard disk drive status
Power status

* The access lamp on the CD drive

lights at the same time as this indi­cator. (In some cases, only one of
them may light.)

Power Switch

Before using the computer for the
first time, carefully read [Limited Use
License Agreement]. If you agree to
the conditions, remove the seal.

CD Drive

<Only for the model with a wireless LAN>

Wireless LAN Antenna

( “Wireless LAN”)

Keyboard

There is a small bar on F , J ,
and to enable you to locate the
key’s position by touch.

Speakers

To adjust the volume:
Fn + F5 / Fn + F6
Speaker on/off: Fn + F4

( “CD Drive”)

DC-IN Jack

PC Card Slots

( “PC Cards”)

Security Lock

A Kensington cable can be connected
to prevent theft of your computer. For
more information, please read the
manual that comes with the cable.

LED Indicators

( “LED Indicators”)

Power status

Battery pack status

LOCK

( page 19)Touch Pad

Headphone Jack

Use this connector to connect head­phones or amplifier-equipped speak­ers. Audio output from the internal
speaker is disabled when headphones
or external speakers are connected.

Microphone Jack

Use only a monaural condenser mi­crophone.
Using an input source other than a
monaural condenser microphone
may not allow audio to be input or
may damage the equipment.

Appendix

37

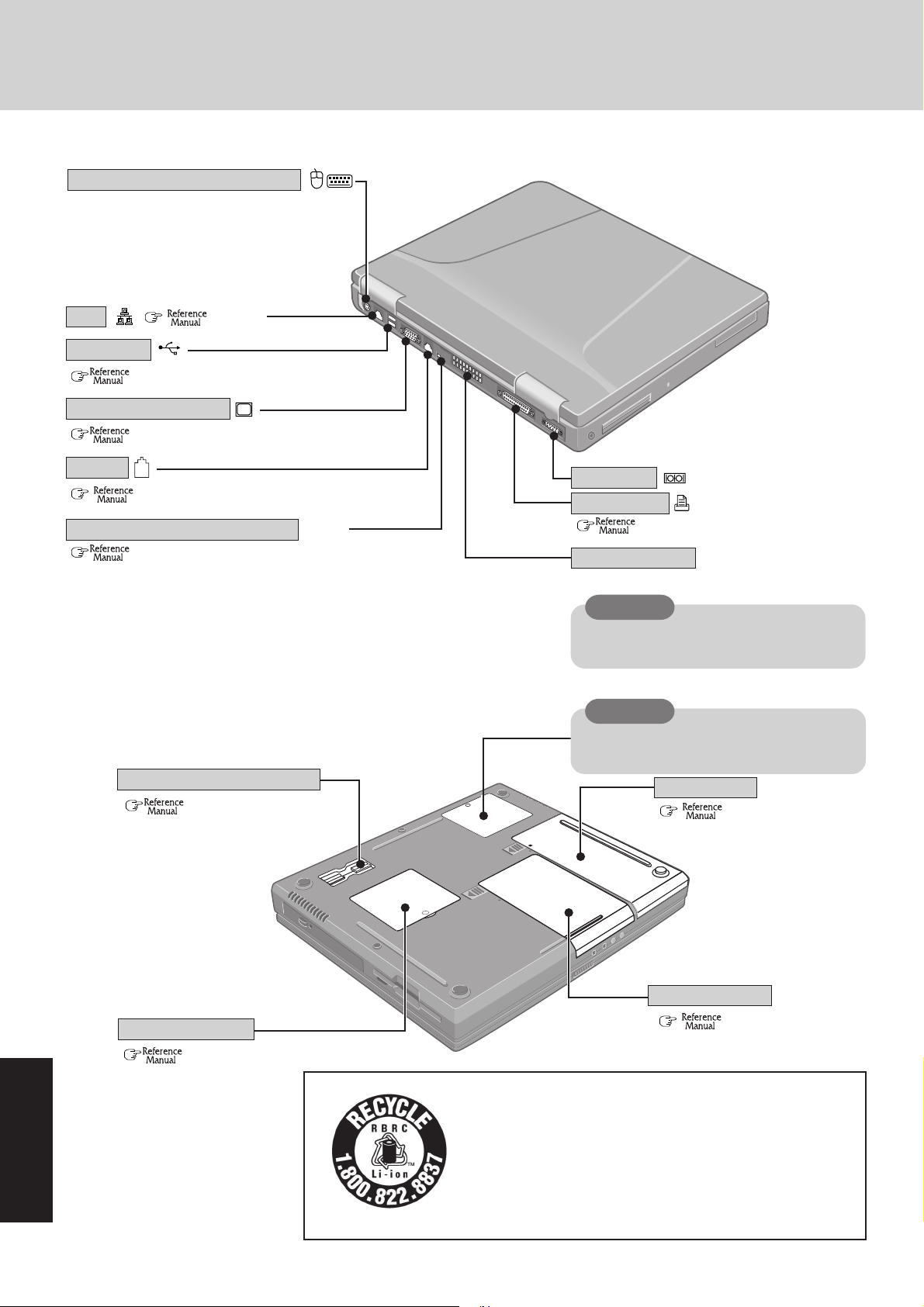

Names and Functions of Parts

External Keyboard/Mouse Port

LAN

USB Ports

( “USB Devices”)

External Display Port

( “External Display”)

Modem

( “Modem”)

IEEE 1394 Interface Connector

( “IEEE 1394 Devices”)

( “LAN”)

Expansion Bus Connector

( “Port Replicator”)

1394

Serial Port

Parallel Port

( “Printer”)

Ventilation Hole

These holes allow heat to exit.

CAUTION

Do not block or place the computer in a lo­cation that may prevent proper ventilation.

CAUTION

This cover is not to be opened by anyone
except authorized service personnel.

Battery Pack

( “Battery Power”)

Appendix

38

RAM Module Slot

( “RAM Module”)

Hard Disk Drive

( “Hard Disk Drive”)

A lithium ion battery that is recyclable powers the product you
have purchased. Please call 1-800-8-BATTERY for information
on how to recycle this battery.

L’appareil que vous vous êtes procuré est alimenté par une batterie
au lithium-ion. Pour des renseignements sur le recyclage de la
batterie, veuillez composer le 1-800-8-BATTERY.

Specifications

This page provides the specifications for the basic model CF-50AAKHUDM/CF-50BB2HUDM/CF-50AAKHUKM/CF­50BB2HUKM/CF-50EAKQUDM/CF-50EAKQUKM/CF-50GB2UUDM/CF-50GB2UUKM. The model number will change de­pending on the configuration of the unit, such as, CPU speed, memory size, HDD size, Operating System, LCD type, and whether
a DVD-ROM drive, a DVD-ROM&CD-R/RW drive or a DVD MULTI drive is included or not.

To check the model number:

Check the bottom of the computer or the box the computer came in at the time of purchase.

To check CPU speed, memory size and the hard disk drive (HDD) size:

Run the Setup Utility ( “Setup Utility”) and select [Information] menu.
Confirm the required information by checking the following items.

CPU speed: [CPU Speed]
Memory size: [System Memory]
Hard disk drive size: [Primary Master]

Main Specifications

<CF-50A******/CF-50B******>

Model No.
CPU

Memory (Expandable to)
Video Memory
LCD Type

Displayed Colors*

External Display

Hard Disk Drive
Operating System

CF-50AAKHUDM CF-50AAKHUKM CF-50BB2HUDM CF-50BB2HUKM
Mobile Intel® Pentium® 4 Processor 2.0 GHz-M Mobile Intel® Pentium® 4 Processor 2.2 GHz-M
L2 (Second) Cache Memory: 512 KB
256 MB (768 MB Max. ) 512 MB (1024 MB Max. )
64 MB

15.0 XGA type (TFT) 15.0 UXGA type (TFT)

1

256/65536/16M colors (640 × 480 dots/800 × 600 256/65536/16M colors (640 × 480 dots/800 × 600
dots/1024 × 768 dots) dots/1024 × 768 dots/1280 × 1024 dots/1600

× 1200 dots)
256/65536/16M colors (640 × 480 dots/800 × 600 dots/1024 × 768 dots/1280 × 1024
dots/1600 × 1200 dots/2048 × 1536 dots)*

3

40 GB*
Microsoft® Windows®Microsoft® Windows®Microsoft® Windows®Microsoft® Windows
2000 Professional with XP Professional with 2000 Professional with XP Professional with
Service Pack 3 Service Pack 1 Service Pack 3 Service Pack 1

2

60 GB*

3

®

<CF-50E******/CF-50G******>

Model No.
CPU

Memory (Expandable to)
Video Memory
LCD Type

Displayed Colors*

External Display

Hard Disk Drive
Operating System

*1A 16 M color display is achieved by using the dithering function.

Windows XP : 256 color depth and the resolution of 640 × 480 are not supported.
Windows 2000 : Setting 256 color depth or the resolution of 640 × 480 is not recommended.

*2Maximum resolution depends on the specifications of the external display.

Windows XP : 256 color depth and the resolution of 640 × 480 are not supported.
Windows 2000 : Setting 256 color depth or the resolution of 640 × 480 is not recommended.

*31GB = 109 bytes

CF-50EAKQUDM CF-50EAKQUKM CF-50GB2UUDM CF-50GB2UUKM
Intel® Pentium® M Processor 1.4 GHz Intel® Pentium® M Processor 1.6 GHz
L2 (Second) Cache Memory: 1 MB
256 MB (768 MB Max. ) 512 MB (1024 MB Max. )
64 MB

15.0 XGA type (TFT) 15.0 UXGA type (TFT)

1

256/65536/16M colors (640 × 480 dots/800 × 600 256/65536/16M colors (640 × 480 dots/800 × 600
dots/1024 × 768 dots) dots/1024 × 768 dots/1280 × 1024 dots/1600

256/65536/16M colors (640 × 480 dots/800 × 600 dots/1024 × 768 dots/1280 × 1024
dots/1600 × 1200 dots/2048 × 1536 dots)*

3

40 GB*
Microsoft® Windows®Microsoft® Windows®Microsoft® Windows®Microsoft® Windows
2000 Professional with XP Professional with 2000 Professional with XP Professional with
Service Pack 3 Service Pack 1 Service Pack 3 Service Pack 1

× 1200 dots)

2

60 GB*

3

®

Appendix

39

Specifications

Other Specifications

Keyboard

Slots PC Card Slots

RAM Module Slot*

Interface Parallel Port

External Display Port
Serial Port
Microphone Jack*
Headphone Jack

External Keyboard/Mouse Port
Expansion Bus Connector
USB Port
Modem
LAN

Wireless LAN

IEEE1394 Interface Connector
Pointing Device
Speaker
Utility Programs

Sound
Floppy Disk Drive
Optical Disc DVD-ROM Drive

DVD-ROM &
CD-R/RW Drive

DVD MULTI Drive

87 keys

Two Type I or Type II, or one Type III
Allowable current 3.3 V: 400 mA, 5 V: 400 mA (total for two slots)

1

200-pin, SO-DIMM, DDR-SDRAM, PC2100
Dsub 25-pin female
Mini Dsub 15-pin female
Dsub 9-pin male

2

Miniature jack, 3.5 DIA
Miniature jack, 3.5 DIA

Impedance 32 Ω, Output Power 4 mW x 2
Mini DIN 6-pin female
Dedicated 100-pin female
4-pin x 2, USB 2.0
RJ-11 Data: 56 kbps (V.92 & K56flex) FAX:14.4 kbps
RJ-45 IEEE 802.3 10Base-T

IEEE 802.3u 100Base-TX

802.11b
4-pin × 1
Touch Pad
Stereo Speaker
Setup Utility, DMI Viewer, Adobe® Acrobat® Reader, Hard Disk Data Erase Utility*

<Only for CF-50E******/CF-50G******>
PC Information Viewer, Intel

®

PROSet, WLAN Security Client
WAVE and MIDI playback
720 KB/1.44 MB (two-mode)
Supports DVD-ROM

CD-ROM

DVD-ROM read*
CD-ROM read*

6

6

Supports DVD-ROM

CD-ROM

DVD-5, DVD-9, DVD-10, DVD-18, DVD-R*4(3.95 GB, 4.7
GB), DVD-RW*

CD-Audio, CD-ROM, CD-R*4, Photo CD, VideoCD, En­hanced Music CD, CD-RW*

4

(4.7 GB), DVD-RAM*4*5 (2.6 GB, 4.7 GB)

4

, CD-TEXT
8x speed (Max.)
24x speed (Max.)
DVD-5, DVD-9, DVD-10, DVD-18, DVD-R*4(3.95 GB, 4.7

GB), DVD-RW*

4

(4.7 GB), DVD-RAM*4*5 (2.6 GB, 4.7 GB)

CD-Audio, CD-ROM, CD-R, Photo CD, VideoCD, En­hanced Music CD, CD-RW, CD-TEXT

DVD-ROM read*
CD-ROM read*
CD-R write*
CD-RW write
Supports DVD-ROM

6

6

7

CD-ROM

8x speed (Max.)
24x speed (Max.)
4x speed, 8x speed, 16x speed (Max.), 24x speed (Max.)
4x speed, 8x speed, 10x speed
DVD-5, DVD-9, DVD-10, DVD-18, DVD-R*4(3.95 GB, 4.7

GB), DVD-RW*

4

(4.7 GB), DVD-RAM*4*5 (2.6 GB, 4.7 GB)

CD-Audio, CD-ROM, CD-R, Photo CD, VideoCD, En­hanced Music CD, CD-RW, CD-TEXT

CD-ROM read*
DVD-ROM read*
CD-R write*
CD-RW write
DVD-R write
DVD-RW write
DVD-RAM write

6

6

7

24X speed (Max.)
8X speed (Max.)
4X speed, 8X speed, 16X speed (Max.)
4X speed, 8X speed
1X speed
1X speed
2X speed

3

Appendix

40

Battery Battery Pack

Li-ion 11.1 V, 6.3 Ah
Operating Time*8<CF-50A******/CF-50B******>

UXGA type: Approx. 1.4 hours - 3.2 hours
XGA type: Approx. 1.7 hours - 3.7 hours
<CF-50E******/CF-50G******>
UXGA type: Approx. 2.1 hours - 6.4 hours
XGA type: Approx. 2.5 hours - 7.4 hours

Charging Time*8Power On <CF-50A******/CF-50B******> Approx. 6 hours

<CF-50E******/CF-50G******> Approx. 3.5 hours

Power Off Approx. 3.5 hours

Clock Battery

AC adaptor*

9

Power Consumption*
Environment

10

Coin type lithium battery 3.0 V
Input 100 V - 240 V AC, 50 Hz/60 Hz Output 15.6 V DC, 5.0 A
Approx. 70 W*11 / Approx. 90 W (maximum when recharging in the ON state)
In use Temperature 5 °C to 35 °C {41 °F to 95 °F}

Humidity 30% to 80% RH (No condensation)

Not in use Temperature -20 °C to 60 °C {-4 °F to 140 °F}

Humidity 30% to 90% RH (No condensation)

Physical Dimensions (W × H × D)
Weight

*1Only a RAM card designed for PC2100 can be added.
*2Use only a monaural condenser microphone.

*3The Product Recovery CD-ROM is required.
*4Read only.
*5In the case of DVD-RAM, only non-cartridge discs or removable cartridge discs can be used.
*6If an unbalanced disc (e.g., a disc with which the balance has been displaced from the center) is inserted, the speed may become slower if

there are large vibrations while the disc is rotating.
*7Depending on the disc, the writing speed may become slower.
*8Varies depending on the usage conditions.
*9The AC adaptor is compatible with power sources up to 240 V AC adaptor.

This computer is supplied with a 125 V AC compatible AC cord.
*10Approx. 0.9 W when the battery pack is fully charged (or not being charged) and the computer is OFF.

Approx. 1.5 W when the Wake up from LAN has been enabled.
*11Rated power consumption.

307 mm × 45 mm × 260 mm {12.1 " × 1.8 " × 10.2 "}
Approx. 3.4 kg {Approx. 7.6 lb.}

Appendix

41

LIMITED WARRANTY

For U.S.A.

PANASONIC PERSONAL COMPUTER AND PERIPHERALS LIMITED WARRANTY

Panasonic Computer Solutions Company (referred to as “Panasonic”) will repair this product (other than software, which is covered by a separate
warranty) with new or rebuilt parts, free of charge in the U.S.A. for three (3) years from the date of original purchase in the event of a defect in materials
or workmanship. This warranty includes the AC adaptor but excludes the batteries and all other options and accessories which are covered for a
period of one (1) year from the date of purchase.

This warranty is extended solely to the original purchaser. A purchase receipt or other proof of date of original purchase will be required before
warranty performance is rendered.

This warranty only covers failures due to defects in materials or workmanship which occur during normal use. It does not cover damage which occurs
in shipment or failures which are caused by products not supplied by Panasonic, or failures which result from alteration, accident, misuse, introduction
of liquid or other foreign matter into the unit, abuse, neglect, installation, maladjustment of consumer controls, improper maintenance, modification or
service by anyone other than a Factory Service Center or authorized Panasonic Service Dealer, or damage that is attributable to acts of God.

Limits and Exclusions:

There are no other express warranties except as listed below.

PANASONIC SHALL NOT BE LIABLE FOR LOSS OF DATA OR OTHER INCIDENTAL OR CONSEQ UENTIAL DAMAGES RESULTING FROM THE
USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING
THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO THE APPLICABLE WARRANTY
PERIOD SET FORTH ABOVE. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long
an implied warranty lasts, so the above limitations or exclusions may not apply to you.

This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state. If a problem with your product
develops during or after the warranty period, you may contact our representatives at 1-800-LAPTOP5. If the problem is not handled to your satisfac­tion, then write to the Consumer Affairs Division at the address indicated below.

SOFTWARE LIMITED WARRANTY

Panasonic Computer Solutions Company (referred to as “Panasonic”) warrants to you only that the disk(s) or other media on which the Programs are
furnished will be free from defects in materials and workmanship under normal use for a period of sixty (60) days from the date of delivery thereof to
you, as evidenced by your purchase receipt.

This is the only warranty Panasonic makes to you. Panasonic does not warrant that the functions contained in the Programs will meet your require­ments or that the operation of the Programs will be uninterrupted or error free.

Panasonic’s entire liability, and your exclusive remedy under this warranty shall be limited to the replacement, in the United States, of any defective
disk or other media which is returned to Panasonic’s Authorized Service Center, together with a copy of the purchase receipt, within the aforesaid
warranty period.

Anything in the foregoing to the contrary notwithstanding, Panasonic shall have no obligation for any defects in the disk(s) or other media on which the
Programs are furnished resulting from your storage thereof, or for defects that have been caused by operation of the disk(s) or other media otherwise
than on the Product or in environmental conditions other than those specified by Panasonic by alteration, accident, misuse, abuse, neglect, mishan­dling, misapplication, installation, maladjustment of consumer controls, improper maintenance, modification of damage that is attributable to acts of
God. In addition, Panasonic shall have no obligation for any defects in the disk(s) or other media if you have modified, or attempted to modify any
Program.

DURATION OF IMPLIED WARRANTIES, IF ANY, IS LIMITED TO SIXTY (60) DAYS.

PANASONIC ASSUMES NO RISK OF AND SHALL NOT IN ANY CASE BE LIABLE FOR ANY DAMAGES, INCLUDING, WITHOUT LIMITATION,
ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES ARISING FROM BREACH OF WARRANTY OR CONTRACT, NEGLI­GENCE OR ANY OTHER LEGAL THEORY, INCLUDING, WITHOUT LIMITATION LOSS OF GOODWILL, PROFITS OR REVENUE, LOSS OF USE
OF THE PROGRAMS OR PRODUCTS OR ANY ASSOCIATED EQUIPMENT, COST OF CAPITAL, COST OF ANY SUBSTITUTE EQUIPMENT,
FACILITIES, SERVICES, DOWNTIME COSTS, OR CLAIMS OF ANY PARTY DEALING WITH YOU FOR SUCH DAMAGES.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so
the above limitations or exclusions may not apply to you.

This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

This Limited Warranty will be governed by the laws the State of New York, without regard to its conflict-of-laws rules.

Appendix

42

* * *

To obtain service or technical assistance within the continental U.S.A. and Alaska.

DIAL TOLL FREE: 1-800-LAPTOP5

Correspondence requesting product information should be sent to:
Panasonic Computer Solutions Company
50 Meadowlands Parkway, Panazip 2F-5, Secaucus, NJ 07094

For Canada

PANASONIC COMPUTER AND PERIPHERALS LIMITED WARRANTY

Coverage – Panasonic Canada Inc. (“PCI”) warrants to you, the first end user customer, this computer product (excluding software media), when

purchased from PCI or from a PCI authorized reseller, to be free from defects in materials and workmanship under normal use, subject to the terms
set forth below, during the period of warranty coverage specified.

Scope of Coverage

Whole Product (except Batteries), AC adaptor and CD-ROM
(if factory installed)

Batteries, CD-ROM (unless factory installed), Port Replicator,
Extra Memory Modules and all other Peripherals, Options and
Accessories

Remedy – In the event of a warranty claim, contact PCI’s representatives within the applicable warranty period, identifying the nature of the defect
claimed, at 1-800-668-8386 between 9:00 A.M. and 5:00 P.M., Eastern Time Zone, Mon. – Fri. (excluding holidays) for instructions on how to obtain
service. A purchase receipt or other proof of date of original purchase is required before warranty service is performed. Defective parts covered by
this Limited Warranty will be repaired or replaced with new or comparable rebuilt parts on an exchange basis. Warranty replacement or repair is
subject to the terms of this Limited Warranty for the balance of the original period of warranty coverage.

No Coverage – This Limited Warranty does not cover products purchased outside Canada. Neither does it cover damage to, failure of, or defects in
a product or accessory through mishandling, improper installation, abnormal use, misuse, neglect, accident, introduction of liquid or other foreign
matter into the product, alteration or servicing by anyone not authorized by PCI, or act of God.

IF YOU SHIP THE PRODUCT FOR WARRANTY SERVICE

Carefully pack the product, preferably in the original carton. Include details of defect claimed and proof of date of original purchase. No liability is
assumed for loss or damage to the product while in transit, if you chose your own transportation carrier.

Period of Coverage

Three (3) Years from Date of Original
End User Customer Purchase

One (1) Year from Date of Original End
User Customer Purchase

Type of Failure Coverage

Defective Materials or Workmanship

Defective Materials or Workmanship

SOFTWARE MEDIA LIMITED WARRANTY

Coverage – Panasonic Canada Inc. (“PCI”) warrants to you, the first end user customer, that the disk(s) or other media on which software program(s)

is/are supplied will be free from defects in materials and workmanship under normal use in Canada for a period of sixty (60) days from date of receipt
as evidenced by your purchase receipt for your Panasonic Computer product.

THIS IS THE ONLY WARRANTY THAT PCI MAKES RESPECTING THE SOFTWARE MEDIA. PCI does not warrant the software. Please refer to the
software licensor’s written warranty (accompanying the copy of the software) for any software warranty claim.

Claim Procedure – In the event of a defect in material or workmanship in the media during the sixty (60) day warranty period, and you return it,
transportation costs prepaid, to Panasonic Canada Inc., Computer Products Marketing, at the above address, within the warranty period, together
with a copy of your purchase receipt, and an explanation of the suspected defect, PCI will replace in Canada the defective disk(s) or other media.

Remedy – PCI’s entire liability, and your only remedy for any breach of this software media warranty is limited to replacement of the media only. It
does not cover any other damages, including, but not limited to, loss of use or profit loss, or special, indirect or consequential damages, or other
claims, whether or not of similar character.

No Coverage – This limited warranty does not apply if the disk(s) or other media has been used in other than a Panasonic product, or in environmen­tal conditions other than those specified by PCI or the manufacturer, or if subjected to misuse, neglect, mishandling, modification or attempted
modification of the program, or if damaged by accident or act of God. PCI is not responsible for damage to or loss of any program, data or removable
storage media.

GENERAL

NO OTHER WARRANTIES – PCI DISCLAIMS ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO,
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH RESPECT TO THE SOFTWARE, SOFT­WARE MEDIA, COMPUTER PRODUCT, OPTIONS AND ACCESSORIES.

NO LIABILITY FOR CONSEQUENTIAL DAMAGES – IN NO EVENT SHALL PCI BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUEN­TIAL DAMAGES ARISING FROM ANY BREACH OF THE LIMITED WARRANTIES SET OUT IN THIS DOCUMENT, OR FROM THE USE OF THE
COMPUTER PRODUCT, INCLUDING, WITHOUT LIMITATION, LOSS OF DATA, BUSINESS, PROFIT OR GOODWILL.

IN ANY EVENT, PCI’S MAXIMUM LIABILITY FOR ANY BREACH SHALL NOT EXCEED THE AMOUNT ACTUALLY PAID BY YOU FOR THE
COMPUTER PRODUCT.

NO ACTION, REGARDLESS OF ITS BASIS, MAY BE BEGUN AGAINST PCI MORE THAN TWO (2) YEARS AFTER THE CAUSE OF ACTION
AROSE.

Statutory Warranties – Some jurisdictions do not allow these limitations or exclusions, so they may not apply to you.

Appendix

43

As an

ENERGY STA R

determined that this product meets the

®

Partner, Matsushita Electric Industrial Co., Ltd. has

ENERGY STAR

®

guidelines for energy

efficiency.

Outline of the International ENERGY STA R® Office Equipment Program

The international ENERGY STA R® Office Equipment Program is an international program
that promotes energy saving through the use of computers and other office equipment.

The program backs the development and dissemination of products with functions that
effectively reduce energy consumption. It is an open system in which business proprietors
can participate voluntarily. The targeted products are office equipment such as computers,
displays, printers, facsimiles, and copiers. Their standards and logos are uniform among
participating nations.

Panasonic Computer Solutions Company

50 Meadowlands Parkway, Panazip 2F-5,

Secaucus, NJ 07094

© 2003 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.
Printed in Taiwan

Panasonic Canada Inc.

5770 Ambler Drive Mississauga,

Ontario L4W 2T3

TA0802-6073

DFQX5338VAT
