OPERATING INSTRUCTIONS
Personal Computer
Model No.
CF-30
series

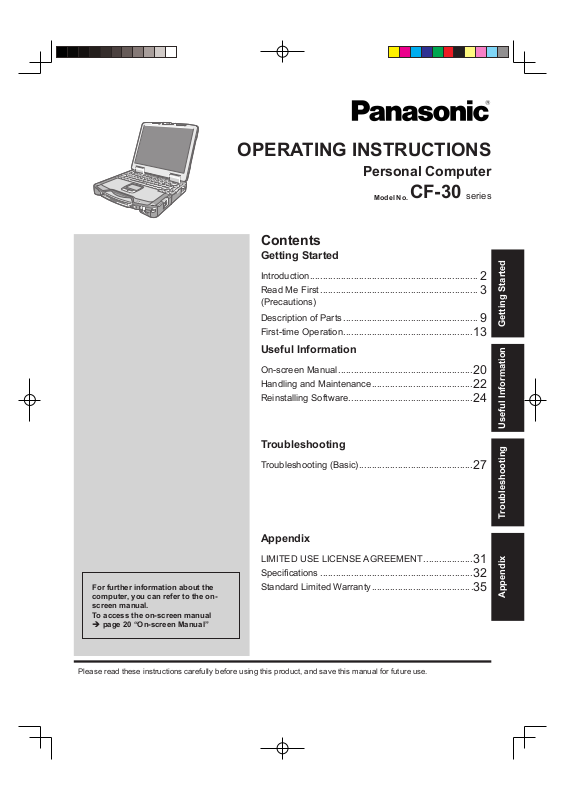

Contents
Getting Started
Introduction .................................................................
Read Me First .............................................................
(Precautions)
Description of Parts ....................................................
First-time Operation ..................................................
Useful Information
On-screen Manual ....................................................
Handling and Maintenance .......................................
Reinstalling Software ................................................
2
3
9
13
20
22
24
Getting StartedUseful InformationTroubleshootingAppendix
For further information about the
computer, you can refer to the onscreen manual.
To access the on-screen manual
page 20 “On-screen Manual”
Troubleshooting
Troubleshooting (Basic) ............................................
Appendix
LIMITED USE LICENSE AGREEMENT ...................
Specifi cations ...........................................................
Standard Limited Warranty .......................................
27
31
32
35
Please read these instructions carefully before using this product, and save this manual for future use.
Page 2
2
Getting Started
Introduction
Thank you for purchasing this Panasonic product. For optimum performance and safety, please read these instructions
carefully.
Terms and illustrations in these instructions
CAUTION
NOTE
Enter
+ F5 : Press and hold [Fn] key, and then press [F5] key.
Fn
(Start) - [All Programs] : Click (Start), and then click [All Programs].
[start] - [Run] : Click [start], and then click [Run]. You may need to double-click in some cases.
: Page in these Operating Instructions or in the Reference Manual.
indicates Windows® 7 Professional Operating System.
indicates Microsoft® Windows® XP Professional Operating System.
Some illustrations are simplifi ed to help your understanding and may look different from the actual unit.
If you do not log on as an administrator, you cannot use some functions or cannot display some screens.
Refer for the latest information about optional products to the catalogs, etc.
In these instructions, the names and terms are referred as follows.
“Windows® 7 Professional” as “Windows” or “Windows 7”
“Microsoft® Windows® XP Professional Service Pack 2 with Advanced Security Technologies” as “Windows”, “Win-
dows XP” or “Windows XP Professional”
DVD-ROM & CD-R/RW drive and DVD MULTI drive as “CD/DVD drive”
Circular media including DVD-ROM and CD-ROM as “discs”
“Multilanguage User Interface” as “MUI”
: Conditions that may result in minor or moderate injury.
: Useful and helpful information.
: Press [Enter] key.
: Reference to the on-screen manuals.
Disclaimer
Computer specifi cations and manuals are subject to change without notice. Panasonic Corporation assumes no li-
ability for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the
manuals.
Trademarks
Microsoft®, Windows®, the Windows logo, and IntelliMouse are registered trademarks of Microsoft Corporation of the
United States and/or other countries.
Intel, Core, Centrino and PROSet are either registered trademarks or trademarks of Intel Corporation.
SDHC Logo is a trademark.
Adobe, the Adobe logo and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.
Computrace® is a registered trademark of Absolute® Software Corp.
Bluetooth™ is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to Panasonic Corporation.
Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective
own companies.
Page 3
3
Getting Started
Read Me First
Models for Europe
<Only for model with a “CE ” mark on the bottom of the computer>
Declaration of Conformity (DoC)
“Hereby, Panasonic declares that this Personal Computer is in compliance with the essential requirements and other relevant provisions of the Directive 1999/5/EC.”
Hint:
If you want to get a copy of the original DoC of our above mentioned products, please contact our
web address: http://www.doc.panasonic.de
Authorised Representative:
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
Network connection of Wired Modem.
The terminal equipment is intended for connection to the following public network;
In all the countries of European Economical Area and Turkey;
- Public Switched Telephony Networks
Technical Features of Wired Modem.
The terminal equipment includes the following features;
- DTMF dialing
- Maximum bitrate receiving mode: 56 kbit/s
- Maximum bitrate sending mode: 33.6 kbit/s
Indication of the countries where WLAN is intended to be used:
AT BE BG CH CY CZ DE DK EE ES
FI FR GB GR HU IE IS IT LT LU
LV MT NL NO PL PT RO SE SI SK TR
18-25-E-1
Models for UK
Warning
This apparatus must be earthed for your safety.
To ensure safe operation the three-pin plug must be inserted only into a standard three-pin power point which is effectively earthed through the normal household wiring.
Extension cords used with the equipment must be three-core and be correctly wired to provide connection to earth.
Wrongly wired extension cords are a major cause of fatalities.
The fact that the equipment operates satisfactorily does not imply that the power point is earthed and that the installation is completely safe.
For your safety, if you have any doubt about the effective earthing of the power point, consult a qualifi ed electrician.
FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY
This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 3 amp fuse is fi tted
in this plug.
Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 3 amps and that it is approved by ASTA or BSI to BS 1362.
Check for the ASTA mark
If the plug contains a removable fuse cover you must ensure that it is refi tted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a replacement cover is obtained.
A replacement fuse cover can be purchased from your local Panasonic Dealer.
IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE
SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13 AMP
SOCKET.
If a new plug is to be fi tted please observe the wiring code as shown below.
If in any doubt please consult a qualifi ed electrician.
A S A
or the BSI mark on the body of the fuse.
Page 4
4
Getting Started
Read Me First
Warning: THIS APPLIANCE MUST BE EARTHED.
Important
The wires in this mains lead are coloured in accordance with the following code:
Green-and-yellow: Earth
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured GREEN-and-YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol
GREEN-and-YELLOW.
The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured
BLACK.
The wire which is coloured Brown must be connected to the terminal which is marked with the letter L or coloured
RED.
The mains plug on this equipment must be used to disconnect the mains power.
Please ensure that a socket outlet is available near the equipment and shall be easily accessible.
How to replace the fuse
Open the fuse compartment with a screwdriver and replace the fuse.
coloured GREEN or
Warnings
This equipment is not designed for connection to an IT power system.
(An IT system is a system having no direct connections between live parts and Earth; the exposed-conductive-parts
of the electrical installation are earthed.
An IT system is not permitted where the computer is directly connected to public supply systems in the U.K.)
Disconnect the mains plug from the supply socket when the computer is not in use.
This equipment is produced to BS800/1983.
Important Safety Instructions
When using your telephone equipment, basic safety precautions
should always be followed to reduce the risk of fi re, electric
shock and injury to persons, including the following:
1. Do not use this product near water, for example, near a bath
tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.
2. Avoid using a telephone (other than a cordless type) during
an electrical storm. There may be a remote risk of electric
shock from lightning.
3. Do not use the telephone to report a gas leak in the vicinity
of the leak.
4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fi re. They may explode.
Check with local codes for possible special disposal instructions.
SAVE THESE INSTRUCTIONS
8-E-1
19-E-1
Page 5
5
Getting Started
Information to the User
<Only for model with wireless LAN/Bluetooth>
This product and your Health
This product, like other radio devices, emits radio frequency
electromagnetic energy. The level of energy emitted by this
product however is far much less than the electromagnetic energy emitted by wireless devices like for example mobile phones.
Because this product operates within the guidelines found in
radio frequency safety standards and recommendations, we
believe this product is safe for use by consumers. These standards and recommendations refl ect the consensus of the sci-
entifi c community and result from deliberations of panels and
committees of scientists who continually review and interpret
the extensive research literature.
In some situations or environments, the use of this product may
be restricted by the proprietor of the building or responsible
representatives of the organization. These situations may for
example include:
Using this product on board of airplanes, or
In any other environment where the risk of interference to
other devices or services is perceived or identifi ed as harm-
ful.
If you are uncertain of the policy that applies on the use of
wireless devices in a specifi c organization or environment (e.g.
airports), you are encouraged to ask for authorization to use this
product prior to turning on the product.
Regulatory Information
We are not responsible for any radio or television interference
caused by unauthorized modifi cation of this product. The cor-
rection of interference caused by such unauthorized modifi ca-
tion will be the responsibility of the user. We and its authorized
resellers or distributors are not liable for damage or violation of
government regulations that may arise from failing to comply
with these guidelines.
Lithium Battery
Lithium Battery!
This computer contains a lithium battery to enable the date, time, and other data to be stored. The battery should only be exchanged by authorized service personnel.
Warning!
A risk of explosion from incorrect installation or misapplication may possibly occur.
For Used in Motor Vehicle
26-M-1
15-E-1
Warning: Check the following Commission Recommendation to determine proper installation and usage of this product
while operating within a motor vehicle.
“Commission Recommendation on safe and effi cient in-vehicle information and communication systems: A European
statement of principles on human machine interface.”
Commission Recommendation is available from Offi cial Journal of the European Communities.
35-E-1
Safety Precautions
<Only for model with wireless WAN>
The following safety precautions must be observed during all phases of the operation, usage, service or repair of any
Personal Computer or Handheld Computer incorporating wireless WAN modem. Manufacturers of the cellular terminal are advised to convey the following safety information to users and operating personnel and to incorporate these
guidelines into all manuals supplied with the product. Failure to comply with these precautions violates safety standards of design, manufacture and intended use of the product. Panasonic assumes no liability for customer failure to
comply with these precautions.
When in a hospital or other health care facility, observe the restrictions on the use of mobiles. Switch Personal
Computer or Handheld Computer incorporating wireless WAN modem off, if instructed to do so by the guidelines posted in sensitive areas. Medical equipment may be sensitive to RF energy.
The operation of cardiac pacemakers, other implanted medical equipment and hearing aids can be affected
by interference from Personal Computer or Handheld Computer incorporating wireless WAN modem placed
close to the device. If in doubt about potential danger, contact the physician or the manufacturer of the device
to verify that the equipment is properly shielded. Pacemaker patients are advised to keep their Personal Computer or Handheld Computer incorporating wireless WAN modem away from the pacemaker, while it is on.
Switch off Personal Computer or Handheld Computer incorporating wireless WAN modem before boarding an
aircraft. Make sure it cannot be switched on inadvertently. The operation of wireless appliances in an aircraft
is forbidden to prevent interference with communications systems. Failure to observe these instructions may
lead to the suspension or denial of cellular services to the offender, legal action, or both.
For details on usage of this unit in aircrafts please consult and follow instruction provided by the airline.
Do not operate Personal Computer or Handheld Computer incorporating wireless WAN modem in the presence of fl ammable gases or fumes. Switch off the cellular terminal when you are near petrol stations, fuel
depots, chemical plants or where blasting operations are in progress. Operation of any electrical equipment in
potentially explosive atmospheres can constitute a safety hazard.
Page 6
6
Getting Started
Read Me First
Your Personal Computer or Handheld Computer incorporating wireless WAN modem receives and transmits
radio frequency energy while switched on. Remember that interference can occur if it is used close to TV sets,
radios, computers or inadequately shielded equipment. Follow any special regulations and always switch off
Personal Computer or Handheld Computer incorporating wireless WAN modem wherever forbidden, or when
you suspect that it may cause interference or danger.
Road safety comes fi rst! Do not use a Personal Computer or Handheld Computer incorporating wireless
WAN modem while driving a vehicle. Do not place the computer with wireless WAN modem in an area where
it could cause personal injury to the driver or passengers. It is recommended to stow the unit in the boot or
secure stowage area while driving.
Do not place the computer with wireless WAN modem in an area over an air bag or in the vicinity where an air
bag may deploy.
Air bags infl ate with great force and if the computer with wireless WAN modem is placed in the air bag deploy-
ment area may be propelled with great force and cause serious injury to occupants of the vehicle.
IMPORTANT!
Personal Computer or Handheld Computer incorporating wireless WAN modem operate using radio signals
and cellular networks cannot be guaranteed to connect in all conditions. Therefore, you should never rely
solely upon any wireless device for essential communications, for example emergency calls.
Remember, in order to make or receive calls, Personal Computer or Handheld Computer incorporating wireless WAN modem must be switched on and in a service area with adequate cellular signal strength.
Some networks do not allow for emergency calls if certain network services or phone features are in use (e.g.
lock functions, fi xed dialing etc.). You may need to deactivate those features before you can make an emer-
gency call.
Some networks require that a valid SIM card be properly inserted in Personal Computer or Handheld Computer incorporating wireless WAN modem.
27-1-2
When using Port Replicator or Car Mounter on which an external antenna can
be installed:
External antenna for wireless LAN must be professionally installed.
The gain of external antenna for wireless LAN must not exceed 5dBi.
The user must maintain minimum of 20 cm spacing between the external antenna and all people (excluding ex-
tremities of hands, wrist and feet) during wireless modes of operation.
Precautions
THIS PRODUCT IS NOT INTENDED FOR USE AS, OR AS PART OF, NUCLEAR EQUIPMENT/SYSTEMS, AIR TRAFFIC
CONTROL EQUIPMENT/SYSTEMS, AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS
SORIES
ENSURING HUMAN LIFE OR SAFETY. PANASONIC WILL NOT BE RESPONSIBLE FOR ANY LIABILITY RESULTING
FROM THE USE OF THIS PRODUCT ARISING OUT OF THE FOREGOING USES.
*1
AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include Class2 Electrical Flight Bag (EFB) Systems and Class1 EFB Systems
*2
As defi ned by the European Medical Device Directive (MDD) 93/42/EEC.
Panasonic cannot guarantee any specifi cations, technologies, reliability, safety (e.g. Flammability/Smoke/Toxicity/Radio
Frequency Emission, etc) requirements related to aviation standards and medical equipment standards that differ from the
specifi cations of our COTS (Commercial-Off-The-Shelf) products.
This computer is not inten
cluding life-support systems, air traffi c control systems, or other
equipment, devices or systems that are involved with ensuring
human life or safety. Panasonic cannot be held responsible in
any way for any damages or loss resulting from the use of this
unit in these types of equipment, devices or systems, etc.
The CF-30 was developed based on thorough research into the
real-world portable computing environments. Exhaustive pursuit
of usability and reliability under harsh conditions led to innovations such has the magnesium alloy exterior, vibration damped
hard disk drive and fl oppy disk drive, fl exible internal connec-
tions. The CF-30’s outstanding engineering has been tested
using the strict MIL-STD- 810F (for vibration and shock) and IP
(for dust and water) based procedures.
As with any portable computer device precautions should be
taken to avoid any damage. The following usage and handling
procedures are recommended.
*2
, LIFE SUPPORT SYSTEMS OR OTHER EQUIPMENTS/DEVICES/SYSTEMS THAT ARE INVOLVED WITH
when used during critical phases of fl ight (e.g., during take-off and landing) and/or mounted on to the aircraft. Class1 EFB
Systems and 2 EFB Systems are defi ned by FAA: AC (Advisory Circular) 120-76A or JAA: JAA TGL (Temporary Guidance
Leafl ets) No.36.
ded for use in medical equipment in-
Before putting the computer away, be sure to wipe off any
moisture.
If a Malfunction or Trouble Occurs, Immediately Stop Use
If a Malfunction Occurs, Immediately Unplug the AC
Plug and the Battery Pack
This product is damaged
Foreign object inside this product
Smoke emitted
Unusual smell emitted
Unusually hot
Continuing to use this product while any of the above conditions
are present may result in fi re or electric shock.
If a malfunction or trouble occurs, immediately unplug the
AC plug and remove the unit from this product. Then, contact
your technical support offi ce for repair.
*1
, MEDICAL DEVICES OR ACCES-
41-E-1-1
Page 7
7
Getting Started
Do Not Touch This Product and Cable When It Starts Thundering
Electric shock may result.
Do Not Connect the AC Adaptor to a Power Source Other
Than a Standard Household AC Outlet
Otherwise, a fi re due to overheating may result. Connecting to a
DC/AC converter (inverter) may damage the AC adaptor. On an
airplane, only connect the AC adaptor/charger to an AC outlet
specifi cally approved for such use.
Do Not Do Anything That May Damage the AC Cord, the AC
Plug, or the AC Adaptor
Do not damage or modify the cord, place it near hot tools, bend,
twist, or pull it forcefully, place heavy objects on it, or bundle it
tightly.
Continuing to use a damaged cord may result in fi re, short cir-
cuit, or electric shock.
Do Not Pull or Insert the AC Plug If Your Hands Are Wet
Electric shock may result.
Clean Dust and Other Debris of the AC Plug Regularly
If dust or other debris accumulates on the plug, humidity, etc.
may cause a defect in the insulation, which may result in a fi re.
Pull the plug, and wipe it with a dry cloth.
Pull the plug if the computer is not being used for a long period of time.
Insert the AC Plug Completely
If the plug is not inserted completely, fi re due to overheating or
electric shock may result.
Do not use a damaged plug or loose AC outlet.
Close the Connector Cover Tightly When Using This Product Where Is a Lot of Water, Moisture, Steam, Dust, Oily
Vapors, etc.
The entry of foreign matter may cause a fi re or electric shocks.
If foreign matter has found its way inside, immediately turn
the power off and unplug the AC cord, and then remove the
battery pack. Then contact your technical support offi ce.
Do Not Disassemble This Product
The high-voltage areas inside may give you an electric shock,
or foreign matter may enter and result in a fi re.
Keep SD Memory Cards Away from Infants and Small Children
Accidental swallowing will result in bodily injury.
In the event of accidental swallowing, see a doctor immediately.
Do Not Place This Product on Unstable Surface
If balance is lost, this product may fall over or drop, resulting in
an injury.
Avoid Stacking
If balance is lost, this product may fall over or drop, resulting in
an injury.
Do Not Leave This Product in High Temperature Environment for a Long Period of Time
Leaving this product where it will be exposed to extremely high
temperatures such as near fi re or in direct sunlight may deform
the cabinet and/or cause trouble in the internal parts. Continued
use in such a resulting condition may lead to short-circuiting or
insulation defects, etc. which may in turn lead to a fi re or electric
shocks.
Hold the Plug When Unplugging the AC Plug
Pulling on the cord may damage the cord, resulting in a fi re or
electric shock.
Do Not Move This Product While the AC Plug Is Connected
The AC cord may be damaged, resulting in fi re or electric shock.
If the AC cord is damaged, unplug the AC plug immediately.
Use Only the Specifi ed AC Adaptor With This Product
Using an AC adaptor other than the one supplied (supplied with
the unit or one sold seperately as an accessory) may result in a
fi re.
Do Not Subject the AC Adaptor to Any Strong Impact
Using the AC adaptor after a strong impact such as being
dropped may result in electric shock, short circuit, or fi re.
Take a Break of 10-15 Minutes Every Hour
Using this product for long periods of time may have detrimental
health effects on the eyes or hands.
Do Not Turn the Volume Up To Loud When Using Headphones
Listening at high volumes that overstimulate the ear for long
periods of time may result in loss of hearing.
Use the Modem with a Regular Telephone Line
Connection to an internal phone line (on-premise switches) of
a company or business offi ce, etc. or to a digital public phone
or use in a country or area not supported by the computer may
result in a fi re or electric shocks.
Do Not Connect a Telephone Line, or a Network Cable
Other Than the One Specifi ed, into the LAN Port
If the LAN port is connected to a network such as the ones
listed right, a fi re or electric shock may result.
Networks other than 1000BASE-T, 100BASE-TX, or
10BASE-T
Phone lines (IP phone (Internet Protocol Telephone), Tele-
phone lines, internal phone lines (on-premise switches),
digital public phones, etc.)
Do Not Use With Exposing the Skin To This Product For a
Long Period of Time
Using this product with exposing the skin to the heat source of
this product or AC adaptor for a long period of time can cause a
low-temperature burn.
Do not place the computer near a television or radio receiver.
Keep the computer away from magnets. Data stored on the
hard disk may be lost.
Interface Cable
Use of an interface cable longer than 3 m (9.84 feet) is not
recommended.
11-E-1
Page 8
8
Getting Started
Read Me First
Precautions (Battery Pack)
Do Not Use With Any Other Product
The battery pack is rechargeable and was intended for the
specifi ed product. If it is used with a product other than the one
for which it was designed, electrolyte leakage, generation of
heat, ignition or rupture may result.
Do Not Charge the Battery Using Methods Other Than
Those Specifi ed
If the battery is not charged using one of the specifi ed methods,
electrolyte leakage, generation of heat, ignition or rupture may
result.
Do Not Throw the Battery Pack Into a Fire or Expose It to
Excessive Heat
Generation of heat, ignition or rupture may result.
Avoid Extreme Heat (Near the Fire, In Direct Sunlight, for
Example)
Electrolyte leakage, generation of heat, ignition or rupture may
result.
Do Not Insert Sharp Objects Into the Battery Pack, Expose
It to Bumps or Shocks, Disassemble, or Modify It
Electrolyte leakage, generation of heat, ignition or rupture may
result.
If this product is subjected to a strong impact, stop using it im-
mediately.
Do Not Short the Positive (+) and Negative (-) Contacts
Generation of heat, ignition or rupture may result.
Do not place the battery pack together with articles such
as necklaces or hairpins when carrying or storing.
Do Not Use This Product with a Battery Pack Other Than
the One Specifi ed
Use only the specifi ed battery pack (CF-VZSU46U) with your
product. Use of battery packs other than those manufactured
and supplied by Panasonic may present a safety hazard (generation of heat, ignition or rupture).
When the battery pack has become degraded, replace it
with a new one
Continued use of a damaged battery pack may result in heat
generation, ignition or battery rupture.
Do not touch the terminals on the battery pack. The battery
pack may no longer function properly if the contacts are dirty
or damaged.
Do not expose the battery pack to water, or allow it to be-
come wet.
If the battery pack will not be used for a long period of time (a
month or more), charge or discharge (use) the battery pack
until the remaining battery level becomes 30% to 40% and
store it in a cool, dry place.
This computer prevents overcharging of the battery by re-
charging only when the remaining power is less than approx.
95% of capacity.
The battery pack is not charged when the computer is fi rst
purchased. Be sure to charge it before using it for the fi rst
time. When the AC adaptor is connected to the computer,
charging begins automatically.
Should the battery leak and the fl uid get into your eyes, do
not rub your eyes. Immediately fl ush your eyes with clear
water and see a doctor for medical treatment as soon as
possible.
CAUTION:
Risk of Explosion if Battery is replaced by an Incorrect
Type.
Dispose of Used Batteries According to the Instructions.
58-E-1
NOTE
The battery pack may become warm during recharging or
normal use. This is completely normal.
Recharging will not commence if internal temperature of the
battery pack is outside of the allowable temperature range (0
°C to 50 °C).
(
Reference Manual “Battery Power”) Once the allow-
able range requirement is satisfi ed, charging begins auto-
matically. Note that the recharging time varies based on the
usage conditions. (Recharging takes longer than usual when
the temperature is 10 °C or below.)
If the temperature is low, the operating time is shortened.
Only use the computer within the allowable temperature
range.
This computer has a high temperature mode function that
prevents the degradation of the battery in high temperature
environments. (
level corresponding to a 100% charge for high temperature
mode is approximately equivalent to an 80% charge level for
normal temperature mode.
The battery pack is a consumable item. If the amount of
time the computer can be run by using a particular battery
pack becomes dramatically shorter and repeated recharging
does not restore its performance, the battery pack should be
replaced with a new one.
When transporting a spare battery inside a package, brief-
case, etc., it is recommended that it be placed in a plastic
bag so that its contacts are protected.
Always power off the computer when it is not in use. Leaving
the computer on when the AC adaptor is not connected will
exhaust the remaining battery capacity.
Reference Manual “Battery Power”) A
Page 9
9
Getting Started
Description of Parts
D
E
A
F
G
H
I
O
Q
L
M
M
M
N
P
J
K
EX
PC
A: Bluetooth Antenna
<Only for model with Bluetooth>
Reference Manual “Bluetooth”
B: ExpressCard Slot
Reference Manual “PC Card / ExpressCard”
C: PC Card Slot
Reference Manual “PC Card / ExpressCard”
D: Multimedia Pocket
Reference Manual “Multimedia Pocket”
E: SIM Card slot
page 11 “Inserting a SIM Card”
F: Battery Pack
Specifi ed Battery pack: CF-VZSU46U
G: Wireless WAN antenna
<Only for model with wireless WAN>
H: Wireless LAN Antenna
<Only for model with wireless LAN>
Reference Manual “Wireless LAN”
I: LCD
<Only for model with touchscreen>
Reference Manual “Touchscreen”
J: Function Key
Reference Manual “Key Combinations”
K: Keyboard
L: Touch Pad
M: LED Indicator
: Caps lock
: Numeric key (NumLk)
: Scroll lock (ScrLk)
: Multimedia pocket device status or the second
battery status
Reference Manual “Multimedia Pocket”
“Battery Power”
: Hard disk drive status
: Power status of the multimedia pocket
: Battery status
Reference Manual “Battery Power”
: Power status
(Off: Power off/Hibernation, Green: Power on,
Blinking green: Sleep/
Standby, Blinking green rapidly: Cannot power on
or resume due to low temperature.)
: Wireless ready
This indicator lights when Wireless LAN, Bluetooth, and/or Wireless WAN are connected and
ready. It does not necessarily indicate the On/Off
condition of the wireless connection.
Reference Manual “Wireless LAN” “Blue-
tooth” “Disabling/Enabling Wireless Communication”
: Wireless WAN status
<Only for model with wireless WAN>
Refer to the instruction manual of the wireless device
N: Power Switch
O: Wireless Switch
Reference Manual “Disabling/Enabling Wireless
Communication”
P: Carrying Handle
Q: Stylus Holder
Page 10
10
Getting Started
Q
R
Description of Parts
Right side
ABC D FE G H I
1394
Rear side Bottom
J K M N O PLH
A: Hard Disk Drive
Reference Manual “Hard Disk Drive”
B: SD Memory Card Slot
Reference Manual “SD Memory Card”
C: SD Memory Card Indicator
(Blinking: During access)
Reference Manual “SD Memory Card”
D: IEEE 1394 Interface Connector
Reference Manual “IEEE 1394 Devices”
E: Smart Card Slot
<Only for model with Smart Card slot>
Reference Manual “Smart Card”
F: Modem Port
Reference Manual “Modem”
G: LAN Port
Reference Manual “LAN”
H: USB Port
Reference Manual “USB Devices”
I: DC-IN Jack
J: Security Lock
A Kensington cable can be connected.
For further information, read the manual that comes
with the cable.
K: External Antenna Connector
L: Expansion Bus Connector
Reference Manual “Port Replicator / Car
Mounter”
M: External Display Port
Reference Manual “External Display”
N: Headphone Jack
You can connect headphones or amplifi ed speakers.
When they are connected, audio from the internal
speakers is not heard.
O: Microphone Jack
A condenser microphone can be used. If other types
of microphones are used, audio input may not be possible, or malfunctions may occur as a result.
When recording in stereo using a stereo microphone:
Click (Start) - [Control Panel] - [Hardware and
Sound] - [Sound] - [Recording] - [Microphone] - [Prop-
erties], and then remove a check mark of [Enable Audio
Enhancements] in [Advanced].
Click [start] - [All Programs] - [SoundMAX] - [Control
Panel] and select [Microphone], and then add a check
mark for [No Filtering] in [Microphone Enhancements].
When using a monaural microphone with a 2-terminal plug:
Click (Start) - [Control Panel] - [Hardware and
Sound] - [Sound] - [Recording] - [Microphone] - [Prop-
erties], and then add a check mark for [Enable Audio
Enhancements] in [Advanced].
Click [start] - [All Programs] - [SoundMAX] - [Control Panel] and select [Microphone], and then add a check mark
for [Voice Recording] in [Microphone Enhancements].
Otherwise, only audio on the left track will be recorded.
P: Serial Port
Q: RAM Module Slot
Reference Manual “RAM Module”
R: Speaker
Reference Manual “Key Combinations”
Page 11
11
Getting Started
To ensure waterproof integrity, close the connector covers completely. When
closing the covers, push the 4 corners and make sure that the cover fi ts in com-
pletely. (The illustration is an example.)
This computer contains a magnet and magnetic products at the locations
circled in the illustration at right. Avoid leaving metallic object or magnetic media in contact with these areas.
Inserting a SIM Card
SIM Card
Contact
Open the cover.
A
Inset the SIM card into the SIM card slot with the contact side facing
B
downward and with the cut corner oriented as shown in the illustration.
CAUTION
Do not inset the SIM card upside down.
Close the cover.
C
Page 12
12
Getting Started
Description of Parts
Attaching the stylus to the computer (only for model with touchscreen)
Use the tether to attach the stylus to the computer so you will not lose it.
There are holes (A) to attach it.
1
2
3
4
Page 13
13
Getting Started
1
3
5
1
2
4
First-time Operation
Preparation
Check and identify the supplied accessories.
A
If you do not fi nd the described accessories, contact Panasonic Technical Support.
• AC Adaptor . . . . . 1
• AC Cord . . . . . . . 1 • Battery Pack . . . 1
Model No: CF-AA1653A
Model No: CF-VZSU46U
<Only for model with touchscreen>
• Soft Cloth . . . . . . 1 • Tether . . . . . . . . . 1 • Stylus . . . . . . . . . 1
( Reference Manual “Touchscreen”
• Operating Instructions (This book) . . . . . . . . . . . . . . . . . . . . . .1
• Product Recovery DVD-ROM Windows
®
7 Professional
)
<For localized OS model> . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
<For MUI OS model> . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
• Product Recovery DVD-ROM Windows® XP Professional . . . .1
Read the LIMITED USE LICENSE AGREEMENT before breaking the seal on the computer’s packaging
B
( page 31).
1 Inserting the Battery Pack
Slide the latch (A) to the right to unlock the cover.
A
Slide the latch (A) down, and open the cover.
B
Insert the battery pack until it securely fi ts the connector.
C
Close the cover until it clicks.
D
Slide the latch (B) to the left to lock the cover.
E
CAUTION
Make sure the latch is securely locked. Otherwise the battery pack may fall
when you carry the computer.
Do not touch the terminals of the battery pack and the computer. Doing so can
make the terminals dirty or damaged, and may cause malfunction of the battery
pack and the computer.
NOTE
Note that the computer consumes electricity even when the computer power is
off. If the battery pack is fully charged, the battery will fully discharge in the following period of time:
• When power is off: Approx. 7 weeks
• In sleep (
• In hibernation: Approx. 4 days
*1
If “Wake Up from wired LAN” is disabled, the period of time will be longer.
*2
If “Wake Up from wireless LAN” is enabled, the period of time will be shorter.
When the DC plug is not connected to the computer, disconnect the AC cord
from your AC wall outlet. Power is consumed simply by having the AC adaptor
)/standby ( ): Approx. 3 days
*1 *2
*1 *2
plugged into an electrical outlet.
Power consumption in each mode is as follows. (When AC adaptor is connected)
• When the screen is off: Approx. 12.5
• In sleep ( )/standby ( ): Approx. 2.3
• The battery pack is fully charged (or not being charged) and the computer is
off: Approx. 0.9
W
W
W
Page 14
14
Getting Started
4
1
First-time Operation
2
2
1
3
2 Opening the Display
Pull the carrying handle forward.
A
Push and hold the latch (A), and lift open the display.
B
3 Connect your computer to a power outlet.
The battery charging starts automatically.
CAUTION
Do not disconnect the AC adaptor and do not switch the wireless switch to on
until the fi rst-time operation procedure is completed.
When using the computer for the fi rst time, do not connect any peripheral device
except the battery pack and AC adaptor.
Handling the AC adaptor
Problems such as sudden voltage drops may arise during periods of thunder
and lightning. Since this could adversely affect your computer, an uninterruptible power source (UPS) is highly recommended unless running from the
battery pack alone.
4 Turn on the computer.
Slide and hold the power switch
A
power indicator
CAUTION
Do not slide the power switch repeatedly.
The computer will forcibly be turned off if you slide and hold the power switch for
4 seconds or longer.
Once you turn off the computer, wait for 10 seconds or more before you turn on
the computer again.
Do not perform the following operation until the hard disk drive indicator turns off.
Connecting or disconnecting the AC adaptor
Sliding the power switch
Touching the keyboard, touch pad or touchscreen (only for model with touchscreen)
Closing the display
Turn on/off the wireless switch
When the CPU temperature is high, the computer may not start up to prevent
overheating of the CPU. Wait until the computer cools down, and then turn the
power on again. If the computer does not power on even after cooling down,
contact Panasonic Technical Support.
Any changes from the default setting of the Setup Utility must not be made until
the First-time Operation is completed.
lights.
for approximately 1 second until the
Page 15
15
Getting Started
5 Setup Windows.
Follow the on-screen instructions.
Touch screen operation cannot be used until the “Setup Windows” procedure
is completed.
Use the external keyboard and mouse.
After the computer is turned on, the screen remains black or unchanged for
a while, but this is not a malfunction. Wait for a moment until the Windows
setup screen appears.
During setup of Windows, use the touch pad and clicking to move the cursor
and to click an item.
Do not change the settings on the screen where you select a country or re-
gion. You can set a country, region or keyboard layout in [Clock, Language,
and Region] of [Control Panel] after the Windows setup is complete.
Setup of Windows will take approximately 20 minutes. Go to the next step,
confi rming each message on the display.
<For MUI OS model>
Select OS language on “Setup Windows” screen and click [Next].
Carefully choose your language because you cannot change it later. If you
set a wrong language, you need to reinstall Windows (
Restart the computer.
Restarting will take approximately 10 minutes.
For some languages, the characters on the key and inputted character may
not match. Set the keyboard properly after the setup is complete. Then set
the password.
CAUTION
You cannot choose the following words for user name and password: CON,
PRN, AUX, CLOCK$, NUL, COM1 to COM9, LPT1 to LPT9.
Do not use an “@” mark for user name and password.
page 24).
A password will be requested at the log-on screen, even if no password has
been set. If you try to log on without entering a password, “The user name or
password is incorrect.” is displayed and you will not be able to log on to Windows ( page 29).
You can change the user name, password, image, Wireless Networks
( ) and security setting ( ) after setup of Windows.
Remember your password. If you forget the password, you cannot use the Win-
dows. Creating a password reset disk beforehand is recommended.
The wallpaper for the fi rst logon user has already been set on step “5 Setup
Windows.” .
When using this computer under the Sun, the screen becomes easily viewable
by changing the wallpaper to the white wallpaper.
Right-click on the desktop, and click [Personalize] - [Desktop Background].
A
Select [Solid Colors] at [Picture Location].
B
Select the white wallpaper and click [Save changes].
C
<For MUI OS model>
When setting up the keyboard, choose the appropriate one to your computer.
Otherwise, input by the keyboard may become unavailable.
When you set date/time/time zone and click [Next], the screen may not go to the
next step for a few minutes. Do not touch the keyboard or touch pad, and wait
until the screen changes.
If “An unexpected error has occurred ...” (or a similar message) is displayed,
click [OK]. This is not a malfunction.
Wait until the hard disk drive indicator
<For MUI OS model>
The keyboard will operate as the US keyboard until the keyboard setting is
changed. Because of this, some alphabets shown on display may differ from
inputted ones.
To avoid the accidental selections, during setting up Windows,
has turned off.
Page 16
16
Getting Started
First-time Operation
To match the languages, change the language settings after setting up Windows
6 <For MUI OS model>
Install Adobe Reader.
NOTE
Install Adobe Reader to read the Important Tips and the Reference Manual.
Use the touch pad to make some selections.
Press the NumLock key and input in the Ten-key mode to input numbers.
( below). Do not change the settings in [To change system or these settings,
click Customize] of [Regional and Language Options] during setting up Windows.
Click
press
Click [start] - [Run], input the following, then click [OK].
English: [c:\util\reader\m\setup.exe]
Arabic: [c:\util\reader\ar\setup.exe]
Bulgarian: [c:\util\reader\bg\setup.exe]
Chinese (Simplifi ed): [c:\util\reader\sc\setup.exe]
Chinese (Traditional): [c:\util\reader\tc\setup.exe]
Croatian: [c:\util\reader\yx\setup.exe]
Czech: [c:\util\reader\cs\setup.exe]
Danish: [c:\util\reader\da\setup.exe]
Dutch: [c:\util\reader\nl\setup.exe]
Estonian: [c:\util\reader\et\setup.exe]
Finnish: [c:\util\reader\fi \setup.exe]
French: [c:\util\reader\f\setup.exe]
German: [c:\util\reader\g\setup.exe]
Greek: [c:\util\reader\el\setup.exe]
Hebrew: [c:\util\reader\he\setup.exe]
Hungarian: [c:\util\reader\hu\setup.exe]
Italian: [c:\util\reader\t\setup.exe]
Japanese: [c:\util\reader\ja\setup.exe]
Korean: [c:\util\reader\ko\setup.exe]
Latvian: [c:\util\reader\lv\setup.exe]
Lithuanian: [c:\util\reader\lt\setup.exe]
Norwegian: [c:\util\reader\no\setup.exe]
Polish: [c:\util\reader\pl\setup.exe]
Portuguese: [c:\util\reader\pt\setup.exe]
Romanian: [c:\util\reader\ro\setup.exe]
Russian: [c:\util\reader\ru\setup.exe]
Slovak: [c:\util\reader\sk\setup.exe]
Slovenian: [c:\util\reader\sl\setup.exe]
Spanish: [c:\util\reader\p\setup.exe]
Swedish: [c:\util\reader\s\setup.exe]
Turkish: [c:\util\reader\tr\setup.exe]
(Start) and input the following in [Search programs and fi les], then
Enter
.
Ukranian: [c:\util\reader\uk\setup.exe]
7 <For MUI OS model>
Change the language settings.
<Languages installed in this computer>
·English ·Arabic ·Bulgarian ·Chinese (Simplifi ed)
·Chinese (Traditional) ·Croatian ·Czech ·Danish ·Dutch
·Estonian ·Finnish ·French ·German ·Greek ·Hebrew
·Hungarian ·Italian ·Japanese ·Korean ·Latvian ·Lithuanian
·Norwegian ·Polish ·Portuguese ·Portuguese (Brazilian) ·Romanian
·Russian ·Slovak ·Slovenian ·Spanish ·Swedish ·Thai
·Turkish
Page 17
17
Getting Started
Change the language settings in the following menu.
[start] - [Control Panel] - [Date, Time, Language, and Regional Options] - [Regional
and Language Options]
[Regional Options] - [Standards and Formats]
[Languages] - [Language used in menus and dialogs]
[Languages] - [Details] - [Default input language]
[Advanced] - [Language for non-unicode Programs]
NOTE
When you use MUI OS and localized OS versions together on the same net-
work, use English computer names on localized versions of Windows.
Some UI (User Interface) strings remain in English even if the user’s UI is set to
another language.
For further information, refer to “c:\windows\mui\relnotes.txt”.
If you change the language in [Languages] - [Language used in menus and dia-
logs], the desktop color will be changed when logging on to Windows next time.
The desktop color can be changed by following the procedure below.
Click [start] - [Control Panel] - [Appearance and Themes] - [Display] - [Desktop]
and select color from [Color], then click [OK].
8 <Only for model with touchscreen>
Perform the touchscreen calibration.
Before performing the calibration, close Tablet PC Input Panel.
NOTE
At fi rst, log on to Windows as an administrator, and perform this calibration.
Click
A
ting].
Click [Calibrate...].
B
Using the stylus, touch each of the 16 “+” target marks one by one.
C
NOTE
Perform the following calibration for each user.
Click
A
ting].
Click [Calibrate...].
B
Using the stylus, touch each of the 4 “+” target marks one by one, and then
C
click [Yes].
Perform the calibration for the orientation to be used.
Click [start] - [All Programs] - [Fujitsu Touch Panel (USB)] - [Touch Screen
A
Calibration Utility].
Using the stylus, touch each of the 12 “+” target marks one by one until it
B
blinks, and then press
Press
C
(Start) - [Control Panel] - [Hardware and Sound] - [Tablet PC Set-
(Start) - [Control Panel] - [Hardware and Sound] - [Tablet PC Set-
.
Enter
Enter
.
9 Create a new account.
Click [start] - [Control Panel] - [User Accounts] - [Create a new account].
CAUTION
Remember your password. If you forget the password, you cannot use the Win-
dows operating system. Creating a password reset disk beforehand is recom-
mended.
Page 18
18
Getting Started
First-time Operation
NOTE
PC Information Viewer
This computer periodically records the management information including the hard disk information, etc. The maximum
data volume for each record is 1024 bytes. This information is only used for estimating the cause when the hard disk
goes down by any possibility. They are never sent to outside via network nor used for any other purpose except for the
purpose described the above.
To disable the function, add the check mark for [Disable the automatic save function for management information history]
in [Hard Disk Status] of PC Information Viewer, and click [OK].
(
Reference Manual “Checking the Computer’s Usage Status”)
Precaution against Starting Up/Shutting Down
Do not do the following
Connecting or disconnecting the AC adaptor
Sliding the power switch
Touching the keyboard, touch pad, touchscreen (only for model with touchscreen), or external mouse
Closing the display
Turn on/off the wireless switch
NOTE
To conserve power, the following power saving methods are set at the time of purchase.
The screen automatically turns off after 15 minutes of inactivity.
The computer automatically enters sleep*3( )/standby*3( ) after 20 minutes of inactivity.
*3
Refer to Reference Manual “Sleep or Hibernation Functions” ( )/“Standby or Hibernation Func-
tions” ( ) about resuming from sleep.
Precaution against Logging on to Windows
Do not log on to Windows by the Guest account.
Note about access to the hard disk
<For MUI OS model>
Languages other than the one selected at Windows Setup are uninstalled in the background while the computer stays
idle.
During this period of time, the following issues may occur. These are caused by the specifi cations of Windows 7 and
are not a malfunction.
The uninstall process may continue for approximately 3 hours, during which time the computer may become un-
responsive due to a continuous access to the hard disk, etc. You can restart or shutdown the computer during the
process.
The message “Confi guring Windows features, preparing to confi gure Windows” may appear for up to about 20 min-
utes when shutting down or starting up the computer (including restart). Wait for the computer to shut down or start
up normally.
Once the message is no longer displayed, follow the steps below to delete all but the most recent restore point. If you
do not delete the restore points, the system fi les for languages other than the one selected will remain on the disk as
backup data for the restore points, and the operation of the computer may become unresponsive.
Click (Start). And input “cleanmgr.exe” in [Search programs and fi les], and then, in the list of results, click
A
[cleanmgr.exe].
After a while, the “Disk Clean up for” setting screen appears.
B
Click [Clean up system fi les] - [More Options] - [System Restore and Shadow Copies] - [Clean up] - [Delete] - [OK]
- [Delete Files].
Restart the computer.
C
To set the screen saver
When setting the screen saver, perform the following steps to select a standard Windows screen saver.
However, do not select the [3D Text] or [Blank] screen saver.
Right-click any blank area on the desktop, and click [Personalize].
A
Click [Screen Saver].
B
Select any [Screen Saver] option other than [3D Text] and [Blank], and click [OK].
C
If you select [3D Text] or [Blank], the computer may not transition properly into sleep mode or hibernation mode while
the screen saver is active, due to incompatibilities with Windows 7. In addition, the computer may not resume from
sleep mode or hibernation mode even when the power switch and keys are operated.
Page 19
19
Getting Started
In such cases, you will have to force shutdown by pressing and holding the power switch for four seconds or more, losing any unsaved data in the process.
To change the partition structure
You can shrink a part of an existing partition to create unallocated disk space, from which you can create a new partition. This computer has a single partition in the default setting.
Click
A
Click [Disk Management].
B
Right-click the partition for Windows (“c” drive in the default setting), and click [Shrink Volume].
C
Input the size in [Enter the amount of space to shrink in MB] and click [Shrink].
D
Right-click [Unallocated] (the shrunk space in the step D) and click [New Simple Volume].
E
Follow the on-screen instructions to make the settings, and click [Finish].
F
Wait until formatting is completed.
NOTE
You can create an additional partition using remaining unallocated space or newly creating unallocated space.
To delete a partition, right-click the partition and click [Delete Volume] in the step C.
(Start) and right-click [Computer], then click [Manage].
A standard user needs to enter an administrator password.
The partition size depends on the computer specifi cations.
You cannot input a larger number than the displayed size.
Page 20
20
Useful Information
On-screen Manual
You can access the Reference Manual and the Important Tips on the computer screen.
When you access the Reference Manual and the Important Tips for the fi rst time, the License Agreement of the Adobe
Reader may be displayed. Read it carefully and select [Accept] to proceed.
Reference Manual
The Reference Manual contains the practical information to help you fully enjoy the computer’s performance.
To access the Reference Manual:
Double-click on the desktop.
Alternatively click (Start) - [All Programs] - [Panasonic] - [On-Line Manuals] - [Reference Manual].
Click [start] - [Reference Manual].
NOTE
The Windows fi les included in the Windows 7 DVD-ROM are contained in the following folders:
<For localized OS model>
c:\windows\support\migwiz, c:\windows\support\tools, c:\windows\support\logging
<For MUI OS model>
Some languages are not available depending on the model.
English c:\windows\support\en\migwiz, c:\windows\support\en\tools, c:\windows\support\en\logging
Dutch c:\windows\support\nl\migwiz, c:\windows\support\nl\tools, c:\windows\support\nl\logging
Finnish c:\windows\support\fi \migwiz, c:\windows\support\fi \tools, c:\windows\support\fi \logging
French c:\windows\support\fr\migwiz, c:\windows\support\fr\tools, c:\windows\support\fr\logging
German c:\windows\support\de\migwiz, c:\windows\support\de\tools, c:\windows\support\de\logging
Italian c:\windows\support\it\migwiz, c:\windows\support\it\tools, c:\windows\support\it\logging
Norwegian c:\windows\support\no\migwiz, c:\windows\support\no\tools, c:\windows\support\no\logging
Russian c:\windows\support\ru\migwiz, c:\windows\support\ru\tools, c:\windows\support\ru\logging
Spanish c:\windows\support\es\migwiz, c:\windows\support\es\tools, c:\windows\support\es\logging
Swedish c:\windows\support\sv\migwiz, c:\windows\support\sv\tools, c:\windows\support\sv\logging
Turkish c:\windows\support\tr\migwiz, c:\windows\support\tr\tools, c:\windows\support\tr\logging
Arabic c:\windows\support\ar\migwiz, c:\windows\support\ar\tools, c:\windows\support\ar\logging
Bulgarian c:\windows\support\bg\migwiz, c:\windows\support\bg\tools, c:\windows\support\bg\logging
Chinese -Hong Kong c:\windows\support\b3\migwiz, c:\windows\support\b3\tools, c:\windows\support\b3\logging
Chinese -Simplifi ed c:\windows\support\xt\migwiz, c:\windows\support\xt\tools, c:\windows\support\xt\logging
Chinese -Traditional c:\windows\support\zh\migwiz, c:\windows\support\zh\tools, c:\windows\support\zh\logging
Croatian c:\windows\support\yx\migwiz, c:\windows\support\yx\tools, c:\windows\support\yx\logging
Czech c:\windows\support\cs\migwiz, c:\windows\support\cs\tools, c:\windows\support\cs\logging
Danish c:\windows\support\da\migwiz, c:\windows\support\da\tools, c:\windows\support\da\logging
Estonian c:\windows\support\et\migwiz, c:\windows\support\et\tools, c:\windows\support\et\logging
Greek c:\windows\support\el\migwiz, c:\windows\support\el\tools, c:\windows\support\el\logging
Hebrew c:\windows\support\iw\migwiz, c:\windows\support\iw\tools, c:\windows\support\iw\logging
Hungarian c:\windows\support\hu\migwiz, c:\windows\support\hu\tools, c:\windows\support\hu\logging
Japanese c:\windows\support\ja\migwiz, c:\windows\support\ja\tools, c:\windows\support\ja\logging
Korean c:\windows\support\ko\migwiz, c:\windows\support\ko\tools, c:\windows\support\ko\logging
Latvian c:\windows\support\lv\migwiz, c:\windows\support\lv\tools, c:\windows\support\lv\logging
Lithuanian c:\windows\support\lt\migwiz, c:\windows\support\lt\tools, c:\windows\support\lt\logging
Polish c:\windows\support\pl\migwiz, c:\windows\support\pl\tools, c:\windows\support\pl\logging
Portuguese c:\windows\support\pt\migwiz, c:\windows\support\pt\tools, c:\windows\support\pt\logging
Portuguese (Brazilian) c:\windows\support\xc\migwiz, c:\windows\support\xc\tools, c:\windows\support\xc\logging
Romanian c:\windows\support\ro\migwiz, c:\windows\support\ro\tools, c:\windows\support\ro\logging
Serbian c:\windows\support\st\migwiz, c:\windows\support\st\tools, c:\windows\support\st\logging
Slovak c:\windows\support\sk\migwiz, c:\windows\support\sk\tools, c:\windows\support\sk\logging
Slovenian c:\windows\support\sl\migwiz, c:\windows\support\sl\tools, c:\windows\support\sl\logging
Thai c:\windows\support\th\migwiz, c:\windows\support\th\tools, c:\windows\support\th\logging
Ukrainian c:\windows\support\uk\migwiz, c:\windows\support\uk\tools, c:\windows\support\uk\logging
Page 21
21
Useful Information
Important Tips
The Important Tips will provide you with the battery information so that you can use the battery pack in the optimum
condition to obtain longer operation time.
To access the Important Tips:
Double-click on the desktop.
Alternatively click (Start) - [All Programs] - [Panasonic] - [On-Line Manuals] - [Important Tips].
Double-click on the desktop.
Alternatively click [start] - [All Programs] - [Panasonic] - [On-Line Manuals] - [Important Tips].
NOTE
When Adobe Reader update notice is displayed, we recommend you follow the on-screen procedure and update.
See http://www.adobe.com/ for the latest version of Adobe Reader.
CAUTION
Do not remove a check mark for [IntelliMouse Wheel mode] in [Scroll Confi guration] of [Touch Pad] in [Mouse] of
[Control Panel]. The Adobe Reader scrolling function may not work correctly.
Page 22
22
Useful Information
Handling and Maintenance
Operation environment
Place the computer on a fl at stable surface. Do not place the computer upright or turn it over. If the computer is
exposed to an extremely strong impact, it may become inoperable.
Temperature: Operation : 5 °C to 35 °C
Storage : -20 °C to 60 °C
Humidity: Operation : 30% to 80% RH (No condensation)
Storage : 30% to 90% RH (No condensation)
Even within the above temperature/humidity ranges, using for a long time in an extreme environment will result in
the product deterioration and will shorten the product life.
Do not place the computer in the following areas, otherwise the computer may be damaged.
Near electronic equipment. Image distortion or noise may occur.
In extremely high or low temperature.
As the computer can become hot during operation, keep it away from items that are sensitive to heat.
Handling cautions
This computer is designed to minimize shock to parts such as the LCD and the hard disk drive and equipped with a
drip-proof keyboard, but no warranty is provided against any trouble caused by shock. Be extremely careful when handling the computer.
When carrying the computer:
Turn off the computer.
Remove all external devices, cables, PC Cards and other protruding things.
Remove a disc in the CD/DVD drive.
Do not drop or hit the computer against solid objects.
Do not leave the display open.
Do not grip the display part.
Do not put anything (e.g., a piece of paper) between the display and keyboard.
When you board an airplane, take the computer with you and never put it in your checked luggage. When using the
computer on airplane, follow the airline’s instructions.
When carrying a spare battery, put it in a plastic bag to protect its terminals.
The touch pad is designed to be used with a fi nger tip. Do not place any object on its surface and do not press
down strongly with sharp-pointed or hard objects that may leave marks (e.g., nails, pencils and ball point pens).
Avoid any harmful substances such as oil from getting into the touch pad. The cursor may not work correctly.
Be careful not to get injured by dropping down or getting hit when carrying the computer.
<Only for model with touchscreen>
Use only the included stylus to touch the touchscreen. Do not place any object on its surface and do not press
down strongly with sharp-pointed or hard objects that may leave marks (e.g., nails, pencils and ball point pens).
Do not use the stylus when dust or dirt (e.g., oil) is on the screen. Otherwise foreign particles on the screen/stylus
can scratch the screen surface or obstruct the stylus operation.
Use the stylus only for touching the screen. Using it for any other purpose may damage the stylus and result in
scratches on the screen.
When using peripheral devices
Follow these instructions and the Reference Manual to avoid any damage to the devices. Carefully read the instruction
manuals of the peripheral devices.
Use the peripheral devices conforming to the computer’s specifi cations.
Connect to the connectors in the correct direction.
If it is hard to insert, do not try forcibly but check the connector’s shape, direction, alignment of pins, etc.
If screws are included, fasten them securely.
Remove the cables when you carry the computer. Do not pull the cables forcibly.
Page 23
23
Useful Information
Preventing your computer from unauthorized use via wireless LAN/Bluetooth/wireless WAN
<Only for model with wireless LAN/Bluetooth/wireless WAN>
Before using wireless LAN/Bluetooth/wireless WAN, make the appropriate security settings such as data encryp-
tion.
Maintenance
To clean the LCD panel
<Only for model with touchscreen>
Use the soft cloth included with the computer. (For further information, refer to “Suggestions About Cleaning the LCD
Surface” that comes with the soft cloth.)
<Only for model without touchscreen>
Wipe with a soft dry cloth such as gauze.
To clean areas other than the LCD panel
Wipe with a soft dry cloth such as gauze. When using detergent, dip a soft cloth in water-diluted detergent and wring it
thoroughly.
CAUTION
Do not use benzene, thinner, or rubbing alcohol since it may adversely affect the surface causing discoloration, etc.
Do not use commercially-available household cleaners and cosmetics, as they may contain components harmful to
the surface.
Do not apply water or detergent directly to the computer, since liquid may enter inside of the computer and cause
malfunction or damage.
Page 24
24
Useful Information
Reinstalling Software
Area usable by Windows
Hard disk
Partition with boot files
(approximately 300 MB)
Reinstalling software will return the computer to the default condition. When you reinstall the software, the hard disk
data will be erased.
Back up important data to other media or an external hard disk before reinstallation.
CAUTION
Do not delete the partition with boot fi les on the hard disk.
The disk space in the partition is not available to store data.
Preparation
Prepare the following items:
The Product Recovery DVD-ROM (included)
Panasonic CD/DVD drive (optional)
Remove all peripherals (except for the CD/DVD drive).
Connect the AC adaptor and do not remove it until reinstallation is complete.
NOTE
<For MUI OS model>
To input numbers, press the NumLock key and input in the Ten-key mode.
For German keyboard, press
Bluetooth™ is not capable.
when you need to press Y.
Z
1 Turn off the computer and insert the CD/DVD drive into the multimedia pocket
(
When reinstalling Windows XP from Windows 7:
A
B
C
D
E
F
G
H
I
J
K
2 Turn on the computer, and press F2 or
The Setup Utility starts up.
Reference Manual “Multimedia Pocket”).
Turn on the computer, and press
Set the Product Recovery DVD-ROM for Windows 7 into the CD/DVD drive.
Select the [Exit] menu, then select [UIDA760 DVD/CDRW] or [MATSHITADVD-RAM UJ-8415] in [Boot Over-
ride].
Press
Select [Run “System Recovery Options.”], and click [Next].
Click [Next], and then click [Next].
Select [Command Prompt].
Enter “e:\util\recovery\BscBluet.exe /ON” and press
Enter “exit” and press
Remove the Product Recovery DVD-ROM for Windows 7 from the CD/DVD drive.
Click [Shut Down] in [System Recovery Options] to turn off the computer.
If the password is requested, enter the Supervisor Password.
Enter
.
Enter
to quit [Command Prompt].
F2
or
while [Panasonic] boot screen is displayed.
Del
Enter
while [Panasonic] boot screen is displayed.
Del
. (In this case, CD/DVD drive is assigned to “e:”.)
3 Write down all of the contents of the Setup Utility and press F9.
At the confi rmation message, select [Yes] and press
4 Press
At the confi rmation message, select [Yes] and press
Computer will restart.
5 Press F2 or
The Setup Utility starts up.
If the password is requested, enter the Supervisor Password.
F10
.
while [Panasonic] boot screen is displayed.
Del
Enter
Enter
.
.
6 Set the Product Recovery DVD-ROM into the CD/DVD drive.
7 Select the [Exit] menu, then select [UJDA760 DVD/CDRW] or [MATSHITADVD-RAM UJ-
841S] in [Boot Override].
8 Press
The computer will restart.
Enter
.
Page 25
25
Useful Information
9 Click [Reinstall Windows] and click [Next].
The License Agreement screen appears.
10 Click [Yes, I agree to the provisions above and wish to continue!] and click [Next].
11 Select the settings and click [Next].
[Reinstall Windows to the whole Hard Disk to factory default.]
You will have two partitions.
[Reinstall to the fi rst 2 partitions.]
Select this option when the hard disk has already been divided into several partitions. For how to create a
new partition, refer to “To change the partition structure” ( page 19).
You can keep the partition structure.
*1
This does not appear if Windows cannot be reinstalled to the partition containing boot fi les and the area us-
able by Windows.
*1
.
When reinstalling Windows 7 from Windows XP:
Click [Next].
12 At the confi rmation message, click [YES].
Reinstallation starts according to the instructions on the screen. (It will take approximately 60 - 120 minutes.)
Do not interrupt reinstallation, for example by turning off the computer or pressing
erwise reinstallation may become unavailable as Windows may not start up or the data may be corrupted.
According to the instruction on the screen, switch Product Recovery DVD-ROM Windows 7.
Ctrl
+
Alt
+
Del
. Oth-
13 Remove the Product Recovery DVD-ROM, and then click [OK] to turn off the computer.
14 Turn on the computer.
If the password is requested, enter the Supervisor Password.
15 Perform the “First-time Operation” ( page 14).
16 Start the Setup Utility and change the settings as necessary.
17 Perform Windows Update.
9 Press 1 to execute [1. [Recovery]].
The License Agreement screen appears.
To cancel partway, press
.
0
10 Press 1 to select [1. Yes, I agree to the provisions above and wish to continue!].
11 Select the settings.
[2]: Enter the size of operating system partition and press
(The size of data partition will be determined by subtracting the operating system partition size from the
maximum size.)
[3]: Windows will be installed in the fi rst partition.
(The size of the fi rst partition must be 30 GB or more. If smaller, installation will not be possible.)
At the confi rmation message, press Y.
Reinstallation starts automatically. (It will take approximately 30 - 75 minutes.)
Do not interrupt reinstallation, for example by turning off the computer or pressing
erwise reinstallation may become unavailable as Windows may not start up or the data may be corrupted.
Enter
.
+
Ctrl
Alt
+
Del
. Oth-
12 Remove the Product Recovery DVD-ROM, and then press any key to turn off the com-
puter.
If additional instructions are included with the computer, be sure to read them. It may be necessary to perform
additional operations during the following procedure.
13 Turn on the computer.
If the password is requested, enter the Supervisor Password.
14 Perform the “First-time Operation” ( page 14).
15 Start the Setup Utility and change the settings as necessary.
Page 26
Reinstalling Software
To change the drive letter of hard disk or CD/DVD drive
NOTE
Drive letters of hard disk can be changed only when two or more partitions have been created on the hard disk drive.
The name of the C: drive cannot be changed.
Change the drive letters before installing applications.
A
Click (Start) - [Control Panel] - [System and Security] - [Administrative Tools], and double-click [Computer
Management].
A standard user needs to enter an administrator password.
Click [start] - [Control Panel] - [Performance and Maintenance] - [Administrative Tools], and double-click [Computer Management].
Click [Disk Management] from [Storage].
B
Right-click the hard disk partition or the CD/DVD drive name, and click [Change Drive Letter and Paths...].
C
Click [Change...].
D
Click [Assign the following drive letter] and select the new drive letter, and then click [OK].
E
At the confi rmation message, click [Yes].
Useful Information
26
Page 27
Troubleshooting (Basic)
Follow the instructions below when a problem has occurred. There is also an advanced troubleshooting guide in the
“Reference Manual”. For a software problem, refer to the software’s instruction manual. If the problem persists, contact
Panasonic Technical Support. You can also check the computer’s status in the PC Information Viewer
(
Reference Manual “Troubleshooting (Advanced)”).
Starting Up
Connect the AC adaptor.
Cannot start up.
The power indicator or battery indicator is not lit.
Insert a fully charged battery.
Remove the battery pack and the AC adaptor, then connect them again.
If a device is connected to the USB port, disconnect the device, or set [USB Port] or
[Legacy USB Support] to [Disable] in the [Advanced] menu of the Setup Utility.
If a device is connected to the ExpressCard slot, disconnect the device, or set
[ExpressCard Slot] to [Disable] in the [Advanced] menu of the Setup Utility.
Fn + F8
up to 32 minutes). If, “Cannot warm up the system” is displayed, the computer failed to
warm up and does not start. In this case, turn off the computer, leave it in an environment of 5 °C or higher temperature for about an hour, and then turn on the power again.
the power again.
The power is turned on but
“Warming up the system (up
to 32 minutes)” appears.
Cannot turn on the computer.
The computer does not re-
Press
The computer is warming up before start up. Wait for the computer to start up (takes
Leave it in an environment of 5 °C or higher temperature for about an hour, then turn on
sume from sleep
( )/standby
( ).
(The power indicator blinks
quickly in green.)
Press and hold the power switch for four seconds or longer to shut down the computer
The computer does not enter
forcibly (data not saved will be lost). Then disable the screen saver.
sleep mode while the screen
saver is running (The screen
stays black).
Supervisor Password or User Password: Contact Panasonic Technical Support.
You have forgotten the password.
“Remove disks or other
media. Press any key to
restart” or a similar message
appears.
Windows startup and operation is slow.
Administrator password:
If you have a password reset disk, you can reset the administrator password. Set the
disk and enter any wrong password, then follow the on-screen instructions and set a
new password.
If you do not have a password reset disk, reinstall ( page 24) and set up Windows,
and then set a new password.
A fl oppy disk is in the drive and it does not contain system startup information. Remove
the fl oppy disk and press any key.
If a device is connected to the USB port, disconnect the device, or set [USB Port] or
[Legacy USB Support] to [Disable] in the [Advanced] menu of the Setup Utility.
If a device is connected to the ExpressCard slot, disconnect the device, or set
[ExpressCard Slot] to [Disable] in the [Advanced] menu of the Setup Utility.
If the problem persists after removing the disk, it may be a hard disk failure. Contact
Panasonic Technical Support.
Press
Setup Utility settings (excluding the passwords) to the default values. Start the Setup
Utility and make the settings again. (Note that the processing speed depends on the application software, so this procedure may not make Windows faster.)
If you installed a resident software after purchase, turn off the residence.
in the Setup Utility ( Reference Manual “Setup Utility”) to return the
F9
to turn off the concealed mode.
Troubleshooting
Disable the pop-up menu and Input Panel Tab.
Open the Input Panel, and click [Tools] - [Options] - [Opening].
A
Remove the check mark of [Show Input Panel sliding open from the tab] and click
B
[OK].
Click [start] - [Search] - [Change preferences] - [With Indexing Service (for faster local
service)].
Disable Indexing Service in the following menu.
27
Page 28
28
Troubleshooting
Troubleshooting (Basic)
Starting Up
Make the correct settings.
The date and time are incorrect.
[Executing Battery Recalibration] screen appears.
[Enter Password] does not
appear when resuming from
sleep ( )/
standby ( )/
hibernation.
Cannot resume.
Other startup problems.
If the problem persists, the internal clock battery may need to be replaced. Contact
Panasonic Technical Support.
When the computer is connected to LAN, check the date and time of the server.
The 2100 A.D. or later year will not be correctly recognized on this computer.
The Battery Recalibration was canceled before Windows was shut down last time. To
start up Windows, turn off the computer by the power switch, and then turn on.
The password you have set in the Setup Utility is not requested at resuming. To use the
password security at resuming, set the Windows password.
Click
A
move user accounts] and select the account, and set the password.
Click
B
a password on wakeup] and add a check mark for [Require a password].
Click [start] - [Control Panel] - [User Accounts] and select the account, and set the
A
password.
Click [start] - [Control Panel] - [Performance and Maintenance] - [Power Options] -
B
[Advanced] and add a check mark for [Prompt for password when computer resumes
from standby].
An error may occur when the computer automatically enters the sleep (
standby (
case, turn off the screensaver or change the pattern of the screensaver.
Press
Setup Utility settings (excluding the passwords) to the default values. Start the Setup
Utility and make the settings again.
Remove all peripheral devices.
Check to see if there was a disk error.
in the Setup Utility ( Reference Manual “Setup Utility”) to return the
F9
Click
and Time].
(Start) - [Control Panel] - [User Accounts and Family Safety] - [Add or re-
(Start) - [Control Panel] - [System and Security] - [Power Option] - [Require
(Start)
Click [start] - [Control Panel] - [Date, Time, Language, and Regional
Options] - [Date and Time].
- [Control Panel] - [Clock, Language, and Region] - [Date
) /
) or hibernation mode while the screensaver is active. In this
Entering Password
On the [Enter Password]
screen, the password cannot
be entered.
Even after entering the password (
(
[Type your password]
played again.
),
)/Locked
is dis-
Remove all peripheral devices including an external display.
A
Click
B
Click [Tools] - [Check Now...].
C
A standard user needs to enter an administrator password.
Select the option in [Check disk options] and click [Start].
D
Click [Schedule disk check] and restart the computer.
E
Click [start] - [My Computer] and right-click [Local Disk(C:)], and click [Properties].
A
Click [Tools] - [Check Now].
B
Select the option in [Check disk options] and click [Start].
C
Start the computer in Safe Mode and check the error details. When the [Panasonic] boot
screen disappears
Menu is displayed. Select the Safe Mode and press
*1
When [Password on boot] is set to [Enabled] in the [Security] menu of the Setup Utility,
[Enter Password] appears after the [Panasonic] boot screen disappears. As soon as you
enter the password and press
The computer may be in ten-key mode.
If the NumLk indicator
input.
Some keyboards have unusable keys (e.g. the “M” key on French keyboards).
Use the other key when you press the key.
The computer may be in ten-key mode.
If the NumLk indicator lights, press
input.
The computer may be in Caps Lock mode.
If the Caps Lock indicator
mode, and then input.
(Start)
- [Computer] and right-click [Local Disk (C:)], and click [Properties].
*1
at startup, press and hold F8 until the Windows Advanced Options
.
to disable the Caps Lock
Enter
lights, press
lights, press
Enter
, press and hold F8.
NumLk
NumLk
to disable the ten-key mode, and then
to disable the ten-key mode, and then
Caps Lock
Page 29
29
Troubleshooting
Entering Password
Cannot log on to Windows.
(“The user name or password is incorrect.” is displayed.)
Shutting down
Windows does not shut
down.
Display
No display.
The screen is dark.
The screen does not become bright even if pressing
+
F2
.
Fn
The screen is disordered.
During Simultaneous display,
one of the screens becomes
disordered.
The user name (account name) includes an “@”.
If another user account exists:
Log on to Windows using another user account, and delete the account that includes
“@”. Then create a new account.
If no other account exists:
You need to reinstall Windows ( page 24).
Remove the USB device and the ExpressCard.
Wait 1 or 2 minutes. It is not a malfunction.
The external display is selected. Press
display has been switched completely before pressing
When using an external display,
Check the cable connection.
Turn on the display.
Check the settings of external display.
The display is turned off by the power-saving function. To resume, do not press the
direct selection keys, but press any other key like
The computer entered sleep (
the power-saving function. To resume, press the power switch.
The screen is darker when the AC adaptor is not connected. Press
the brightness. As you increase the brightness, battery consumption increases.
You can separately set the brightness for when the AC adaptor is connected and when
not connected.
Press
The brightness is set low to avoid malfunction where surrounding temperature is high.
Changing the number of display colors and resolution may affect the screen. Restart the
Connecting/disconnecting an external display may affect the screen. Restart the computer.
When using the Extended Desktop, use the same display colors for the external display
If you continue to experience problems, try changing the display.
Fn + F8
Use it in an environment of between 5°C and 35°C.
computer.
as those used by the LCD.
to turn off the concealed mode.
+ F3 to switch the display. Wait until the
Fn
+ F3 again.
Fn
.
Ctrl
) /standby ( ) or hibernation by
+ F2 and adjust
Fn
The external display does
not work normally.
<Only for model with GPS>
The cursor cannot be controlled properly.
Right-click on the desktop, and click [Graphics Properties] - [Display Devices].
Clicking [start] - [Control Panel] - [Other Control Panel Options] - [Intel(R) GMA Driver
for Mobile] - [Display Devices].
Enter
restored by pressing
Simultaneous display cannot be used until Windows startup is complete (during Setup
Utility, etc.).
If the external display does not support the power saving function, it may not work nor-
mally when the computer enters the power saving mode. Turn off the external display.
Operate the following steps.
A
B
C
D
E
F
G
H
I
, the picture is displayed on one of the screens only. When the window display is
Restart the computer and press
Set [GPS] to [Disable] in the sub-menu of [Serial and Parallel Port Settings] in the
[Advanced] menu of the Setup Utility.
Press
The computer will restart.
Log on to Windows as an administrator.
Click
fi les], and press
Click [Yes], click [Yes] and click [OK].
Then restart the computer.
Press F2 while [Panasonic] boot screen is displayed.
Set [GPS] to [Enable] in the sub-menu of [Serial and Parallel Port Settings] in the
[Advanced] menu.
Press
When the [Command Prompt] is set to “Full Screen” by pressing
Alt+Enter
and select [Yes] at the confi rmation message, and press
F10
(Start) and input “c:\util\drivers\gps\GPSVista.reg” in [Search programs and
Enter
and select [Yes] at the confi rmation message, and press
F10
, the picture is displayed on both screens.
while [Panasonic] boot screen is displayed.
F2
.
Enter
Enter
.
.
Alt
+
Page 30
Troubleshooting (Basic)
Touch Pad / Touchscreen (only for model with touchscreen)
When using the external mouse, connect it correctly.
The cursor does not work.
Cannot input using the touch
pad.
<Only for model with touch
screen>
Cannot input using the
touchscreen.
Cannot point the correct position using the included stylus.
Reference Manual
Restart the computer using the keyboard.
Press and press
Press , U, and R to select [Restart].
If the computer does not respond to keyboard commands, read “No response”
(
below).
Set [Touch Pad] to [Enable] in the [Main] menu of the Setup Utility.
The drivers for some mice may disable the touch pad. Check your mouse’s operating instructions.
Set [Touchscreen Mode] to [Auto] or [Tablet] in the [Main] menu of the Setup Utility.
Set [Touchscreen Mode] to [Auto] or [touch screen] in the [Main] menu of the Setup Utility.
Perform the touchscreen calibration ( page 17).
twice, and press
to select [Restart] and press
Enter
.
The Reference Manual is
not displayed.
Others
Troubleshooting
No response.
Cannot enter characters correctly.
Install Adobe Reader.
<For localized OS model>
Log on to Windows as an administrator.
A
Click
B
then press
Update Adobe Reader to its latest version.
C
If your computer is connected to the internet, start up Adobe Reader and click [Help]
- [Check for Updates...].
Click [start] - [Run], input “c:\util\reader\
B
Update Adobe Reader to its latest version.
C
If your computer is connected to the internet, start up Adobe Reader and click [Help]
- [Check for updates now].
<For MUI OS model>
page 16
Press
that is not responding.
An input screen (e.g., password input screen at startup) may be hidden behind another
window. Press
Slide the power switch for 4 seconds or longer to shut down the computer, and then slide the
power switch to turn it on. If the application program does not work normally, uninstall and
reinstall the program. To uninstall,
click (Start) - [Control Panel] - [Uninstall a program].
click [start] - [Control Panel] - [Add or Remove Programs].
Select the same language setting for Windows and the internal keyboard ( page 16).
(Start) and input “c:\util\reader\setup.exe” in [Search for programs and fi les]
Enter
Ctrl+Shift+Esc
.
Alt+Tab
.exe”, then click [OK].
setup
to open Task Manager and close the software application
to check.
30
Page 31
LIMITED USE LICENSE AGREEMENT
THE SOFTWARE PROGRAM(S) (“PROGRAMS”) FURNISHED WITH THIS PANASONIC PRODUCT (“PRODUCT”)
ARE LICENSED ONLY TO THE END-USER (“YOU”), AND MAY BE USED BY YOU ONLY IN ACCORDANCE WITH
THE LICENSE TERMS DESCRIBED BELOW. YOUR USE OF THE PROGRAMS SHALL BE CONCLUSIVELY
DEEMED TO CONSTITUTE YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE.
Panasonic Corporation has developed or otherwise obtained the Programs and hereby licenses their use to you. You
assume sole responsibility for the selection of the Product (including the associated Programs) to achieve your intended results, and for the installation, use and results obtained therefrom.
LICENSE
A. Panasonic Corporation hereby grants you a personal, non-transferable and non-exclusive right and license to use
the Programs in accordance with the terms and conditions stated in this Agreement. You acknowledge that you are
receiving only a LIMITED LICENSE TO USE the Programs and related documentation and that you shall obtain
no title, ownership nor any other rights in or to the Programs and related documentation nor in or to the algorithms,
concepts, designs and ideas represented by or incorporated in the Programs and related documentation, all of
which title, ownership and rights shall remain with Panasonic Corporation or its suppliers.
B. You may use the Programs only on the single Product which was accompanied by the Programs.
C. You and your employees and agents are required to protect the confi dentiality of the Programs. You may not distrib-
ute or otherwise make the Programs or related documentation available to any third party, by time-sharing or otherwise, without the prior written consent of Panasonic Corporation.
D. You may not copy or reproduce, or permit to be copied or reproduced, the Programs or related documentation for
any purpose, except that you may make one (1) copy of the Programs for backup purposes only in support of your
use of the Programs on the single Product which was accompanied by the Programs. You shall not modify, or attempt to modify, the Programs.
E. You may transfer the Programs and license them to another party only in connection with your transfer of the single
Product which was accompanied by the Programs to such other party. At the time of such a transfer, you must also
transfer all copies, whether in printed or machine readable form, of every Program, and the related documentation,
to the same party or destroy any such copies not so transferred.
F. You may not remove any copyright, trademark or other notice or product identifi cation from the Programs and you
must reproduce and include any such notice or product identifi cation on any copy of any Program.
YOU MAY NOT REVERSE ASSEMBLE, REVERSE COMPILE, OR MECHANICALLY OR ELECTRONICALLY TRACE
THE PROGRAMS, OR ANY COPY THEREOF, IN WHOLE OR IN PART.
YOU MAY NOT USE, COPY, MODIFY, ALTER, OR TRANSFER THE PROGRAMS OR ANY COPY THEREOF, IN
WHOLE OR IN PART, EXCEPT AS EXPRESSLY PROVIDED IN THE LICENSE.
IF YOU TRANSFER POSSESSION OF ANY COPY OF ANY PROGRAM TO ANOTHER PARTY, EXCEPT AS PERMITTED IN PARAGRAPH E ABOVE, YOUR LICENSE IS AUTOMATICALLY TERMINATED.
TERM
This license is effective only for so long as you own or lease the Product, unless earlier terminated. You may terminate this license at any time by destroying, at your expense, the Programs and related documentation together with
all copies thereof in any form. This license will also terminate effective immediately upon occurrence of the conditions
thereof set forth elsewhere in this Agreement, or if you fail to comply with any term or condition contained herein. Upon
any such termination, you agree to destroy, at your expense, the Programs and related documentation together with all
copies thereof in any form.
YOU ACKNOWLEDGE THAT YOU HAVE READ THIS AGREEMENT, UNDERSTAND IT AND AGREE TO BE BOUND
BY ITS TERMS AND CONDITIONS. YOU FURTHER AGREE THAT IT IS THE COMPLETE AND EXCLUSIVE STATEMENT OF THE AGREEMENT BETWEEN US, WHICH SUPERSEDES ANY PROPOSAL OR PRIOR AGREEMENT,
ORAL OR WRITTEN, AND ANY OTHER COMMUNICATIONS BETWEEN US, RELATING TO THE SUBJECT MATTER OF THIS AGREEMENT.
Appendix
31
Page 32
32
Appendix
Specifi cations
This page provides the specifi cations for the basic model.
The model number is different according to the unit confi guration.
To check the model number:
Check the bottom of the computer or the box the computer came in at the time of purchase.
To check CPU speed, memory size and the hard disk drive (HDD) size:
Run the Setup Utility (
[Processor Speed]: CPU speed, [Memory Size]: Memory size, [Hard Disk]: Hard disk drive size
Main Specifi cations
Model No. CF-30KTPAZPE / CF-30KTPAZQ2 /
CPU Intel
Chipset Mobile Intel
Memory
Video Memory
Hard Disk Drive
*1*2
*1*3
*4
Reference Manual “Setup Utility”) and select [Information] menu.
CF-30KTPARPE / CF-30KTPARQ2
®
Core™ 2 Duo Processor SL9300 (1.6
®
GS45 Express Chipset
2 GB (4 GB Max.)
*3
UMA 797 MB Max. (When Memory is 2 GB) / UMA 1551 MB Max. (When Memory is 4 GB)
UMA 1024 MB Max.
GB
160
CF-30K3PAZQS / CF-30K3PAZQ2
, 6
*1
MB
L2 cache, 1066
GHz
MHz
FSB)
Approx. 300 MB is used as a partition with recovery tools. (Users cannot use this partition.)
Display Method 13.3 XGA type (TFT) with Touchscreen 13.3 XGA type (TFT)
Internal LCD
External Display
Wireless LAN
Bluetooth™
*8
*5
*6
*7
65,536/16,777,216 colors (800 × 600 dots/1024 × 768 dots)
65,536/16,777,216 colors (800 × 600 dots/1024 × 768 dots/1280 × 768 dots/1280 × 1024 dots)
page 33
page 33
LAN IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
Modem Data: 56
kbps
(V.92) FAX: 14.4
Sound WAVE and MIDI playback, Intel
Security Chip TPM (TCG V1.2 compliant)
kbps
®
High Defi nition Audio subsystem support, Monaural speaker
*9
Card Slot PC Card Type I or Type II x 1 (3.3 V: 400 mA, 5 V: 400 mA)
ExpressCard ExpressCard/34 or ExpressCard/54 x 1
SD Memory Card
Smart Card
*12
*10
x 1, Data transfer rate = 8 MB per second
ISO7816 x 1
*11
RAM Module Slot 200-pin, 1.8 V, SO-DIMM, DDR2 SDRAM, PC2-5300 Compliant
Interface USB port (4-pin, USB 2.0) x 3, Serial port (Dsub 9-pin male), Modem port (RJ-11), LAN port
(RJ-45), External display port (Mini Dsub 15-pin female), Expansion Bus Connector (Dedicated
80-pin female), External Antenna Connector (Dedicated 50
coaxial connector), IEEE 1394a
Ω
Interface Connector (4-pin x 1), Microphone Jack (Miniature jack, 3.5 DIA, Stereo), Headphone
Jack (Miniature jack, 3.5 DIA, Impedance 32 Ω, Output Power 4 mW × 2)
Keyboard / Pointing Device
88 keys / Touch Pad / Touchscreen (Anti-Refl ection,
88 keys / Touch Pad
Stylus (included) touch capable)
Power Supply AC adaptor or Battery pack
AC Adaptor
*13
Input: 100 V to 240 V AC, 50 Hz/60 Hz, Output: 15.6 V DC, 5.0
A
Battery Pack Li-ion 10.65 V, 8.55 Ah (typ.) / 8.1 Ah (min.)
Operating Time
Charging
Time
*14
Main Battery: Approx. 10 hours
Main Battery + Second Battery: Approx. 14 hours
*14
Power on Main Battery: Approx. 8.5 hours
Main Battery + Second Battery: Approx. 12.5 hours
*15
*15
Power off Main Battery: Approx. 5 hours
Main Battery + Second Battery: Approx. 8 hours
Clock Battery Coin type lithium battery 3.0
Power Consumption
*16
Approx. 50
*17
W
/ Approx. 70 W (maximum when recharging in the ON state)
V
Physical Dimensions (W × H × D) 302 mm × 67.5 - 69.5 mm × 292 mm
Weight Approx. 3.8
kg
Page 33
33
Appendix
Main Specifi cations
Operation Environment Temperature: 5 °C to 35
°C
Humidity: 30% to 80% RH (No condensation)
Storage Environment Temperature: -20 °C to 60 °C
Humidity: 30% to 90% RH (No condensation)
Operating System
*18
Windows® 7 Professional
Microsoft® Windows® XP Professional Service Pack 2 with Advanced Security Technologies
(NTFS File System)
Utility Programs
*18
Adobe Reader
*19
, PC Information Viewer, Loupe Utility, Wireless Switch Utility, Hotkey Settings,
Battery Recalibration Utility, Panasonic Hand Writing, Infi neon TPM Professional Package
Power Saving Utility, Wireless Connection Disable Utility
*20
, Concealed mode Utility
*20
*21
,
Intel® PROSet/Wireless Software*7, Bluetooth™ Stack for Windows® by TOSHIBA
Aptio Setup Utility, Hard Disk Data Erase Utility
Wireless LAN <Only for model with wireless LAN>
Data Transfer Rates IEEE802.11a : 54/48/36/24/18/12/9/6
IEEE802.11b : 11/5.5/2/1
Mbps
(automatically switched)
IEEE802.11g : 54/48/36/24/18/12/9/6
IEEE802.11n : (HT20) 144.4/130/117/115.6/104/86.7/78/65/58.5/57.8/52/43.3/39/28.9/26/19.5/
14.4/13/6.5
Mbps
(automatically switched)
(HT40) 300/270/243/240/216/180/162/130/120/117/108/104/90/81/78/60/54/52/
39/30/27/26/13
Mbps
*22
, PC-Diagnostic Utility
Mbps
(automatically switched)
Mbps
(automatically switched)
*23
*23
(automatically switched)
*23
*23
*23
*8
Standards Supported IEEE802.11a / IEEE802.11b / IEEE802.11g / IEEE802.11n
Transmission method OFDM system, DSSS system
Wireless Channels Used IEEE802.11a : Channels 36/40/44/48/52/56/60/64/100/104/108/112/116/120/124/128/132/136/
140
IEEE802.11b/IEEE802.11g : Channels 1 to 13
IEEE802.11n : Channels 1-13/36/40/44/48/52/56/60/64/100/104/108/112/116/120/124/128/132/
136/140
RF Frequency Band IEEE802.11a : 5.18
IEEE802.11b/IEEE802.11g : 2.412
IEEE802.11n : 2.412
TM
Bluetooth
<Only for model with Bluetooth>
GHz
GHz
- 5.32
- 2.472
GHz
, 5.5
GHz
GHz
GHz
- 2.472
, 5.18
- 5.7
GHz
GHz
GHz
- 5.32
GHz
, 5.5
GHz
- 5.7
GHz
Bluetooth Version 2.0 + EDR
Transmission method FHSS system
Wireless Channels Used Channels 1 to 79
RF Frequency Band 2.402
GHz
- 2.48
GHz
*1
1 MB = 1,048,576 bytes / 1 GB = 1,073,741,824 bytes
*2
You can physically expand the memory up to 4096 MB, but the total amount of usable memory available will be less depending
on the actual system confi guration.
*3
A segment of the main memory is allotted automatically depending on the computer’s operating status. The size of the Video
Memory cannot be set by the user.
*4
1 GB = 1,000,000,000 bytes. Your operating system or some application software will report as fewer GB.
*5
A 16,777,216 color display is achieved by using the dithering function.
*6
Maximum resolution depends on the specifi cations of the external display. Display may be impossible using some connected
external displays.
*7
Only for model with wireless LAN
*8
Only for model with Bluetooth
*9
For information on TPM,
and press
Enter
Platform Module (TPM)”.
*10
SD Memory Cards that support high-speed transfer rates can be used.
, and refer to the Installation Manual of “Trusted Platform Module (TPM)”.
click [start] - [Run] and input “c:\util\drivers\tpm\README.pdf”, and refer to the Installation Manual of “Trusted
click (Start) and input “c:\util\drivers\tpm\README.pdf” in [Search programs and fi les]
Windows ReadyBoost function is also sup-
ported.
Operation has been tested and confi rmed using Panasonic SD Memory Cards and SDHC Memory Cards with a capacity of up to 8 GB.
Operation on other SD equipment is not guaranteed.
This computer is not compatible with MultiMediaCards. Do not insert these kinds of cards.
*11
The theoretical value is not the actual speed. The transfer rate does not become higher even if you use a card that supports the
higher transfer rate.
*12
Only for model with Smart Card slot
Page 34
34
Appendix
Specifi cations
*13
The AC adaptor is compatible with power sources up to 240 V AC adaptor.
The unit for North America (identifi ed by the suffi x 'M' on the model number) is supplied with a 125 V AC compatible AC cord.
*14
Varies depending on the usage conditions.
*15
Measured at LCD brightness: 60 cd/m
Varies depending on the usage conditions, or when an external device is attached.
*16
Approx. 0.9 W when the battery pack is fully charged (or not being charged) and the computer is OFF.
*17
Rated power consumption
*18
Operations of this computer are not guaranteed except for the pre-installed OS and the installed OS by using the Product Re-
23-E-1
2
covery DVD-ROM (included). Some parts of the software in the Product Recovery DVD-ROM may not be installed depending on
a model.
*19
<Only for MUI OS model>
You need to install to use the feature.
*20
You need to install to use the feature.
*21
Concealed Mode may not work property during battery recalibration.
*22
The Product Recovery DVD-ROM is required.
*23
These are speeds specifi ed in IEEE802.11a+b+g+n standards. Actual speeds may differ.
20-M-1-1
Page 35
35
Appendix
Standard Limited Warranty
PANASONIC COMPUTER PRODUCTS EUROPE
Panasonic Computer Products Europe (referred to as “Panasonic”) will repair this product (other than software, which
is treated in a different section of this warranty) with new or refurbished parts, from the date of original purchase in the
event of a defect in materials or workmanship. This warranty only applies to new Panasonic Toughbooks purchased in
the EEA and Switzerland and Turkey.
Panasonic (or its authorised Service Provider) target to repair your equipment within 48 hours from its receipt in our
service centre.
Additional charges may apply for shipment to countries outside of the European Union. Panasonic will use all reasonable endeavours to ensure this service.
This warranty only covers failures due to defects in materials or workmanship which occur during normal use for the
applicable Service Agreement Period listed below. In the event that any product (or part thereof) is replaced, Panasonic shall transfer ownership of the replacement product (or part) to the customer and the customer shall transfer ownership of the replaced product (or part) to Panasonic.
Service Agreement Period - from original date of purchase
Toughbooks (and every accessory included in the original packaging except the battery) - 3 years
Accessories included in the original package - 3 years
Additional peripherals manufactured by Panasonic (including media bay devices such as CD-Rom drives) - 1 year
Batteries - 6 months. Panasonic Warranty covers the battery for six months. A battery is considered good if it
maintains 50% of its charge capacity during the warranty period. If a battery is returned under this contract and
testing determines that it has charge capacity greater than 50%, the battery will be returned with an invoice for
the retail purchase price of a new battery.
This warranty is extended solely to the original purchaser. A purchase receipt or other proof of date of original purchase will be required before warranty performance is rendered.
Limits and Exclusions:
This warranty does not cover and shall be void for:
Broken or cracked LCD screen.
Defective pixel in notebook displays and LCD screens within 0.002%
Damage that is attributable to fi re, theft or acts of God.
Damage caused by environmental infl uences (electrical storms, magnetic fi elds etc.).
Damage which has not been caused during normal operation
Repair of damage that is cosmetic only or does not affect product functionality such as wear and tear, scratches
and dents.
Failures caused by products not supplied by Panasonic.
Failures resulting from alteration, accidental damage, casualty, misuse, abuse or neglect.
Introduction of liquid or other foreign matter into the unit.
Improper installation, operation or maintenance.
Improper connections with peripherals.
Maladjustment of consumer controls such as function settings.
Modifi cation or service by anyone other than Panasonic or its approved Service Providers.
Products used as short term rental or leased equipment.
Products whose serial number has been removed making the unit warranty condition impossible to clearly deter-
mine.
THIS PRODUCT IS NOT INTENDED FOR USE AS, OR AS PART OF, NUCLEAR EQUIPMENT/SYSTEMS, AIR
TRAFFIC CONTROL EQUIPMENT/SYSTEMS, OR AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS*1. PANASONIC
WILL NOT BE RESPONSIBLE FOR ANY LIABILITY RESULTING FROM THE USE OF THIS PRODUCT ARISING
OUT OF THE FOREGOING USES.
*1
AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include Class2 Electrical Flight Bag (EFB) Systems and Class1 EFB Systems
when used during critical phases of fl ight (e.g., during take-off and landing) and/or mounted on to the aircraft. Class1 EFB Sys-
tems and 2 EFB Systems are defi ned by FAA: AC (Advisory Circular) 120-76A or JAA: JAA TGL (Temporary Guidance Leafl ets)
No.36.
There are no other express warranties except as listed above.
We strongly recommend that customers backup their data before sending back their unit to an Authorised Service Pro-
vider.
Panasonic shall not be liable for loss of data or other incidental or consequential damages resulting from the use of
this product, or arising out of any breach of this warranty. All express and implied warranties, including the warranties
of satisfactory quality and fi tness for a particular purpose are limited to the applicable warranty period set forth above.
Panasonic shall not be liable for any indirect, special or consequential loss or damage (including without limitation any
loss of profi ts) arising from the use of this product or for any breach of this warranty.
This limited warranty gives you specifi c legal rights, and you may have other rights that vary from country to country.
You must consult the applicable country laws for a full determination of your rights. This limited warranty is in addition
to, and does not affect any rights arising out of any contract of sale or by statute.
Page 36
Standard Limited Warranty
PANASONIC COMPUTER PRODUCTS EUROPE
Data Storage Media
Data Storage Media is the media on which the Operating System, drivers and programs originally installed by Panasonic on the main unit are stored. This media is originally provided with the unit.
Panasonic warrants to you only that the disc(s) or other media on which the Programs are furnished will be free from
defects in material and workmanship under normal use for a period of sixty (60) days from the date of delivery thereof
to you, as evidenced by your purchase receipt.
This is the only warranty Panasonic makes to you. Panasonic does not warrant that the functions contained in the Programs will meet your requirements or that the operation of the Programs will be uninterrupted or error free.
Panasonic’s entire liability and your exclusive remedy under this warranty shall be limited to the replacement of any
defective disk or other media which is returned to Panasonic's authorized Service Centre, together with a copy of the
purchase receipt, within the aforesaid warranty period.
Panasonic shall have no obligation for any defects in the disk(s) or other media on which the Programs are furnished
resulting from your storage thereof, or for defects that have been caused by operation of the disk(s) or other media
otherwise than on the Product or in the environment conditions other than those specifi ed by Panasonic by alteration,
accident, misuse, abuse, neglect, mishandling, misapplication, installation, maladjustment of consumer controls, improper maintenance, modifi cation or damage that is attributable to acts of God. In addition, Panasonic shall have no
obligation for any defects in the disk(s) or other media if you have modifi ed, or attempted to modify any Program.
Duration of implied warranties, if any is limited to sixty (60) days.
Pre-installed software
Pre-installed software means the software shipped pre-loaded by Panasonic, not that loaded by any third party or selling agent.
Panasonic and its suppliers makes no warranty, either express, implied or statutory, with respect to software provided
with the Product and licensed to Purchaser, its quality, performance, merchantability, or fi tness for a particular purpose.
Panasonic does not warrant that the functions contained in the software will be uninterrupted or error free. Panasonic
assumes no risk of and shall not in any case be liable for any damages, including, without limitation, any special,
incidental, consequential, or punitive damages arising from breach of warranty or contract, negligence or any other
legal theory, including, without limitation loss of goodwill, profi ts or revenue, loss of use of the Programs or Products or
any associated equipment, cost of capital, cost of any substitute equipment, facilities, or services, downtime costs, or
claims of any party dealing with such damages.
Some countries do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how
long an implied warranty lasts, so the above limitations or exclusions may not apply to you.
This limited warranty gives you specifi c legal rights and you may also have other rights that vary from country to coun-
try. You must consult applicable country laws for a full determination of your rights.
Contacts
Address
Web page
Helpdesk
English speaking service +44 (0) 8709 079 079
French speaking service +33 (0) 1 55 93 66 60
German speaking service +49 (0) 1805 410 930
Italian speaking service +39 (0) 848 391 999
Appendix
Czech speaking service +420 (0) 800 143234
Hungarian speaking service +36 (0) 6800 163 67
Polish speaking service +48 (0) 800 4911558
Romanian speaking service +40 (0) 800 894 743
Slovakian speaking service +421 (0) 800 42672627
E-mail address [email protected]
Payments [email protected]
Panasonic Computer Products Europe
Service Centre Building B4,
Wyncliffe Road, Pentwyn Industrial Estate, Cardiff,
United Kingdom
CF23 7XB
http://www.toughbook.eu/
36
Page 37
MEMO
37
Page 38
38
MEMO
Page 39
39
Page 40
As an ENERGY STAR® Partner, Panasonic Corporation has determined that this product meets
NERGY STAR® guidelines for energy effi ciency. By enabling available power management
E
settings, Panasonic computers enter a low-power sleep mode after a period of inactivity, saving
the user energy.
Outline of the International ENERGY STAR® Offi ce Equipment Program
The international ENERGY STAR® Offi ce Equipment Program is an international program that promotes energy
saving through the use of computers and other offi ce equipment. The program backs the development and dis-
semination of products with functions that effectively reduce energy consumption. It is an open system in which
business proprietors can participate voluntarily. The targeted products are offi ce equipment such as computers,
displays, printers, facsimiles, and copiers. Their standards and logos are uniform among participating nations.
22-E-1
Importer’s name & address pursuant to the EU GPSD (General Product Safety Directive) 2001/95/EC Art.5
Panasonic Computer Products Europe, Panasonic Marketing Europe GmbH
Hagenauer Straße 43
65203 Wiesbaden
Germany
© Panasonic Corporation 2009
Printed in U.K.
UK1209-0
CPE02171ZA
Loading...
