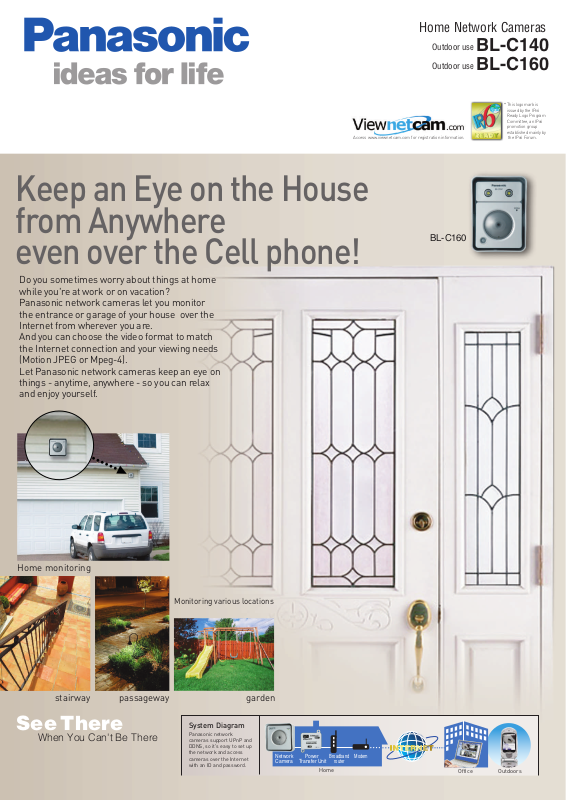

Panasonic BL-C140, BL-C160 User Manual

Home Network Cameras

Access www.viewnetcam.com for registration information.

Keep an Eye on the House

from Anywhere

even over the Cell phone!

Do you sometimes worry about things at home while you're at work or on vacation? Panasonic network cameras let you monitor the entrance or garage of your house over the Internet from wherever you are. And you can choose the video format to match the Internet connection and your viewing needs (Motion JPEG or Mpeg-4). Let Panasonic network cameras keep an eye on things - anytime, anywhere - so you can relax and enjoy yourself.

Outdoor use

BL-C160

BL-C140 BL-C160

* This logo mark is

issued by the IPv6 Ready Logo Program Committee, an IPv6 promotion group established mainly by the IPv6 Forum.

Home monitoring

stairway passageway garden

See There

When You Can't Be There

Monitoring various locations

System Diagram

Panasonic network cameras support UPnP and DDNS, so it's easy to set up the network and access cameras over the Internet with an ID and password.

Network Camera

Power

Transfer Unit

Home

Broadband

router

Modem

Office

Outdoors

Feel Safer with Panasonic

Installation

The splashresistant body* expands the scope of applications by letting you install the camera outside, like on house or garage eaves.

* IPX4 equivalent splash-resistance

Connect

HTTPS support

Recorded data is sent in encrypted form, making it very difficult for someone else to "eavesdrop" on the network.

Internet

* For JPEG only. The audio feature does not work on cell phones.

Cell phone*

Monitor

Simultaneous MPEG-4

and JPEG

Cameras simultaneously send MPEG4*1 images in three resolutions (VGA*2, QVGA, and SCIF), and JPEG images in the same three resolutions in favor motion, standard, and favor clarity image-quality types. MPEG-4 is recommended for viewing smooth motion images, and JPEG is recommended for recording higher quality images.

*1 MPEG-4 is not applicable on a cell phone. *2 When viewing in VGA, only MPEG-4 playback

offers a maximum of 30 fps.

MPEG-4 Visual License

When installing the MPEG-4 viewer program on additional PCs, please purchase additional licenses (Model No. BB-HCA5A for USA, BB-HCA5CE for others).

Capture

Color Night View Mode

Whenthesubjectdarkens,the cameraautomaticallyadjuststhe brightnesstoshowyoutheimage. Youcanseeclear,easy-to-view imageseveninthedark.

OFF ON

*1 The image tends to blur more than that in standard

mode when viewing a moving subject in low light. When viewing a dark subject in color night view mode, spots of white or colored light may appear in the image. Some subjects may require additional time for focusing with the auto focus function.

Alerting Yourself when Changes Occur

The combination of a built-in human detection sensor*1 that responds to heat and a motion detection function that responds to a preset camera threshold or sensitivity detects even slight motions. Captured images can also be stored temporarily in the camera*2 or sent to you by e-mail*3 or FTP data transfer*4.

*1 BL-C160 only. *2 A maximum of approximately 250 images (320 x 240

pixels) can be stored in the camera.

*3 POP before SMTP authentication and SMTP

authentication (PLAIN LOGIN and CRAM-MD5) are supported.

*4 The sensor's detection history can also be e-mailed

to you once a day at a preset time.

View

Full Screen Display

The monitoring image is easier to see because it fills the entire screen.

Normal mode Full screen mode

BL-C140

BL-C160

Others

Power supply via LAN cableOutdoor Ready

The included Power Transfer Unit supplies the camera the power through the LAN cable. It allows you to install the camera anywhere , like on the ceiling where no power outlet is.

Power Transfer Unit

Data / Power In

Outdoor LAN c

abl

*Use a LAN cable that is no more than 30 m (98 feet 5 inches) long to connect the camera and the power transfer unit.

LAN cable

Part Names

BL-C140

Front View

Rear View

Safety wire hole

DATA/POWER IN

(LAN port)

BL-C160

Front View

Lens cover

Built-in sensor

Rear View

Safety wire hole

DATA/POWER IN

(LAN port)

AC adaptor

AC in

Router

Housing Indicator

Lens Lens cover

Stand mounting hole

FACTORY DEFAULT RESET button

Housing

Light

Indicator

Lens

Brightness sensor

Stand mounting hole

FACTORY DEFAULT RESET button

Network camera

Zoom Viewing Angle

Sensor Type Lens focal point Lens brightness Required light intensity

Terminal

Network interface

General

Operating Temperature Operating humidity Dimensions(H x W x D)

Weight (only the unit) Power Supply Consumption

BL-C160 BL-C140

10 x digital zoom (by area) 58 horizontal, 45 vertical 1/4 inch CMOS sensor, approx. 320,000 pixel Fixed (focal range: 0.3 m to ∞) F2.8 5 to 10,000 lx (in color night view mode: 3 to 10,000 lx)

Ethernet (10Base-T/100Base-TX)

-20˚C to +50˚C (-4˚F to +122˚F) 20 % to 90 % (No condensation) 148 x 108 x 64 mm

(513/16 x 4 1/4 x 2 1/2 inch) 495 g (1.09lb.) AC adaptor : input 100 - 240 V AC, Output 9V DC 750mA AC adaptor:

3.2 W (8.1 W when Light is on)

106 x 106 x 57 mm (4 3/16 x 4 3/16 x 2 1/4 inch)

280 g (0.62 lb)

AC adaptor: 3.2 W

Specifications

Server

Image compression Video resolution Image quality Frame rate* Security Supported protocols

User access limit

Buffered images*

Image transfer method Image buffer/transfer triggers

[BL-C160 / 140]

JPEG (Motion JPEG for moving image display), MPEG-4 640 x 480, 320 x 240 (default), 192 x 144 JPEG (favor clarity, standard, favor motion) , MPEG-4

Max. 30 frames/sec. (640 x 480*2, 320 x 240, 192 x144) User ID / Password, HTTPS IPv4/IPv6 Dual-Stack,

IPv4: TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS, ARP, ICMP, POP3, NTP, UPnP™, SMTP , Authentication, RTP, RTSP*3, RTCP, SSL, HTTPS, TLS, IPv6: TCP, UDP, IP, HTTP, FTP, SMTP, DNS, ICMPv6, POP3, NDP, NTP, RTP, RTSP*3, RTCP, SSL, HTTPS, TLS

Max. 30 simultaneous accesses (max. 10 accesses in HTTPS communication)

Approx. 250 images (320 x 240)

-Standard image quality -with time display SMTP*5, FTP, HTTP Timer, Sensor or Motion Detection

http://panasonic.co.jp/pcc/products/en/netwkcam/

*1 The frame rate may slow down depending on the

network environment, PC performance, image quality, SD memory recording, when color night view mode is activated, etc.

*2 For MPEG-4 only. Not applicable to JPEG.

*3 Only still images in JPEG format can be displayed

on a mobile phone.

*4 The maximum number of frames changes

depending on the image quality and what object you buffer.

*5 POP Before SMTP Authentication and SMTP

Authentication (PLAIN, LOGIN, and CRAM-MD5) are supported.

1M08XXSP-C161-LT

All pictures simulated.

Design and specifications are subject

to change without notice.
