Advidia Camera Finder Utility
Windows Explorer via UPnP
The Advidia Camera Finder Utility is available on
the provided CD.
Run the Advidia Camera Finder Utility to start auto
device search. Click on the underlined
IP links to access device. There is no need to
change device IPs. (See image below)
Go to Start -> My Computer and select “Network”
to search. Double-Click on the device to open its
web page.
Your default browser must be Internet Explorer
to use this method

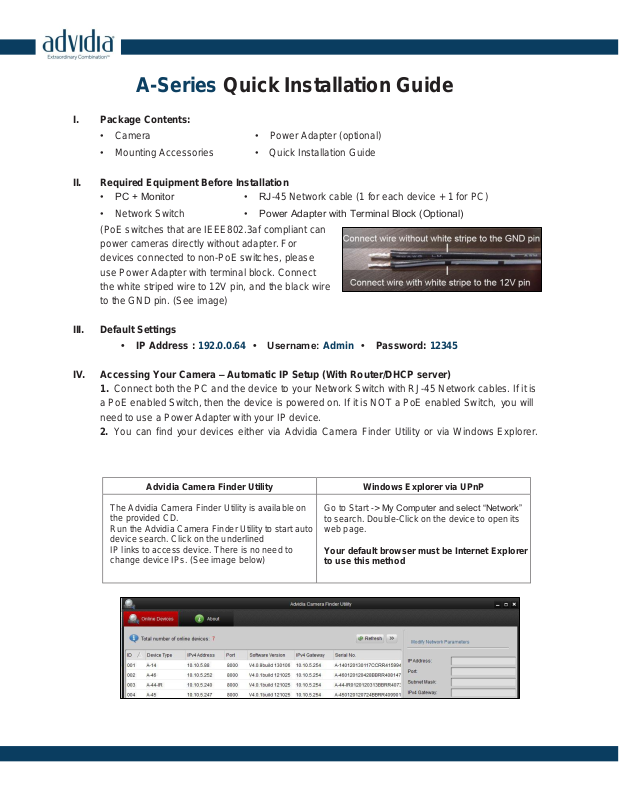

A-Series Quick Installation Guide
I. Package Contents:
• Camera • Power Adapter (optional)
• Mounting Accessories • Quick Installation Guide
II. Required Equipment Before Installation
• PC + Monitor • RJ-45 Network cable (1 for each device + 1 for PC)
• Network Switch • Power Adapter with Terminal Block (Optional)
(PoE switches that are IEEE802.3af compliant can
power cameras directly without adapter. For
devices connected to non-PoE switches, please
use Power Adapter with terminal block. Connect
the white striped wire to 12V pin, and the black wire
to the GND pin. (See image)
III. Default Settings
• IP Address : 192.0.0.64 • Username: Admin • Password: 12345
IV. Accessing Your Camera – Automatic IP Setup (With Router/DHCP server)
1. Connect both the PC and the device to your Network Switch with RJ-45 Network cables. If it is
a PoE enabled Switch, then the device is powered on. If it is NOT a PoE enabled Switch, you will
need to use a Power Adapter with your IP device.
2.
You can find your devices either via Advidia Camera Finder Utility or via Windows Explorer.
V. Accessing Your Camera- Manual IP Setup (Without Router/DHCP server)
1. Connect the PC to the Network Switch with the RJ-45 cable, and change your PC’s
IP to 192.0.0.64 / Subnet Mask 255.255.0.0
2. Connect the device to your Network Switch. If it is a PoE enabled Switch, then the device is
powered on. If it is NOT a PoE enabled Switch, you will need a Power Adapter.
3. Open Internet Explorer (Version 6.0 or above) at http://192.0.0.64
4. When you see the login window, input default user and password:
Default Username: Admin Password: 12345
5. To go to the main menu, click the “Configuration” button on the top right after you’ve logged in.
6. To change the IP address, navigate to Basic Configuration -> Network. Change IPv4 address to
any unused IP address in your network scheme. Be sure to update the Subnet Mask and Default
Gateway as well. Once finished, click “Save”.
7. Wait for 30 seconds and test the new IP with Internet Explorer.
8. If you have more than one device, continue again from step 2. Assign different new
camera.
If you assign the same IP to two cameras,
there will be in IP conflict and will not function normally.
For more details, please follow our User’s Manual on www.Advidia.com
Or contact Technical Support @ 713.621.9779
IP to each
