Getting Started

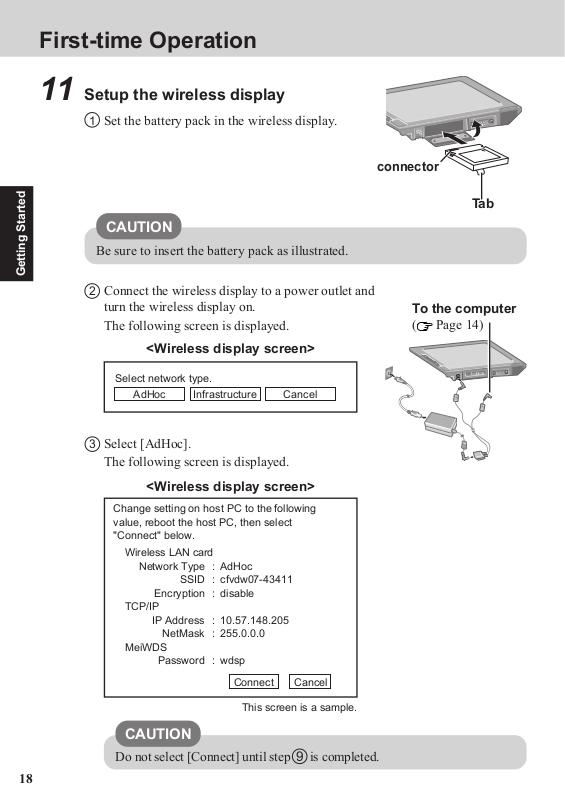

First-time Operation
11 Setup the wireless display
1 Set the battery pack in the wireless display.
connector
Tab
CAUTION
Be sure to insert the battery pack as illustrated.
2Connect the wireless display to a power outlet and turn the wireless display on.
The following screen is displayed.
<Wireless display screen>
Select network type.
AdHoc |
|
Infrastructure |
|
Cancel |
3Select [AdHoc].
The following screen is displayed.
<Wireless display screen>
Change setting on host PC to the following value, reboot the host PC, then select "Connect" below.
Wireless LAN card Network Type : AdHoc
SSID : cfvdw07-43411 Encryption : disable
TCP/IP
IP Address : 10.57.148.205 NetMask : 255.0.0.0
MeiWDS
Password : wdsp
Connect Cancel
This screen is a sample.
CAUTION
Do not select [Connect] until step 9 is completed.
To the computer
( Page 14)
18
4 Select |
on the taskbar of the external display, then select [Configuration] |
|||||
The following screen is displayed. |
||||||
<External display screen> |
||||||
|
|
|
|
|
|
Set to [802.11.AdHoc]. |
|
|
|
|
|
|
|
|
|
|
|
|
|
Match the settings of the computer |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
with the information displayed on |
|
|
|
|
|
|
|
|
|
|
|
|
|
<Wireless display screen> of the |
|
|
|
|
|
|
step 3 . |
This screen is a sample.
NOTE
If there is no input from a key or an external mouse for a certain interval of time, the power to the wireless display may be turned off automatically. In this case, turn on the wireless display and then start the procedure from step 3 .
5Select [Apply Changes], then select [OK].
6Select [Start] - [Settings] - [Control Panel] - [Network] - [TCP/IPPRISM2 IEEE 802.11 PC CARD Adapter] - [Properties] - [IP Address].
The following screen is displayed.
<External display screen>
Match the settings of the computer with the information displayed on <Wireless display screen> of the step 3 .
This screen is a sample.
7Select [OK], then select [OK].
8Restart the computer.
9Select [Connect] on <Wireless display screen> of the step 3 .
Getting Started
19
