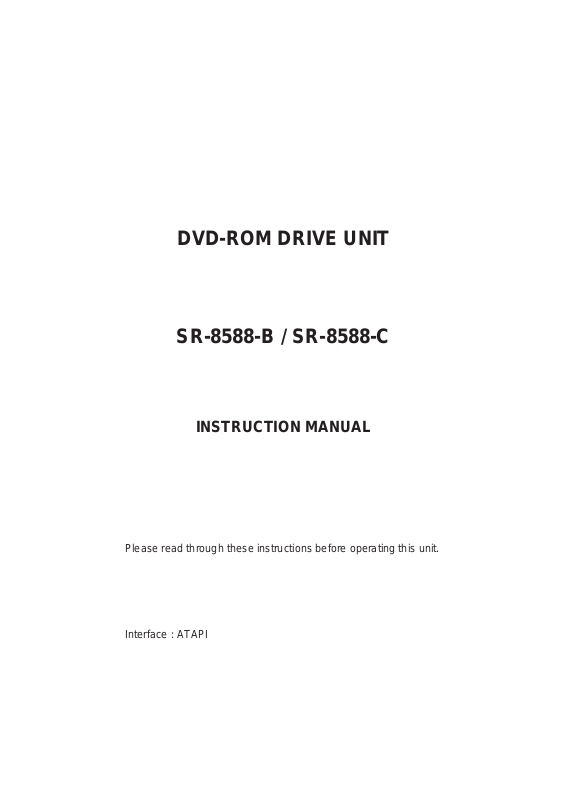

DVD-ROM DRIVE UNIT

SR-8588-B / SR-8588-C

INSTRUCTION MANUAL

Please read through these instructions before operating this unit.

Interface : ATAPI

DVD-ROM DRIVE UNIT

SR-8588-B / SR-8588-C

INSTRUCTION MANUAL

Please read through these instructions before operating this unit.

Interface : ATAPI

TABLE OF CONTENTS

IMPORTANT SAFETY NOTICE ................................................................................ iv

LASER SAFETY INFORMATION ............................................................................. A-1

INTRODUCTION........................................................................................................ A-4

1. PRECAUTIONS WHEN OPERATING................................................................... A-5

1.1 PRECAUTIONS WHEN TRANSPORTING...................................................... A-5

1.2 INSTALLATION LOCATION ............................................................................ A-5

1.3 PRECAUTIONS FOR USE .............................................................................. A-5

1.4 PRECAUTIONS FOR OPERATION ................................................................ A-5

1.5 PRECAUTIONS WHEN HANDLING DISCS.................................................... A-5

2. PARTS AND FUNCTIONS .................................................................................... A-7

2.1 FRONT VIEW................................................................................................... A-7

2.2 REAR VIEW ..................................................................................................... A-7

3. CONNECTIONS..................................................................................................... A-8

3.1 CONNECTING VIEW....................................................................................... A-8

4. GUIDE TO OPERATION ....................................................................................... A-8

4.1 INSTALLATIONS ............................................................................................. A-8

5. GENERAL DESCRIPTION .................................................................................... A-9

5.1 FEATURE SUMMARY ..................................................................................... A-9

5.2 SYSTEM SET UP ............................................................................................ A-9

5.3 POWER SAVING ............................................................................................. A-9

6. SPECIFICATION SUMMARY................................................................................ A-9

6.1 PERFORMANCE ............................................................................................. A-9

6.2 ERROR RATES ...............................................................................................A-10

6.3 AUDIO PERFORMANCE.................................................................................A-10

6.4 GENERAL PERFORMANCE ...........................................................................A-11

6.5 ENVIRONMENTAL CONDITIONS...................................................................A-11

6.6 PICK UP LASER ..............................................................................................A-11

7. BEFORE REQUESTING SERVICE.......................................................................A-11

7.1 TROUBLESHOOTING .....................................................................................A-11

ENGLISH

iii

IMPORTANT SAFETY NOTICE

NOTICE

(1) You may not reproduce or transcribe any part of this publication without permission. (2) We reserve the right to revise this document at any time without notice. (3) If you have any questions about this document, contact your sales representative.

SAFETY NOTICE

(1) To prevent fire or electric shock, do not expose this appliance to rain or moisture. (2) To avoid electric shock or damage to the eyes due to laser beam, do not attempt to

disassemble the cabinet.

For USA (Model SR-8588-B only)

FEDERAL COMMUNICATIONS COMMISSION (FCC) RADIO FREQUENCY INTERFERENCE STATEMENT

Class B Computing Device

NOTE : This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and , if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures :

- - Reorient or relocate the receiving antenna.

- - Increase the separation between the equipment and receiver.

- - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- - Consult the dealer or an experienced radio/TV technician for help.

FCC WARNING : Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

LASER SAFETY INFORMATION

Class 1 LASER Product

This equipment is certified to comply with DHHS Rule 21 CFR Chapter 1, Subchapter J in effect as of date of manufacture. Elsewhere, the drive is certified to conform to the requirements of the International Electrotechnical Commission (IEC) 825 and CENELEC EN60825 for Class 1 laser products. Class 1 laser products are not considered to be hazardous. To ensure continued product safety, the following precautions should be heeded. This equipment has the Optical Pickup which has the Dual Lasers (DVD & CD).

Caution :

(1) The use of controls or adjustments or performance of procedures other than those

specified herein may result in hazardous radiation exposure.

(2) The drive is designed to be incorporated into a computer-based system or unit which

has an enclosing cover. The drive may not be used as a stand-alone unit.

(3) Do not open the drive unit; no user adjustments or serviceable parts are inside.

CLASS 1 LASER PRODUCT LASER KLASSE 1 LUOKAN 1 LASERLAITE KLASS 1 LASER APPARAT EN60825 APPAREIL A LASER DE CLASSE 1

CAUTION – LASER RADIATION WHEN OPEN. DO NOT STARE INTO BEAM. VORSICHT – LASERSTRAHLUNG, WENN ABDECKUNG GEÖFFNET, NICHT IN DEN STRAHL BLICKEN. ADVARSEL – LASERSTRÅLING VED ÅBNING, SE IKKE IND I STRÅLEN. ADVARSEL – LASERSTRÅLING NÅR DEKSEL ÅPNES, STIRR IKKE INN I STRÅLEN. VARNING – LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD, STIRRA EJ IN I STRÅLEN. VARO ! AVATTAESSA OLET ALTTIINA LASERSÄTEILYLLE, ÄLÄ TUIJOTA SÄTEESEEN.

CAUTION – INVISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS. VORSICHT – UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG GEÖFFNET, NICHT IN DEN STRAHL BLICKEN AUCH NICHT MIT OPTISCHEN INSTRUMENTEN. ADVARSEL – USYNLIG LASERSTRÅLING VED ÅBNING. SE IKKE IND I STRÅLEN–HELLER IKKE MED OPTISKE INSTRUMENTER. ADVARSEL – USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES. STIRR IKKE INN I STRÅLEN ELLER SE DIREKTE MED OPTISKE INSTRUMENTER. VARNING – OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD. STIRRA EJ IN I STRÅLEN OCH BETRAKTA EJ STRÅLEN MED OPTISKA INSTRUMENT. VARO ! AVATTAESSA OLET ALTTIINA NÄKYMÄTÖNTÄ LASERSÄTEILYLLE. ÄLÄ TUIJOTA SÄTEESEEN ÄLÄKÄ KATSO SITÄ OPTISEN LAITTEEN LÄPI.

ENGLISH

• This label is attached to the upper shield at the top of the drive unit.

• Dieses Etikett ist auf der oberen Abschirmung oben auf der Laufwerkseinheit angebracht. (For German)

• Märkningen återfinns på den översta kåpan överst på drivenheten. (For Swedish)

• Denne merkelappen er festet til det øverste dekselet på toppen av spilleren.

(For Norwegian)

• Denne etiket er sat fast på den øverste skærm på drev-enhedens top. (For Danish)

• Tämä etiketti on liimattu voimayksikön yläosan suojalevyyn. (For Finnish)

A-1

for DVD LASER Specification

Type: Semiconductor laser InGaAlP / AlGaAs Wave Length: 650 ± 10 nm Divergence: Output Power: 0.30 mW

= 24 ° ~ 32 ° (Typical 28 °)

for CD LASER Specification

Type:Semiconductor laser InGaAlP / AlGaAs Wave Length: 790 ± 15 nm Divergence: Output Power: 0.23 mW

= 25 ° ~ 39 ° (Typical 32 °)

Laser-Daten: (For German)

Typ: InGaAlP / AlGaAs-Halbleiter-Laser Wellenlänge: 650 ± 10 nm Divergenz: Ausgangsleistung: 0,30 mW

LASER: (For French)

Type: Laser semi-conducteur InGaAlP / AlGaAs Longueur d’ondes: 650 ± 10 nm Divergence: Puissance de sortie: 0,30 mW

Laser- specifikationer: (For Swedish)

Typ: Laserhalvedare InGaAlP / AlGaAs Våglängd: 650 ± 10 nm Divergens: Uteffekt: 0,30 mW

LASER Spesifikasjon: (For Norwegian)

Type: Halvleder laser InGaAlP / AlGaAs Bølgelengde: 650 ± 10 nm Divergens: Utgangseffekt: 0,30 mW

Laser Specifikationer: (For Danish)

Type: Semiconductor InGaAlP / AlGaAs Bølge-længde: 650 ± 10 nm Divergens: Udgang-effekt: 0,30 mW

= 24 ° ~ 32 ° (Typical 28 °)

Laser-Daten: (For German)

Typ:InGaAlP / AlGaAs-Halbleiter-Laser Wellenlänge: 790 ± 15 nm Divergenz: Ausgangsleistung: 0,23 mW

LASER: (For French)

Type:Laser semi-conducteur InGaAlP / AlGaAs Longueur d’ondes: 790 ± 15 nm Divergence: Puissance de sortie: 0,23 mW

Laser- specifikationer: (For Swedish)

Typ:Laserhalvedare InGaAlP / AlGaAs Våglängd: 790 ± 15 nm Divergens: Uteffekt: 0,23 mW

LASER Spesifikasjon: (For Norwegian)

Type:Halvleder laser InGaAlP / AlGaAs Bølgelengde: 790 ± 15 nm Divergens: Utgangseffekt: 0,23 mW

Laser Specifikationer: (For Danish)

Type:Semiconductor InGaAlP / AlGaAs Bølge-længde: 790 ± 15 nm Divergens: Udgang-effekt: 0,23 mW

= 25 ° ~ 39 ° (Typisch 32 °)

= 25 ° ~ 39 ° (Environ 32 °)

= 25 ° ~ 39 ° (Typiskt 32 °)

= 25 ° ~ 39 ° (Typisk 32 °)

LASERin tekniset tiedot: (For Finnish)

Tyyppi: Laserpuolijohdin InGaAlP / AlGaAs Aallon pituus: 650 ± 10 nm Hajaantuminen:θ = 24 ° ~ 32 °

(Tyypillinen 28 °)

Teho: 0,30 mW

For Finnish

VAROITUS! Laitteen käyttäminen muulla kuin tässä käyttöohjeessa mainitulla tavalla saattaa altistaa käyttäjän turvallisuusluokan 1 ylittävälle näkymättömälle lasersäteilylle.

For Swedish

VARNING! Om apparaten används på annat sätt än i denna bruksanvisning specificerats, kan användaren utsättas för osynlig laserstrålning, som överskrider gränsen för laserklass 1.

LASERin tekniset tiedot: (For Finnish)

Tyyppi:Laserpuolijohdin InGaAlP / AlGaAs Aallon pituus: 790 ± 15 nm Hajaantuminen:θ = 25 ° ~ 39 °

(Tyypillinen 32 °)

Teho: 0,23 mW

A-2
