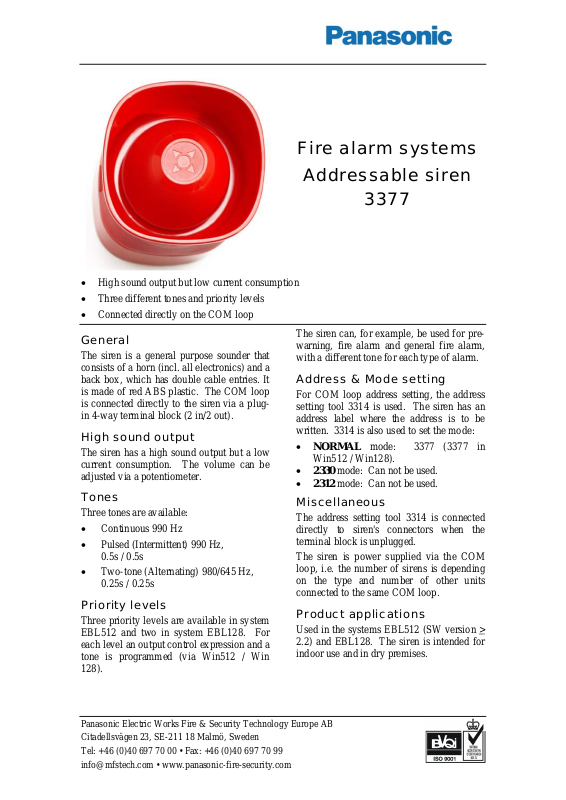

Panasonic 3377 User Manual

• High sound output but low current consumption

• Three different tones and priority levels

• Connected directly on the COM loop

Fire alarm systems

Addressable siren

3377

General

The siren is a general purpose sounder that
consists of a horn (incl. all electronics) and a
back box, which has double cable entries. It
is made of red ABS plastic. The COM loop
is connected directly to the siren via a plug­in 4-way terminal block (2 in/2 out).

High sound output

The siren has a high sound output but a low
current consumption. The volume can be
adjusted via a potentiometer.

Tones

Three tones are available:

• Continuous 990 Hz

• Pulsed (Intermittent) 990 Hz,

0.5s / 0.5s

• Two-tone (Alternating) 980/645 Hz,

0.25s / 0.25s

Priority levels

Three priority levels are available in system
EBL512 and two in system EBL128. For
each level an output control expression and a
tone is programmed (via Win512 / Win

128).

The siren can, for example, be used for pre­warning, fire alarm and general fire alarm,
with a different tone for each type of alarm.

Address & Mode setting

For COM loop address setting, the address
setting tool 3314 is used. The siren has an
address label where the address is to be
written. 3314 is also used to set the mode:

• NORMAL mode: 3377 (3377 in

Win512 / Win128).

• 2330 mode: Can not be used.

• 2312 mode: Can not be used.

Miscellaneous

The address setting tool 3314 is connected
directly to siren's connectors when the
terminal block is unplugged.

The siren is power supplied via the COM
loop, i.e. the number of sirens is depending
on the type and number of other units
connected to the same COM loop.

Product applications

Used in the systems EBL512 (SW version >

2.2) and EBL128. The siren is intended for
indoor use and in dry premises.

Panasonic Electric Works Fire & Security Technology Europe AB
Citadellsvägen 23, SE-211 18 Malmö, Sweden
Tel: [phone] • Fax: [phone]
[e-mail] • www.panasonic-fire-security.com

Type number

3377 Addressable siren

50

50

60

Technical data

Voltage (V DC)
rated

allowed
normal

Current consumption from COM loop
at norm. volt. (mA)

quiescent
active

Ambient temperature (°C)
operating

storage
Ambient humidity (% RH) Max. 95, non condensing
Ingress Protection rating (estimated) IP 42

Sound output (dB (A) @ 1 m) 100 ±2 (max. volume)

Frequency stability (%) ±0.5
Weight (g) 212
Colour Red (ABS plastic case)
Approvals CE

24
12-30
24

1

13

<

-10 to +55

-25 to +70

90 ±2 (min. volume)

All technical features and data are subject to changes without notice, resulting from continuous development and improvement.

Product Leaflet Date of issue Revision / Date of revision

MEW00128 2003-06-30 4 / 2006-08-31
