N340
n-type crystalline silicon
Double-sided textured surface
i-type amorphous layer
Amorphous layer
Transparent electrode (TCO)

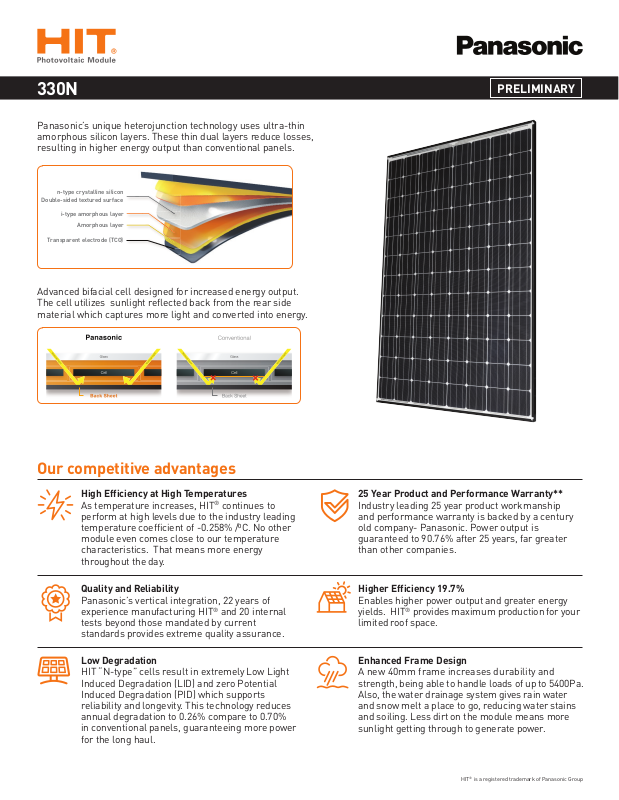

330N
Panasonic’s unique heterojunction technology uses ultra-thin
amorphous silicon layers. These thin dual layers reduce losses,
resulting in higher energy output than conventional panels.
Advanced bifacial cell designed for increased energy output.
The cell utilizes sunlight reflected back from the rear side
material which captures more light and converted into energy.
PRELIMINARY
Our competitive advantages
High Efficiency at High Temperatures
As temperature increases, HIT® continues to
perform at high levels due to the industry leading
temperature coefficient of -0.258% /⁰C. No other
module even comes close to our temperature
characteristics. That means more energy
throughout the day.
Quality and Reliability
Panasonic’s vertical integration, 22 years of
experience manufacturing HIT® and 20 internal
tests beyond those mandated by current
standards provides extreme quality assurance.
Low Degradation
HIT “N-type” cells result in extremely Low Light
Induced Degradation (LID) and zero Potential
Induced Degradation (PID) which supports
reliability and longevity. This technology reduces
annual degradation to 0.26% compare to 0.70%
in conventional panels, guaranteeing more power
for the long haul.
25 Year Product and Performance Warranty**
Industry leading 25 year product workmanship
and performance warranty is backed by a century
old company- Panasonic. Power output is
guaranteed to 90.76% after 25 years, far greater
than other companies.
Higher Efficiency 19.7%
Enables higher power output and greater energy
yields. HIT® provides maximum production for your
limited roof space.
Enhanced Frame Design
A new 40mm frame increases durability and
strength, being able to handle loads of up to 5400Pa.
Also, the water drainage system gives rain water
and snow melt a place to go, reducing water stains
and soiling. Less dirt on the module means more
sunlight getting through to generate power.
HIT® is a registered trademark of Panasonic Group
330N
PRELIMINARY
ELECTRICAL SPECIFICATIONS
Model VBH330RA18N
Rated Maximum Power (Pmax)¹ 330W
Maximum Power Voltage (Vpm) 59.0V
Maximum Power Current (lpm) 5.60A
Open Circuit Voltage (Voc) 70.6V
Short Circuit Current (lsc) 6.01A
Temperature Coefficient (Pmax) -0.258%/°C
Temperature Coefficient (Voc) -0.17V/°C
Temperature Coefficient (lsc) 3.31mA/°C
NOCT 44.0°C
CEC PTC Rating (TENTATIVE) 311.7W
Cell Efficiency 22.18%
Module Efficiency 19.7%
Maximum System Voltage 1000V
Maximum Series Fuse 15A
Warranted Tolerance (-/+) +10%/-0%*
MECHANICAL SPECIFICATIONS
Model VBH330RA18N
Internal Bypass Diodes 4 Bypass Diodes
Module Area 18.02 Ft.² (1.67m²)
Weight 41.89 Lbs (19kg)
Dimensions LxWxH 62.6 x 41.5 x 1.6 in [1590 x 1053 x 40mm]
Cable Length +Male/-Female 40.2/40.2 in. [1020/1020mm]
Cable Size / Type No. 12 AWG / PV Cable
Connector Type
Static Wind / Snow Load 112 PSF (5400Pa
Pallet Dimensions LxWxH
Quantity per Pallet / Pallet Weight 24 pcs./1049 Lbs. (476 kg)
Quantity per 40' Container 672 pcs..
Quantity per 20' Container 288 pcs.
2
Multi-Contact® Type IV (MC4™)
****
)
63.7x42.2x46.4 (Malaysia)
65.3x43.7x48.5 in. (USA)
PERFORMANCE WARRANTY
97%
DIMENSIONS
Unit: inches (mm)
DEPENDENCE ON IRRADIANCE
90.76%
More power
over 25 years
80%
13.514.9
*Please refer to the Installation Manual for different loads
OPERATING CONDITIONS & SAFETY RATINGS
Model VBH330RA18N
Operating Temperature -40°F to 185°F (-40°C to 85°C)
Hail Safety Impact Velocity 1" hailstone (25mm) at 52 mph (23m/s)
Safety & Rating Certifications (Plan)
UL 1703 Fire Classification (Plan) Type 2
Limited Warranty
Manufacturing Locations USA and Malaysia
* Maximum power at delivery. For guarantee conditions, please check our guarantee document.
** Installation must be registered through our website www.panasonicusahitwarranty.com within 60 days
in order to receive twenty-five (25) year Product workmanship. Otherwise, Product Workmanship will be
only fifteen (15) years.
*** 1st year 97%, after 2nd year 0.26% annual degradation to year 25.
1
STC: Cell temp. 25°C, AM1.5, 1000W/m²
2
Safety locking clip (PV-SSH4) is not supplied with the module.
Panasonic Life Solutions Company of America
Two Riverfront Plaza, 5th Floor, Newark, NJ 07102
panasonicHIT@us.panasonic.com
na.panasonic.com/us/solar
UL 61730, Certified by UL LLC.
CEC, FSEC, ISO9001
25** Yrs Workmanship and Power Output (Linear)***
Reference data for model: VBH330RA18N
(Cell temperature: 25°C)
NOTE: Specifications and information above may change without notice.
CAUTION! Please read the installation manual carefully before using the products.
Used electrical and electronic products must not be mixed with general household waste. For proper
treatment, recovery and recycling of old products, please take them to applicable collection points in
accordance with your national legislation.
All Rights Reserved © 2019 COPYRIGHT Panasonic Corporation
Specifications are subject to change without notice
RS19131DS_R5
