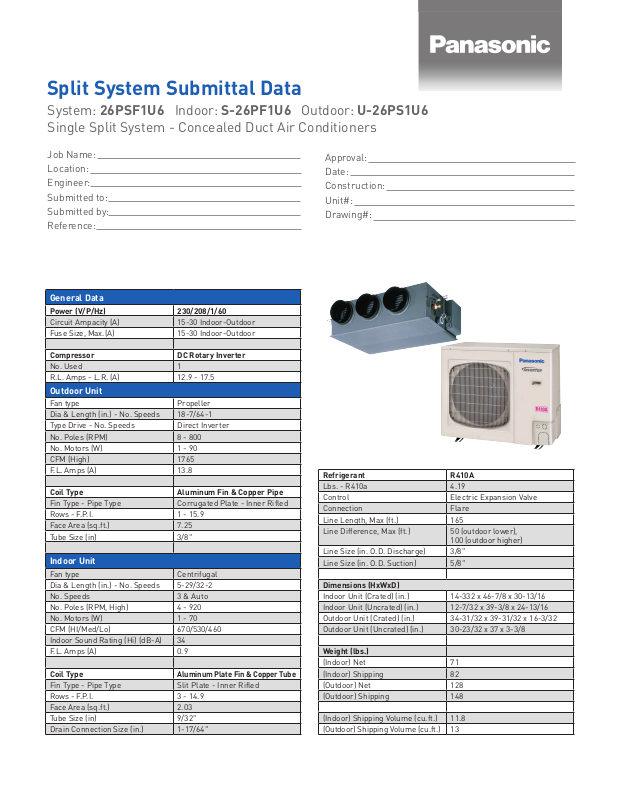

Page 1
Split System Submittal Data
System: 26PSF1U6 Indoor: S-26PF1U6 Outdoor: U-26PS1U6
Single Split System - Concealed Duct Air Conditioners
Job Name:
Location:
Engineer:
Submitted to:
Submitted by:
Reference:
General Data
Power (V/P/Hz) 230/208/1/60
Circuit Ampacity (A) 15-30 Indoor-Outdoor
Fuse Size, Max.(A) 15-30 Indoor-Outdoor
Compressor DC Rotary Inverter
No. Used 1
R.L. Amps - L.R. (A) 12.9 - 17.5
Outdoor Unit
Fan type Propeller
Dia & Length (in.) - No. Speeds 18-7/64-1
Type Drive - No. Speeds Direct Inverter
No. Poles (RPM) 8 - 800
No. Motors (W) 1 - 90
CFM (High) 1765
F.L. Amps (A) 13.8
Coil Type Aluminum Fin & Copper Pipe
Fin Type - Pipe Type Corrugated Plate - Inner Rifled
Rows - F.P.I. 1 - 15.9
Face Area (sq.ft.) 7.25
Tube Size (in) 3/8"
Indoor Unit
Fan type Centrifugal
Dia & Length (in.) - No. Speeds 5-29/32-2
No. Speeds 3 & Auto
No. Poles (RPM, High) 4 - 920
No. Motors (W) 1 - 70
CFM (HI/Med/Lo) 670/530/460
Indoor Sound Rating (Hi) (dB-A) 34
F.L. Amps (A) 0.9
Coil Type
Fin Type - Pipe Type Slit Plate - Inner Rifled
Rows - F.P.I. 3 - 14.9
Face Area (sq.ft.) 2.03
Tube Size (in) 9/32"
Drain Connection Size (in.) 1-17/64"
Aluminum Plate Fin & Copper Tube
Approval:
Date:
Construction:
Unit#:
Drawing#:
Refrigerant R410A
Lbs. - R410a 4.19
Control Electric Expansion Valve
Connection Flare
Line Length, Max (ft.) 165
Line Difference, Max (ft.) 50 (outdoor lower),
100 (outdoor higher)
Line Size (in. O.D. Discharge) 3/8"
Line Size (in. O.D. Suction) 5/8"
Dimensions (HxWxD)
Indoor Unit (Crated) (in.) 14-332 x 46-7/8 x 30-13/16
Indoor Unit (Uncrated) (in.) 12-7/32 x 39-3/8 x 24-13/16
Outdoor Unit (Crated) (in.) 34-31/32 x 39-31/32 x 16-3/32
Outdoor Unit (Uncrated) (in.) 30-23/32 x 37 x 3-3/8
Weight (lbs.)
(Indoor) Net 71
(Indoor) Shipping 82
(Outdoor) Net 128
(Outdoor) Shipping 148
(Indoor) Shipping Volume (cu.ft.) 11.8
(Outdoor) Shipping Volume (cu.ft.) 13
Page 2
Performance Data @ ARI Standard Conditions (230V)
Cooling
Total Capacity (BTU/H) 24,400 (9,500 - 24,400)
Sensible Capacity (BTU/H) 14,390
Latent Capacity (BTU/H) 9,610
SEER 14
Dehumidification (Pints/H) 7.7
Amps (A) 13.6/15.0
Power Inputs (W) 2,600/2,600
Outdoor Sound Rating (dB-A) 49
Features
Controls Microprocessor
Remote Controller LCD Wired Type, Temp. Sensor
Temperature Control IC Thermostat
Timer 72 Hr. On/Off
Night Setback Built-In
Air Louver, Horizontal Manual
Air Louver, Vertical Automatic
Power Failure Automatic
Changeover
Self-Diagnosis Built-In
Air Filter Washable, Anti-Mold
Built in
Built-In
Option
Refrigerant Line Set Available
Fresh Air Intake N/A
Indoor Frame Extension Standard
Condensate Drain Pump Available
Non-Removeable Remo-con
Bracket
Operating Range
Cooling (Max) 95F DB/71F WB 115F DB
Cooling (Min) 67 DB/57F WB 0F DB
Indoor Air Intake Temp
Available
Outdoor Air Intake Temp
Panasonic North America
Air Conditioning Division
1690 Roberts Blvd., NW, Suite 110
Kennesaw, GA 30144
us.panasonic.com/aircon
Page 3

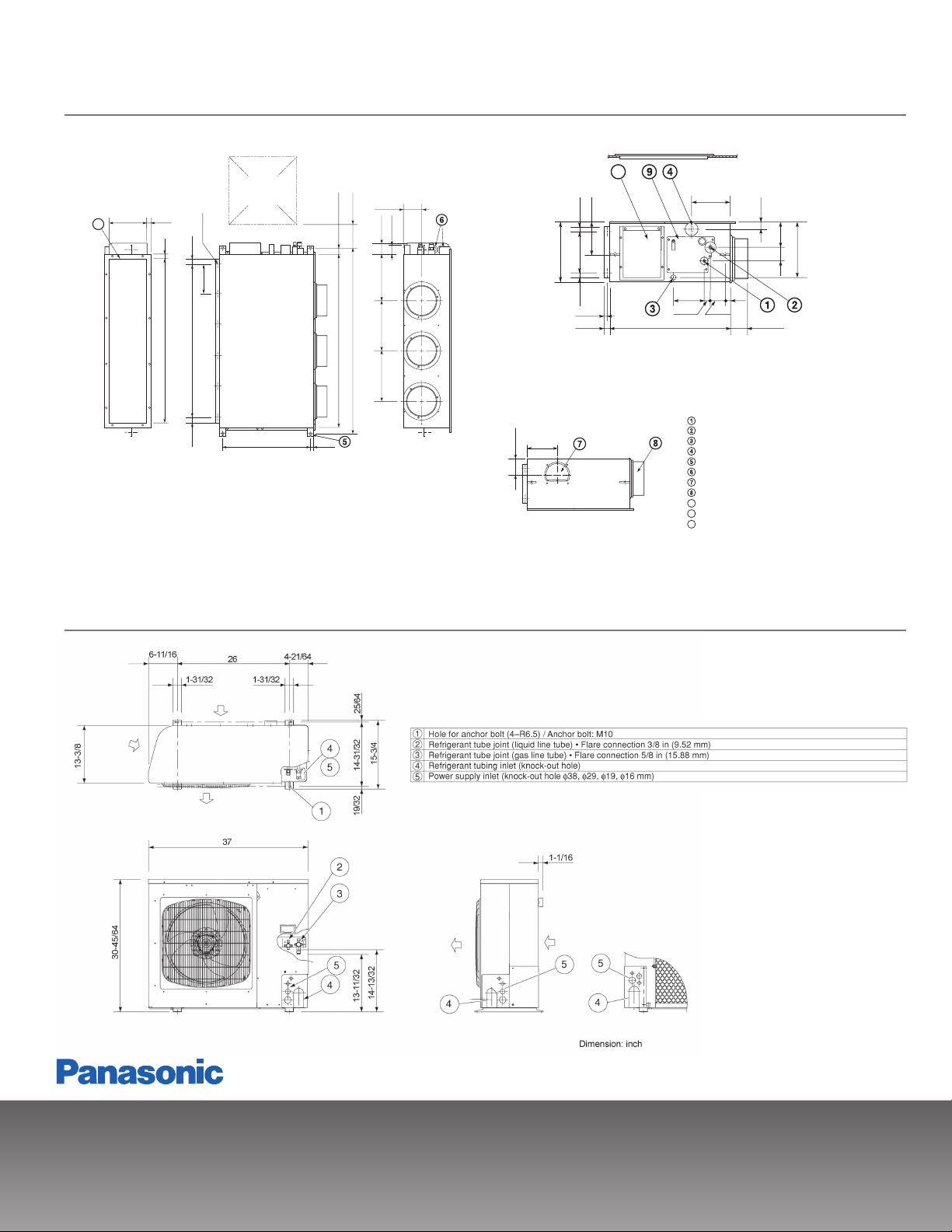

1-4 Dimensional Data
(B) Outdoor Unit: U-26PE1U6, U-26PS1U6
U-36PE1U6, U-36PS1U6
(B) Outdoor Unit: U-26PE1U6, U-26PS1U6
U-36PE1U6, U-36PS1U6
Indoor Dimensions
1. Specifications
1-4 Dimensional data
Indoor unit :Low Silhouette Duct Type
26 Type
(Suspension bolt pitch)
10
11-7/32
2-3/4
5-1/8
31/32 8-9/32
12-7/32
31/32
6-7/8
1-3/8
7-15/32
3-11/32
31/32
2-3/41-3/16
6-5/16
24-13/16
31/32
13/32
1
1. Specifications
26 Type
1. Specifications
(Suspension bolt pitch)
16-
ø
1/8
(Hole)
35-7/16
39-3/8
42-17/32 (Suspension bolt pitch)
(5-29/32)
1-9/16
11-13/32 11-12/32 10-23/32 2-15/16
2-9/16
7-3/32
22-27/32
31/32
4-17/32
Dimension : inch
10
11-7/32
2-3/4
5-1/8
31/32 8-9/32
31/32
6-7/8
1-3/8
7-15/32
3-11/32
31/32
2-3/41-3/16
6-5/16
24-13/16
31/32
13/32
Inspection access
(17-23/32 × 17-23/32)
(Field supply)
1
(Field supply)
11
10-1/4
(Air outlet
duct flange)
15/16
1/8
ø
16-
3/4
1-7/321-7/32
7-3/32
35-7/16
(Hole)
Inspection access
(17-23/32 × 17-23/32)
1-9/16
39-3/8
(5-29/32)
4-17/32
2-9/16
12-7/32
13/32
31/32
6-7/8
31/32
31/32 8-9/32
10
24-13/16
6-5/16
7-15/32
1-3/8
5-1/8
11-7/32
2-3/4
31/32
2-3/41-3/16
3-11/32
37-7/8 (Air outlet duct flange)
Outdoor Dimensions
22-27/32
11-13/32 11-12/32 10-23/32 2-15/16
42-17/32 (Suspension bolt pitch)
31/32
3-17/32
7-9/32
Refrigerant liquid line
Refrigerant gas line
Upper drain port (O.D. 1-1/4)
Bottom drain port (O.D. 1-1/32)
Suspension lug
Power supply inlet (conduit size 1/2")
Fresh air intake port (
Flange for the flexible air outlet duct (
9
Tube cover
10
Electrical component box
11
Flange for the air intake duct
(option or field supply)
(3/8") Flare connection
(5/8") Flare connection
ø
5-29/32)
ø
7-7/8)
1914_U_I
Panasonic North America
Air Conditioning Division
1690 Roberts Blvd., NW, Suite 110
Kennesaw, GA 30144
us.panasonic.com/aircon
