Digital Copier

Operating Instructions

(For Printer, Document Management System)

Model No.

DP-130P/135P/150P/150PA DP-135FP/150FP/150FX

Options (Available separately) DA-DS150/SM08B/SM16B; UE-410046/410047/410048/403171

Before UsePrinter Section

Section

Class 2 Fax Modem

System Section

Document Management

Before operating this equipment, please read these instructions completely and keep these operating instructions for future reference.

English

Energy Star

The DP-130/135/150 copier complies with Tier 2 of the Environmental Protection Agency's Energy Star Program. This voluntary program specifies certain energy consumption and usage standards for copiers. These copiers will automatically “power down” after a specified period of non-use.

The use of these Energy Star compliant copiers will reduce energy consumption and ultimately benefit the environment.

The default functions can be adjusted depending on your office requirements. Please see your authorized Panasonic copier dealer for more details.

The following trademarks and registered trademarks are used throughout this manual:

Microsoft, MS-DOS, Windows and Windows NT are registered trademarks of Microsoft Corporation in the USA and other countries. i386, i486 and Pentium are trademarks of Intel Corporation. Centronics is a registered trademark of Centronics Data Computer Corporation. TrueType is a registered trademark of Apple Computer, Inc. All other trademarks identified herein are the property of their respective owners.

The contents of this Operating Instructions are subject to change without notice.

Before Use

Precautions

External View and Control Panel

.................................................................................................................... 5

External View ............................................................................ 6

Control Panel

.............................................................................

Printer Section

Installation and Configuration (Windows 95/98/Me)

Installing the Printer Driver ........................................................

Configuring the Printer Driver Settings ...................................

Installation and Configuration (Windows NT 4.0)

Installing the Printer Driver ........................................................

Configuring the Printer Driver Settings (Administrator) Configuring the Printer Driver Settings (User)

Installation and Configuration (Windows 2000)

Installing the Printer Driver Configuring the Printer Driver Settings (Administrator)

........................................................

.............

..........................

............

26 35

Configuring the Printer Driver Settings (User)

Print Operation

Troubleshooting

Appendix

Printing from Windows Applications .........................................

Printing on Network .................................................................

Starting with: Document is not printed correctly Error messages displayed on computer

Printing/Scanning Area Pararell Interface Connector

.............................................................................

Class 2 Fax Modem Section

Installing the Panasonic Class 2 Fax Modem

Installing (Windows 95/98Me) ...................................................

Installing (Windows NT 4.0)

...........................

..............................................

...................................

............................................................

..............................................

.....................................................

60 61

62 63

66 67

Installing (Windows 2000)

.........................................................

Table of Contents

Document Management System Section

Document Manager

Document Scanner

Document View

Main Window Basic Operations Setting Plug-in

File Menu Edit Menu

View Menu

Document Menu

Main Window Tool Menu Image Scanning

Main Window ..........................................................................

Basic Operations Annotation Function File Menu

Edit Menu Page Menu

.........................................................................

......................................................................

.........................................................................

.................................................................................

................................................................................

..............................................................................

.....................................................................

........................................................................

...............................................................................

.......................................................................

......................................................................

.................................................................

.................................................................................

................................................................................

.............................................................................

89 91

95 100 101

102

103 107 109

111 113

114

115 119

120

Status Monitor

Configuration Editor

Phone Book Editor

Annotation Menu Image Menu View Menu

Task Bar Display Task Bar Menu

Display Status Details

Main Window .........................................................................

User Parameters Folder Fax Parameters Folder Copier Settings Folder

Journal Folder Print Out Directory Dialing Settings Shortcut Activation Folder

Features ...............................................................................

Activation Procedure Retrieve/Write Open/Save File

Insert Entry Delete Entry

.............................................................................

..................................................................................

...............................................................................

...................................................................

....................................................................

......................................................................

............................................................. 133

...........................................................

............................................................

...............................................................

..........................................................................

...............

..............................................................

........................................................................

.......................................................................

..........................................................................

121 128

131

132 133

137 139

140 141

142 143 144

145 147

148

150 152 153

Precautions

For U.S.A.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interence in which case the user will be required to correct the interference at his/her own expense.

Any unauthorized changes or modifications to this equipment would void the users authority to operate this device.

You need to read the software license agreement before setting up the Printer Driver.

You need to read the following precautions which is described in the Copier Operating Instructions.

Installation Ventilation Handling Toner and Paper For your safety

External View and Control Panel

External View

Control Panel

Paper Exit Tray

Pull out when printing

Paper Tray 1

2nd Paper Feed Module (Option/Paper Tray 2)

Front Cover

When replacing the Drum Unit/Toner Cartridge or removing a misfed paper.

Right Cover

When replacing the Drum Unit/Toner Cartridge or removing a misfed paper.

Sheet Bypass Tray

Paper Feed Cover (2nd Paper Feed Module)

When removing a misfed paper.

Parallel interface connector

Connect to PC

Parallel interface cable

Obtain a cable conforming to a PC separately.

(A cable does not come with the unit.) Use a cable of IEEE1284 specifications, with a maximum length of 6 ft (2m). Consult a service provider for details.

Power Switch

Usually set to ( ) position.

Control Panel

For DP-130P/150P/150PA

External View and Control Panel


AUTO

2SIDED

DARKER

LIGHTER

For DP-150PA

For DP-135FP/150FP/150FX

2SIDED

COPY

FAX

ON LINE

2 SIDED

2 in 1

DATA


AUTO

DARKER

LIGHTER

SORT

SELECT FUNCTION

129%

79%

65%

61%

INVOICE

100%

LEGAL LETTER LEGAL

PAPER TRAY

LETTER

LETTER INVOICE INVOICE

ZOOM

abc..

(50~200%) SEARCH

DP-150FX

Printer Section

Installation and Configuration (Windows 95/98/Me)

Installing the Printer Driver

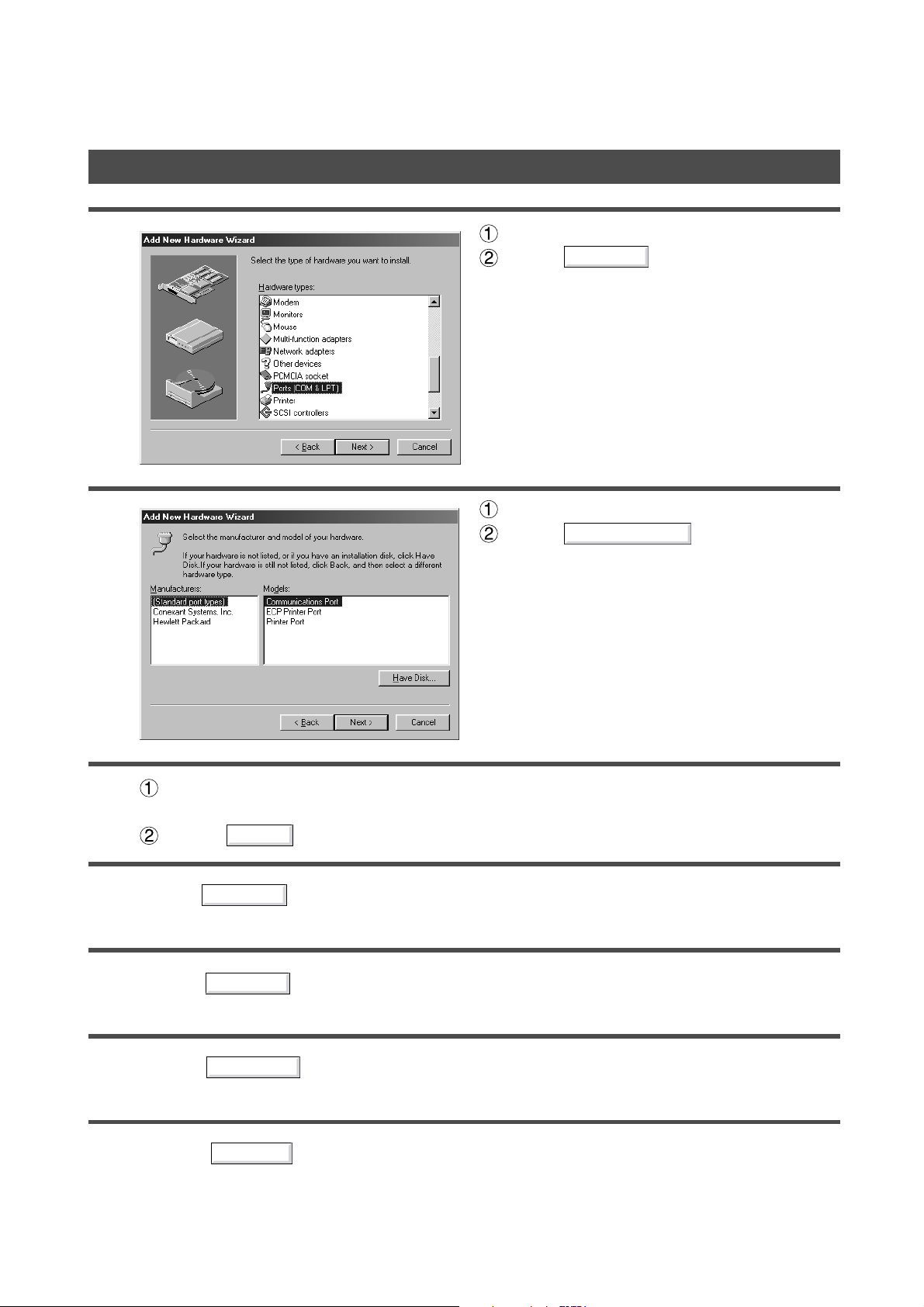

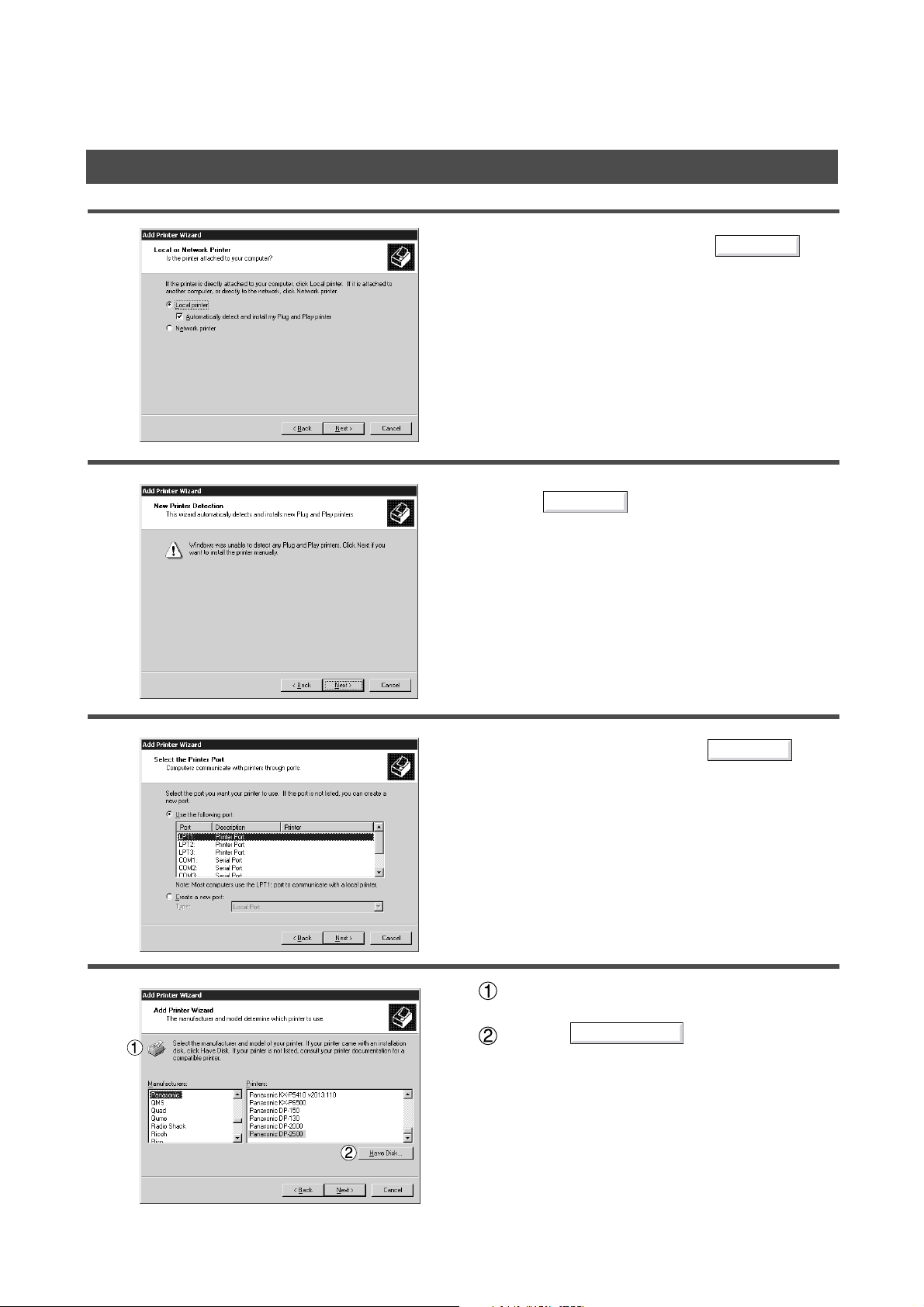

Open the Printers folder.

Click the Start button. Place the cursor on Settings and click Printers.

Double-click the Add Printer icon.

Click the button.

Select Local printer and click the button.

Network printer is specified when a printer on the network is installed. Refer to the Windows 95/98/Me users' manual for details.

Installation and Configuration (Windows 95/98/Me)

Insert the CD-ROM containing the printer driver. Click the button.

Specify the drive name and type

D:\Driver\Win9x.

(Where "D:" is your CD-ROM drive.)

Click the button.

Have Disk...

Select your device (Ex. Panasonic DP-150FX).

Click the button.

Select LPT1. Click the button.

Installation and Configuration (Windows 95/98/Me)

In response to Do you want your Windows-

based programs to use this printer as the default printer?, select Yes or No.

Click the button.

The required files are copied.

Finish

The Printers Icon is now displayed in the Printers folder.

NOTE

Be sure to delete the drivers of earlier version before updating drivers. Restart Windows after updating drivers.

Installation and Configuration (Windows 95/98/Me)

Configuring the Printer Driver Settings

To change the printer settings, open the dialog box for the printer properties by the following steps.

Click the Start button, place the cursor on Settings, and then click Printers.

Right-click the printer icon in the printers window, and select Properties in the dropdown menu.

The dialog box for the printer properties appears.

NOTE

Upon printing, changing properties Paper/Layout, Handling, Quality and Device

Options is allowed by clicking Properties in the print dialog box of an application.

Management tab of the color of property dialog box is not used for the DP-130/135/150. Sharing Tab in property dialog box is not displayed unless printer sharing has not

been specified.

Installation and Configuration (Windows 95/98/Me)

General Tab

Comment

Enter comments to the properties, if any. If another user sets up this printer on his or her computer when sharing the printer, the comment specified here will also appear on that computer. However, the comment displayed for an already set-up user will remain unchanged even if the comment is modified later.

Separator page

Inserts a separator page for every document to be printed. This feature is useful when multiple users share the same printer or when printing multiple documents at one time. The user can choose between Full, which is adorned with graphics, and Simple which consists of only text.

To use a specific separator page, click on be used as the separator page.

Print Test Page

button

Prints a test page. This allows the user to verify if the printer is installed properly.

Browse...

and then specify any Windows metafile (.WMF) to

Details Tab

Installation and Configuration (Windows 95/98/Me)

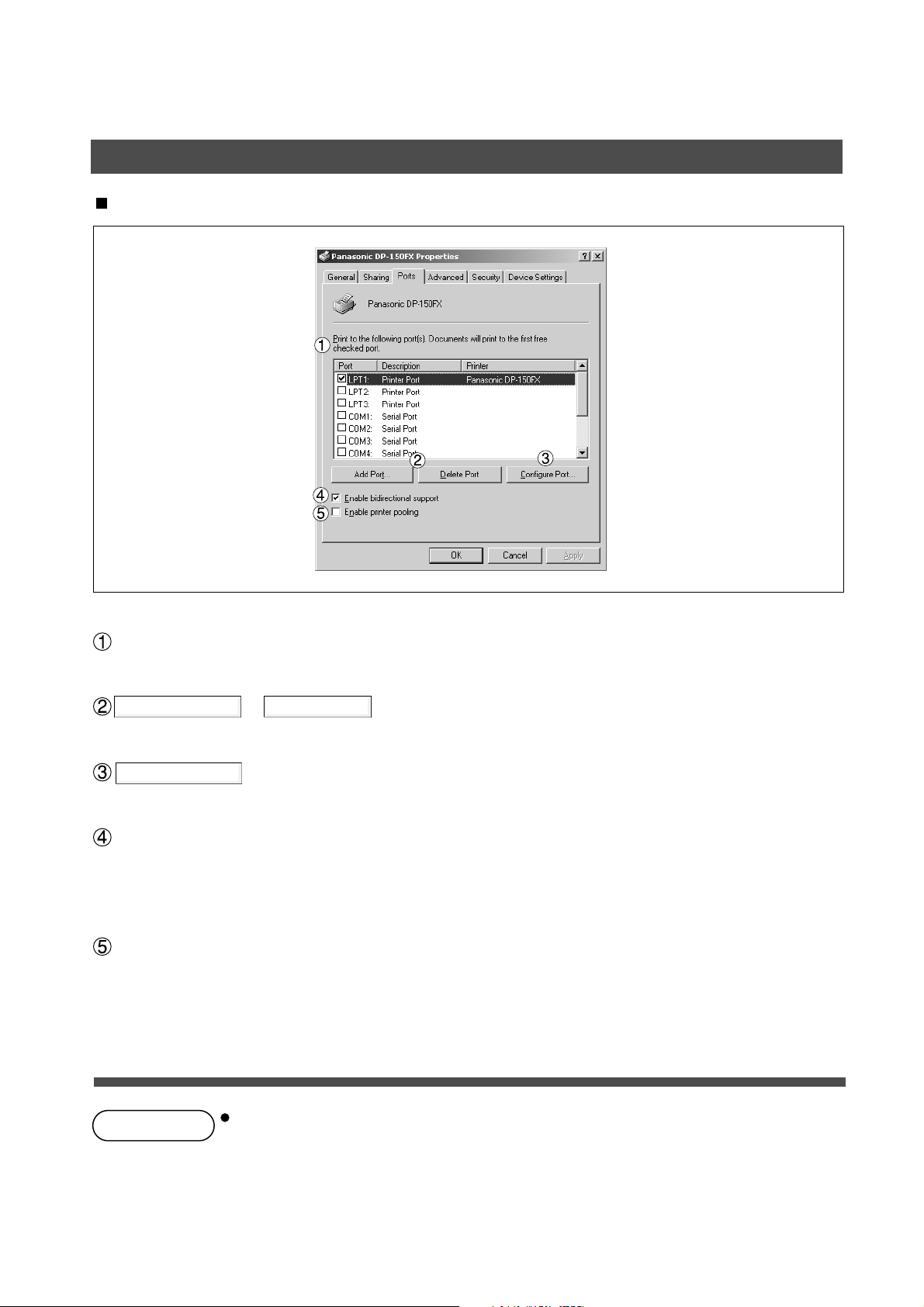

Print to the following port

Displays either the port to which the printer is connected or the path to the network printer. To change the printing destination, either select the printing destination port from the list or enter the network path here.

Print using the following driver

Displays the type of the printer driver. Specify the printer being used or a printer model which can be emulated with the printer being used.

Capture Printer Port... End Capture...

/ button

Assigns a port to the network drive or cancels a port assigned to the network drive.

Timeout settings - Not selected

Specify the amount of time (in seconds) allowed to elapse before the printer becomes online. If the printer is not online within this duration, an error message will be displayed.

Timeout settings - Transmission retry

Specify the amount of time (in seconds) allowed to elapse before the printer is ready for printing. If the printer is not ready for printing within this duration, an error message will be displayed. Increase this value if a timeout error occurs when printing a large document.

Add Port...

/ button

Adds/deletes a new port or a new network path.

Delete Port...

New Driver...

button

Updates or modifies the printer driver.

Installation and Configuration (Windows 95/98/Me)

Spool Settings...

button

Specify the method of sending (spool) documents from the program to the printer.

Spool Data Type

Select spool data type (EMF format or RAW format). Specifying RAW format results in longer time before placing an application operational after printing on the application. Note: Spooling by EMF format (metafile compression) may cause the following problems on some application software.

1) Printing result is different from the screen display.

2) Printing requires excessive time.

Port Settings...

button

Modifies printer port settings.

Enable bidirectional support

Be sure to check the check box for "Enable bidirectional support" when installing the status monitor. Printing may be disabled without checking it.

Sharing Tab

Installation and Configuration (Windows 95/98/Me)

Not Shared/Shared As

Select whether to display or use this printer with other computers.

Share Name

Specify the name of the shared printer. The displayed name can be used as it is or a new name may be entered. The name specified at this time will be displayed when other users view information about the printer on the network.

Comment

You can enter comment regarding a shared printer (such as the type of printer and the location where it is installed). When other users view information about the printer on the network, the comment specified here will be displayed.

Password

Specify a password when other users will connect to this printer. Leave the box blank in order not to use any password.

NOTE

Sharing Tab in property dialog box is not displayed unless sharing of printer has been

specified.

Installation and Configuration (Windows 95/98/Me)

Paper/Layout Tab

Paper Size

Select a document size.

Paper Source

Specify where the paper you want to use is located in the machine. If you choose Auto Selection, the printer driver will automatically select an appropriate tray according to the Paper Size.

Orientation

Select the print orientation (Portrait/Landscape).

Copies

Specify the number of copies to be printed. If the number of copies to be printed can be specified within the application, indicate one copy here and specify the number of copies in the Print dialog box of the application.

Zoom

Specify an enlargement or reduction percentage when printing documents. If enlargement/reduction can be set within the application, indicate 100% here and specify the enlargement/reduction percentage in the Print dialog box of the application.

N in 1

For printing two or more pages on one sheet, specify a printing method. Layout is selected by combining with "Orientation." Each layout is displayed with icon. 2 in 1: Print 2 pages of documents zoomed out by 65 or 71% on one sheet. 4 in 1: Print 4 pages of documents zoomed out by 50% on one sheet.

Restore Defaults

button

Return all items in Paper/Layout Tab to standard settings (default).

Handling Tab

Installation and Configuration (Windows 95/98/Me)

Sorter

Select whether to Stack or Sort when printing multiple copies.

Printing on both sides (Duplex) [DP-150FX only]

Select duplex printing for printing on both sides. Note: Duplex Printing on Invoice/A5 is not supported.

Flipping Direction

Select binding side (Long Edge Binding/Short Edge Binding) for duplex printing.

Installation and Configuration (Windows 95/98/Me)

Quality Tab

Halftone

Select method of expressing halftone. Select the setting according to the data to be printed and your preference. Normal: Select the halftoning method to be used. Select it according to the details of data and your

preference.

Line Art:

Use when printing originals containing line drawings or text.

Resolution

Select the printer resolution (300dpi/600dpi).

Density

Adjust the printing density (Contrast and Brightness) as desired.

Restore Defaults

button

Return all items in the Quality Tab to standard settings (default).

NOTE

dpi (dot per inch) means the number of dots contained in one inch. The higher the

value is, the higher the resolution becomes.

Device Options Tab

Installation and Configuration (Windows 95/98/Me)

Number of Paper Tray

Select the number of available paper trays for the printer if an optional Paper Feed Module is installed.

About

Displays the version information about the printer driver.

button

NOTE

Device Options Tab is specified on the printer properties.

Installation and Configuration (Windows NT 4.0)

Installing the Printer Driver

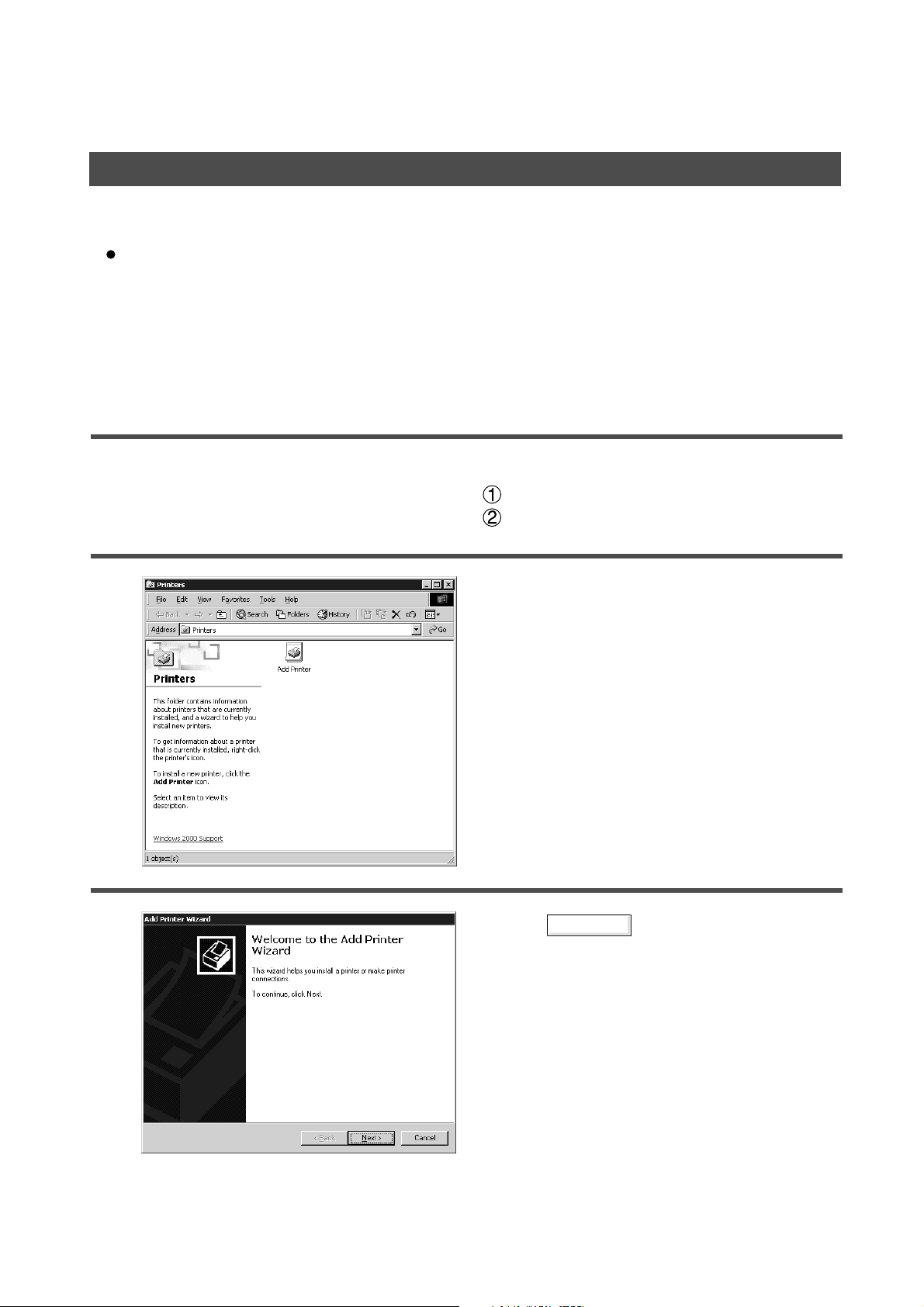

Open the Printer folder.

Click the Start button. Place the cursor on Settings and click Printers.

Double-click the Add Printer icon.

Select My Computer and then click the button.

Network printer server is specified when a printer on the network server is installed. Refer to Windows NT 4.0 users' manual for details.

Installation and Configuration (Windows NT 4.0)

Installing the Printer Driver

Select the printer port and click button.

Insert the CD-ROM containing the printer driver. Click the button.

Have Disk...

Specify drive name and type D:\Driver\WinNT4. (Where "D:" is your CD-ROM drive.)

Click the button.

Select your device (Ex: Panasonic DP-150FX).

Click the button.

Installation and Configuration (Windows NT 4.0)

In response to Do you want your Windows-

based programs to use this printer as the default printer?, select Yes or No.

Click the button.

Select Not Shared and click the button.

Select Shared only when installing on a network

server.

See the Windows NT 4.0 users' manual for details.

Select Yes (recommended) and click the

Finish

button.

Test printing starts.

Default (initial setting) for paper size is

Letter/A4.

Select No when skipping test printing, and click the button.

Finish

Installation and Configuration (Windows NT 4.0)

The required files are copied.

The Printers Icon is now displayed in the Printers folder.

DP-150

NOTE

Notes:

Be sure to delete the drivers of earlier version before updating a drivers. Restart Windows after updating drivers.

Installation and Configuration (Windows NT 4.0)

Configuring the Printer Driver Settings (Administrator)

To change the printer settings, open the dialog box for the printer properties by the following steps.

Click the Start button, place the cursor on Settings, and then click Printers.

Right-click the printer icon in the printers window, and select Properties in the dropdown menu. The dialog box for the printer properties appears.

NOTE

In Windows NT 4.0, setting the properties depend on the log-in accounts. This section

describes properties to be specified by an administrator (system manager). See "Configuring the Printer Driver Settings (User)" for details of user properties.

General Tab

Installation and Configuration (Windows NT 4.0)

Comment

Enter comments to the properties, if any. If another user sets up this printer on his or her computer when sharing the printer, the comment specified here will also appear on that computer. However, the comment displayed for a user already set-up will remain unchanged even if the comment is modified later.

Location

Specify the printer location.

Driver

Displays the printer driver type. Specify the printer being used or a printer model that can be emulated with the printer being used.

New Driver...

button

Either updates or modifies the printer driver.

Separator Page...

button

Inserts a separator page for every document to be printed. This feature is useful when multiple users share the same printer or when printing multiple documents at one time. Enter the separator page file name in the Separator Page dialog box or Click on to specify the file (.sep) to be used as the separator page.

Browse...

Installation and Configuration (Windows NT 4.0)

Print Processor...

button

Specify the processor to be used for printing (Print Processor) and the data type (Default Data type). The processor and data type affect the manner in which the printer functions in Windows NT. Normally they do not need to be modified. However, modification might be necessary when the printer is used with

a special application.

Print Test Page

button

Prints a test page. This allows you to verify if the printer is installed properly.

Ports Tab

Installation and Configuration (Windows NT 4.0)

Print to the following port(s)

Displays a list of available ports for printing (Port), their status (Description) and printers that are connected to these ports (Printer).

/ button

Adds/deletes a new port or a new network port.

Configure Port...

button

Configures the selected port. In case of a parallel port, Transmission Retry should be specified.

Delete Port...Add Port...

Enable bidirectional support

On a printer, this setting enables reception of configuration data and status data from computer. Be sure to check this checkbox when installing status monitor. Printing may be disabled without checking on the checkbox.

Enable printer pooling

Printer spool allows outputting data from one logical printer to two or more printers. With printer spool enabled, a transmitted printing job is output to the first printer that allows printing.

NOTE

Specify time (seconds) waiting for the printer to be ready for printing. If a printer is not

ready for printing after the specified time has elapsed, an error message is displayed.

If a timeout error occurs frequently upon printing a large size document, specify a

larger value here.

Installation and Configuration (Windows NT 4.0)

Scheduling Tab

Available

Schedules the printer for operation. Specify operating hours when From-To is selected.

Priority

Sets printing priority. The slider allows the priority to be adjusted from 1 through 99.

Spool print documents... / Print directly to the printer

Specify how documents should be sent from the application to the printer.

Hold mismatched documents

The spooler compares document settings against printer settings and holds printing of a document if its settings (Paper Size, Orientation, and so on) do not match the printer settings.

Print spooled documents first

Always prints spooled documents first regardless of printing priority.

Keep documents after they have printed

Holds documents in the print queue even after they have been printed. These documents can be printed again directly from the queue regardless of the state the application is in.

Sharing Tab

Installation and Configuration (Windows NT 4.0)

Not Shared/Shared

Select whether to display or use this printer on or with other computers.

Share Name

Specify the name of the shared printer. The displayed name can be used as it is or a new name may be entered. The name specified here will be displayed when other users on the network view information about the printer.

Alternate Drivers

Specify the operating systems of other computers that might share this printer.

NOTE

When sharing a printer on the network, the print driver is installed on one print server,

other computers will automatically copy and use that driver. For this reason, the print server must be ready with printer drivers for all the operating systems of all computers that will be sharing the printer.

Installation and Configuration (Windows NT 4.0)

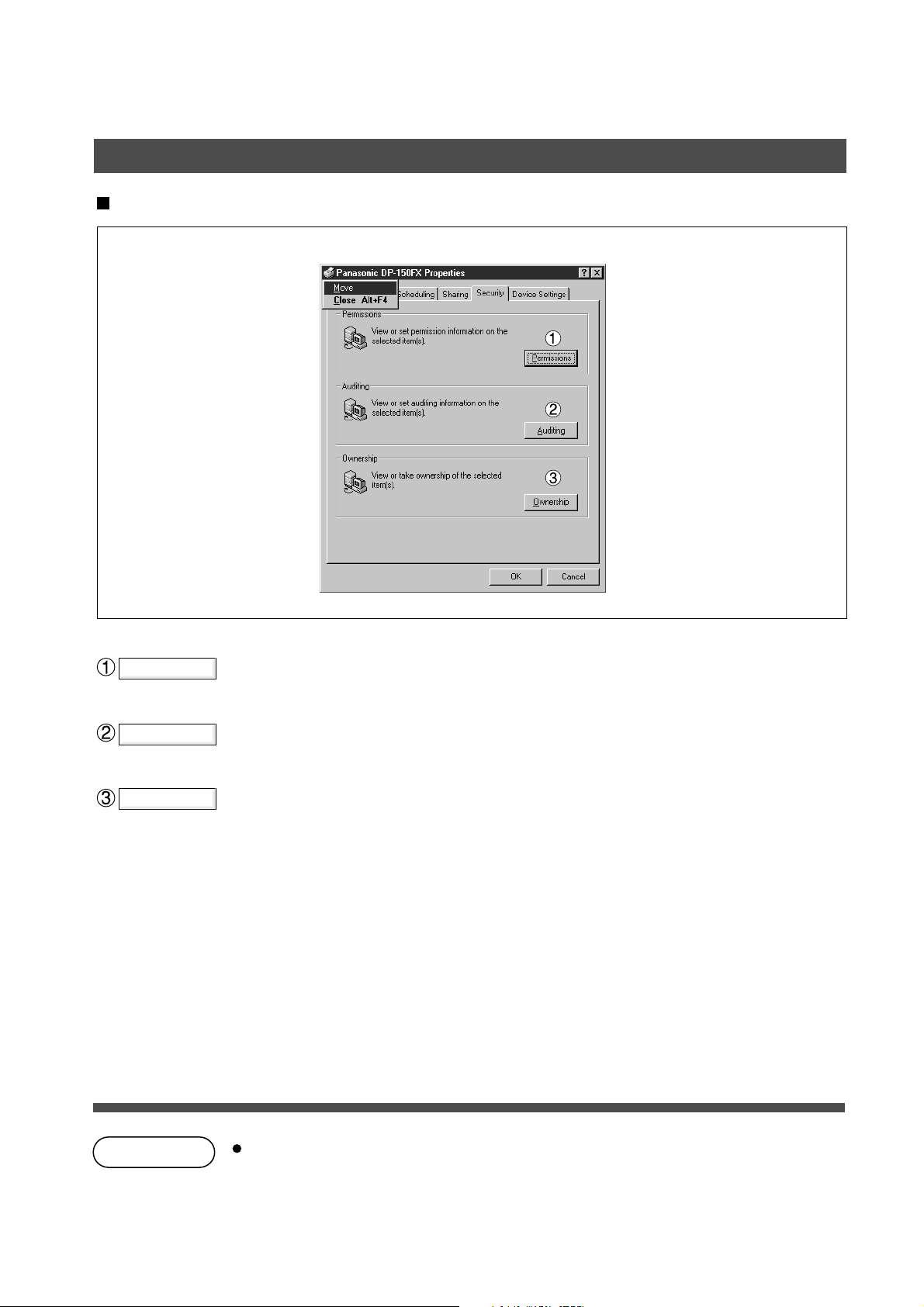

Security Tab

Permissions

button

Set printer access privileges.

Auditing

button

Displays the persons who used this printer and how they used.

Ownership

button

Set the ownership of the printer.

NOTE

In order to utilize these features, you need to have selected Audit... from User

Manager's Policies and have enabled File and Object Access in the Audit Policy dialog box.

Device Settings Tab

Installation and Configuration (Windows NT 4.0)

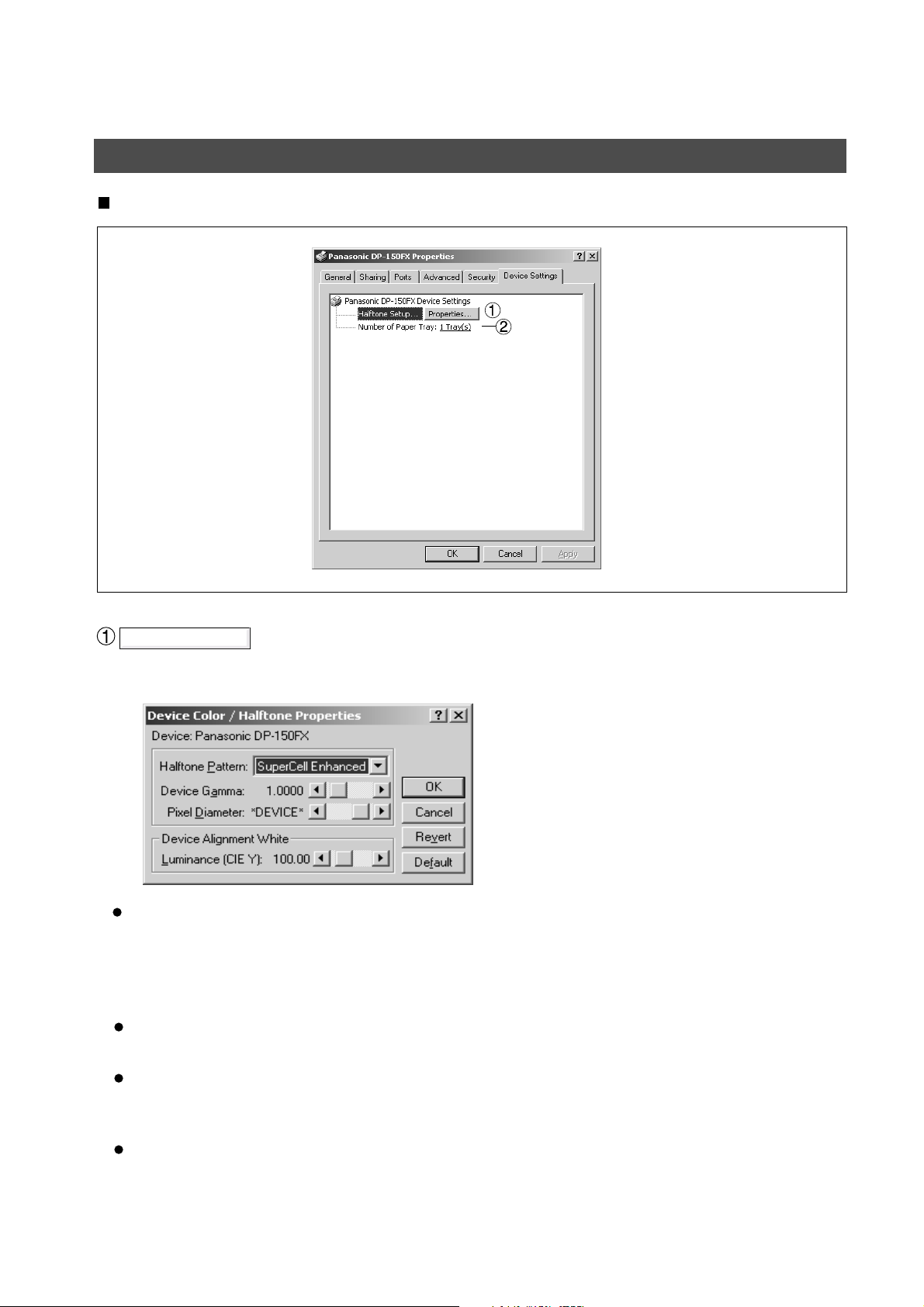

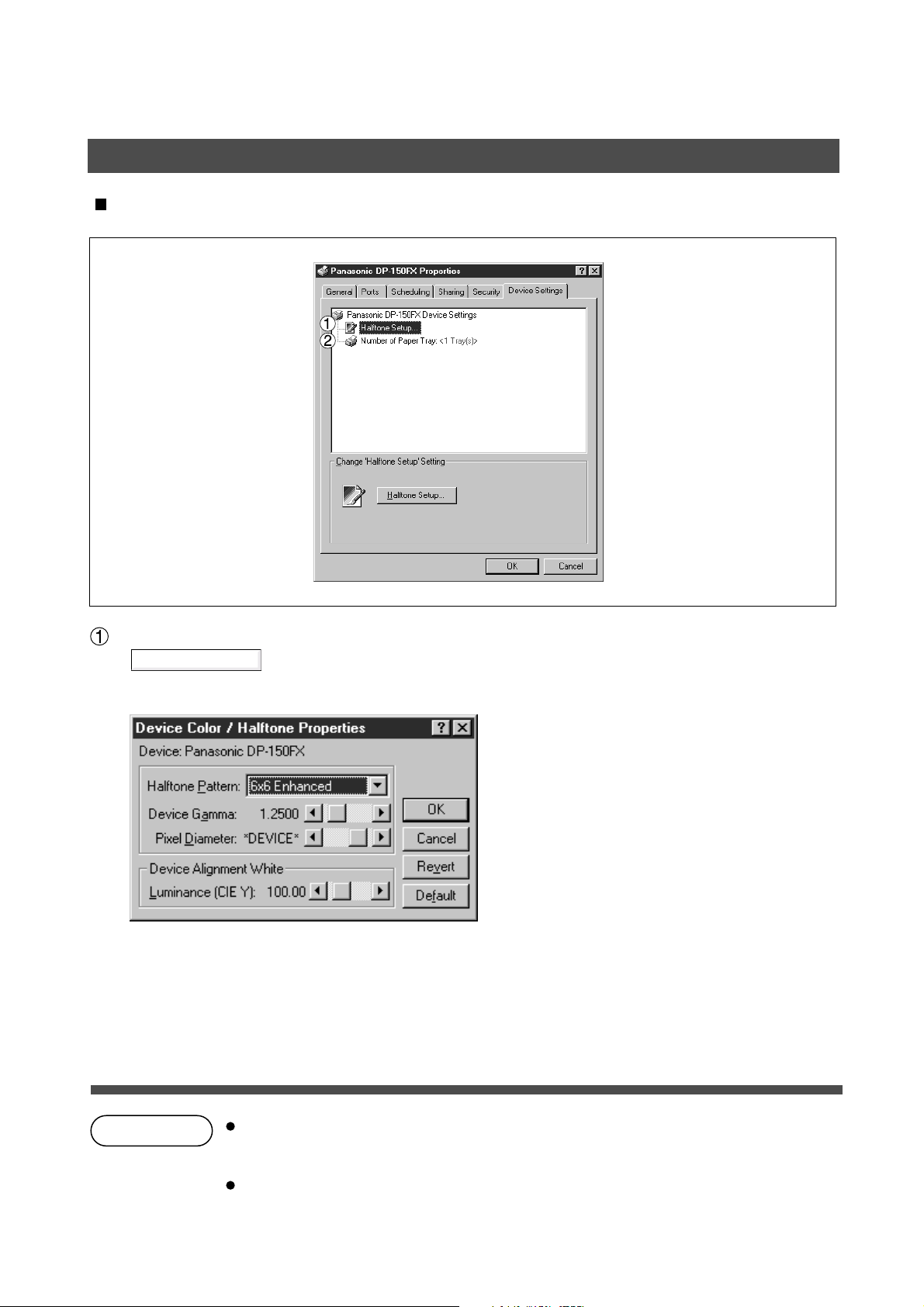

Halftone Setup

Halftone Setup...

button

Select the halftoning method to be used (halftones specific to the printer). Select it according to the details of data and your preference.

• Halftone Pattern

Select the pixel size to be used for halftones. The greater the value, the coarser the image would become. However, a larger value is suited to printing in large areas. The Enhanced pattern allows printing at a higher resolution using the same number of pixels. However, the pattern might generate unnatural lines, patterns, moire effects, and so on depending on the image to be printed.

NOTE

Device Settings Tab specifies device-specific settings and settings of optional

devices. Refer to the operation manuals of the optional devices, or on-line manuals for settings items. Settings specified in this section are saved as standard (default) settings of the printer.

Installation and Configuration (Windows NT 4.0)

Device Gamma

Adjust the gamma of print images (color intensities).

Pixel Diameter

Adjust the darkness of the print image. Manipulate the slider to specify the pixel size. You can select between specifying the real size in inches or specifying in percentage relative to the printer resolution.

Luminance (CIE Y)

Adjust the luminosity of the print image.

Number of Paper Tray

Select the number of available paper tray for printer if an optional Paper Feed Module is installed.

Installation and Configuration (Windows NT 4.0)

Configuring the Printer Driver Settings (User)

To change the printer settings, open the dialog box for the printer properties by the following steps.

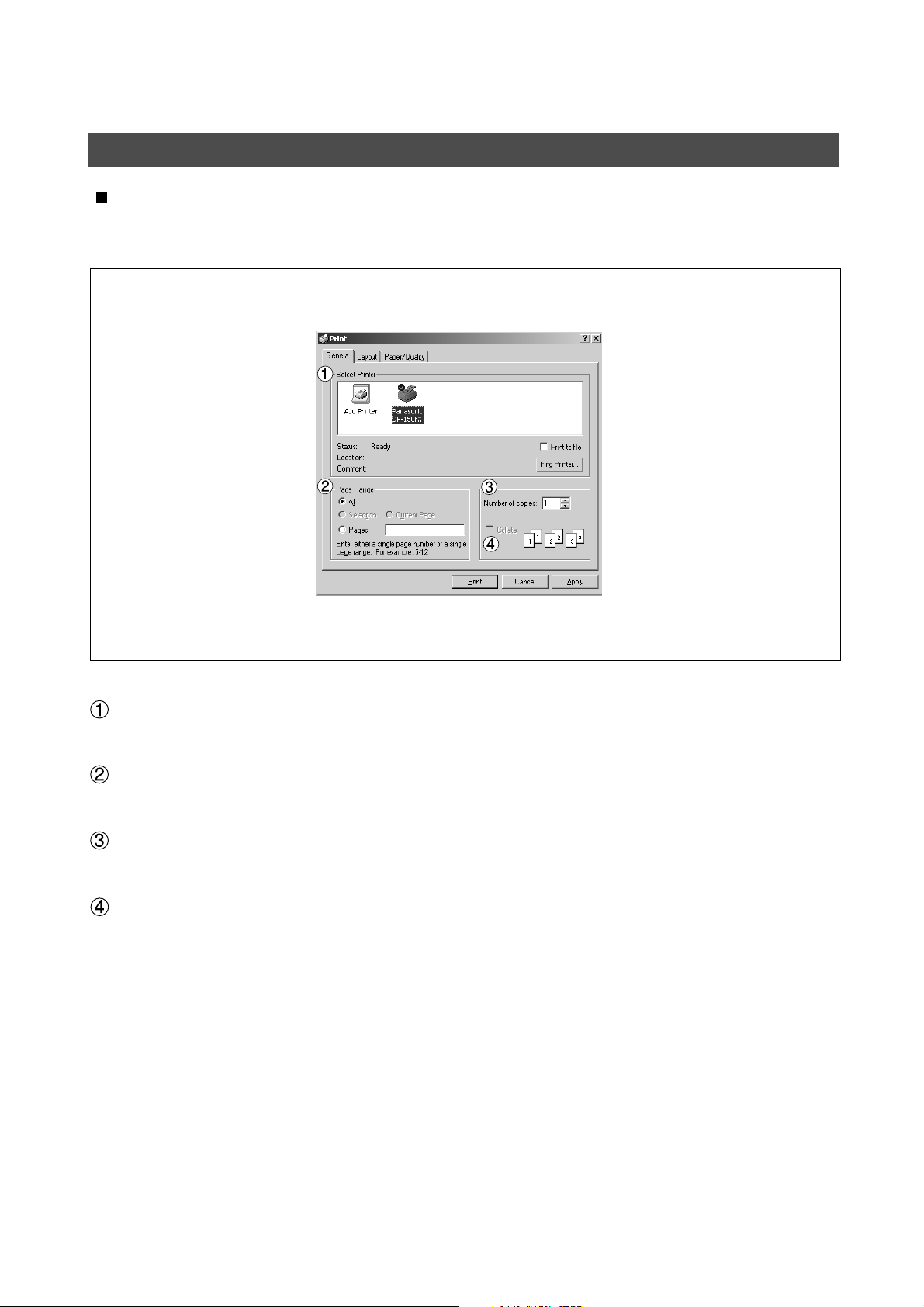

Select Print in the File menu of the application.

1 2

Click the button in the Print dialog box. The dialog box for the printer properties appears.

Click the top tabs of the dialog box and specify the properties.

Properties...

NOTE

In Windows NT 4.0, setting properties depends on the log-in account. This section describes properties to be specified by a user, upon executing a print operation on an application. See "Configuring the Printer Driver Settings (Administrator)" for details of administrator properties.

Installation and Configuration (Windows NT 4.0)

Page Setup Tab

Paper Size

Select the size of the document.

Paper Source

Specify where the paper you want to use is located in the machine. If you choose Auto Selection, the printer driver will automatically select an appropriate tray according to the Paper Size.

Copy Count

Sort

Select whether to Stack or Sort when printing multiple copies.

Orientation

Select the print orientation (Portrait/Landscape).

Print on Both Sides (Duplex Printing) [DP-150FX only]

Specify if duplex printing is performed. Select the binding side (None/Short Edge/Long Edge) for duplex printing.

Note: Duplex Printing on Invoice/A5 is not supported.

Advanced Tab

Installation and Configuration (Windows NT 4.0)

Paper Size

Select the size of the document.

Orientation

Select the print orientation (Portrait/Landscape).

Paper Source

Specify where the paper you want to use is located in the machine. If you choose Auto Selection, the printer driver will automatically select an appropriate tray according to the Paper Size.

Copy Count

Print on Both Sides (Duplex Printing) [DP-150FX only]

Specify if duplex printing is performed.

Resolution

Select the printer resolution (300dpi/600dpi).

Scaling

Specify custom zoom when printing a document by zooming in/out at a desired rate. If the zooming rate is specifiable in an application, specify "100%" (same size) here. Specify a zooming rate in the print dialog box of the application.

NOTE

Settings specified in this section are valid until an application is shut down.

Installation and Configuration (Windows NT 4.0)

Advanced Tab

Metafile Spooling

With Metafile Spooling enabled, the file is spooled in EMF format (metafile compression). With the function disabled, the file is spooled in RAW (non-compression) format. Specifying RAW format results in longer time before placing an application operational after printing on the application. Note: Spooling by EMF format may cause the following problems on some application software.

1) Printing result is different from the screen display.

2) Printing requires excessive time.

N in 1

For printing two or more pages on one sheet, specify a printing method. Layout is selected by combining with "Orientation." Each layout is displayed with an icon. 2 in 1: Print 2 pages of documents zoomed out by 65 or 71% on one sheet. 4 in 1: Print 4 pages of documents zoomed out by 50% on one sheet.

Installation and Configuration (Windows NT 4.0)

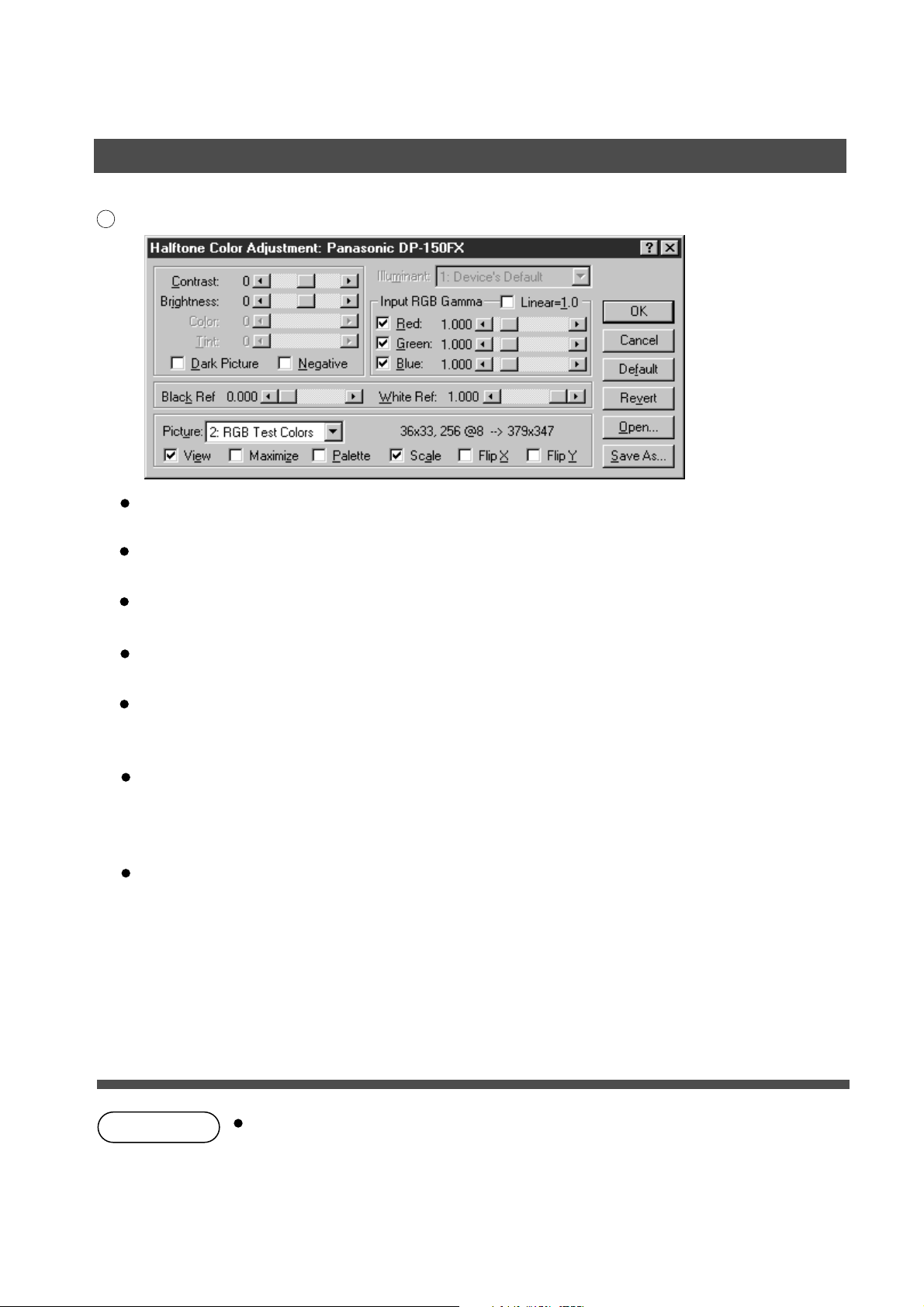

Halftone Color Adjustment

Contrast

Adjust the contrast of print images.

Brightness

Adjust the brightness of print images.

Dark

Input


Select this option in order to print dark images brighter.

Negative

Select this option in order to print images with black and white reversed.

RGB Gamma

Adjust the gamma of print images (color intensities). Red, Green and Blue can also be adjusted individually.

Black Ref/White Ref

Adjust the difference between the darkest and lightest colors of an image. Increasing the Black Ref value or decreasing the White Ref value will intensify the contrast of the image but reduces the range of colors in between.


Select a test pattern type. Selecting the View check box will display halftone adjustment results in the test pattern.

NOTE

Settings specified in this section are valid until an application is shut down.

Installation and Configuration (Windows 2000)

Installing the Printer Driver

About Windows 2000

Panasonic has performed operational tests on the Document Scanner, Status Monitor and Printing System - software using Office 2000. However, the company does not necessarily guarantee normal

operation of all applications on Windows 2000. Panasonic has not registered with the Windows 2000 logo. Ignore the warning message about the logo upon installation. Windows 2000 is capable of disallowing installation of drivers without logo registration. If the function has been activated, cancel the function for installation.

Open the Printer folder.

Click the Start button. Place the cursor on Settings and click Printers.

Double-click the Add Printer icon.

Click the button.

Installation and Configuration (Windows 2000)

Select Local Printer and click the button.

Specify Network Printer for installing a printer on server upon network. Refer to the manual about Windows 2000.

Click the button.

Select Printer Port and click the button.

Insert the CD-ROM containing the printer driver.

Click the button.

Have Disk...

Installation and Configuration (Windows 2000)

Specify the drive name and type

D:\Driver\WinNT4.

(Where "D:" is your CD-ROM drive.) Click the button.

Select your device (Ex: Panasonic DP-150FX)

Click the button.

Select Do not share this Printer and click the

Select Share as only when installing onto a

network server. Refer to the manual of Windows 2000 for details.

button.

Installation and Configuration (Windows 2000)

Select No and click the

Click the button.

Finish

button.

Click the button.

Finish

Installation and Configuration (Windows 2000)

The required files are copied.

The Printers Icon is now displayed in the Printers folder.

Installation and Configuration (Windows 2000)

Configuring the Printer Driver Setting on Windows 2000 (Administrator)

To change the printer properties, open the dialog box for the printer properties by the following steps.

Click the Start button, place the cursor on Settings, and then click Printers.

Right-click the printer icon in the printers window, and select Properties in the dropdown menu. The dialog box for the printer properties appears.

NOTE

In Windows 2000, setting the properties depends on the log-in accounts. This section

describes properties to be specified by an administrator (system manager). See "Configuring the Printer Driver Settings" for details of user properties.

Installation and Configuration (Windows 2000)

General Tab

Printer Name

Name of the printer specified upon installation is displayed.

Location and Comment

Enter a comment about the location of the printer installation and information about the printer. If a printer is shared, the location and comment specified in this field appears when another user sets up this printer on his/her computer. After completion of setup, however, changing this comment does not update the location and comment appearing on users PCs.

Model

Model name of the printer is displayed.

Features

Functions and settings of the printer are displayed.

Printing Preferences...

button

Changes properties (print settings) specifiable for each user. Refer to "Configuring the Printer Driver Settings" for details of settings.

Print Test Page

button

Prints a test page. This operation verifies that a printer has been properly installed.

Sharing Tab

Installation and Configuration (Windows 2000)

Not shared/Shared as

Specify if this printer is displayed or used on a computer of other users. For sharing a printer, specify the share name of a printer to be shared. A name specified here appears when other users view the printer information on a network

Additional Drivers...

button

Install additional printer drivers on the system. When users running different versions of Windows share a printer, installing additional drivers avoids the necessity for installing new drivers on their systems.

NOTE

If a printer is shared on a network, installing the printer driver on one print server allows other computers to copy the driver automatically for use. Accordingly, a print server is required to provide alternative printer drivers for other OS's that may use the printer.

Installation and Configuration (Windows 2000)

Ports Tab

Print to the following port(s)

Displays a list of ports that allows printing, their status (description), and printers connected to the ports.

Add Port... Delete Port

/ button

Add or delete a new local port or a new network port.

Configure Port...

button

Configure the port that is selected. On a parallel port, wait time (in seconds) for retransmission is specified.

Enable bidirectional support

On a printer, this setting enables reception of configuration data and status data from the computer. Be sure to check this checkbox when installing the status monitor. Printing may be disabled without checking this checkbox.

Enable printer pooling

Printer pooling allows outputting data from one logical printer to two or more printers. With printer pooling enabled, a transmitted printing job is output to the first printer that allows printing.

NOTE

Specify time (seconds) waiting for the printer to be ready for printing. If a printer is not ready for printing after the specified time has elapsed, an error message is displayed. If a timeout error occurs frequently upon printing a large size document, specify a larger value here.

Advanced Tab

Installation and Configuration (Windows 2000)

Always available/Available from

Specify the operation schedule for a printer. Selecting Available from allows specifying an operation time.

Priority

Specify the priority in printing. Priority is adjustable from 1 to 99. ORIGINAL of higher priority are printed before those of lower priority.

Driver

Printer drivers are displayed. Specify a printer being used or specify a printer type that allows emulation by the printer being used.

New Driver...

button

Update or change the printer driver.

Spool print documents so program finishes printing faster

Specify the method of sending a document from the program to the printer.

Hold mismatched documents

Spooler compares the printer settings with the paper settings (such as paper size and printing orientation). If the settings are inconsistent, the printing is suspended.

Print spooled documents first

Always print spooled documents first regardless of the printing priority.

Installation and Configuration (Windows 2000)

Keep printed documents

After printing, documents are kept in the queue. The documents are allowed to be reprinted directly from the queue regardless of the status of an application.

Enable advanced printing features

Usually enables advanced printing features. Optional features of the printer (page ordering, booklet printing, numbering on sheets) are enabled. The features can be disabled if a problem occurs regarding compatibility. Disabling the features may disable the printing options also.

Printing Defaults...

button

Specifies standard (default) values for the properties (print settings) specifiable for each user. If a local printer is shared, the settings here are used as printing defaults for other users.

Refer to "Configuring the Printer Driver Settings" for detailed settings.

Print Processor...

button

Specify a print processor and data type to be used for printing. The processor and data type define operations of printers on Windows 2000. Usually no change is required in the settings. Use of a printer on a special application, however, may require changes on the settings.

Separator Page...

button

A Separator page is inserted between documents to be printed. This function is useful when using one printer among two or more users and when printing two or more documents by one operation.

Security Tab

Installation and Configuration (Windows 2000)

Displays a list of users and groups that are assigned access to this printer. A list of standard access permitted/prohibited for each group or user is displayed. Check the checkbox for permitting or prohibiting access. Gray checkbox indicates inheritance of access permission.

Add... Remove

/ button

Add or delete a user or group in the list.

Advanced...

button

Specify access to a printer, audit, and owner.

NOTE

Windows 2000 provides the capability of managing access to various objects (e.g. printers) on users. Refer to manuals of Windows 2000 for details of access permission, audit, and owner.

Installation and Configuration (Windows 2000)

Device Settings Tab

Halftone Setup...

button

Select the method of expressing device halftone (printer-specific halftone). Select the settings according to printing data and preference.

Halftone Pattern

Select the size of pixels to be used for halftone. Selecting larger size pixels results in a rough image, which is suitable for printing of wider area. Enhanced patterns, which allow printing an image of higher resolution using a same number of pixels, may cause random lines or patterns and moire.

Device Gamma

Adjust the gamma (strength of colors) of printing image.

Pixel Diameter

Adjust the density of a printing image. Specify the size of pixels by moving the slide bar. One of the two methods, specifying pixel size by inch or by ratio to the printer resolution (in per cent), is selectable.

Luminance (CIE Y)

Adjust the luminance of a printing image.

Installation and Configuration (Windows 2000)

Number of Paper Tray

Select the number of available paper tray(s) for the printer if an optional Paper Feed Module is installed.

NOTE

Device Settings Tab specifies device-specific settings and settings of optional

devices. Refer to operation manuals of the optional devices, or on-line manuals for settings items. Settings specified in this section are saved as standard (default) settings of the printer.

Installation and Configuration (Windows 2000)

Changes the printer settings. Display the printer settings dialog box by the steps below:

Select Print in the File menu of an application.

1 2 3

Click the button of the print dialog box.

The dialog box for printer properties appears. Click the top tab of the dialog box and specify the properties.

Properties...

NOTE

In Windows 2000, setting the properties depends on the log-in accounts. This section describes properties to be specified by a user, upon executing a print operation on an application. See "Settings Printer Driver on Windows 2000 (Administrator)" for details of administrator (system manager) properties.

Installation and Configuration (Windows 2000)

General Tab

The "General" tab will not be indicated, depending on each software application.

Select Printer

Select a printer for printing.

Page Range

Select a page range for printing.

Number of copies

Specify the number of copies.

Collate

Upon printing two or more copies, pages are output for each copy.

Installation and Configuration (Windows 2000)

Layout Tab

Orientation

Select portrait (vertical) or landscape (horizontal).

Print on Both Sides (Duplex) [DP-150FX only]

Specify duplex printing for printing on both sides. Select the binding side (None/Flip on Short Edge/Flip on Long Edge) for duplex printing.

Note: Duplex Printing on Invoice/A5 is not supported.

Advanced...

button

Specify detailed settings. Refer to Advanced 62 for details. (See page 58)

Paper/Quality Tab

Installation and Configuration (Windows 2000)

Paper Source

Specify an input tray. Selecting Auto Selection allows automatic selection of an input tray according to the paper size.

Advanced...

button

Specify detailed settings. Refer to Advanced for details. (See page 58)

Installation and Configuration (Windows 2000)

Advanced

Paper Size

Select a paper size.

Resolution

Select resolution of the printer (600dpi/300dpi).

Scaling

Specify a custom zoom when printing a document by zooming in/out at a desired rate. If the zooming rate is specifiable on an application, specify "100%" (same size) here. Specify a zooming rate in the print dialog box of the application.

Metafile Spooling

With Metafile Spooling enabled, a file is spooled in EMF format (metafile compression). With the function disabled, a file is spooled in RAW (non-compression) format. Specifying RAW format results in a longer time before an application becomes operational after printing on the application.

Note: Spooling by EMF format may cause the following problems on some application software.

1) Printing result is different from screen display.

2) Printing requires excessive time.

N in 1

For printing two or more pages on one sheet, specify a printing method. Layout is selected by combining with Orientation. Each layout is displayed with an icon. 2 in 1: Print 2 pages of documents zoomed out by 65 or 71% on one sheet. 4 in 1: Print 4 pages of documents zoomed out by 50% on one sheet.

Comfiguration (Windows 2000)

Halftone Color Adjustment

Contrast

Adjust the contrast of the printing image.

Brightness

Adjust the lightness of the printing image.

Dark Picture

Check to print a dark image into light image.

Negative

Check to print in reverse.

Input RGB Gamma

Adjust the gamma (strength of colors) in the printing image. Red, green and blue colors can be individually adjusted.

Black Ref/White Ref

Adjust the difference between the darkest color and the lightest color in an image. Increasing the blackref value or decreasing the white ref value strengthens the contrast of an image, narrowing the range of middle colors in the meantime.


Select a test pattern. Checking the checkboxes displays results of halftone adjustments on the test pattern.

Print Operation

Printing from Windows Applications

If the printer driver is installed properly and a printer is selected as the default printer in the printer setup, printing can be accomplished from any Windows application with simple operations.

To print from most Windows applications, use the Print... command on the File menu. Selecting the Print... command typically displays the following Print dialog box:

After selecting the print range to be printed and the number of copies click on to start printing.

While documents are being printed, a printer indicator remains displayed on the left side of the clock on the task bar. The indicator disappears when printing is completed.

You may double-click on the indicator to open and verify the details of the print queue in the spooler.

NOTE

Follow the steps below to set a default printer:

Click the Start button and select Printers in the Settings menu. Select the printer icon in the window and select in dropdown

menu by right-clicking it. Then the check mark is displayed.

Set as Default Printer

Print Operation

Printing on Network

For sharing a printer by connecting two computers via crossed-cable or using a hub, a connection among computers must be established. Establishing a connection among computers is verified by displaying the connected computers in Network Neighborhood on the desktop.

The settings for printer sharing is specified by the following steps:

Printer server (PC connected to a printer)

Install the printer driver on a computer to be connected to the main unit.

Click the Start button, place the cursor on Settings, and then click Printers.

Select the printer icon and select [Sharing...] in the dropdown menu by right-clicking it.

Select Shared As in the properties dialog box.

Click the button.

Upon completion of the settings, the shape of the icon changes displaying sharing settings.

NOTE

Refer to the manuals of network cards and Windows users guide for connection among computers.

On Windows 95/98/Me, a computer connected to a printer must have been set up to allow printer sharing by the following operations:

1. Double-click on Network in control panel, and then click button in the Network Configuration tab.

2. Check [I want to be able to allow others to print to my printer(s).] in the File and Print Sharing dialog box.

File and Print Sharing...

Print Operation

Printing on Network

Remote (PC that uses other computer's printer)

Click Start button, place cursor on Settings and then click Printers.

Double-click Add Printer in the printer window.

2 3

Add Printer Wizard appears.

Click the button.

Select Network Printer

Click the button.

Specify the other computer's printer by entering the network path. Then, complete the installation by following the instruction of the Add Printer Wizard.

The operations above enable output from the remote computer to a printer connected to a printer server.

Troubleshooting

Starting with:

If the printing operation fails, check the following points first:

The printer cable is properly connected. Length of the printer cable is not longer than 6 ft. (2 m). Power to the device is turned on. Paper is loaded on the device properly. Error message is not displayed on device.

The above points can be verified by printing a test page. Refer to the following for procedures for test page printing:

Windows 95/98/Me [General Tab] (See page 14) Windows NT 4.0 [General Tab] (See page 27) Windows 2000 [General Tab] (See apge 46)

NOTE

The status of the devices can be verified by the status monitor.

Troubleshooting

Document is not printed correctly

Problem

Printing position is wrong

Characters and symbols not used in documents are printed

Printing operation takes excessive time

Action

Paper size or printing orientation is different between the application settings and the printer driver settings. Specify the settings again. The specified paper has not been loaded on the device. Specify the settings again or load the appropriate paper.

Verify that the Panasonic DP-130/135/150 has been selected as the printer driver.

The wait time for printing operations depends on the spool settings. Select Spool print jobs so program finishes printing faster in spool settings. Reference : Windows 95/98/Me [Details Tab] (See page 15)

Windows NT 4.0 [Advanced Tab] (See page 37) Windows 2000 [Advanced Tab] (See page 49)

Error messages displayed on the computer

Troubleshooting

Problem

Error in writing to LPT1. Unable to write to the Specified device.

Error in writing to LPT1. Printer timeout error occurred.

Printing is disabled due to error in the current printer settings

Action

Verify that the device is connected to the computer correctly. Verify that the power of the device is turned on. Verify that the paper is properly loaded.

Verify that the power of the device is turned on. Excessive data volume or number of pages may overflow the device's memory, disabling data reception. Increase the timeout setting value in properties (for transmission retry). Reference: Windows 95/98/Me [Details Tab] (See page 15)

Windows NT 4.0 [Ports Tab] (See page 29) Windows 2000 [Ports Tab] (See page 48)

Differences in settings such as paper size or printing orientation exists between the application and the printer driver. Specify the correct settings.

Appendix

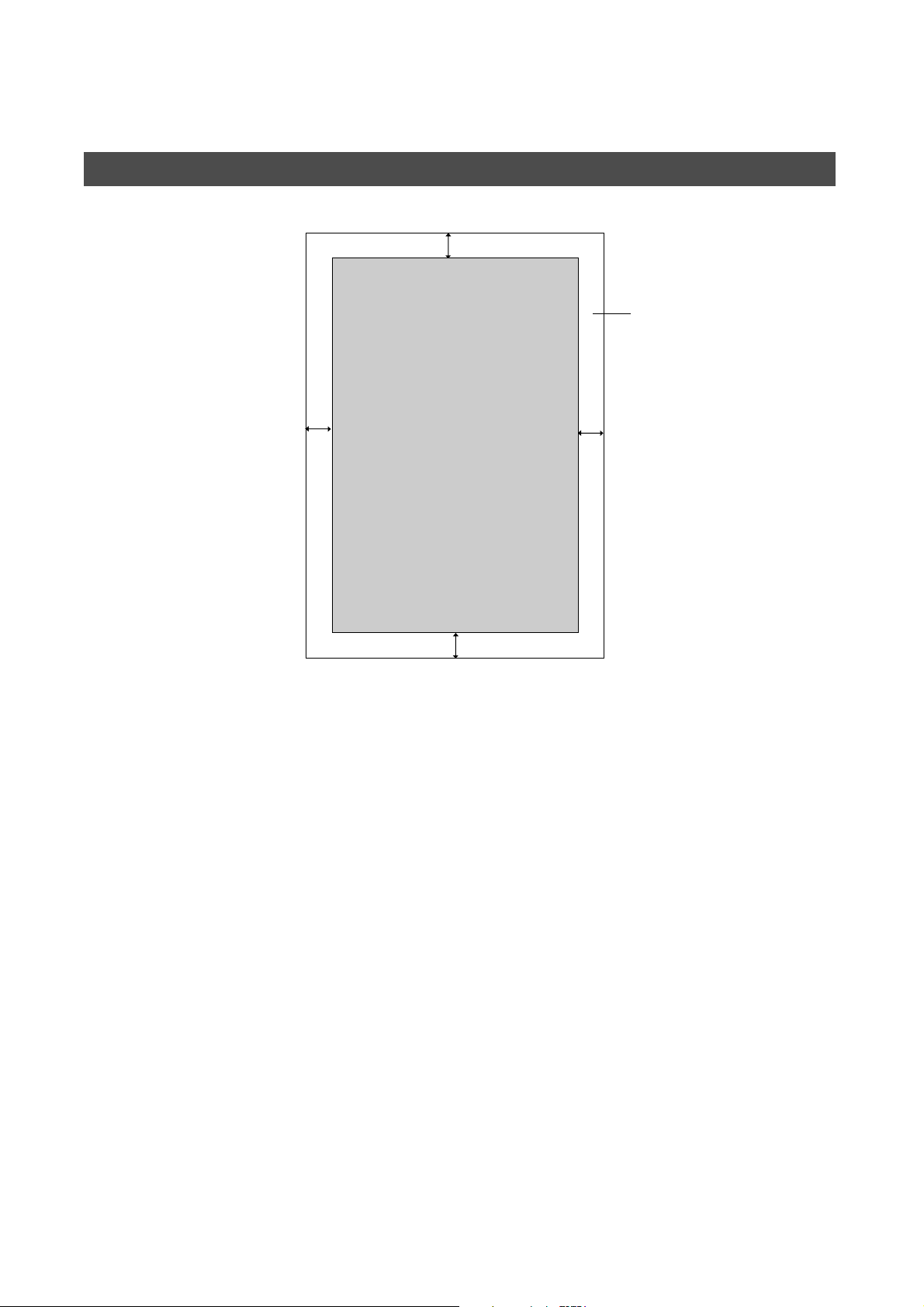

Printing/Scanning Area

Top

0.1/2.5

Void margin

0.1/2.5

Bottom

0.1/2.5

(Unit: inches/mm)

Parallel Interface Connector

The printer has a parallel interface for connecting to PC.

Appendix

Shape of Connector

Signal lines and pin arrangement

No. I/O

1 I /STB 19 GND 2 I/O DATA0 20 GND 3 I/O DATA1 21 GND 4 I/O DATA2 22 GND 5 I/O DATA3 23 GND 6 I/O DATA4 24 GND 7 I/O DATA5 25 GND 8 I/O DATA6 26 GND

9 I/O DATA7 27 GND 10 O /ACK 28 GND 11 O BUSY 29 GND 12 O PE 30 GND 13 I SELECT 31 I /INIT 14 O /AUTOFD* 32 O /FAULT 15 Not used 33 Not used 16 GND 34 Not used 17 GND 35 Not used 18 O VCC 36 I /SELIN*

*Signal used for bidirectional communication

Signal name

No. I/O

Signal name

Signal functions

Signal name

/STB Signal for sending data to printer.

DATA0 to Input signal for receiving 8-bit data. Data7 Logic 1 is High. DATA0 is

/ACK Signal indicating that printer has

BUSY Signal indicating that printer is

PE Signal indicating Paper Out of

SELECT Signal indicating that printer is under

/AUTFD Signal used for bidirectional

GND Ground VCC Signal indicating that the power of

/INT Signal for initializing printer. Steady-

/FAULT Signal indicating that printer is faulty. /SELIN Signal used for bidirectional

Function

Steady-state value is High. Printer reads data until this signal becomes from Low to High.

LSB and DATA 7 is MSB.

read data into device completely. This signal is output in response to

/STB.

unable to receive data. Printer is able to receive data when this signal is Low.

printer. This signal is Low when paper is loaded and is High when paper is out.

online status. Printer is capable of receiving data when this signal is

High.

communication

printer is on. This signal allows verifying ON/OFF status of power of printer and connection status of printer cable.

state value is High. Printer is initialized by Low.

communication

NOTE

Digital Copier

Class 2 Fax Modem Section

Section

Class 2 Fax Modem

Installing the Panasonic Class 2 Fax Modem

Installing (Windows 95/98/Me)

The installation is required for transmitting/receiving of Faxes with a PC using general-purpose PC fax function software (recommended: WinFax).

Class 2 Fax Modem

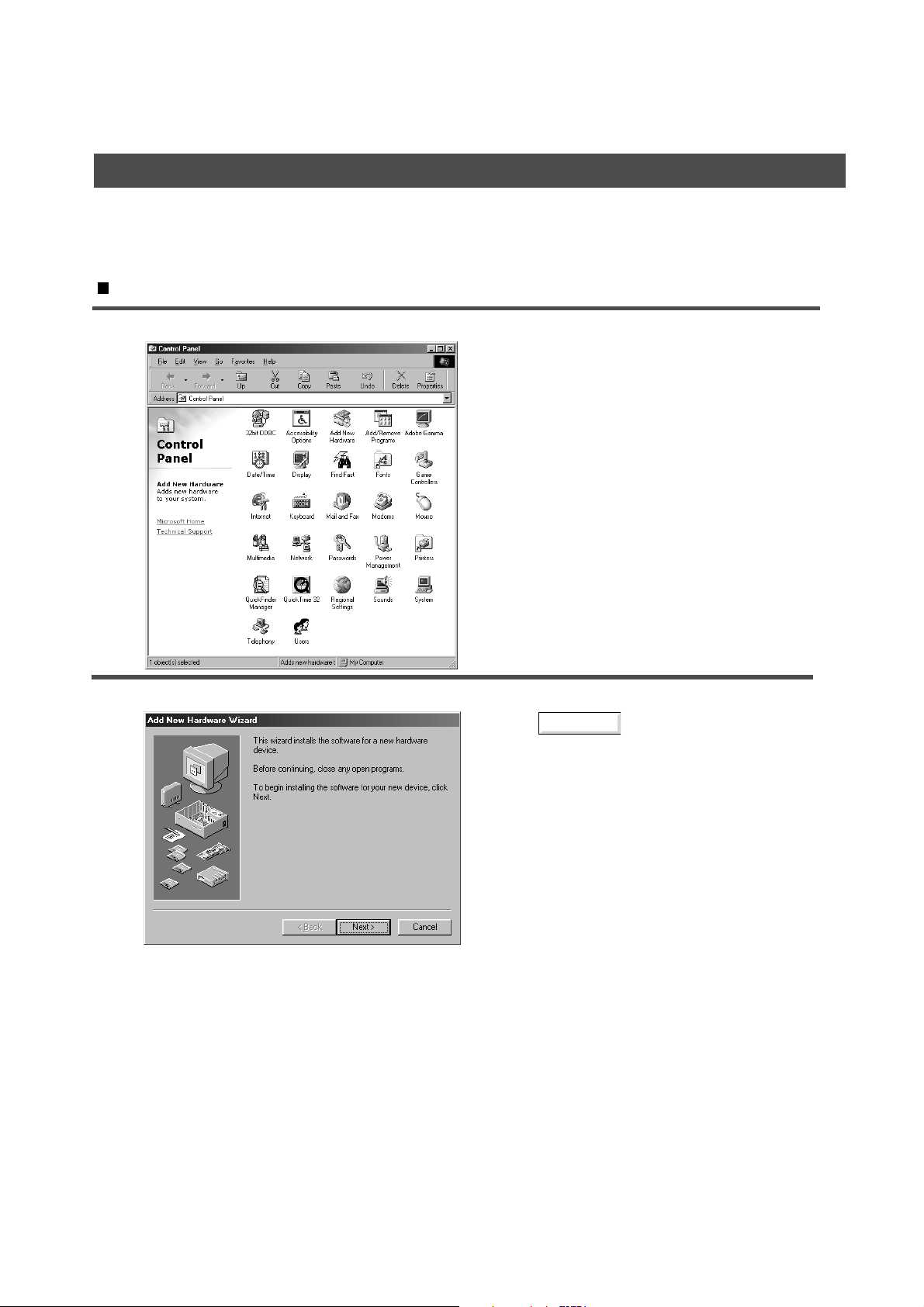

Select Settings from the Start menu and open the

control panel.

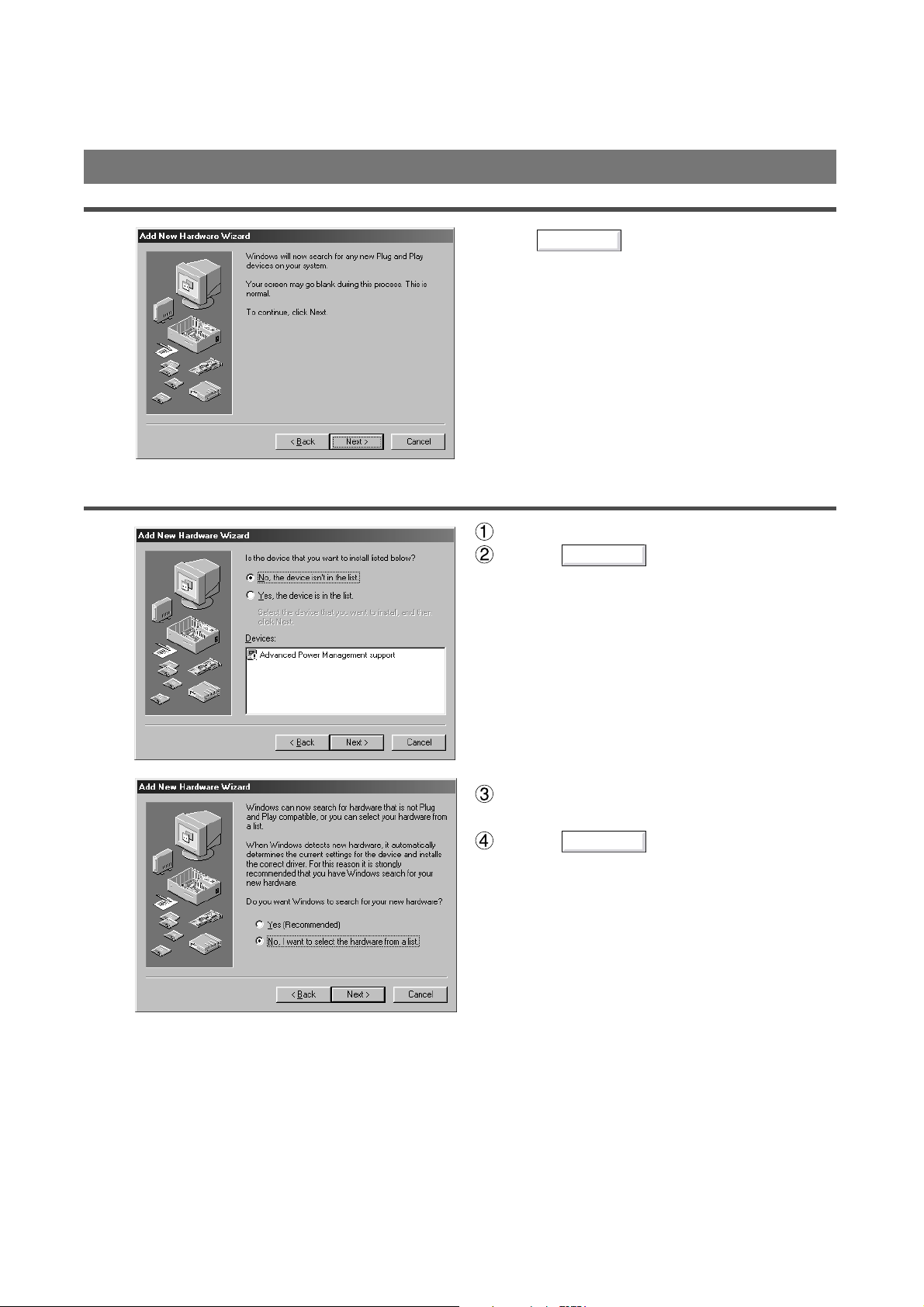

Double-click the Add New Hardware icon.

Click the button.

Installing the Panasonic Class 2 Fax Modem

(Windows 98 only)

Click the button.

Select No, the device isn't in the list. Click the button.

(Windows 98 only)

(This screen will only appear if a new device is found.)

Select No, I want to select the hardware from

a list.

Click the button.

Installing the Panasonic Class 2 Fax Modem

Select Ports (COM & LPT). Click the button.

Select Communications Port. Click the button.

Have Disk...

Click the button.

Click the button and restart the PC.

Enter D:\Setup.

(Where "D:" is your CD-ROM drive on.)

Click the button.

Finish

Yes

Repeat steps from "1" to "3."

12 13

Installing the Panasonic Class 2 Fax Modem

Select No, the device isn't in the list. Click the button.

(This screen will only appear if a new device is found.)

Select No, I want to select the hardware from a list. Click the button.

Select Modem. Click the button.

Installing the Panasonic Class 2 Fax Modem

Select Don't detect my modem; I will select it

from a list.

Click the button.

Enter D:\Setup.

(Where "D:" is your CD-ROM drive.)

Click the button.

Have Disk...

Select Panasonic DP-130 or DP-150 Class 2 Fax Modem. Click the button.

Installing the Panasonic Class 2 Fax Modem

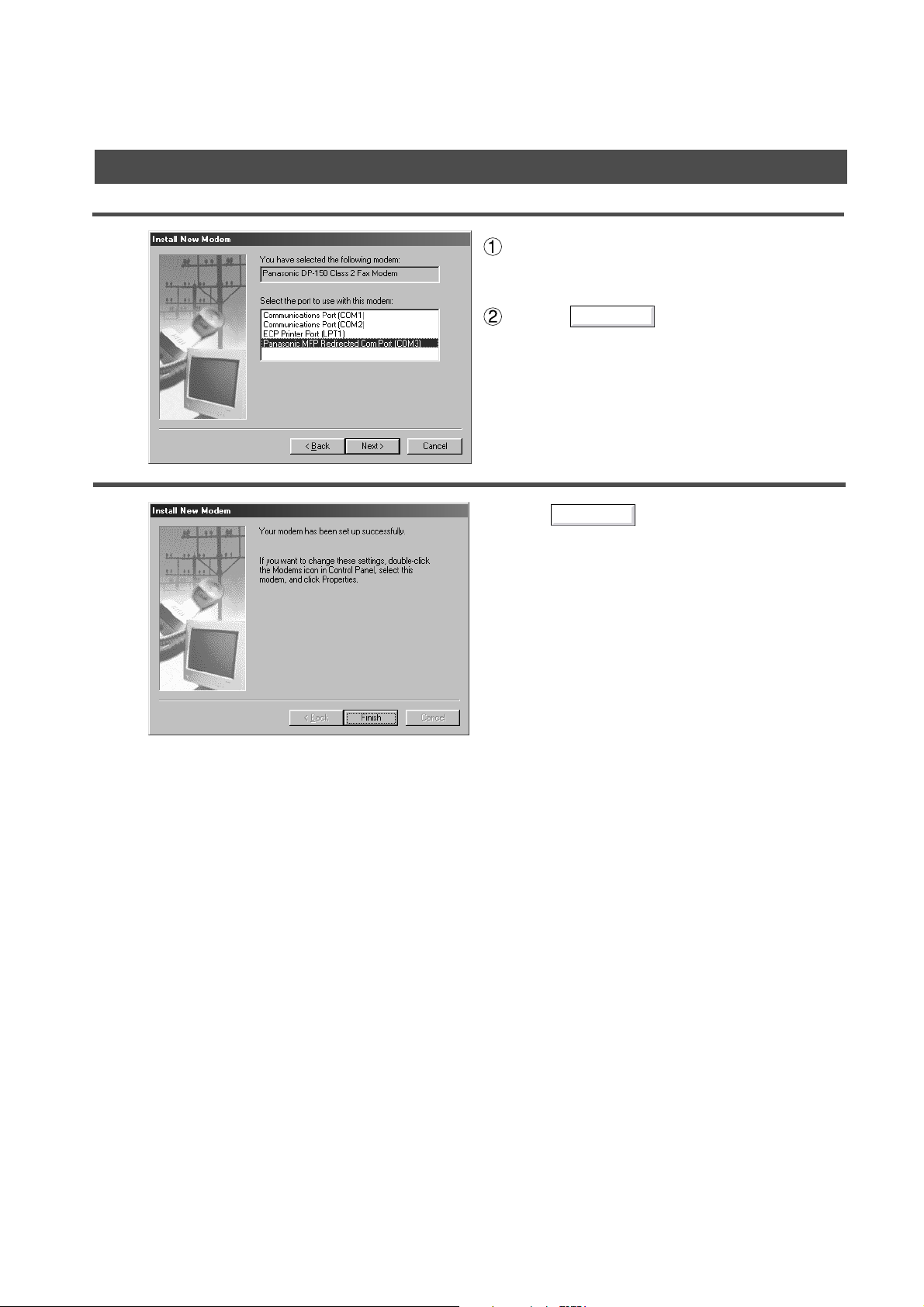

Select Panasonic MFP Redirected Com Port (COM3*).

* COM number depends on the PC. Click the button.

Click the button.

Installation of the modem is completed.

Finish

Installing the Panasonic Class 2 Fax Modem

Installing (Windows NT 4.0)

Installing the Panasonic Class 2 Fax Modem. The installation is required for transmitting/receiving Faxes with a PC, using general-purpose PC fax function software (recommended: WinFax).

Class 2 Fax Modem

Select Settings from the Start menu and open the control panel folder.

Double-click the Modems icon.

Select Don't detect my modem; I will select it from a list. Click the button.

Click the button.

Have Disk...

Installing the Panasonic Class 2 Fax Modem

Enter D:\Setup. (Where "D:" is your CD-ROM drive.)

Click the button.

Select Panasonic DP-130 or DP-150 Class 2 Fax Modem. Click the button.

Select a COM port shown at the bottom of the COM ports list. Click the button.

Click the button.

Installation of the modem is completed.

Finish

Installing the Panasonic Class 2 Fax Modem

Close the Modems Properties

screen.

Installing the Panasonic Class 2 Fax Modem

Installing (Windows 2000)

Install Panasonic Class 2 Fax Modem. The installation is required for transmitting/receiving FAX with a PC a PC, using a general-purpose PC fax function software (recommended: WinFax).

Class 2 Fax Modem

Select Settings from the Start menu and open the Control Panel folder.

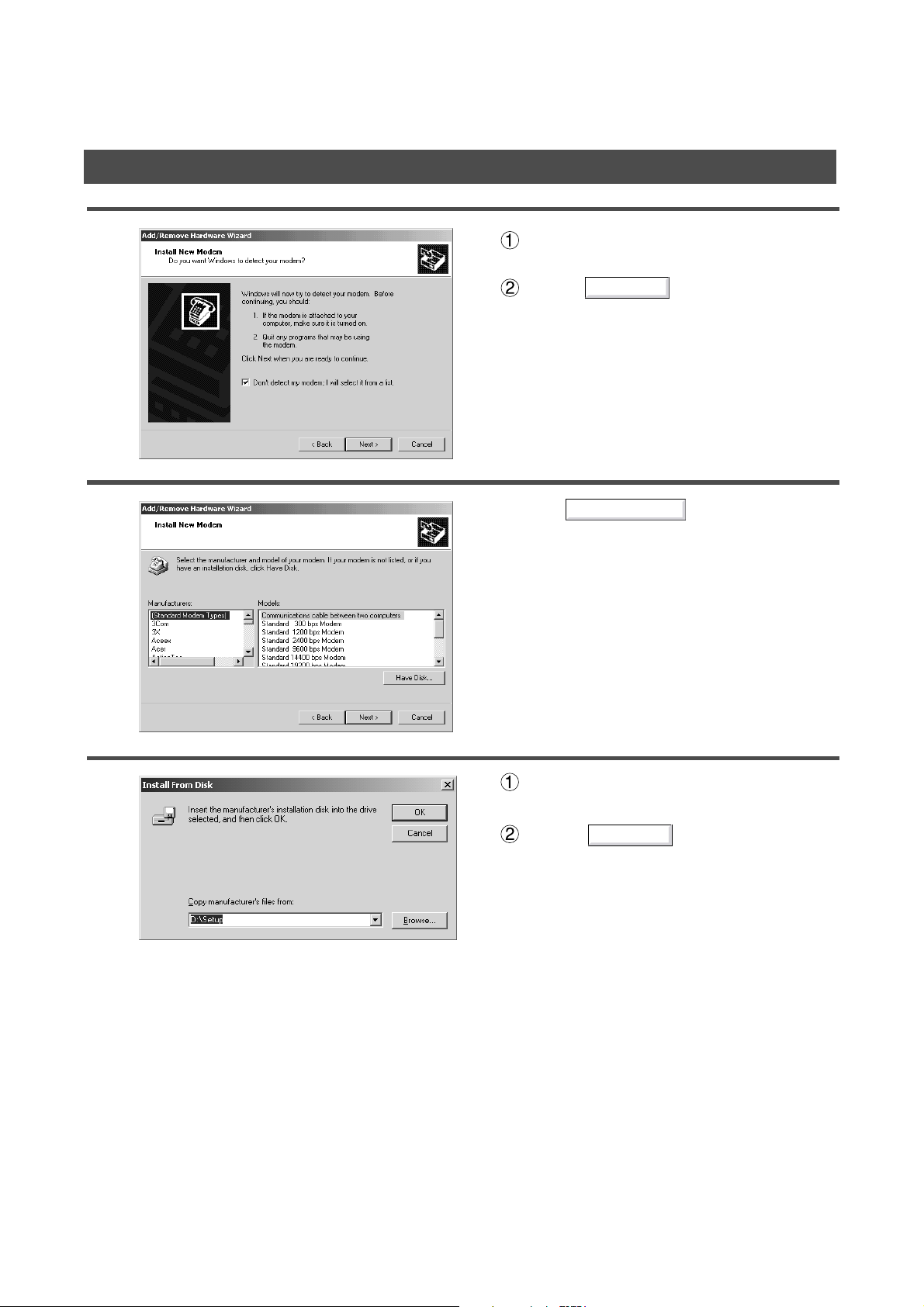

Double-Click the Add/Remove Hardware icon.

Click the button.

Select Add/Troubleshoot a device. Click the button.

Installing the Panasonic Class 2 Fax Modem

Select Add a new device. Click the button.

Select No, I want to select the hardware

from a list. Click the button.

Select Modems.

Click the button.

Installing the Panasonic Class 2 Fax Modem

Select Don't detect my modem; I will select it from a list.

Click the button.

Enter D:\Setup. (Where "D:" is your CD-ROM drive.)

Click the button.

Have Disk...

Installing the Panasonic Class 2 Fax Modem

Select Panasonic DP-130 or DP-150

Class 2 Fax Modem. Click the button.

Select COM2. Click the button.

Installing the Panasonic Class 2 Fax Modem

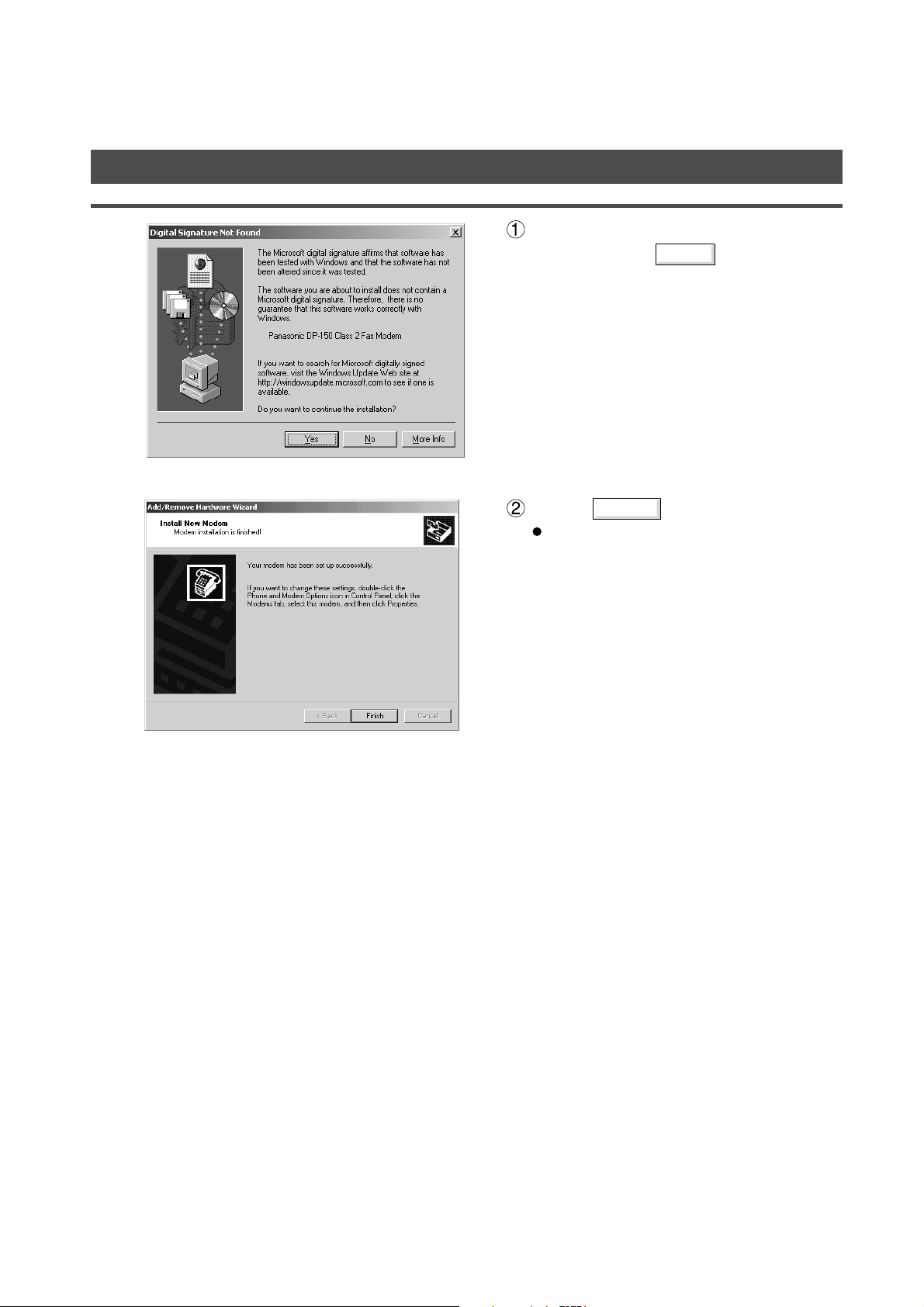

If a warning message for logo certification appears, click the button and continue installation.

Yes

Click the button.

Installation of the modem is completed.

Finish

NOTE

Digital Copier

Document Management System Section

System Section

Document Management

Installing the Document Management System

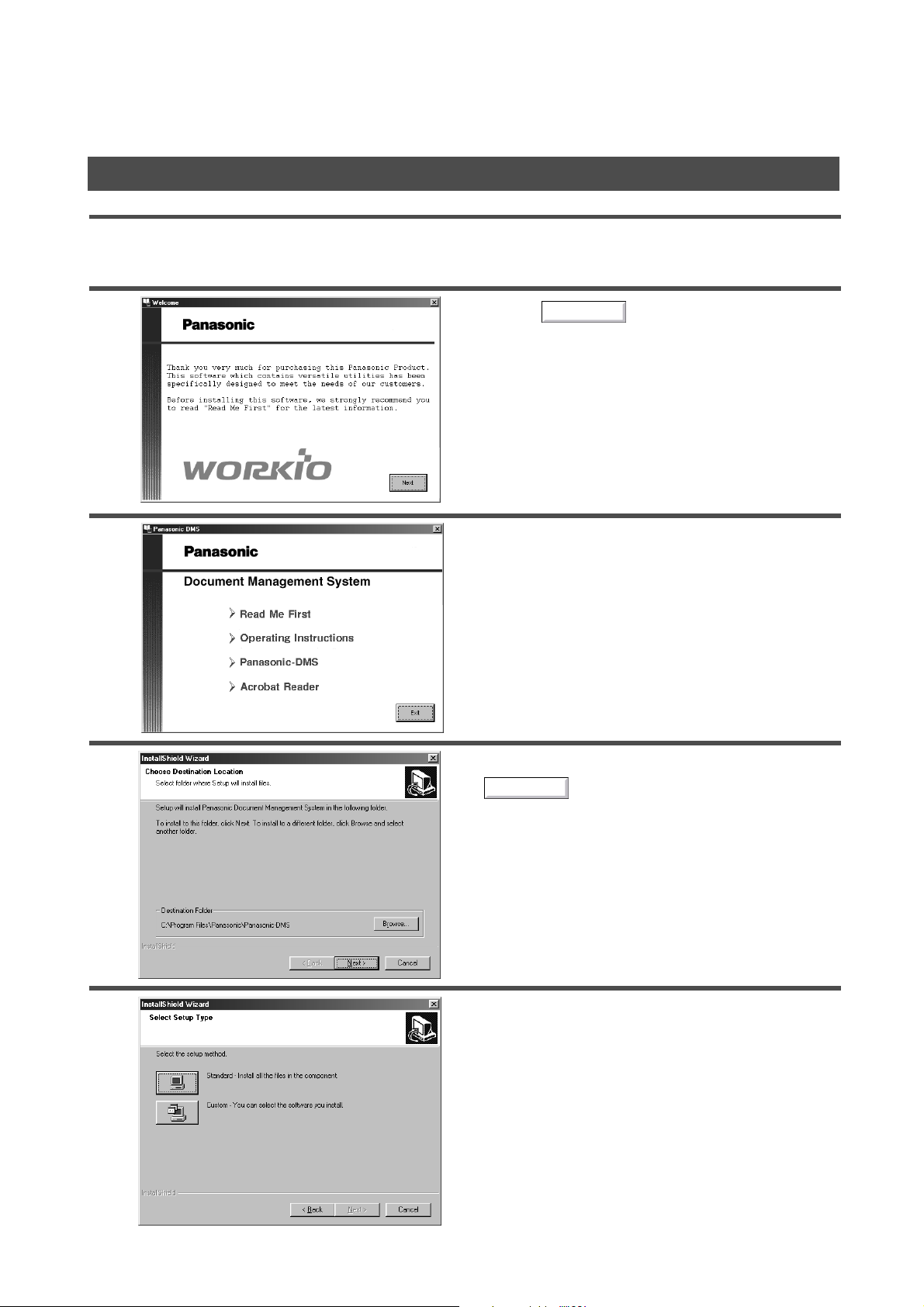

Insert the provided CD-ROM.

1 2

Click the button.

Click Panasonic-DMS.

Verify the installation destination and click the

Click the Standard button.

button.

Installing the Document Management System

Enter the program folder name and click the

button.

The required files are copied.

Click the button.

The Panasonic Document Management System folder is added to the Start menu, and the installation is completed.

Finish

Installing the Document Management System

NOTE

When installing on Windows NT4.0, log in using an account with the authority to

change system settings (e.g. Administrator).

Standard installation method installs all of the following drivers and applications.

Selecting the custom installation allows the selected installation of scanner and MFP utilities individually.

- Scanner Document Scanner (TWAIN scanner driver) (See page 103)

- Manager Document Manager (Image management application) (See page 89) Document Viewer (Image editing application) (See page 111)

- MFP utility Status Monitor (Device status monitor) (See page 132) Configuration Editor (See page 137) Phone Book Editor (See page 145) By installing this software, the system selects LPT1 as a parallel port to be connected to a device. For connecting a device to a port other than LPT1, change connection ports by selecting [Panasonic], [Panasonic Document Management System], and [Port Selection Utility] from the Start menu. Before updating the software, be sure to delete the older version of software. Take the following steps to install the software on Windows 2000:

1. For installation, log in using an account with the authority to change system settings (e.g. Administrator).

2. Restart Windows after completion of installation.

3. After restart, log in again using an account with the authority to change system settings (e.g. Administrator).

4. After completion of installation, normal operation is enabled by logging in with an ordinary user account.

Document Manager

Main Window

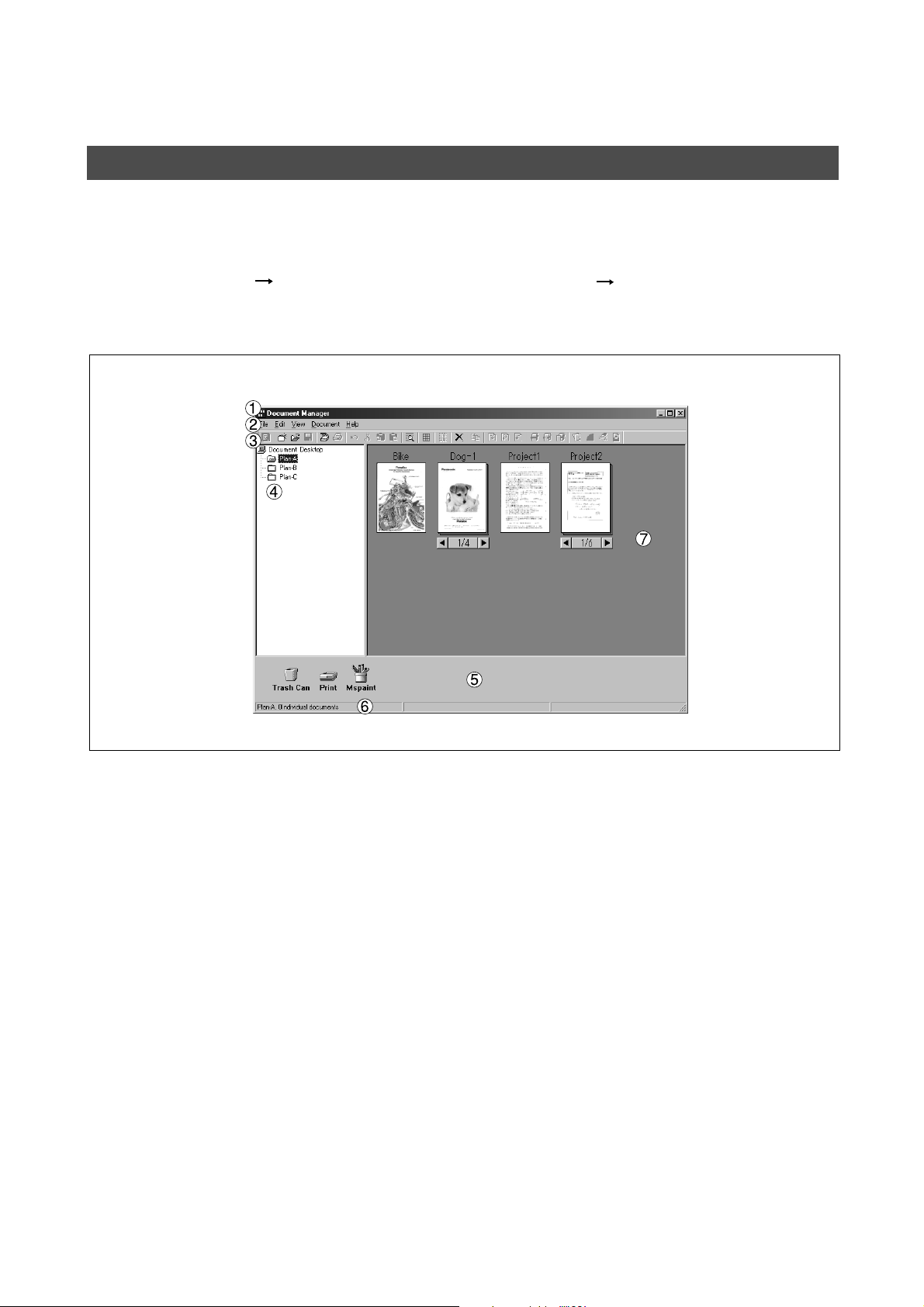

Document Manager is application for managing image files. By utilizing the Document Manager and Document Viewer (see page111) in combination, a number of image files can be classified, managed, browsed, and edited.

Selecting Panasonic Panasonic Document Management System Document Manager in Programs of the Start menu displays the main window of the Document Manager.

Document Manager

Title Bar

Displays the title of a screen.

Menu Bar

Displays the menu of the Document Manager.

Tool Bar

Displays the tool buttons of Document Manager. Tool buttons correspond to functions of the menus in the menu bar.

Folder Window

Displays the folders containing the documents in tree form.

Link Icon

Dropping a dragged document onto a link icon, an application corresponding to the function of the icon is activated.

Status Bar

Displays information such as the number of documents in a folder, the number of selected documents, and file sizes, etc.

Document Window

Displays a list of documents in the selected folder. Documents are displayed in thumbnails (reduced images). Page number and and buttons are displayed at the bottom of a thumbnail image for grouped documents (configured with two or more pages). Clicking the buttons turns the pages.

Document Manager

Basic Operations

The Document Manager allows editing and managing documents displayed in thumbnail images by dragging and dropping. The function enables various operations as described below:

Selecting documents

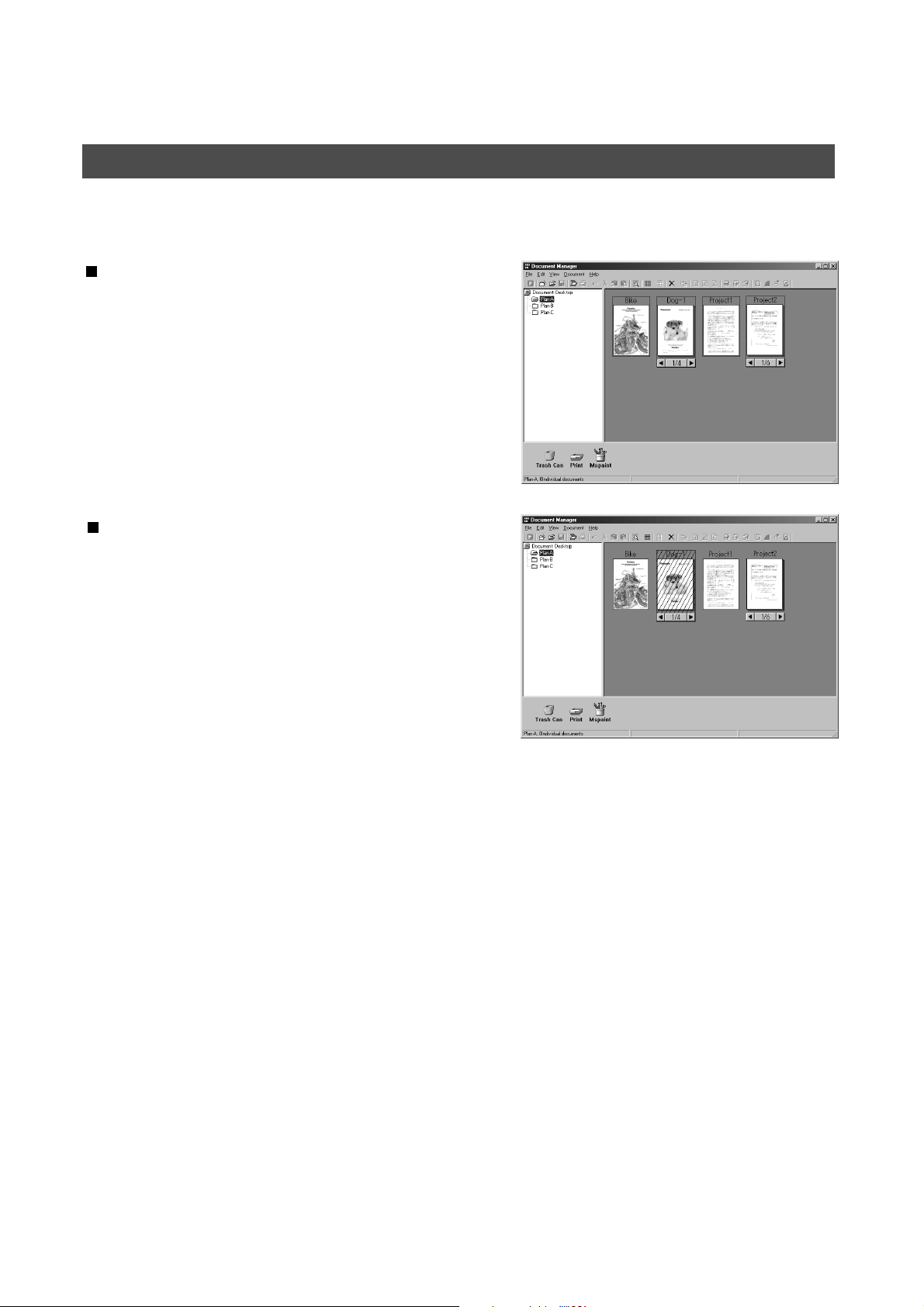

Clicking thumbnail images in the document window allows selection of documents. Dragging a mouse cursor on the screen or clicking with the Shift key held down allows selecting two or more documents at one time.

Editing documents

Double-clicking thumbnail images in document window activates Document Viewer (See page 108), allowing opening and editing documents.

Document Manager

Copying/Moving Documents

Dragging a thumbnail image in document window and dropping it onto a folder in the folder window allows moving the document to the folder. Dragging & dropping with the Ctrl key held down copies a document.

Dragging a document and dropping it onto another document in a document folder results in grouping the two documents together.

Dragging a document and dropping onto a link icon activates an application corresponding to the function of each icon. Link icons are registered and deleted by selecting

Launch to another application External Application Setup

in the File menu.

Document Manager

Setting Plug-in

Import document (from scanner)

Selecting Acquire Image... in the File menu displays a window for the Document Scanner (See page 104). The operation imports a document read on the scanner into a folder.

Import document (from file)

Selecting Open in the File menu displays a dialog box for selecting files. The dialog box allows importing image files saved in a computer as documents onto a folder. An attempt of importing files that cannot be handled by Document Manager results in displaying an error shown below. Press OK and verify a file format.

Dragging and dropping a selected document onto a link icon at the bottom of the window activates an application specified for the link icon, and opens the image file. The link icons are freely registered by selecting Launch to another application Destination Setup

in the File menu.

The following applications are specifiable as destinations of the Document Manager:

Draw/Graphics software (Applications such as MS-Paint, Photoshop, etc.) Annotation File format Compression Image type Resolution Correct

Original document

Transmission check message

: Paste to transmission image as an image. : Select one among TIFF, JPEG, BMP, and PNG. : Select the compression method. : Select one among monochrome, grayscale, RGB color and no conversion. : Resolution of transmission image : <Correct skew>

Inclination of document can be automatically corrected.

Noise on document can be removed.

: If edited and saved (overwriting) on destination application, editing result is saved

on original document.

: Set the number of the maximum displayable active windows.

Document Manager

OCR software (Application such as e-Typist, etc.) File format : Select one among TIFF, JPEG, BMP, PNG. Annotation : Paste to transmission image as an image. Image type Resolution : Resolution of transmission image Correct skew : Inclination of document can be automatically corrected. Eliminate noise : Noise on document can be removed.

PC-FAX software File format : Select one among TIFF, JPEG, BMP, and PNG. Annotation : Paste to transmission image as an image. Image type : Select one among monochrome, grayscale, RGB color and no conversion. Resolution : Resolution of transmission image Correct skew : Inclination of document can be automatically corrected. Eliminate noise : Noise on document can be removed.

: Select one among monochrome, grayscale, RGB color and no conversion.

E-Mail software (MAPI-compatible mail application such as MS-Outlook, MS-Exchange, etc.) File format Annotation : Paste to transmission image as an image. Image type Resolution : Resolution of transmission image Correct skew : Inclination of document can be automatically corrected. Eliminate noise : Noise on document can be removed.

Others Only program activation occurs on applications other than above.

: Select one among TIFF, JPEG, BMP, and PNG.

: Select one among monochrome, grayscale, RGB color and no conversion.

NOTE

Document Viewer provides a function to add various graphics and texts to an image.

The graphics and texts added to an image are called "Annotation." See "Annotation Menu" (see page 121) for details of annotation.

File Menu

New Folder

Create a new folder under a folder that is currently selected. Path of a folder to be created can be specified as required.

Open

An image file saved in computer can be imported into a folder as document.

File of the following formats can be opened in the Document Manager:

TIFF : Tagged-Image File Format (TIFF)

Document Manager

JPEG : Joint Photographic Experts Group (JPEG)

format

BMP : Windows standard bitmap format PNG : Portable Network Graphics format DDM : Document Manager file format

Save As

A document is saved as an ordinary image file under a specified name.

Document Manager saves a file in the following formats:

TIFF : Tagged-Image File Format (TIFF) JPEG : Joint Photographic Experts Group (JPEG)

format

BMP : Windows standard bitmap format PNG : Portable Network Graphics format DDM : Document Manager file format

Document Manager

Rename

Change the names of a document.

Properties

Display the file properties.

Acquire Image...

Using a scanner, etc. selected in Select Source, import a document to a folder that is currently selected.

Select Source

Select a TWAIN-compatible device for scanning documents.

NOTE

See "Document Scanner" (See page 104) for operation of scanner.

Print a document selected in the document window.

Print Setup

Specify layout and printing size for a document to be printed.

Horizontal Position and Vertical Position

Adjust the printing position on a sheet.

Document Manager

Print Size

Select printing in original size or printing in accordance with sheet size.

N in 1

Select for printing reduced pages on one sheet.

NOTE

Print Setup specifies printing or not printing annotation edited in the Document Viewer.

See "Annotation Menu" (See page 121) for details of annotation.

Document Manger

Launch to another application

Open a document selected in the document window with a specified application.

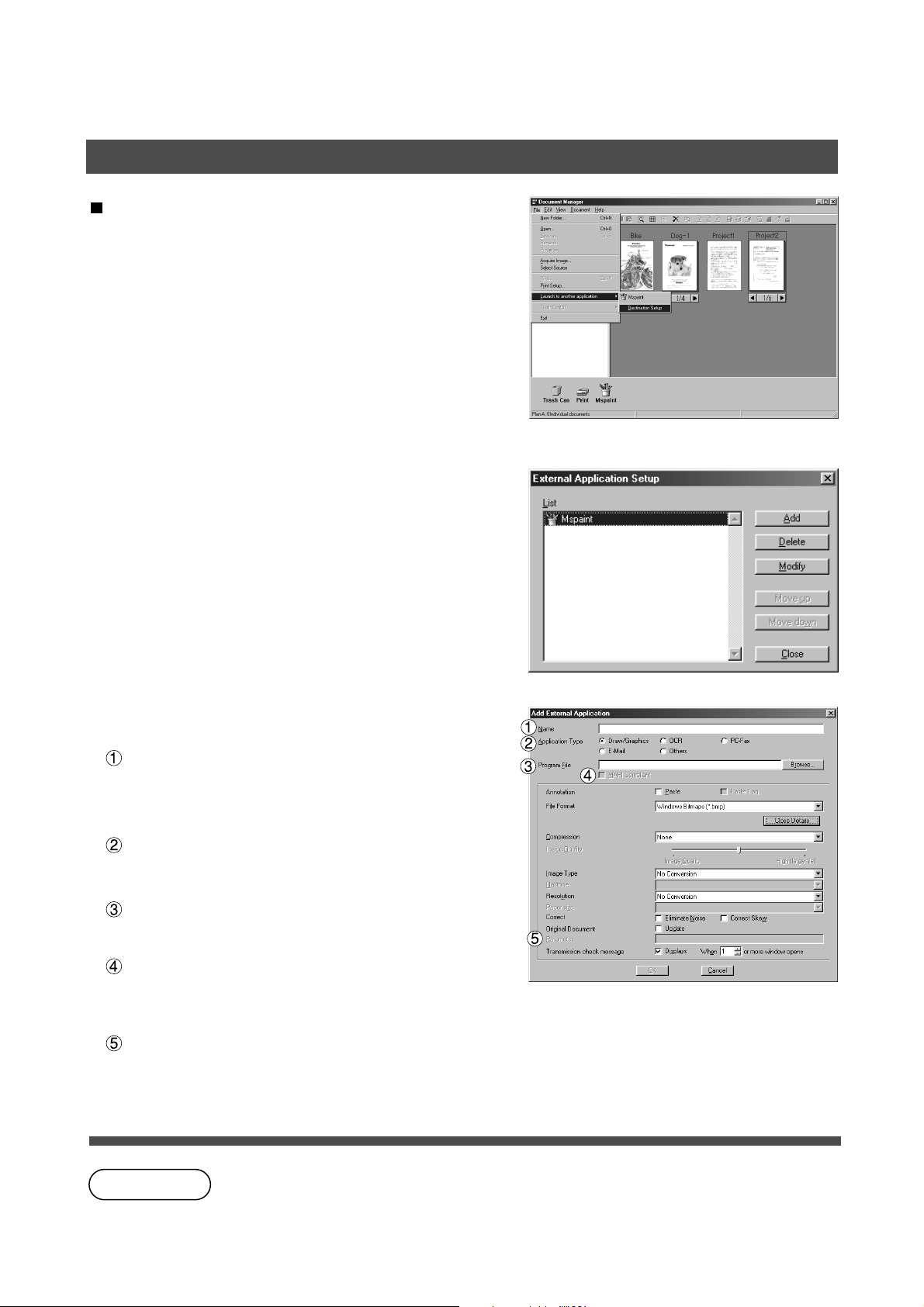

Selecting External Application Setup displays a dialog box for adding/changing/deleting the application.

Clicking the Add button displays a dialog box to Add External Application.

Name

If an external application is specified, the name

in this field appears on a link icon.

Application Type

Specify the application type.

ProgramFile

Specify the execute file of an application.

MAPI Compliant

Check here if the E-mail application is compatible

with MAPI.

Parameter

If the E-mail application is incompatible with MAPI,

adding a parameter here allows automatic activation

of a transmission screen.

NOTE

See "Setting Plug-in" (See page 93) for specifying an destination application.

Trash Can

Open Trash Can

Opens the Trash Can and displays any files. Selecting

documents and clicking the button restores

documents that have been discarded.

Empty Trash Can

Deletes the files in the Trash Can. If the documents are emptied from the Trash Can, they are permanently deleted. They are not stored in the Recycle Bin.

Undo

Document Manager

Edit Menu

Undo

Undo the last editing operation done.

Cut

Delete a selected document from a folder and copy it to

the clipboard.

Copy

Copy a selected document onto the clipboard.

Paste

Paste a document from the clipboard onto a selected

folder.

Delete

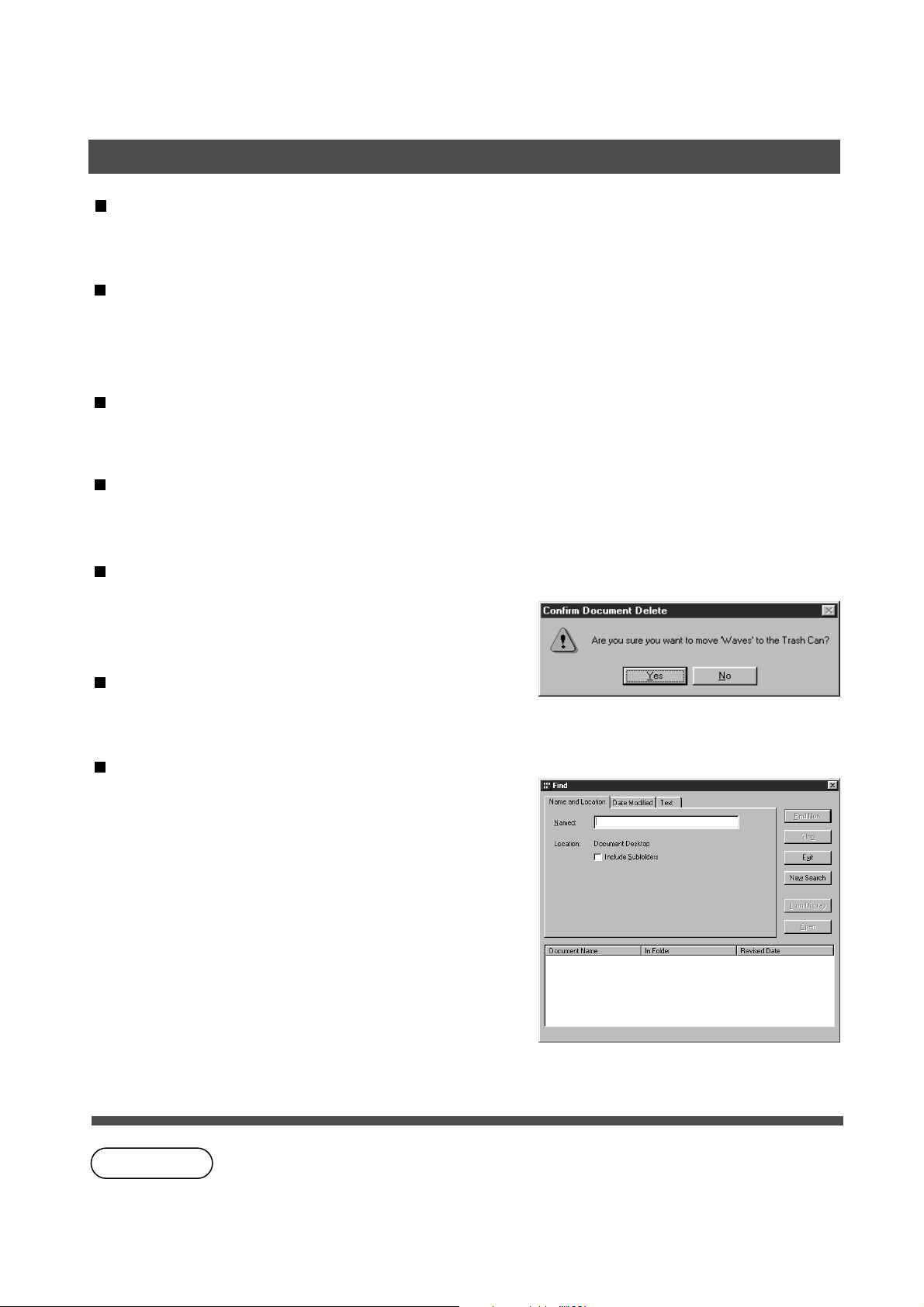

Delete a selected document from a folder to the Trash Can. A confirmation message for deletion appears.

Select All

Select all documents in the folder.

Find

Search for documents by specifying a document name, creation date, or character string in the document.

100

NOTE

See "Annotation Menu" (See page 121121) for details of annotation.

Panasonic 150PA, 135P, 150FX, 150FP User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Precautions

External View and Control Panel

External View

Control Panel

Printer Section

Installing the Printer Driver

Configuring the Printer Driver Settings

Installation and Configuration (Windows NT 4.0)

Installing the Printer Driver

Configuring the Printer Driver Settings (Administrator)

Configuring the Printer Driver Settings (User)

Installation and Configuration (Windows 2000)

Installing the Printer Driver

Configuring the Printer Driver Setting on Windows 2000 (Administrator)

Print Operation

Printing from Windows Applications

Printing on Network

Troubleshooting

Starting with:

Document is not printed correctly

Error messages displayed on the computer

Appendix

Printing/Scanning Area

Parallel Interface Connector

Class 2 Fax Modem Section

Installing the Panasonic Class 2 Fax Modem

Installing (Windows NT 4.0)

Installing (Windows 2000)

Document Management System Section

Document Manager

Main Window

Basic Operations

Setting Plug-in

File Menu

Edit Menu
