Panasonic 11NR1301 User Manual

Owner’s Manual

P

PC

Compact Stereo System

Thank you for purchasing this product.
Please read these instructions carefully before using this product,

and save this manual for future use.

Model No. SC-HC58

ESPAÑOL ENGLISH

If you have any questions, contact:
U.S.A. and Puerto Rico: 1-800-211-PANA (7262)
Canada: 1-800-561-5505

Register online at www.panasonic.com/register

(U.S. customers only)

Included Installation Instructions (l 2, 3 and 24, 25)

The installation work should be done by a qualified installation specialist.

Before commencing work, carefully read these installation instructions and the operating
instructions to ensure that installation is performed correctly.
(Please keep these instructions. You may need them when maintaining or moving this unit.)

La referencia rápida en español se puede encontrar en la página 27.

RQT9754-P

IMPORTANT SAFETY INSTRUCTIONS

(Inside of product)

Read these operating instructions carefully before using the
unit. Follow the safety instructions on the unit and the
applicable safety instructions listed below. Keep these
operating instructions handy for future reference.

1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8 Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.

9 Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding-type plug has two
blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.

10 Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.

11 Only use attachments/accessories specified by the

manufacturer.

12 Use only with the cart, stand, tripod,

bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from
tip-over.

13 Unplug this apparatus during lightning storms or when

unused for long periods of time.

14 Refer all servicing to qualified service personnel. Servicing

is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.

-If you see this symbol­Information on Disposal in other Countries

outside the European Union

This symbol is only valid in the
European Union.
If you wish to discard this
product, please contact your local
authorities or dealer and ask for
the correct method of disposal.

WARNING

Unit

≥ To reduce the risk of fire, electric shock or product damage,

– Do not expose this unit to rain, moisture, dripping or

splashing.

– Do not place objects filled with liquids, such as vases, on

this unit.
– Use only the recommended accessories.
– Do not remove covers.
– Do not repair this unit by yourself. Refer servicing to

qualified service personnel.

AC power supply cord

≥ The power plug is the disconnecting device.

Install this unit so that the power plug can be unplugged from
the socket outlet immediately.

Button-type battery (Lithium battery)

≥ Risk of fire, explosion and burns. Do not disassemble, heat

above 60 oC (140

This product contains a coin/button cell battery. If the
coin/button cell battery is swallowed, it can cause
severe internal burns in just 2 hours and can lead to
death. Keep new and used batteries away from
children. If the battery compartment does not close
securely, stop using the product and keep it away from
children. If you think batteries might have been
swallowed or placed inside any part of the body, seek
immediate medical attention.

If any electrolyte should come into contact with your
hands or clothes, wash it off thoroughly with water.
If any electrolyte should come into contact with your
eyes, never rub the eyes. Rinse eyes thoroughly with
water, and then consult a doctor.

<For USA-California only>
This product contains a CR Coin Cell Lithium Battery
which contains Perchlorate Material s special handling
may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate

o

F) or incinerate.

DO NOT INGEST BATTERY,
CHEMICAL BURN HAZARD

.

2

RQT9754

CAUTION

The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.

CAUTION

CAUTION :

TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE SCREWS.
NO USER-SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.

RISK OF ELECTRIC SHOCK

DO

NOT OPEN

Unit

≥ This unit utilizes a laser. Use of controls or adjustments or

performance of procedures other than those specified herein
may result in hazardous radiation exposure.

≥ Do not place sources of naked flames, such as lighted

candles, on this unit.

Placement

≥ To reduce the risk of fire, electric shock or product damage,

– Do not install or place this unit in a bookcase, built-in

cabinet or in another confined space. Ensure this unit is
well ventilated.

– Do not obstruct this unit’s ventilation openings with

newspapers, tablecloths, curtains, and similar items.

Button-type battery (Lithium battery)

≥ Danger of explosion if battery is incorrectly replaced.

Replace only with the type recommended by the
manufacturer.

≥ Keep out of reach of children.
≥ Insert with poles aligned.
≥ Mishandling of batteries can cause electrolyte leakage and

may cause a fire.
– Remove batteries if you do not intend to use the remote

control for a long period of time. Store in a cool, dark

place.
– Do not heat or expose to flame.
– Do not leave the battery(ies) in a car exposed to direct

sunlight for a long period of time with doors and windows

closed.
– Do not touch the terminals (i and j) with metal objects.
– Do not recharge, disassemble, remodel, heat or throw into

fire.

≥ When disposing the batteries, please contact your local

authorities or dealer and ask for the correct method of
disposal.

About Bluetooth

®

Panasonic bears no responsibility for data
and/or information that is compromised
during a wireless transmission.

∫ Frequency band used

This unit uses the 2.4 GHz frequency band.

∫ Certification of this device

≥ This system conforms to frequency restrictions and has

received certification based on frequency laws. Thus, a
wireless permit is not necessary.

≥ The action below are punishable by law in some

countries:

j Taking apart or modifying the unit.
j Removing specification indications.

∫ Restrictions of use

≥ Wireless transmission and/or usage with all Bluetooth®

equipped devices is not guaranteed.

≥ All devices must conform to standards set by Bluetooth

SIG, Inc.

≥ Depending on the specifications and settings of a

device, it can fail to connect or some operations can be
different.

≥ This system supports Bluetooth

depending on the operating environment and/or settings,
this security is possibly not sufficient. Transmit data
wirelessly to this system with caution.

≥ This system cannot transmit data to a Bluetooth

®

security features. But

®

device.

∫ Range of use

Use this device at a maximum range of 10 m (33 ft).
The range can decrease depending on the environment,
obstacles or interference.

∫ Interference from other devices

≥ This unit may not function properly and troubles such as

noise and sound jumps may arise due to radio wave
interference if this unit is located too close to other

®

Bluetooth
band.

≥ This unit may not function properly if radio waves from a

nearby broadcasting station, etc. is too strong.

devices or the devices that use the 2.4 GHz

∫ Intended usage

≥ This unit is for normal, general use only.
≥ Do not use this system near an equipment or in an

environment that is sensitive to radio frequency
interference (example: airports, hospitals, laboratories,
etc).

ENGLISH

Product Identification Marking is located on the bottom
of the unit.

3

RQT9754

Table of contents

IMPORTANT SAFETY INSTRUCTIONS... 2
About Bluetooth

Accessories..............................................4

Control reference guide........................... 5

Connections ............................................. 6

Unit and media care................................. 6

Inserting media......................................... 7

Network settings ......................................8

Bluetooth

Media playback operations ................... 14

Listening to the radio.............................15

Sound adjustment.................................. 16

Clock and Timer .....................................16

Others...................................................... 17

Troubleshooting ..................................... 19

Playable media .......................................23

Specifications......................................... 22

Licenses.................................................. 26

Attaching the unit to a wall

(optional)..............................................24

Spanish Quick Reference /

Referencia rápida en español ............ 27

Limited Warranty (ONLY FOR

U.S.A. AND PUERTO RICO)................ 30

Limited Warranty

(ONLY FOR CANADA) ......................... 31

About descriptions in this Owner’s Manual

≥ Pages to be referred to are indicated as “l ±±”
≥ Unless otherwise indicated, operations are

described using the remote control.

®

..................................... 3

®

operations ........................... 13

Accessories

Check the supplied accessories before using this unit.

∏ 1 Remote control (with a battery)

(N2QAYC000082)

∏ 1 AC power supply cord

(K2CB2CB00022)

∏ 1 FM indoor antenna

(RSAX0002)

Wall mounting accessories
∏ 1 Safety holder

(RGQ0660-K)

∏ 2 Wall mount brackets

(RMQX1082-S)

∏ 1 Screw

(XTB3i8JFJK)

(ONLY FOR CANADA)

The enclosed Canadian French label sheet corresponds to
the English display on the top of the unit.



≥ Do not use AC power supply cord with other equipment.
≥ Product numbers provided in this Owner’s Manual are

correct as of December 2012. These may be subject to
change.

4

RQT9754

Control reference guide

CD/

RADIO

Top view



1 Standby/on switch [Í/I] (Í)

Press to switch the unit from on to standby mode or
vice versa.

In standby mode, the unit is still consuming a small
amount of power.

2 Select the audio source

On the remote control

[iPod] : “IPOD_DOCK” ,. “IPOD_PORT”
[CD/RADIO] : “CD”
[ ] : “BLUETOOTH”

On this unit:

“CD” -. “FM” -. “BLUETOOTH” -. “IPOD_DOCK”

^------------- “IPOD_PORT” (------------------------b

3 Basic playback control buttons
4 Enter setup menu
5 Enter the iPod/iPhone menu /

Change displayed information
6 Open or close the sliding door
7 Adjust the volume (0 (min) to 50 (max))
8 Mute the sound

Mutes the sound. Press again to cancel.

“MUTE” is also canceled when the volume is adjusted

or the unit is turned off.

9 Enter playback menu
10 Enter sound menu
11 S ele ction /OK
12 iPod port for iPod/iPhone/iPad (l 7)
13 Network setting button (l 8)
14 Headphone jack

Plug type: ‰3.5 mm (1/8q) stereo

Recommended plug type: Straight Plug

≥ Listening at full volume for long periods may

damage the user’s ears.
Excessive sound pressure from earphones and
headphones can cause hearing loss.

15 Power on indicator
16 Wi-Fi

®

status indicator
17 Display
18 Sliding door
19 Remote control signal sensor

Distance:
Within approx. 7 m (23 ft) directly in front.
≥ To avoid interference, please do not put any objects

in front of signal sensor.

∫ Before using for the first time

Remove the insulation sheet A.

,. “FM”

12

14

iPad

SELECTOR

13673216

15

16

19

17 18

∫ To replace a button-type battery

Battery type: CR2025 (Lithium battery)



ENGLISH

≥ Set the button-type battery with its (i) mark facing upward.
≥ Keep the button-type battery out of reach of children to prevent swallowing.

5

RQT9754

Connections

ョヮチモワヵ

ヘブ

モヤチリワ」

1

2

Adhesive tape
(not supplied)

FM indoor antenna
(supplied)

Connect the AC power supply cord after all other connections are completed.

To a household AC outlet

AC Power supply cord (supplied)

This unit consumes a small amount of AC power (l 22) even when turned off.

≥ In the interest of power conservation, if you will not be using this unit for an extended

period of time, unplug it from the household AC outlet.

Lens



≥ These speakers do not have magnetic shielding. Do not place them near a television, personal computer or other

devices easily influenced by magnetism.

≥ Tape the antenna to a wall or column in a position with the least amount of interference.

(Use an FM outdoor antenna if radio reception is poor.)

Unit and media care

Pull out the AC power plug from the outlet before
maintenance.

∫ Clean this unit with a soft, dry cloth

≥ When dirt is heavy, wring a cloth moistened in water

tightly to wipe the dirt, and then wipe it with a dry cloth.

≥ When cleaning the speaker covers, use a fine cloth.

Do not use tissues or other materials (towels, etc.) that
can fall apart. Small grains may get stuck inside the
speaker cover.

≥ Never use alcohol, paint thinner or benzine to clean this

unit.

≥ Before using chemically treated cloth, carefully read the

instructions that came with the cloth.

∫ Maintenance of the lens

≥ Clean the lens regularly to prevent malfunctions. Use

a blower to remove dust and a cotton swab if it is
extremely dirty.

≥ You cannot use a CD type lens cleaner.
≥ Do not leave the sliding door open for prolonged

periods of time. This will cause the lens to get dirty.

≥ Be careful not to touch the lens with your fingers.

∫ Clean discs

DO DO NOT

Wipe with a damp cloth and then wipe dry.

∫ Disc handling precautions

≥ Handle discs by the edges to avoid inadvertent

scratches or fingerprints on the disc.

≥ Do not attach labels or stickers to discs.
≥ Do not use record cleaning sprays, benzine, thinner,

static electricity prevention liquids or any other solvent.

≥ Do not use the following discs:

– Discs with exposed adhesive from removed stickers or

labels (rented discs etc.).
– Discs that are badly warped or cracked.
– Irregularly shaped discs, such as heart shapes.

∫ To dispose or transfer this unit

The unit may keep the user settings information in the unit.
If you discard this unit either by disposal or transfer, then
follow the procedure to return all the settings to the factory
presets to delete the user settings. (l 19, “To return all
settings to the factory preset”)

≥ The operation history may be recorded in the memory of

this unit.

6

RQT9754

Inserting media

4

iPad

3

Select “IPOD_DOCK” as the source

Connect Lightning connector models *1

Select “IPOD_PORT” as the source

Connect using the dedicated
USB cable (not supplied) *1, 2

Select “CD” as the source

ENGLISH

*1: Refer to “Playable media” for compatible models.

(l 23)

*2: Do not connect the following models to this unit’s iPod

port:
– iPod classic, iPod [4th (color display), and

5th (video) generation]

Unexpected behavior may occur.

*3: When using the Lightning connector:

≥ Be sure to remove the iPod/iPhone from its case.
≥ Do not push or pull the dock manually.
≥ Make sure that the iPod/iPhone is fully inserted and

its back is resting against the cushion pad.

≥ Make sure to hold the dock when removing the iPod/

iPhone.

*4: Make sure to tilt the disc so as not to touch the sliding

door.

≥ Do not open the sliding door manually.
≥ Make sure that the unit does not fall when inserting or

removing media.

≥ When moving this unit, be sure to remove all media and

turn this unit to standby mode.

Charging an iPod/iPhone/iPad

Charging starts when an iPod*2/iPhone/iPad is
connected to this unit.

≥ During standby mode, charging will not start from the

USB cable connection, however it will start as usual from
the Lightning connector.

– To charge from the USB cable connection, start the

charging before turning this unit to standby mode.



≥ Check the iPod/iPhone/iPad to see if the battery is fully

charged. (Once fully recharged, additional recharging
will not occur.)

≥ If this unit is switched to standby mode

“IPOD CHARGING” is shown on the unit’s display.

7

RQT9754

Network settings

Does your wireless network

router support WPS?

Yes

Are you using an

iPod touch/iPhone/iPad?

Is the iOS version 5.0 or later?

l right,

“Method 1”

l 8,

“Method 2”

l 9,

“Method 3”

No

Yes No / Do not know

iPad

With this feature you can wirelessly stream music
from an iOS device (iPhone, iPod, iPad) or a Mac/
PC to this unit’s speakers.

To use this feature (AirPlay), this unit must join the
same 2.4 GHz wireless network as the AirPlay
compatible device (l 23).

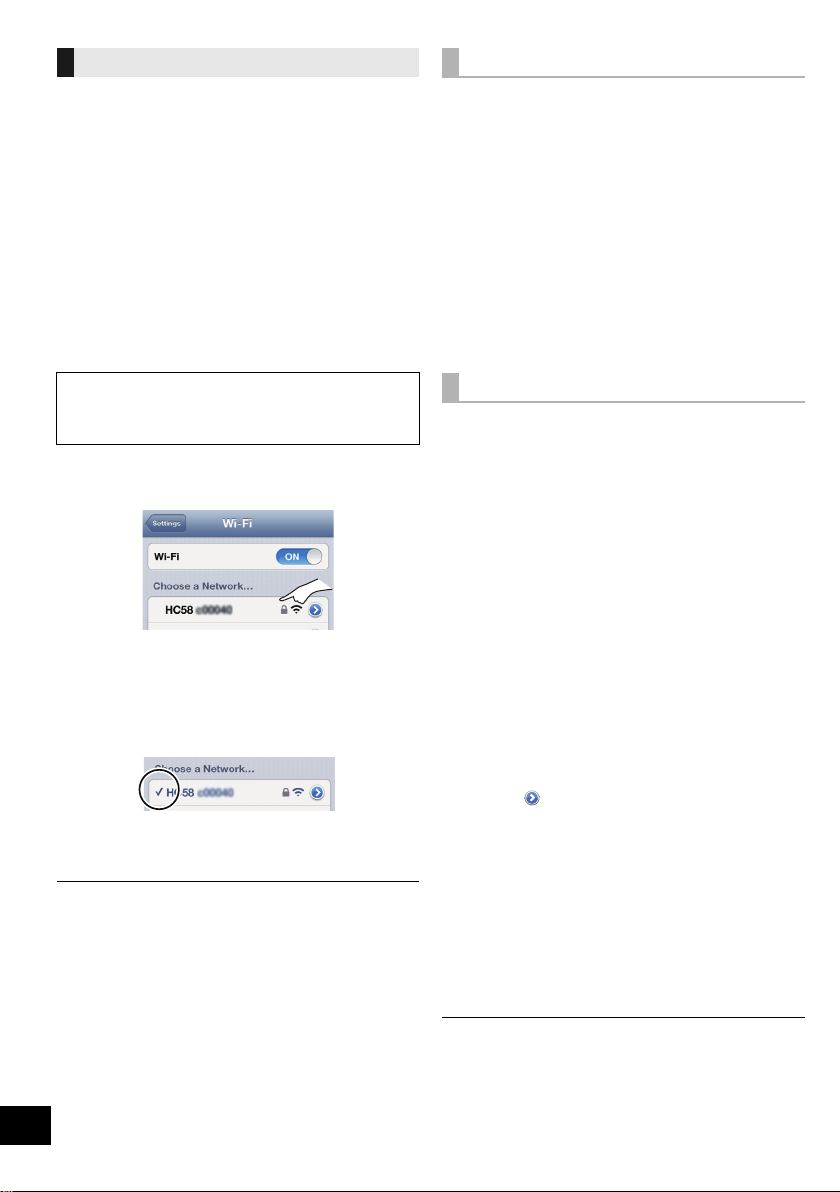

≥ It is also possible to use AirPlay without a wireless

network router. (l 12, “Directly streaming to this unit”)

Preparation

≥ Place this unit close to the wireless network

router.

1 Turn this unit on.
2 Follow the chart below to choose the network

setting method.

Method 1

If you're using an iPod touch/iPhone/iPad.
(iOS version 5.0 or later.)

With this method you will share the wireless
network settings of your iPod touch/iPhone/iPad
with this unit.
≥ The following explanations are based on an

iPhone.

1 Connect the iPhone to your home wireless

network.

2 Connect the iPhone to this unit.

Choose one of the following connections.
Lightning connector compatible iPod touch/iPhone

iPod touch/iPhone/iPad with iOS 5.0 or later



≥ To cancel this setting in the middle, press [Í] to turn off

the unit.

*1: Depending on the network environment or the wireless

network router settings, it may take more than 10 mins.

8

RQT9754

to complete the settings.

3 Unlock your iPhone and then press and hold

[– NETWORK SETUP] on this unit for more

than 3 seconds.

≥ If “NOT SUPPORTED” or “SET WI-FI” is displayed,

check that the iPhone is connected to the wireless
network and try again from step 1.

4 A message will pop-up on your iPhone.

Allow the iPhone to share the wireless network

settings.*

1

5 The unit’s settings are completed when

“SUCCESS” is displayed and the Wi-Fi status

indicator stops blinking and lights in blue.

If “FAIL” is displayed press [OK] and try the
setting again. If “FAIL” is still displayed, try
“Method 2” or “Method 3”.

≥ If the iPhone was disconnected midway through, try

again without disconnecting it.

6 Press [OK] on the remote control to exit the

settings.

7 To use AirPlay, turn to page 11.

Method 2

Blinks purple

Blinks blue

Blinks purple

Blinks purple

If your wireless network router supports WPS*1.

∫ Using the WPS Push Button

Configuration (PBC)

The WPS identifier mark

WPS Push Button
Configuration (PBC)
compatible wireless network
router may have this mark.

1 Disconnect any devices connected to this unit.
2 Press and hold [– NETWORK SETUP] on the

unit.

≥ Complete step 2 within 2 mins.

3 After “WPS” is indicated, press the WPS button

on the wireless network router.

4 The unit’s settings are completed when

“SUCCESS” is displayed and the Wi-Fi status
indicator stops blinking and lights in blue.

“FAIL” may be displayed if the connection was not
made within the set time limit. Try the setting
again. If “FAIL” is still displayed, try “Method 3”.

Method 3

Setting the network connection from an Internet
browser.

With this method, you will access this unit’s
wireless network settings from the Internet browser
of your compatible device.
≥ The following explanations are based on an

iPhone.

1 Press [SETUP] on the remote control

repeatedly to select “NET SETUP” and then
press [OK].

2 After “SETTING” is indicated, connect your

iPhone to this unit’s wireless network called
“00_Setup _ _ _ _ _ _”*

2, 3

.

3 Start “Safari” on your iPhone and type

“http://192.168.1.12/” into the URL address
field and display the page.

ENGLISH

5 Press [OK] on the remote control to exit the

setting.

6 To use AirPlay, turn to page 11.



≥ To use the WPS PIN code, refer to the notes on page 10.

*1: WPS stands for “Wi-Fi Protected Setup
*2: “ _ ” stands for a digit that is unique to each set.
*3: Make sure that DHCP is enabled for the network

setting on the iPhone.

TM

”.

{. This unit’s setup window is displayed.

9

RQT9754

4 Select “Search wireless network”.

5 Select and input the details.

≥ Check your home wireless network name

(Network name (SSID)) and password for
this network. This can often be found on the
wireless network router itself.

[1] Select your home wireless network

[2] Type the password.

name*

1

.

6 Select “JOIN” to apply the settings.

≥ In the pop-up screen, select “OK” to continue.

– Select “CANCEL” to return to the setup window.

7 The unit’s settings are completed when

“SUCCESS” is displayed and the Wi-Fi status
indicator stops blinking and lights in blue.

If “FAIL” is displayed press [OK], check the
wireless network password and other settings
and start again from step 1.

8 Make sure to connect your iPhone back to your

2

home wireless network*

.

9 To use AirPlay, turn to page 11.

*1: If you have set your wireless network to be invisible,

select “BACK” and refer to “Alternative settings”.

*2: To use the AirPlay function, connect the iPhone to the

wireless network selected in step 5. (> above)

10

RQT9754

Advanced network settings

≥ The below settings are the alternative or additional

settings for “Method 3”.

Instead of steps 4 and 5

Select “Manual settings”.
1 Type your home wireless network name

into the “Network name (SSID)” field.

2 Select the encryption method from the

“Security system” drop down list.

3 Type the password into the “Password” field

and then select “JOIN”.

If your home wireless network has been
configured to use specific IP Addresses, Subnet
Mask, Default Gateway, Primary DNS, etc.

Before step 6
Select “Advanced network settings”.

{. Input the required addresses into each field and select

“JOIN”.

≥ To change the settings back to DHCP, select “ON”

from the “DHCP” drop down list.

If you want to change the name of this unit that is
displayed as the AirPlay speakers.

Before step 4

Select “Additional settings”.
1 Select “Edit STEREO SYSTEM name”.
2 Type a new name into the

“STEREO SYSTEM name” field.

{. Only ASCII characters can be used.

3 Select “OK”.
4 If this unit is already connected to your home

wireless network:
jSelect “EXIT“.
If this unit is not connected to your home
wireless network:
jContinue to step 4 of “Method 3”.

(l 9)

Alternative settings

Additional settings



≥ Enable Java and Cookies in your browser settings.
≥ This unit can also be set using the WPS PIN code.

Replace step 2 of “Method 2” with the following steps.
(Before starting, refer to the wireless network router’s
operating instructions for details on how to enter the PIN
code.)

1 While “WPS” is flashing press and hold

[– NETWORK SETUP] again to display the 8 digit
PIN code.

{. Wi-Fi status indicator blinks purple.

2 Enter the PIN code into the wireless network router.
