Panasonic 11GR1202 User Manual

until 2012/03/09

SC-AP01PPC~RQT9655.book 1 ページ２０１２年２月２日　木曜日　午後１０時４２分

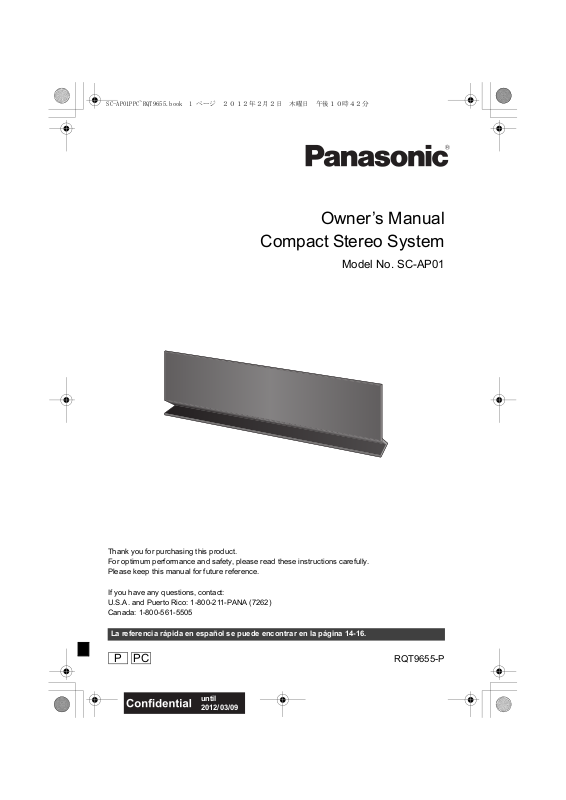

Owner’s Manual

Compact Stereo System

Model No. SC-AP01

Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully. Please keep this manual for future reference.

If you have any questions, contact: U.S.A. and Puerto Rico: 1-800-211-PANA (7262) Canada: 1-800-561-5505

La referencia rápida en español se puede encontrar en la página 14-16.

RQT9655-P

SC-AP01PPC~RQT9655.book 2 ページ２０１２年２月２日　木曜日　午後１０時４２分

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference.

1 Read these instructions. 2 Keep these instructions. 3 Heed all warnings. 4 Follow all instructions. 5 Do not use this apparatus near water. 6 Clean only with dry cloth. 7 Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8 Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9 Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10 Protect the power cord from being walked on or

pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11 Only use attachments/accessories specified by the

manufacturer.

12 Use only with the cart, stand, tripod,

bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

13 Unplug this apparatus during lightning storms or when

unused for long periods of time.

14 Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

WARNING

Unit

≥ To reduce the risk of fire, electric shock or product

damage, – Do not expose this unit to rain, moisture, dripping or

splashing.

– Do not place objects filled with liquids, such as vases,

on this unit. – Use only the recommended accessories. – Do not remove covers. – Do not repair this unit by yourself. Refer servicing to

qualified service personnel.

AC adaptor

≥ Install this unit so that the AC adaptor can be unplugged

from the socket outlet immediately if any problem occurs.

CAUTION

Unit

≥ Do not place sources of naked flames, such as lighted

candles, on this unit.

Placement

≥ To reduce the risk of fire, electric shock or product

damage, – Do not install or place this unit in a bookcase, built-in

cabinet or in another confined space. Ensure this unit

is well ventilated. – Do not obstruct this unit’s ventilation openings with

newspapers, tablecloths, curtains, and similar items.

AC adaptor

This AC adaptor operates on AC between 100 V and 240 V. But ≥ In the U.S.A. and Canada, the AC adaptor must be

connected to a 120V AC power supply only.

≥ When connecting to an AC supply outside of the U.S.A.

or Canada, use a plug adaptor to suit the AC outlet configuration.

Product Identification Marking is located on the bottom of the unit.

RQT9655

SC-AP01PPC~RQT9655.book 3 ページ２０１２年２月２日　木曜日　午後１０時４２分

Unit care

Pull out the AC adaptor from the outlet before maintenance.

∫ Clean this unit with a soft, dry cloth

≥ When dirt is heavy, wring a cloth moistened in

water tightly to wipe the dirt, and then wipe it with a dry cloth.

≥ When cleaning the speaker covers, use a fine

cloth. Do not use tissues or other materials (towels, etc.) that can fall apart. Small grains may get stuck inside the speaker cover.

≥ Never use alcohol, paint thinner or benzine to

clean this unit.

≥ Before using chemically treated cloth, carefully

read the instructions that came with the cloth.

∫ To dispose or transfer this unit

The unit may keep the user settings information in the unit. If you discard this unit either by disposal or transfer, then follow the procedure to return all the settings to the factory presets to delete the user settings. (> 12, “To return all settings to the factory preset”) ≥ The operation history may be recorded in the

memory of this unit.

Licenses

Table of contents

IMPORTANT SAFETY INSTRUCTIONS............ 2

Accessories ....................................................... 3

Unit care............................................................. 3

Licenses............................................................. 3

About this product ............................................ 4

Control reference guide.................................... 4

Connection ........................................................4

Charging from the USB port ............................ 5

Network settings ...............................................5

Using the remote control app ..........................9

Others............................................................... 11

Troubleshooting.............................................. 12

Specifications.................................................. 13

Spanish Quick Reference / Referencia rápida en español

Conexiones...................................................... 14

Network settings .............................................14

Limited Warranty (ONLY FOR U.S.A. AND

PUERTO RICO) ................................................ 18

Limited Warranty (ONLY FOR CANADA)....... 19

Accessory

Check the supplied accessory before using this unit.

∏ 1 AC adaptor

(RFEA228C-AG)

AirPlay, the AirPlay logo, iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance. The Wi-Fi Protected Setup Mark is a mark of the Wi-Fi Alliance. “Wi-Fi”, “Wi-Fi Protected Setup”, “WPA” and “WPA2” are marks or registered marks of the Wi-Fi Alliance.



≥ Do not use any other AC adaptors except the supplied

one.

≥ Product numbers provided in this Owner’s Manual are

correct as of February 2012. These may be subject to change.

RQT9655

VOLUM E

5 6

This unit consumes a small amount of AC power (> 13) even when turned off.

≥ When leaving the product

unused for a long time, turn off the unit and pull the AC adapter out of the household AC outlet for power saving.

AC adaptor (supplied)

(DC IN 12 V)

SC-AP01PPC~RQT9655.book 4 ページ２０１２年２月２日　木曜日　午後１０時４２分

About this product

Listening to music with AirPlay

With this product you can wirelessly stream music from the compatible device (> below) to this unit’s speakers.

Operations with the remote control app

It is possible to adjust the volume, turn this unit on or switch it to standby mode, and adjust various other features from the screen of your iPhone or iPod touch. Install this specific application onto your iPhone or iPod touch to use this unit. (> 9)



≥ This application is specially made for iPhone and iPod

touch.

Control reference guide

1 Standby/on switch [Í/I]

Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power.

2 Adjust the volume 3 WPS pairing button (> 5) 4 Power on indicator

5Wi-Fi

status indicator

6 Operation indicator

Connection

Connect the AC adaptor to the household AC outlet.

Compatible devices

AirPlay works with;

≥ iOS 4.2 or later

jiPod touch (2nd, 3rd, and 4th generation), jiPhone 4S, iPhone 4, iPhone 3GS, jiPad 2, iPad

≥ iTunes 10.2 or later

jMac / PC



≥ Please be aware that Panasonic accepts no

responsibility for the loss of data and/or information.

RQT9655

(as of February 2012)



≥ These speakers do not have magnetic shielding. Do not

place them near a television, personal computer or other devices easily influenced by magnetism.

≥ When moving this unit, be sure to remove the USB cable

and turn this unit to standby mode.

To the compatible device

USB cable

(DC OUT 5 V, 2.1 A MAX)

SC-AP01PPC~RQT9655.book 5 ページ２０１２年２月２日　木曜日　午後１０時４２分

Charging from the USB port

When this unit is turned on and a portable music player that is compatible to USB charging is connected to this unit’s USB port, charging will start automatically. ≥ It is not possible to playback the music on the

connected device from this unit’s speakers or operate the device from this unit through this connection.

≥ Refer to the operating instructions of the device

for details about charging.

Preparation

Turn this unit on.

1 Connect the compatible device to this unit

with an appropriate USB cable.

≥ Refer to the connected device to check if the

device is fully charged.

2 Once fully charged, remove the USB

cable from this unit.

Network settings

To use the AirPlay function, this unit must join the same wireless network as the compatible device. (> 4)

Preparation

With this unit there are 2 methods to setup the wireless connection. Determine which type of wireless network router you are using and follow the method that matches your device. ≥ Refer to the operating instructions of the wireless

network router for details.

If you do not know which type of wireless network router you are using, use “Method 2”.

≥ Turn the unit on.



≥ When performing the network settings, place this unit

close to the wireless router.

≥ Simultaneous use with a microwave, cordless telephone

and other 2.4 GHz devices may result in connection interruptions.

≥ Immediately after this unit is turned on, the network

setup may take longer to start.

≥ This unit cannot join a wireless network using WEP

security settings with the wireless network.

≥ To cancel this setting in the middle, press [Í/I] to turn off

the unit.

≥ For up to date compatibility information on your Wireless

router refer to http://panasonic.jp/support/global/cs/ (This site is in English only.)

“Method 1”. Use “Method 2” to join



≥ There is no charging during standby mode. ≥ This unit is capable of charging upto a load of 2.1 A. ≥ When fully charged, this unit will not stop the charging

automatically. Remove the USB cable from this unit once the connected device is fully charged.

≥ The USB cable is not supplied with this unit. Use the

USB cable that is supplied with the compatible device. If a USB cable is not supplied with the device, be sure to use an appropriate USB cable. Refer to the operating instructions of the device for details about the appropriate USB cable.

(Continues to next page)

RQT9655

SC-AP01PPC~RQT9655.book 6 ページ２０１２年２月２日　木曜日　午後１０時４２分

Method 1

If your wireless network router supports WPS*1.

∫ Using the WPS Push Button Configuration

(PBC)

WPS Push Button Configuration (PBC) compatible wireless router may have this mark.

1 Press and hold [– WPS] on the unit for

more than 2 seconds.

{. The Wi-Fi

step 2.

≥ Complete step 2 within 2 mins.

status indicator blinks blue. Continue to

2 Press the WPS button on the wireless

router.

{. When a link is established Wi-Fi

blinks quickly.

{. When the configuration is finished, Wi-Fi

indicator lights blue.

status indicator

status

Method 2

If your wireless network router does not support

WPS*

With this method, you will access this unit’s wireless network settings from the Internet browser of your compatible device.

≥ The illustrations and explanations are based on an

iPhone. However, the word “iPhone” can be replaced with your compatible device.

Preparation

≥ Check your home wireless network name

(Network name (SSID)) and password for this network. This can often be found on the wireless router itself.

≥ Turn on your iPhone.

1 Press and hold [VOL +] and [– WPS] on

this unit for more than 2 seconds.

{. The Wi-Fi

status indicator blinks purple.

2 Connect your iPhone to this unit’s wireless

network called

2, 3

“Setup _ _ _ _ _ _”*

≥ Once “Setup _ _ _ _ _ _” is selected, the iPhone is

connected with this unit.



≥ This unit can also be set using the WPS PIN code.

Replace step 2 of “Method 1” with the following steps. (Before starting, refer to the wireless network router’s operating instructions for details on how to enter the PIN code.)

1 While the Wi-Fi

and hold [– WPS] again.

{. The Wi-Fi

Continue to the next step.

2 Enter the PIN code “64428147” into the wireless

router.

≥ To edit this system’s name it is necessary to use

“Method 2”.

≥ The Wi-Fi

connection was not made within the set time limit. Try the setting again. If the Wi-Fi off or blinks red, try “Method 2”.

*1: WPS stands for “Wi-Fi Protected SetupTM”. *2: “ _ ” stands for a digit that is unique to each set.

*3: Make sure that DHCP is enabled for the network setting on the iPhone.

RQT9655

status indicator blinks blue, press

status indicator blinks purple.

status indicator turns off or blinks red if the

status indicator still turns

3 Start Safari on your iPhone and type

“http://192.168.1.12/” into the URL address field and display the page.

{. This unit’s setup window is displayed.
