PM8T-EX
• Noise Filtration/Surge Protection For All Home/Office Equipment
SPECIFICATIONS
AC Specifications:
Protect or Disconnect™ Circuitry__________________Yes
Thermal Fusing_______________________________Yes
Line Voltage_______________________120VAC, 50/60Hz
Initial Clamping Level____________200V Peak, 141V RMS
UL 1449 Suppression Rating____________________330V
Protection Modes______________________L-N, L-G, N-G
Maximum Current Rating________________15A (1800W)
EMI/RFI Noise Filtration_________45dB (100kHz – 1 MHz)
Response Time______________________________< 1 ns
Single Pulse Energy Dissipation____________1125 Joules
Peak Impulse Current_______________________52,000 A
LAN Protection:
Compatibility_____________________________10/100bT
Clamping Level_________________________________7V
Suppression Modes_______Differential & Common Ground
Wires Protected______________________Pins 1, 2, 3, & 6
Connectors___________________RJ-45 Shared with Telco
Telco Protection:
Fuseless/Auto-Resettable _____________________Yes
Clamping Level____________________________260V
Capacitance ______________________30 pf (approx.)
Suppression Modes__________Metallic & Longitudinal
Wires Protected_______________2 wire, 1 pair (4 & 5)
Connectors______________RJ-11/45 Shared with LAN
General:
Lightning Protection___________________________Yes
Product Warranty_________________________Lifetime*
Connected Equipment Protection Policy__Up to $100,000*
Specifications subject to change without notice due to continuing product
*See enclosed documentation for terms and conditions.
updates and improvements.

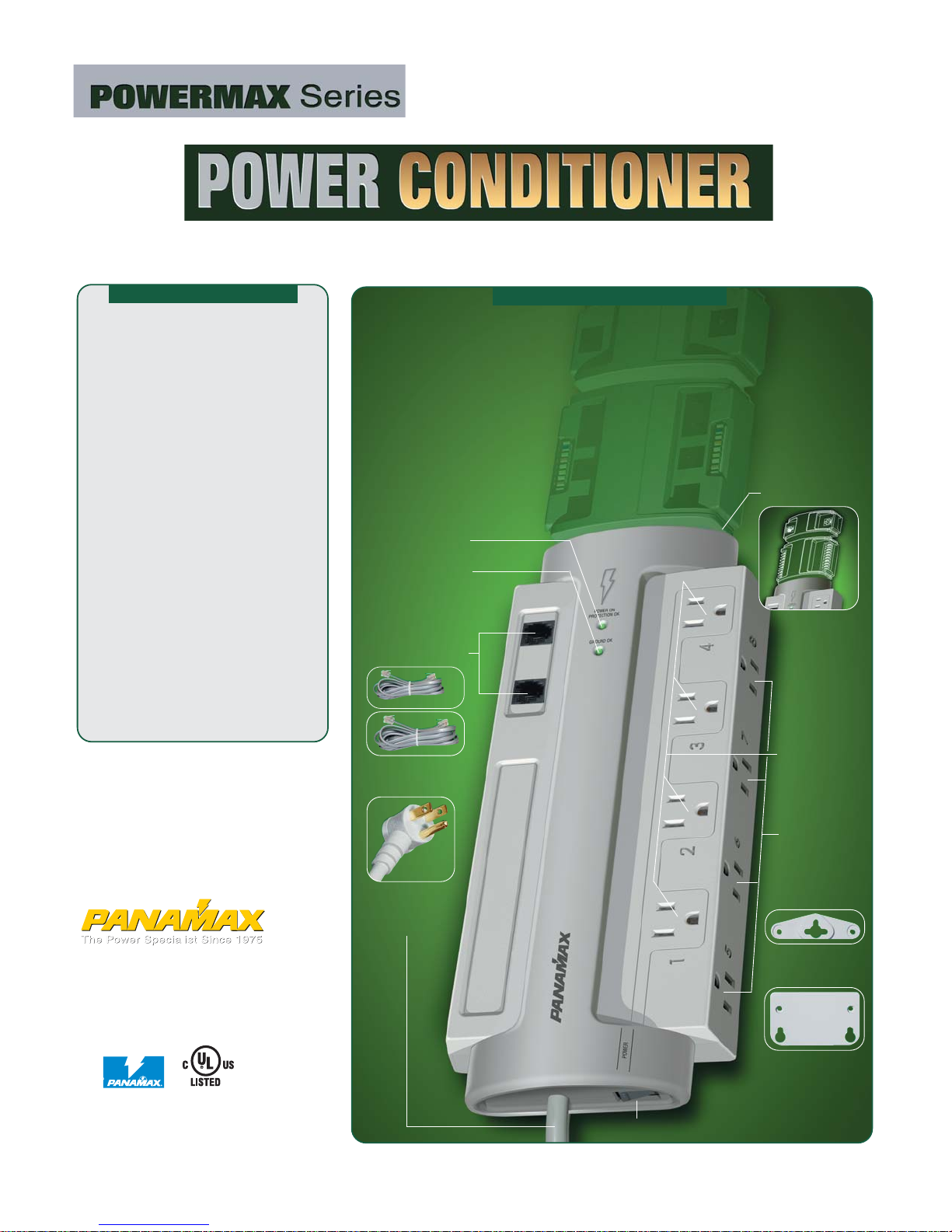

FEATURES & INCLUDED ACCESSORIES
•
Eight AC Outlets with Transformer Spacing
•
Eight AC Outlets with Transformer Spacing
Accepts Add-on Signal Line Modules to Accommodate
Accepts Add-on Signal Line Modules to Accommodate
•
•
System Expansion
System Expansion
Power ON/
Protection OK LED
Ground OK LED
In/Out Telco and
LAN Connectors
Includes: 4 ft. Phone Cable
and 4 ft. Cat 5 Cable
Accepts Add-on Signal
Line Modules
Modules sold
separately
8 AC Outlets
with transformer
spacing between
outlets
Outlets #’s 1-4
(top)
1690 Corporate Circle, Petaluma, CA 94954
800-472-5555 • 707-283-5900
www.panamax.com
Designed in U.S.A. Made in China
Model: PM8T-EX
Outlet #’s 5-8
(side)
6’ Power Cord
with Right Angle
45° Offset Plug
Top Wall Mounting
Bracket
Bottom Wall
Mounting Bracket
ON/OFF Power Switch & Circuit Breaker Combo
© 2004 Panamax. The Panamax logo is a registered US trademark of Panamax. Protect or Disconnect is a trademark of Panamax.
