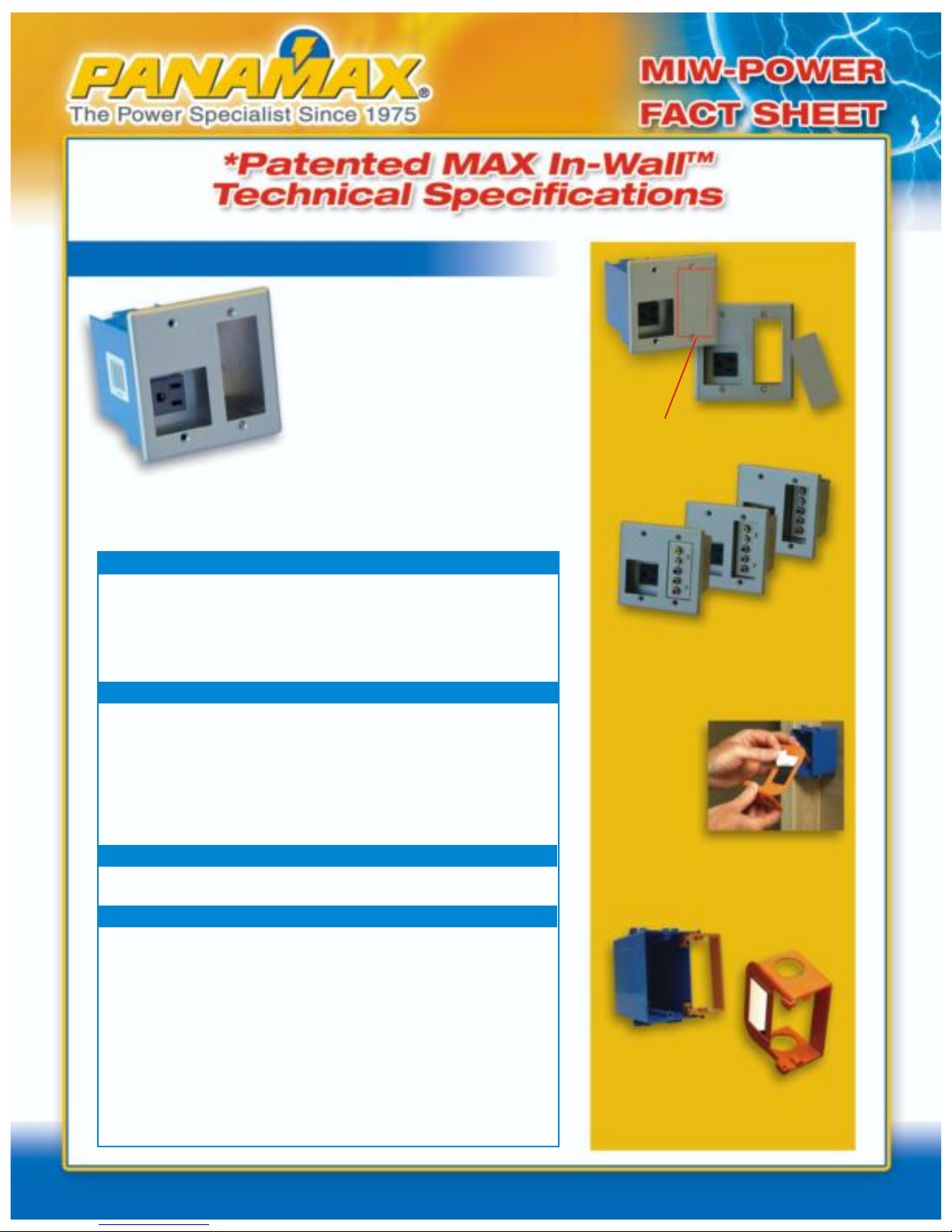

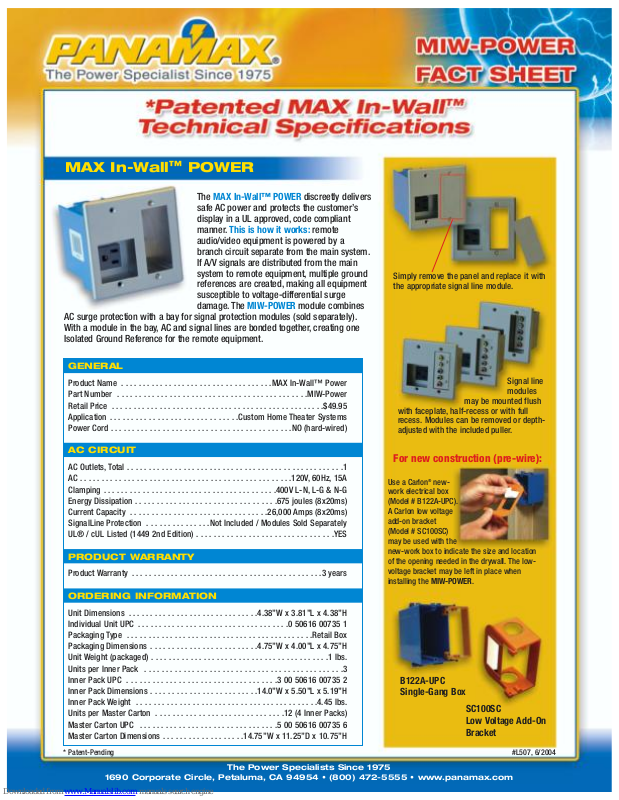

Panamax MIW-POWER Datasheet

MAX In-Wall™POWER

The Power Specialists Since 1975

1690 Corporate Circle, Petaluma, CA 94954 • [phone] • www.panamax.com

The MAX In-Wall™ POWER discreetly delivers
safe AC power and protects the customer’s
display in a UL approved, code compliant
manner. This is how it works: remote
audio/video equipment is powered by a
branch circuit separate from the main system.
If A/V signals are distributed from the main
system to remote equipment, multiple ground
references are created, making all equipment
susceptible to voltage-differential surge

damage. The MIW-POWER module combines
AC surge protection with a bay for signal protection modules (sold separately).
With a module in the bay, AC and signal lines are bonded together, creating one
Isolated Ground Reference for the remote equipment.

GENERAL

Product Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .MAX In-Wall™ Power

Part Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .MIW-Power

Retail Price . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .$49.95

Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Custom Home Theater Systems

Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .NO (hard-wired)

AC CIRCUIT

AC Outlets, Total . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

AC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120V, 60Hz, 15A

Clamping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .400V L-N, L-G & N-G

Energy Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .675 joules (8x20ms)

Current Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26,000 Amps (8x20ms)

SignalLine Protection . . . . . . . . . . . . . . .Not Included / Modules Sold Separately

UL® / cUL Listed (1449 2nd Edition) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .YES

PRODUCT WARRANTY

Product Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 years

ORDERING INFORMATION

Unit Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.38”W x 3.81”L x 4.38”H

Individual Unit UPC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0 50616 00735 1

Packaging Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Retail Box

Packaging Dimensions . . . . . . . . . . . . . . . . . . . . . . . . .4.75”W x 4.00”L x 4.75”H

Unit Weight (packaged) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 lbs.

Units per Inner Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Inner Pack UPC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 00 50616 00735 2

Inner Pack Dimensions . . . . . . . . . . . . . . . . . . . . . . . . .14.0”W x 5.50”L x 5.19”H

Inner Pack Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.45 lbs.

Units per Master Carton . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 (4 Inner Packs)

Master Carton UPC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 00 50616 00735 6

Master Carton Dimensions . . . . . . . . . . . . . . . . . . .14.75”W x 11.25”D x 10.75”H

Simply remove the panel and replace it with
the appropriate signal line module.

For new construction (pre-wire):

Use a Carlon®new­work electrical box
(Model # B122A-UPC).
A Carlon low voltage
add-on bracket
(Model # SC100SC)
may be used with the
new-work box to indicate the size and location
of the opening needed in the drywall. The low­voltage bracket may be left in place when
installing the MIW-POWER.

Signal line
modules

may be mounted flush
with faceplate, half-recess or with full
recess. Modules can be removed or depth­adjusted with the included puller.

SC100SC
Low Voltage Add-On
Bracket

B122A-UPC
Single-Gang Box

* Patent-Pending

#L507, 6/2004
