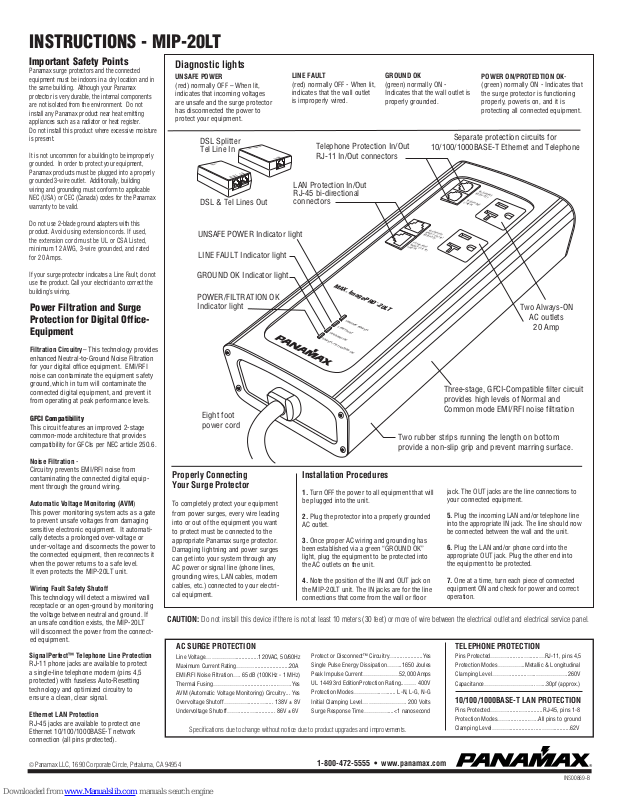

INSTRUCTIONS - MIP-20LT
Important Safety Points
Panamax surge protectors and the connected equipment must be indoors in a dry location and in the same building. Although your Panamax protector is very durable, the internal components are not isolated from the environment. Do not install any Panamax product near heat emitting appliances such as a radiator or heat register. Do not install this product where excessive moisture is present.
It is not uncommon for a building to be improperly grounded. In order to protect your equipment, Panamax products must be plugged into a properly grounded 3-wire outlet. Additionally, building wiring and grounding must conform to applicable NEC (USA) or CEC (Canada) codes for the Panamax warranty to be valid.
Do not use 2-blade ground adapters with this product. Avoid using extension cords. If used, the extension cord must be UL or CSA Listed, minimum 12 AWG, 3-wire grounded, and rated for 20 Amps.
If your surge protector indicates a Line Fault, do not use the product. Call your electrician to correct the building’s wiring.
Power Filtration and Surge Protection for Digital Office­Equipment
Filtration Circuitry– This technology provides enhanced Neutral-to-Ground Noise Filtration for your digital office equipment. EMI/RFI noise can contaminate the equipment safety ground,which in turn will contaminate the connected digital equipment, and prevent it from operating at peak performance levels.
GFCI Compatibility
This circuit features an improved 2-stage common-mode architecture that provides compatibility for GFCIs per NEC article 250.6.
Noise Filtration ­Cir
cuitry prevents EMI/RFI noise from contaminating the connected digital equip­ment through the ground wiring.
Automatic Voltage Monitoring (AVM) This power monitoring system acts as a gate to prevent unsafe voltages from damaging sensitive electronic equipment. It automati­cally detects a prolonged over-voltage or under-voltage and disconnects the power to the connected equipment, then reconnects it when the power returns to a safe level. It even protects the MIP-20LT unit.
Wiring Fault Safety Shutoff
This technology will detect a miswired wall receptacle or an open-ground by monitoring the voltage between neutral and ground. If an unsafe condition exists, the MIP-20LT will disconnect the power from the connect­ed equipment.
SignalPerfect™ Telephone Line Protection RJ-11 phone jacks are available to protect a single-line telephone modem (pins 4,5 protected) with fuseless Auto-Resetting technology and optimized circuitry to ensure a clean, clear signal.
Ethernet LAN Protection RJ-45 jacks are available to protect one Ethernet 10/100/1000BASE-T network connection (all pins protected).

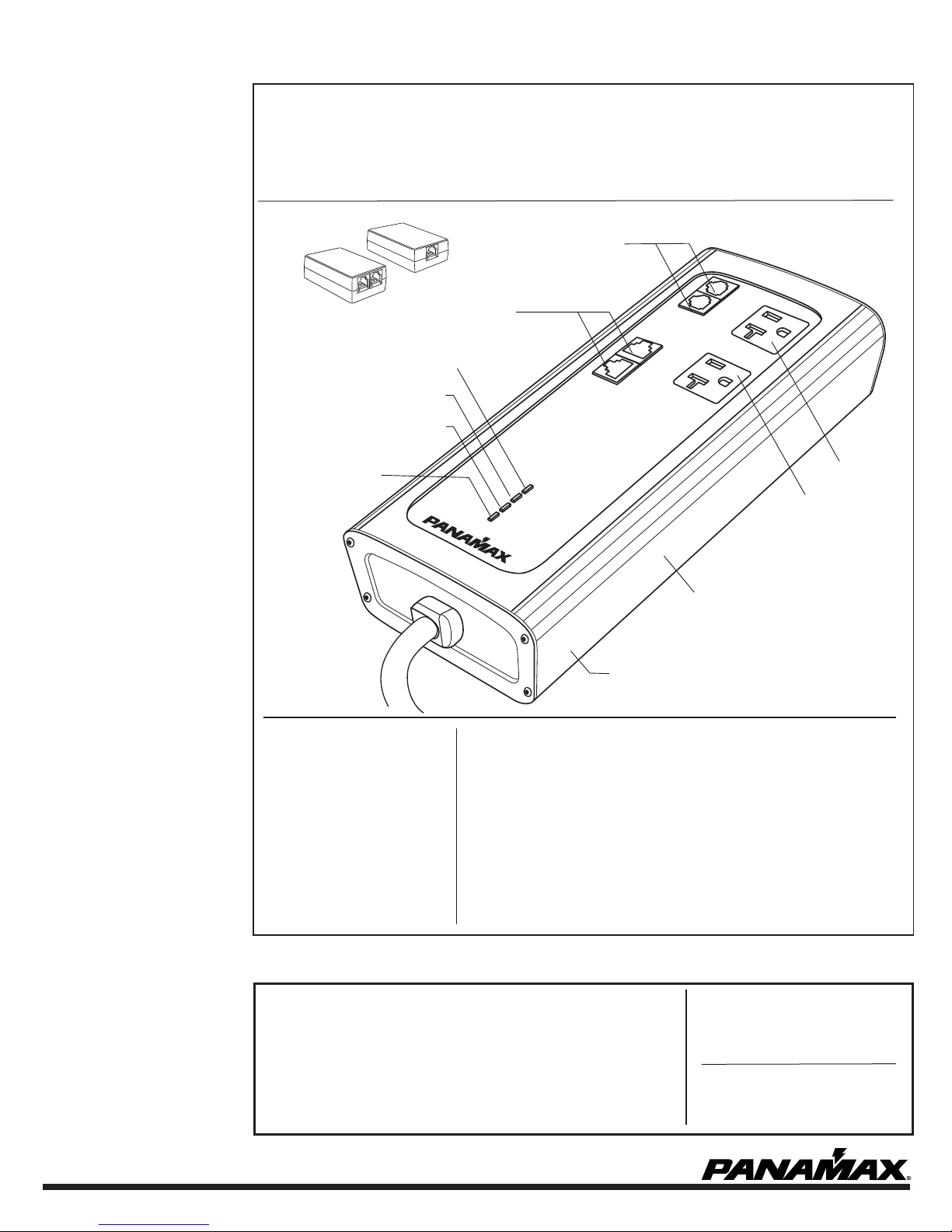

Diagnostic lights
UNSAFE POWER
(red) normally OFF – When lit, indicates that incoming voltages are unsafe and the surge protector has disconnected the power to protect your equipment.
DSL Splitter Tel Line In
DSL & Tel Lines Out
UNSAFE POWER Indicator light
LINE FAULT Indicator light
GROUND OK Indicator light
POWER/FILTRATION OK Indicator light
Eight foot power cord
Properly Connecting Your Surge Protector
To completely protect your equipment from power surges, every wire leading into or out of the equipment you want to protect must be connected to the appropriate Panamax surge protector. Damaging lightning and power surges can get into your system through any AC power or signal line (phone lines, grounding wires, LAN cables, modem cables, etc.) connected to your electri­cal equipment.
CAUTION: Do not install this device if there is not at least 10 meters (30 feet) or more of wire between the electrical outlet and electrical service panel.
AC SURGE PROTECTION
Line Voltage……………...............120VAC, 50/60Hz
Maximum Current Rating……….......................20A
EMI/RFI Noise Filtration…. 65 dB (100KHz - 1 MHz)
Thermal Fusing…………….......................…….Yes
AVM (Automatic Voltage Monitoring) Circuitry... Yes
Overvoltage Shutoff…………........…..... 138V ± 8V
Undervoltage Shutoff…….......…............. 86V ± 6V
Specifications due to change without notice due to product upgrades and improvements.
LINE FAULT
(red) normally OFF - When lit, indicates that the wall outlet is improperly wired.
GROUND OK (green) normally ON ­Indicates that the wall outlet is properly grounded.
POWER ON/PROTEDTION OK­(green) normally ON - Indicates that the surge protector is functioning properly, poweris on,
and it is
protecting all connected equipment.
PHONE DSL
LINE
PHONE DSL
LINE
Telephone Protection In/Out RJ-11 In/Out connectors
LAN Protection In/Out RJ-45 bi-directional connectors
EQUIP OUT
10/100/1000
BASE-T (Cat 5e)
LINE IN
MAX
®
ImagePRO
™
-20LT
UNSAFE POWER
LINE FAULT
GROUND OK
Separate protection circuits for
10/100/1000BASE-T Ethernet and Telephone
TELEPHONE
EQUIP OUT
TELEPHONE
LINE IN
10/100/1000
BASE-T (Cat 5e)
Two Always-ON
AC outlets
20 Amp
Three-stage, GFCI-Compatible filter circuit provides high levels of Normal and Common mode EMI/RFI noise filtration
Two rubber strips running the length on bottom provide a non-slip grip and prevent marring surface.
Installation Procedures
1. Turn OFF the power to all equipment that will
be plugged into the unit.
2. Plug the protector into a properly grounded AC outlet.
3. Once proper AC wiring and grounding has been established via a green “GROUND OK” light, plug the equipment to be protected into the AC outlets on the unit.
4. Note the position of the IN and OUT jack on the MIP-20LT unit. The IN jacks are for the line connections that come from the wall or floor
Protect or Disconnect™ Circuitry…..................Yes
Single Pulse Energy Dissipation……..1650 Joules Peak Impulse Current………………52,000 Amps UL 1449 3rd EditionProtection Rating..…… 400V
Protection Modes…………..…...... L-N, L-G, N-G
Initial Clamping Level…………………. 200 Volts
Surge Response Time…………....<1 nanosecond
jack. The OUT jacks are the line connections to your connected equipment.
5. Plug the incoming LAN and/or telephone line into the appropriate IN jack. The line should now be connected between the wall and the unit.
6. Plug the LAN and/or phone cord into the appropriate OUT jack. Plug the other end into the equipment to be protected.
7. One at a time, turn each piece of connected equipment ON and check for power and correct operation.
TELEPHONE PROTECTION
Pins Protected………..........…......…RJ-11, pins 4,5
Protection Modes…………..Metallic & Longitudinal
Clamping Level………...........…..…………….260V
Capacitance……………………..…...30pf (approx.)
10/100/1000BASE-T LAN PROTECTION
Pins Protected………........…...........RJ-45, pins 1-8
Protection Modes…….............…..All pins to ground
Clamping Level……….....................……...........62V
© Panamax LLC, 1690 Corporate Circle, Petaluma, CA 94954
1-800-472-5555 • www.panamax.com
INS00869-B
