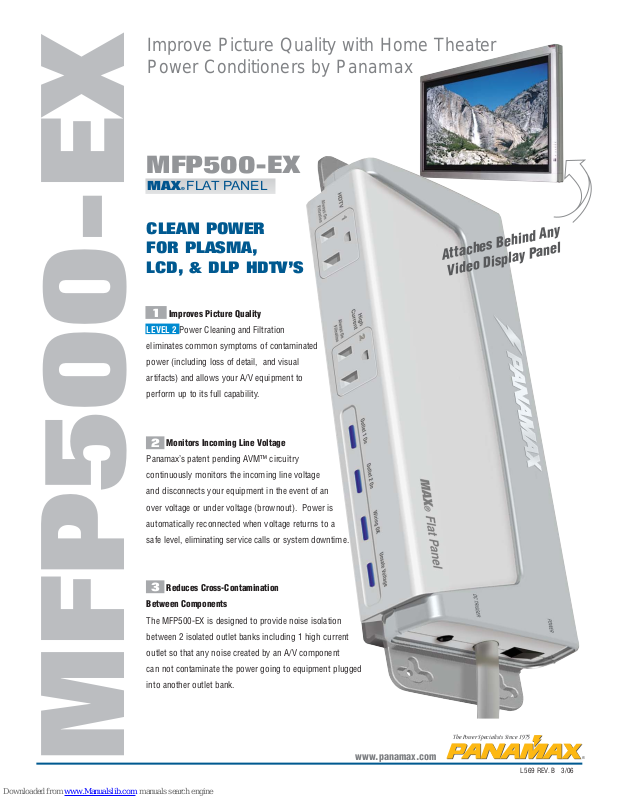

Improve Picture Quality with Home Theater
The Power Specialists Since 1975
®
MAX® FLAT PANEL
Power Conditioners by Panamax
MFP500-EX
CLEAN POWER
FOR PLASMA,
LCD, & DLP HDTV’S
Improves Picture Quality
1
LEVEL 2 Power Cleaning and Filtration
eliminates common symptoms of contaminated
power (including loss of detail, and visual
artifacts) and allows your A/V equipment to
perform up to its full capability.
2 Monitors Incoming Line Voltage
2
Panamax’s patent pending AVM™ circuitry
continuously monitors the incoming line voltage
and disconnects your equipment in the event of an
over voltage or under voltage (brownout). Power is
automatically reconnected when voltage returns to a
safe level, eliminating service calls or system downtime.

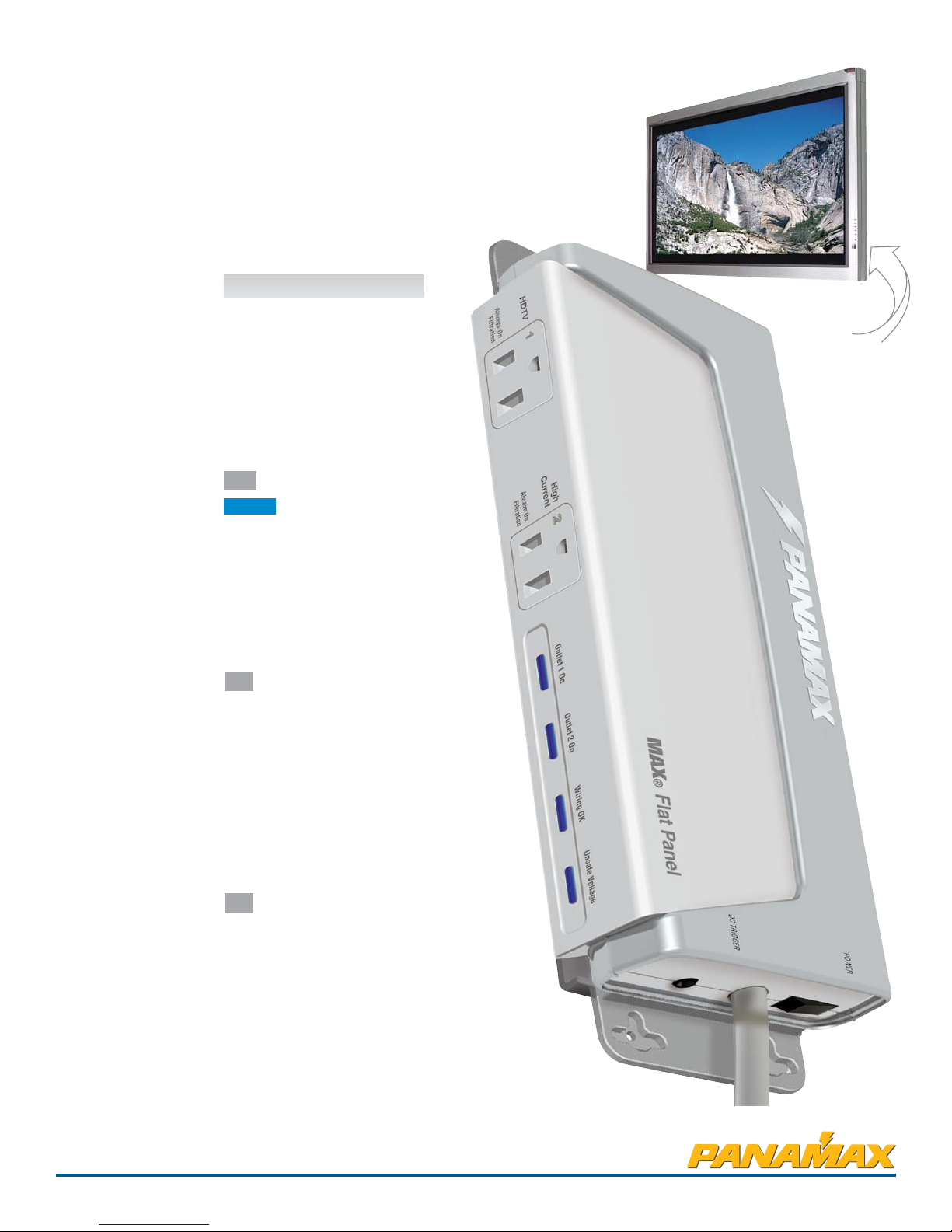

Attaches Behind Any
Video Display Panel
3
Reduces Cross-Contamination
Between Components
The MFP500-EX is designed to provide noise isolation
between 2 isolated outlet banks including 1 high current
outlet so that any noise created by an A/V component
can not contaminate the power going to equipment plugged
into another outlet bank.
MFP500-EX
www.panamax.com
L569 REV. B 3/06
Page 2

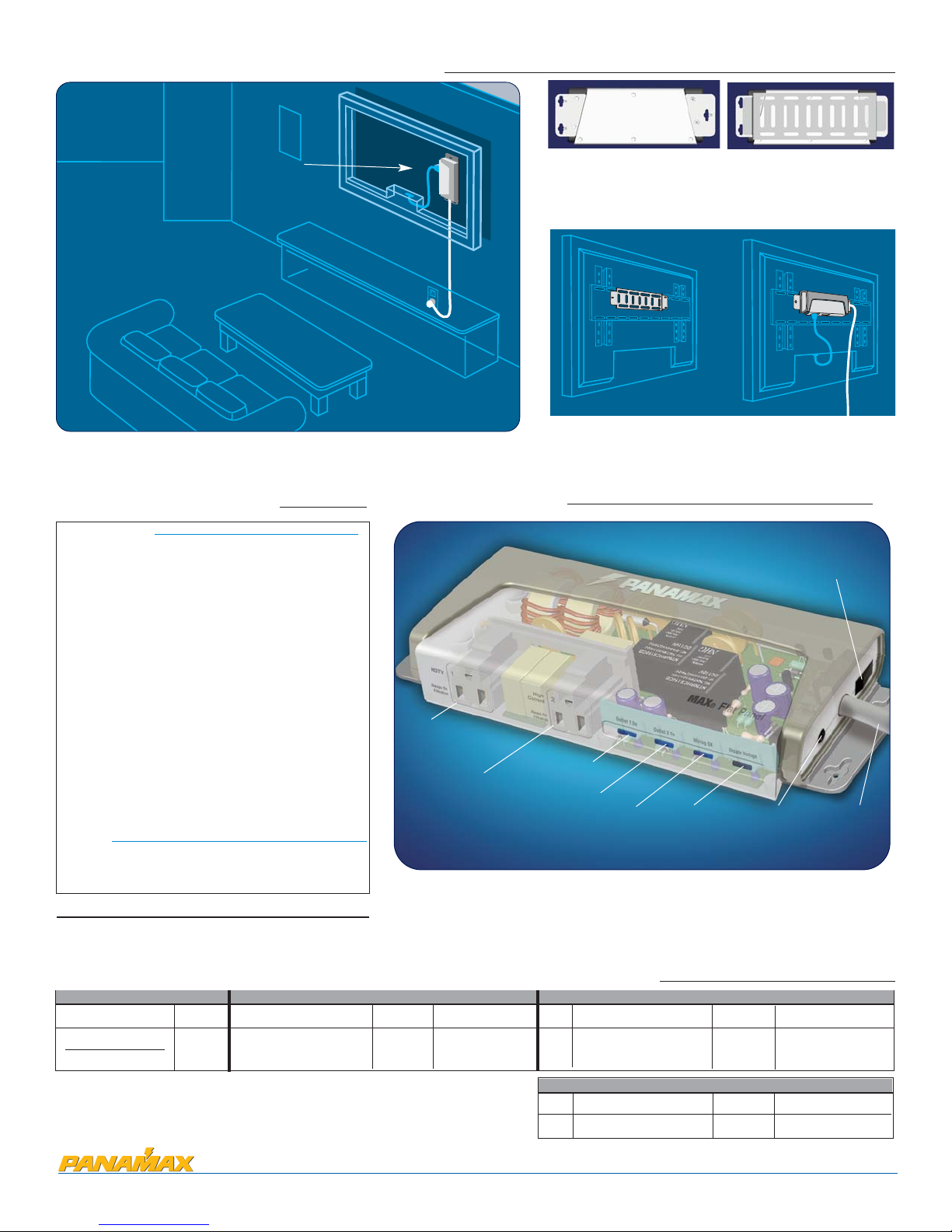

MFP500-EX UNIVERSAL MOUNTING APPLICATIONS
The Power Specialists Since 1975
®
MFP500-EX can easily be mounted
onto the wall or the rear of the flat
panel display either horizontally or
vertically to be discreetly hidden
from view.
MFP500-EX SPECIFICATIONS
AC Specifications:
Protect or Disconnect™ Circuitry_____________________Yes
AV (Automatic Voltage Monitoring) Circuitry*_____________Yes
Auto-resetting Overvoltage Shutoff________________144V ±8V
Auto-resetting Undervoltage Shutoff________________90V ±6V
Thermal Fusing____________________________________Yes
Line Voltage___________________________120VAC, 50/60Hz
Initial Clamping Level________________200V Peak, 141V RMS
UL 1449 Suppression Rating________________________400V
UL 991 Electronic Safety Circuit_______________________Yes
Protection Modes__________________________L-N, L-G, N-G
Maximum Current Rating_____________________15A (1800W)
Single Pulse Energy Dissipation_________________1875 Joules
Peak Impulse Current___________________________65,000 A
EMI/RFI Noise Filtration_____________53dB (100kHz – 1 MHz)
Number of AC Outlets_________________________________2
Signal Line Module Interface__________________________Yes
AC Cord Length__________________________________8 Feet
Plug Type________________________Straight Plug 5-15 NEMA
DC Trigger Input____________________3-18VDC non-polarized
Response Time__________________________________< 1ns
General:
Lightning Protection________________________________Yes
Product Warranty_______________________________Lifetime
Connected Equipment Protection Policy______Up to $5,000,000
Specifications subject to change due to product upgrades and improvements.
1
MFP500-EX comes with wall mounting attached (1 & 2). Unit can be mounted
onto the wall or onto the back of the display by using the included universal
display mounting bracket and hardware as shown below (3). Screws and eyelets are included. Unit can be installed vertically or horizontally.
2
3
3
Unit shown mounted directly onto back of flat panel display.
MFP500-EX FEATURES
ON/OFF Power Switch &
Circuit Breaker Combo
HDTV
AC Outlet
HIGH CURRENT
AC Outlet
The MFP500-EX is designed and engineered specifically for optimum power conditioning for plasma, LCD, and
DLP HDTV’s. Panamax uses only the highest quality materials, parts and workmanship to manufacture its products.
Outlet 1 On
Outlet 2 On
Wiring
OK
Unsafe
Voltage
LED
DC Trigger
Input for High
Current
Outlets
8’ Power Cord
with Straight
Plug NEMA 5-15
Designed in U.S.A.
Made in China
UPC’s, QUANTITIES, WEIGHTS & MEASUREMENTS FOR ORDERING & SHIPPING
MODEL MFP500-EX UNIT CARTON (POS BOX) INNER CARTON
Dimensions Weight Dimensions Weight UPC Qty. Dimensions Weight UPC
8.5" x 3.75" x 1.6" 1.8 lbs 12.5" x 8.5" x 2.125" 2 Lbs 0 50616 00801 3 2 12.5 h" x 8.5 w" x 2.125 d" 4.1 Lbs. 3 00 50616 00801 4
w/brackets
10” x 3.75” x 1.75”
Model: MFP500-EX • SELL PRICE
1690 Corporate Circle, Petaluma, CA 94954 • 800-472-5555 or 707-283-5900 • Fax - 707-283-5901 • www.panamax.com
© 2005 Panamax. Panamax, MAX and the Panamax logo are registered US trademarks of Panamax. Protect or Disconnect and AVM are trademarks of Panamax. SIDACtor is a registered US trademark of Teccor Electronics, Inc.
US
$
299
.95
MASTER CARTON
Qty. Dimensions Weight UPC
6 13" x 10" x 14" 12.5 Lbs. 5 00 50616 00801 8
