M8HC-PRO
• EchoStar®Approved, DishPro™Compliant Satellite TV Protection
SPECIFICATIONS
AC Specifications:
Protect or Disconnect™ Circuitry__________________________Yes
Patented Power Management Circuit*______________________Yes
Auto-resetting Overvoltage Shutoff____________________144V ±8V
Auto-resetting Undervoltage Shutoff____________________90V ±6V
Thermal Fusing________________________________________Yes
Line Voltage_______________________________120VAC, 50/60Hz
Initial Clamping Level____________________200V Peak, 141V RMS
UL 1449 Suppression Rating____________________________330V
UL 991______________________________________________Yes
Protection Modes______________________________L-N, L-G, N-G
Maximum Current Rating________________________15A (1800W)
Single Pulse Energy Dissipation____________________1875 Joules
Peak Impulse Current_______________________________65,000 A
EMI/RFI Noise Filtration_________________53dB (100kHz – 1 MHz)
Number of Isolated Banks of Outlets_________________________2
Filter Circuits____________________1 Common Mode
Filtered Outlet Banks__________________53 dB (100 KHz - 1 MHz)
High-Current Outlets___________________50 dB (100 KHz - 1 MHz)
Response Time_______________________________________< 1 n
LAN Protection:
Compatibility____________________________________10/100bT
Clamping Level________________________________________7V
Suppression Modes_______________Differential & Common Ground
Wires Protected_____________________________Pins 1, 2, 3, & 6
Connectors__________________________RJ-45 Shared with Telco
Telco Protection:
Fuseless/Auto-Resetting________________________________Yes
Clamping Level______________________________________260V
Capacitance_________________________________30 pf (approx.)
Suppression Modes_____________________Metallic & Longitudinal
Wires Protected____________________________2 wire, 1 pair (4,5)
Connectors___________________________RJ-45 Shared with LAN
Satellite Protection:
Shielded_____________________________________________Yes
Clamping Level_______________________________________27V
Frequency Range___________________________950MHz - 2.2GHz
Insertion Loss_______________________________________<1 dB
Connections___________________________Female "F", Gold Plated
CATV Protection:
Bi-Directional_________________________________________Yes
Shielded_____________________________________________Yes
Clamping Level_______________________________________1.5V
Frequency Range________________________________5-950 MHz
Insertion Loss_______________________________________<1 dB
Connections___________________________Female "F", Gold Plated
General:
Lightning Protection____________________________________Yes
Product Warranty__________________________________Lifetime
Connected Equipment Protection Policy__________Up to $5,000,000
Specifications subject to change without notice due to continuing product updates and improvements
*Patent Pending
1 Normal Mode,
1 High-Current Inductorless
.

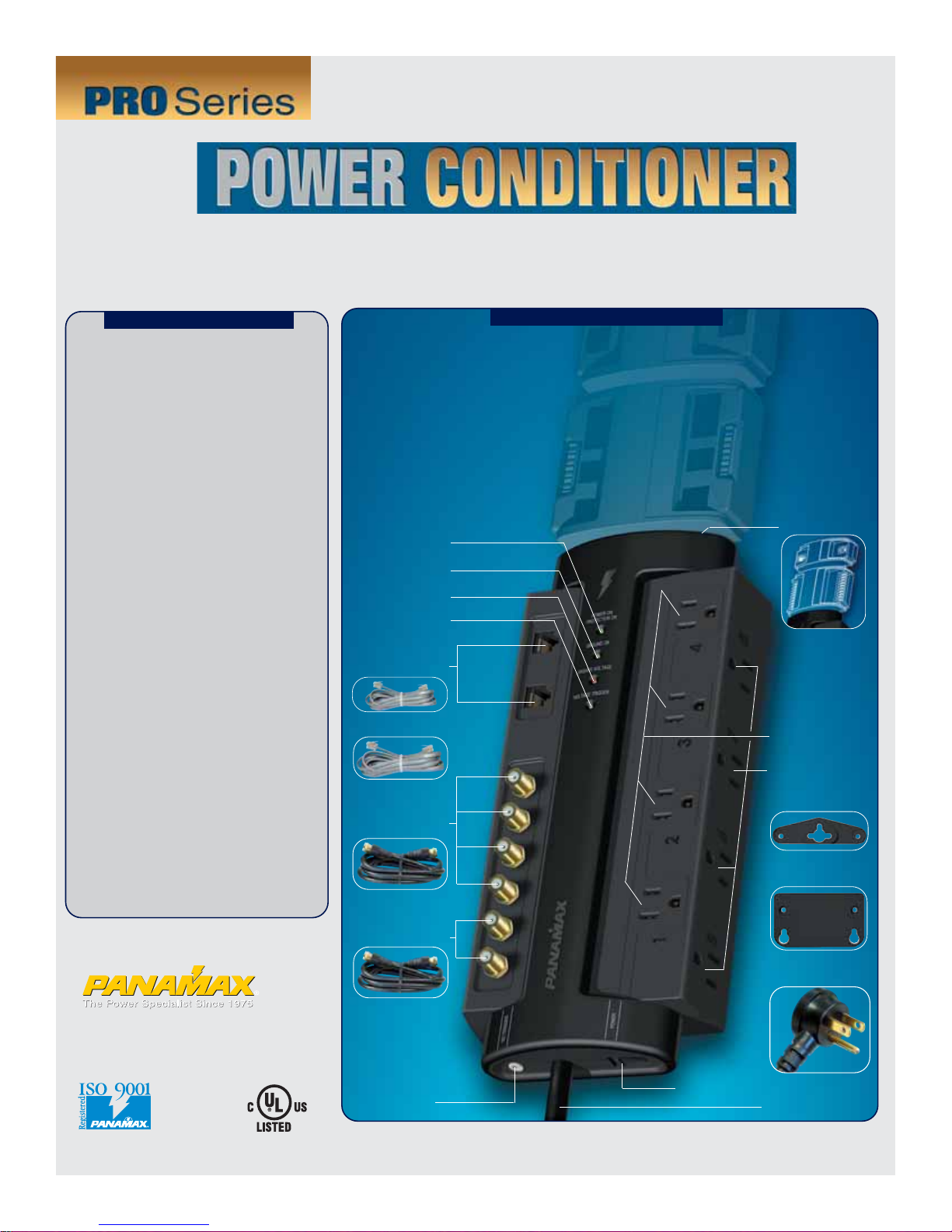

FEATURES & INCLUDED ACCESSORIES
Noise Filtration/Surge Protection For Home Theater Systems -
Including PLASMA TV, VCR, DVD, SATELLITE RECEIVER
• DC Trigger Input with Status LED
• DC Trigger Input with Status LED
• Solid-State Ethernet and Telephone Line Protection
• Solid-State Ethernet and Telephone Line Protection
• Eight AC Outlets (Two Isolated Banks of 4 Outlets Each)
• Eight AC Outlets (Two Isolated Banks of 4 Outlets Each)
• Accepts Add-on Signal Line Modules to Accommodate System Expansion
• Accepts Add-on Signal Line Modules to Accommodate System Expansion
Accepts Add-on Signal
Power ON/
Protection OK LED
Ground OK LED
Unsafe Voltage LED
DC Trigger LED
In/Out Telco and
LAN Connectors
Includes: 4 ft. Phone Cable
& 4ft. Cat 5 Cable
2 Pair of
Satellite Connectors
Includes RJ-6 Coax Cable
CATV Connectors
Line Modules
Modules sold separately
8 AC Outlets
with transformer
spacing between
outlets
Isolated outlet bank #1
Outlets 1-4 (top)
Isolated outlet bank #2
Outlets 5-8 (side)
Top Wall Mounting
Bracket
Bottom Wall Mounting
Bracket
1690 Corporate Circle,Petaluma, CA 94954
800-472-5555 • 707-283-5900
www.panamax.com
Designed in U.S.A.
Made in China
Model: M8HC-PRO
Includes RJ-6 Coax Cable
12 V Trigger Input
For Outlets
(5-8, side)
© 2004 Panamax. The Panamax logo is a registered US trademark of Panamax. Protect or Disconnect is a trademark of Panamax.
EchoStar and DishPro are registered trademarks of EchoStar, Inc.
ON/OFF Power
Switch & Circuit
Breaker Combo
8’ Power Cord
with Right Angle
45˚ Offset Plug
L542 REV. B
