LP-8804 - USER MANUAL

ENGLISH

Thanks for purchasing Panacom Suitcase Turntable .Please read
this manual carefully before using this Turntable.

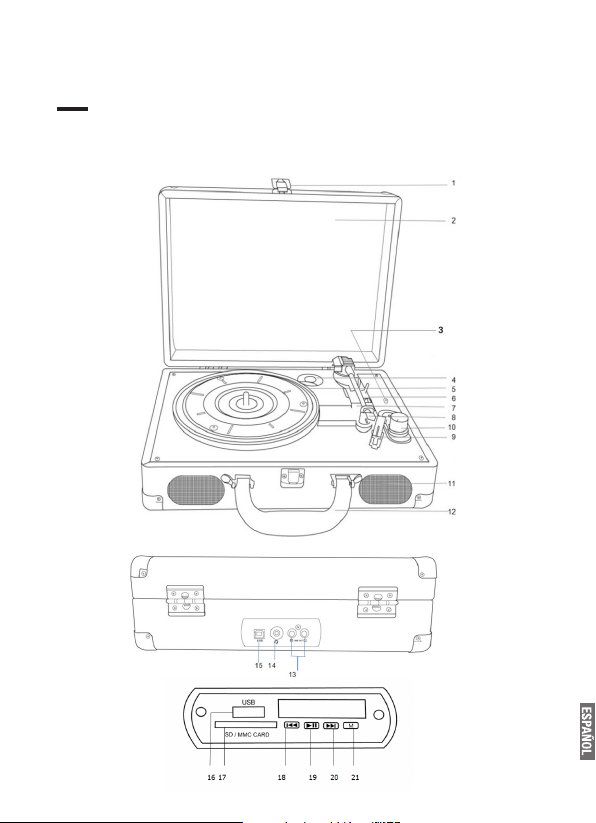

Description:

Pg. 3

1. Lock catch.

2. Plastic dust cover.

3. Adapter - Use this when playing 45rpm records with cut out centres.

4. Tonearm lift lever.

5. Turntable.

6. Auto stop control.

7. Speed selection - Three speed for choice: 33.3, 45, 78 rpm.

8. Lock ON and OFF/BT.

9. Needle.

10. Power switch.

11. Built-in stereo speaker.

12. Handle.

13. RCA output.

14. Socket for headphone to play iphone/ipod.

15. USB 5V DC power in socket.

16. USB slot.

17. SD slot.

Pg. 4

18. Skip Up button.

19. Play or pause button.

20. Skip down button.

21. Mode: to select FM radio/USB/SD or LP songs.

Initial Set-Up
Mains Connection

Ensure that the mains voltage of your home corresponds to the
operating voltage of the unit. Your unit is ready to be connected to a
mains voltage of 100-240V/50-60Hz.

Amplifier Connection (If Required)

Whilst you can listen to your new turntable using the built in
speakers you may also wish to connect it to your existing Hi Fi
system. To do that, connect the audio plugs to the AUX input on
your mixer or amplier using an RCA cable (not supplied)

• Red plug into R/H channel input.

• White plug into L/H channel input.

Playing a record

- Place the record of your choice on the turntable. If required, do not
forget to place the adaptor on the record spindle.

- Choose the desired playing speed using the speed selection
switch between 33.3, 45 and 78rpm.

- Turn on the Rotary Power Switch. Note: it also controls the volume.

- Release the tone arm lock.

- Raise the arm with your hand lightly.

- Place the stylus vertically over the rst track of the record, the
turntable will start turning automatically.

- Slowly put down the stylus on to the record to star playing.

- When a record comes to an end, the turntable will stop
automatically as long as the auto-stop switch is in the ON position.

Pg. 5

If the switch is in the off position then it will keep revolving until the
tone arm is returned to the tone arm rest.

- Lift up the tone arm and put it on the rest position when you have
nishes playing.

- Replace the protective cap on the stylus and close the tone arm lock.

- Turn off power at mains.

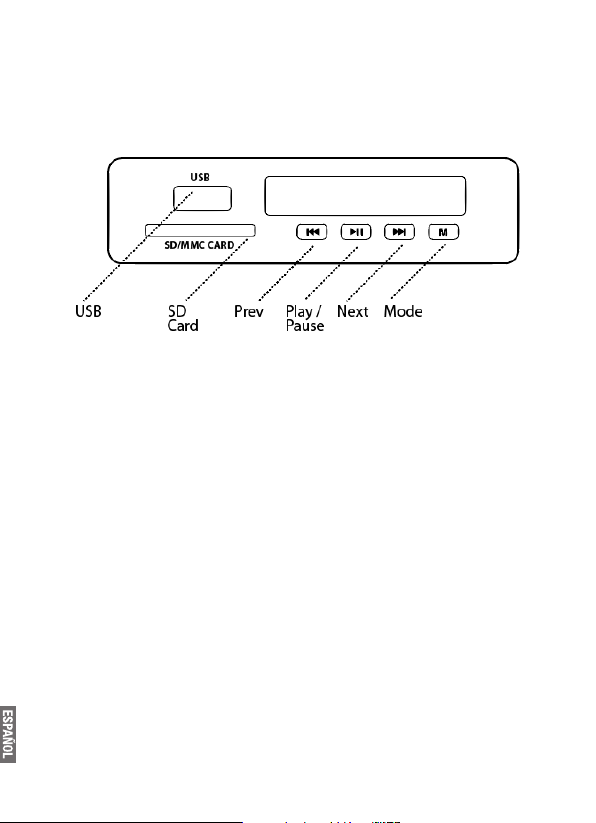

Listen to USB SD tracks

- Turn the volume knob in a clockwise direction to turn the
equipment on.

- Use the function selector to select USB mode.

- Insert the USB/SD card to correct slot.

- Wait for 6-10s, once the machine read the Total tracks ,will auto­play the tracks.

- Press M button to convert USB/SD Tracks.(default for U-disc play)

- Press Play. re-pressed, pause.

- Press Next, play nexttrack.

- Press Play previous track.

- Keep Pressing Next for 3s, can enlarge the volume of source-disc.

- Keep pressing Prev for 3s, can reduce the volume.
