PAMAPIC DSER1046 56236-2741991-PH-TXY-W

OUTDOOR PA ATER
WARNlNG SAFETY RULES
PLEASE READ THE FOLLOWING SAFETY RULES PRlOR TO OPERATION OF THE HEATER
FOR YOUR SAFETY
If you smell gas: 1
Shut off gas to the appliance. Extinguish any open flame.
2
If odor continues, immediately call your gas supplier or your fire
3 Department.
FOR YOUR SAFETY
1. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance
2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance
WARNlNG
1) For use outdoors or in amply ventilated areas.
2) An amply ventilated area must have a minimum of 25 % of the surface area open.
3) The surface area is the sum of the walls surface.
WARNING: Improper installation, adjustment, alteration, service or maintenance Can cause injury or property damage. Read the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment.
warning
Read the instructions before installation and use.
-This appliance must be installed and the gas cylinder stored in accordance with the regulations in force;
-Do not obstruct the ventilation holes of the cylinder housing;
-Do not move the appliance when in operation;
-Shut off the valve at the gas cylinder or the regulator before moving the appliance;
-The tubing or the flexible hose must be changed within the prescribed intervals;
-Use only the type of gas and the type of cylinder specified by the manufacturer; The LP tank used with your patio heater must meet the following requirements: Purchase LP tanks only with these required measurements: (31.8cm) (diameter) x 58cm) (tall) with 15kg capacity maximum.
-In case of violent wind particular attention must be taken against tilting of the appliance;
TABLE OF CONTENTS
Caution ……………………………………………………….
Heater Stand and Location …………………………………
Gas Requirements …………………………………………..
Leakage Test …………………………………………………
Operation and Storage ……………………………………...
Cleaning and Care …………………………………………..
Parts and Specifications ..…………………………………..
Assembly Parts and Procedures …………………………..
Problems Check List ………………………………………...
1
2
2
2
3
4
4
6
14
i
CAUTION
regulater
PLEASE READ CAREFULLY THE FOLLOWING SAFETY GUIDELINES BEFORE OPERATION.
Do not use the patio heater for indoors, as it may cause personal injury or property damage.
This outdoor heater is not intended to be installed on recreational vehicles and/or boats.
Installation and repair should be done by a qualified service person.
Improper installation, adjustment, alteration can cause personal injury or property damage.
Do not attempt to alter the unit in any manner.
Never replace or substitute the regulator with any regulator other than the factory-suggested replacement.
Do not store or use gasoline or other flammable vapors or liquids in the heater unit.
The whole gas system, hose, regulator, pilot or burner should be inspected for leaks or damage before
use, and at least annually by a qualified service person.
All leak tests should be done with a soap solution. Never use an open flame to check for leaks.
Do not use the heater until all connections have been leak tested.
Turn off the gas valve immediately if smell of gas is detected. Turn Cylinder Valve OFF. If leak is at Hose/
Regulator connection: tighten connection and perform another leak test. If bubbles continue appearing
should be returned to hose’s place of purchase. If leak is at Regulator/Cylinder Valve connection: disconnect,
reconnect, and perform another leak check. If you continue to see bubbles after several attempts, cylinder
valve is defective and should be returned to cylinder’s place of purchase.
Do not transport heater while it’s operating.
Do not move the heater after it has been turned off until the temperature has cooled down.
Keep the ventilation opening of the cylinder enclosure free and clear of debris.
Do not paint the radiant screen, control panel or top canopy reflector.
Control compartment, burner and circulation air passageways of the heater must be kept clean.
Frequent cleaning may be required as necessary.
The LP tank should be turned off when the heater is not in use.
Check the heater immediately if any of the following occurs:
- The heater does not reach temperature.
- The burner makes popping noise during use (a slight noise is normal when the burner is extinguished).
- Smell of gas in conjunction with extreme yellow tipping of the burner flames.
The LP regulator/hose assembly must be located out of pathways where people may trip over it or in
area where the hose will not be subject to accidental damage.
Any guard or other protective device removed for servicing the heater must be replaced before operating the heater.
Adults and children should stay away from high temperature surface to avoid burns or clothing ignition.
Children should be carefully supervised when they are in the area of the heater.
Clothing or other flammable materials should not be hung on the heater or placed on or near the heater.
To change the gas cylinder in a amply ventilated area, away from any ignition
source (candle, cigarettes, other flame producing appliances, ...);
To check that the regulator seal is correctly fitted and able to fulfill its function
showed as photo right;
To not obstruct the ventilation holes of the cylinder housing;
To close the gas supply at the valve of the gas cylinder or the regulator after use;
In the event of gas leakage, the appliance shall not be used or if alight, the gas supply
shall be shut off and the appliance shall be investigated and rectified before it is used again;
To check the hose at least once per month
If it shows signs of cracking, splitting or other deterioration it shall be exchanged for new hose of the same length and of the
equivalent quality;
The use of this appliance in enclosed areas can be dangerous and is PROHIBITED;
Read the instructions before using this appliance. The appliance must be installed in accordance with the instructions and
local regulations.
For connection of hose and regulator,and connection of regulator and hose, please refer to photo showed above.
This product contains small batteries. Swallowed small batteries can cause CHOCKING HAZARD. Seek immediate medical
attention if batteries are swallowed or inhaled. Keep children away from the small batteries.
each time the cylinder is changed or each time before long time no use.
seal
Hose/ Regulator connection and Regulator / Cylinder connection
hose
cylinder
-1-
HEATER STAND AND LOCATION
The heater is primarily for outdoor use only. Always ensure that
adequate fresh air ventilation is provided.
Always maintain proper clearance to
i.e. top 100 cm and sides 100 cm minimum.
Heater must be placed on level firm ground.
Never operate heater in an explosive atmosphere like in areas where
gasoline or other flammable liquids or vapors are stored.
To protect heater from strong wind, anchor the base securely to the
ground with screws.
non protected combustible materials
WALL
CEILING
100 cm
GAS REQUIREMENTS
Use propane, butane or their mixtures gas only.
The pressure regulator and hose assembly to be used must conform to local standard codes.
100 cm
The installation must conform to local codes, or in the absence of local codes, with the standard for the
storage and handling of liquid petroleum gases.
A dented, rusted or damaged tank may be hazardous and should be checked by your tank
supplier. Never use a tank with a damaged valve connection.
The tank must be arranged to provide for vapor withdrawal from the operating cylinder.
Never connect an unregulated tank to the heater.
LEAKAGE TEST
Gas connections on the heater are leak tested at the factory prior to shipment. A complete gas tightness
check must be performed at the installation site due to possible mishandling in shipment or excessive
pressure being applied to the heater.
Make a soap solution of one part liquid detergent and one part water. The soap solution can be applied
with a spray bottle, brush or rag. Soap bubbles will appear in case of a leak.
The heater must be checked with a full cylinder.
Make sure the safety control valve is in the OFF position.
Turn the gas supply ON.
In case of a leak, turn off the gas supply. Tighten any leaking fittings, then turn the gas supply on and re-
check.
Never leak test while smoking.
-2-
maximum
Warning
check that no broken on the glass is found before operation.
Off: the heater stop work Hi: maximum temperature position Lo: minimum temperature position
lgniter
Igniter
Variable control knob
regulator
CLEANING AND CARE
Wipe off powder coated surfaces with soft, moist rag. Do not clean heater with cleaners that
are combustible or corrosive.
Remove debris from the burner to keep it clean and safe for use.
Cover the burner unit with the optional protective cover when the heater is not in use.

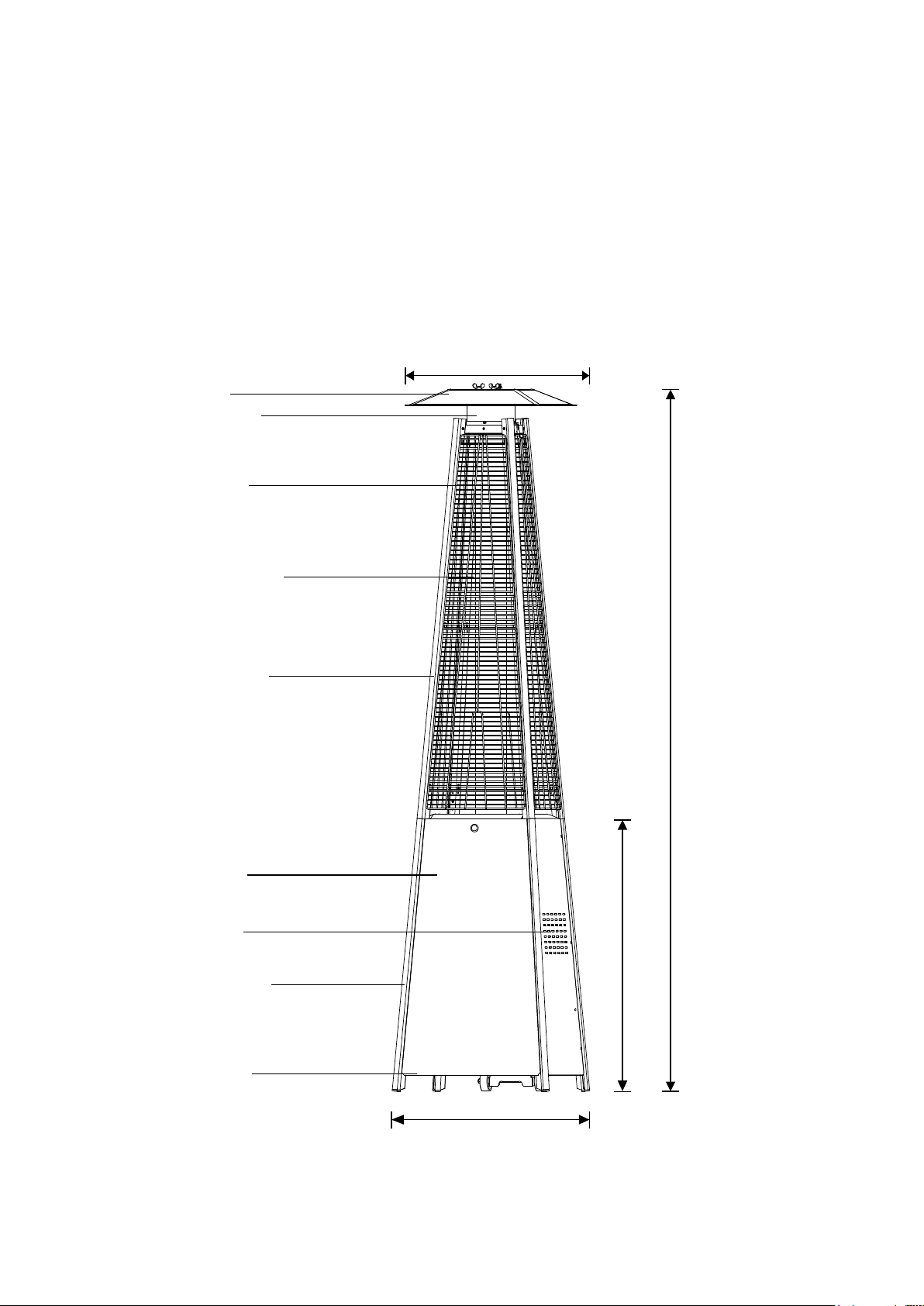

PARTS AND SPECIFICATIONS
650 mm
Reflector Flame Screen
Glass Tube
Protective Guard
Upper Support
Front Panel
Side Panel
Lower Support
2270 mm
900 mm
Bottom plate
730 mm
- 4 -
A. Construction and characteristics
Transportable terrace/garden heater with tank housing.
Casing in steel with powder-coating or in stainless steel.
Gas hose connections with metal clamp (screw caps for Germany).
Heat emission from reflector.
B. Specifications
Use propane,butane or their mixtures gas only.
Max. wattage: 13000 watts
Min. wattage: 5000 watts
Consumption:
APPLIANCE CATEGORY:
TYPES OF GAS:
GAS PRESSURE:
OUTLET PRESSURE OF REGULATOR:
Using the proper regulator according to outlet pressure of regulator as showed in the table above.
C. Table of injector
APPLIANCE CATEGORY:
TYPES OF GAS:
GAS PRESSURE:
TOTAL HEAT
INPUT (Hs): (Qn)
INJECTOR SIZE:
The marking
for example 1.88 on the injector indicates that the size of injector is 1.88mm
The hose and regulator assembly must conform to local standard codes. Regulator outlet pressure should meet the corresponding appliance category in B. Specification. The appliance requires approved hose in 0.6m length.
3+(28-30/37)
Butane Propane
28-30mbar 37 mbar 30 mbar 50mbar 37mbar
30mbar 37 mbar 30 mbar 50mbar 37mbar
3+(28-30/37)
Butane Propane
28-30mbar 37 mbar 30 mbar 50mbar 37mbar
13kW (945g/h)
1.88 mm for main burner
0.18 mm for pilot burner
3B/P(30)
Butane, propane or their mixtures
3B/P(30)
Butane, propane or their mixtures
3B/P(50)
Butane, propane or their mixtures
3B/P(50)
Butane, propane or their mixtures
1.55 mm for main burner
0.18 mm for pilot burner
3B/P(37)
Butane, propane or their mixtures
3B/P(37)
Butane, propane or their mixtures
1.65 mm for main burner
0.18 mm for pilot burner
-5-
ASSEMBLY PARTS
Tools needed:
Philips screwdriver w/ medium blade Spray bottle of soap solution for leakage test
Parts List:
Reflector
A
Flame Screen
B
Glass Tube
C
D
Upper Support
Control Box Assy
Lower Support
Block Belt
Wheel Assembly
Bottom Plate
J
K
L
M
N
NOITPIRCSED TRAP QUANTITY
A B 1
Reflector
Flame Screen
C
Glass Tube Upper Support
D E
Protective Guard
F
Black Silicone Ring Side Panel
G H
Front Panel
I
Gas Hose
Control Box Assy
J
Lower Support
K
Protective Guard
E
Black Silicone Ring
F
Side Panel
G
H
Front Panel
Gas Hose
I
NOITPIRCSED TRAP QUANTITY
1
1
L
Block Belt
M
Wheel Assembly
N
Bottom Plate
1 1
1 4 4
1 3 1
1 1 4
-6-
ASSEMBLY PARTS
HARDWARE CONTENTS (shown actual size)
AA BB
Wing nut Qty. 3
GG II
Qty.
MM NN
Chain
Qt y.1
Small flat
Qt y.
HH
Qty. 4
CC
DD EE
Stud
Qty. 3
JJ
Qty. 1
Long Stem Lighter
Qt y.1
Qty. 42
Philips
Qty. 1
Qt y. 4
KK
OO
AA Battery (1.5 V) Qty.1
Knob
Qty. 1
FF
Flange
nut
Qty. 4
LL
Qty.1
-7-
ASSEMBLY PROCEDURES

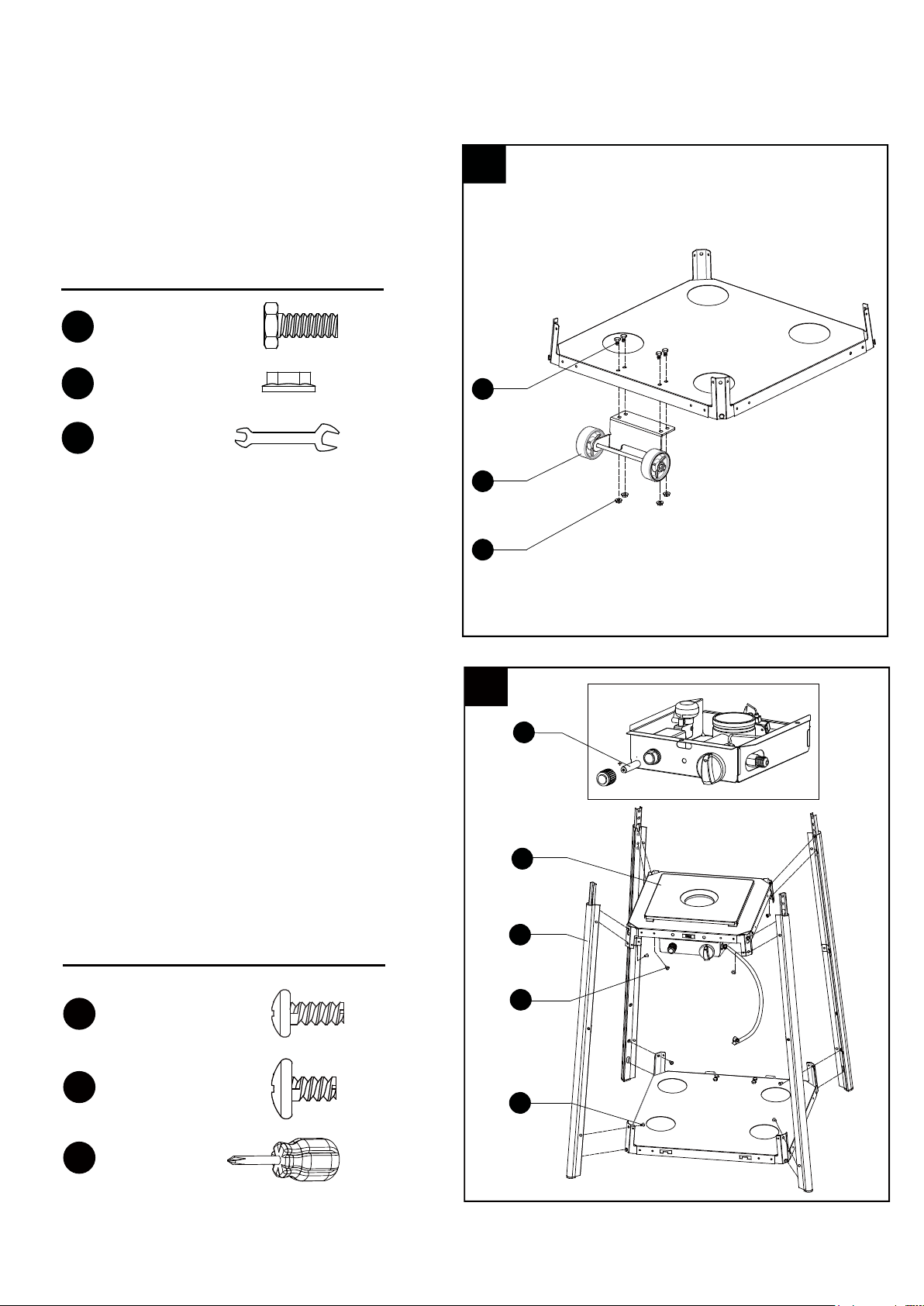

1. Assemble the wheel assembly to the bottom plate. Fix the wheel assembly to the bottom plate using 4pcs bolt M6X12 and 4pcs
flange nut M6.
Hardware Used
EE
FF
II
Bolt M6 X 12
M6 Flange nut
Wrench
x 4
x 4
x 1
1
EE
M
FF
2-1. Unscrew the switch button, load small
battery, tighten the switch button.
2-2. Insert the pins of the base to the holes of lower support, press to secure the pins. Using 4pcs screw M5X12 to secure the lower support and base. Insert the pins of the control box assy to the holes of upper support, press to secure the pins. Using 4pcs screw 3/16” screw to secure the upper support and control box assy.
Hardware Used
GG
DD
Screw M5 X 12
3/16” Screw
x 4
x 4
2
OO
AA Battery (1.5 V)
J
K
DD
GG
JJ
Philips screwdriver
x 1
-8-
3. Assemble block belt. Fix the block belt to the 2pcs of lower support behind the front door, using 2pcs screw M5X12.
Hardware Used
3
GG
JJ
Screw M5 X 12
Philips screwdriver
x 2
x 1
4. Assemble the middle support. Insert the 4pcs upper support to the lower support. Secure them with 8pcs screw 3/16”.
L
GG
4
Hardware Used
DD
JJ
3/16” Screw
Philips screwdriver
D
x 8
DD
x 1
-9-

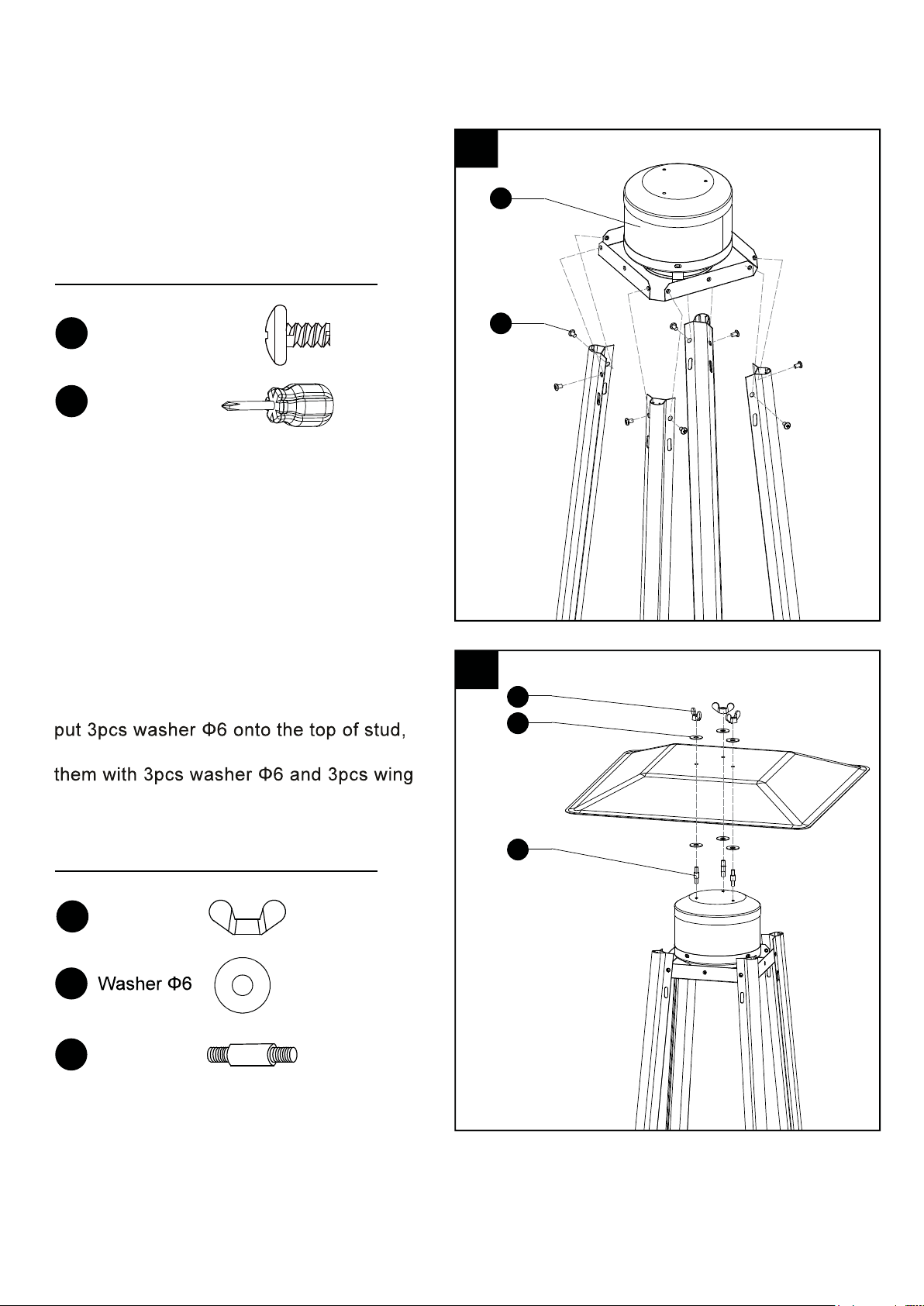

5. Assebmle the flame screen to the upper support. Secure the flame screen to the upper support using 8pcs screw 3/16.
Hardware Used
5
B
DD
JJ
3/16” Screw
Philips
x 8
x 1
screwdriver
6. Assemble the reflector onto the flame screen. Screw the 3pcs stud on the flame screen,
then put the reflector onto the stud, secure
DD
6
AA
BB
nut.
Hardware Used
AA
Wing nut
BB
CC
Stud
CC
x 3
x 6
x 3
- 10 -
7. Carefully install the glass tube by lifting up and inserting through the center hole in the upper plate. Ensure the black silicone ring is attached to the lower edge of the glass tube as illustrated. Slide the glass tube through the hole of the lower plate cover and onto the middle plate. Check and ensure that the glass tube is positioned properly and is completely covering the center hole of the middle plate.
WARNING! The black silicone ring must be in place prior to operating the heater.
7
To aid in installation place black silicone ring on the middle plate and then install glass tube. Ensure the rim of the glass tube sits firmly in the black silicone ring.
BLACK SILICONE RING
8. Assembly the protective guard. Hang the hooks of the protective guard onto the holes in supports. Secure the protective guards with fixing brackets with 4pcs 3/16" screws.
Hardware Used
DD
JJ
3/16” Screw
Philips
x 4
x 1
screwdriver
HH
Fixing
x 4
Bracket
8
DD
HH
E
- 11 -
9. Attach the three side panels to the heater using 18pcs screw 3/16”. Note : Do not cover the front side where the control knob is.
Hardware Used
9
DD
JJ
3/16” Screw
Philips
x 18
x 1
screwdriver
10. Install the knob to M4X6 screw. Hang the chain to the hole on the control box assy and put the pothook of front panel to the holes of bottom plate.
DD
10
Hardware Used
KK
MM
Knob
LL
Screw M4 X 6
Chain
JJ
Philips screwdriver
x 1
x 1
x 1
x 1
LL
KK
MM
H
- 12 -
11. Connect the gas hose and regulator after that connect the regulator to the gas cylinder.
WARNING! Ensure the hose does not contact any high temperature surfaces, or it may melt and leak causing a fire. After the cylinder is placed inside the heater, secure the cylinder with block belt tightly.
12. Leak Check.
WARNING!
11
WARNING!
12
Hose / Regulator
Regulator / Cylinder
- 13 -
PROBLEMS CHECK LIST
PROBLEM PROB ABLE C AUSE SOLUTION
Pilot will not light Gas valve may be OFF Turn the gas valve ON
Tank fuel empty Refill LPG tank
Opening blocked Clean or replace opening
Air in supply system Purge air from lines
Loose connections Check all fittings
Pilot will not stay on Debris around pilot Clean dirty area
Loose connections Tighten connections
Thermocouple bad Replace thermocouple
Gas leak in line Check connections
Lack of fuel pressure Tank near empty. Refill LPG tank.
urner will not light Pressure is low Tank near empty. Refill LPG tank.
B
Opening blocked Remove and clean
Control not ON Turn valve to ON
Thermocouple bad Replace thermocouple
Pilot light assembly bent Place pilot properly
Not in correct location Position properly and retry
If the appliance is in case of any defaults or problems of assembly or use contact your supplier or distributor to solve it.
please don’t try to modify it by yourself
- 14 -
Loading...
