Page 1

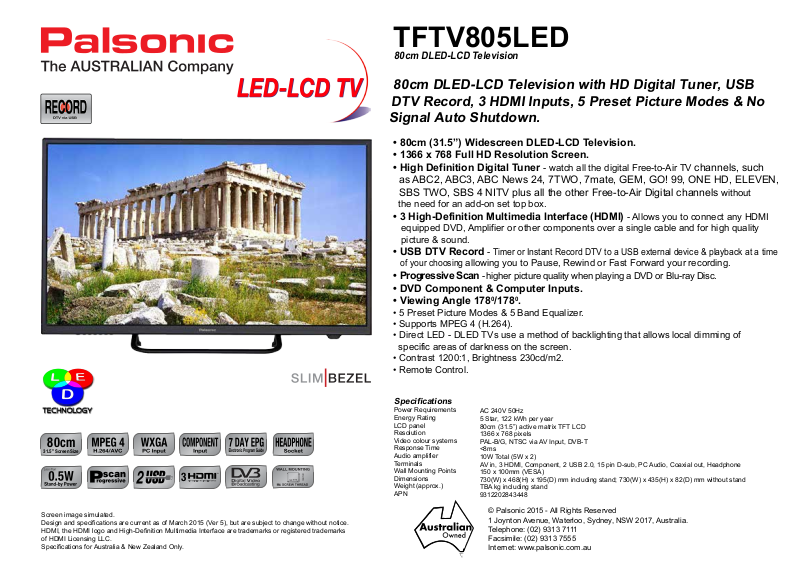

TFTV805LED
80cm DLED-LCD Television
80cm DLED-LCD Television with HD Digital Tuner, USB
DTV Record, 3 HDMI Inputs, 5 Preset Picture Modes & No
Signal Auto Shutdown.
• 80cm (31.5”) Widescreen DLED-LCD Television.
• 1366 x 768 Full HD Resolution Screen.
• High Definition Digital Tuner - watch all the digital Free-to-Air TV channels, such
as ABC2, ABC3, ABC News 24, 7TWO, 7mate, GEM, GO! 99, ONE HD, ELEVEN,
SBS TWO, SBS 4 NITV plus all the other Free-to-Air Digital channels without
the need for an add-on set top box.
• 3 High-Definition Multimedia Interface (HDMI) - Allows you to connect any HDMI
equipped DVD, Amplifier or other components over a single cable and for high quality
picture & sound.
• USB DTV Record -
of your choosing
• Progressive Scan - higher picture quality when playing a DVD or Blu-ray Disc.
• DVD Component & Computer Inputs.
• Viewing Angle 178
• 5 Preset Picture Modes & 5 Band Equalizer.
• Supports MPEG 4 (H.264).
• Direct LED - DLED TVs use a method of backlighting that allows local dimming of
specific areas of darkness on the screen.
• Contrast 1200:1, Brightness 230cd/m2.
• Remote Control.
Timer or Instant Record DTV to a USB external device & playback at a time
allowing you to Pause, Rewind or Fast Forward your recording.
0
/1780.
80cm
31.5” Screen Size
150
400
100
6
Screen image simulated.
Design and specifications are current as of March 2015 (Ver 5), but are subject to change without notice.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks
of HDMI Licensing LLC.
Specifications for Australia & New Zealand Only.
Specifications
Power Requirements
Energy Rating
LCD panel
Resolution
Video colour systems
Response Time
Audio amplifier
Terminals
Wall Mounting Points
Dimensions
Weight (approx.)
APN
AC 240V 50Hz
5 Star, 122 kWh per year
80cm (31.5”) active matrix TFT LCD
1366 x 768 pixels
PAL-B/G, NTSC via AV Input, DVB-T
<8ms
10W Total (5W x 2)
AV in, 3 HDMI, Component, 2 USB 2.0, 15 pin D-sub, PC Audio, Coaxial out, Headphone
150 x 100mm (VESA)
730(W) x 468(H) x 195(D) mm including stand; 730(W) x 435(H) x 82(D) mm without stand
TBA kg including stand
9312202843448
© Palsonic 2015 - All Rights Reserved
1 Joynton Avenue, Waterloo, Sydney, NSW 2017, Australia.
Telephone: (02) 9313 7111
Facsimile: (02) 9313 7555
Internet: www.palsonic.com.au
