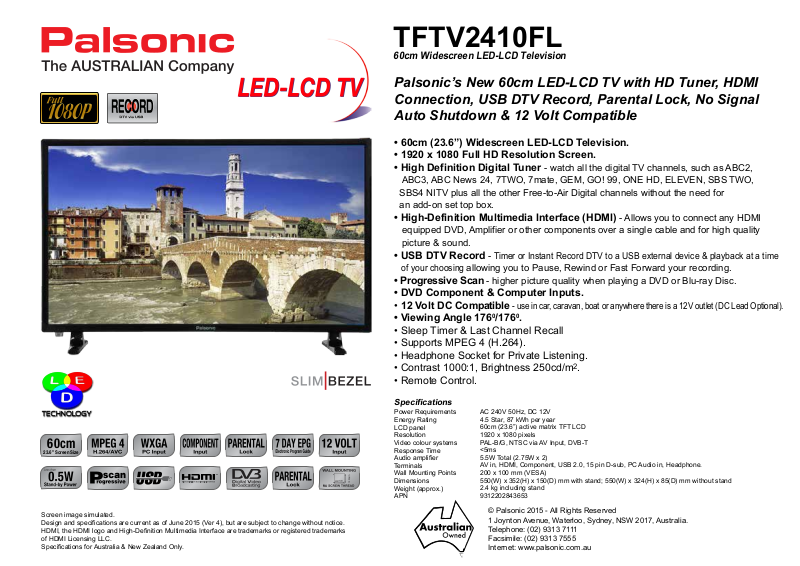

TFTV2410FL
60cm Widescreen LED-LCD Television
Palsonic’s New 60cm LED-LCD TV with HD Tuner, HDMI
Connection, USB DTV Record, Parental Lock, No Signal
Auto Shutdown & 12 Volt Compatible
• 60cm (23.6”) Widescreen LED-LCD Television.
• 1920 x 1080 Full HD Resolution Screen.
• High Definition Digital Tuner - watch all the digital TV channels, such as ABC2,
ABC3, ABC News 24, 7TWO, 7mate, GEM, GO! 99, ONE HD, ELEVEN, SBS TWO,
SBS4 NITV plus all the other Free-to-Air Digital channels without the need for
an add-on set top box.
• High-Definition Multimedia Interface (HDMI) - Allows you to connect any HDMI
equipped DVD, Amplifier or other components over a single cable and for high quality
picture & sound.
• USB DTV Record -
of your choosing
• Progressive Scan - higher picture quality when playing a DVD or Blu-ray Disc.
• DVD Component & Computer Inputs.
• 12 Volt DC Compatible
• Viewing Angle 1760/1760.
• Sleep Timer & Last Channel Recall
• Supports MPEG 4 (H.264).
• Headphone Socket for Private Listening.
• Contrast 1000:1, Brightness 250cd/m
• Remote Control.
Timer or Instant Record DTV to a USB external device & playback at a time
allowing you to Pause, Rewind or Fast Forward your recording.
- use in car, caravan, boat or anywhere there is a 12V outlet (DC Lead Optional).
2
.
60cm
23.6” Screen Size
200
400
4
Screen image simulated.
Design and specifications are current as of June 2015 (Ver 4), but are subject to change without notice.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks
of HDMI Licensing LLC.
Specifications for Australia & New Zealand Only.
Specifications
Power Requirements
Energy Rating
LCD panel
Resolution
Video colour systems
Response Time
Audio amplifier
Terminals
100
Wall Mounting Points
Dimensions
Weight (approx.)
APN
AC 240V 50Hz, DC 12V
4.5 Star, 87 kWh per year
60cm (23.6”) active matrix TFT LCD
1920 x 1080 pixels
PAL-B/G, NTSC via AV Input, DVB-T
<5ms
5.5W Total (2.75W x 2)
AV in, HDMI, Component, USB 2.0, 15 pin D-sub, PC Audio in, Headphone.
200 x 100 mm (VESA)
550(W) x 352(H) x 150(D) mm with stand; 550(W) x 324(H) x 85(D) mm without stand
2.4 kg including stand
9312202843653
© Palsonic 2015 - All Rights Reserved
1 Joynton Avenue, Waterloo, Sydney, NSW 2017, Australia.
Telephone: (02) 9313 7111
Facsimile: (02) 9313 7555
Internet: www.palsonic.com.au
