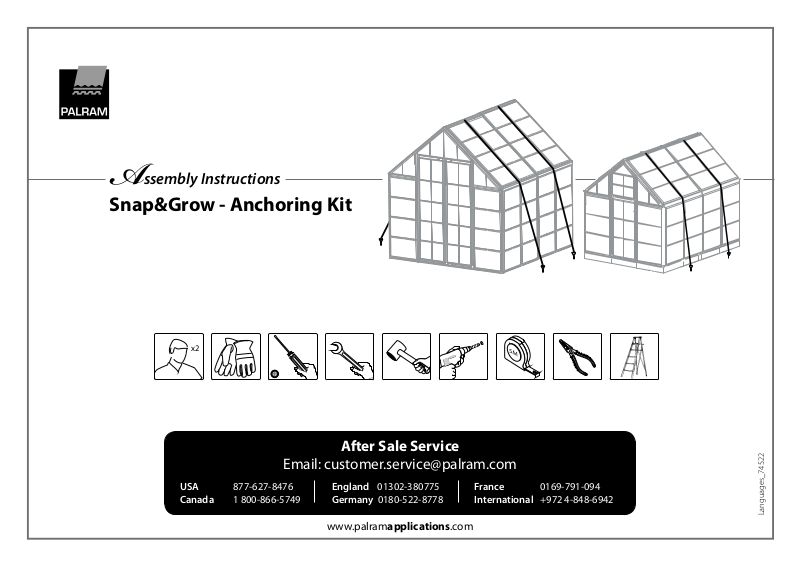

Page 1
Assembly Instructions
x2
Snap&Grow - Anchoring Kit
After Sale Service
Email: customer.service@palram.com
USA 877-627-8476 England 01302-380775 France 0169-791-094
Canada 1 800-866-5749 Germany 0180-522-8778 International +972 4-848-6942
Languages_74522
www.palramapplications.com
Page 2
EN
x2
Before you start
It is highly recommended to be assisted by a second person in some steps.
Sort the parts and check according to the contents parts list.
The product must be positioned and fixed on a leveled surface.
Make sure that screws and anchors suit the surface type.
This product is suitable for all Snap&Grow greenhouses up to 8 feet long.
Please be safe during assembly.
Please read these instructions carefully before you start to
assemble this product.
Please carry out the steps in the order set out in these instructions.
Keep these instructions in a safe place for future reference.
You will need
To assembly this product
(these items not supplied)
Safety
This product should be mounted to the ground as shown in these instructions
in order to ensure greenhouse’s stability and appropriate wind resistance.
Some parts may have sharp edges. Please be careful when handling
components.
Always wear gloves, eye protection, and long sleeves when assembling or
performing any maintenance on your product.
If using a stepladder or power tools please ensure that you follow the
manufacturer’s safety advice.
DO not lean the stepladder against the greenhouse.
Do not stand on the greenhouse roof/panels
To prevent injuries, do not allow children to play under the greenhouse
during assembly.
Care and Maintenance
Periodically check the product to assure that it remains stable.
Keep roof clean of snow.
During Assembly
During assembly you will encounter the information icon, please
refer to the relevant assembly step for additional comments and
assistance.
Do not cut the steel cable unless a final decision on the mounting location
has been made.
Step 3 : According to the ground surface type, follow the appropriate
mounting procedure.
Option 1 : for hard surfaces (concrete or wood)
Option 2 : soft/ground installation.
Step 5 : After the product has been installed, fasten the steel cable by
turning part #7332
Tighten all screws when completing assembly.
Page 3
Contents
Item Qty.
4010
4000
7409
7410
4
)+1(
4
)+1(
4
2
Item Qty.
414
433
7283
2
)+1(
6
)+1(
2
)+1(
7333
7332
7331 4
7327
2
4
2
7336
4
Page 4
1
7327 74102 2
a
a
+
b
a
+
b
7410
b
7327
Page 5
2
7409 4
a
c
b
7409
d
7327
Page 6
3
4000
4
7331 433
4010
4
1 2
4000
10 mm
5/16”
433
4010
7331
OR
OR
73364 4
7336
4
45-55 cm
1' 5 ⁄''
45-55 cm
1' 5 ⁄''
45-55 cm
1' 5 ⁄''
45-55 cm
1' 5 ⁄''
Page 7
4
7333 7283 4142 2 2 433 2
1 2
7333
x2 x2
OR
433
414
7283
7333
Page 8
5
7333 73322 2
1 2
7333
OR
7333
7332
7332
Master_SNG_Anchoring_Kit_V1-4
