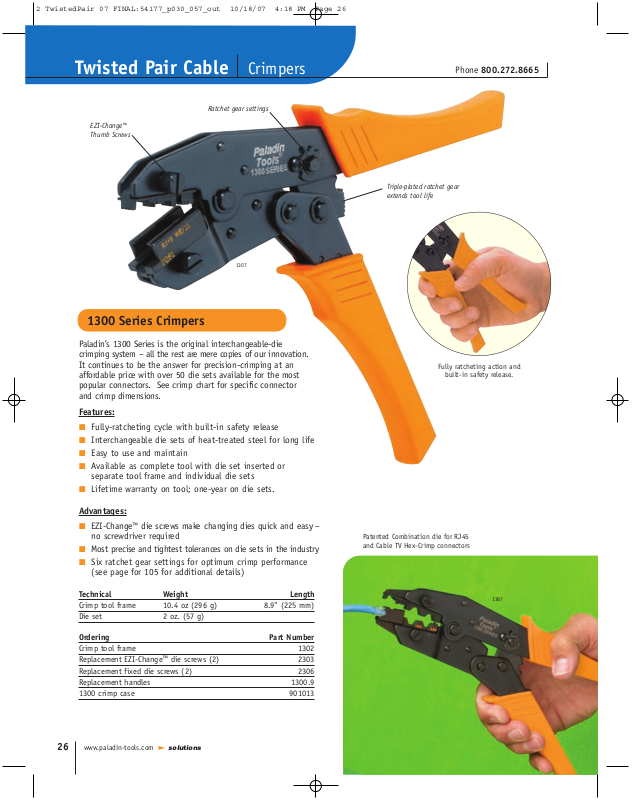

Twisted Pair Cable Crimpers

Ratchet gear settings

EZI-Change™
Thumb Screws

8030

1307

1300 Series Crimpers

Phone [phone]

Triple-plated ratchet gear
extends tool life

Paladin’s 1300 Series is the original interchangeable-die
crimping system – all the rest are mere copies of our innovation.
It continues to be the answer for precision-crimping at an
affordable price with over 50 die sets available for the most
popular connectors. See crimp chart for specific connector
and crimp dimensions.

Features:

■ Fully-ratcheting cycle with built-in safety release

■ Interchangeable die sets of heat-treated steel for long life

■ Easy to use and maintain

■ Available as complete tool with die set inserted or

separate tool frame and individual die sets

■ Lifetime warranty on tool; one-year on die sets.

Advantages:

■ EZI-Change™ die screws make changing dies quick and easy –

no screwdriver required

■ Most precise and tightest tolerances on die sets in the industry

■ Six ratchet gear settings for optimum crimp performance

(see page for 105 for additional details)

Technical Weight Length

Crimp tool frame 10.4 oz (296 g) 8.9" (225 mm)
Die set 2 oz. (57 g)

Fully ratcheting action and

built-in safety release.

Patented Combination die for RJ45
and Cable TV Hex-Crimp connectors

1387

Ordering Part Number

Crimp tool frame 1302
Replacement EZI-Change™ die screws (2) 2303
Replacement fixed die screws (2) 2306
Replacement handles 1300.9
1300 crimp case 901013

26

www.paladin-tools.com

solutions

▼

Fax [phone]

Part Numbers Description Crimp Style (28-22 AWG/.08-.34mm2) Manufacturers

Crimpers Twisted Pair Cable

Tool & Die: 1307 RJ45 - 8P8C (8 Pin) Flat/Round, Solid/Stranded/ Western Electri
Die Only: 2061 RJ45 Unkeyed WE and SS Stewart Connector (SS)

Tool & Die: 1340 RJ11 & RJ12 - Flat/Round, Solid/Stranded/ Western Electric (WE)
Die Only: 2062 6P6C, 6P4C, 6P2C RJ11/RJ12 Unkeyed WE and SS Stewart Connector (SS)

Tool & Die: 1341 RJ22, Handset 4P4C (4 Pin) Flat/Round, Solid/Stranded/ Western Electric (WE)
Die Only: 2063 4 Pin Handset WE and SS Stewart Connector (SS)

Tool & Die: 1342 RJ45 - 8P8C (8 Pin) Flat/Round, Solid/Stranded/ AMP (Tyco) Inc.
Die Only: 2064 RJ45 Unkeyed AMP Connectors Only

Tool & Die: 1343 RJ11 & RJ12 - Flat/Round, Solid/Stranded/ AMP (Tyco) Inc.
Die Only: 2065 6P6C, 6P4C, 6P2C RJ11/RJ12 Unkeyed AMP Connectors Only

Tool & Die: 1344 RJ11 DEC-MMJ OFFSET (6P6C) Flat/Round, Solid/Stranded/ AMP (Tyco) Inc.
Die Only: 2067 RJ11 DEC-MMJ OFFSET Connectors Only

Tool & Die: 1345 RJ50 - 10P10C (10 Pin) Flat/Round, Solid/Stranded/ Virginia Plastics (VP)
Die Only: 2068 RJ50 Unkeyed WE and SS

Tool & Die: 1361 British Telecom 6 Pole Plug Flat/Round, Solid/Stranded/ British Telecom
Die Only: 2032 BT 6 Pole Plugs Only

Tool & Die: 1370 SHIELDED RJ45, Stewart Round, Shielded (STP), RJ45 STP Stewart Connector
Die Only: 2670 Connector, Short Body Stewart Connector, Short Body

c (WE)

Tool & Die: 1371 SHIELDED RJ45, Hirose Round, Shielded (STP), RJ45 STP Hirose
Die Only: 2671 Connectors, Long Body Hirose Connectors, Long Body

Tool & Die: 1372 SHIELDED RJ45, Hirose Round, Shielded (STP), RJ45 STP Hirose
Die Only: 2672 Connectors, Short Body Hirose Connectors, Short Body

Tool & Die: 1373 SHIELDED RJ45, 5.0mm Dia. Round, Shielded (STP), Molex
Die Only: 2673 Molex Connectors RJ45 STP Molex Connectors

Tool & Die: 1374 SHIELDED RJ45, 6.0mm Dia. Round, Shielded (STP), AMP (Tyco) Inc.
Die Only: 2674 AMP/Molex Connectors RJ45 STP AMP & Molex & Molex

Tool & Die: 1387 RJ45 WE/SS & UTP 4-Pair & RG6/RG6 Quad For Standard RJ45
Die Only: 2687 RG6/RG6 Quad CATV “F” RJ45 WE/SS 8-pin & WE/SS Modular Plugs and

1302

.360"(9.1mm) HEX/.324"(8.2mm) HEX RG6/RG6 QS Hex-Crimp

CATV "F"
