PageFlip PFFIREFLY01 Users Manual
PageFlip Firefly
Bluetooth/USB Pedal
User Guide
PageFlip Firefly User Guide
Legal Notice
Copyright
Information in this document is subject to change without notice. All statements, information, and recommendations in this manual are believed to
be accurate but may include inadvertent technical inaccuracies or typographical errors. PageFlip Inc. provides this information “as is”, without
warranty of any kind, either expressed or implied, including any implied
warranties of merchantability or fitness for a particular purpose. No part
of this manual may be reproduced, stored in a retrieval system, or transmitted in any form or any means electronic or mechanical, including photocopying and recording for any purpose other than the purchaser’s personal use without the consent of PageFlip Inc.
PageFlip Inc.
Woodmere, NY 11598
USA
c
2014 PageFlip Inc. All rights reserved.
www.pageflip.com
support@pageflip.com
Version 1.0
January 1, 2014
PageFlip, Inc. 1 www.pageflip.com
PageFlip Firefly User Guide
FCC/CE Notice
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
PageFlip Firefly
FCC ID: XKEPFFIREFLY01
This equipment complies with FCC radiation exposure limits set forth
for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator and your
body. This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
Safety Notice / Warning
Please read the following safety instructions carefully to safely and correctly operate this device. PageFlip assumes no responsibility for property
damage or personal injury.
1. Do not place any container filled with liquid on the device.
2. Do not use a voltage other than the specified one.
3. Do not plug AC adapter into socket with wet hands.
4. Always hold case before removing AC adapter plug.
5. Do not disassemble or modify the device.
PageFlip, Inc. 2 www.pageflip.com
PageFlip Firefly User Guide
IC Notice
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée
aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d’en compromettre le fonctionnement
Under Industry Canada regulations, this radio transmitter may only
operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio
interference to other users, the antenna type and its gain should be so
chosen that the equivalent isotropically radiated power (eirp) is not more
than that necessary for successful communication.
Conformément à la réglementation d’Industrie Canada, le présent
émetteur radio peut fonctionner avec une antenne d’un type et d’un gain
maximal (ou inférieur) approuvé pour l’émetteur par Industrie Canada.
Dans le but de réduire les risques de brouillage radioélectrique à l’intention
des autres utilisateurs, il faut choisir le type d’antenne et son gain de
sorte que la puissance isotrope rayonnée équivalente (pire) ne dépasse
pas l’intensité nécessaire à l’établissement d’une communication satisfaisante.
PageFlip, Inc. 3 www.pageflip.com
PageFlip Firefly User Guide CONTENTS
Contents
1 WELCOME 5
2 FEATURES 7
3 PACKAGE CONTENTS 9
4 BASIC OPERATION 10

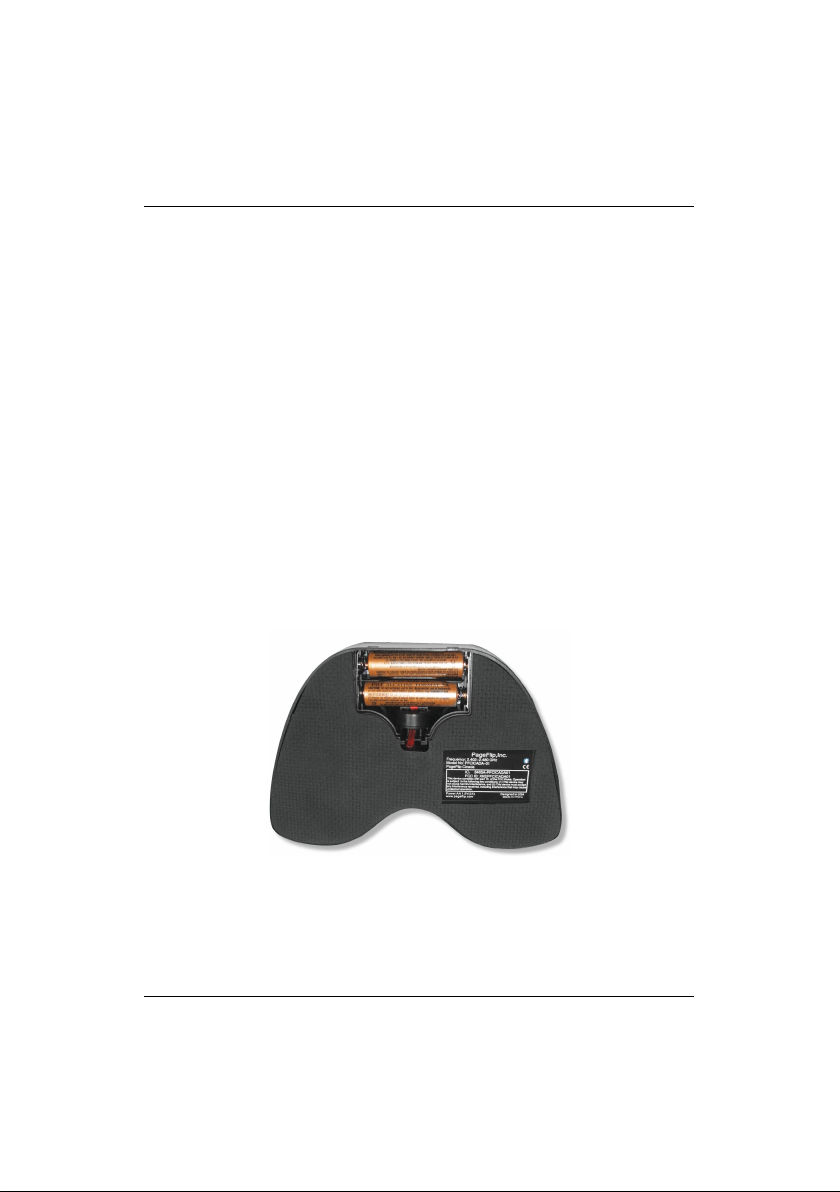

4.1 Battery Installation . . . . . . . . . . . . . . . . . . . . . . 10

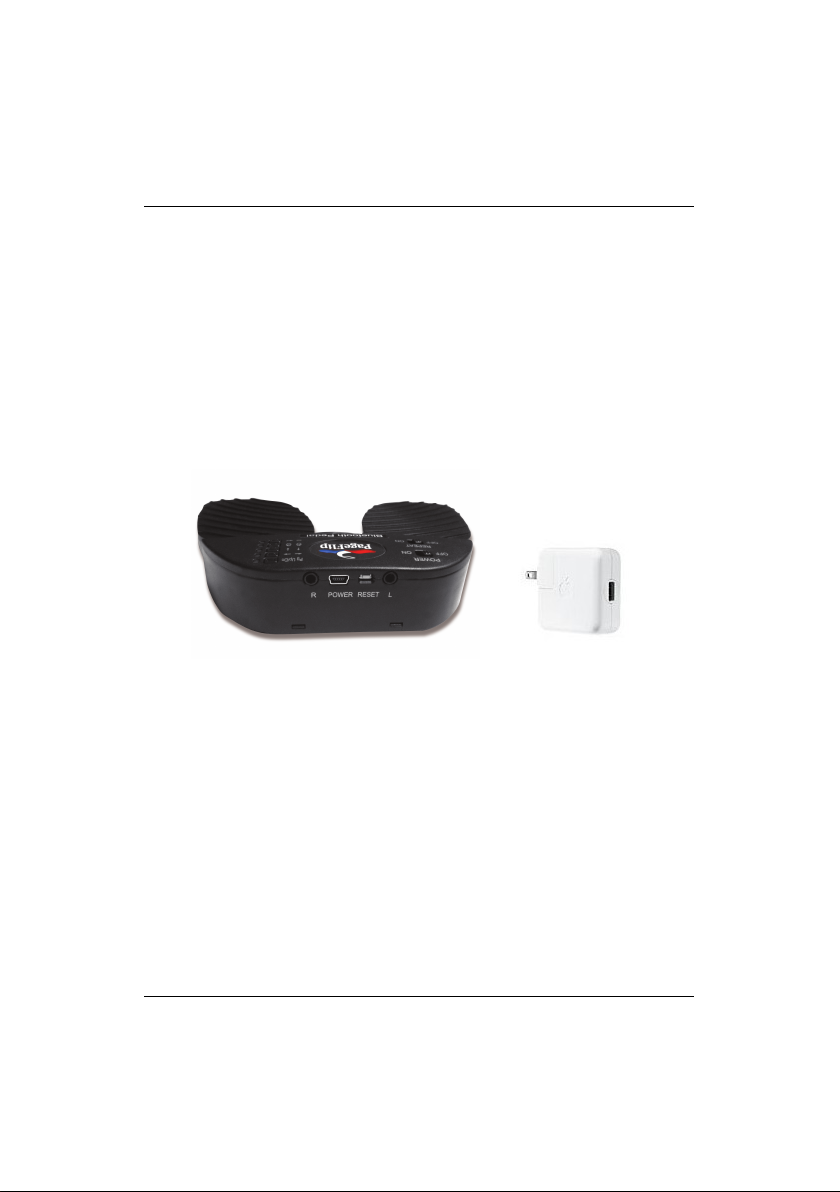

4.2 AC Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.3 Powering On the Pedal . . . . . . . . . . . . . . . . . . . 12
4.4 Bluetooth Pairing . . . . . . . . . . . . . . . . . . . . . . . 13

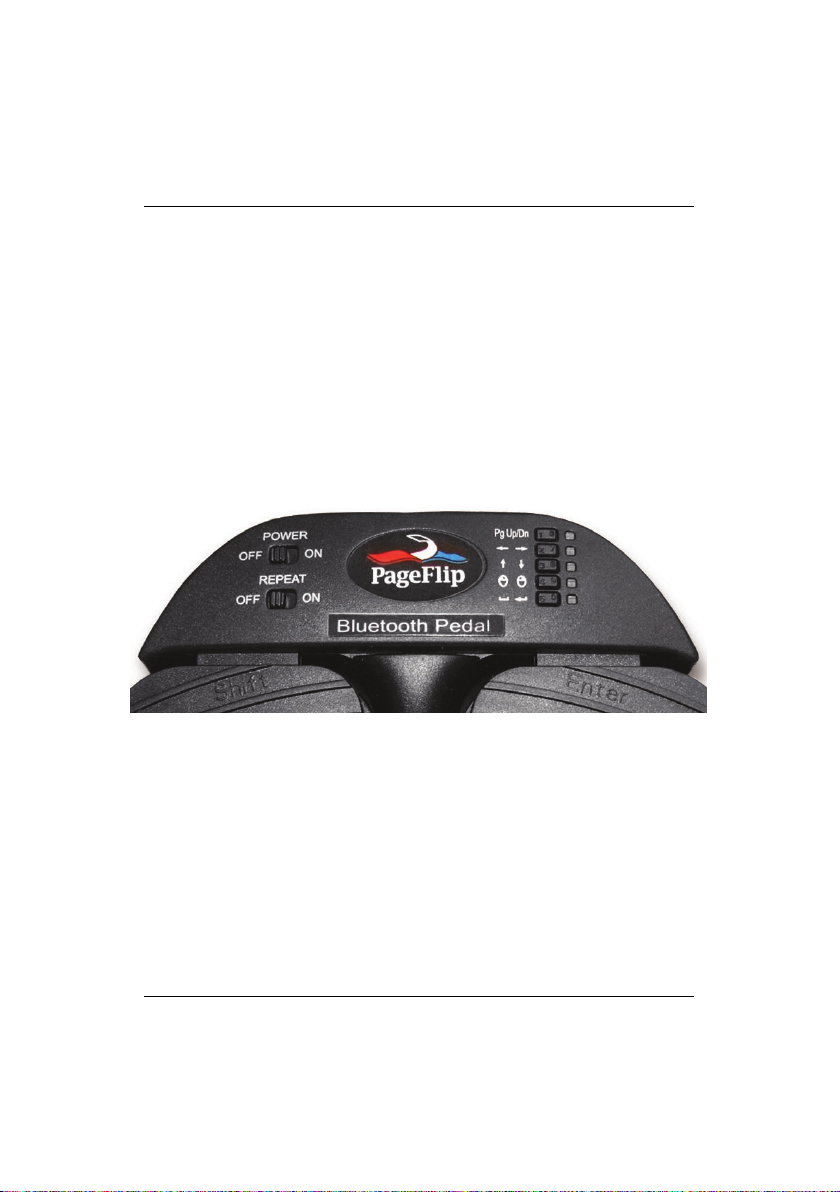

4.5 Pedal Mode Selection . . . . . . . . . . . . . . . . . . . . 14
4.6 Triggering the Pedal . . . . . . . . . . . . . . . . . . . . . 15
4.7 Autorepeat Function . . . . . . . . . . . . . . . . . . . . . 16
5 PRODUCT SPECIFICATION 17
6 MAINTENANCE 18
7 WARRANTY 19
8 GUARANTEE 20
9 FREQUENTLY ASKED QUESTIONS 21
PageFlip, Inc. 4 www.pageflip.com
PageFlip Firefly User Guide 1. WELCOME
1 WELCOME
Congratulations on your purchase of the PageFlip Firefly Bluetooth/USB
pedal! This product was designed to meet the needs of musicians, people with disabilities, and avid readers who struggle with the challenge and
inconvenience of page turning. PageFlip Firefly works exclusively with digital documents, web pages, and image collections on any tablet or computer. By simply tapping the dual pedal of the PageFlip Firefly, the digital
content can now be flipped or scrolled in either the forward or reverse
directions for convenient hands-free page turning.
The PageFlip Firefly emulates a standard keyboard and works with
any software that uses keyboard strokes to navigate through digital files.
For added versatility, the user may select among five preset modes for
the dual pedals: PageUp/PageDown, Left/Right arrow, Up/Down arrow,
Left/Right mouse click, and Space / Enter. Changing modes is as simple
as pressing a button. For added versatility, the pedal functions may be reprogrammed with free software available on
connect the pedal to a Windows/Mac computer using the supplied USB
cable and run the software to edit the pedal modes.
The PageFlip Firefly is ideal for musicians who can now keep their
hands, and their focus, on their instruments rather than struggle with turning sheet music. It is also ideal for people with disabilities who can more
easily tap a pedal than attempt to manipulate pages of a standard book or
magazine. The convenient mode buttons maximize versatility for use with
a wide variety of software to scroll, browse, and navigate through eBooks,
PDF files, Word, Powerpoint, web pages, and images.
www.pageflip.com
. Simply
PageFlip Firefly may be operated in wireless or wired mode. Wireless
connectivity is achieved via Bluetooth. All Apple products and most modern tablets/computers are equipped with Bluetooth, so this mode is nearly
PageFlip, Inc. 5 www.pageflip.com
PageFlip Firefly User Guide 1. WELCOME
universal. An optional USB Bluetooth dongle is available from PageFlip to
interface to computers that are not equipped with Bluetooth 2.1 (or later).
If the user prefers wired connectivity, the supplied USB cable can be connected between the pedal and tablet/computer. Note that iPads require an
optional Camera Connection Kit to interface with the supplied USB cable.
The PageFlip Firefly features LED lighting to emit a discrete glow on
each of the two pedals, hence the name “Firefly.” This lighting permits
the pedal to be easily found in orchestra pits, dark stages, and cluttered
environments. Use the light switch to turn off the LED lighting when not
needed to preserve battery life.
PageFlip Firefly is compact, silent, reliable, durable, and easy to use.
Since it works with digital content, it guarantees 100% reliability in turning
one page at a time without moving parts or noise. Just pair the pedal with
a Bluetooth-enabled computer or connect it to the tablet/computer via the
USB cable, open up any digital file, and tap the pedal to begin enjoying
hands-free reading. Be prepared to enjoy the benefits of the PageFlip
Firefly Bluetooth/USB pedal for automatic page turning!
PageFlip, Inc. 6 www.pageflip.com
PageFlip Firefly User Guide 2. FEATURES
2 FEATURES
• Ease of Use
Simply open a digital file and press either pedal of the PageFlip
Firefly to turn a page forwards or backwards.
• Convenience
Permits hands-free reading of vast libraries of scanned, purchased,
or freely downloaded digital content. There is no need to stop playing your musical instrument or wait for a care-giver to turn the page.
• Reliability
Turns one page at a time with 100% accuracy. Navigation of digital
content eliminates the risk of turning multiple pages at once, which
is a problem typically associated with physical books.
• Versatility
Press a mode button to select pedal functions for enhanced software compatibility: PageUp/PageDown, Left/Right arrow, Up/Down
arrow, Left/Right mouse click, and Space / Enter. The pedals may
be reprogrammed for added versatility.
• Robust Operation
A Repeat switch enables continuous scrolling while the pedal is
pressed down. Disable this feature for musical performances to
prevent inadvertent page turns in case of a slow pedal release or
to rest your foot on the pedal between page turns.
• Wireless or Wired Connectivity
The PageFlip Firefly communicates wirelessly with the computer up
to a range of 10 meters using standard Bluetooth 3.0 technology.
For those users preferring a wired connection, the pedal can be
connected directly to a tablet/computer via the supplied USB cable.
• Compatibility
Works with any Windows, Mac, or Linux computer. Even works with
PageFlip, Inc. 7 www.pageflip.com
