PageFlip PFDRAGONFLY Users Manual
PageFlip Dragonfly
Bluetooth/USB Pedal
User Guide
PageFlip Dragonfly User Guide
Legal Notice
Copyright
Information in this document is subject to change without notice. All statements, information, and recommendations in this manual are believed to
be accurate but may include inadvertent technical inaccuracies or typographical errors. PageFlip Inc. provides this information “as is”, without
warranty of any kind, either expressed or implied, including any implied
warranties of merchantability or fitness for a particular purpose. No part
of this manual may be reproduced, stored in a retrieval system, or transmitted in any form or any means electronic or mechanical, including photocopying and recording for any purpose other than the purchaser’s personal use without the consent of PageFlip Inc.
PageFlip Inc.
Woodmere, NY 11598
USA
c
2016 PageFlip Inc. All rights reserved.
✇✇✇✳♣❛❣❡❢❧✐♣✳❝♦♠
s✉♣♣♦rt❅♣❛❣❡❢❧✐♣✳❝♦♠
Version 1.0
May 1, 2016
PageFlip, Inc. 1 www.pageflip.com
PageFlip Dragonfly User Guide
FCC/CE Notice
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
PageFlip Dragonfly
FCC ID: XKEPFDRAGONFLY
This equipment complies with FCC radiation exposure limits set forth
for an uncontrolled environment.
This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
Safety Notice / Warning
Please read the following safety instructions carefully to safely and correctly operate this device. PageFlip assumes no responsibility for property
damage or personal injury.
1. Do not place any container filled with liquid on the device.
2. Do not use a voltage other than the specified one.
3. Do not plug AC adapter into socket with wet hands.
This transmitter must not be co-located or operating in conjunction
5. Do not disassemble or modify the device.
PageFlip, Inc. 2 www.pageflip.com
PageFlip Dragonfly User Guide
IC Notice
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée
aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d’en compromettre le fonctionnement
PageFlip, Inc. 3 www.pageflip.com
PageFlip Dragonfly User Guide CONTENTS
Contents
1 WELCOME 5
2 FEATURES 8
3 PACKAGE CONTENTS 10
4 BASIC OPERATION 11
4.1 Battery Installation . . . . . . . . . . . . . . . . . . . . . . 11
4.2 AC Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.3 Powering On the Pedal . . . . . . . . . . . . . . . . . . . 13
4.4 Bluetooth Pairing . . . . . . . . . . . . . . . . . . . . . . . 14
4.5 Pedal Mode Selection . . . . . . . . . . . . . . . . . . . . 15
4.6 Reprogramming the Pedal Modes . . . . . . . . . . . . . . 17
4.7 Triggering the Pedal . . . . . . . . . . . . . . . . . . . . . 20
4.8 Autorepeat Function . . . . . . . . . . . . . . . . . . . . . 21
4.9 Virtual iPad Keyboard . . . . . . . . . . . . . . . . . . . . 22
5 PRODUCT SPECIFICATION 23
6 MAINTENANCE 24
7 WARRANTY 25
8 GUARANTEE 26
9 FREQUENTLY ASKED QUESTIONS 27
PageFlip, Inc. 4 www.pageflip.com
PageFlip Dragonfly User Guide 1. WELCOME
1 WELCOME

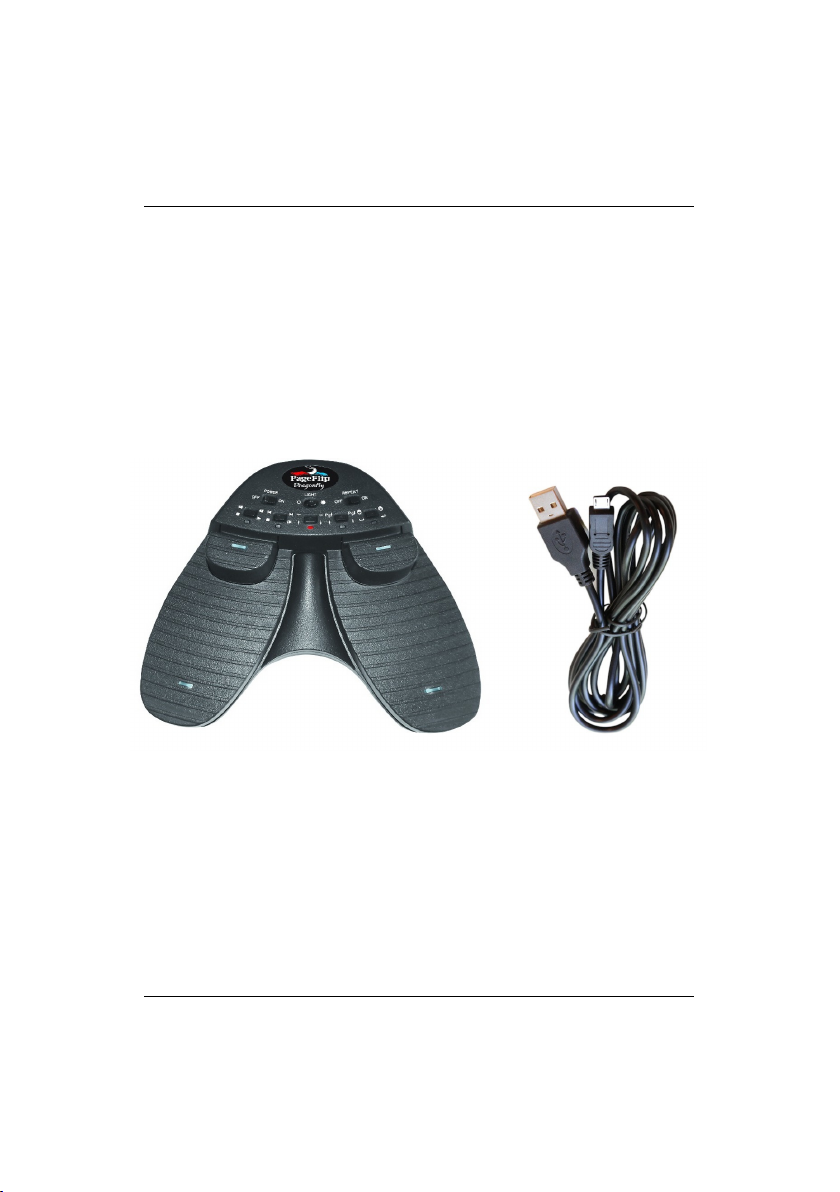

Congratulations on your purchase of the PageFlip Dragonfly Bluetooth/USB
pedal! This product was designed to meet the needs of musicians, people with disabilities, and avid readers who struggle with the challenge and
inconvenience of page turning. PageFlip Dragonfly works exclusively with
digital documents, web pages, and image collections using any keyboardcompatible app on tablets or computers. The PageFlip Dragonfly is unique
among all Bluetooth pedals in that it features a compact four-pedal design.
By simply tapping any of the quad pedals on the PageFlip Dragonfly, digital content can now be flipped or scrolled in either the forward or reverse
directions for convenient hands-free page turning. The user may also
choose to launch other app functions such as navigating to the next song
in a setlist, volume control, or toggling the play/pause button on an app.
The PageFlip Dragonfly is unique among all Bluetooth pedals in that it is
a compact quad pedal, offering four actions to be initiated by the user with
the touch of a pedal.
The PageFlip Dragonfly emulates a standard keyboard and works with
any software that uses keyboard strokes to navigate through digital files or
activate app functions. For added versatility, the user may select among
five preset modes for the quad pedals: Volume-/Volume+/Stop/Play, Previous/Next/Stop/Play, Left/Right arrow and Up/Down arrow, PageUp/PageDown
and Up/Down arrow, and Left/Right mouse click and Space/Enter. Changing modes is as simple as pressing a button. Note that in Play mode, successive taps of the pedal will toggle the app between the play and pause
functions. For added versatility, the pedal functions may be reprogrammed
with free software available on
to a Windows or Mac computer using Bluetooth and run the software to
edit the pedal modes. This operation must use Bluetooth, not the USB
cable, as the means to connect the pedal to the computer.
✇✇✇✳♣❛❣❡❢❧✐♣✳❝♦♠
. Simply pair the pedal
PageFlip, Inc. 5 www.pageflip.com
PageFlip Dragonfly User Guide 1. WELCOME
The PageFlip Dragonfly is ideal for musicians who can now keep their
hands, and their focus, on their instruments rather than struggle with turning sheet music. It is also ideal for people with disabilities who can more
easily tap a pedal than attempt to manipulate pages of a standard book or
magazine. The convenient mode buttons maximize versatility for use with
a wide variety of software to scroll, browse, and navigate through eBooks,
PDF files, Word, Powerpoint, web pages, and images.
PageFlip Dragonfly may be operated in wireless or wired mode. Wireless connectivity is achieved via Bluetooth. All Apple products and most
modern tablets/computers are equipped with Bluetooth, so this mode is
nearly universal. An optional USB Bluetooth dongle is available from
✇✇✇✳♣❛❣❡❢❧✐♣✳❝♦♠
Bluetooth 2.1 (or later). If the user prefers wired connectivity, the supplied
USB cable can be connected between the pedal and tablet/computer.
Note that iPads require an optional Camera Connection Kit to interface
with the supplied USB cable.
The PageFlip Dragonfly features LED lighting to emit a discrete glow
on each of the two pedals, hence the name “Dragonfly.” This lighting permits the pedal to be easily found in orchestra pits, dark stages, and cluttered environments. If the pedal lights are not needed, we recommend
using the light switch to turn off the LED lighting to preserve battery life.
to interface to computers that are not equipped with
The PageFlip Dragonfly goes to sleep after 30 minutes of inactivity.
Although only a simple tap of the pedal is needed to wake the pedal, the
long 30-minute period prevents the user from having to make this effort
under most common performance conditions. No other pedal offers such
a long inactivity period before entering sleep mode for the benefit of the
user.
PageFlip Dragonfly is compact, rugged, silent, and easy to use. Since
PageFlip, Inc. 6 www.pageflip.com
PageFlip Dragonfly User Guide 1. WELCOME
it works with digital content, it guarantees 100% reliability in turning one
page at a time without moving parts or noise. Just pair the pedal with a
Bluetooth-enabled computer or connect it to the tablet/computer via the
USB cable, open up any digital file, and tap the pedal to begin enjoying
hands-free reading. Be prepared to enjoy the benefits of the PageFlip
Dragonfly Bluetooth/USB pedal for automatic page turning!
PageFlip, Inc. 7 www.pageflip.com
PageFlip Dragonfly User Guide 2. FEATURES
2 FEATURES
• Ease of Use

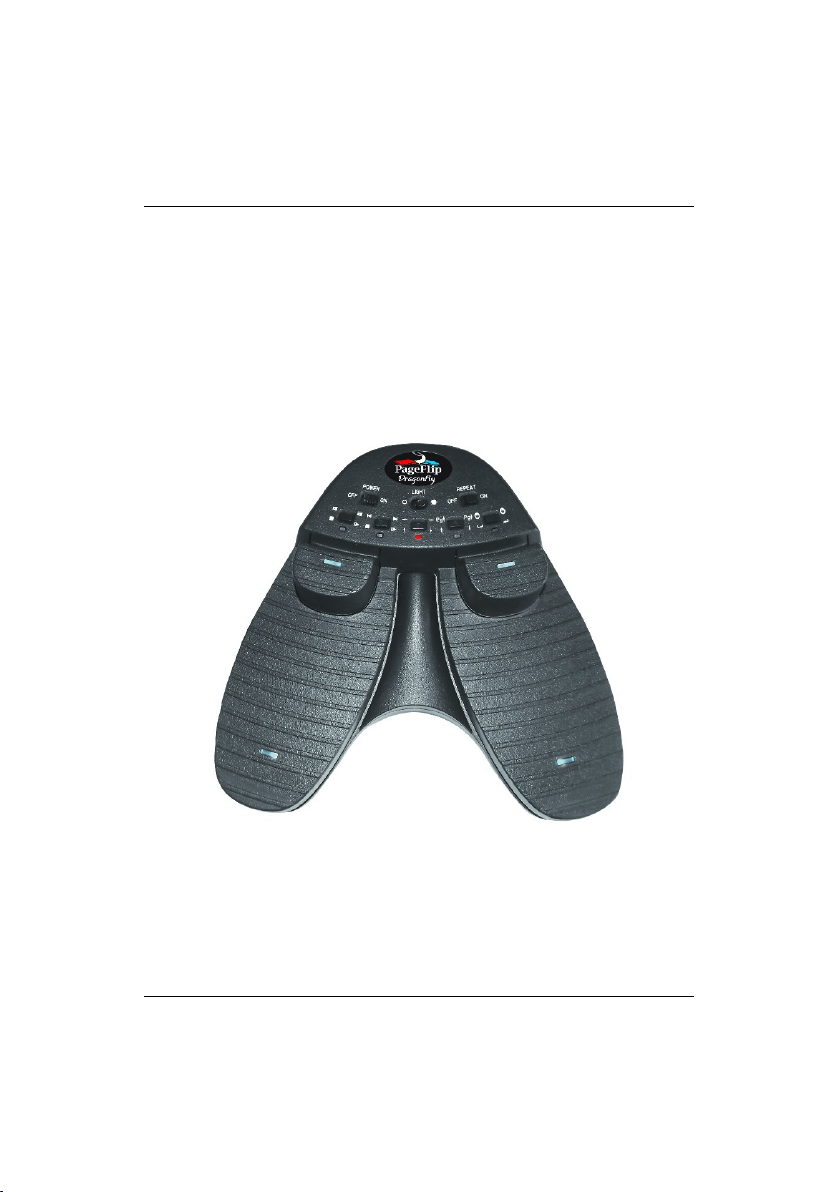

Simply open a digital file and press either of the primary (larger)
pedals of the PageFlip Dragonfly to turn a page forwards or backwards. Tap the secondary (smaller) pedals to launch two other
functions on the app.
• Convenience
Permits hands-free reading of vast libraries of scanned, purchased,
or freely downloaded digital content. There is no need to stop playing your musical instrument or wait for a care-giver to turn the page.
• Reliability
Turns one page at a time with 100% accuracy. Navigation of digital
content eliminates the risk of turning multiple pages at once, which
is a problem typically associated with physical books.
• Versatility

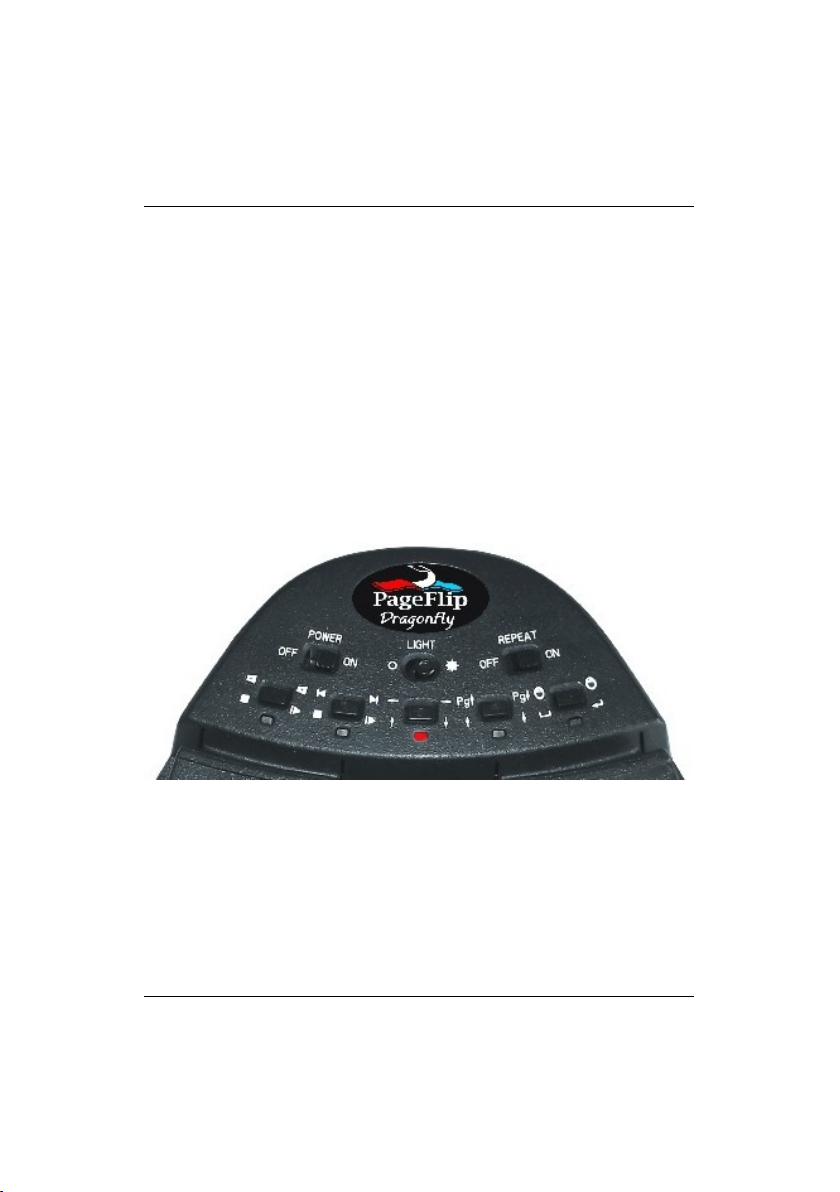

Press a mode button to select pedal functions:
(1) Volume-/Volume+/Stop/Play
(2) Previous/Next/Stop/Play
(3) Left/Right/Up/Down arrows
(4) PageUp/PageDown/Left/Right arrows
(5) LeftClick/RightClick/Space/Enter

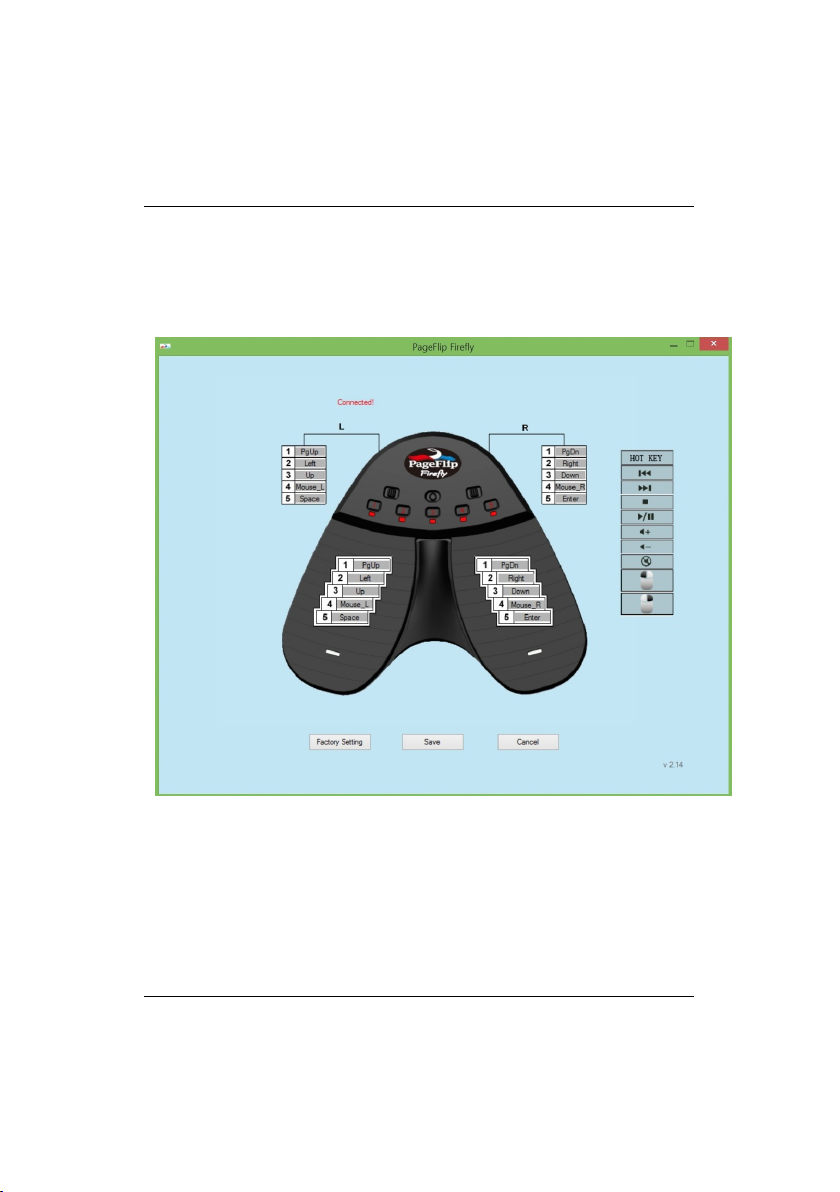

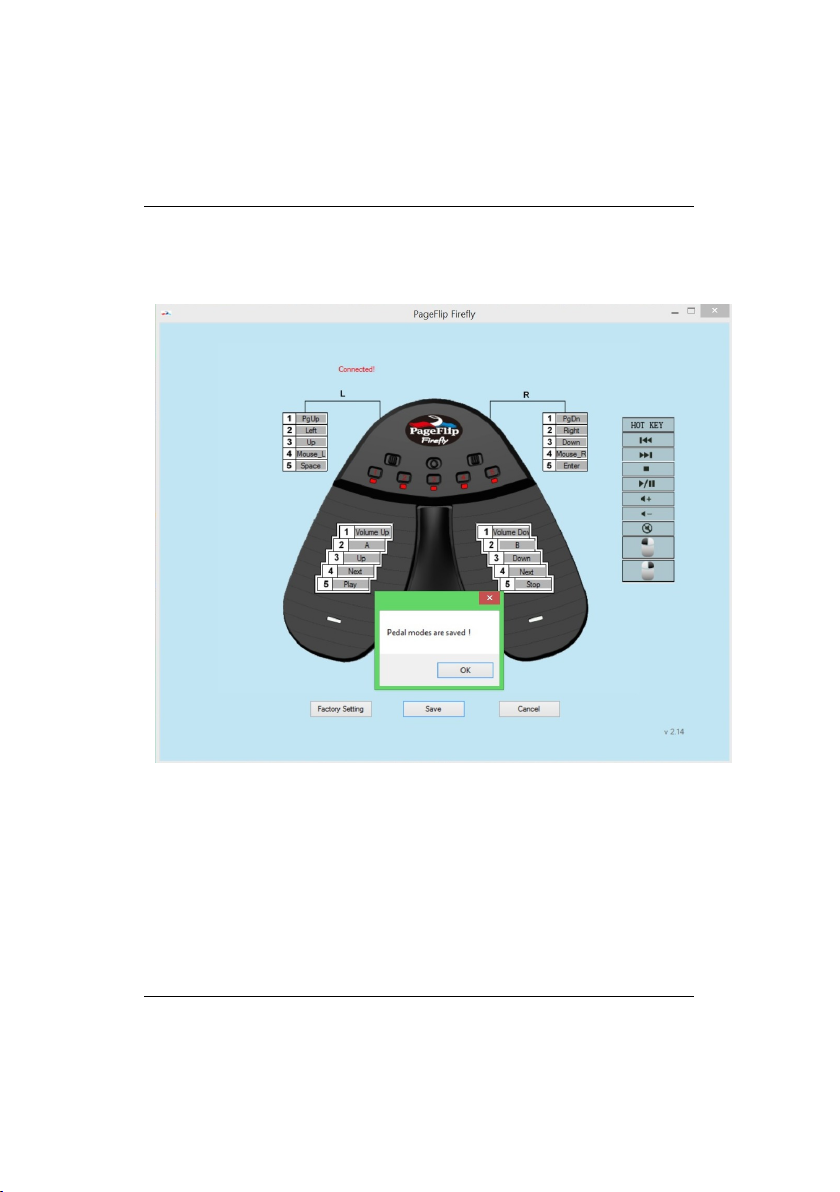

The pedals may be reprogrammed for added versatility. Download
the free Windows and Mac software from
• Robust Operation
A Repeat switch enables continuous scrolling while the pedal is
pressed down. Disable this feature for musical performances to
prevent inadvertent page turns in case of a slow pedal release or
to rest your foot on the pedal between page turns.
✇✇✇✳♣❛❣❡❢❧✐♣✳❝♦♠
.
PageFlip, Inc. 8 www.pageflip.com
PageFlip Dragonfly User Guide 2. FEATURES
• Wireless or Wired Connectivity
The PageFlip Dragonfly communicates wirelessly with the computer up to a range of 10 meters using standard Bluetooth 3.0 technology. For those users who lack a Bluetooth-equipped device or
simply prefer a wired connection, the pedal can be connected directly to their device via the supplied USB cable.
• Compatibility
Works with iPad and Android tablets using select apps that accept
keyboard commands, such as arrow keys. Compatible apps are
listed on
or Linux computer. Users may purchase a Bluetooth USB dongle
from
pedal to any computer that is not Bluetooth compliant.
✇✇✇✳♣❛❣❡❢❧✐♣✳❝♦♠
✇✇✇✳♣❛❣❡❢❧✐♣✳❝♦♠
. Also works with any Windows, Mac,
to bring the full benefits of this wireless
• Unique Pairing
Multiple pedals can be operated in the same room without interference. The Bluetooth pairing process uniquely establishes wireless
connectivity between the PageFlip Dragonfly and one computer.
Bluetooth pairing is automatically achieved without a passkey once
the pedal is selected among a list of discovered Bluetooth devices
on the tablet/computer.
• Auto Power-Off Function
PageFlip Dragonfly automatically turns itself off 30 minutes after
the last operation is performed. The pedal has a battery life of 200
hours of continuous page turning, or about 200,000 page turns.
• Portability
Small sturdy pedal operates on AC power or two AA batteries.
• Technical Support
Additional information and video tutorials can be found at
✇✇✇✳♣❛❣❡❢❧✐♣✳❝♦♠
PageFlip, Inc. 9 www.pageflip.com
