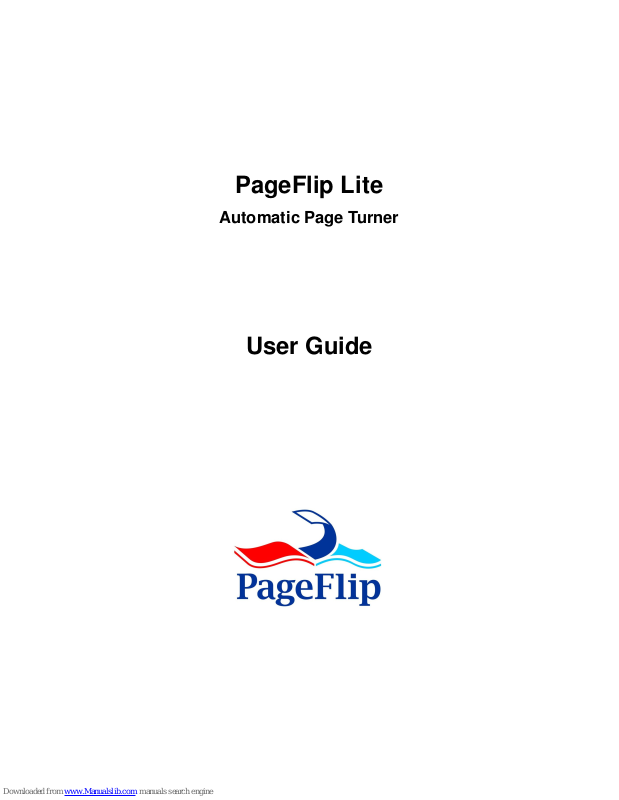

PageFlip Lite

Automatic Page Turner

User Guide

PageFlip Lite User Guide

Legal Notice

Copyright

c

2009 PageFlip Inc. All rights reserved.

Information in this document is subject to change without notice. All statements, information,
and recommendations in this manual are believed to be accurate but may include inadvertent
technical inaccuracies or typographical errors. PageFlip Inc. provides this information “as is”,
without warranty of any kind, either expressed or implied, including any implied warranties of
merchantability or fitness for a particular purpose. No part of this manual may be reproduced,
stored in a retrieval system, or transmitted in any form or any means electronic or mechanical,
including photocopying and recording for any purpose other than the purchaser’s personal use
without the written permission of PageFlip Inc.

Contents

c

2009 PageFlip Inc.

PageFlip Inc.
Woodmere, NY 11598
USA

www.pageflip.com
[e-mail]

Version 1.0
September 1, 2009

PageFlip, Inc. 2 www.pageflip.com

PageFlip Lite User Guide

FCC/CE Notice

This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
[pending approval]

Safety Notice

The following safety instructions must be followed to safely and correctly operate this device.
Please read this information carefully to avoid personal injury and property damage.

1. Do not place any container filled with liquid on the device.

2. Do not use a voltage other than the specified one.

3. Do not plug AC Adapter into socket with wet hands.

4. When removing the AC Adapter plug, be sure to always hold the case and then remove.

5. Before operating the device, make sure its installation and power connections are safe.
Then follow the manual to operate the device.

6. While operating the device, never insert your hand in the device cover.

7. Do not disassemble or modify the device.

PageFlip, Inc. 3 www.pageflip.com

PageFlip Lite User Guide 1. WELCOME

1 WELCOME

Congratulations on your purchase of the PageFlip Lite automatic page turner! This product
was designed to meet the needs of people with disabilities, musicians, and avid readers who
struggle with the challenge and inconvenience of page turning. The PageFlip Lite features
a patent pending solution to automate the mechanical process of turning pages. By simply
tapping a switch, pages of a book can now be flipped in either the forward or reverse directions
for uninterrupted hands-free reading. Be prepared to enjoy the benefits of the PageFlip Lite
automatic page turner.

The PageFlip Lite is compact, portable, reliable, and easy to use. It features 100% relia­bility in turning one page at a time. Just pull any book off the shelf, mount it on the PageFlip
Lite book holder, and slide ten sheets through mechanical arms to begin reading. We include
a wireless foot/hand pedal to trigger a page turn cycle in the forward or reverse directions. An
auxiliary outlet is available for use with an external switch via a 1/8" stereo plug. The unit is
compatible with a wide range of switches, including Jelly Bean and sip-and-puff switches (not
included). PageFlip Lite can be placed directly on a desk, table, piano, music stand, kitchen
counter, exercise equipment, or on the bed for convenient hands-free reading.

Figure 1: PageFlip Lite with mounted book.

PageFlip, Inc. 4 www.pageflip.com

PageFlip Lite User Guide 2. FEATURES

2 FEATURES

• Ease of Use

Simply attach a bound book to the PageFlip Lite bookholder, snap the bookholder to the
PageFlip Lite casing, turn the power on, and begin reading. Just press either end of the
wireless pedal to turn a page forwards or backwards.

• Convenience

Set up 10 sheets of a book in under one minute for uninterrupted hands-free reading of
20 pages (2 pages / sheet). There is no need to stop playing your musical instrument or
to wait for a care-giver to turn the next page.

• Reliability

Turns one page at a time with 100% accuracy. The manual setup of 10 sheets eliminates
the risk of turning multiple pages at once. The PageFlip Lite book holder firmly attaches
to the opened book to restrain pages from inadvertently turning back. Combines the
virtues of a secure book holder with the advanced features of an automatic page turner.

• Portability

The unit is small, light, battery-operated, and easy to carry anywhere.

• Wireless Remote Control

The wireless foot pedal is used to turn the pages in either direction. Tap one end of the
pedal to turn pages forward; tap the other end to turn pages backwards. Each wireless
pedal is automatically paired with one PageFlip Lite unit. An advanced frequency se­lection feature allows a user’s pedal to trigger their own unit without triggering another
nearby unit. Up to 32 PageFlip Lite users may operate their page turners independently
in the same room. The range of each pedal is 50 feet, allowing a second person to
operate the device remotely.

• Versatility

A collapsible support unit is supplied to allow the page turner to sit on a table or desk
while supporting a large book at various tilt angles. The support unit is not necessary
when a book rest is already available, as on a music stand or piano. In those cases, the
PageFlip Lite mounts directly on the music stand or keyboard instrument.

• Auto Power Off Function

The PageFlip Lite automatically turns itself off approximately 20 minutes after the last
operation is performed or if an error occurs.

• Technical Support

Additional information and videos can be found at

PageFlip, Inc. 5 www.pageflip.com

http://www.pageflip.com
