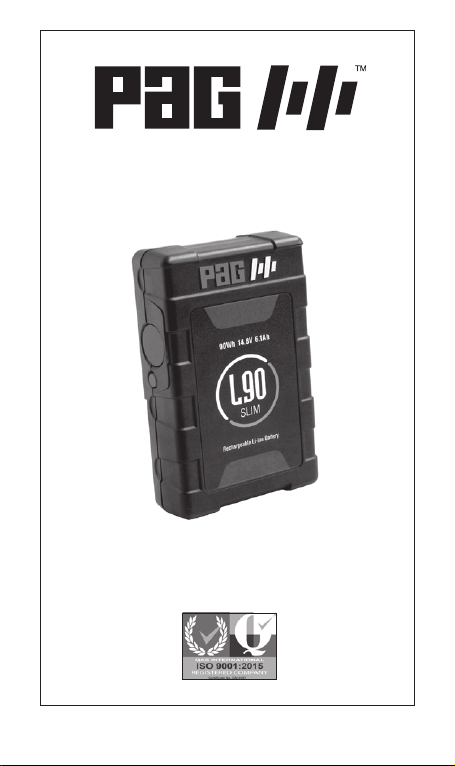

PAG L90 Users Guide

PAG L90 Slim Battery

INSTRUCTIONS

U5129 / OCT 2018

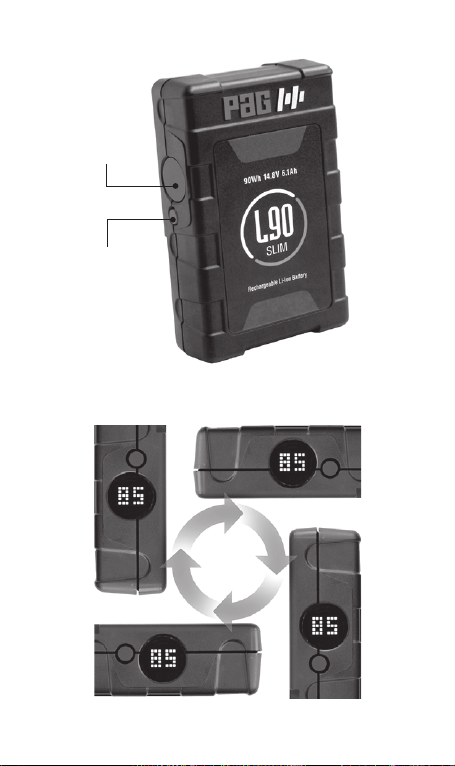

PAG L90 Slim Battery

Run-Time,

Capacity

& Data

Display

Display

Button

Reorienting Display

2

Thank you for choosing the PAG L90 Slim
rechargeable Li-Ion battery.

Please read the important safety information
and instructions before using the battery.

Keep the booklet for future reference and to
take with you when you travel by air with
your PAG batteries.

Contents

Section Page

1 Features 4

2 Specification 6

3 Charging 8

4 Discharging 9

5 Storage 10

6 Battery Display 11

7 Battery Protection Features 15

8 Safety & Disposal 17

9 Guarantee 20

10 CE Compliance 21

11 UN Testing 22

12 Air Transport Certificate 23

3

1. Features

• The PAG L90 Slim battery has a low-profile and
lightweight design, coupled with a high-current
capability. These features make it ideal for use with
small cameras that have a high power consumption,
in situations where battery size and weight must be
kept to a minimum.

• The PAG L90 Slim has been designed to withstand the
vibration associated with multi-rotor aerial platforms.

• It incorporates the latest high-capacity, high-current
cells which give it a greater energy density than most
90Wh V-Mount Li-Ion batteries.

• The L90 Slim delivers a maximum continuous current
of 10A.

• It features the industry’s first numeric Run Time &
Capacity Display which senses the orientation of the
battery and rotates to ensure legibility.

• Run-Time is displayed, on-load, to a resolution of 1
minute. Capacity/state-of-charge is displayed to a
resolution of 1%. Data displayed includes the number
charge/discharge cycles and software version.

• The accuracy of the display is maintained by tracking
battery performance, and adjusting calibration values
to compensate for the ageing of the cells.

• In keeping with the latest PAG battery technology,
the L90 Slim detects and adapts automatically to
multiple camera data systems, to provide capacity
information in the viewfinder/LCD of various cameras.

4

• The L90 Slim is future-proof; its firmware can be
updated easily by the user in the field.

• It is an intelligent battery which manages its own
charge and discharge safely. It can be charged using
the Li-Ion chargers of most reputable manufacturers.

• The PAG L90 Slim incorporates a superior design,
a high-quality construction and long-life, premier­quality Li-Ion cells, which have no memory effect
and are completely recyclable.

• The battery features a comprehensive and fail-safe
electronic protection system, which guards against
conditions that reduce battery life.

• The protection system circuit is conformally-coated
to protect it and ensure operation of the safety
systems in the event of damage to the battery.

• PAG’s battery design philosophy ensures that the
L90 Slim provides the longest possible working life.

• The battery is guaranteed for 2 years, without
restrictions on the conditions of use.

• The PAG L90 Slim has been tested to UN 38.3
standard by an independent authority and certified
safe for air transport in accordance with IATA
regulations.

• The battery has a capacity that is below 100 Watt­hours and is therefore suitable for transport on
passenger aircraft, in carry-on luggage, without
quantity restriction. See Page 23 Air Transport

Certificate.

5

2. Specification

2.1 Battery models covered by these instructions:

PAG L90 Slim Models 9307V & 9307GS.

2.2 Battery Connector:

V-Mount connector

2.3 Cell Technology: Premium grade, high-capacity, high-

current, sealed, Lithium-Ion rechargeable cells.

2.4 Capacity: 6.1 Ampere-hours nominal, 90 Watt-hours.

2.5 Voltage: 14.8V nominal. 8 cells connected in series/

parallel (4S2P). Each cell has a nominal voltage of

3.7V.

2.6 Output Current: The rated maximum continuous
output current is 10 Amperes.

2.7 Charge Voltage: 16.8V.

2.8 Run-Time & Capacity Display:

Numeric Display that senses the orientation of the
battery and adjusts accordingly, for legibility.
The display shows a run-time prediction on-load,
expressed in hours and minutes, to a resolution of
1 minute. Capacity/state-of-charge is displayed as a
percentage, in 1% increments.

2.9 Construction:

High-impact injection mouldings designed to protect
the cells from impact damage. PAG has incorporated
spacers between the cells to prevent the negative
affects of vibration, when mounted to multi-rotor

6

aerial platforms. The cells have welded
interconnections of low-resistance
nickel strap. The battery case is sealed.

2.10 Protection:

The battery incorporates safety shutdown systems
that guard against: over-current, over-voltage and
under-voltage. It also has thermal protection,
including a non-resetting thermal fuse. The
protection system circuit is conformally-coated to
protect it, and ensure operation of the safety systems
in the event of damage to the battery.

2.11 Operating Temperature Range:

Discharging: -20°C to +50°C

(Optimum +10°C to +40°C)

Charging: 0°C to +40°C
(Optimum +10°C to +30°C)

Storage: -10°C to +40°C
(Optimum 0°C to +20°C)

2.12 Dimensions (L x W x D):
140mm (5.51”) x 85mm (3.34”) x 35mm (1.37”)

2.13 Weight:

567g (1.25lbs)

7

3. Charging

3.1 IMPORTANT: The battery has been discharged for
transit, and should be fully charged before use.

Read the charger handbook before attempting to
charge the battery.

The battery is protected electronically, and will not
accept a charge from unsuitable chargers.

3.2 PAG L90 Slim batteries can be charged using the
following V-Mount chargers:

• PAGlink PL16 Charger (9707)

• PAGlink PL16+ Charger (9711)

• PAGlink Micro Charger (9713V)

• PAG RMC4X Rack-Mountable Charger (9702VR)

• PAGlink Cube Charger (9708) discontinued

• PAG Cube Charger (9702V) discontinued

• PAGlink Micro Charger (9710) discontinued

• PAG V4-iPC Charger (9700V) discontinued

• PAG V2 Charger (9613V) discontinued

• Constant-voltage, V-Mount Li-Ion chargers of other

reputable manufacturers.

3.3 PAG L90 Slim batteries display their individual status
on their display, when charged on PAG chargers.

3.4 The battery may be charged within the temperature
range 0°C to +40°C, but for optimum performance,
+10°C to +30°C is recommended. The battery
incorporates a precision temperature sensor which
will inhibit charging if its temperature is below 0°C.

8

3.5 Charge Times

For fully discharged batteries to fully charged using a
PAGlink PL16 or PL16+ charger.

1 battery 2 hrs 30 mins

2 batteries 3 hrs

4 batteries 6 hrs

4. Discharging

4.1 The battery incorporates a precision fixed end-of­discharge cutoff, set to 12.5V, as measured by the
battery. This cutoff will operate only if the battery
capacity is less than 5%, eliminating unwanted
cutoff operation due to high current and low battery
temperature.

4.2 Maximum continuous discharge current is 10A.
The battery incorporates an accurate precision current
limit, and consumption above 10A (for more than 5
seconds) will trigger the over-current protection,
turning the battery output off.

4.3 If the battery is discharged at too high a rate, even
momentarily, the protection circuit may be triggered,
disconnecting the battery output.

4.4 If the battery has been shut down by its protection
circuit it can be recovered by simply removing it from
the load and pressing the display button, provided
the battery still retains some charge.

4.5 The battery may be discharged within the tempera-

9

ture range -20°C to +50°C, but for optimum perform­ance, +10°C to +40°C is recommended. When the
battery has been discharged at a high rate it will
become war, and it is advisable to let it cool before
charging. The operating time will be shorter in
conditions of low temperature, and discharging will
be electronically inhibited if the battery tempera­ture is below -20°C.

4.6 Computer Reset

The battery features a computer reset function, which
may be required in exceptional circumstances. This is
achieved by holding-in the display button for 20
seconds.

5. Storage

5.1 For long-term storage, the battery should be initially

in the half-charged state.

5.2 The battery can be put into ‘Sleep Mode’ for long

term storage. This will reduce the level of self­discharge. See Section 6.4 Data Display to discover
how to put the battery into ‘Sleep Mode’ and how to
wake the battery.

5.2 Maintenance charging is not required during storage.

5.3 Store in a cool, dry place at a temperature between

-10°C to +40°C. Long-term storage outside of this
temperature range may reduce the battery’s life.

5.4 The battery should be in a fully charged state before

use. After extended storage it is advisable to give the
battery a top-up charge.

10

6. Battery Display

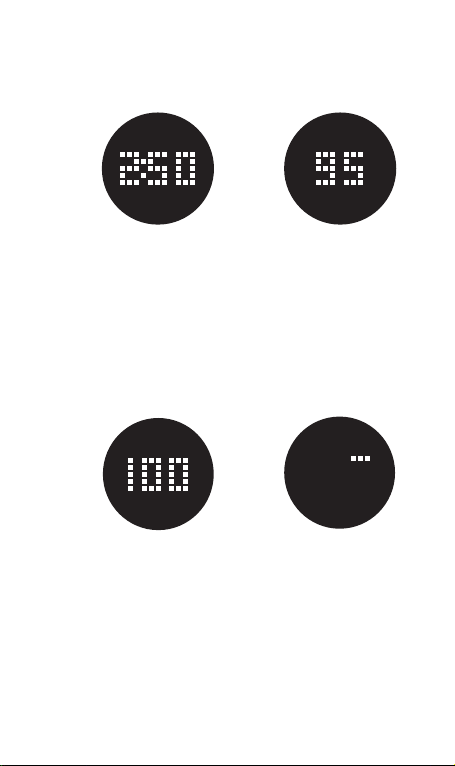

6.1 Run-Time & Capacity

12

1. When connected to equipment that is turned on,

two presses of the battery’s display button will
show a predicted run-time against the given load,
expressed in hours and minutes.

2. A single button press of the display, whether the

battery is off or on-load, shows a percentage figure
of available capacity, to a resolution of 1%.

34

3. When the battery is fully charged the display will

indicate 100%.

4. When battery is fully-discharged the display will

indicate as above.

The accuracy of the display is maintained by tracking
battery performance and adjusting calibration values
to compensate for the ageing of the cells.

11

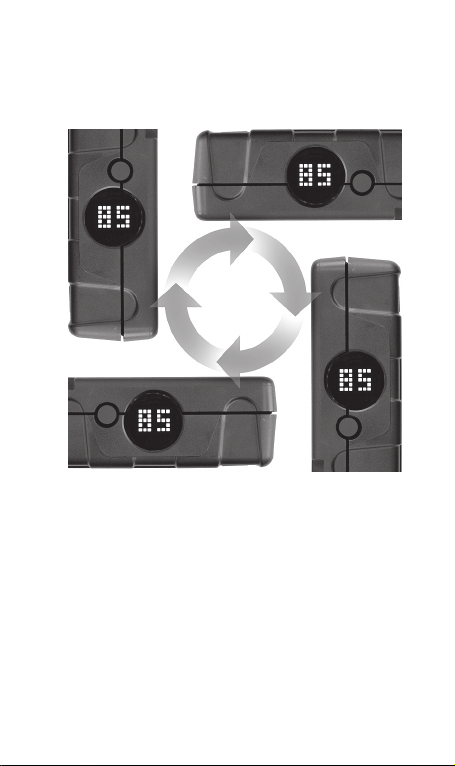

6.2 Reorientation

The Run-Time & Capacity display senses the
orientation of the battery and adjusts to ensure
legibility.

6.3 In-Viewfinder/LCD Battery Status

The PAG L90 Slim allows battery capacity to be
displayed as a percentage in the viewfinder or on the
LCD of cameras designed to accept this data. The
battery automatically adjusts the data output
standard to support SMB (Sony & Red) and I2C (IDX).

12

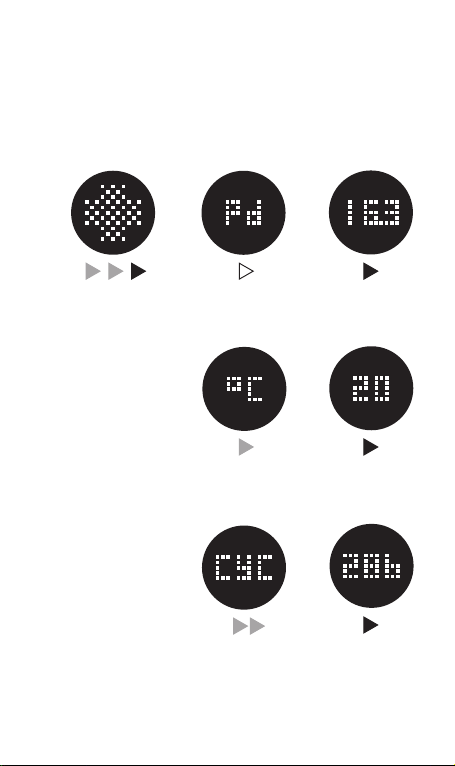

6.4 Data Display

The battery display can reveal data stored in the
battery’s internal microprocessor using a series of
button presses. Press the display button 3 times ­in 1 second intervals - and hold down on the third
press to put the display into data mode, indicated by
alternating patterns of lights:

Press x3 in 1 sec

intervals & hold to

enter data mode

Release to see

1st menu item:

‘Pd’ (voltage)

Press without

holding for 2nd

menu item

Press twice

without holding

for 3rd menu item

Press & hold for

3 seconds to see

voltage reading

Press & hold for

temperature in

degrees celsius

Press & hold for

number of charge/

discharge cycles

13

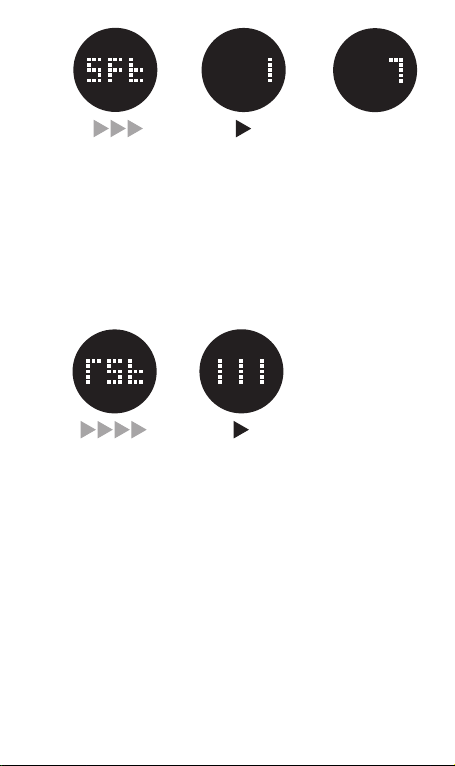

Press x3without

holding for

software version

After selecting to view the software version number, the
battery will enter Sleep Mode automatically. Sleep Mode
reduces battery self-discharge and can be used when you are
going to store or ship your batteries. To exit Sleep Mode or
‘wake’ the battery, press the display button twice.

Press & hold

for version

number

The number

appears in 2 parts

(indicating 1.7)

14

Press x4 for

computer reset

Press & hold to
perform reset & do
not release until 3

lines disappear

7. Battery Protection Features

7.1 Over-charge Protection

Charging will be inhibited if the battery voltage
exceeds a pre-set level.

7.2 Over-discharge Protection

When the battery voltage reaches 12.5V, discharging
is inhibited.

7.3 Over-current Protection

If a battery is subjected to a current greater than
10 Amps but less than 15 Amps, the output will be
turned off after 5 seconds. If the current is greater
than 15 Amps, the output will be turned off immed­iately. In either case, the battery display will be
inoperative and there will be no voltage available at
the terminals. The battery can be reset by removing
it from the load and pressing the display button.

7.4 Thermal Protection

Software protection inhibits charging if the battery
temperature is below 0°C. Return the battery to the
charger when the battery temperature rises above 0°C.

Software protection inhibits discharging if the battery
temperature falls to -20°C, or if it rises to +70°C.
The output can be restored when the battery
temperature becomes within the specified range by
pressing the button.

A thermal fuse is incorporated within the battery
construction as a ‘backstop’ protection device, and this
cannot be reset. In the unlikely event of this fuse
operating, please contact PAG or a PAG Distributor.

15

7.5 Construction

The cells are housed in high-impact injection
mouldings designed to protect them from impact
damage.

Although PAG batteries are designed to survive the
rigours of everyday use in a professional environment,
it is common sense to handle batteries with care and
to avoid subjecting them to severe impact.

PAG has incorporated spacers between cells to
prevent the negative affects of vibration, when
mounted to multi-rotor aerial platforms.

The protection circuit is conformally-coated, ensuring
the operation of the safety cut-outs in the event of
damage to the battery.

The internal wiring is rated for high current and high
temperature, and is double-insulated for added
safety and protection.

16

8. Safety & Disposal

8.1 When used correctly, Lithium-Ion batteries are a

rugged, safe, clean and trouble-free method of
storing power. However, the user should be aware
that incorrect treatment could present a hazard. In
the interest of safety, and the protection of our
environment, please read and observe the following
health and safety information.

8.2 GENERAL: Do not drop, puncture or crush the

battery. Do not short circuit the battery. Do not
attempt to use the battery if it has been submerged
in water. Do not continue to use the battery if there
is any change in the appearance of the casing. Do not
open the battery case.

8.3 CORROSIVE ELECTROLYTE: The electrolyte is an

alkaline solution which can cause chemical burns to
human tissue if leakage occurs. Wear protective
gloves when handling all contaminated materials. In
the event of contact with the skin, flood copiously
with clean water. If significant amounts of electrolyte
are involved, or if any has touched the eyes, seek
immediate medical attention.

8.4 SEVERE DAMAGE: PAG Li-Ion batteries incorporate

several levels of internal electrical protection, but
severe mechanical abuse could result in damage to
the cells, and a short-circuit internal to the battery.
Li-Ion cells can deliver power at very high rates.
Arcing, excessive heat and the liberation of combus­tible gas could result, with the potential for personal
injury or ignition of adjacent flammable materials.

17

8.5 SERVICING: The battery case is sealed to maintain

the integrity of the UN tested build standard.
Customers should not attempt to open the case for
repair or any other purpose. For servicing, please
contact your nearest authorised PAG Service Centre:

PAG UK:

Tel [phone], Email [e-mail]

PAG America:

Tel [phone], Email [e-mail]

If you are located somewhere other than the US and
the UK, please visit www.paguk.com/agents to
discover your nearest point of contact.

Please do not attempt to return Li-Ion batteries
without first contacting a PAG Service Centre.

8.6 DISPOSAL: Do not mutilate or incinerate batteries as

the cells may burst and release toxic material.

Do not dispose of batteries or cells in a charged
condition. Expired batteries should be disposed of in
accordance with the appropriate regulations or
legislation.

PAG Ltd. offers a Recycling Service for its expired
batteries. They can be returned to PAG by prior
arrangement only.

They must be in a discharged state and clearly
marked “FOR RECYCLING”.

18

8.7 PAG TECHNICAL INFORMATION:

For technical enquiries please contact PAG Ltd.

Email: [e-mail]

Tel: [phone]

19

9. Guarantee

Notwithstanding any provision of any agreement the
following guarantee is exclusive: PAG Limited
guarantees each PAG L90 Slim Battery it manufactures
to be free of defects in material and workmanship
under normal use and service for 2 YEARS from the
date of purchase. This guarantee extends only to the
original purchaser. This guarantee shall not apply to
fuses or any product or parts which have been
subject to misuse, neglect, accident or abnormal
conditions of operation.

In the event of failure of a product covered by this
guarantee, PAG Limited will repair and calibrate
equipment returned to an authorised Service Facility
within the period of the guarantee, provided the
guarantor’s examination discloses to its satisfaction
the product was defective. The guarantor may, at its
option, replace the product in lieu of repair. With
regard to any equipment returned within this period,
said repairs or replacements will be made without
charge. If the failure has been caused by misuse,
neglect, accident or abnormal conditions of
operation, repairs will be billed at a nominal cost.
In such a case, an estimate will be submitted before
work is started, if requested.

The foregoing guarantee is in lieu of all other
guarantees, express or implied, including but not
limited to any implied guarantee or merchantability,
fitness or adequacy for any particular purpose or use.
PAG Limited shall not be liable for any special,
incidental, or consequential damages, whether in
contract, tort, or otherwise.

20

PAG Ltd.
565 Kingston Road
London SW20 8SA
United Kingdom

EU Declaration of
Conformity

We, PAG Ltd. London, England

hereby declare that the products described below conform to
the relevant requirements of the appropriate EU Directives.
This declaration shall cease to be valid if modifications are
made to the products without our approval.

Product: PAG L90 Slim Li-Ion Battery

Models: 9307V & 9307GS

Applicable EU Directives:

EMC Directive 89/336/EU
CE Marking Directive 93/68/EU

Harmonised Standards Applied:
Generic: EN 50081 - 1 (Emissions)

EN 50082 - 1 (Immunity)

Product Specific:

IEC 801 - 2/3/4

Signed for and on behalf of PAG Ltd.

Alan Lavender, Chief Executive Date: 01.10.18.

21

Independent Testing
of Li-Ion Batteries
to UN Standards

Is your company buying Li-Ion Batteries that have NOT been
independently tested to United Nations standards as required by
Air Transport regulations?

IATA (International Air Transport Association) regulations state that
Li-Ion batteries must comply with the UN Manual of Tests and

Criteria, Part III, subsection 38.3

These regulations exist because poorly constructed Li-Ion batteries
have been known to break down internally and self-ignite.

Manufacturers state that their batteries comply with the regulations
for air transport, as required by the IATA and the ICAO (Interna­tional Civil Aviation Organization), but how many actually submit
their products for independent testing?

The only way to know for sure if the battery has been tested to
UN standards is by asking the manufacturer to produce a test
report issued by an independent test facility.

PAG Li-Ion batteries have been tested by Intertek Group PLC and
certified to comply with UN specification ST/SG/AC.10/11/Rev 4.

PAG L90 Slim Battery Test Report Number 102471069

Each PAG Li-Ion battery is labeled with the test report number
applicable to that battery design. Copies of the test reports can be
obtained from PAG.

When you arrive at the airport check-in you may be told that
without a test report number your Li-Ion batteries are
unsuitable for air transport. Choosing PAG Li-Ion batteries is
one way of ensuring that this scenario will never occur.

22

PAG Ltd.
565 Kingston Road
London SW20 8SA
United Kingdom

Air Transport Certificate
for PAG Li-Ion Batteries

PAG Ltd. London, England

hereby declares that the PAG L90 Slim Lithium-Ion battery has
been tested and certified by Intertek Group PLC to comply with
the UN Manual of Tests & Criteria, Part III, subsection 38.3 as
required by the IATA Dangerous Goods Regulations (2018),
Section 2.3.5.9.

PAG L90 Slim Battery Test Report Number: 102471069

In addition to UN testing, this Li-Ion battery has an individual
Watt-hour rating below 100Wh. This rating is in compliance
with the IATA DGR (2018) which states:

(a) each installed or spare battery must not exceed:

2. for lithium ion batteries, a watt-hour rating of not more
than 100Wh.

Signed for and on behalf of PAG Ltd.

Alan Lavender
Chief Executive
Date: 01.04.18.

23

POWER INNOVATION QUALITY

PAG is one of the broadcast industry’s longest
established global providers of innovative
portable power solutions. Founded in 1968, and
based in London, England, PAG is the original
designer and manufacturer of the world’s most
technologically advanced batteries, chargers,
power accessories and camera lights. The
company’s international customer base includes
broadcasting organizations, hire companies,
video production companies, freelancers,
cinematographers, videographers, the military
and civil authorities.

PAG Ltd. UK

565 Kingston Road
London SW20 8SA

T [phone]
E [e-mail]
www.paguk.com

© OCT 2018 PAG Ltd.
