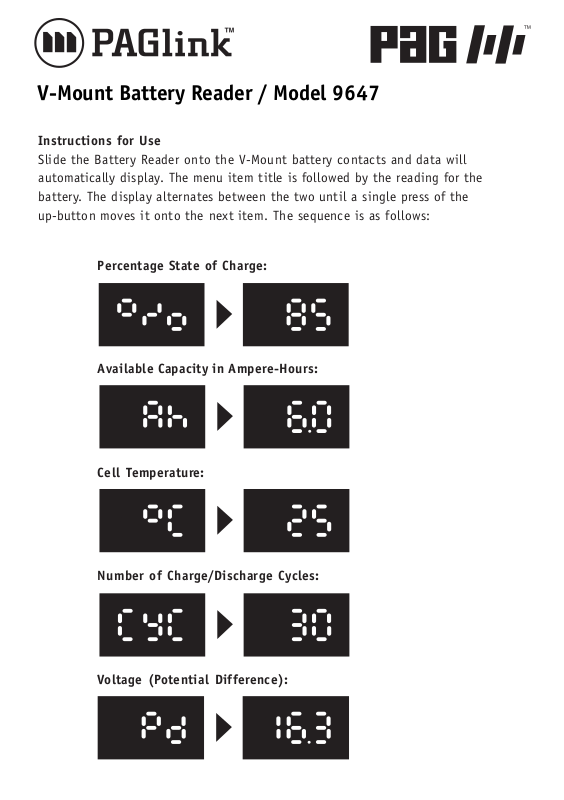

V-Mount Battery Reader / Model 9647
Instructions for Use
Slide the Battery Reader onto the V-Mount battery contacts and data will
automatically display. The menu item title is followed by the reading for the
battery. The display alternates between the two until a single press of the
up-button moves it onto the next item. The sequence is as follows:
Percentage State of Charge:
Available Capacity in Ampere-Hours:
Cell Temperature:
Number of Charge/Discharge Cycles:
Voltage (Potential Difference):

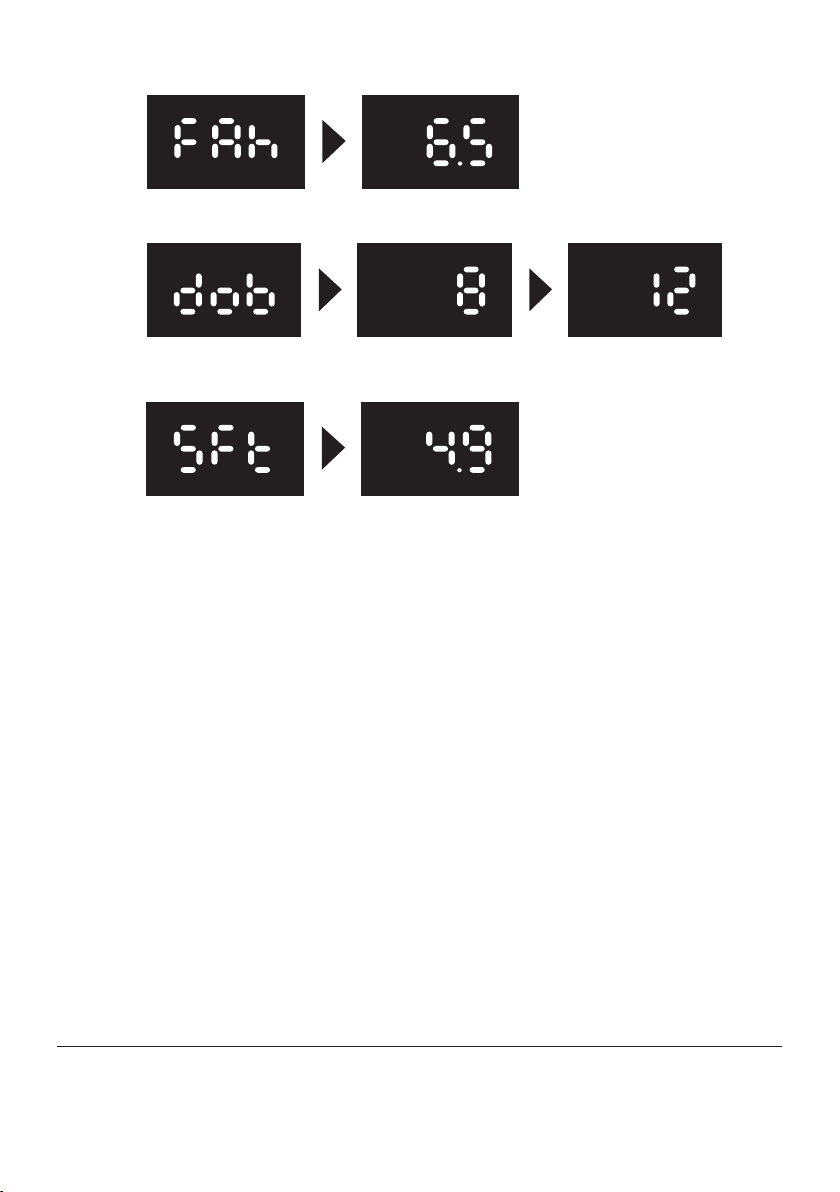

Full Capacity in Ampere-Hours:
Date of Birth (Month/Year):
Software Version:
Compatibility
The PAGlink Battery Reader is designed for use with the following batteries:
PAGlink PL96e Model 9303
PAGlink PL96T Model 9304
PAGlink PL150e Model 9308
PAGlink PL150T Model 9309
PAG L96e Model 9310V
PAG L96T Model 9305V
Sony V-Mount (Professional Info batteries)
The Reader can also be used with PAG L95e batteries, but will not provide software
version information.
U5125V
PAG Ltd.
565 Kingston Road
London SW20 8SA
E sales@paguk.com
T +44 (0)20 8543 3131
www.paguk.com
