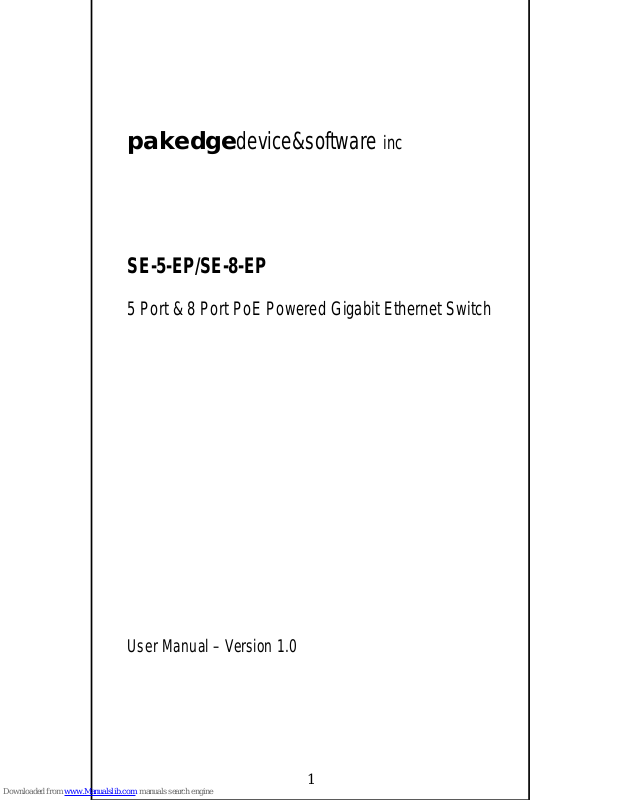

5 Port & 8 Port PoE Pow ered Gigabit Et hernet Sw it ch
edgedevice&software
-5-EP/SE-8-EP
inc
User Manual – Version 1.0
Page 2
2
CE Mark Warning
This equipment complies with the requirements relating to
elect romag netic co mpat ibilit y, E N 55022 class A for ITE, the essent ia l
protection requirement of Council Directive 89/336/EEC on the
approximation of the laws of the Member States relating to
electromagnetic compatibilit y.
FCC Certifications
This equ ip ment has been t est ed and f ou nd to co mpl y with t he li mits f or
a Class B digital d evice, pur suant t o part 15 of the FC C Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
fr equenc y ener g y and, if n ot inst al led a nd u sed in ac cor da nce w ith t h e
instruction manual, may cause harmful interference to radio
communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the
interfere nc e at the ir own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject
to t he follow ing two c ondit ions: ( 1) th is device may n ot cause har mf ul
interf ere nce, and (2) this de vice mus t acce pt any inter fer ence r ece ive d;
including interf erence t hat may c ause und esired o perat ion.
Trademarks:
All trade names and trade m arks are the properties of P akedge Device &
Software, Inc.
Copyright © 2015, All R ights Res erved.
Page 3
3
INTRODUCTION:
The SE-5-EP / SE-8-EP are compact, high-performance Gigabit
Ethernet switches equipped with five to eight auto-speed-sensing
10/100/1000Mbps ports. The sw it ch w ill a ut omat ica ll y negot iate w ith its
connec ted partner s on the net work sp eed and duplex mo de. The SE-5EP / SE-8-EP are perfect for segmenting large networks into smaller
connec ted subnet s for im proved performance or expan ding th e numb er
of por ts in an AV cabinet where o nly one CAT5e cable is locat ed.
The SE-5-EP / SE-8-EP has the option to be powered by a tra dition al a/c
adapter or by a PoE Ethernet Cable. Use of a P oE Ethernet ca ble gives
the user the opportunity to install the switch in remote places where
power outlet s are ina cc essible.
*CAUTION: Do not plug-in both the PoE and A/C Adapter. Doing so m ay
dama ge the sw itch.
The SE-5-EP / S8Wpde deliver a dedicated 10/100/1000Mbps
connec tion t o every attached client with no b andwidth conges tion i ss ue.
It s upports auto MDI / MDI-X function as well as 9k jum bo frames, which
mean better network performance because the switch can send more
data at the same time. Eac h port cou ld be used to connect t o another
swit ch or hub w ith no cr oss over RJ -45 cab le.
The switc h is plug-n-play without any software to configure and also fully
compliant with all network protocols. Its heavy du ty metal chas sis de si gn
provides for proper cooling and makes it easy to place on a desk or
mount on a wall. In addition, the fan-less design results in silent
operation, w hich is espec ia ll y import ant when it is mou nted to a wall.
Following cont ents in t his package：
• One G igabit Ethernet switch
• One DC power adapter
• User’s manu al
Page 4
4
DEFINITION AND GUI DE:
328 feet (100
328 feet (100
feet (100
LED definitions:
LED Status Operation
Power Steady Blue Pow er is on
Off Pow er is off
Link/ACT Steady Blue Port connected
Blinking Blue The por t is transmitting/rece iving dat a
Cable s electi on guide:
Network Speed Cable Type Max. Length
10Mbps Cat. 3, 4, 5 UTP/STP
100Mbps Cat. 5 UTP/STP
1000Mbps Cat. 5 UTP/STP
meters)
meters)
328
meters)
Page 5
5
SPECIFICATION:
Standard
IE EE 802.3 10BASE-T
Interface
5* 10/100/1000Mbps RJ-45 Gigab it Ethernet port s
Uplink
Auto MDI/MDI-X（Auto cros sover）
Net work Speed
10/100/10 00M bps & Full/Half dup lex mode auto
MAC Addr. Table
1K MAC entries
Buf fer Memory
832K bits
Jumbo Fr ame
9K bytes
Mechanical
SE-5-EP Dimensions- 149 x 84 x 26mm(w/o
Pow er Supply
External Pow er Adapter- 5V, 1A
EMI
CE, FCC class B
IE EE 802.3u 1 00BASE-TX
IE EE 802.3a b 1000BA SE -T
IE EE 802.3x full duplex oper ation a nd flow c ontrol
8* 10/100/10 00Mbps RJ -45 Gigabit Ethernet ports
detection (1000Mbps for Full duplex only)
(L x W x H mm)
Mounting
bracket), 156 x 31 x 87 (w/bracket )
Weight- 10.5 oz.
SE-8-EP Dimensions- 193 x 84 x 26mm (w/o
bracket) 210 x 31 x 87mm (w/ br ac ket)
Weight- 12.5 oz.
PoE 48V, 0. 5A – 5W max
Wall mount brac k et
Page 6
6
TECHNICA L SUPPO RT:
Please visit our web site for up-to-d ate support infor mation:
Website: www.pakedge.com
Email: [email protected]
CONTACT INFORMATION:
3847 Breakwater Avenue
Hayw ard, CA 94545-3606
U.S.A
© Pakedge Device & Software I nc . 2015 – All Rights Reserved
