Power Supply Unit..................................................................................................................................................4
Removing the Battery.............................................................................................................................................5
Removing the Memory Module ..............................................................................................................................5
Removing the Hard Disk Drive...............................................................................................................................6
Removing the Keyboard.........................................................................................................................................7
Removing the Optical Disk Drive............................................................................................................................9
Removing the LCD Module..................................................................................................................................10
Removing the LCD Panel.....................................................................................................................................12
Removing the CPU...............................................................................................................................................13

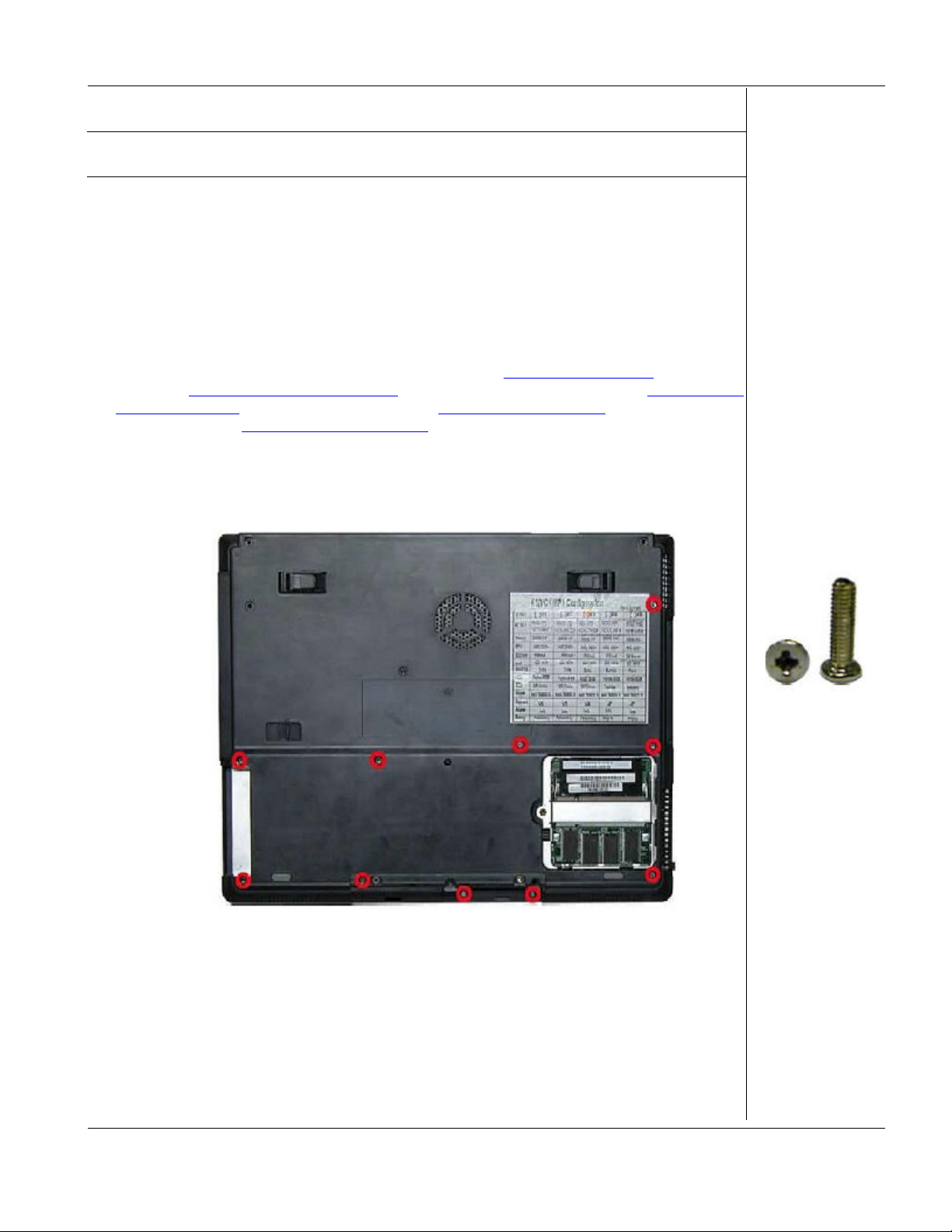

Removing the Top Cover .....................................................................................................................................15
Removing the Touch Pad.....................................................................................................................................17

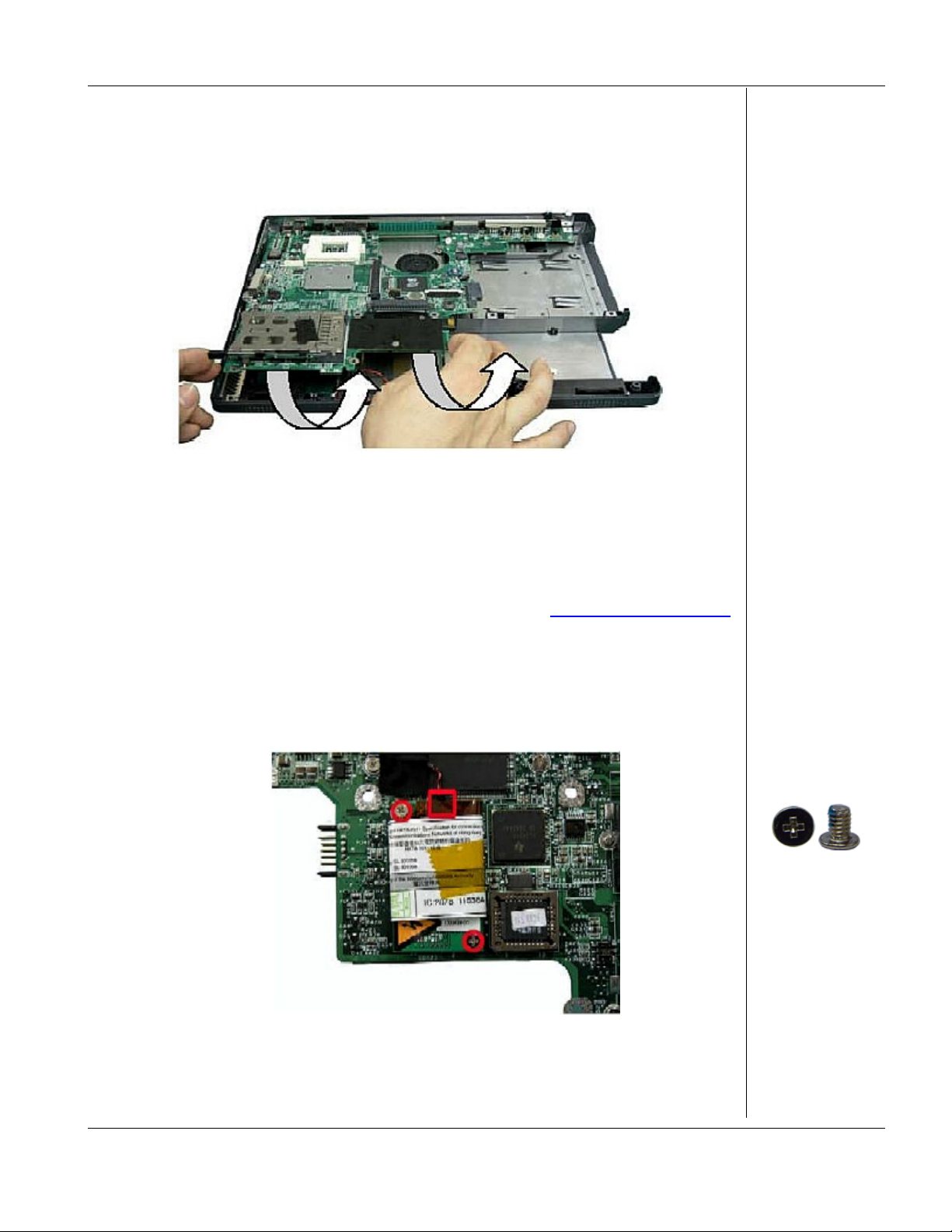

Removing the Main Board....................................................................................................................................17
Removing the MDC Modem.................................................................................................................................19

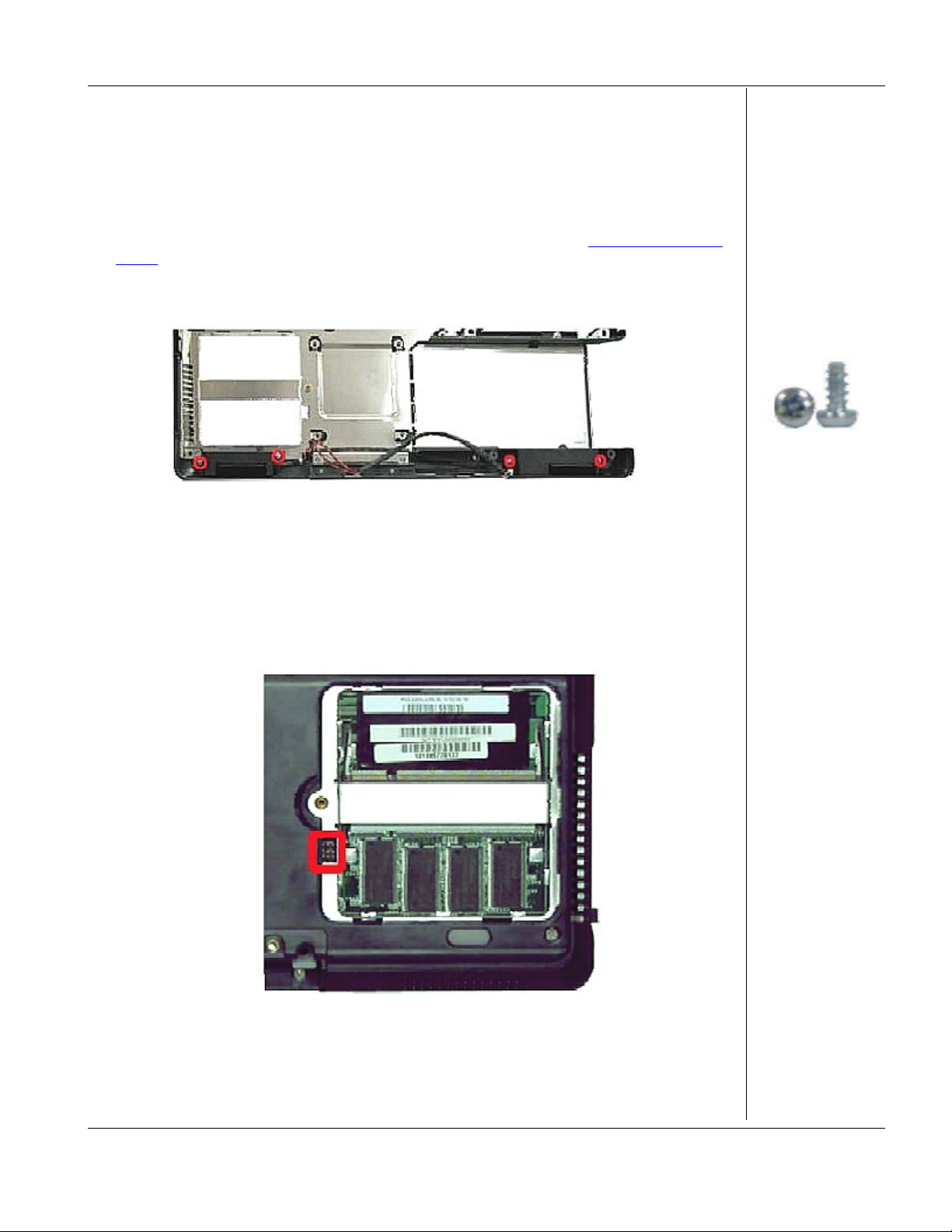

Removing the Speaker Assembly........................................................................................................................20
This document contains step-by-step disassembly instructions for the EasyNote C3 chassis. The instructions are
illustrated where necessary with images of the part that is being removed or disassembled. Furthermore, the screws
that are removed are shown next to the image of the parts themselves.
NEC reserves the right to make changes to the EasyNote C3 chassis without notice.
Technician Notes
Only technicians authorized by NEC Computers International BV should attempt to repair this equipment. All
troubleshooting and repair procedures are detailed to allow only subassembly/module level repair. Because of the
complexity of the individual boards and subassemblies, no one should attempt to make repairs at the component
level or to make modifications to any printed wiring board. Improper repairs can create a safety hazard. Any
indication of component replacement or printed wiring board modifications may void any warranty or exchange
allowances.
Disassembly Instructions
When disassembling the system unit, follow these general rules:
Do not disassemble the system into parts that are smaller than those specified in the instructions.
Label all removed connectors. Note where the connector goes and in what position it was installed.
Turn off the power and disconnect all power and all options.
Reassembly Instructions
Reassembly is the reverse of the disassembly process. Use care to ensure that all cables and screws are returned
to their proper positions. Check that no tools or any loose parts have been left inside the chassis. Check that
everything is properly installed and tightened.
Required Tools
All disassembly procedures can be performed using the following tools:
PH 0x40 Philips screwdriver
4.0 x 60 Flat screwdriver
2.0 x 30 Flat screwdriver
SW5,0 Spacer screwdriver
Small tweezers
Packard Bell EasyNote C3 Disassembly Manual
3
Hazardous Voltage
There is hazardous voltage present inside the computer
when it is connected to an AC supply, even when the
computer’s power switch is off. Exposure to hazardous
voltage could cause personal injury. To avoid risk of injury,
contact an Authorized Service Provider for proper
(un)installation of optional hardware devices.
Avoid Electrostatic Discharge
Electrostatic electricity can easily damage circuit cards and
integrated circuits (ICs). To reduce risk of damage, store
them in protective packaging whenever they are not
installed in your system.
Add-in cards can be extremely sensitive to ESD and always
require careful handling. After removing the card from the
computer, place the card flat on a grounded, static-free
surface, component-side up. Use a conductive foam pad if
available, but not the card wrapper. Do not slide the card
over any surface.
Before you install or remove memory modules, video
memory, disk drives, circuit cards or other devices, protect
them from static electricity. To do so, make sure your
computer’s power switch is OFF. Then, unplug the
computer’s AC power cord. Before picking up the device you
(un)install, you should wear an anti-static wrist wrap
(available at electronic supply stores). Be sure to connect
the wrist wrap to an unpainted metal portion of the computer
chassis. As an alternative, you can dissipate electrostatic
build-up by touching an unpainted metal portion of the
computer chassis with one hand. Then touch the device you
are (un)installing with the other hand, and maintain
continuous contact with it until it is (un)installed in the
computer.
Power Supply Unit
Under no circumstances should you attempt to disassemble
the power supply. The power supply contains no userserviceable parts. Inside the power supply are hazardous
voltages that can cause serious personal injury. Always
return a defective power supply to your dealer.
WARNING
Ensure that the computer is disconnected from
its power source and from all
telecommunications links, networks, or modem
lines whenever the chassis cover is removed.
Do not operate the computer with the cover
removed.
AVERTISSEMENT
Assurez-vous que le système est débranché de
son alimentation ainsi que de toutes les
liaisons de télécommunication, des réseaux, et
des lignes de modem avant d’enlever le capot.
Ne pas utiliser le système quand le capot est
enlevé.
WARNUNG
Das System darf weder an eine Stromquelle
angeschlossen sein noch eine Verbindung mit
einer Telekommunikationseinrichtung, einem
Netzwerk oder einer Modem-Leitung haben,
wenn die Gehäuseabdeckung entfernt wird.
Nehmen Sie das System nicht ohne die
Abdeckung in Betrieb.
ADVERTENCIA
Asegúrese de que cada vez que se quite la
cubierta del chasis, el sistema haya sido
desconectado de la red de alimentación y de
todos lo enlaces de telecomunicaciones, de red
y de líneas de módem. No ponga en
funcionamiento el sistema mientras la cubierta
esté quitada.
WAARSCHUWING
Zorg er voor dat alle verbindingen van en naar
de computer (stroom, modem netwerk, etc)
verbroken worden voordat de behuizing
geopend wordt. Zet de computer nooit aan als
de behuizing geopend is.
AVVERTENZA
Prima di rimuovere il coperchio del telaio,
assicurarsi che il sistema sia scollegato
dall’alimentazione, da tutti i collegamenti di
comunicazione, reti o linee di modem. Non
avviare il sistema senza aver prima messo a
posto il coperchio
Packard Bell EasyNote C3 Disassembly Manual
4
Removing the Battery
Perform the following steps to remove the battery:
1. Make sure to power off the EasyNote C3.
2. Turn the unit upside down.
3. Unlock the battery and slide it out of its place as the arrow shows in Fig. 1
Fig. 1 Releasing the battery
Removing the Memory Module
To remove the Memory Module, first remove the battery (see Removing the Battery), then
perform the following steps:
1. Release the one screw retaining the memory module cover.
M2x4.5 silver
Fig. 2 Removing the screw retaining the memory cover
Packard Bell EasyNote C3 Disassembly Manual
5
2. Unclip the memory module as shown in Fig. 3
Fig. 3 Removing the memory module
3. Remove the memory module from its slot and put it aside.
Removing the Hard Disk Drive
To remove the hard disk drive, first remove the battery (see Removing the Battery), then
perform the following steps:

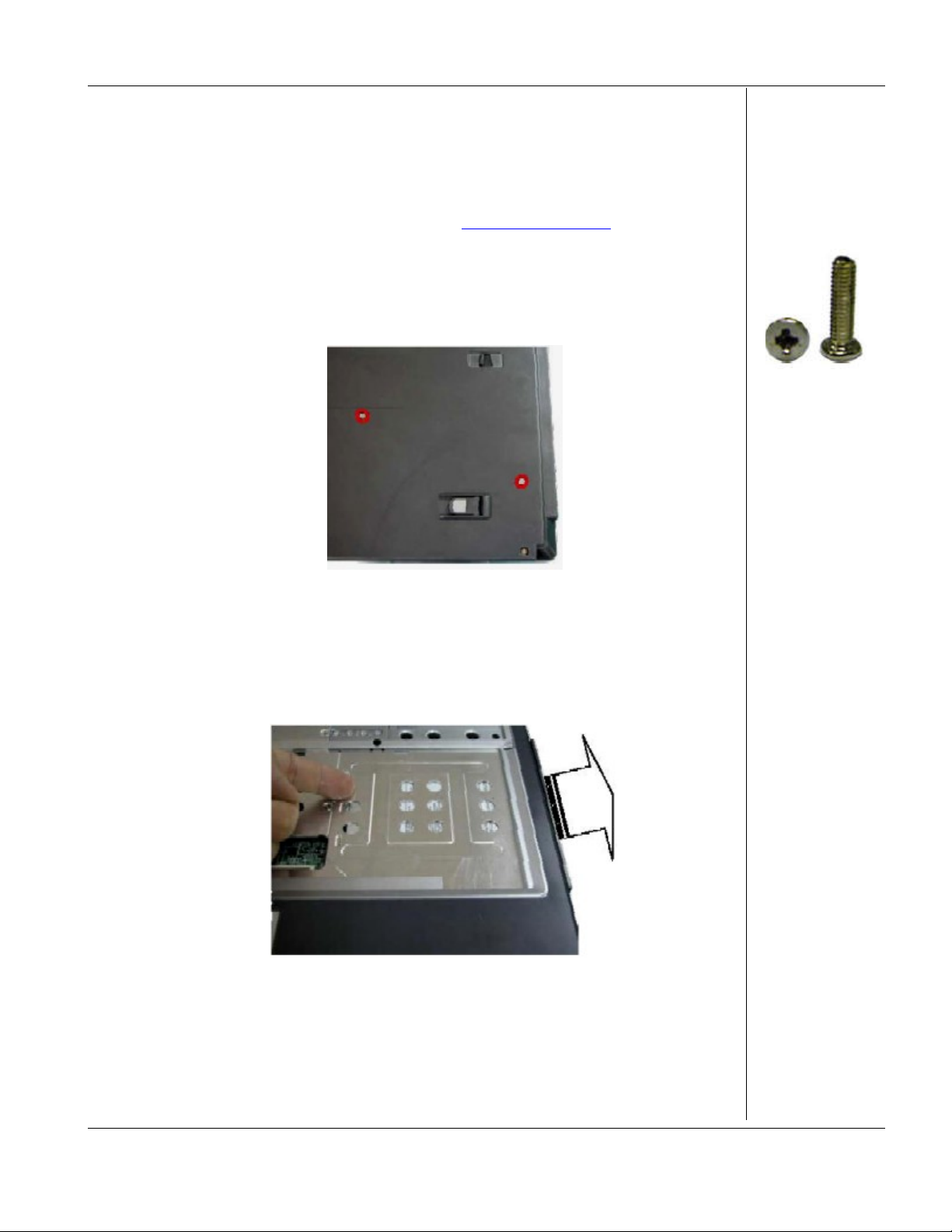

1. Unscrew the screws as shown in Fig. 4 to remove the HDD cover.
M3x6 silver
Fig. 4 Removing the hard disk drive cover
2. Release the screws that secure the HDD as shown in Fig. 5, and carefully pull out
the HDD assembly.
Packard Bell EasyNote C3 Disassembly Manual
6
Fig. 5 Screws retaining the HDD assembly
Removing the Keyboard
To remove the Keyboard, first remove the battery (see Removing the Battery), then perform
the following steps
1. Release the keyboard cover from the rear of the system as shown in Fig. 6
Fig. 6 Releasing the keyboard cover
2. Lift up the keyboard cover carefully as shown in Fig. 7
Fig. 7 Lifting up the keyboard cover
:
Packard Bell EasyNote C3 Disassembly Manual
M3x6 silver
7
